AMD · Chip · Filed Mar 26, 2025 · USPTO published Oct 1, 2026 · Oct 1 release

AMD Files Patent for a Single Chip That Merges AI Processing With Graphics

AMD's chip design arm Xilinx has filed a patent for a single integrated circuit that wires an AI processing array directly to graphics processing cores, letting both sides share the same memory without the delays that come from shipping data between separate chips.

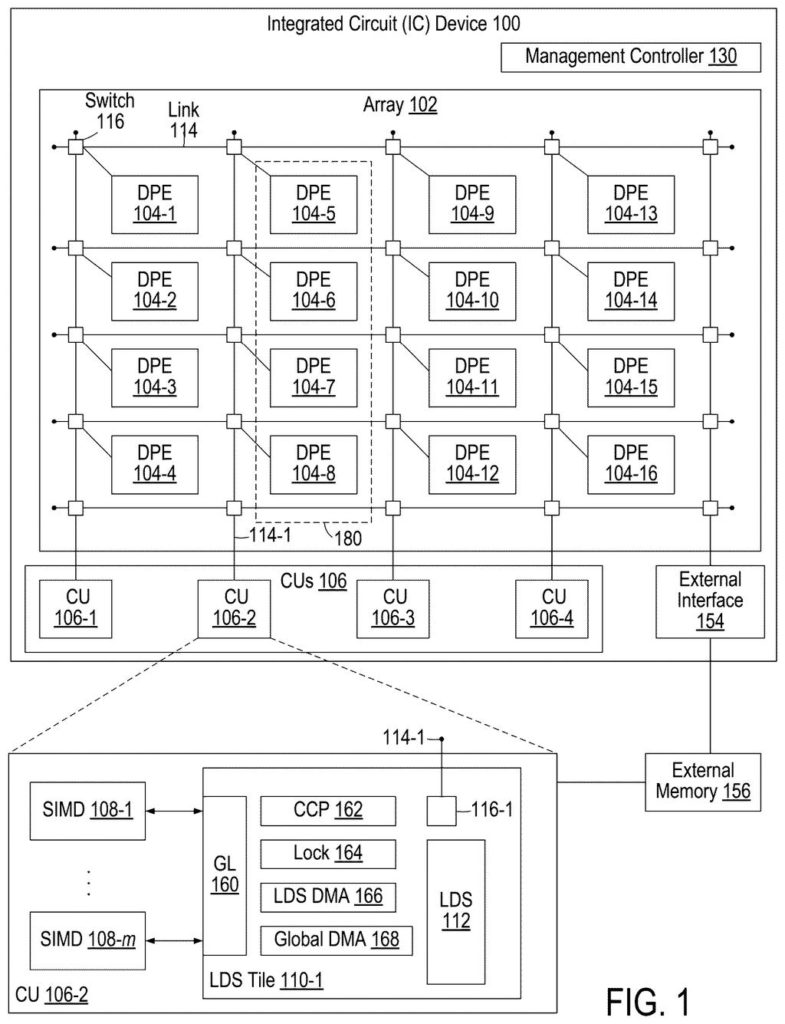

An integrated circuit device combines an array of data processing elements with compute units and an external interface. Drawing from patent filing US 2026/0301107 A1.
An integrated circuit device combines an array of data processing elements with compute units and an external interface.All 10 drawings ↓
Publication number
US 2026/0301107 A1(US20260301107A1)
Applicant
XILINX, INC.
Filed · Published
Mar 26, 2025 · Oct 1, 2026
Inventors
Juan J. NOGUERA SERRA, Mr. Javier CABEZAS RODRIGUEZ, Sneha Bhalchandra DATE, Alejandro RICO CARRO
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/502
Examiner
RICKS, DONNA J (Art Unit 2618)

What AMD's fused AI-and-graphics chip actually does

You're running an AI model and a graphics renderer at the same time, and your computer keeps shuffling data back and forth between two separate chips. That handoff is slow, and the gap adds up fast.

AMD's patent describes a chip design where the AI side and the GPU side live together on one piece of silicon. The AI processing blocks and the graphics cores can both reach into a shared pool of local memory, coordinated by circuitry that keeps them from stepping on each other's data. Think of it like two workers sharing one filing cabinet, with a clear system for who opens which drawer and when.

The key detail is the shared memory setup. Instead of the AI and graphics sections sending messages to each other across a slow external bus, they read and write the same storage directly. That's the design bet AMD is making here.

From the filing · CLAIM 1
a data processing array comprising data processing elements (DPEs) and a network of links and configurable switches; and a first compute unit configured to interface with a first subset of the DPEs via the network of links and switches …

Translation: The chip uses a network of switches to connect computing units directly with data processing elements.

How the AI array and GPU cores share the same memory pool

The patent describes an integrated circuit (IC) that combines two kinds of processing hardware that are usually kept separate: an AI engine (a grid of programmable data processing elements, or DPEs) and a graphics processing unit (GPU).

The GPU side is organized into shader engines, each containing multiple compute units (CUs). Each compute unit holds a set of SIMD processors (single-instruction multiple-data processors, meaning they run the same operation on many data points at once, which is how GPUs crunch through graphics and math), plus a local data storage system (LDS), which is a small, fast patch of on-chip memory.

The novel part is the synchronizer circuitry inside each compute unit. It acts as a traffic controller, deciding when the SIMD processors can read or write the LDS and when the AI processing elements can do the same. Both sides connect through a network of links and configurable switches that runs across the chip, letting any compute unit talk to any subset of DPEs.

  • Each compute unit is paired with a specific group of AI processing elements.
  • Multiple compute units share a shader engine.
  • Multiple shader engines can exist on the same chip, all linked through the same network.

The design allows the AI array and the GPU cores to pass data through shared memory rather than across external connections, cutting the round-trip time significantly.

From the filing · THE ABSTRACT
An integrated circuit (IC) device having an integrated artificial-intelligence engine (AIE) and a graphics processing unit (GPU) …

Translation: A single silicon chip combines a graphics processor with artificial intelligence hardware.

What a fused AI-GPU chip could mean for your devices

Chips that handle AI and graphics separately must move data between them constantly, and that movement costs time and power. Fusing both onto one die with shared memory is a way to cut that cost at the hardware level, which matters for anything from gaming to real-time AI image generation to robotics.

For you as a consumer, the practical upside would be devices that run AI and graphics together more efficiently, potentially with less heat and better battery life. This is still a circuit architecture described in a patent, so there is a real gap between this filing and a shipping product. But AMD's interest in tightly coupled AI and compute silicon suggests the company is working toward chips where the AI layer is a first-class citizen alongside graphics, not an afterthought bolted on.

AMD's 41st filing we've tracked since May in the AI chip race follows earlier work on a header that cuts wasted data and shared memory between processor groups.

Source: US 2026/0301107 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time AMD patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0301107 A1 · click any drawing to enlarge

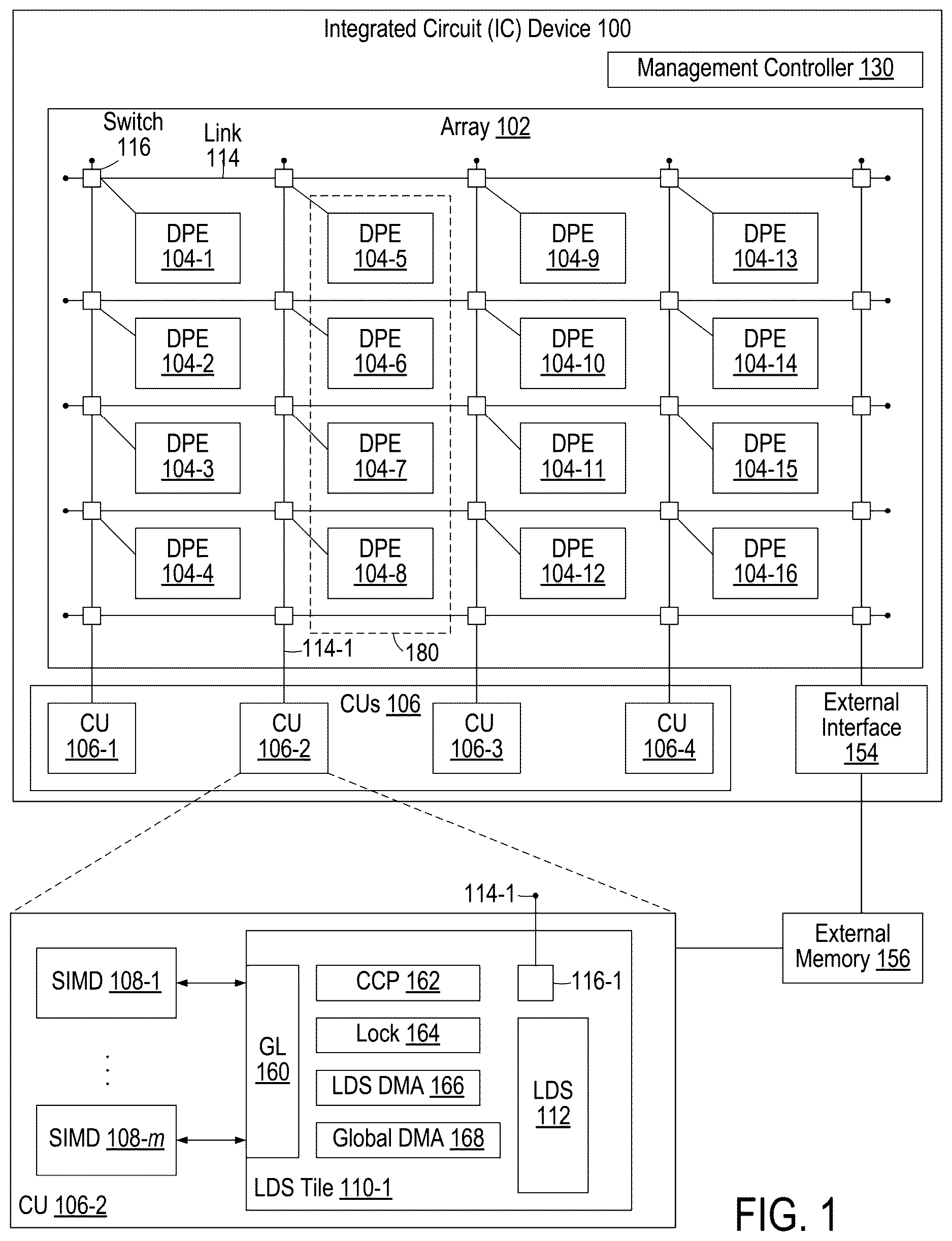

Integrated circuit device architecture, drawing sheet 1 from US 2026/0301107 A1
Sheet 1 Integrated circuit device architecture

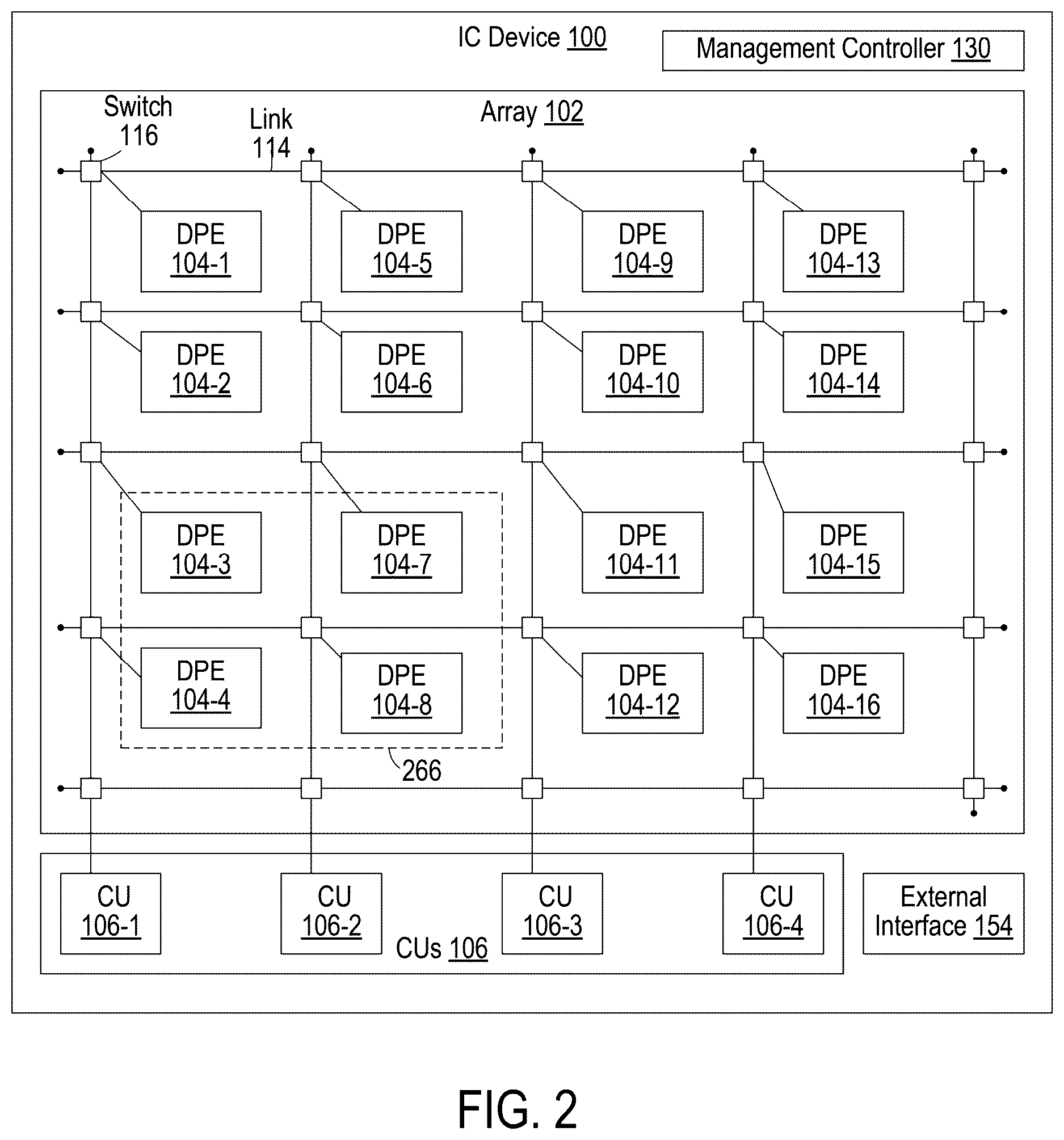

Integrated circuit device with processing elements, drawing sheet 2 from US 2026/0301107 A1
Sheet 2 Integrated circuit device with processing elements

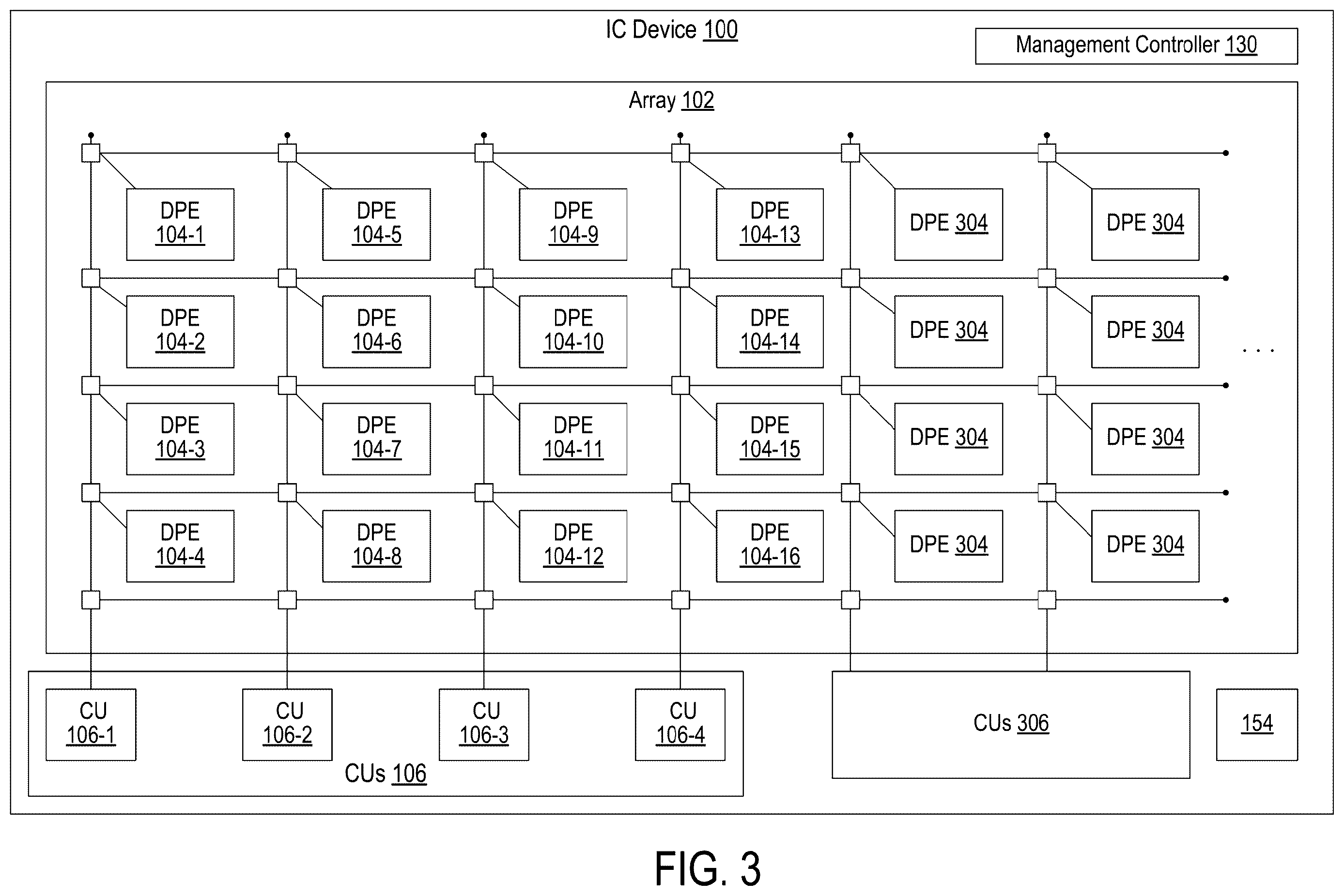

Integrated circuit device with expanded array, drawing sheet 3 from US 2026/0301107 A1
Sheet 3 Integrated circuit device with expanded array

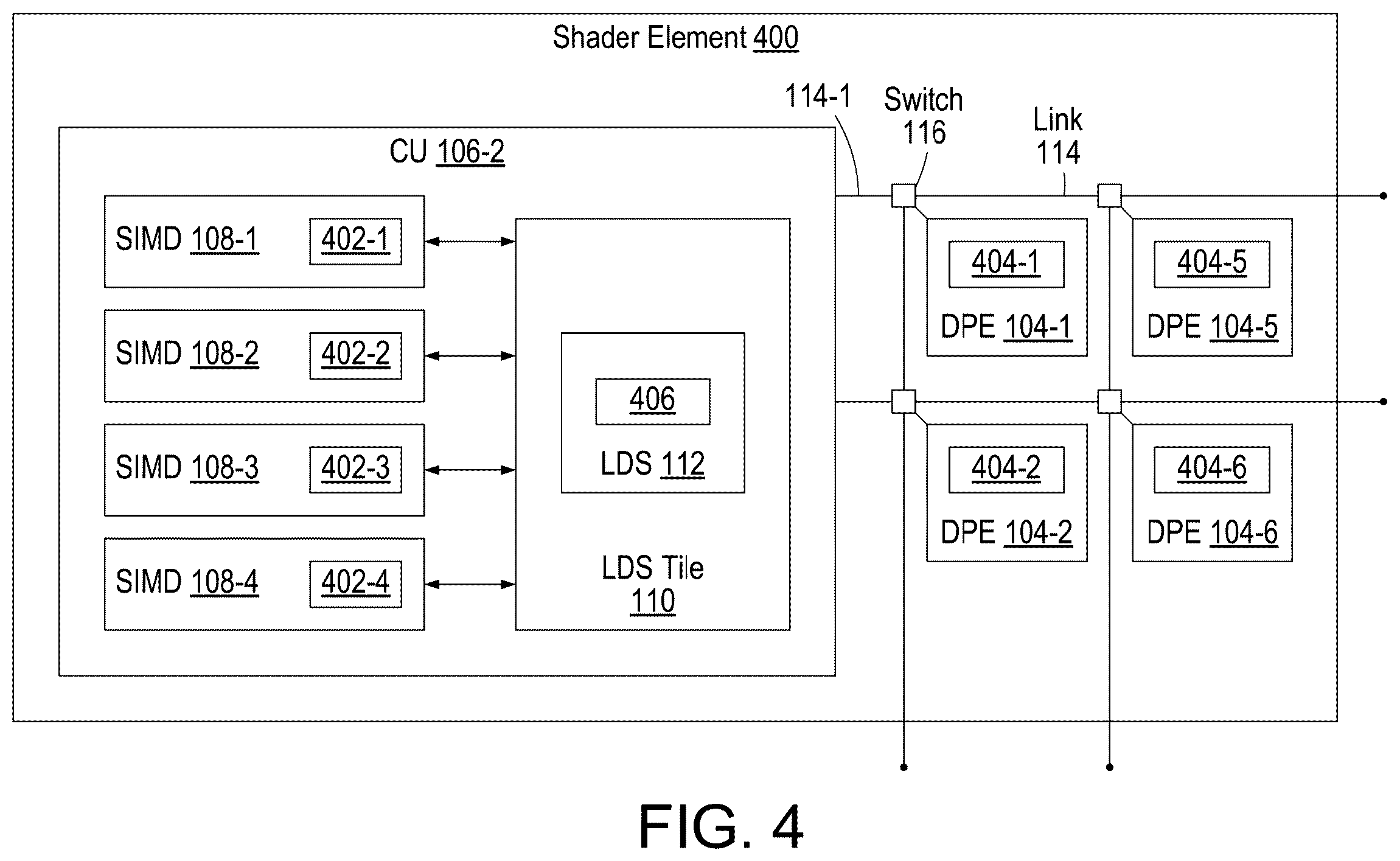

Shader element with processing elements, drawing sheet 4 from US 2026/0301107 A1
Sheet 4 Shader element with processing elements

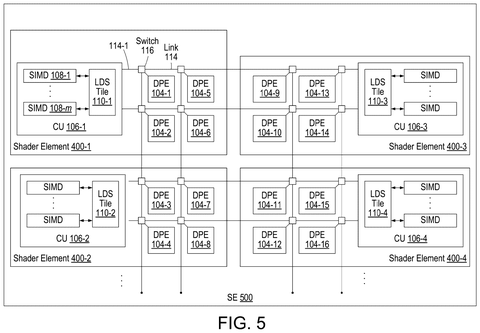

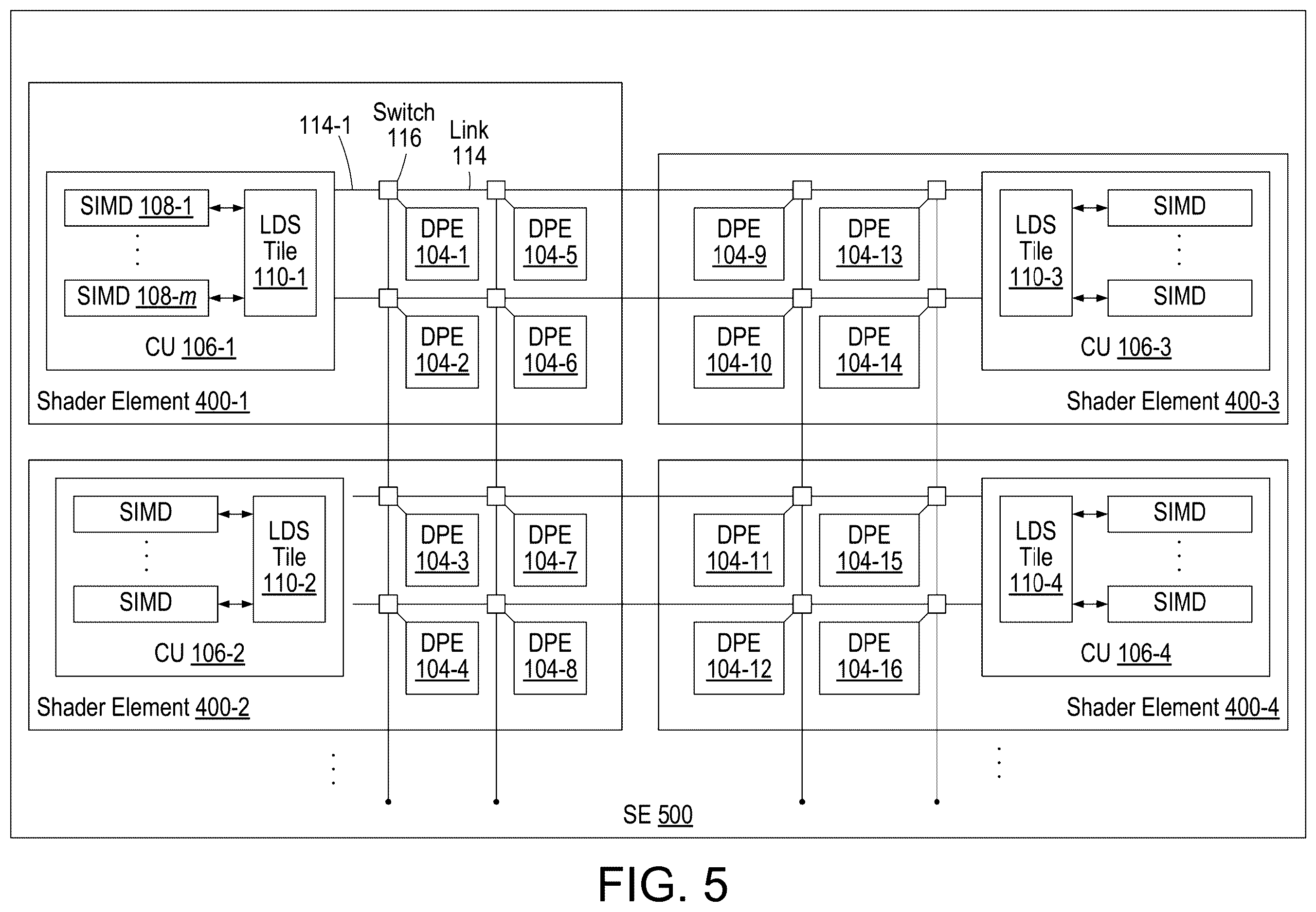

Multiple shader elements with processing elements, drawing sheet 5 from US 2026/0301107 A1
Sheet 5 Multiple shader elements with processing elements

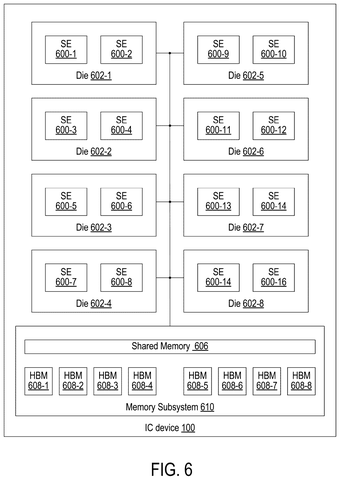

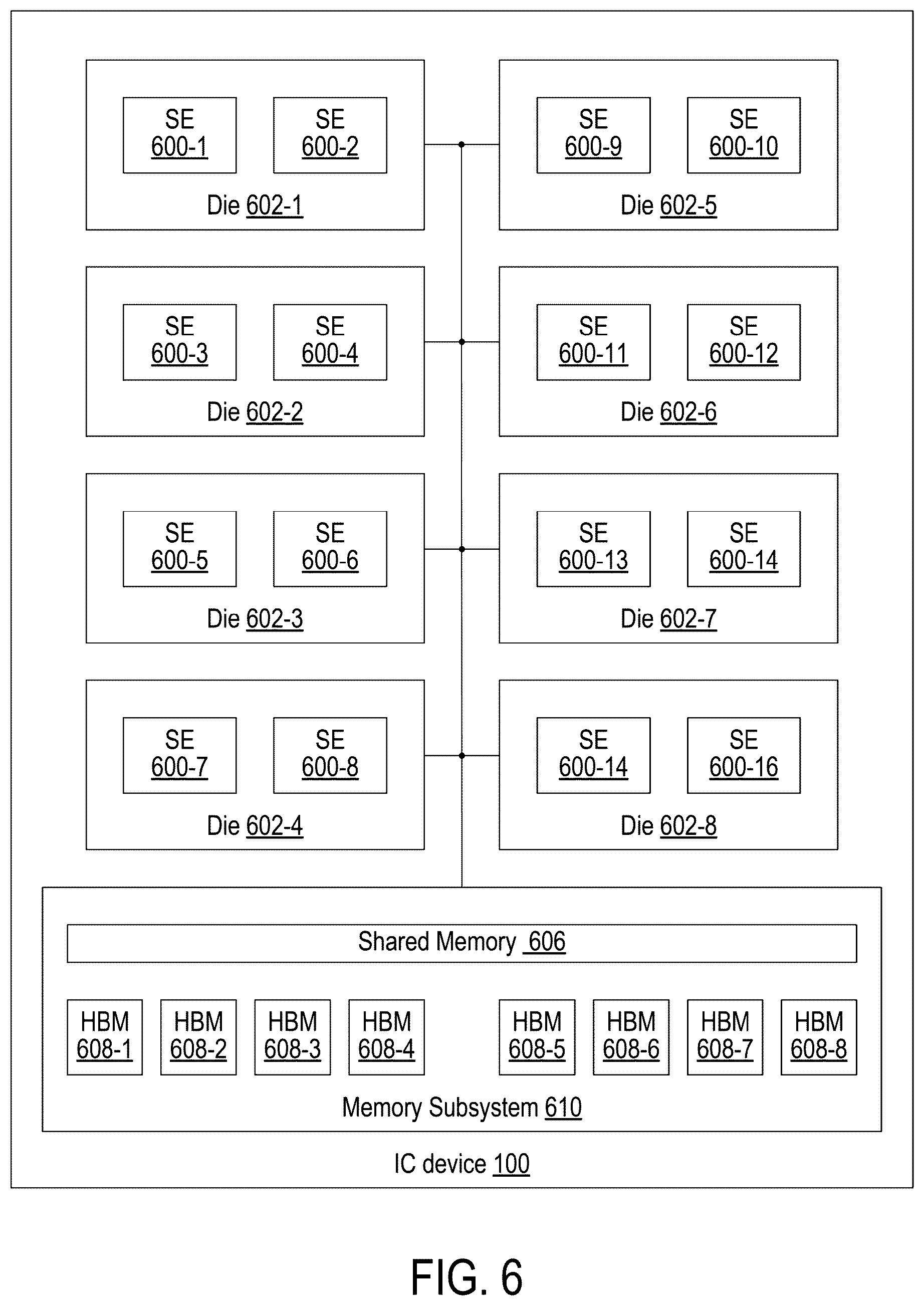

Integrated circuit device with memory subsystem, drawing sheet 6 from US 2026/0301107 A1
Sheet 6 Integrated circuit device with memory subsystem

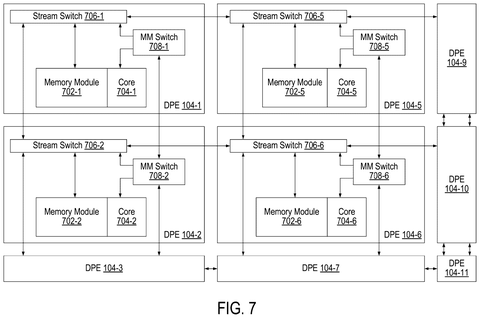

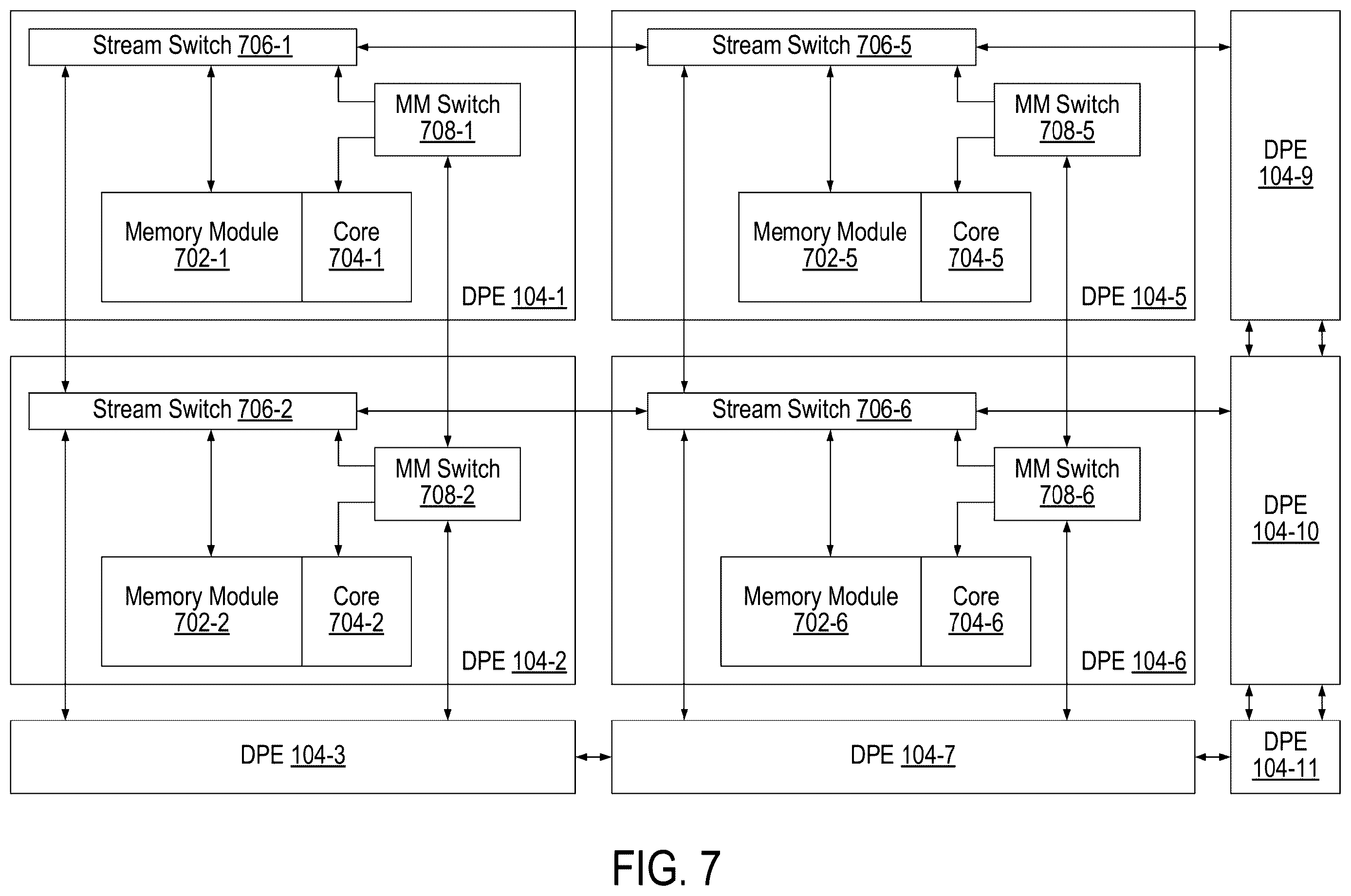

Data processing elements with switches, drawing sheet 7 from US 2026/0301107 A1
Sheet 7 Data processing elements with switches

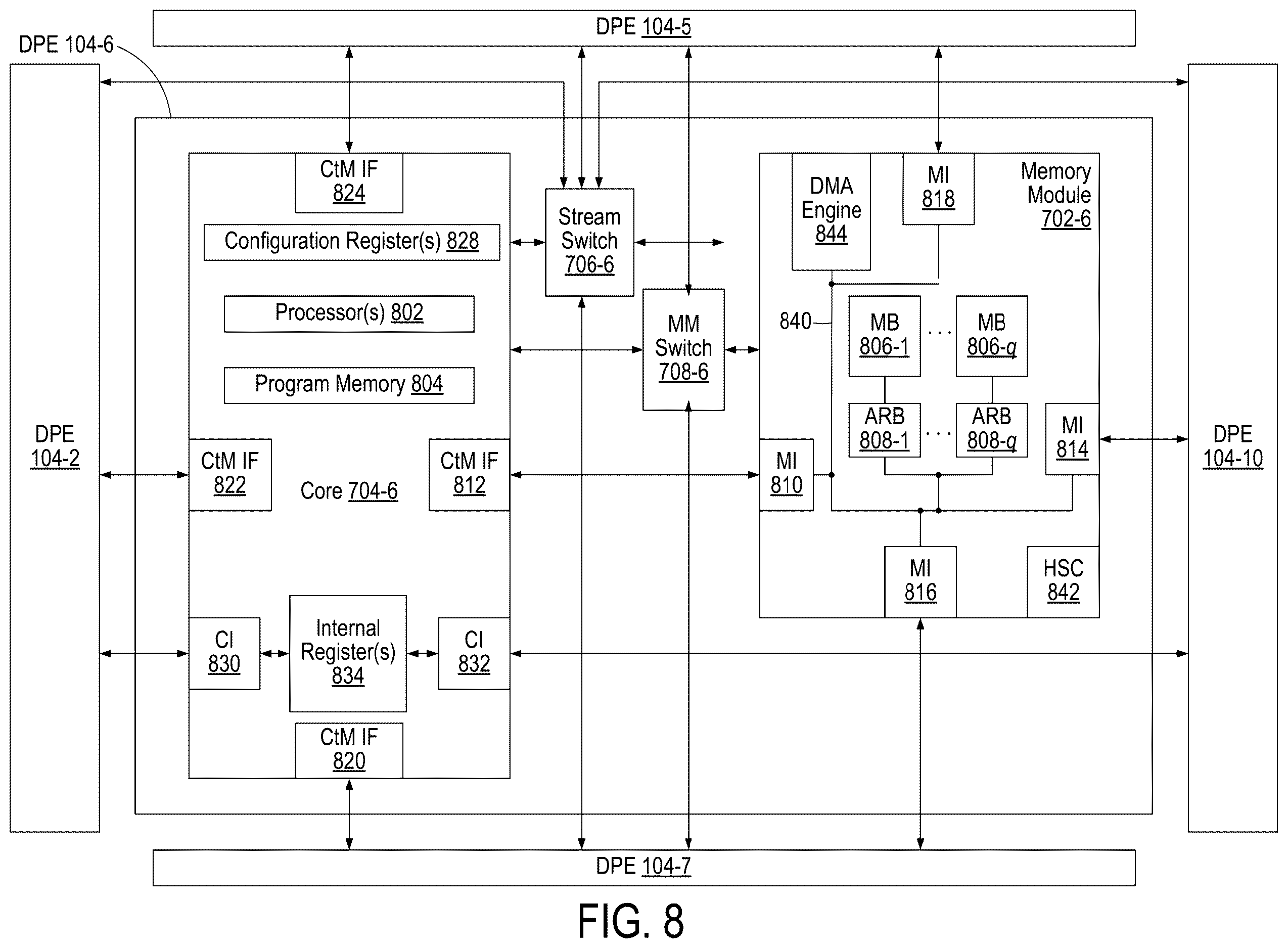

Data processing element internal components, drawing sheet 8 from US 2026/0301107 A1
Sheet 8 Data processing element internal components
Show the other 2 sheets
AMD Files Patent for a Single Chip That Merges AI Processing With Graphics patent drawing, sheet 9
Sheet 9
AMD Files Patent for a Single Chip That Merges AI Processing With Graphics patent drawing, sheet 10
Sheet 10
