Apple Files Patent to Let Headsets Sleep More Between Cellular Check-Ins
Your headset has to keep telling the network where your head is pointing, and a small timer rule inside its cellular chip keeps waking it from naps. Apple's filing proposes dropping that timer once the chip goes to rest.
What Apple's sleep-friendly upload timer does
Imagine you're wearing an extended reality (XR) headset, the kind that blends digital objects into the room around you. Over and over, it has to tell the network exactly where your head is pointing, or the picture drifts out of step with what you see.
Between those updates, the headset's cellular chip would love to nap and save battery. The catch is a bookkeeping rule: after each upload, the chip starts a timer and refuses to reuse that upload slot, in case the network asks for a resend. Those timers keep pulling the chip out of its nap.
Apple's filing describes ways to let the chip drop the timers once its sleep period begins. One version cancels them on the way to sleep. Another never starts them while asleep. A third lets the chip send fresh data anyway, since resend requests aren't expected during sleep.
operating the UE in a discontinuous reception (DRX) mode comprising a DRX OnDuration where the UE monitors a Physical Downlink Control Channel (PDCCH) and a DRX OffDuration where the UE does not monitor the PDCCH; …
Translation: The headset alternates between active periods watching the network and sleep periods where it ignores signals to save power.
How the chip decides when to drop its timers

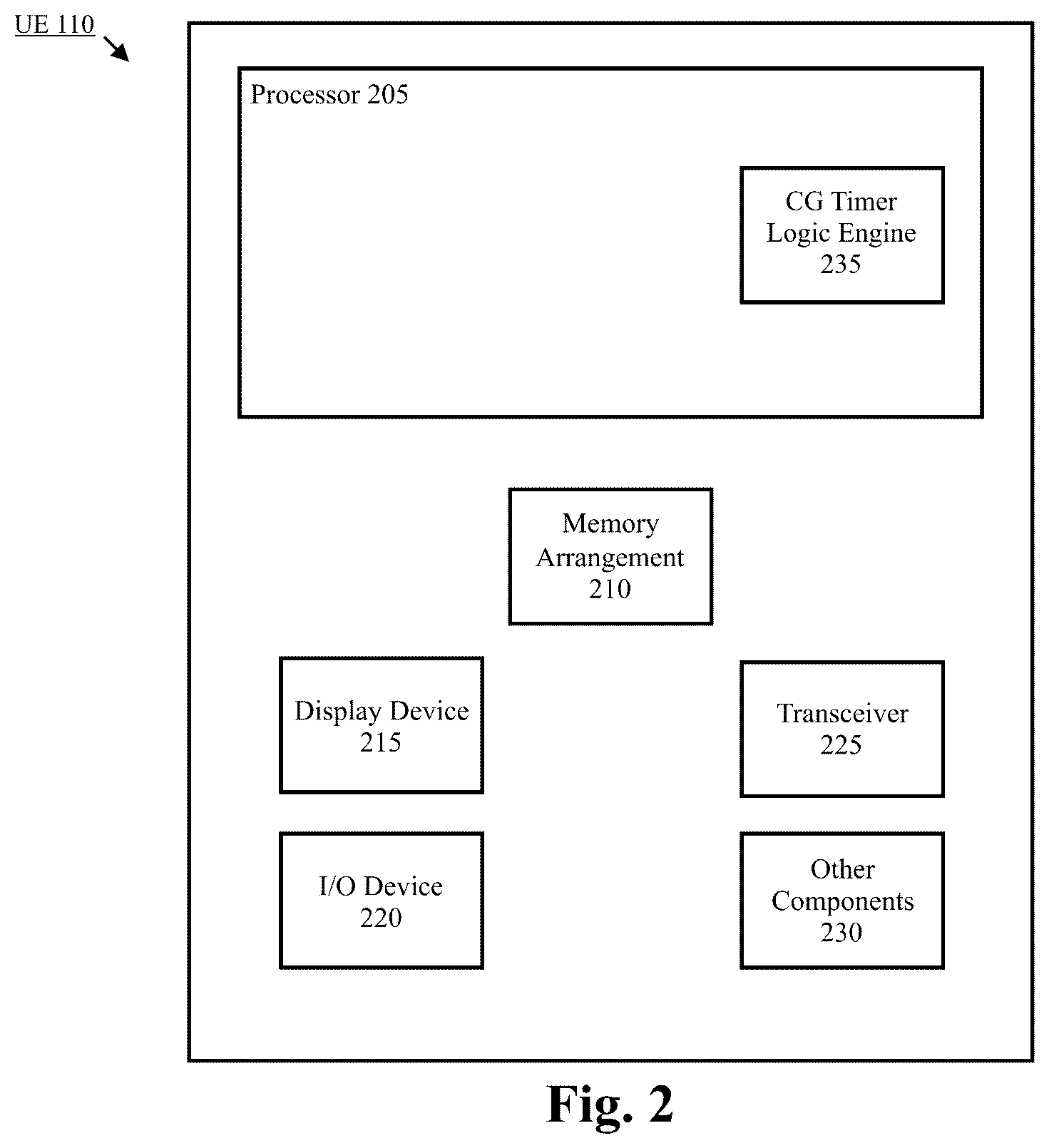

The patent covers how a phone or headset (called a user equipment, or UE) manages cellular uploads while using DRX, short for discontinuous reception. DRX splits time into an OnDuration, when the device listens to the network's control channel (the PDCCH, basically the network's message board), and an OffDuration, when it stops listening to save power.
Uploads go out on pre-agreed slots called configured grants. Each slot belongs to a HARQ process, a numbered lane that keeps a copy of the last upload in case the network asks for a resend. After an upload, a timer starts, and the device can't reuse that lane until it ends, so the saved copy isn't overwritten.
The filing offers three fixes, matching the three independent claims:

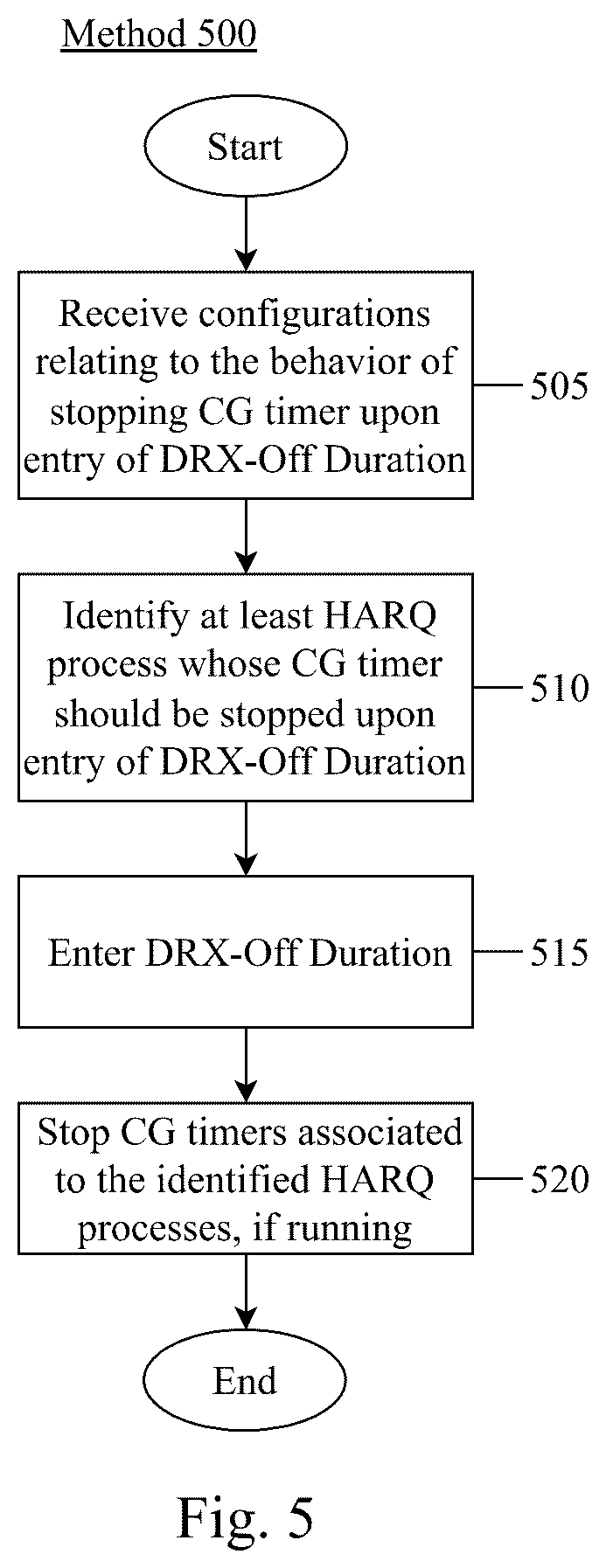

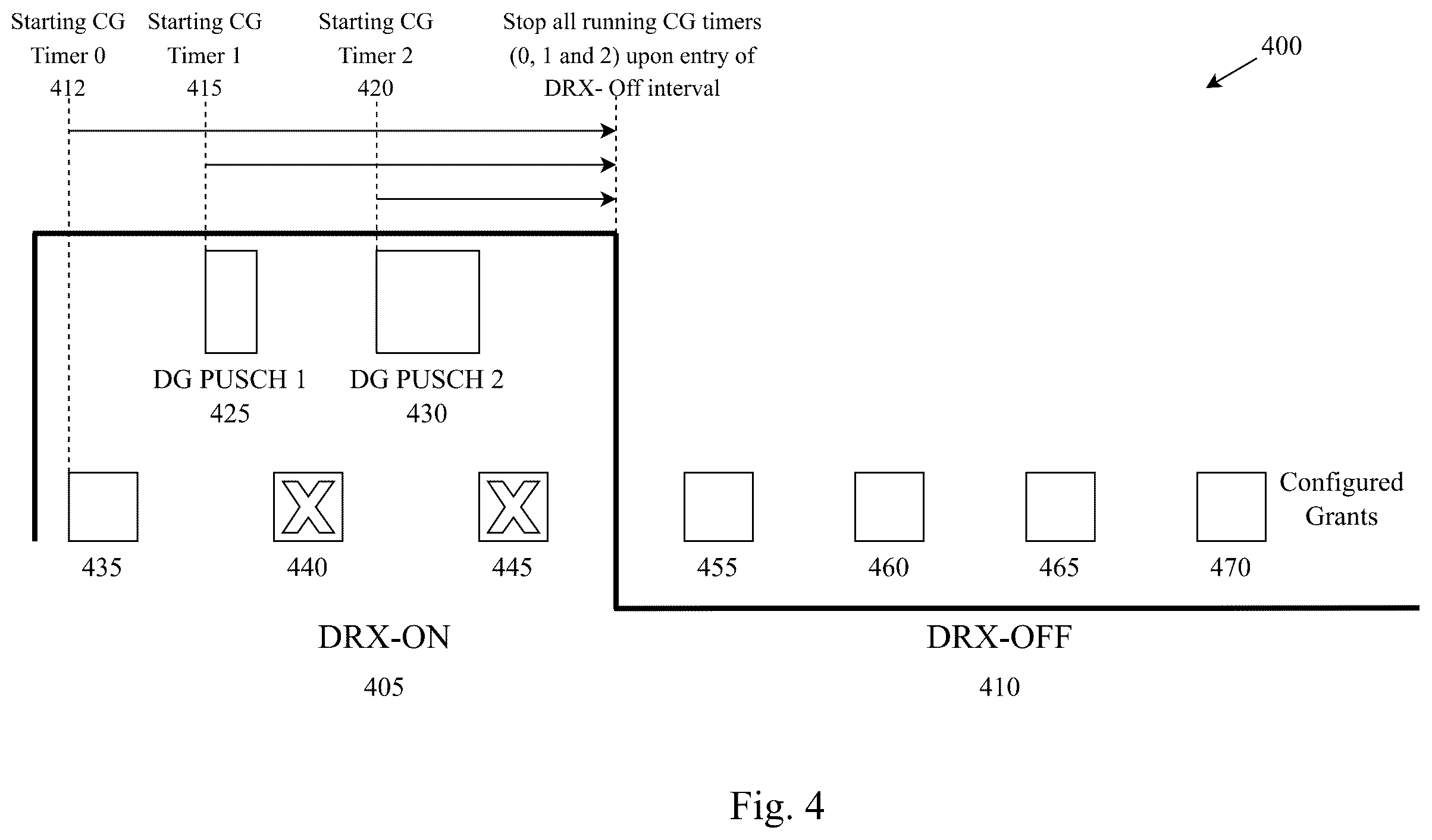

- Stop on sleep (claim 1): timers started during OnDuration are stopped when the device moves into OffDuration.

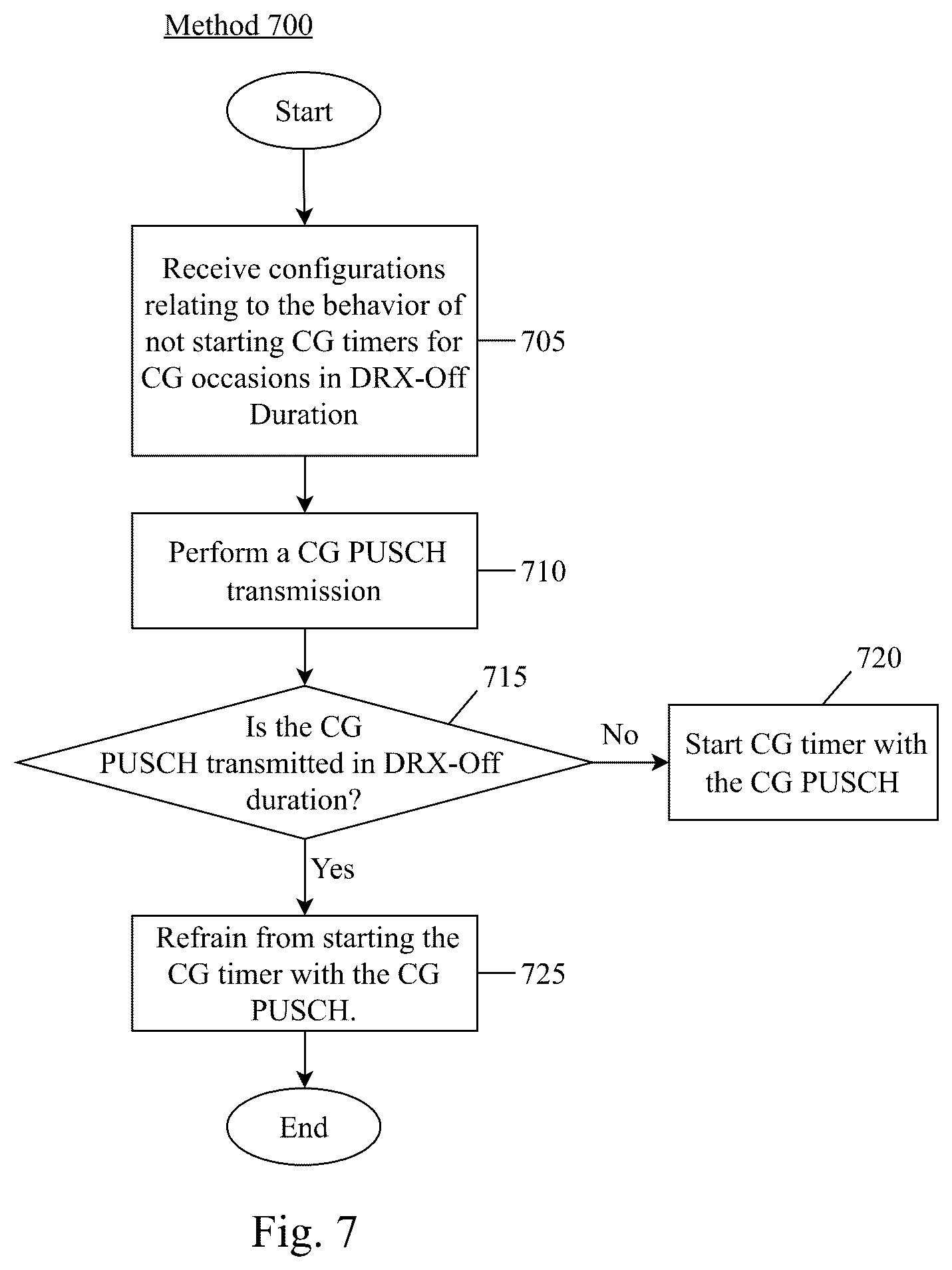

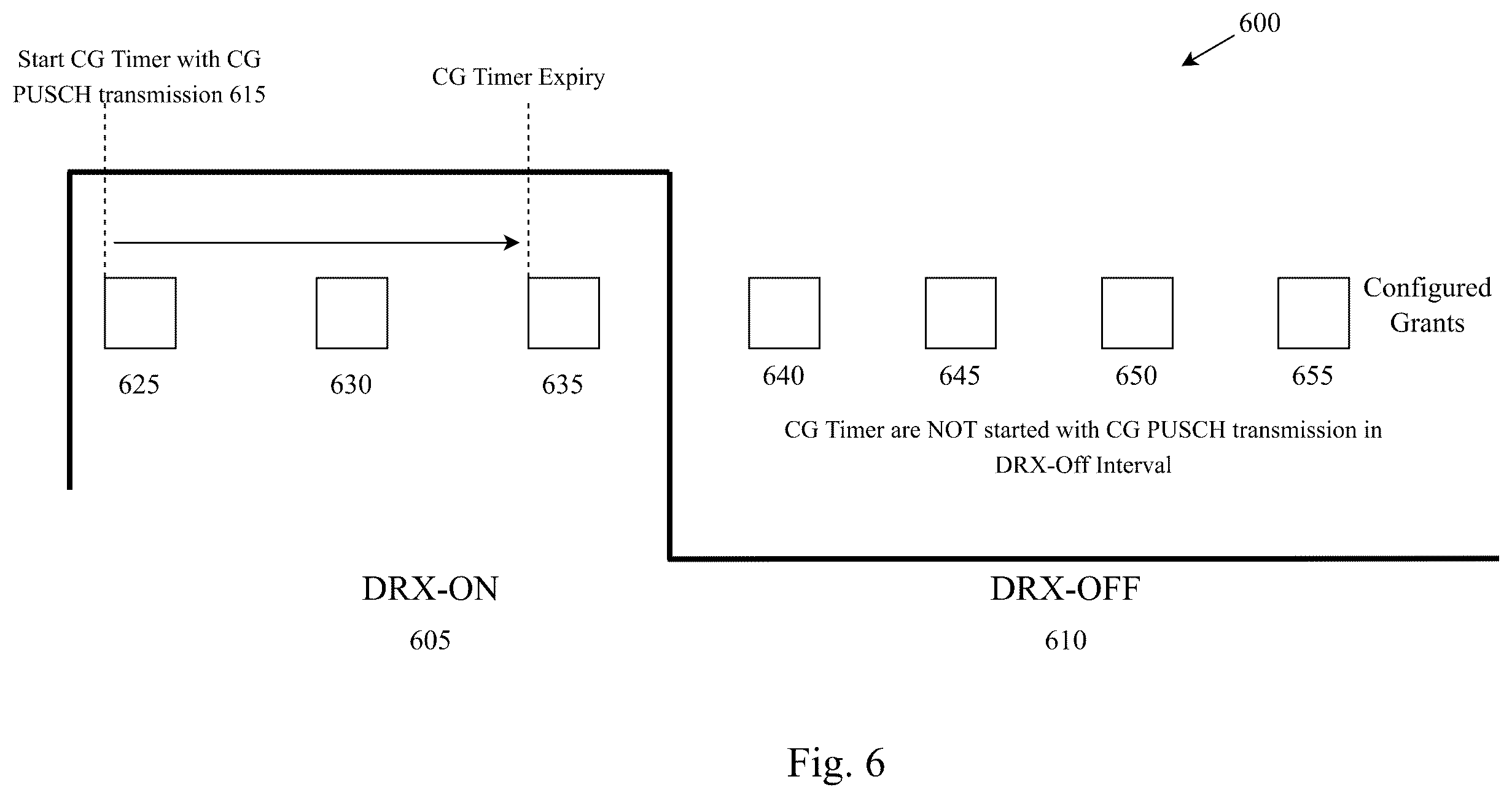

- Skip during sleep (claim 8): an upload sent during OffDuration may not start a timer, depending on things like the grant's setup, the HARQ process, or how soon the next OnDuration arrives.

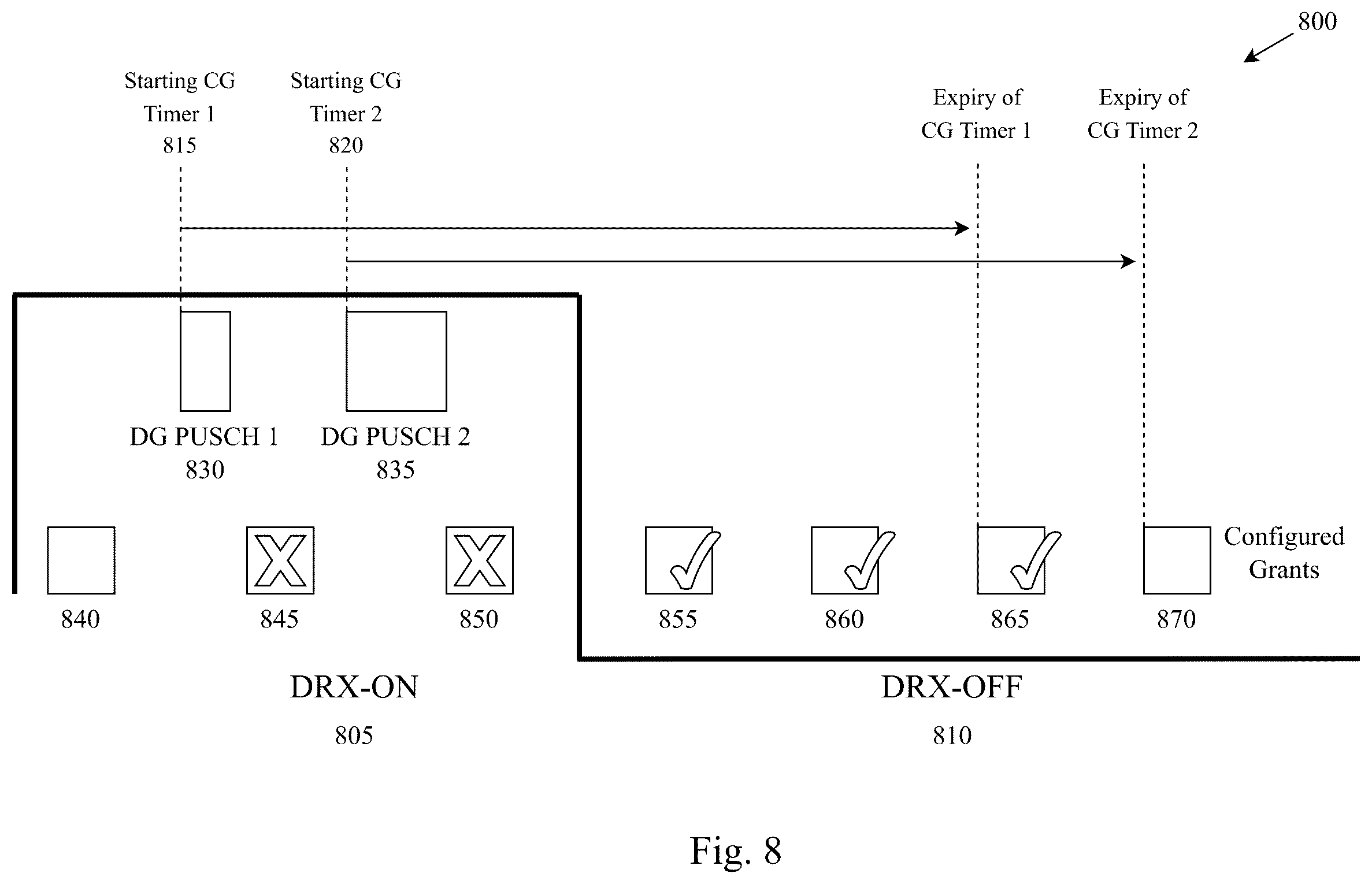

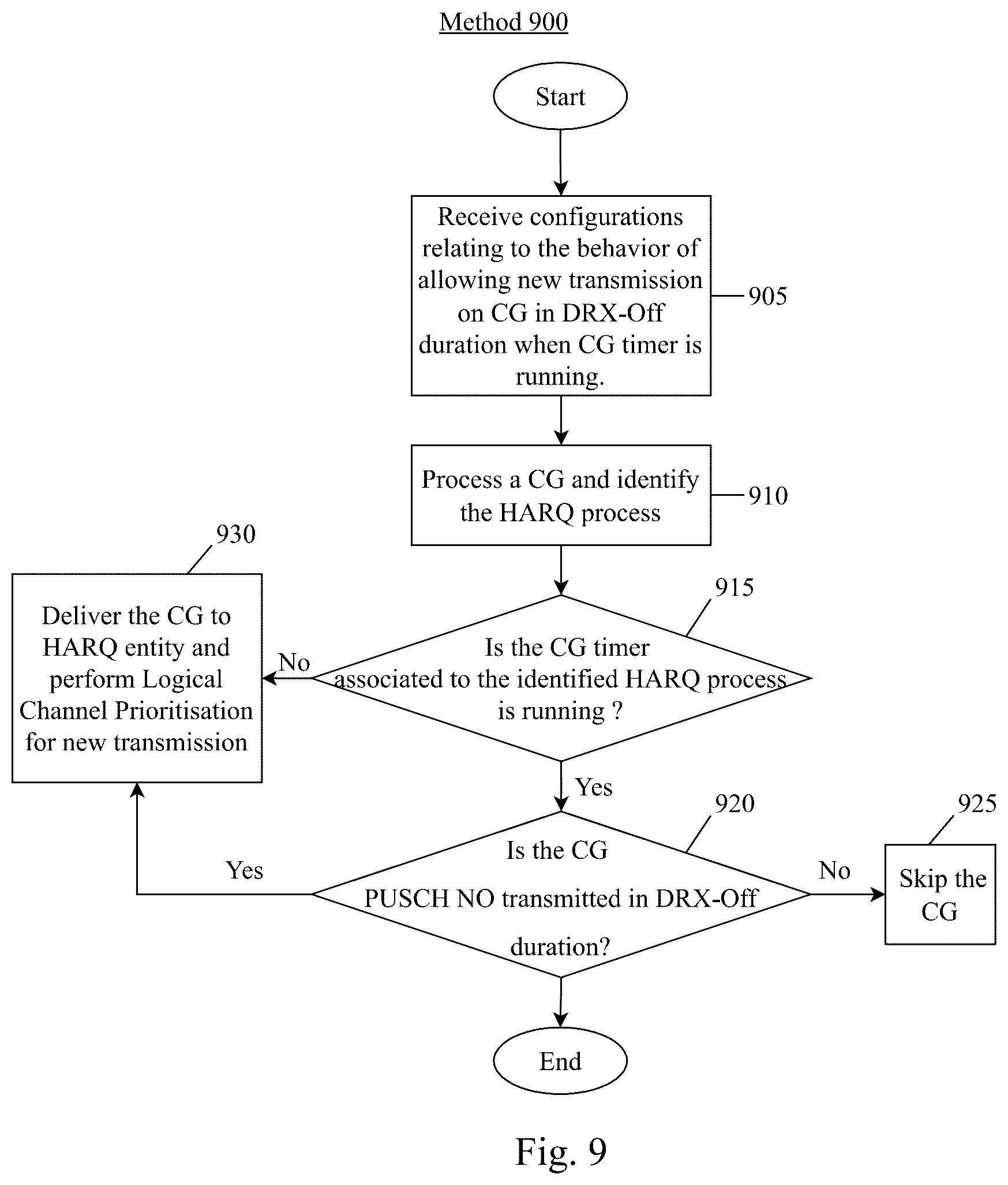

- Overwrite during sleep (claim 15): the device may send new data on those slots during OffDuration even with a timer running, though not for resends.
The network can configure which lanes or kinds of data, such as higher-priority traffic, get this treatment. The same logic can also apply to a related retransmission timer.
Why headset battery life is the real target
If you wear a cellular-connected headset, or use any device doing something demanding, battery life is what you notice first. The filing says head-tracking updates keep the cellular chip awake, so the device spends much of its time in listening mode and loses its power savings. Letting the chip rest sooner could stretch the time between charges.
The idea isn't tied to one gadget. The filing says the device can be a phone, tablet, wearable or other connected gadget. There is a tradeoff: with timers off, the chip gives up some protection against overwriting a saved copy, which is why the network decides when and for which data. The filing names no product, so treat it as a design direction.
Apple's 98th filing we've tracked since May in our AR glasses watchlist adds to earlier work like one on upload conflicts and one on flicker from office lights.
Claim 1 asks for a lot of specifics and still leaves wide room. It needs a device in a sleep-and-wake cycle, a timer tied to a numbered upload lane, a block on reusing that lane, and a stop when the device drops into its sleep period. Yet the upload can go to a network or a device, the slot can be either of two grant types, and the timer can be either of two kinds.
The claims never mention headsets or extended reality; that appears only in the title and background. If granted, claim 1 would reach any phone or tablet that cancels its timers on the way to sleep, and would not touch a modem that handles the timers another way.
The verdict: a small rule change in a part of the phone you never see. It matters for battery life and little else, and the other two independent claims give Apple backup versions of the same idea.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

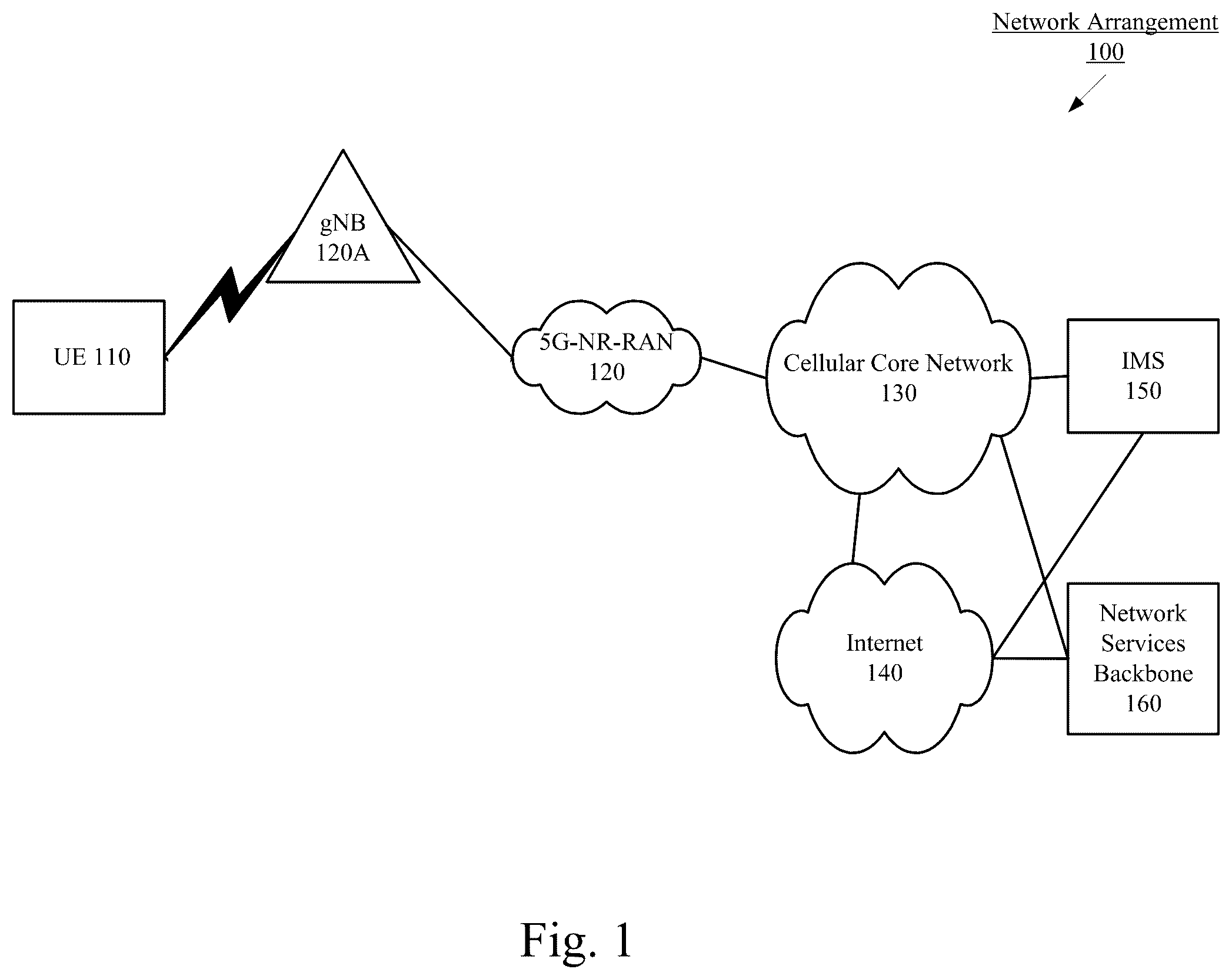

The drawings
