Apple Files Patent for Notifications That Expand to Show Your Ride's Live Location
Apple describes a notification that grows into a live map of your ride, then turns into the full app with a second tap.
What Apple's expandable notification does
Every time you book a ride, you check on it over and over. Is the car close? Did the driver take a wrong turn? Getting the answer usually means hunting for the app and waiting for it to open.
Apple's patent describes a shortcut. Tap a status alert on your screen, such as a ride-service notification, and it grows in place. Inside you would see a small map with a car icon creeping toward your destination, an arrival time that keeps updating, and a button to call the driver.

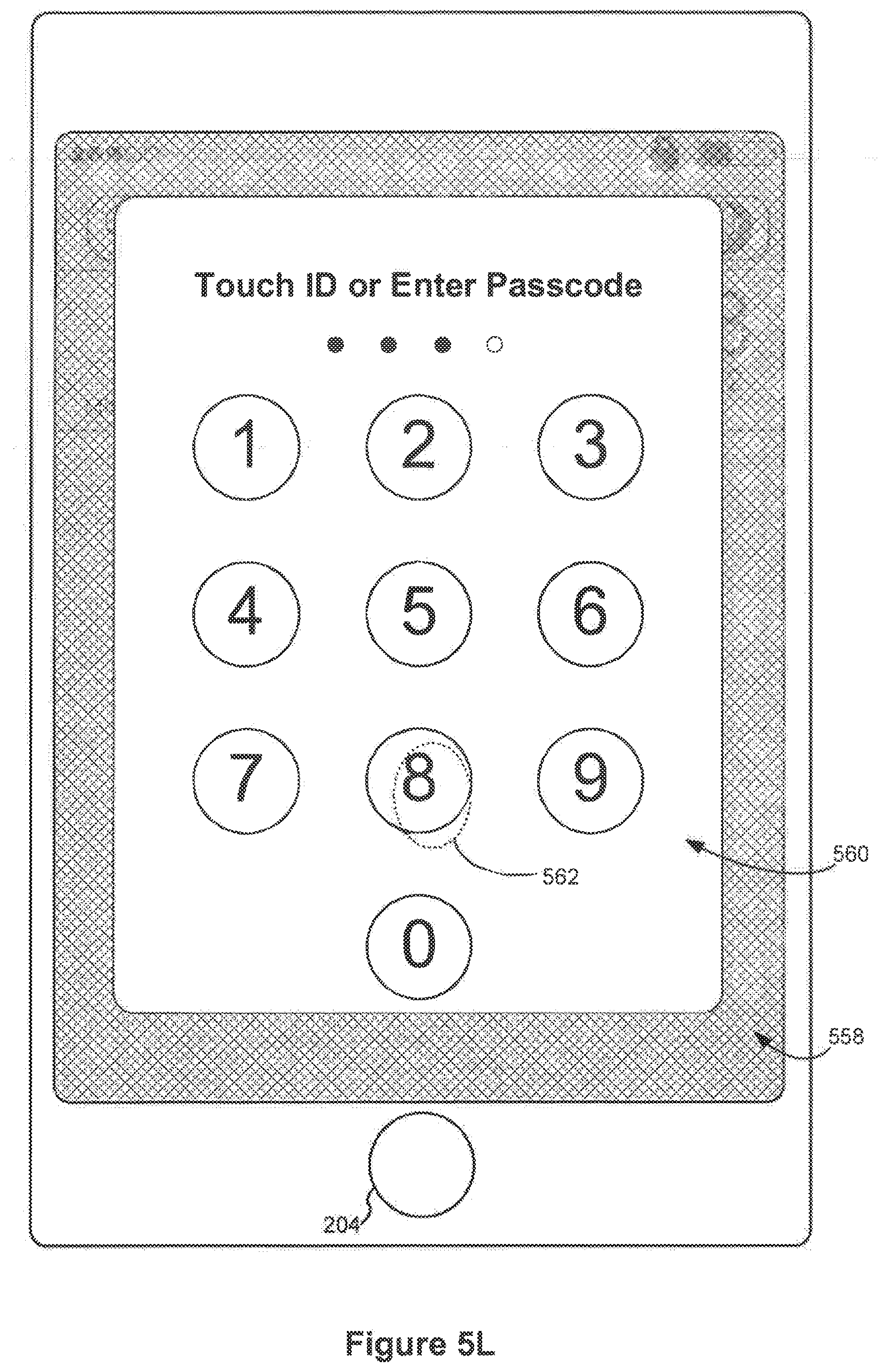

Tap that expanded alert again and the full app opens. The same two-step idea is shown for voicemails, calendar invitations and text messages, so a quick glance comes first and the heavy app comes second. If your phone is locked, the filing says it can ask for your passcode or fingerprint before showing the details.
… displaying an expanded view of the respective user interface object in the system user interface, wherein the expanded view of the respective user interface object includes information about the current status of the first event that is updated over time while the expanded view of the respective user interface object is displayed …
Translation: Showing a larger notification that updates live with your ride's progress.
How a notification grows into a live map
The patent covers a two-step way to move from a quick status alert to a full app. The device shows a system user interface (the screen layer that holds things like notifications) with an object that reports the current status of an event, such as a ride in progress.
When a first input meets certain conditions, the object expands in place. The claims require that the expanded view keeps updating over time while it stays open. When a second input meets its own conditions, the device swaps the whole system screen for the screen of the matching app.

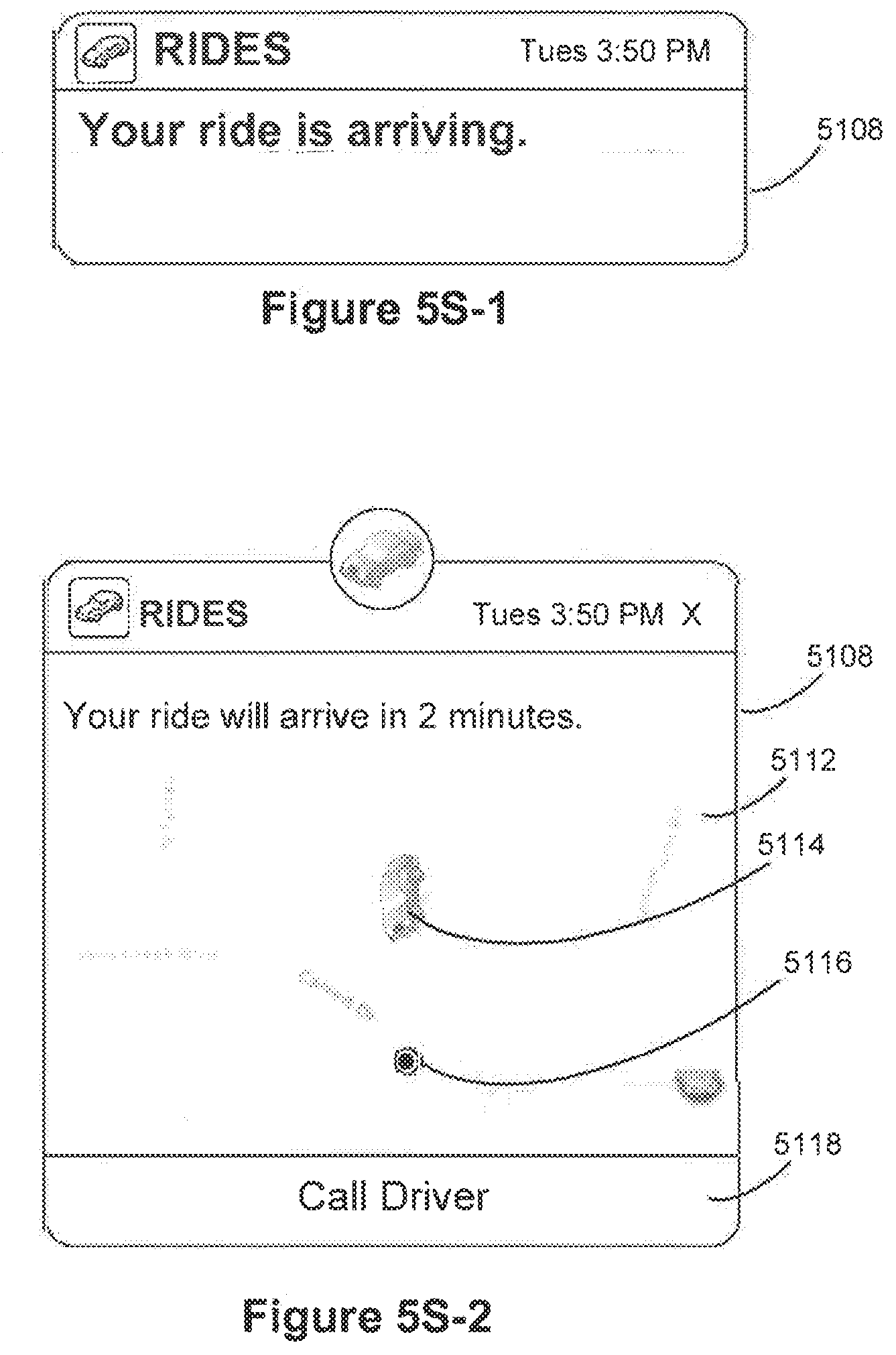

The dependent claims lean on a driving-service example. The expanded view can include:
- A map that refreshes while it is open
- A vehicle icon that moves according to the car's real-time location
- The car's position relative to its destination
- An estimated arrival time that changes as the vehicle moves
- A control for contacting another device tied to the event, such as the driver's

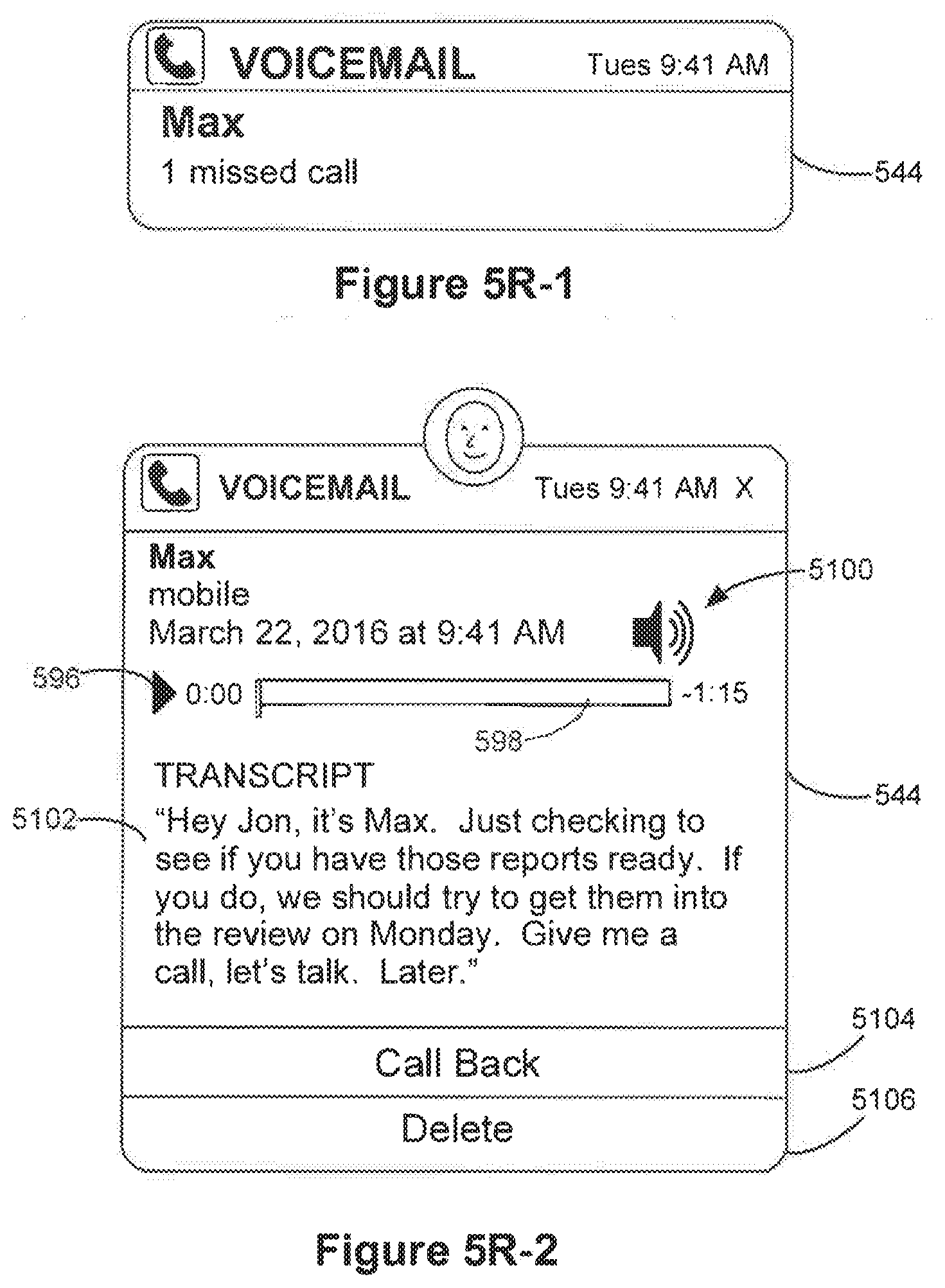

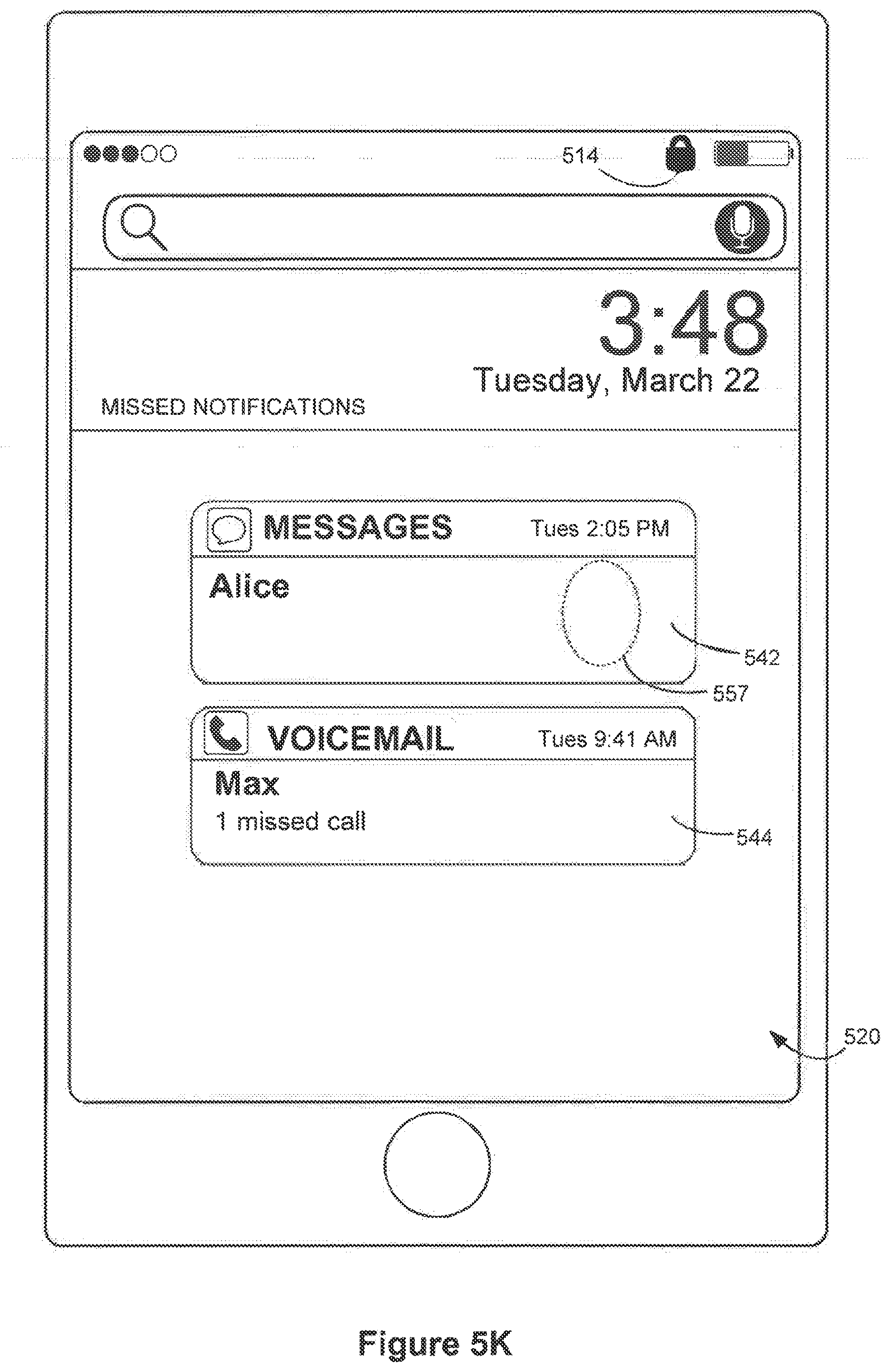

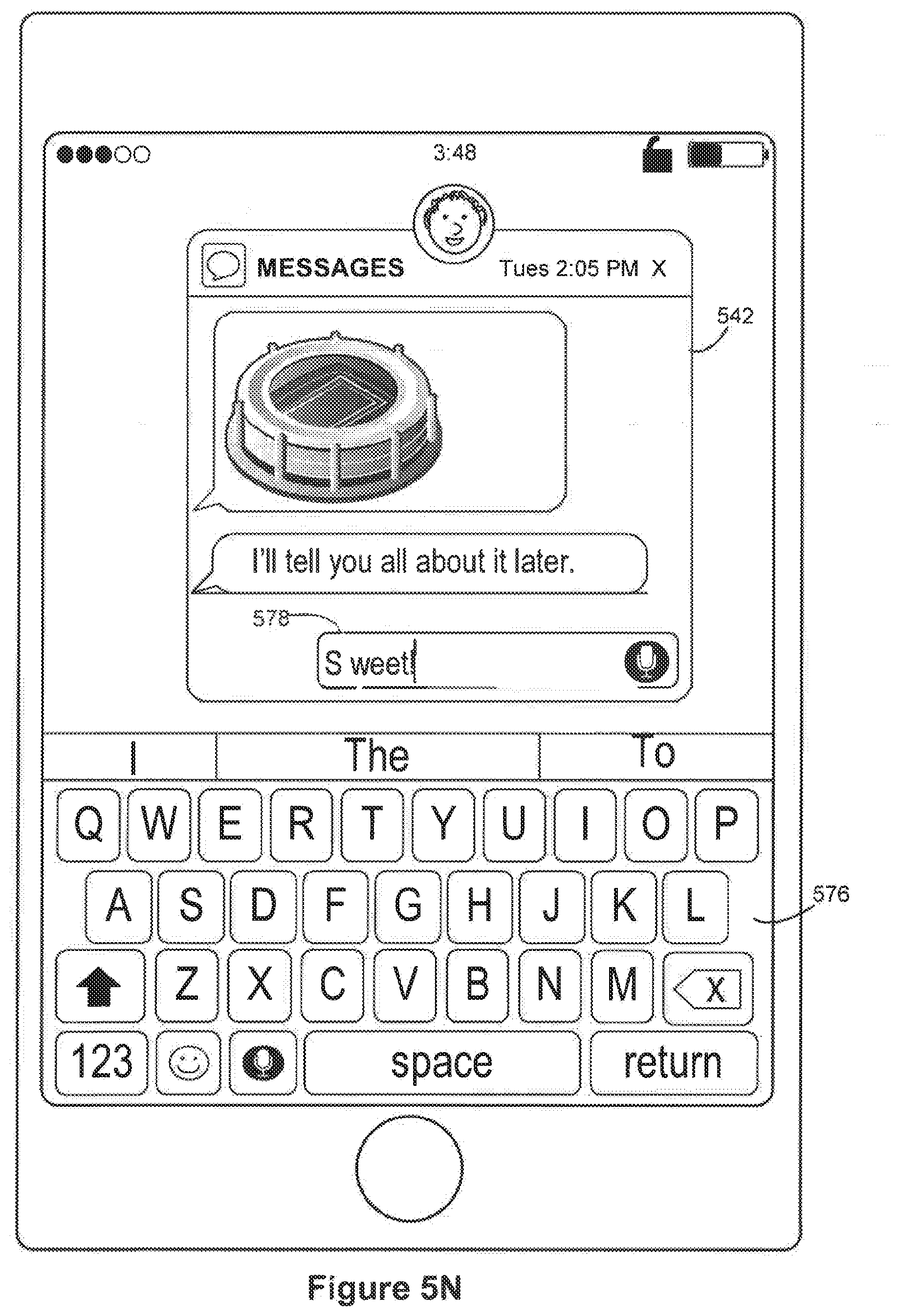

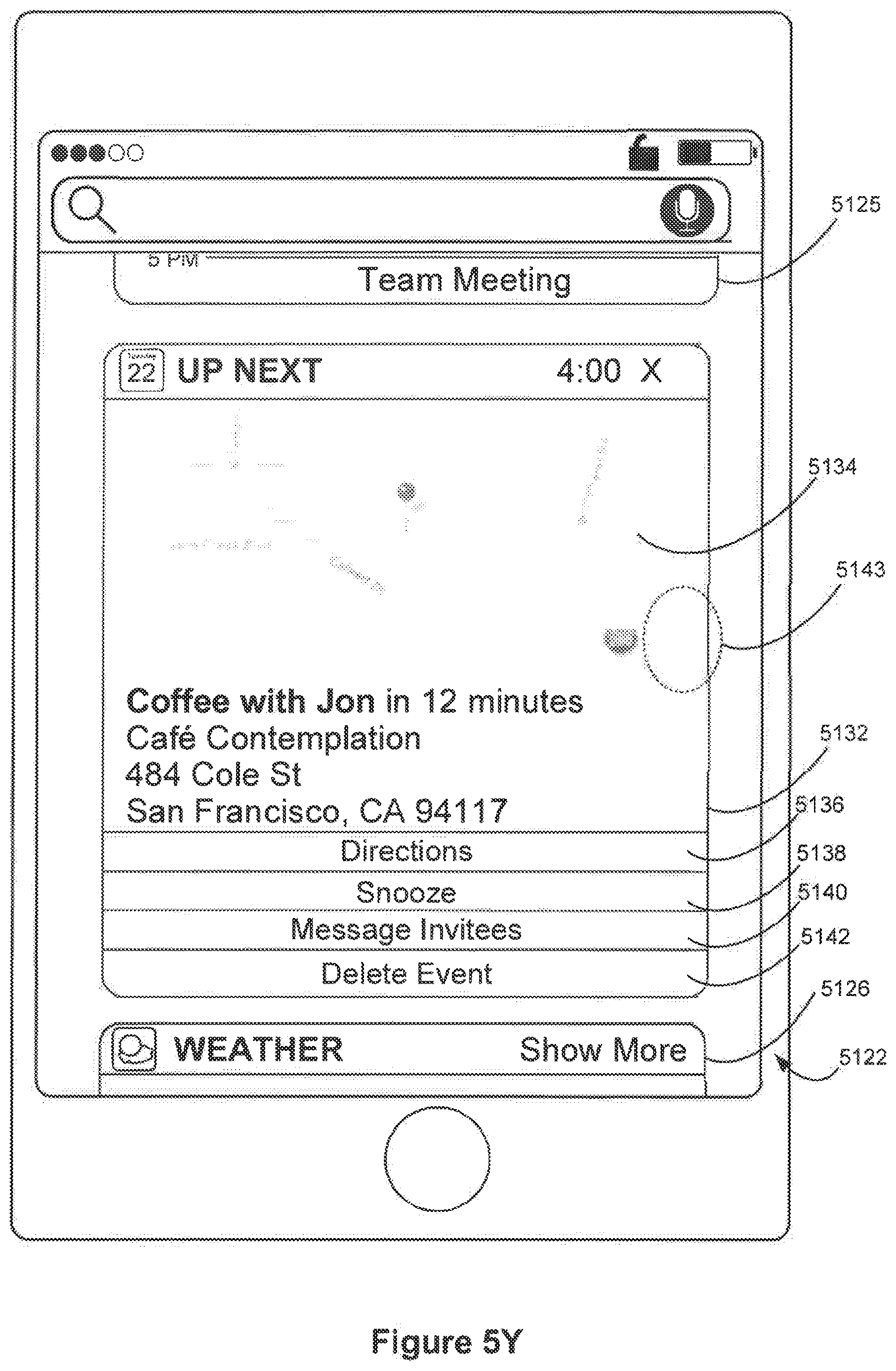

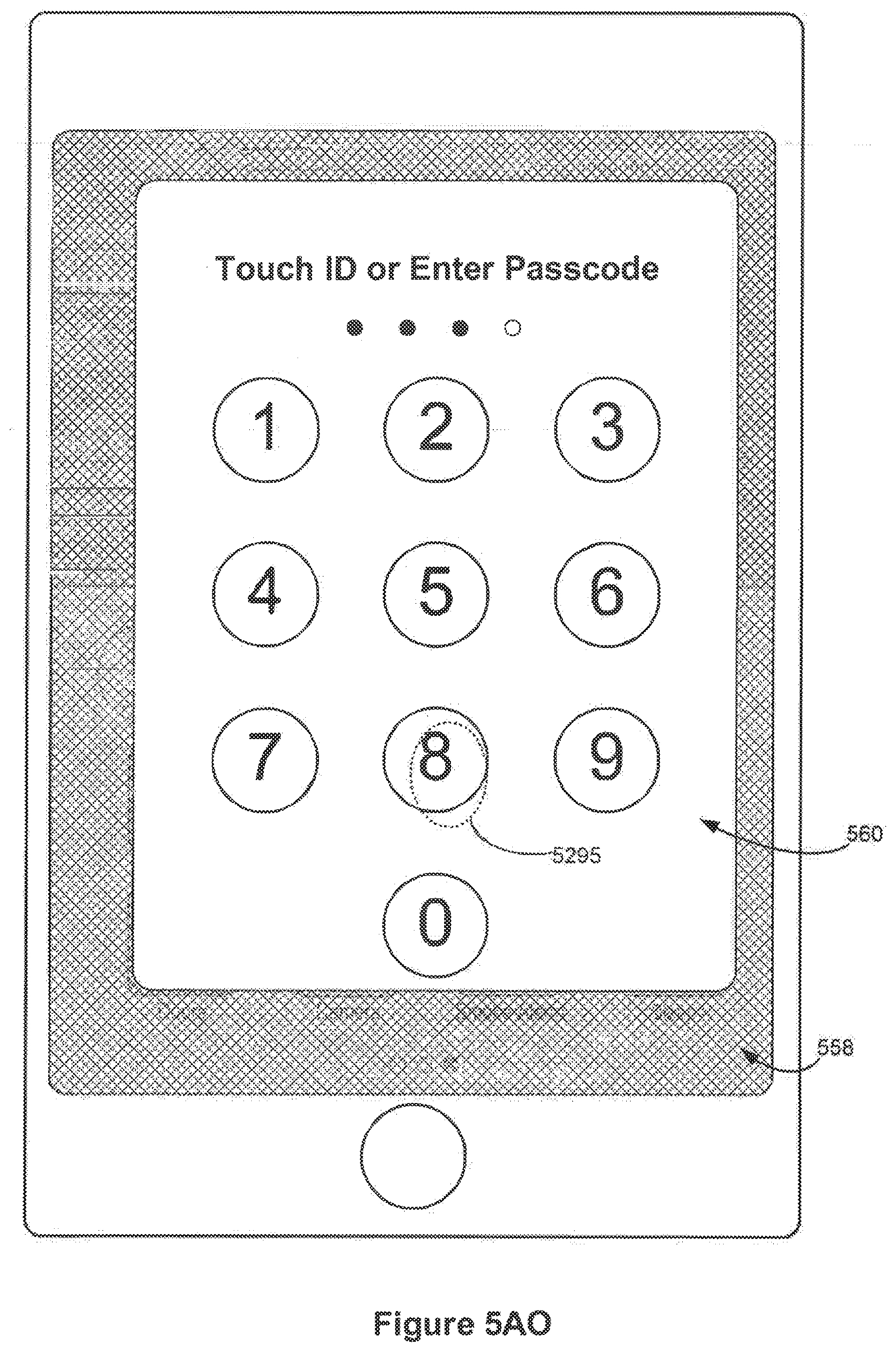

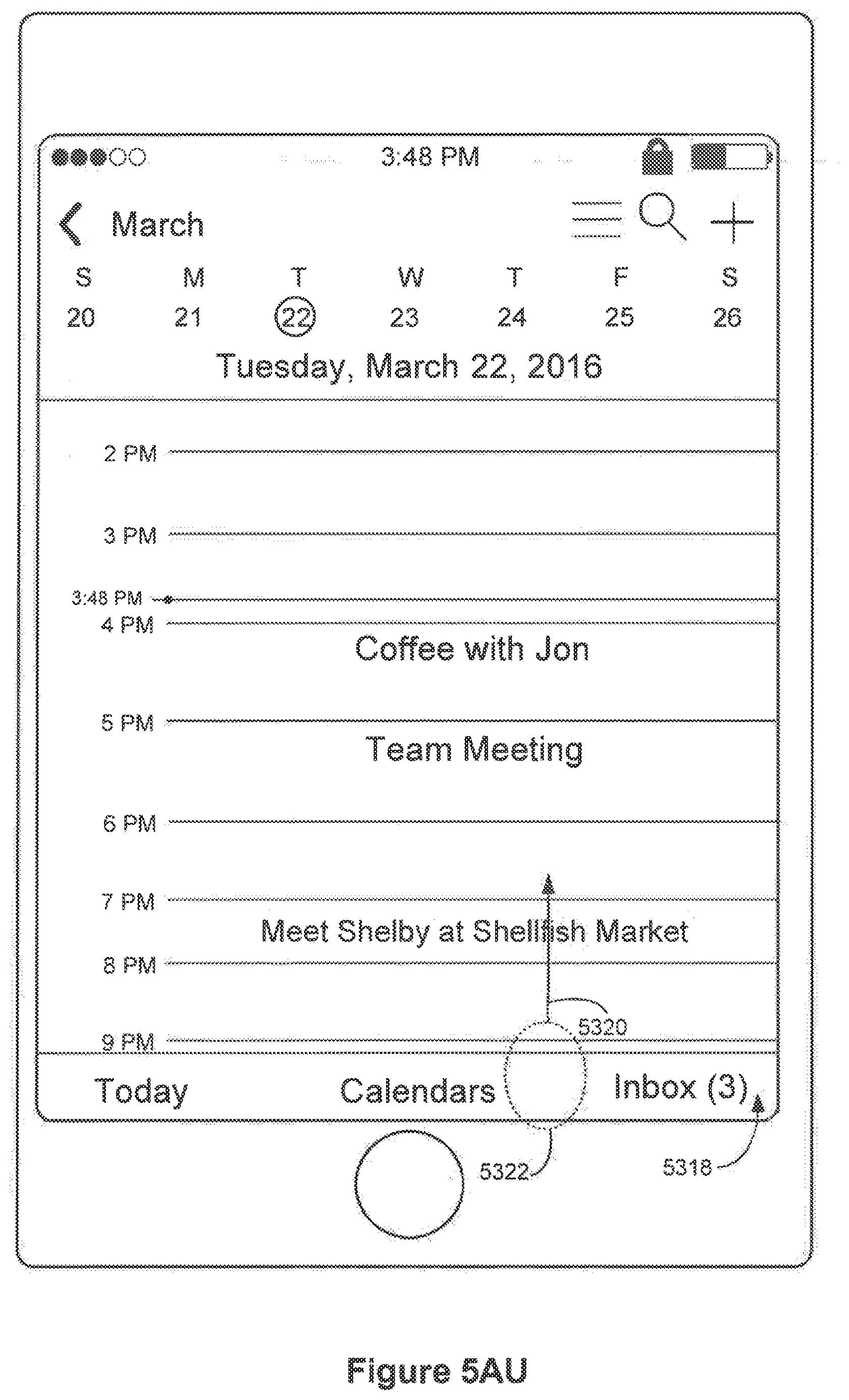

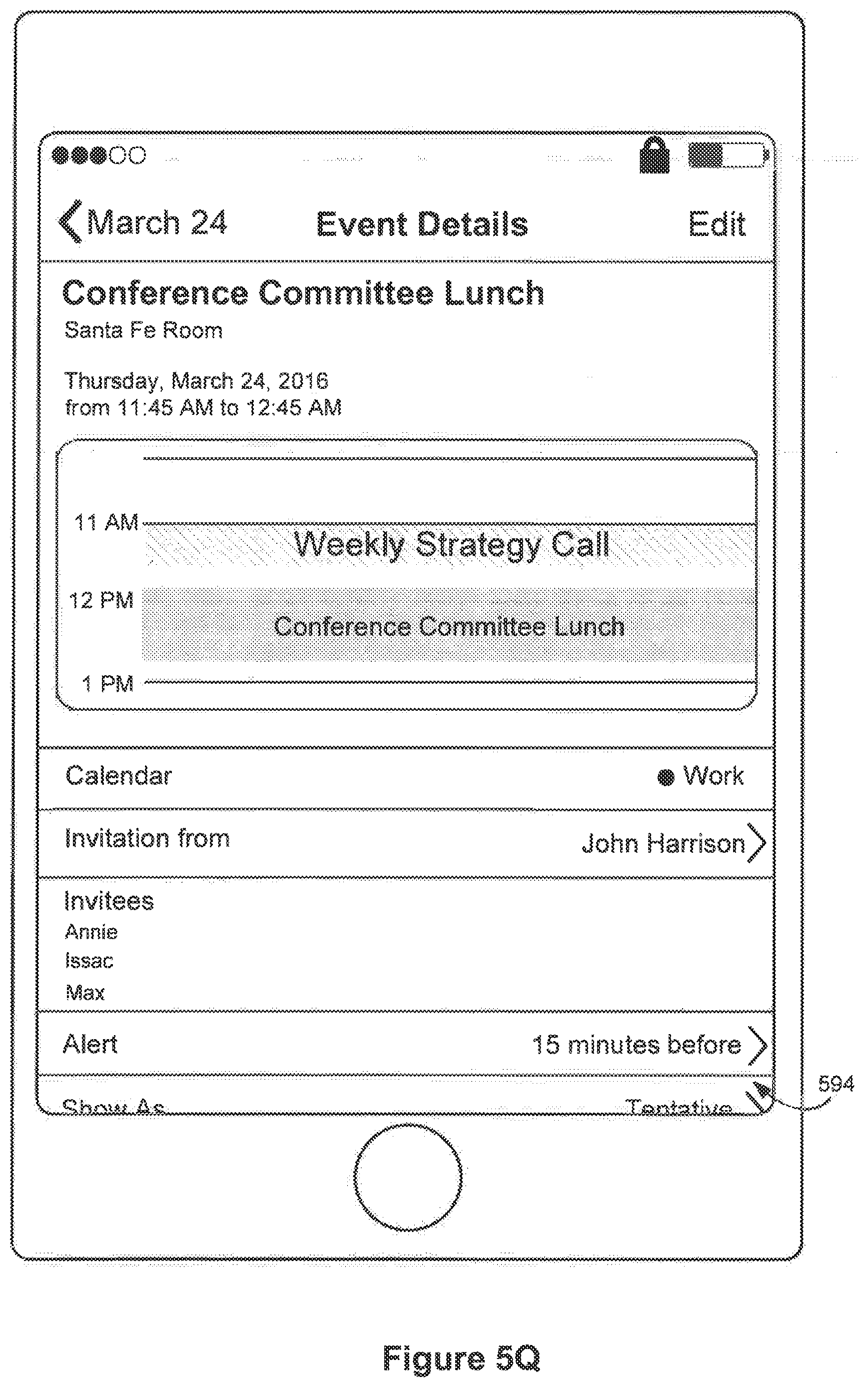

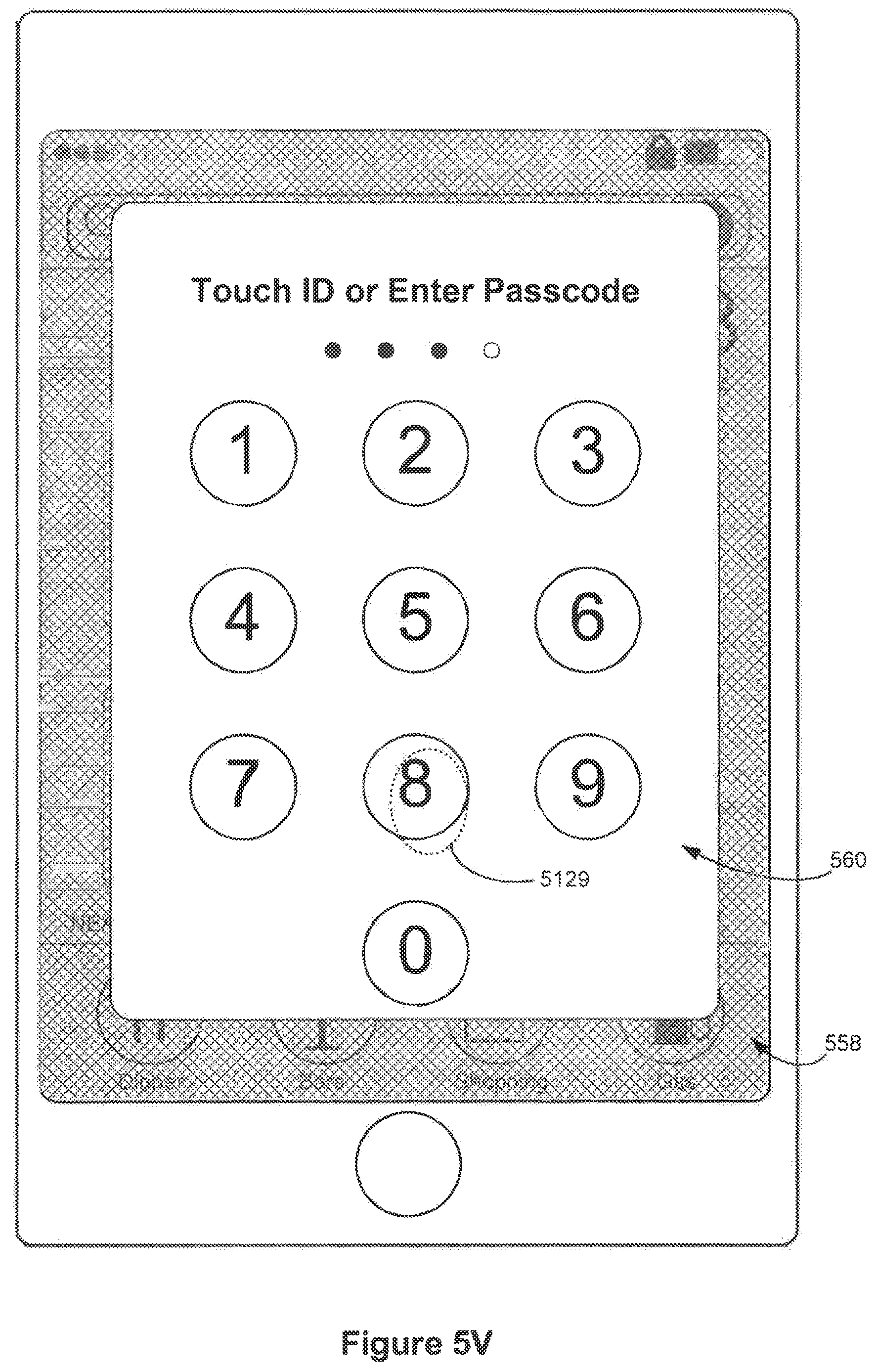

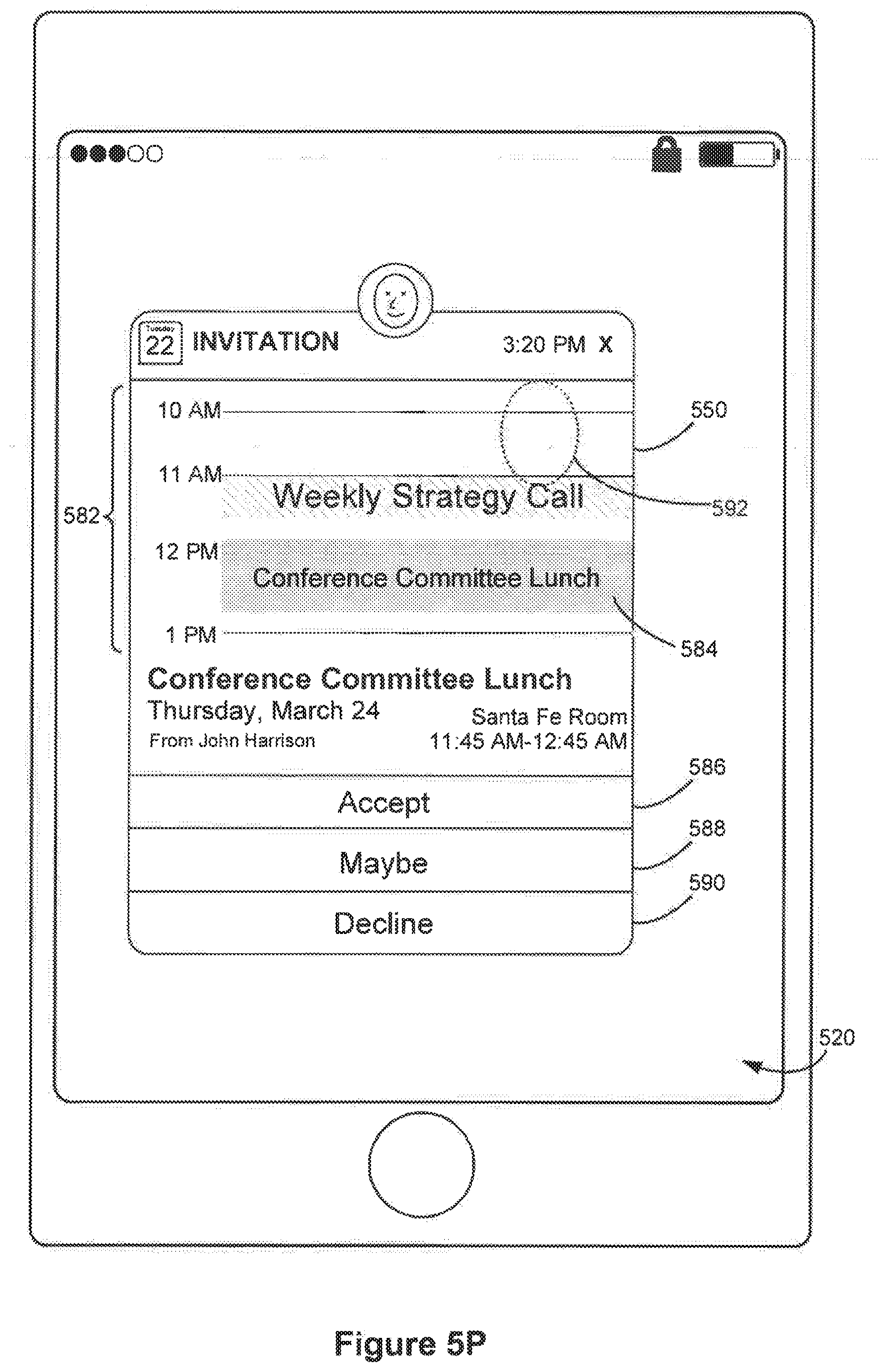

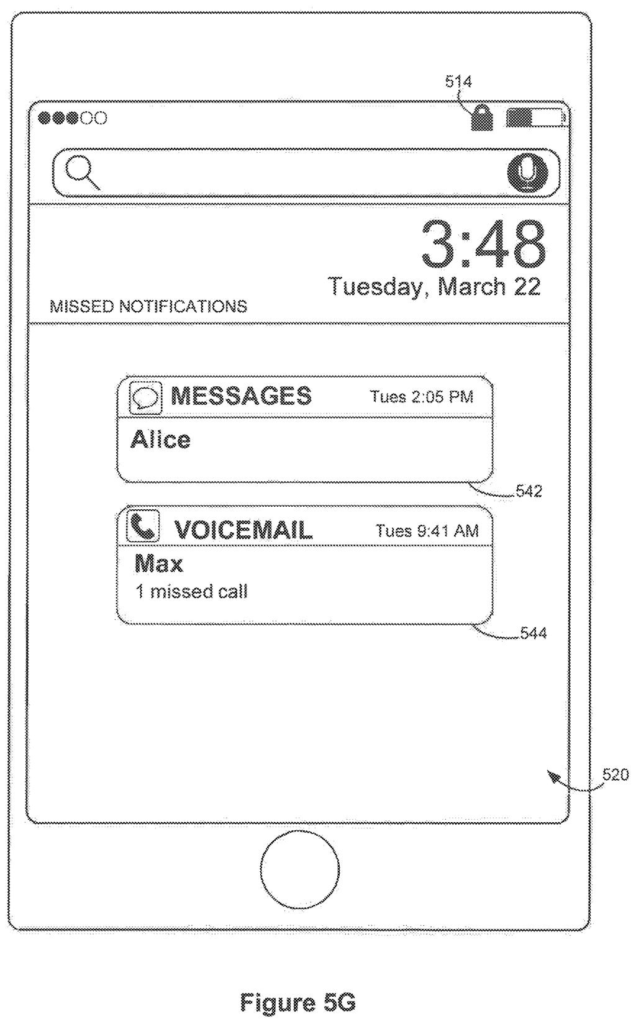

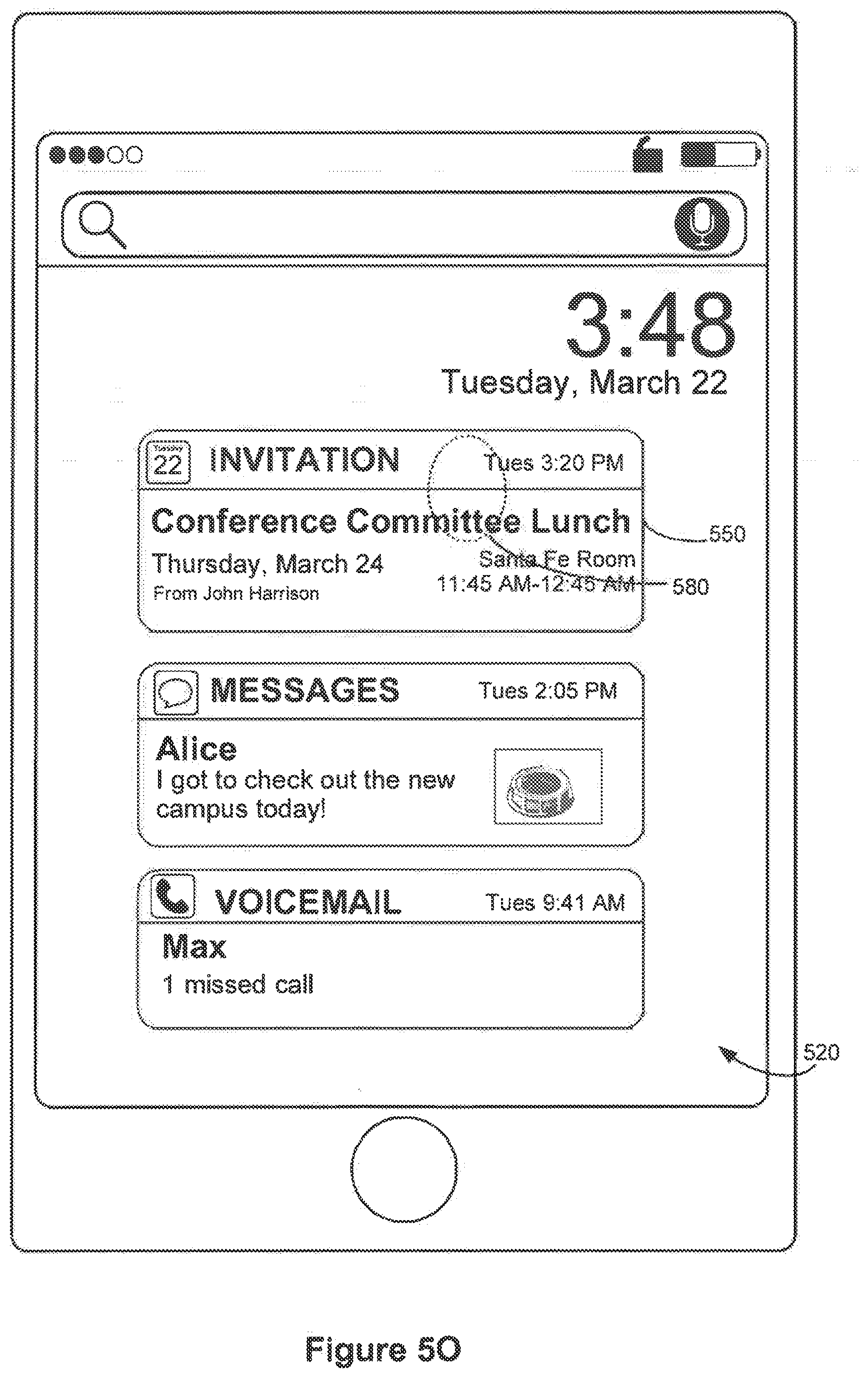

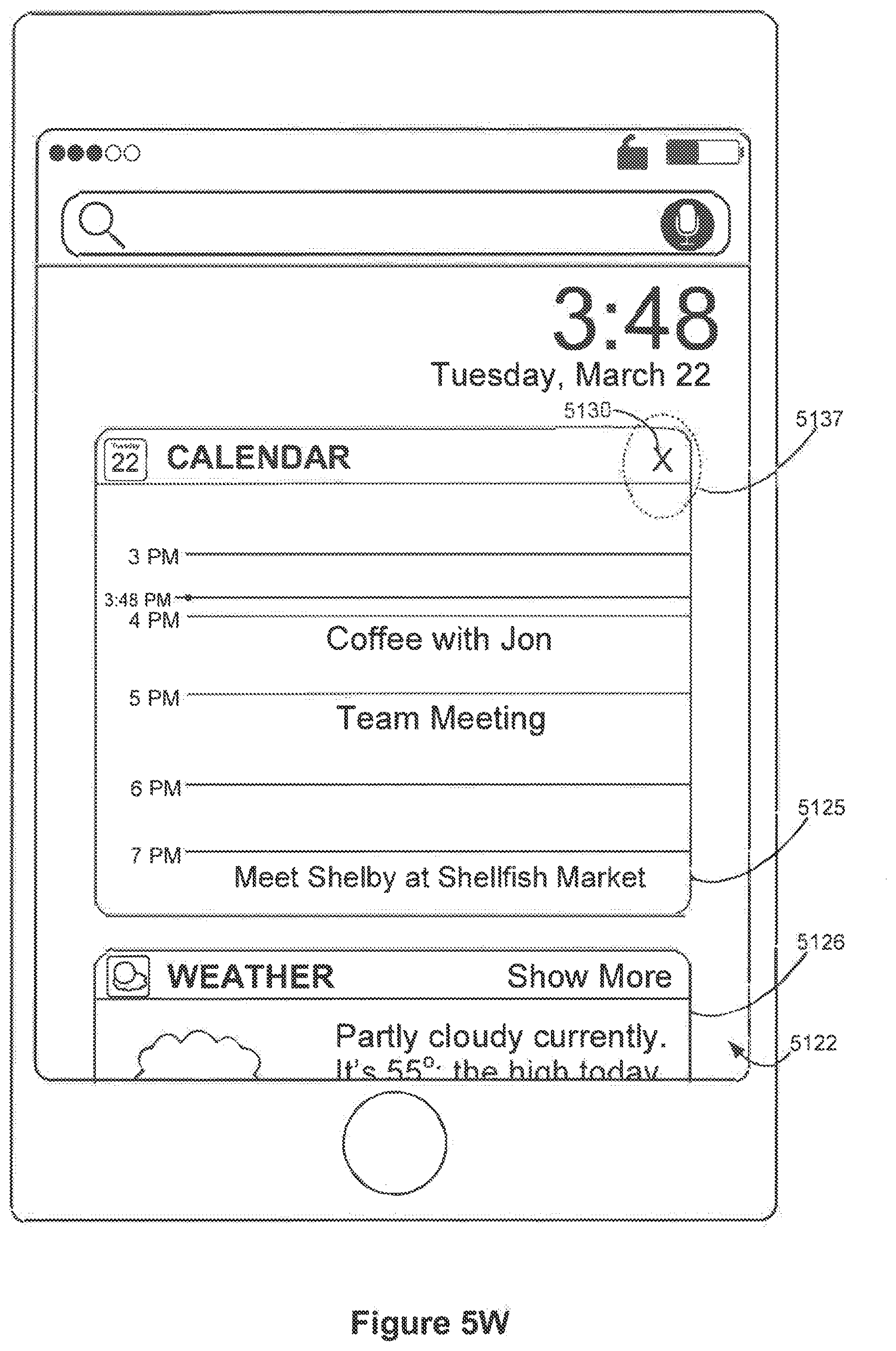

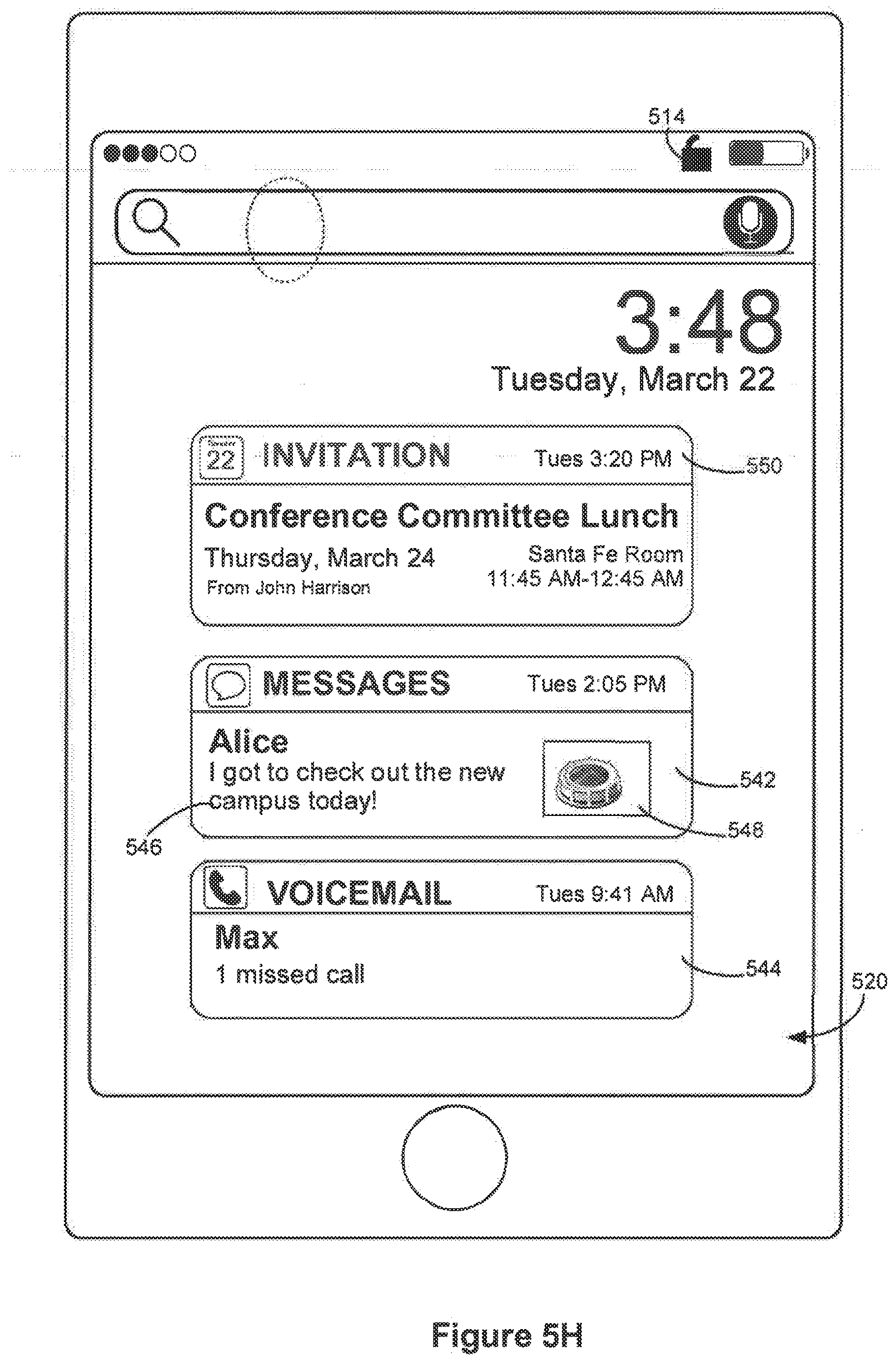

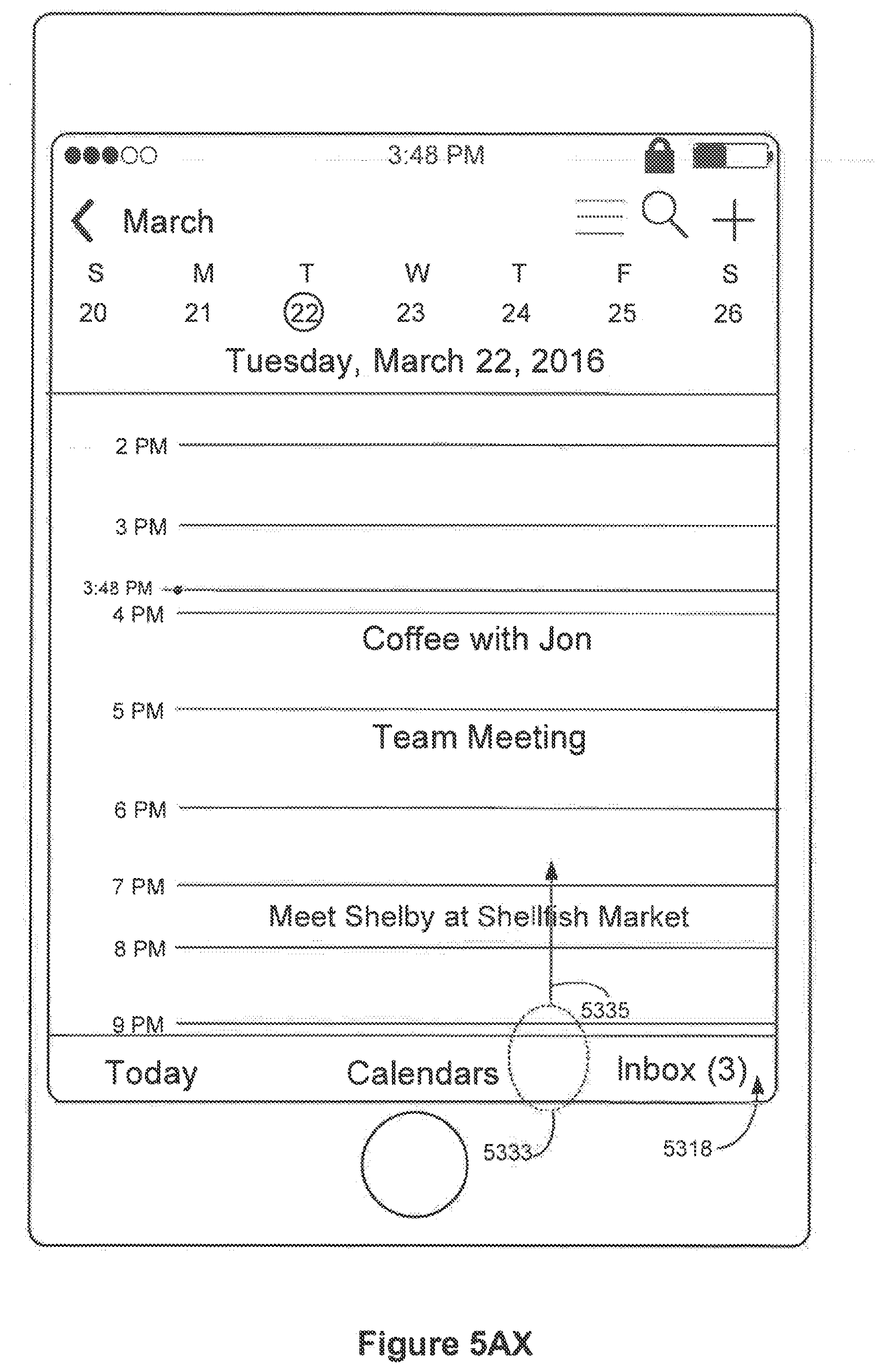

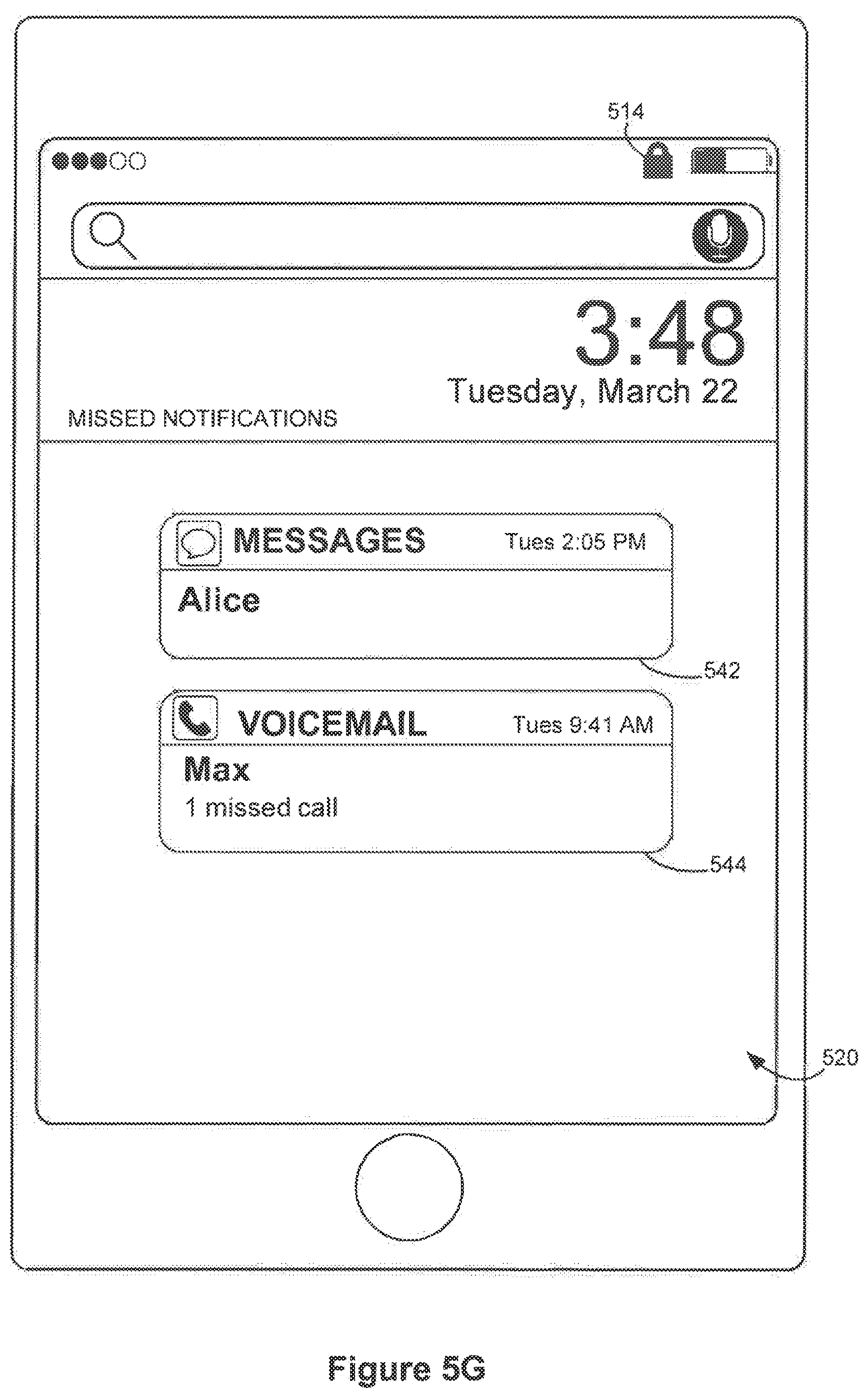

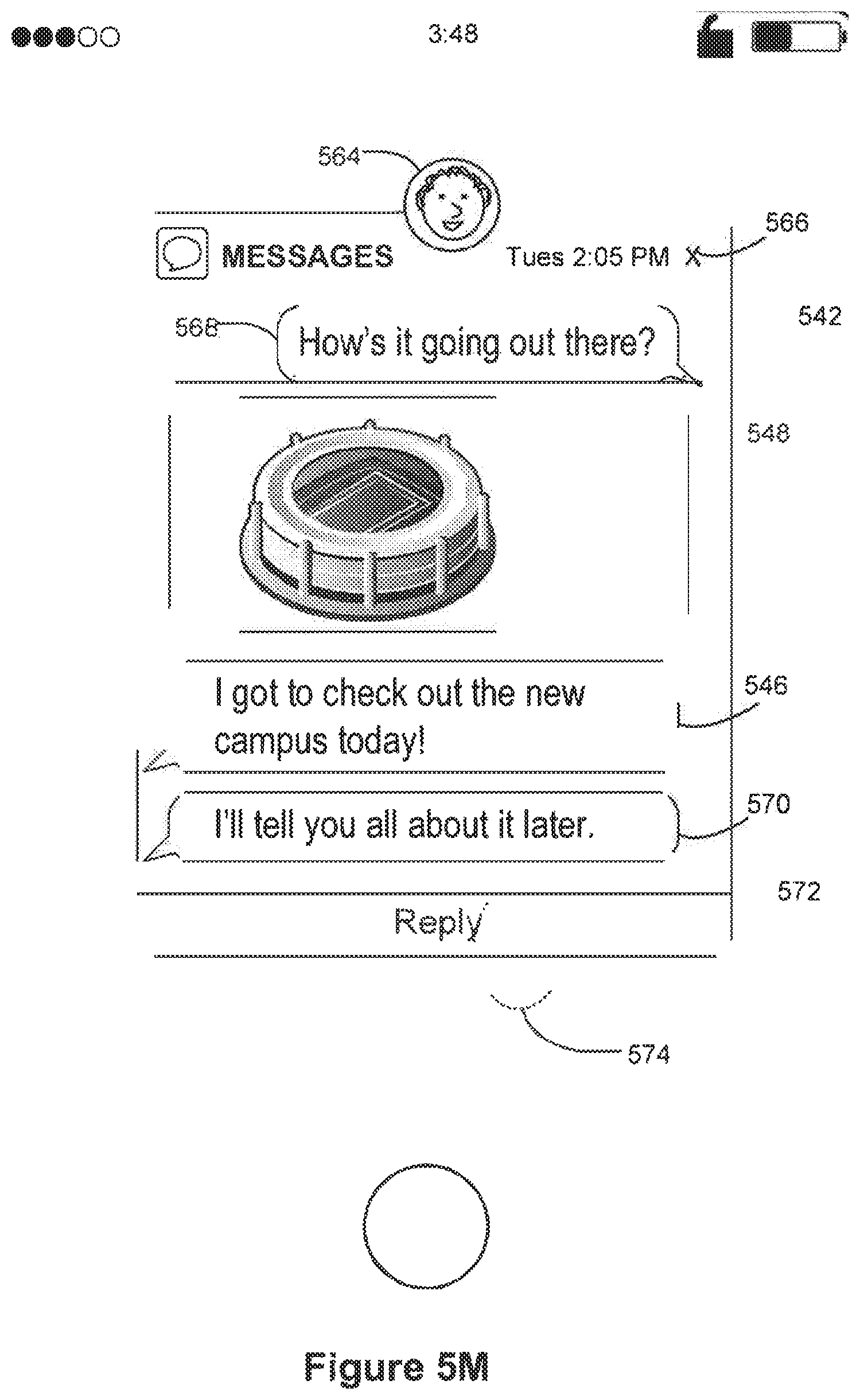

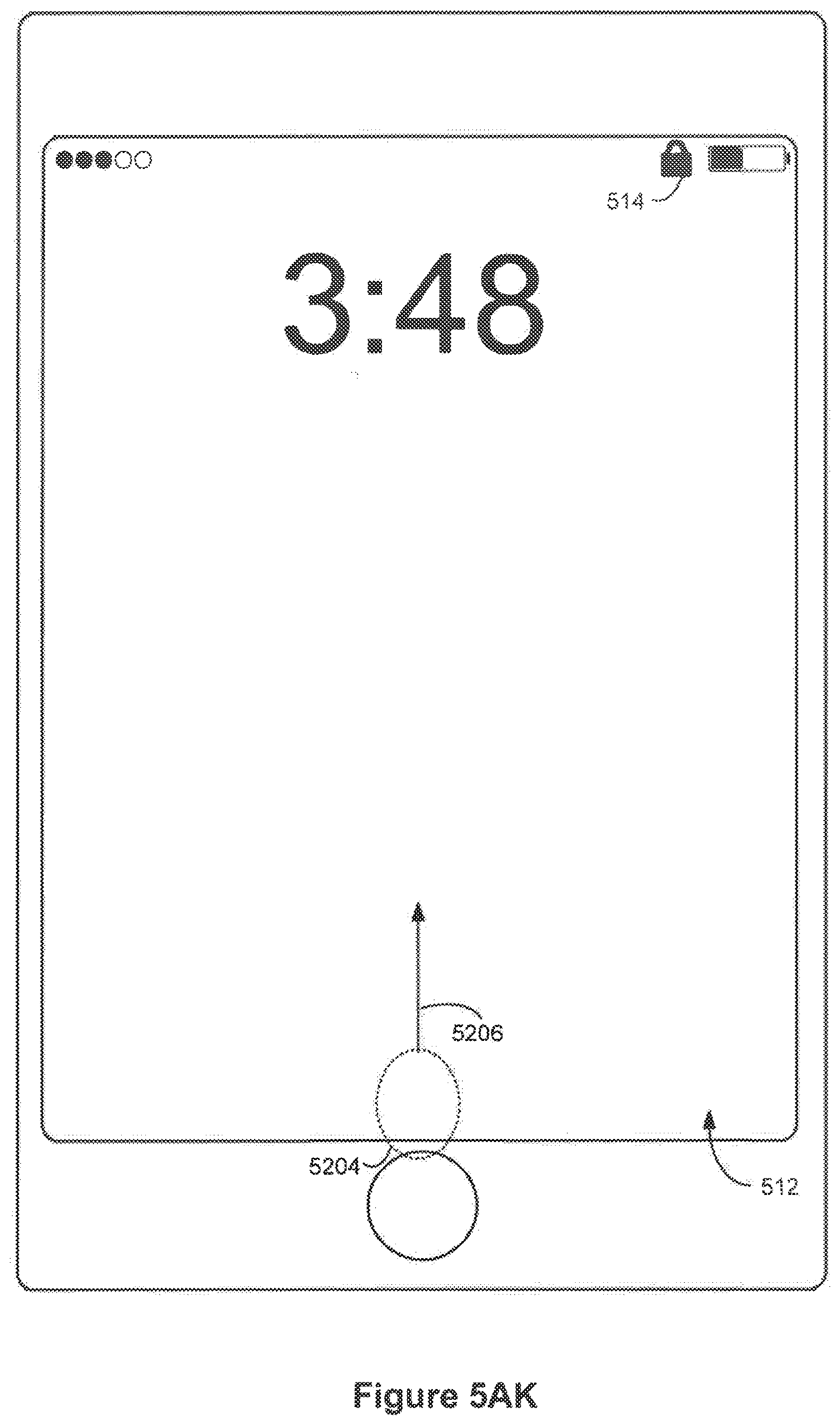

The description adds other examples: a voicemail with playback controls and an automatic transcript, a calendar invitation with Accept, Maybe and Decline buttons, and a message with an inline reply box. When the device is locked, it can require a passcode or fingerprint check before expanding. The filing is a continuation of earlier applications that trace back to a 2016 provisional application.
… replaces display of the system user interface with a respective user interface of a first application that corresponds to the first event …
Translation: Opening the full ride sharing app when you tap the notification again.
Why fewer taps to check on your ride matter
If you use ride apps, this could cut down on the number of times you open an app just to check on something. A glance plus one extra tap would answer the most common questions: where is the car, and when does it arrive? The filing also says fewer inputs can save battery, since the phone does less work to get you the same information.
For app makers, the design treats a notification as a small live window into their service, with the full app one tap further. Whether any of this ships is unknown, since a patent application is not a product plan.
Apple's 552nd filing in our Apple coverage since May joins earlier applications like one on headset fit detection and one on AI search routing.
The problem here is small, but you hit it all the time. Checking on a ride, a voicemail or a meeting invite should take a second, and sometimes it takes an app launch and a wait. Add those seconds up across a day and across every phone owner, and the cost adds up even if no single moment feels painful.
The fix matches the size of the problem. One extra step on a notification you already tap shows the answer right where the notification sits. It needs no new hardware and no new habit.
The filing traces back to a 2016 application, which makes this a mature idea receiving fresh paperwork. Expect a modest convenience win. The ride map is the memorable example, and the same pattern fits any app with a live status.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

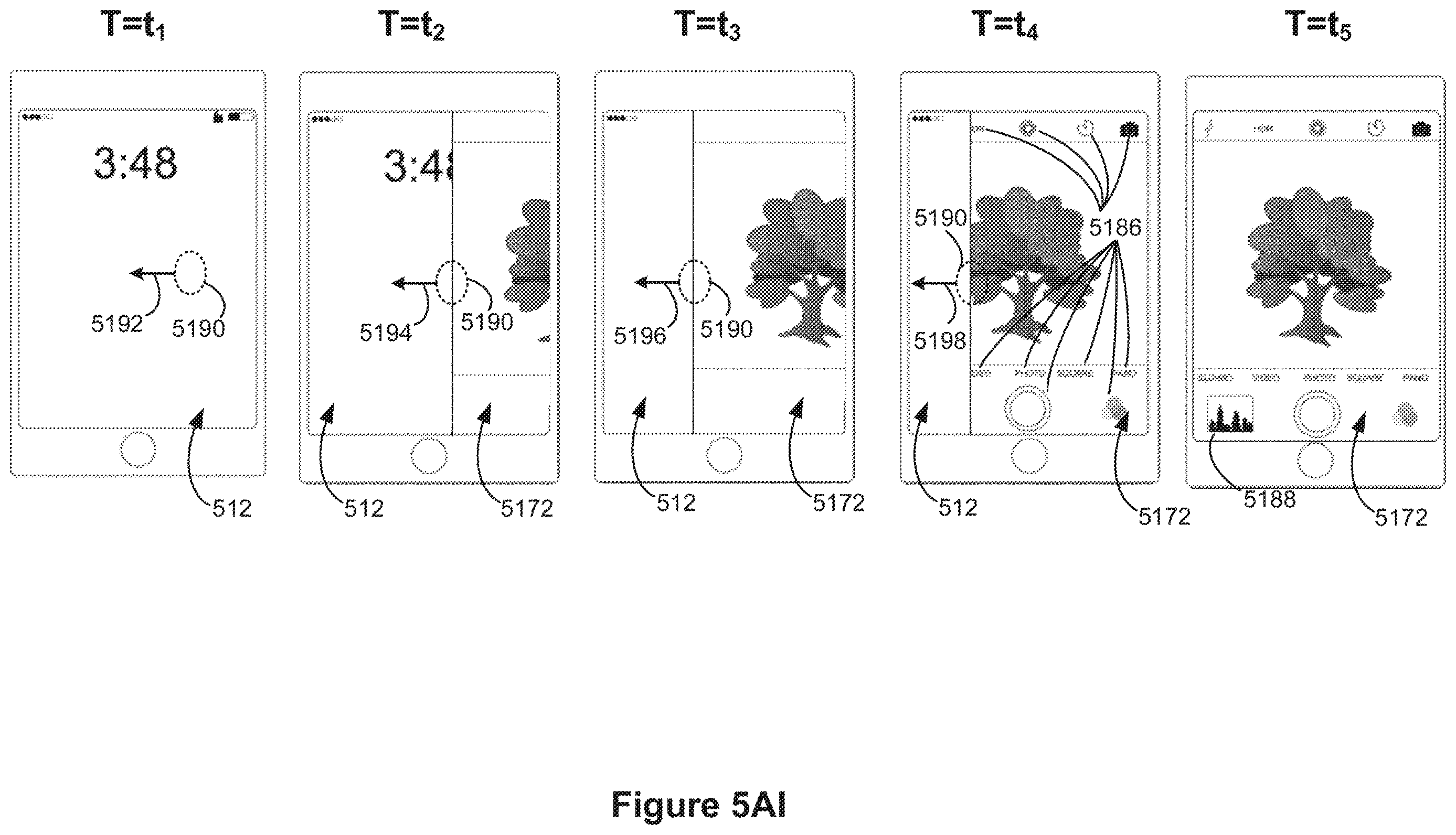

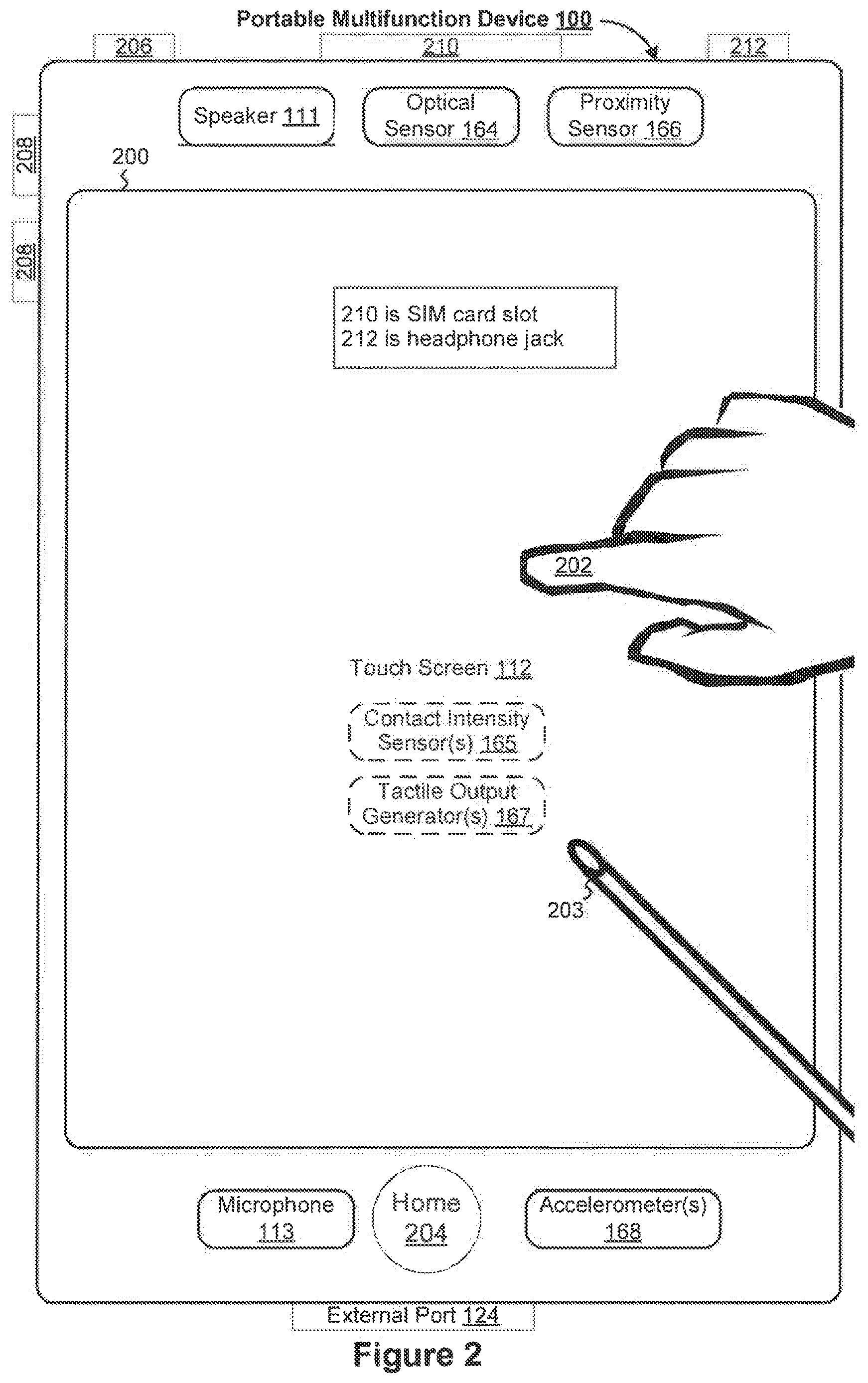

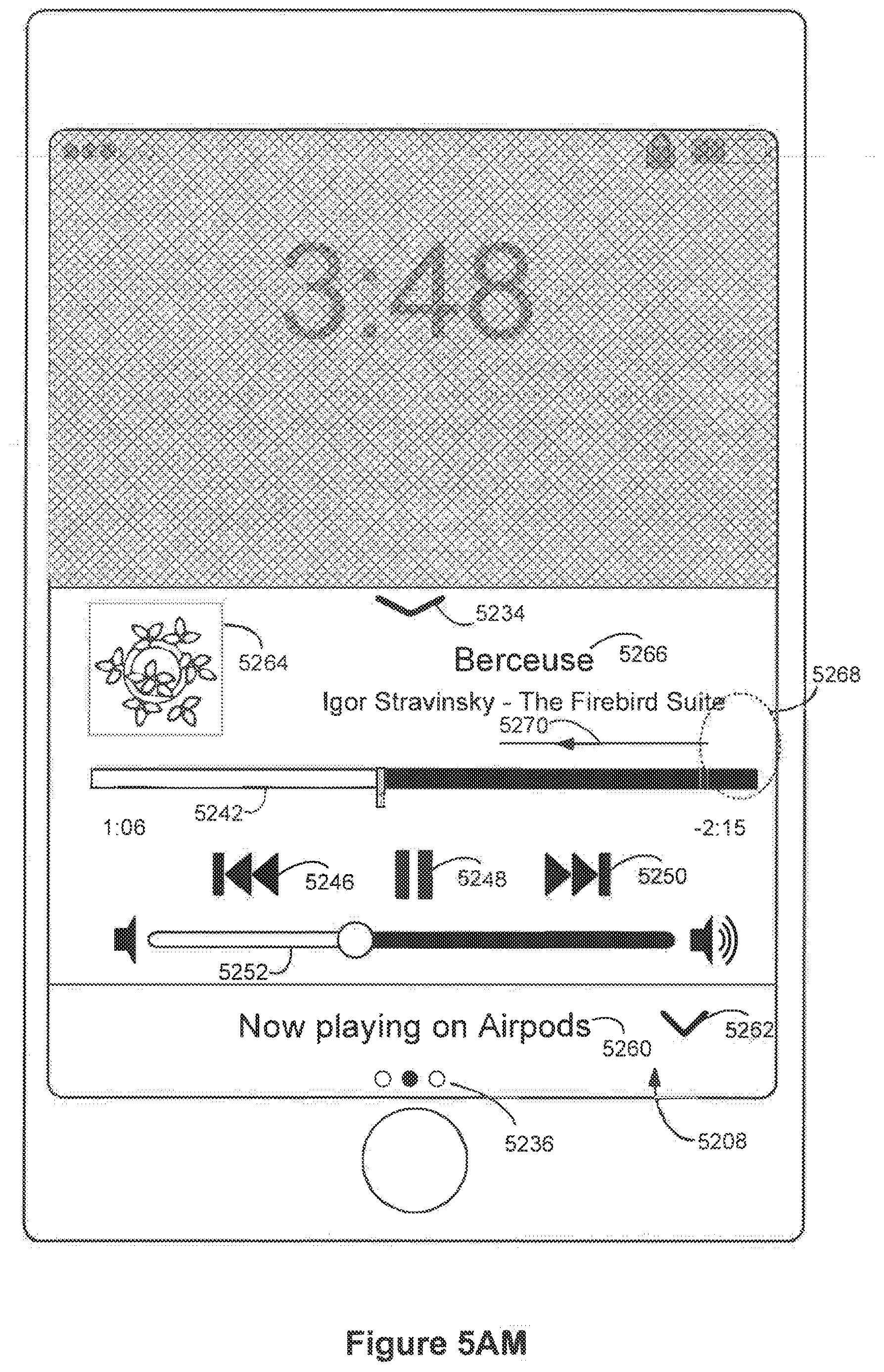

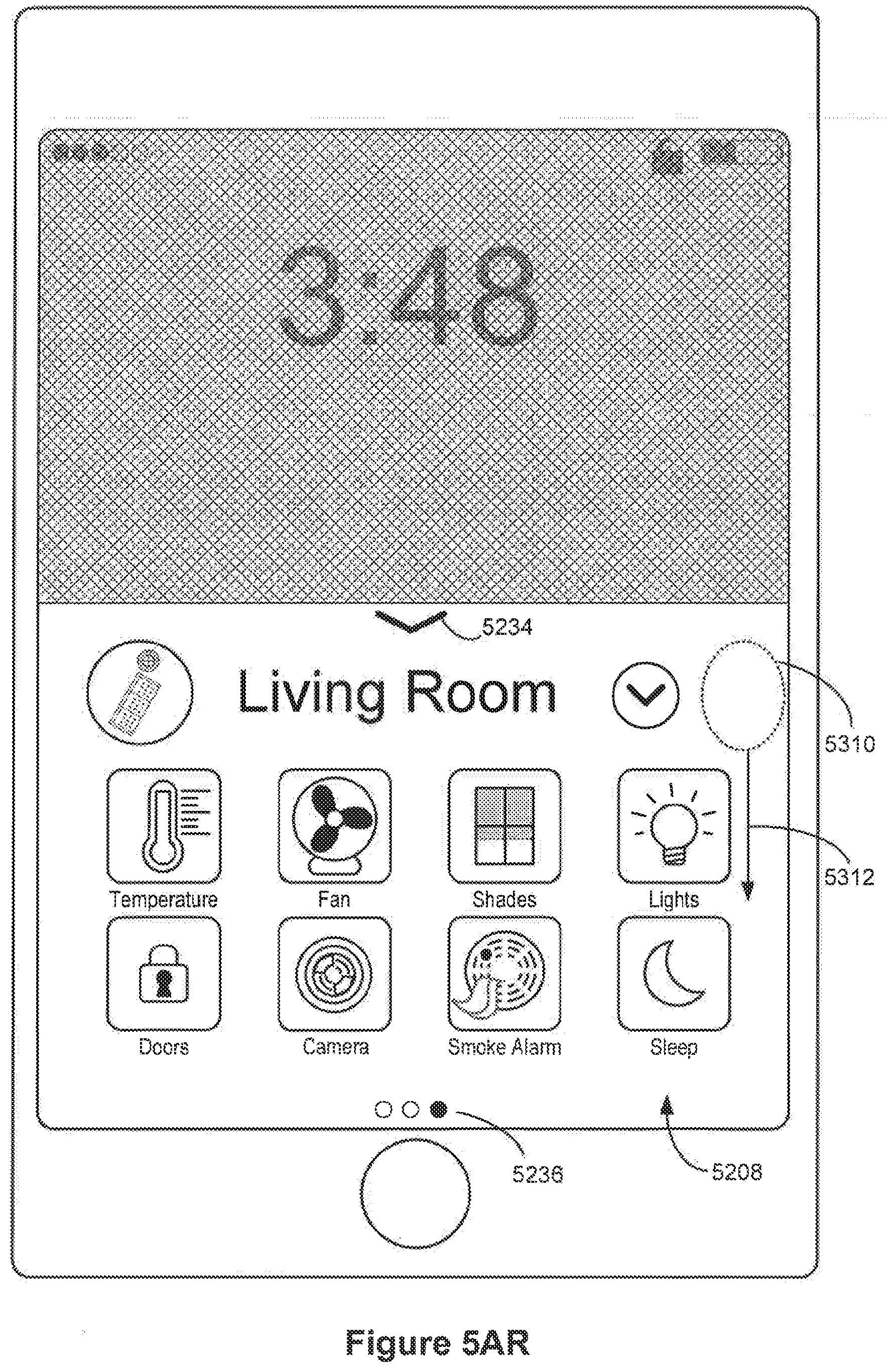

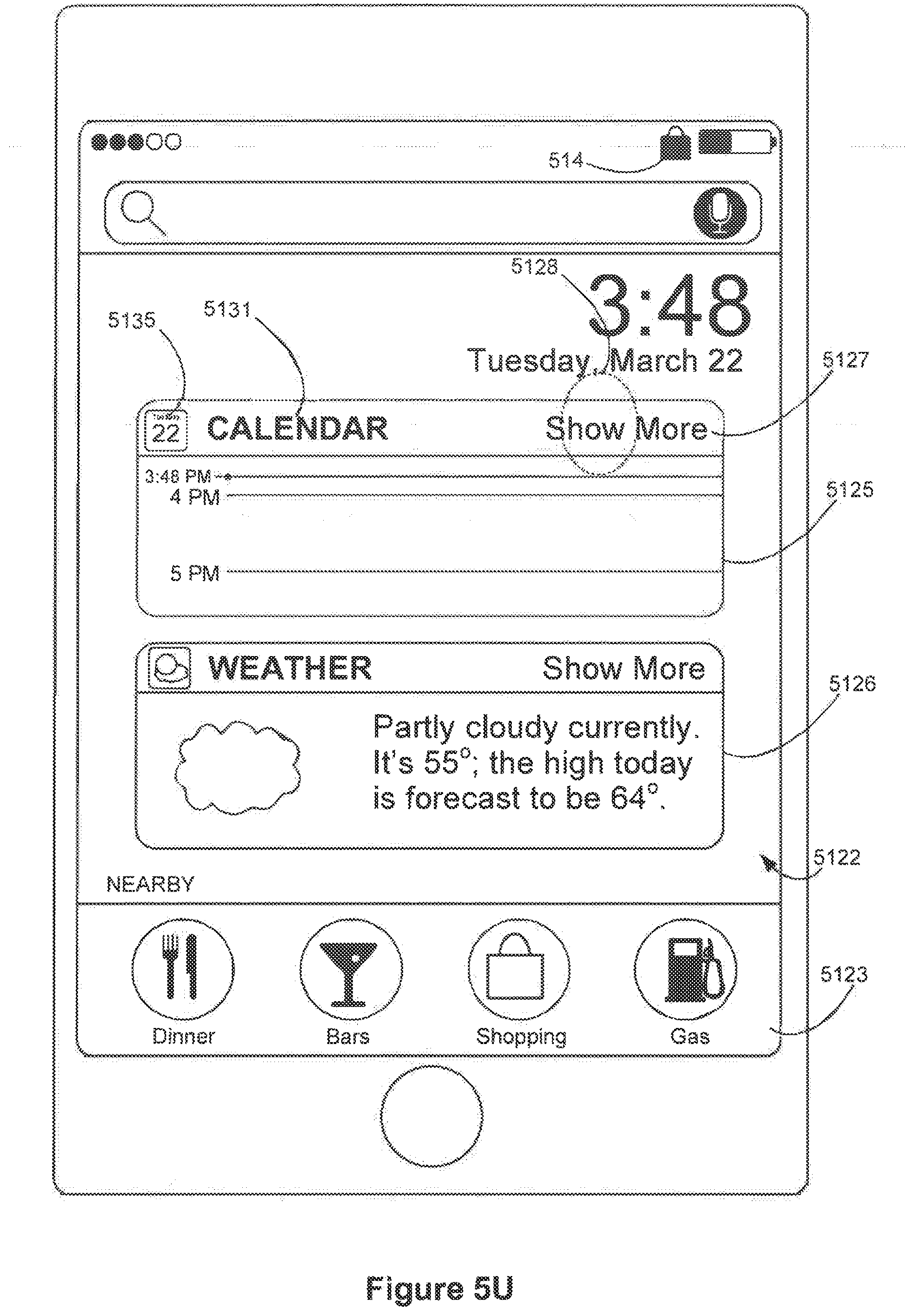

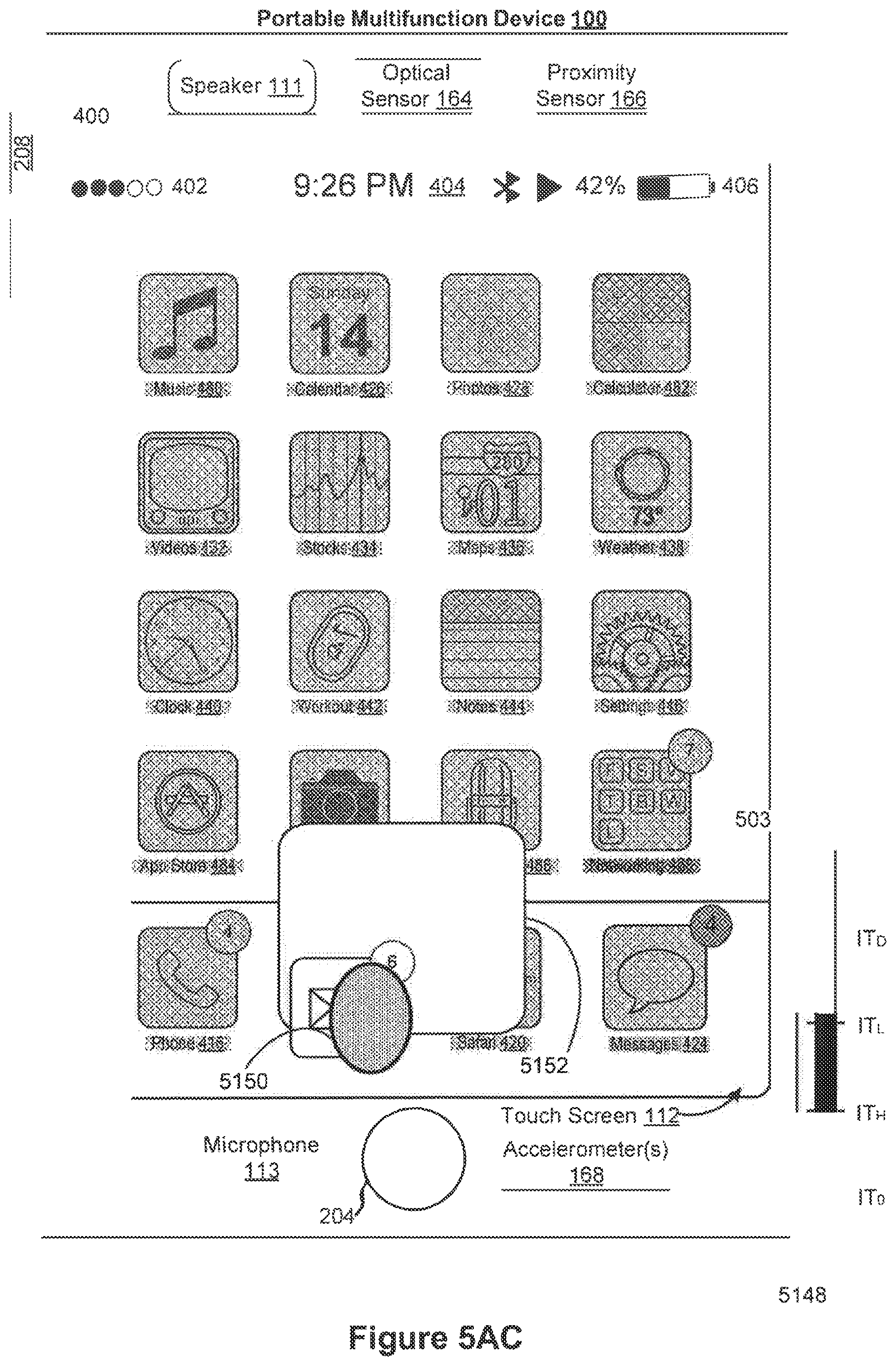

93 drawing sheets from US 2026/0319656 A1 · click any drawing to enlarge
