Apple Patents a Way to Figure Out What You Mean by Watching Where You Look

When you say 'turn that off,' your smart speaker has no idea what 'that' is. Apple's new patent proposes using eye-tracking and environmental scanning to figure it out, turning a vague spoken command into a precise action.

A device tracking a user's gaze direction to identify and select specific objects in the surrounding area. Drawing from patent filing US 2026/0237390 A1.
A device tracking a user's gaze direction to identify and select specific objects in the surrounding area.All 4 drawings ↓
Publication number
US 2026/0237390 A1(US20260237390A1)
Applicant
Apple Inc.
Filed · Published
Mar 27, 2026 · Aug 13, 2026
Inventors
Kenneth M. KARAKOTSIOS, James BYUN, Pulah J. SHAH
Status when we published
Waiting for an examiner
Document
15 claims
US classification
704/275
Parent application
Continuation of 18/227,884 (filed Jul 28, 2023)(18227884)

How Apple's gaze-plus-voice system resolves what you mean

Every time you tell a voice assistant to do something, it has to guess what you're talking about from words alone. Say 'make it brighter' in a room full of smart lights and connected devices, and the assistant is essentially guessing.

Apple's patent describes a system where a camera or sensor first scans your surroundings to build a list of nearby objects. Then, a second sensor (most likely an eye-tracker in a headset or glasses) notices where you're looking. When you speak a command, the system already knows which object you're probably talking about, because it followed your gaze. The result is that 'turn that off' finally means something specific.

This approach links three things together: a physical scan of your environment, your eye movements, and your spoken words. Together, they let a device resolve the kind of everyday ambiguity that trips up even the best voice assistants today.

From the filing · CLAIM 1
… analyzing the scan of the proximate area to identify objects in the proximate area; after analyzing the scan of the proximate area, detecting, with a second sensor of a second external electronic device different from the first external electronic device, a first user input corresponding to at least one of the identified objects …

Translation: The system scans your surroundings to identify items, then uses a second sensor to see which one you are interacting with.

How the two-sensor pipeline connects gaze to commands

The patent describes a two-phase process that runs before you even finish speaking.

Phase one involves a first external device (think a spatial camera or room scanner) sweeping the nearby area and identifying every recognizable object it can find. This builds a kind of inventory of your environment.

Phase two is triggered by your gaze. A second external device, such as a head-mounted display with eye-tracking, detects where you're looking. That gaze location acts as a filter: the system narrows its focus to whichever object or objects fall in your line of sight, then requests detailed information about just those items from an external source.

When you then speak a command, the device already has:

  • A map of nearby objects
  • A record of which one you were looking at
  • Contextual information about that specific object

The spoken command is then interpreted in light of all that context, allowing the device to perform the right action even when the words themselves are ambiguous. The patent is careful to separate the scanning sensor from the gaze sensor, suggesting Apple envisions this working across multiple hardware devices acting in coordination.

From the filing · THE ABSTRACT
Input regarding the user, such as a user’s gaze location, may trigger a second analysis of a subset of the identified objects in the environment. The results of these analyses may then be used to resolve an ambiguity in linguistic user input from the user.

Translation: The device tracks where you are looking to figure out which object you are talking about when your commands are unclear.

What this means for Siri and spatial computing

For Siri, this could be the architectural fix that makes spatial voice control actually feel natural. The biggest frustration with voice assistants in multi-device homes or mixed-reality environments is that language is inherently imprecise. A system that fuses gaze, environment, and speech data sidesteps that problem at the source rather than trying to patch it with smarter language models alone.

Apple's Vision Pro already ships with both eye-tracking and spatial awareness hardware, which puts this patent closer to real infrastructure than a blue-sky idea. Readers interested in where this fits among interesting tech patents covering AR and spatial computing will notice Apple has been building each layer of this stack separately, and this filing is the first to stitch gaze explicitly into command resolution.

Source: US 2026/0237390 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 4 sheets

4 drawing sheets from US 2026/0237390 A1 · click any drawing to enlarge

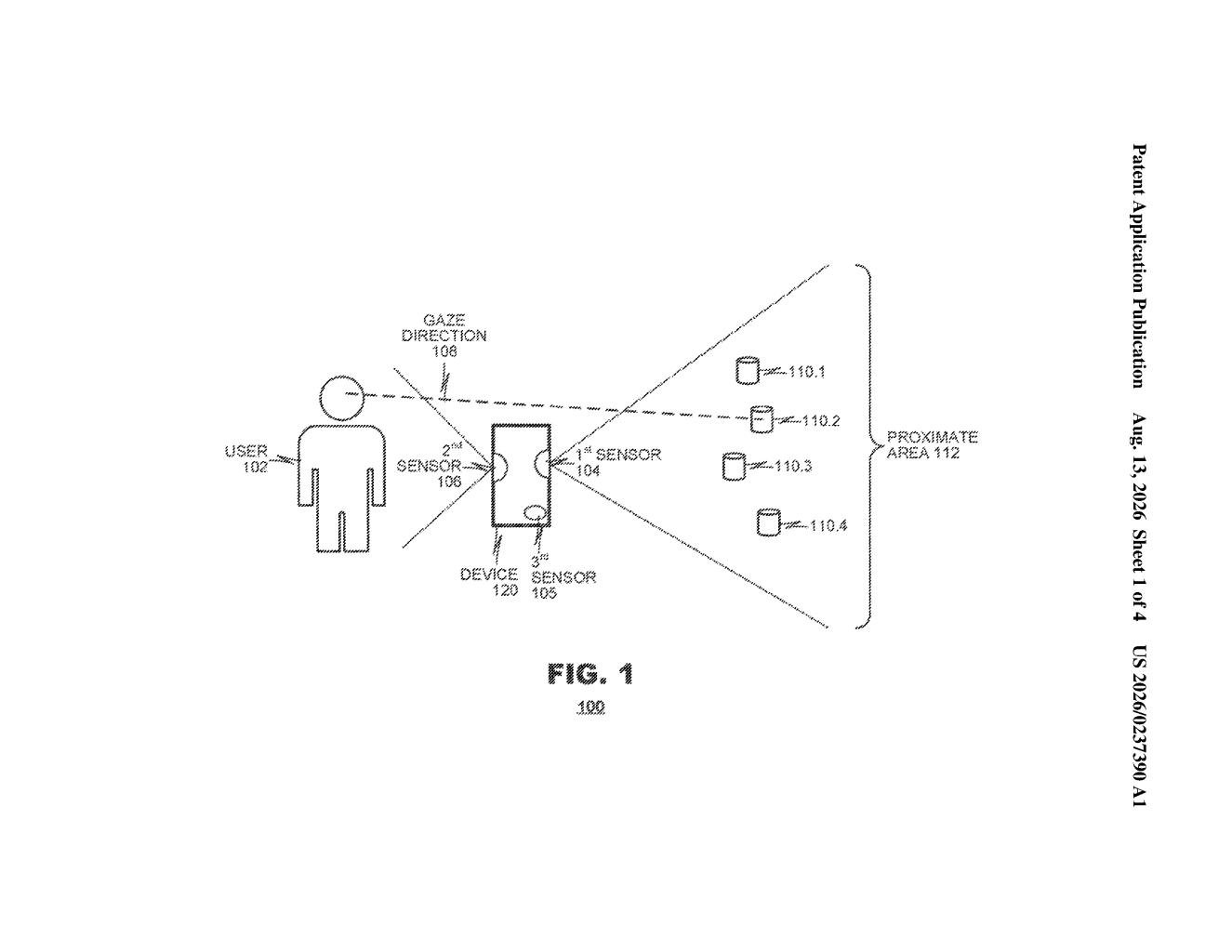

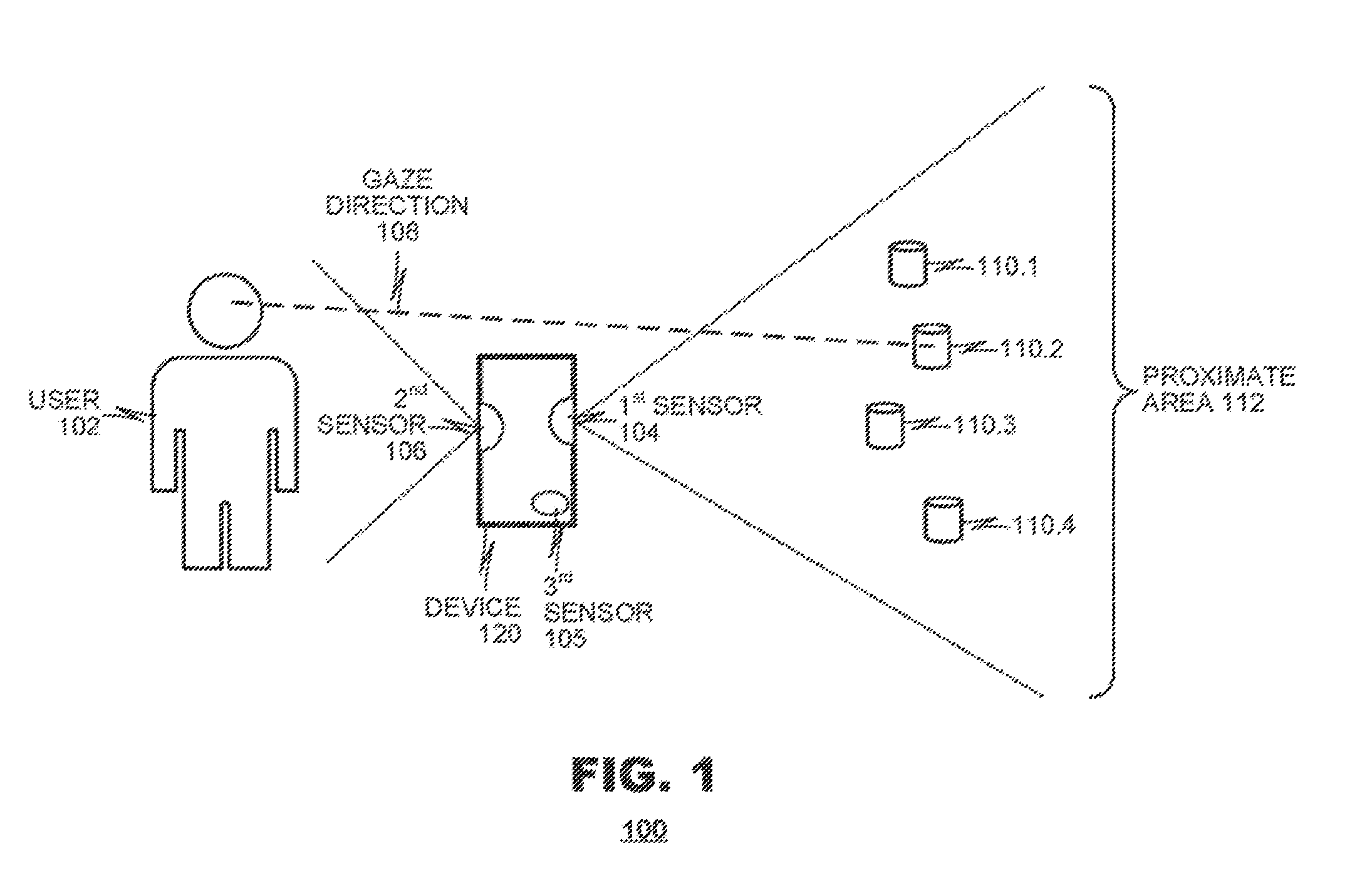

Gaze tracking system in use, drawing sheet 1 from US 2026/0237390 A1
Sheet 1 Gaze tracking system in use

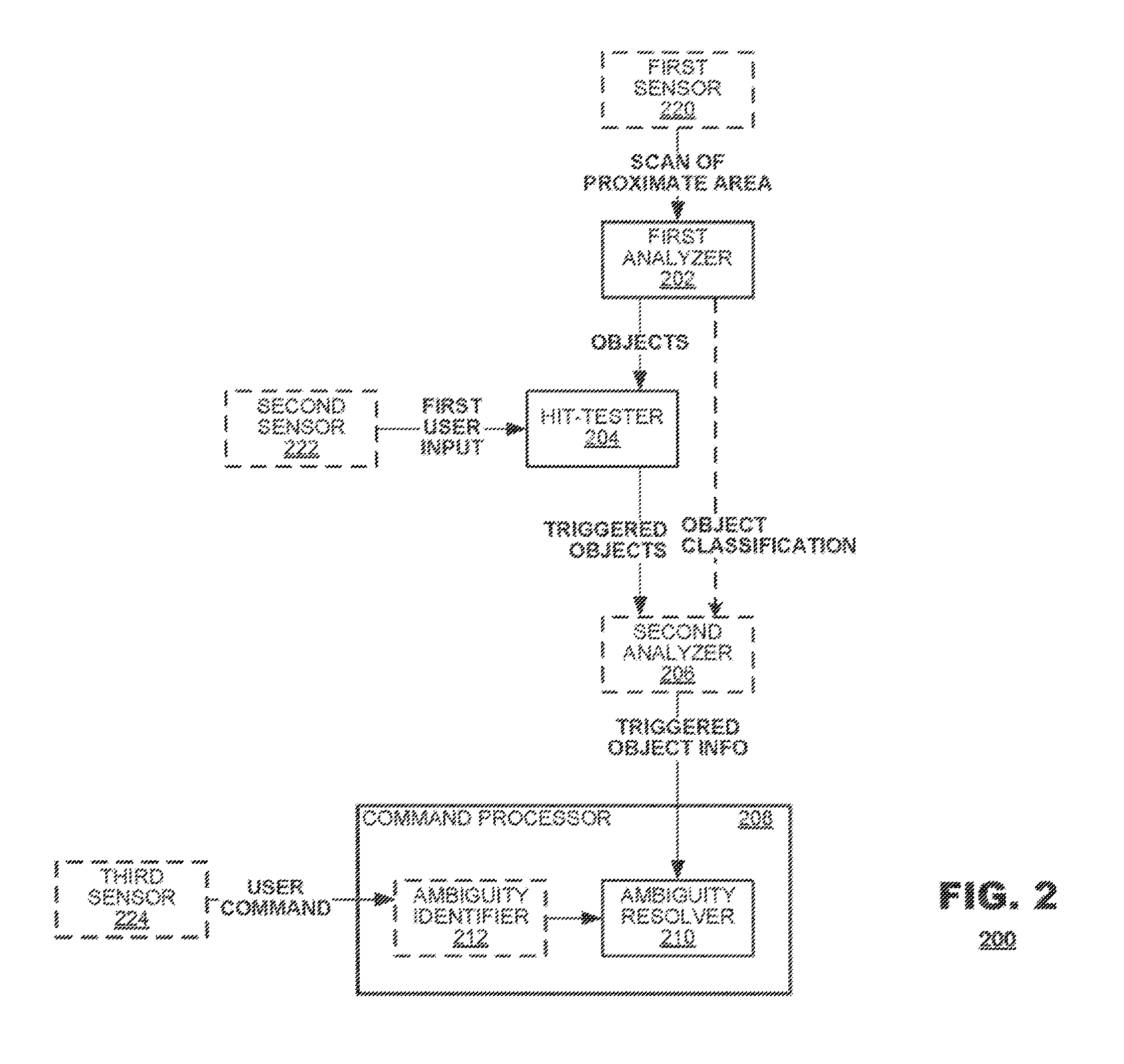

System architecture for resolving commands, drawing sheet 2 from US 2026/0237390 A1
Sheet 2 System architecture for resolving commands

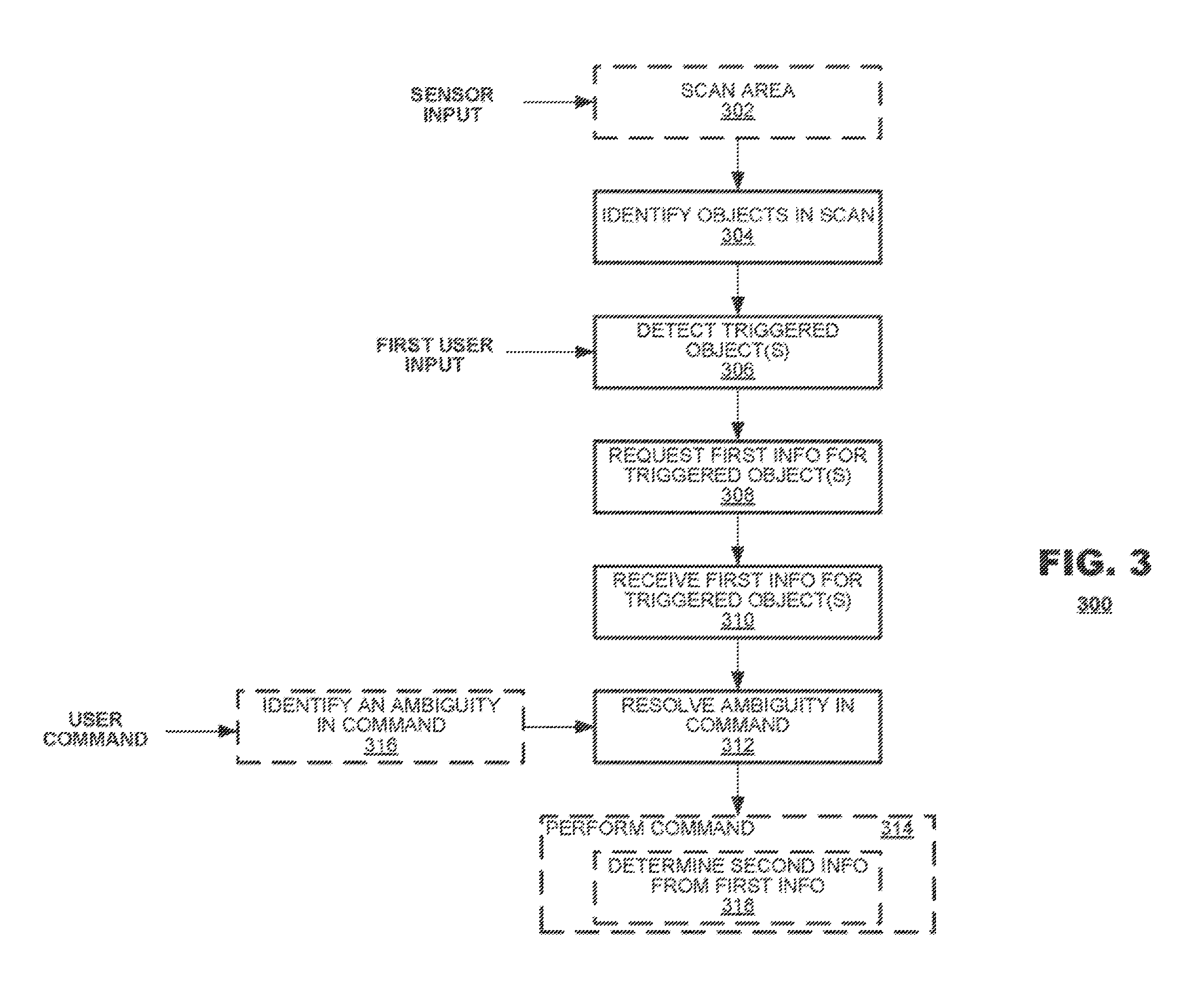

Process for resolving ambiguous commands, drawing sheet 3 from US 2026/0237390 A1
Sheet 3 Process for resolving ambiguous commands

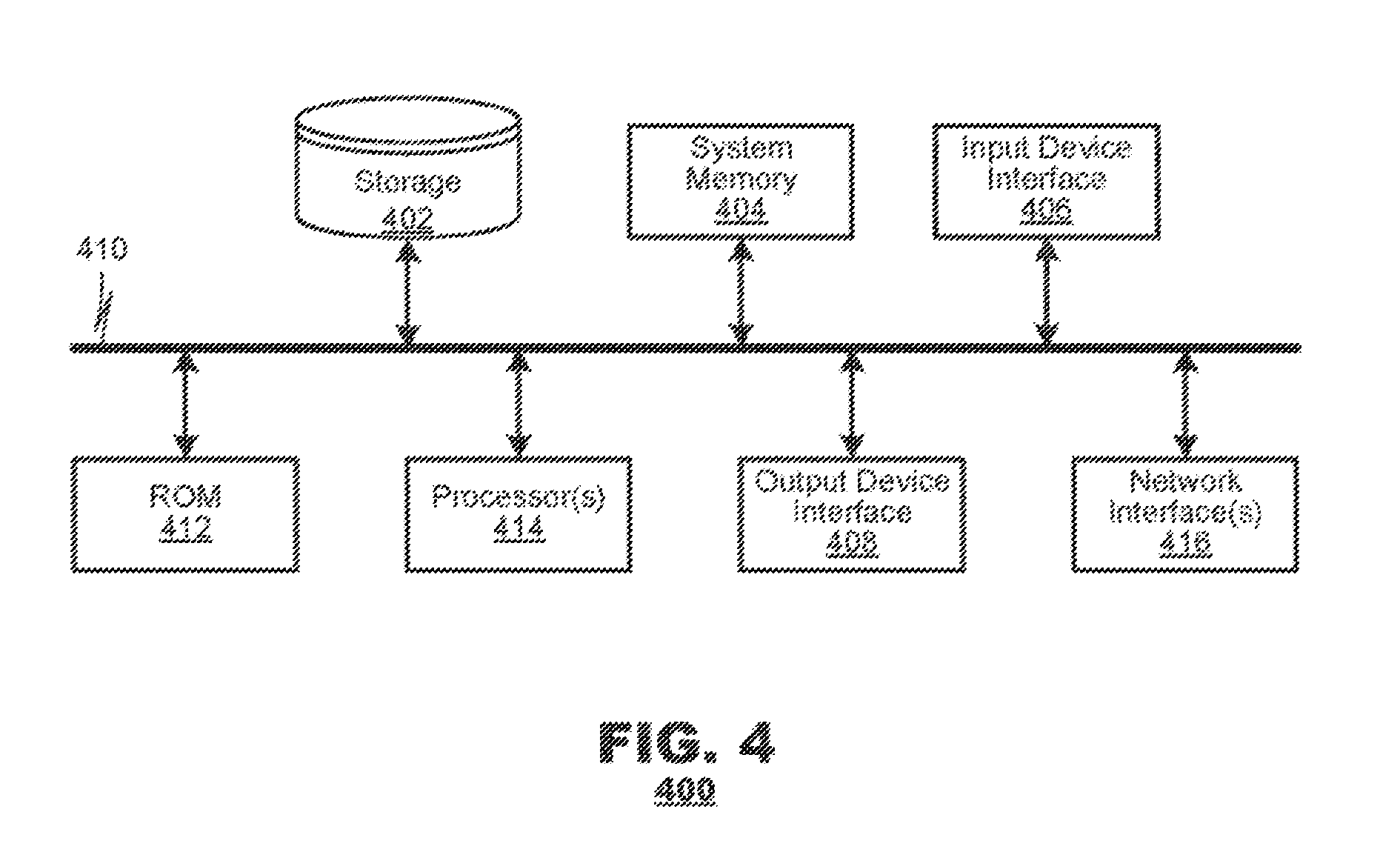

Internal hardware components of the device, drawing sheet 4 from US 2026/0237390 A1
Sheet 4 Internal hardware components of the device
