Apple Patents a Brake System That Locks Its Shape-Shifting Camera Lens in Place
Apple is patenting a camera lens that physically changes its own shape, and tiny brakes to hold that shape rock-steady once it gets there.
What Apple's self-reshaping lens with brakes actually does
A flexible rubber lens bends slightly to focus, like an eye adjusting between near and far. That sounds useful, but if nothing holds the lens in its new shape, any vibration or bump knocks it out of position.
Apple's patent describes a system where small motorized arms tug on the edges of a bendable lens to change how it focuses. The new part is a set of miniature brakes that clamp down on those arms the moment they stop moving, locking the lens shape without draining battery power to hold it. Think of it like a bike caliper brake: squeeze, and everything stays put until you release.
You'd likely feel this in a phone or wearable camera that switches focus almost silently and holds sharp even when your hand shakes, no spinning motor continuously fighting to maintain position.
… a brake assembly that is configured to selectively fix a position of the main structure, wherein the brake assembly comprises a brake that is configured to apply a force to the main structure in a direction parallel to the pivot axis.
Translation: A special brake locks the camera lens in place so it stays still when you are not actively adjusting it.
How the brake calipers and cams pin the actuator in place
The patent covers a tunable lens: a flexible optical element whose curvature (and therefore focal length) can be changed on demand by pulling or pushing on tabs around its rim. Each tab is driven by a small rotary actuator, a motor-like device that pivots around an axis to push the tab up or down.
The problem the patent addresses is drift. Once an actuator reaches the right angle, something has to keep it there. Running the motor continuously wastes power and generates heat. Apple's solution is a brake assembly built into each actuator. When no adjustment is needed, the brake fires and locks the actuator's main rotating structure in place.
The brake applies force parallel to the pivot axis (think pressing sideways along a spinning axle rather than squeezing the rim of a wheel). Several physical designs are described:

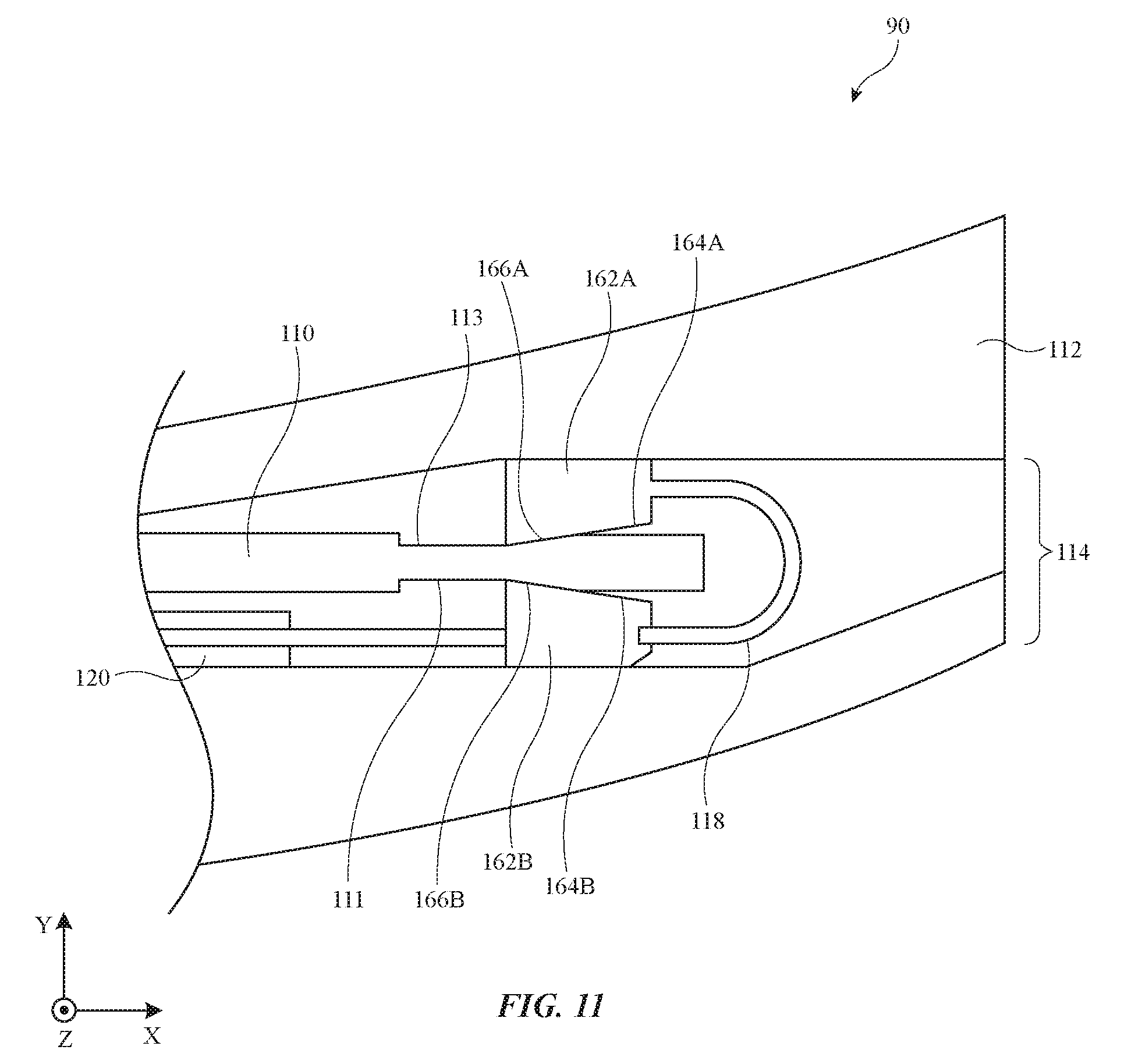

- Wedge-shaped brake calipers that pinch tighter as they push inward

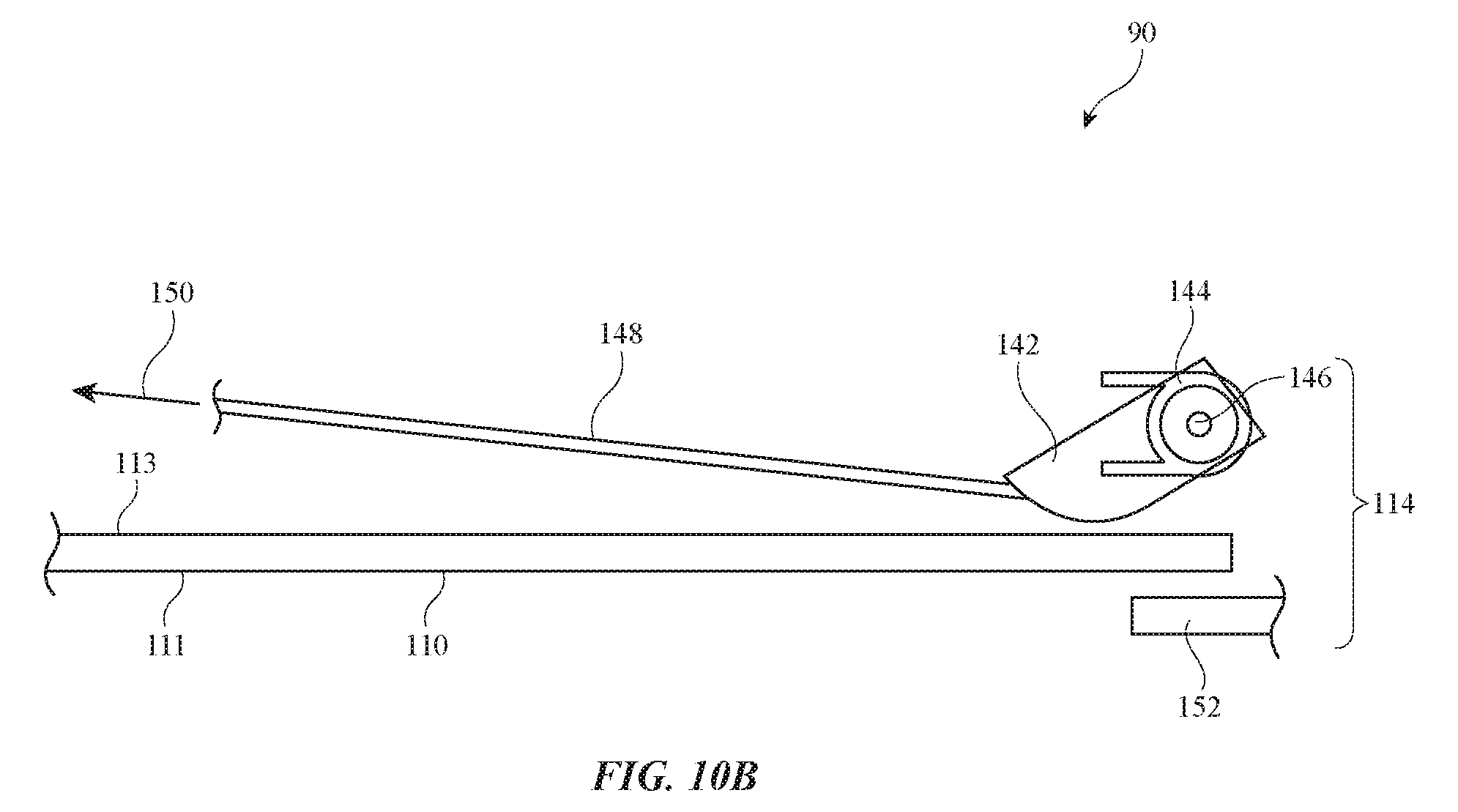

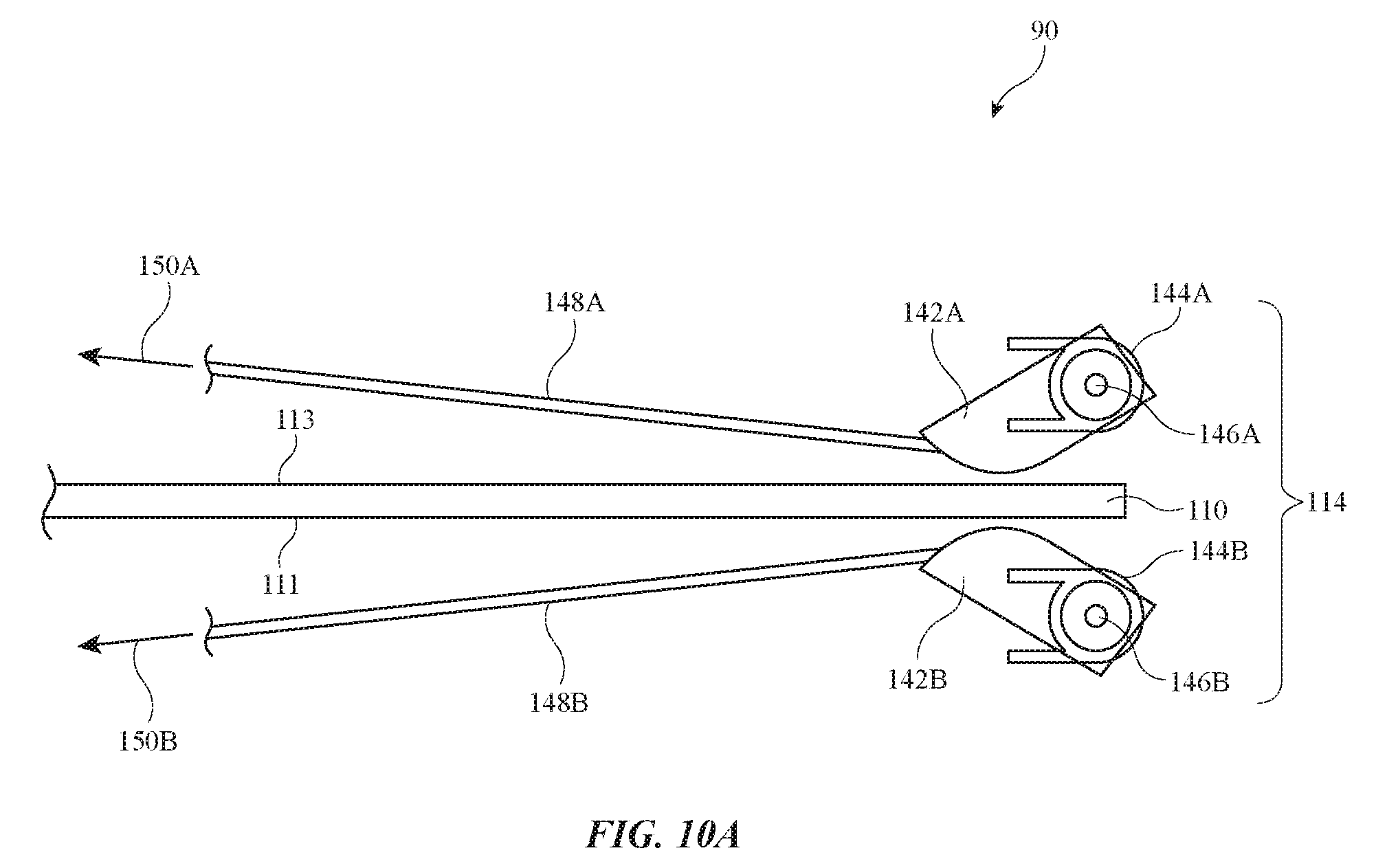

- Brake cams (egg-shaped pieces that jam against the structure when rotated)

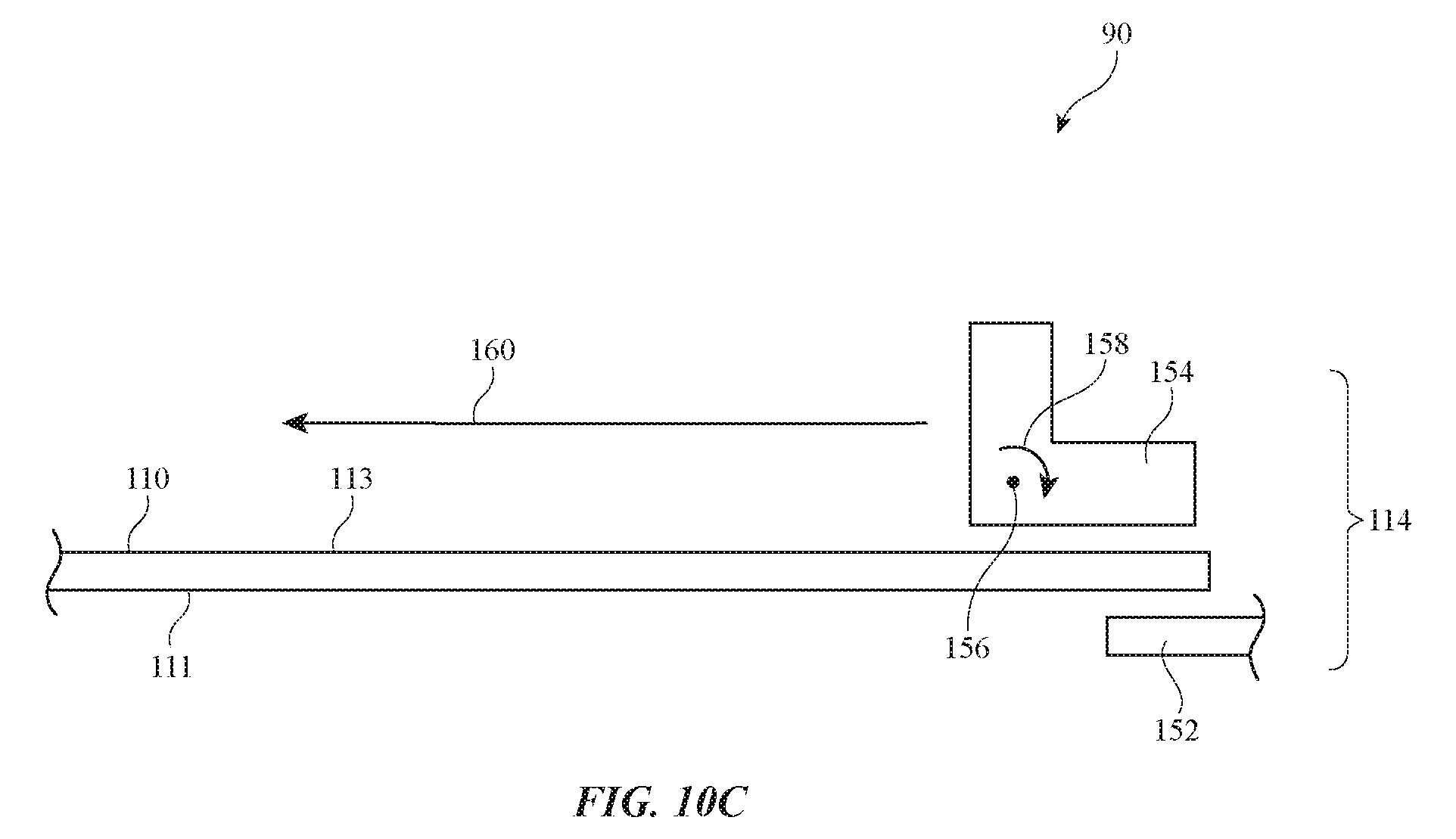

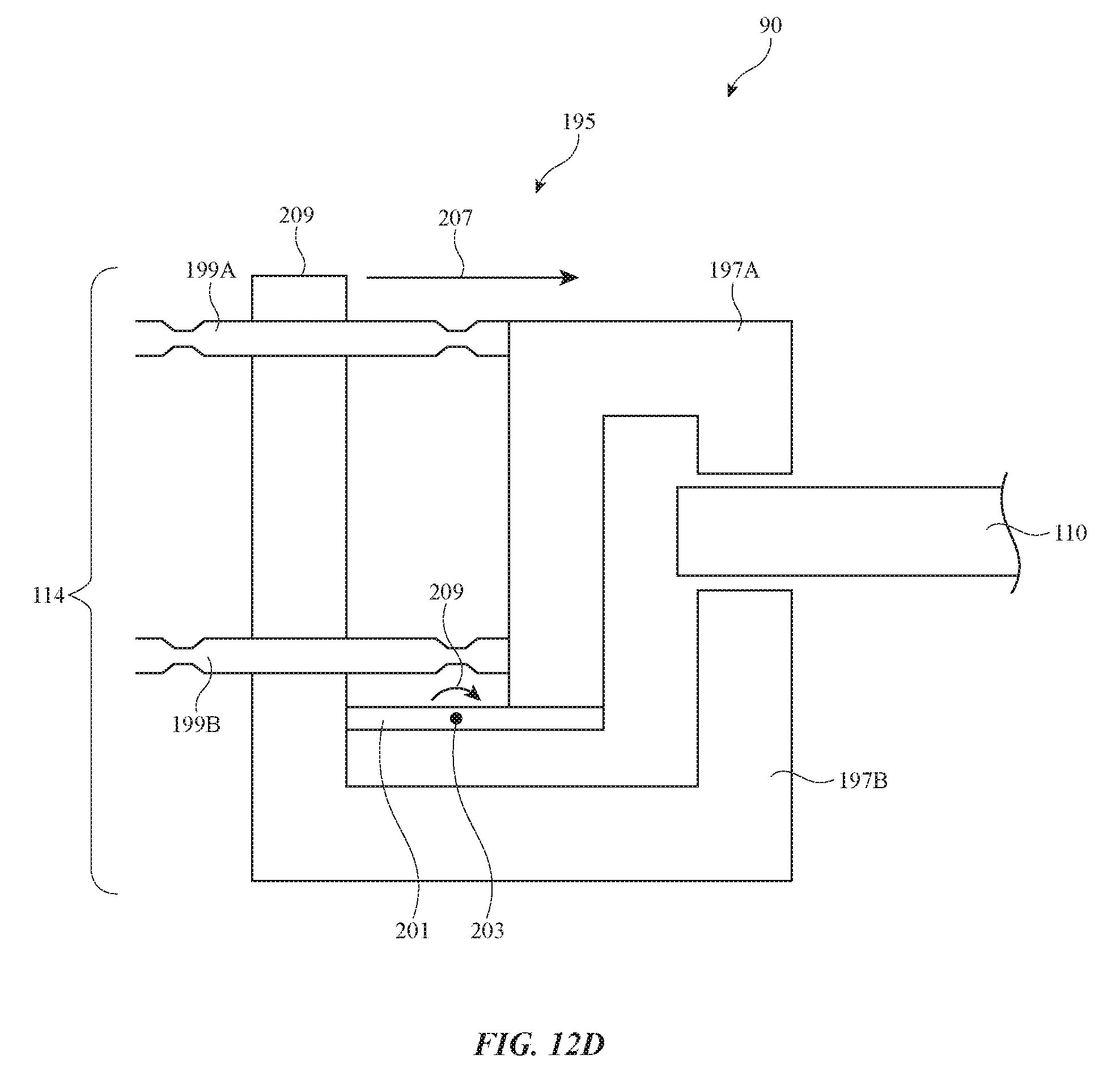

- L-shaped brake structures that lever against the actuator body

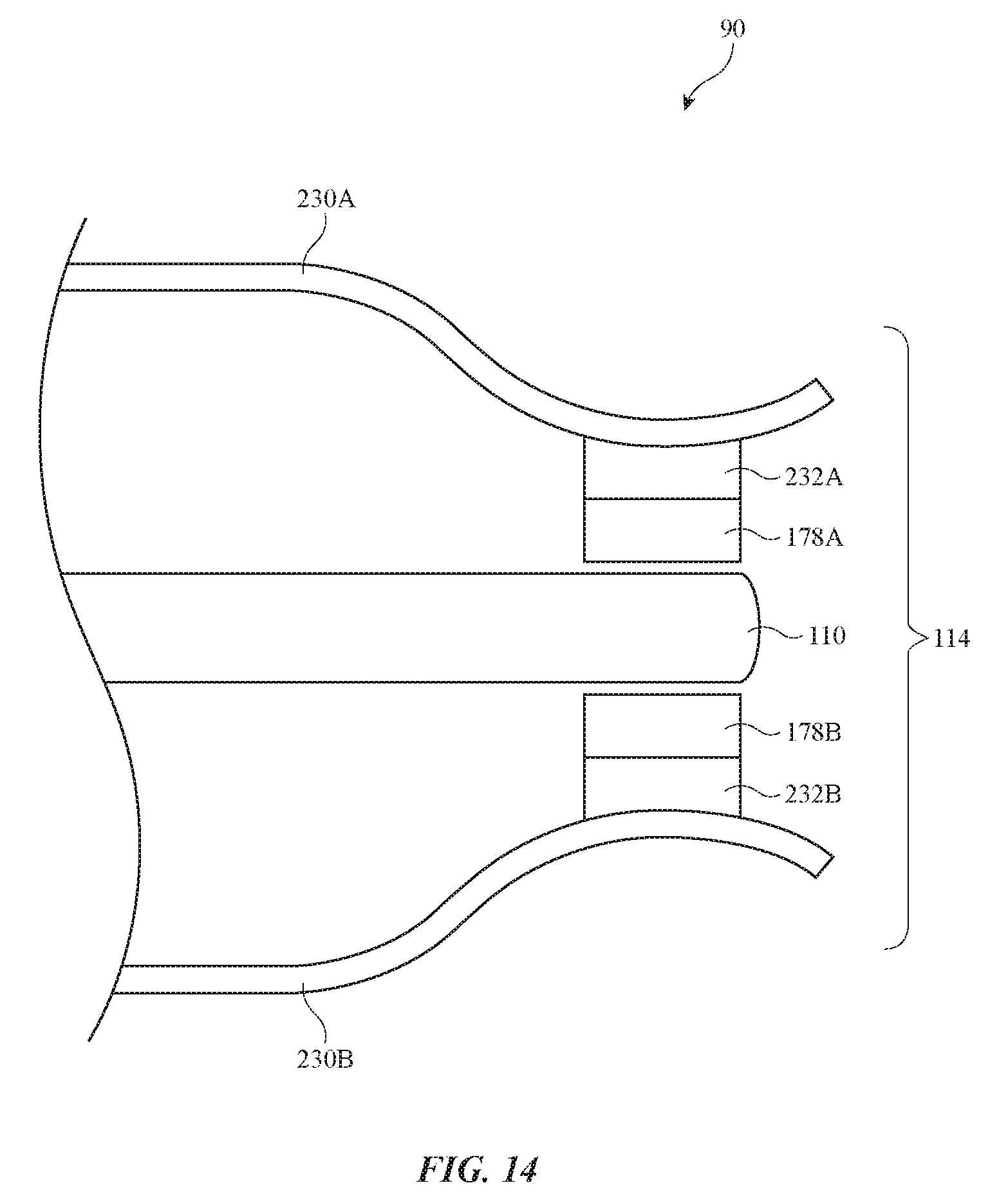

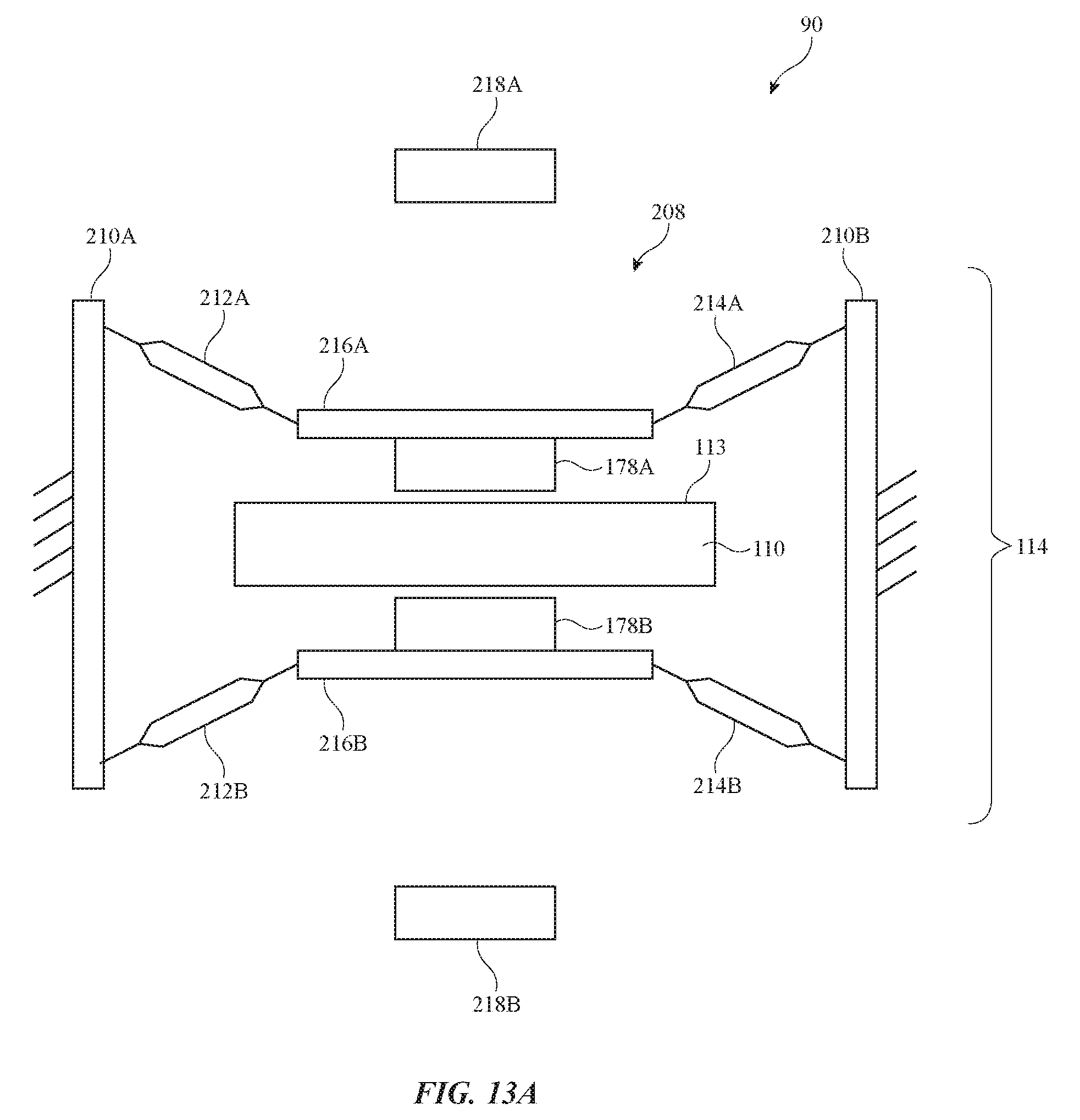

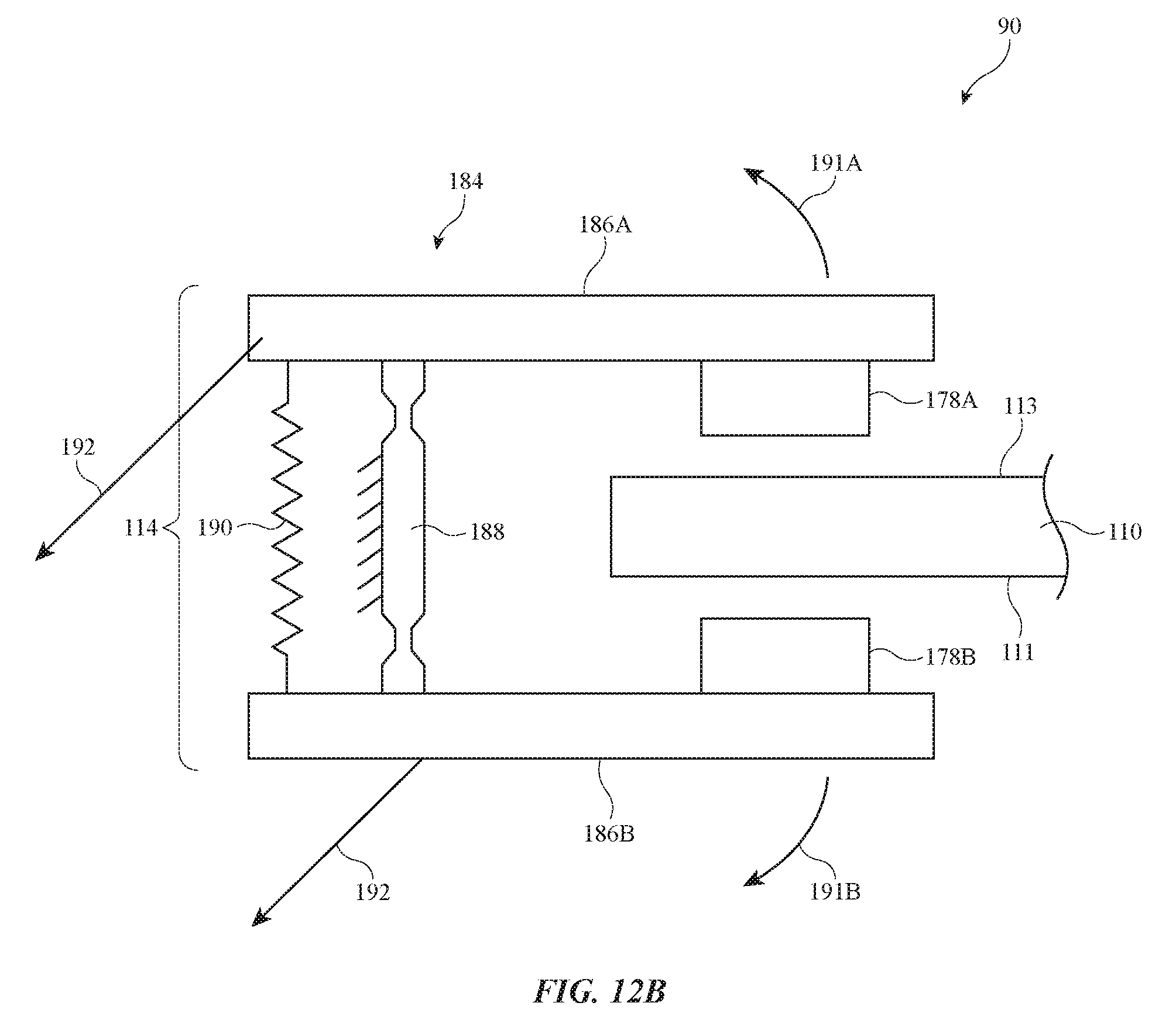

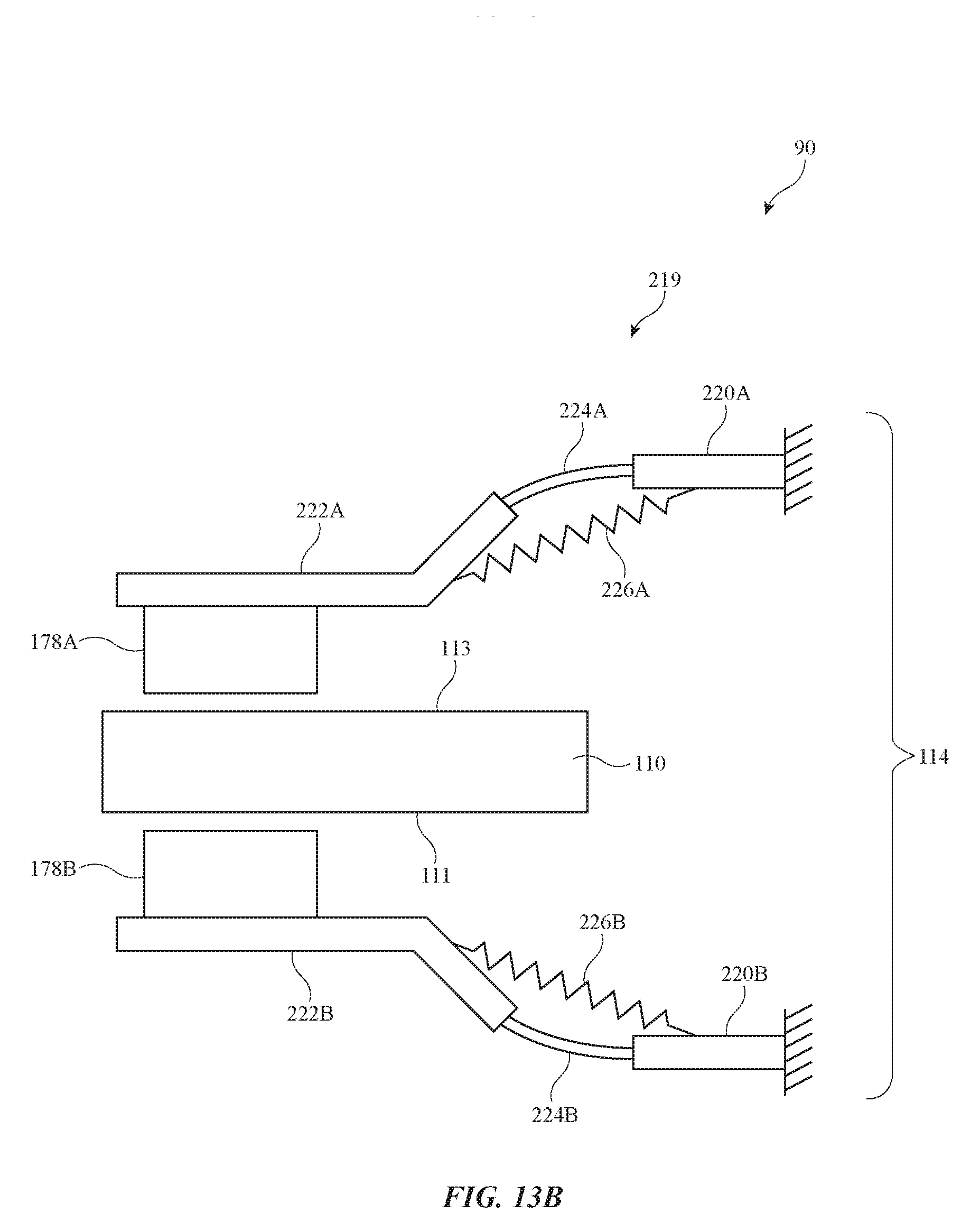

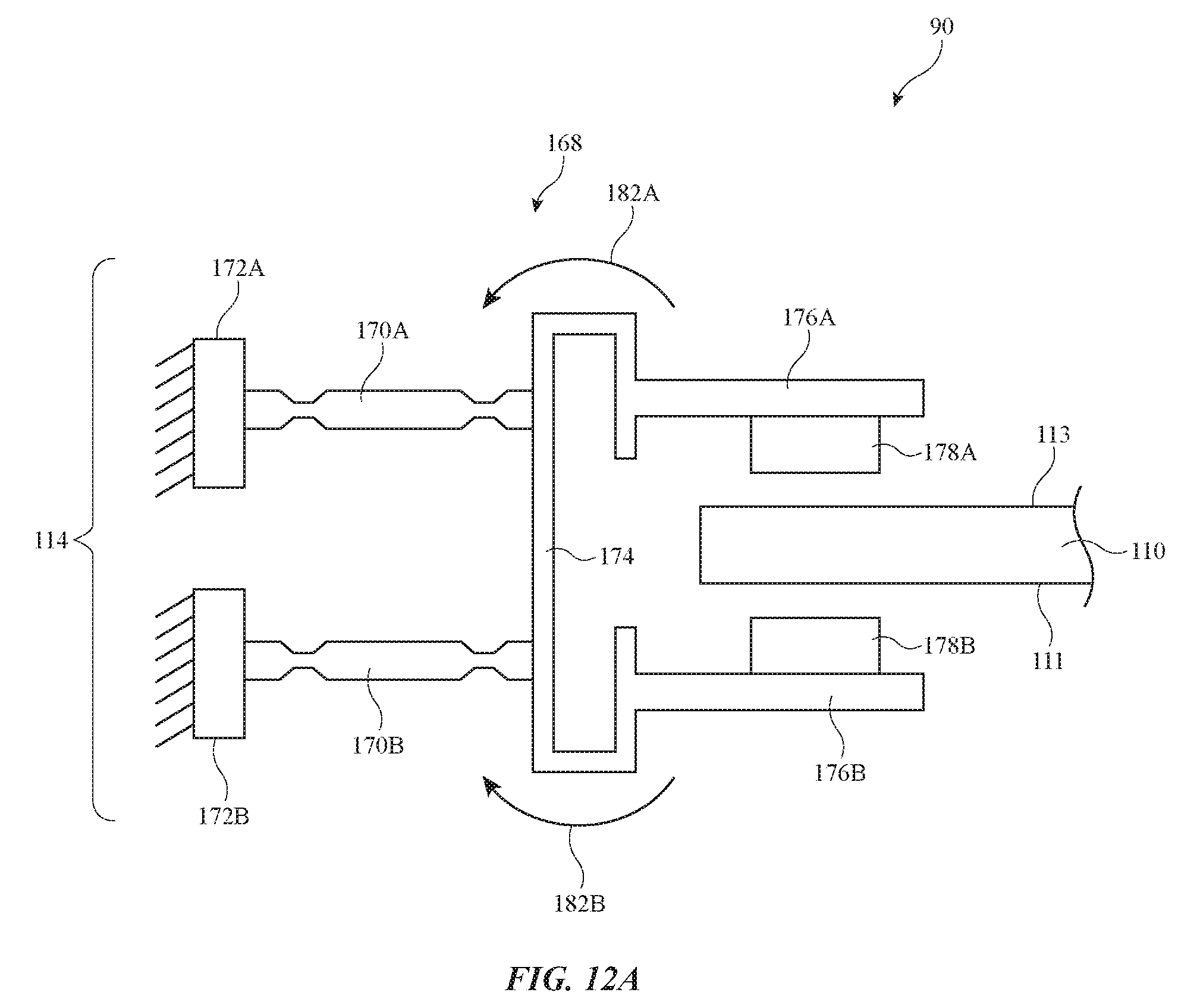

- Flexures (thin spring-like blades that store and release clamping force)

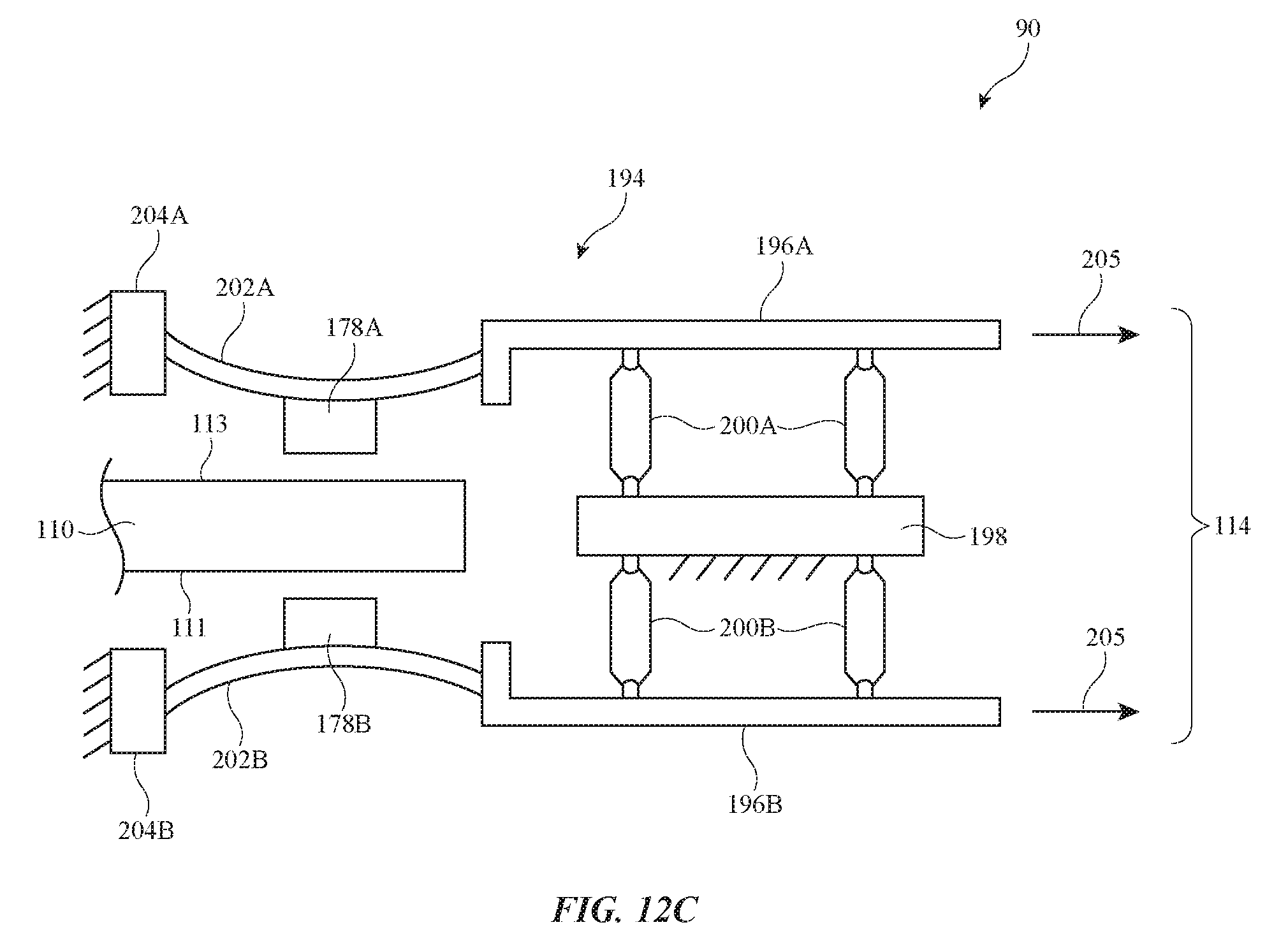

- Piezoelectric members (materials that expand slightly when voltage is applied, used to press the brake home)
Using multiple brake geometries in a single patent suggests Apple is hedging its bets on which design works best at the tiny scale needed for a consumer device.
The brake assembly may include one or more brake calipers with wedge-shaped surfaces, brake cams, L-shaped brake structures, flexures, and/or piezoelectric members to apply the force to the structure.
Translation: The locking mechanism uses a mix of tiny wedges, cams, and electronic parts to hold the lens steady.
What this means for the future of iPhone and device cameras
Camera modules are already among the most physically constrained parts of any phone or wearable, and anything that adds mechanical complexity has to earn its space. A tunable lens that replaces multiple fixed glass elements could make devices thinner, but only if the lens holds its shape reliably. These brakes solve exactly that problem without leaving the motor energized full-time, which would shorten battery life and heat up a small enclosure.
Apple's run of computational-optics and lens-module filings suggests the company is serious about rethinking how cameras focus at a hardware level. For you as a user, the payoff would be faster, quieter focus that doesn't hunt or drift, in a package that doesn't need to grow thicker to fit extra glass elements.
Apple's 14th filing in our camera patent coverage since June follows earlier applications like one on audio-triggered tracking and one on optical zoom, adding another piece to what we've tracked from the company.
This patent describes physical hardware that has to be miniaturized, hardened against years of drops and temperature swings, and fitted inside a space thinner than a stack of credit cards before it reaches anyone's pocket. That is a long road, and nothing in this document shortens it.
The clearest sign of how early this work is: the filing describes five completely different braking mechanisms in a single document, from wedge clamps to pressure-sensitive crystals. Teams that have found their answer patent one approach. Teams that are still searching patent all of them.
The underlying goal, a lens that reshapes itself on demand to dramatically improve thin-phone photography, is commercially compelling. But a compelling goal and a shippable product are separated here by fabrication problems this document does not solve.
