Samsung Patents a Dual-Surface Stacked Antenna Structure for Devices
Samsung is filing patents on a way to squeeze two antenna structures onto opposite faces of a thin dielectric layer inside a device — with one pattern deliberately overlapping the other when you look straight down through the board. It's a spatial trick that could help pack better wireless performance into slimmer hardware.
What Samsung's two-sided antenna layout actually does
Imagine trying to fit two separate radio antennas into a space barely thicker than a credit card. That's the design challenge Samsung is tackling here.
The patent describes a device with a thin insulating layer (a dielectric structure) sitting inside the housing. One antenna pattern sits on the front face of that layer, another on the back face — and a third, separate antenna sits nearby on the same front face. The two-sided antenna patterns are electrically connected through the layer, while the third antenna sits nearby but doesn't directly touch.
The clever bit is that, when you look straight down through the stack, part of the back-face pattern lines up directly over the front-face antenna that's sitting next to it. That deliberate overlap — even across the insulating layer — affects how the antennas interact and can tune signal behavior across frequency bands without needing more physical space.
How the overlapping conductive layers shape the antenna
The patent claims an electronic device with a dielectric structure (a non-conductive layer, think PCB substrate or similar material) that has a front surface and a back surface.
On the front surface, there are two things: a first conductive pattern (part of the main antenna structure) and a separate second antenna structure — a conductive layer that sits nearby but is spaced away from that first pattern. On the back surface, a second conductive pattern is electrically tied to the first conductive pattern through the dielectric, essentially making one antenna that wraps through the substrate.
The key geometric claim: when viewed perpendicular to the front surface (i.e., looking straight down through the stack), part of that back-surface pattern overlaps the conductive layer of the second antenna on the front. This spatial overlap — across the insulating gap — creates capacitive coupling (where two conductors influence each other without physically touching, through an electric field), which engineers use to tune bandwidth, impedance, or radiation characteristics.

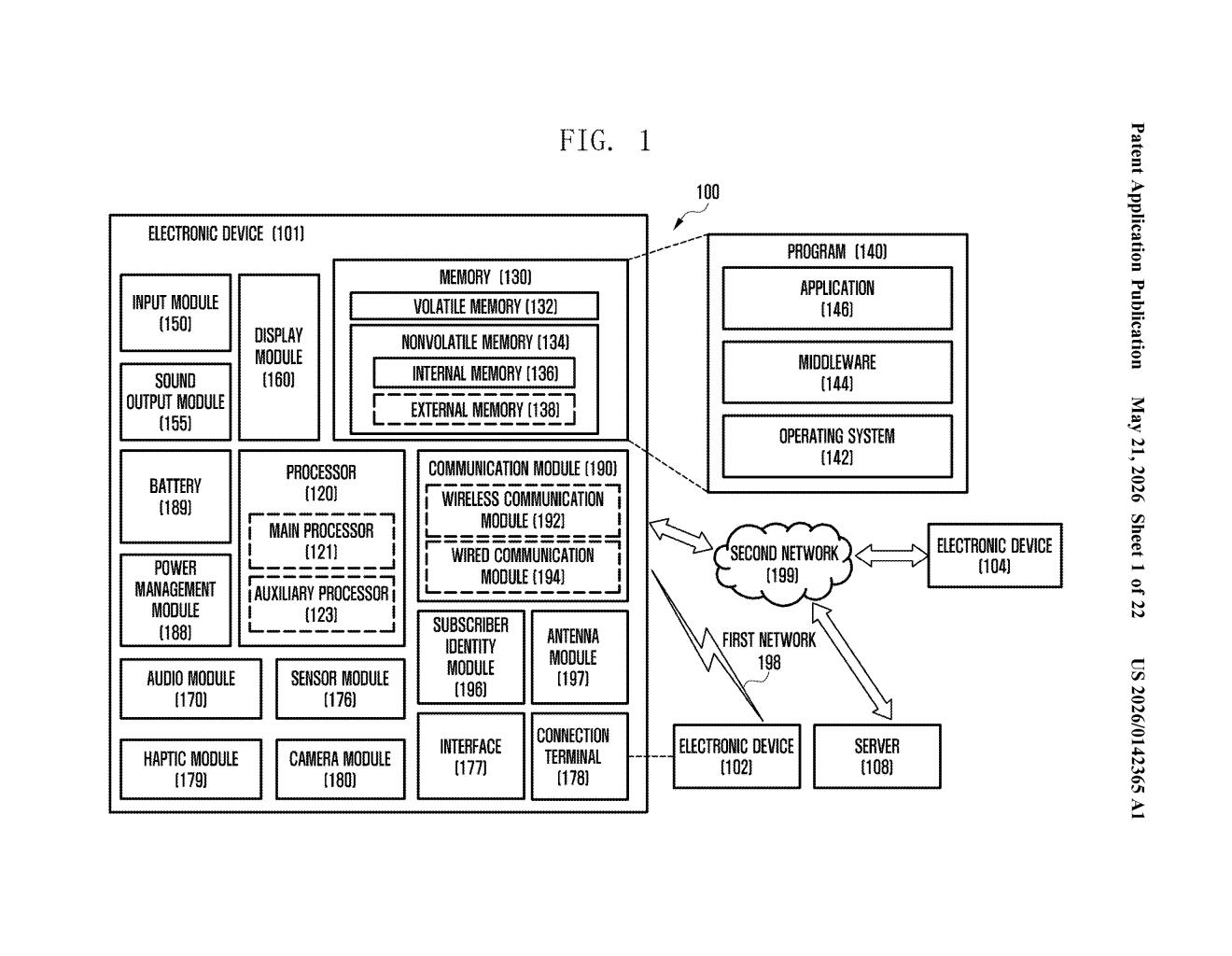

A wireless communication circuit ties into one or both antenna structures to transmit and receive across at least one frequency band. The design is compact enough to work within the tight internal geometry of modern consumer electronics housing.
What this means for antenna design in thin Samsung devices
For everyday users, this is about getting stronger or more reliable wireless signals — whether Wi-Fi, 5G, or other bands — from devices that keep getting thinner. Antenna engineers constantly fight the shrinking-device problem: less space means worse antenna performance, unless you get creative with geometry.
For Samsung specifically, this kind of dual-surface stacking technique is the sort of incremental RF engineering that shows up across its entire device portfolio — phones, tablets, wearables. It's not a headline feature, but antenna architecture is one of those areas where small filing-to-shipping cycles are common, and cumulative improvements in antenna efficiency have a real impact on battery life and call quality.
This is antenna plumbing — unglamorous but genuinely useful work. The overlapping conductive-pattern trick is a real technique in RF engineering, and Samsung filing around it suggests active refinement of how it manages multi-antenna layouts in thin-profile devices. Don't expect a press release, but do expect this kind of geometry to quietly show up in future Galaxy hardware.
