Intel Patents a GPU Shortcut That Skips Redundant 3D Geometry Work
Intel has filed a patent describing a way for graphics chips to skip repeated calculations when drawing 3D scenes, by checking whether the same setup work was already done for a nearby triangle. It's a small architectural change that could add up across millions of frames.
What Intel's mesh-shading cache trick actually does
Every 3D scene your computer renders, whether in a game or a design app, is built from millions of tiny triangles stitched together into meshes. Before those triangles land on your screen, the GPU has to clip them, meaning it figures out which parts fall outside your viewable area and throws those away. That clipping step runs on every triangle, even when many consecutive triangles share the same destination and the same zoom level.
Intel's patent targets exactly that repeated effort. It adds a small lookup step before clipping begins: the chip checks whether the previous triangle was headed to the same render target (the specific layer of the screen being drawn) and the same viewport (the region of the screen it maps to). If yes, it reuses the already-processed data instead of starting from scratch. If no, it does the full calculation with the new settings.
The result is fewer wasted cycles on redundant setup work. For you as a player or creative-app user, this kind of low-level efficiency is what keeps frame rates stable under heavy load, rather than dipping when a scene gets complex.
… perform a vertex cache lookup to determine corresponding RTAI and VPI values associated with a previously processed vertex, if any; read vertex data corresponding to the current vertex from memory and processing with new VPI and RTAI values when the RTAI and VPI values of the current vertex do not match those of a previously processed vertex …
Translation: The system checks if it has already calculated the position of a point to avoid doing the same math twice.
How the clipper checks vertex tags before doing work
The patent describes a graphics processor that uses a technique called mesh shading, which is a newer way of feeding geometry to a GPU. Instead of the traditional vertex-by-vertex pipeline, mesh shaders let the GPU batch triangles into groups (called a triangle list), then convert them into a compact strip format (a tristrip) for downstream processing.
The key innovation lives in the clipper circuitry, the hardware stage that decides which parts of a triangle fall inside the camera's view and which get cut off. Normally the clipper processes every vertex (every corner point of every triangle) in full. This patent tells the clipper to first read two small metadata tags attached to each vertex:
- RTAI (Render Target Array Index): which layer or texture the triangle is being drawn into, important in VR or multi-view rendering where multiple views are generated at once.
- VPI (Viewport Index): which region of the screen the triangle maps to.
Before doing the real work, the clipper performs a vertex cache lookup (a fast check of recently processed vertices stored in a small, fast memory buffer). If the current vertex's RTAI and VPI match the previous vertex's values, the clipper reuses the old processed data instead of reading from main memory and recomputing. If the values differ, it fetches and processes fresh data with the new settings.
This is essentially an opportunistic fast path: the hardware takes a shortcut whenever the conditions allow it, and falls back to full processing only when something has genuinely changed.
… perform clip operations based on previously processed vertex data when the RTAI and VPI values of the current vertex match those of the previously processed vertex.
Translation: If the system recognizes a point it has already handled, it reuses the old data instead of calculating it again.
What this means for GPU rendering throughput
For anyone using a GPU-heavy application, the payoff from this kind of optimization is frame-rate stability under load. Scenes with dense geometry, like a crowded open-world game environment or a complex architectural visualization, generate enormous numbers of triangle clips per second. If a large share of consecutive triangles share the same render target and viewport (which is common in multi-layer rendering and VR), the cache-hit shortcut fires repeatedly and the saved cycles compound into real throughput gains.
This patent is specifically shaped around mesh shading, the pipeline model that Nvidia, AMD, and Intel have all been pushing since around 2020 as the future of geometry processing on GPUs. Intel building opportunistic caching directly into the clipper stage shows the company working to squeeze efficiency out of this newer pipeline model at the hardware level. It fits into a wider stream of Big Tech patent news around GPU architecture, where chip makers are competing to extract more performance from the mesh-shading path without simply adding more raw compute.
This is the 19th Intel filing we've tracked since May in the GPU rendering race, building on one on filling dropped frames and one on keeping chips busy.
You will not notice this improvement the way you notice a new feature. You will notice it as the absence of a stutter during a dense scene, or a VR headset that stays smooth when the action gets complicated. The clearest beneficiaries are people using VR, where the chip must draw the same scene twice simultaneously into separate image layers.
Intel's design lets the chip skip redundant work by checking a small memory cache instead of recalculating values it already knows, which matters most in exactly the long, repetitive geometry batches that VR produces. Every 3D frame passes through this clipping step without exception, so trimming even small amounts of waste per triangle adds up across a session.
Whether a user feels it as an actual frame rate improvement depends on how hard their game is already pushing the hardware, but for scenes that push hard, this sets a real floor on how bad things get.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

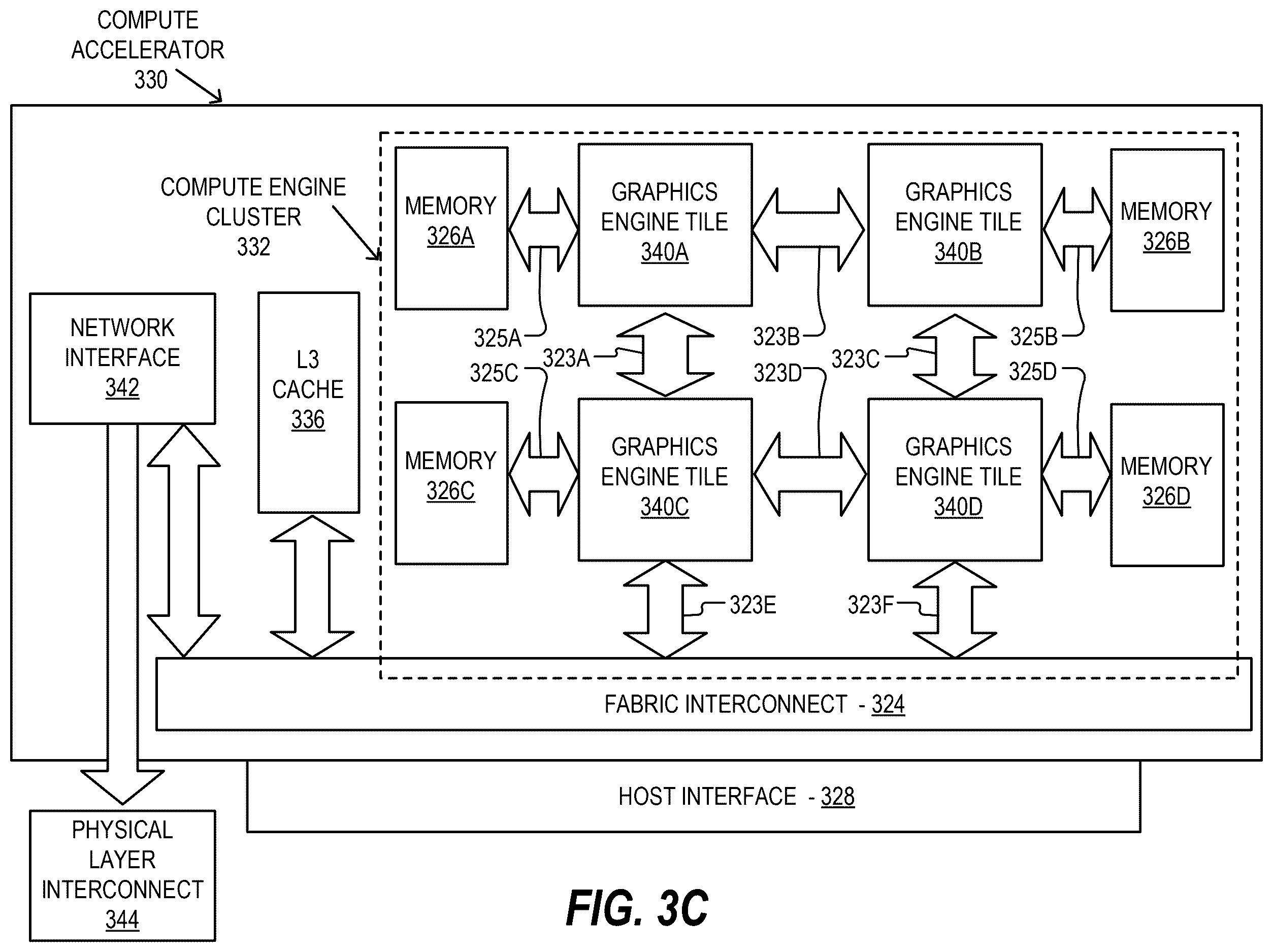

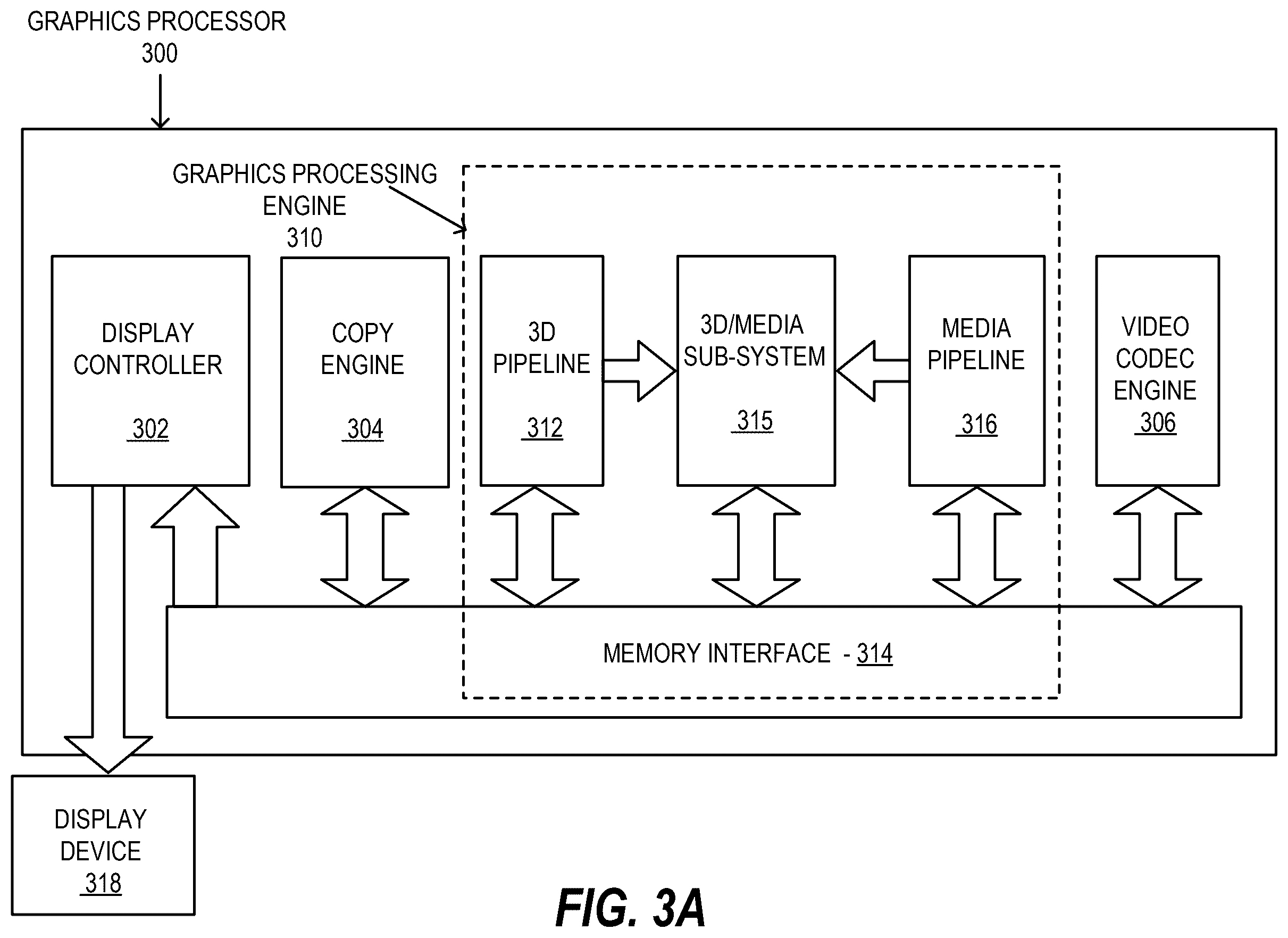

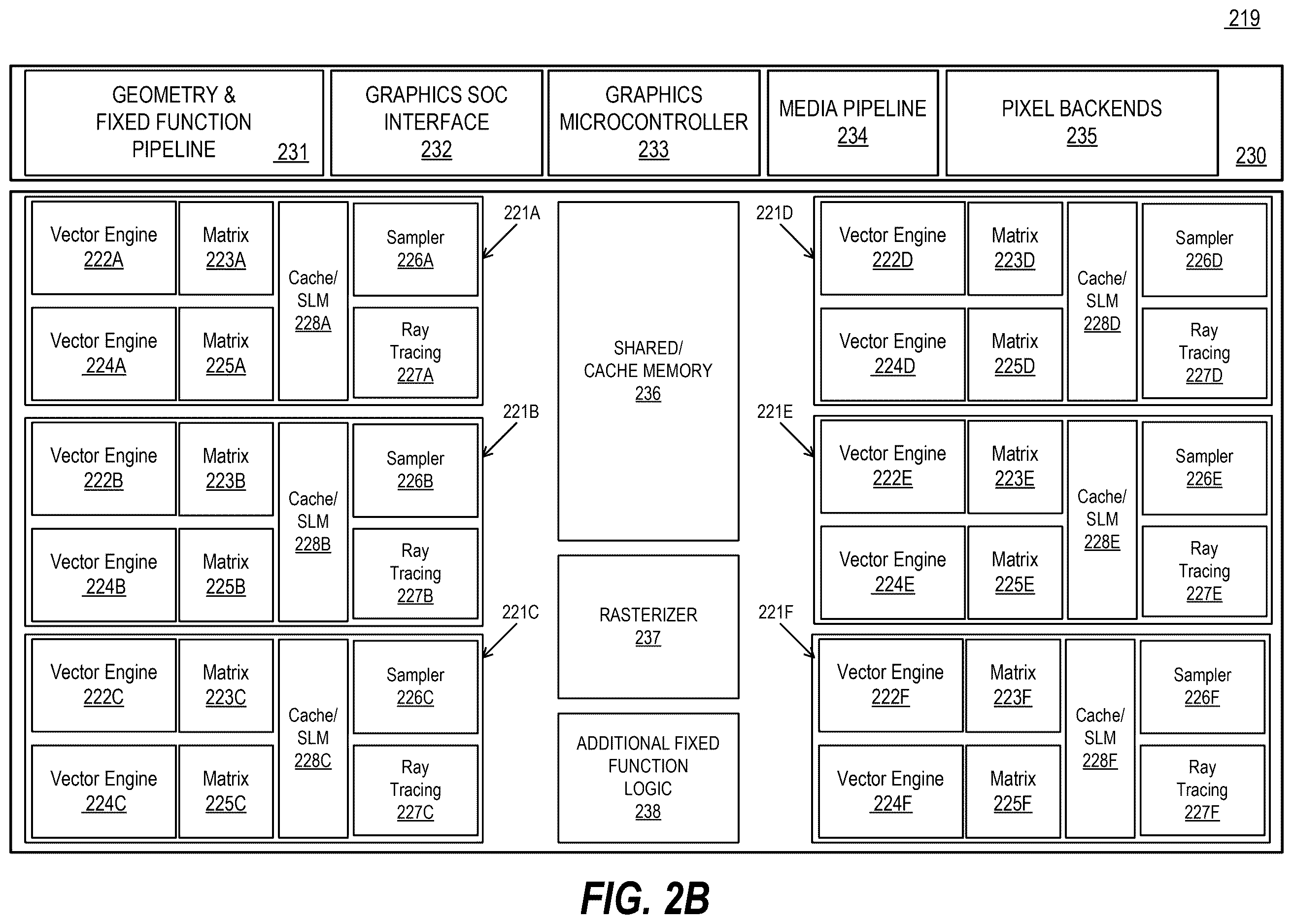

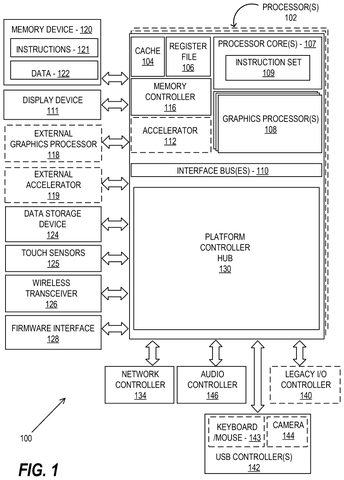

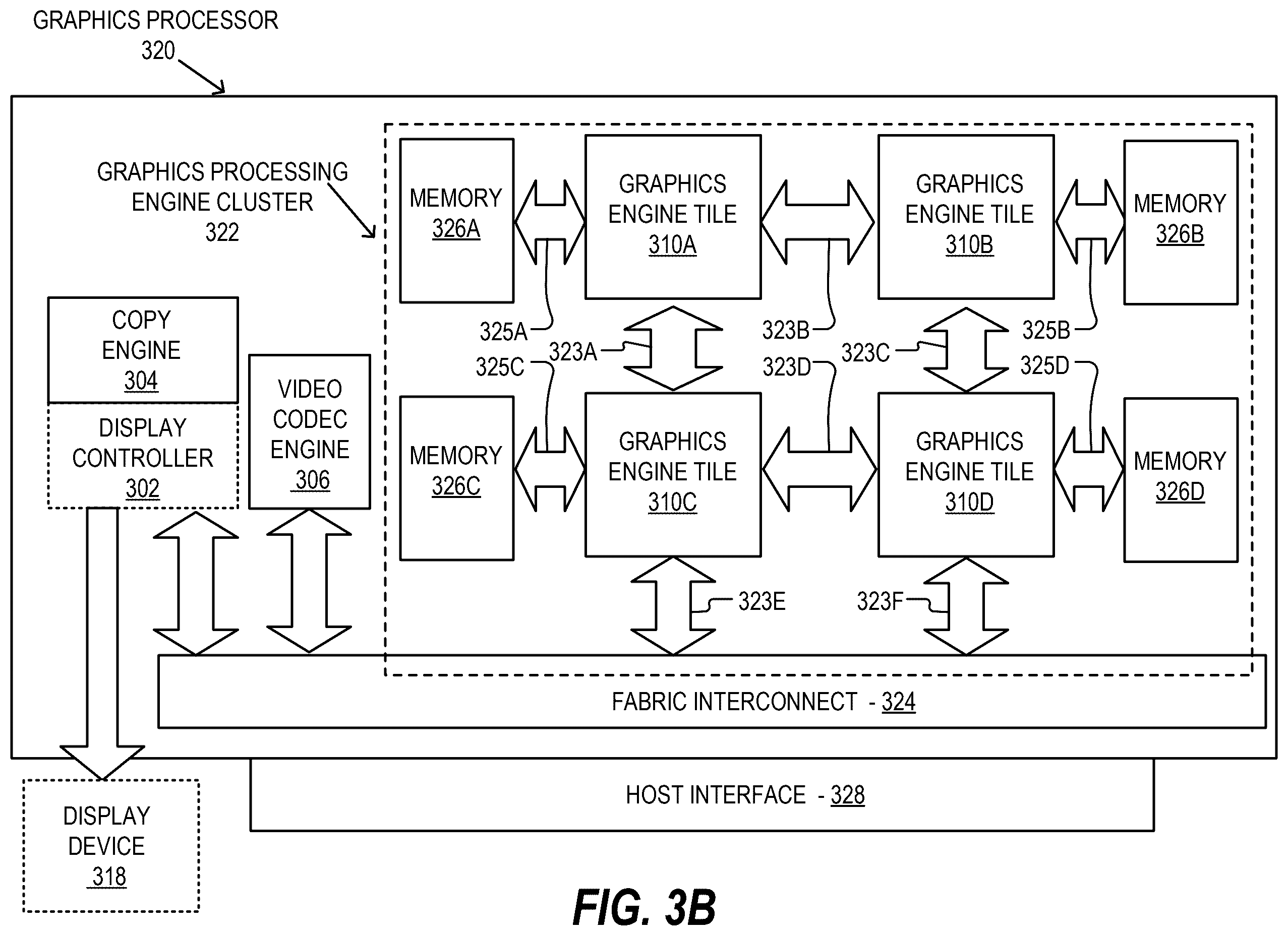

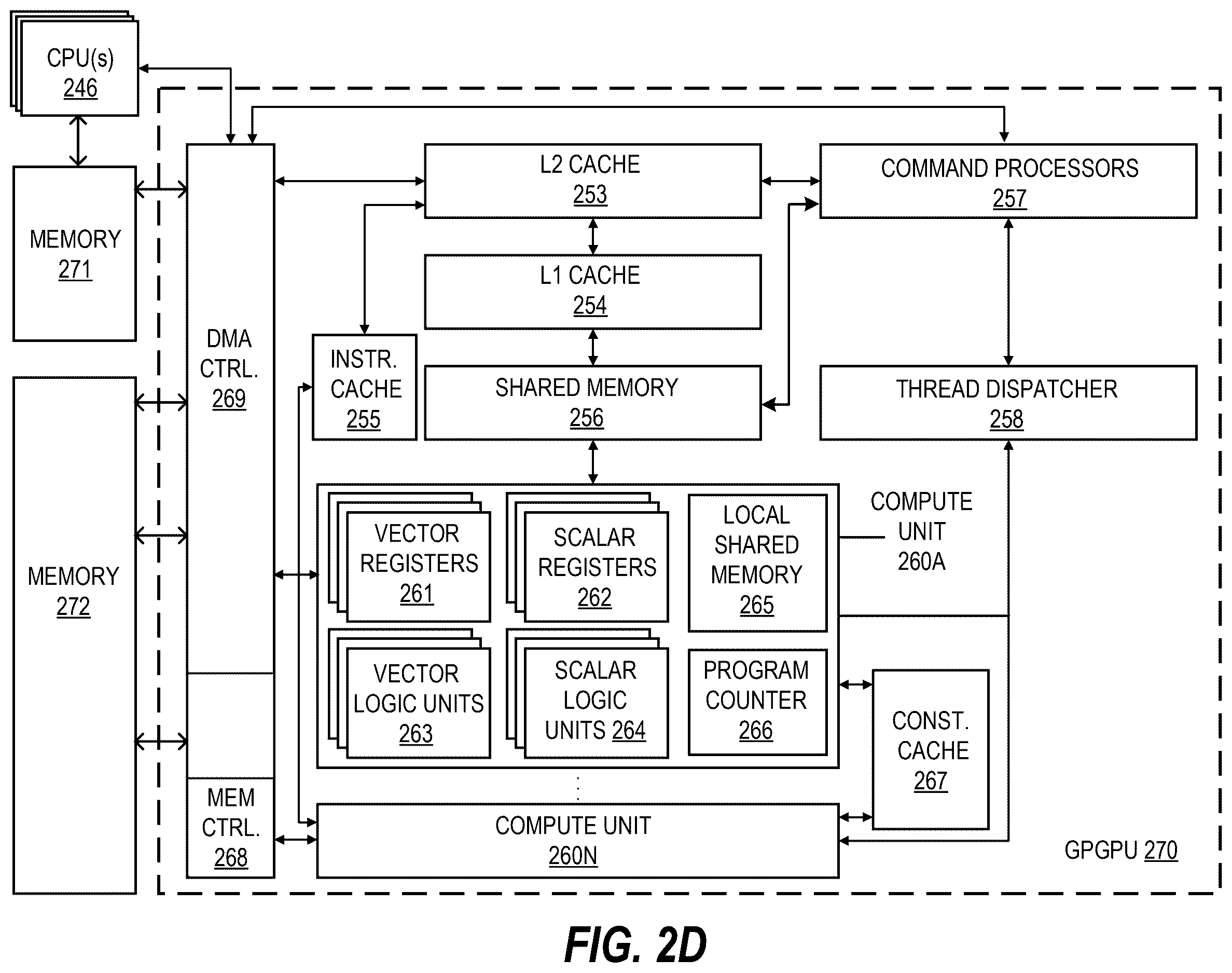

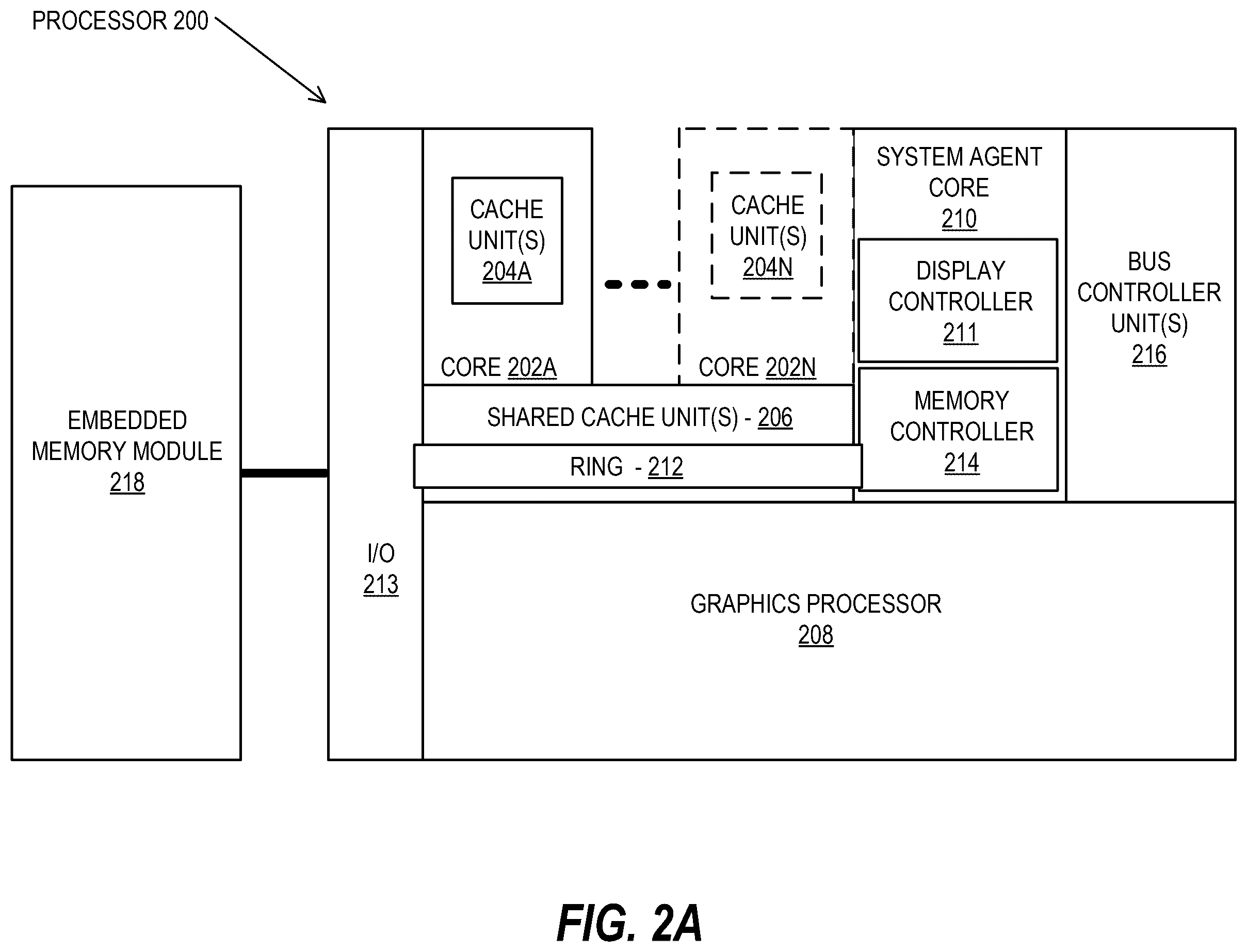

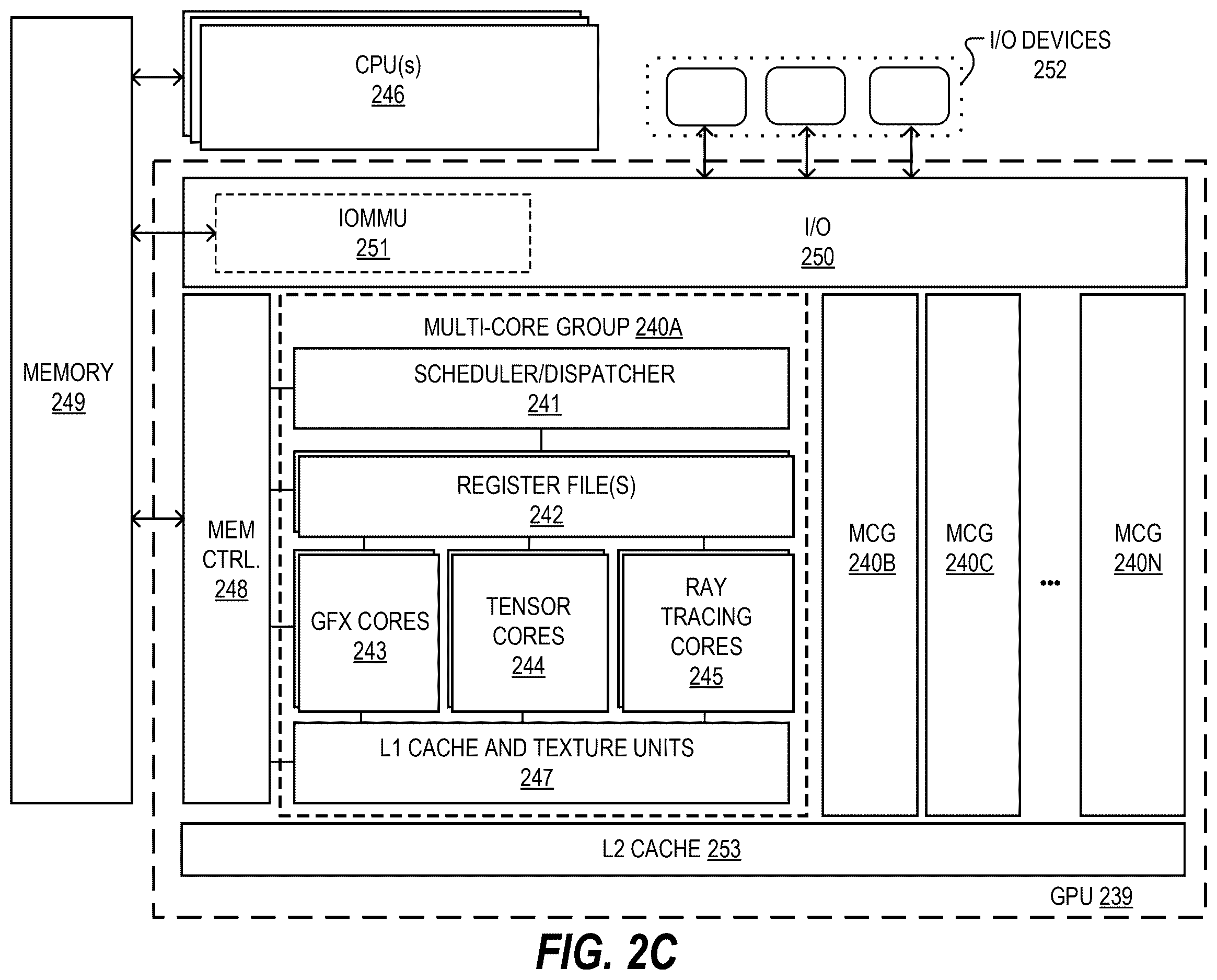

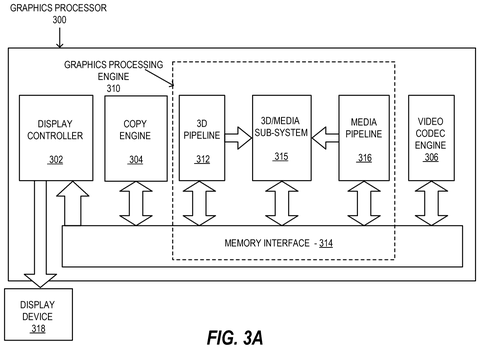

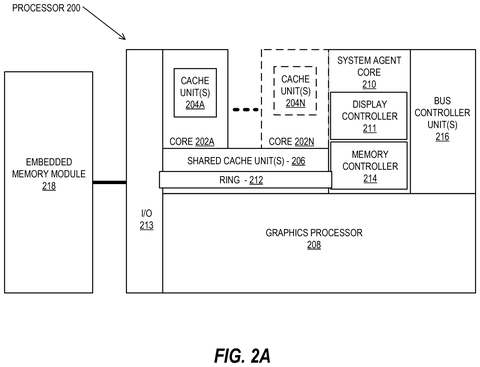

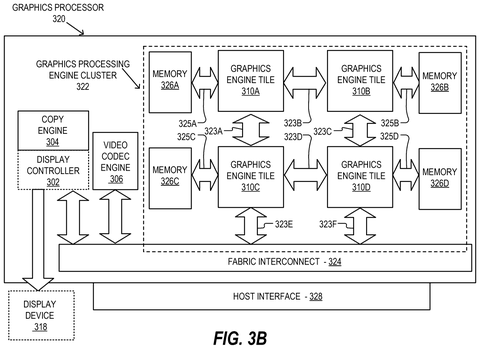

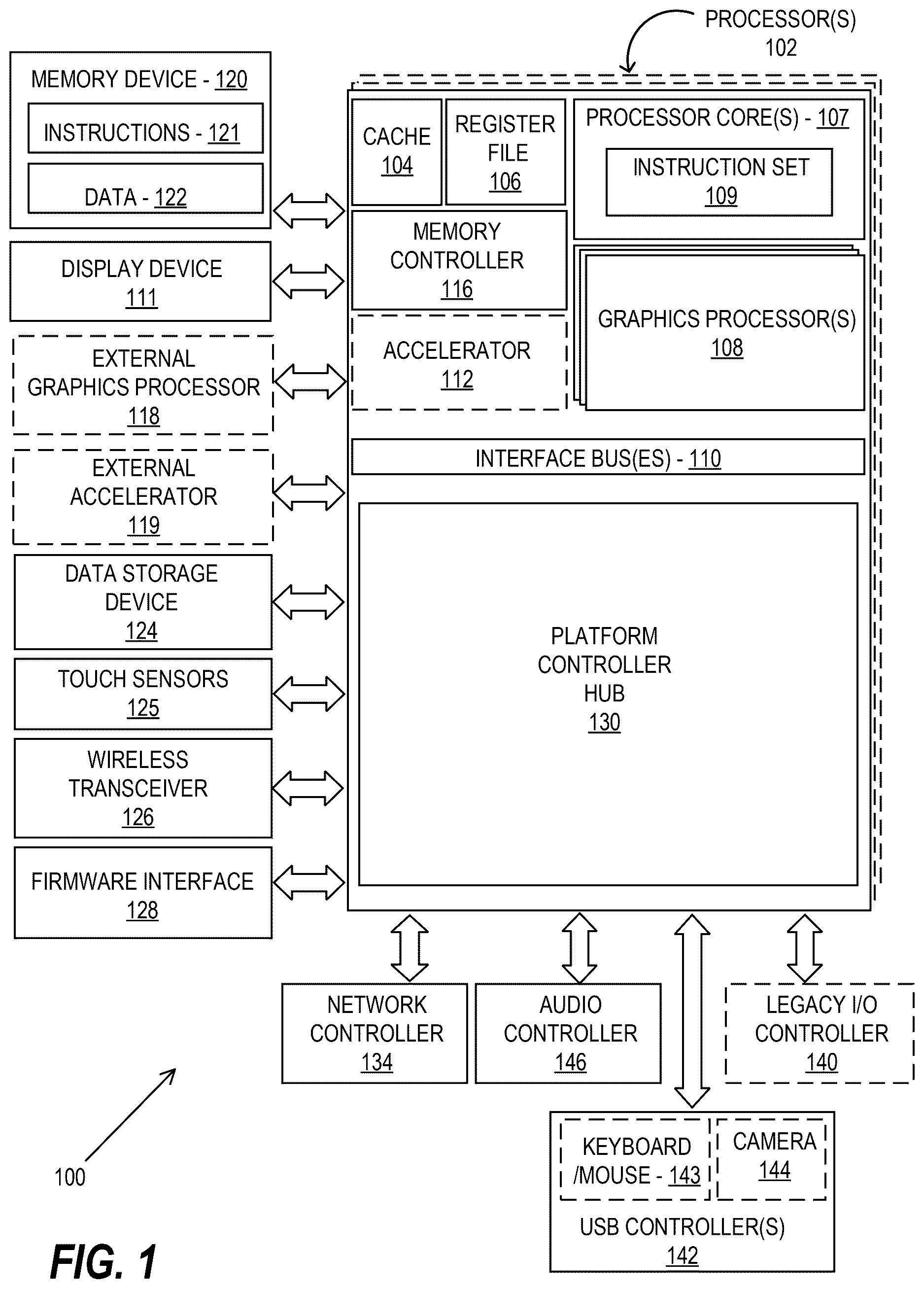

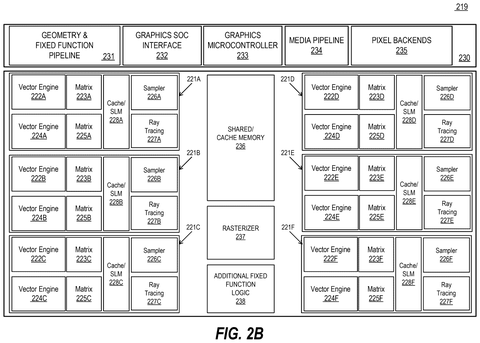

27 drawing sheets from US 2026/0253332 A1 · click any drawing to enlarge
