Intel Patents an AI System That Fills in Dropped Game Frames Before You Notice
Games stutter when a frame takes too long to render, and Intel thinks the fix is an AI that notices the problem mid-frame and fills the gap before your eyes can catch it.
How Intel's AI frame-fill actually stops game stutter
Imagine you're in the middle of a fast-paced game and the action suddenly freezes for a split second, then lurches forward. That's a stutter, and it happens when your graphics card takes longer than expected to draw a frame. The bigger the gap, the more jarring it feels.
Intel's patent describes a system where the graphics chip watches its own rendering progress in real time. If it detects that a frame is going to arrive late, it triggers an AI to generate one or more in-between frames to fill the gap, keeping the animation moving at a consistent pace rather than letting it freeze and jump.
The clever part is how the AI decides how many fill-in frames to insert and exactly where to place them in the sequence. It bases those decisions on how long the previous frame took and how far along the current frame is, so the pacing feels natural rather than artificially sped up.
… circuitry to detect potential stutter conditions associated with the rendering of one or more of the image frames; and an artificial intelligence (AI)-based frame generator to responsively trigger AI-interpolated frame generation to generate one or more AI-interpolated frames between a previously rendered frame and a current frame being rendered …
Translation: Special hardware catches lagging frames and uses artificial intelligence to insert filler frames seamlessly.
How Intel's GPU detects lag and schedules fake frames
The patent describes a graphics processing unit (GPU) with a dedicated detection circuit that monitors frame rendering times continuously. When that circuit spots a stutter condition (meaning a frame is running longer than the display's refresh budget), it hands off to an AI-based frame generator.
That generator has two jobs. First, it calculates how many artificial frames need to be inserted between the last completed frame and the one still being drawn. Second, it assigns each inserted frame an interpolated distance value, which is essentially a position marker telling the AI how far along the motion timeline that fake frame should represent.
- Detection circuit: watches render timing and flags slow frames early, even before a frame finishes
- Frame count estimator: uses the history of how many AI frames were inserted before the previous real frame to predict how many are needed now
- Distance configurator: spaces the AI-generated frames evenly (or unevenly, if timing warrants) across the gap so motion looks correct
The AI interpolation itself works by taking the last finished frame and the partially known state of the current frame, then synthesizing plausible in-between images. This is similar in concept to how video upscaling AI fills missing detail, except here it's filling missing time rather than missing pixels.
… determine an expected number of AI-interpolated frames to be generated and to configure interpolated distance values for each AI-interpolated frame based on an amount of time to render the previously rendered frame and/or an amount of time to render one or more blocks of the current frame being rendered.
Translation: The system calculates how many filler frames are needed by timing how long past and current frames take to draw.
What this means for Intel's Arc GPU ambitions
For PC gaming, stutter is often a bigger annoyance than raw frame rate. A game running at a steady 40 frames per second feels smoother than one averaging 60 but regularly dropping to 20. Intel's approach targets exactly that inconsistency, and if it works well in practice, it could make mid-range Arc GPUs feel more competitive against Nvidia's and AMD's existing frame-generation features without requiring as much raw hardware power.
The feature sits at the intersection of GPU hardware design and on-chip AI, an area where Intel, Nvidia, and AMD are all filing heavily. Intel's specific angle here is that the detection happens during rendering, not after, which is an earlier intervention point than some rival approaches. For a broader picture of where chip companies are placing their bets, the latest Big Tech patents in the GPU and AI-silicon space show a clear pattern of moving inference workloads closer to the rendering pipeline itself.
That makes this Intel's 18th filing we've tracked since May in our GPU rendering race watchlist, building on earlier applications like keeping graphics chips busy and speeding up math on GPUs.
Getting this feature to users likely needs only a driver update, not new chips. The core requirement is that the graphics card already has spare processing capacity to run a small AI model alongside its normal work, and Intel's current cards appear to carry that headroom based on what the patent describes. The detection logic at the heart of the filing watches for trouble mid-frame rather than after the damage is done, which means the fix arrives before the viewer notices a hitch.
That is a software timing change, not a hardware redesign, and software changes ship in months, not years. Whether it makes a meaningful difference depends entirely on how polished Intel's existing frame-smoothing tools already are.
If users are not turning the feature on today, a smarter stutter detector will not change that on its own.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

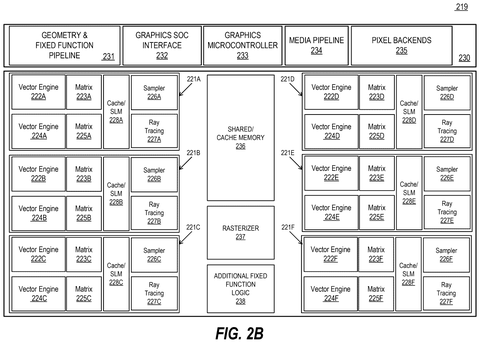

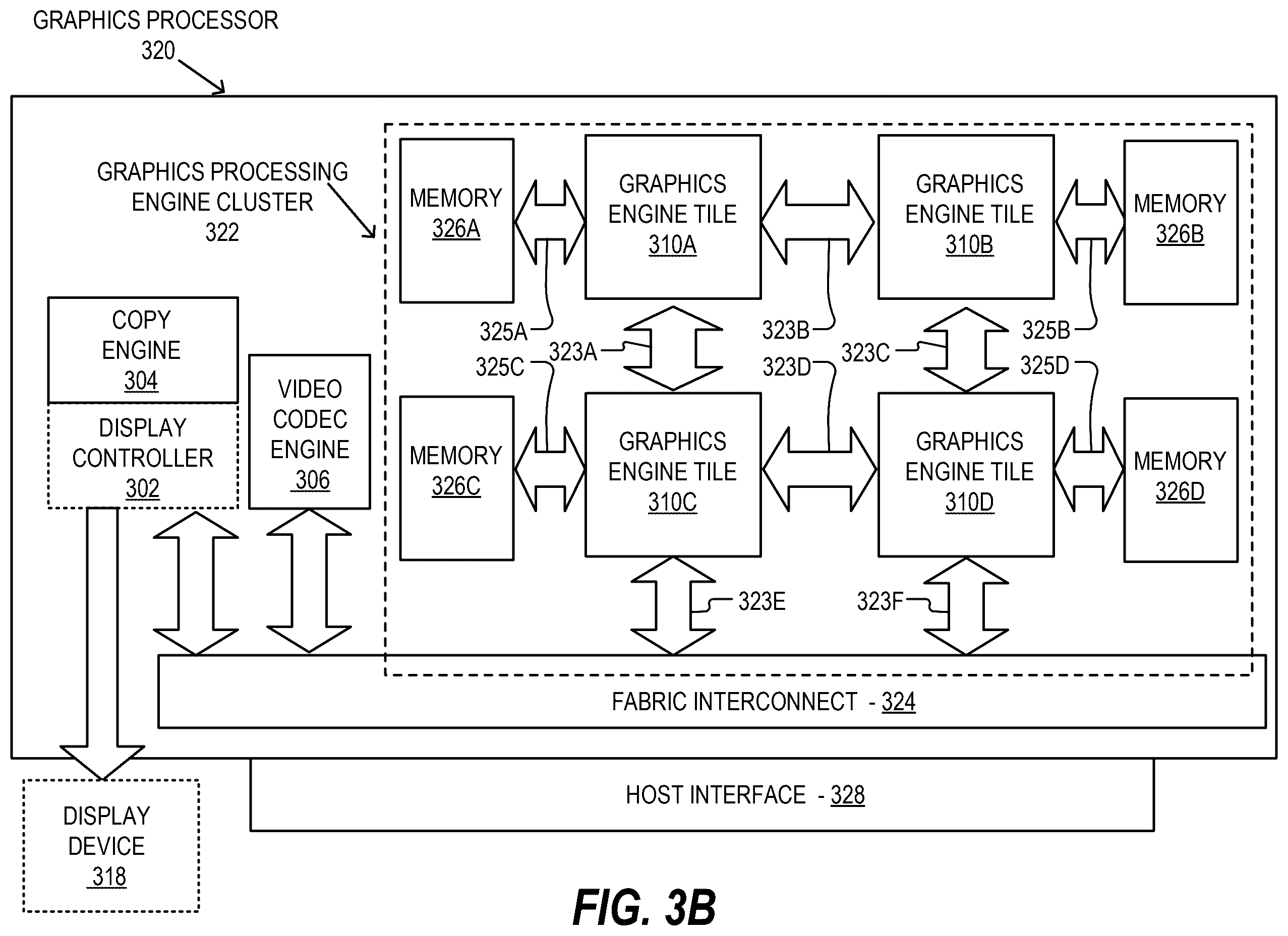

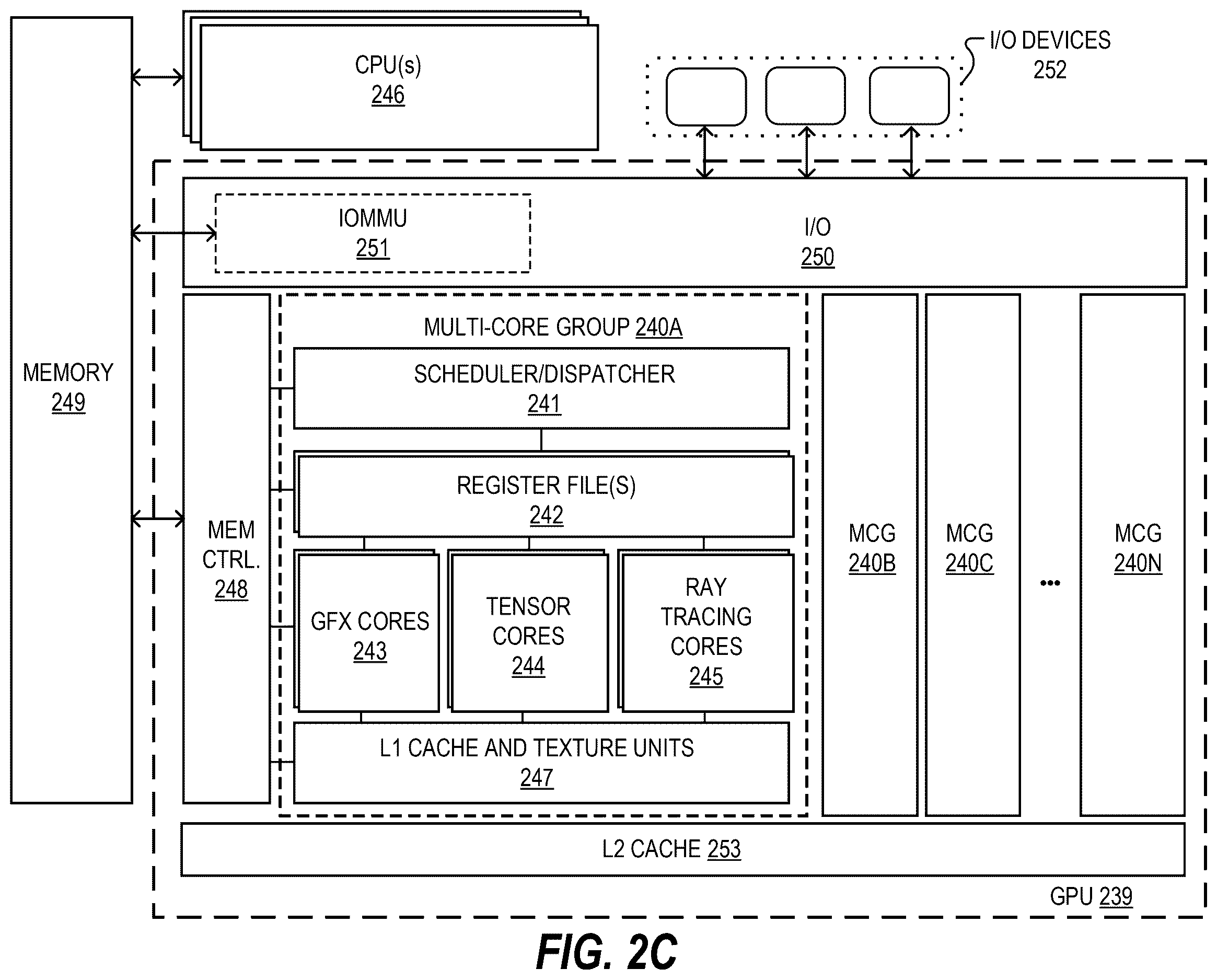

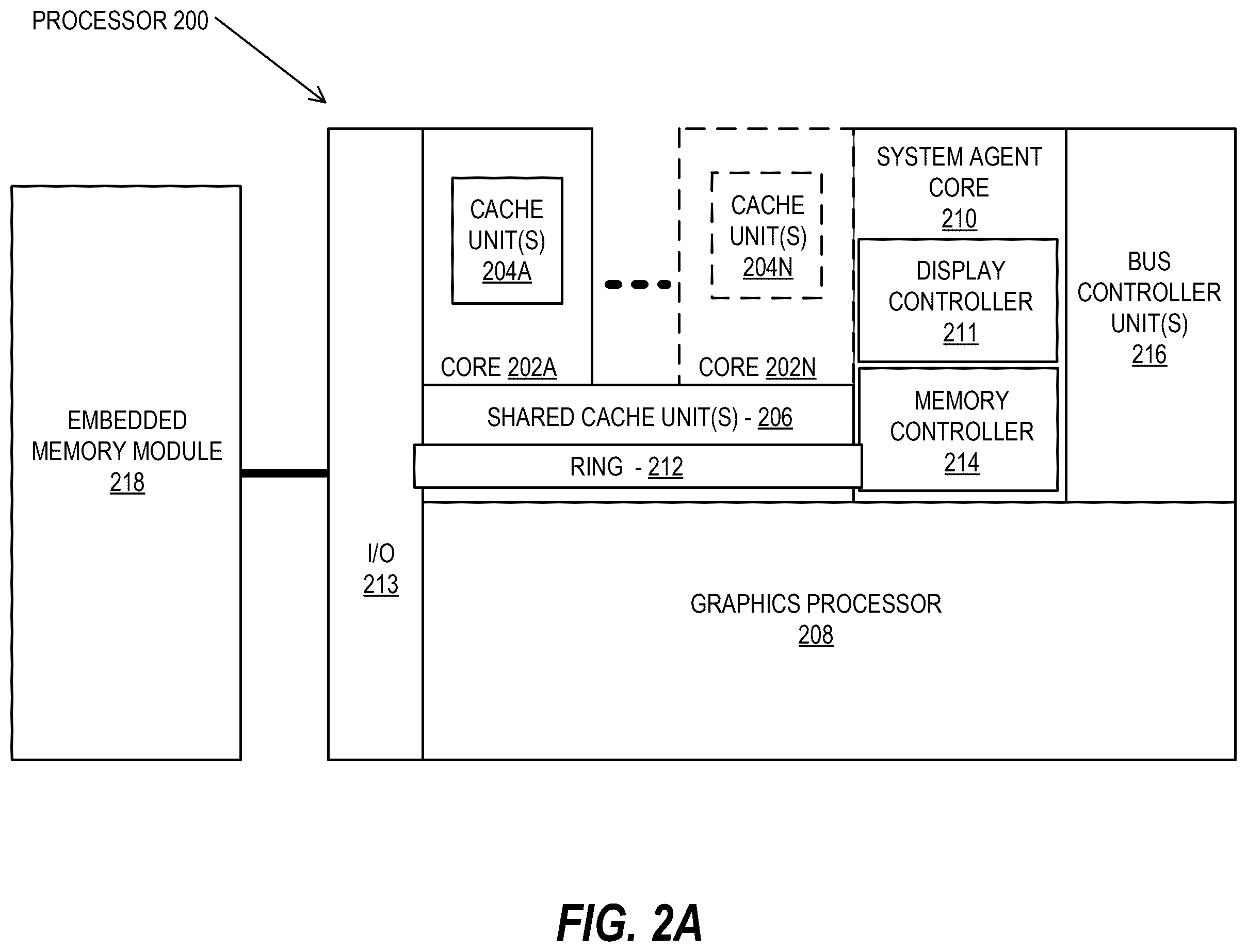

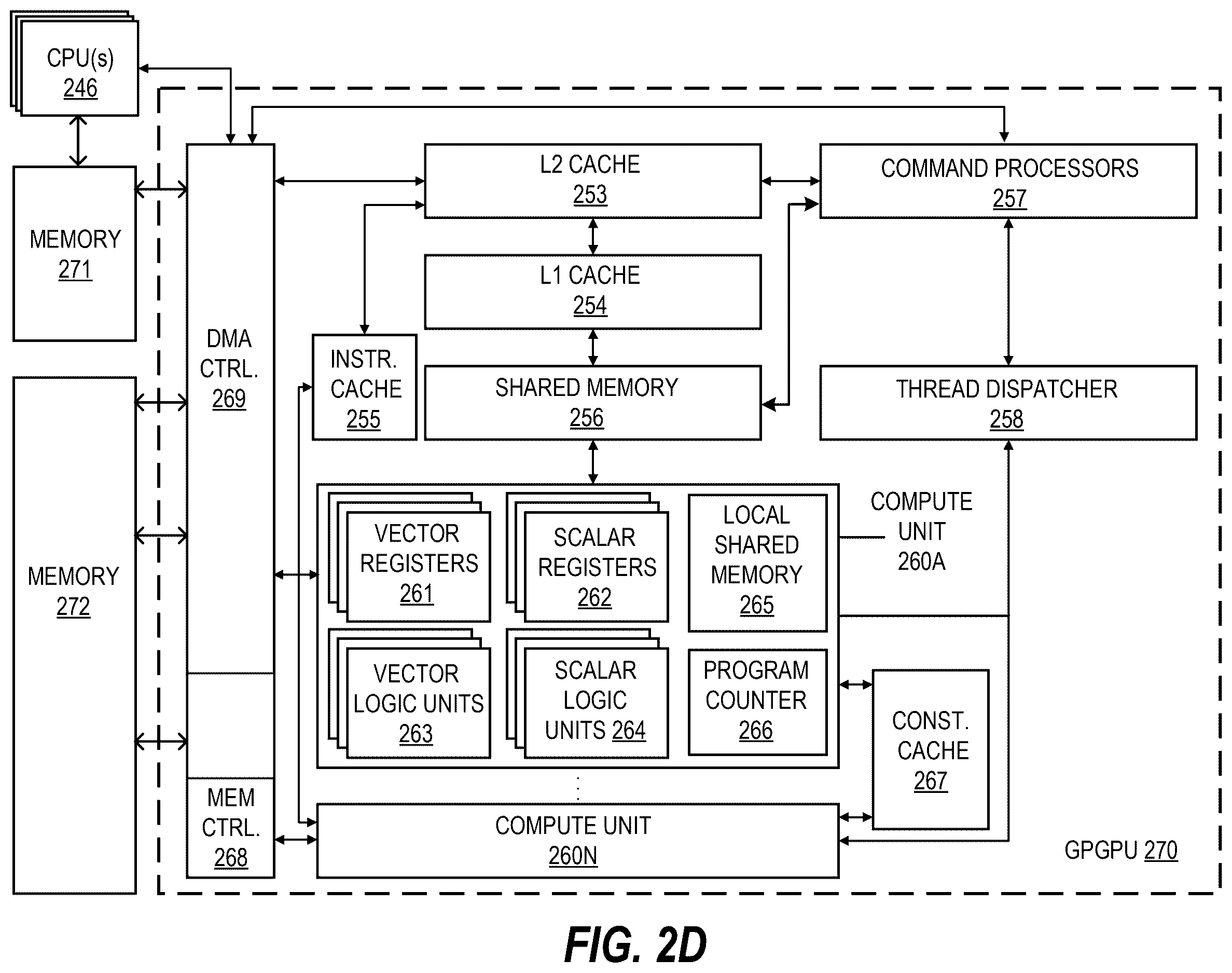

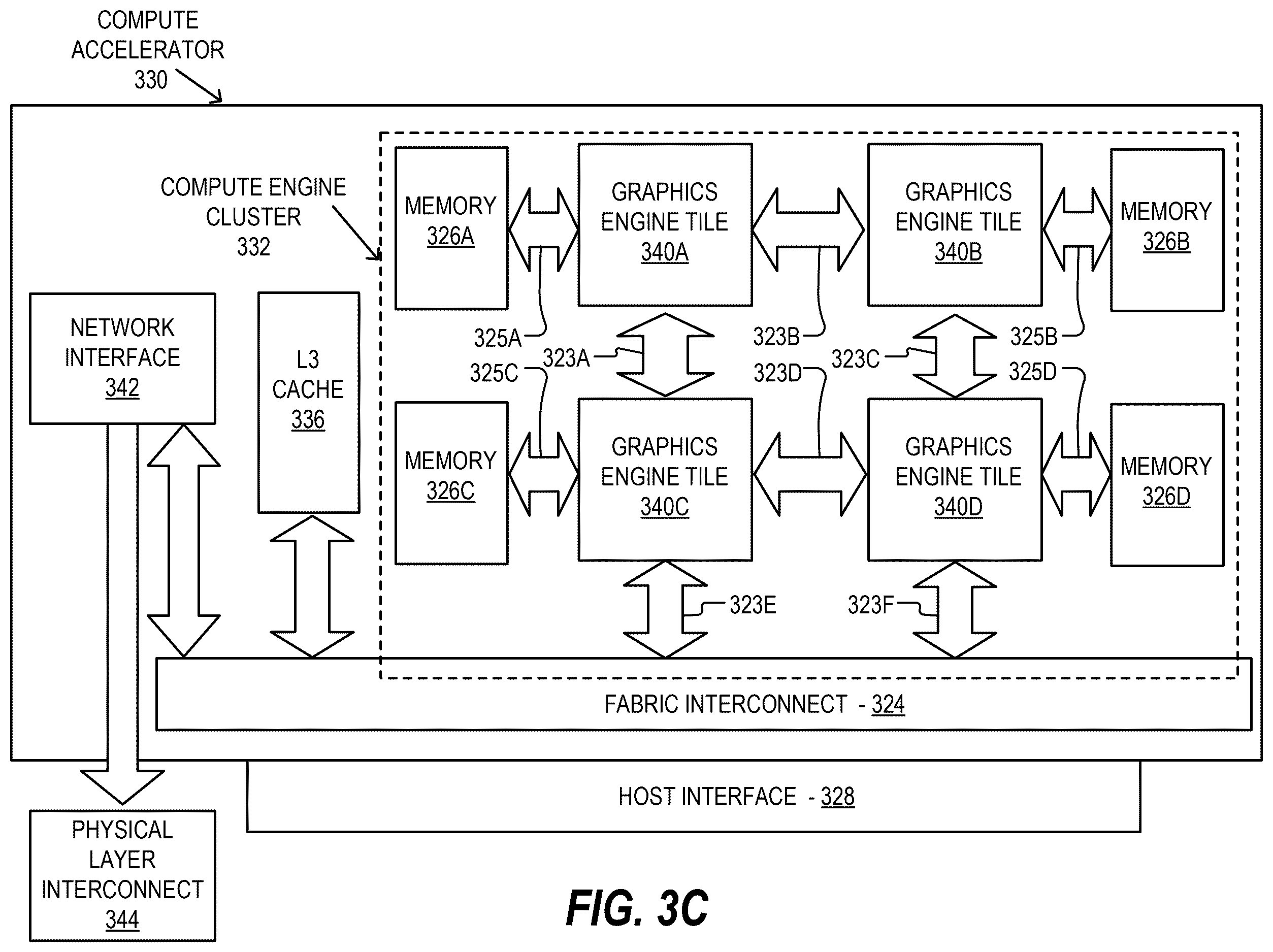

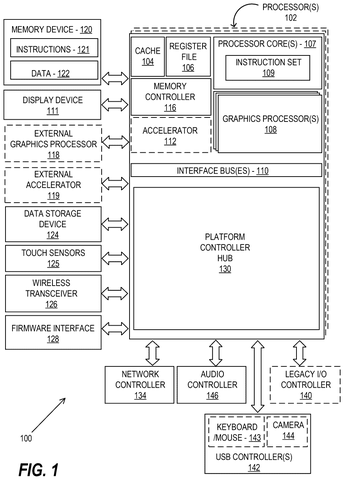

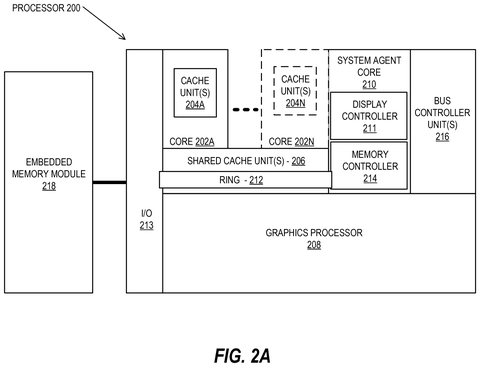

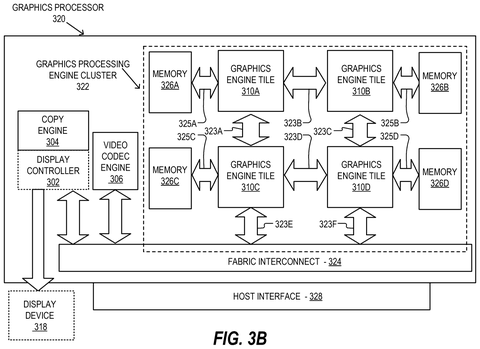

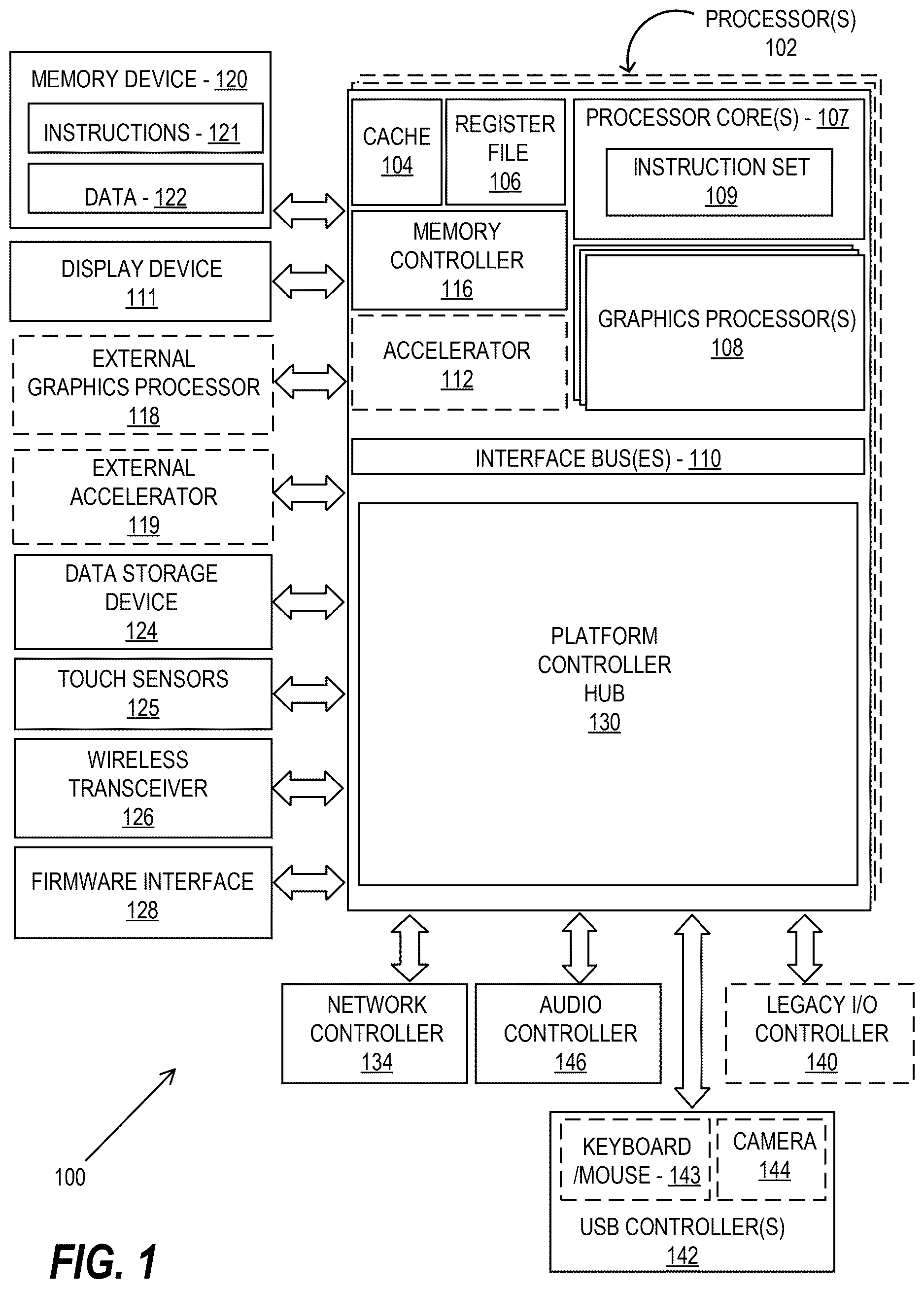

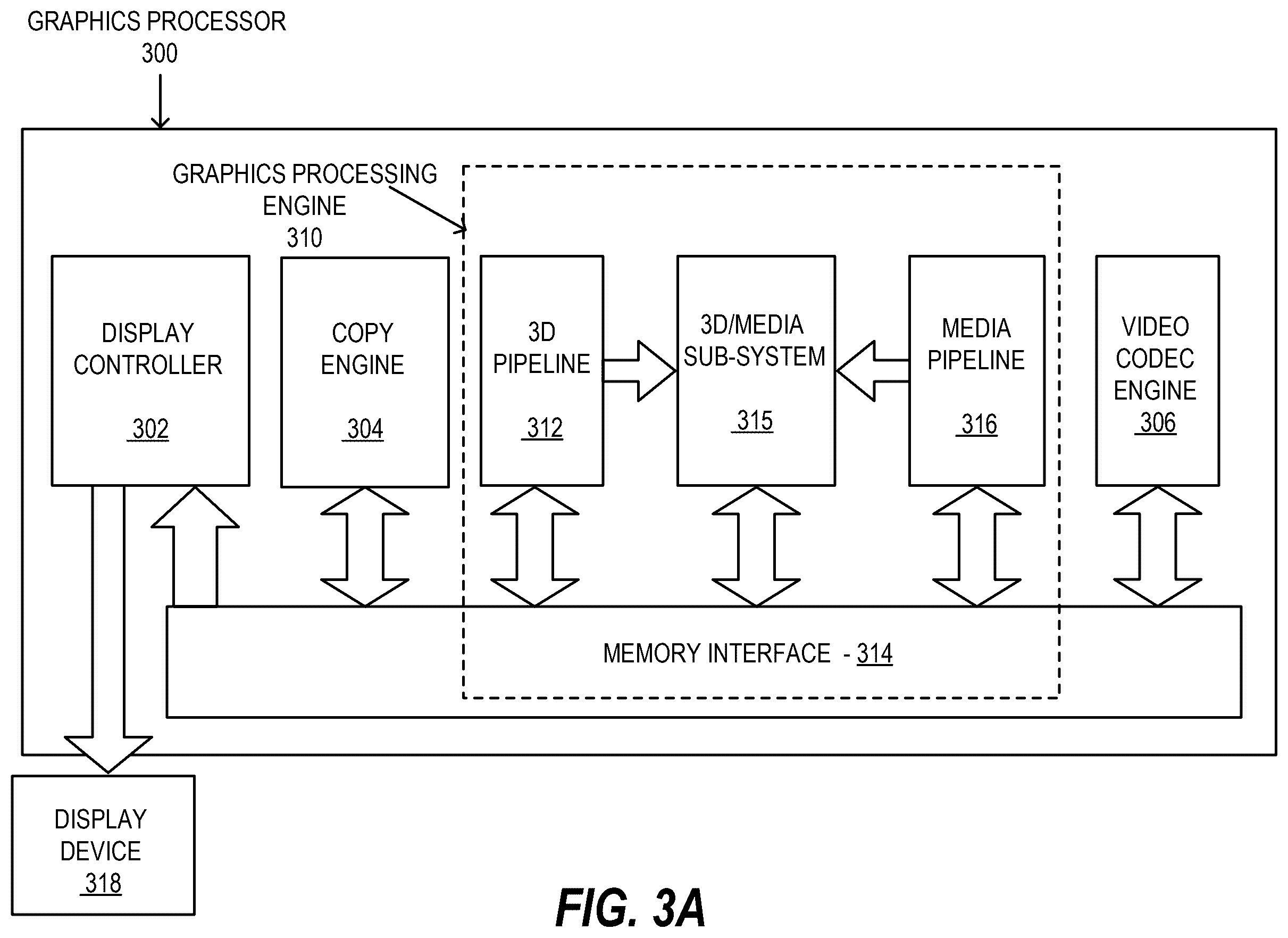

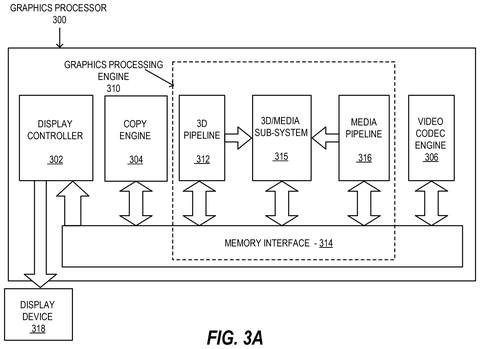

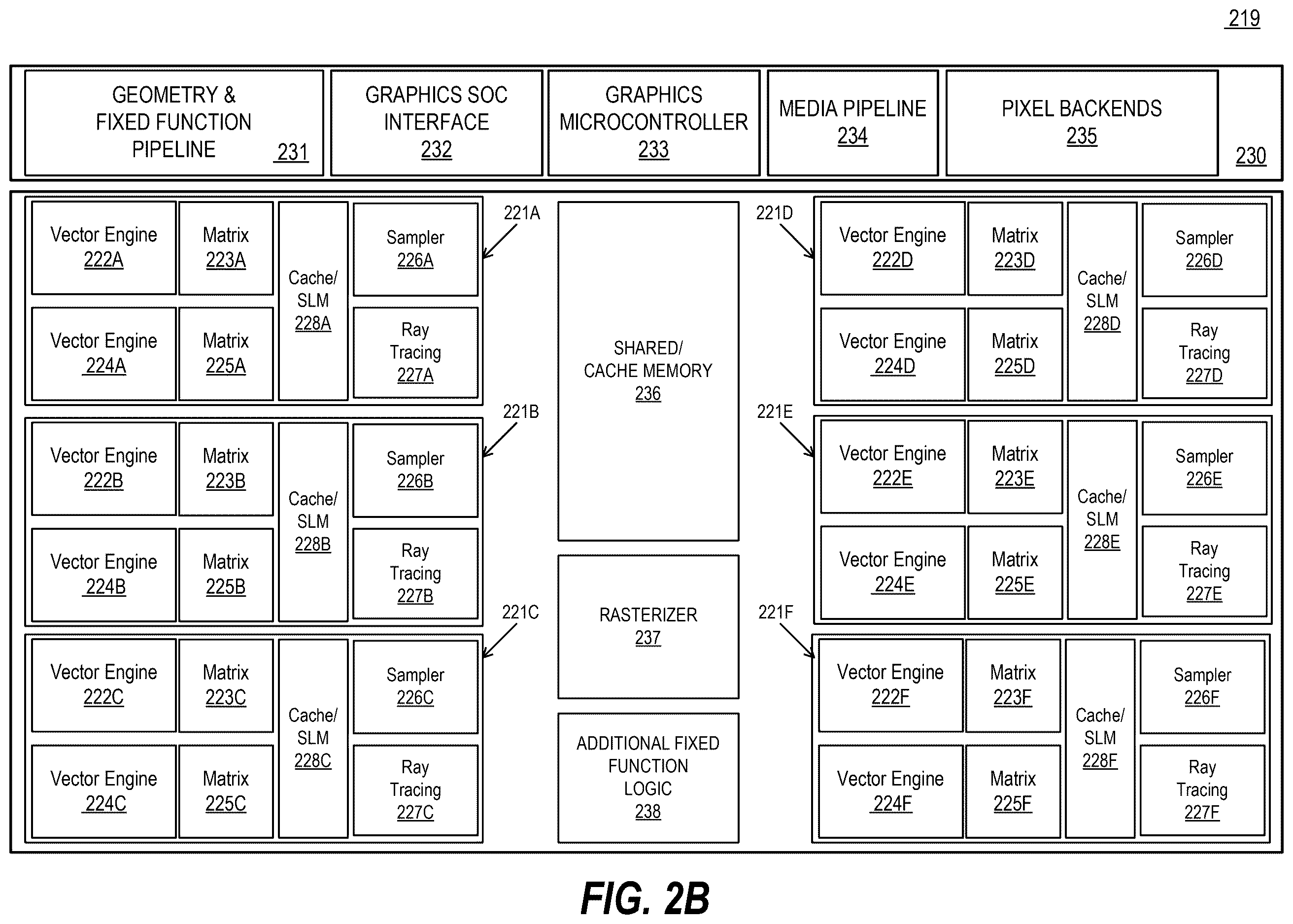

28 drawing sheets from US 2026/0253304 A1 · click any drawing to enlarge
