Meta Patents a System That Automatically Lights Up Your Hands When AR Headset Cameras Lose Track
If you've ever waved at an AR headset and gotten no response, you've hit a real problem: cameras struggle to read your hands in low light. Meta's new patent proposes a fix built right into the headset hardware.
What Meta's automatic hand-lighting fix actually does
Ever tried to gesture at a screen in a dark room and had nothing happen? That frustrating moment is at the heart of what this Meta patent is trying to solve.
Mixed-reality headsets like Meta's Quest line let you control apps and menus by waving or pinching your hands in the air, no controller needed. But the cameras that watch your hands for those gestures can struggle when lighting is poor, you're wearing dark clothing, or your hands move into a shadowy spot. When the cameras can't get a clear enough picture, your gestures simply don't register.
Meta's patent describes a headset that watches the quality of its own camera feed in real time. If the detail drops below a set threshold, it automatically switches on small floodlight LEDs mounted on the front of the headset to bathe your hands in light. The system even defines a specific zone around where your hands are most likely to be, so it's lighting the right area rather than flooding the whole room.
… cause the illumination sources to illuminate at least a portion of the gesture interaction zone.
Translation: Turn on the lights in the space where your hands are supposed to be.
How the headset decides when to fire the floodlights

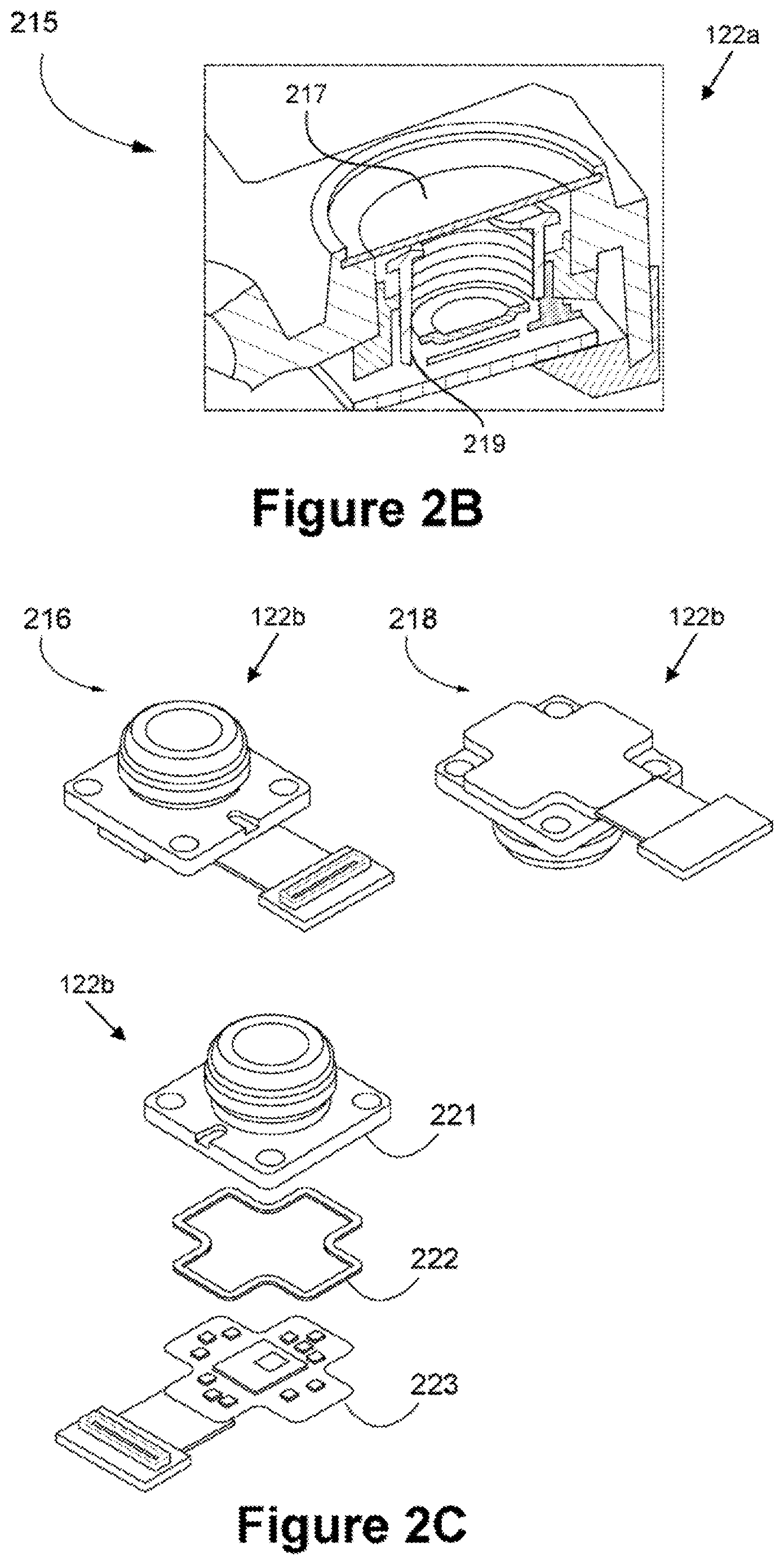

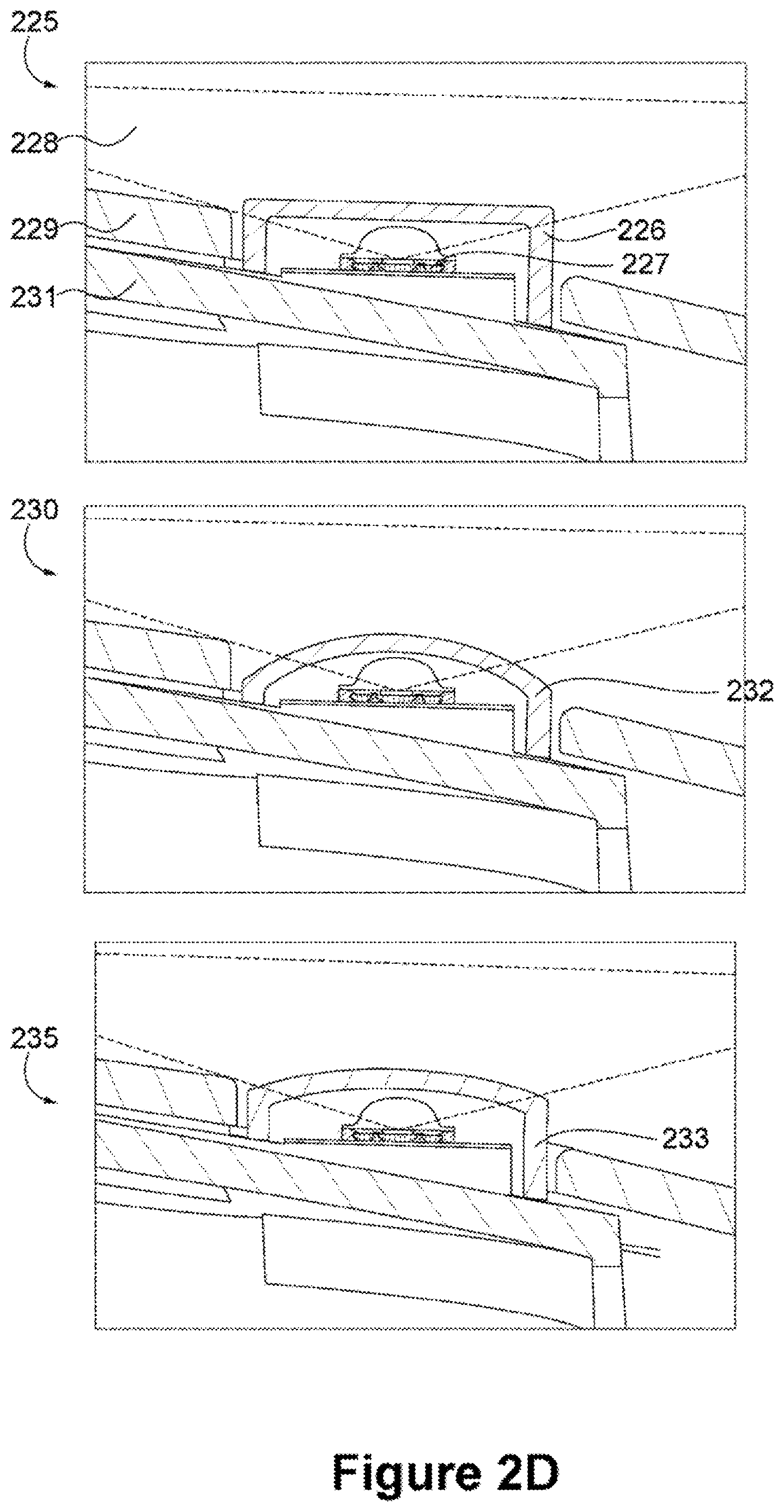

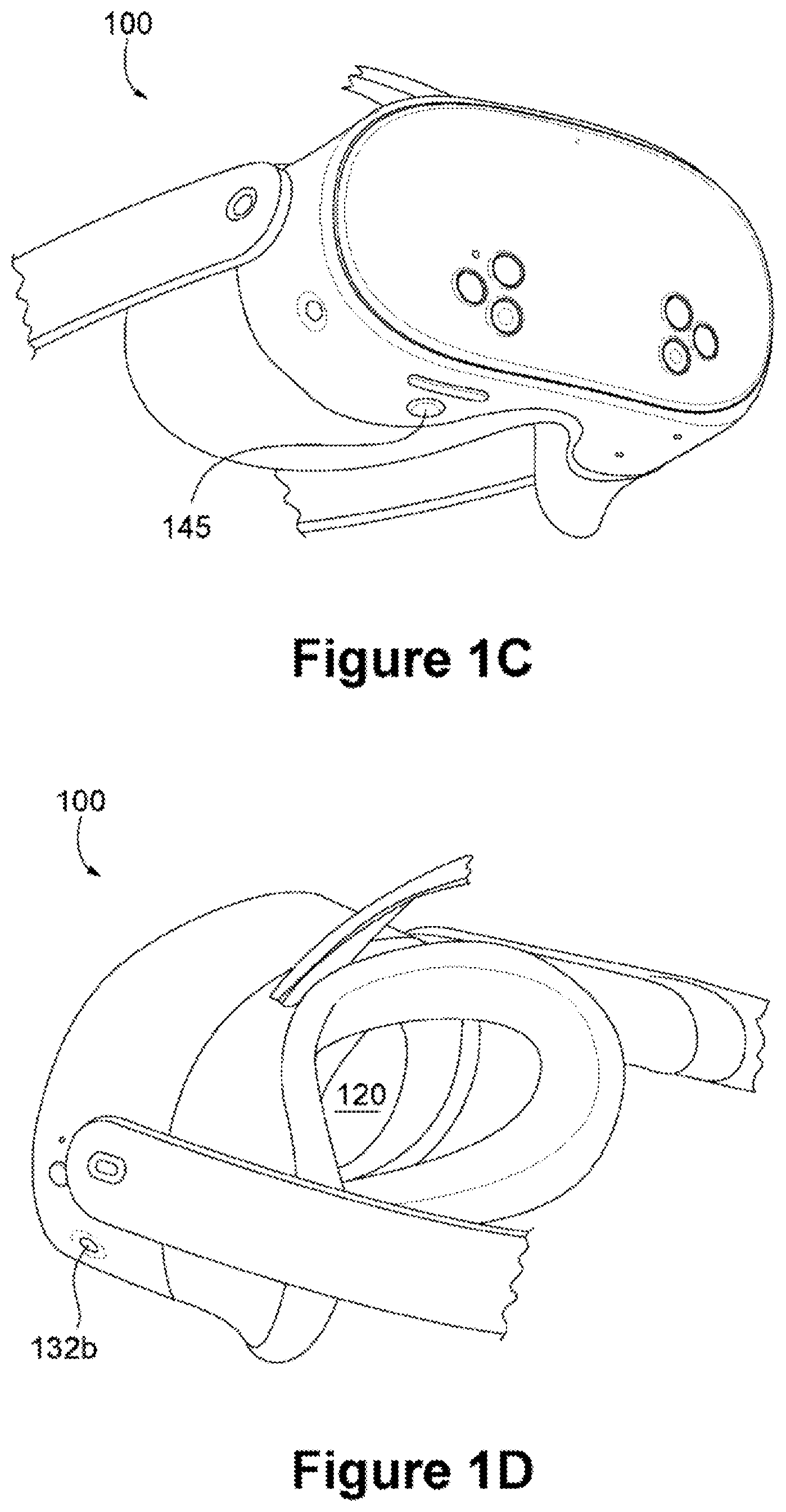

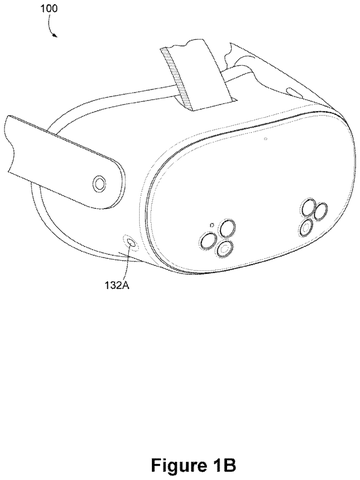

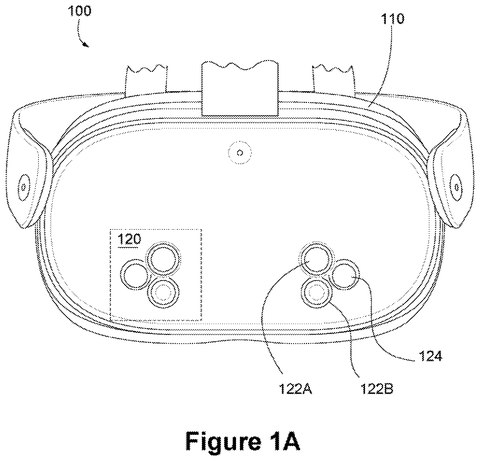

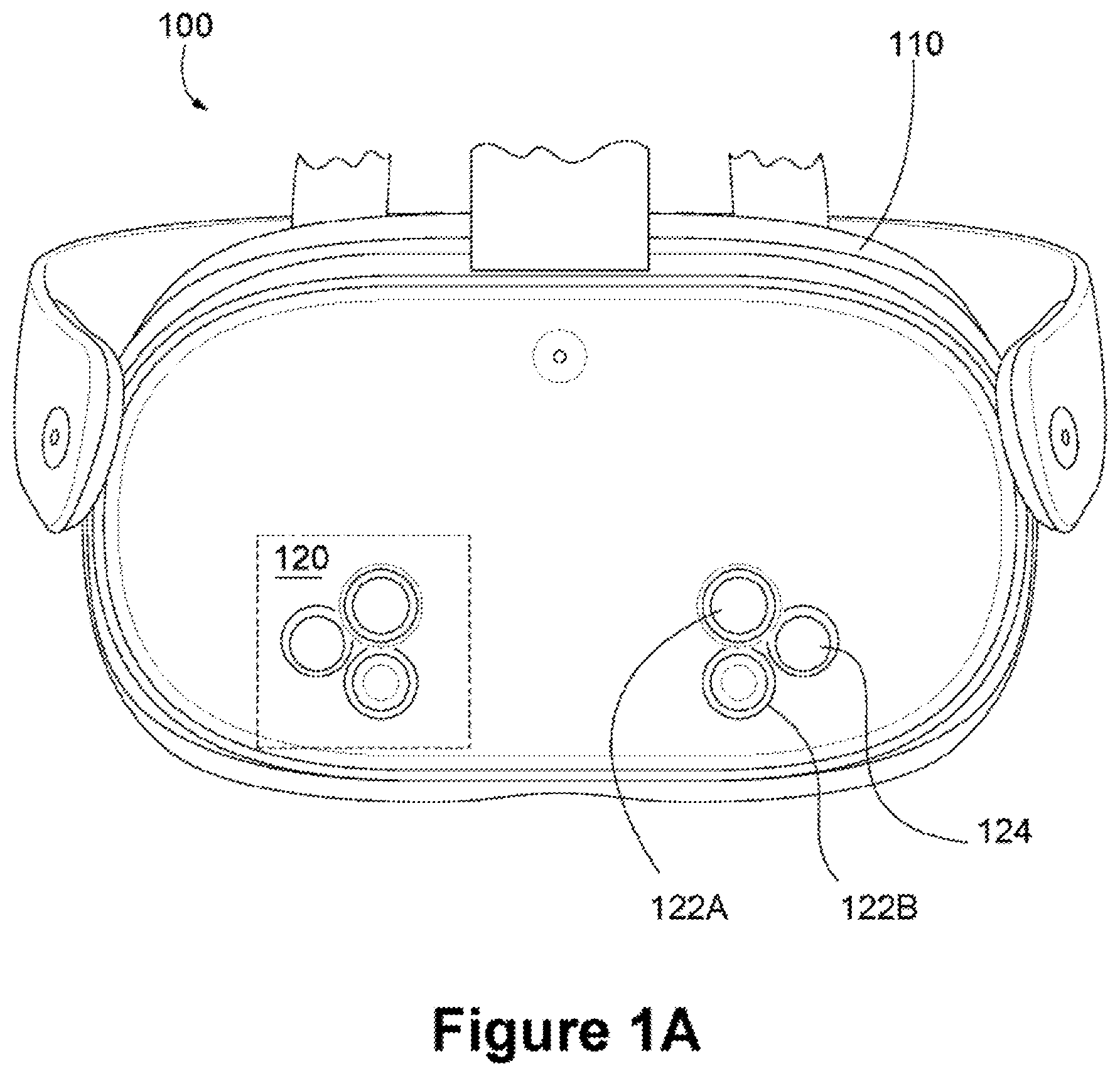

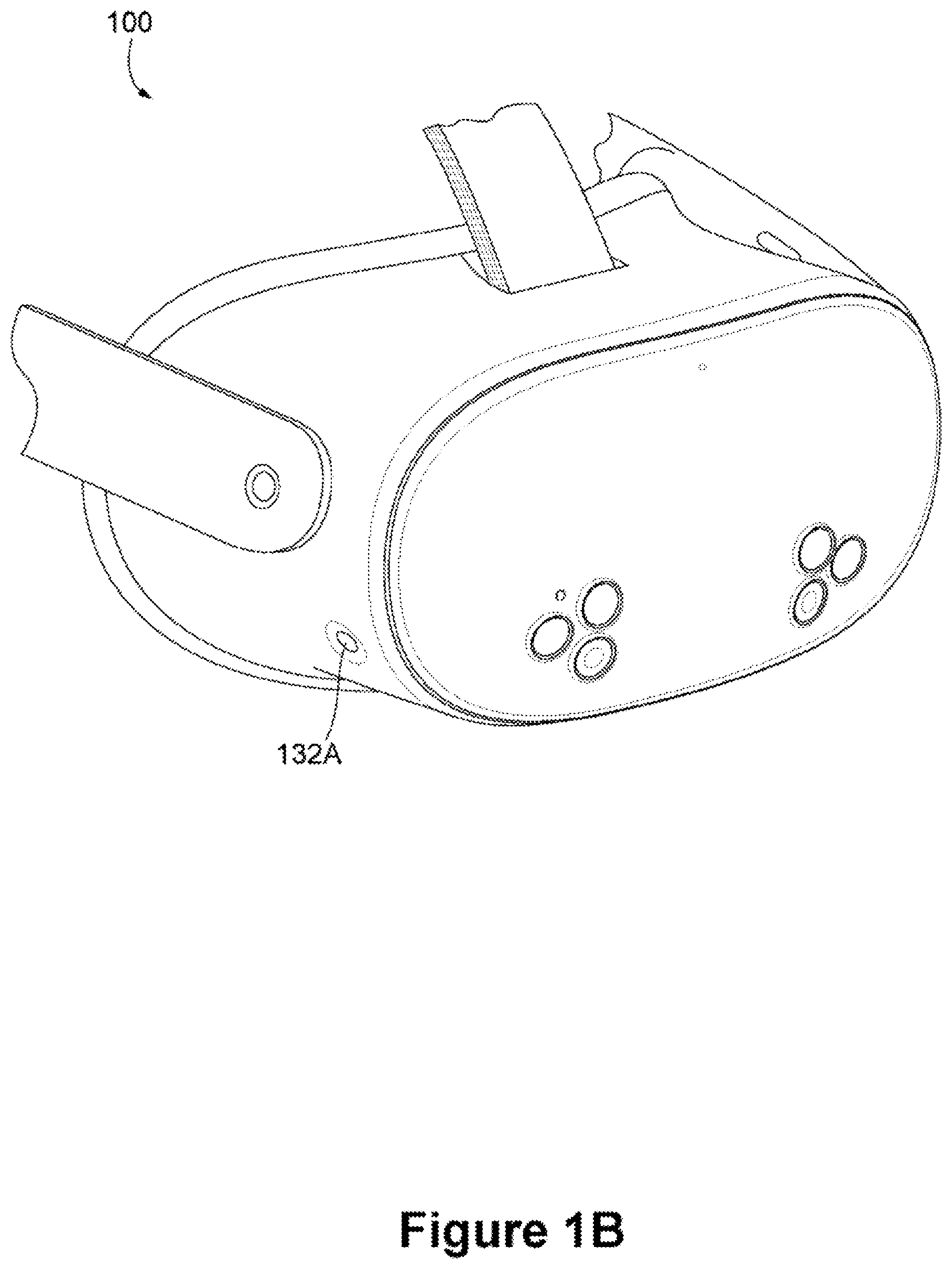

The patent centers on a head-mounted device, think an AR or mixed-reality headset, that carries two key hardware components on its front face: a set of imaging sensors (cameras) and a set of flood LEDs (wide-angle lights that spread illumination across a broad area, unlike a narrow spotlight).
The headset's processors continuously monitor the data coming in from those cameras. Specifically, they check whether that image data contains enough detail (sharpness, contrast, visible features) to reliably detect hand gestures. If the detail falls below a defined threshold, the system triggers the flood LEDs to light up the area in front of the user.

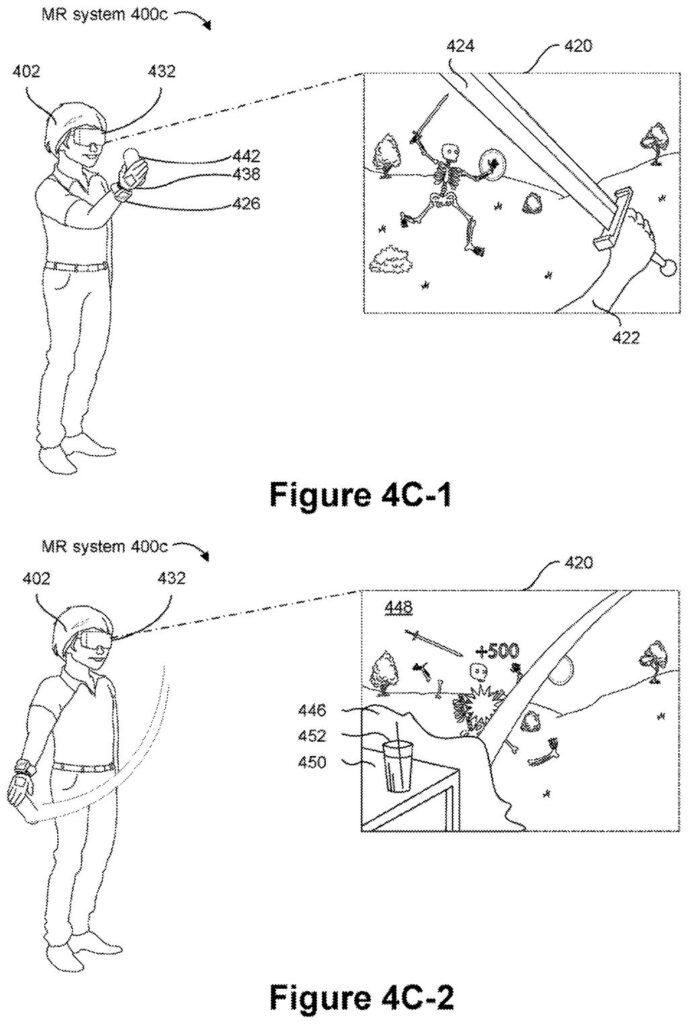

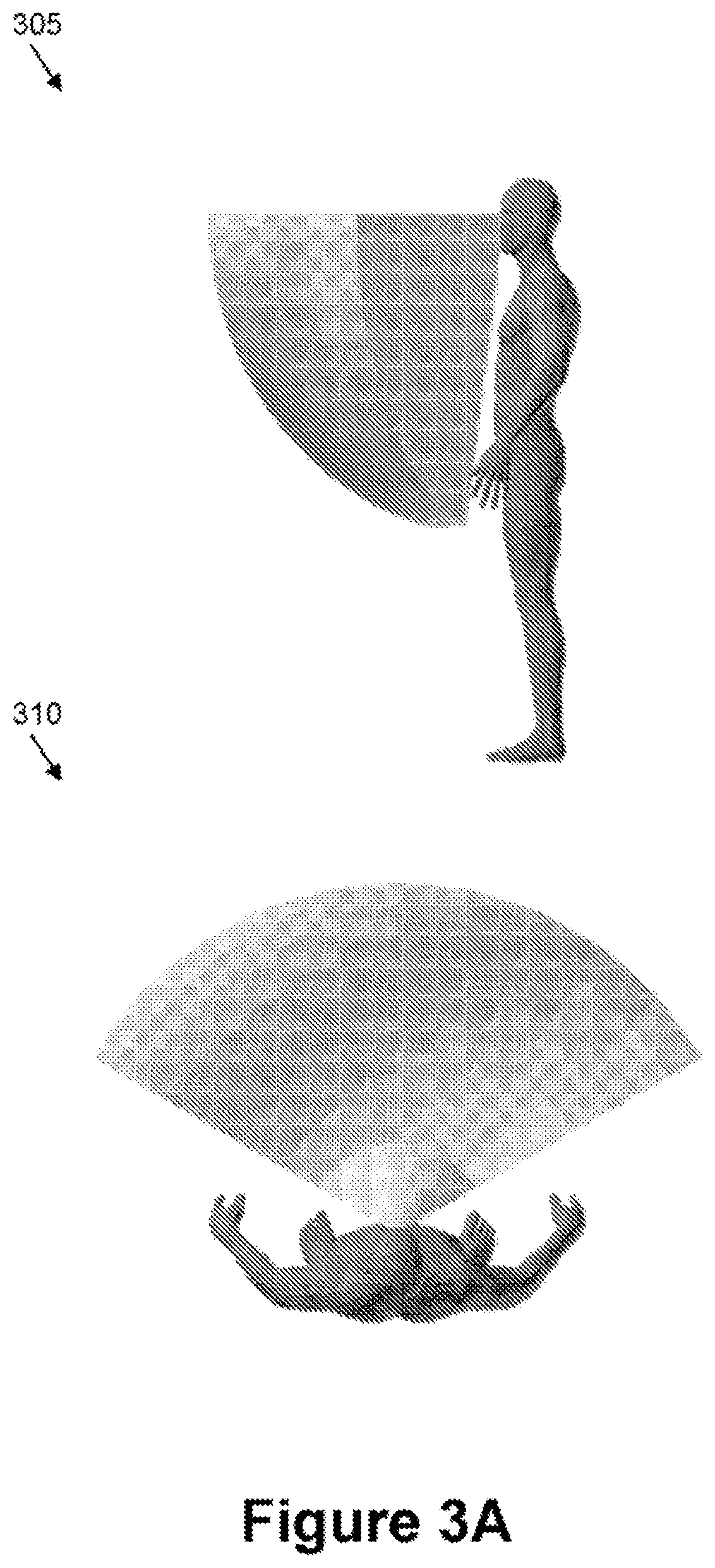

To do that precisely, the system first calculates a user-centric reference position, essentially a point in space tied to where the user's head is pointing, and uses that to define a gesture interaction zone. That zone is a mapped volume of physical space where the user's hands are expected to be during normal interaction. The floodlights target that zone rather than illuminating indiscriminately.
The whole process runs while the headset is actively presenting mixed-reality content, so the transition from camera-only tracking to LED-assisted tracking is meant to happen automatically, without the user needing to change a setting.
… cause illumination, using one or more flood LEDs of the set of flood LEDs, of a volume of physical space that includes the hand of the user.
Translation: Turn on built in floodlights to shine on the user's hand.
What this means for mixed-reality gesture control
Hand-gesture control only works if it works every time. A headset that drops your hand tracking whenever you step into a dim corner, sit in front of a bright window, or simply wear a dark sweater is one most people will stop trusting. The gap between "works in demos" and "works in your living room" is exactly where this patent is trying to operate.
For everyday users, the concrete payoff is fewer missed gestures and less of that awkward "wave harder" moment. For Meta, reliable hand tracking without a physical controller is central to how several Meta filings on hand-tracking and ambient sensing this year position the Quest platform as something you can actually use without picking up extra hardware.
Meta's 66th filing we've tracked since May in the AR glasses race adds to a run that includes one on audio zones in virtual spaces and one on a focus-controlling camera housing.
The most frustrating moment in controller-free headset use is when you reach out to interact with something and nothing happens. Your hand gesture simply goes unrecognized, usually because the room lighting is not good enough for the cameras to see your hands clearly. This patent describes a headset that detects that problem and adds its own light to fix it before you ever notice the failure.
The smart part is that the headset only lights up the specific area where your hands actually are, not the whole room. That keeps the battery drain reasonable and avoids turning your living room into a film set every time you want to tap a virtual button.
For most people, the real measure of whether this works is whether hand tracking keeps functioning when they move from a bright desk to a dim couch. If it does, they will never think about it, which is exactly what good hardware is supposed to deliver.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

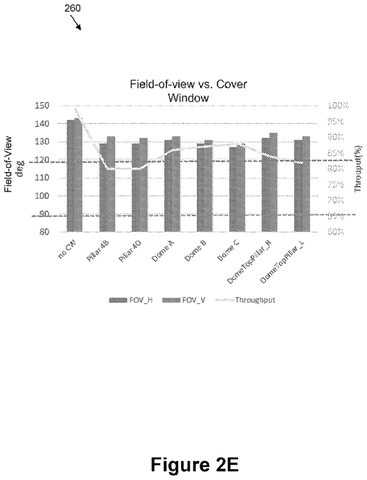

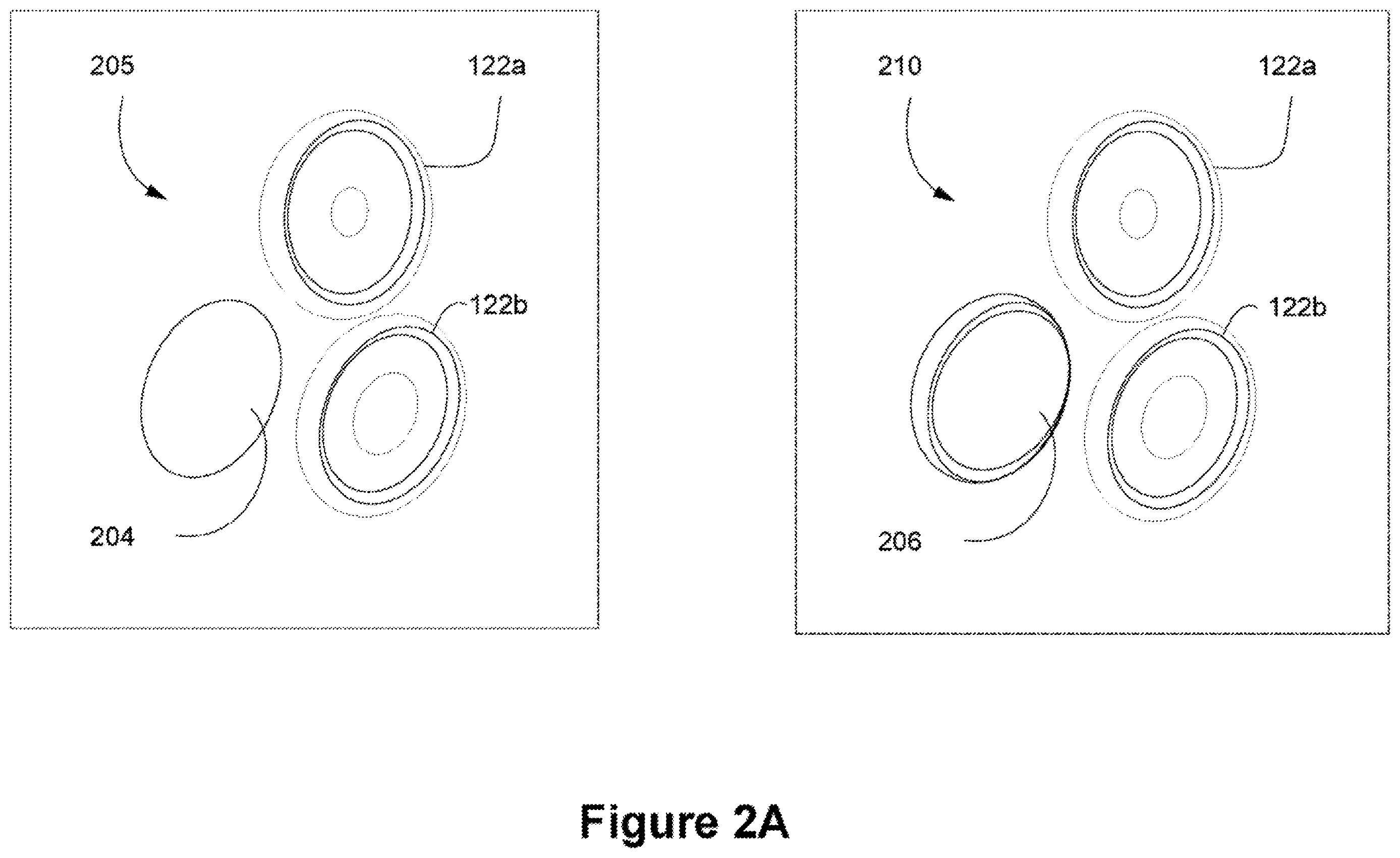

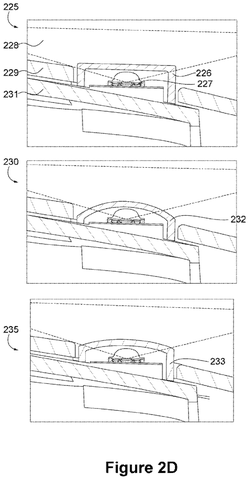

16 drawing sheets from US 2026/0292120 A1 · click any drawing to enlarge
