Microsoft Files Patent for Game Characters That Change Look When a Helper Takes Over
Your character changes color, fades or shrinks the moment a friend (or an AI) grabs the controller. Any trophy they win for you gets flagged as assisted.
What Microsoft's game help session patent does
Right now, when you get stuck in a game, getting help usually means leaving it: you hunt through forums or watch someone else's video, then come back and try to copy what they did. And if a friend or an AI does take the controller, nothing on screen tells anyone who is actually playing.
Microsoft's patent application describes a help session that fixes this. A helper jumps into your game, and your character visibly changes (a different color, see-through, or a different size) while the helper is in charge. When you take the controls back, it returns to normal.

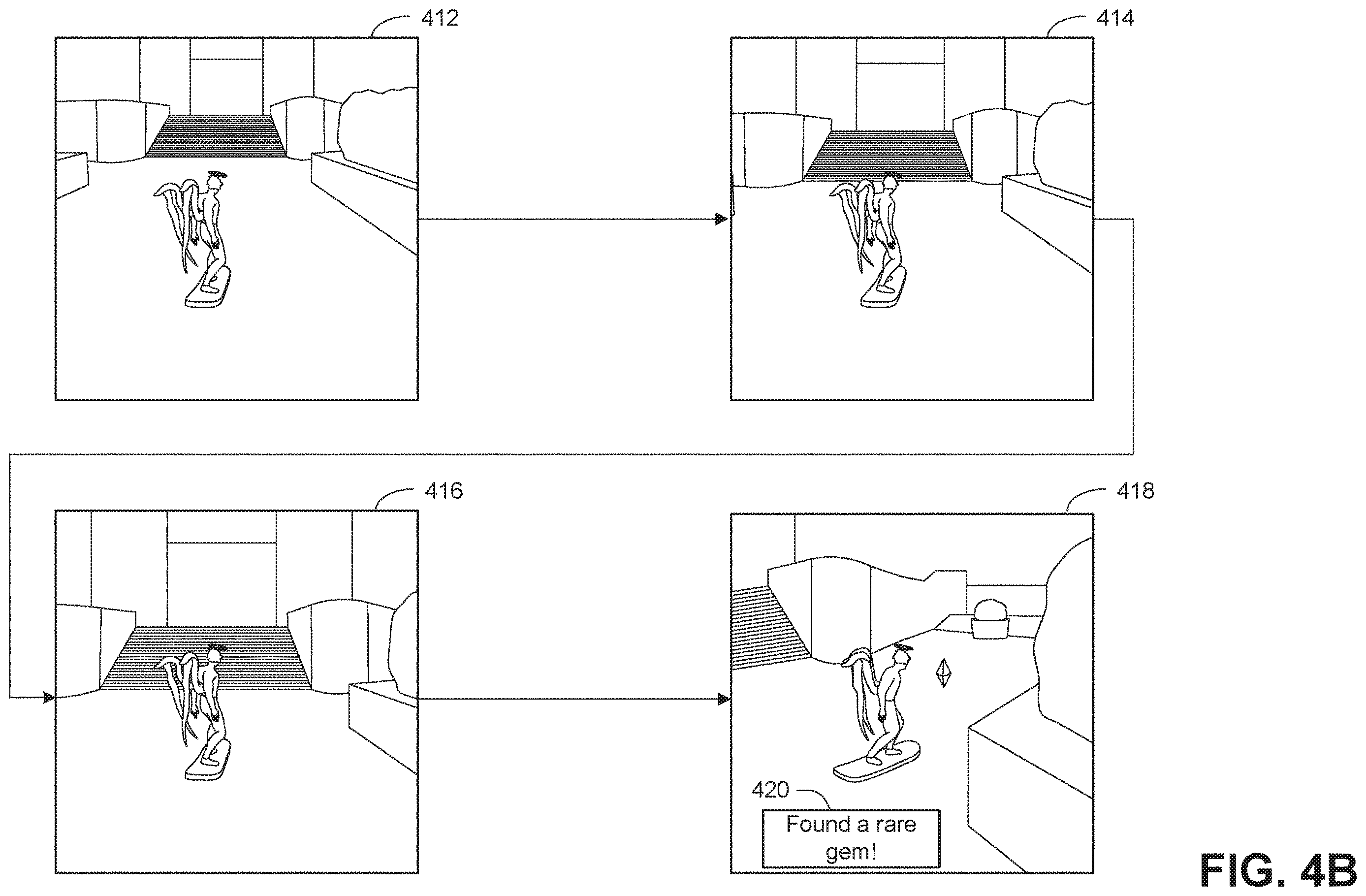

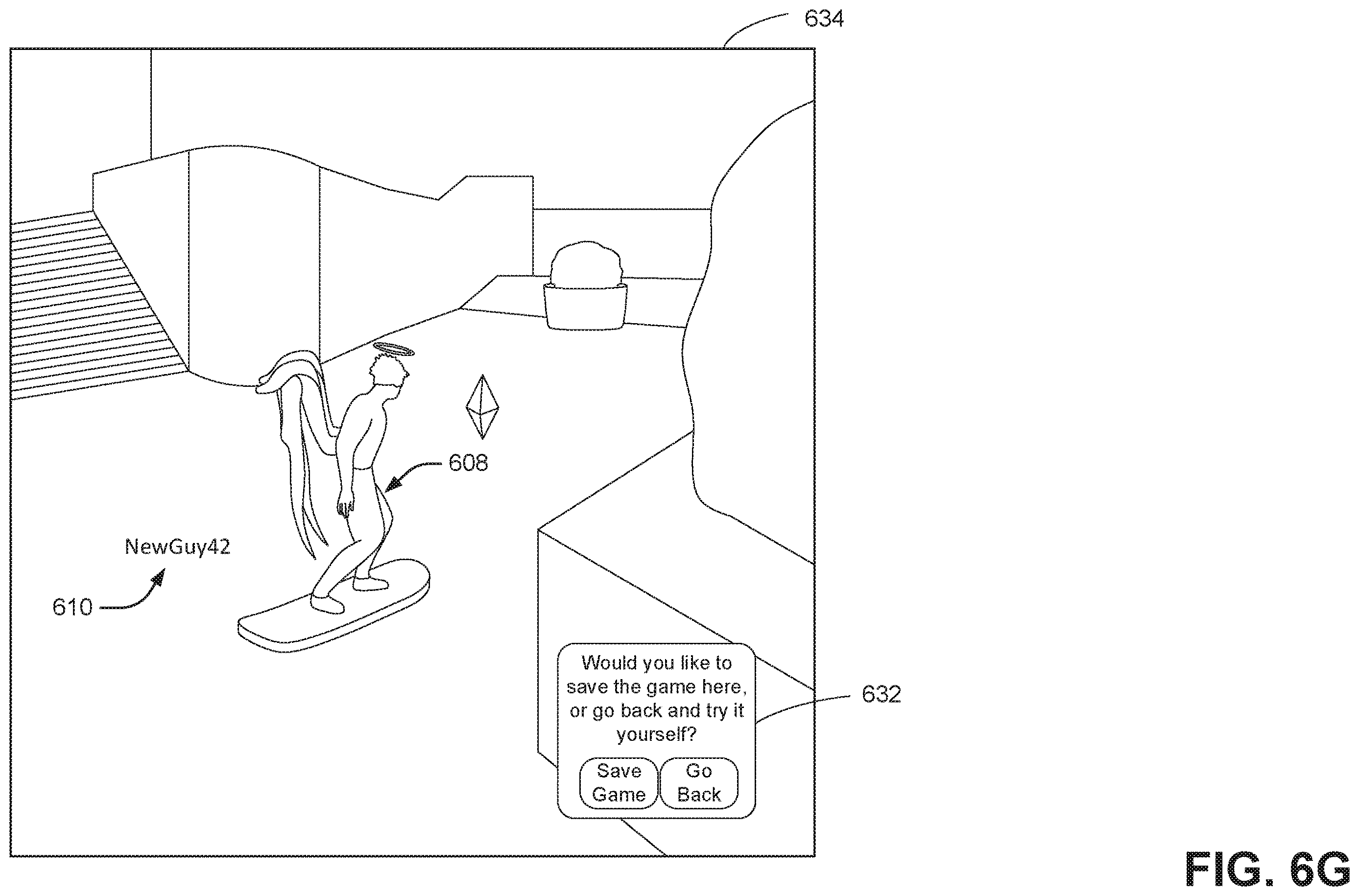

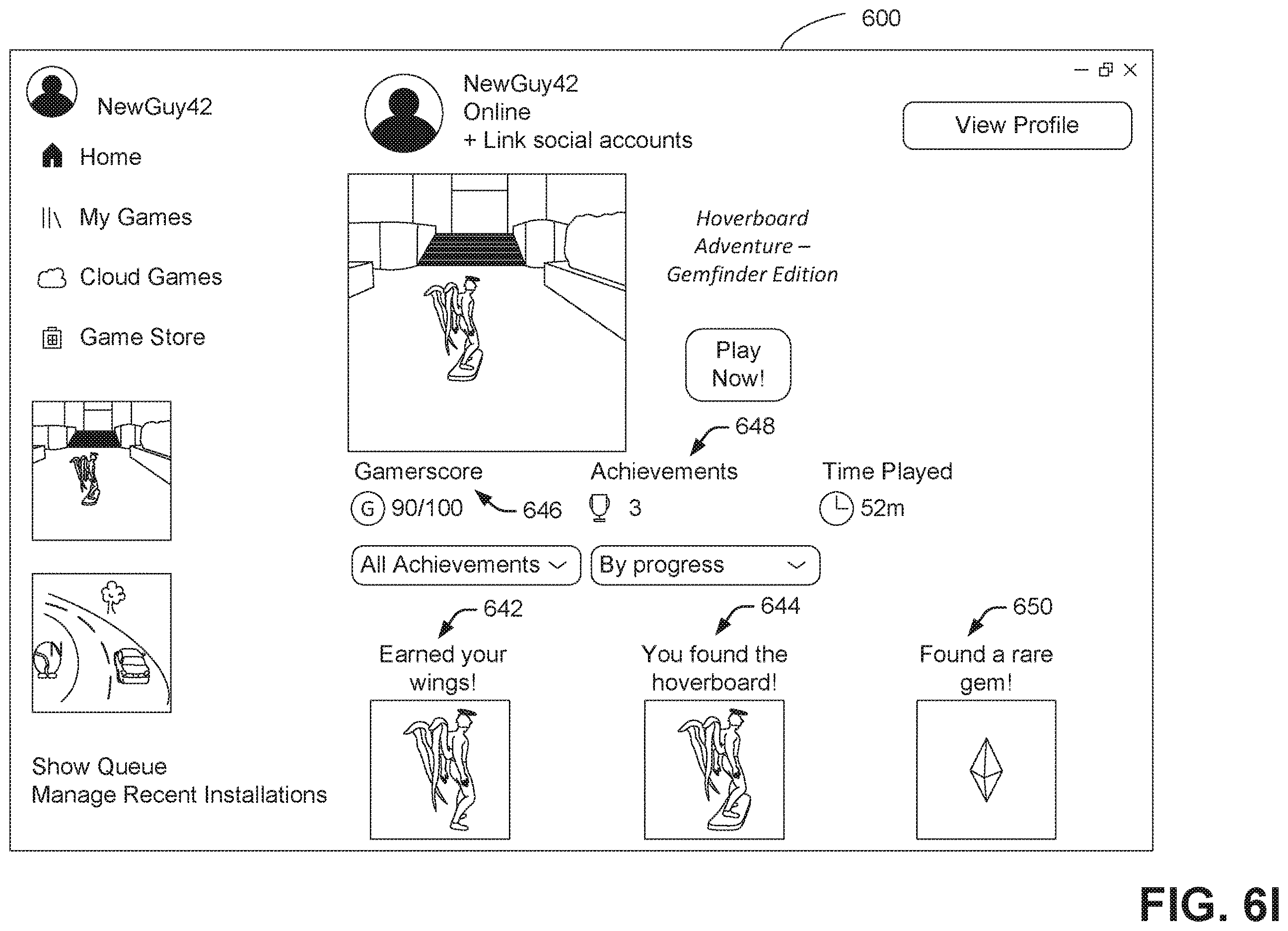

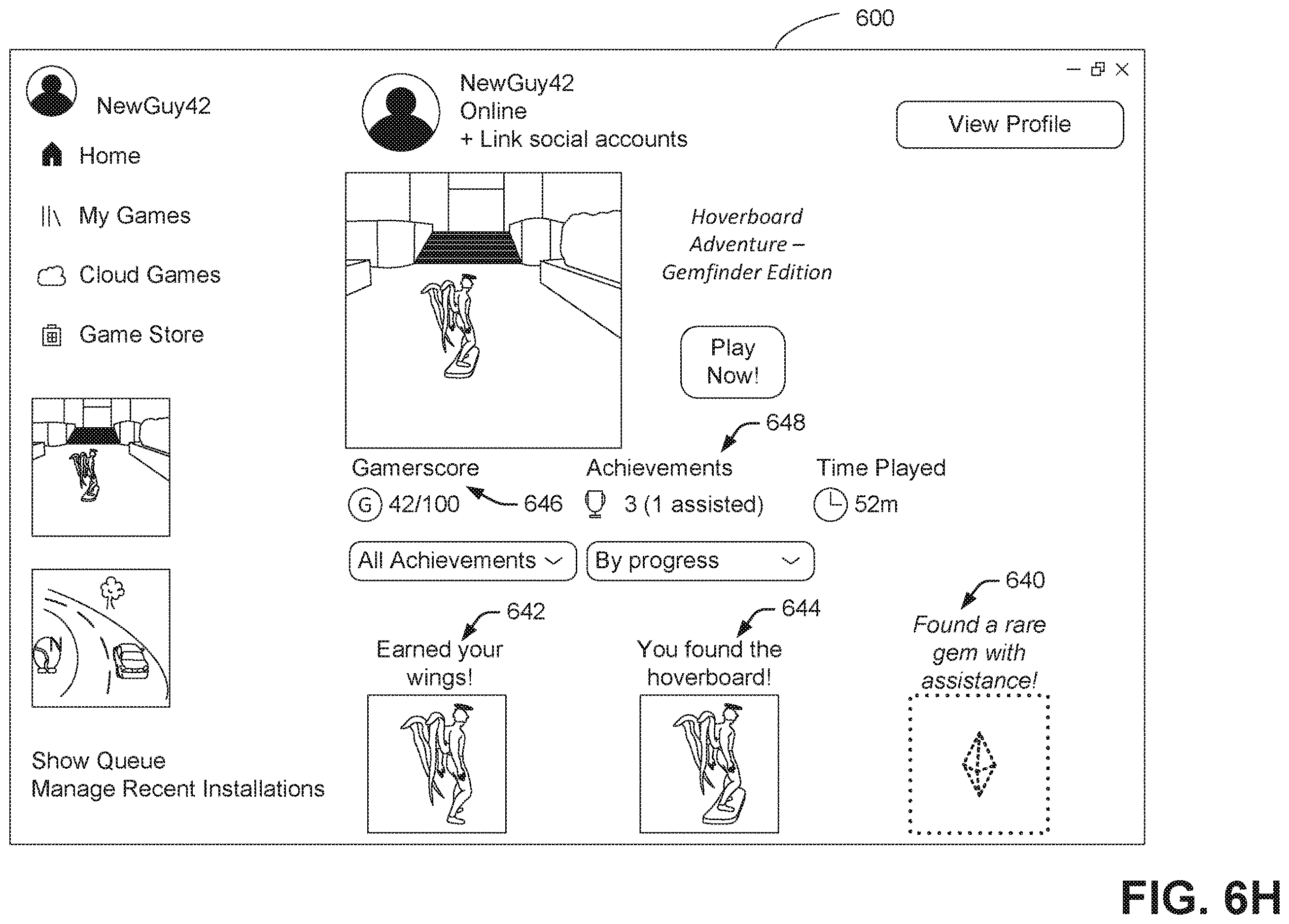

The same idea covers your trophies. If a helper finds the rare gem for you, the achievement would show up on your profile marked as earned with assistance. If you later find it on your own, the mark clears.
… modifying the video output of the particular video game during the help session with an indication that the particular video game player is receiving assistance from the video game helper; and providing modified video output for display during the help session.
Translation: Altering the game screen to show when someone else is helping you play.
How the helper's character gets its new look

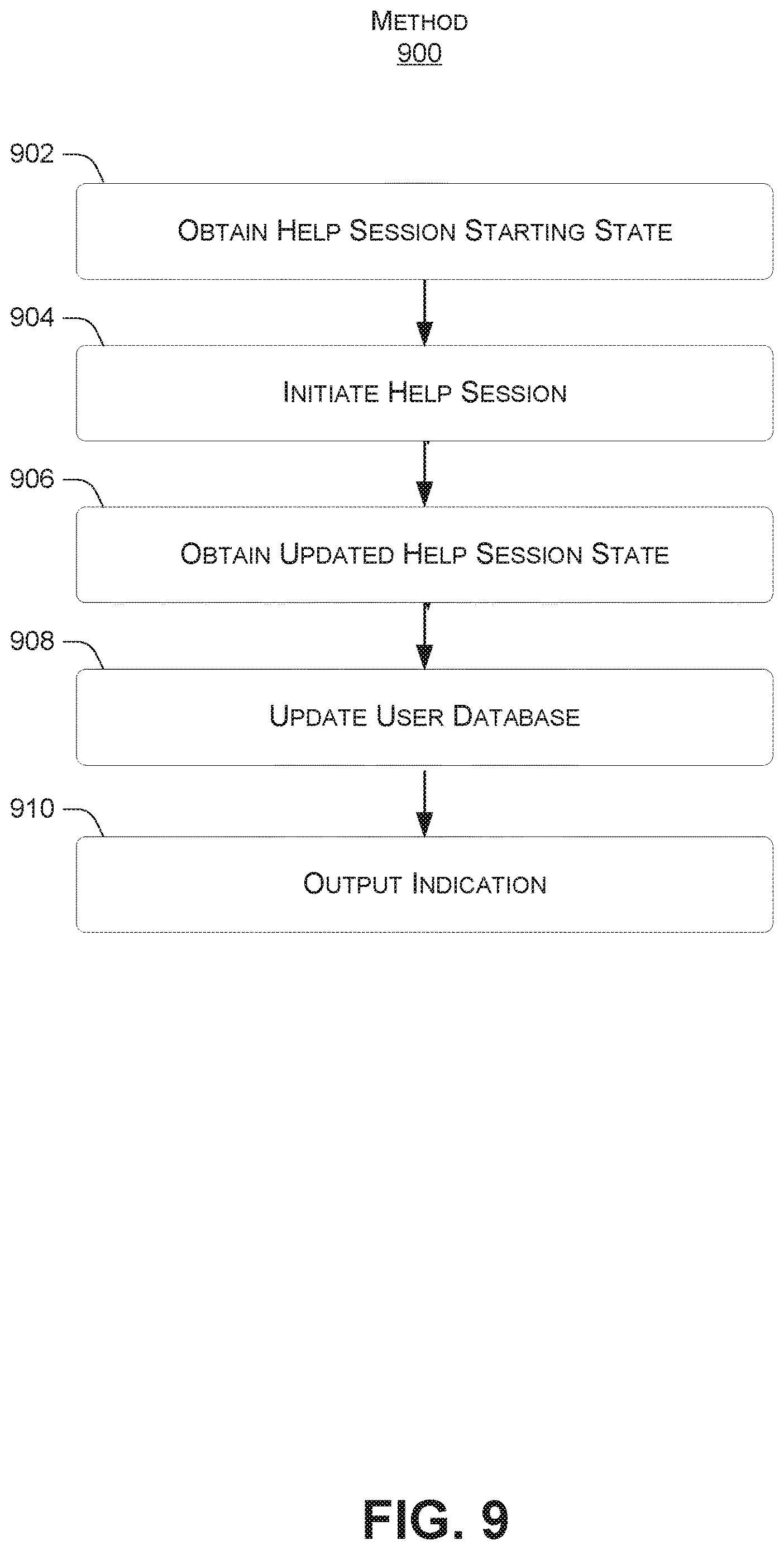

The core claim is simple. A help session starts from a starting state (a saved game, or the moment you get stuck), and a helper, either another person or a trained AI model, plays on your behalf. The system takes in the game's video output, changes it to show you are being assisted, and sends the altered picture to your screen.
The filing describes several ways to show that. The system can:
- Add a text overlay to each video frame, so the game itself never needs to know a helper is involved.

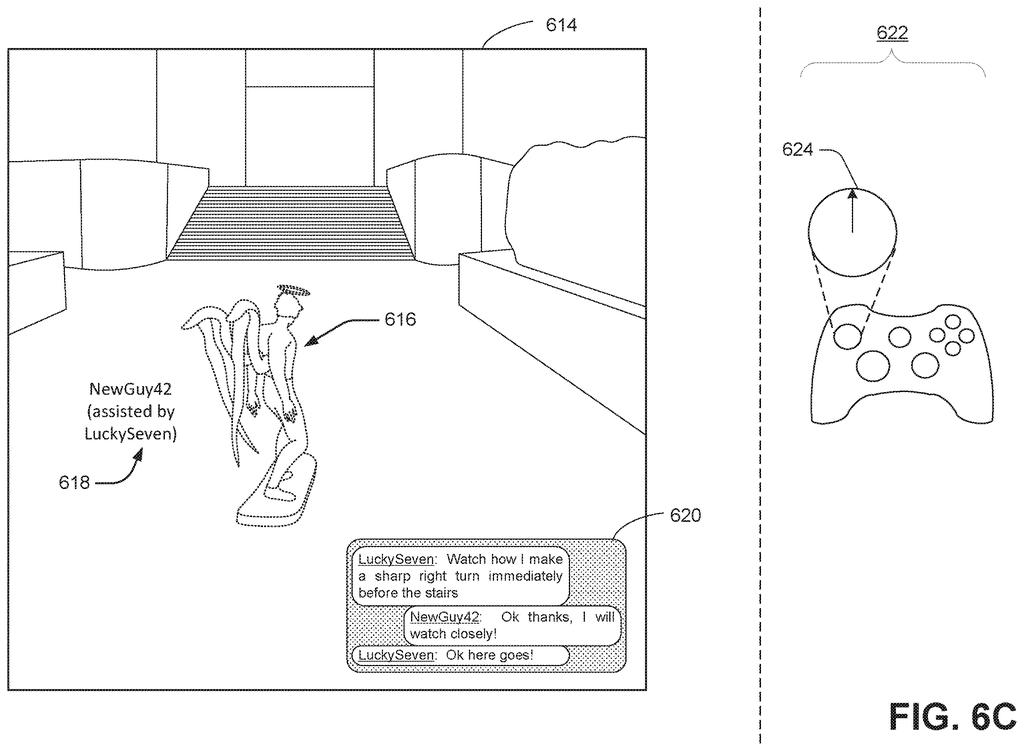

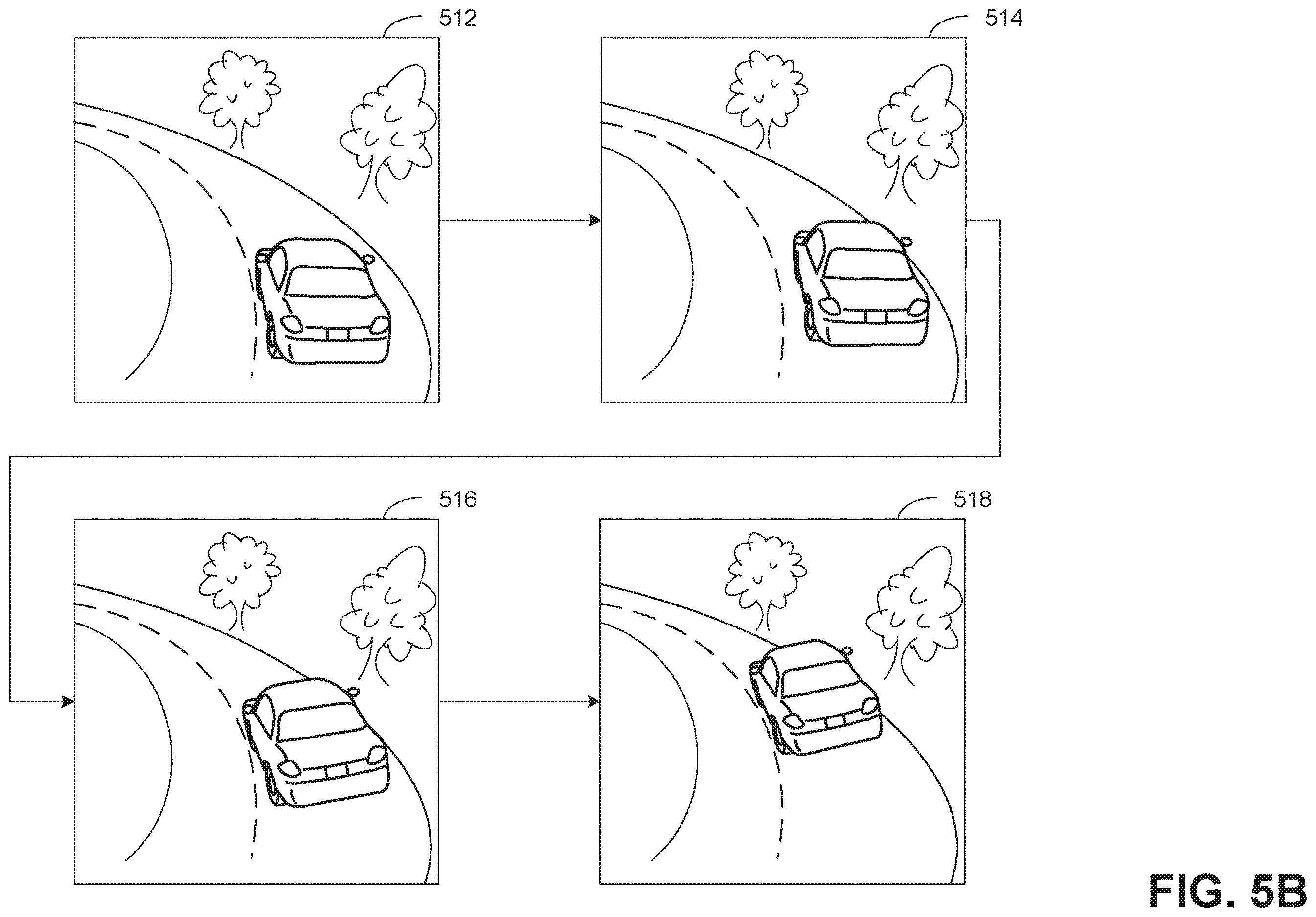

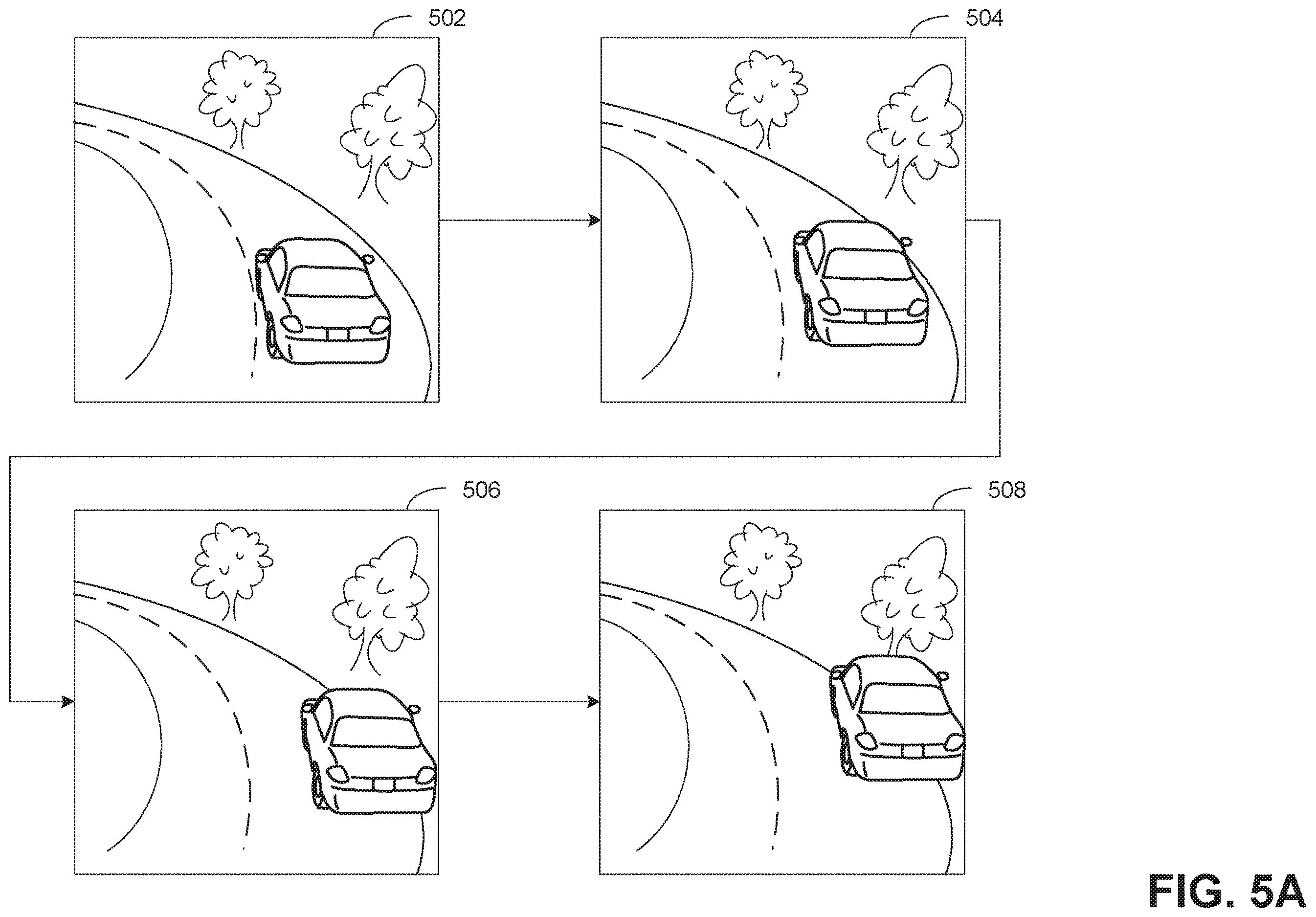

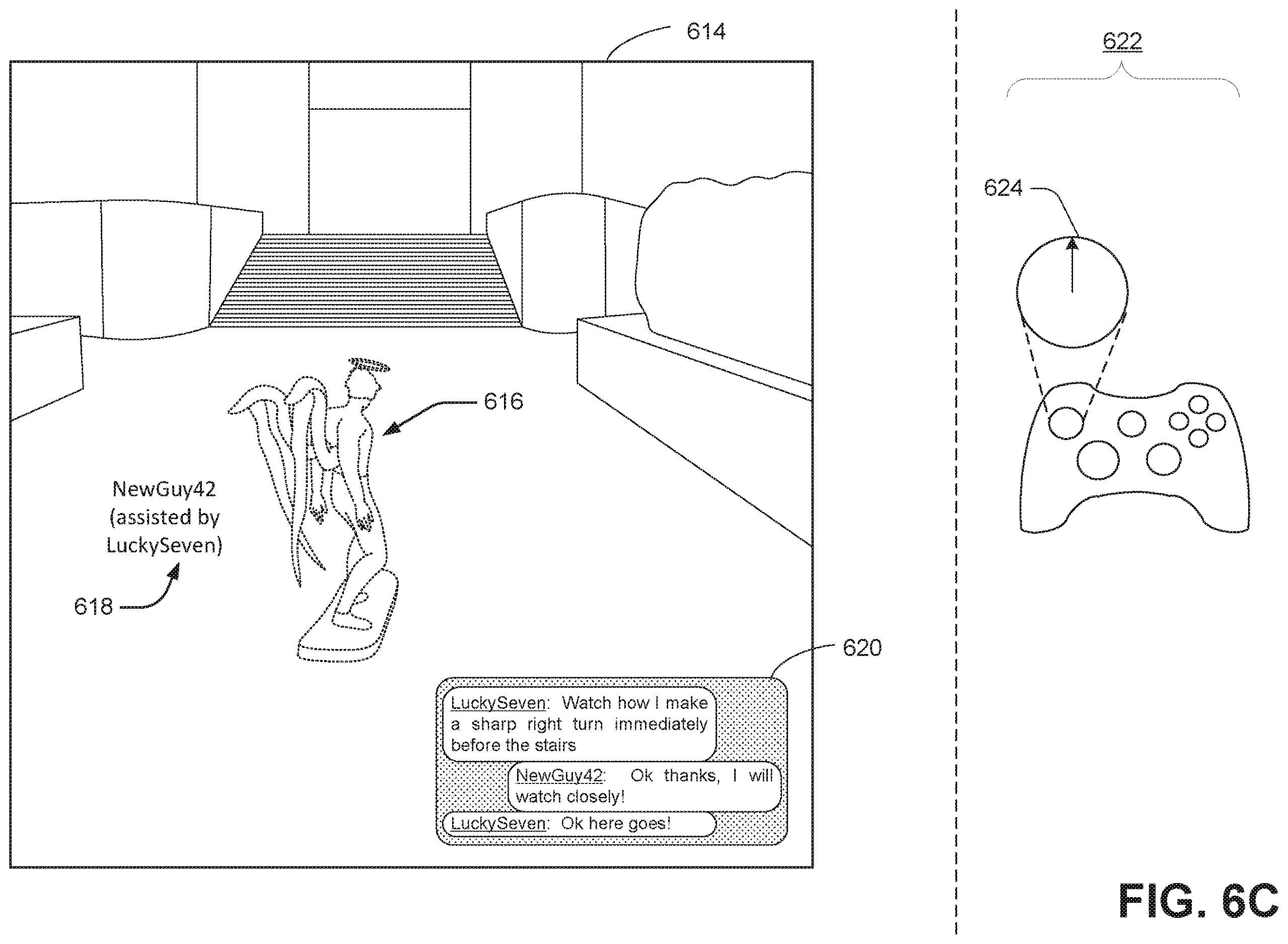

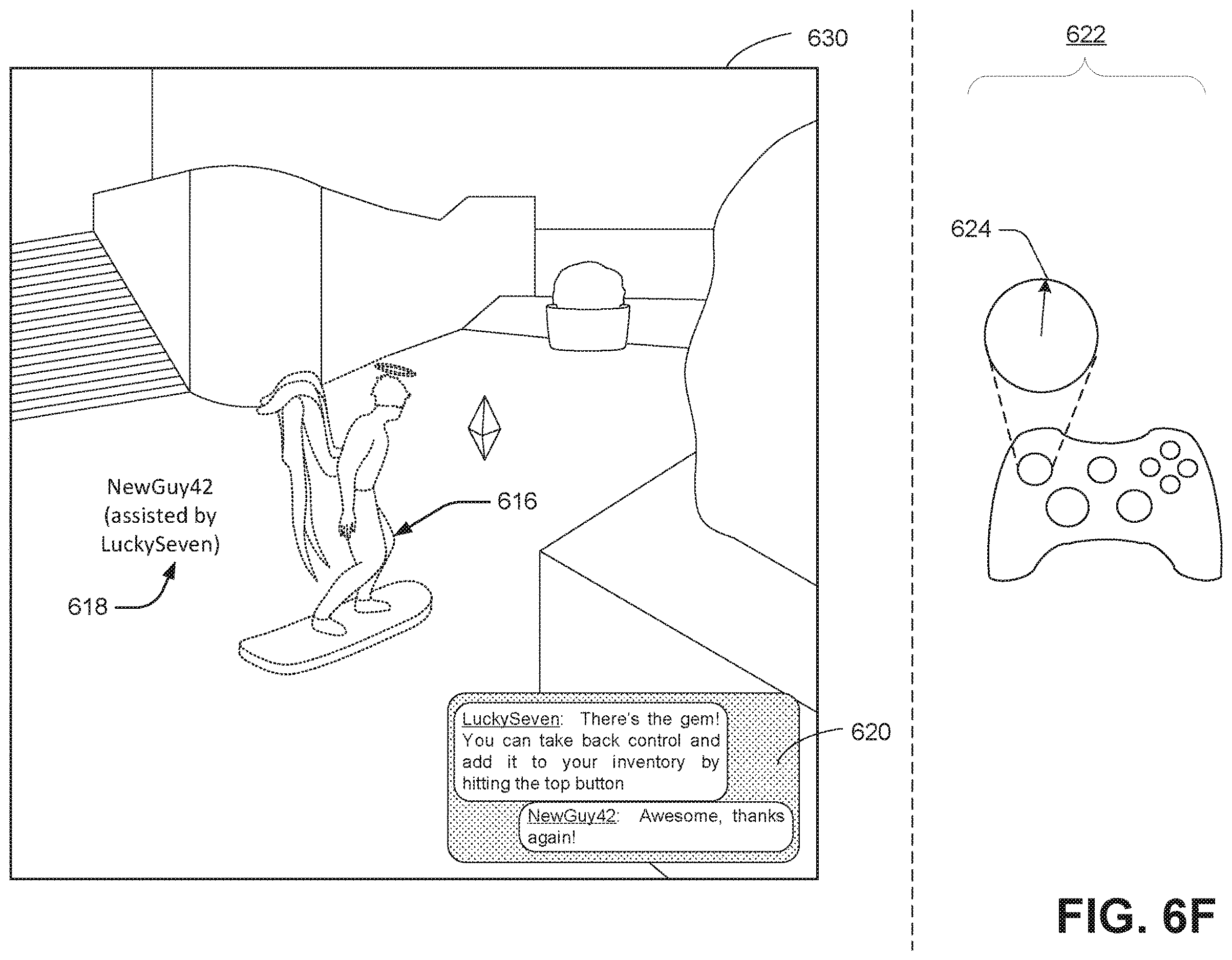

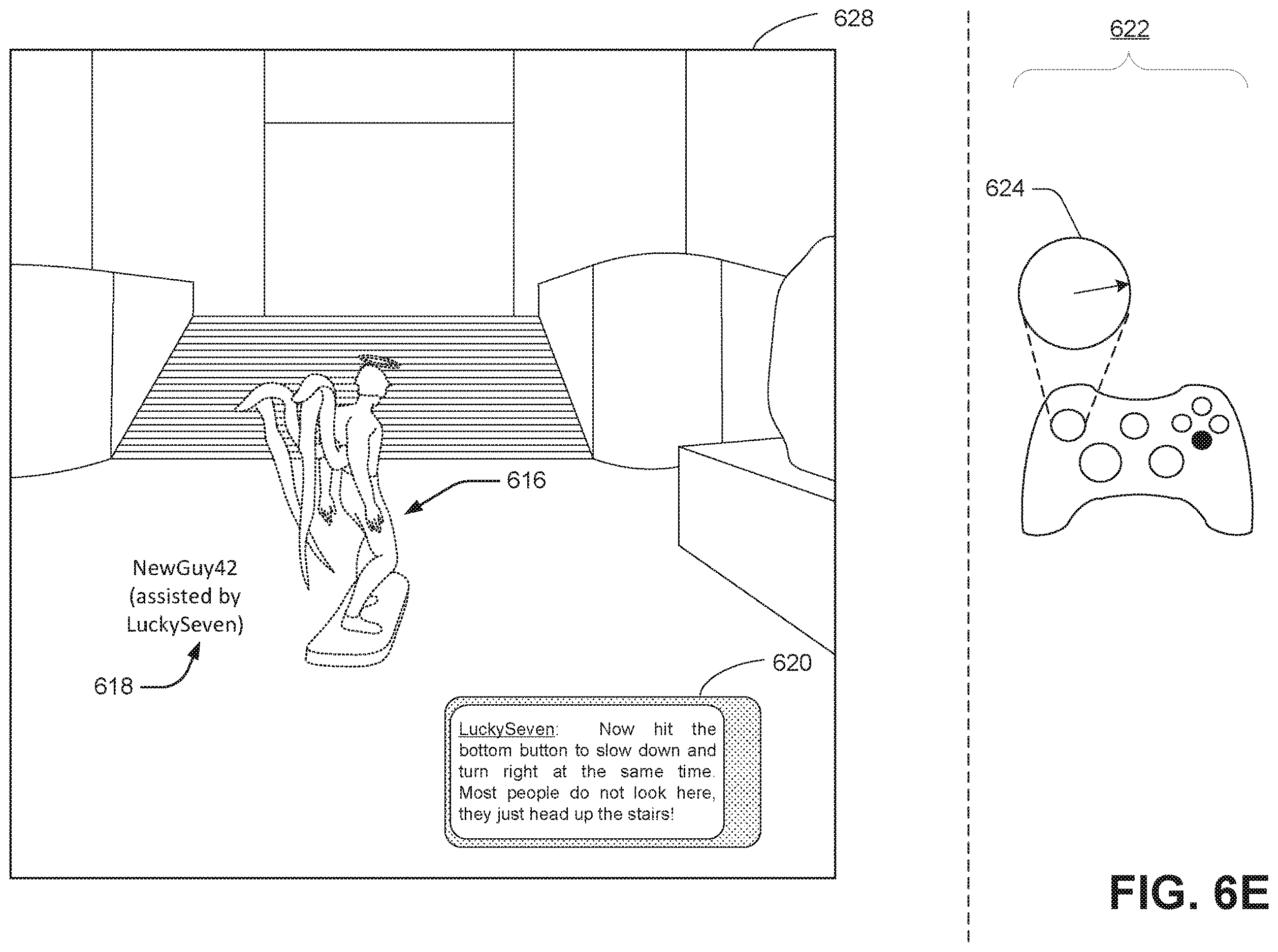

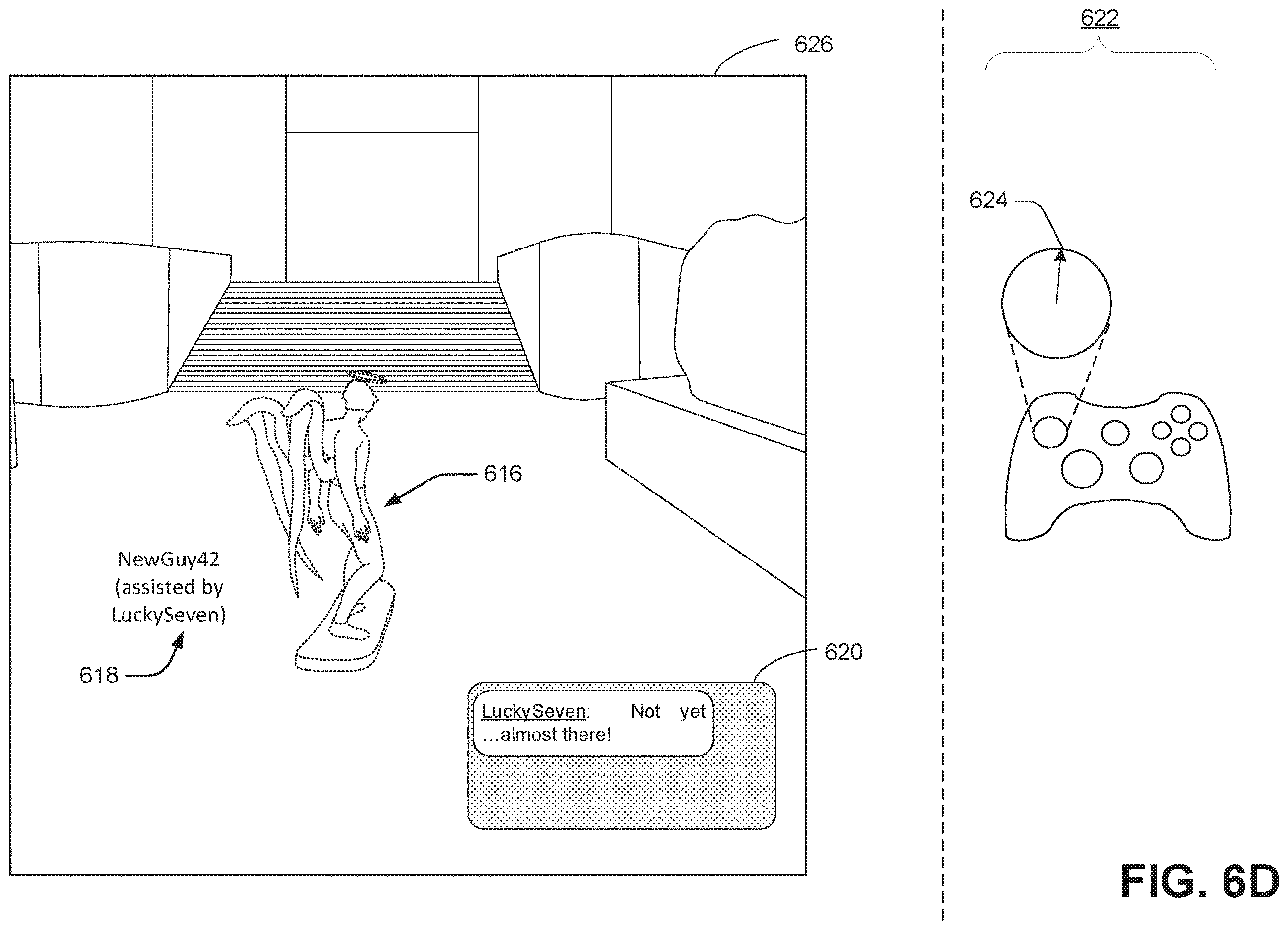

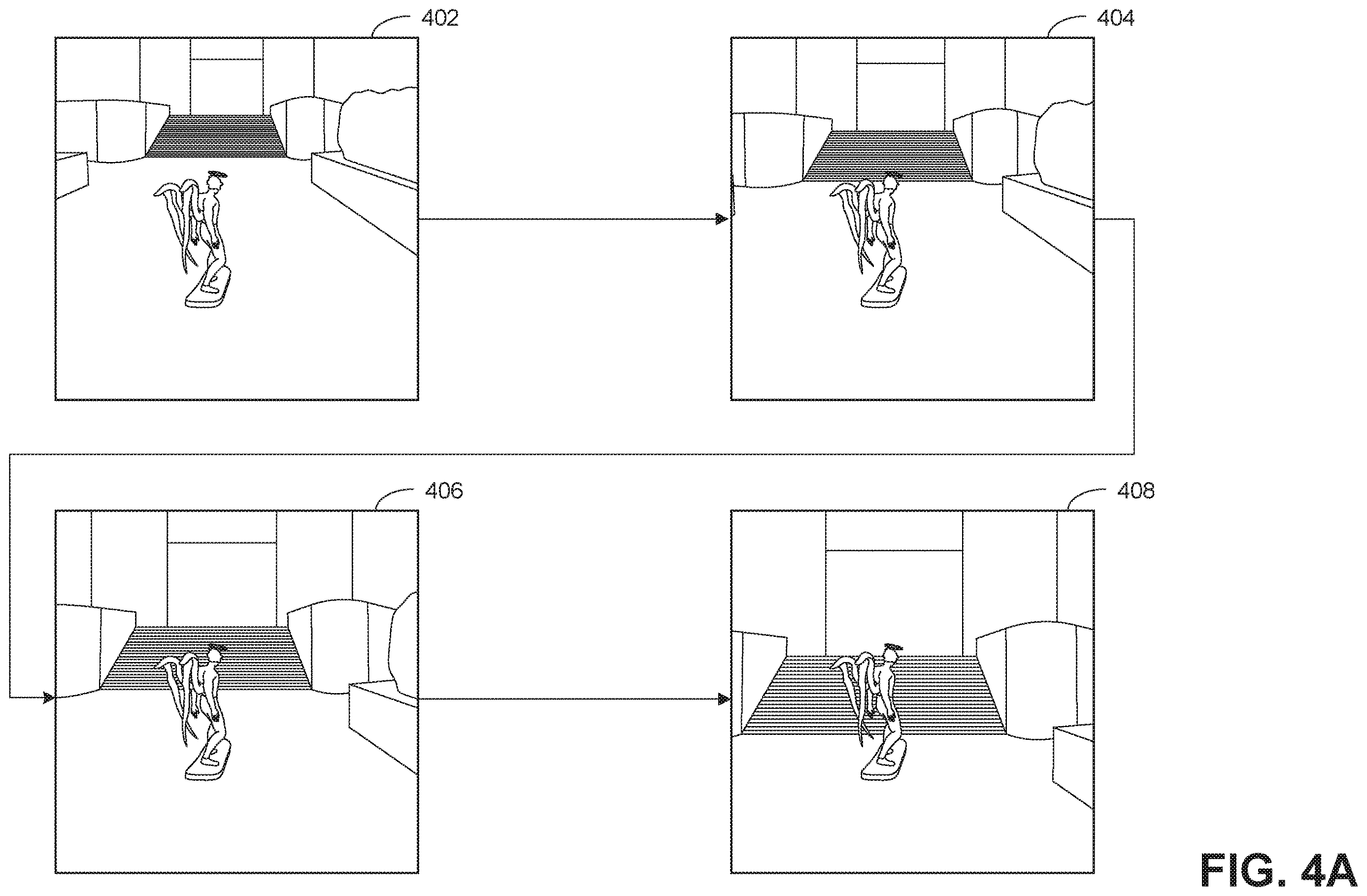

- Change the color, transparency or size of the character or vehicle while the helper controls it, then restore it when you take over.

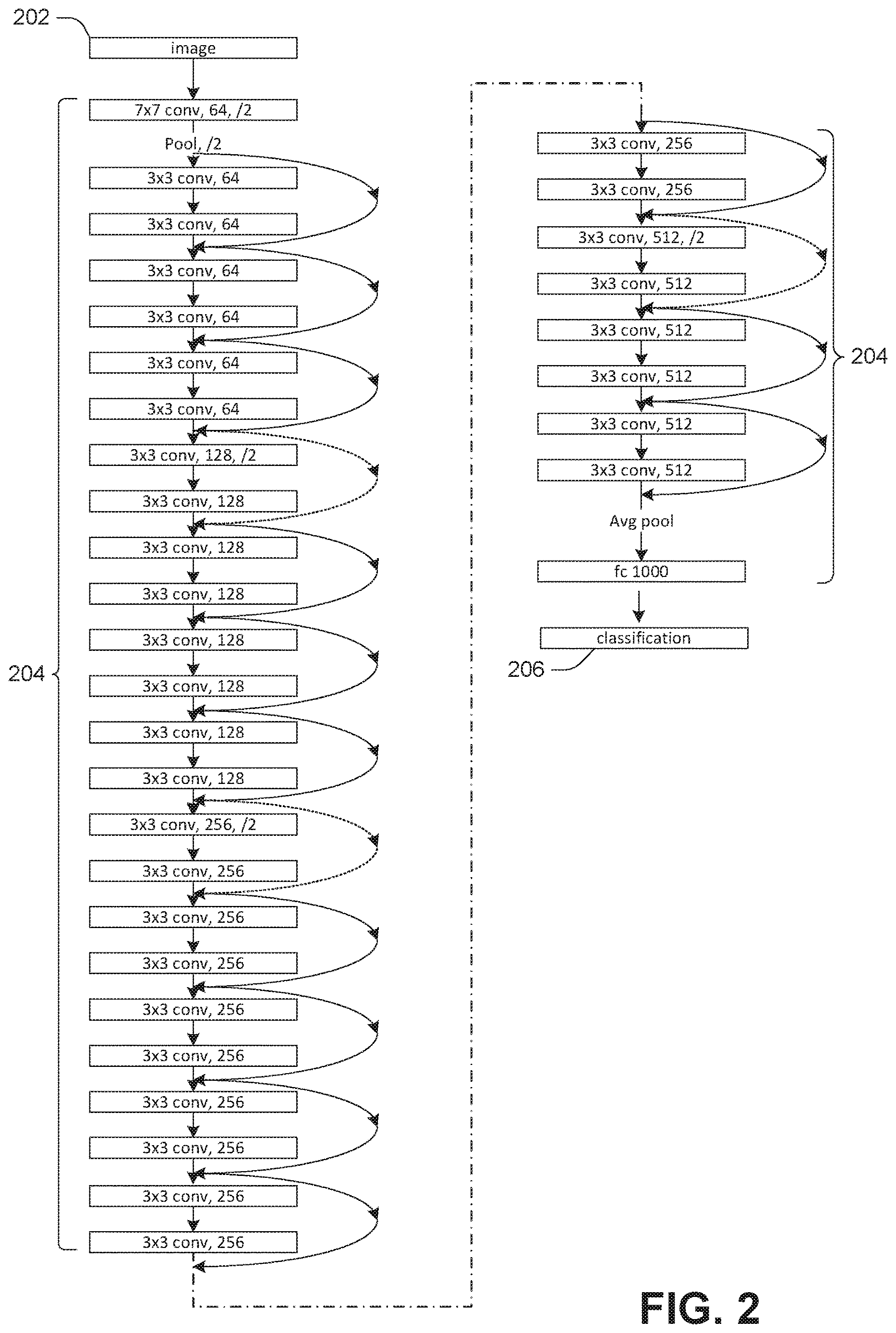

- Outline the character in each frame with a computer vision model (software that picks out objects in images), then repaint inside that outline using a generative image model (an AI that creates pictures).

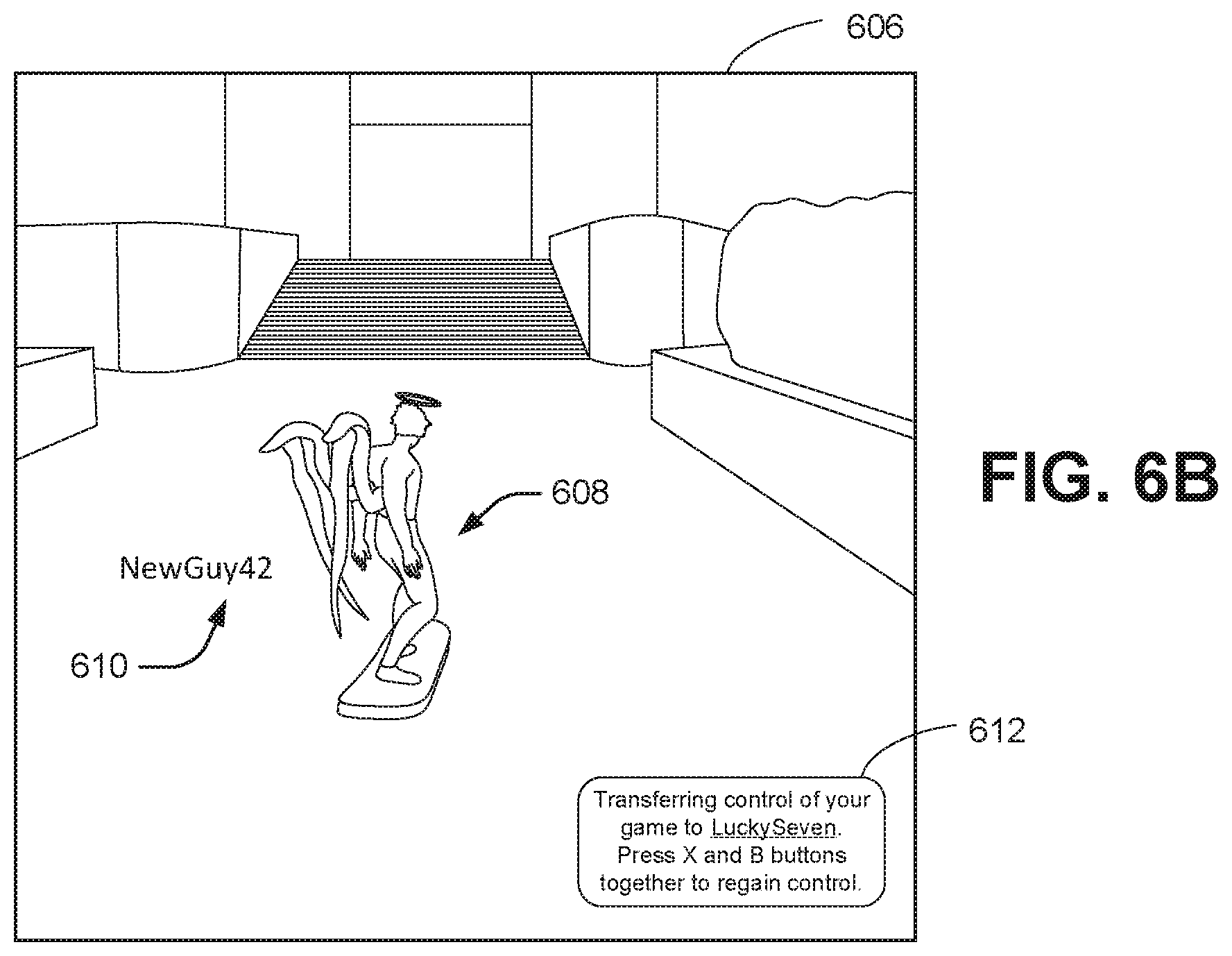

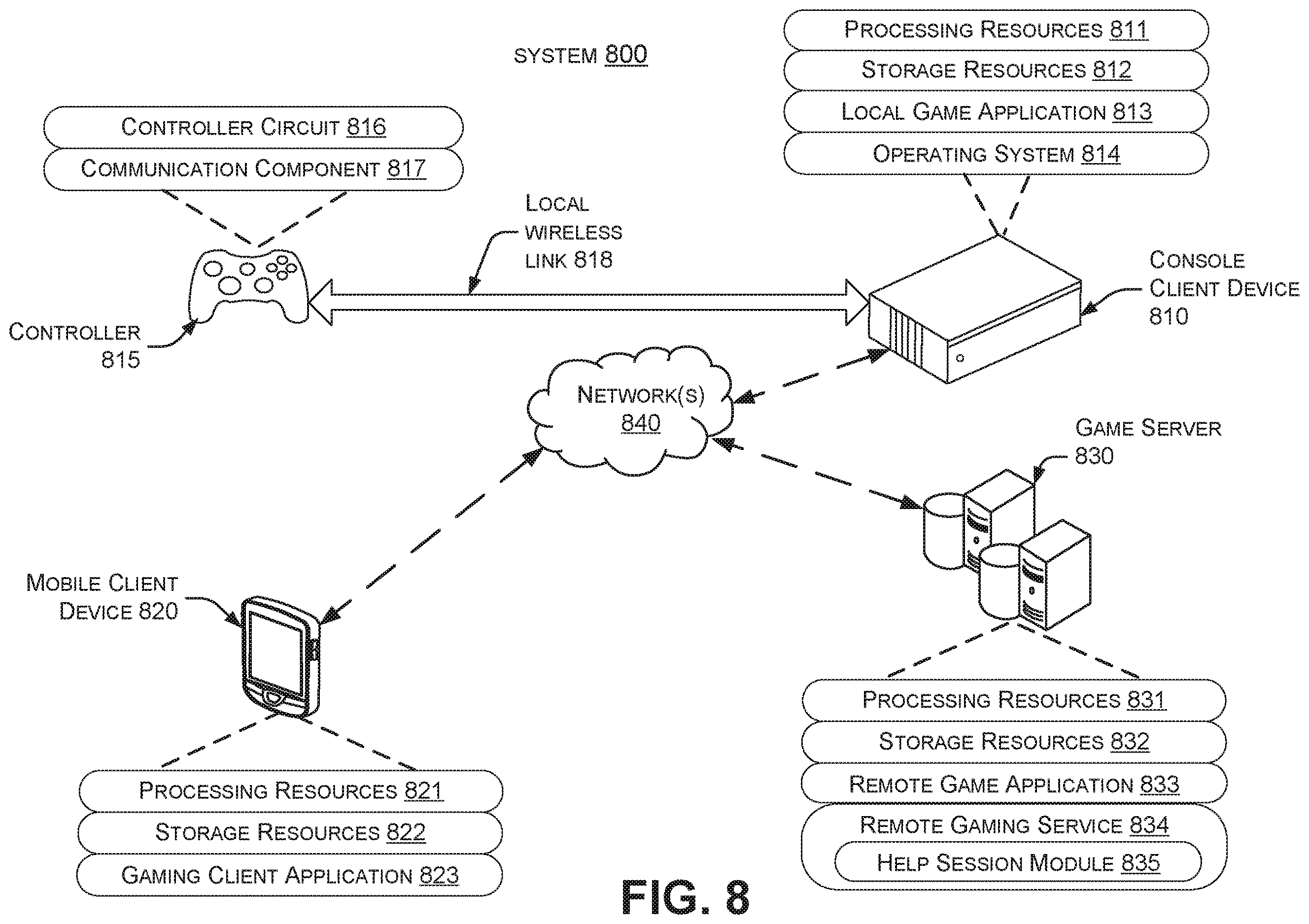

Control can pass back and forth using button sequences set aside for that purpose, and the character's look updates each time. The work can run on a cloud gaming service that streams video to both players.

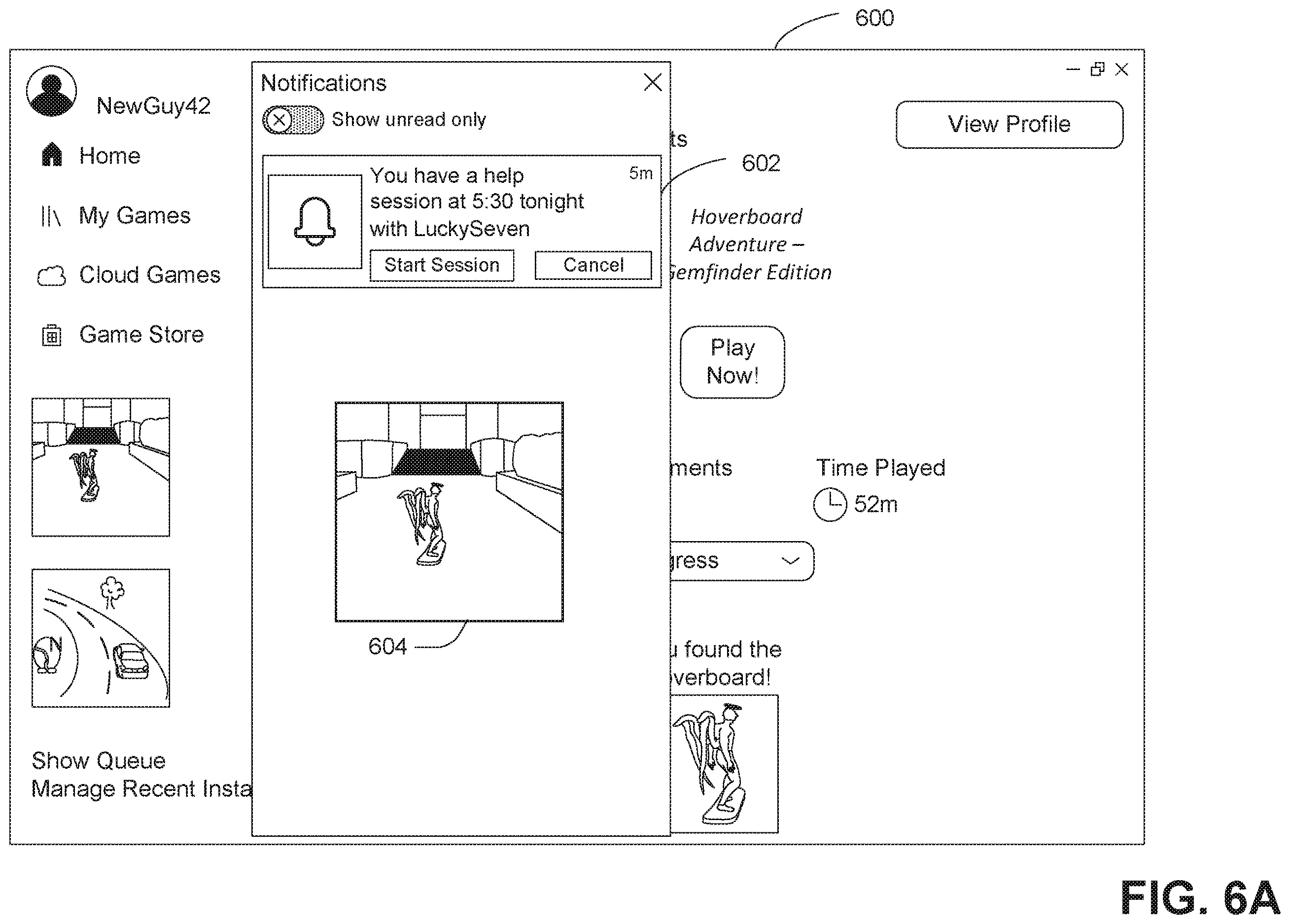

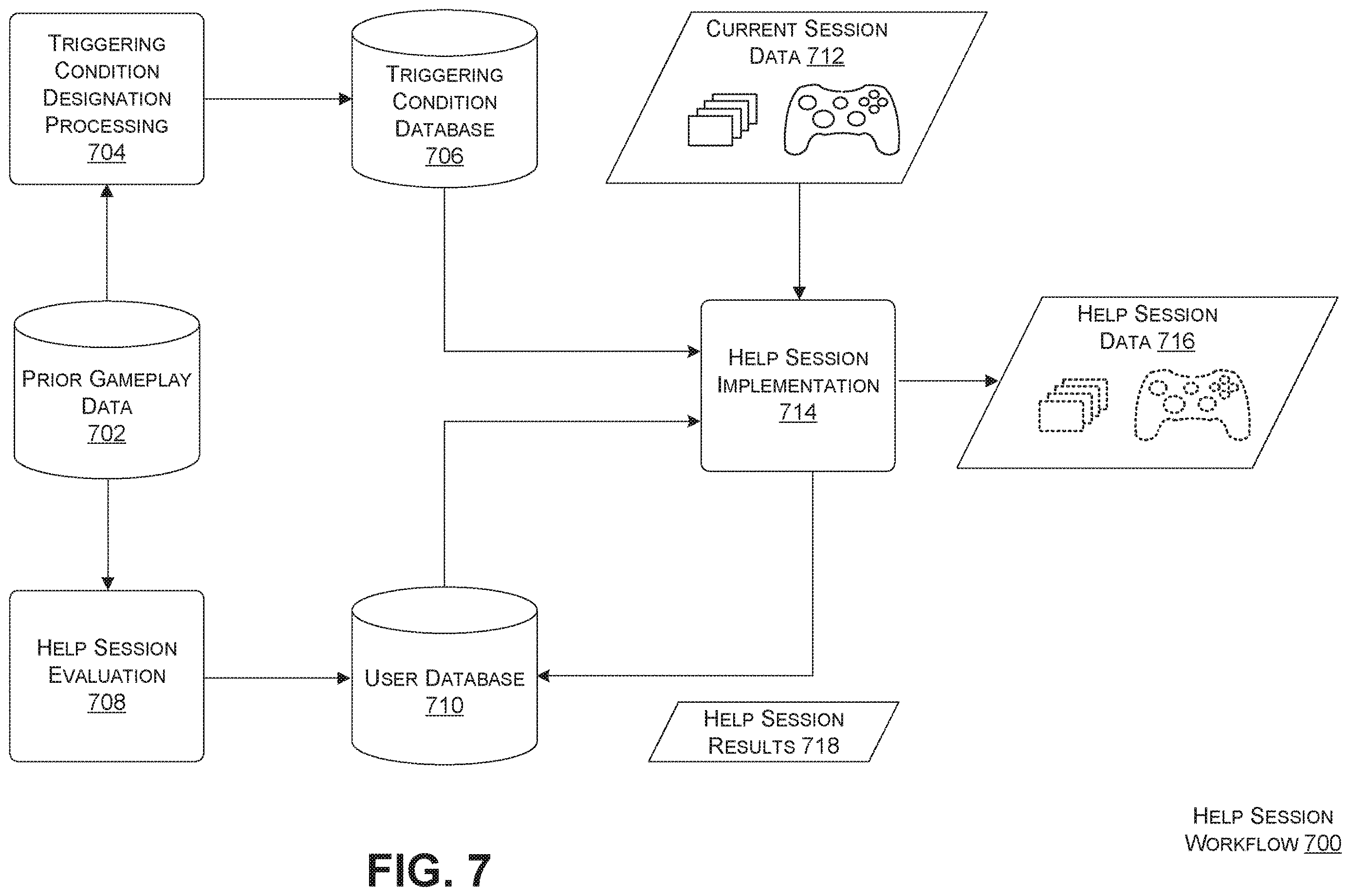

Beyond the claims, the description covers detecting when you are stuck (for example, many players quit after the same boss), picking a highly rated helper, and recording assisted achievements. In one example, an assisted 10-point achievement counts for only 5.
… graphically modify a controllable entity, such as a character or vehicle, to convey that the current video game player is being assisted by a helper.
Translation: Changing how your avatar or ride looks while a helper takes the controls.
Why assisted wins could change bragging rights

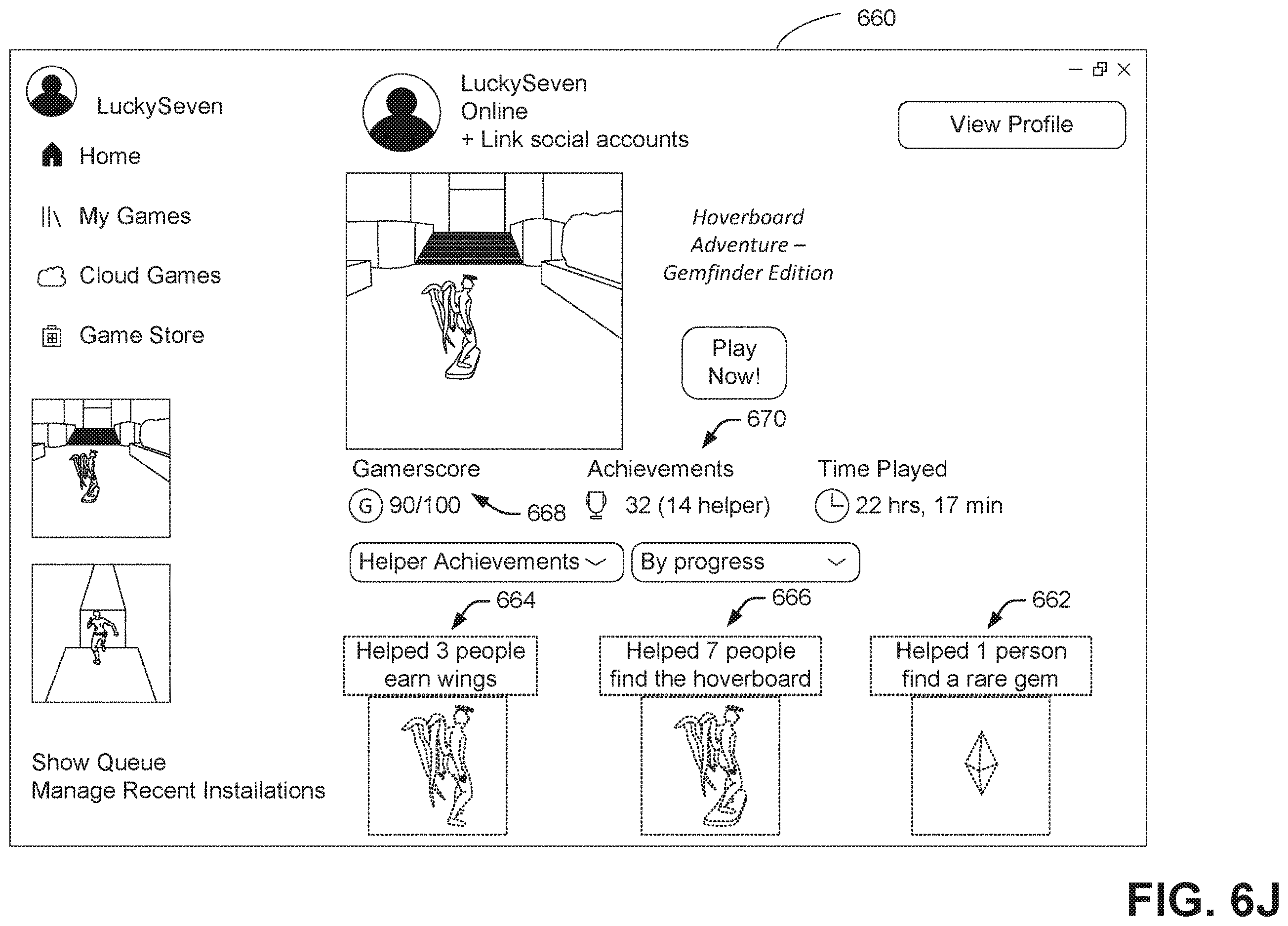

If you play on a console or through cloud streaming, this would make help visible instead of leaving it to the honor system. Friends watching, and anyone browsing your profile, could tell at a glance which wins were yours alone. The filing's examples also give helpers their own helper achievements, which could make asking for a hand feel more normal.
The filing describes a gaming service that tracks achievements, saved games and streamed play. Because the changes can happen at the platform level, they could work on games whose developers never add support. Whether any of this becomes a real feature is unknown.
Microsoft's 526th filing in our Microsoft coverage since May follows applications like the avatar headset patent and the AI game tester.
The price of this design is a permanent label. Once a help session marks your achievement as assisted, it stays on your profile until you redo the feat alone, and the filing's own example cuts the points in half. Players who only want a hand with one brutal boss may decide it is not worth asking.
The technical cost sits in the video. Outlining a character and repainting it with an image-generating AI on every frame takes real computing power, and a streamed game has only a fraction of a second to spare before lag shows. A plain text label is far cheaper, and the filing offers that option too.
Still, the trade reads as worth it. Trophies and scores only mean something when people trust them, and a clear on-screen cue costs players very little. The bigger risk lives in the social design: whether players read the label as honesty or as a mark of shame.
