Nvidia Patents a Surround-View Camera Display That Reshapes Around Nearby Objects
Parking cameras already give you a bird's-eye view of your car, but the geometry is fixed and can warp objects in ways that are hard to judge. Nvidia's new patent describes a display that physically reshapes its 3D model of the space around a vehicle depending on how close the nearest obstacles actually are.
What Nvidia's adaptive surround-view camera display actually does

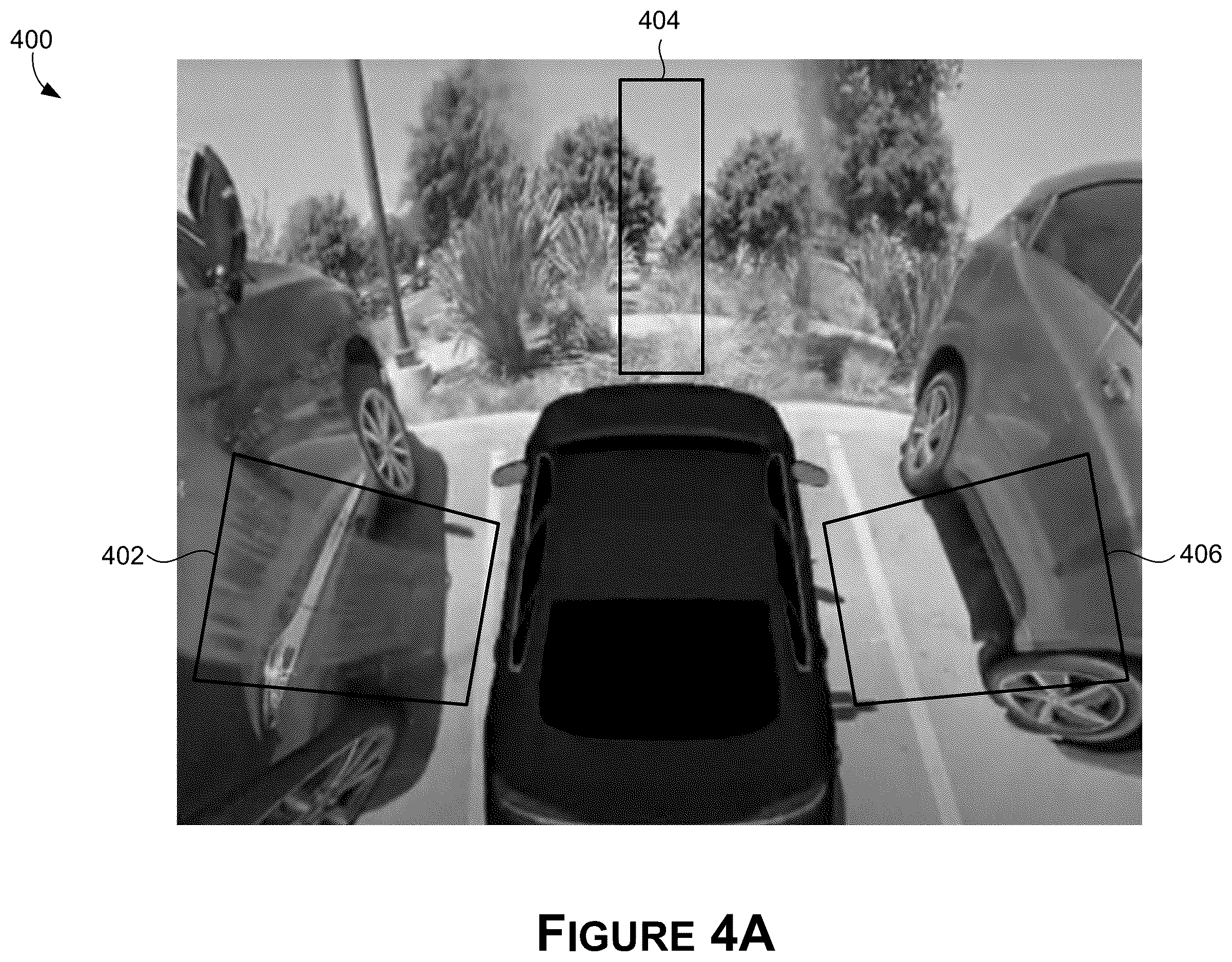

Ever tried to judge whether your car's bumper was about to clip a bollard, only to find the parking camera made everything look farther away than it really was? That distortion is a known problem with today's surround-view systems, which use a fixed, bowl-shaped 3D model to stitch together images from multiple cameras.
Nvidia's approach makes the bowl flexible. When the car's AI detects a pedestrian, a wall, or another vehicle nearby, the display's 3D model shrinks or reshapes to match the actual distance to the closest object. Move away from the obstacle and the bowl expands again. The system can also switch itself off when the car is moving fast, since close-range distortion matters most at low speed.
The result is a view where the space around your car looks proportionally accurate right where it counts, close to whatever might cause a collision, rather than being stretched to a one-size-fits-all shape that doesn't reflect what's actually there.
… generating a three-dimensional (3D) bowl that adaptively models the environment with a shape that is based at least on the one or more distances and the one or more directions to the one or more closest detected objects …
Translation: Nvidia's system builds a 3D bowl shape that shrinks or grows depending on how close nearby objects are.
How the 3D bowl changes shape based on detected objects

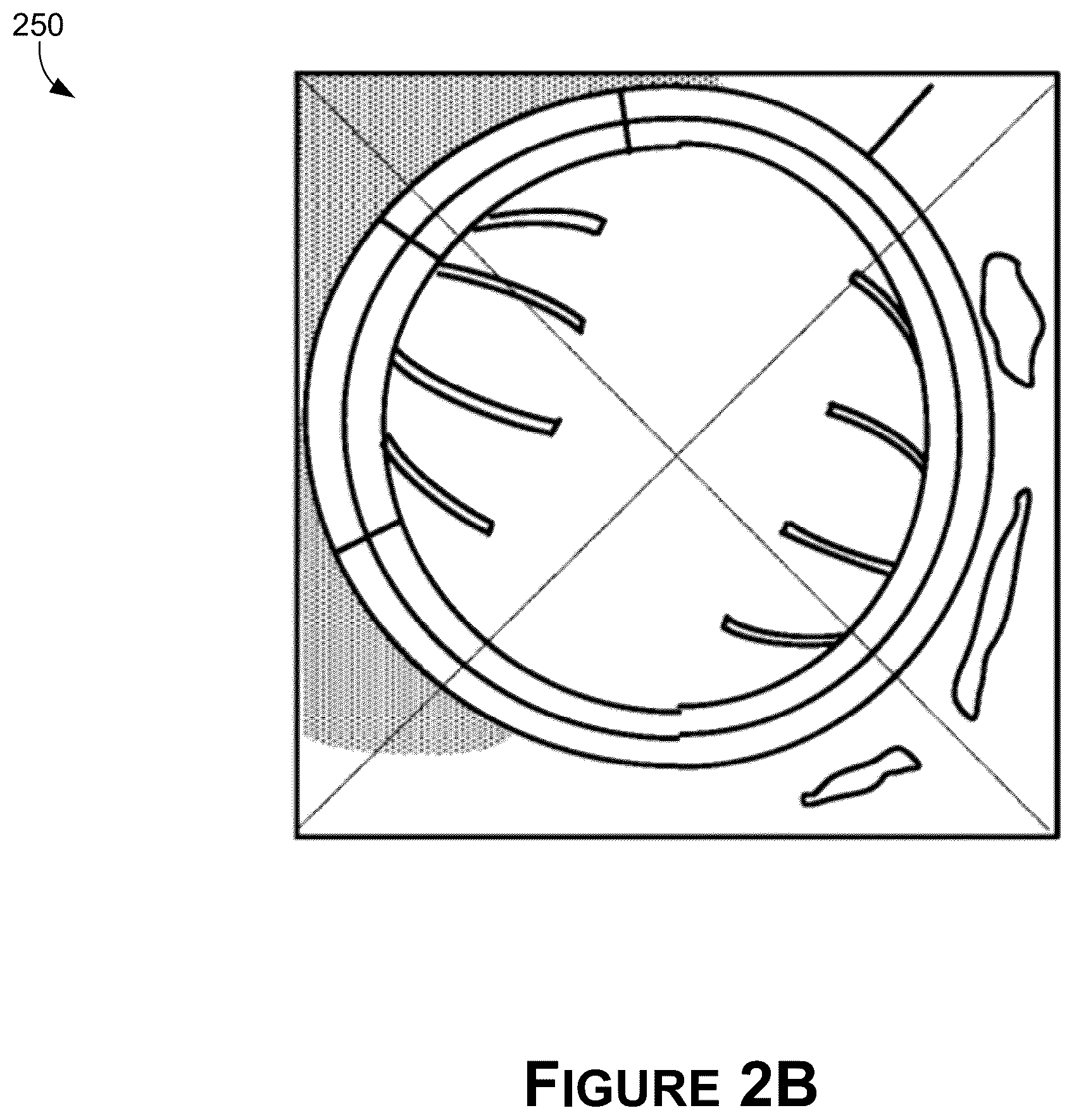

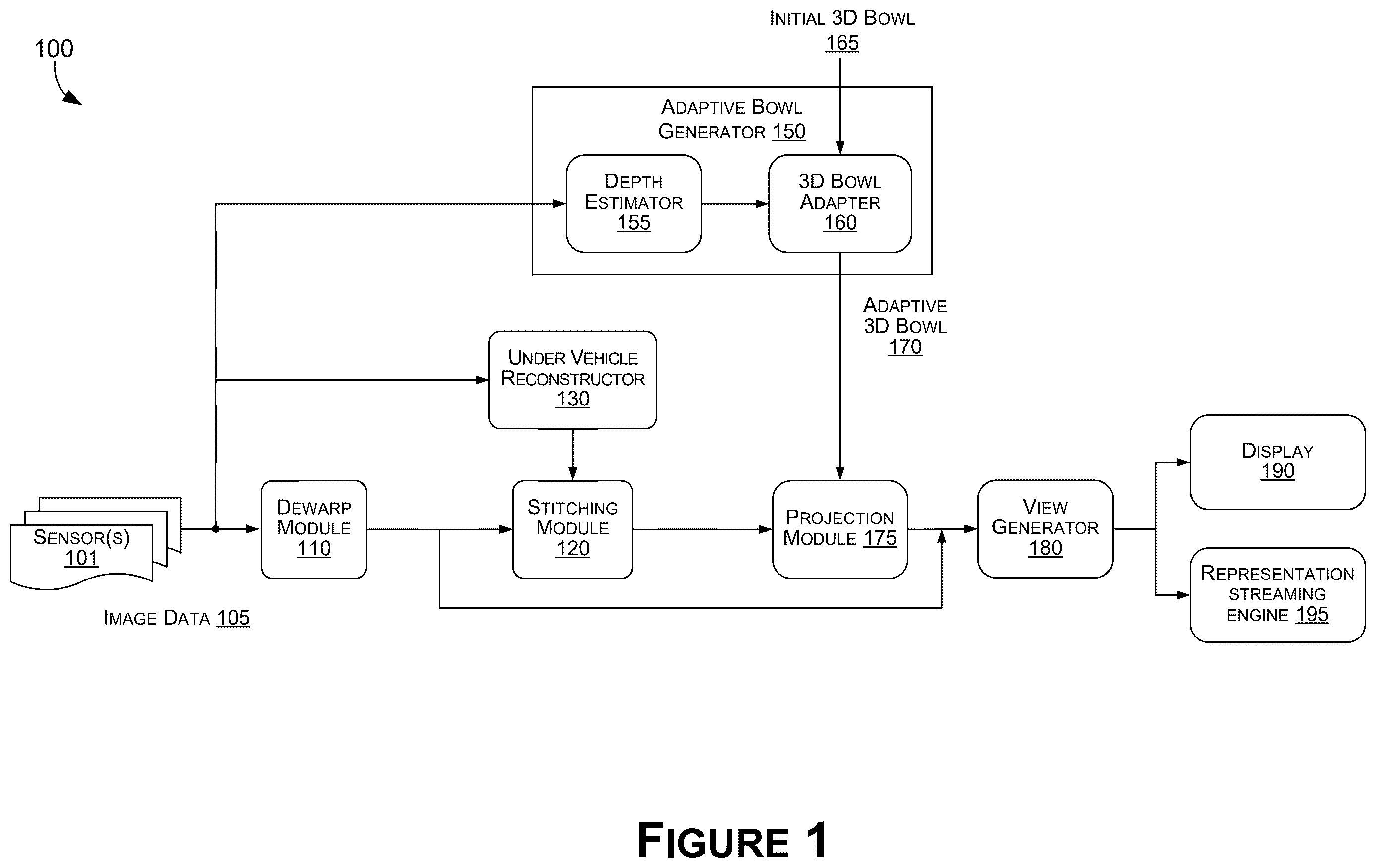

The patent centers on what Nvidia calls an adaptive 3D bowl: a virtual three-dimensional shell that wraps around the vehicle and is used to project camera images into a single coherent view, typically seen from above.
In conventional surround-view systems, that bowl is a fixed shape. Nvidia's version queries one or more machine learning models to figure out where the closest objects are and how far away they sit. It can pull that information from two sources:
- 3D object detection, the AI identifies specific things (cars, people, cones) and estimates their distance and direction.
- Occupancy grids, a top-down map that marks which cells of space around the car are occupied, without needing to label what the object is.
Once the system knows where the nearest obstacle is in each direction, it reshapes the bowl's flat ground section to end just before that object, then curves upward from there. An optimization algorithm (a mathematical process that finds the best-fitting shape given a set of constraints) can be used to compute the exact geometry. The bowl can be recalculated each frame.
A speed-based on/off switch is also described: at highway speeds, close-proximity distortion is less relevant, so the adaptive behavior can be disabled to reduce processing load.
… sizing its ground plane to fit within the distance to the closest detected object, fitting a shape using an optimization algorithm …
Translation: The software adjusts the floor of the 3D display to match the exact distance of the nearest obstacle.
What this means for driver-assist and autonomous vehicle displays
For drivers, the practical payoff is a parking or low-speed maneuvering display that gives a more spatially honest picture of nearby obstacles. Current fixed-bowl systems can make a curb look farther away in one camera zone than another because the geometry doesn't account for what's actually in the scene. An adaptive version corrects that on the fly.
For Nvidia, Nvidia's long bet on autonomous and assisted-driving hardware means this kind of perception-to-display pipeline sits squarely in its Drive platform work. Surround-view rendering is a standard feature in production vehicles today, which gives this patent a relatively clear route to deployment compared to more speculative autonomy research. Automakers and Tier-1 suppliers integrating Nvidia silicon for driver-assistance would be the most direct customers.
Nvidia's 72nd filing we've tracked since May in the self-driving sensing race adds to work like reading position from one image and one that patches AI blind spots.
Surround-view cameras are already built into millions of production cars, and the processing power needed to detect nearby objects exists in automotive hardware shipping today. This patent describes a smarter way to draw the picture those cameras produce, with no new physical components required.
The gap between this filing and a finished feature is mostly about smoothness. The document acknowledges that reshaping the virtual viewing surface around the car every frame, without the driver noticing any flicker or sudden shift in perspective, is an unsolved calibration problem.
If that smoothing problem gets resolved in software, the shortest path to a product runs straight through existing hardware partnerships, and drivers would simply see a cleaner, more accurate picture when parking, with no awareness that anything unusual is happening beneath the surface.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Nvidia patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

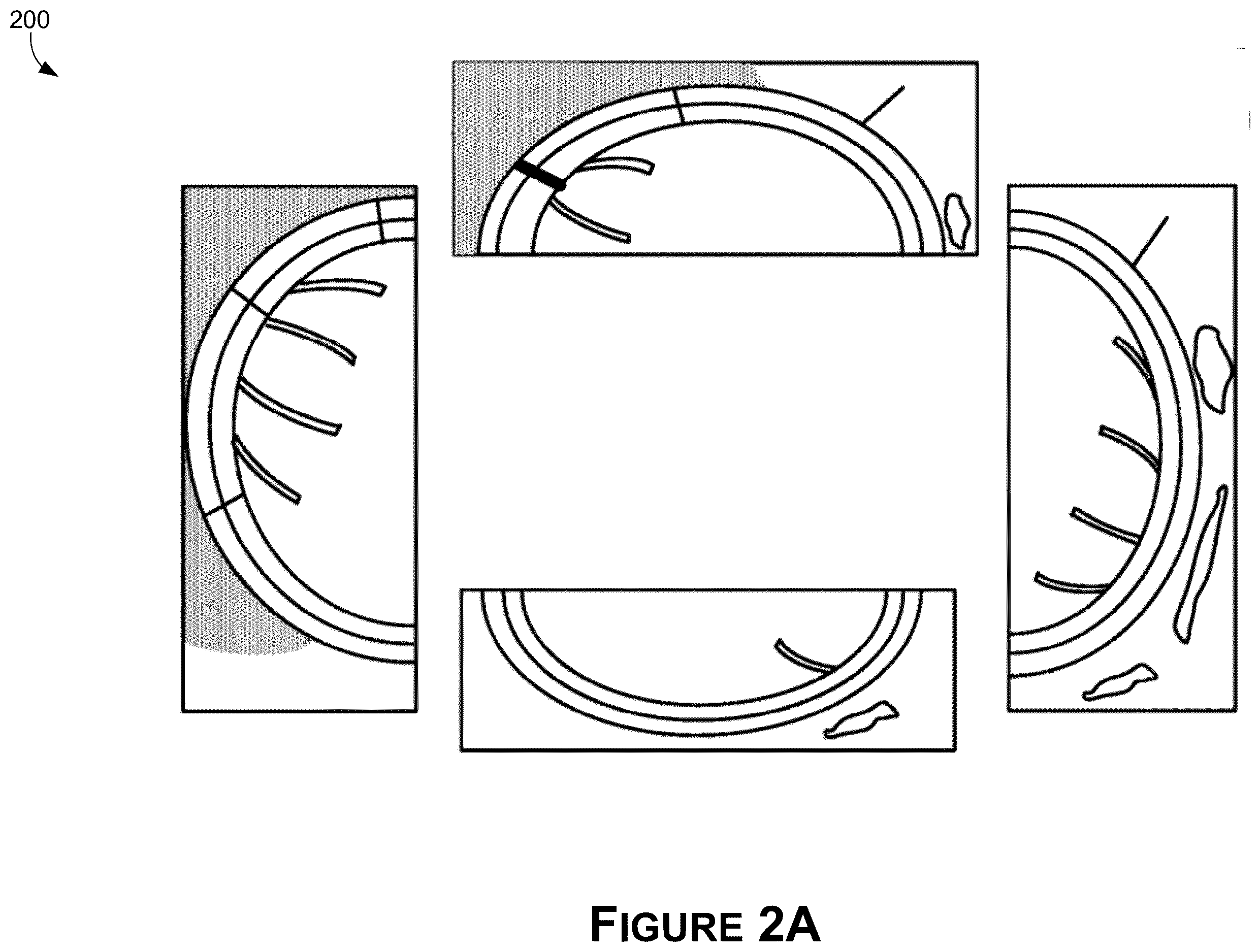

48 drawing sheets from US 2026/0289726 A1 · click any drawing to enlarge
