Nvidia Patents a Way to Stitch Camera Views Into a Live Overhead Map for Self-Driving AI
Cameras can only see the world from their own fixed angle, but Nvidia has filed a patent for a system that converts those angled camera feeds into a single, unified overhead map that an AI can act on in real time.
What Nvidia's overhead scene-mapping system actually does
Imagine you are trying to navigate a busy parking lot, but your only information comes from four separate cameras mounted at different angles on your car. Each camera shows a different slice of the world, and none of them agree on exactly where objects are relative to each other. That mismatch is one of the hardest problems in self-driving AI.
Nvidia's patent describes a system that takes those overlapping, angle-distorted camera images and mathematically transforms them into a single top-down view, like a bird looking straight down from above. Instead of the AI having to juggle four different perspectives at once, it works from one clean, shared picture of the surroundings.
The system uses machine learning models to figure out which parts of each camera frame correspond to the same spot in the real world, then lays all of that information onto a grid. That grid can then feed directly into decisions about where to steer, what to avoid, or where pedestrians are heading.
selecting, from the feature data, a region of feature values that corresponds to a subset of the one or more views based at least on spatial relationships among the feature values within the one or more views; …
Translation: The system picks out specific parts of the camera data based on how things relate in space.
How the neural network flattens camera angles into one grid
The patent describes what engineers call a Bird's-Eye View (BEV) representation, which is a top-down, flat-grid model of the environment built from cameras that are physically mounted at various angles around a vehicle or robot.
Here is how the process works:
- Sensors (primarily cameras) collect image data from several directions at once.
- A neural network identifies regions within each camera frame and figures out the spatial relationships between features, meaning it works out what is next to what, how far away things are, and how the perspective distortion of each camera lens is changing the apparent position of objects.
- Those region features are then mathematically warped to remove the camera's tilt or angle, converting them into values that match a flat, overhead coordinate system.
- The converted values are dropped into bins on a grid. Multiple camera frames may contribute data to the same bin, and those overlapping values are merged to produce a single, unified reading for each grid cell.
One specific detail in the patent is the use of polynomial curves (smooth mathematical paths, rather than straight lines) to project parts of a camera image onto the correct grid bin. This handles the lens distortion that is especially severe at the edges of wide-angle cameras. The grid can also use radial and angular bins, which are cells arranged in arcs rather than squares, to better represent how objects spread out from the vehicle's center.
… feature values corresponding to a plurality of views are transformed into feature values of a shared orientation or perspective to generate a feature map-such as a Bird's-Eye-View (BEV), top-down, orthogonally projected, and/or other shared perspective feature map type.
Translation: Data from multiple cameras is converted into a single top down overhead view of the surroundings.
What this means for self-driving cars and robotics
For anyone riding in or around an autonomous vehicle, Nvidia's push into autonomous perception systems means the AI watching the road gets a cleaner, more consistent picture of what is around the car. A more accurate overhead map means fewer moments where the vehicle is confused about whether that shape in the camera frame is a parked car or a shadow. That is the kind of error that causes sudden hard braking or missed hazards.
This approach also matters for robots operating indoors, warehouse systems, and any device that relies on multiple cameras rather than expensive lidar sensors. If a neural-network-based BEV system can do the job that once required specialized laser hardware, the cost of building a safe autonomous system drops considerably.
Nvidia's 50th filing we've tracked in the self-driving sensing race since May builds on earlier work like a two-stage object spotter and one that filters out manhole covers.
The payoff for an average person here is subtle but real: a self-driving car or delivery robot that builds a cleaner map of its surroundings is one that makes fewer sudden stops, misidentifies fewer obstacles, and handles messy real-world environments, like crowded intersections or rain-soaked parking lots, with more consistency.
The specific technical contribution, using polynomial curves to handle lens distortion when mapping camera pixels onto a grid, is a focused engineering fix rather than a broad leap. It targets a genuine weak point in camera-based perception systems: the edges of wide-angle lenses lie, and getting that math right matters.
For most readers, the practical question is whether this kind of incremental improvement accumulates into vehicles they can actually trust. Patents like this suggest the answer is yes, one grid cell at a time.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

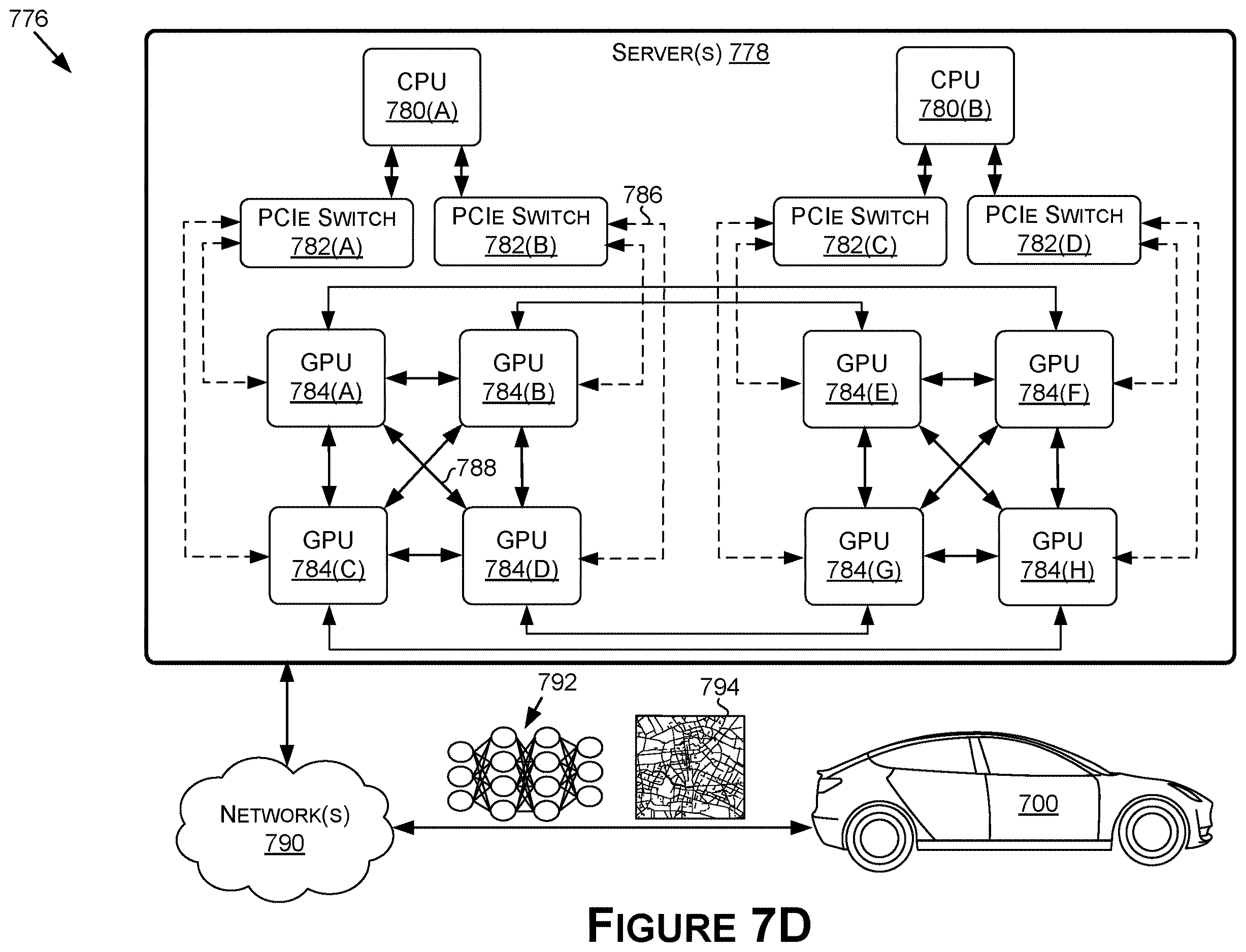

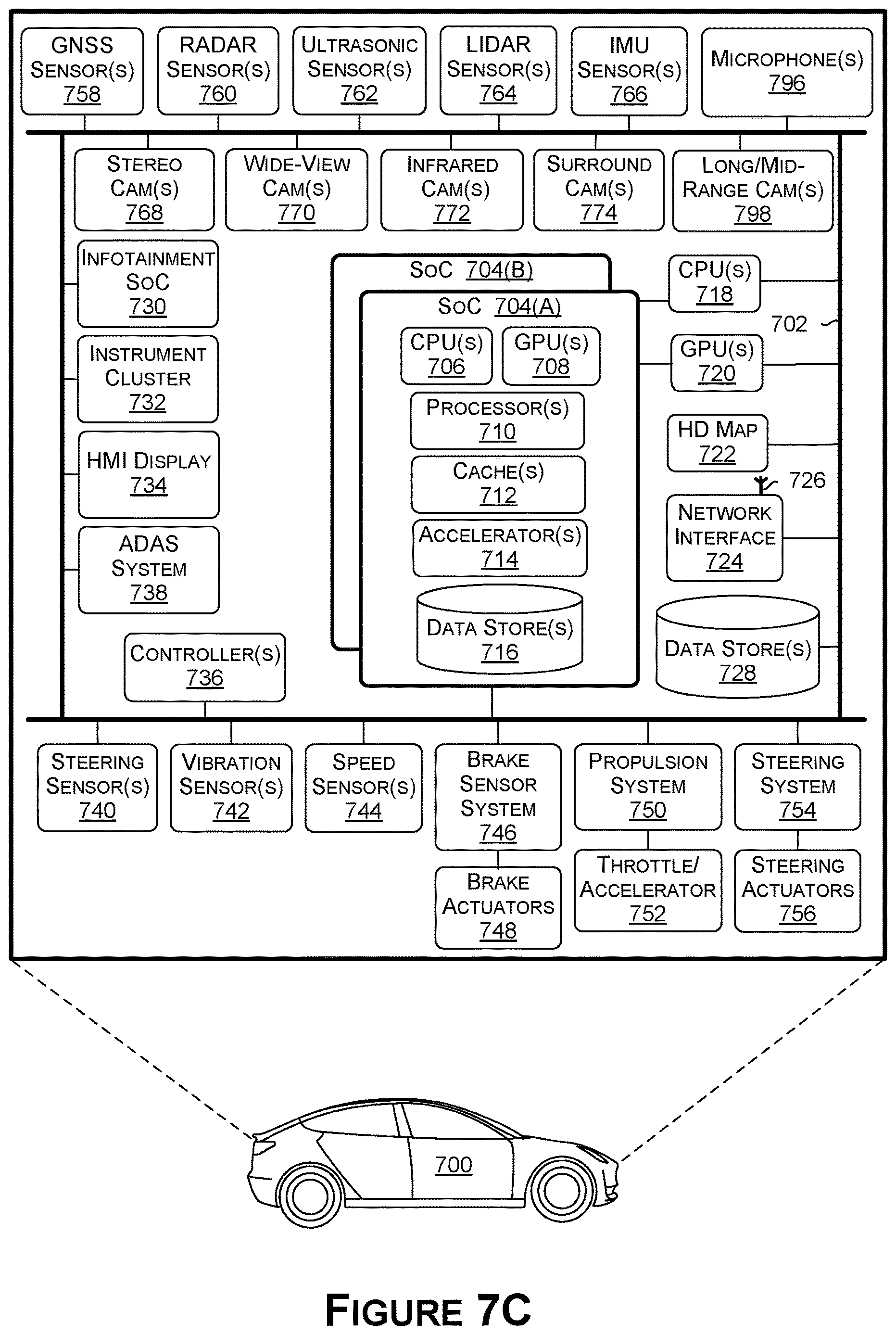

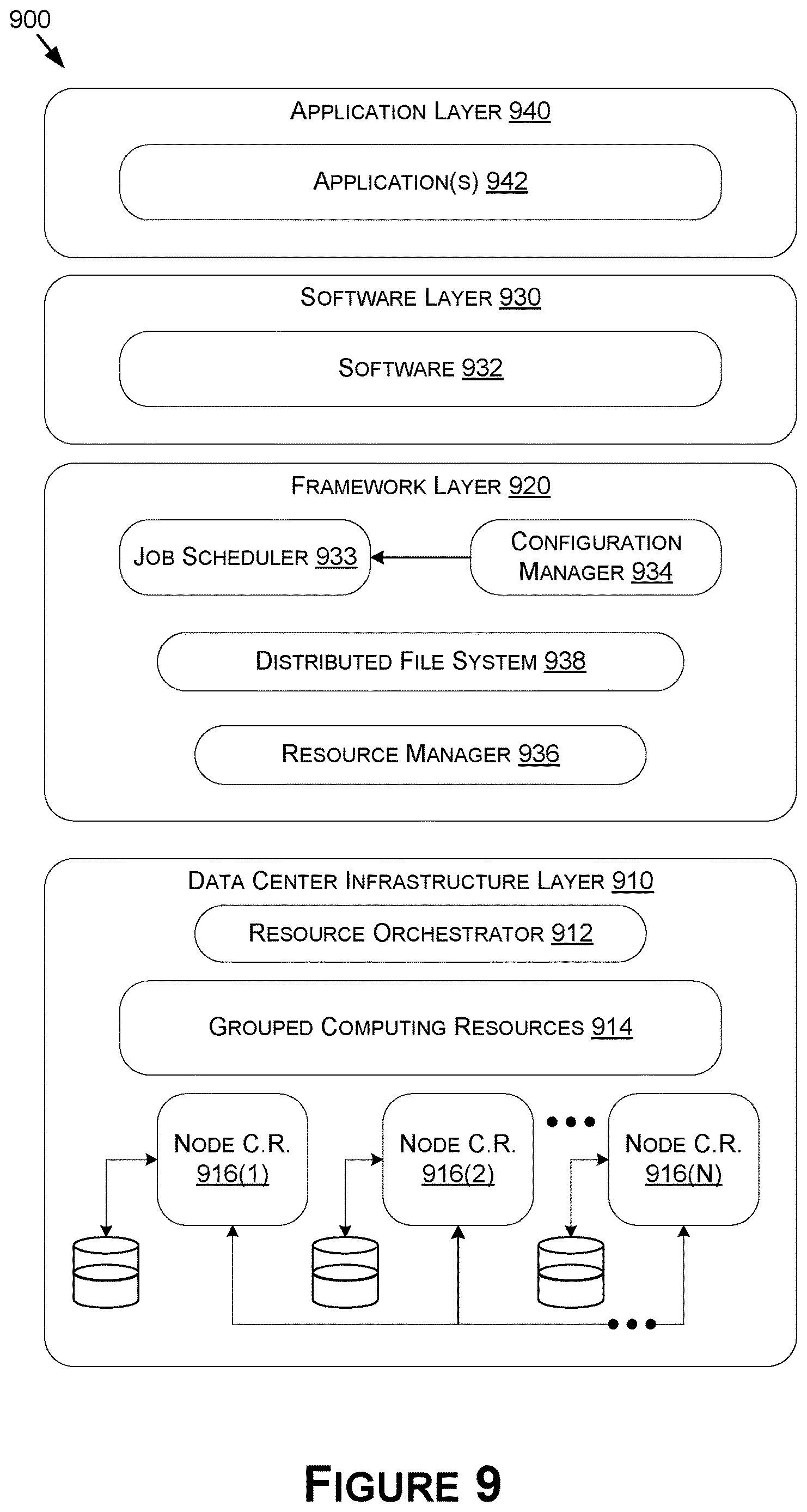

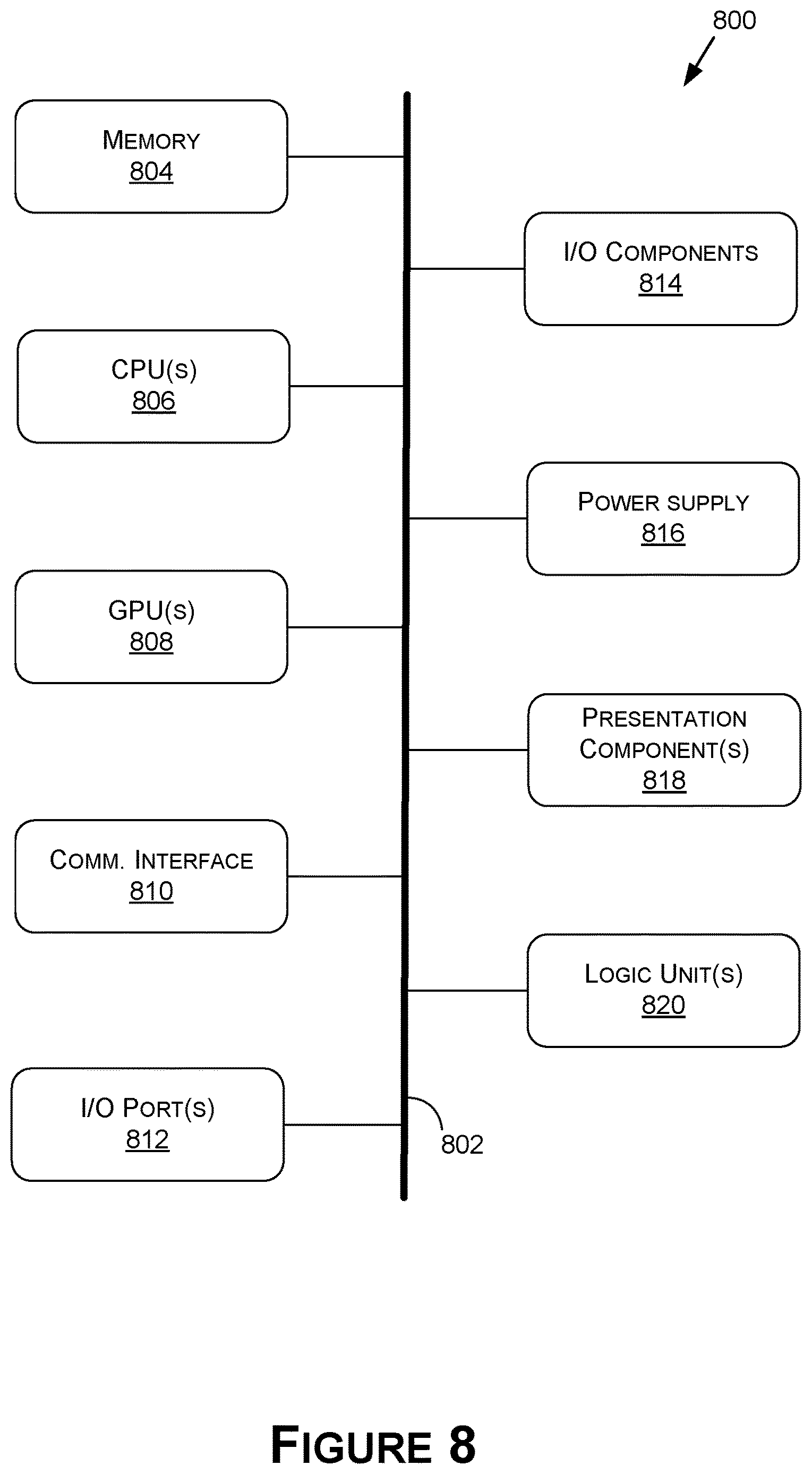

12 drawing sheets from US 2026/0260465 A1 · click any drawing to enlarge
