Qualcomm Files Patent for AR Glasses That Freeze Background Apps to Save Battery
Qualcomm's patent application tries to give the chip in AR glasses a proper nap by freezing background jobs during short, scheduled windows. In its example numbers, that roughly halves the energy used in each quarter second and adds about an hour of battery life.
What Qualcomm's AR glasses sleep schedule does
A pair of AR glasses is working through a light task, and inside the chip many small jobs keep waking up at scattered moments, over and over, every quarter second. Each wake-up burns a little power, and the chip never gets to rest properly. That is a problem when the battery is sitting on your face.
Qualcomm's patent application describes a traffic cop for those jobs. It picks a short stretch of time, called a critical zone, when almost nothing is allowed to run, so the chip can drop into its deepest sleep. Jobs that would have fired inside that window get frozen or pushed to either side of it, while a short list of important tasks can still run.

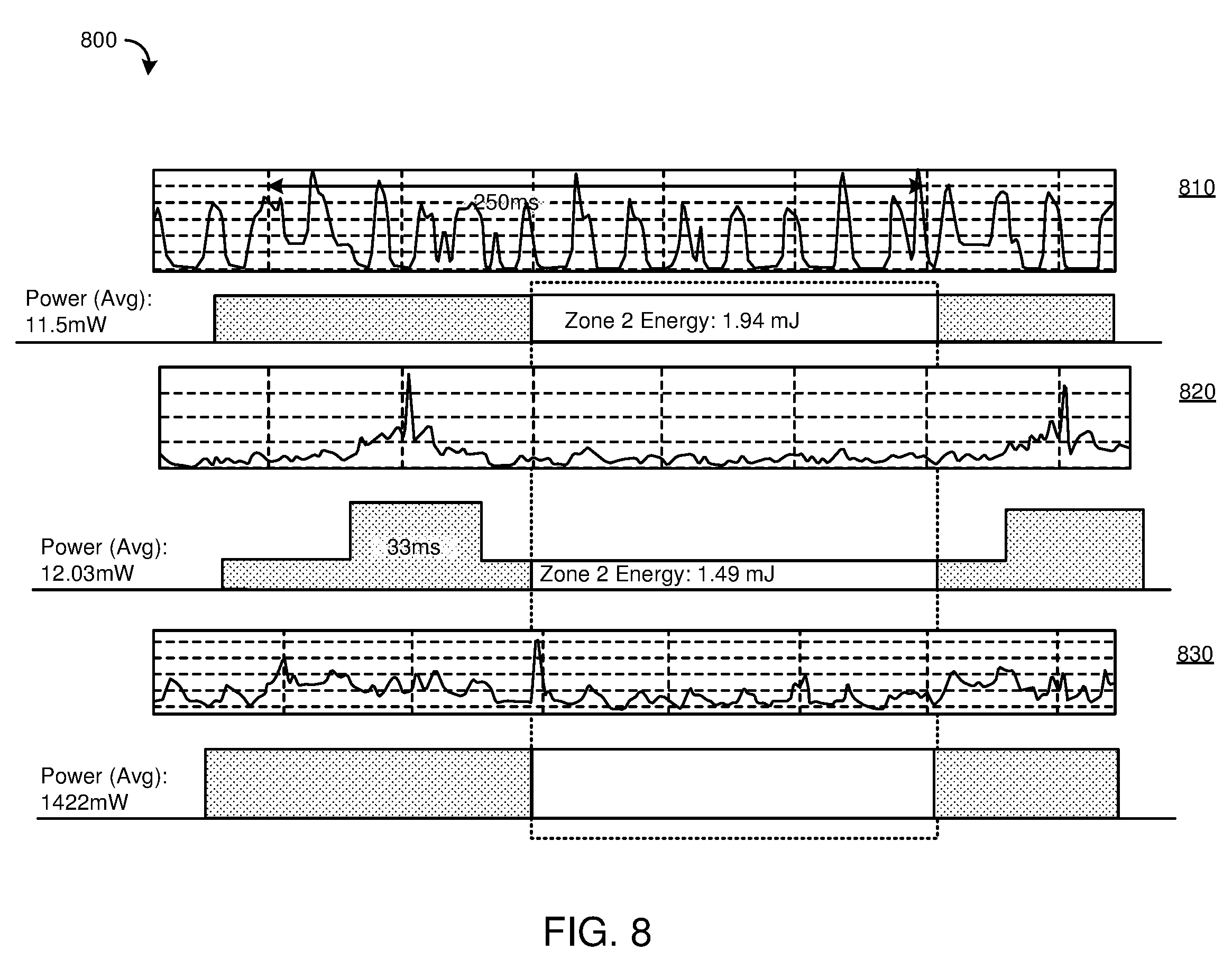

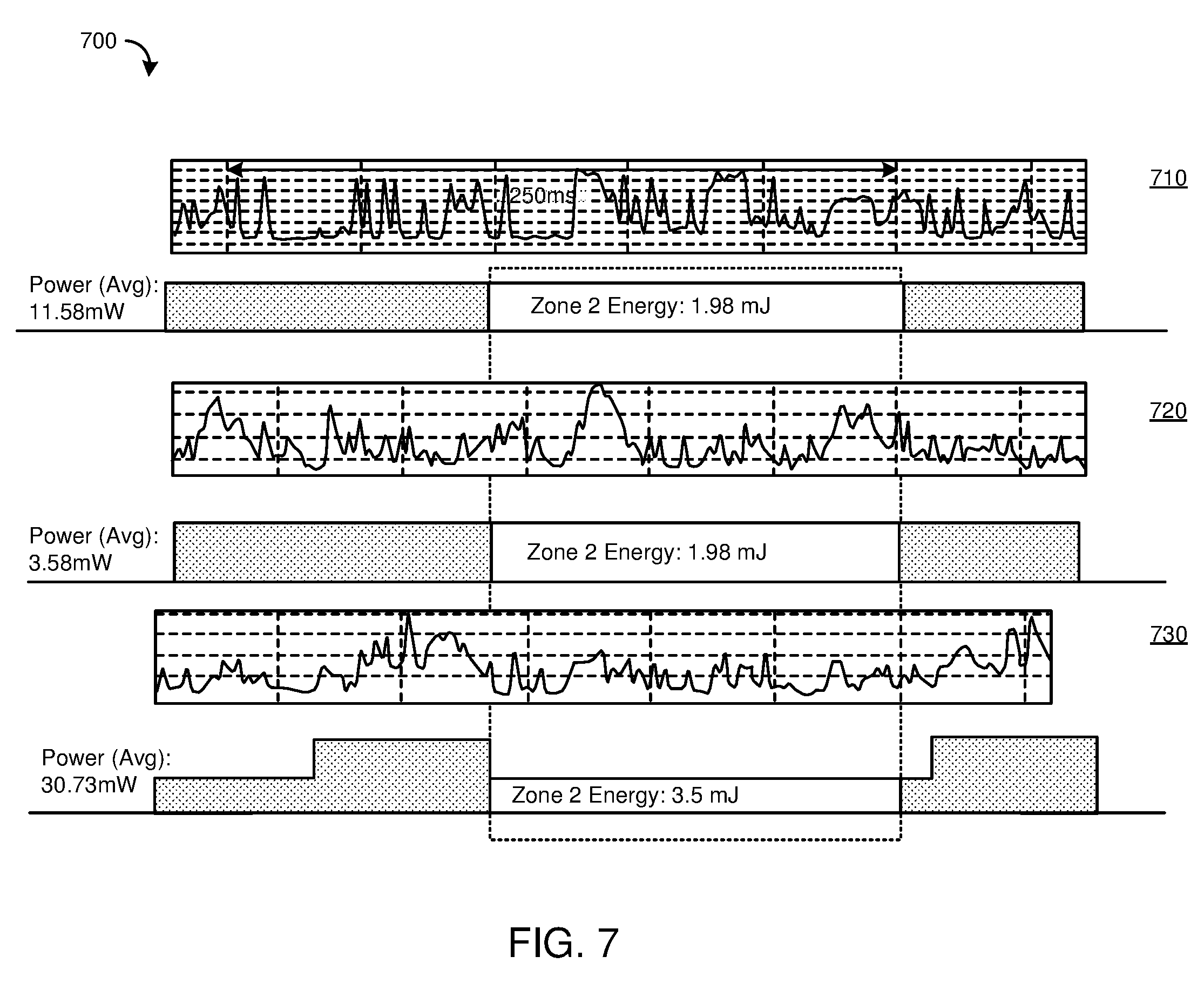

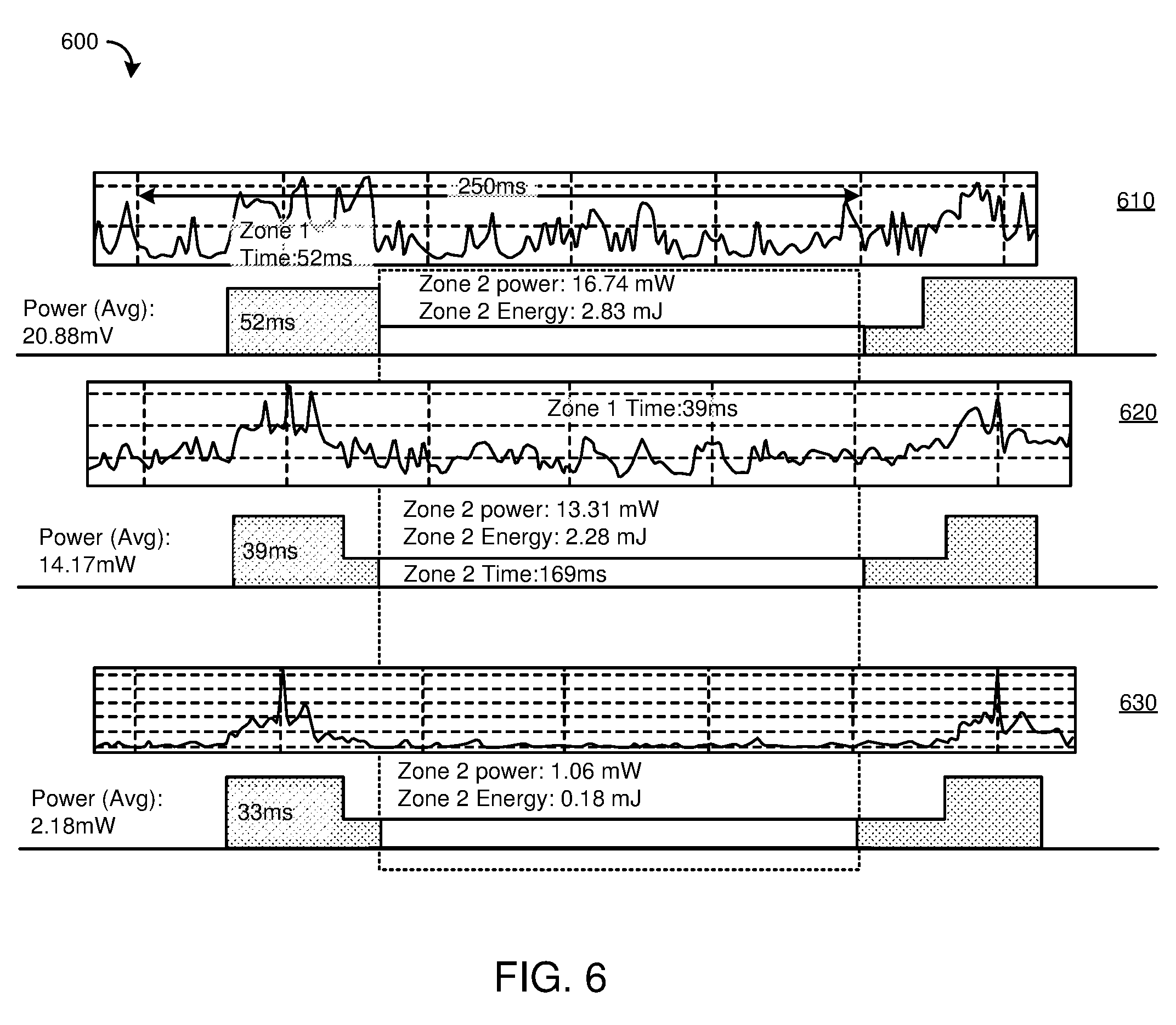

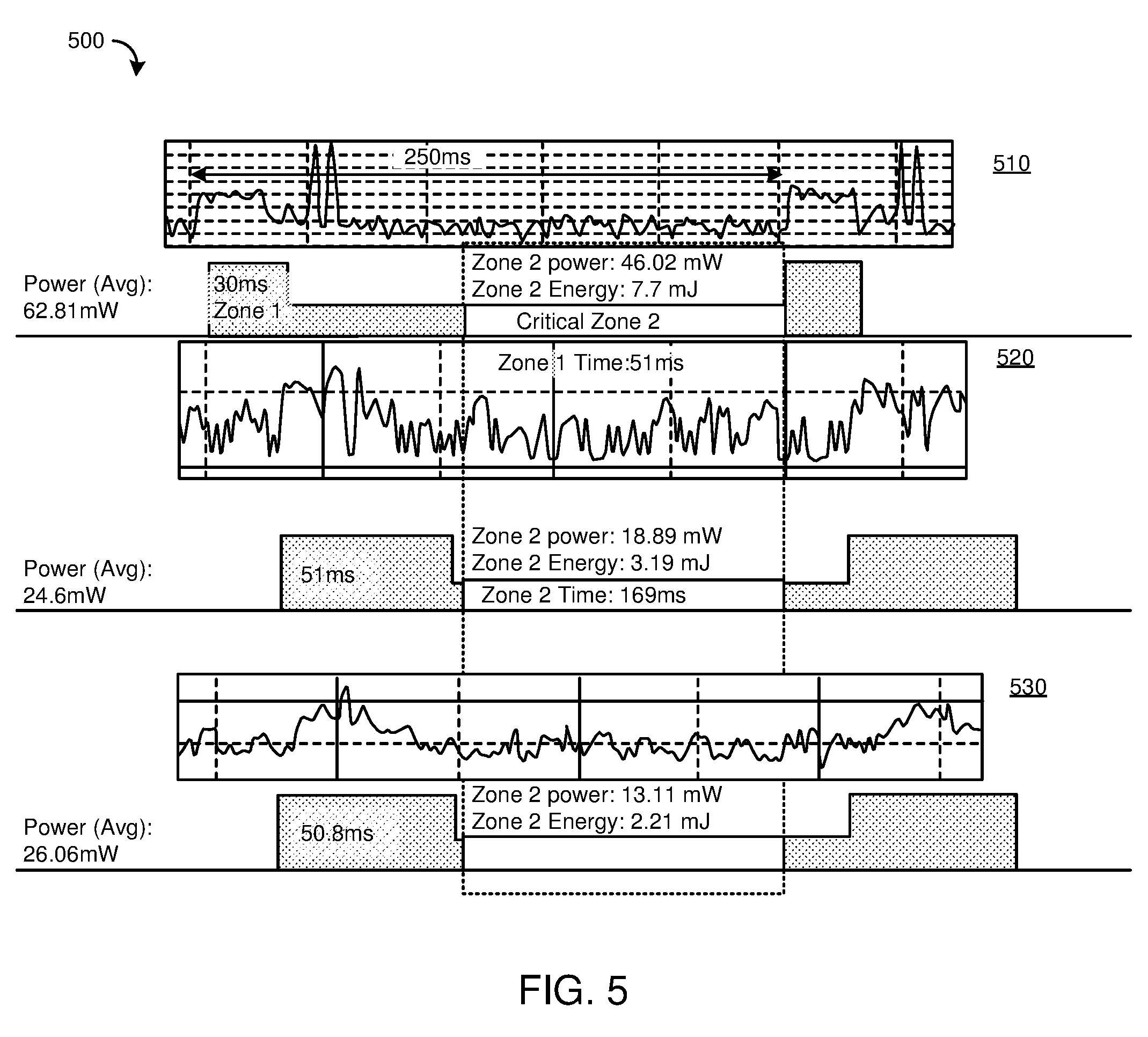

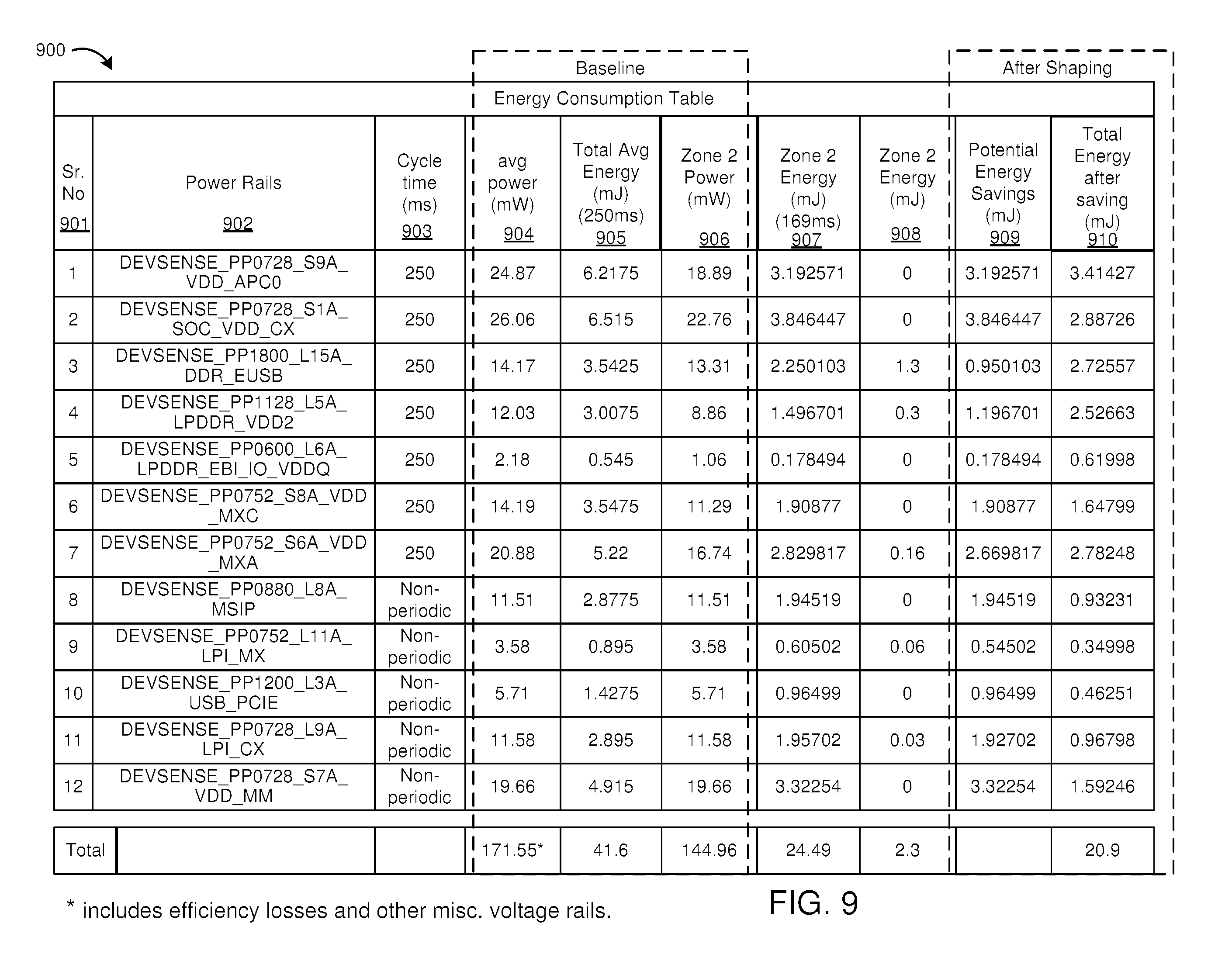

The system also watches how things go, including temperature and audio and image quality, and moves the window if needed. In Qualcomm's example numbers, energy use over each 250 millisecond stretch fell from 41.6 millijoules to 20.9, and battery life grew by about an hour.
… executing a feedback loop to adjust the critical zone based on an actual data to create an adjusted critical zone …
Translation: The system continuously learns from real usage to update its timing windows.
How the no-work window gets set and adjusted

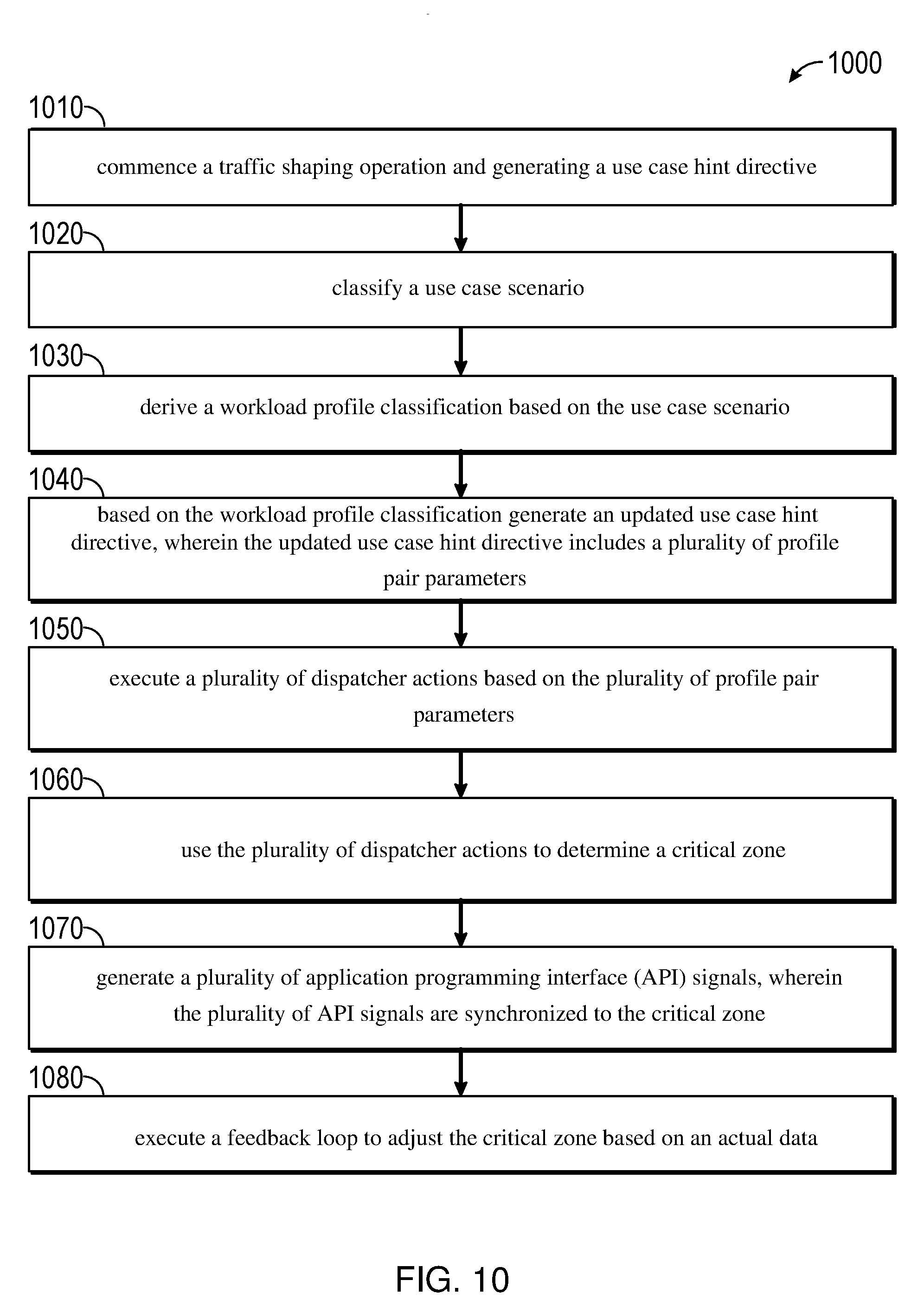

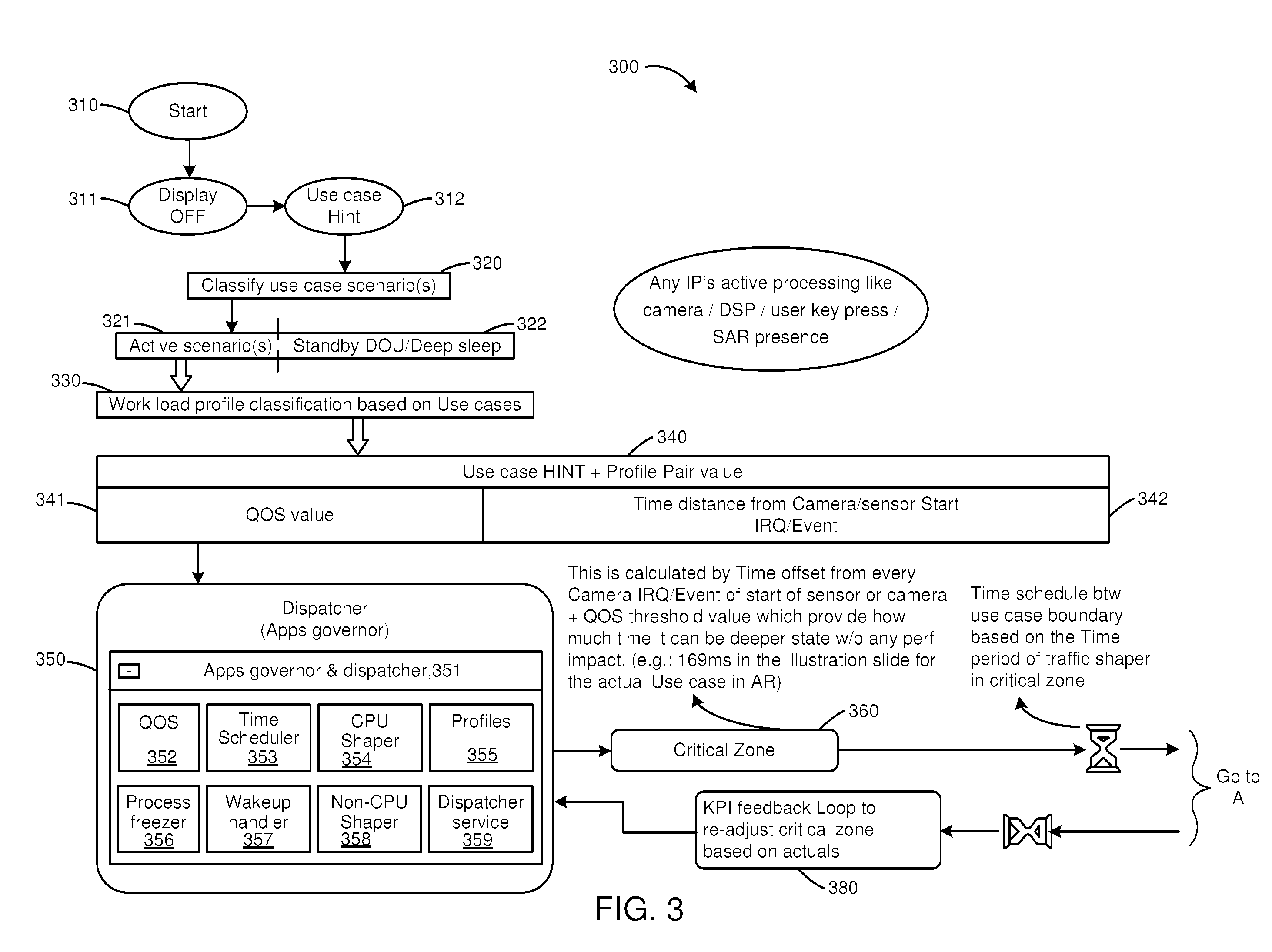

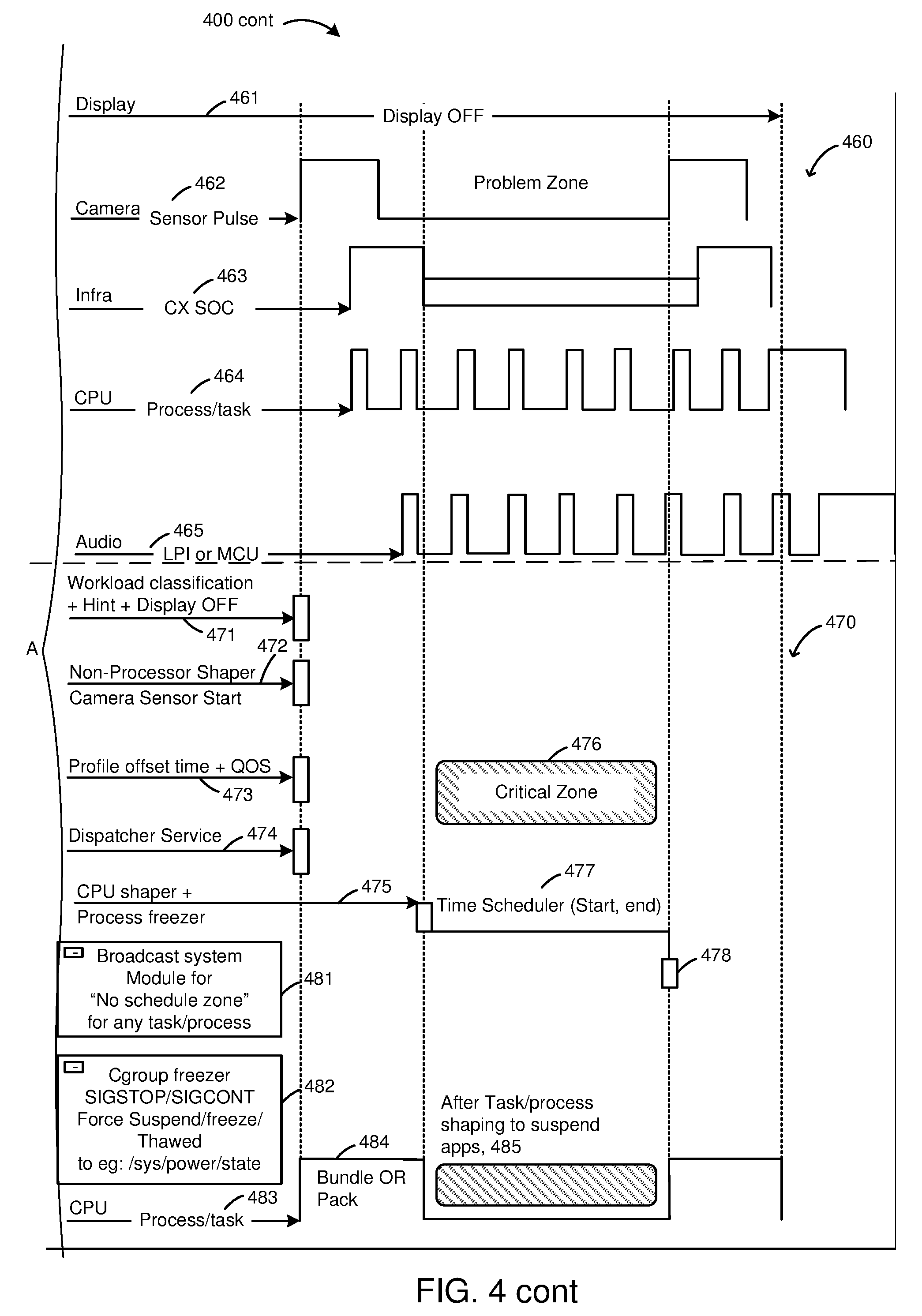

The core of the filing is a traffic shaper, a piece of software that adjusts when tasks and processes run. It first classifies what the device is doing (the filing calls this a use case), then produces two numbers. The latency is the delay between being told to start an action and that action expiring. The reference time offset is how long after a timing marker, such as a camera starting or a frame boundary, the action begins.

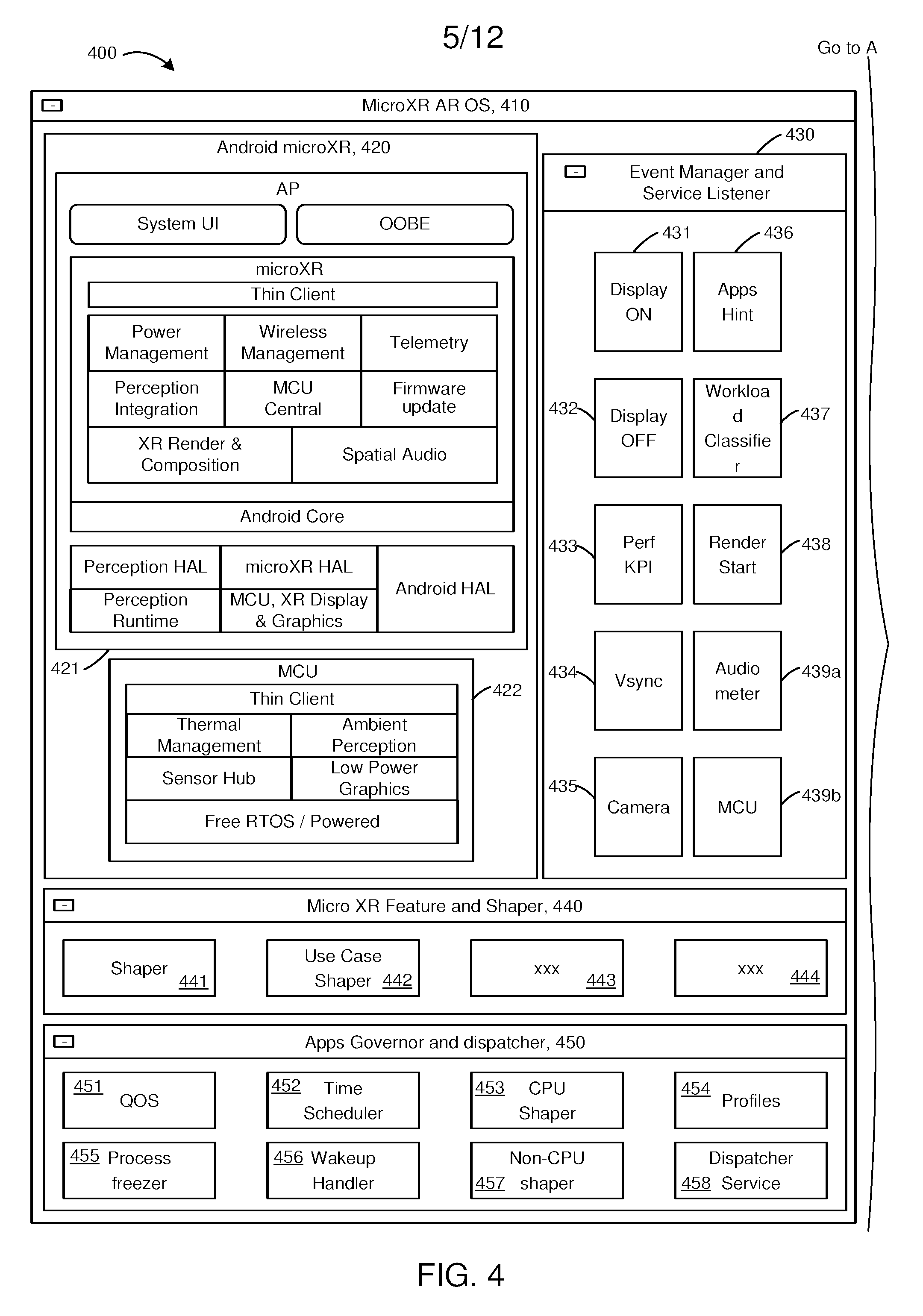

Those numbers feed a set of dispatcher actions, including a quality of service module (sets the latency), a time scheduler (sets the offset), a process freezer and a wakeup handler. Together they define the critical zone, a time window when the chip's parts drop to their lowest clock speed and voltage.

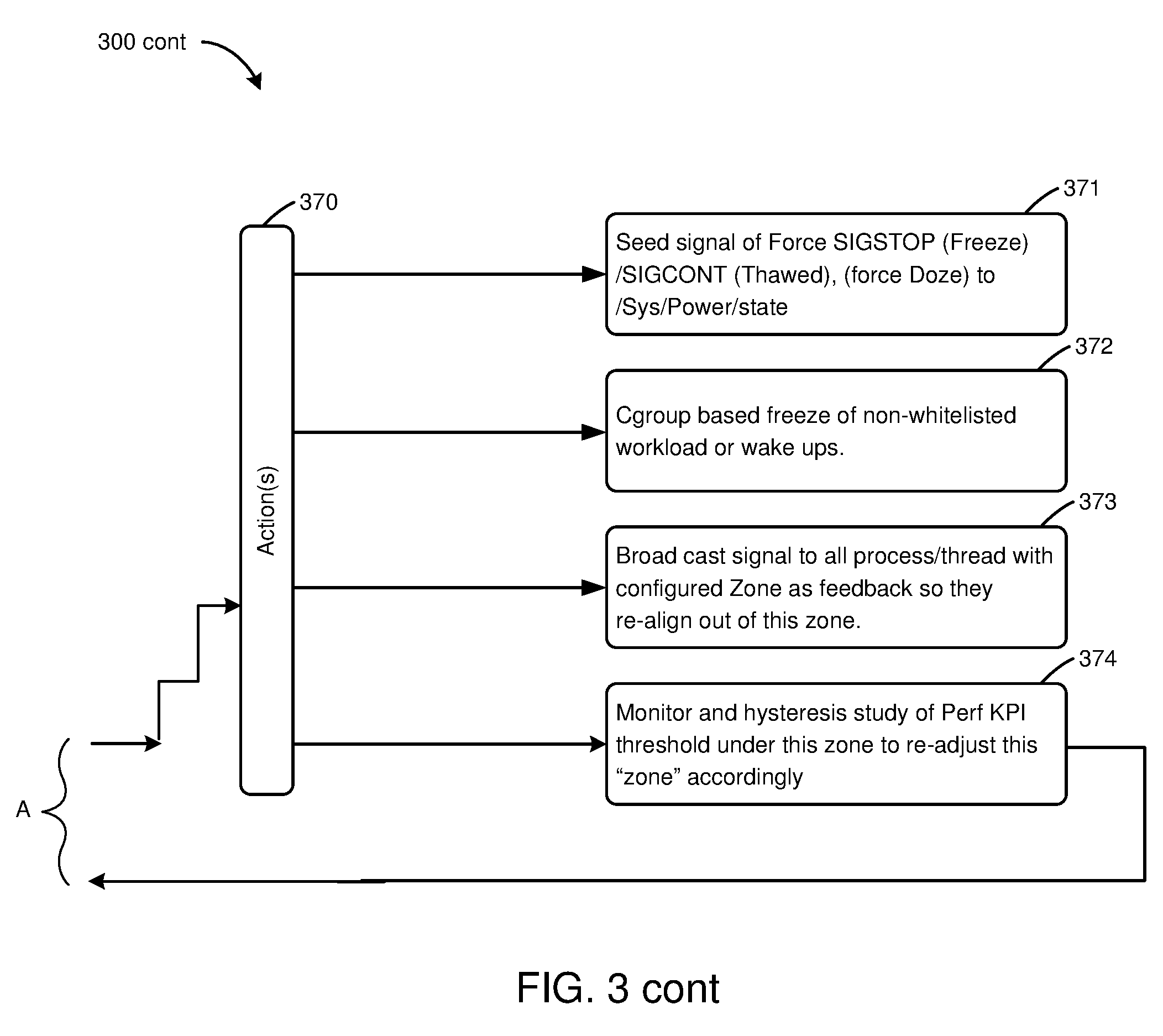

Next, the system generates API signals (instructions that software sends to the operating system), lined up with the start and end of that window. The filing gives Linux-style examples:
- Stop and continue signals that freeze and thaw a process
- A freeze signal for tasks not on a whitelist (whitelisted tasks may still run)
- A broadcast telling every process to shift out of the zone
- A monitor of limits such as chip temperature
Finally, a feedback loop checks real data, like workload, temperatures, audio and image quality, and user input, then adjusts the window. The adjustment can be zero.
… sending the plurality of API signals to at least one process for task realignment out of the critical zone or the adjusted critical zone …
Translation: It tells background tasks to move out of the way when system resources are tightly managed.
Why battery life in AR glasses is the real fight
If you ever wear AR glasses, battery life decides how useful they are. This patent application goes after wasted power instead of adding a bigger battery: the chip gets longer stretches of real sleep, and in Qualcomm's example numbers the energy used in each 250 millisecond stretch drops by roughly half, worth about an extra hour of use.
It is also a software-side idea. The description relies on stopping and starting processes with Linux-style controls and timing hints, which fits how phones and glasses already schedule work. The filing's answer to the obvious tradeoff, that frozen tasks must wait, is to keep watching temperature, audio quality and image quality so the experience does not suffer.
Qualcomm's 55th filing we've tracked since July in the AR glasses race builds on its memory-for-video chip patent and one that prefetched 3D objects, tightening its grip on headset chip design.
Of all the AR patents you could read, this one sits close to something that could ship, because it needs no new hardware. It is scheduling logic that tells software when to stay idle, built on controls that Linux-style systems already have, like freezing and resuming a process.
What has to exist first is the groundwork: a way to classify what the glasses are doing, timing hints from the camera and display, and a list of tasks important enough to run anyway. Qualcomm makes the chips for phones and glasses, so it is well placed to supply that kind of power management.
The shortest route to a product is a power-management software update, which makes this a plausible, low-drama idea. The open question is how it holds up beyond the example numbers, since freezing tasks on a headset could cause a missed sound or a laggy image if the window is set wrong.
