Qualcomm Patents a System That Measures and Reports Live Video Lag to the Network

When you watch live sports and the play-by-play announcer's voice drifts out of sync with the picture, that's latency. Qualcomm has filed a patent for a system that lets your streaming app measure that delay precisely and report it back to the network in real time.

A media client, such as a phone, connects to a media application provider through various network functions for media delivery and data exchange. Drawing from patent filing US 2026/0303888 A1.
A media client, such as a phone, connects to a media application provider through various network functions for media delivery and data exchange.All 13 drawings ↓
Publication number
US 2026/0303888 A1(US20260303888A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Mar 23, 2026 · Oct 1, 2026
Inventors
Thomas Stockhammer, Imed Bouazizi, Aytac Biber, Liangping Ma
Status when we published
Waiting for an examiner
Document
30 claims
US classification
725/14
Parent application
Claims priority from a provisional application 63777391 (filed Mar 25, 2025)

What Qualcomm's video delay measurement system actually does

You're watching a live concert stream and the singer's lips are moving a half-second behind the audio. The stream is late, but your phone has no official way to tell the network just how late it is.

Qualcomm's patent describes a method where the app on your phone first syncs its internal clock with the network's clock. Then, when a chunk of video arrives, the app uses a timestamp the network attached at the moment the video was created to calculate exactly how long that video sat in transit before reaching your screen. That gap is called presentation latency, and the app then sends that number back to the network.

The idea is that once the network knows the real delay your device is experiencing, it can adjust delivery to shrink it. Right now, networks often have to guess how viewers are being affected. This approach gives them actual measurements from actual devices.

From the filing · CLAIM 1
… measuring, by the media client, presentation latency of media data included in the media segment using the producer reference time to form measured presentation latency …

Translation: The app calculates how much the video is delayed by comparing it against an official timestamp.

How the client clocks sync and report playback delay

The patent describes two sides of the same system: what the media client (the app on your phone, TV, or laptop) does, and what the network function (a server-side component) does.

On the client side:

  • The app syncs its local clock with a time reference provided by the network, so both sides agree on what time it is.
  • When a video segment arrives, it carries a producer reference time, a timestamp stamped at the moment the video was encoded or packaged for delivery.
  • The app subtracts that timestamp from the current time to calculate how long the segment took to reach the screen. This is the presentation latency.
  • The app sends that latency measurement back to the network.

On the network side, a server sends those producer reference times to clients, then collects the latency reports back. That data can feed into adaptive delivery systems that decide whether to trim buffers, switch to a lower-resolution stream, or reroute traffic.

The clock-sync step is critical. Without both sides sharing the same time reference, a timestamp from the server and a reading from the phone's clock would be comparing apples to oranges. The patent's method threads that needle by explicitly aligning the two clocks before any measurement begins.

From the filing · THE ABSTRACT
… receiving presentation latency measurement data for media data included in the media segment from the media client …

Translation: The network receives the lag measurement sent back by the user's device.

What this means for live sports and real-time streaming

Live streaming is increasingly central to sports, news, and social video, and latency is the metric that separates a good live experience from a frustrating one. Current systems often rely on rough estimates or indirect signals to gauge how delayed viewers are. Qualcomm's approach builds precise, device-level delay data directly into the streaming protocol, giving network operators something real to act on.

For consumers, the potential payoff is streams that automatically tighten their own lag based on what your specific device is actually experiencing, not a population average. Qualcomm's interest in media streaming infrastructure shows up across multiple protocol-level filings, and this one fits squarely in that pattern. Whether it translates to a tighter live-sports feed on your next phone depends on how widely streaming platforms adopt the reporting mechanism.

Qualcomm's 476th filing in our Qualcomm coverage since May extends a location theme seen in the GPS audio lock patent and the phone location honesty filing.

Source: US 2026/0303888 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 13 sheets

13 drawing sheets from US 2026/0303888 A1 · click any drawing to enlarge

Video streaming system components., drawing sheet 1 from US 2026/0303888 A1

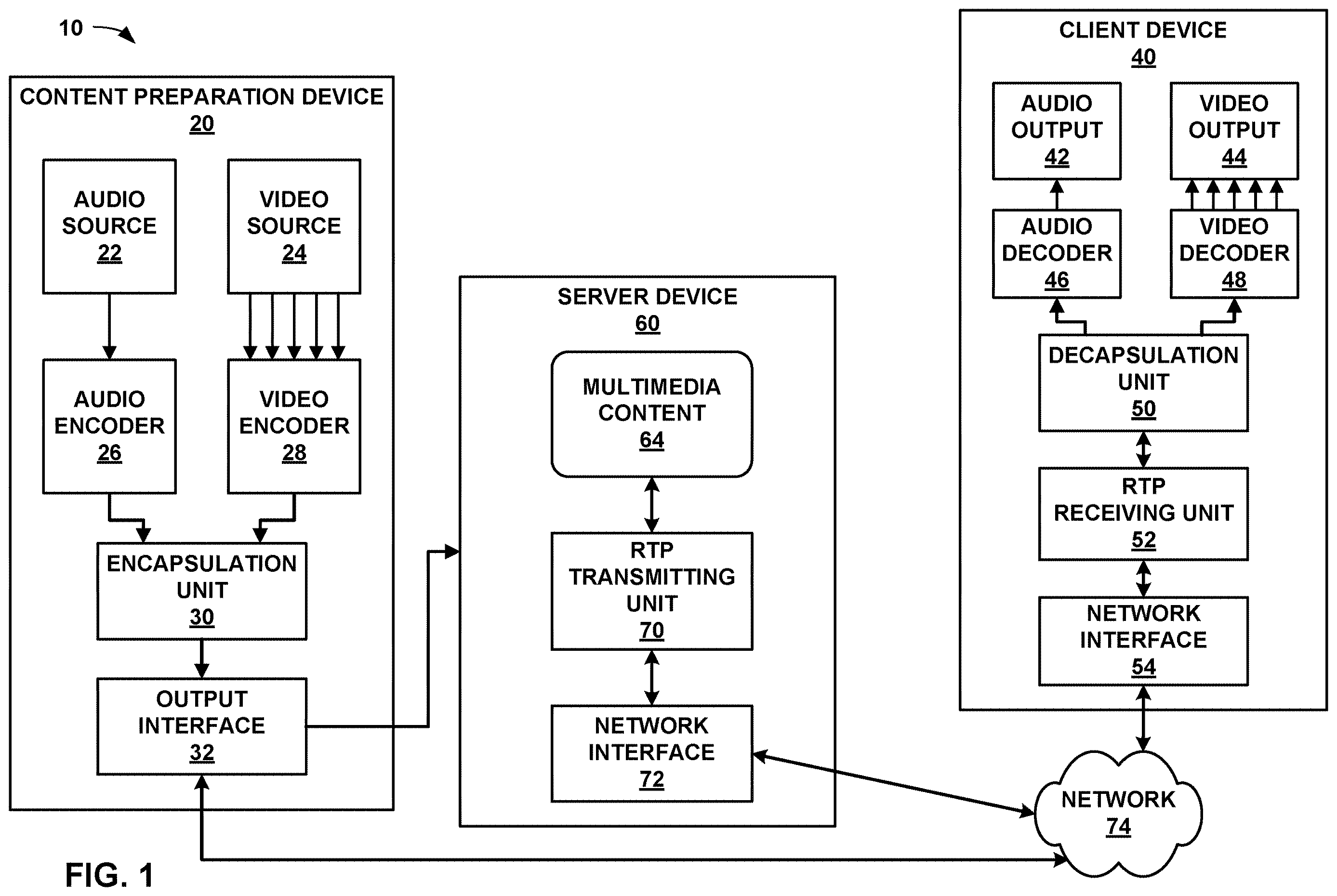

Sheet 1 Video streaming system components.
Video file structure., drawing sheet 2 from US 2026/0303888 A1

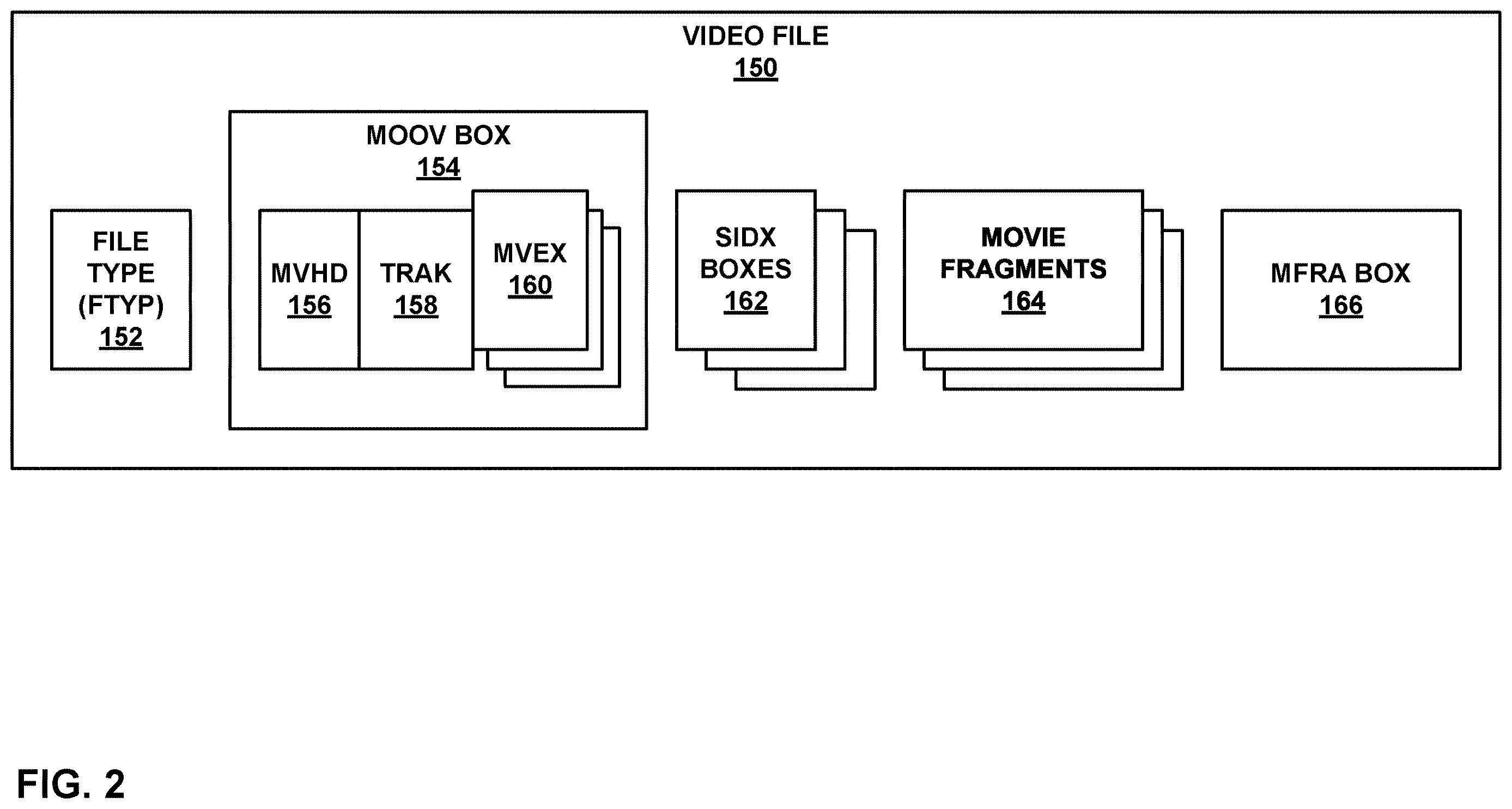

Sheet 2 Video file structure.
Packet loss rate distribution., drawing sheet 3 from US 2026/0303888 A1

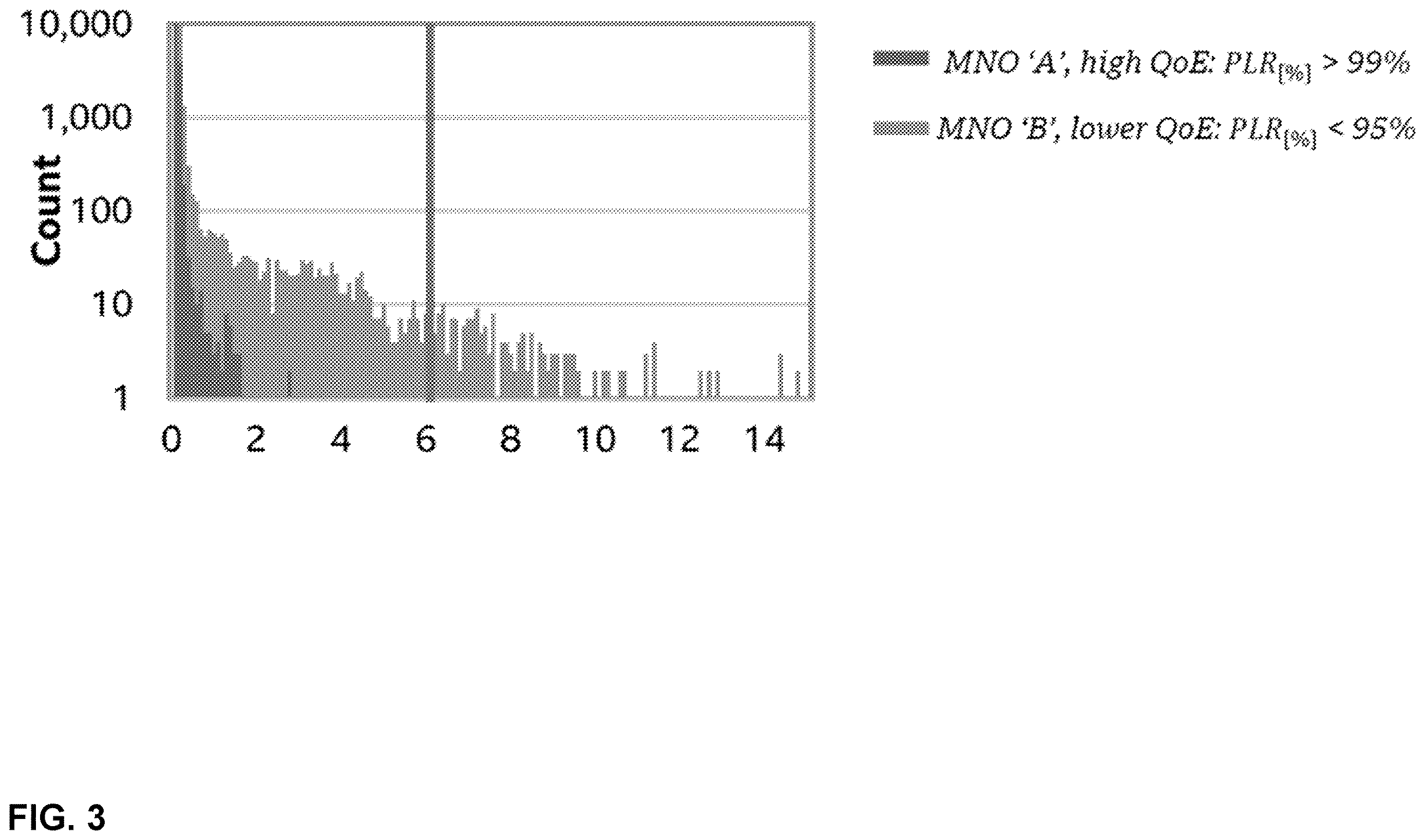

Sheet 3 Packet loss rate distribution.
Live media streaming system., drawing sheet 4 from US 2026/0303888 A1

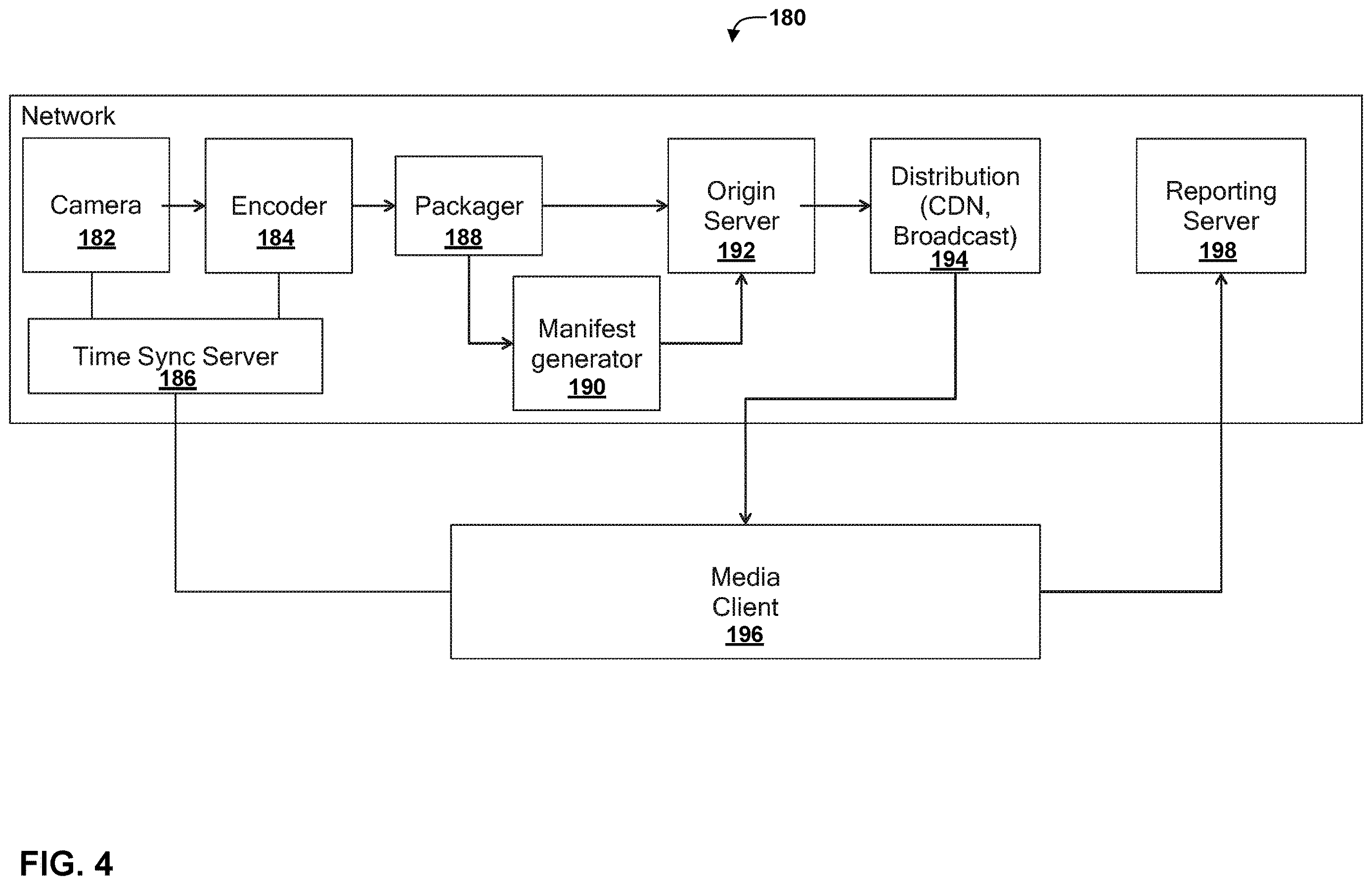

Sheet 4 Live media streaming system.
Media delivery and data reporting., drawing sheet 5 from US 2026/0303888 A1

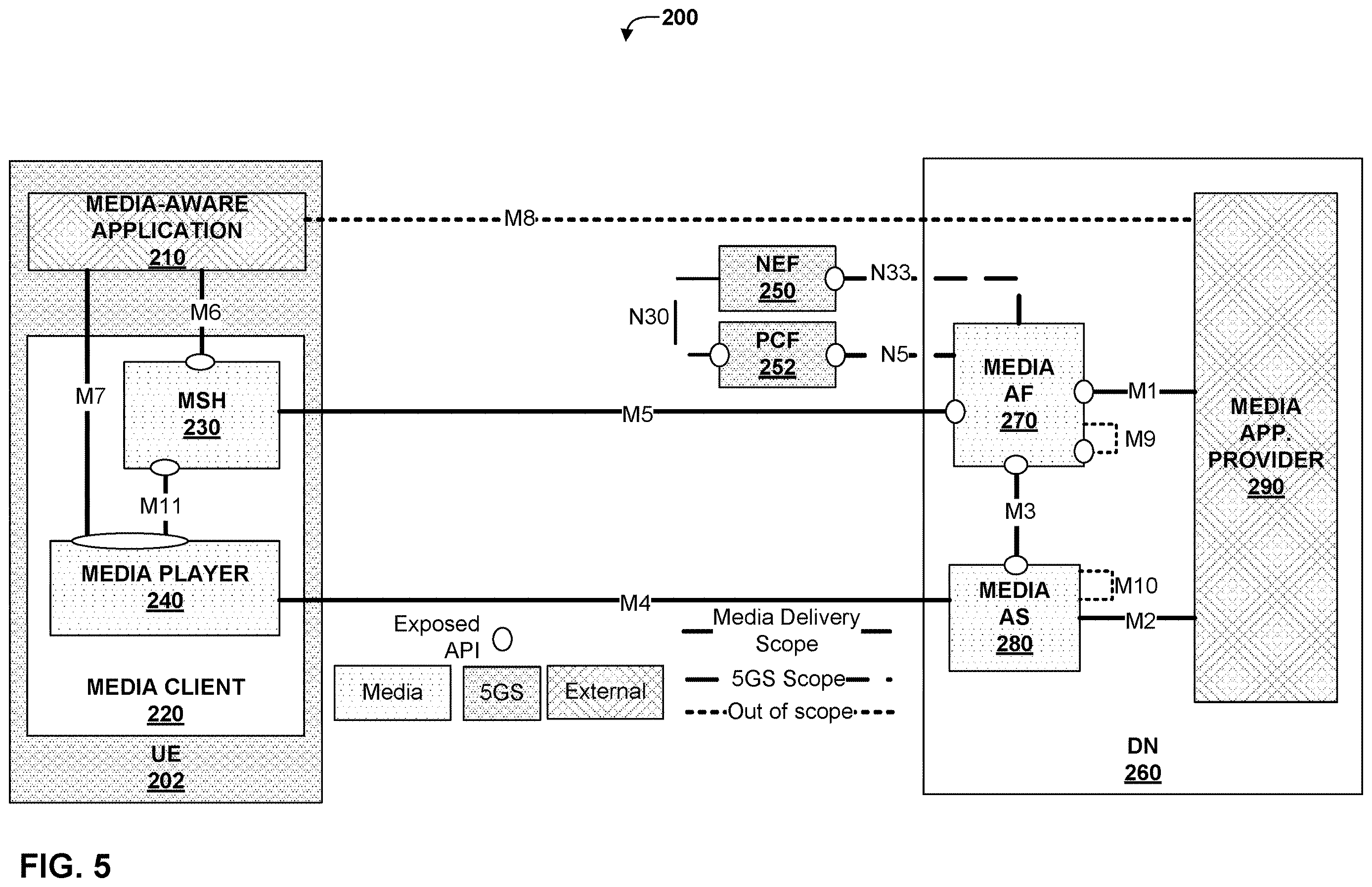

Sheet 5 Media delivery and data reporting.
Media session handler components., drawing sheet 6 from US 2026/0303888 A1

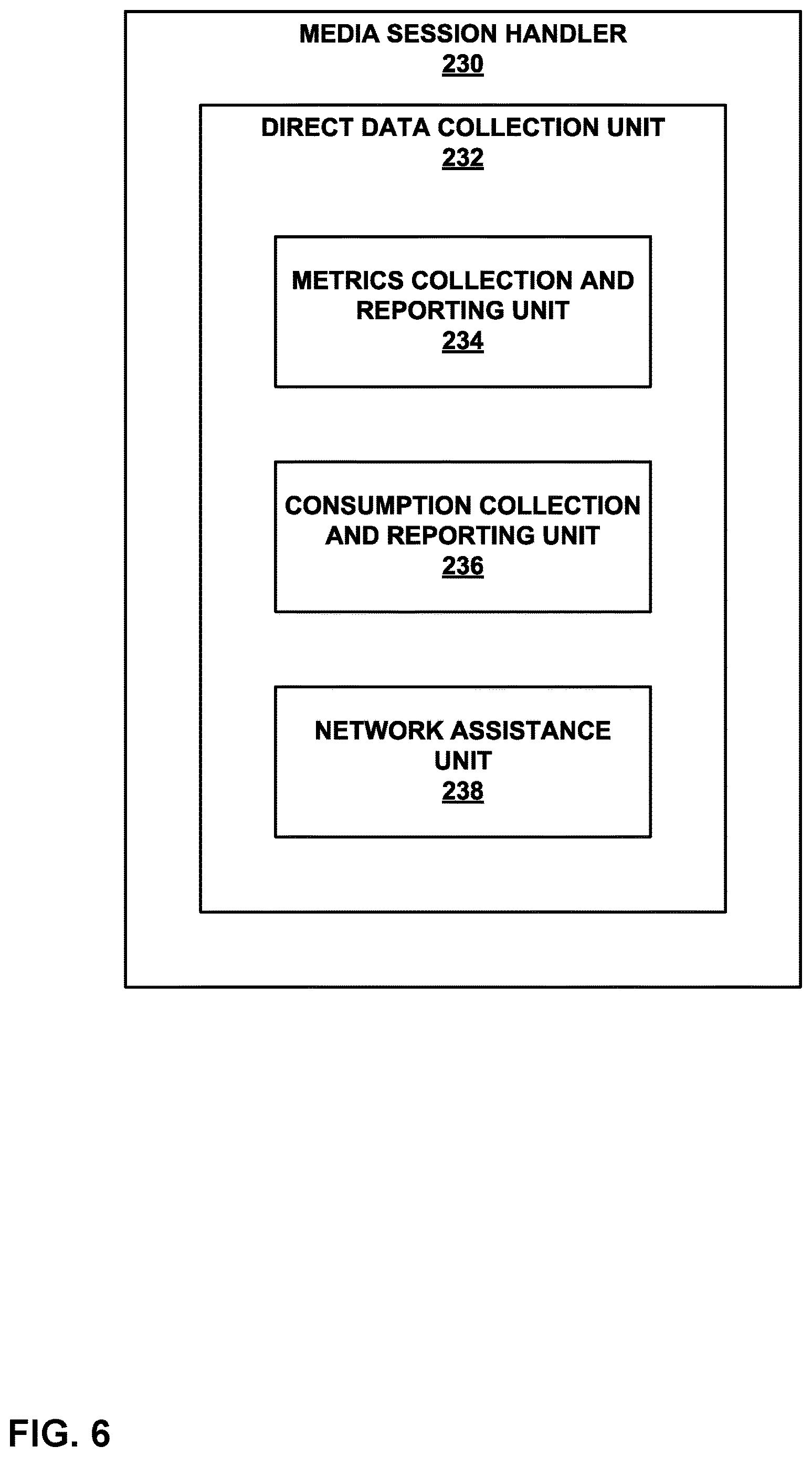

Sheet 6 Media session handler components.
Media stream handler., drawing sheet 7 from US 2026/0303888 A1

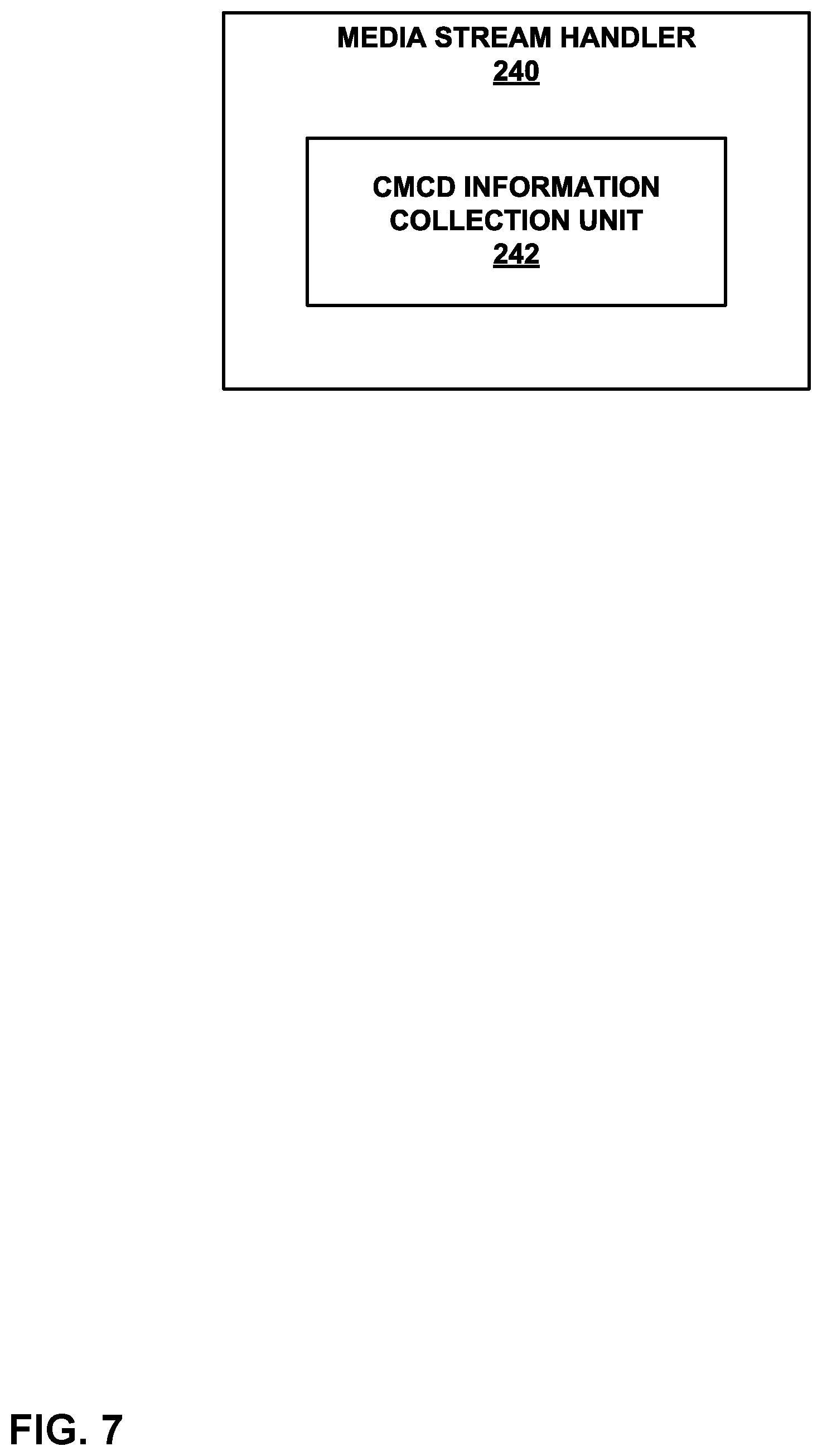

Sheet 7 Media stream handler.
Media application functions., drawing sheet 8 from US 2026/0303888 A1

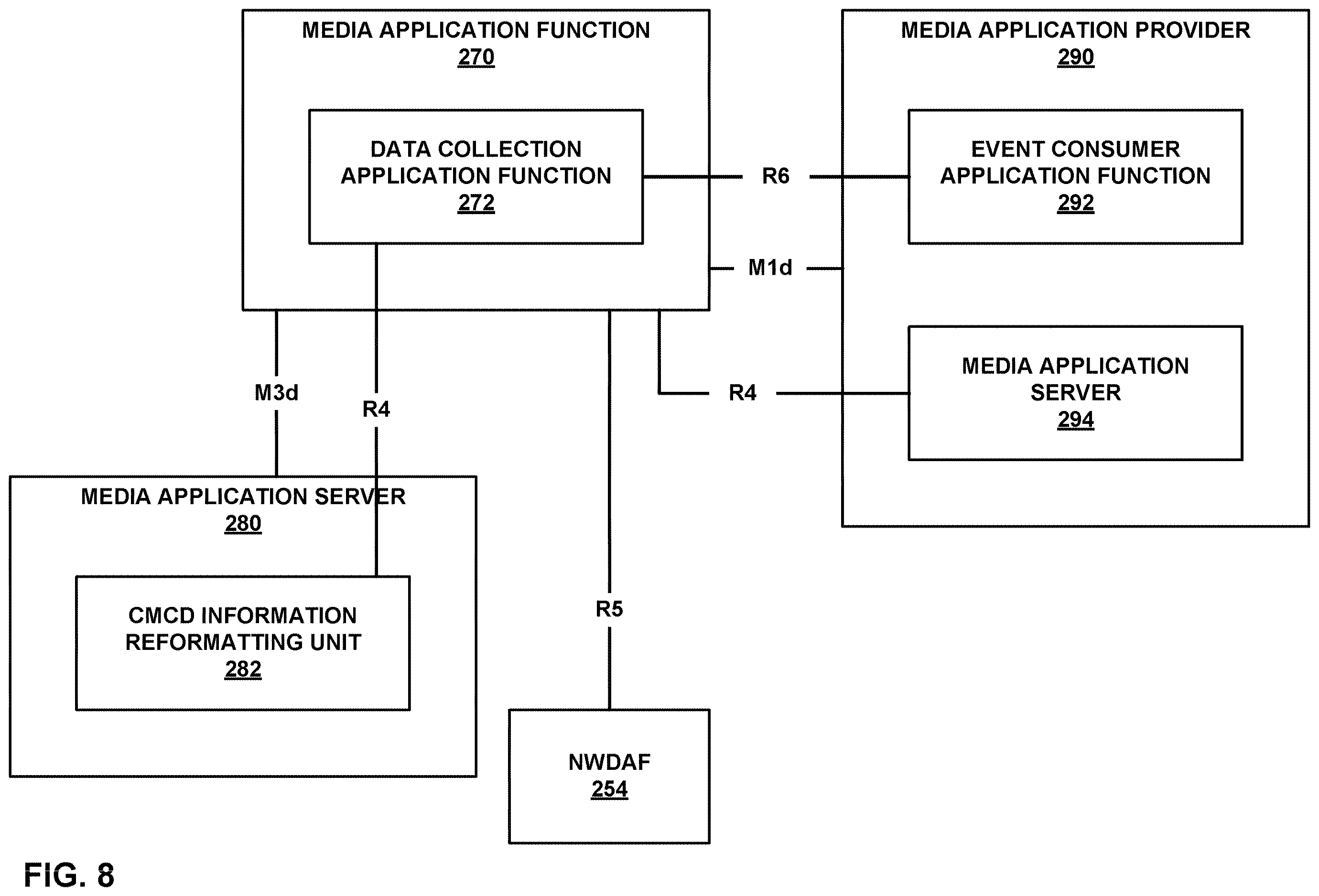

Sheet 8 Media application functions.
Show the other 5 sheets
Qualcomm Patents a System That Measures and Reports Live Video Lag to the Network patent drawing, sheet 9
Sheet 9
Qualcomm Patents a System That Measures and Reports Live Video Lag to the Network patent drawing, sheet 10
Sheet 10
Qualcomm Patents a System That Measures and Reports Live Video Lag to the Network patent drawing, sheet 11
Sheet 11
Qualcomm Patents a System That Measures and Reports Live Video Lag to the Network patent drawing, sheet 12
Sheet 12
Qualcomm Patents a System That Measures and Reports Live Video Lag to the Network patent drawing, sheet 13
Sheet 13
