Qualcomm Patents Technology That Reads Multiple Fingerprints Through a Display at Once

Most phones today can read one fingerprint through the screen. Qualcomm is patenting the plumbing that lets a single chip coordinate several sensors at the same time, which could make under-display fingerprint scanning faster, wider, and more secure.

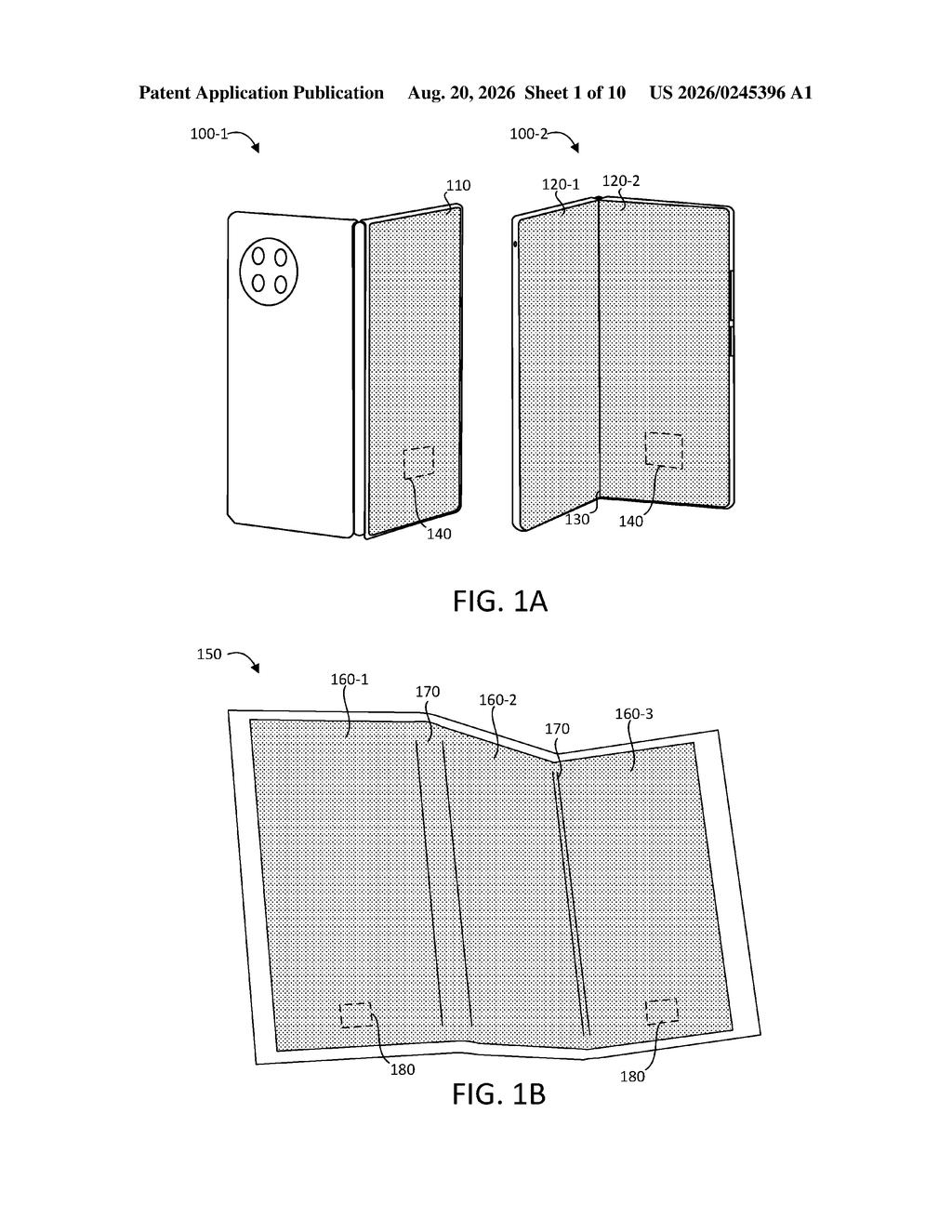

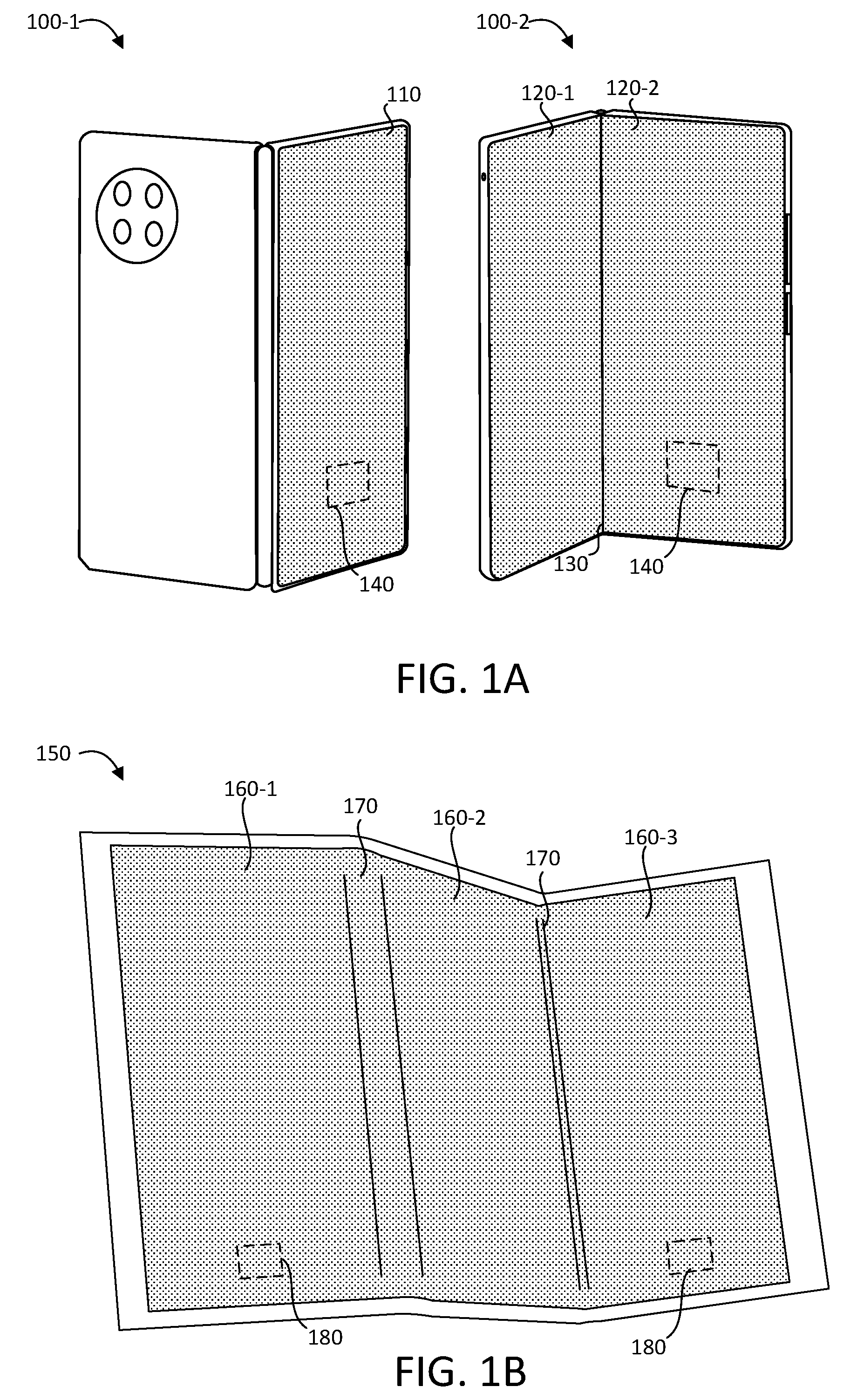

Foldable smartphones displaying fingerprint sensor locations on their screens. Drawing from patent filing US 2026/0245396 A1.
Foldable smartphones displaying fingerprint sensor locations on their screens.All 10 drawings ↓
Publication number
US 2026/0245396 A1(US20260245396A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Apr 7, 2026 · Aug 20, 2026
Inventors
Jae Hyeong SEO, Jessica Liu STROHMANN, Kostadin Dimitrov DJORDJEV
Status when we published
Waiting for an examiner
Document
20 claims
US classification
382/124
Parent application
Continuation of 18/789,113 (filed Jul 30, 2024)(18789113)

What Qualcomm's multi-fingerprint sensor setup actually does

You're unlocking your phone in a dark room, pressing a thumb to the screen, and you've grown so used to the under-display fingerprint reader that you don't think twice about it. But that sensor is reading a small patch of your skin. What if the whole bottom half of the screen could do that job, checking two or three fingers at once?

That's what Qualcomm's new patent is building toward. Right now, these ultrasonic sensors (the kind that send tiny sound waves through the glass to map your fingerprint) each need their own brains. Qualcomm's design puts a single controller chip in charge of multiple sensors, telling each one when to fire and then combining the results.

The controller also keeps all your fingerprint data to itself, never handing it off to the phone's main processor. That means the comparison happens in a contained, lower-risk part of the system. Whether the sensors scan one after another or all at the same time, the chip is the one calling the shots.

From the filing · CLAIM 1
… perform a multi-sensor authentication process using sensor information obtained from two or more ultrasonic sensors of the plurality of ultrasonic sensors …

Translation: The system can verify your identity by analyzing data from multiple fingerprint sensors at the same time.

How one controller chip talks to several sensors at once

The patent describes an ultrasonic sensor system in which multiple sensors are each mounted on flexible circuit strips (think thin, bendable wiring boards) and all routed back to a single controller chip. Today's under-display fingerprint sensors typically have a one-to-one relationship: one sensor, one controller. This design breaks that constraint.

The controller chip can poll each sensor in three ways:

  • Sequential: sensors fire one at a time in a set order
  • Simultaneous: all sensors capture data at the same moment
  • User-defined: a custom order chosen by the device maker or user

Each ultrasonic sensor generates high-frequency sound waves that travel through the display glass and bounce back, creating a 3D-ish map of whatever is pressing on the screen (your fingerprint ridges, essentially). The controller collects those maps from every sensor and runs what the patent calls a multi-sensor authentication process, comparing the combined reading against stored fingerprint templates.

Critically, the stored fingerprint templates never leave the controller chip. The phone's main application processor (the chip running Android or whatever OS is on the device) is not involved in the comparison. That on-chip isolation is a meaningful security boundary, because the main processor is a much larger attack surface.

From the filing · THE ABSTRACT
The controller chip may store fingerprint data obtained from the plurality of ultrasonic sensors and perform the multi-sensor authentication process without transferring the fingerprint data to an application processor.

Translation: The chip processes your fingerprint data locally instead of sending it to the phone's main processor for security.

What this means for under-display biometrics in phones

For device manufacturers, this opens the door to larger-area biometric zones on phones or tablets, where pressing two fingers or a wider area of your hand could unlock the device faster and with less chance of a false accept. It could also enable new use cases like confirming a payment with a specific finger combination.

The security angle is probably the more immediate draw. Keeping fingerprint templates and matching logic inside a dedicated, purpose-built chip is a well-established principle in secure hardware design, and this patent extends that principle across multiple sensors without needing multiple controllers. Qualcomm supplies fingerprint sensor technology to a wide range of Android phone makers, so a chip-level design like this would ripple across many devices if it reaches production. Qualcomm's fingerprint-chip filings sit alongside a broader wave of interesting tech patents around under-display sensing and on-device biometric security that are reshaping how authentication gets built into consumer hardware.

Qualcomm's 329th filing we've tracked since May, part of our Qualcomm coverage, joins earlier applications on splitting graphics across frames and sharing camera clues for location.

Source: US 2026/0245396 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0245396 A1 · click any drawing to enlarge

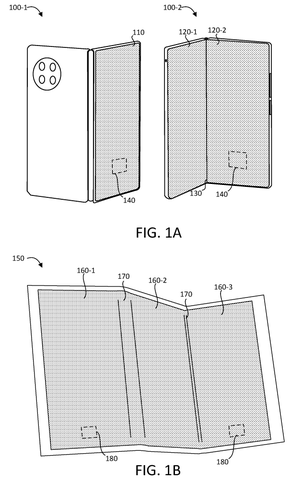

Foldable phone fingerprint sensor placement, drawing sheet 1 from US 2026/0245396 A1
Sheet 1 Foldable phone fingerprint sensor placement

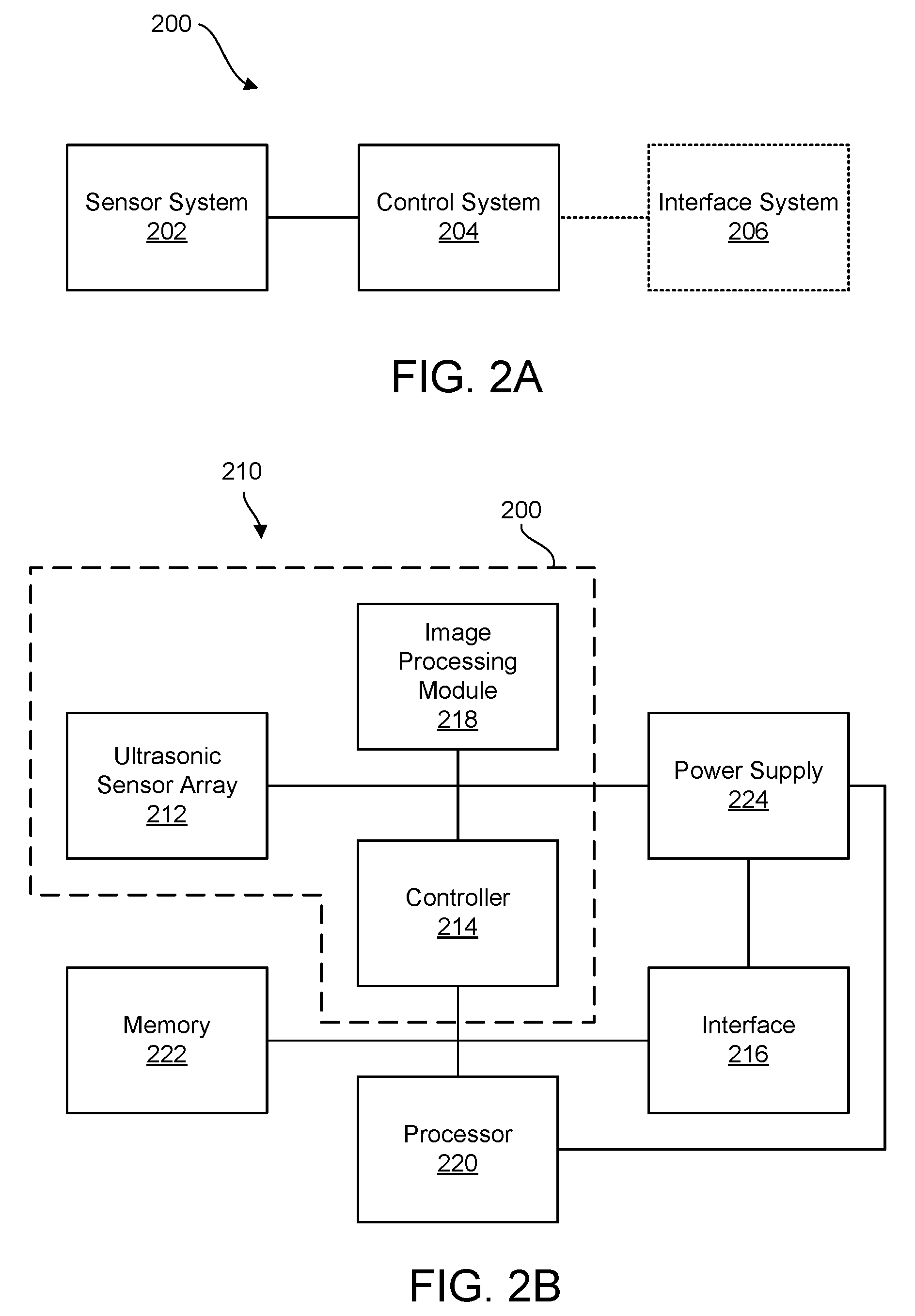

System architecture block diagram, drawing sheet 2 from US 2026/0245396 A1
Sheet 2 System architecture block diagram

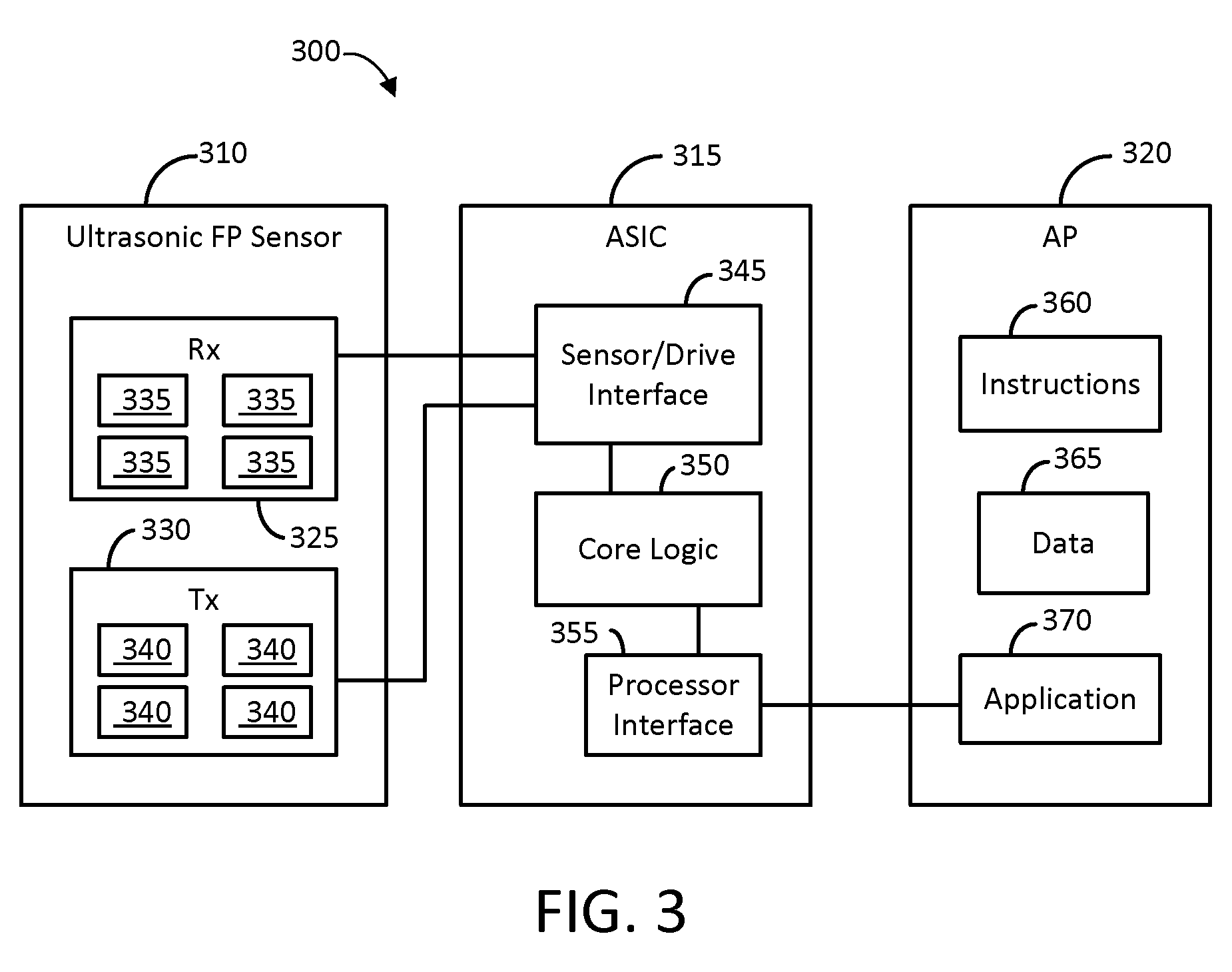

Sensor and processor communication, drawing sheet 3 from US 2026/0245396 A1
Sheet 3 Sensor and processor communication

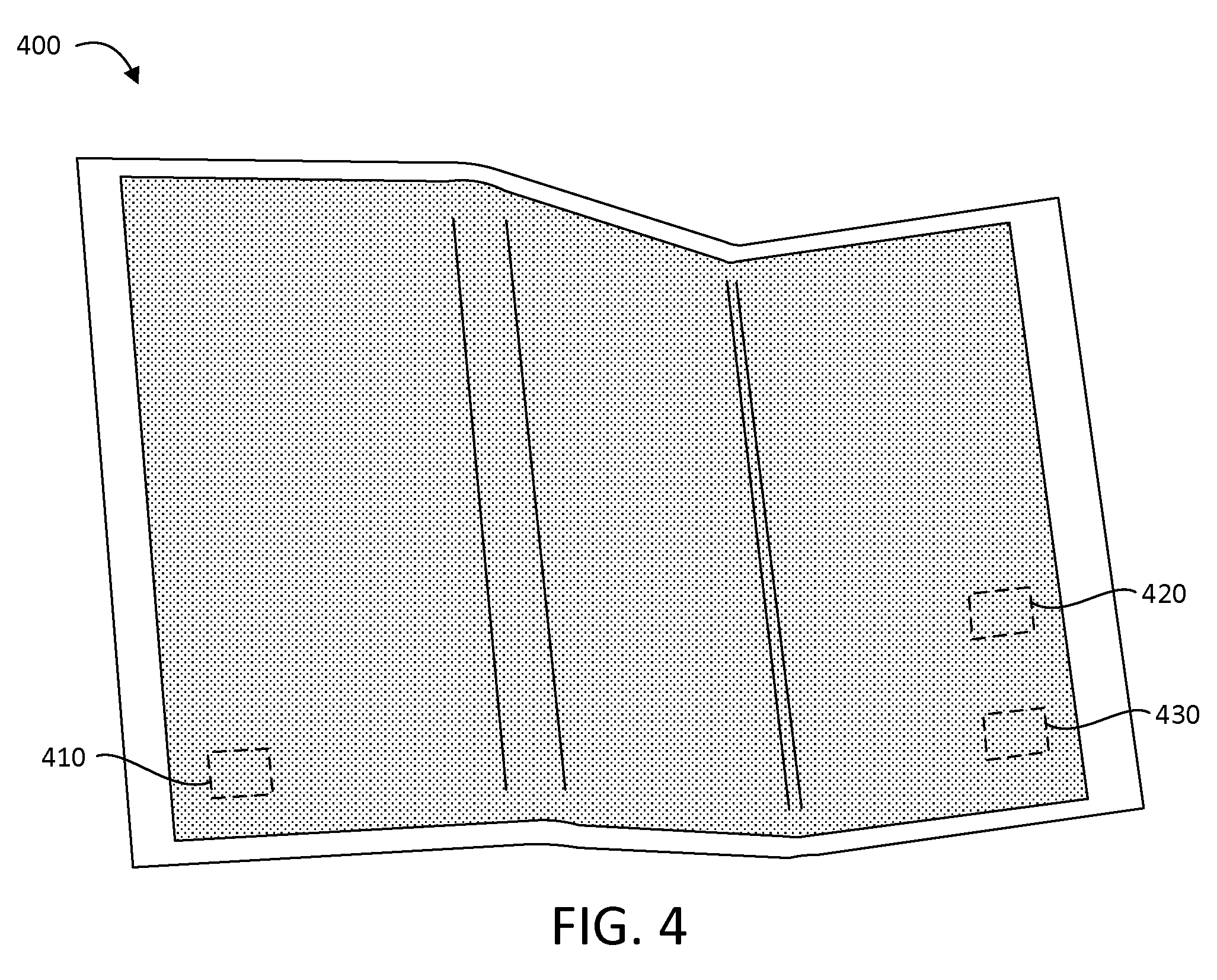

Alternative multi-panel phone display, drawing sheet 4 from US 2026/0245396 A1
Sheet 4 Alternative multi-panel phone display

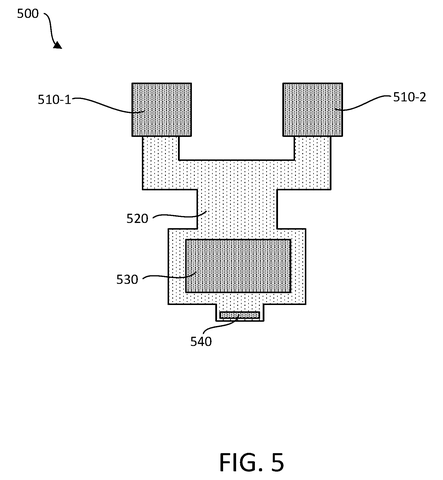

Flexible printed circuit layout, drawing sheet 5 from US 2026/0245396 A1
Sheet 5 Flexible printed circuit layout

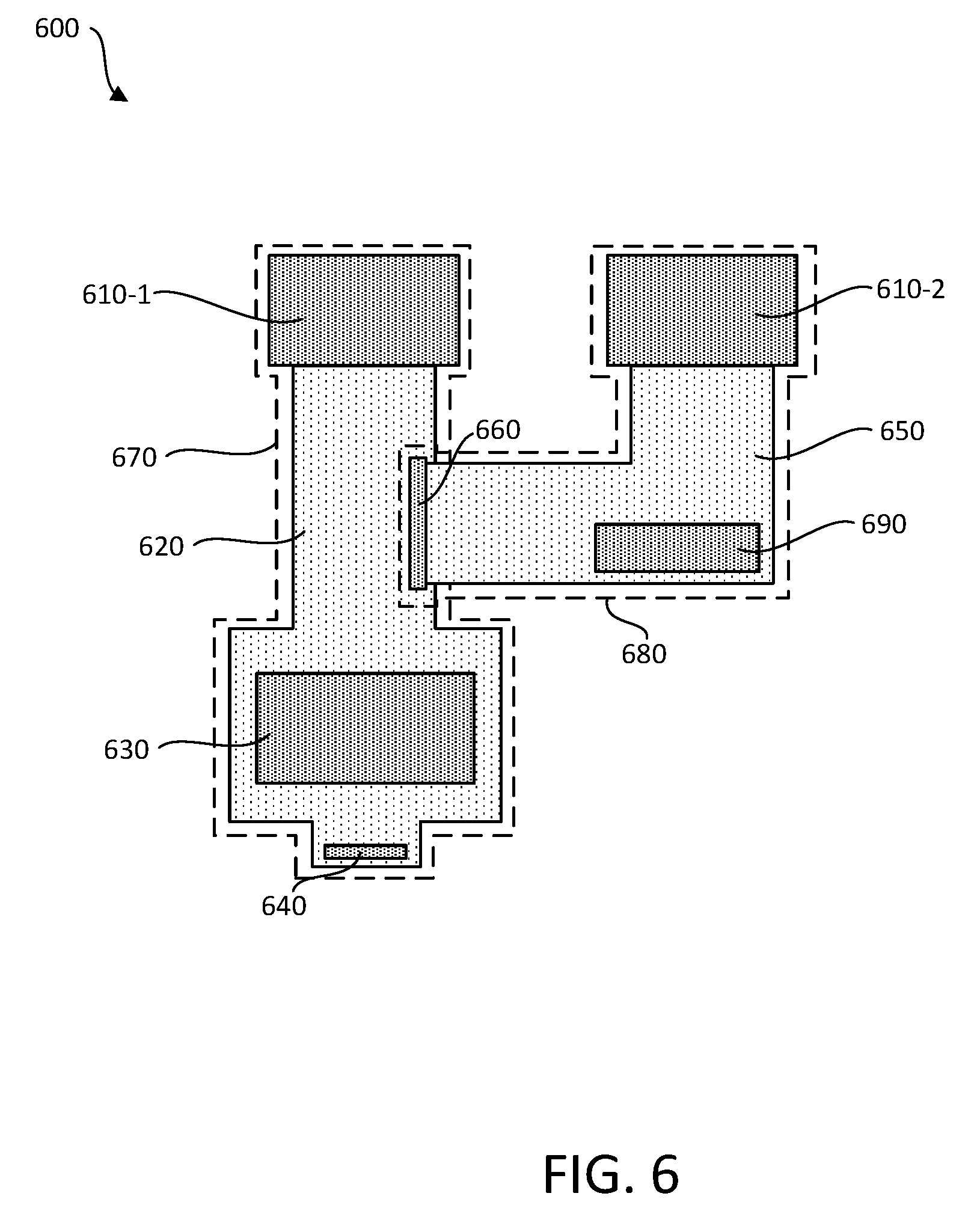

Component circuit routing arrangement, drawing sheet 6 from US 2026/0245396 A1
Sheet 6 Component circuit routing arrangement

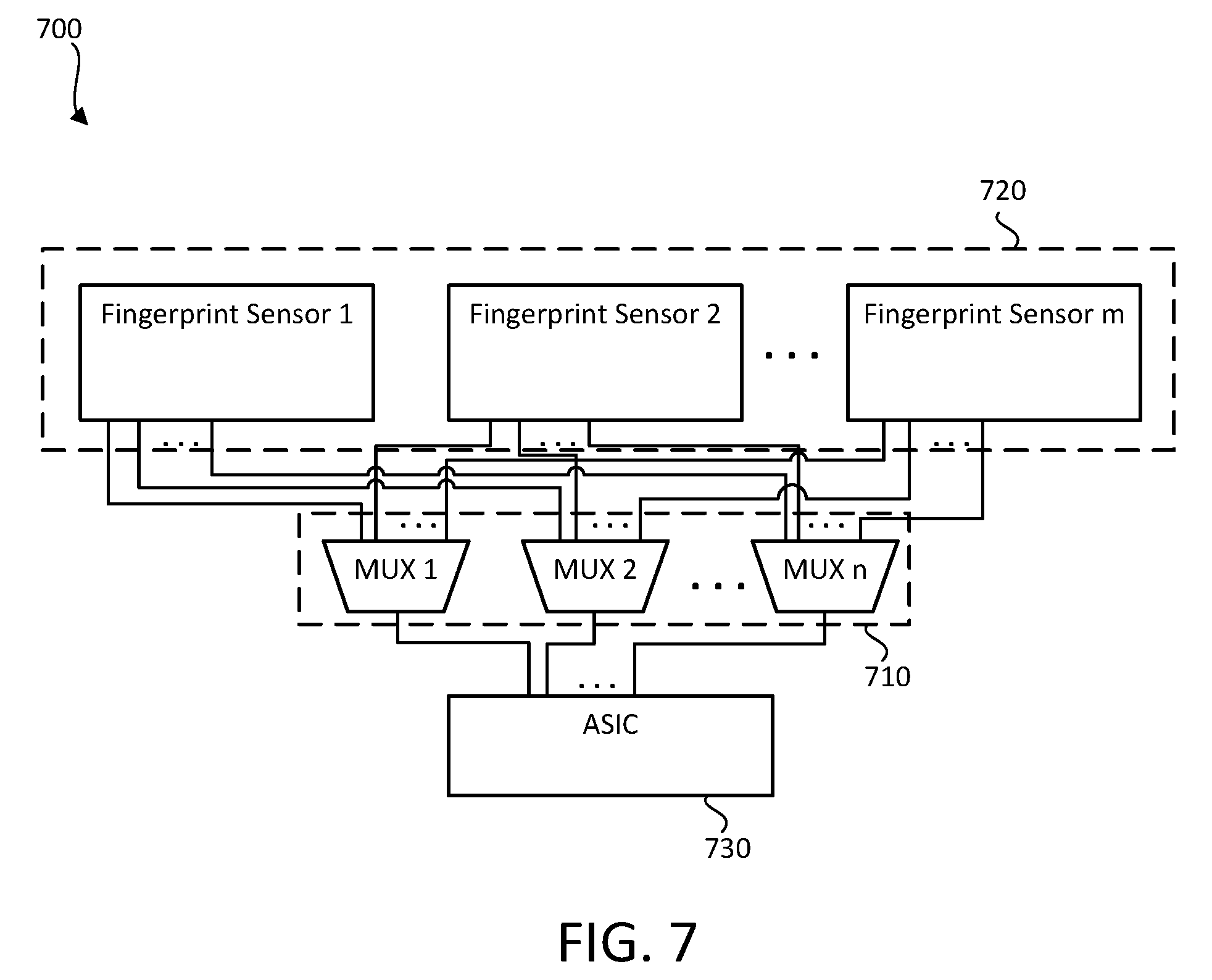

Multiplexer sensor routing schematic, drawing sheet 7 from US 2026/0245396 A1
Sheet 7 Multiplexer sensor routing schematic

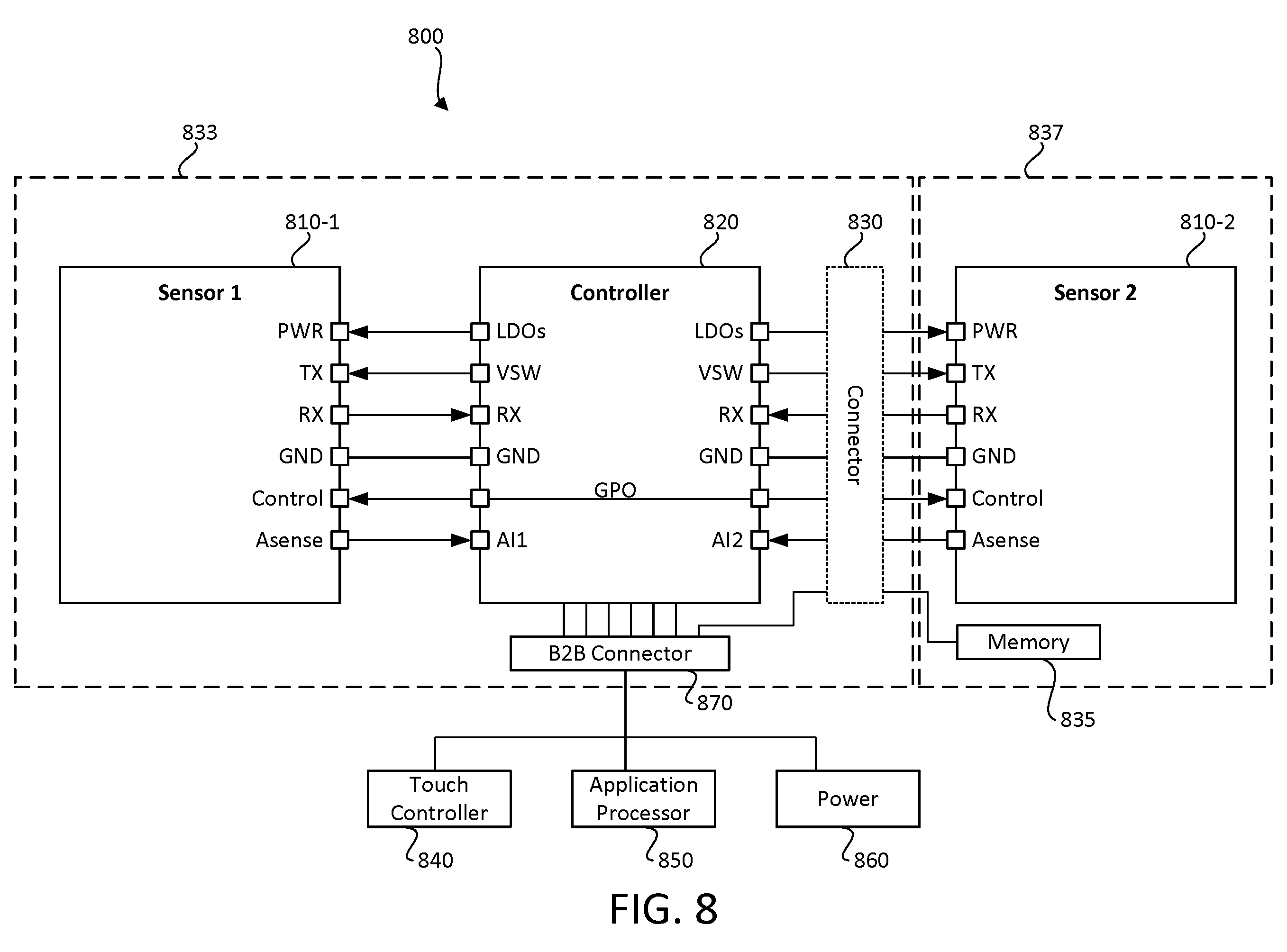

Controller and sensor wiring diagram, drawing sheet 8 from US 2026/0245396 A1
