Samsung · Camera · Filed Mar 24, 2026 · USPTO published Oct 1, 2026 · Oct 1 release

Samsung Patents an Alternating-Voltage Trick to Cut Noise in Camera Sensors

Samsung has filed a patent describing a specific sequence of voltage switches inside an image sensor that could reduce the electronic noise that muddies low-light photos.

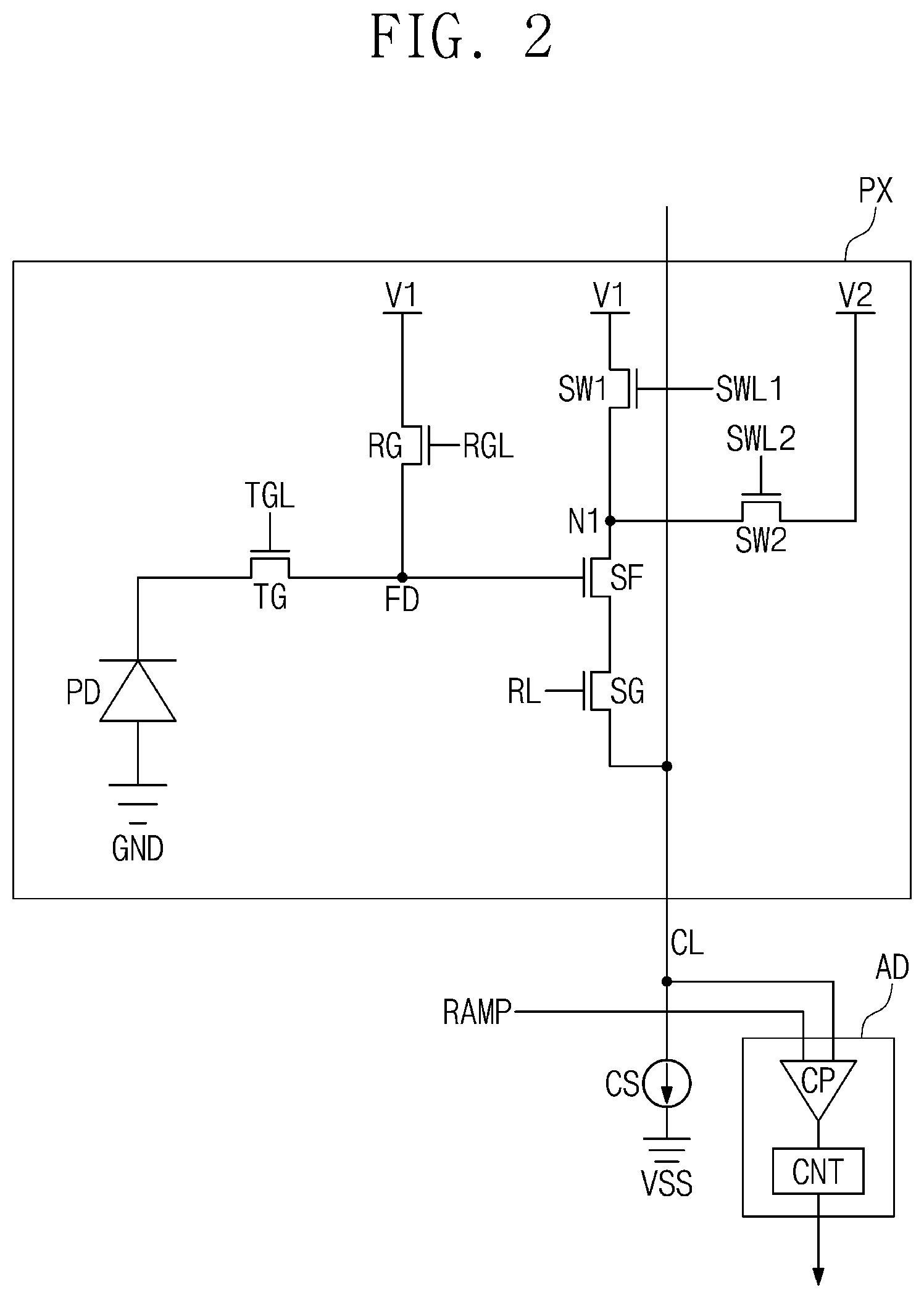

A single pixel in a camera sensor, showing its photodiode, transistors, and connections to the column line and analog-to-digital converter. Drawing from patent filing US 2026/0303991 A1.
A single pixel in a camera sensor, showing its photodiode, transistors, and connections to the column line and analog-to-digital converter.All 10 drawings ↓
Publication number
US 2026/0303991 A1(US20260303991A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Mar 24, 2026 · Oct 1, 2026
Inventors
Jinsuk HUH, Junoh KIM, JUNG BIN YUN
Status when we published
Waiting for an examiner
Document
20 claims
US classification
348/308

How Samsung's voltage-switching sensor reads light more cleanly

Every camera sensor is haunted by a small amount of random electrical noise, and that noise gets most visible in dark scenes where the signal from actual light is weakest. The sensor has to read out that light signal through a tiny transistor, and the way power is supplied to that transistor can either add to the problem or help cancel it out.

Samsung's patent describes a precise timing sequence: the sensor alternates between two voltage levels while reading your photo. By resetting the circuit at exactly the right moment, catching the light signal, then switching voltage again, the design creates a cleaner baseline for comparison, which makes it easier to separate real light from electrical junk.

The result, in theory, is photos with less grain in shadow areas without needing bigger pixels or a brighter lens.

From the filing · CLAIM 1
alternately supplying a first voltage and a second voltage to a first source/drain terminal of a source-follower transistor …

Translation: Switching between two different voltage levels inside the pixel circuit helps clean up unwanted signal interference.

How the source-follower transistor reads two voltages in sequence

The patent centers on a component called a source-follower transistor, a tiny circuit element that amplifies and reads the electrical charge collected by each photodiode (the dot that catches a photon of light). The way this transistor is powered affects how much noise it introduces.

The filing describes a specific sequence:

  • Supply a second (lower) voltage to the transistor's supply terminal
  • Reset the floating diffusion node (a small charge-storage point between the photodiode and the transistor) to a known reference level
  • Switch to a first (higher) voltage
  • Transfer the light-collected charge from the photodiode into the floating diffusion node
  • Read the voltage at that node through the transistor
  • Switch back to the second voltage to finish the cycle

The alternating supply voltage changes the transistor's operating point between the reset step and the signal-read step. This is significant because correlated double sampling (a standard technique that subtracts the reset reading from the signal reading to cancel fixed noise) works better when the transistor's behavior is carefully controlled at each phase.

By tuning what voltage the transistor sees at each moment, Samsung aims to reduce a class of noise called thermal noise and flicker noise that originates inside the transistor itself, not just in the photodiode.

What cleaner sensor readouts mean for phone cameras

For phone cameras, the image sensor is the bottleneck in low light. Manufacturers can add computational tricks after the fact, but cleaner raw data from the sensor always beats trying to recover it in software. A sensor that introduces less noise at the transistor level gives every downstream process, including AI-based night modes, better material to work with.

For consumers, this kind of internal engineering change is invisible in the spec sheet but shows up in real photos. Whether or not this specific approach reaches a shipping product, Samsung's interest in low-noise sensor architecture reflects pressure from customers who judge cameras on how they perform in restaurants and at concerts, not under studio lighting.

Samsung's 141st filing we've tracked since May in our camera sensor push watchlist builds on earlier applications covering two-pass light capture and splitting focus from color pixels.

Source: US 2026/0303991 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0303991 A1 · click any drawing to enlarge

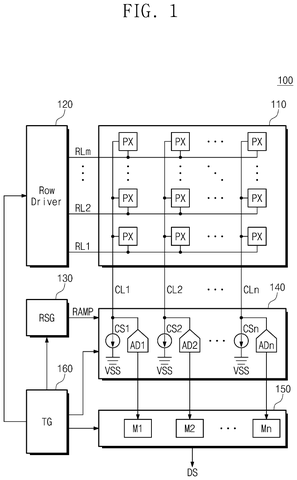

Camera sensor system block diagram., drawing sheet 1 from US 2026/0303991 A1

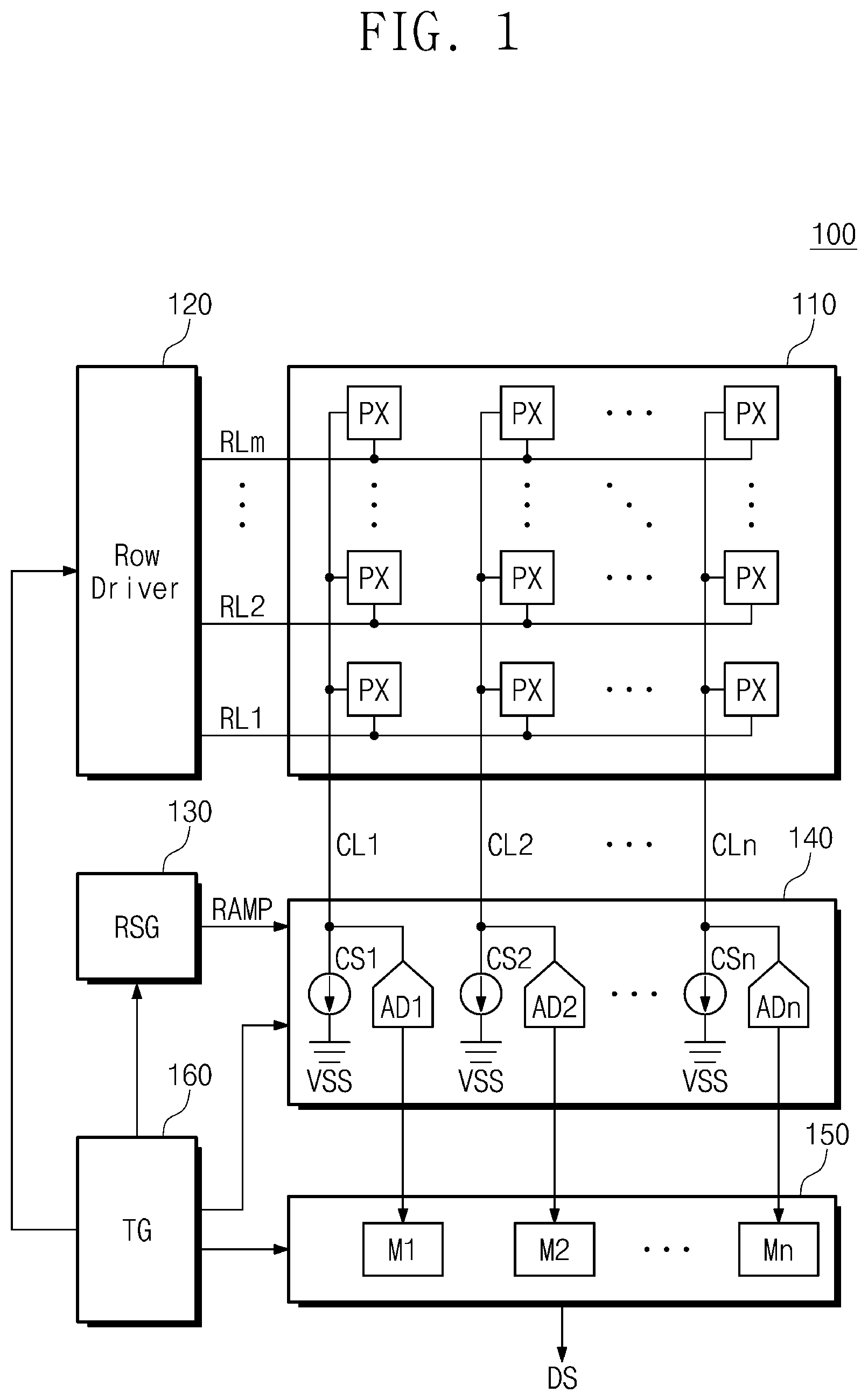

Sheet 1 Camera sensor system block diagram.
Camera sensor pixel circuit., drawing sheet 2 from US 2026/0303991 A1
Sheet 2 Camera sensor pixel circuit.

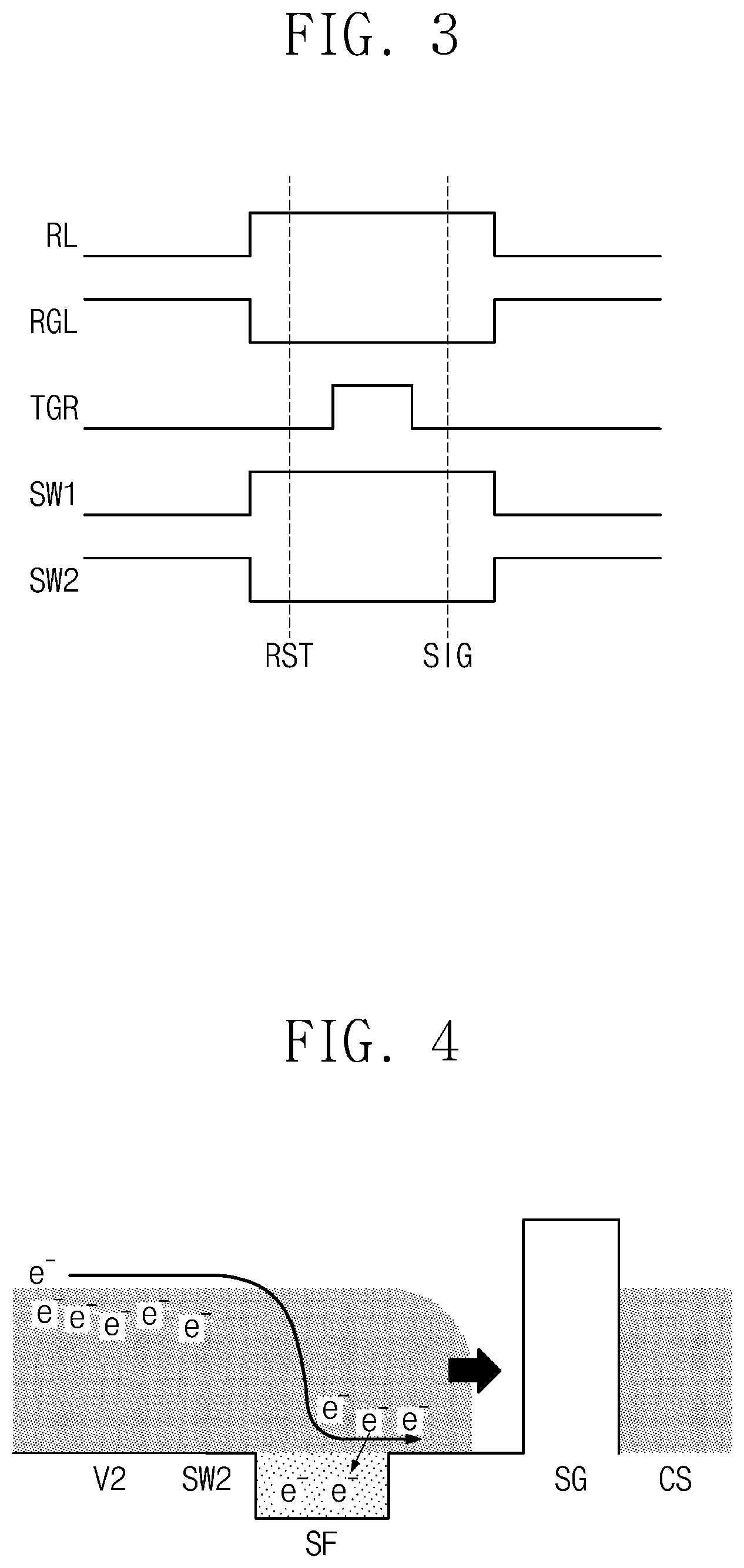

Pixel voltage timing diagram., drawing sheet 3 from US 2026/0303991 A1
Sheet 3 Pixel voltage timing diagram.
Electron transfer during reset., drawing sheet 4 from US 2026/0303991 A1

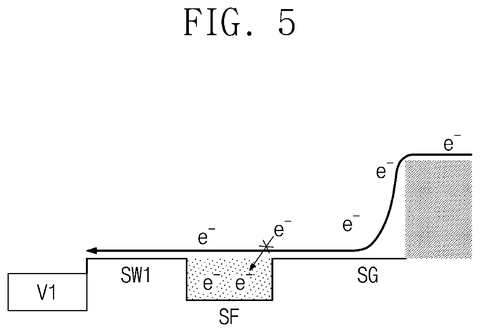

Sheet 4 Electron transfer during reset.

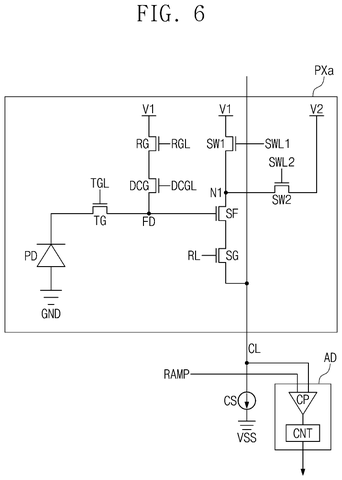

Electron transfer during signal., drawing sheet 5 from US 2026/0303991 A1

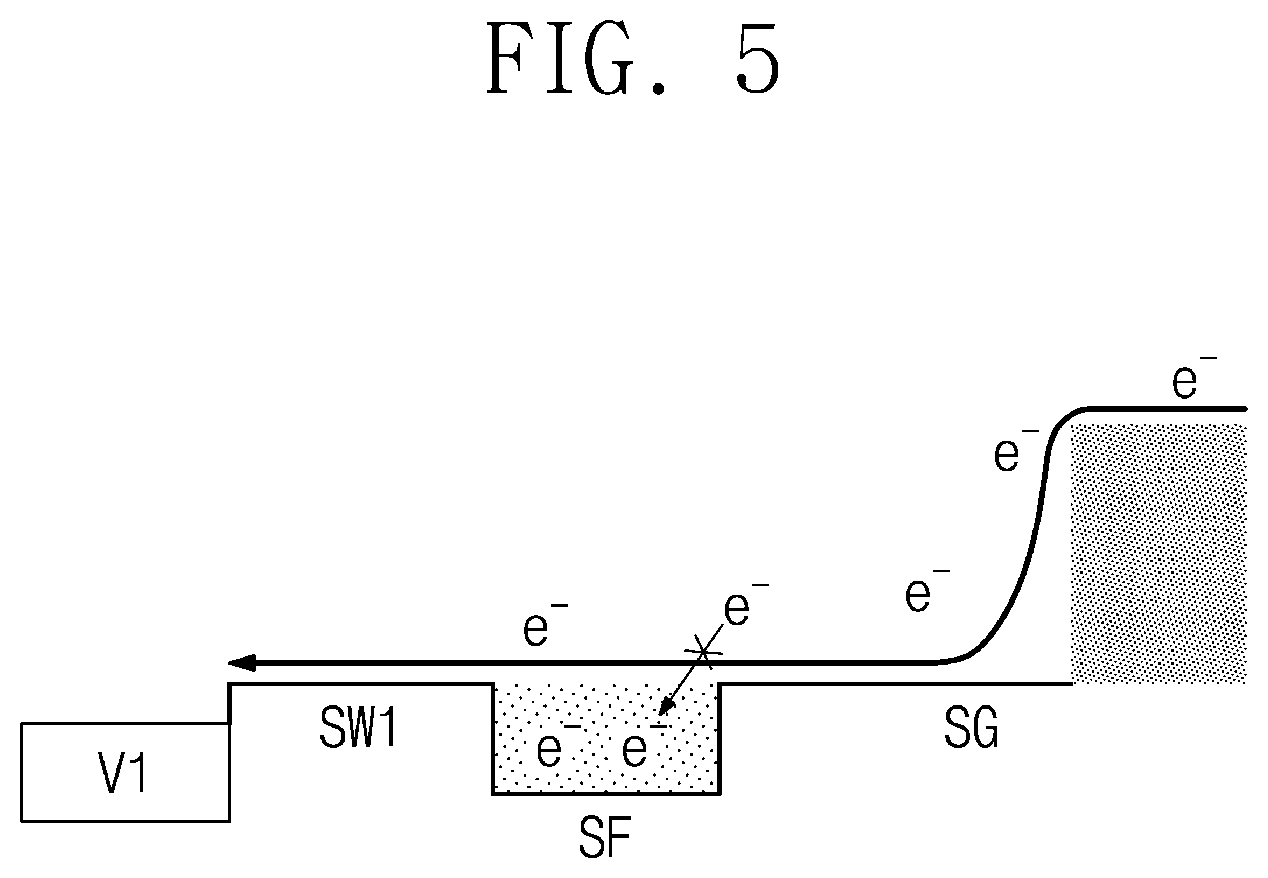

Sheet 5 Electron transfer during signal.
Camera sensor pixel with discharge., drawing sheet 6 from US 2026/0303991 A1

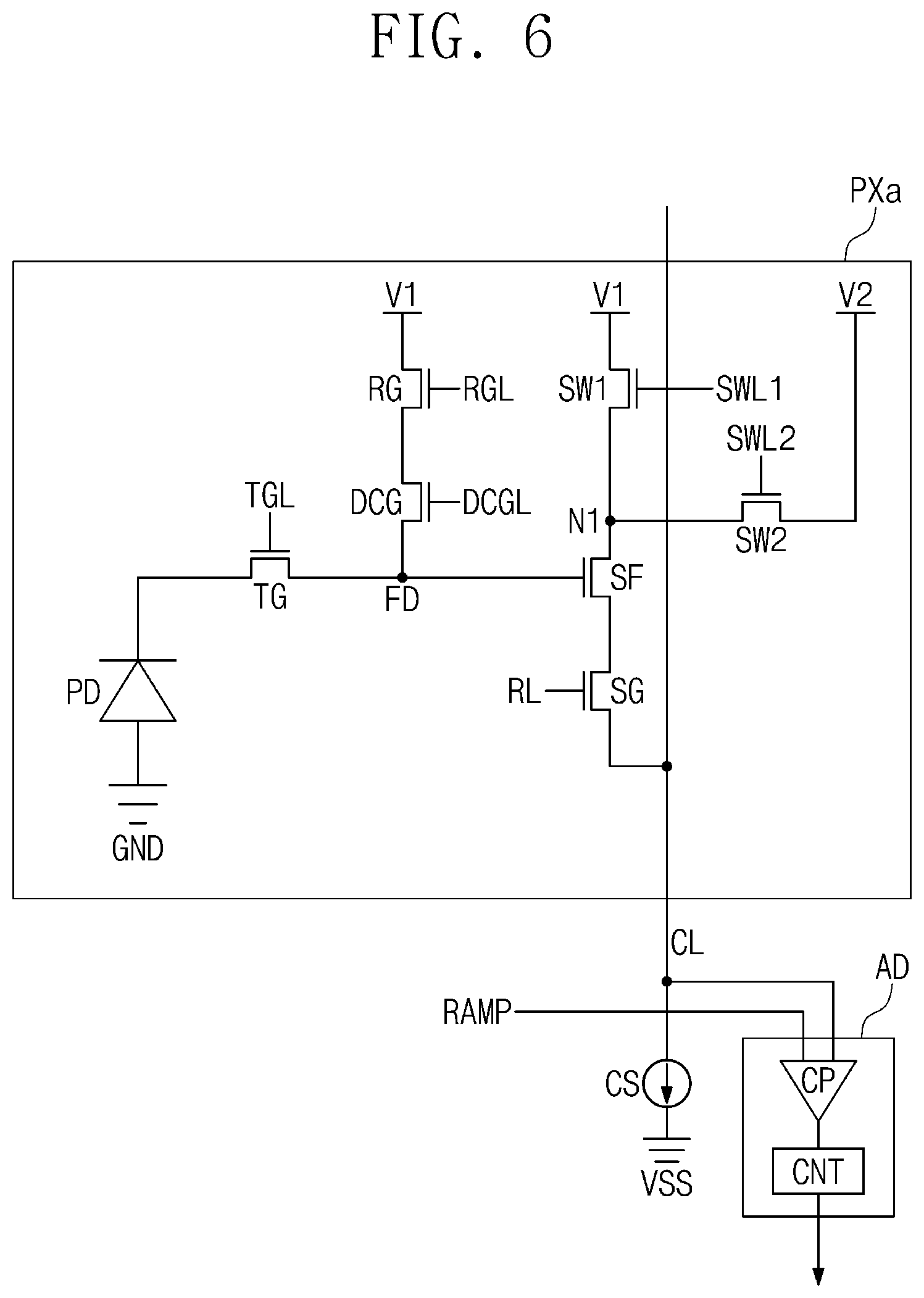

Sheet 6 Camera sensor pixel with discharge.

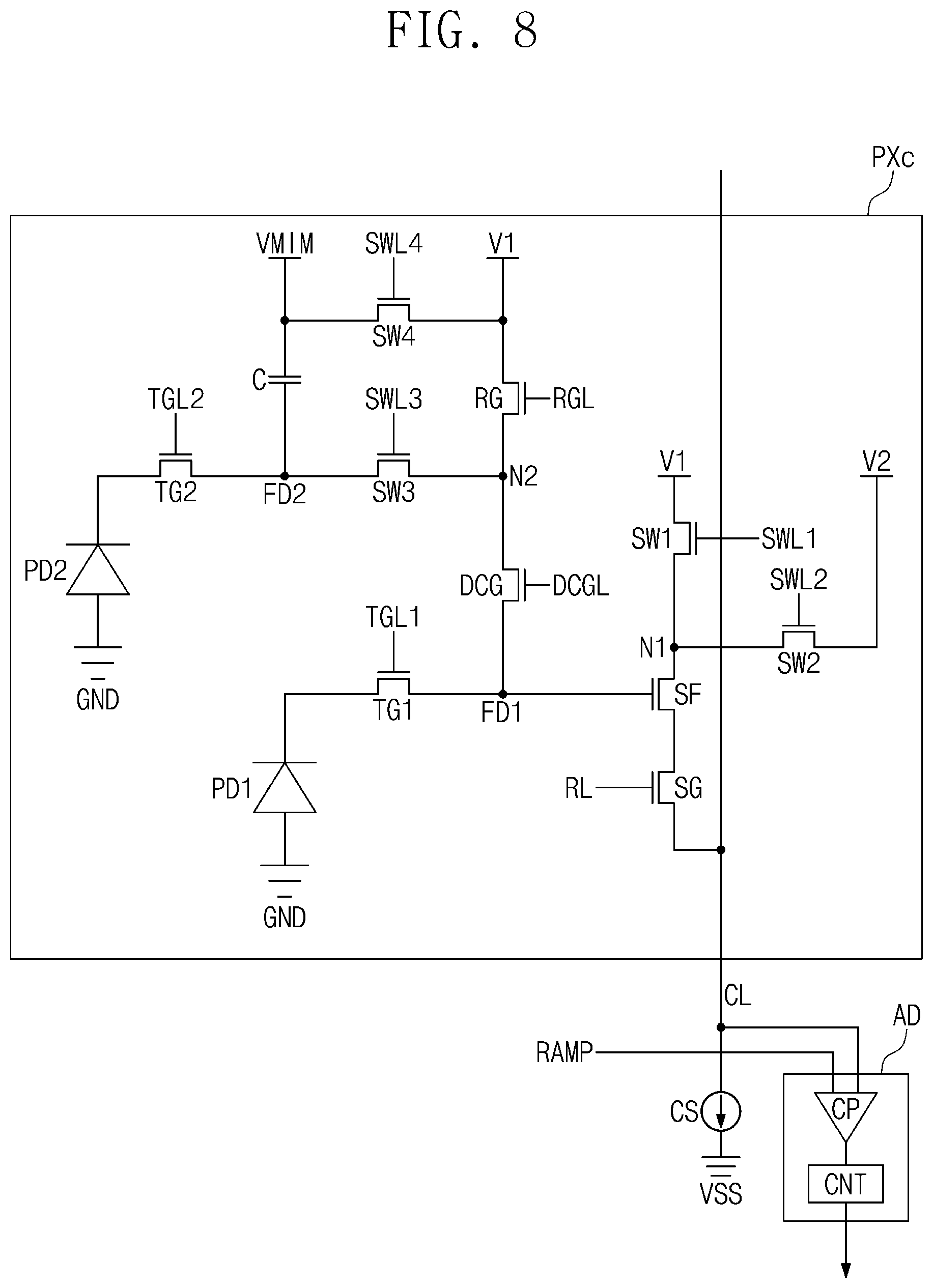

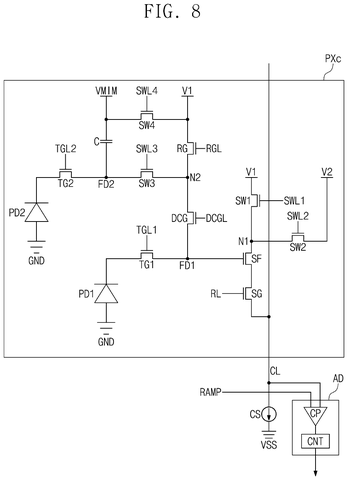

Camera sensor pixel with multiple photodiodes., drawing sheet 7 from US 2026/0303991 A1

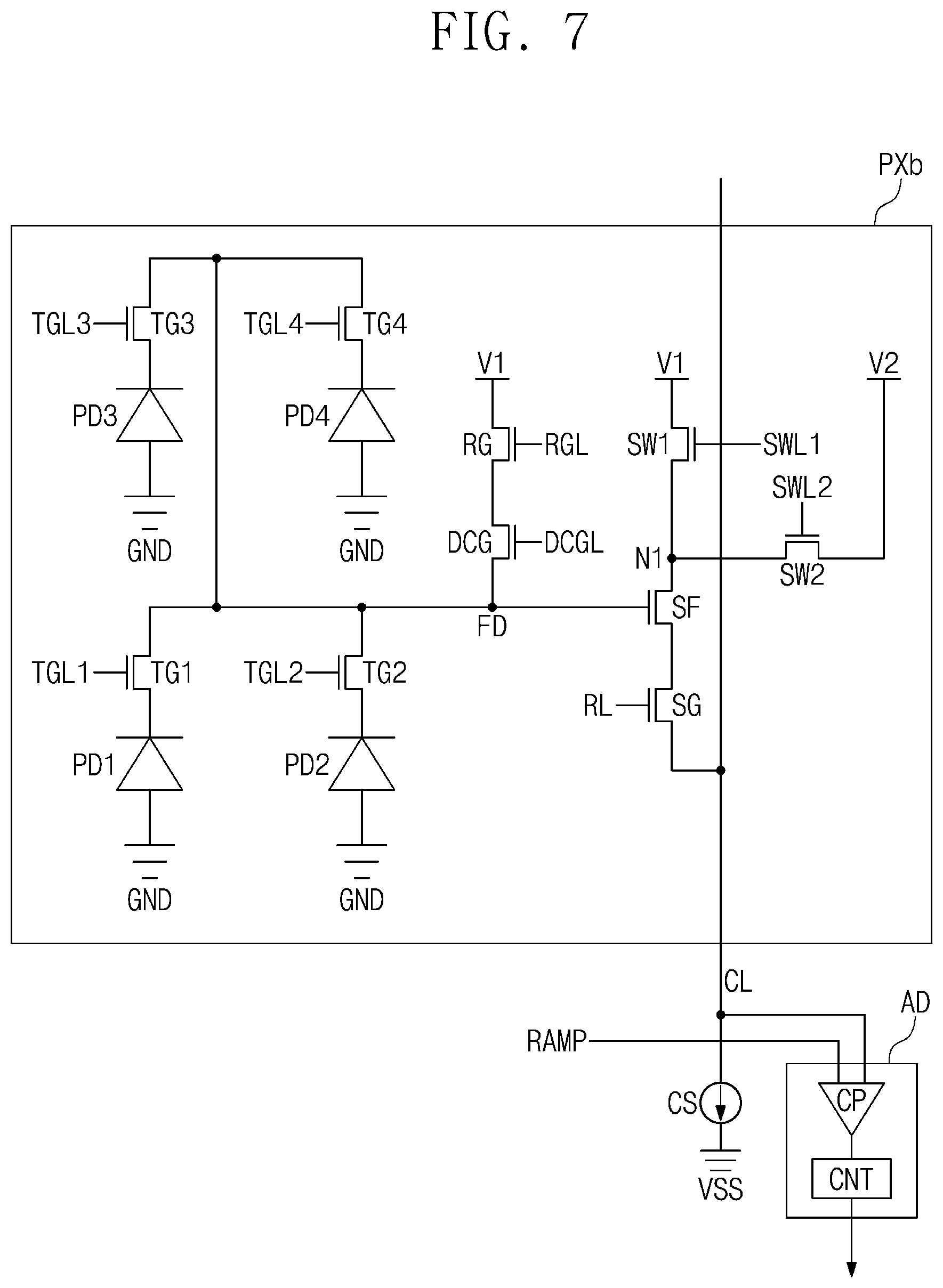

Sheet 7 Camera sensor pixel with multiple photodiodes.
Camera sensor pixel with charge sharing., drawing sheet 8 from US 2026/0303991 A1

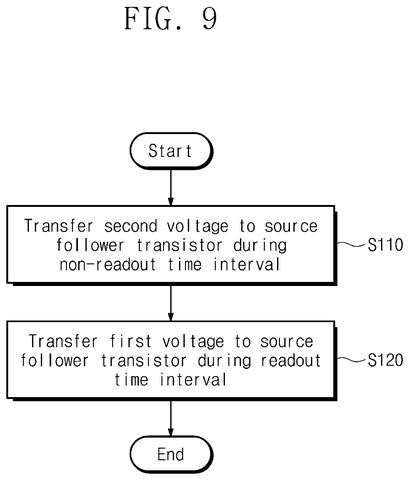

Sheet 8 Camera sensor pixel with charge sharing.
Show the other 2 sheets
Samsung Patents an Alternating-Voltage Trick to Cut Noise in Camera Sensors patent drawing, sheet 9
Sheet 9
Samsung Patents an Alternating-Voltage Trick to Cut Noise in Camera Sensors patent drawing, sheet 10
Sheet 10
