Samsung Patents AR Glasses That Let Virtual Windows Extend Beyond What You Can See
Samsung has filed a patent for AR glasses that handle a surprisingly annoying problem: what happens when a virtual window gets bigger than your screen? The answer, according to this filing, is to let it overflow into the physical space around you.
How Samsung's expanding virtual windows actually work

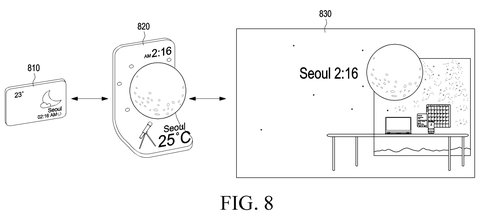

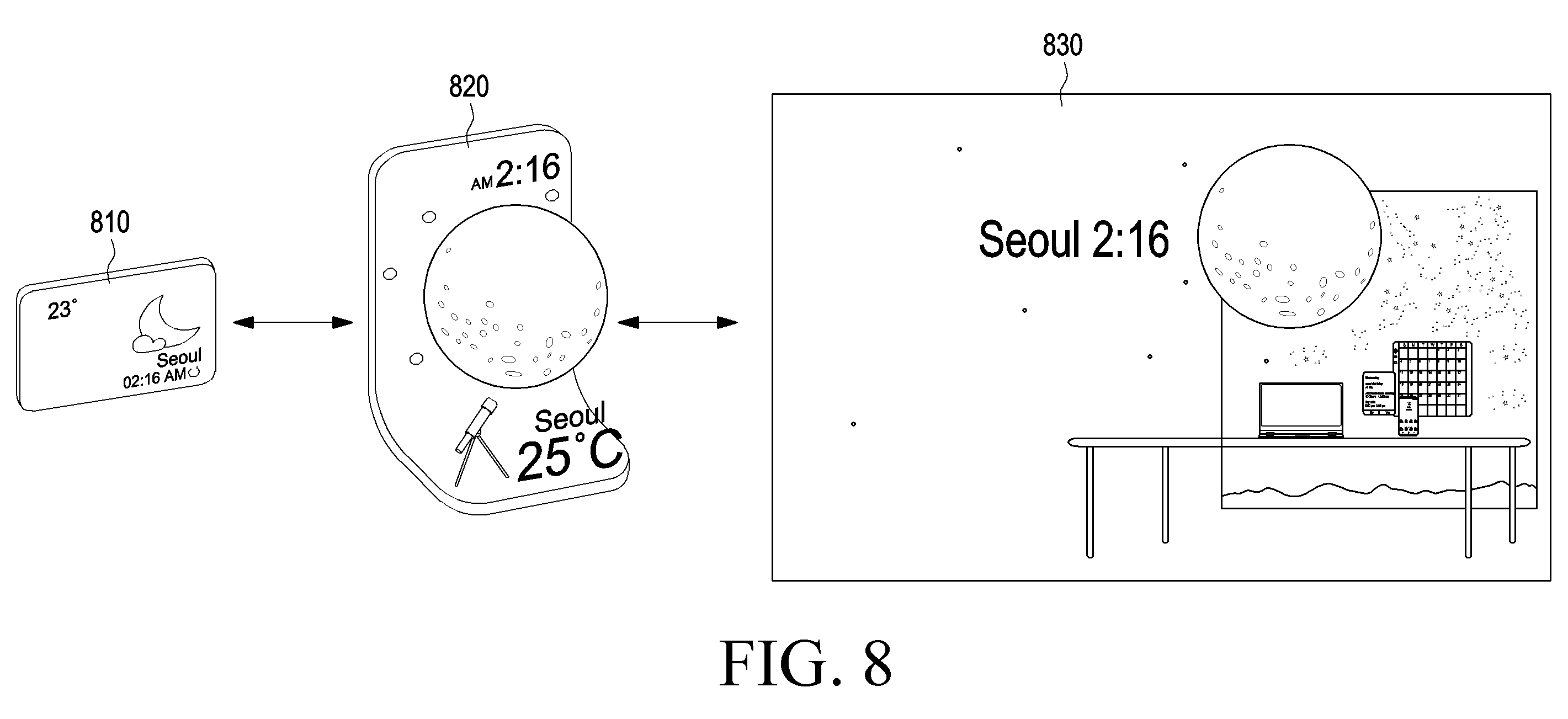

Imagine you're wearing AR glasses and you tap to zoom in on a floating virtual panel, say a map or a document. On a normal screen, zooming in just clips everything that doesn't fit. But Samsung's patent describes something different: the panel grows beyond the edges of what the display can show, and the parts that overflow get placed into the physical space around the visible area, so they're still there, just waiting at the edges of your world.
The glasses use their camera to track real space around you. When a virtual object expands too large for the current view, the device figures out which portion still fits inside your field of view and which portion doesn't. The part that fits stays on your display as normal. The overflow is anchored to surrounding physical space, so if you physically turn your head or move, you'd theoretically encounter the rest of the content.
This is an attempt to solve a very real friction point in AR: your display window is always finite, but the content you want to interact with often isn't.
… obtain a second virtual object from the first virtual object by rearranging a display location of a plurality of virtual elements of the first virtual object to be spaced apart from each other …
Translation: It spreads out the parts of a digital window so they cover more space.
How the device maps overflow content to surrounding space

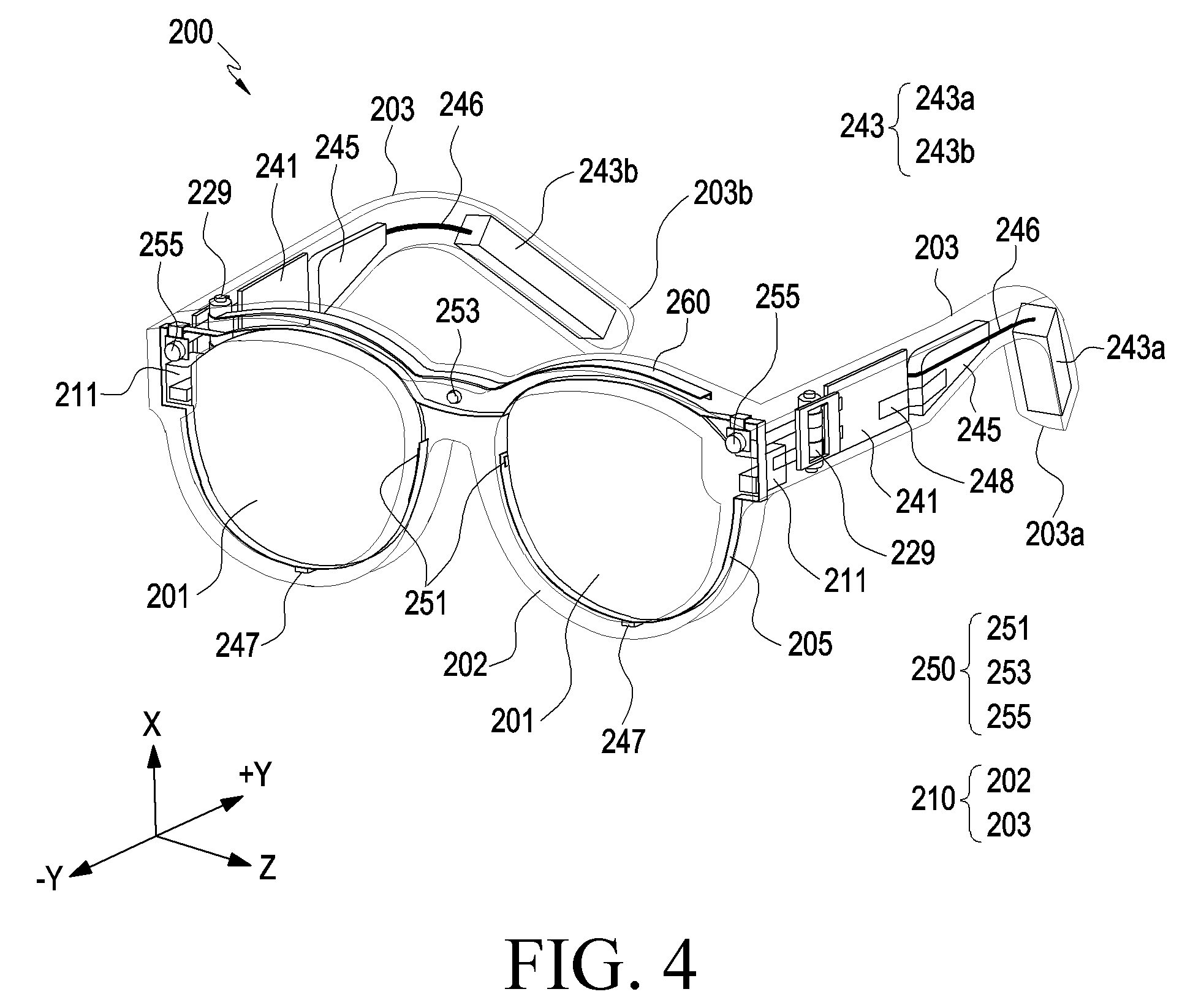

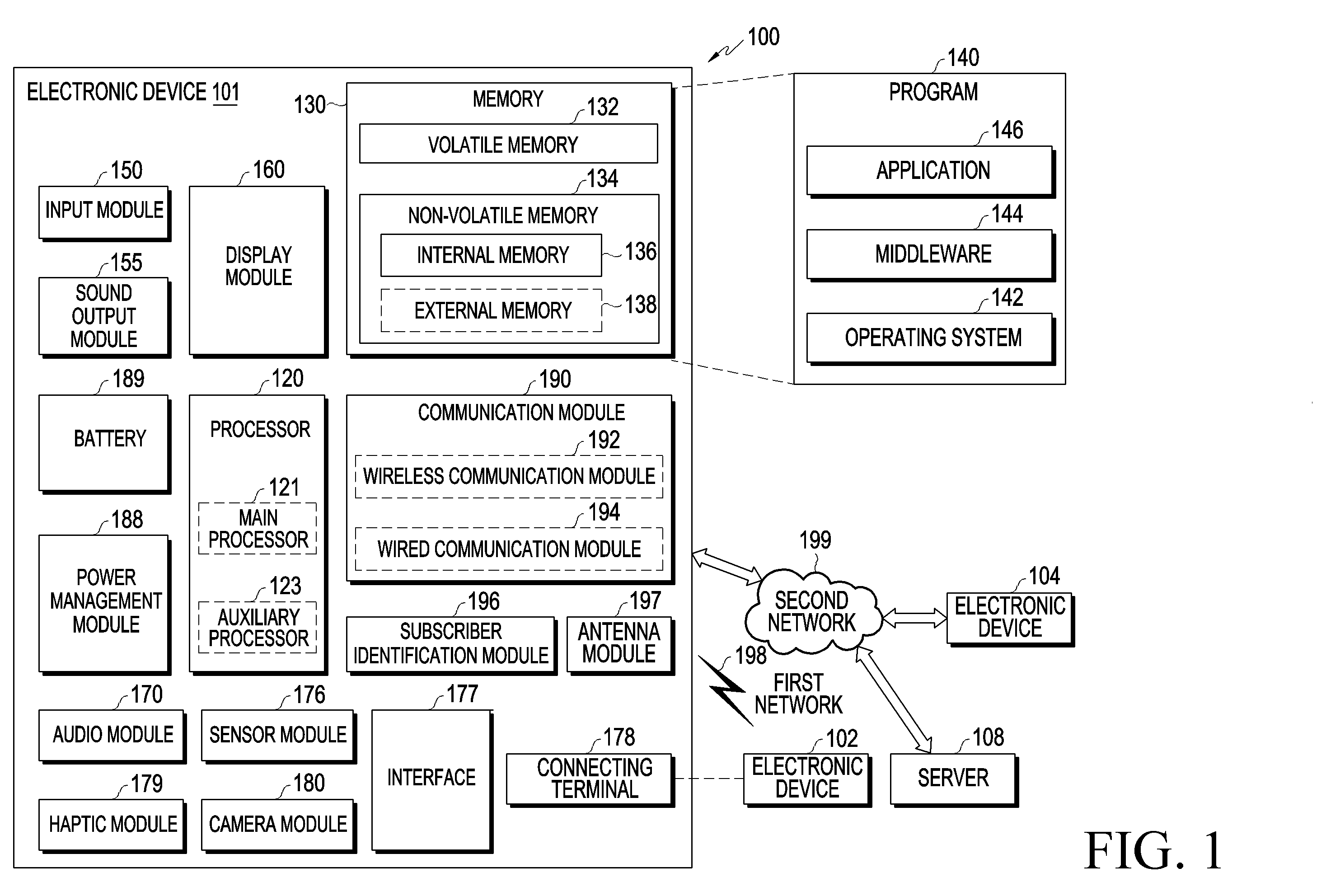

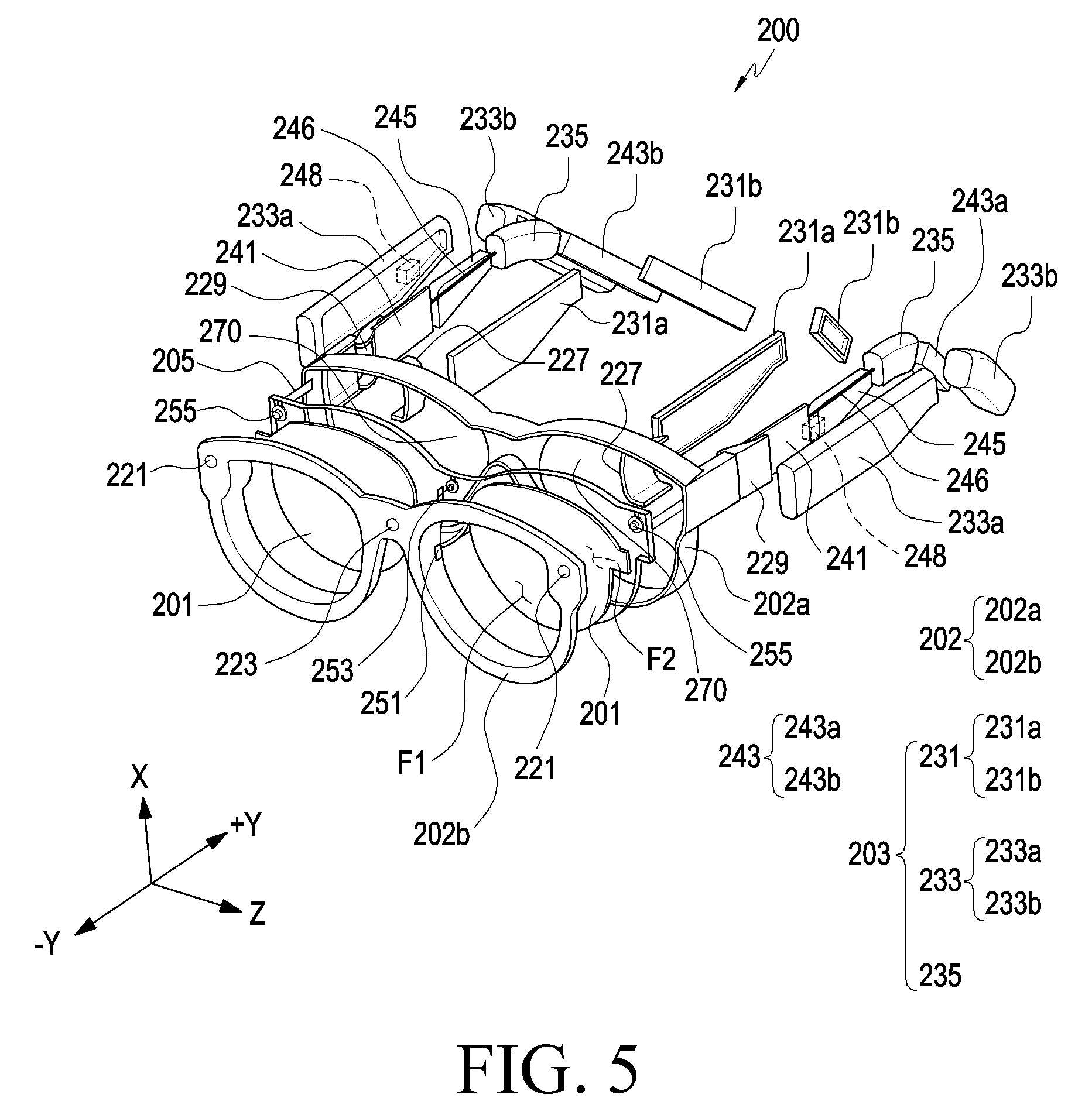

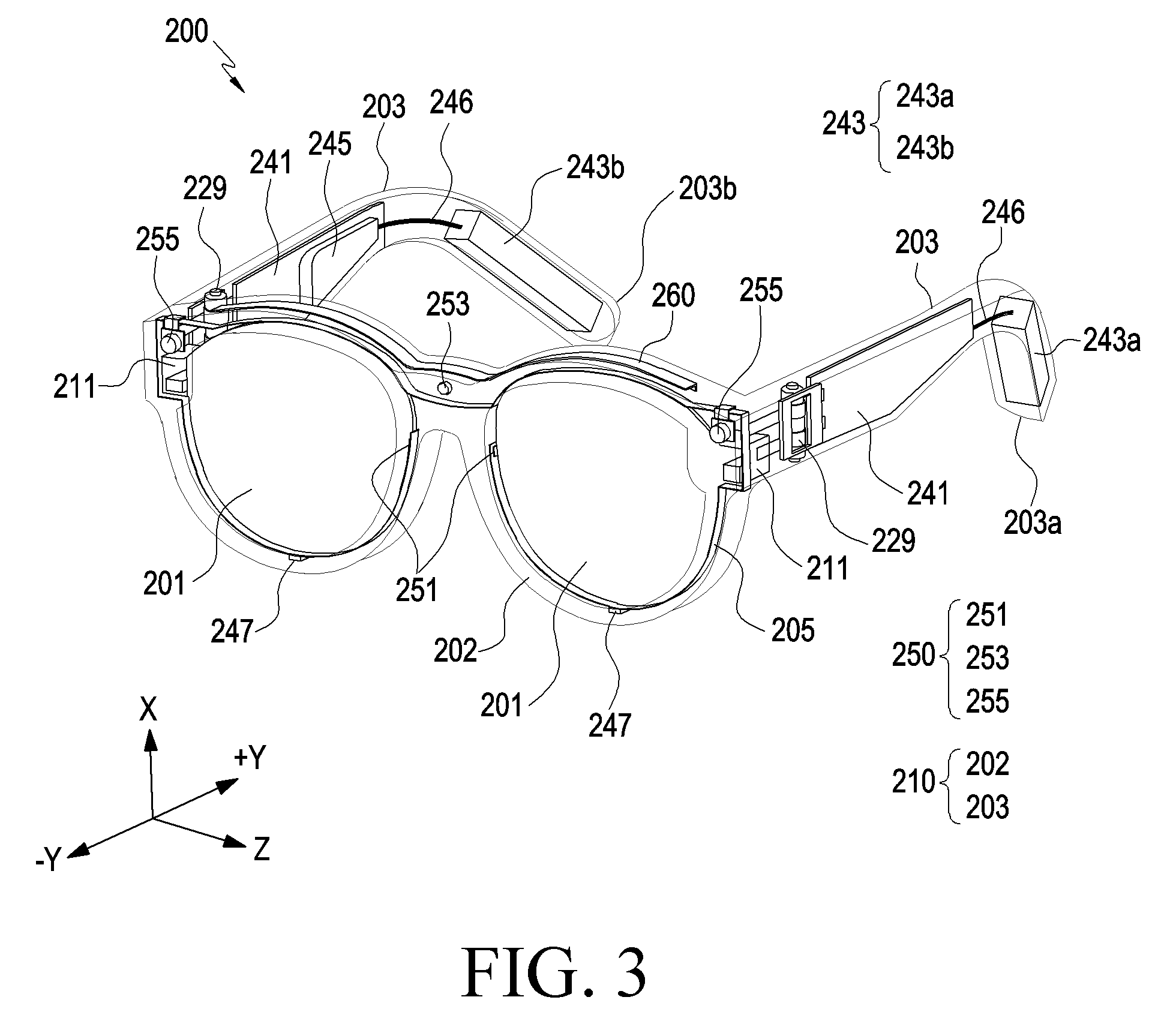

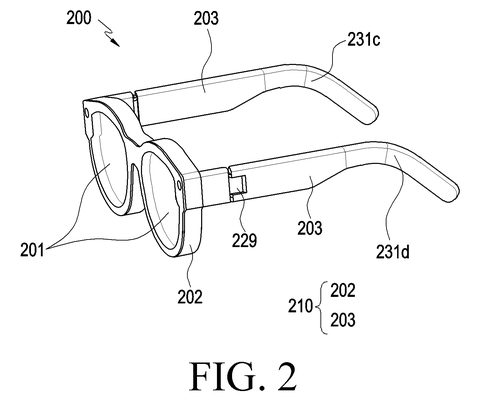

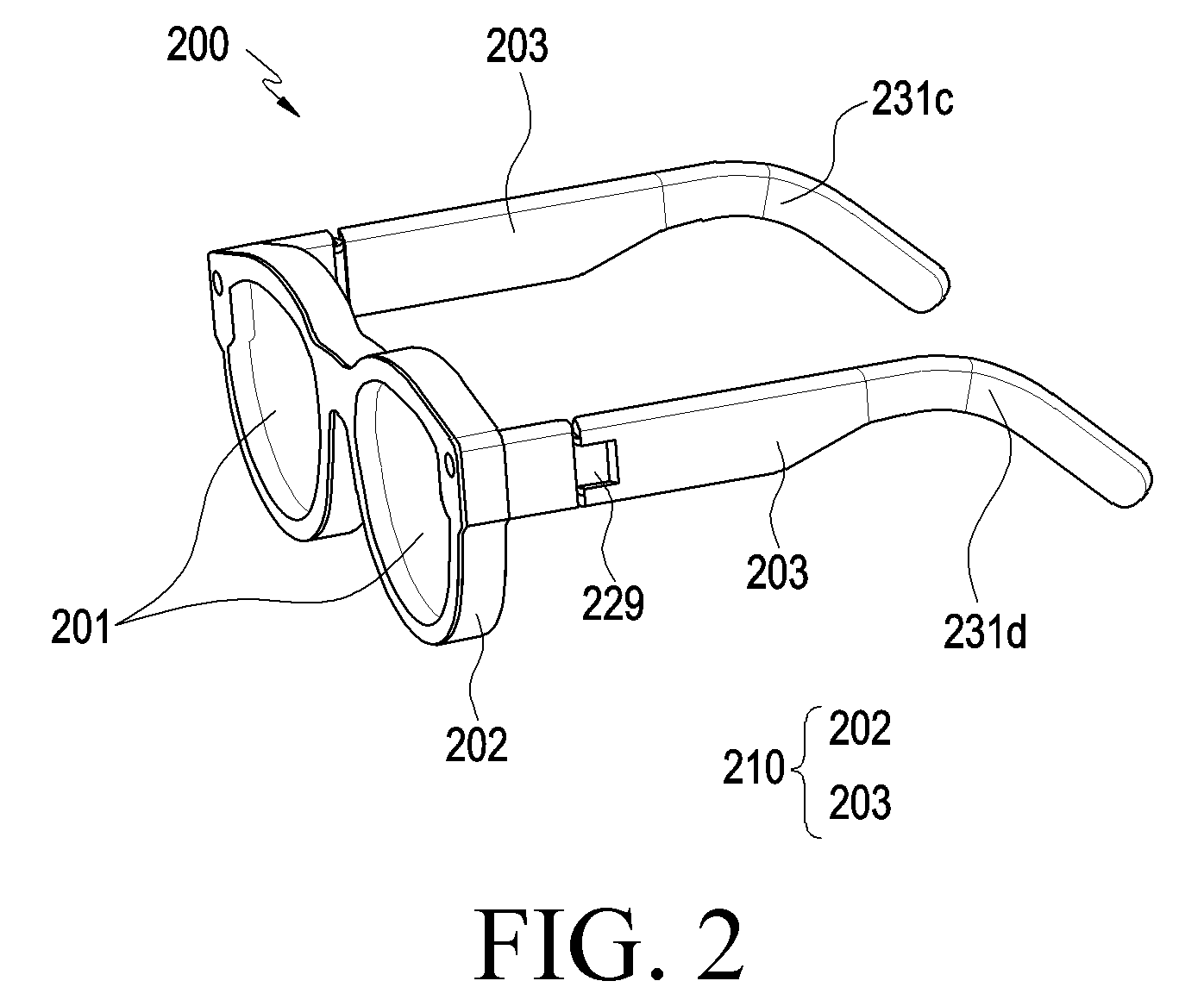

The patent describes a wearable AR device, essentially smart glasses, that displays a camera feed of the real world on its screen alongside virtual objects (floating UI panels, menus, documents, or other overlaid content).

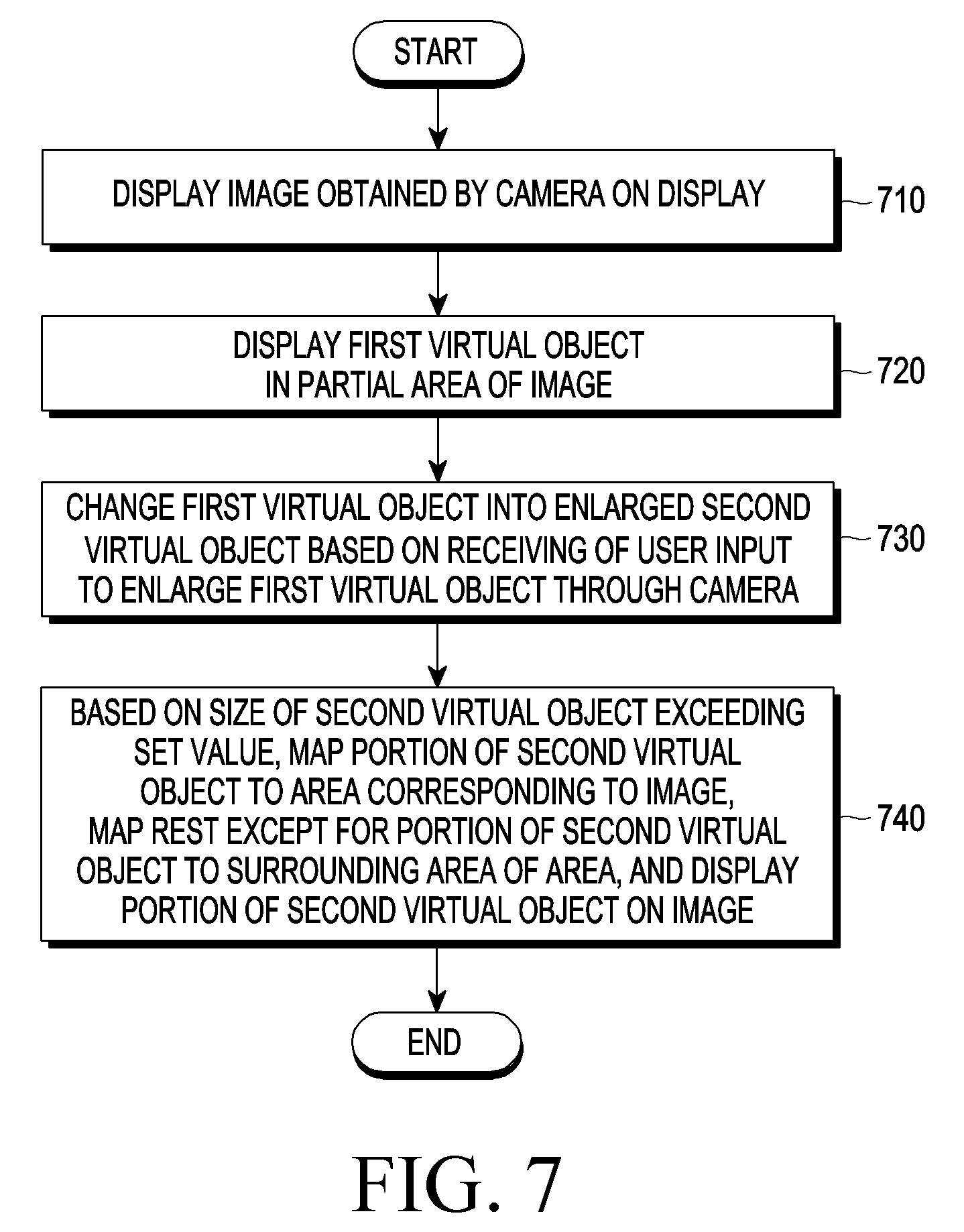

When a user triggers a zoom or enlarge action on one of those virtual objects, the device generates an expanded version. It then does two things:
- Maps the visible portion of the enlarged object onto the display area that corresponds to the real camera image.
- Maps the overflow portion (the parts that don't fit) to coordinates in the surrounding physical space beyond the current display frame.
The key mechanism is a rearrangement step: the system takes the many individual visual elements that make up the virtual object and spreads them apart so they can be distributed across both the visible display area and the surrounding mapped space. Think of it like tiles on a floor, where some tiles fit under the rug you can see and the rest extend under furniture you'd have to move to find.
The surrounding space is tracked using the device's camera, which gives the processor a model of the real environment. This lets the system anchor overflow content to consistent positions in the room, not just to an arbitrary off-screen buffer.
… map a remaining portion of the second virtual object that does not include the first portion to a surrounding area of the area corresponding to the displayed image …
Translation: It places the overflow parts of the window outside your direct field of view.
What this means for AR glasses users working with big content
For anyone using AR glasses for real work, like reading a long document, reviewing a layout, or looking at a detailed map, the fixed size of a display has always been a hard ceiling. This patent describes a way to treat that ceiling as a soft boundary instead. If it works as described, you'd be able to zoom into content freely and physically navigate the rest of it by moving your head or body, the way you'd walk around a physical poster on a wall.
The catch is that this relies heavily on the glasses accurately tracking surrounding space in real time. Samsung's filing activity in AR display management suggests the company is investing seriously in making that tracking reliable enough to anchor content consistently, rather than having overflow panels drift or snap unexpectedly. Whether users would find head-turning navigation natural or awkward is a question this patent doesn't answer.
That makes this Samsung's 43rd filing we've tracked in our AR glasses race watchlist since May, adding to earlier applications on eye light verification and keeping both eyes in sync.

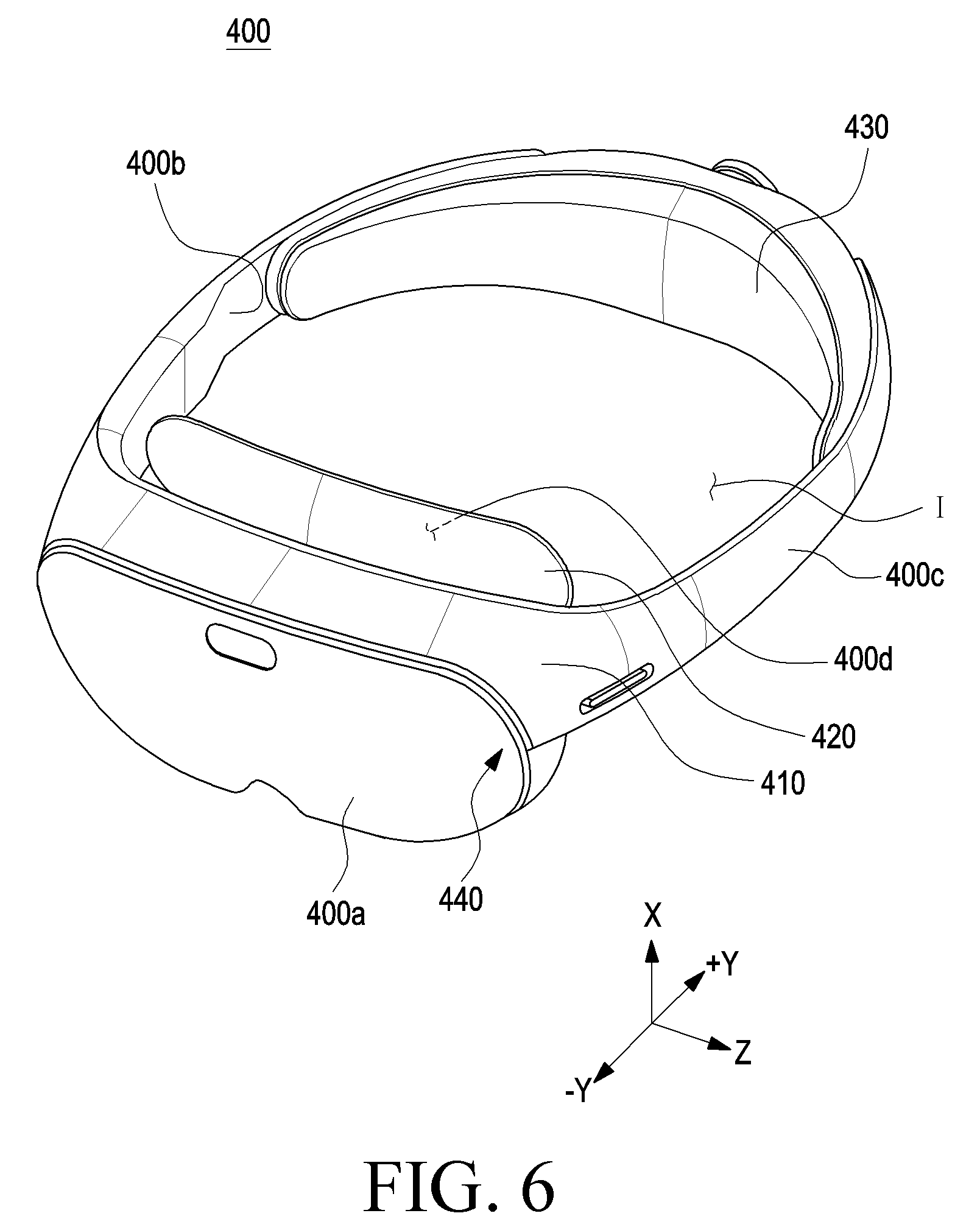

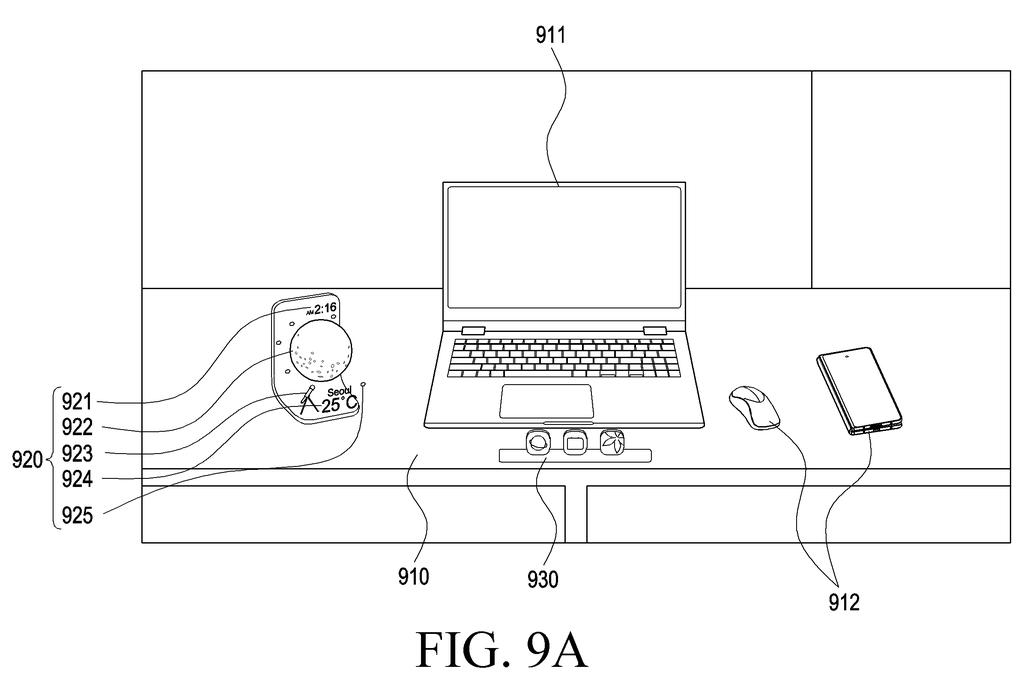

Zooming into a large virtual document or image in a headset today usually means the edges get cut off, and you lose content with no good way to see it. Samsung's approach lets the overflow spill onto the walls, floor, or surfaces around you, so the full picture stays visible even when it's bigger than your field of view.
You'd notice this working the first time you zoom into something large and nothing disappears. You'd notice it failing if the overflow content drifts to the wrong surface or jumps around, which is entirely a question of how well the headset tracks the room.
A focused fix for a specific frustration, and it matters because losing content while zooming breaks the basic trust that AR tools need to earn.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

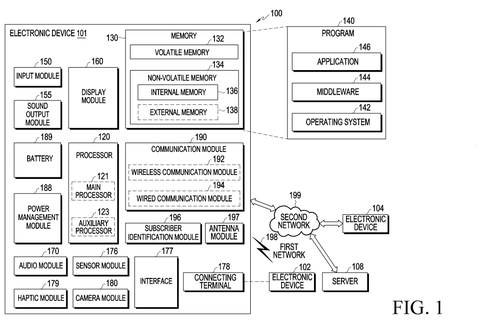

17 drawing sheets from US 2026/0268616 A1 · click any drawing to enlarge
