Samsung · Display · Filed Nov 17, 2025 · USPTO published Aug 13, 2026 · Aug 13 release

Samsung Patents a Dual-Screen Device Where the Gap Between Two Displays Is the Feature

Samsung is exploring a device that sandwiches two screens together, then mechanically slides them apart or closer to change how the combined image looks. The gap itself is the control knob.

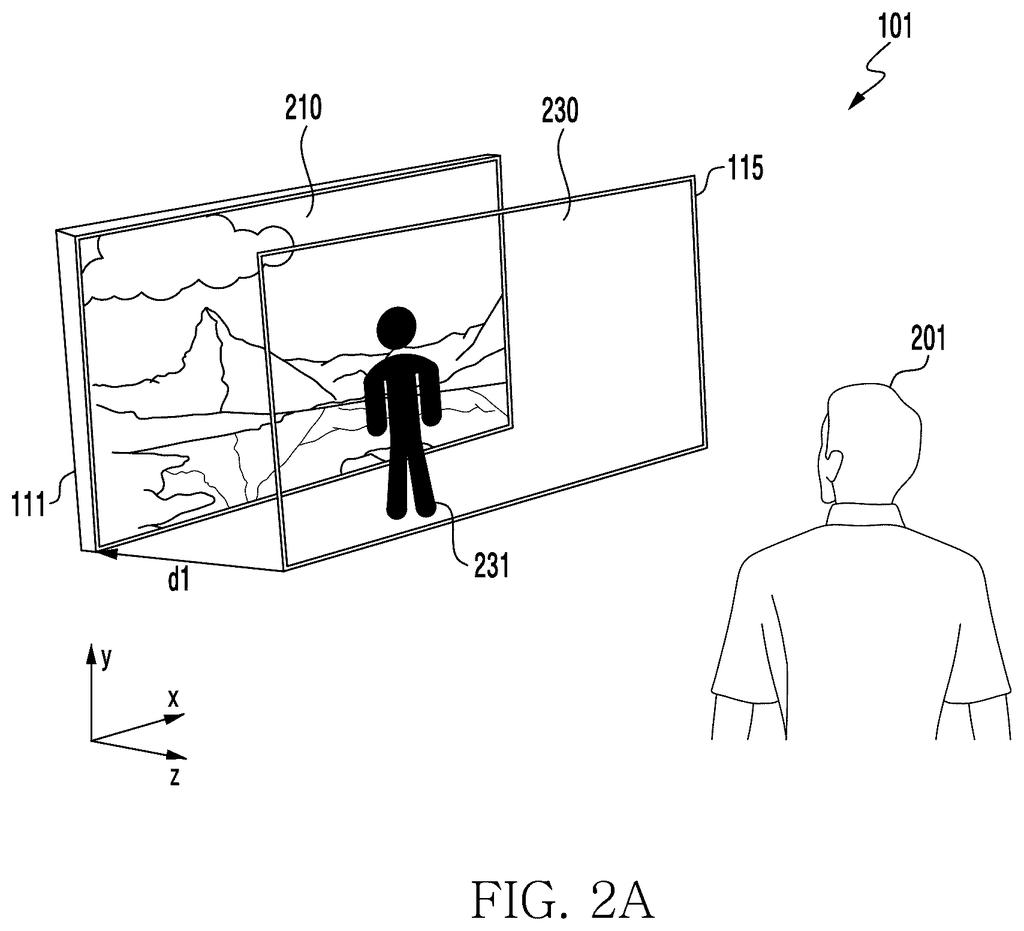

A viewer observing a dual-screen device where two transparent displays are spaced apart at an adjustable distance. Drawing from patent filing US 2026/0236210 A1.
A viewer observing a dual-screen device where two transparent displays are spaced apart at an adjustable distance.All 13 drawings ↓
Publication number
US 2026/0236210 A1(US20260236210A1)
Applicant
SAMSUNG ELECTRONICS CO., LTD.
Filed · Published
Nov 17, 2025 · Aug 13, 2026
Inventors
Sunggyu LEE
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/1.3
Examiner
BUKOWSKI, KENNETH (Art Unit 2621)
Parent application
Continuation of PCT/KR2025/017306 (filed Oct 28, 2025)(PCTKR2025017306)

What Samsung's stacked, adjustable two-screen setup actually does

Every time you look at your phone's screen, everything on it sits on a single flat layer of light. Samsung's new patent proposes something different: a device with two separate screens stacked on top of each other, where the space between them can physically grow or shrink.

The front screen is see-through, so it passes light from the rear screen all the way through to your eyes. Each display can show its own image. When the device detects a specific event, like a particular app opening or a user gesture, it uses a small mechanical unit to shift the two screens closer together or further apart. That change in distance alters how the two images visually blend or separate, creating a sense of depth that a single flat screen can't produce on its own.

Think of it like a pair of transparent film slides stacked in a projector. Slide them close, and both images blur together into one. Slide them apart, and you can see each layer clearly on its own. Samsung is betting that controlling that gap on-the-fly could make certain content, things like maps, photos, or games, look dramatically more three-dimensional.

From the filing · CLAIM 1
… a distance adjusting unit configured to change a distance between the first display and the second display …

Translation: The device includes a mechanical part that physically moves the two screens closer together or further apart.

How the two displays stack, slide, and share light

The patent describes an electronic device built around two distinct displays. The first display is a conventional screen that emits light outward. The second display sits directly in front of it and is optically transparent (meaning it passes light through from behind rather than blocking it), so both screens contribute to what the user sees at the same time.

A distance adjusting unit (a mechanical actuator built into the device body) controls the physical gap between the two panels. The device's processor monitors for a defined trigger event, which could be a software cue like launching an app, a sensor reading, or a user action. When that event fires, the processor instructs the actuator to move one display relative to the other.

The optical effect this creates comes from a well-known principle: two images at different focal planes look layered to the human eye. By adjusting the gap dynamically, the device can change how deep or flat the combined image appears without relying purely on software tricks.

Key components the patent covers:

  • First display: standard light-emitting panel at the rear
  • Second display: light-transmissive panel at the front that also carries its own image
  • Distance adjusting unit: mechanical system that shifts the gap on command
  • Event detection logic: software running on the processor that decides when to trigger a gap change
From the filing · THE ABSTRACT
… a second display, disposed in front of the front surface of the first display, configured to transmit light from a rear surface to a front surface …

Translation: The top screen is transparent so that light from the bottom screen can pass through it to reach the user.

What Samsung's depth-display bet means for future screens

For consumers, the practical pitch is a screen that can switch between a flat, conventional look and a physically layered, depth-rich view depending on what you're doing. That's different from software-simulated 3D, which is limited by the optics of a single panel and tends to look artificial in motion.

The path from patent to product here is long, though, because this design requires a new hardware chassis. Fitting a movable second display, plus the actuator mechanism to slide it, into a device thin enough to sell is a serious engineering constraint. Samsung already has experience with folding screens, which shows the company knows how to build hinge and movement systems into consumer electronics, but a sliding dual-panel stack is a distinct mechanical challenge. The display-hardware space is one of the more active areas in new Big Tech patents right now, as manufacturers look for ways to add physical depth to screens without requiring headsets.

Source: US 2026/0236210 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 13 sheets

13 drawing sheets from US 2026/0236210 A1 · click any drawing to enlarge

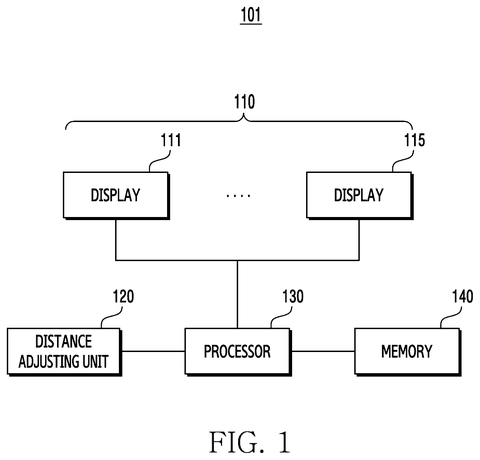

System architecture of dual-screen device, drawing sheet 1 from US 2026/0236210 A1
Sheet 1 System architecture of dual-screen device

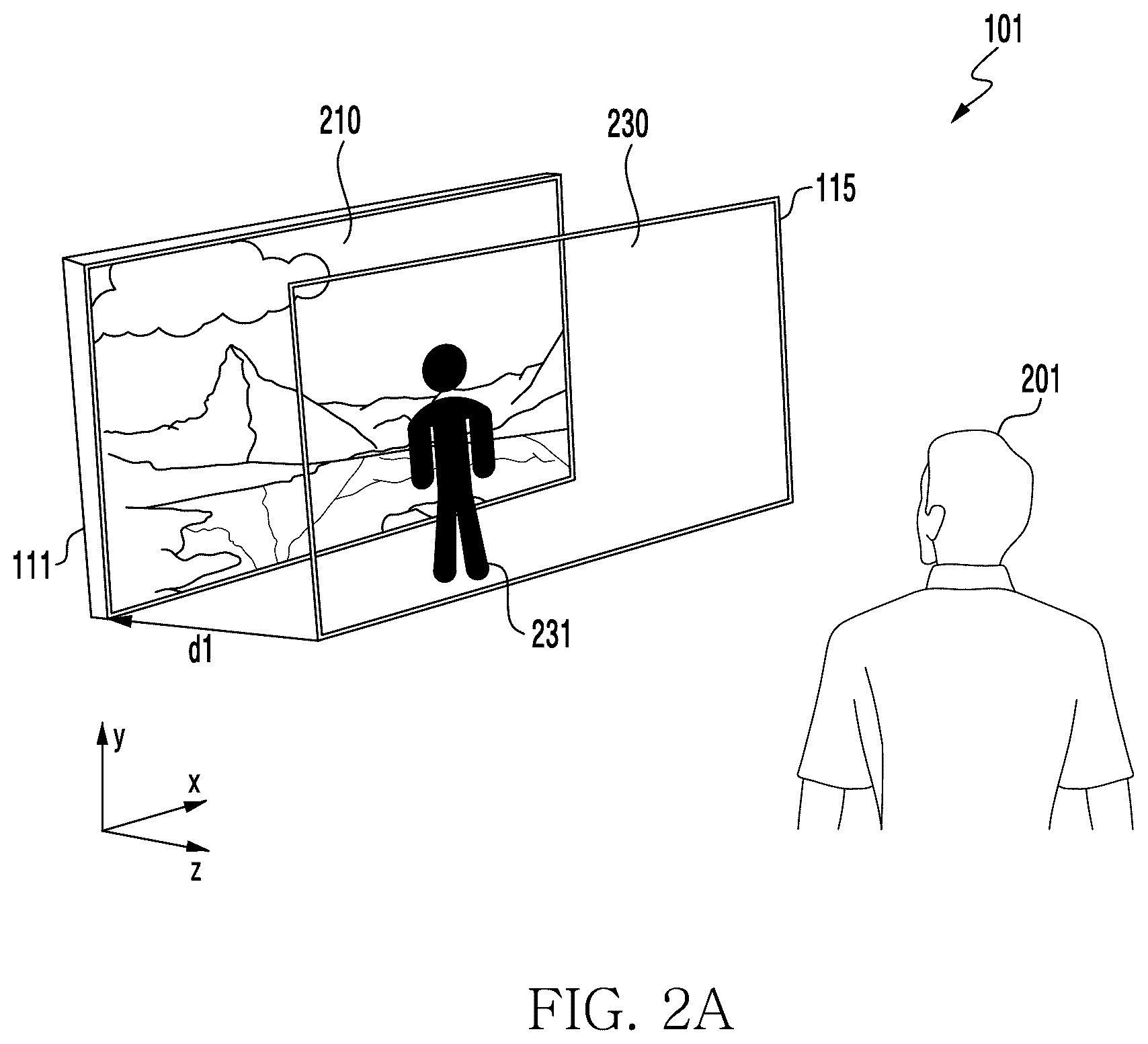

User viewing dual-screen setup at first distance, drawing sheet 2 from US 2026/0236210 A1
Sheet 2 User viewing dual-screen setup at first distance

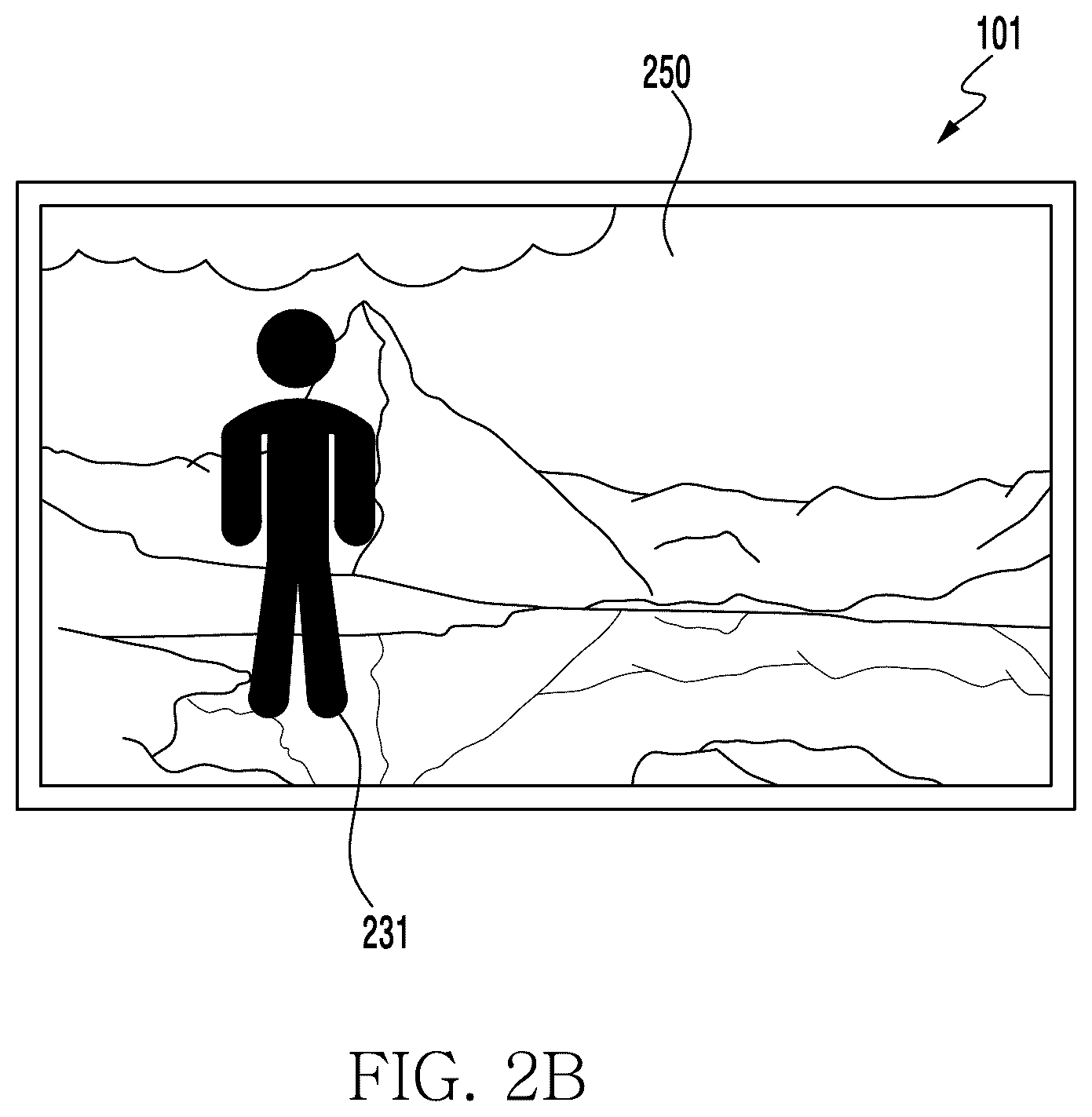

Combined visual output from dual displays, drawing sheet 3 from US 2026/0236210 A1
Sheet 3 Combined visual output from dual displays

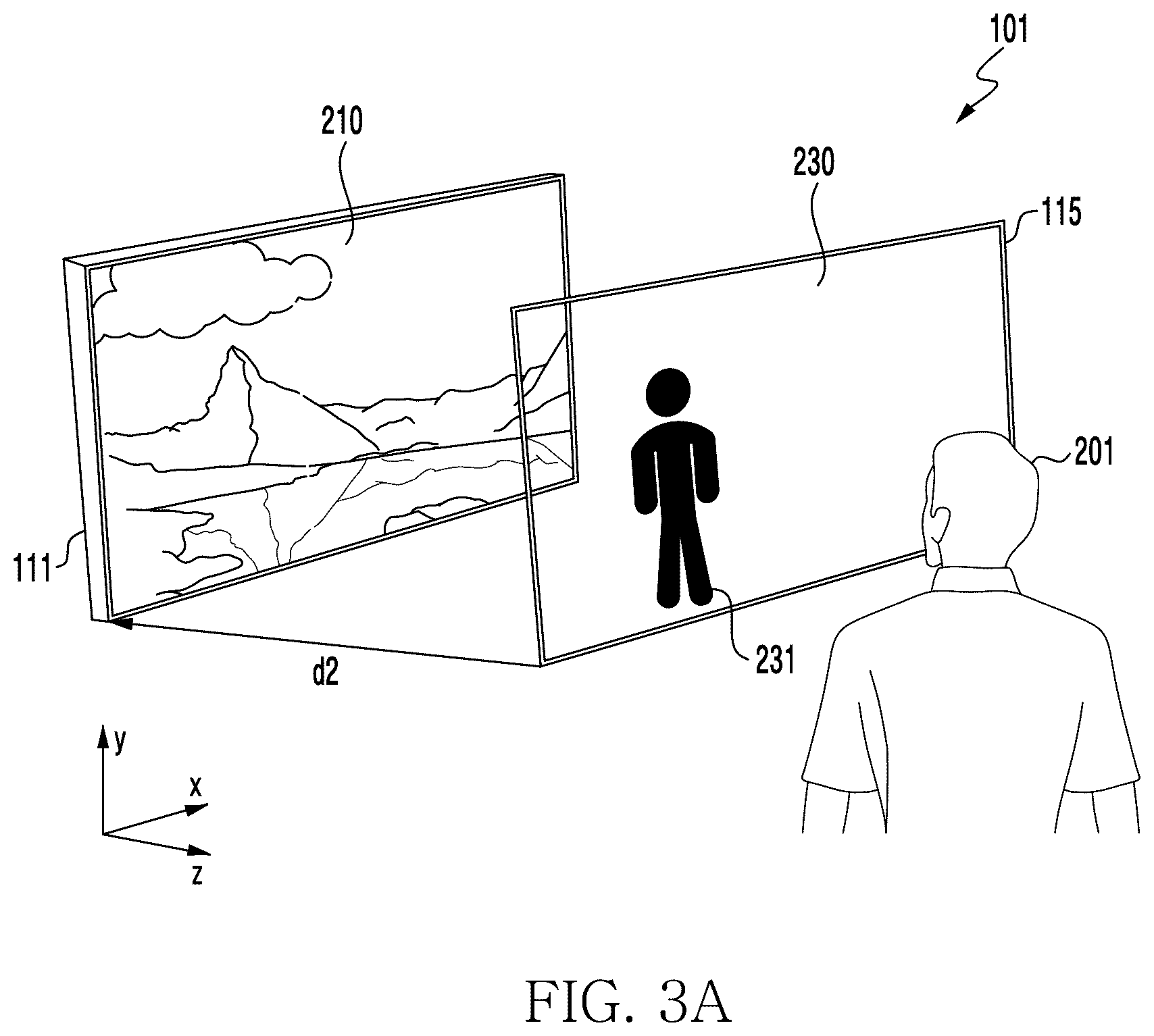

User viewing dual-screen setup at second distance, drawing sheet 4 from US 2026/0236210 A1
Sheet 4 User viewing dual-screen setup at second distance

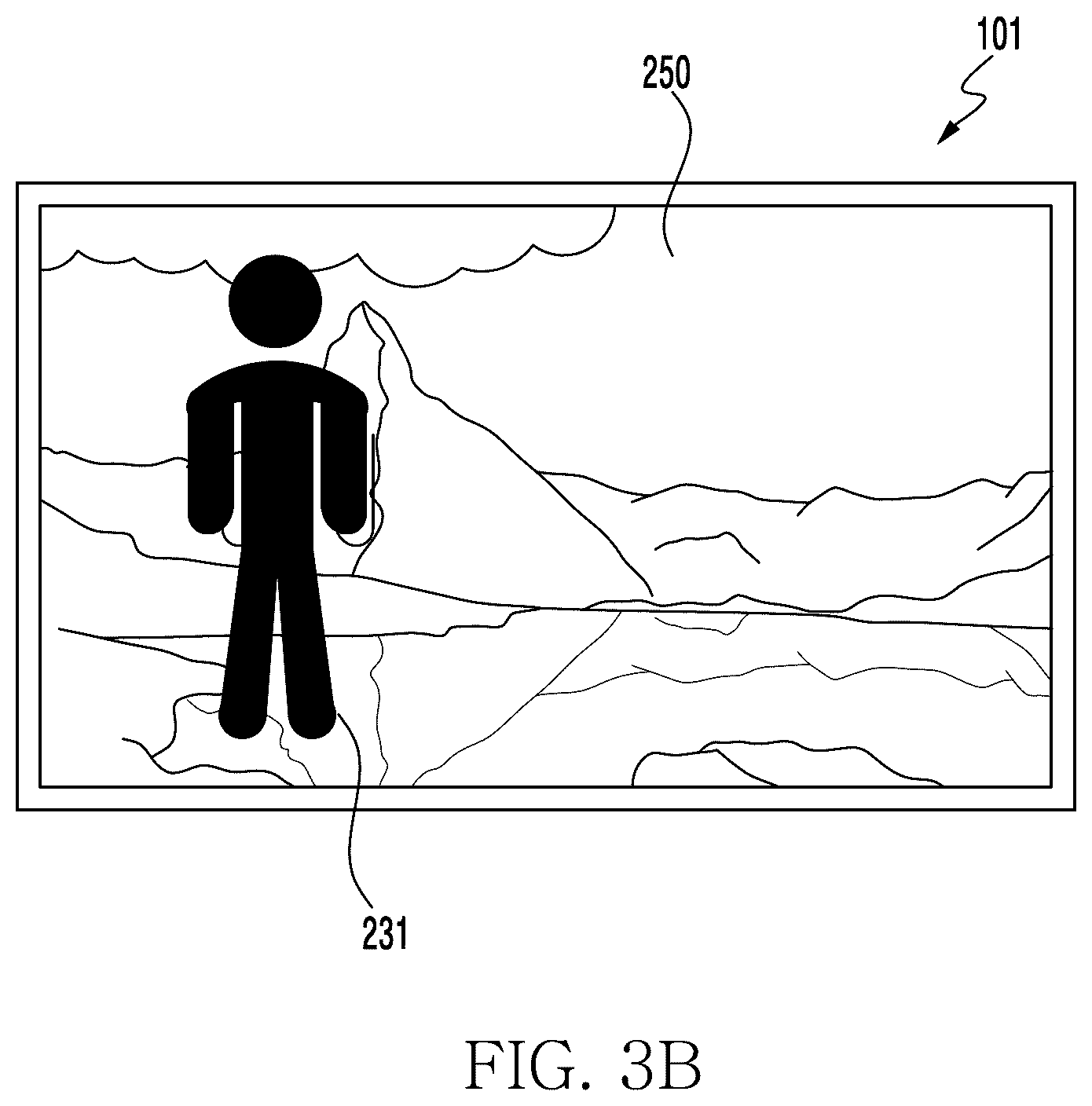

Combined visual output at wider spacing, drawing sheet 5 from US 2026/0236210 A1
Sheet 5 Combined visual output at wider spacing
Graphical user interface with floating elements, drawing sheet 6 from US 2026/0236210 A1
Sheet 6 Graphical user interface with floating elements

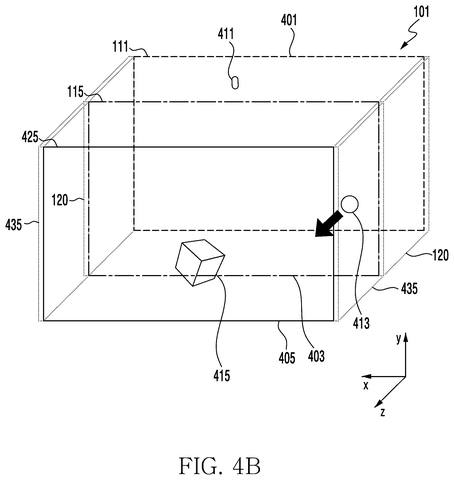

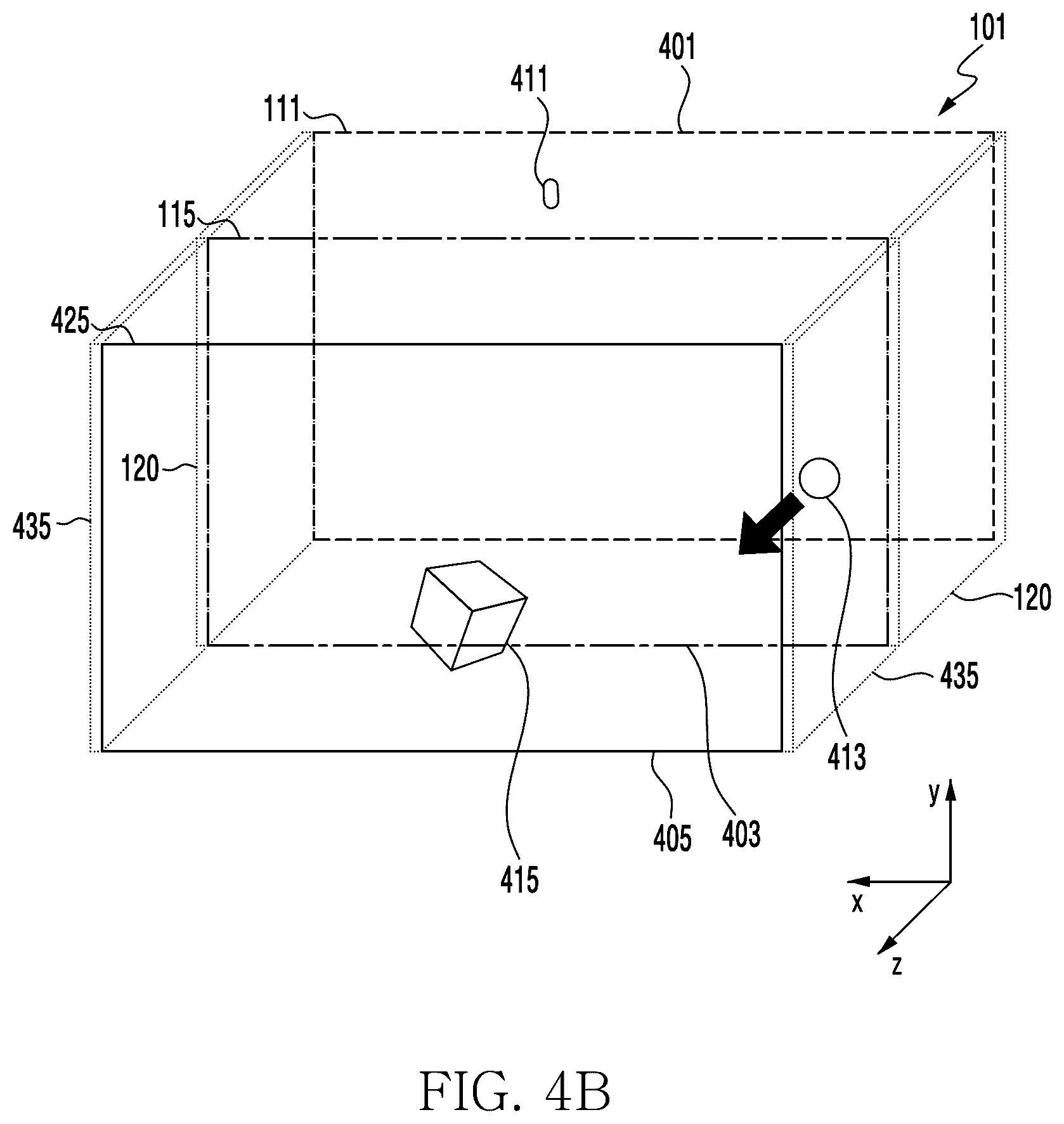

Transparent displays with adjustable spacing mechanism, drawing sheet 7 from US 2026/0236210 A1
Sheet 7 Transparent displays with adjustable spacing mechanism

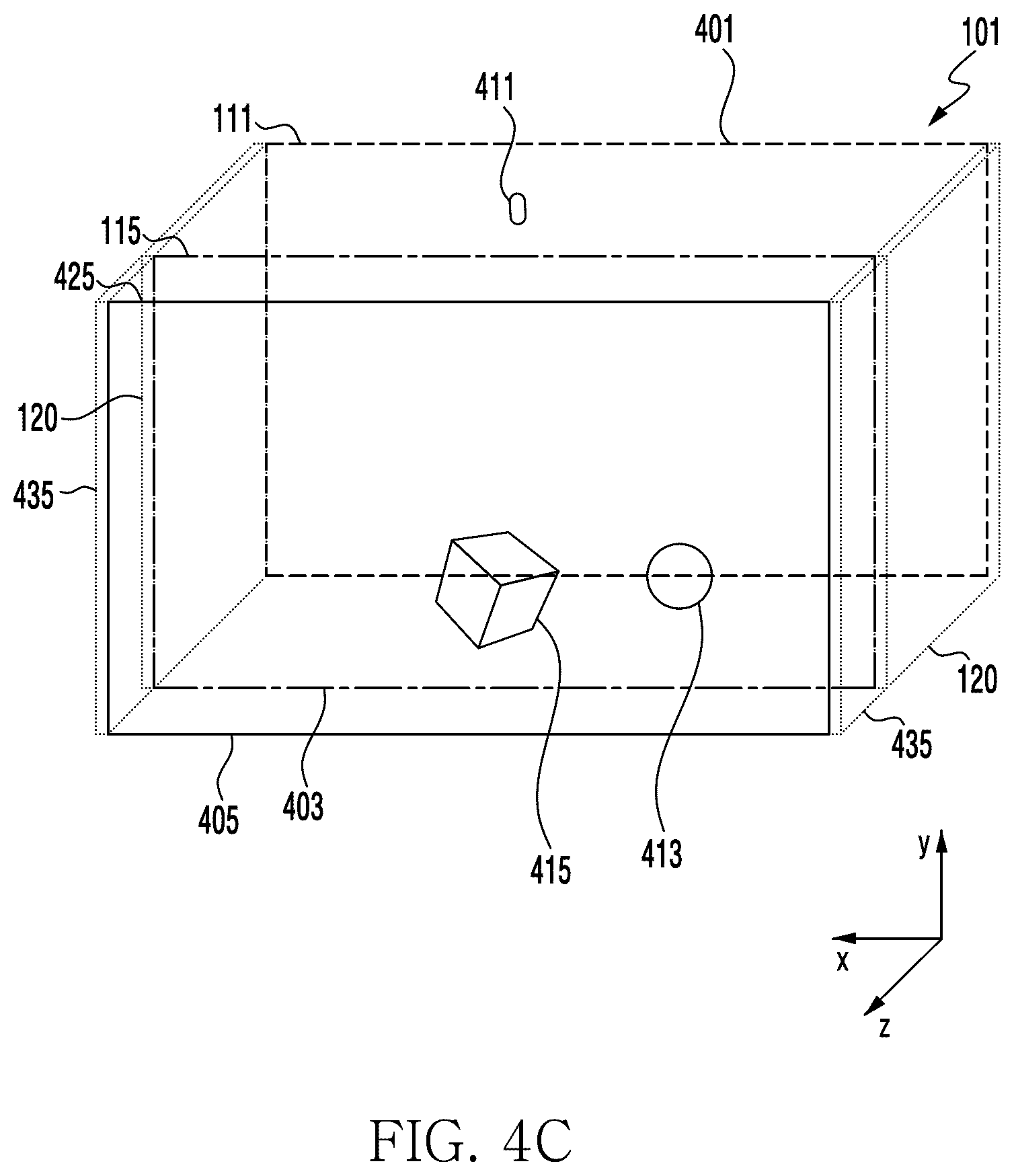

Displays adjusted to wider spatial separation, drawing sheet 8 from US 2026/0236210 A1
Sheet 8 Displays adjusted to wider spatial separation
Show the other 5 sheets
Samsung Patents a Dual-Screen Device Where the Gap Between Two Displays Is the Feature patent drawing, sheet 9
Sheet 9
Samsung Patents a Dual-Screen Device Where the Gap Between Two Displays Is the Feature patent drawing, sheet 10
Sheet 10
Samsung Patents a Dual-Screen Device Where the Gap Between Two Displays Is the Feature patent drawing, sheet 11
Sheet 11
Samsung Patents a Dual-Screen Device Where the Gap Between Two Displays Is the Feature patent drawing, sheet 12
Sheet 12
Samsung Patents a Dual-Screen Device Where the Gap Between Two Displays Is the Feature patent drawing, sheet 13
Sheet 13
