Samsung Patents a Foldable Display Design That Shrinks the Border and Seals the Edges
Samsung is filing patents on foldable screens that do two things at once: push the visible border nearly to zero and use a strip of resin along the edges to keep dust and debris out.
What Samsung's foldable bezel-reduction design actually does
Every time you unfold a foldable phone, the hinge and the border around the screen are the two things your eye goes straight to. That border, called a bezel, is partly there to hold everything together, but it also eats into your usable screen space.
This patent describes a design where a protective layer on top of the display stretches out far enough to overlap the phone's housing, which lets Samsung shrink that visible border. A strip of resin, think of it as a very thin, hardened sealant, runs along the side edges. It sits between the protective top layer and the lower frame, locking out dust and absorbing small knocks.
The result is a foldable screen that aims to look cleaner, stay cleaner inside, and take a bump a little better than current designs do.
… a resin attached to at least a first side surface of the display panel and a first side surface of the lower member corresponding to the first side surface of the display panel and provided inside the protective member on a plane.
Translation: A special glue seals the edges of the layers to keep out dirt.
How the protective layer and edge resin work together

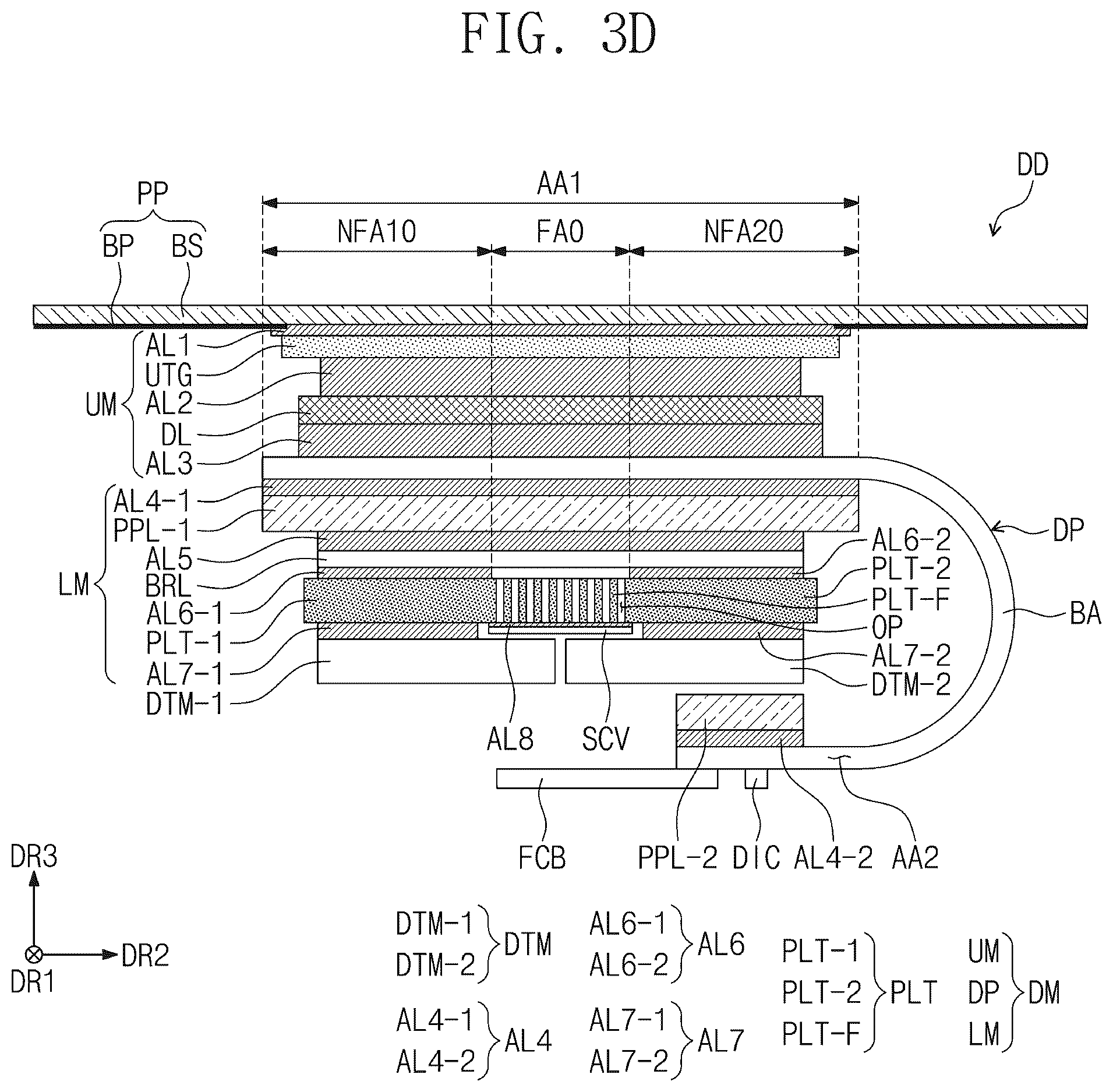

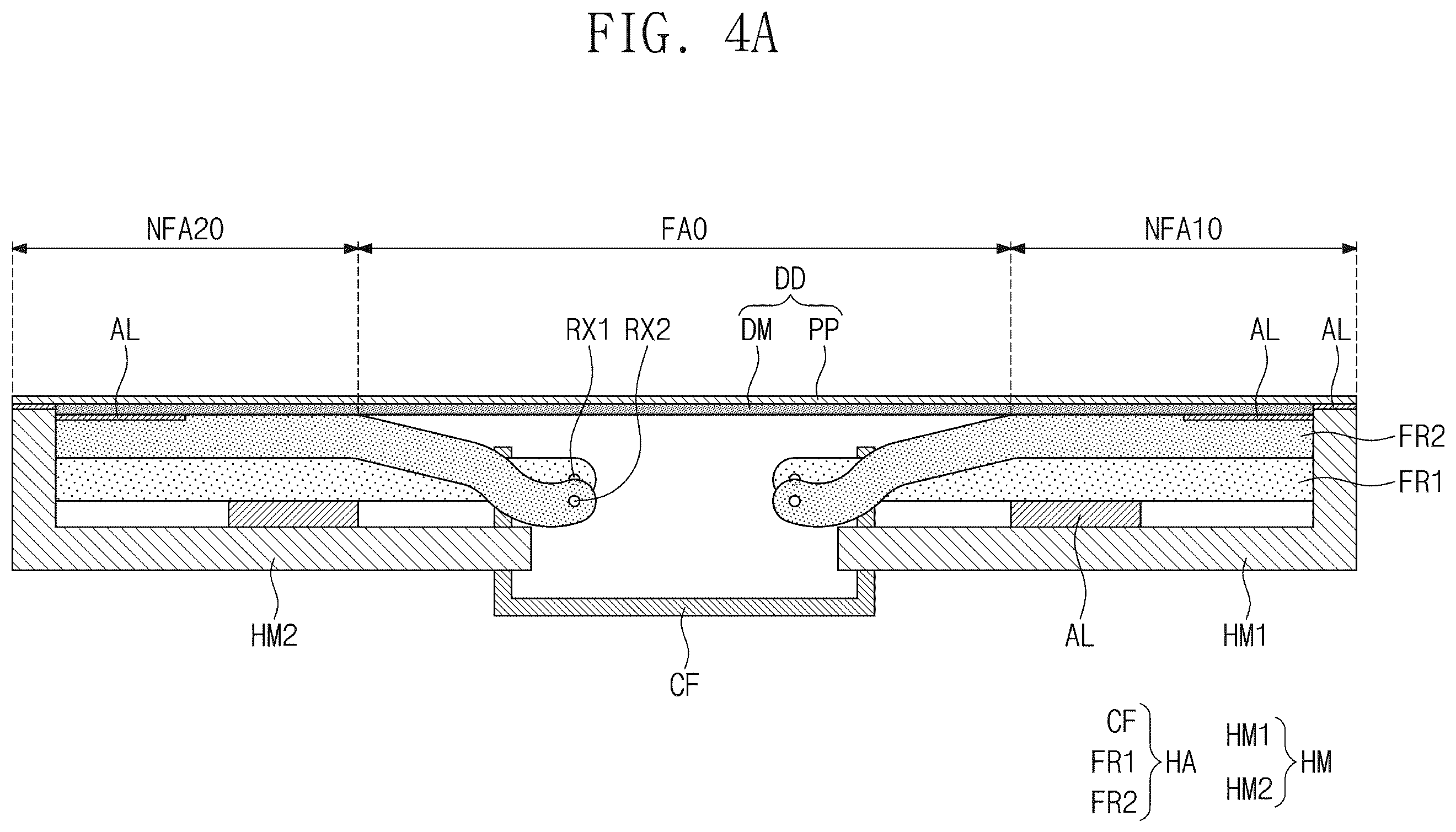

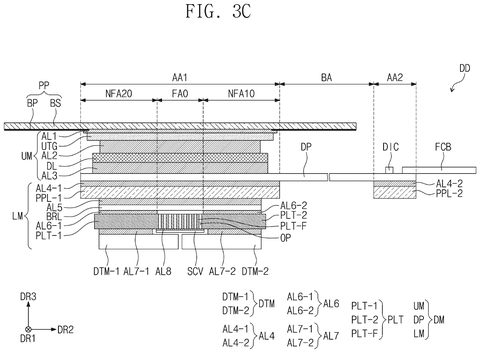

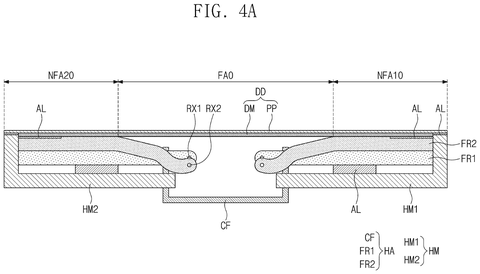

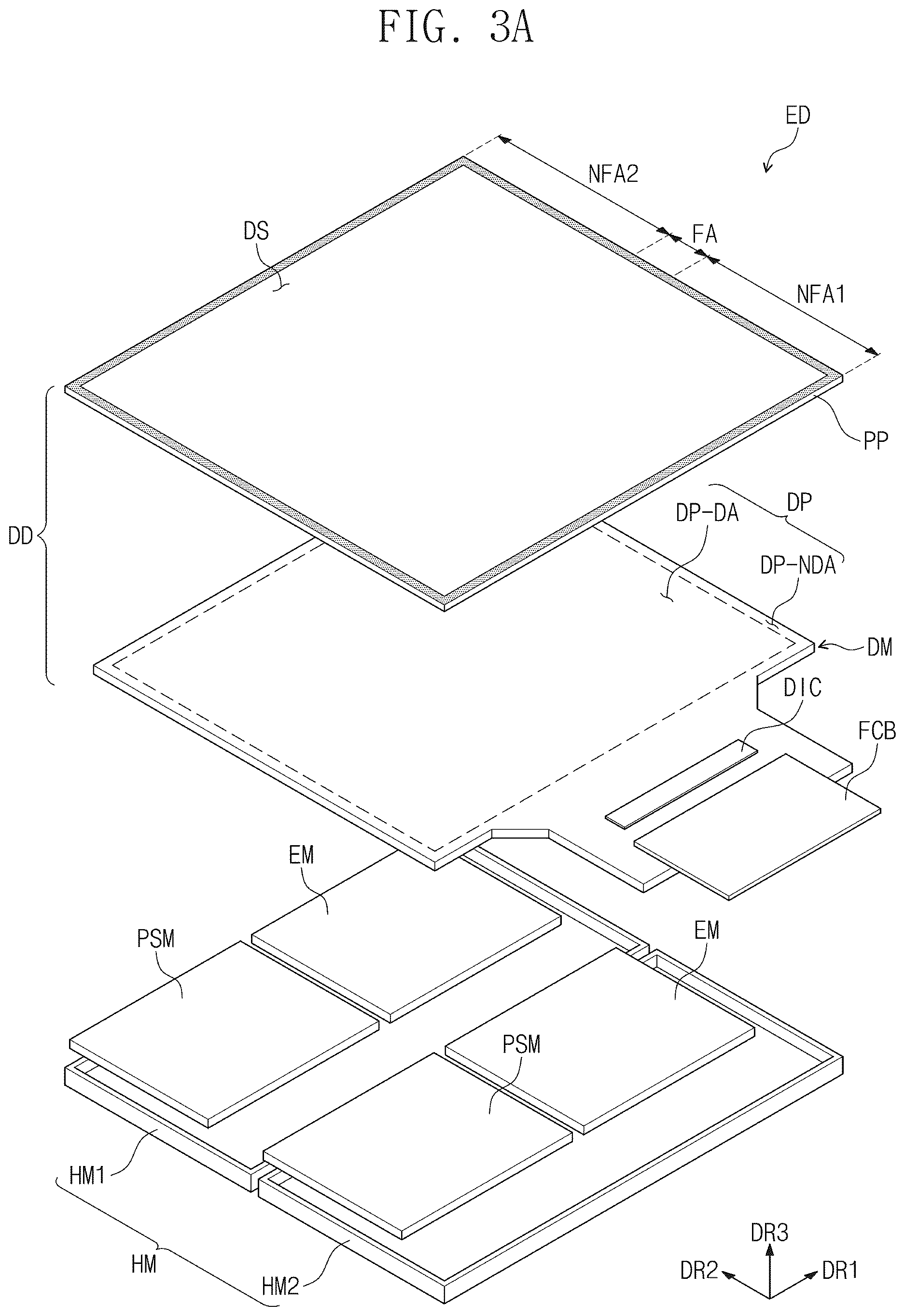

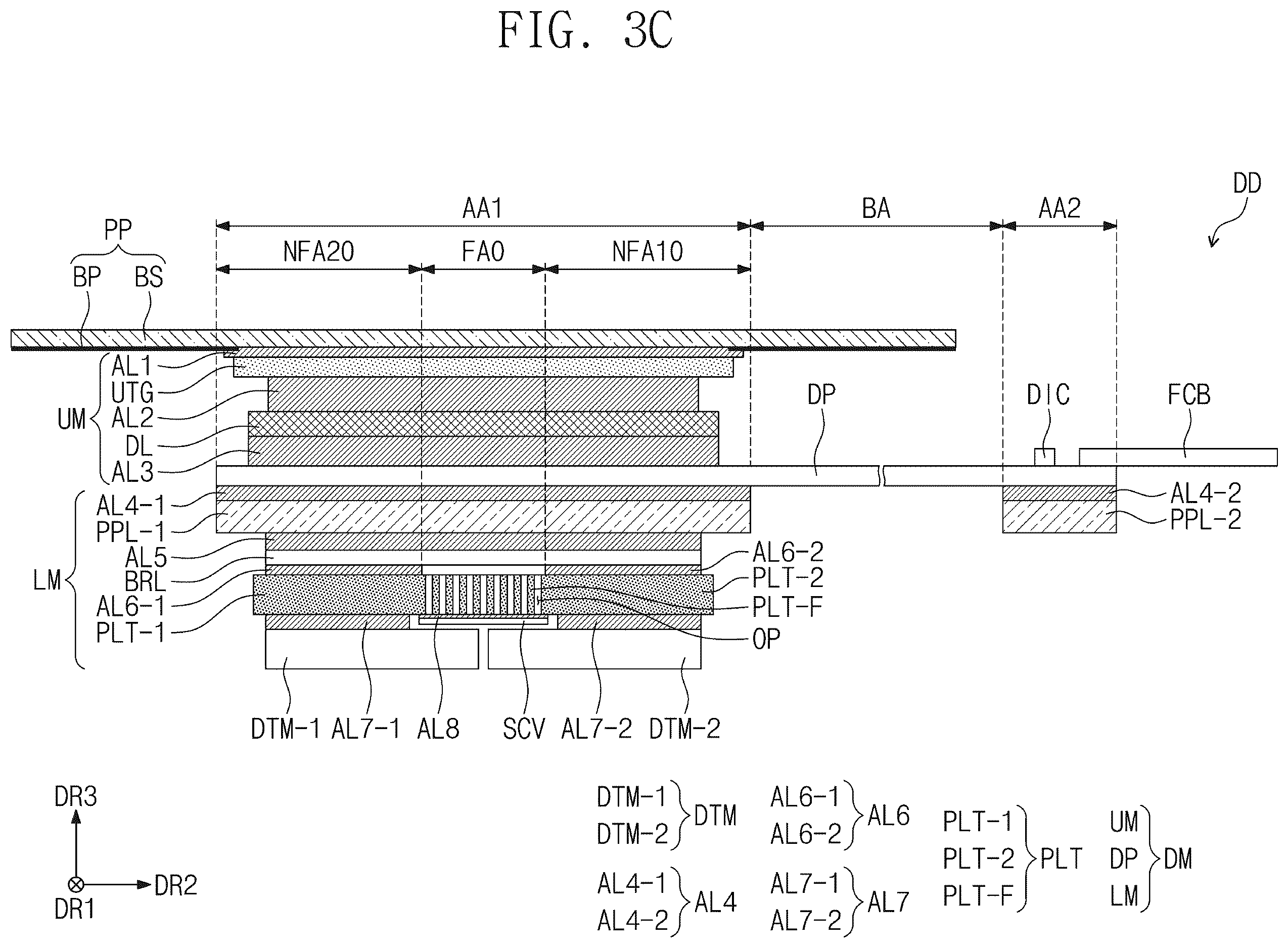

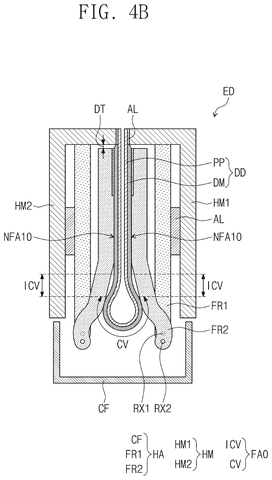

The patent describes a layered sandwich structure for a foldable display. At the top sits a protective member, a hard cover layer that extends outward past the screen panel itself, overlapping the surrounding housing when viewed from above. That overlap is the key move: it lets the visible border shrink without leaving a gap between the cover and the frame.
Below the display panel is a lower member, a structural backing that supports the flexible screen. Running along at least one side edge of the whole stack is a strip of resin, a hardened polymer material, bonded to the side surfaces of both the display panel and the lower member. The resin is contained within the footprint of the protective top layer.
This does three jobs at once:
- Blocks foreign particles (dust, moisture) from entering the gap between layers at the edge
- Adds a small cushion of impact resistance around the perimeter
- Fills the edge zone so the border can be reduced without exposing internal components

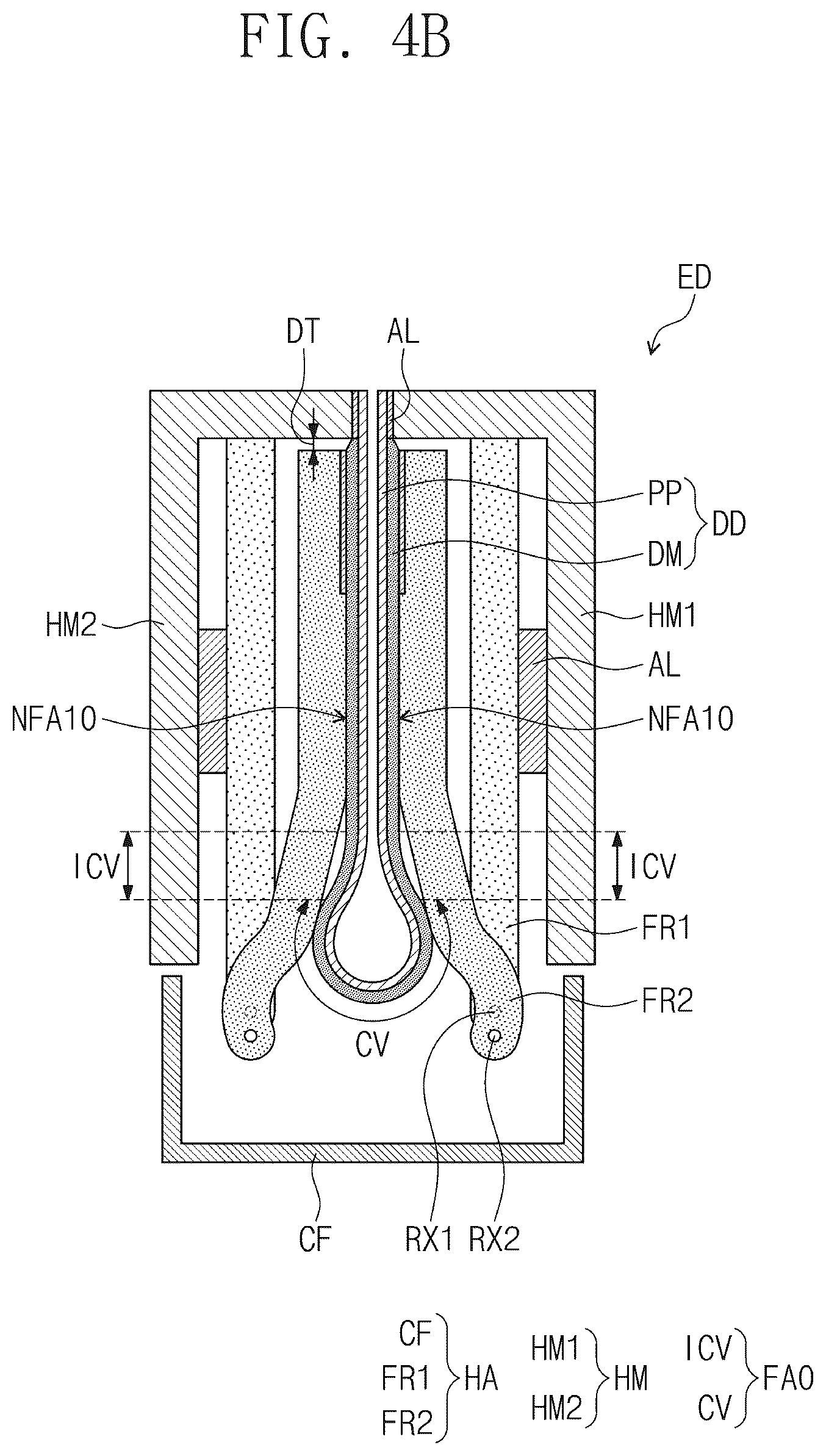

The panel itself is foldable, meaning the materials and geometry are designed to flex repeatedly without the resin seal cracking or separating.
Entrance of foreign substances into the inside of the display device may be blocked, prevented, or reduced.
Translation: This design stops dust and debris from getting trapped inside the screen.
What this means for foldable phone durability and looks
For anyone who uses a foldable phone, the edges and hinges are where things tend to go wrong first. Dust works its way in, a corner takes a knock, and the display starts to delaminate or creak. A resin seal that covers the side faces of the whole display stack addresses that specific failure point without adding meaningful bulk.
The bezel-reduction angle matters too. Screen-to-body ratio is one of the few specs that still reads as a visible upgrade to most buyers. If Samsung can extend the protective cover to overlap the housing and fill the gap with resin rather than a chunky plastic border, the phone looks more premium and wastes less surface area. Whether the resin holds up through thousands of folds over several years is the open question.
Samsung's 79th filing we've tracked on our foldable phone patents since May adds to a run of antenna work, following one on an antenna active when closed and one on the frame acting as antenna.
Extending the protective cover past the panel edge and floating it over the housing on a bed of resin shrinks the border, but resin is the weak link. It seals well and absorbs light impacts, but under the repeated stress of folding and corner drops it can crack or separate, leaving the edge exposed.
That cost is probably acceptable. Foldable phones already ask buyers to tolerate a fragile hinge; a slimmer border with better dust sealing is a real gain against a secondary failure mode most owners will never trigger.
Samsung is patching a known structural problem with a specific material choice, layer by layer, and that focused approach tends to compound into meaningful durability improvements over product generations.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

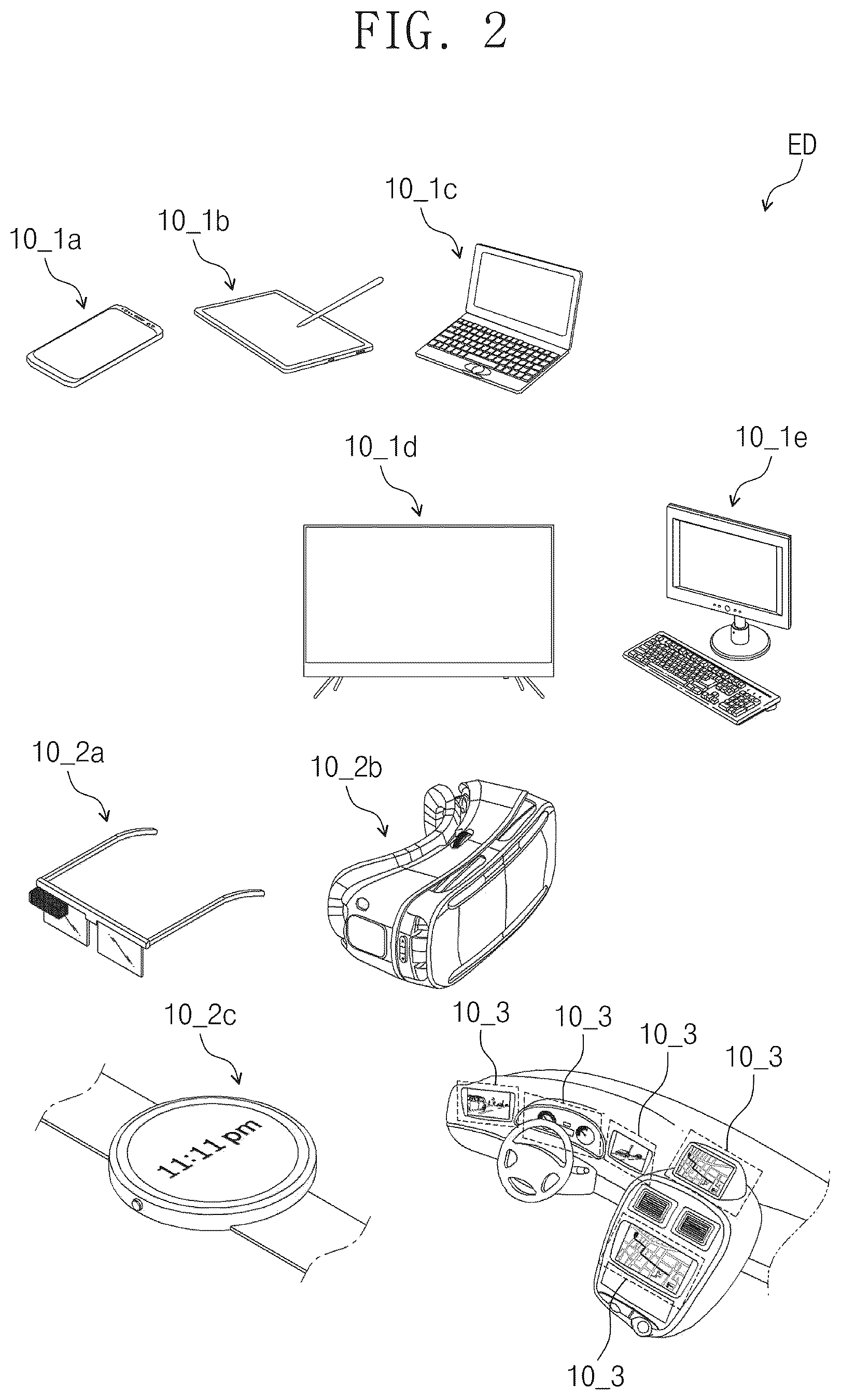

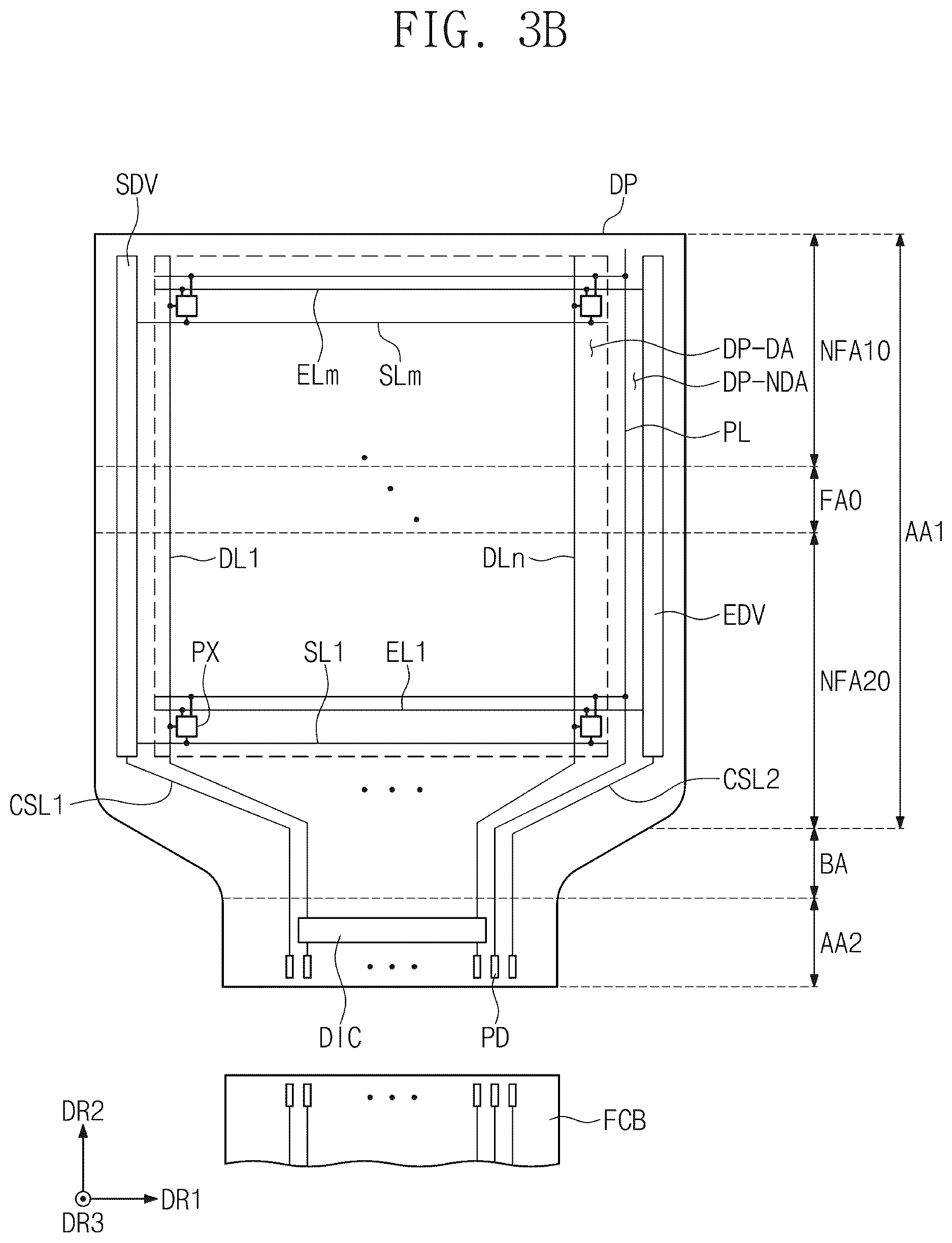

21 drawing sheets from US 2026/0304659 A1 · click any drawing to enlarge
