Samsung Patents a Four-Magnet System to Keep Its Triple-Fold Phone Panels Aligned
Folding phones already have a closure problem, and triple-fold phones have three times as many ways to get it wrong. Samsung's latest patent describes a specific magnet arrangement designed to keep all three panels of a multi-fold device snapping into place reliably.
What Samsung's triple-fold magnet setup actually does
Every time you fold your phone shut, you're trusting it to close flat and stay that way. On a normal phone that's one fold. On a phone with two separate hinges and three panels, the margin for error gets much tighter.

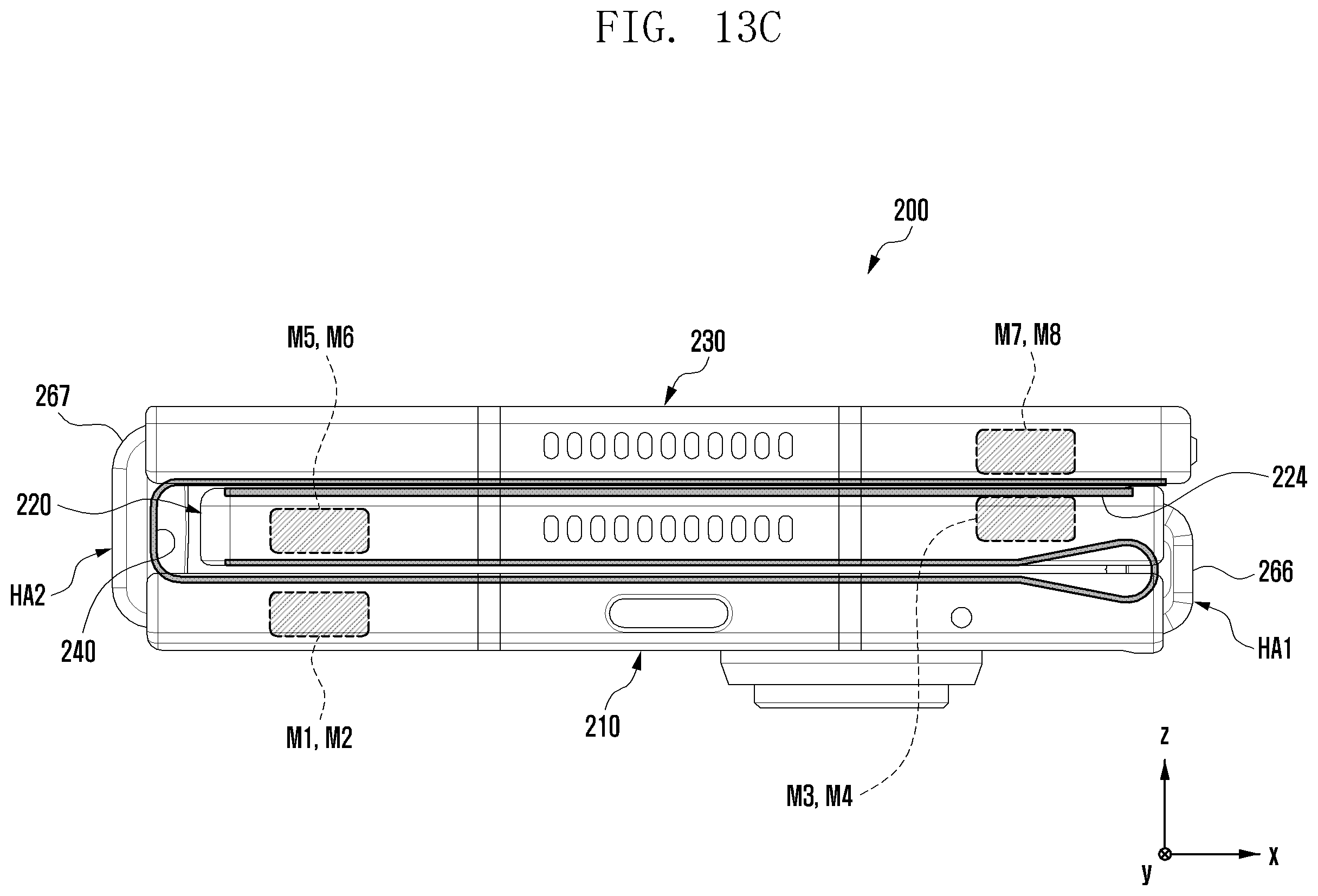

Samsung's patent describes a system with four magnets spread across all three housing sections. One magnet sits in the central panel, two more in one of the outer panels, and a fourth in the other outer panel. The arrangement is designed so the panels pull toward each other correctly when you close the device, keeping everything flush rather than gapping or misaligning.
This kind of invisible hardware detail matters more than it sounds. A magnet in the wrong position means your screen either doesn't close fully or closes with too much force in the wrong spot, which could damage the flexible display underneath. Samsung is clearly working out the geometry before it becomes a product problem.
a multi-foldable housing including a first housing, a second housing, and a third housing; a first hinge structure disposed between the first housing and the second housing and configured to rotatably connect the first housing and the second housing to each other …
Translation: The device uses three folding sections connected by two hinges that let them rotate.
How four magnets coordinate across three hinged panels

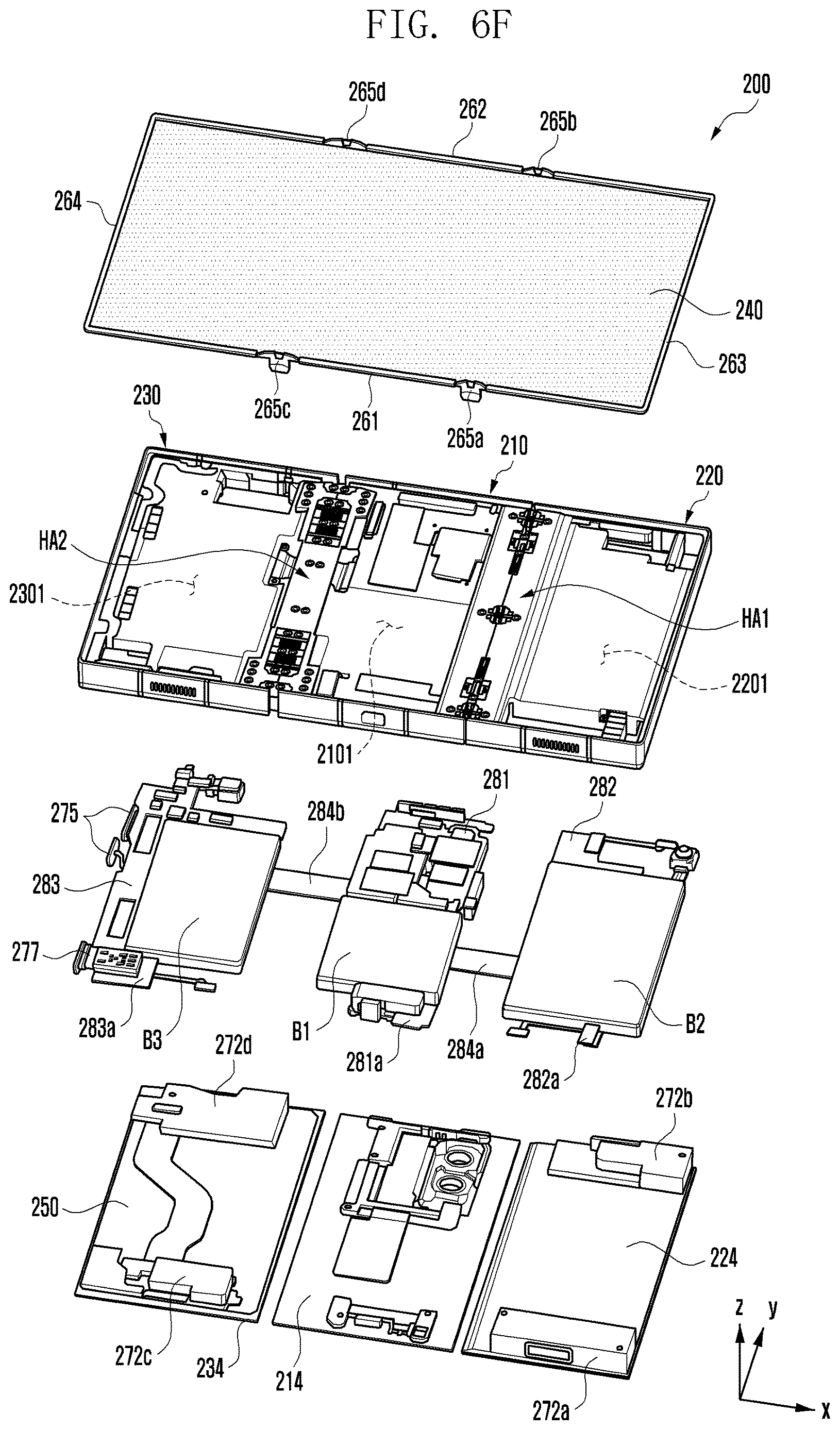

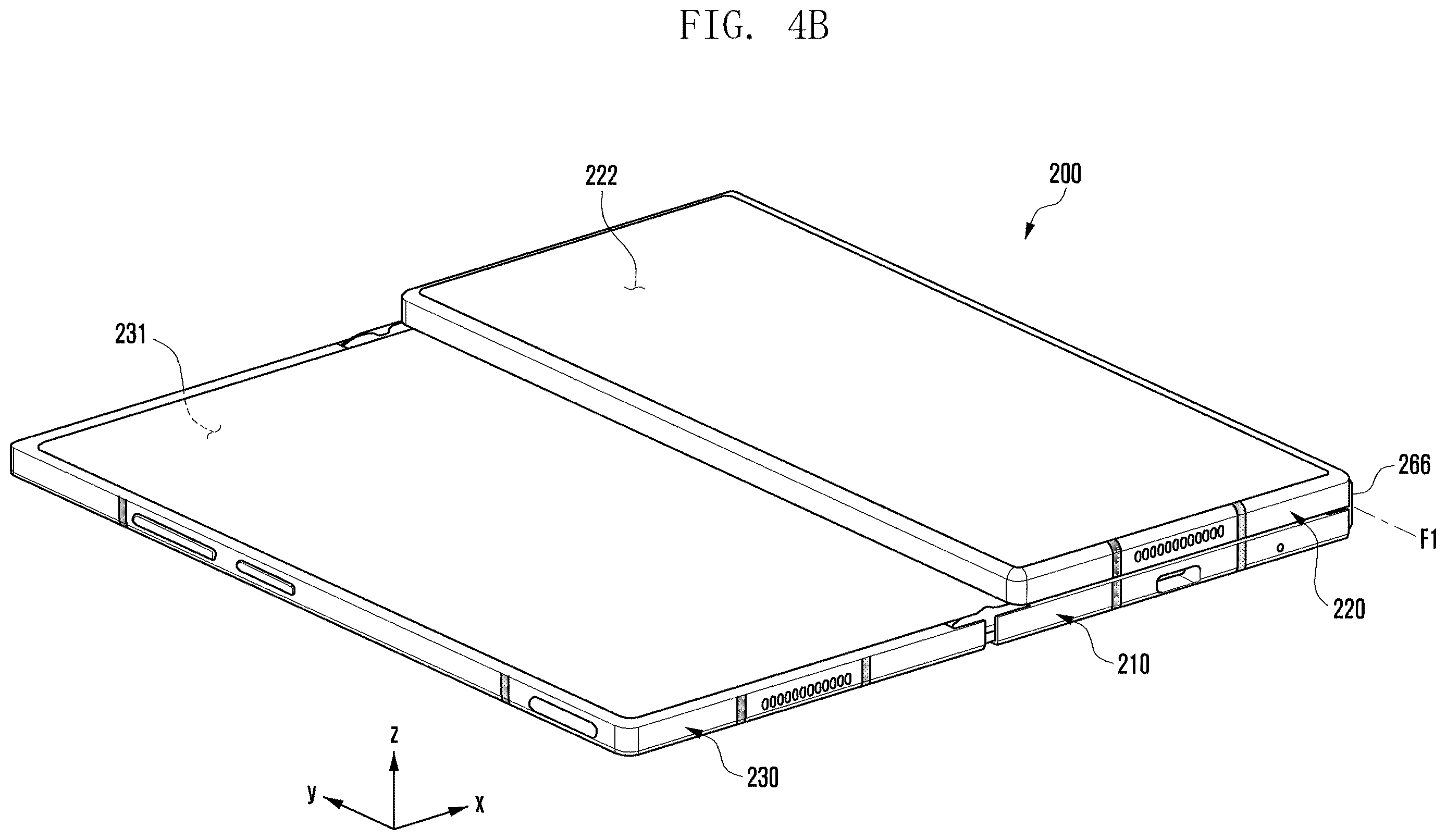

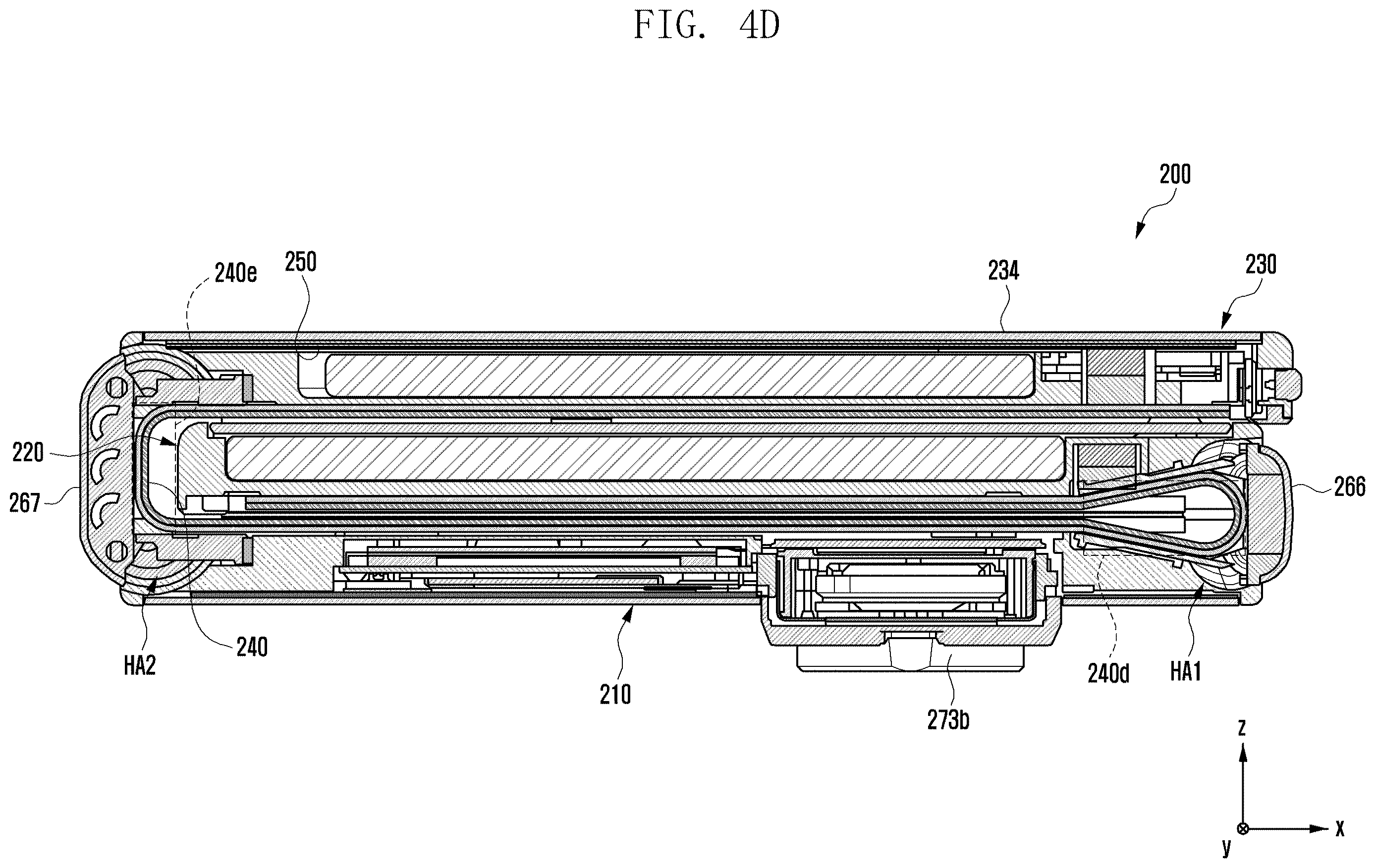

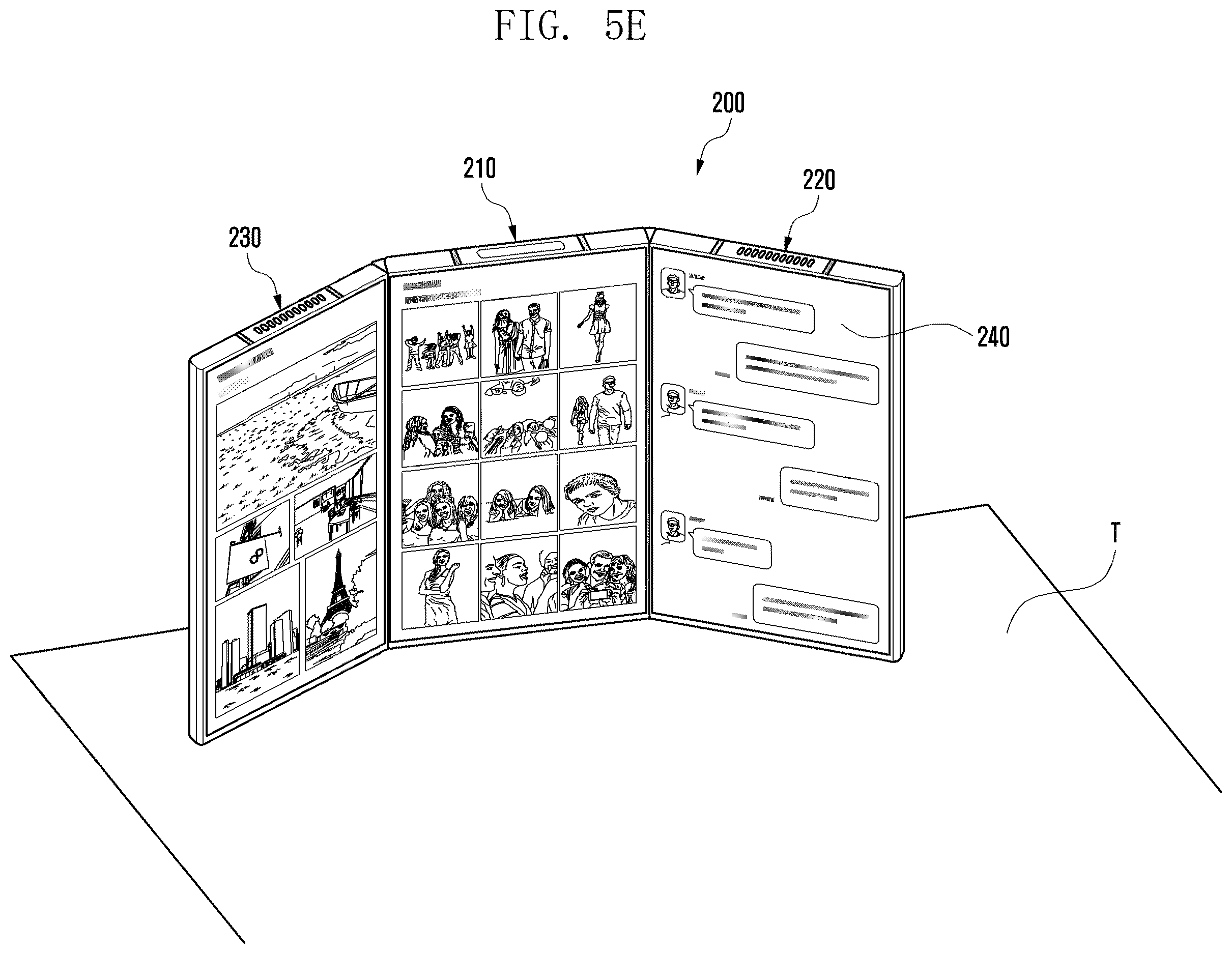

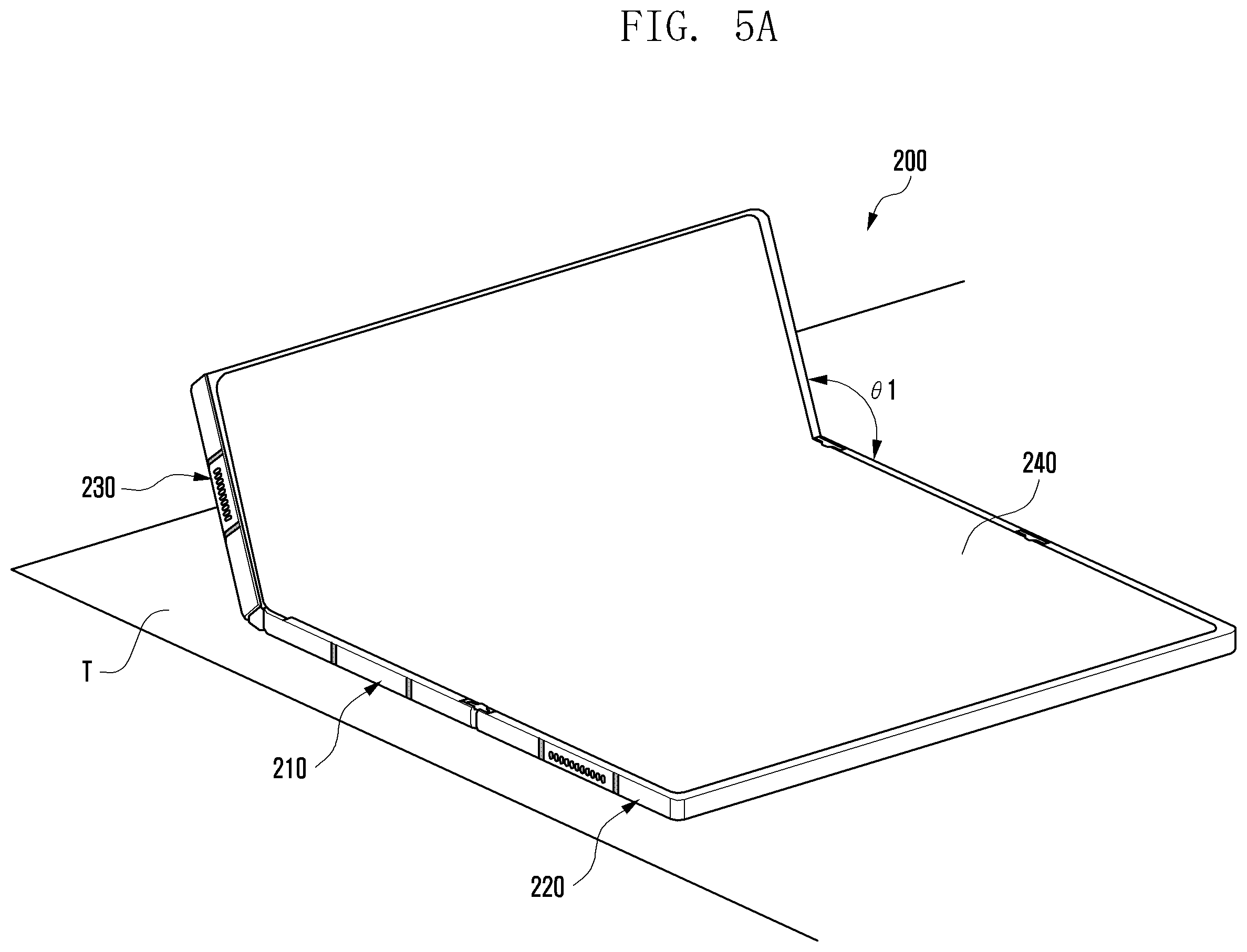

The patent describes a portable communication device built around a multi-foldable housing with three separate sections: a first (central) housing, a second housing, and a third housing. Two hinge structures connect the outer sections to the central one, and a single flexible display stretches across all three.

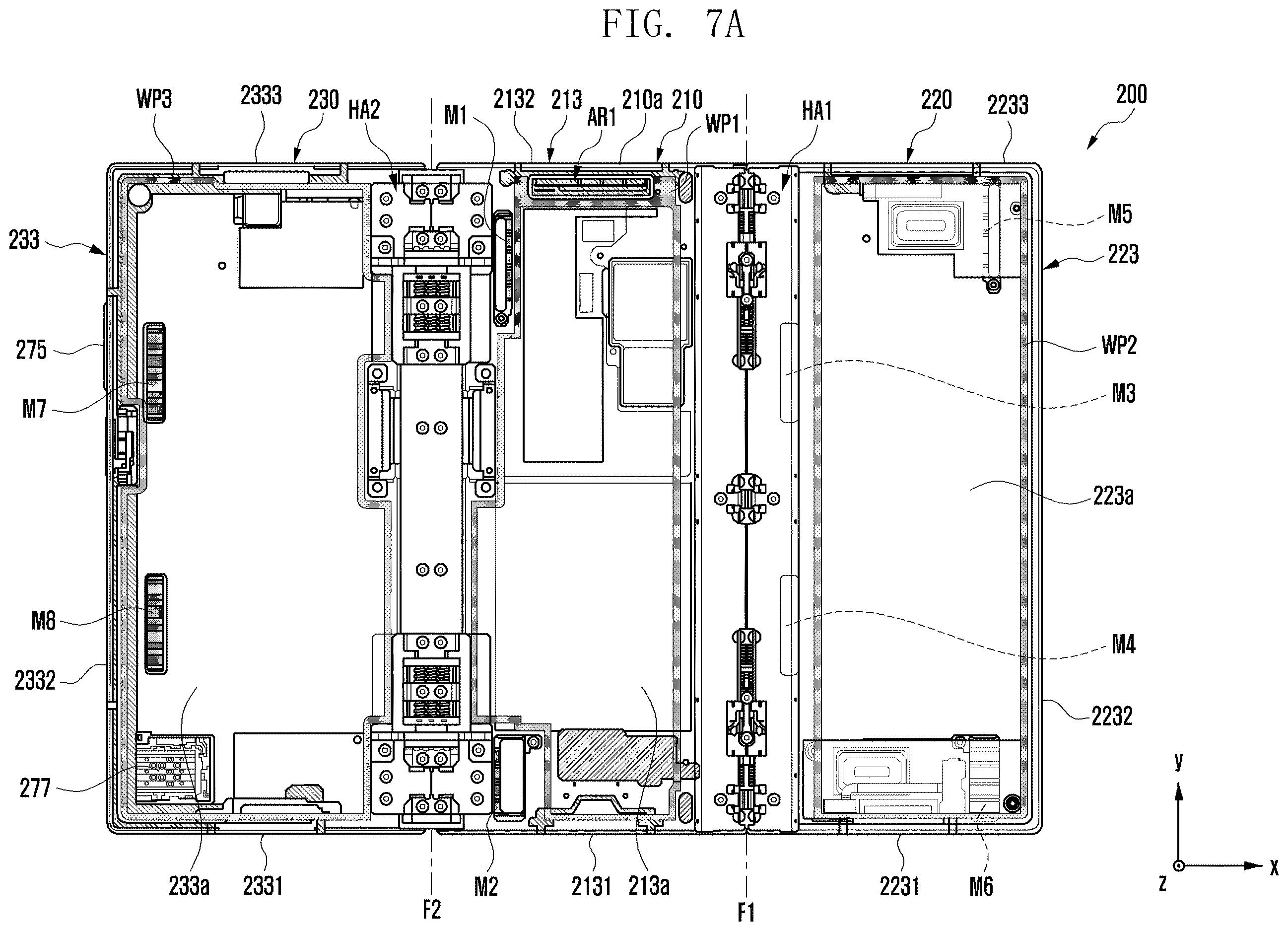

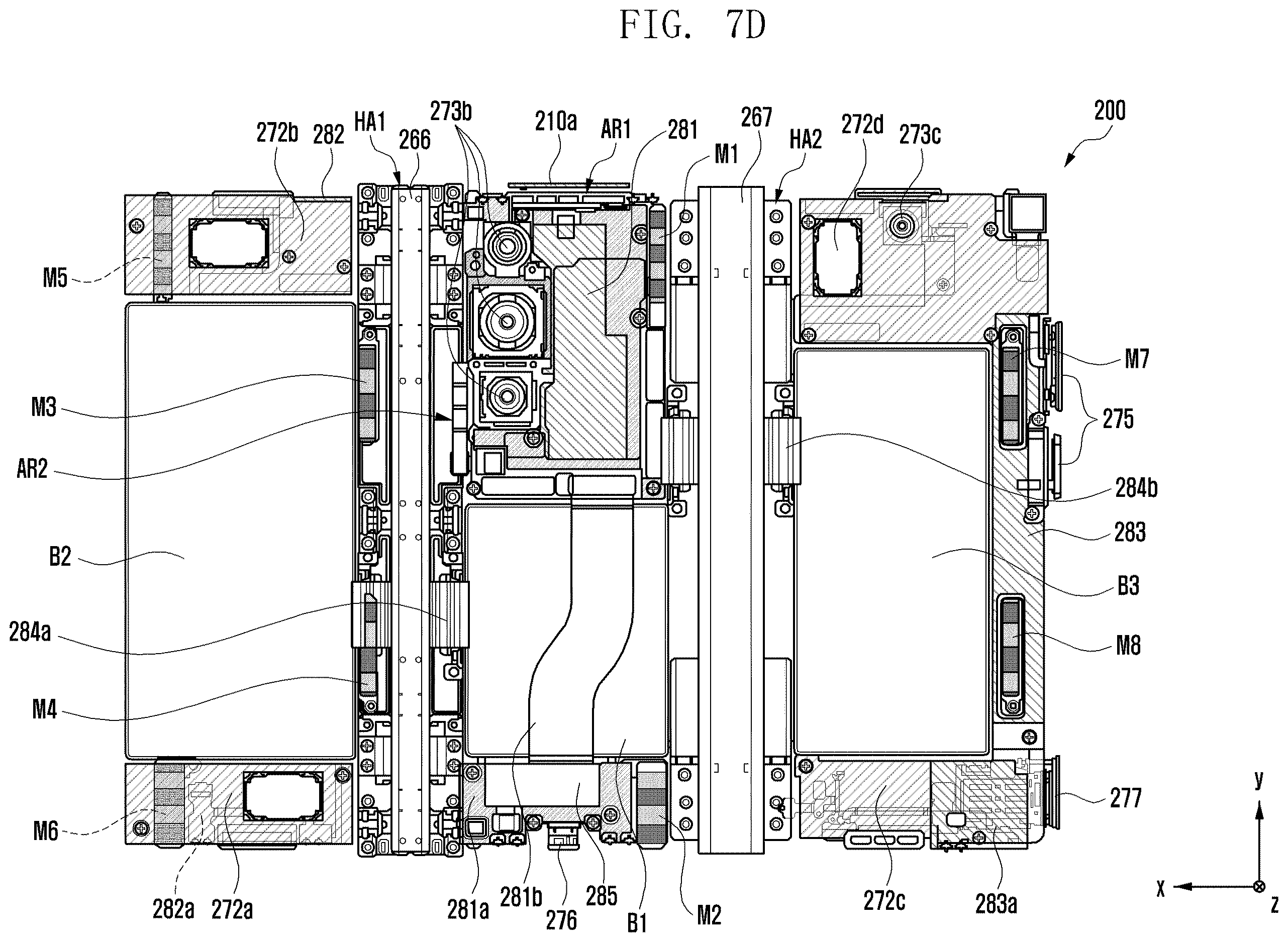

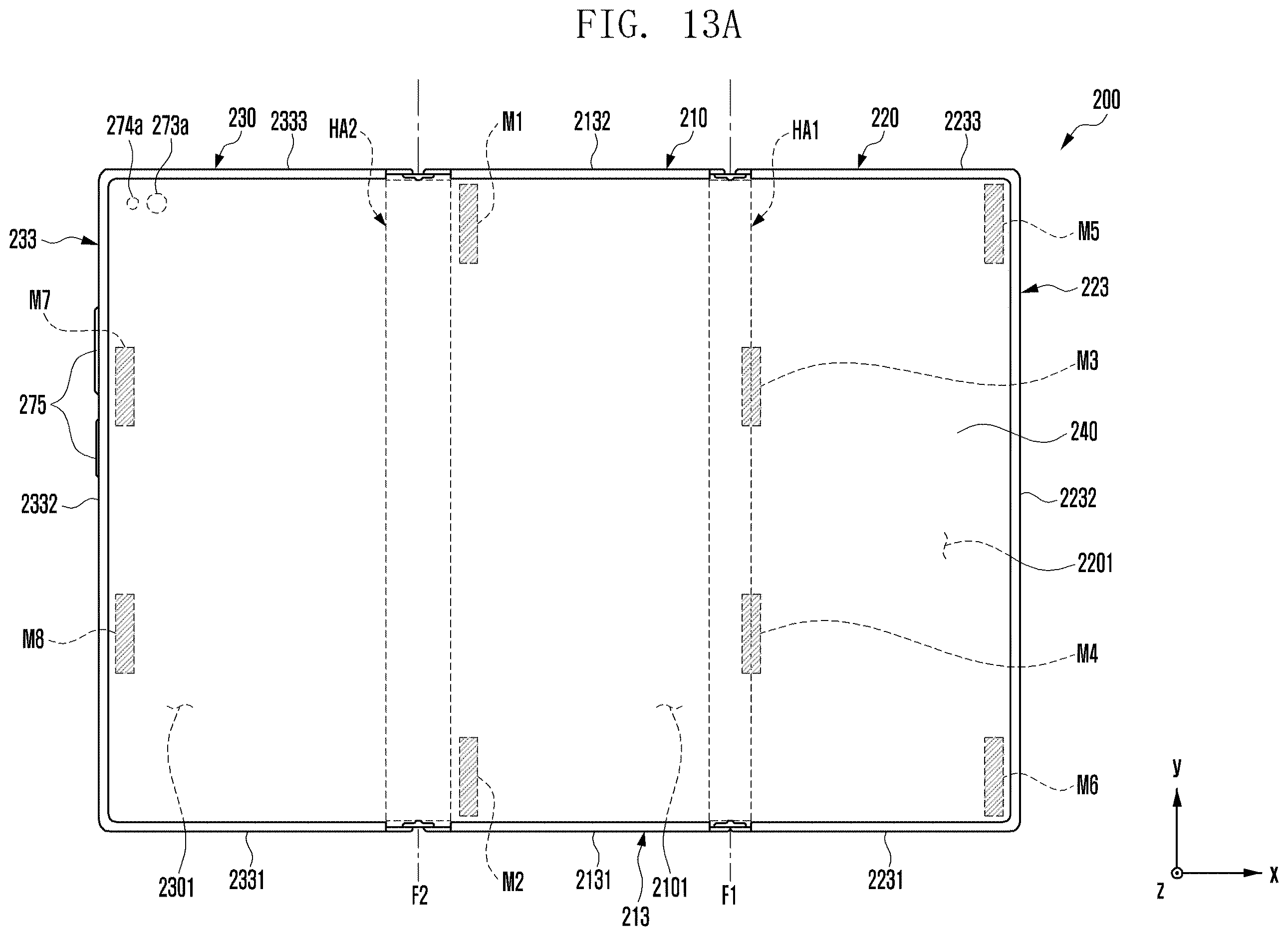

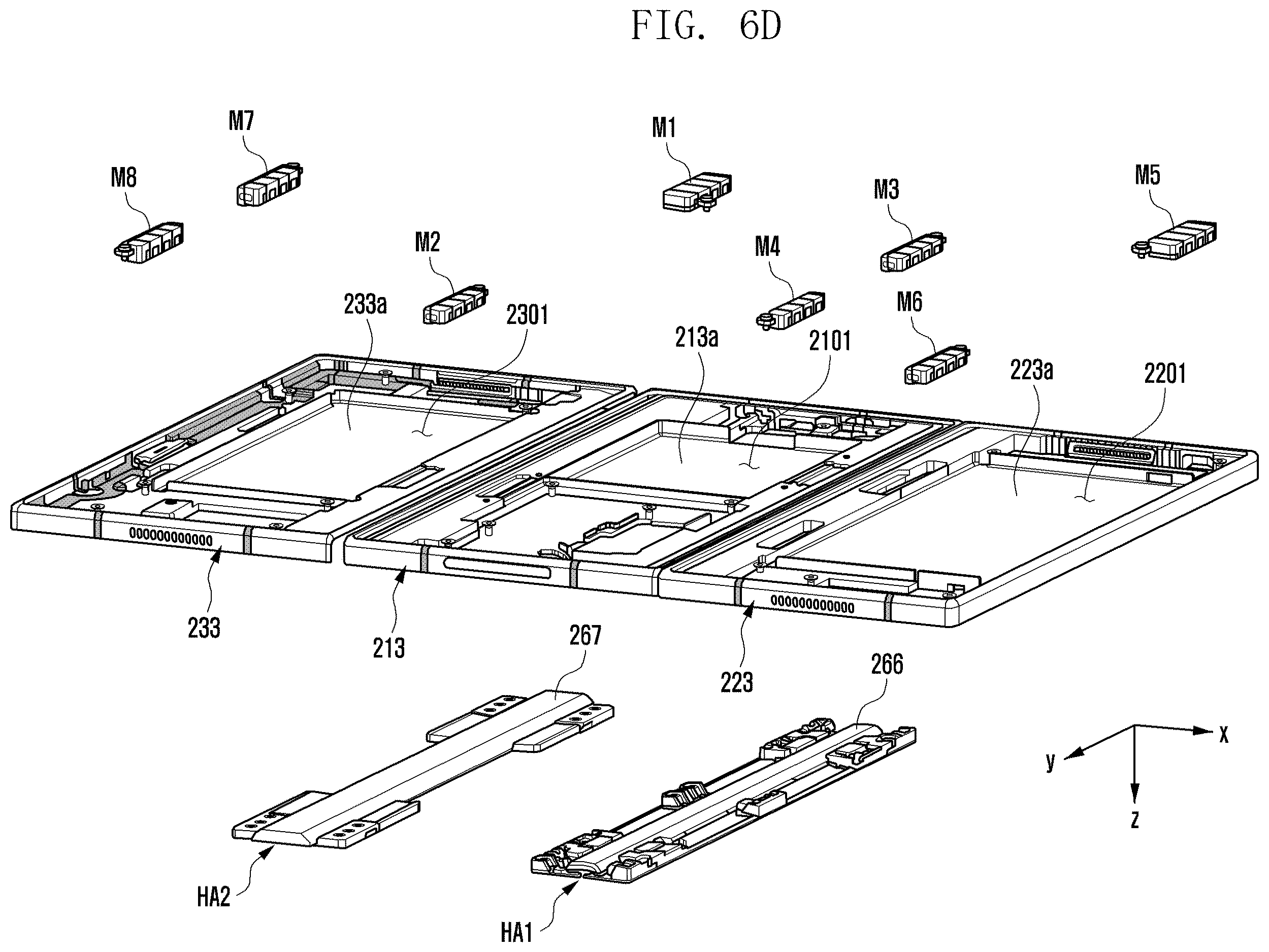

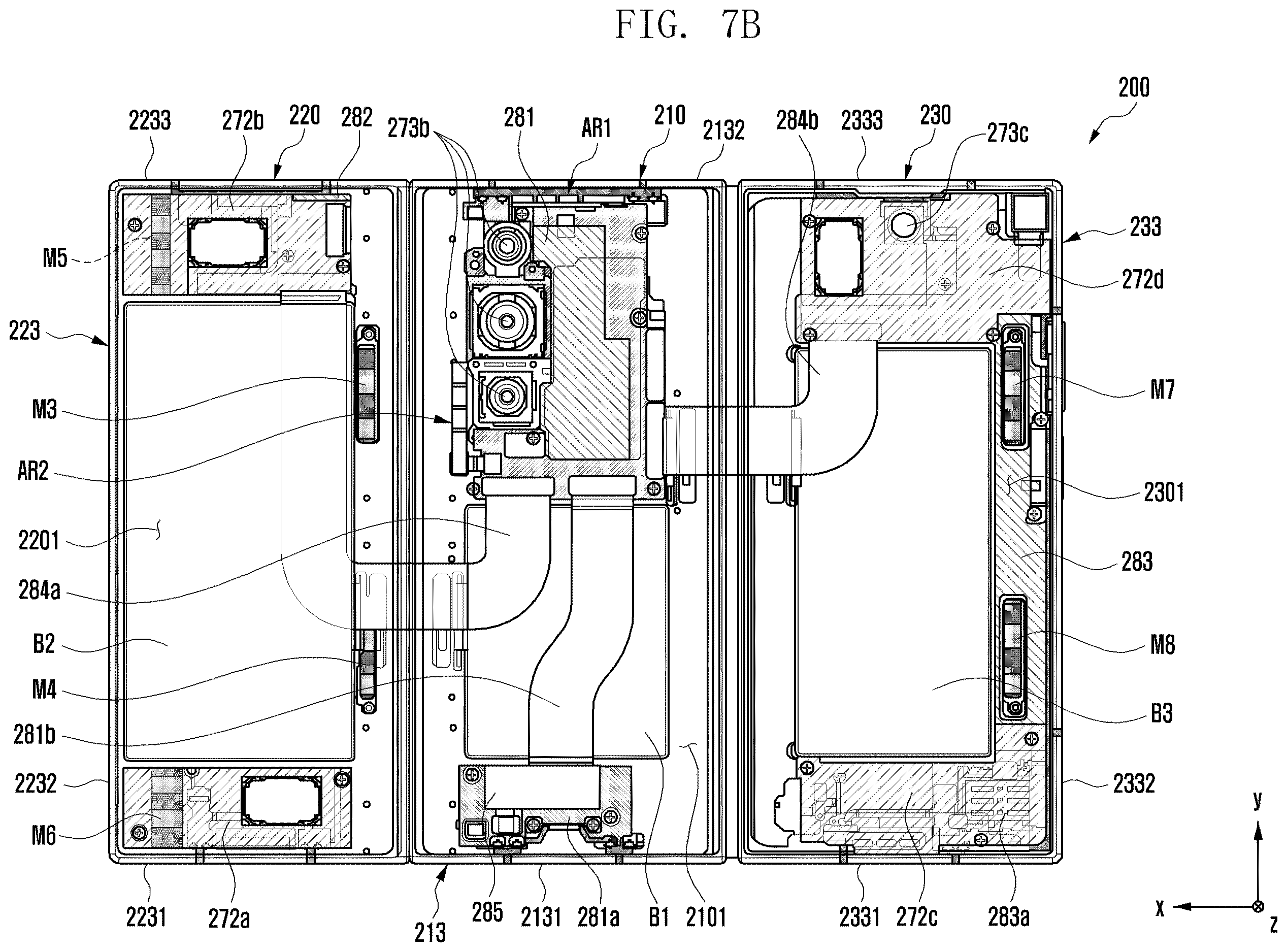

The magnet layout is the key detail:

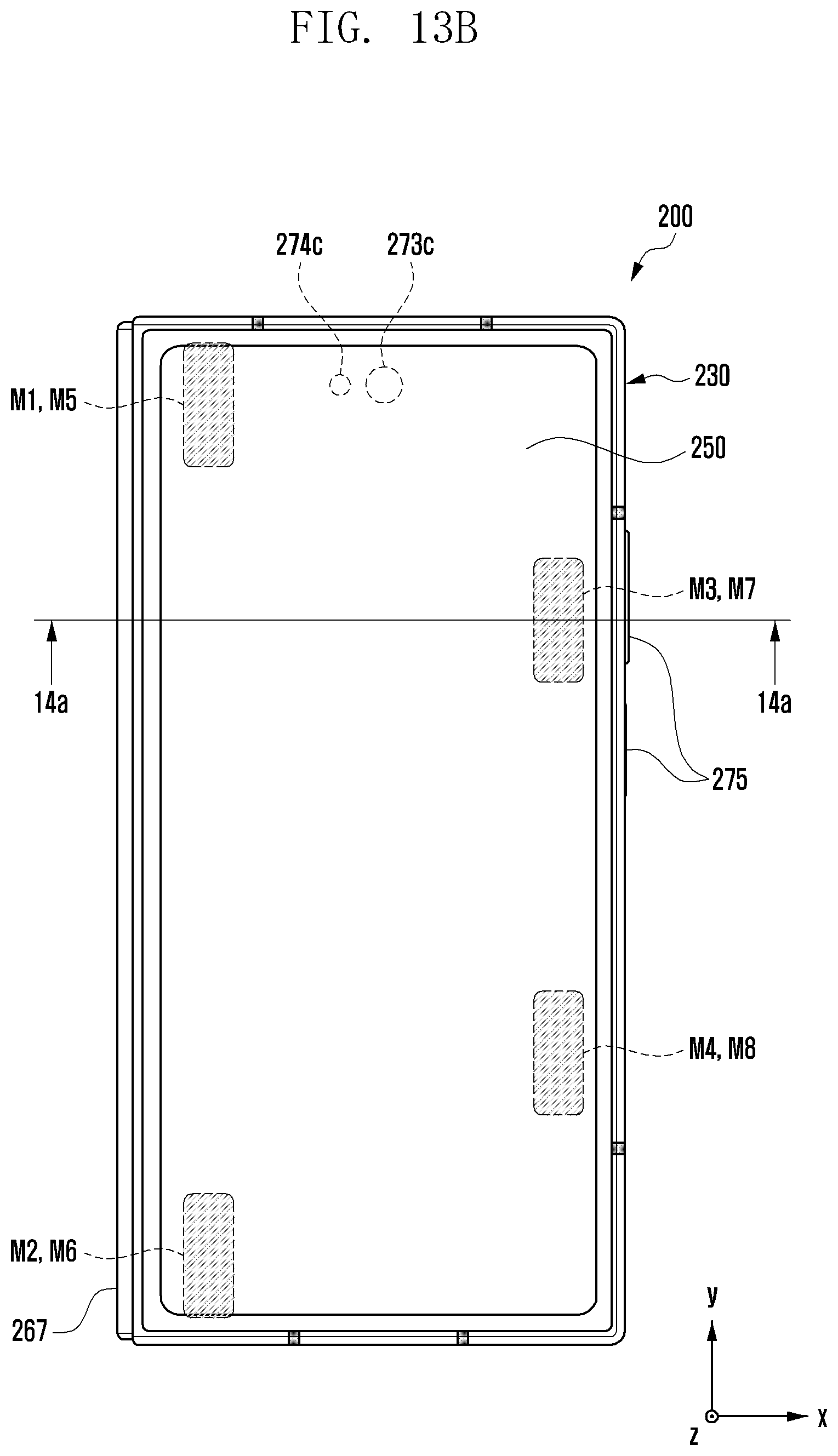

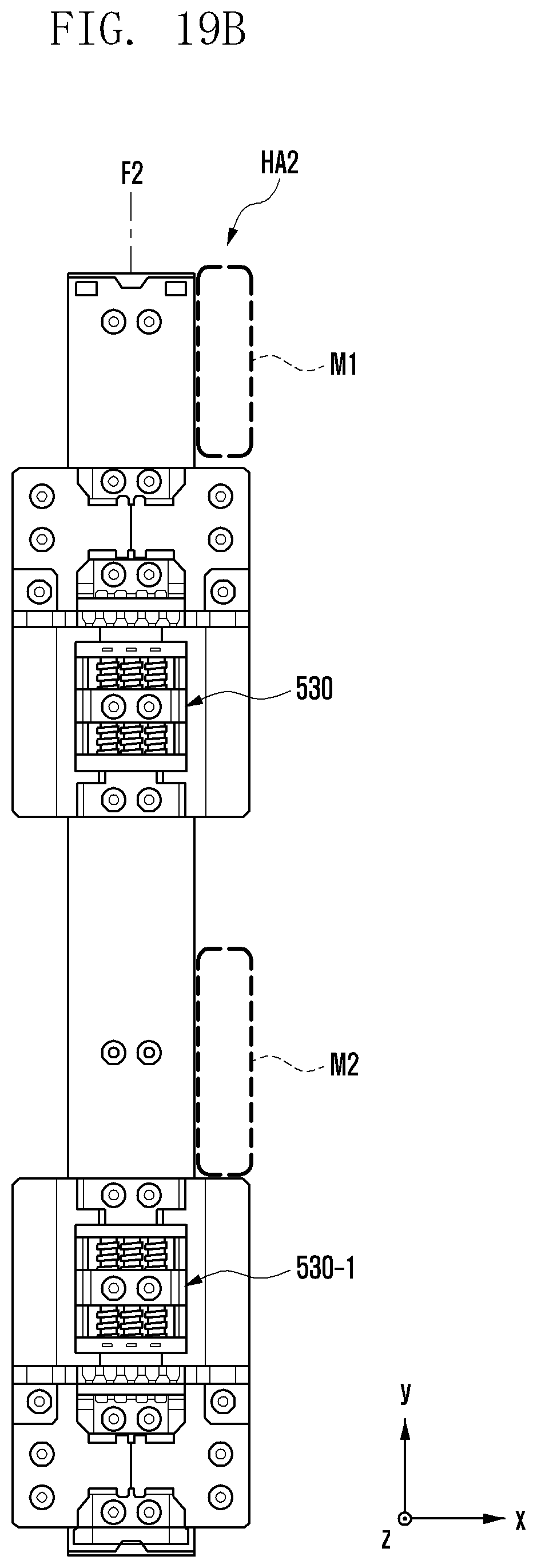

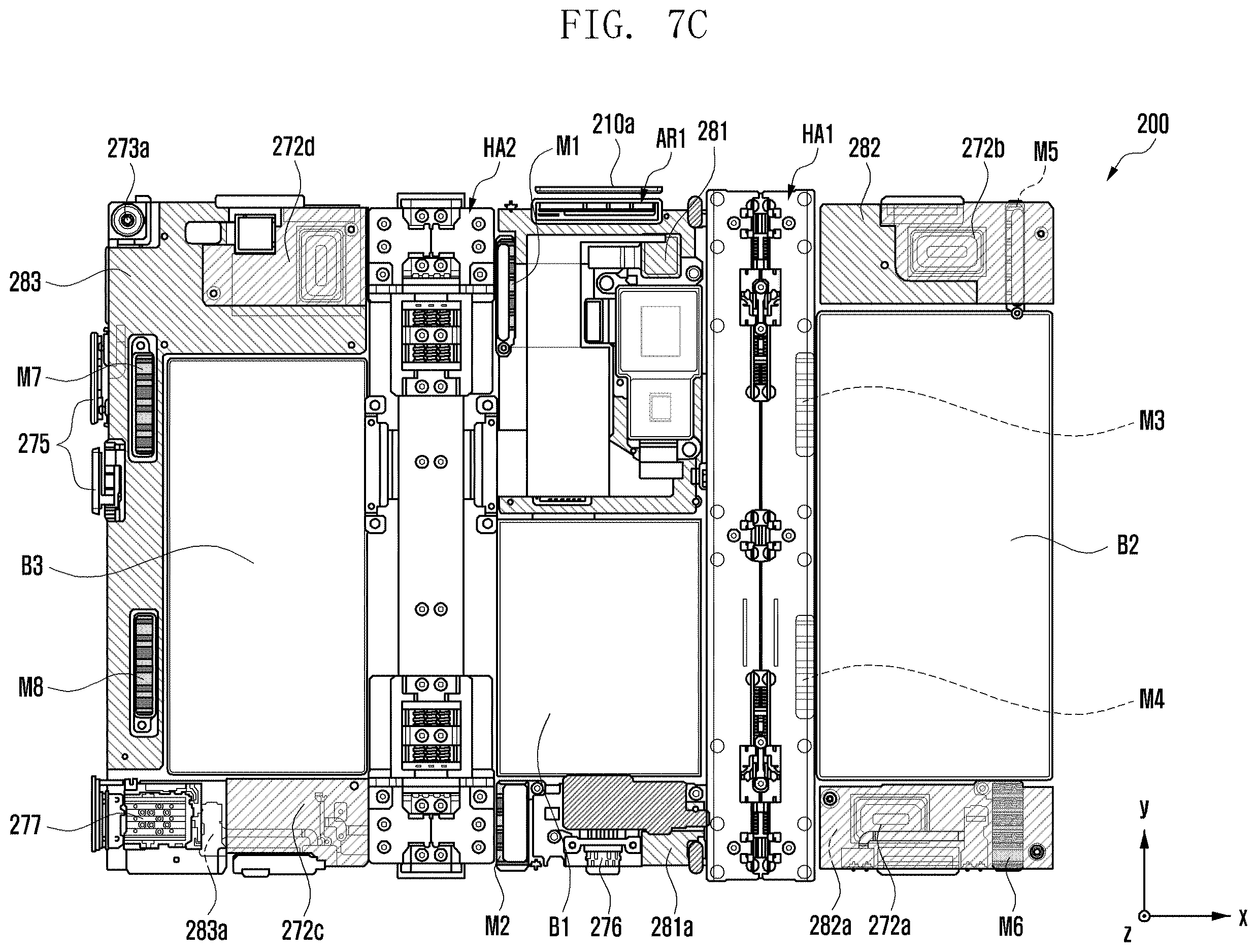

- A first magnet sits inside the central (first) housing.
- A second magnet and a third magnet both sit inside the second housing (one of the outer panels).

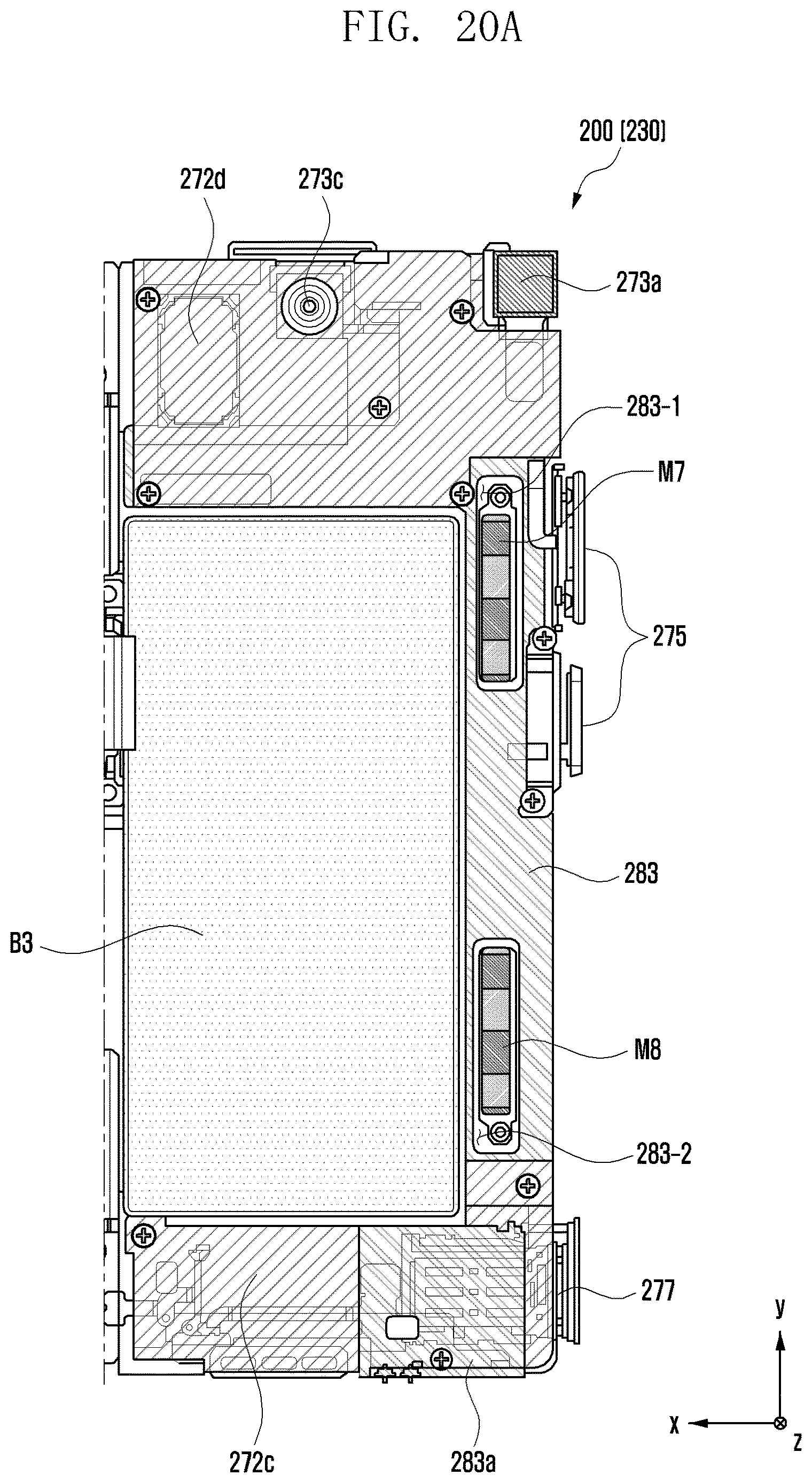

- A fourth magnet sits inside the third housing (the other outer panel).
The asymmetric count, two magnets on one side and one on the other, suggests the engineers are compensating for different closure forces or alignment needs across the two hinges. When the device folds, these magnets attract or repel each other in a controlled way to guide each panel into its correct resting position.
The broader goal is consistent panel alignment every time the user folds or unfolds the device, which is especially important for flexible OLED displays that can crease or delaminate if pressure is unevenly applied over thousands of open-and-close cycles.
… a first magnet arranged in the first housing; a second magnet and a third magnet arranged in the second housing; and a fourth magnet arranged in the third housing.
Translation: Four total magnets are placed across the three sections to help keep everything aligned.
What this means for people buying foldable phones
For anyone considering a triple-fold device, the folding mechanism is the single most important durability question. A flexible display that spans two hinges has more surface area exposed to mechanical stress, and even a small gap or tilt when closed puts that stress in the wrong places over time.
Samsung has been filing around foldable hardware for years, and Samsung's steady stream of foldable-mechanism filings reflects a company that takes closure precision seriously as a real engineering constraint, not an afterthought. If this magnet layout makes it into a shipping product, you'd notice it as the device feeling satisfyingly definitive when you close it rather than wobbly or resistant. That tactile confidence is also what separates products that feel premium from ones that feel fragile.
This is the 68th Samsung patent we've tracked since May on foldable phone ideas, joining earlier filings like a tougher pen-input layer and a speed-adjusting slidable screen.
The magnet count matters because you will feel it every time you close the phone. Two magnets in one outer panel and one in the other is a deliberate choice tied to how the two hinges move and how the screen's weight pulls across the frame when folding. Get that geometry wrong and the panels close at slightly different speeds or with different force, which sounds minor until it becomes the reason your screen develops a crease or a gap after a year.
For a phone with three panels and two hinges, closing cleanly is a harder problem than it looks. Every closure has to land the same way, with enough magnetic pull to hold the panels flat but not so much that opening feels like prying something apart.
A phone you can trust to close correctly, every time, without babying it, is one you actually carry and use. That is what this patent is working toward.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

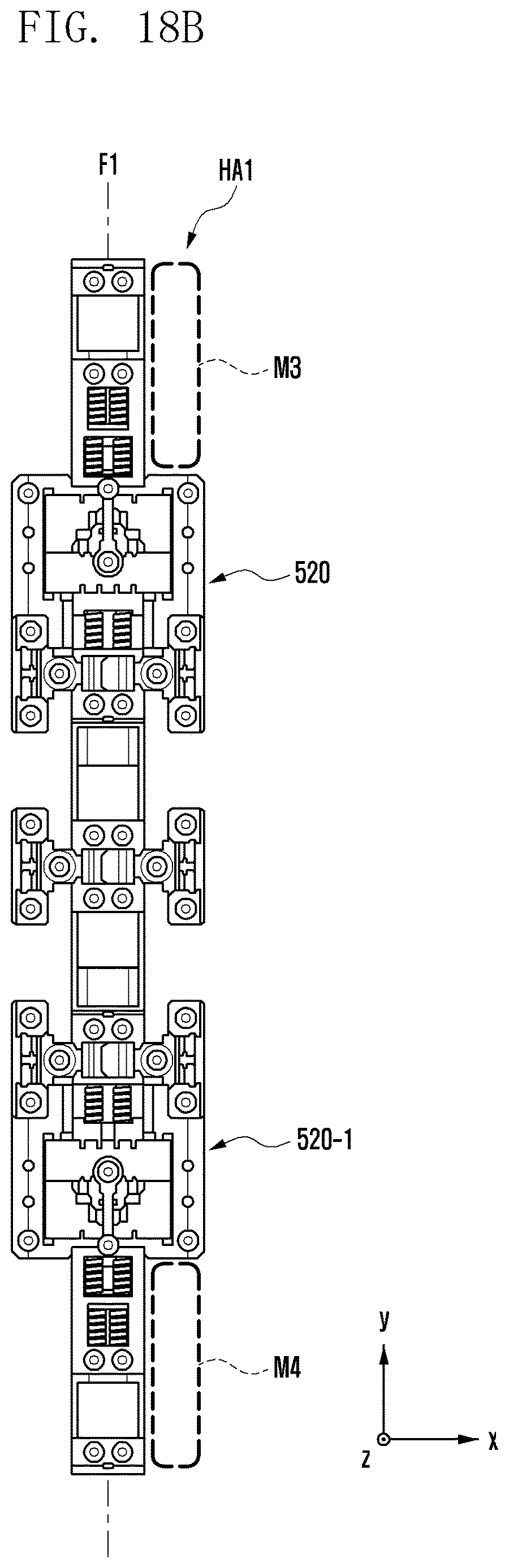

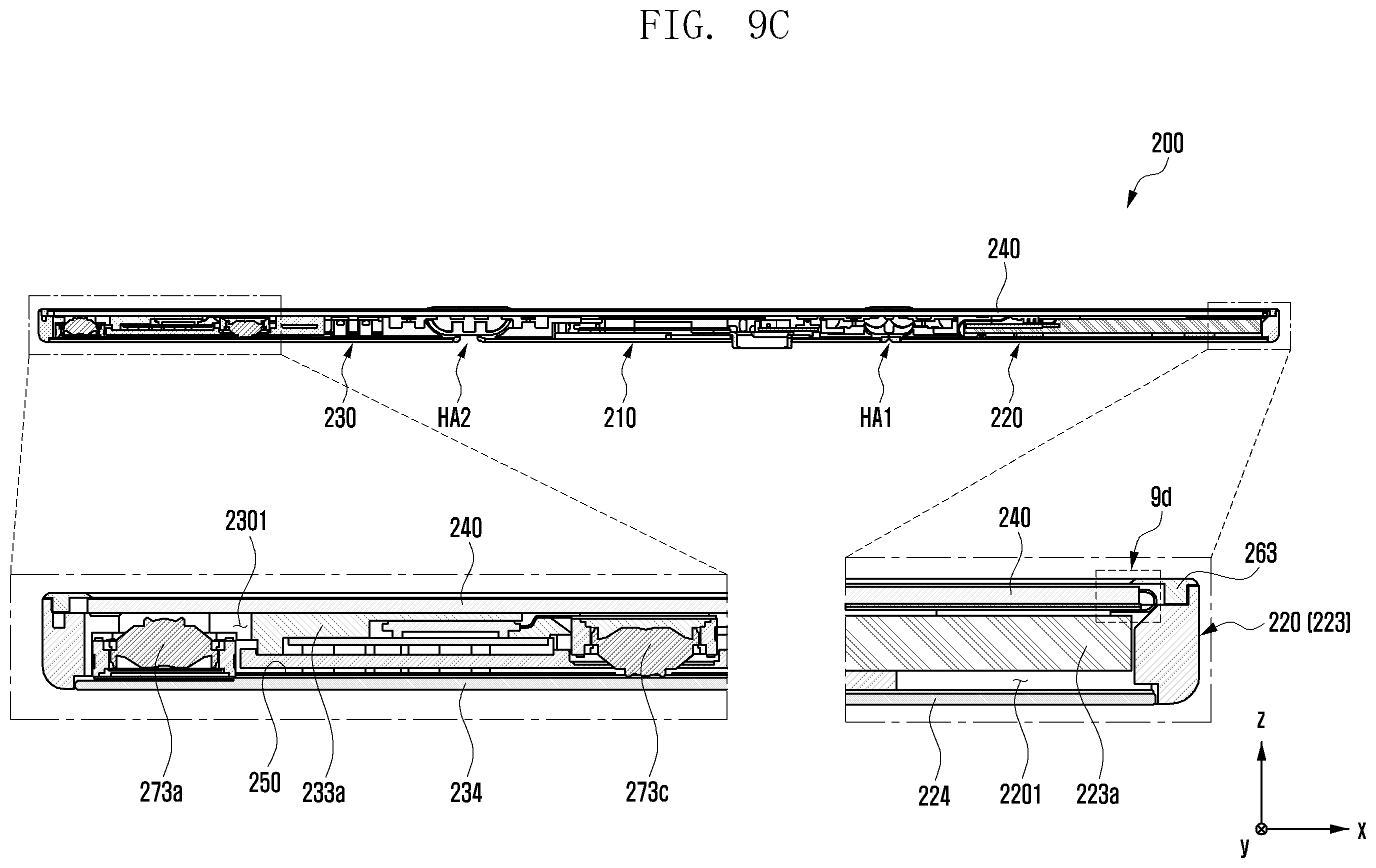

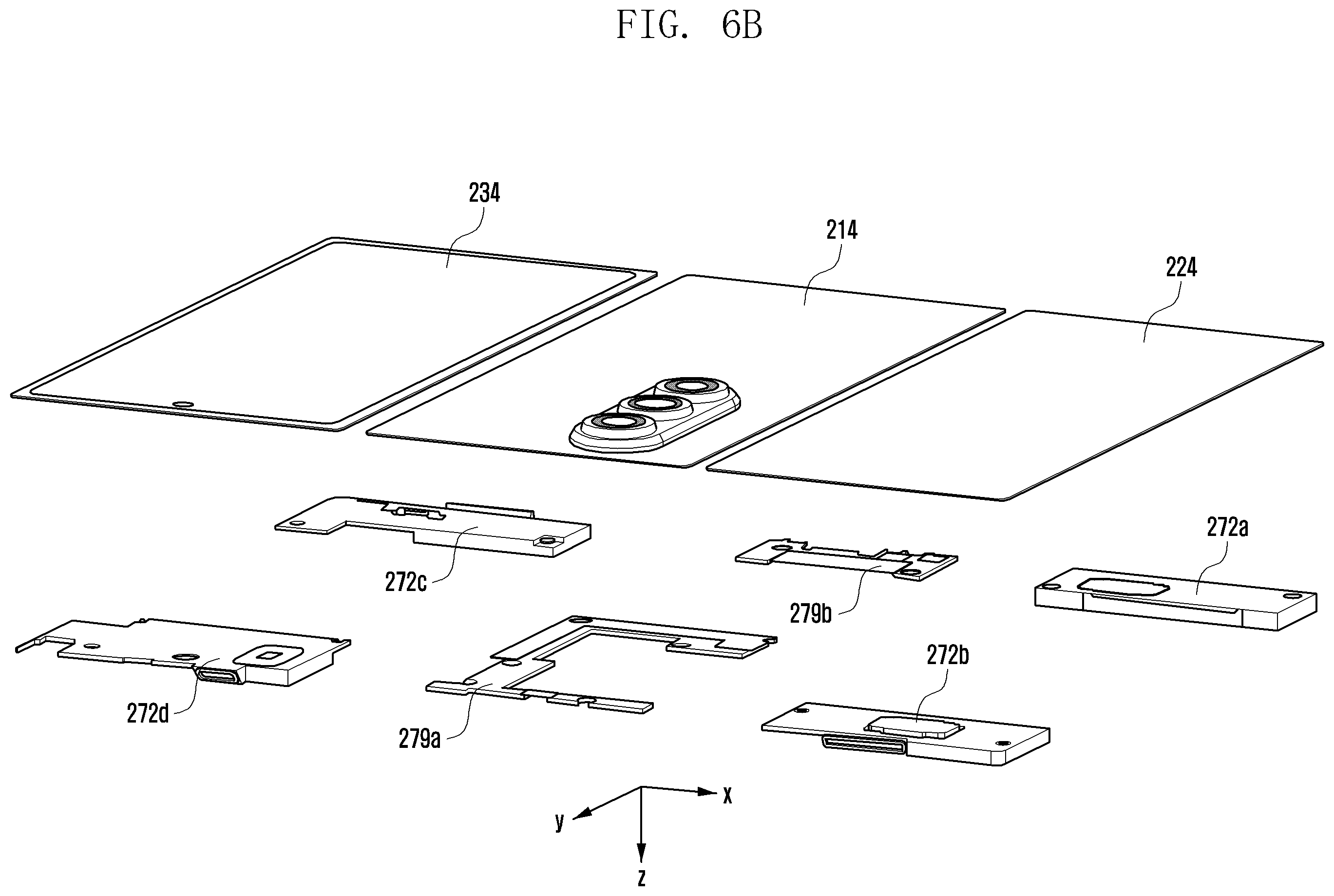

The drawings
