Sony Patents a Laser Chip That Steers Its Own Light From the Inside
Sony is patenting a way to build a tiny laser that controls how its own light is focused, using a nano-patterned layer inside the chip itself rather than bulky external lenses or mirrors.
What Sony's self-steering laser chip actually does
Imagine you own a flashlight that automatically shapes its beam from the inside, no reflector cup or lens cap needed. That is roughly the idea behind this Sony patent.
Most small lasers used in devices like face-recognition cameras or LiDAR sensors need extra parts to keep the light beam tight and well-behaved. Sony's design tucks a special patterned layer, called a metasurface, directly inside the laser's core structure. That layer is covered in microscopic shapes that bend and guide light the same way a curved lens does, but without adding any physical bulk on top of the chip.
The practical result is a laser that gives engineers much more precise control over how the light is concentrated, all in a package that stays as small as a grain of salt. That kind of control matters in everything from your phone's face-unlock sensor to self-driving car cameras.
… a metasurface for generating in an in-plane direction an effective refractive index distribution that traps light.
Translation: An engineered surface inside the laser guides and confines the light horizontally.
How the metasurface shapes light inside the resonator

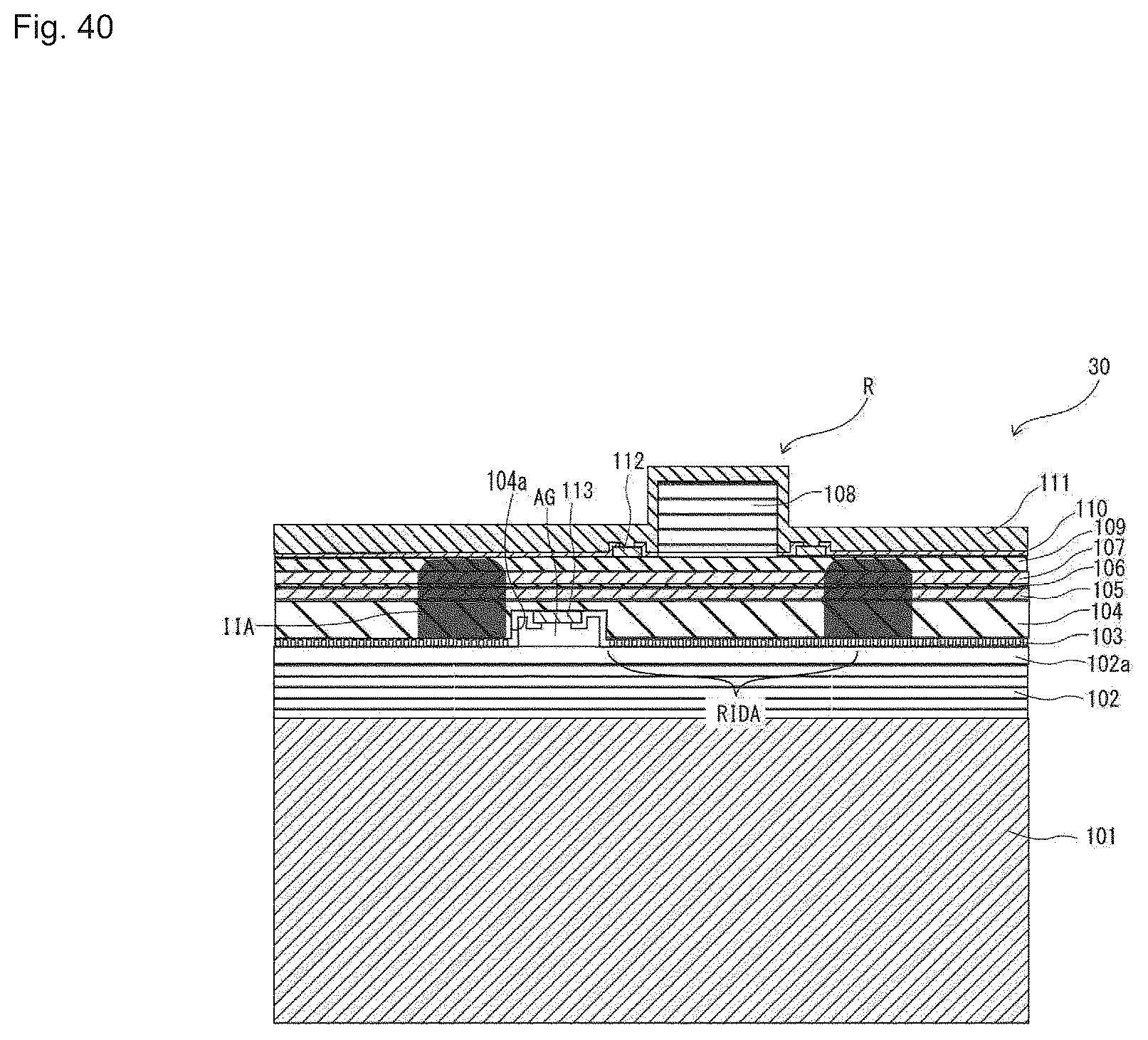

The patent describes a vertical-cavity surface-emitting laser (VCSEL), a type of laser chip that fires light straight up through its top surface rather than out the side. VCSELs are already common in smartphones, industrial sensors, and data-center cables.
Inside a VCSEL, light bounces back and forth between two reflecting structures (mirror stacks made from alternating thin layers of material) that sandwich an active layer (the region where electricity is converted into light). Normally, keeping the beam confined and well-shaped requires careful design of the mirrors themselves, which limits how precisely engineers can tune the beam profile.

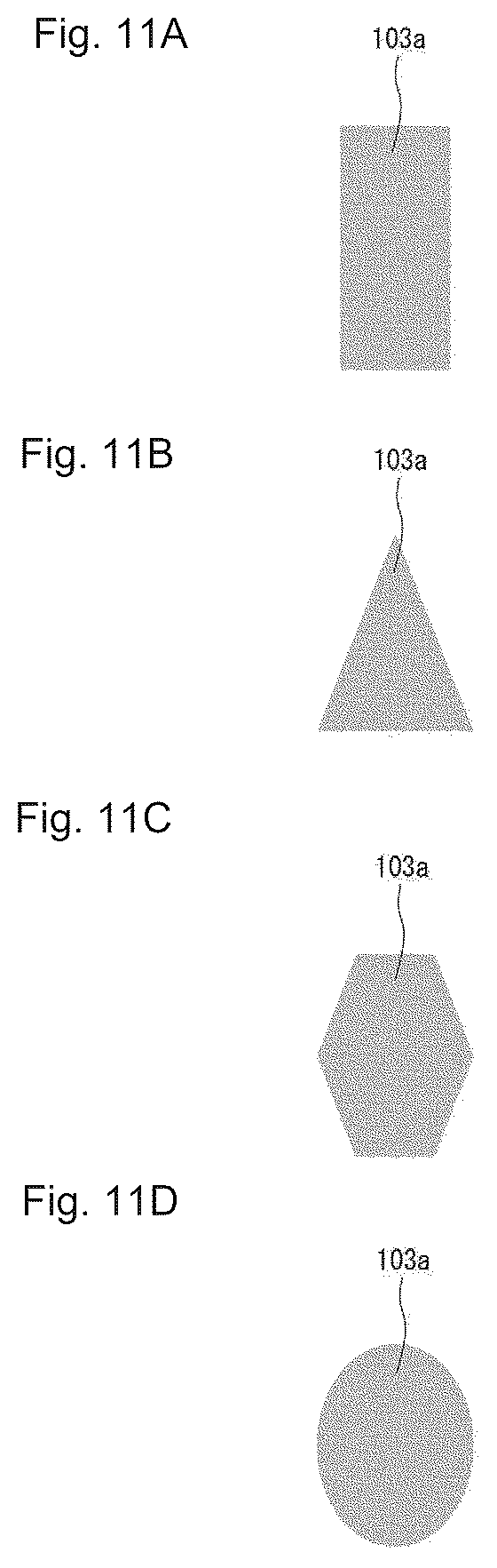

Sony's addition is a metasurface: a flat layer of sub-wavelength nano-structures (features smaller than the wavelength of light) placed between one or both mirror stacks and the active layer. Because each tiny structure can be shaped independently, the metasurface creates a custom effective refractive index distribution (a map of how strongly different regions slow or bend light) across the face of the chip. This map acts as a built-in lens that traps and steers the light entirely within the chip.
Key design elements the patent identifies:
- Metasurface positioned inside the resonator cavity, not on the outside surface
- Refractive index variation runs in the "in-plane" direction (across the chip face, not vertically)
- Engineers can freely adjust the nano-pattern to change beam shape without redesigning the mirrors
… a high degree of freedom in setting an effective refractive index distribution in an in-plane direction of a light-trapping structure.
Translation: This design gives engineers much more flexibility to control how light moves inside the chip.
What this means for sensors, displays, and tight spaces
For device makers, the appeal is compact precision. Adding a metasurface inside the chip means you can shape the laser beam without attaching external micro-lenses, which saves space, reduces assembly steps, and cuts the number of parts that can fall out of alignment. In consumer products like phones and AR glasses, where every fraction of a millimeter counts, that is a real engineering advantage.
Sony's steady stream of laser and photonics filings reflects a wider bet that precise, miniaturized light sources will be central to the next generation of sensors. If this approach works at volume, it could make the tiny depth-sensing cameras in your devices both cheaper to build and more accurate.
That makes this Sony's 41st filing in chip patents we've tracked since May, adding to work like one cutting depth-sensor defects and one on self-steering laser light.
Tucking a layer of microscopic patterned shapes inside the laser itself, rather than bolting optics onto the outside, gives Sony fine control over how the beam forms. The cost is direct: any defect in those patterns sits at the heart of the device, where stray light drains efficiency rather than contributing to the output.
That placement also means manufacturing gets harder at exactly the wrong moment. Laser stacks are already unforgiving to build, and adding intricate nano-scale patterning in the middle raises the chance that a single misaligned feature spoils the whole device.
For surgical imaging or precision sensing, where performance justifies careful, expensive production runs, that trade reads as worthwhile. For products where a penny per unit determines whether something ships, it probably does not, and Sony's patent says nothing about how that gap closes.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

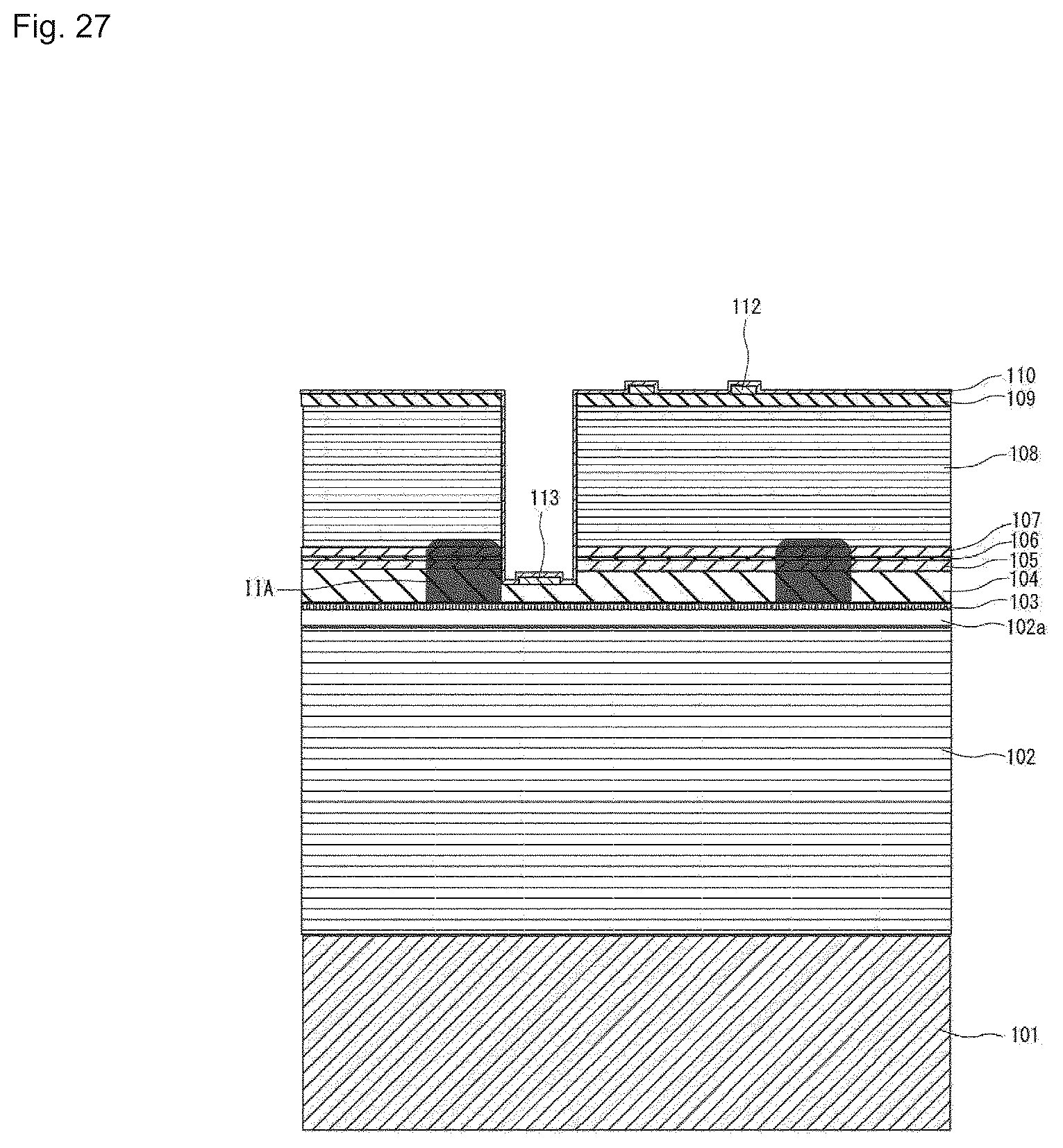

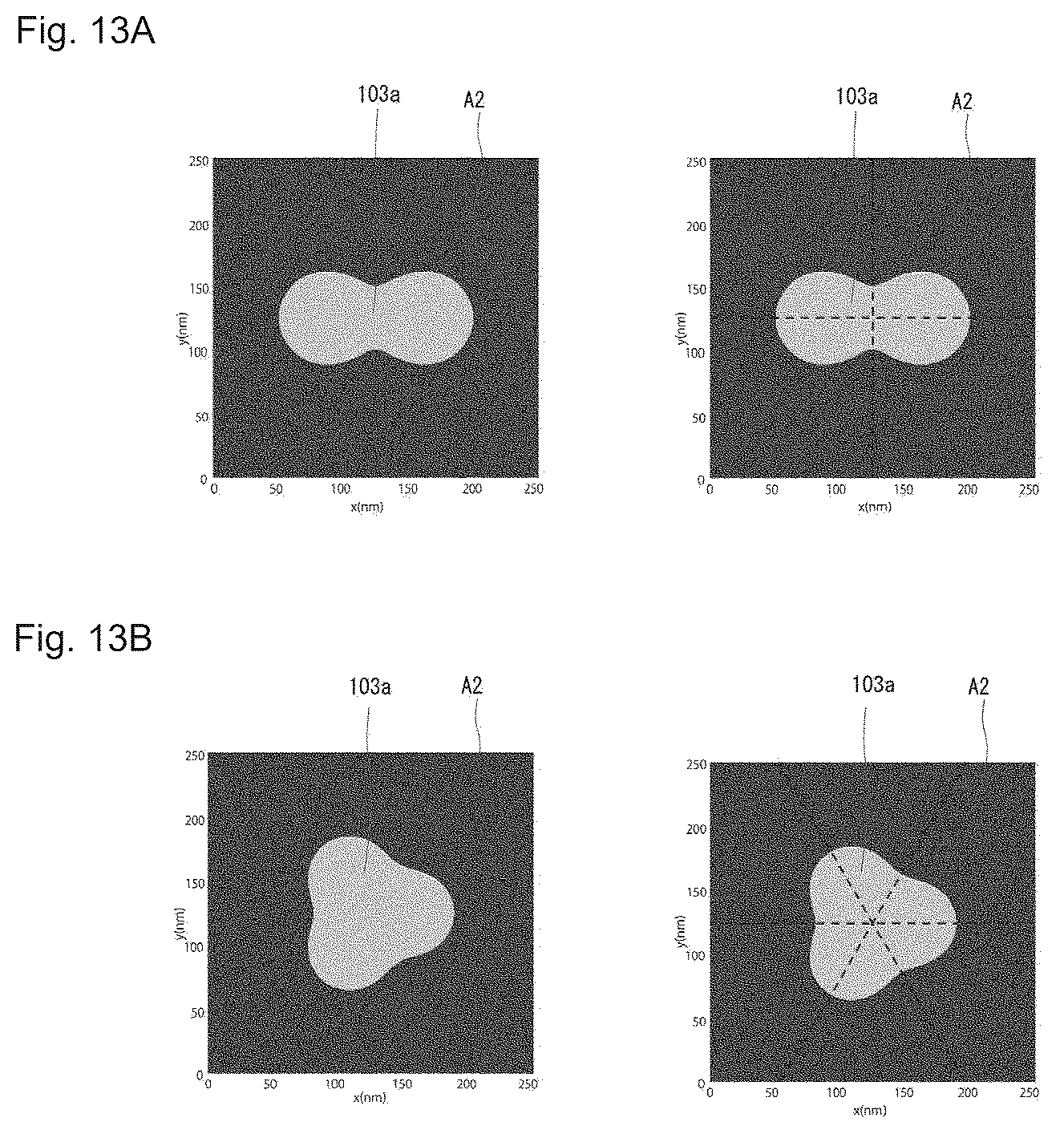

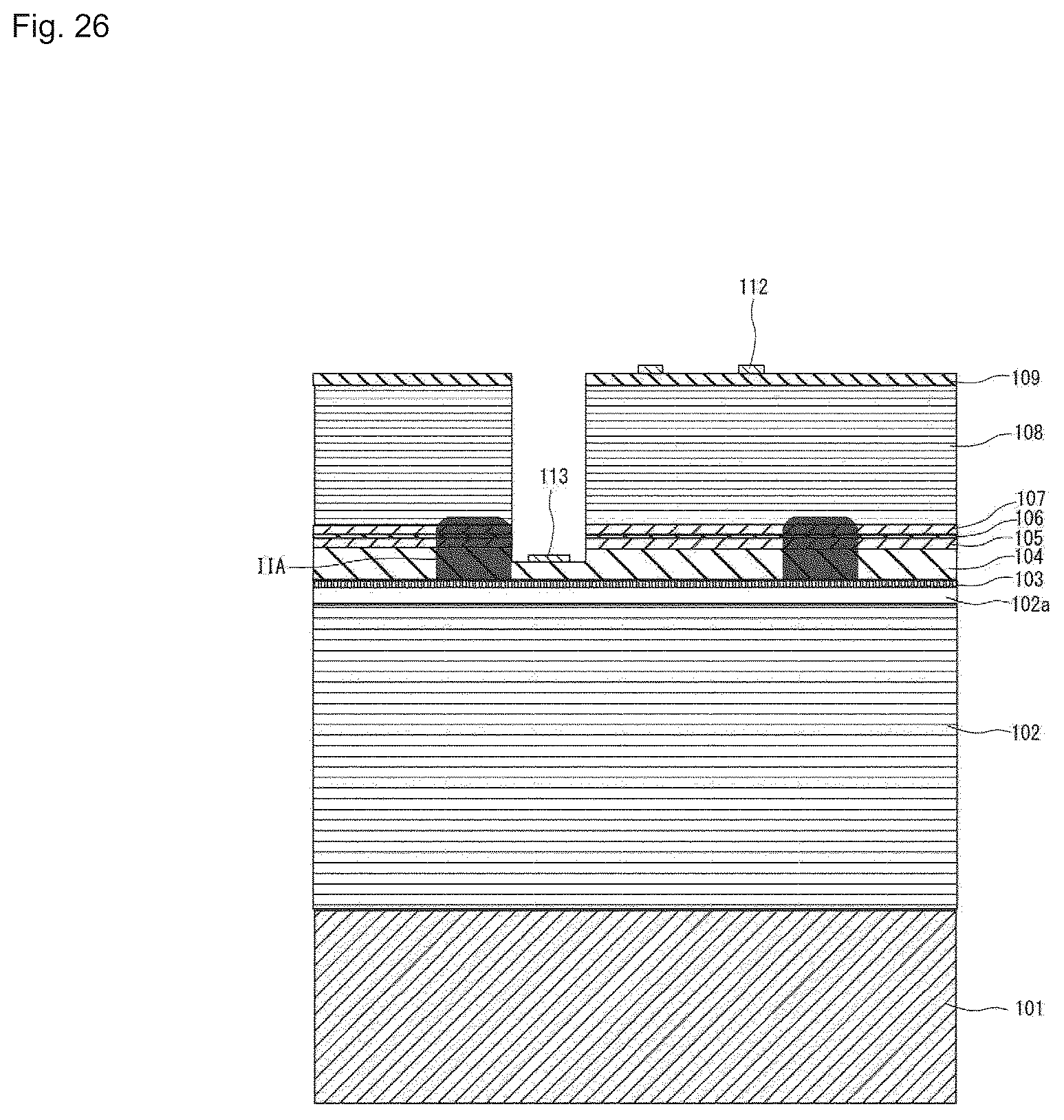

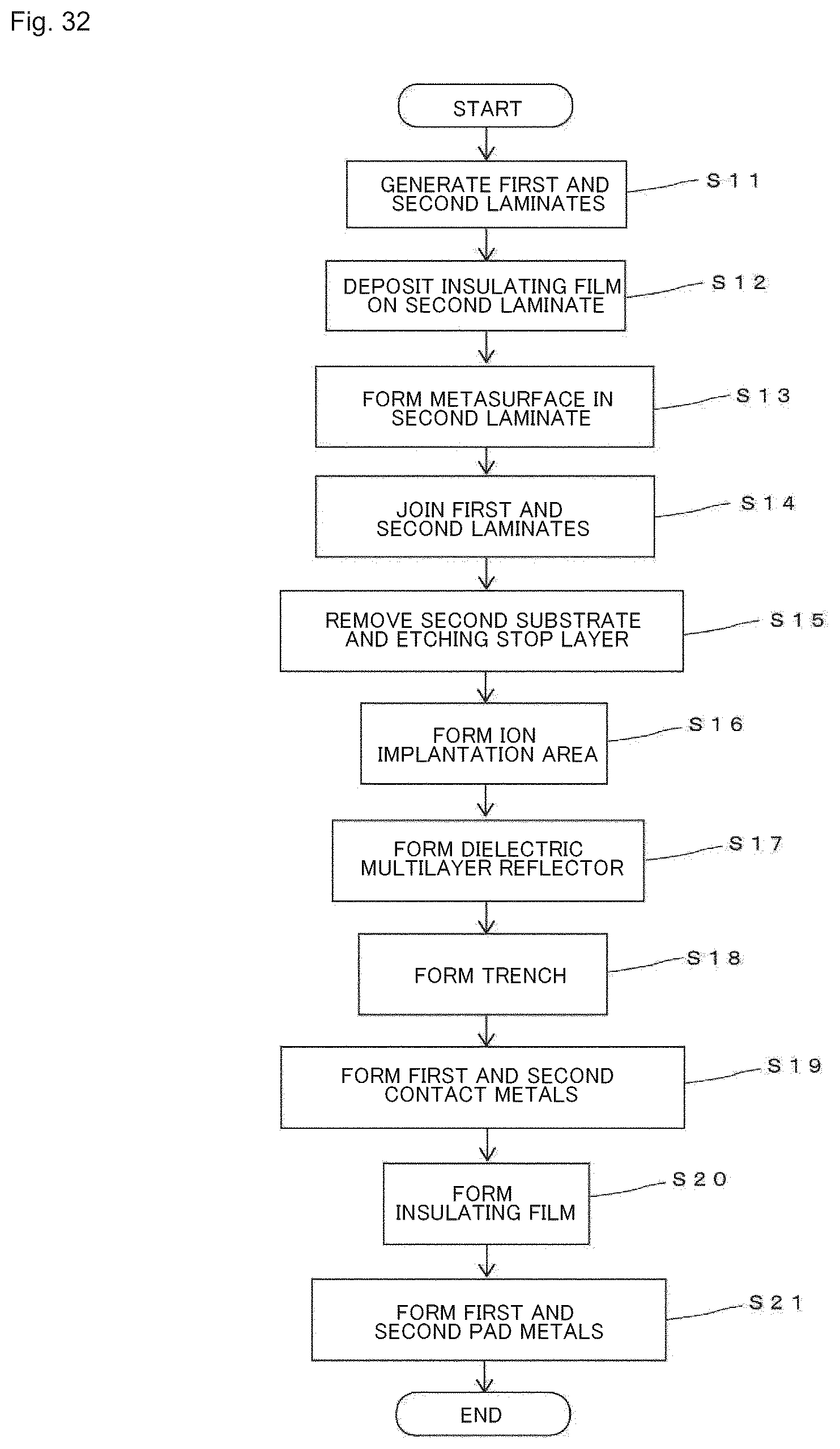

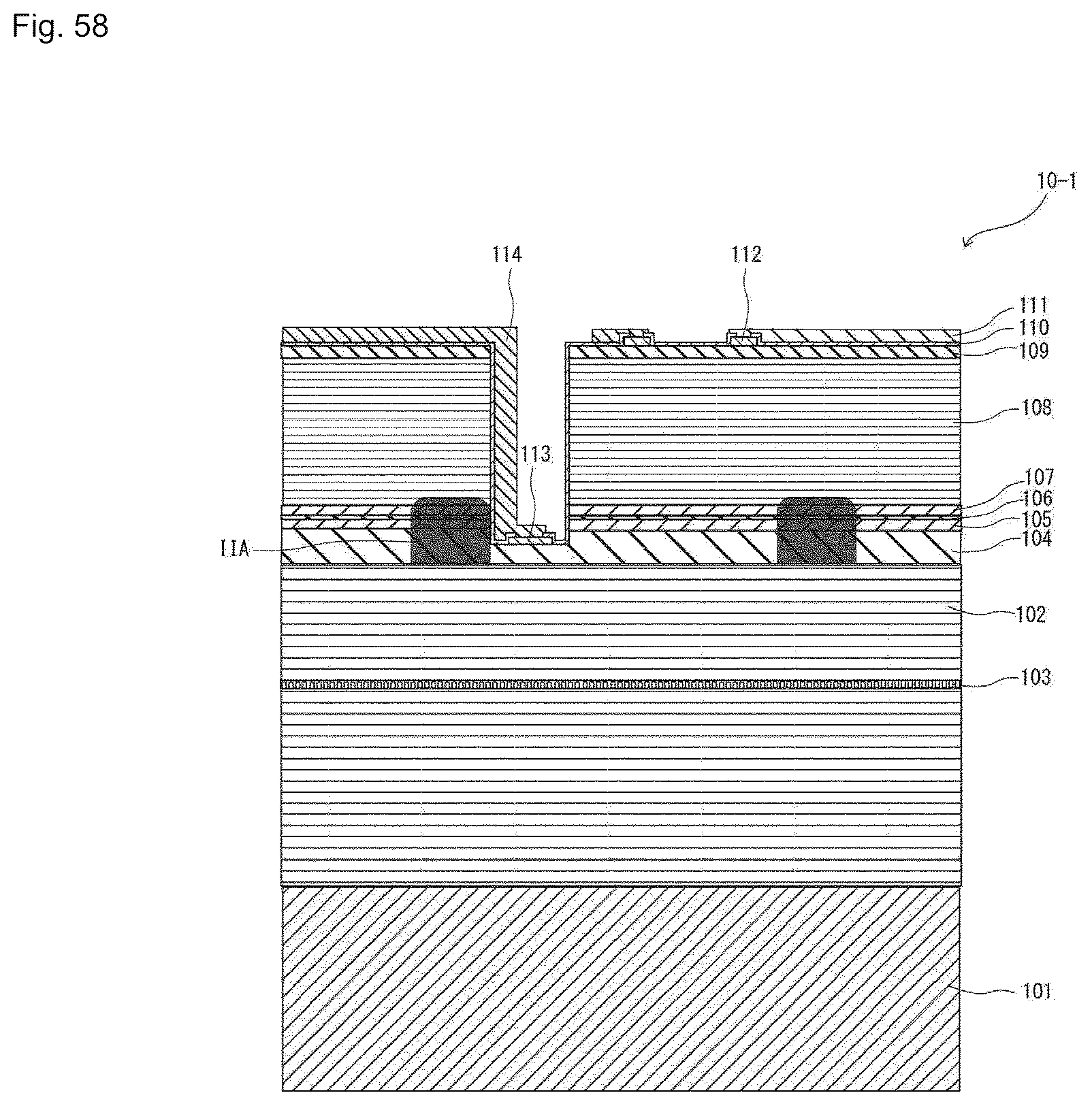

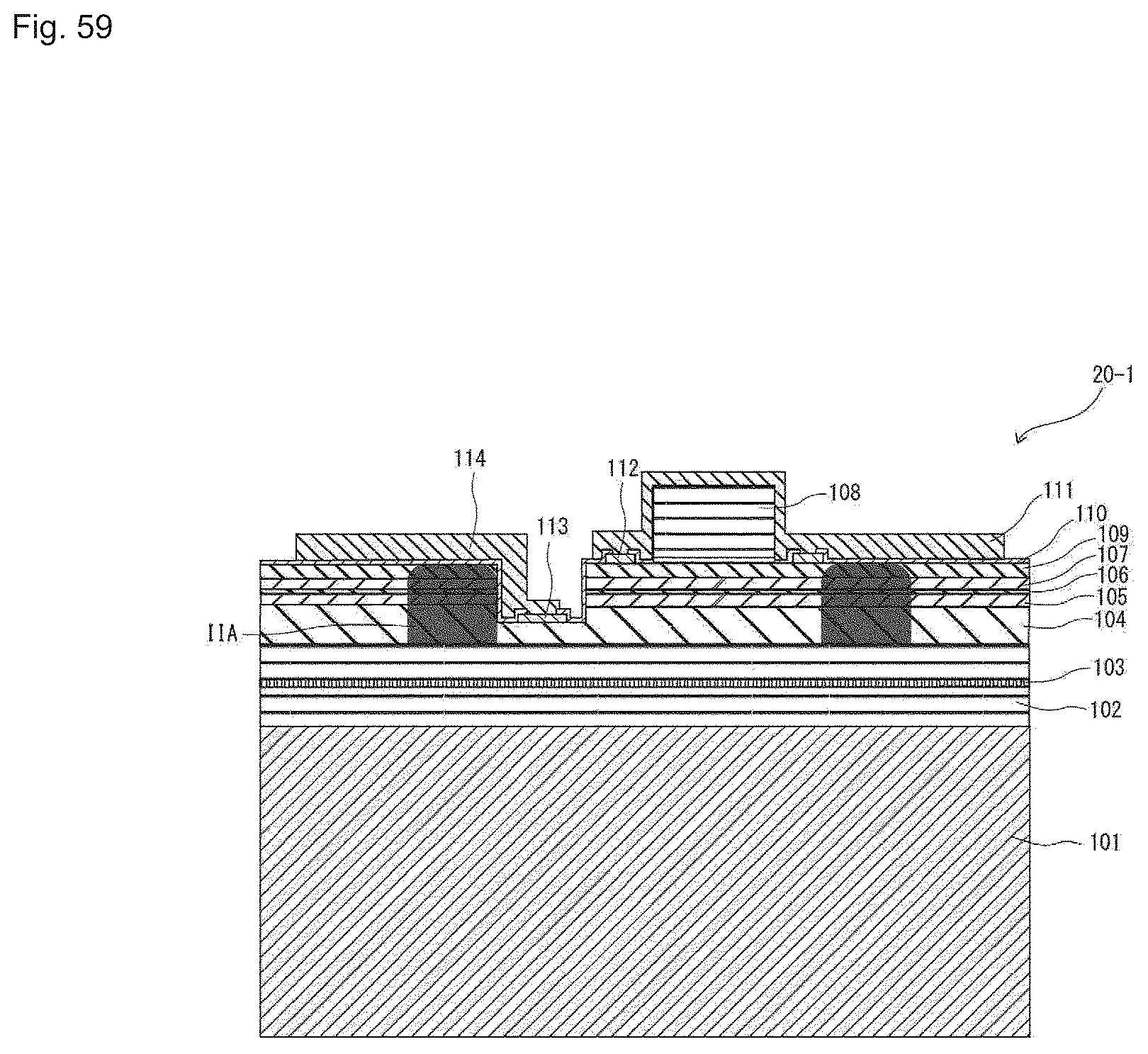

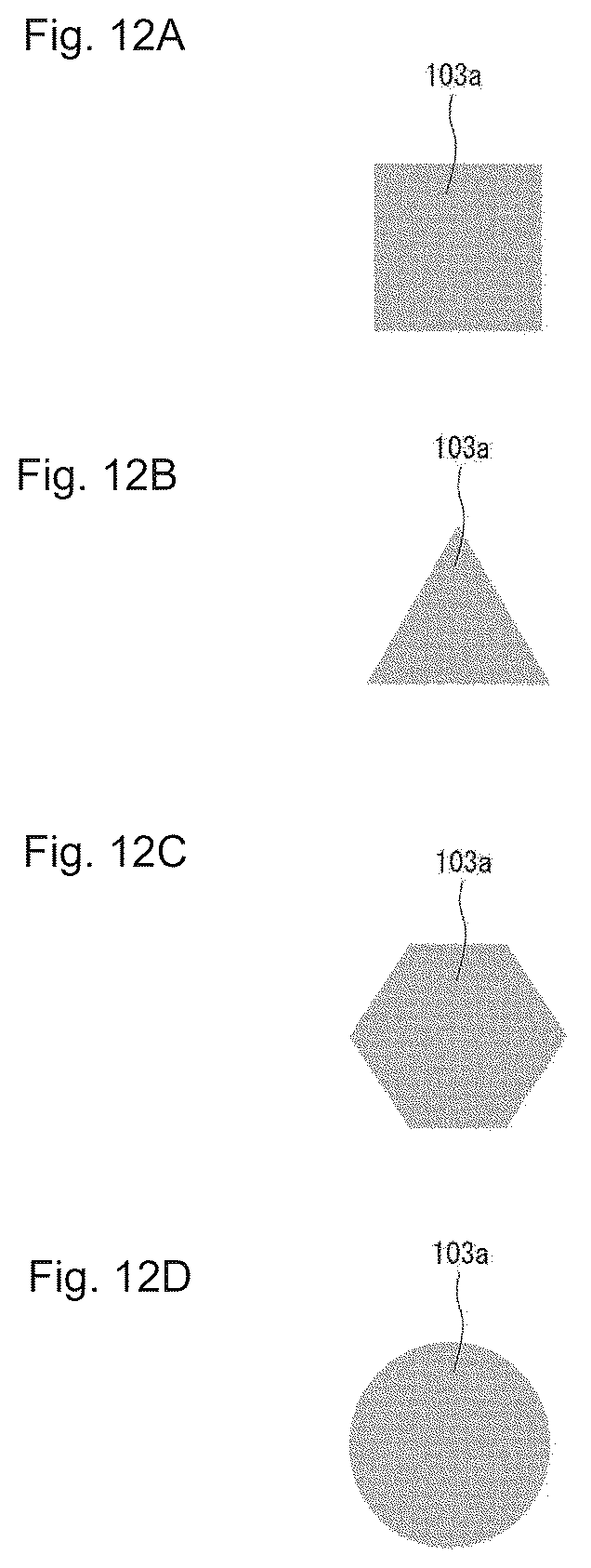

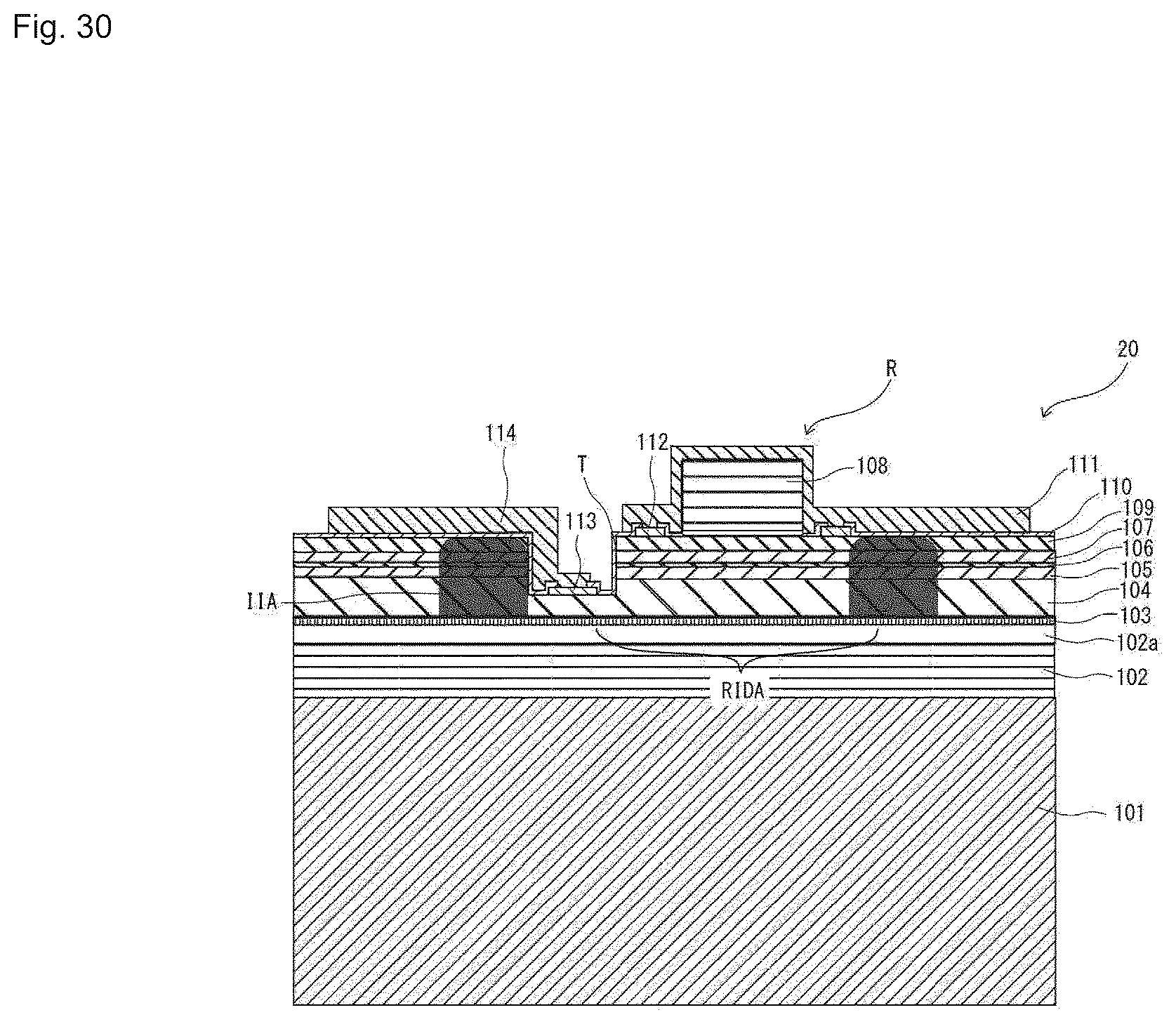

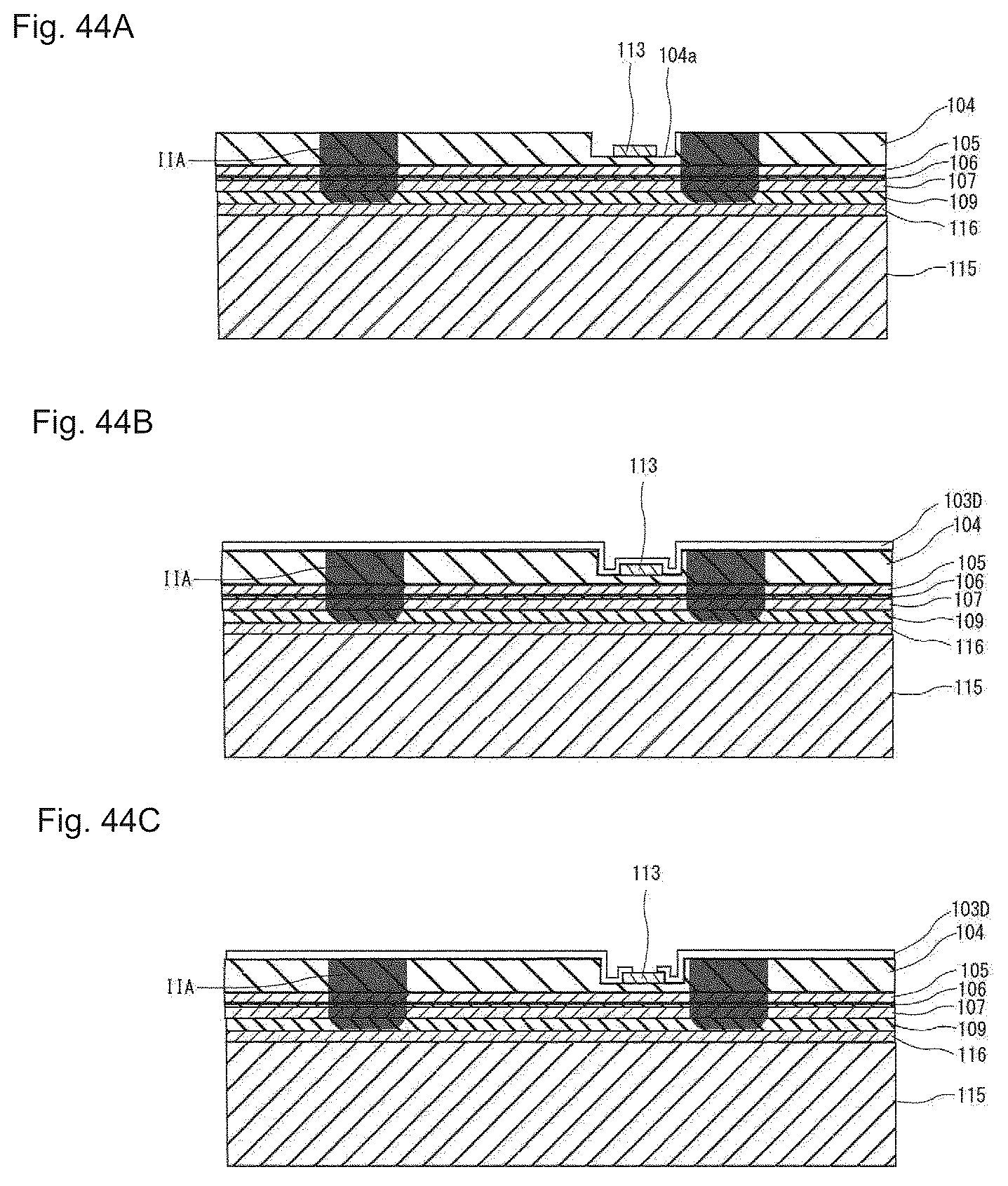

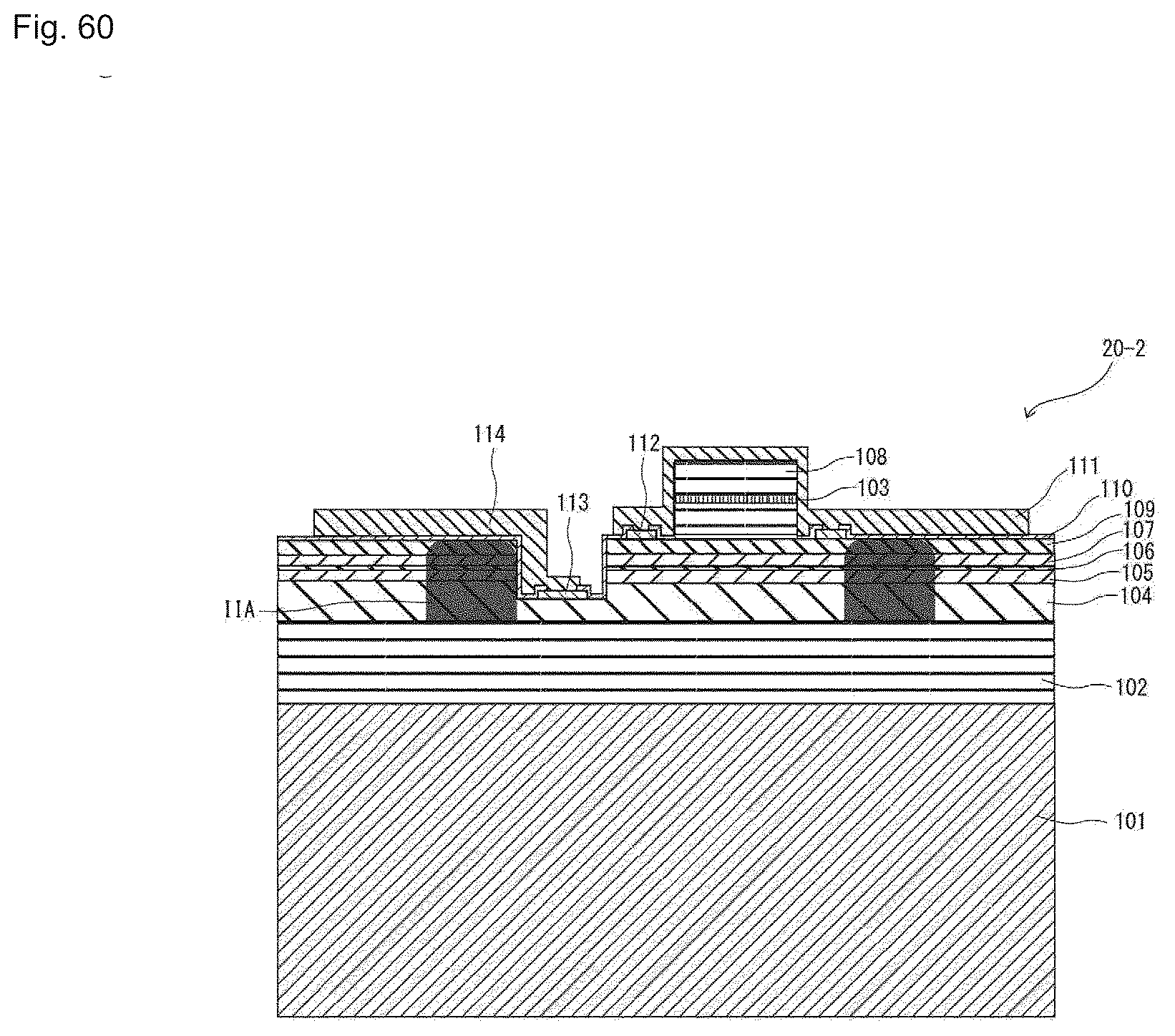

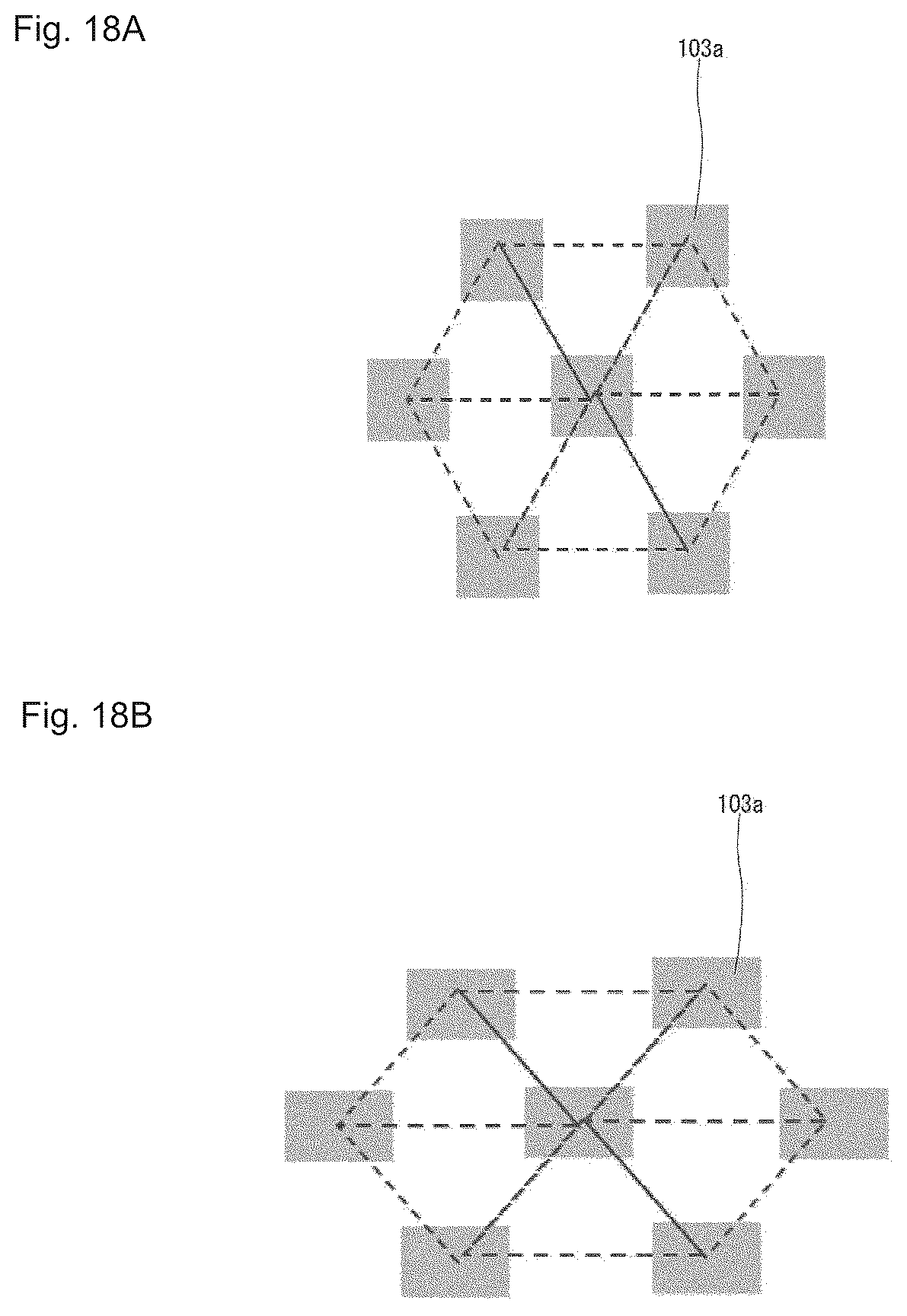

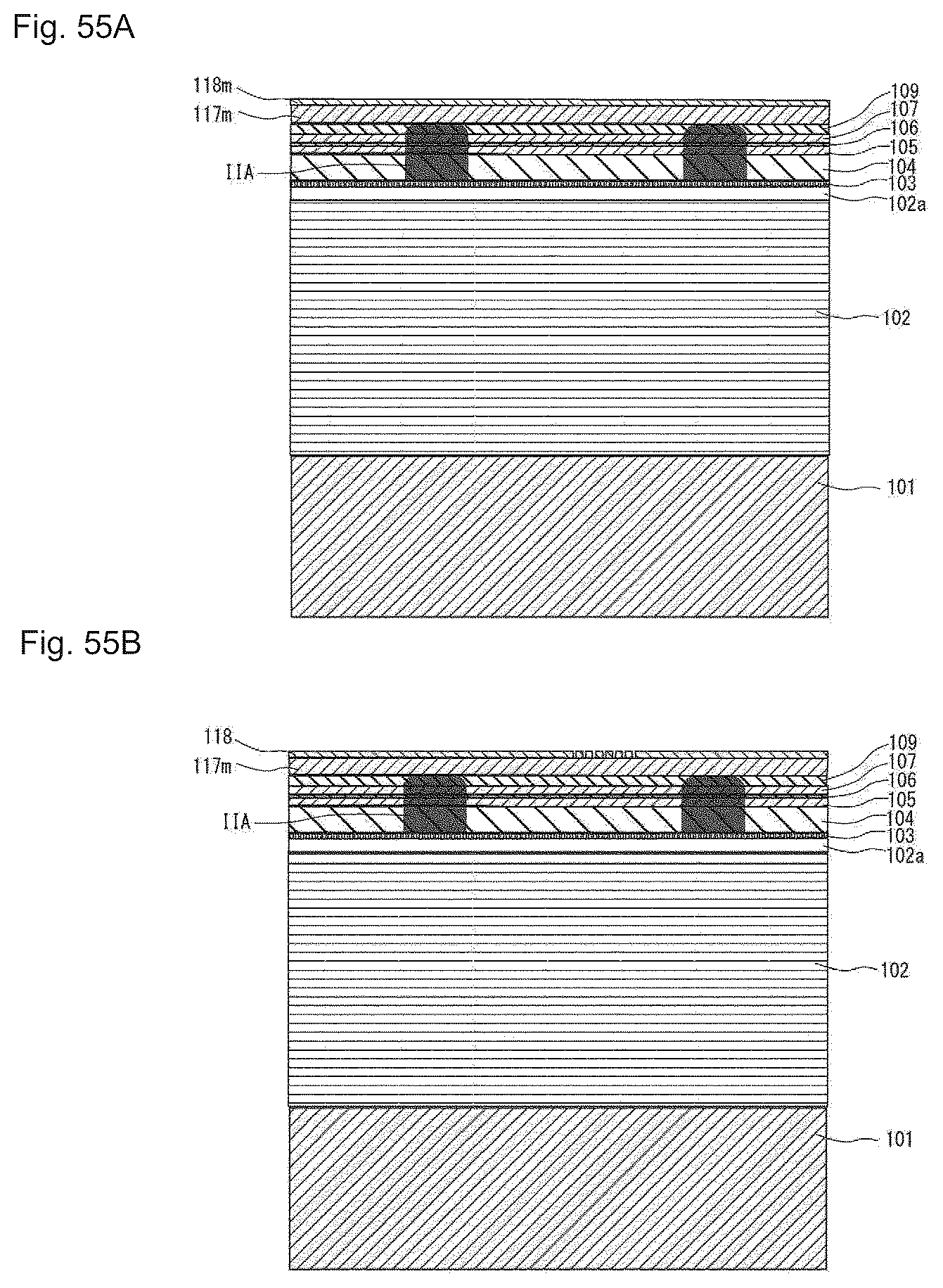

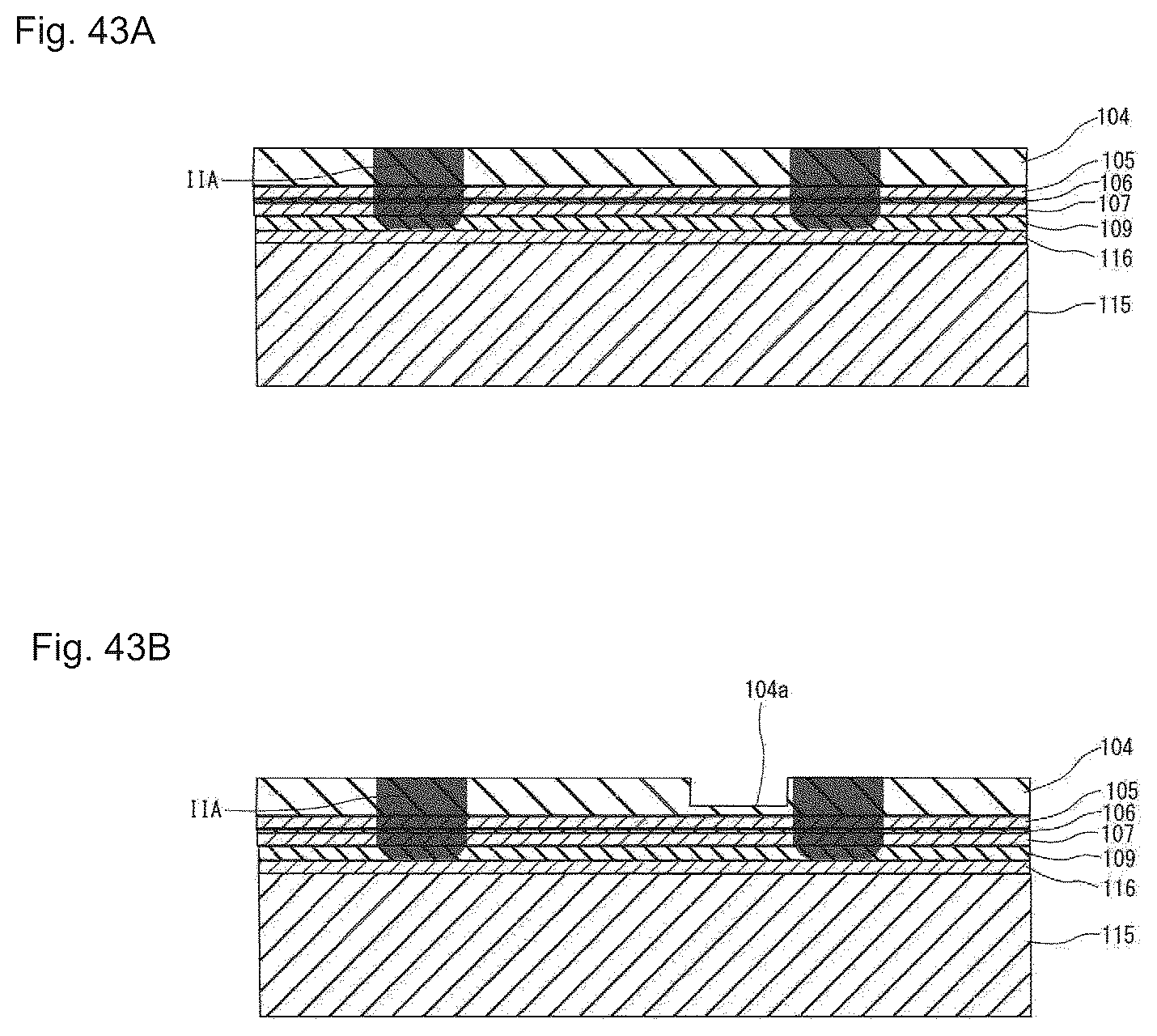

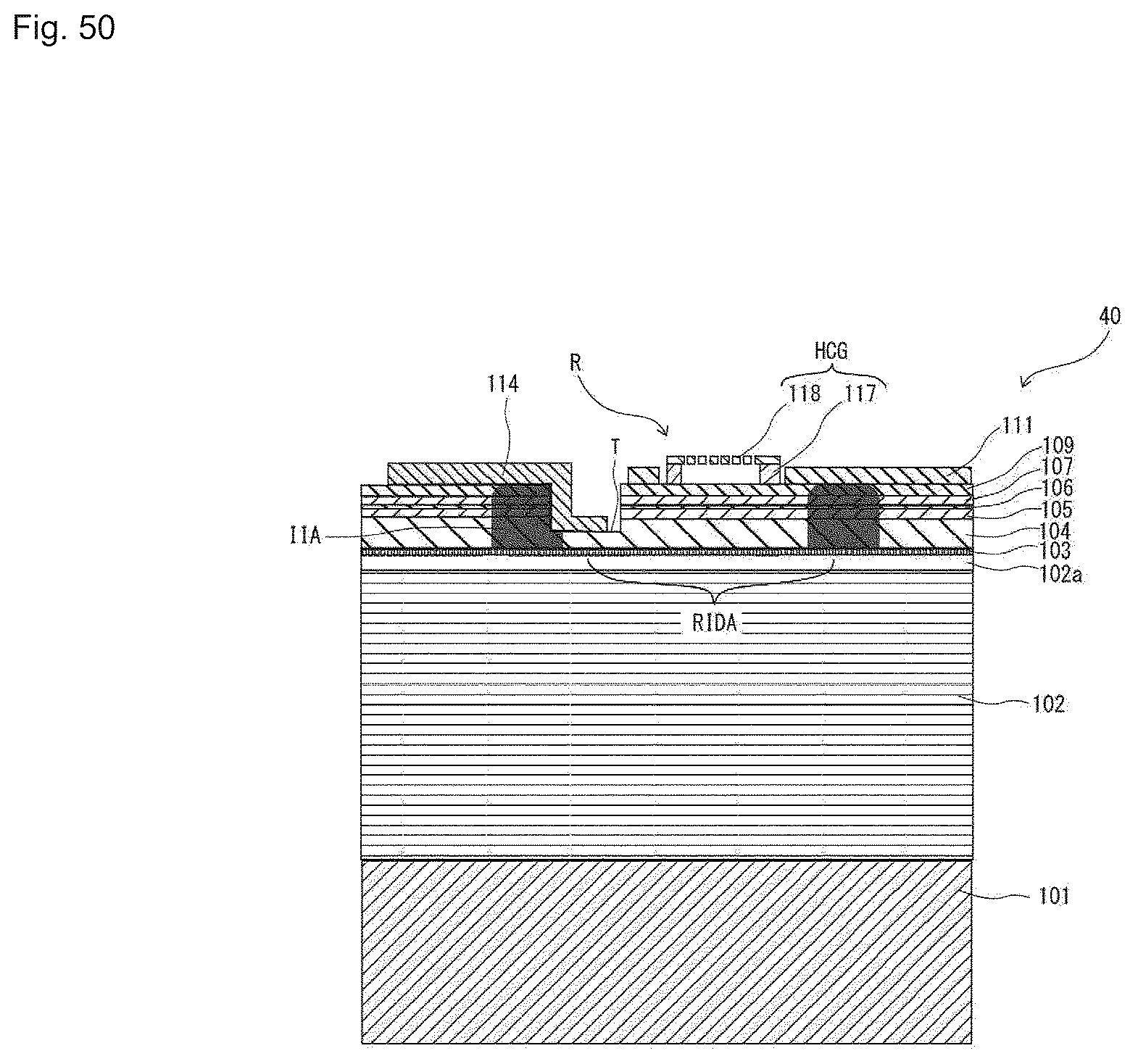

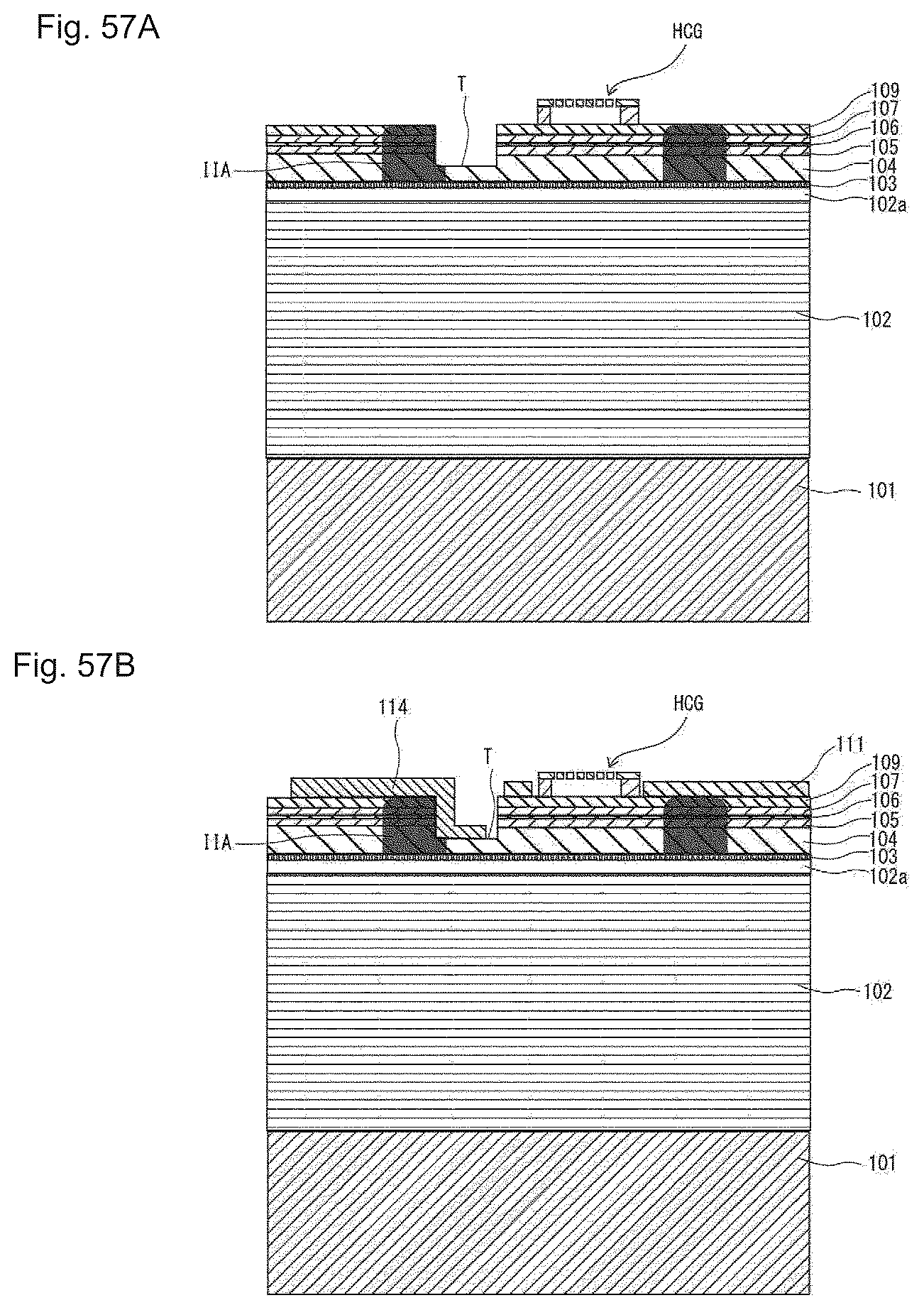

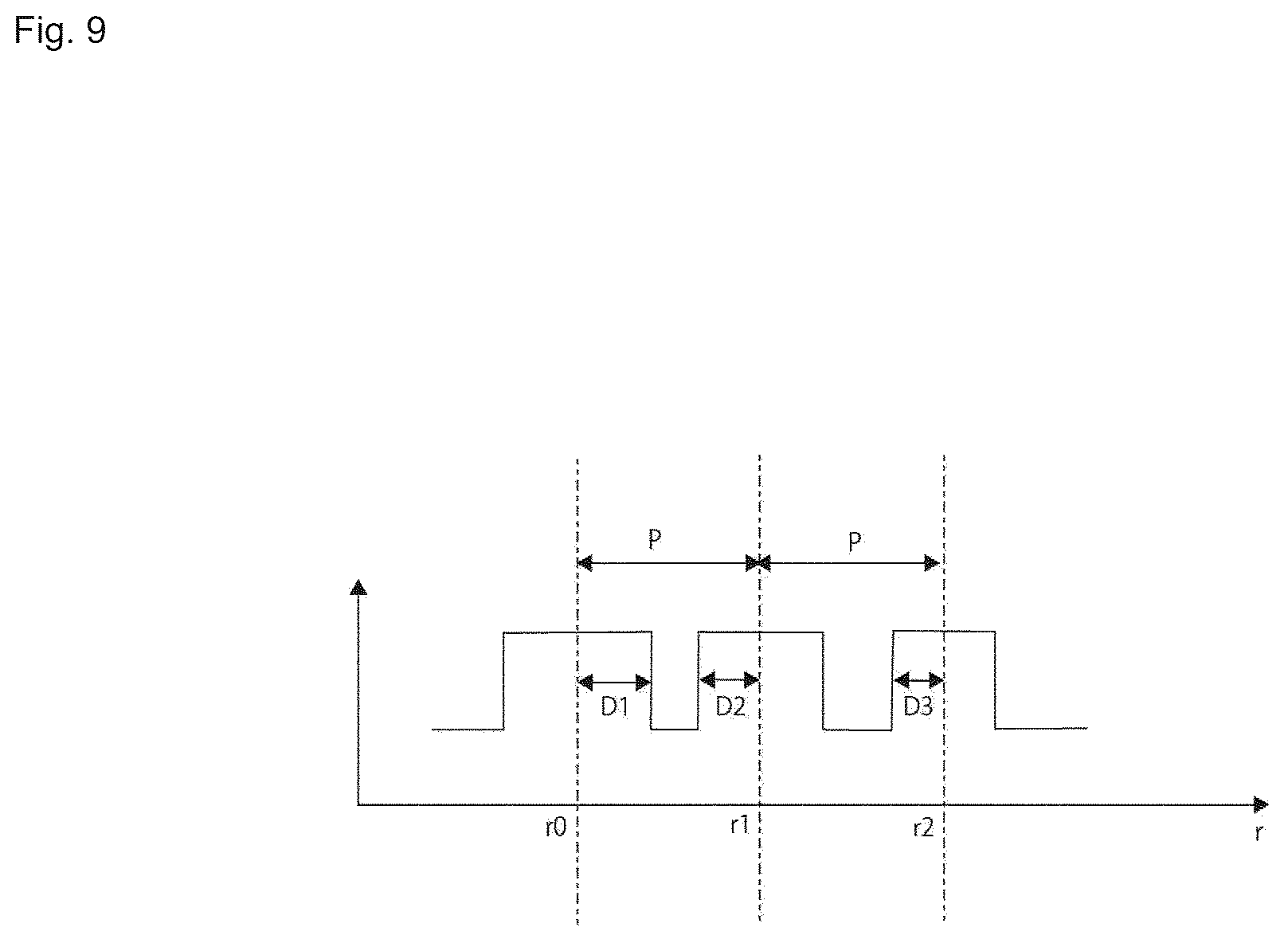

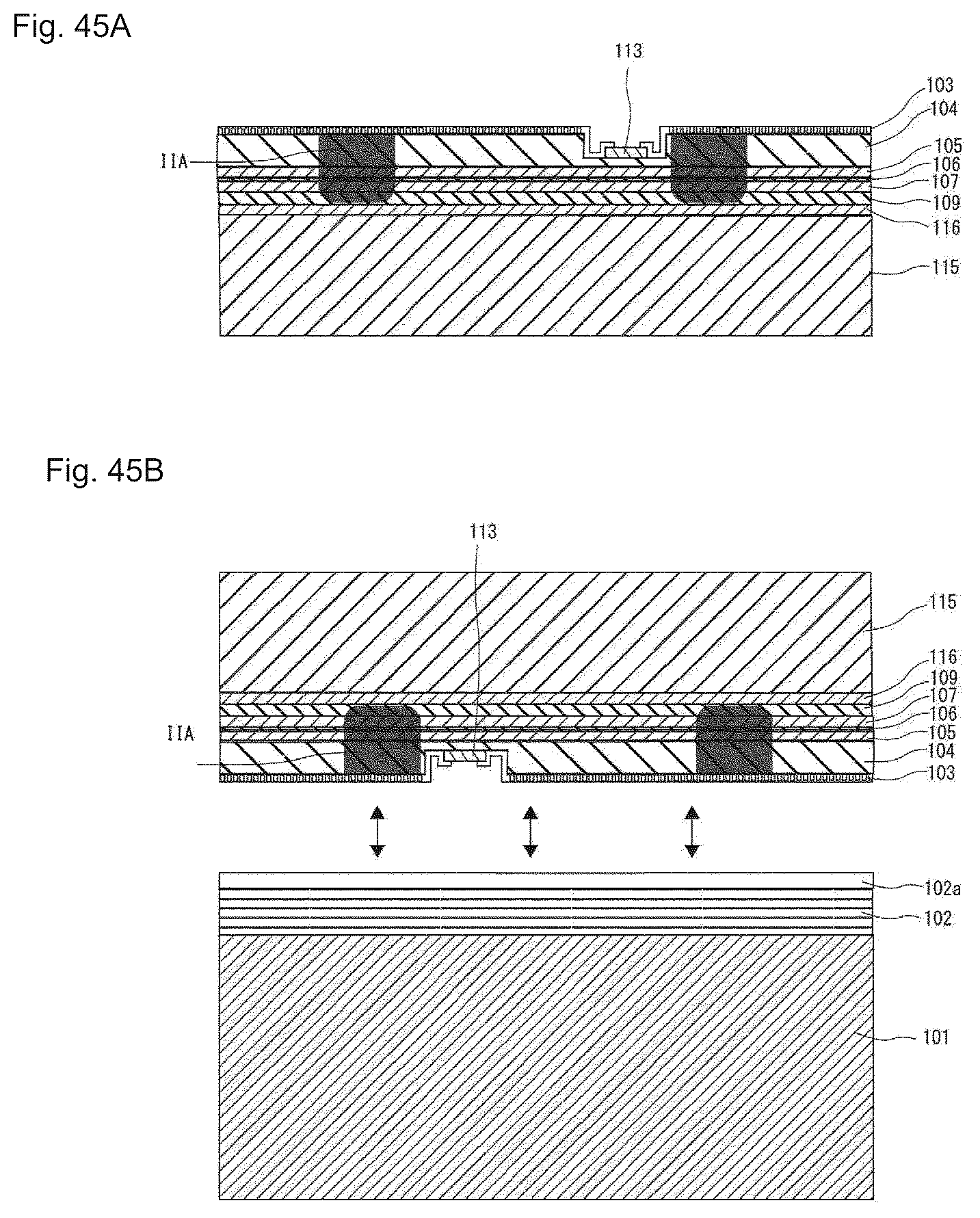

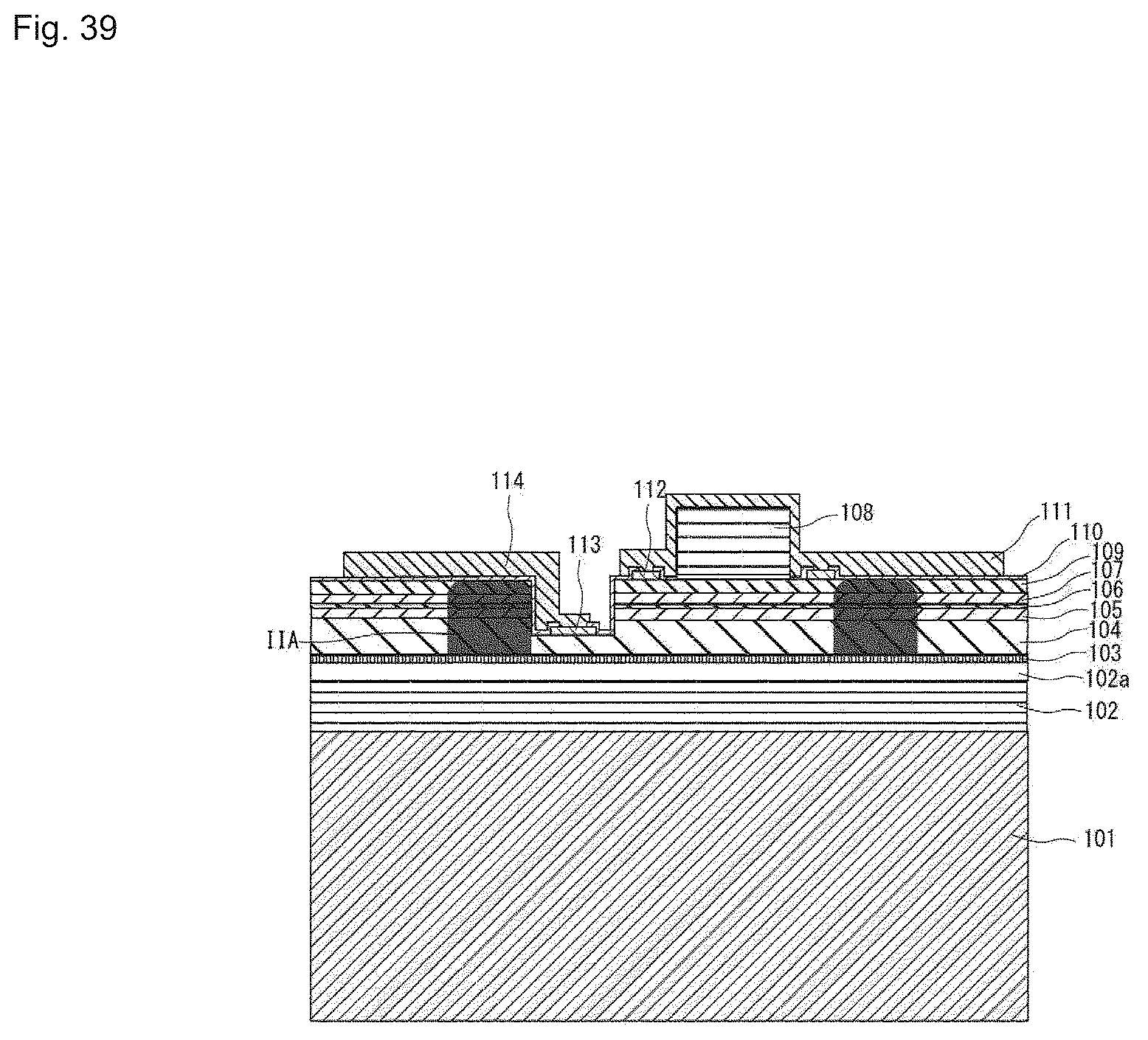

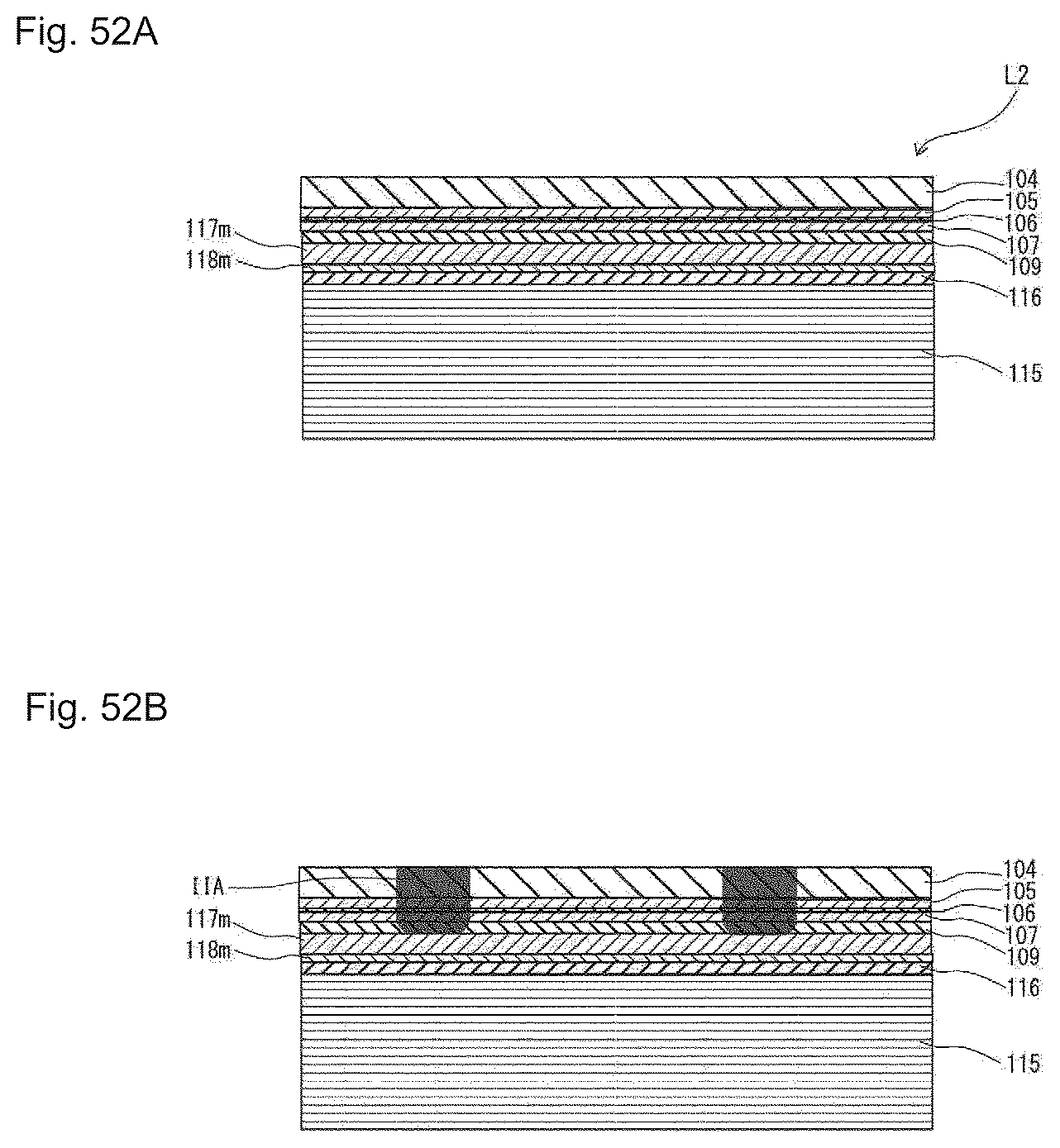

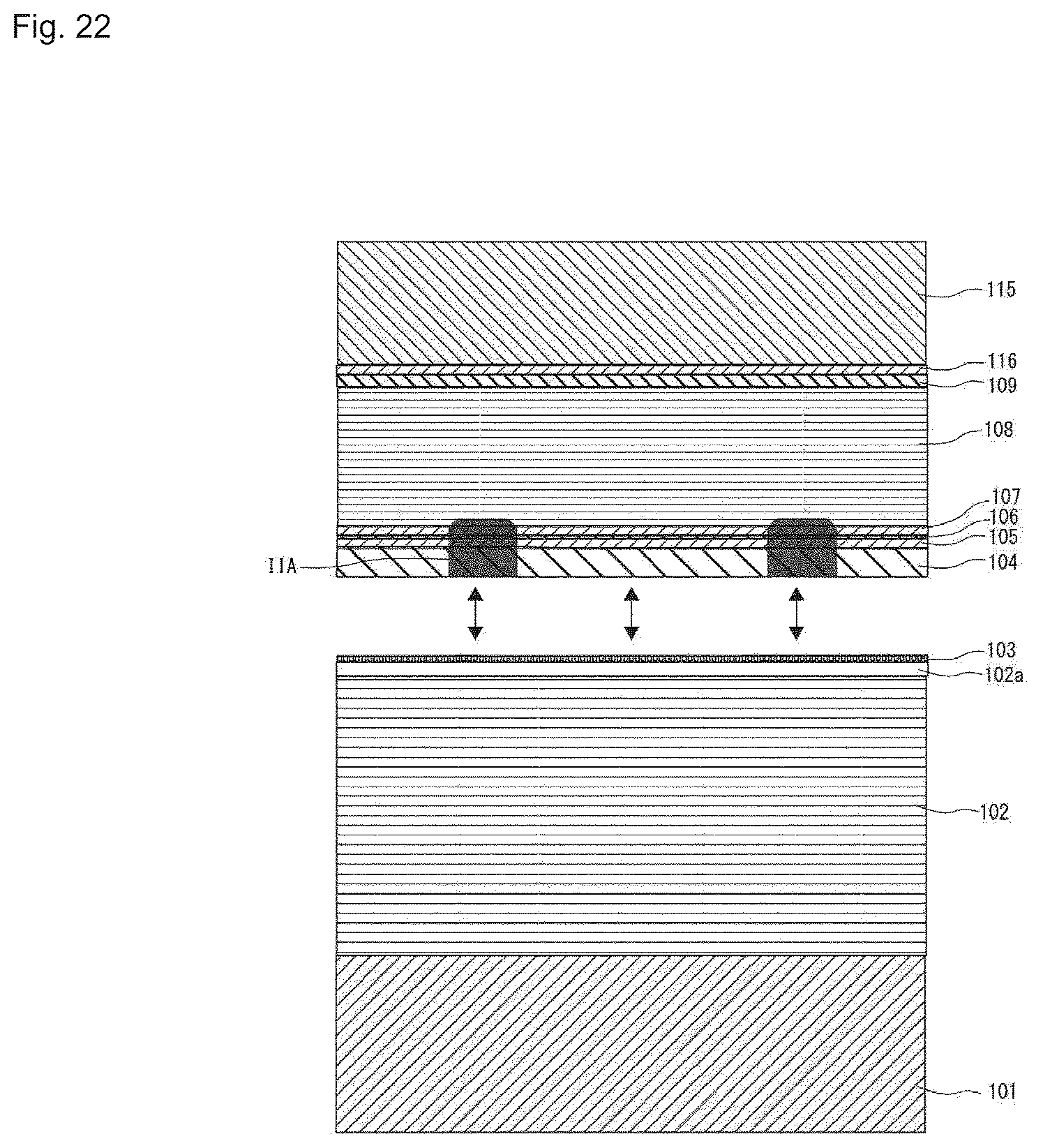

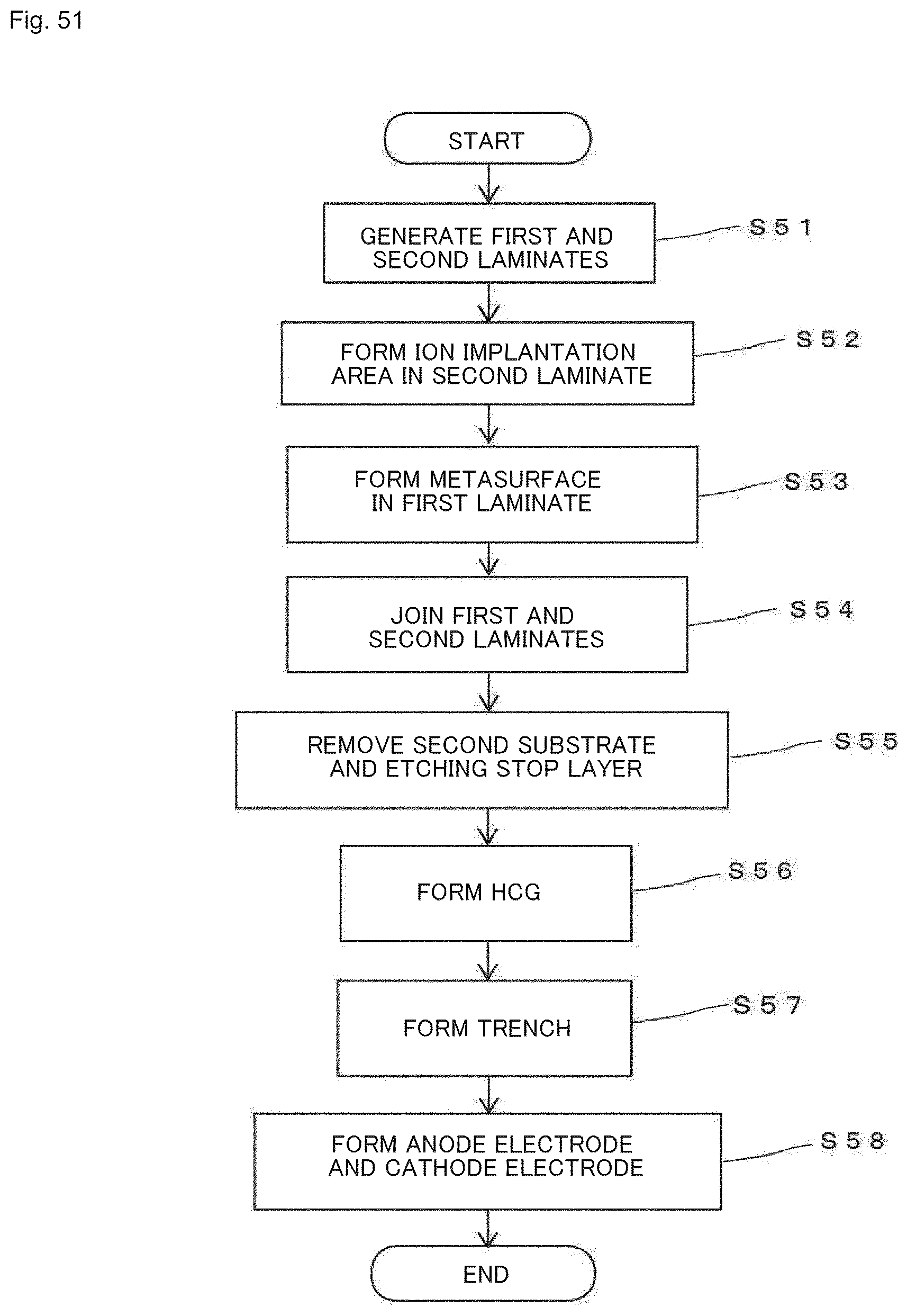

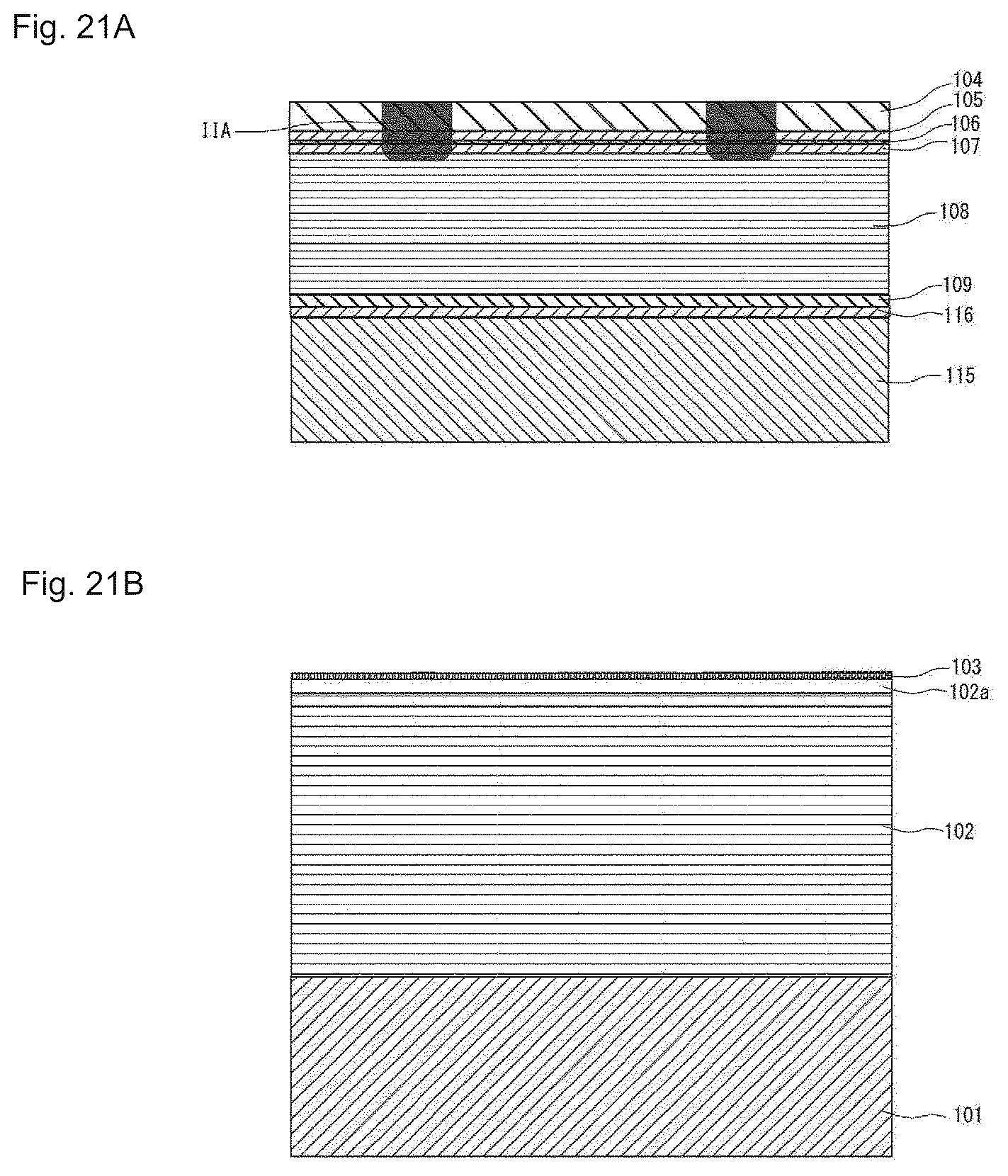

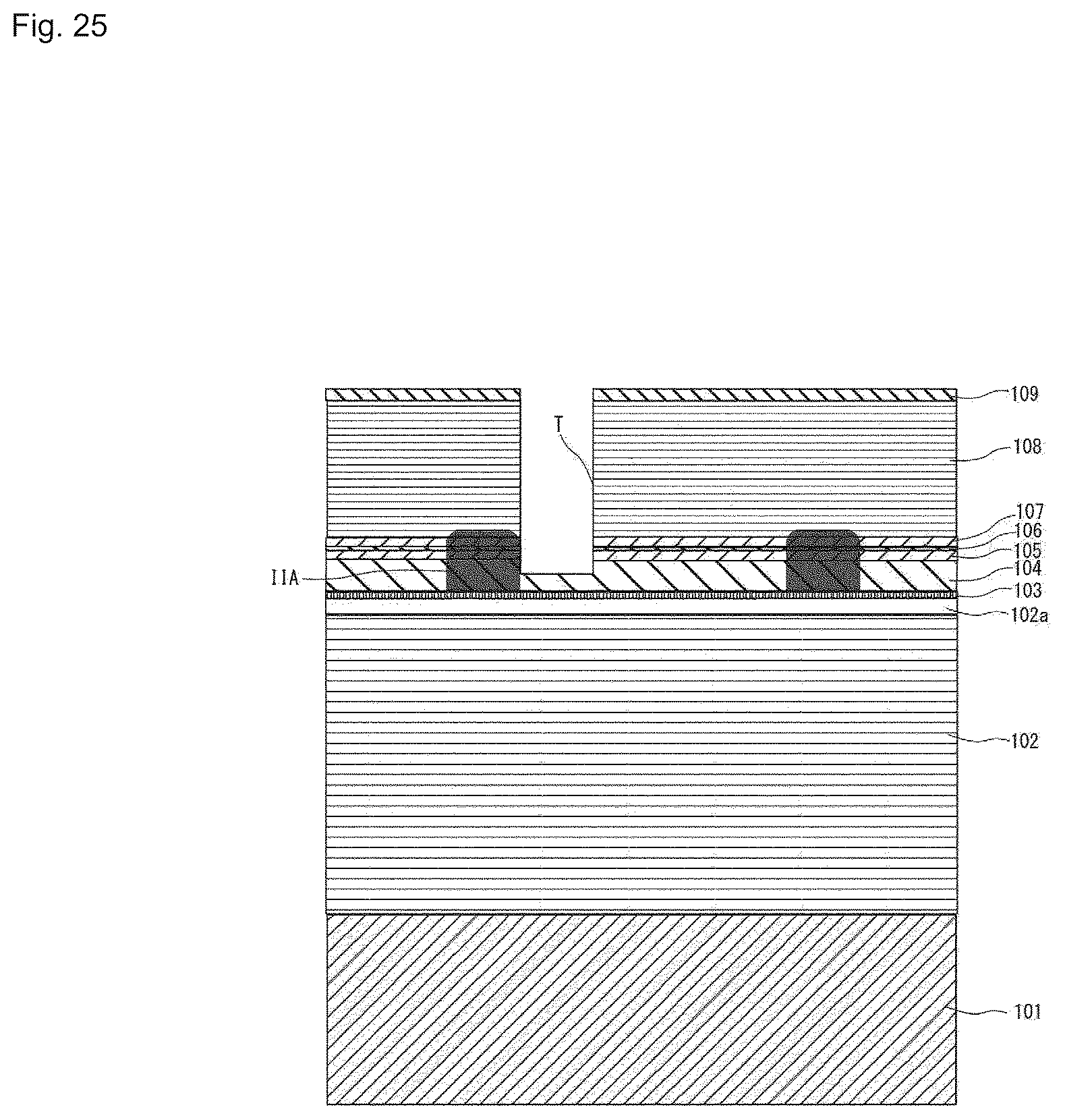

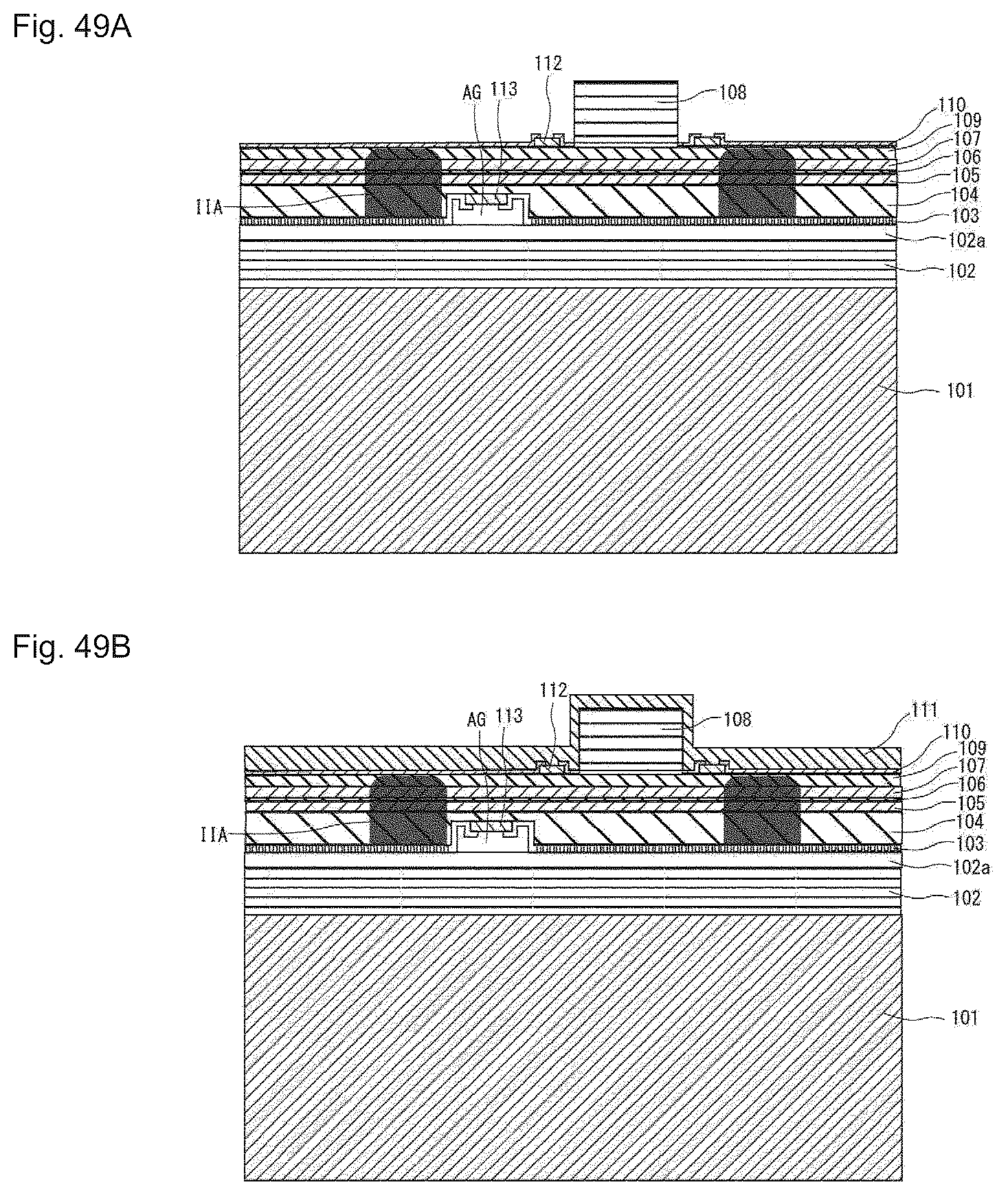

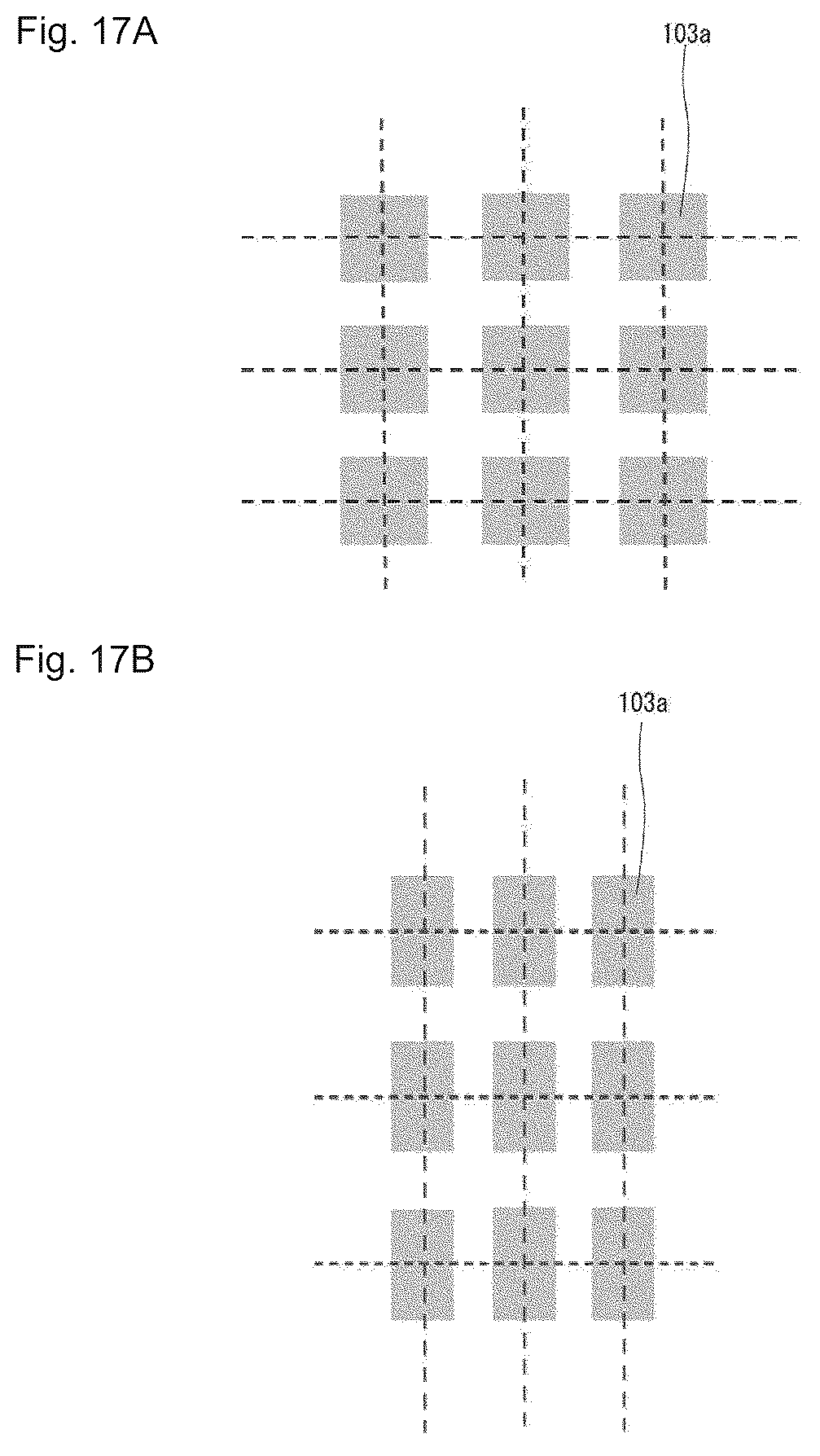

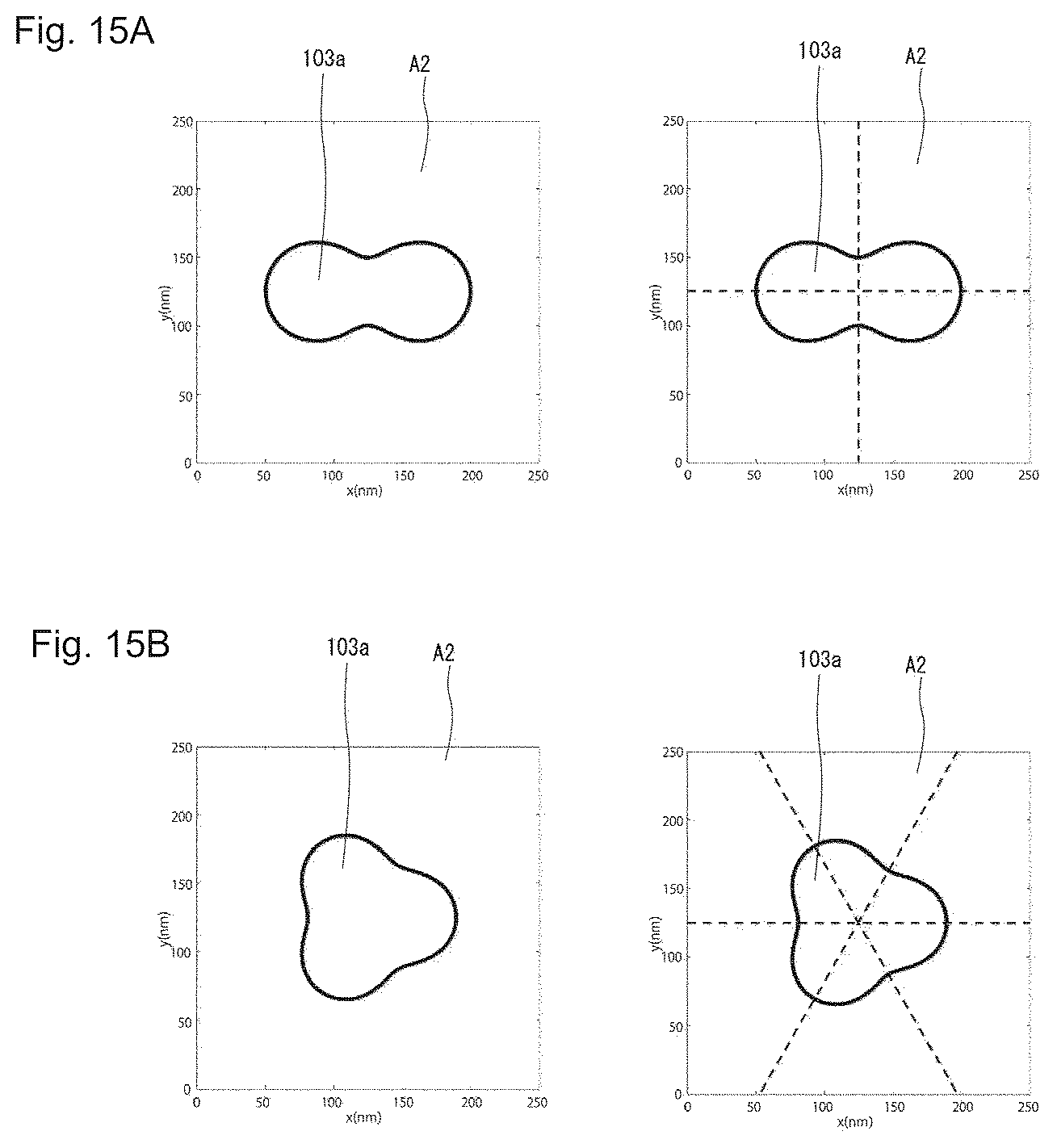

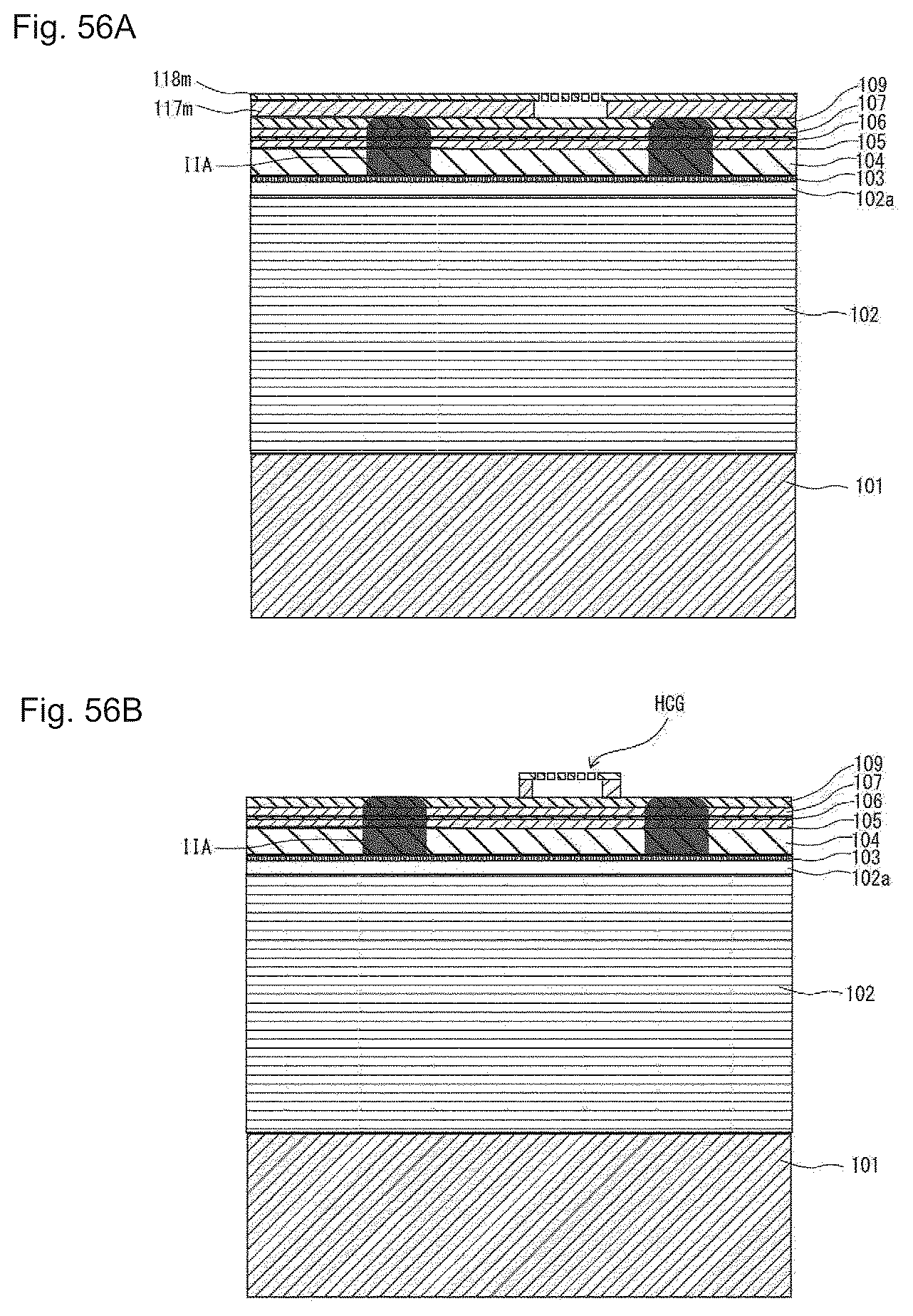

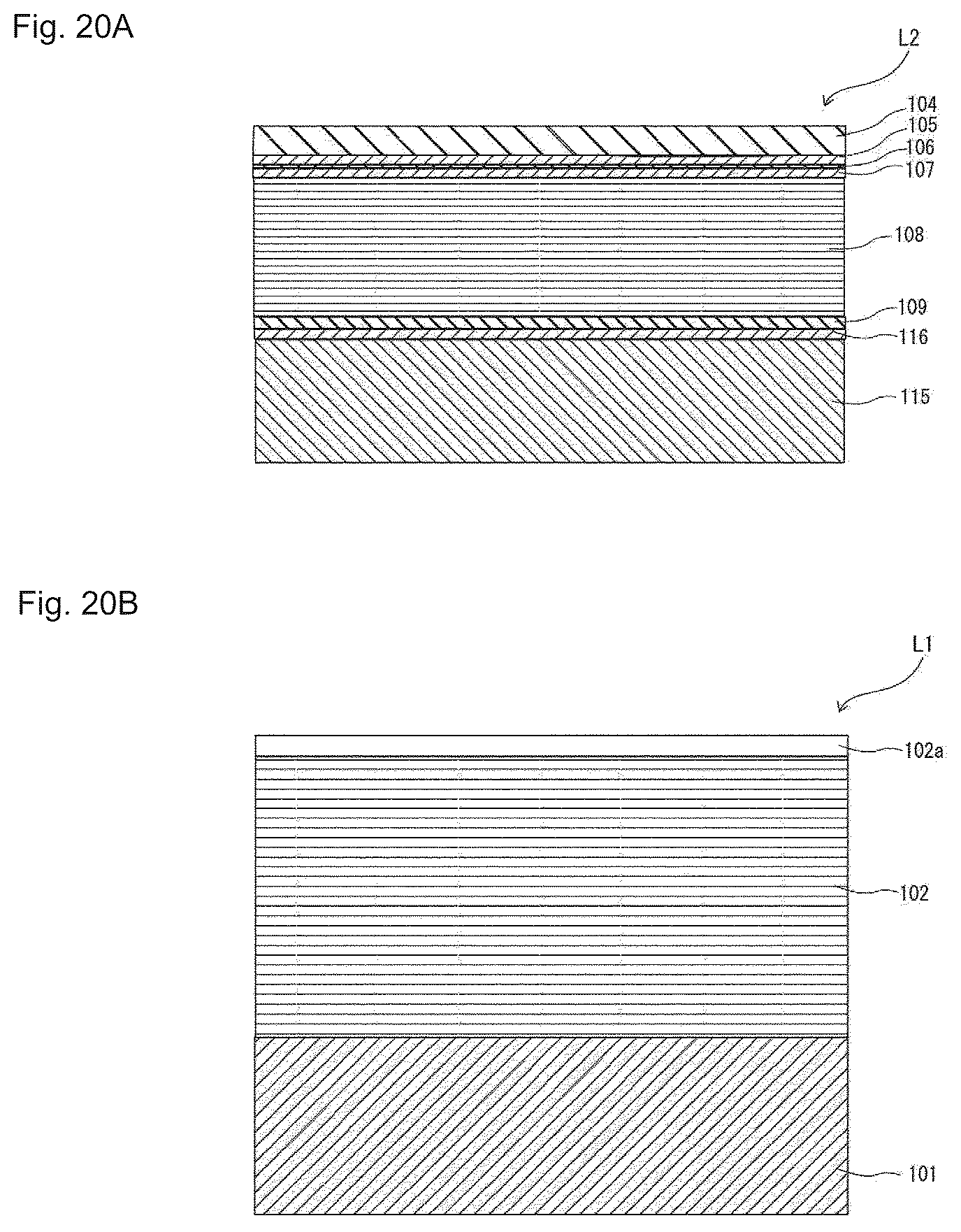

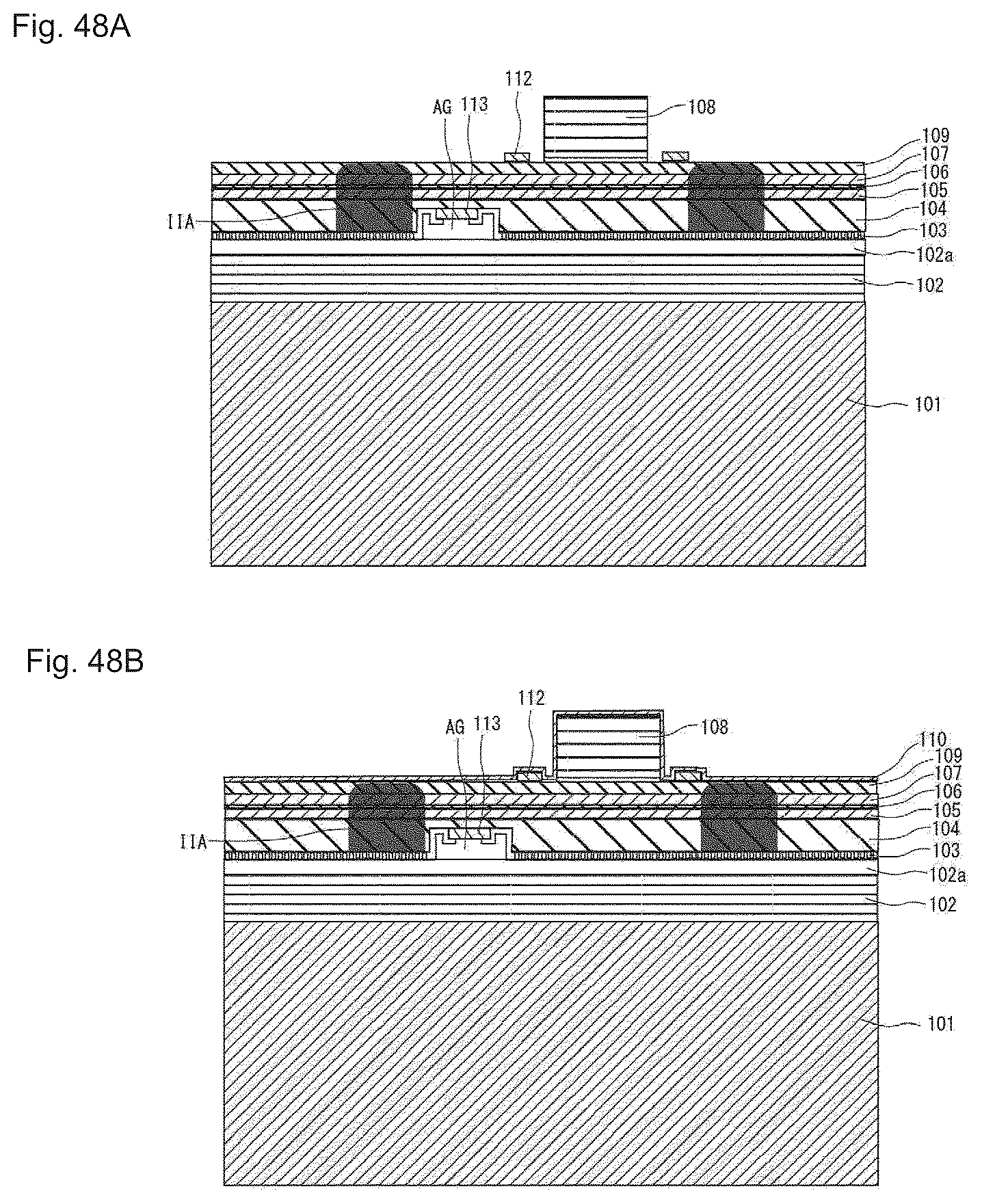

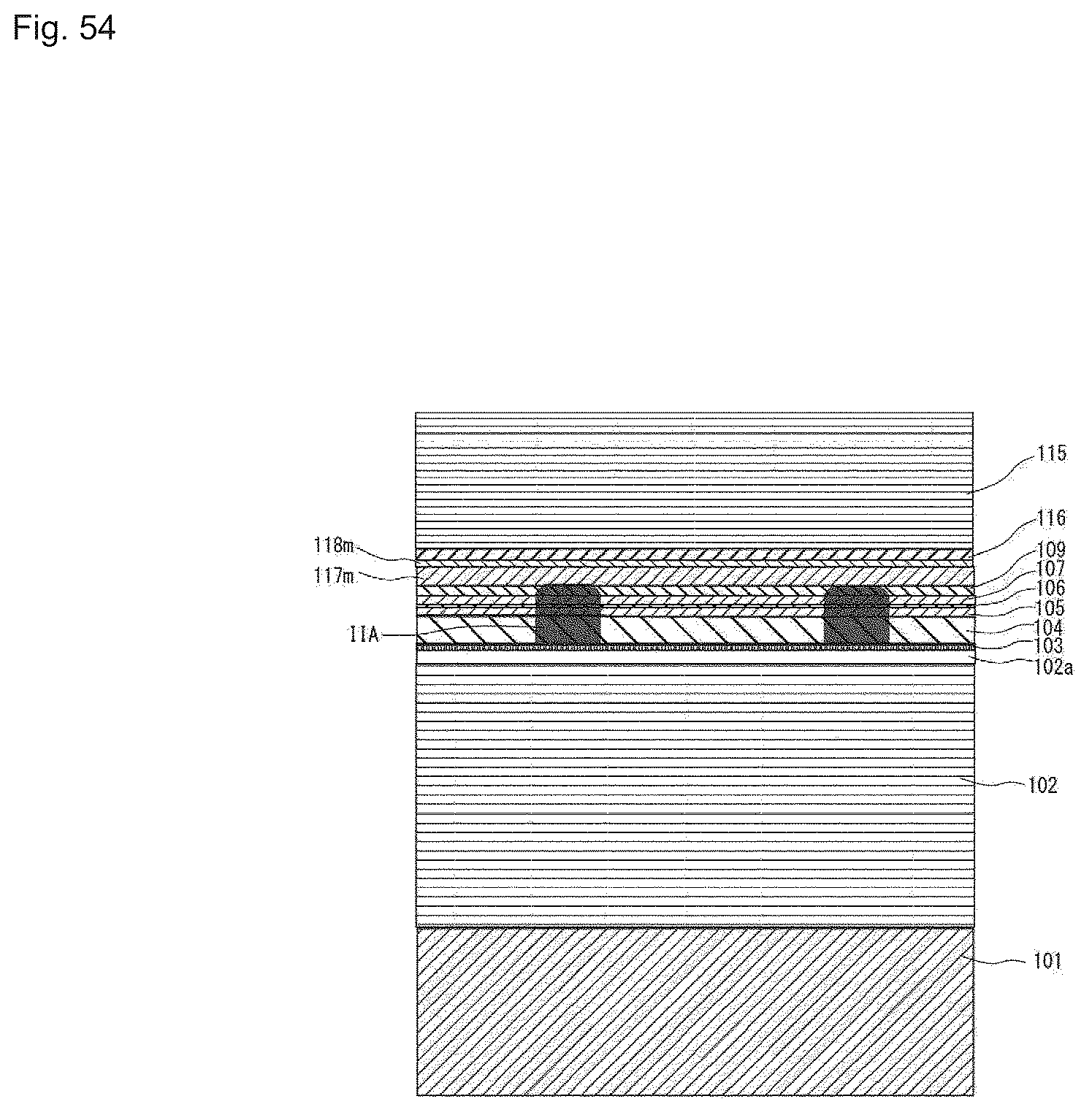

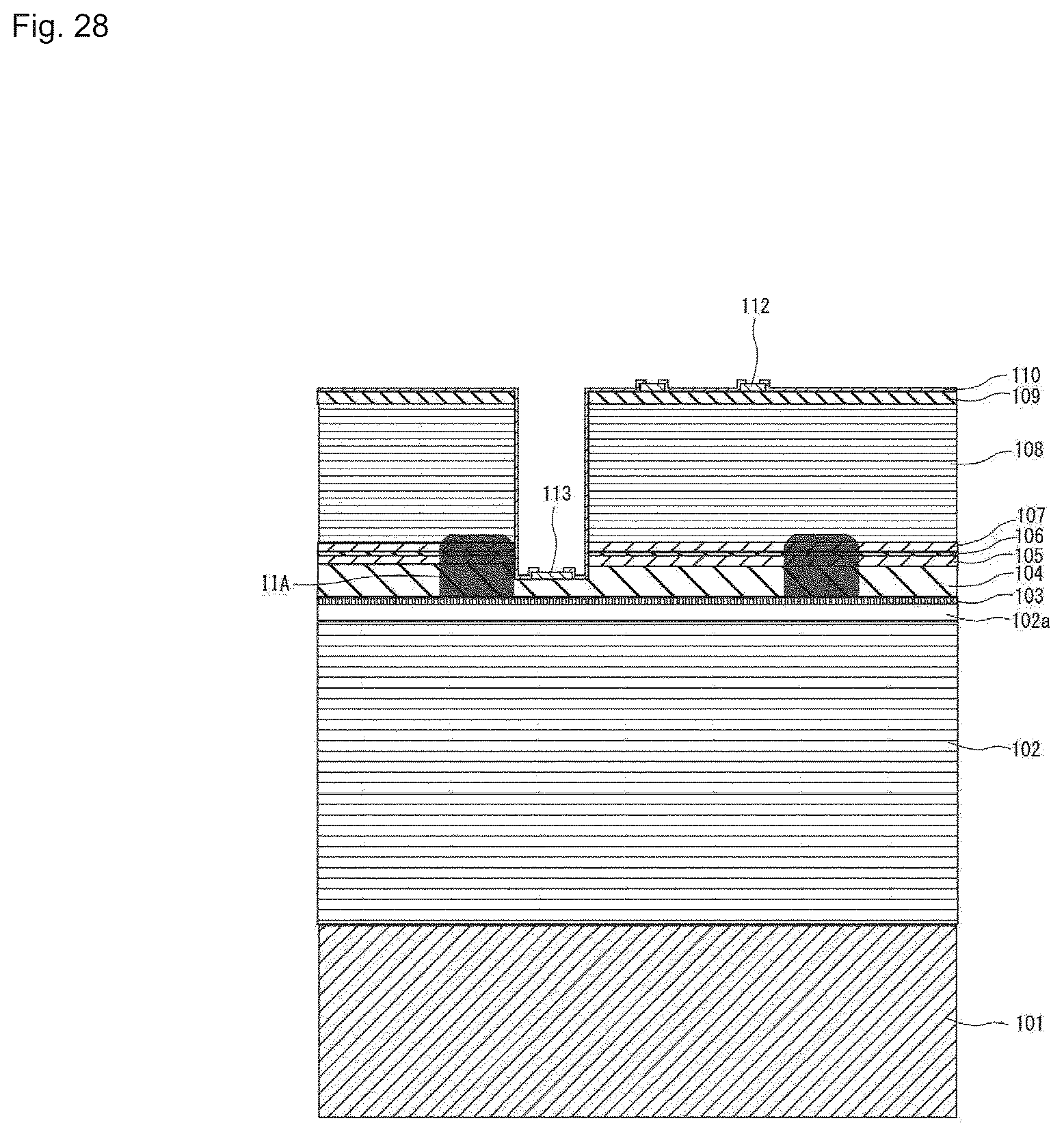

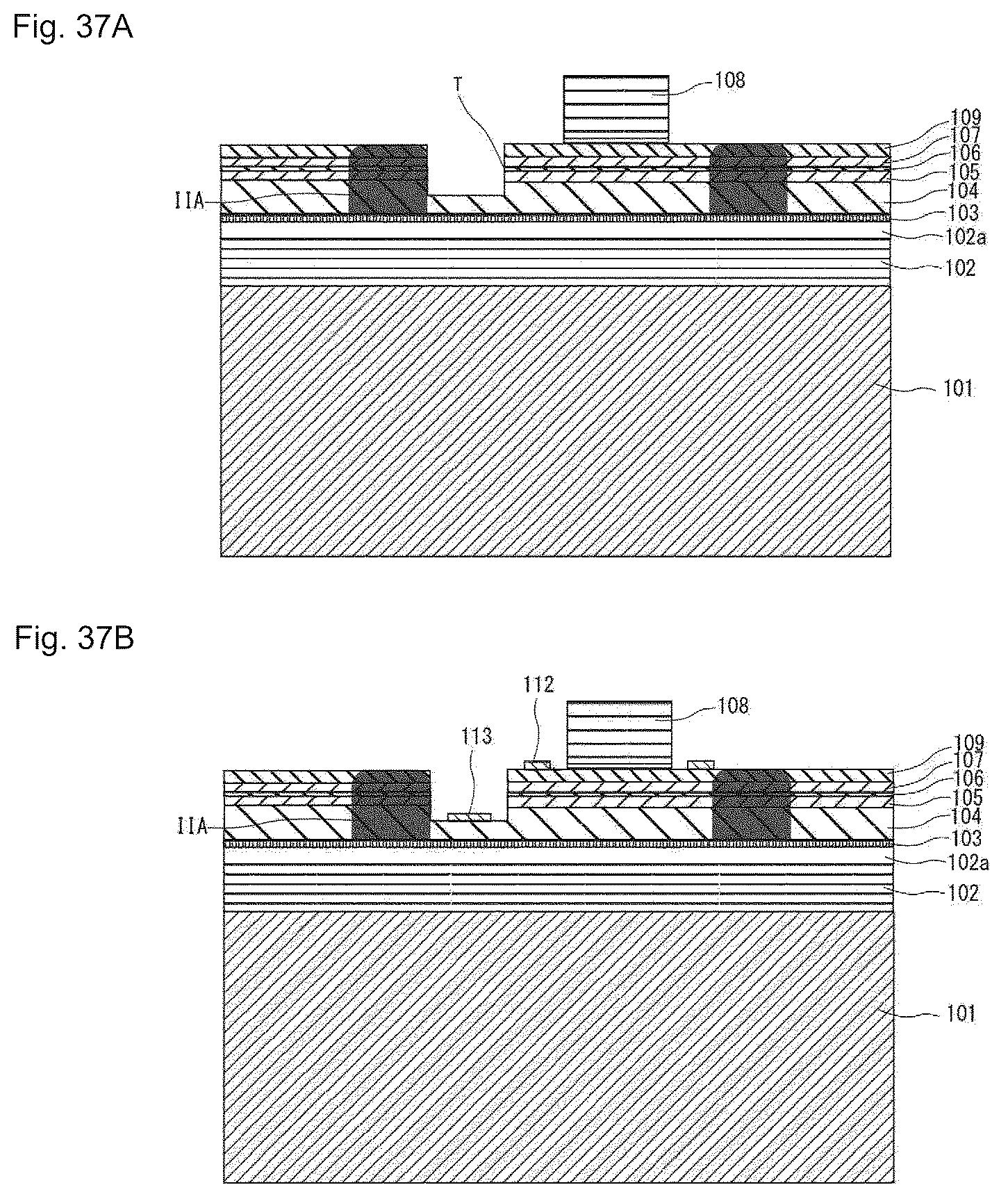

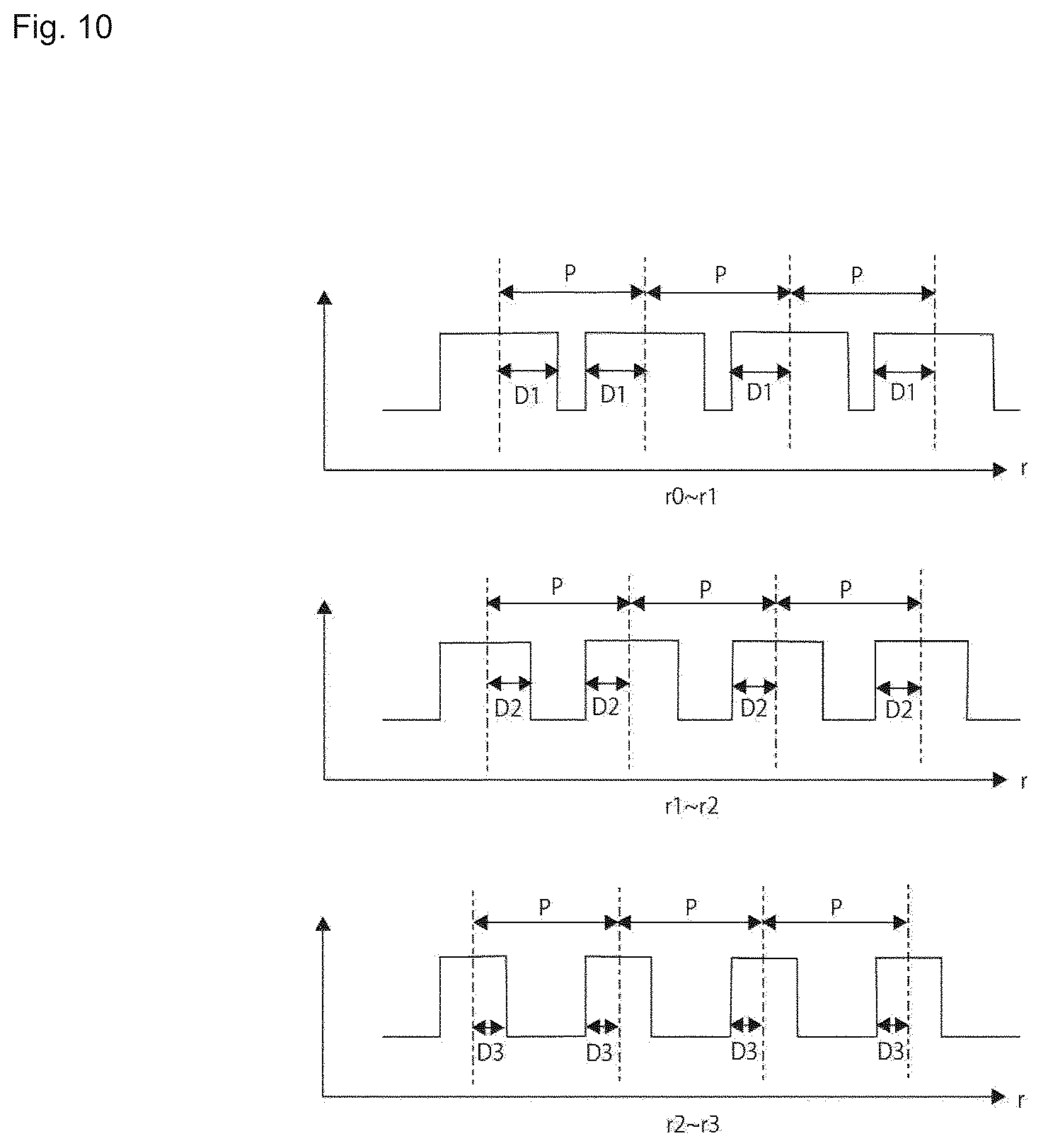

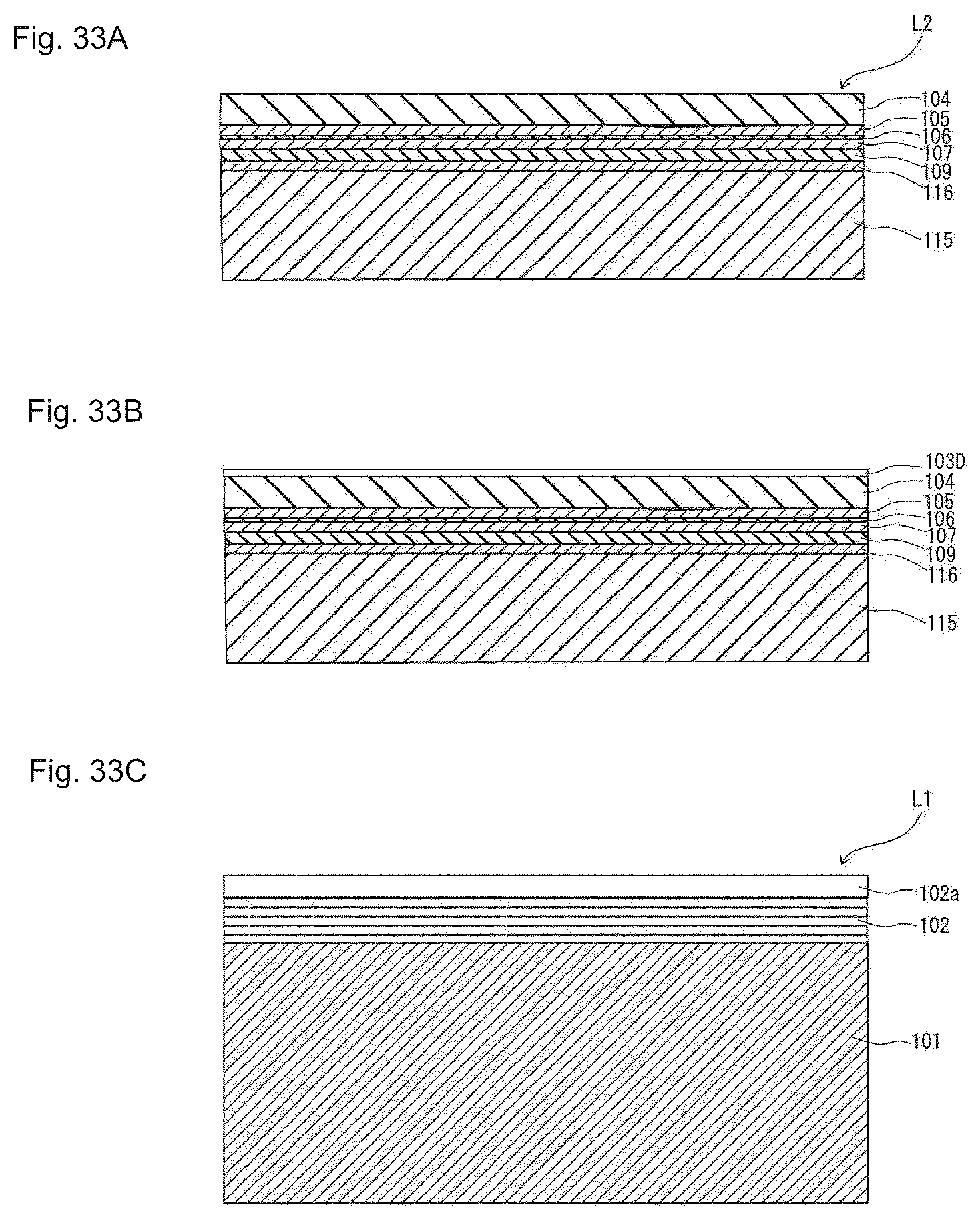

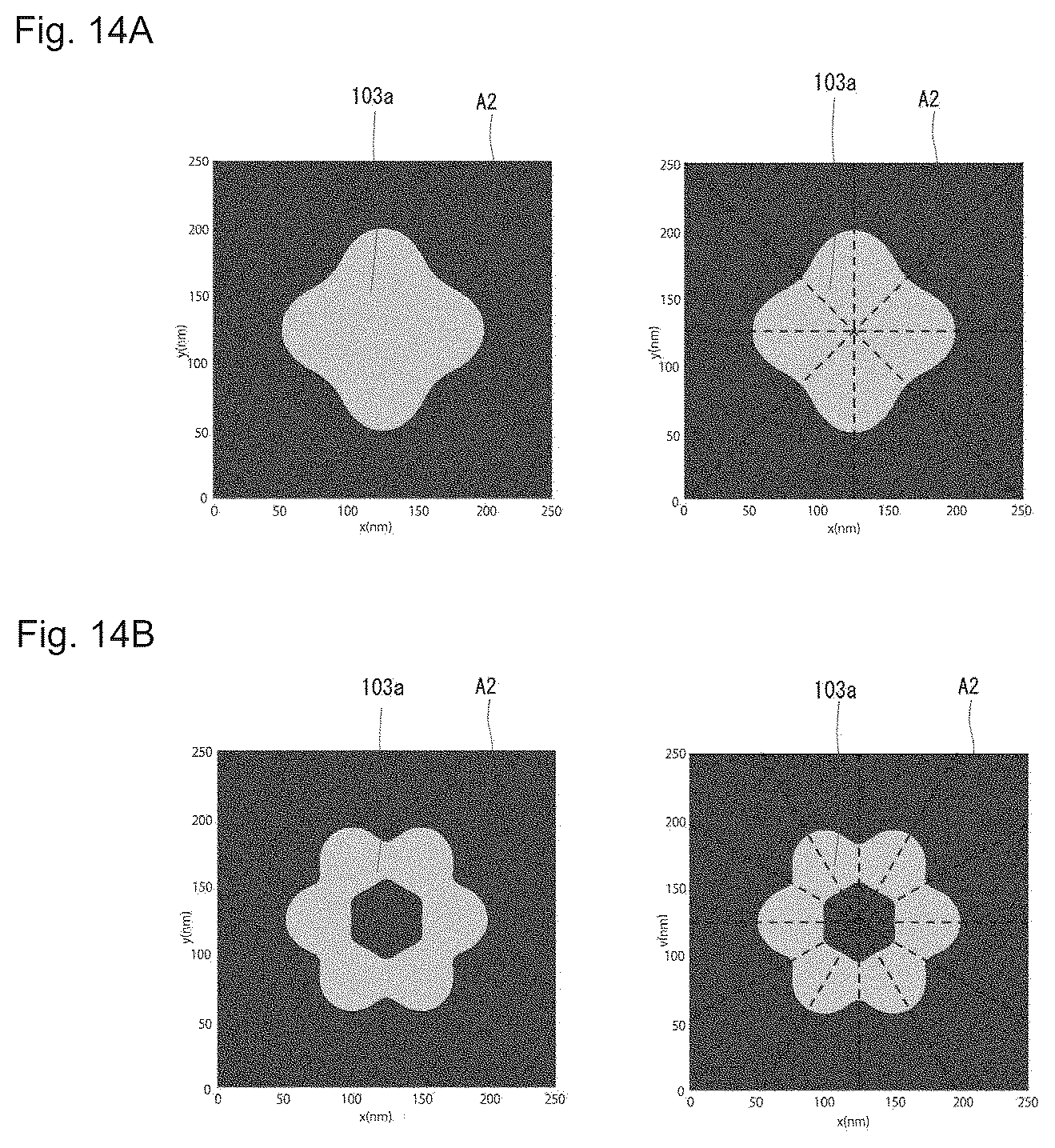

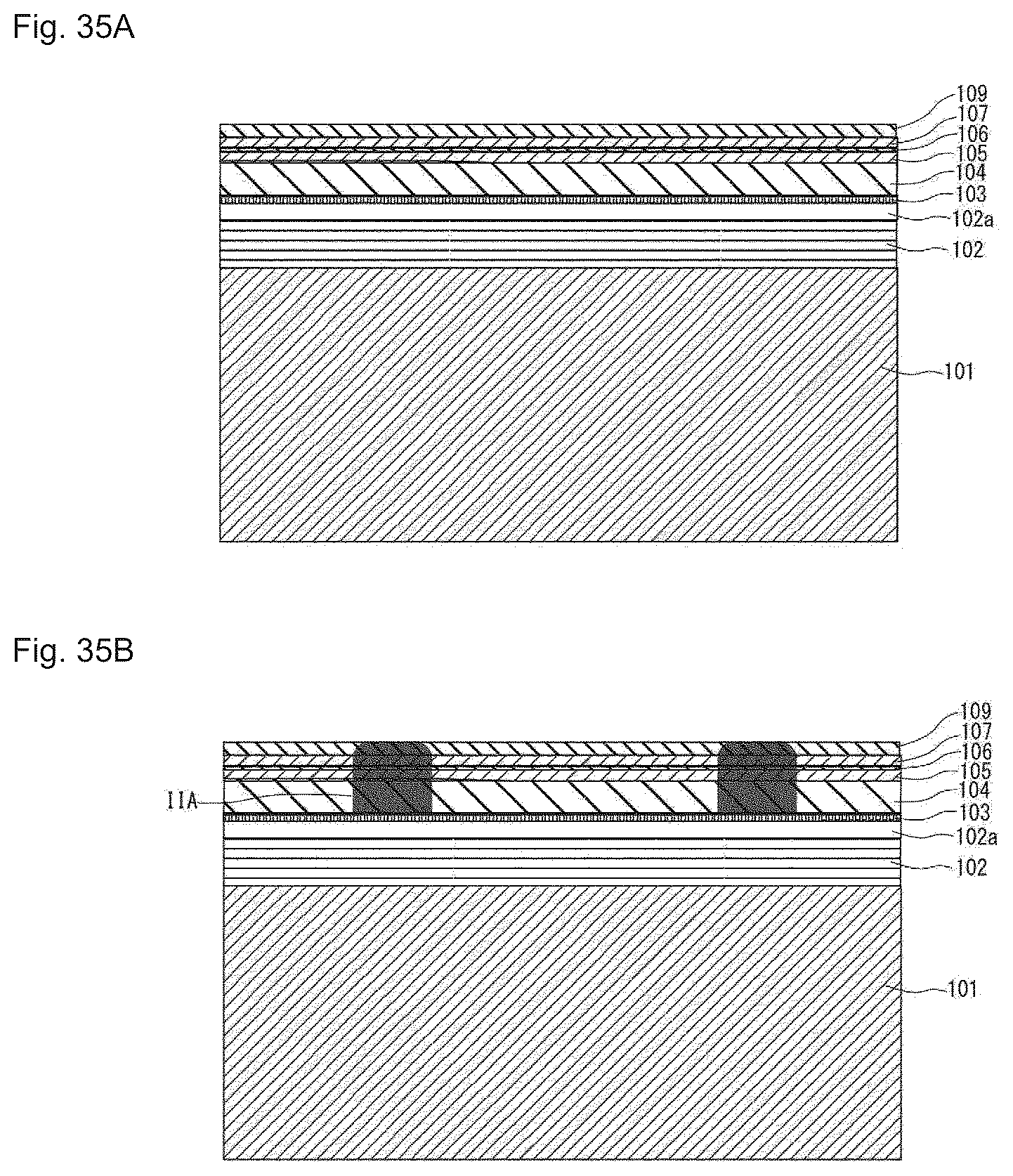

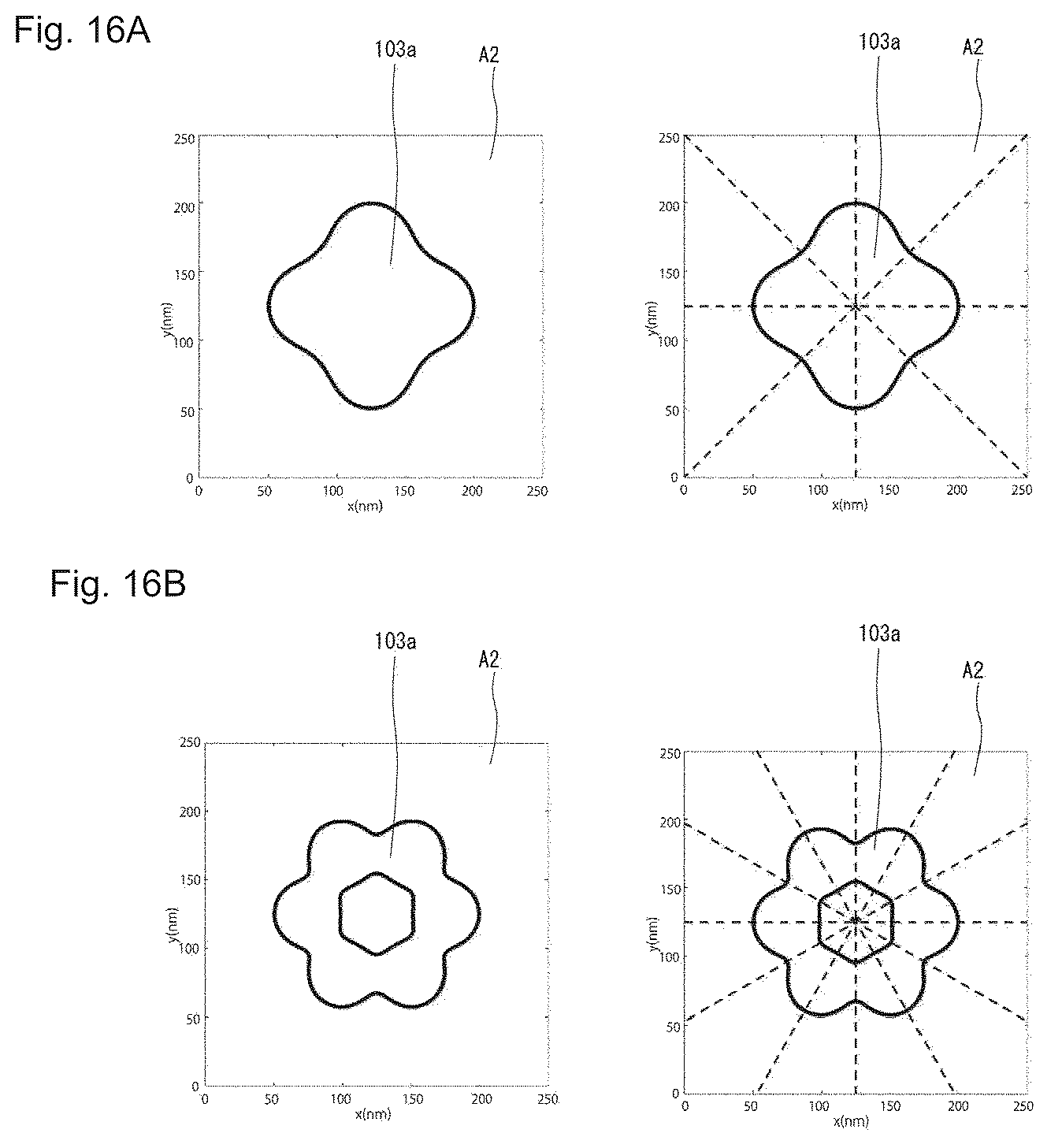

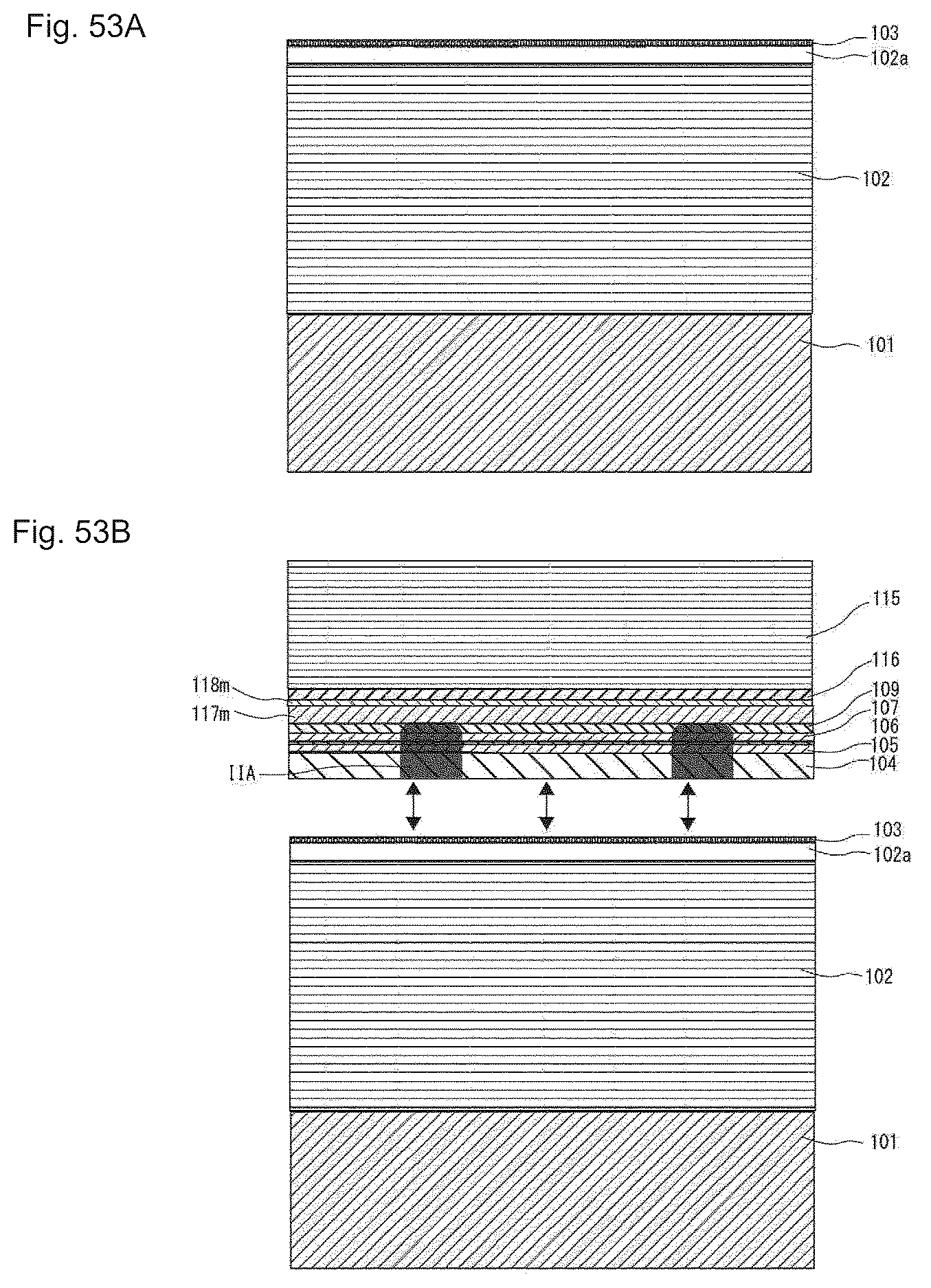

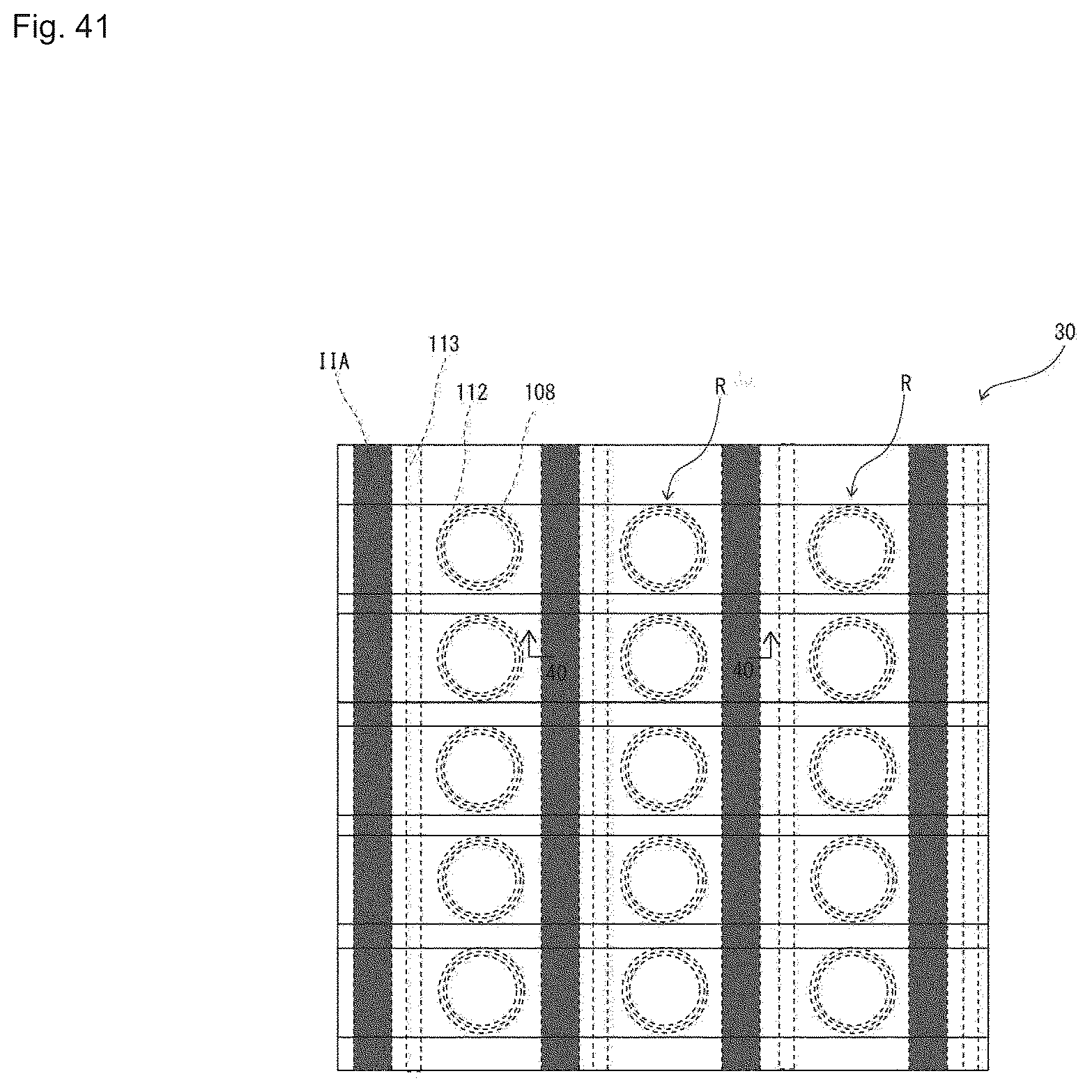

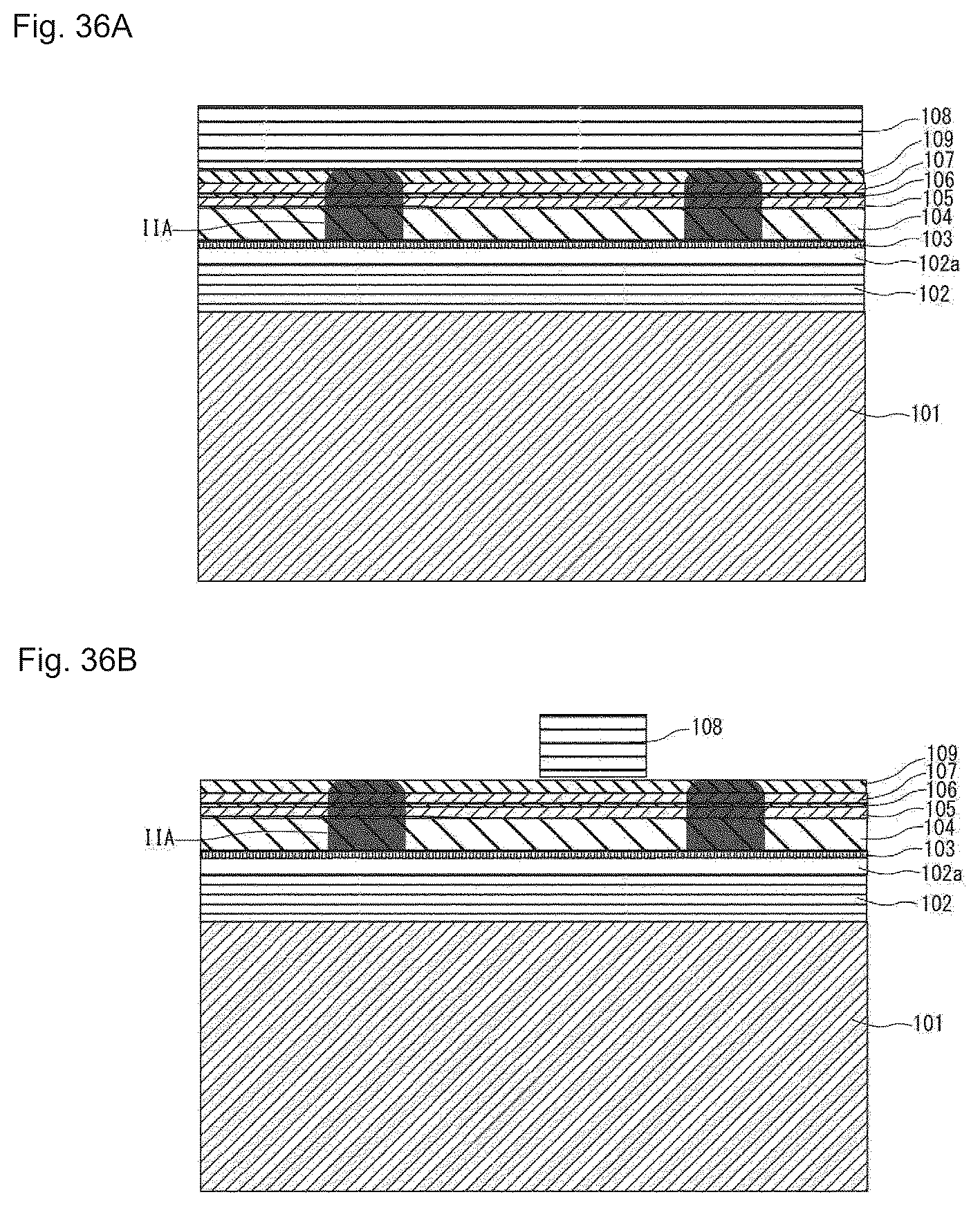

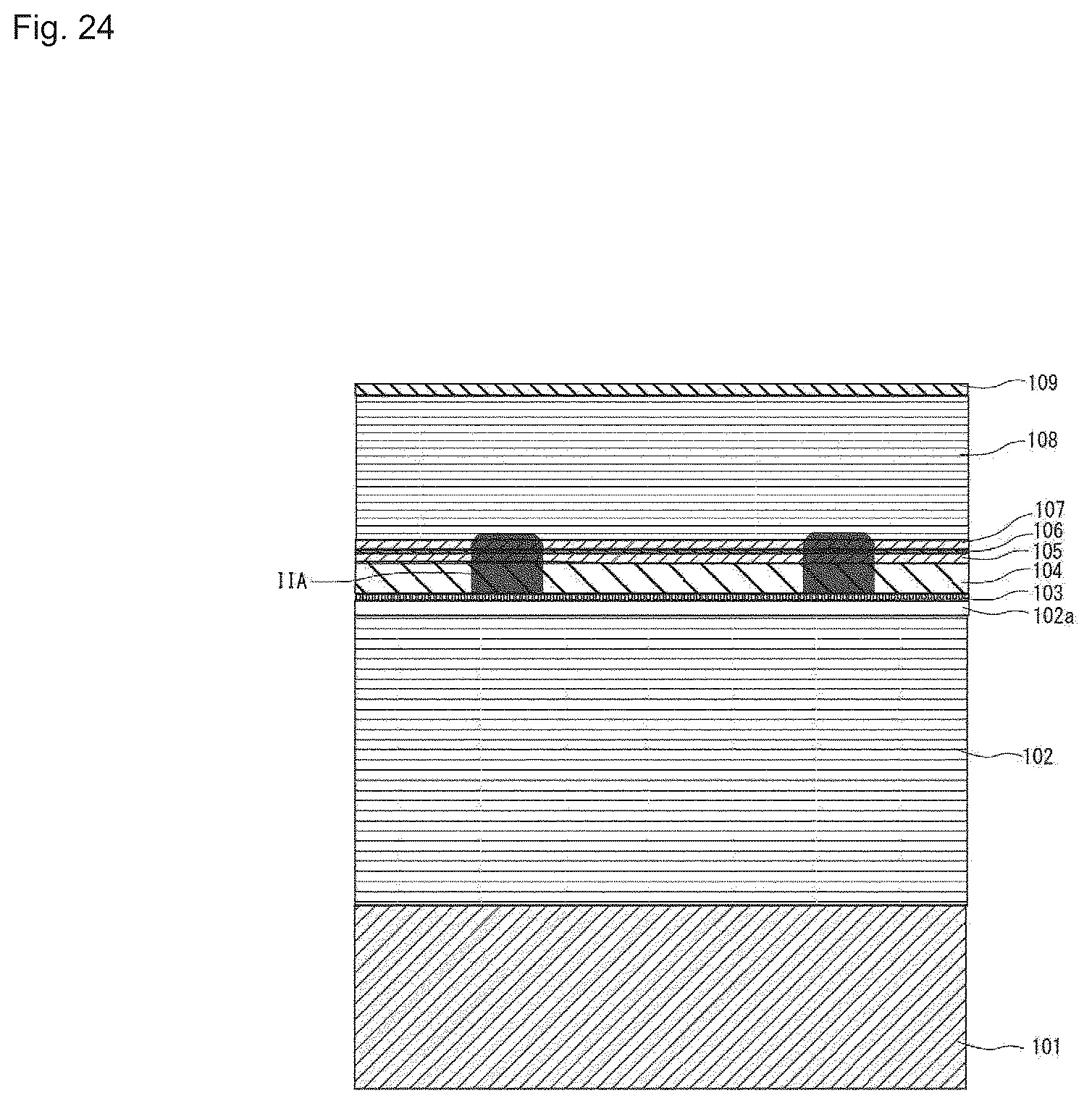

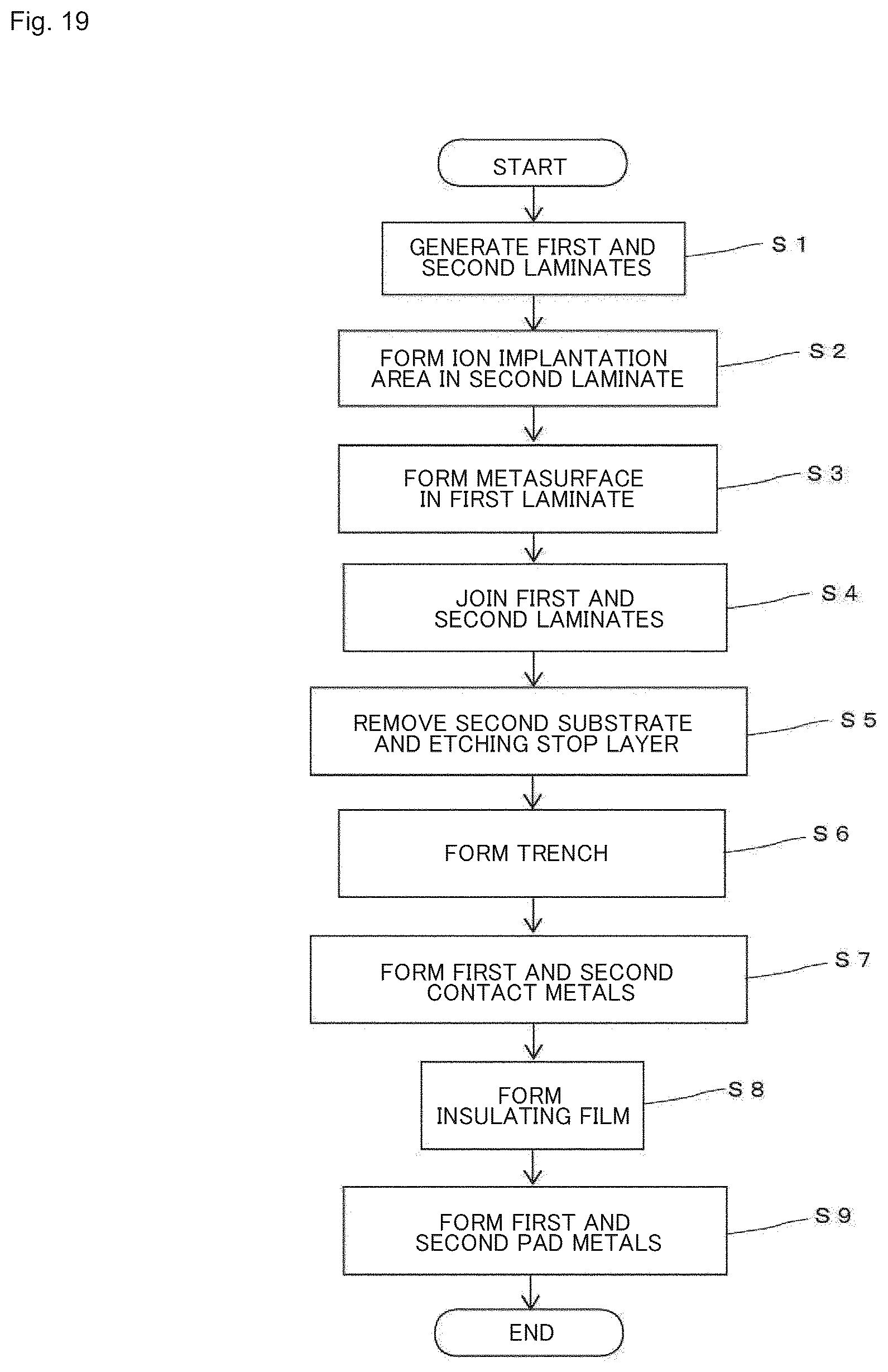

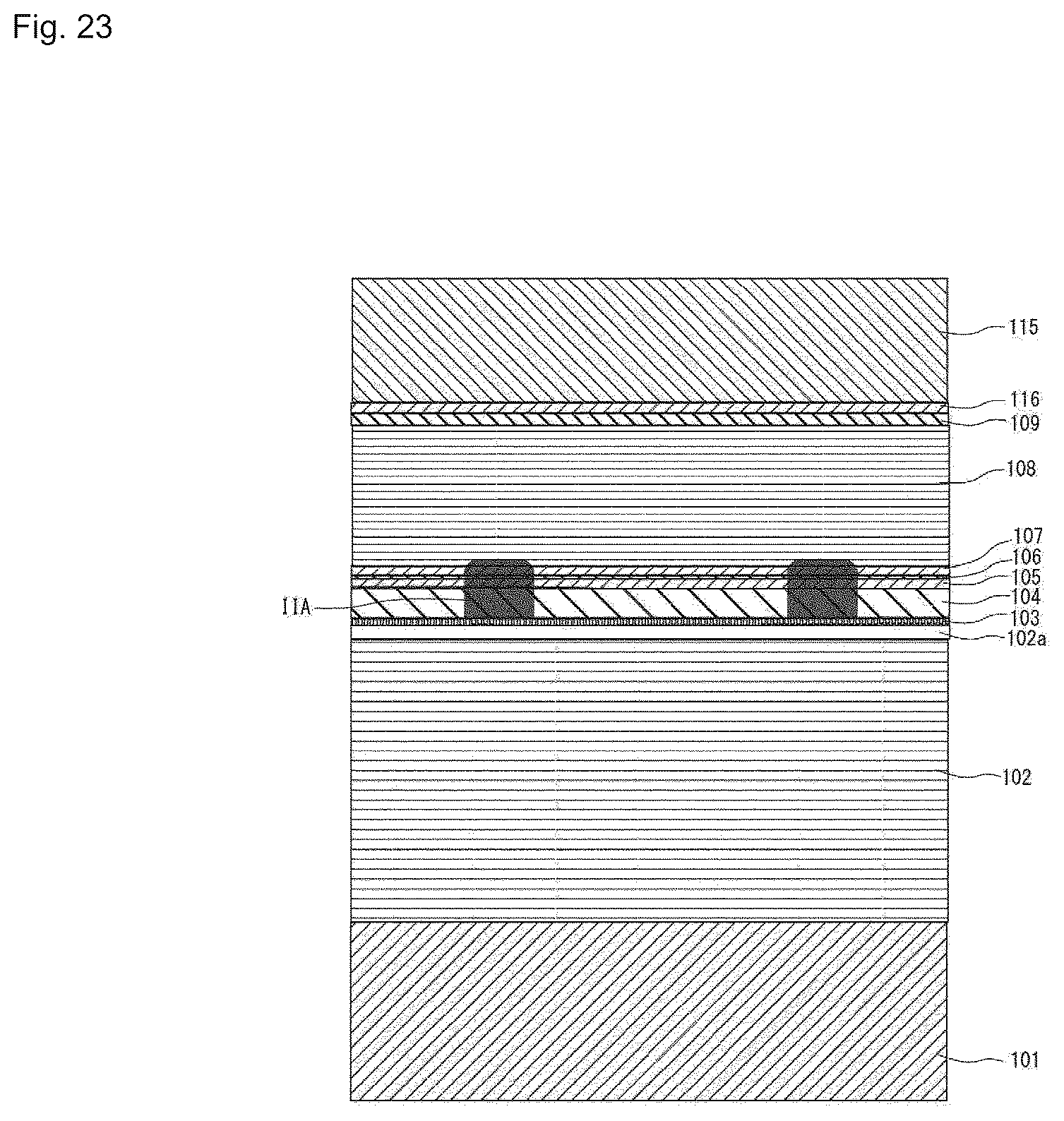

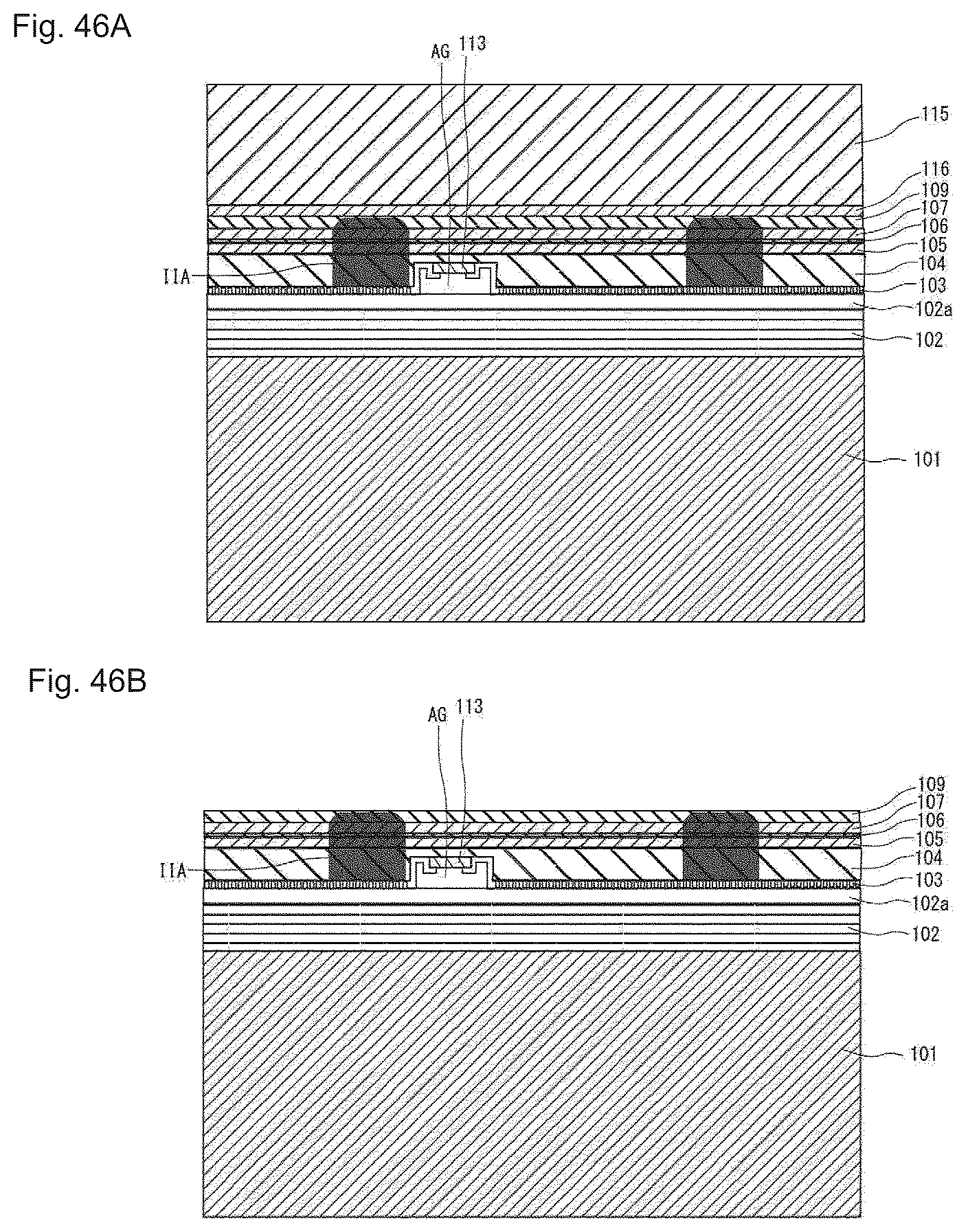

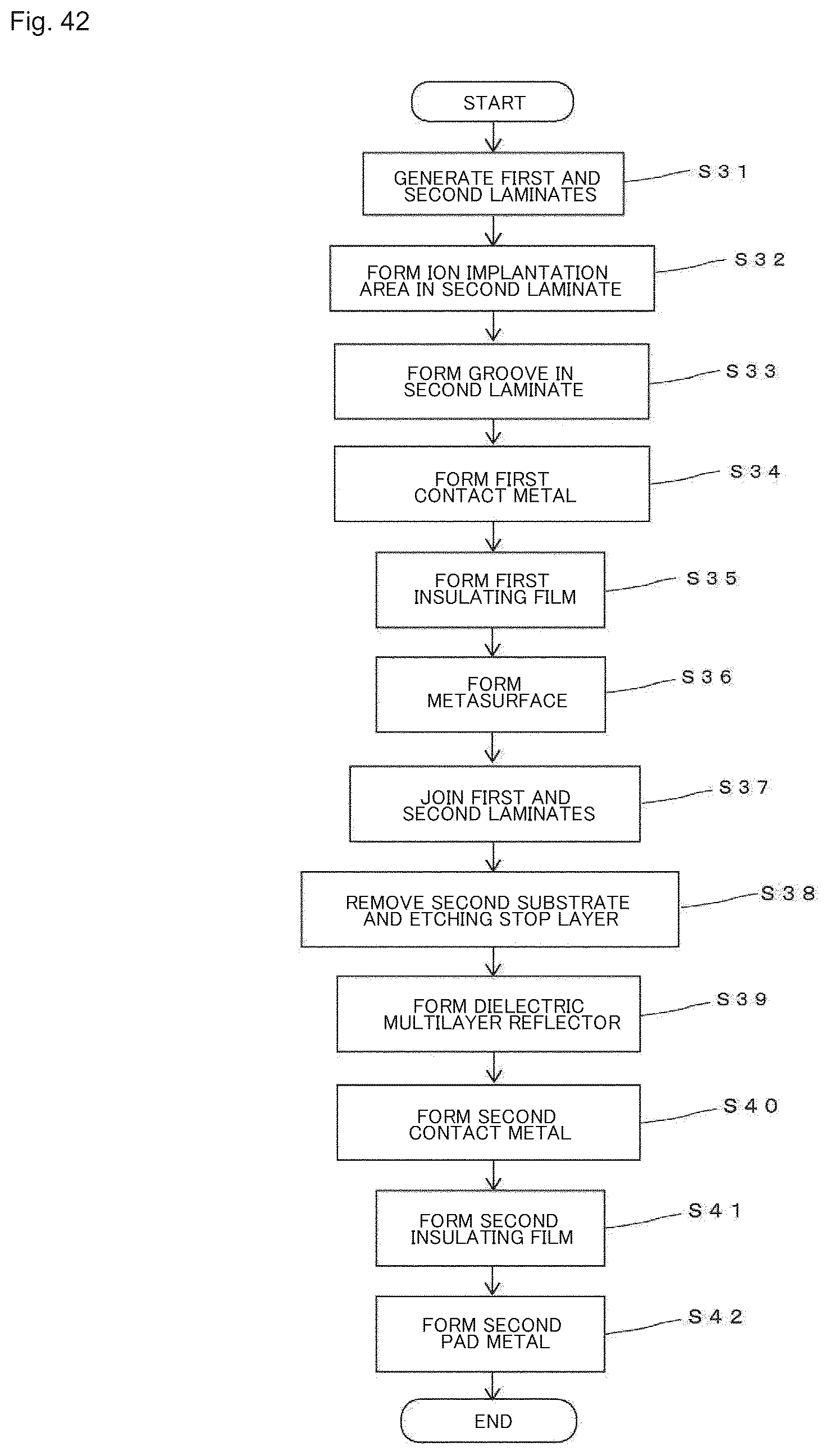

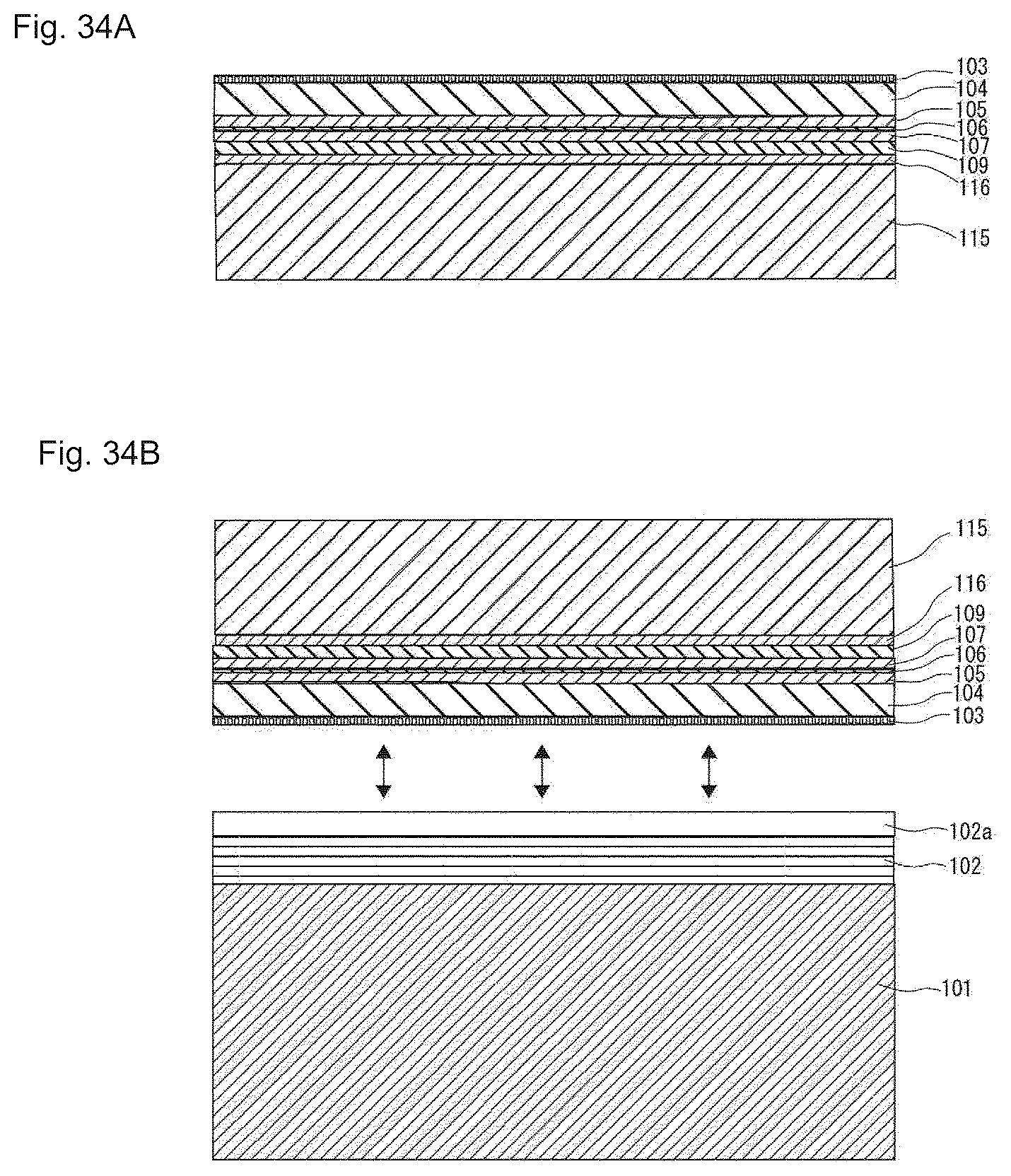

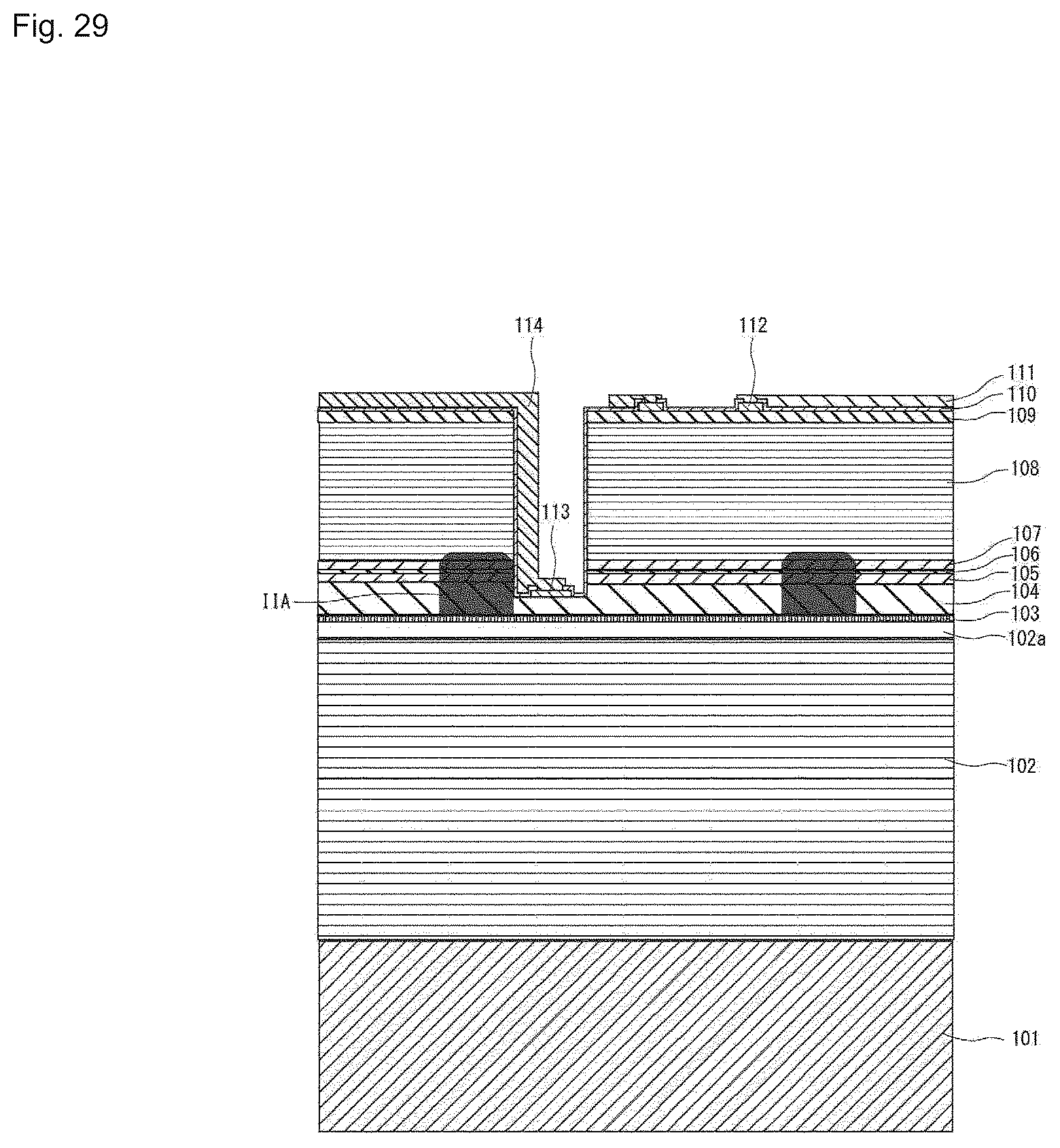

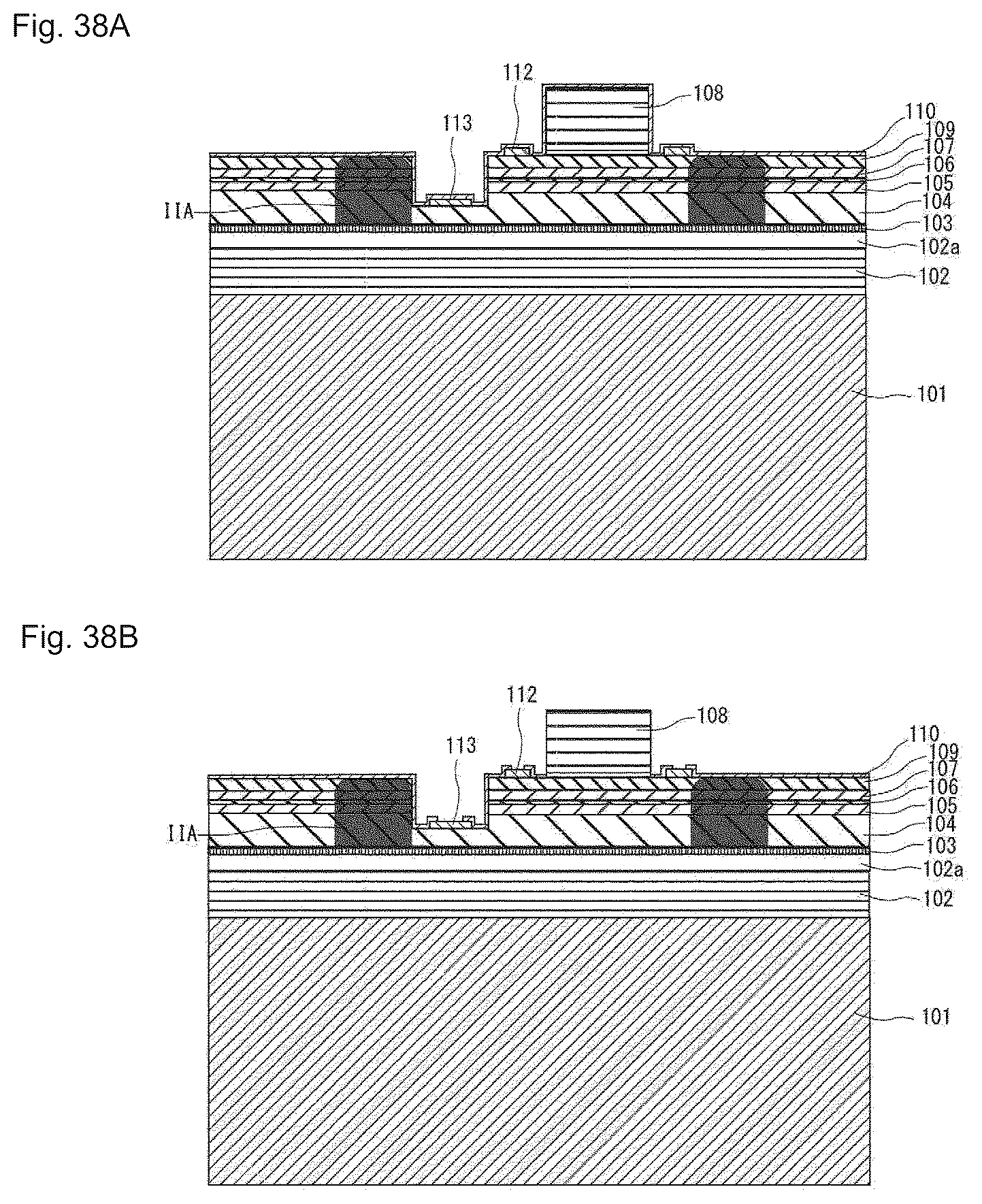

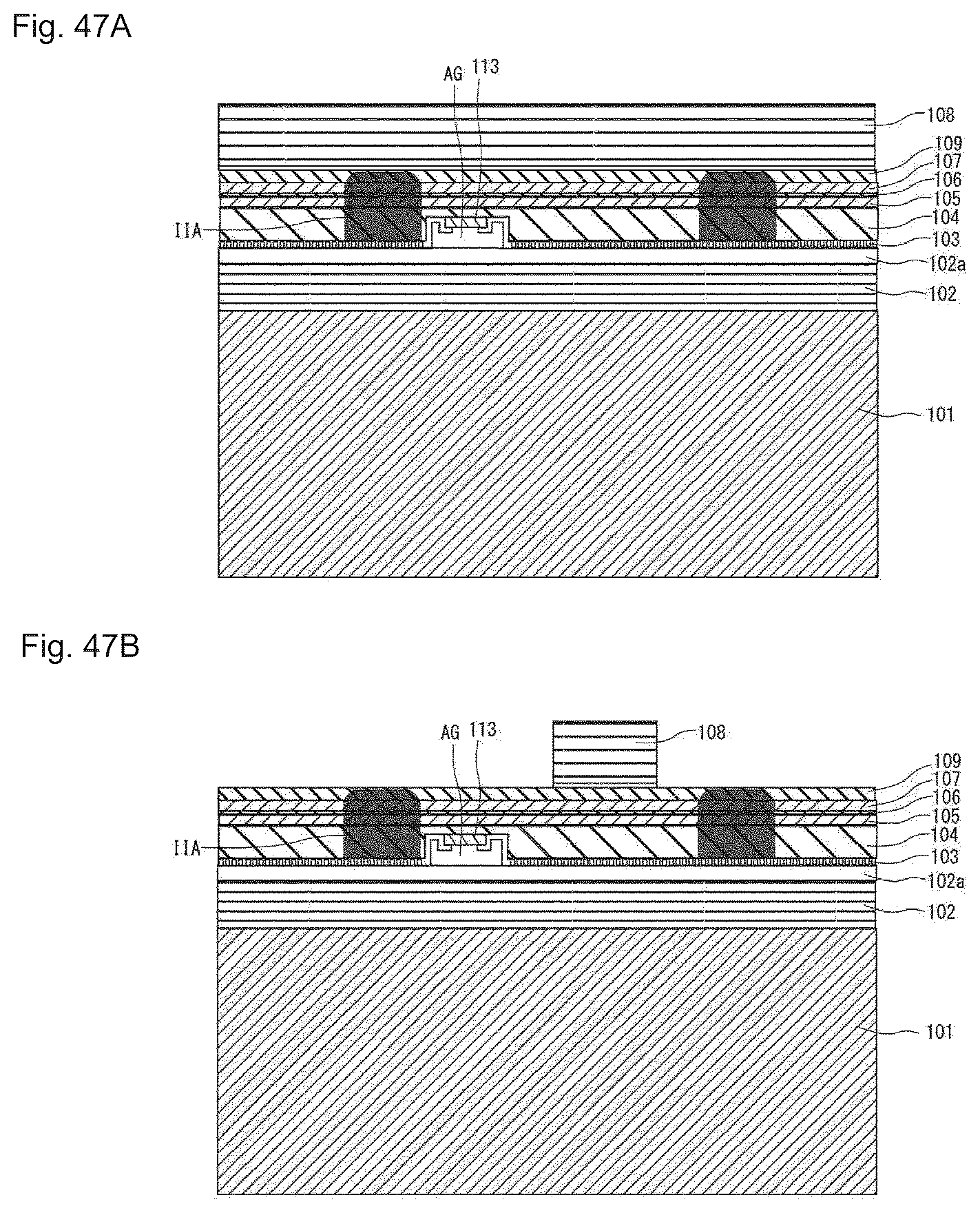

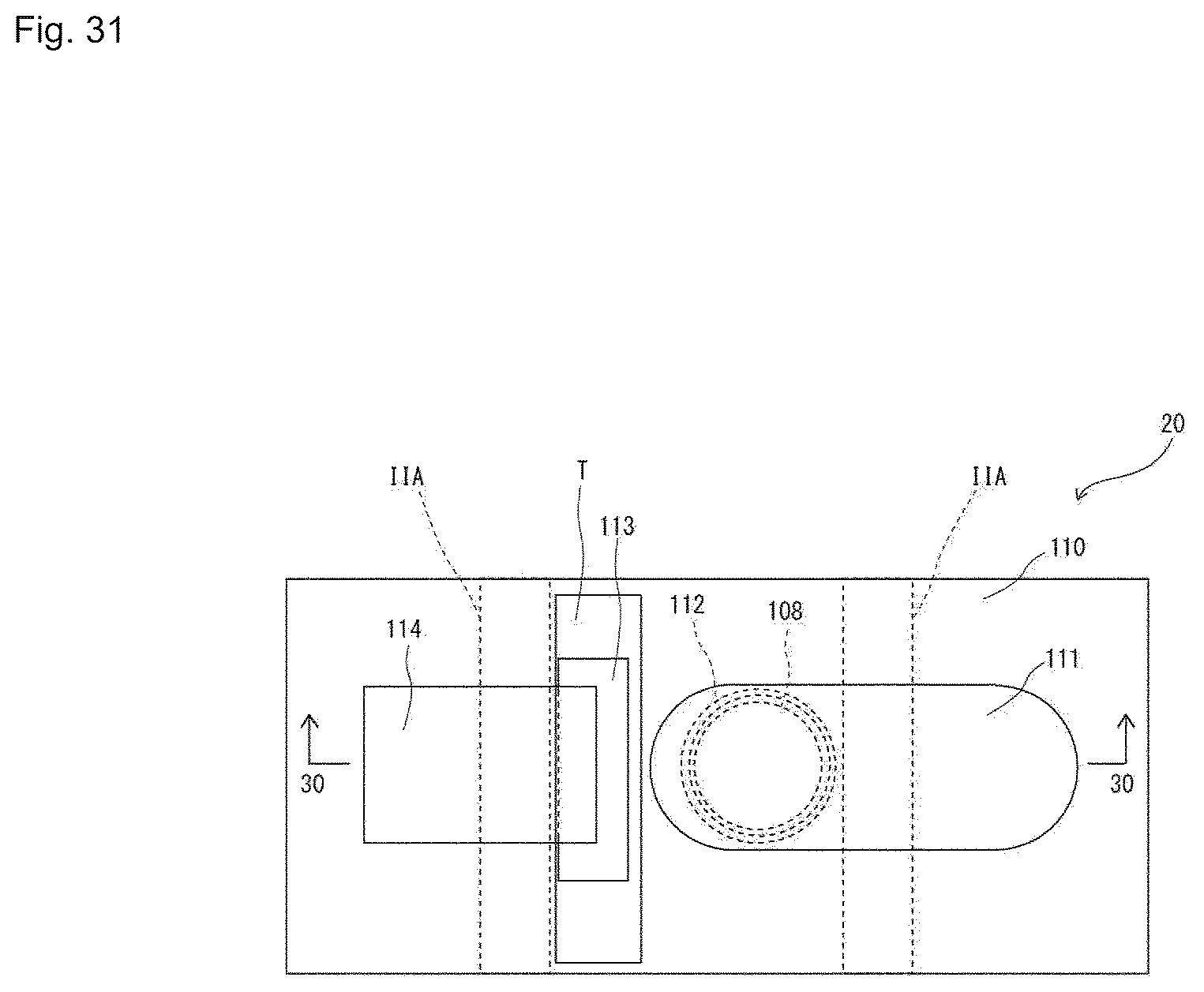

81 drawing sheets from US 2026/0269567 A1 · click any drawing to enlarge
