Sony Patents a Laser Chip Design That Keeps Its Base from Warping

When you stack thin semiconductor layers on a chip, they can pull or push the base like a bimetallic strip — bowing it out of flat. Sony's new patent tackles that exact problem for a class of lasers used in depth sensors and optical communications.

By · Updated · 3 min read

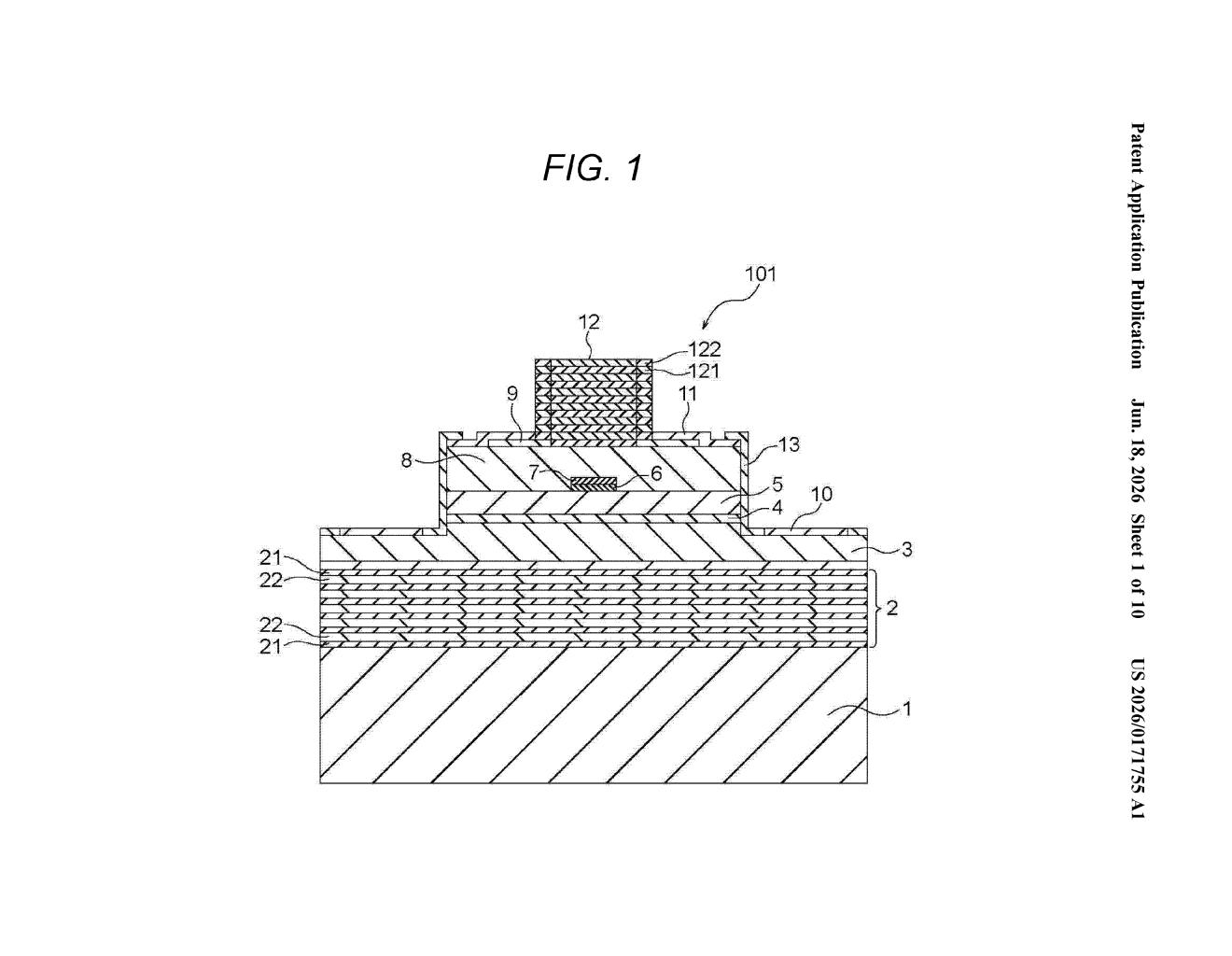

Sony Patent: Warp-Free VCSEL Laser on GaAs Substrate, figure from US 2026/0171755 A1
Figure from the official USPTO publication.
Publication number
US 2026/0171755 A1(US20260171755A1)
Applicant
SONY GROUP CORPORATION
Filed · Published
Dec 28, 2023 · Jun 18, 2026
Inventors
HIROSHI NAKAJIMA, MIKIHIRO YOKOZEKI, TOMOMASA WATANABE, DAIJI KASAHARA
Status when we published
Waiting for an examiner
Document
20 claims
US classification
372/50.124
Examiner
ZHANG, YUANDA (Art Unit 2828)
Parent application
National Stage Entry of PCT/JP2022/004594 (filed Feb 7, 2022)(PCTJP2022004594)

What Sony's anti-warp laser structure actually does

Imagine stacking thin sheets of different materials on top of each other. Each sheet expands or contracts at a slightly different rate, and over time the whole stack bends like a wet piece of cardboard. That's a real problem when you're building tiny lasers called VCSELs — the kind used in Face ID-style depth sensors and fiber-optic links — because a warped base means fewer working chips per wafer, and chips that do work may not perform consistently.

Sony's patent describes a way to engineer the bottom layers of the laser stack so the bending forces cancel each other out. One layer is chosen because its crystal structure is slightly too big for the base; another is chosen because it's slightly too small. Together they hold each other in tension and keep the whole base flat.

The result, according to Sony, is a flatter wafer, more consistent performance across the entire surface, and better manufacturing yield — meaning more good chips come out of each production run.

How opposing crystal layers cancel out substrate stress

A VCSEL (Vertical-Cavity Surface-Emitting Laser) is a laser that shoots light straight up through the surface of a chip rather than out the side. VCSELs are used in depth-sensing cameras, LiDAR, and high-speed data links. They're built by depositing dozens of ultra-thin semiconductor layers on a GaAs (gallium arsenide) substrate — a crystalline wafer that acts as the foundation.

The problem Sony is solving is substrate warpage. Different semiconductor materials have different lattice constants (the natural spacing between atoms in the crystal). When you grow a layer whose atoms are spaced slightly differently from the substrate beneath it, mechanical stress builds up — and enough stress bends the whole wafer. A bent wafer is harder to process and produces chips with uneven characteristics.

Sony's fix lives in what the patent calls the first semiconductor stacked structure — a buffer zone between the GaAs base and the active laser layers above. This buffer intentionally includes:

  • A 1-1st layer with a lattice constant larger than GaAs (pushing outward)
  • A 1-2nd layer with a lattice constant smaller than GaAs (pulling inward)

The opposing stresses offset each other, keeping the wafer flat. Above this compensated buffer sits the active laser region, which contains InP (indium phosphide) — a material well-suited to infrared wavelengths but normally tricky to combine with GaAs without introducing warp.

What this means for laser sensors in Sony products

VCSELs are already inside millions of consumer devices — Apple uses them for Face ID, Sony uses them in PlayStation camera accessories and sensors — and demand is growing for longer-wavelength versions that work in optical data centers and automotive LiDAR. The catch is that longer-wavelength VCSELs typically need materials like InP that don't naturally sit flat on a GaAs base. Sony's stress-balancing approach could make those mixed-material designs manufacturable at scale.

For you as a consumer, better yield and more uniform chips mean the sensors in future devices are more likely to work reliably at a lower cost. This is the kind of quiet manufacturing patent that rarely makes headlines but directly influences whether a technology stays expensive or becomes mainstream.

Source: US 2026/0171755 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
