Samsung · Networking · Filed Feb 4, 2025 · USPTO published May 14, 2026 · May 14 release

Samsung Patents Smarter Uplink Scheduling for 5G and 6G Full Duplex Networks

Most 5G radios can't send and receive at exactly the same time on the same frequency — Samsung's new patent tackles one of the trickiest scheduling puzzles that stands in the way of making that possible.

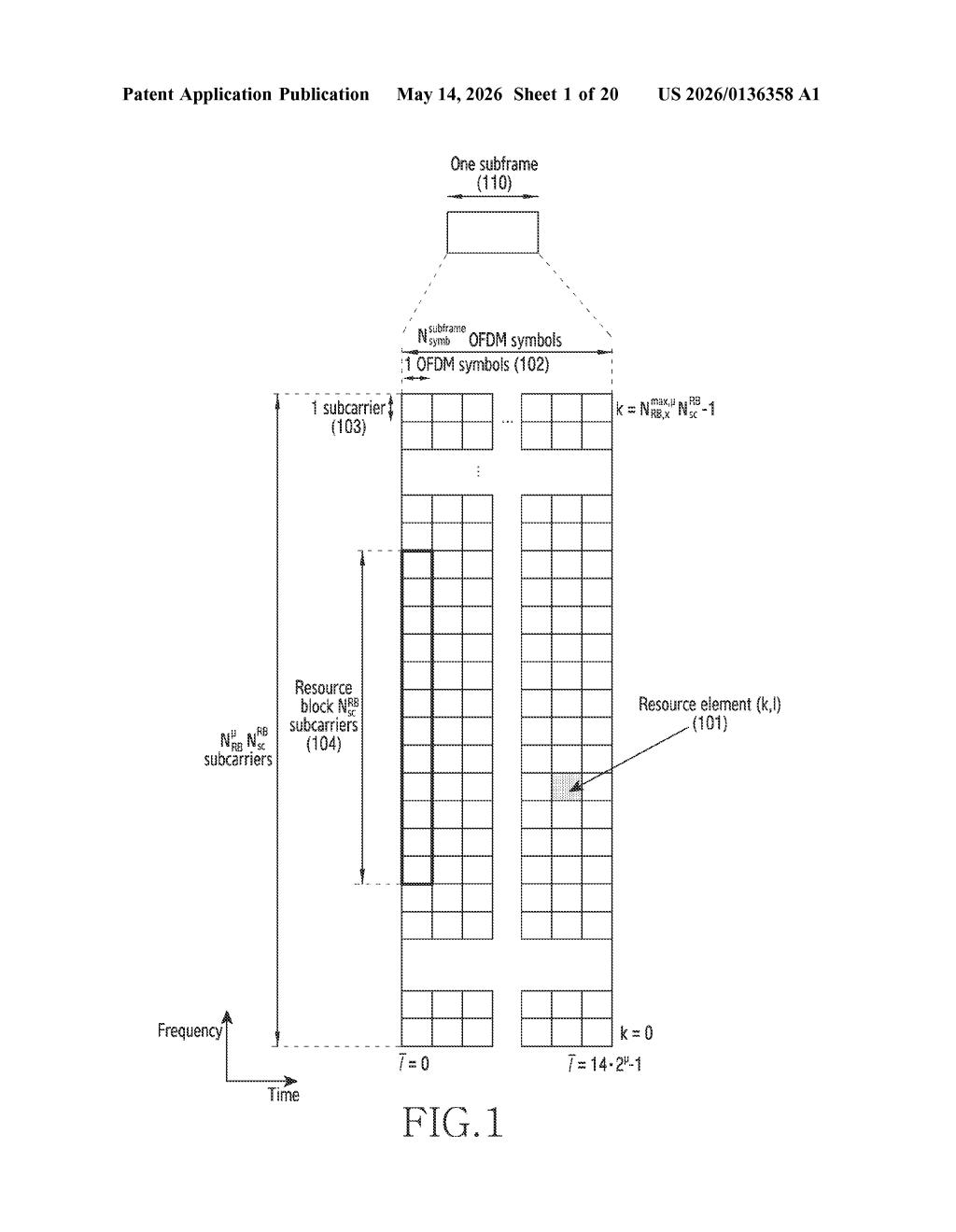

Samsung Patent: 5G/6G Sub-Band Full Duplex Scheduling, figure from US 2026/0136358 A1
Figure from the official USPTO publication.
Publication number
US 2026/0136358 A1(US20260136358A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Feb 4, 2025 · May 14, 2026
Inventors
Kyungjun CHOI, Jaeyeon SHIM, Hyoungju JI, Hyemin CHOE
Status when we published
Waiting for an examiner
Document
15 claims
US classification
370/329
Parent application
National Stage Entry of PCT/KR2023/011534 (filed Aug 4, 2023)(PCTKR2023011534)

What Samsung's sub-band full duplex scheduling actually does

Imagine a two-lane highway where cars can only travel in one direction at a time. Most cellular networks work similarly — your phone either uploads or downloads, switching back and forth rapidly. Sub-band full duplex (SBFD) is a technique that tries to let both happen simultaneously by splitting the frequency band, some slices for sending, some for receiving, all at once.

The catch is that your phone needs to know which slice of the radio spectrum to use for uploading depending on whether the network is running in standard uplink mode or in that simultaneous send-and-receive SBFD mode. Right now, the control message your phone receives doesn't cleanly distinguish between the two cases.

Samsung's patent describes a method where the same scheduling instruction — a packet called downlink control information (DCI) — can be interpreted two different ways depending on the current mode, pointing the phone to the right set of frequency blocks without needing a bigger or redesigned control message.

How the FDRA field maps to two different RBG sets

The patent centers on how a base station tells your phone where in the frequency band to transmit its uplink data. That instruction arrives as a frequency domain resource assignment (FDRA) field inside a DCI (downlink control information — essentially the scheduler's order slip sent from the tower to your phone).

In standard operation, the FDRA field points to first RBGs (resource block groups — chunks of radio spectrum). These are sized based on the total uplink bandwidth partition, following the conventional 5G NR rules.

When the network is operating in SBFD mode — where a portion of the band is simultaneously used for downlink to other devices — the phone instead maps the same FDRA bits to second RBGs. These second RBGs are carved out of a narrower uplink sub-band, so the phone avoids transmitting on frequencies the base station is actively using for downlink at the same time.

The clever part: the number of bits in the FDRA field stays fixed and is determined by the first RBG count. The phone uses that same fixed-length field plus the sub-band configuration it already knows to derive the second, smaller set of RBGs. No extra overhead in the control message — just a reinterpretation of the existing bits based on context.

What this means for 6G network efficiency

Full duplex — truly simultaneous uplink and downlink — is one of the defining technical ambitions of 6G. Getting there requires solving a cascade of problems, and resource scheduling is one of the unglamorous but genuinely hard ones. Samsung's approach keeps the control-channel overhead lean (a real constraint when you're trying to squeeze more efficiency out of spectrum) while giving phones the flexibility to operate correctly in either mode. That backward-compatible design is exactly what standards bodies like 3GPP look for.

For you as an end user, the payoff is theoretical but real: denser networks, lower latency, and faster effective throughput when SBFD eventually rolls out in commercial 6G or late 5G-Advanced deployments. Samsung, as both a major network equipment vendor and a handset maker, has a direct commercial incentive to get this into the standard early.

Source: US 2026/0136358 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
