Apple Patents a System That Picks Between Flat and 3D Displays on the Fly
Apple has filed a patent describing a device that can automatically route content to either a flat screen or a 3D display, and can even split a single app across both at the same time.
What Apple's automatic 2D-to-3D display switching does
Ever hooked your laptop up to a TV and wondered why the experience felt so disconnected from what the device was actually capable of? Apple is working on something that could make plugging into a display a lot more thoughtful.
The idea here is that one device, say a phone or a computer, could be connected to both a regular flat screen and a 3D display simultaneously. Depending on a set of conditions it checks automatically, the device would decide whether to send an app's content to the flat screen in the usual 2D format, or to the 3D display in a fully spatial format. It can also split things up: one part of an app shown in 3D, another part shown flat, on the same screen at the same time.
You would not have to pick manually. The device reads the situation and routes the picture accordingly.
… transmitting instructions to the three-dimensional display device to display a three-dimensional rendering of the content; in accordance with a determination that the one or more criteria are not satisfied, transmitting instructions to the two-dimensional display device to display a two-dimensional rendering of the content …
Translation: The system switches between flat and 3D screens based on specific conditions.
How Apple's device decides which display gets which content

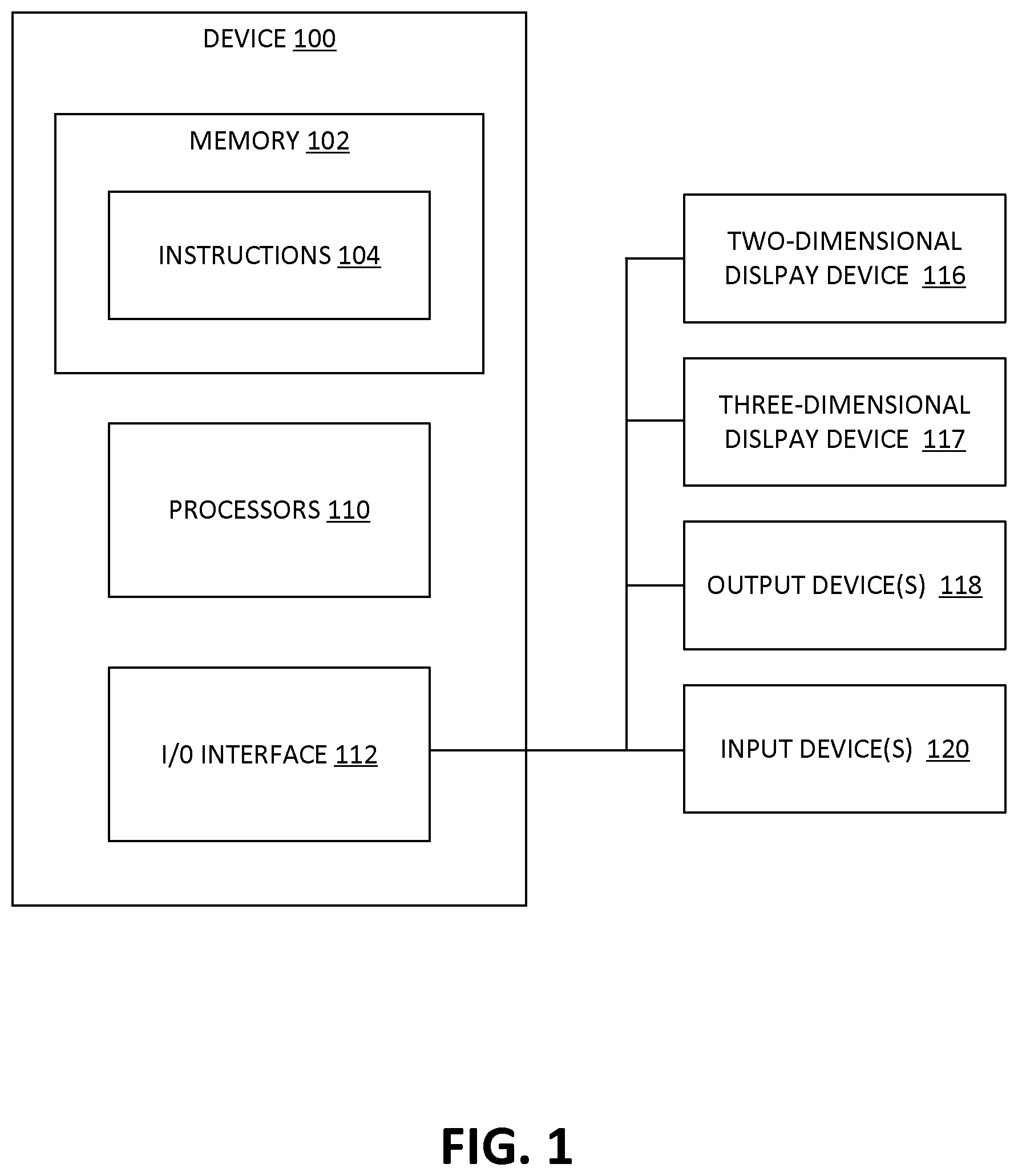

The patent describes an electronic device connected to two types of output at once: a two-dimensional display (a regular flat monitor or TV) and a three-dimensional display (a spatial or holographic screen). The device's processors constantly check a set of conditions to decide how to handle whatever an app is currently showing.

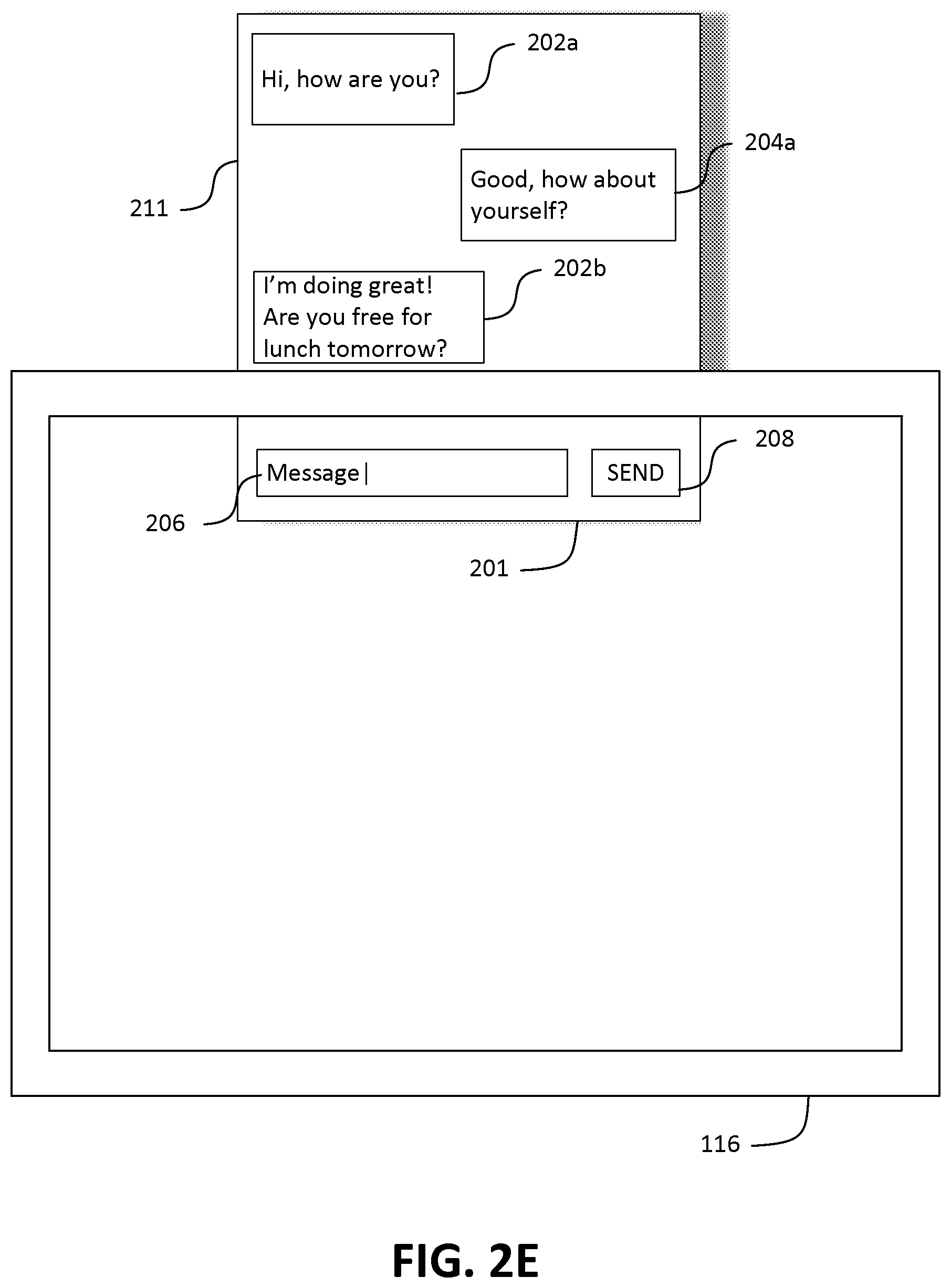

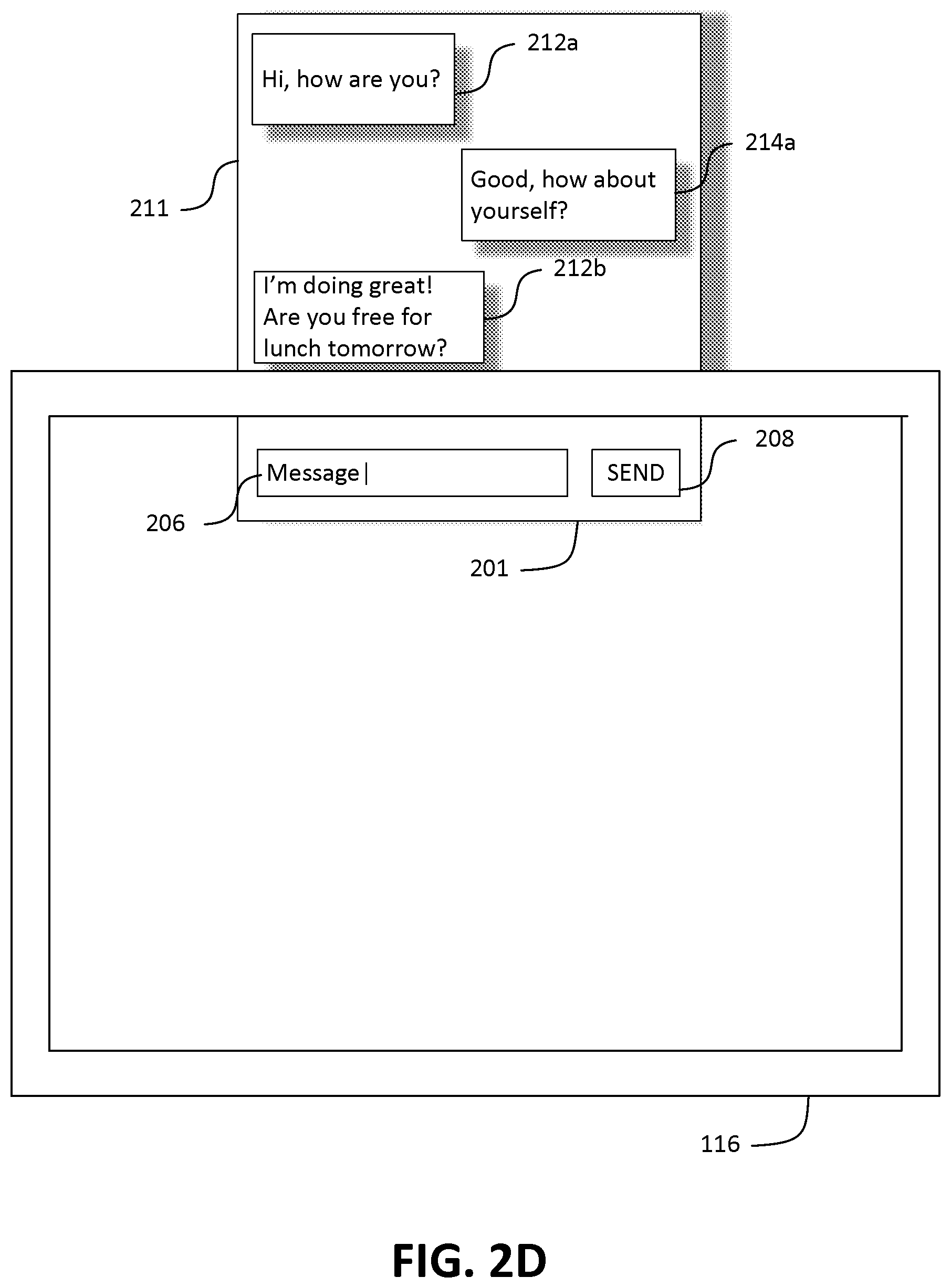

If those conditions are met, the device sends instructions to the 3D display to render the content spatially. If not, it falls back to the flat screen with a standard 2D render. The patent also covers a third mode: when a separate set of conditions triggers, the device can split a single piece of content in two, placing one portion inside a 3D container (a spatial volume with depth) while placing a second portion inside a 2D container (a flat panel within the same 3D environment).
The patent does not specify exactly what those triggering conditions are, leaving that flexible. The key mechanism is the routing logic itself:
- Check conditions against the content and connected displays
- Route to the 3D display if criteria are satisfied
- Route to the 2D display if they are not
- Split content across both container types if a third set of criteria fires
This is infrastructure-level work, the kind of system that would sit underneath any app and handle display decisions without the app developer or the user having to manage it.
In some embodiments, the electronic device displays a two-dimensional rendering or a three-dimensional rendering of a user interface element. In some situations, the electronic device uses the two-dimensional display device to display the two-dimensional rendering of the user interface element.
Translation: The device can show user interface elements on either a flat or 3D display depending on the situation.
What this means for Apple's mixed-display future
The practical problem this addresses is real: as spatial displays move from novelty toward actual products, software needs a way to handle the transition gracefully. Right now, an app is either built for flat screens or for spatial environments, rarely both. A routing layer like this would let a single app behave correctly on whatever display happens to be connected, without the user thinking about it.
For Apple specifically, this fits into the pattern in Apple's spatial-display filings, which keep returning to the question of how existing software lives alongside fully spatial interfaces. The split-container mode described here is particularly telling: it suggests Apple is thinking about displays not as either/or but as a spectrum where flat and spatial content coexist in one view.
Apple's 443rd filing in our Apple coverage since May adds to a run of spatial computing applications that includes moving AR object groups and per-person meeting permissions.
The problem this patent is trying to solve is a familiar one in computing: you have two very different kinds of output hardware, and the software in the middle needs to make a smart call about which to use without asking the user every time. That is a real and nontrivial engineering challenge, and it gets harder when you want to mix formats within a single app.
What is less clear is how meaningful this particular filing is on its own. The claims are described at a high level of abstraction. The 'criteria' that trigger the routing decisions are never spelled out, which means the patent covers a broad concept without locking in any specific technical approach. That breadth can be a legal strategy, but it tells us relatively little about how Apple would actually implement this.
If you are trying to read the company's direction from its filings, this is a small but consistent signal. Apple keeps returning to the mechanics of mixing spatial and flat content in the same view. Whether that reflects progress toward a real product feature or is just thorough IP housekeeping is genuinely hard to say from the outside.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

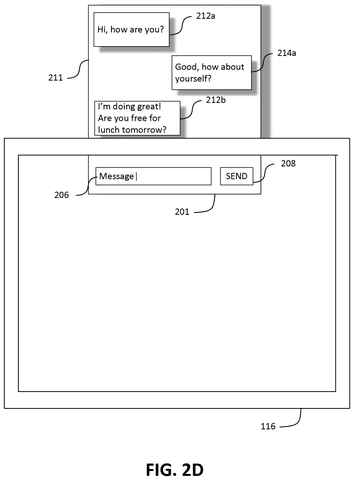

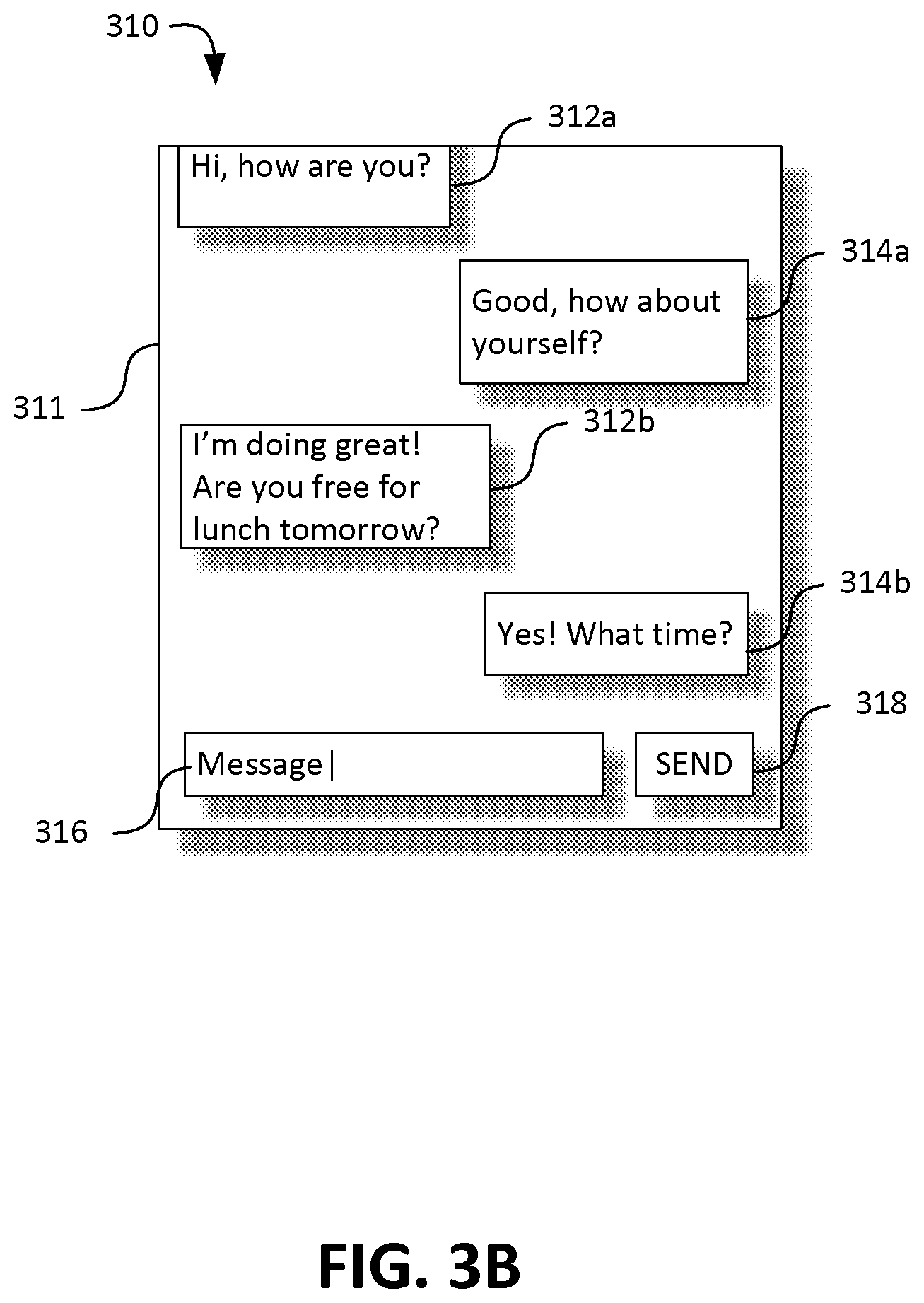

10 drawing sheets from US 2026/0277385 A1 · click any drawing to enlarge
