IBM · Security · Filed Jan 7, 2026 · USPTO published May 14, 2026 · May 14 release

Red Hat Patents a Cloud-to-Local Secrets Manager Topology Migrator

Migrating sensitive credentials off the cloud without scrambling how they're organized is a real operational headache — and Red Hat thinks it has a cleaner answer.

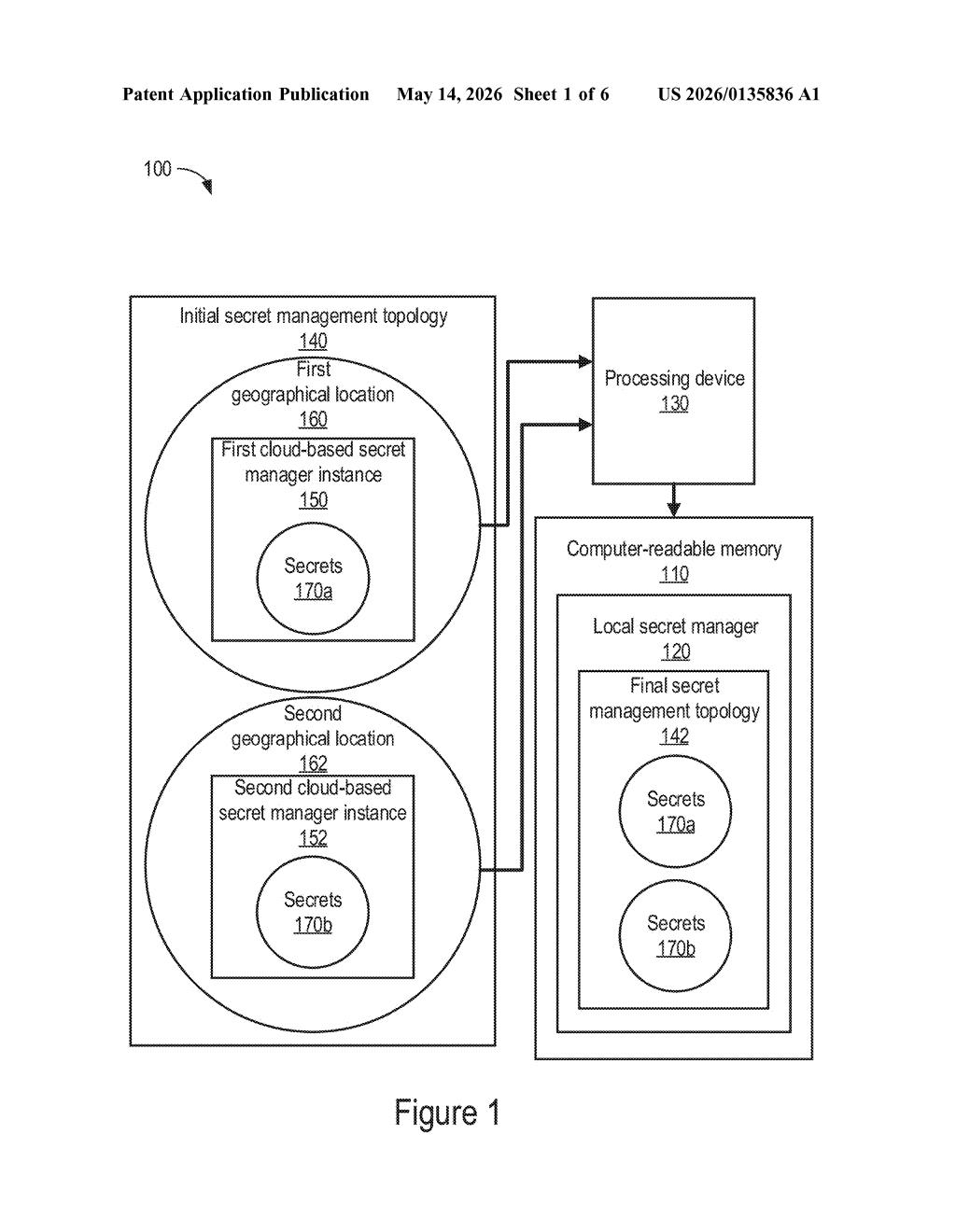

Red Hat Patent: Cloud-to-Local Secrets Migration Tool, figure from US 2026/0135836 A1
Figure from the official USPTO publication.
Publication number
US 2026/0135836 A1(US20260135836A1)
Applicant
Red Hat, Inc.
Filed · Published
Jan 7, 2026 · May 14, 2026
Inventors
Andrea Cosentino, Leigh Griffin, Paolo Antinori
Status when we published
Waiting for an examiner
Document
20 claims
US classification
726/1
Parent application
Continuation of 18/198,402 (filed May 17, 2023)(18198402)

What Red Hat's secrets topology migrator actually does

Imagine your company stores hundreds of passwords, API keys, and certificates across different cloud-based vaults, each organized by geography or business unit. One day you decide to bring all of that in-house — maybe for compliance, cost, or security reasons. The nightmare scenario: you move everything, but the structure gets flattened or lost, and suddenly no one knows which secret belongs where.

Red Hat's patent is for a system that solves exactly that. It reads the existing layout of your cloud-based secret managers — which secrets live where, how they're grouped, what parameters define them — and then rebuilds that same structure inside a local secret manager. You end up with a faithful on-premises copy that mirrors your cloud setup.

Think of it like a moving company that doesn't just haul your furniture, but reassembles every room exactly as it was. The patent is a continuation of an earlier filing from 2023, meaning this idea has been in development for a while.

How the migrator maps and replicates secret topology

The patent describes a system built around three core operations: topology discovery, parameter association, and structured migration.

First, a processing device queries one or more cloud-based secret manager instances to extract the initial secret management topology — essentially a map of how secrets are organized. In the described embodiments, the key parameter is geographical location (e.g., secrets belonging to a EU region instance vs. a US-East instance), though the claim language is broader and covers any associating parameters.

Second, each cloud instance is tagged with its respective parameters. This step is what allows the system to avoid the common pitfall of a "flat migration" where all secrets get dumped into a single bucket with no organizational context.

Third, the system migrates the secrets into a local secret manager — an on-premises or self-hosted vault — and organizes them to reproduce the original topology. The result is a final secret management topology that mimics the initial one.

  • Reads cloud secret manager structure before migration
  • Associates each secret set with location or other parameters
  • Writes secrets into local vault preserving that structure

This is a continuation of US Patent 12,556,513 (filed May 2023), so the core concept was already granted — this filing likely broadens or refines the claim scope.

What this means for hybrid cloud security teams

For enterprise security and DevOps teams, moving secrets between secret managers is one of those unglamorous but genuinely risky operations. A botched migration can break CI/CD pipelines, revoke access to production systems, or — worse — leave credentials exposed during the transition window. A tool that automates topology preservation removes a significant manual error surface.

This patent is also timely given the ongoing push toward hybrid cloud and on-premises sovereignty — especially in regulated industries like finance and healthcare in the EU, where data residency rules matter. Red Hat, as a key player in enterprise Linux and OpenShift, has a natural customer base that wrestles with exactly this problem.

Source: US 2026/0135836 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
