Google Patents a Display That Hides Antennas Inside the Screen Border

Google has filed a patent describing a display that uses the thin, non-pixel gap between two screen zones to hide antennas, then covers them with an opaque coating so you never see them.

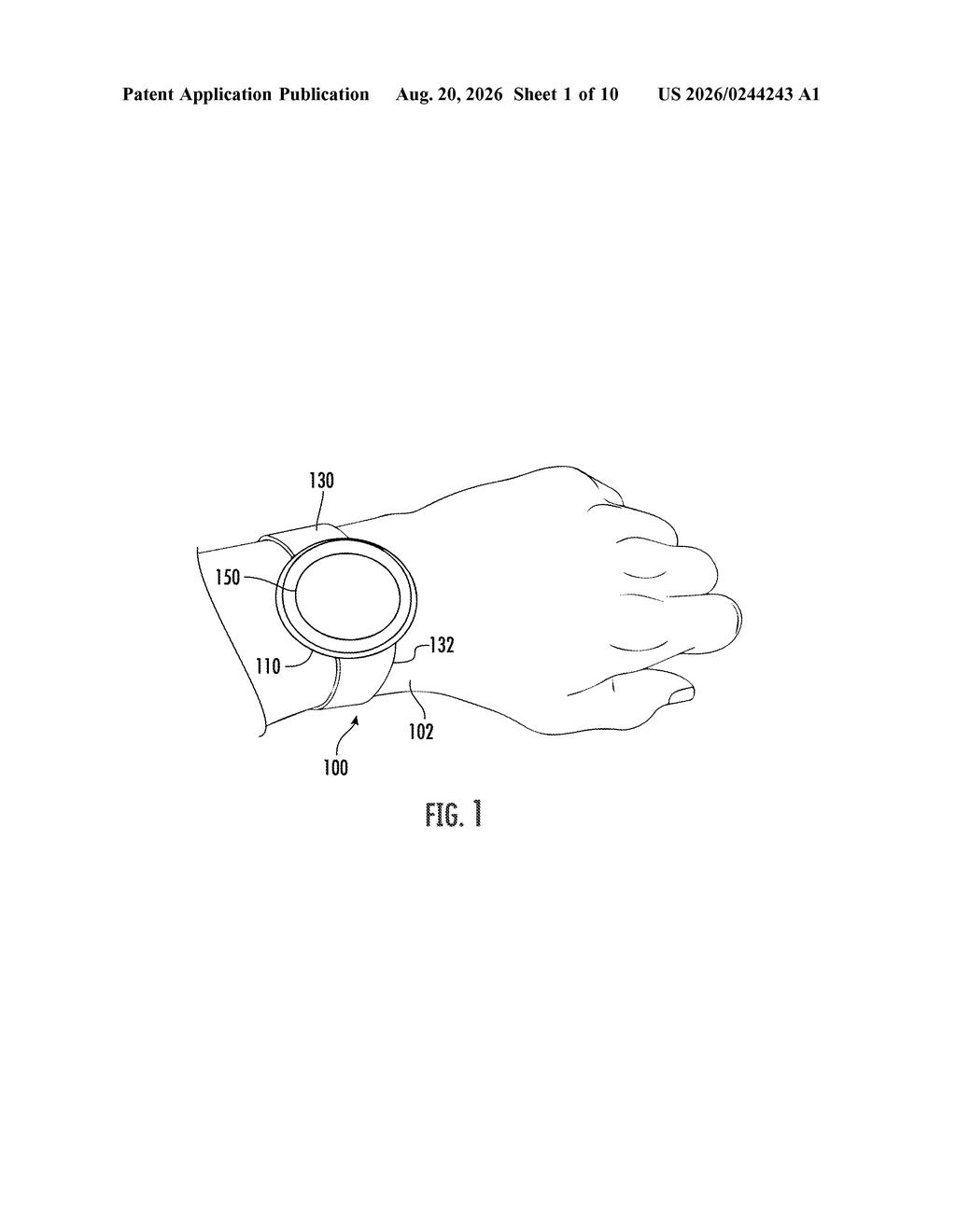

A smartwatch worn on a wrist, featuring a circular display screen and band. Drawing from patent filing US 2026/0244243 A1.
A smartwatch worn on a wrist, featuring a circular display screen and band.All 10 drawings ↓
Publication number
US 2026/0244243 A1(US20260244243A1)
Applicant
Google LLC
Filed · Published
Aug 25, 2025 · Aug 20, 2026
Inventors
Choongho Lee, Chih-Chun Chang, Sangmoo Choi, Gang Cheng
Status when we published
Waiting for an examiner
Document
20 claims
US classification
361/679.01
Parent application
National Stage Entry of PCT/US2024/018514 (filed Mar 5, 2024)(PCTUS2024018514)

How Google hides antennas in plain sight on a screen

Every phone or tablet has to squeeze antennas somewhere inside a shrinking body. Traditionally, that means giving up real estate at the edges, which either makes bezels thicker or pushes the antenna somewhere less effective. Google wants to solve that by hiding the antenna inside the display itself.

The idea is to split the screen into two zones: a main display area in the center, and a secondary display area that wraps around the outside edge of it. Between those two zones sits a thin, non-pixel strip, which is the gap where no actual picture is drawn. Google's patent plants the antenna there, then covers it with an opaque coating on the inside of the glass so you see nothing unusual looking at the screen.

The result, in theory, is a device that keeps a full-screen look on the outside while hiding its wireless hardware in a spot that was already "wasted" space. Your screen stays large, your bezels stay thin, and the antenna stays out of sight.

From the filing · CLAIM 1
… a non-pixelated region disposed within the internal volume between the first and second display areas and around the periphery of the first display area …

Translation: A blank gap sits between the inner screen and the outer screen border.

How the two-zone display and hidden antenna layer fit together

The patent describes a display assembly built around a layered, two-part screen structure housed under a single piece of cover glass.

The display has two distinct pixel regions:

  • First display area: the main, central screen where most content appears.
  • Second display area: a secondary ring of pixels that wraps around the outer edge of the first, sitting in the peripheral portion of the internal volume under the glass.
  • Non-pixelated region: a thin band between the two pixel zones, essentially a gap where no pixels exist. This is where the antenna lives.

The antenna region places at least one antenna inside that non-pixelated band. Because that strip runs around the whole perimeter of the main display, the antenna gets a relatively long path to work with, which can help signal quality. An opaque coating is then applied to the inner surface of the cover glass directly above the antenna. From the outside, the glass looks uniform; the coating acts as a visual mask.

The engineering payoff is that the antenna occupies space that is already structurally necessary (the gap between two display panels) rather than carving out new space from the chassis or the visible screen area.

From the filing · THE ABSTRACT
… an opaque coating arranged on an inner surface of the display cover so as to cover the antenna arranged within the non-pixelated region …

Translation: A dark layer on the glass hides the hidden antenna from view.

What this means for thin-bezel Google devices

For anyone who has watched phone bezels shrink year after year, the question of where antennas go is a real engineering puzzle. This patent points to one answer: fold the antenna into the display stack itself, using a gap that already has to exist to separate two pixel regions. If that works at manufacturing scale, it could mean devices with thinner frames and no antenna-performance penalty from cramming hardware into an awkward corner of the chassis.

The tradeoff is real, though: adding a secondary pixel ring around the main display, plus a masking coating, adds complexity and cost to the display module. Engineers working on thin-bezel hardware, foldables, or wearables will find this approach worth studying, and it fits into the broader stream of Big Tech patent news around display integration, where companies are increasingly treating the screen stack as a place to hide hardware that used to live in separate compartments.

Google's 600th filing we've tracked since May in our Google coverage follows applications like a dual-sensor camera and a redundant brake system.

Source: US 2026/0244243 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Google patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0244243 A1 · click any drawing to enlarge

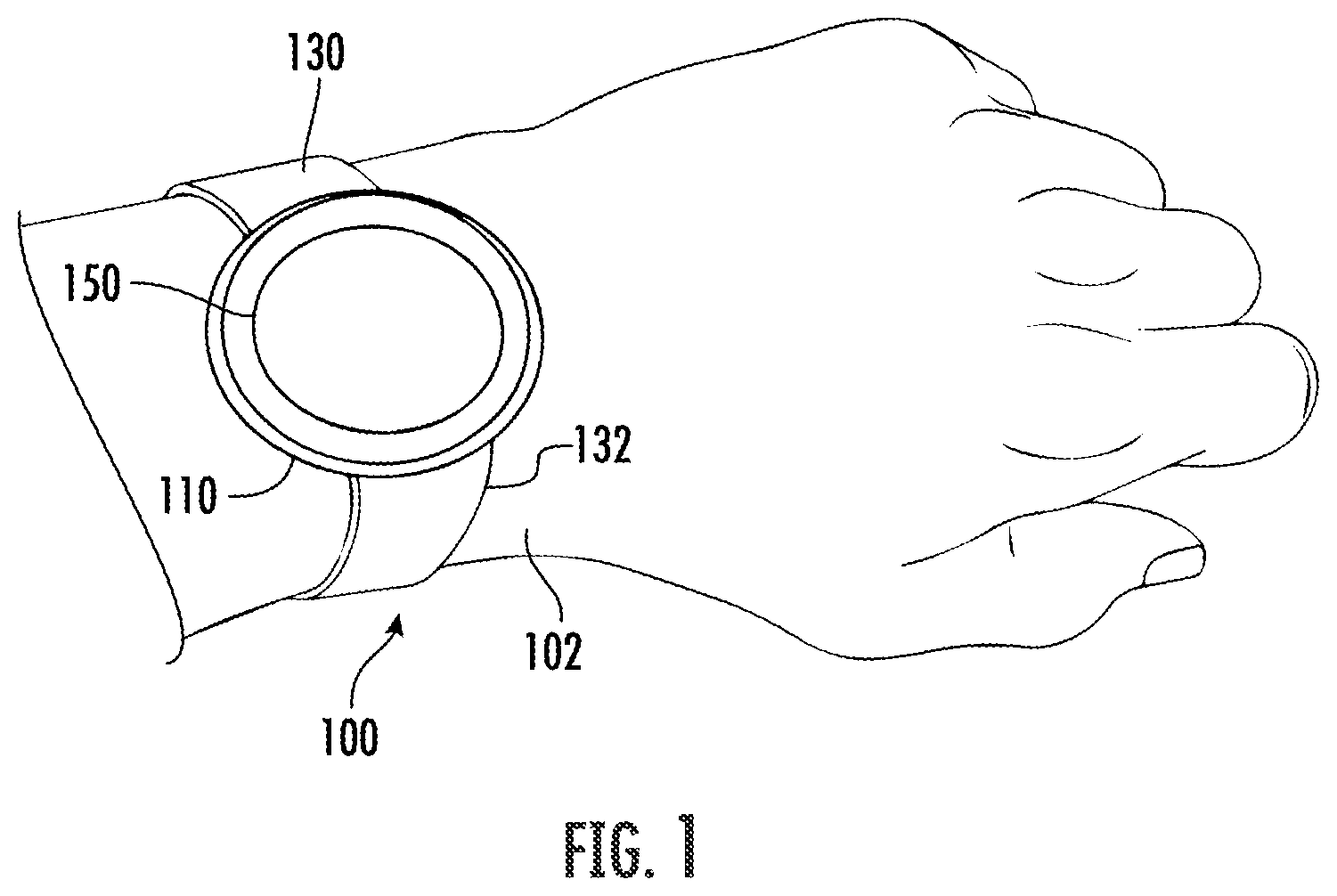

Smartwatch worn on a wrist, drawing sheet 1 from US 2026/0244243 A1
Sheet 1 Smartwatch worn on a wrist

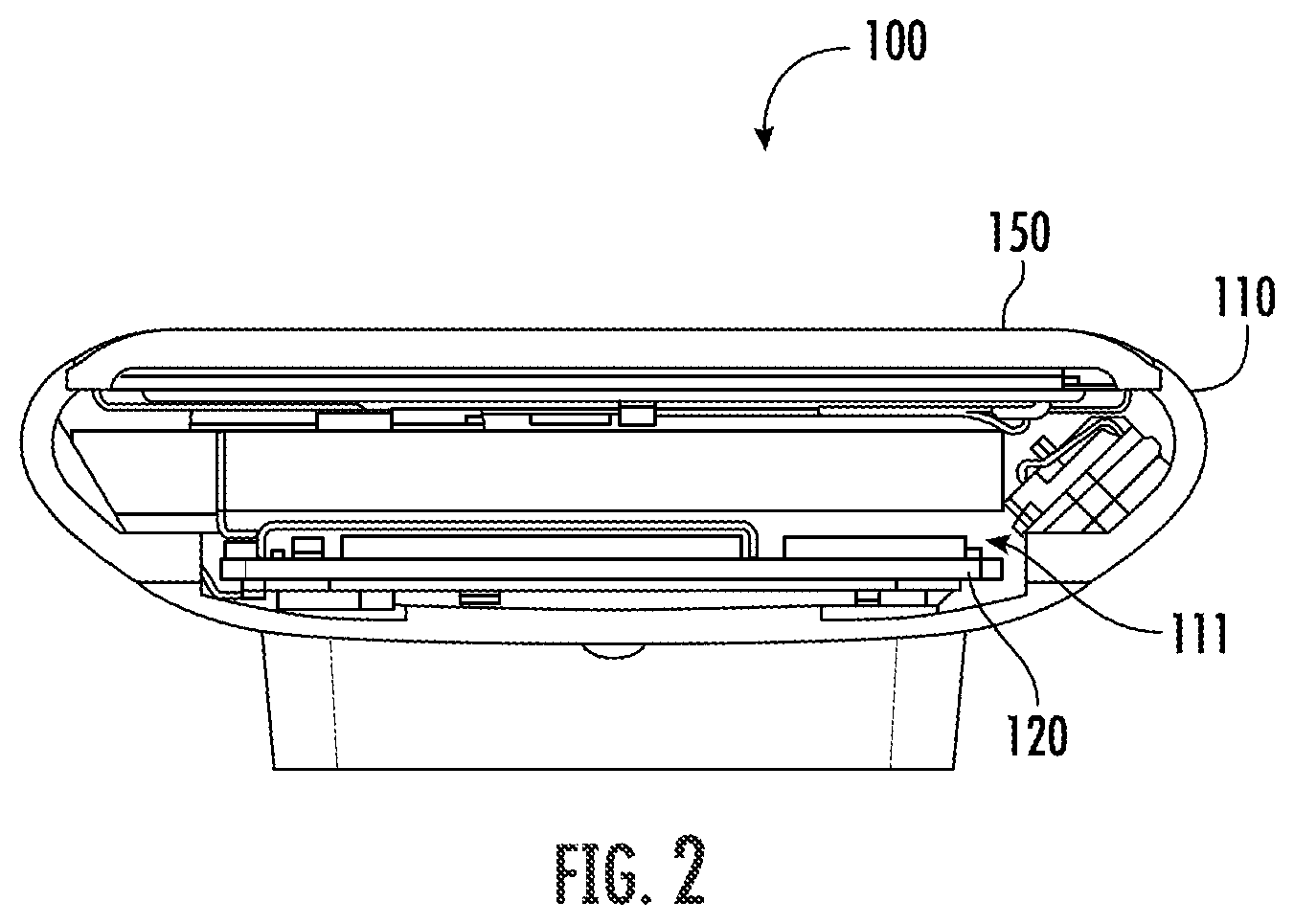

Internal components of smartwatch, drawing sheet 2 from US 2026/0244243 A1
Sheet 2 Internal components of smartwatch

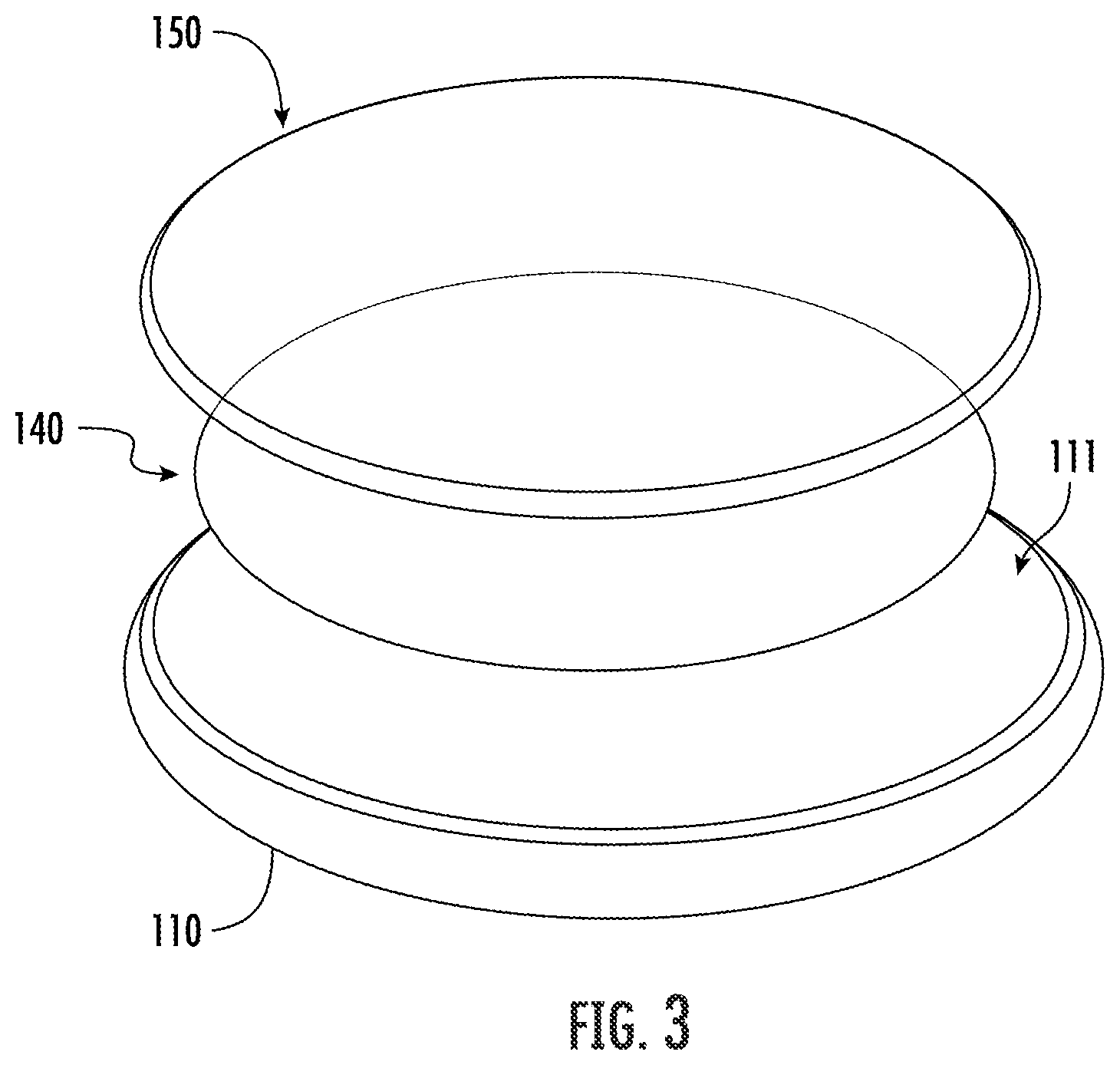

Exploded view of screen, drawing sheet 3 from US 2026/0244243 A1
Sheet 3 Exploded view of screen

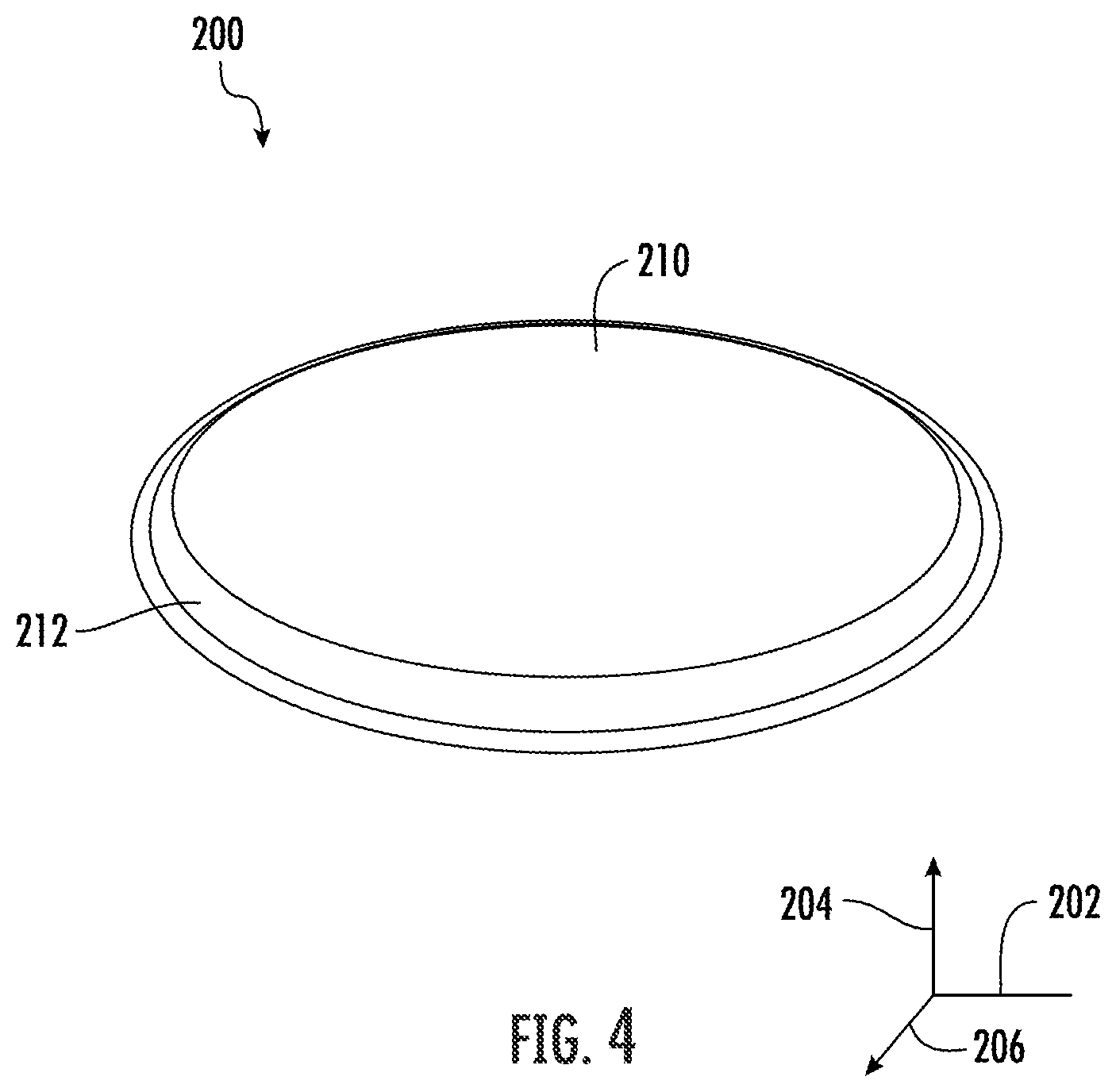

Rounded display cover, drawing sheet 4 from US 2026/0244243 A1
Sheet 4 Rounded display cover

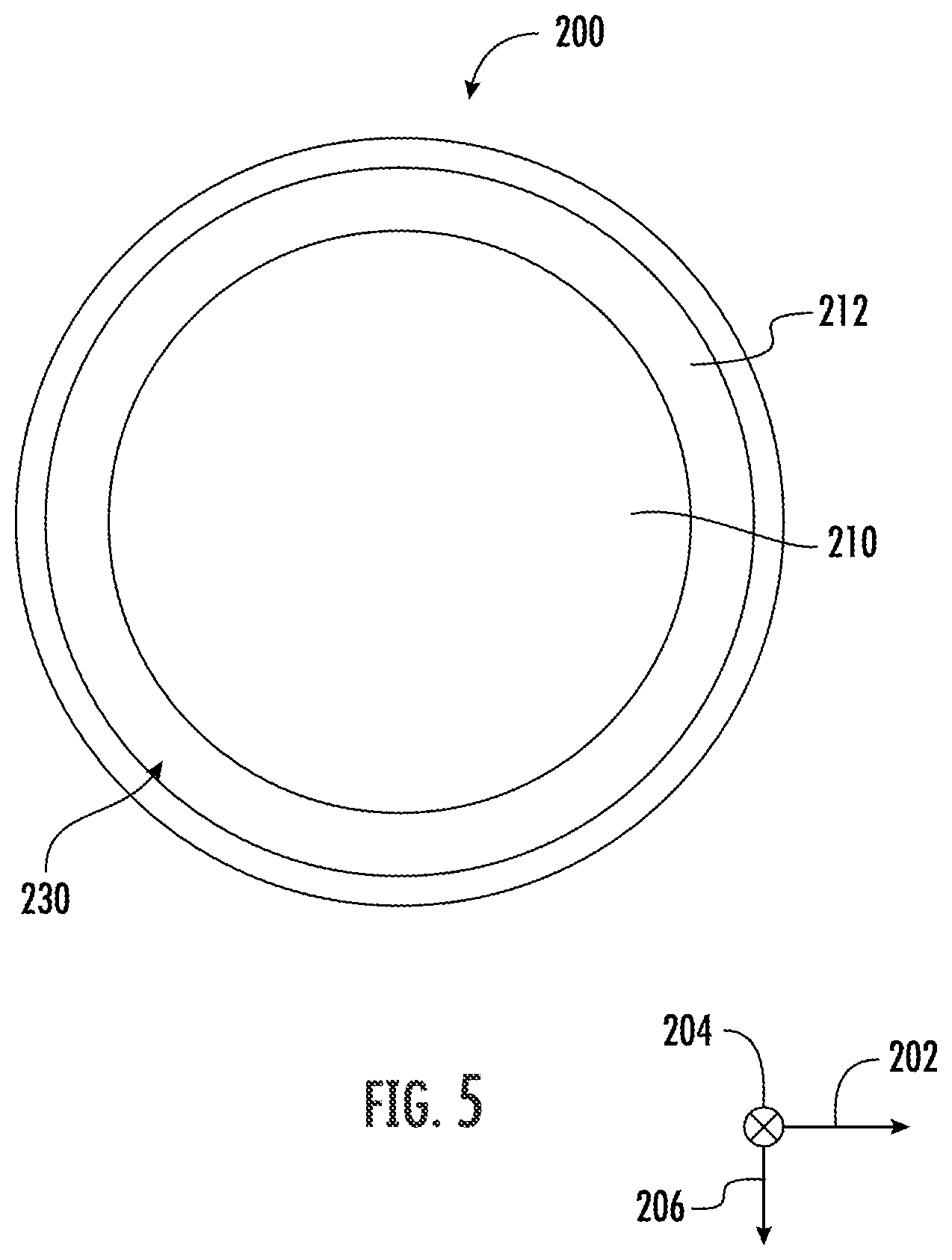

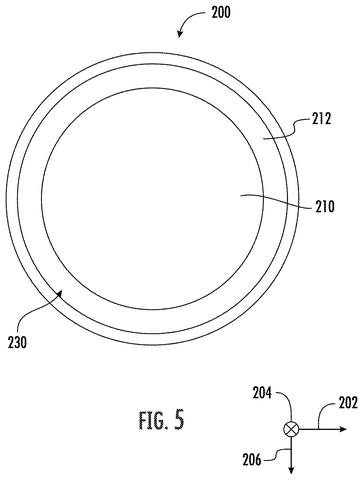

Top view of display cover, drawing sheet 5 from US 2026/0244243 A1
Sheet 5 Top view of display cover

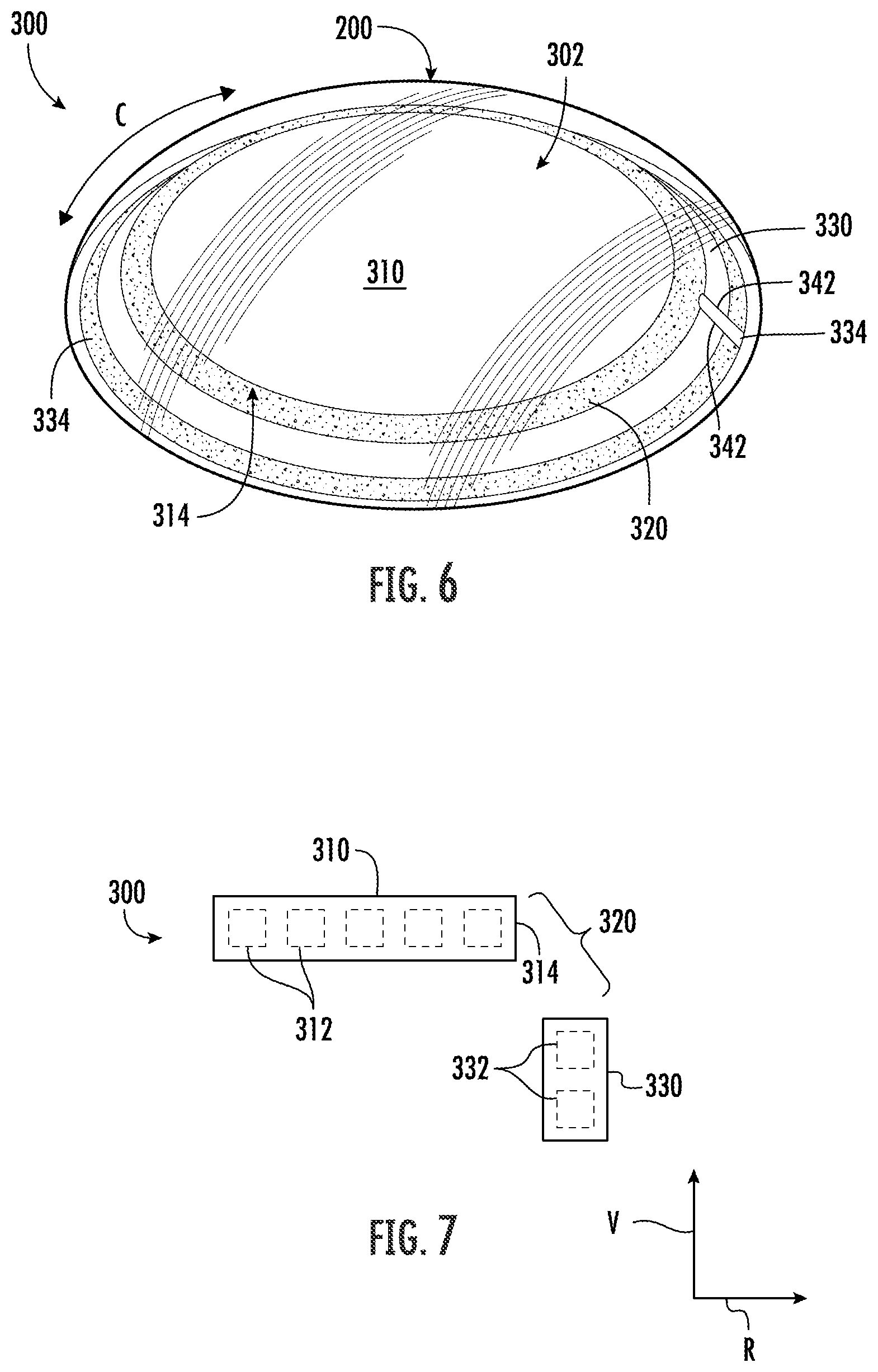

Detailed view of screen zones, drawing sheet 6 from US 2026/0244243 A1
Sheet 6 Detailed view of screen zones

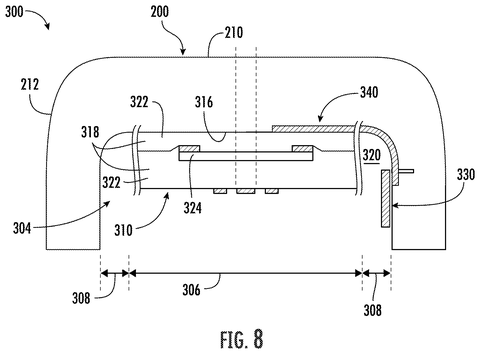

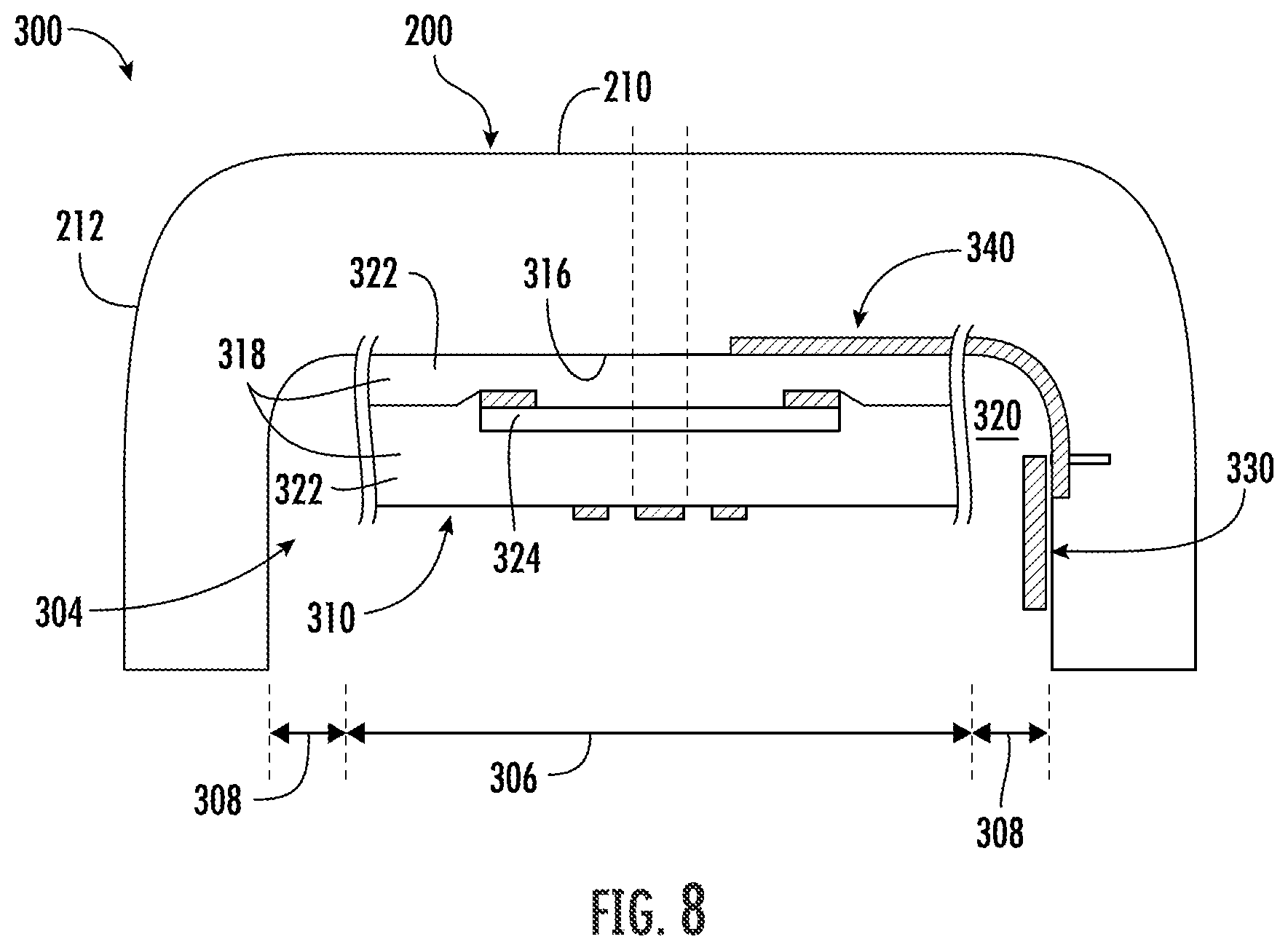

Cross-section of display assembly, drawing sheet 7 from US 2026/0244243 A1
Sheet 7 Cross-section of display assembly

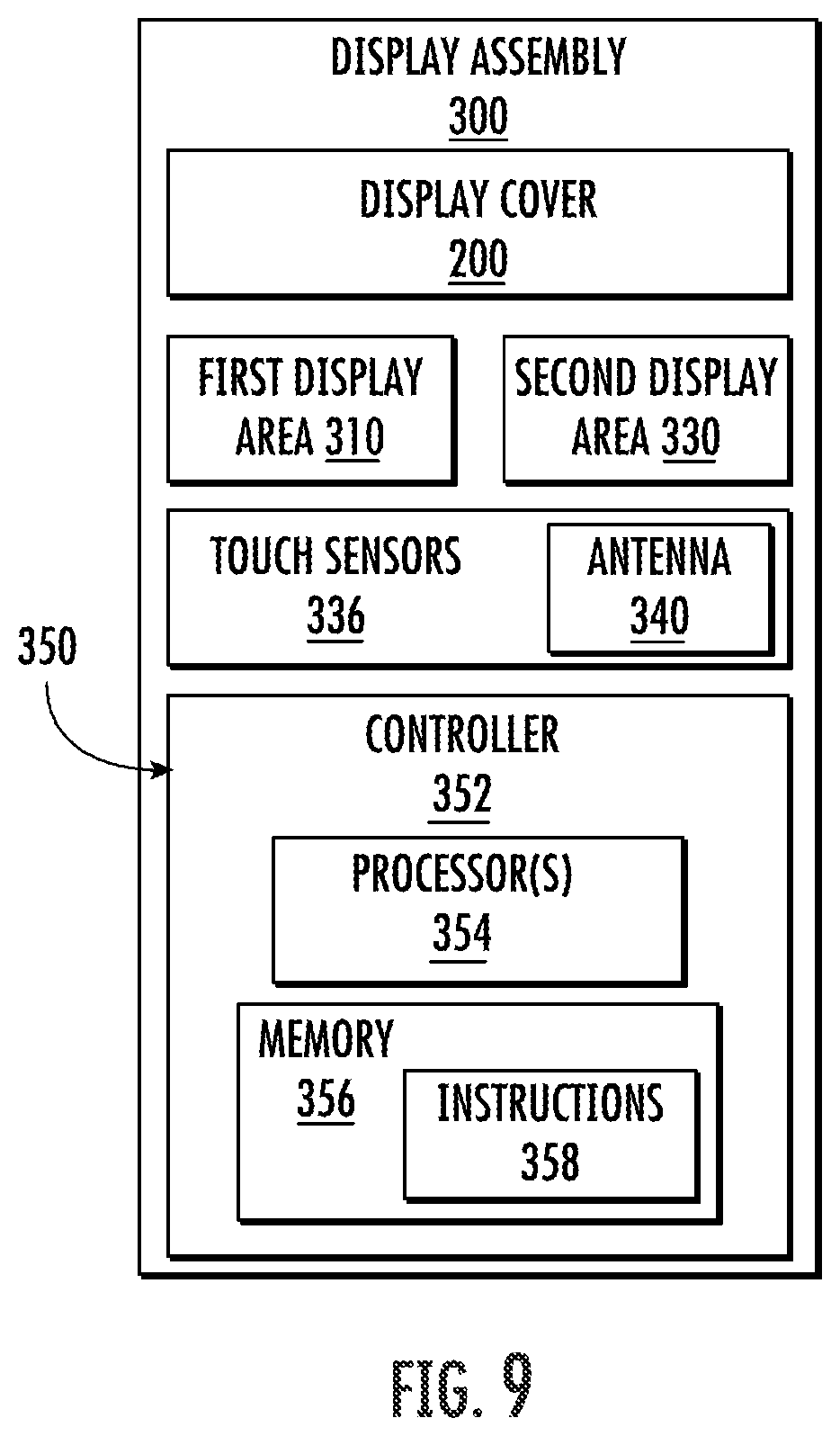

Block diagram of display system, drawing sheet 8 from US 2026/0244243 A1
