IBM Patents a Way to Find Security Leaks Hidden in a Chip's Power Draw

Your computer's chip might be broadcasting your secrets through nothing more than how much electricity it consumes at any given moment. IBM has filed a patent for a system that hunts down exactly those kinds of leaks before a chip ever leaves the design stage.

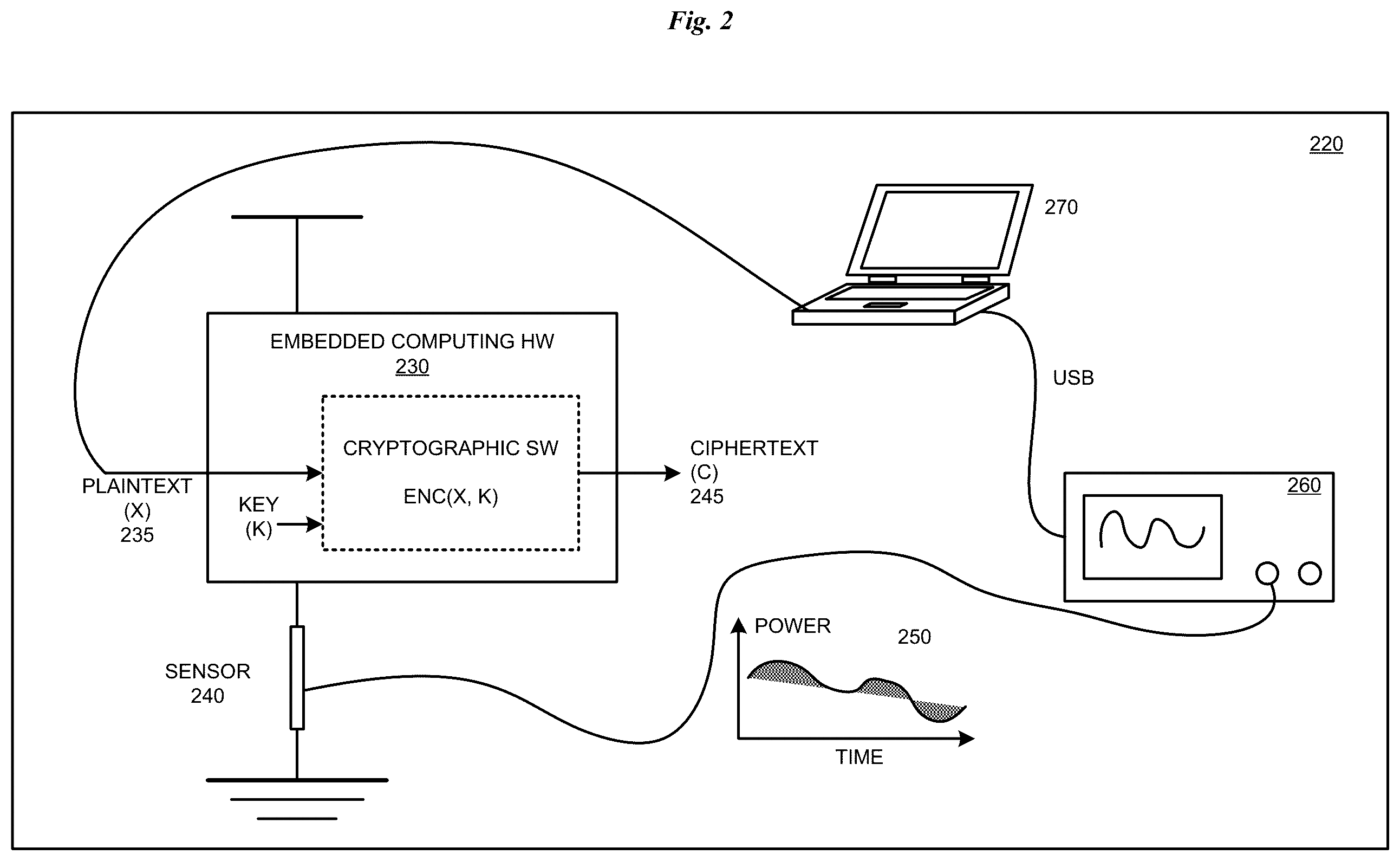

An embedded computer encrypts plaintext into ciphertext, with a sensor measuring power consumption and a laptop for data transfer. Drawing from patent filing US 2026/0227961 A1.
An embedded computer encrypts plaintext into ciphertext, with a sensor measuring power consumption and a laptop for data transfer.All 8 drawings ↓
Publication number
US 2026/0227961 A1(US20260227961A1)
Applicant
International Business Machines Corporation
Filed · Published
Feb 4, 2025 · Aug 6, 2026
Inventors
Naorin Hossain, Ramon Bertran Monfort, William Santiago-Fernandez, Alper Buyuktosunoglu, Pradip Bose
Status when we published
Waiting for an examiner
Document
25 claims
US classification
717/106

How IBM spots secrets leaking through chip power use

Imagine a safe that, every time you open it, flickers a light proportional to how many digits are in your combination. You haven't told anyone the code, but an attacker watching the light could eventually figure it out. Computer chips have the same problem: they consume slightly different amounts of power depending on what data they're processing, and attackers can exploit that pattern to reconstruct sensitive information like encryption keys.

IBM's patent describes a tool that simulates how a chip will behave during design, models the exact power consumption of individual instructions, and generates test code to verify whether those patterns could leak anything useful to a spy. The goal is to catch the problem before the chip is manufactured, not after.

If the system finds a leak, engineers can adjust the chip's design, both at the high-level architecture and the finer microarchitecture level, to mask the tell-tale power signals. Think of it as proofreading a chip's behavior for accidental confessions.

From the filing · CLAIM 1
determining a power consumption result of a hardware representative system comprising: constructing a power consumption relation based in part on an instruction; and generating executable code based on the power consumption relation …

Translation: The system figures out how much power a chip design uses by writing code that simulates specific instructions.

How IBM models power draw to expose vulnerable instructions

The patent describes a three-step pipeline for identifying and eliminating power side-channel vulnerabilities (places where a chip's electricity consumption patterns inadvertently reveal the data it's working on).

  • Model construction: The system builds a mathematical "power consumption relation" for individual chip instructions. This is essentially a formula that predicts how much power a given instruction will draw depending on what data it is operating on.
  • Executable code generation: Using that model, the system automatically generates runnable test code. Executing that code produces a concrete power trace (a time-stamped log of power readings) that represents what an adversary could observe from the outside.
  • Architecture adjustment: The system computes a power leakage metric (a score measuring how much useful information leaks through the power trace) and feeds that back to engineers, who can then modify both the architecture (the chip's logical design) and the microarchitecture (the lower-level implementation details) to reduce the leak.

The process works on a hardware representative system, meaning a simulation or model of the chip rather than physical silicon, so vulnerabilities can be caught and corrected during design rather than after mass production.

From the filing · THE ABSTRACT
… adjusting an architecture and a microarchitecture of the hardware representative system according to the power leakage metric.

Translation: Engineers then modify the chip layout to patch any security vulnerabilities found in the power signals.

What this means for chip security before hardware ships

Power side-channel attacks are a real and documented threat. Attacks like TEMPEST and various differential power analysis techniques have been used to extract cryptographic keys from physical devices. The challenge is that fixing these problems after a chip is manufactured is extremely expensive, and often impossible without a full redesign. A tool that finds them at the design stage could save significant cost and prevent security patches that never fully close the gap.

For you, this is most relevant if you rely on hardware security for things like encrypted storage, financial transactions, or enterprise data protection. If this kind of tooling becomes standard practice in chip design, the hardware underneath your security software gets meaningfully harder to spy on.

Source: US 2026/0227961 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time IBM patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 8 sheets

8 drawing sheets from US 2026/0227961 A1 · click any drawing to enlarge

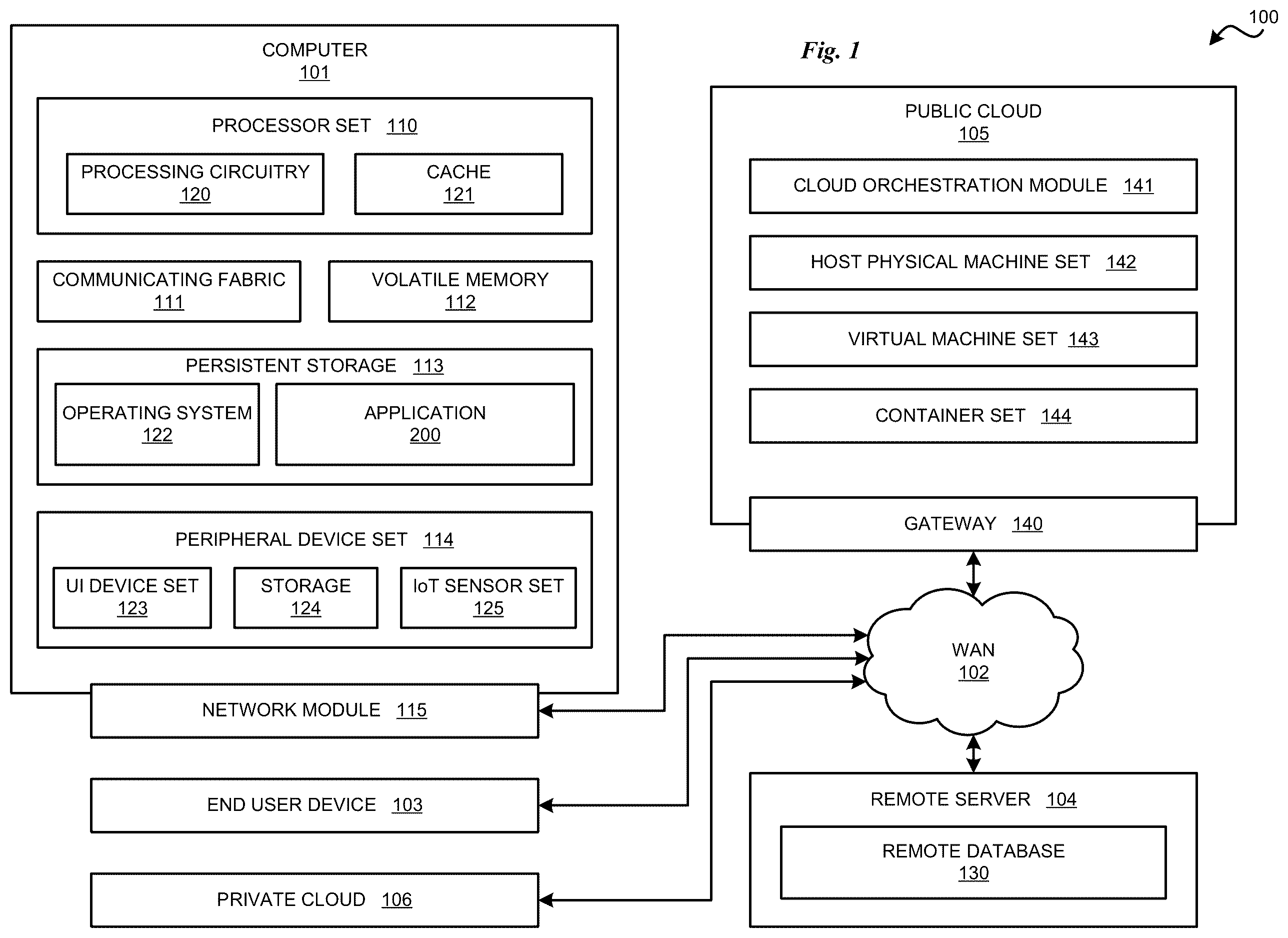

Computer system and cloud network, drawing sheet 1 from US 2026/0227961 A1
Sheet 1 Computer system and cloud network
Embedded computer with power sensor, drawing sheet 2 from US 2026/0227961 A1
Sheet 2 Embedded computer with power sensor

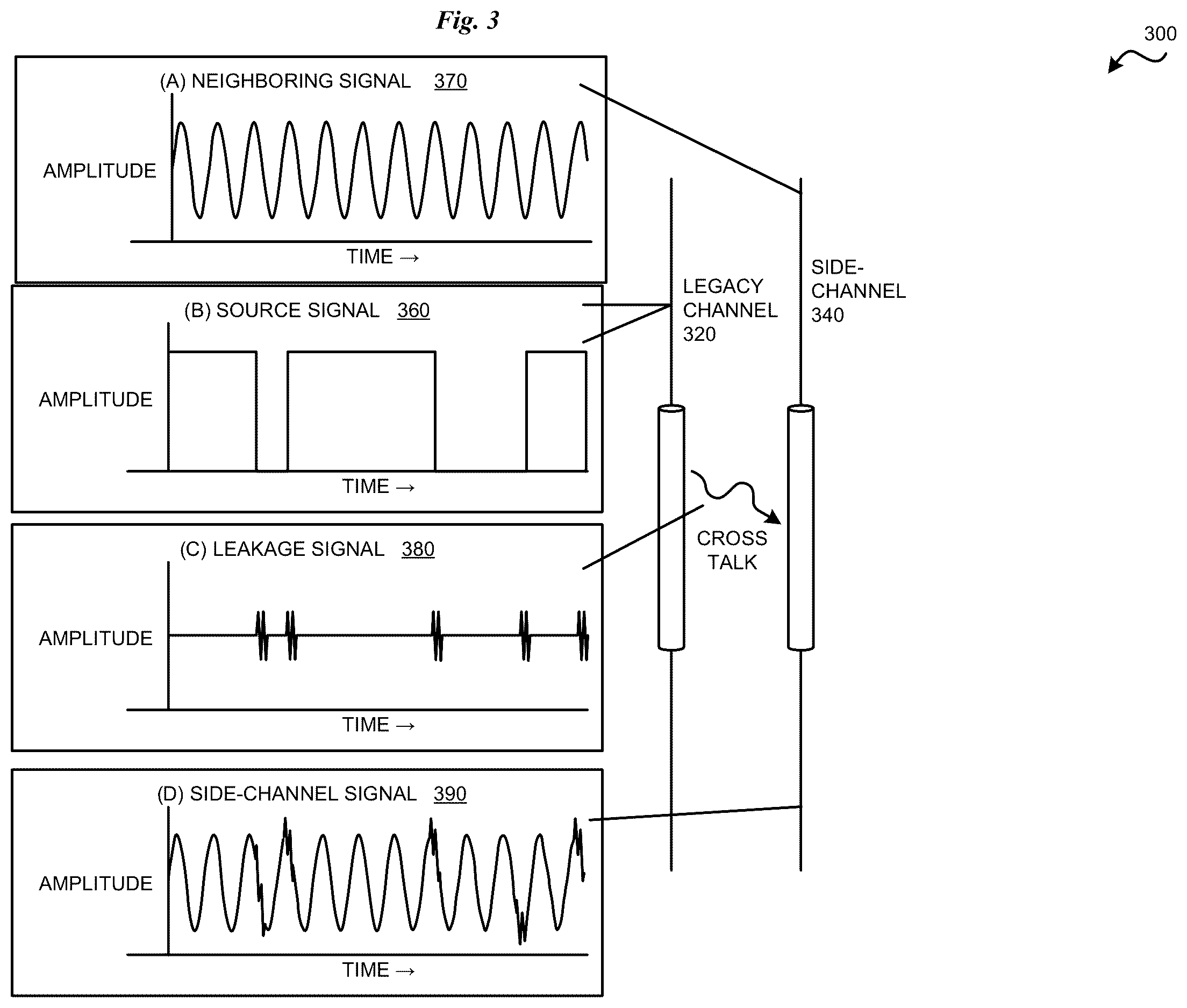

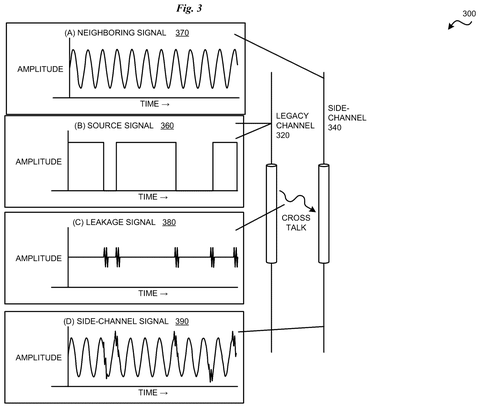

Signals in a side-channel attack, drawing sheet 3 from US 2026/0227961 A1
Sheet 3 Signals in a side-channel attack

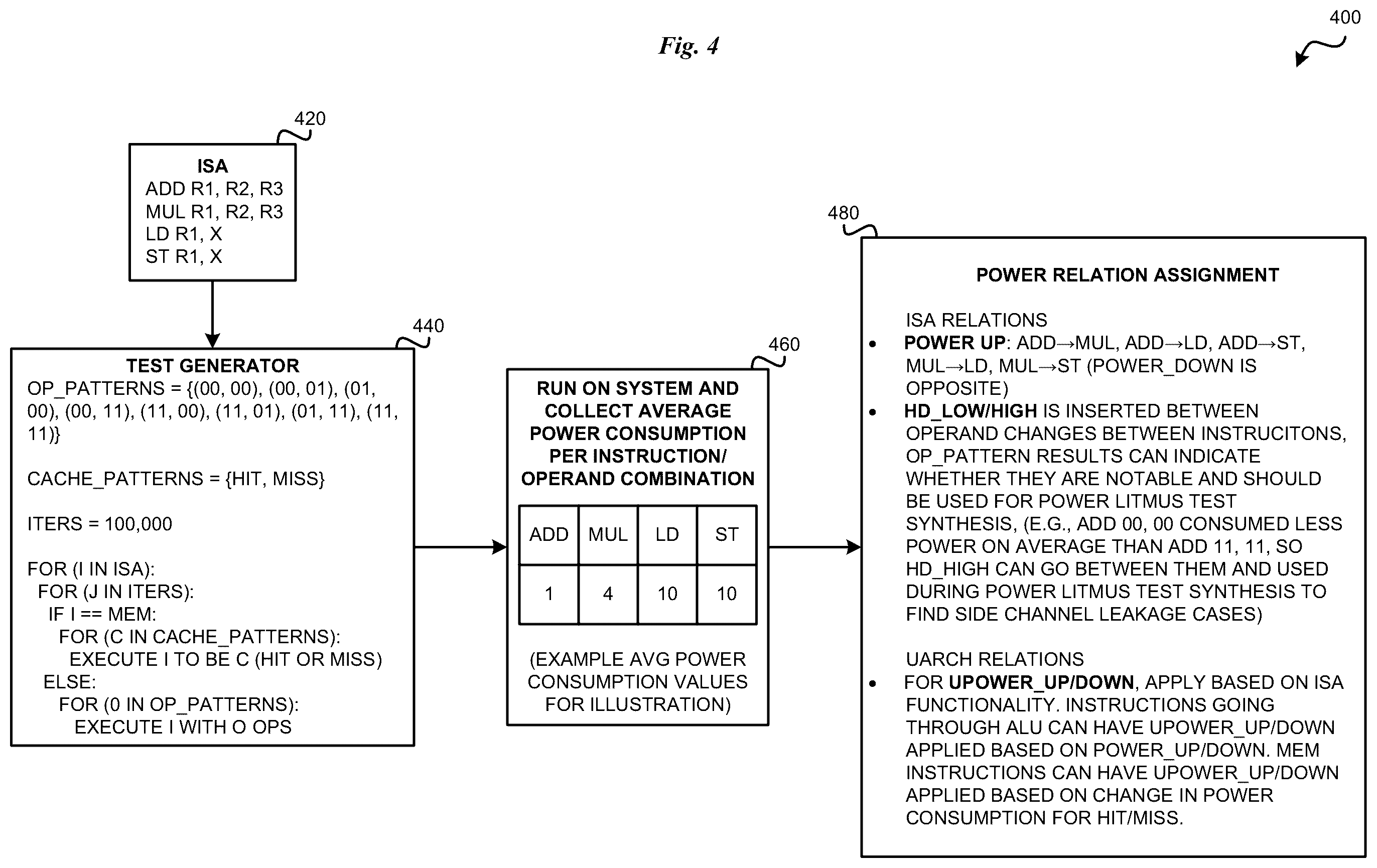

Power relation assignment process, drawing sheet 4 from US 2026/0227961 A1
Sheet 4 Power relation assignment process

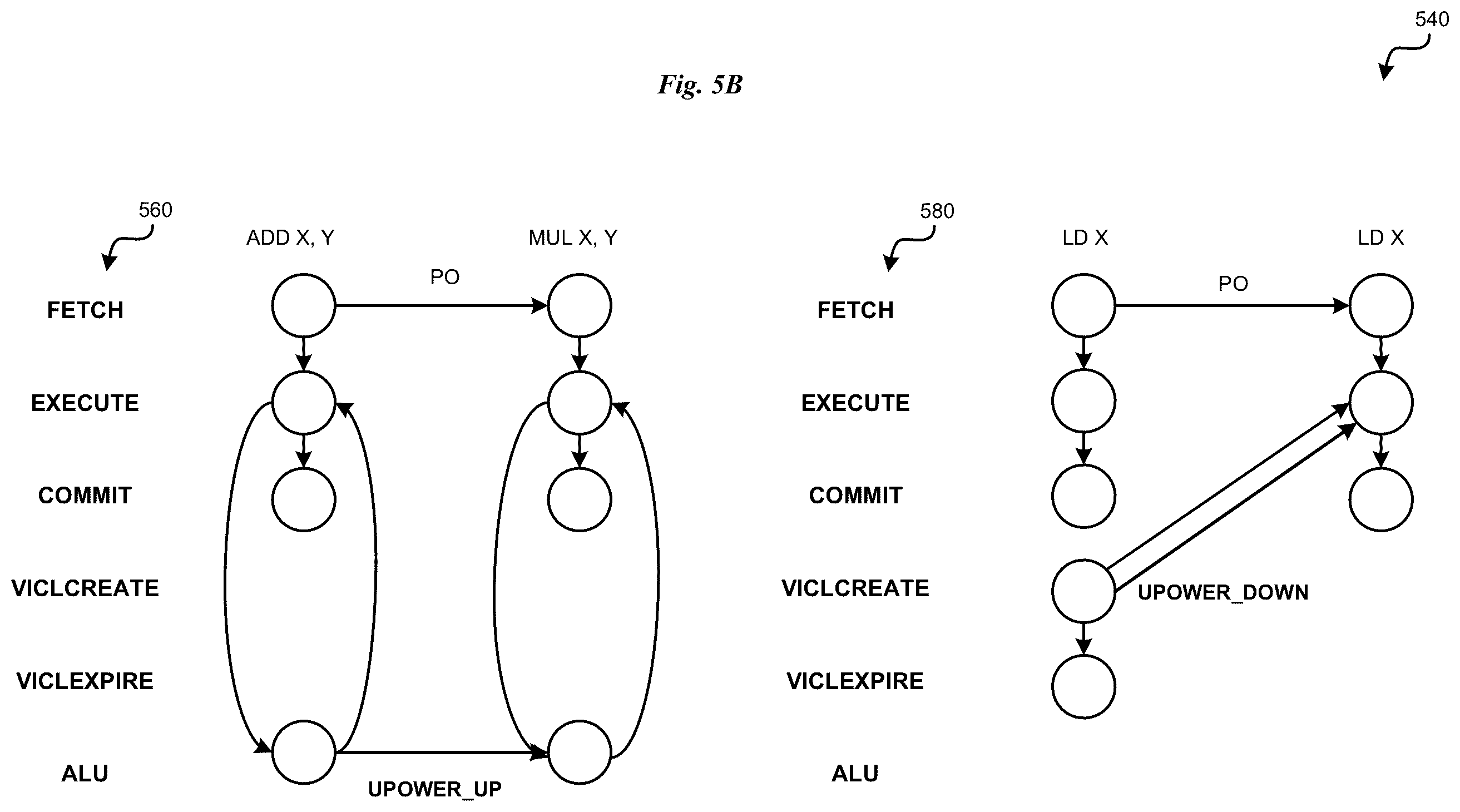

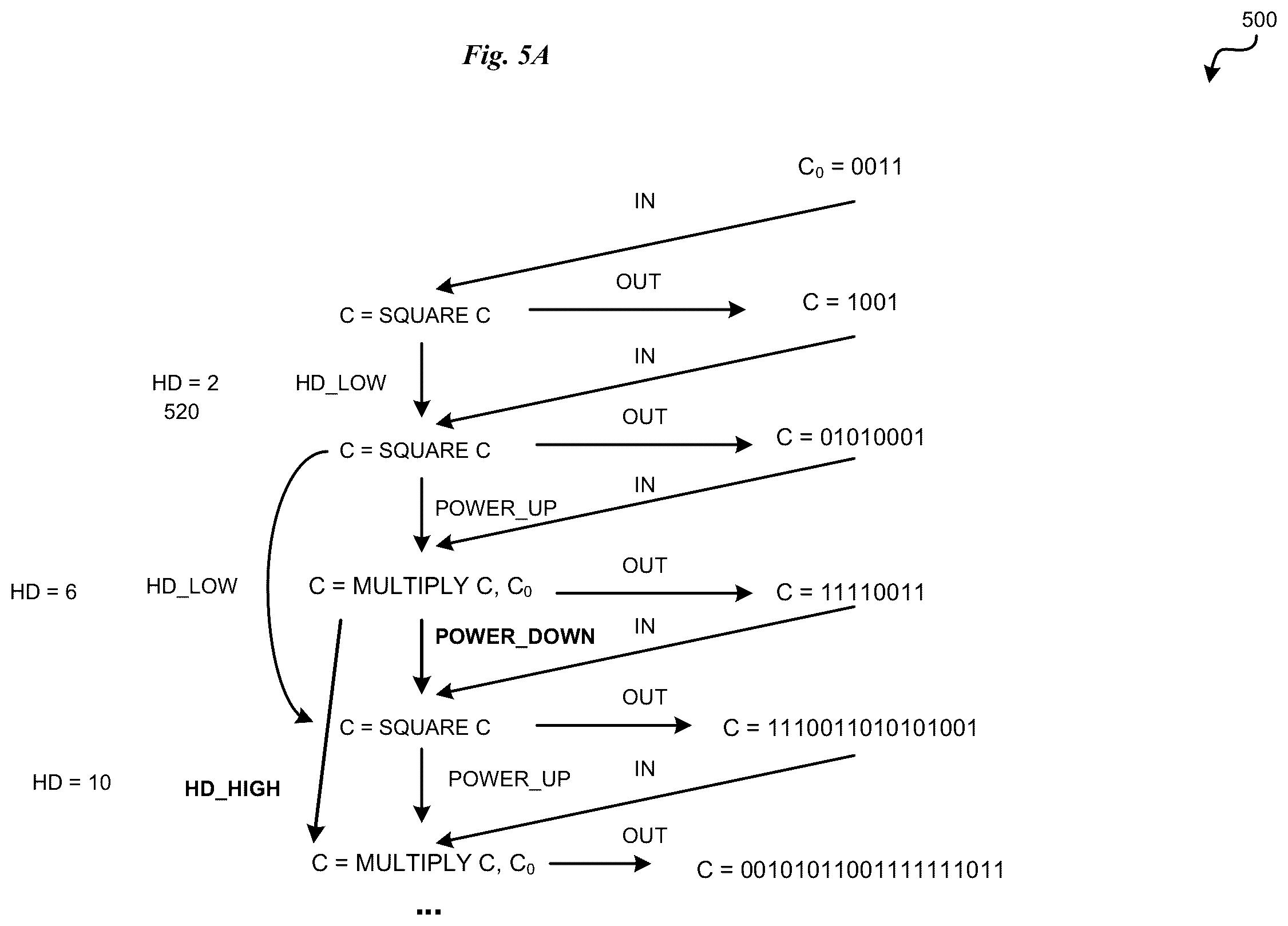

Cryptographic operations and power changes, drawing sheet 5 from US 2026/0227961 A1
Sheet 5 Cryptographic operations and power changes

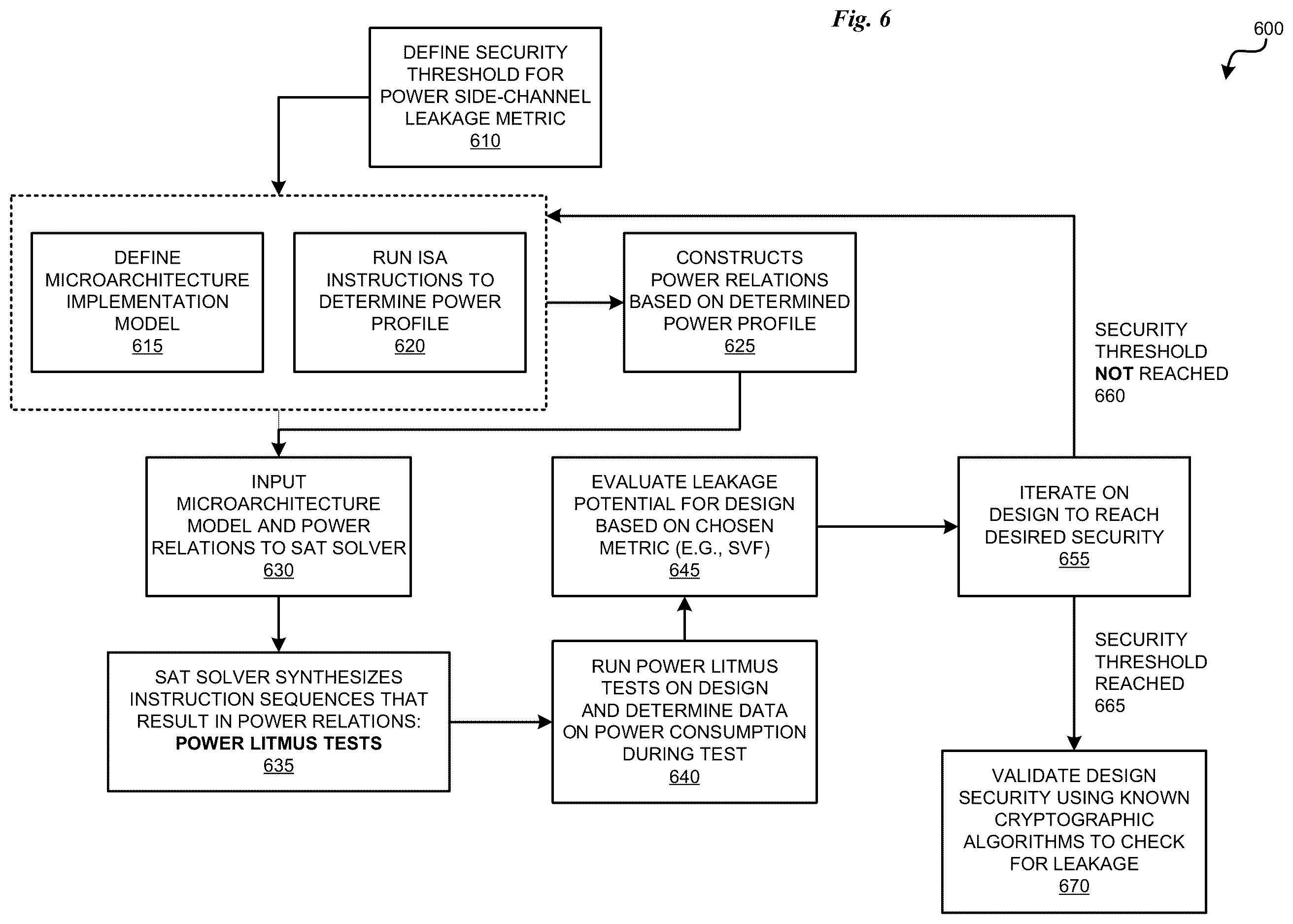

Instruction execution and power states, drawing sheet 6 from US 2026/0227961 A1
Sheet 6 Instruction execution and power states

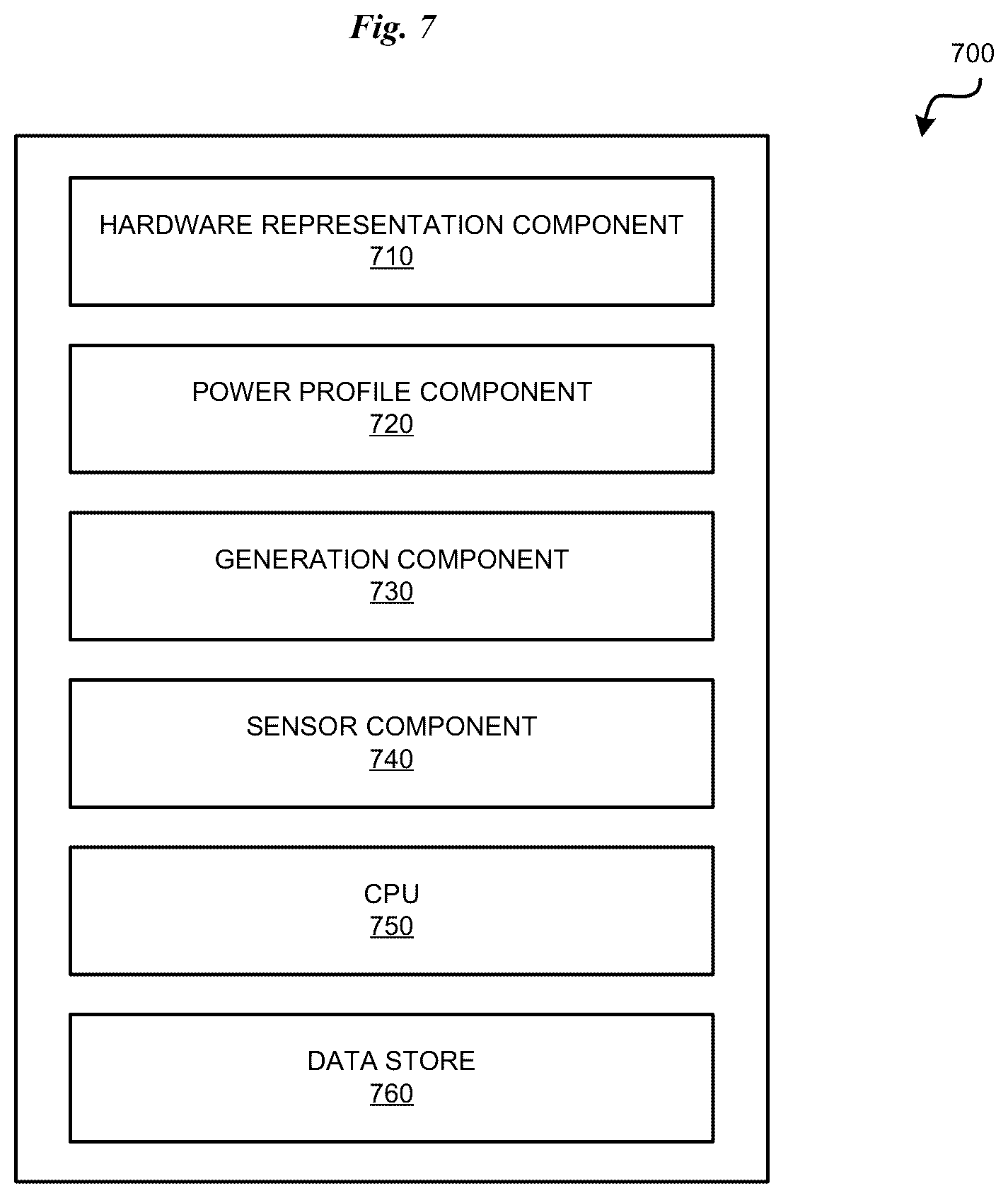

Security validation flowchart, drawing sheet 7 from US 2026/0227961 A1
Sheet 7 Security validation flowchart
Computer with security components, drawing sheet 8 from US 2026/0227961 A1
Sheet 8 Computer with security components
