Intel · Chip · Filed Jan 15, 2025 · USPTO published Aug 20, 2026 · Aug 20 release

Intel Patents a Chip That Decides How Much AI Thinking to Skip

Intel has filed a patent for hardware that, before running an AI calculation, quickly estimates whether taking a shortcut would actually be faster than doing the full calculation, and then picks the winning option on the fly.

Flowchart of the algorithm evaluating whether to use sparse or standard attention in a Transformer model. Drawing from patent filing US 2026/0244906 A1.
Flowchart of the algorithm evaluating whether to use sparse or standard attention in a Transformer model.All 9 drawings ↓
Publication number
US 2026/0244906 A1(US20260244906A1)
Applicant
Intel Corporation
Filed · Published
Jan 15, 2025 · Aug 20, 2026
Inventors
Ganmei YOU, Li XU
Status when we published
Waiting for an examiner
Document
22 claims
US classification
706/15
Parent application
National Stage Entry of PCT/CN2022/128330 (filed Oct 28, 2022)(PCTCN2022128330)

What Intel's attention-pruning chip actually does

An AI model stares at a massive grid of numbers, every single one potentially important. You pay for all of that processing whether it matters or not.

Intel's patent describes a chip that pauses before each big calculation and runs a quick timing test. It asks: would it be faster to first strip this grid down to only its most important values, then do the calculation on the smaller version? Or is the full grid actually quicker to process as-is? Whichever path wins the estimate, that is the path the chip takes.

The idea is that the right answer changes depending on the size of the data and the state of the hardware at that moment. Instead of forcing engineers to hard-code one strategy, the chip adapts on every pass, potentially saving time without sacrificing the quality of the AI's output.

From the filing · CLAIM 1
… estimate first execution time of selecting a number k of dominant data elements from the initial self-attention input matrix to generate a sparse self-attention input matrix …

Translation: The chip calculates how long it will take to filter out the less important data to speed up processing.

How the chip times three paths before picking one

Transformer models, the architecture behind large language models and many image-recognition systems, rely on a step called self-attention. Self-attention is the process by which the model figures out which parts of the input are most relevant to each other. It is computationally expensive because it involves multiplying large matrices (grids of numbers) together.

One common optimization is sparse attention: instead of using the full matrix, you pre-select only the k most important values (called dominant elements) and throw the rest away before doing the big multiplication. The catch is that the selection step itself costs time, and on some inputs or hardware states, that overhead makes the sparse path slower than just running the full calculation.

Intel's patent describes processor circuitry that estimates three time costs before committing:

  • First execution time: how long it would take to find and extract the top-k dominant elements from the full input matrix.
  • Second execution time: how long the self-attention calculation would take using that smaller, sparse matrix.
  • Third execution time: how long the self-attention calculation would take using the original, full matrix with no pruning at all.

The chip adds the first and second estimates together (sparse path total) and compares that sum to the third estimate (full path). It then executes whichever path is projected to be faster. Because this decision happens at runtime on actual hardware, it can respond to real conditions rather than relying on a fixed policy baked in at design time.

From the filing · THE ABSTRACT
… estimating third execution time of performing the self-attention operation based on the initial self-attention input matrix …

Translation: It also measures the time required to process all the data without skipping any steps.

What this means for AI chips running transformer models

AI inference (running a trained model to get an answer, as opposed to training it) is where most of the real-world compute cost lives. Every millisecond shaved from an inference pass multiplies across millions of requests. A chip that dynamically chooses between full and sparse attention could improve throughput without requiring software developers to tune workload-specific settings for each deployment.

For teams building AI accelerators or evaluating Intel's next-generation silicon, this filing signals Intel is working on hardware-level adaptivity rather than leaving optimization entirely to software libraries. The broader pattern of chip makers embedding decision logic directly into silicon is one area where plain-English patent summaries of Intel's AI chip filings are giving engineers and analysts an early read on where processor design is heading.

Intel's 27th filing we've tracked since May in our AI chip wars watchlist adds to one splitting AI work across chips and one splitting model memory at runtime.

Source: US 2026/0244906 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Intel patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 9 sheets

9 drawing sheets from US 2026/0244906 A1 · click any drawing to enlarge

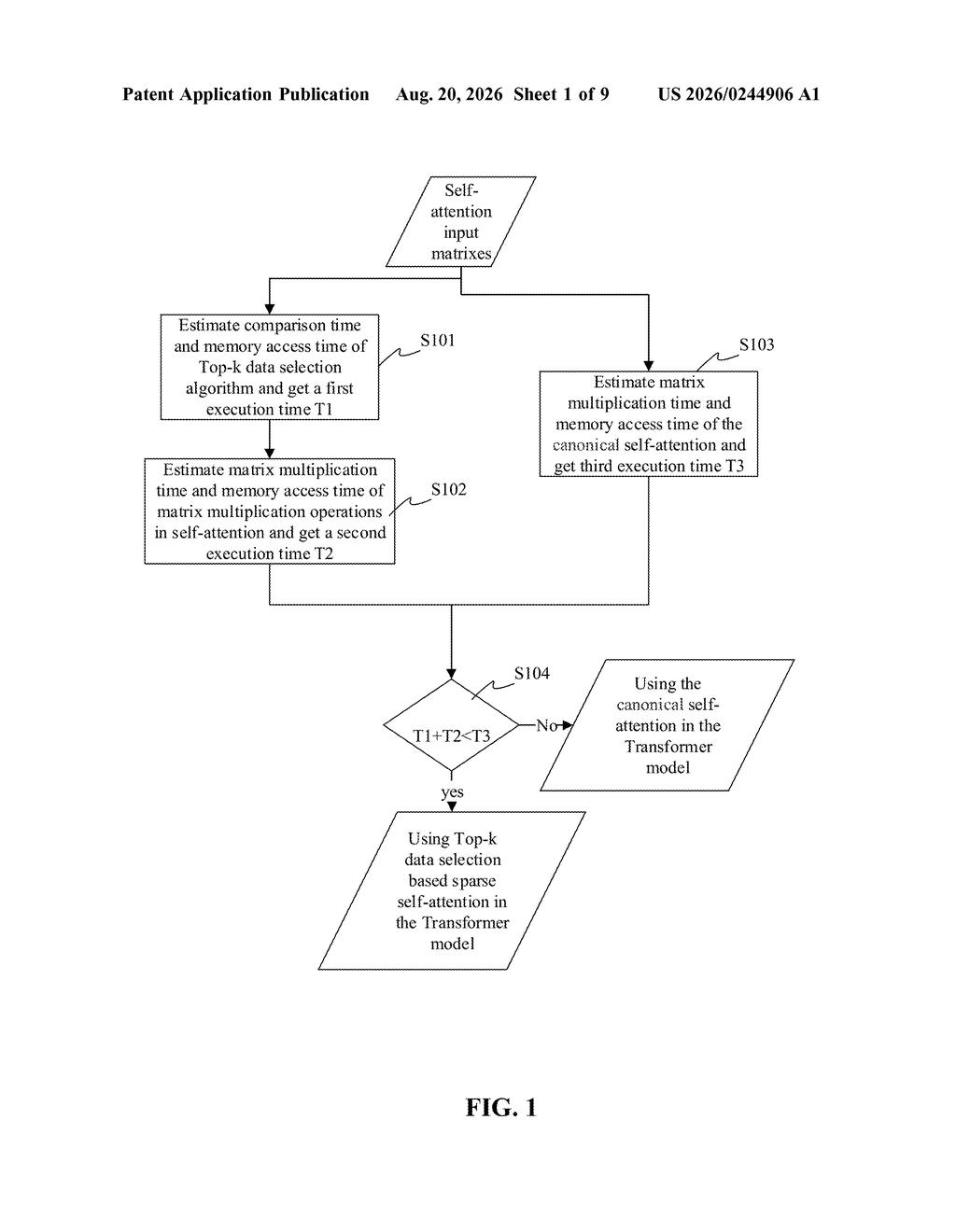

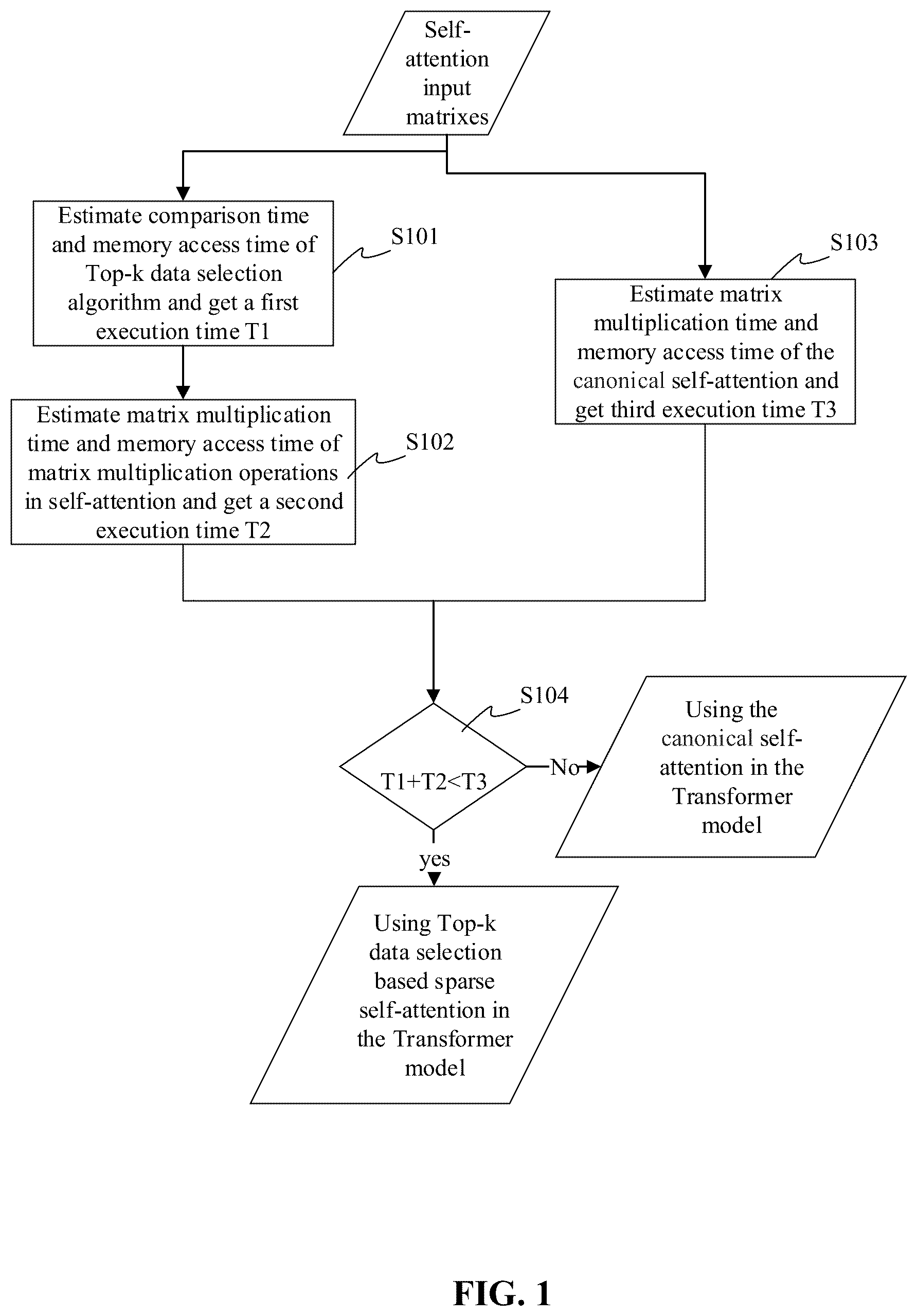

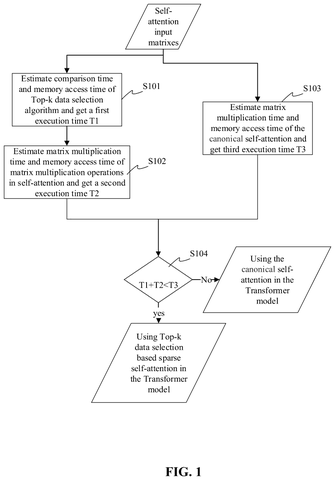

Flowchart for sparse attention selection, drawing sheet 1 from US 2026/0244906 A1
Sheet 1 Flowchart for sparse attention selection

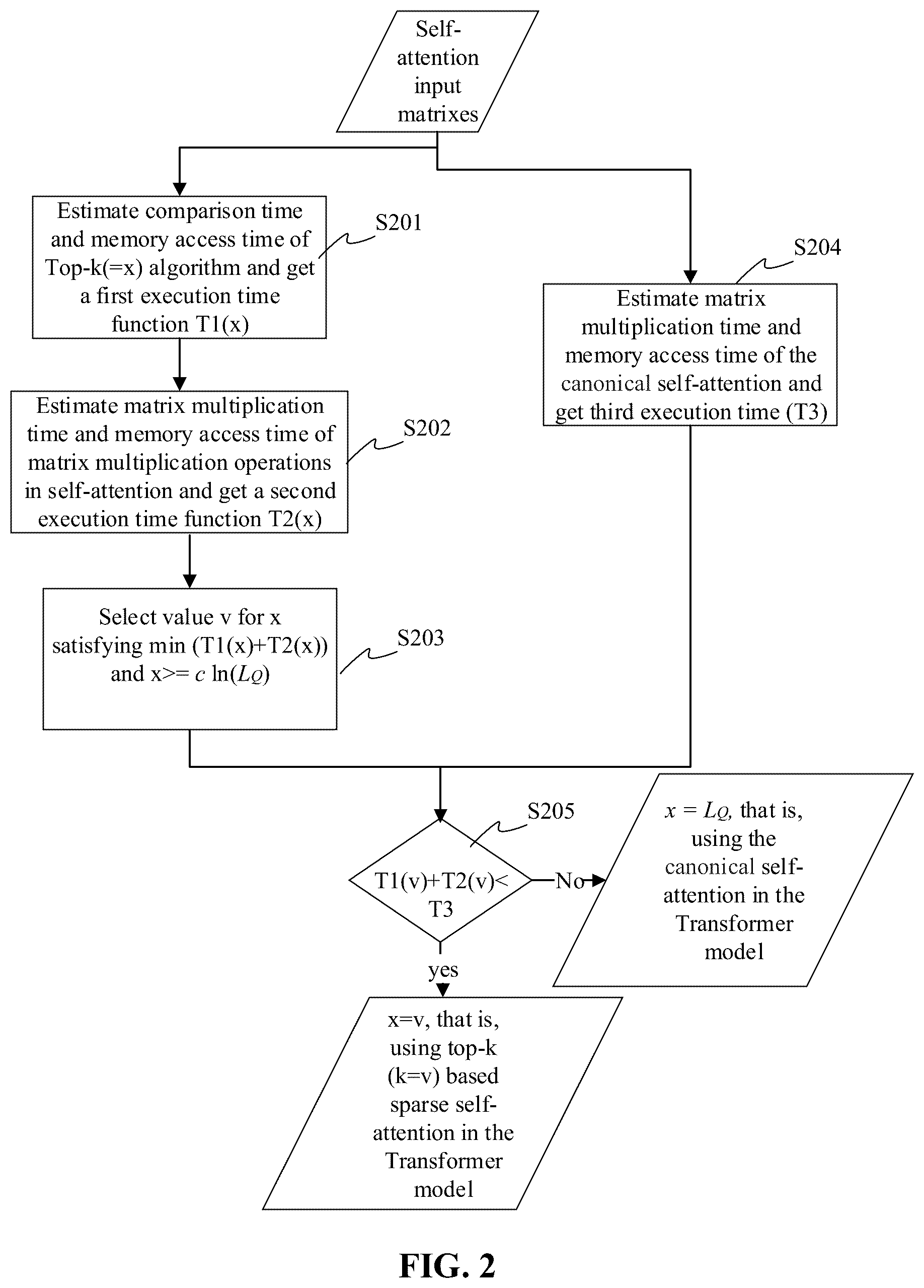

Flowchart for dynamic sparse parameter selection, drawing sheet 2 from US 2026/0244906 A1
Sheet 2 Flowchart for dynamic sparse parameter selection

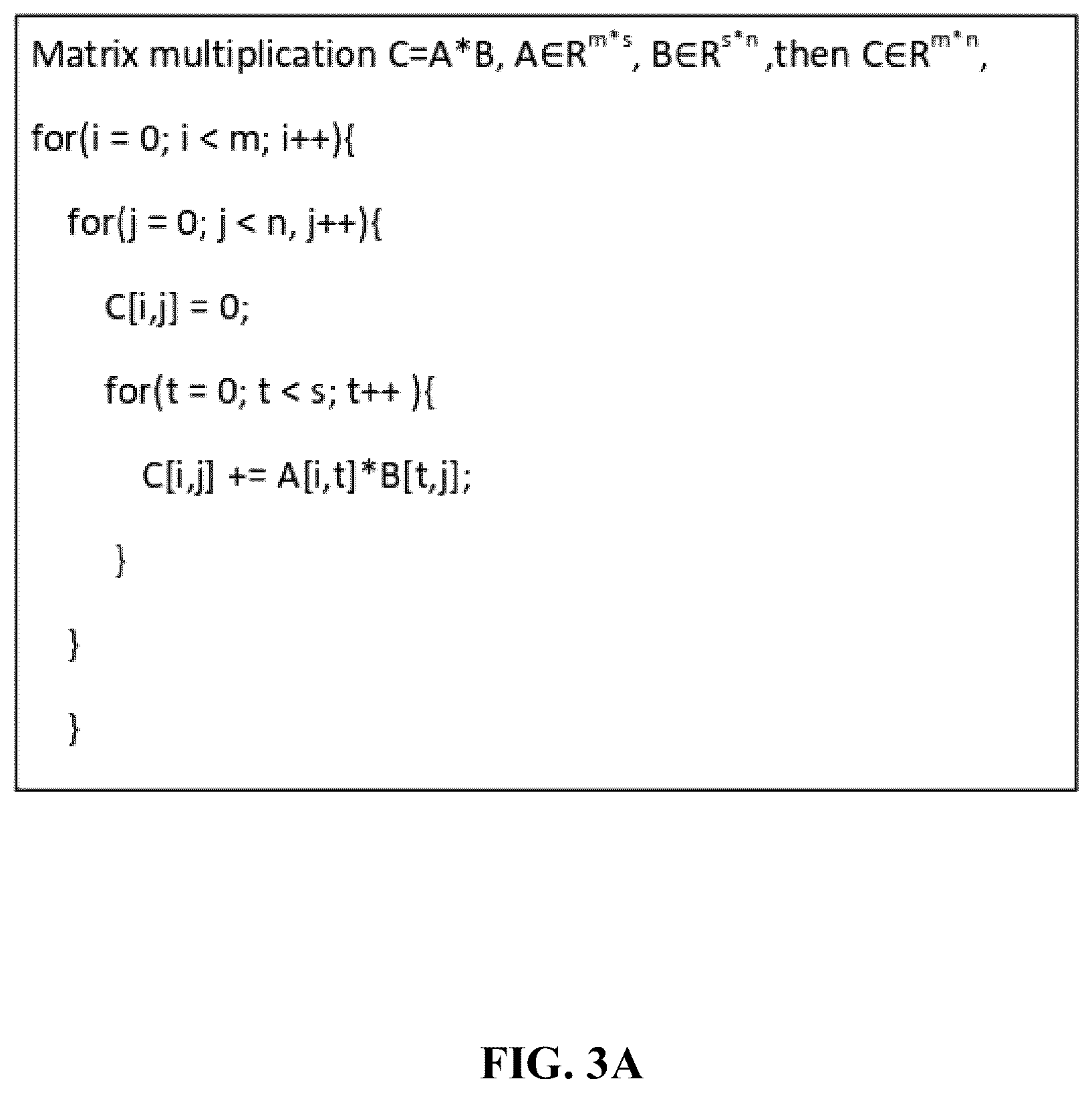

Matrix multiplication code snippet, drawing sheet 3 from US 2026/0244906 A1
Sheet 3 Matrix multiplication code snippet

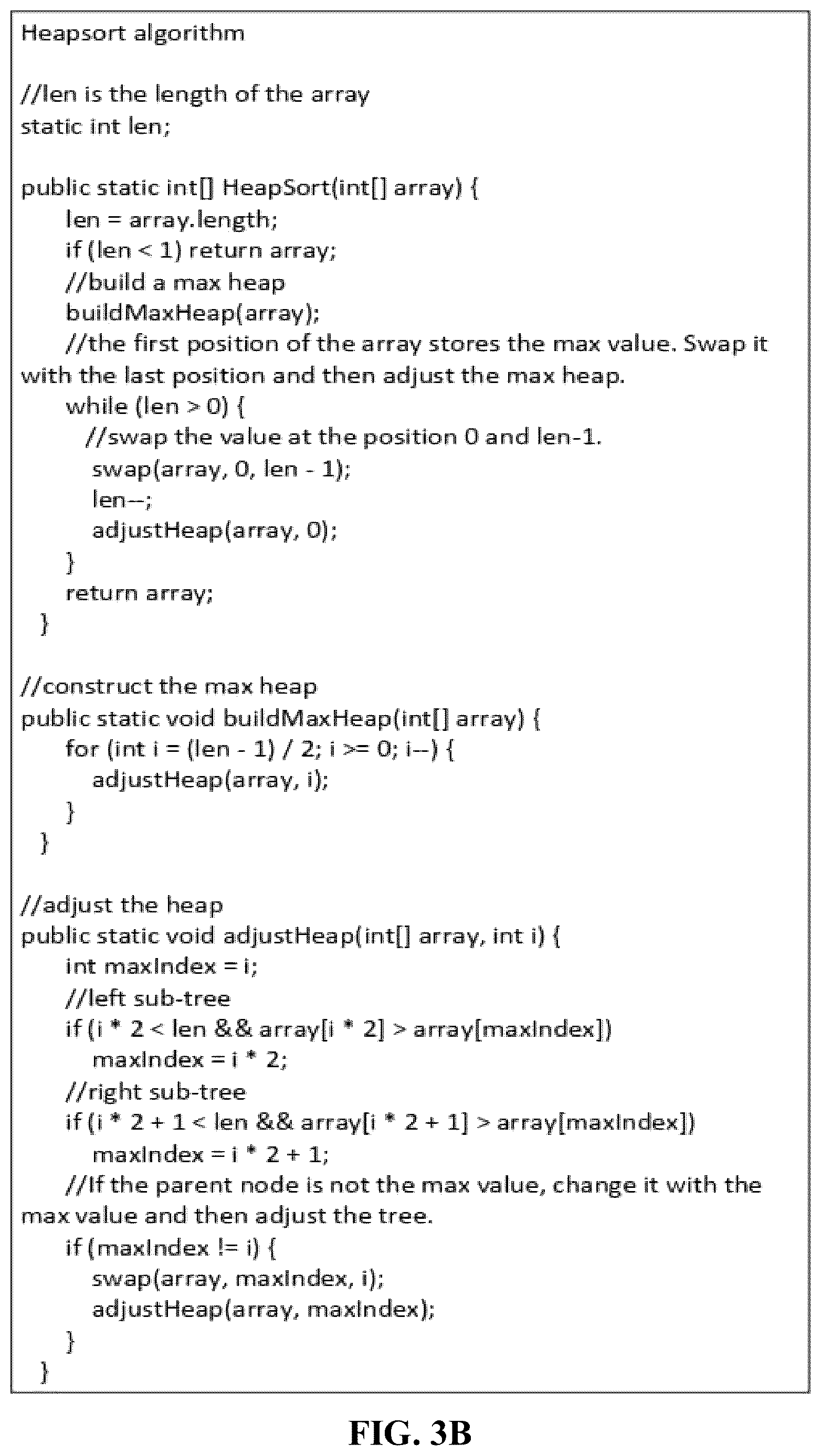

Heapsort algorithm code snippet, drawing sheet 4 from US 2026/0244906 A1
Sheet 4 Heapsort algorithm code snippet

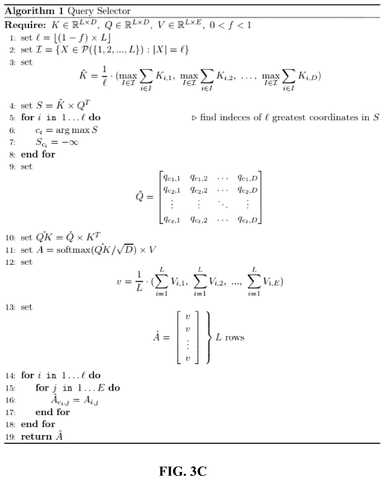

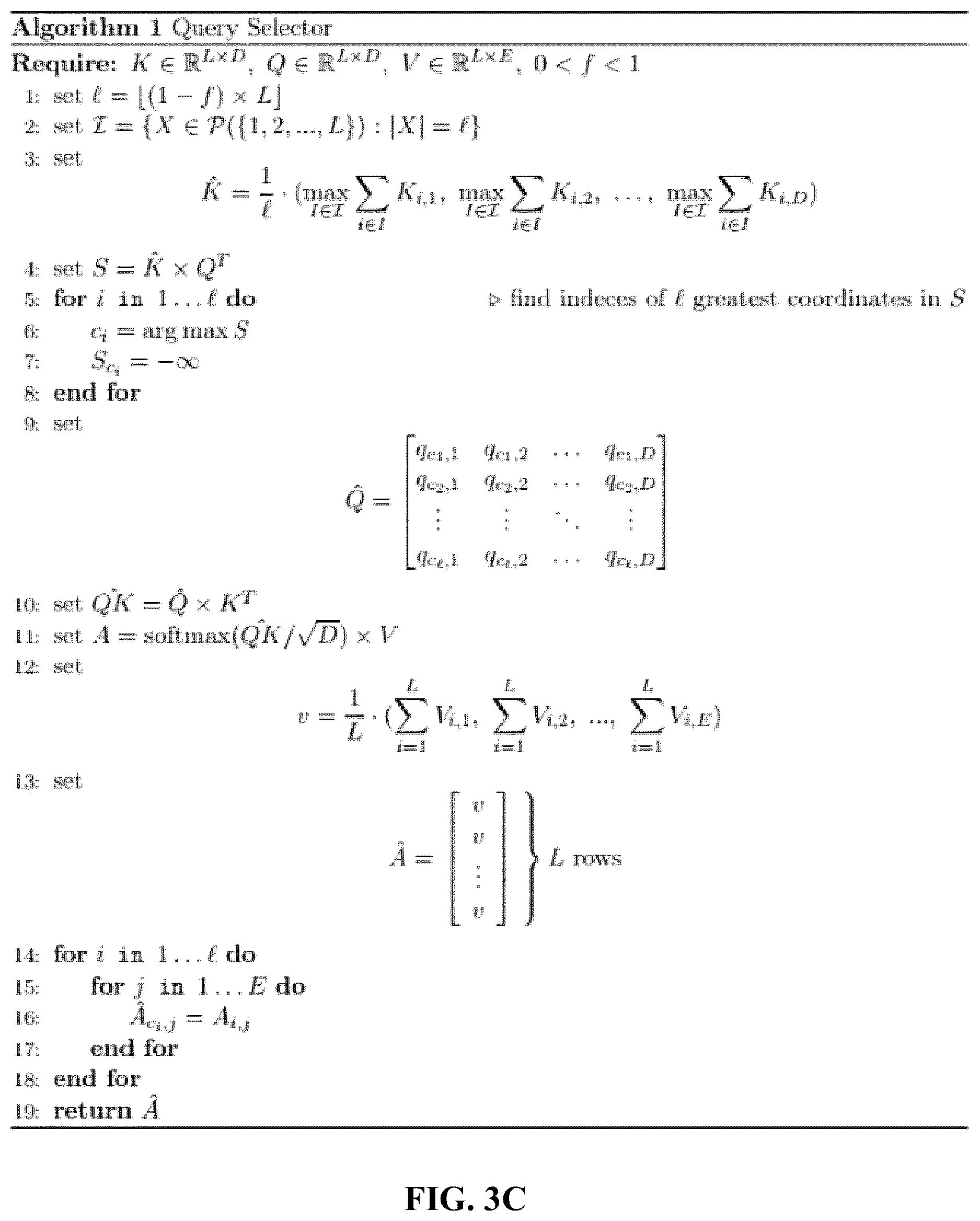

Query selector algorithm pseudocode, drawing sheet 5 from US 2026/0244906 A1
Sheet 5 Query selector algorithm pseudocode

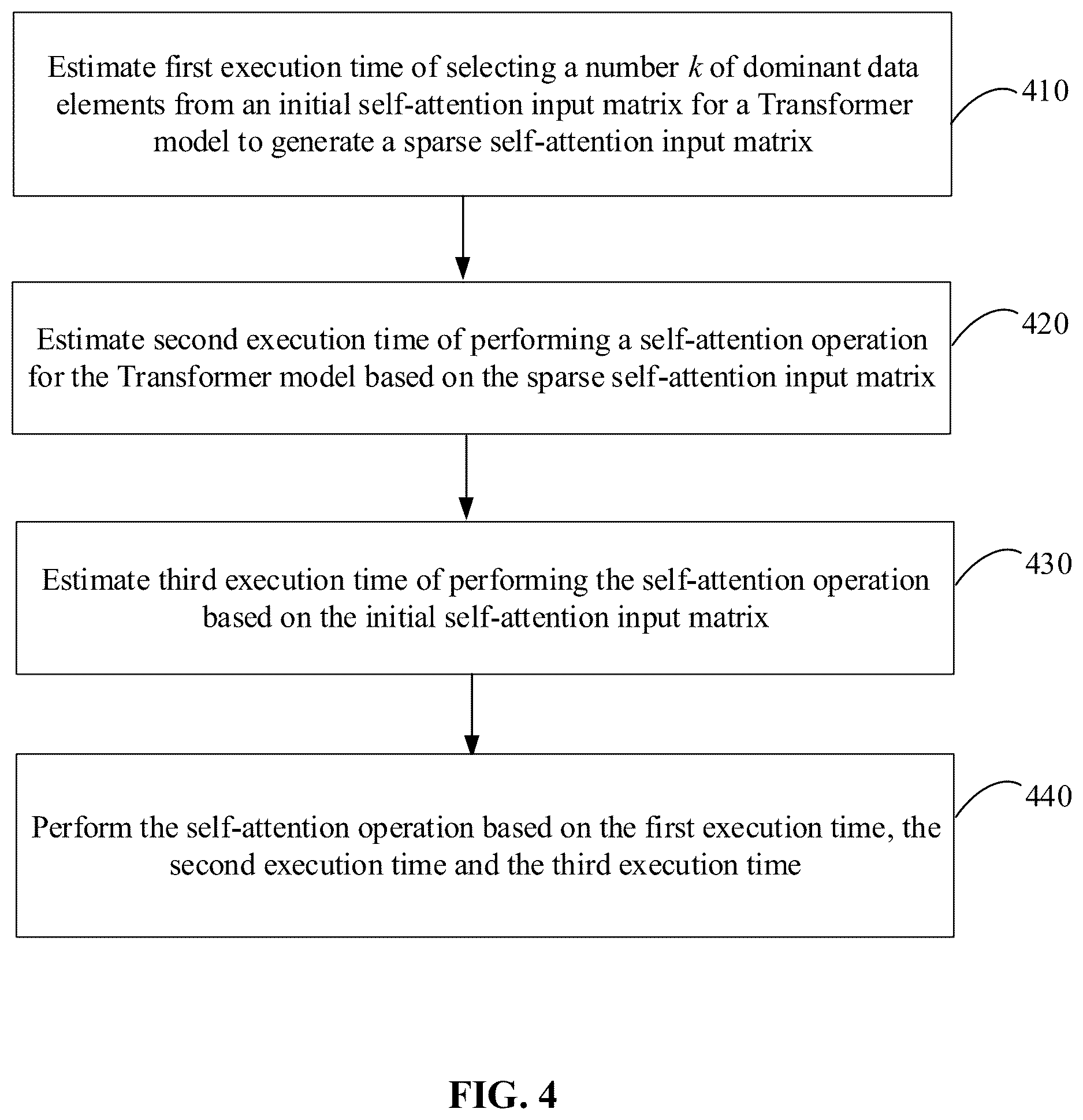

Flowchart of transformer execution time estimation, drawing sheet 6 from US 2026/0244906 A1
Sheet 6 Flowchart of transformer execution time estimation

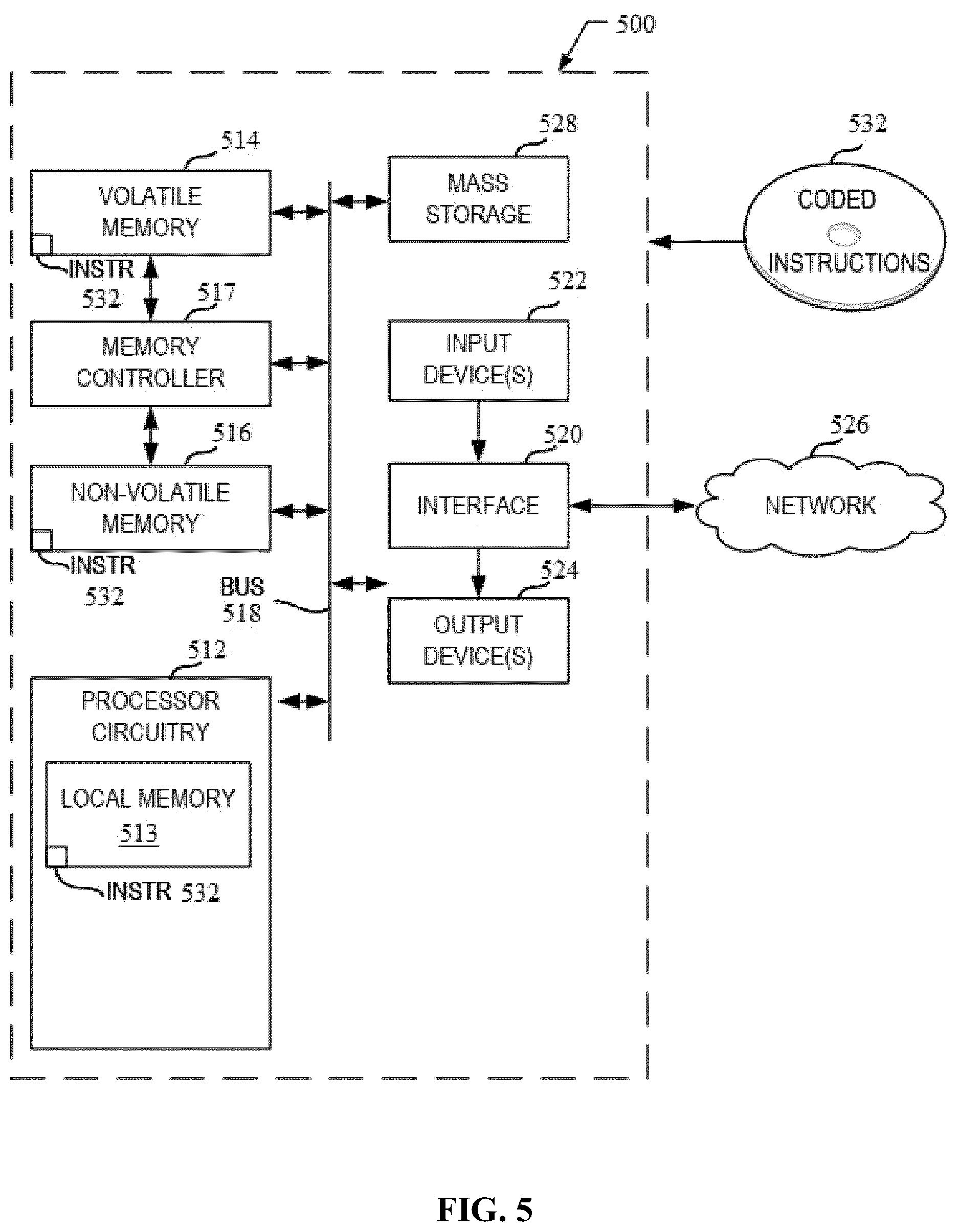

Computing hardware block diagram, drawing sheet 7 from US 2026/0244906 A1
Sheet 7 Computing hardware block diagram

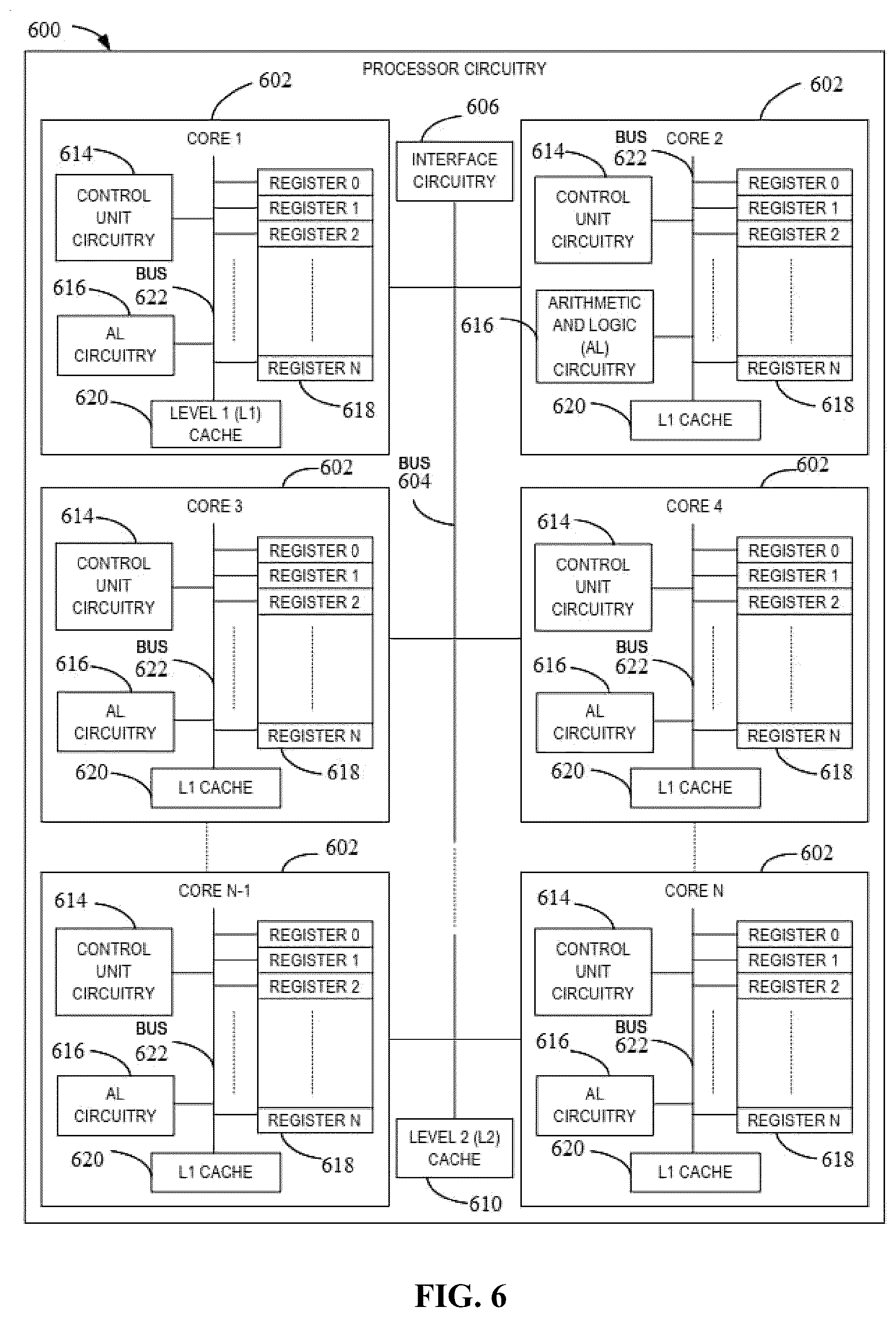

Multi-core processor internal architecture diagram, drawing sheet 8 from US 2026/0244906 A1
