Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs

Writing engineering requirements is one of the most tedious and error-prone parts of building complex systems. Nvidia wants two AI models to do it together, one writing a first draft and the other tearing it apart until they agree.

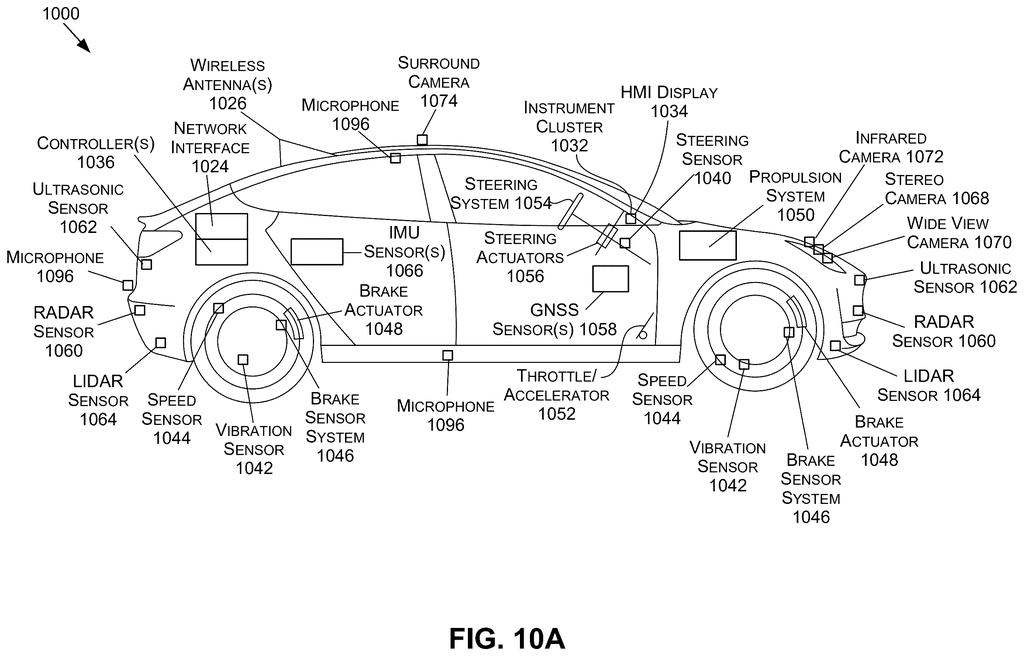

Side profile of a self-driving car equipped with numerous external sensors, cameras, and radar units. Drawing from patent filing US 2026/0236825 A1.
Side profile of a self-driving car equipped with numerous external sensors, cameras, and radar units.All 18 drawings ↓
Publication number
US 2026/0236825 A1(US20260236825A1)
Applicant
NVIDIA Corporation
Filed · Published
Feb 10, 2025 · Aug 13, 2026
Inventors
Aaron J. COHEN, Yutong YANG, Samuel Charles VANCE, Jugal BUDDHADEV, Gregory J. FREEMAN
Status when we published
Waiting for an examiner
Document
20 claims
US classification
706/60

What Nvidia's self-revising AI spec writer actually does

You're an engineer staring at a thousand-page spec document, trying to figure out whether the new requirement you just added contradicts something written two years ago. It's painstaking work, and a small mistake can mean expensive rework later.

Nvidia's patent describes a system where you type a plain-language request, and an AI agent looks up the relevant pieces of your engineering project, then generates a draft requirement for you. A second AI then plays critic, pointing out what's wrong or missing, and the first AI revises until the result is solid enough to update the actual system on file.

The key idea is the back-and-forth loop. Instead of a single AI spitting out an answer and calling it done, two models argue with each other until the output meets a bar. The final revision then feeds directly back into the engineering project, keeping the official documentation current without you having to copy-paste anything.

From the filing · CLAIM 1
… generating, via execution of a first machine learning model, an initial version of an additional content item based at least on the context; generating, via execution of a second machine learning model, one or more revisions to the additional content item based at least on one or more critiques associated with the additional content item …

Translation: The system uses one AI to draft technical documents and a second AI to critique and rewrite them.

How two AI models trade drafts and critiques

The patent describes a multi-agent workflow for systems engineering, where at least two AI models collaborate to produce and refine technical content items (think: requirements, test cases, or specification entries).

Here's how the pipeline works:

  • Graph matching: When a user submits a request, the system maps that input against a graph database (a structured web of linked nodes representing parts of the engineered system). This surfaces the relevant existing requirements and relationships.
  • Context assembly: The matched graph data, along with associated content items, forms a context window that tells the first model what already exists and what the request is asking for.
  • Draft generation: A first machine learning model produces an initial version of the new content item, grounded in that context.
  • Critique and revision: A second machine learning model evaluates the draft, generating critiques. Those critiques feed back to produce revisions, which can loop more than once.
  • System update: Once revisions are accepted, the engineered system's official record is updated automatically.

The use of a graph data structure is notable: it lets the system understand not just individual requirements but the relationships between them, so a new requirement can be checked for consistency with dozens of connected components at once.

From the filing · THE ABSTRACT
The technique further includes causing the engineered system to be updated based at least on the revision(s) to the additional content item.

Translation: The software automatically applies these AI-generated changes directly to the engineering project.

What this means for AI-assisted engineering workflows

Systems engineering documentation is a multi-billion-dollar pain point across aerospace, automotive, chip design, and defense contracting. Teams spend enormous time writing, reviewing, and tracing requirements manually. A workflow that automates the draft-critique-revise cycle could cut that time significantly, and Nvidia filing in this space suggests it sees the tooling for complex engineered systems as a growth area, likely tied to its work on simulation and digital-twin platforms.

For everyday engineers, the practical bet here is that this kind of AI-assisted workflow eventually shows up inside professional engineering tools, the kind used to design cars, aircraft, or, yes, chips. Nvidia's work sits alongside a wider current of new tech patents targeting AI agents that operate inside specialized professional domains rather than general-purpose chat interfaces.

Source: US 2026/0236825 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Nvidia patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 18 sheets

18 drawing sheets from US 2026/0236825 A1 · click any drawing to enlarge

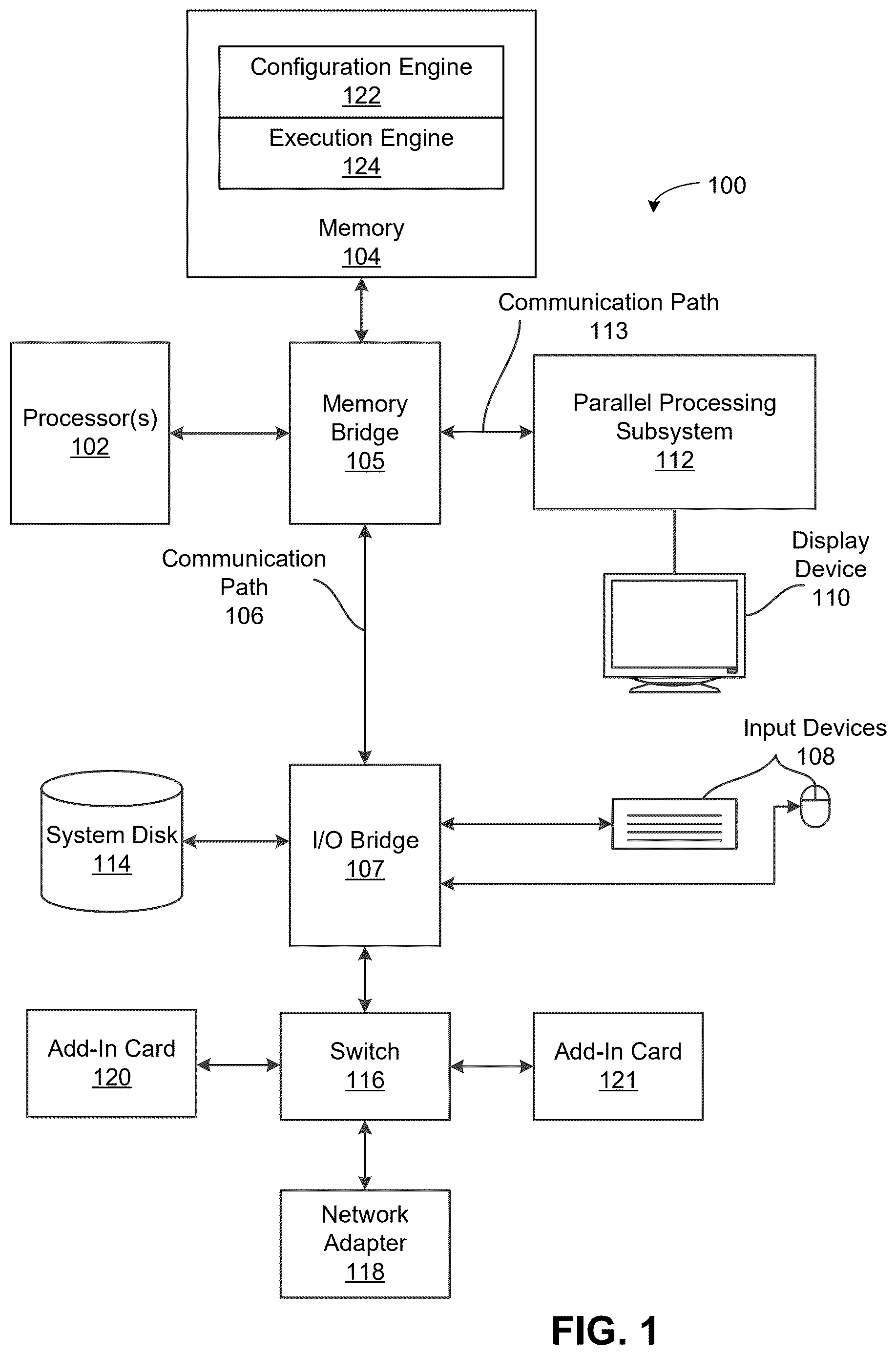

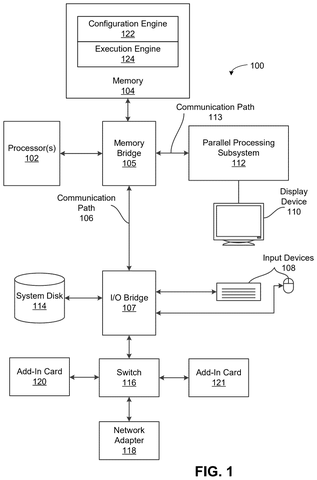

Computer system hardware architecture diagram, drawing sheet 1 from US 2026/0236825 A1
Sheet 1 Computer system hardware architecture diagram

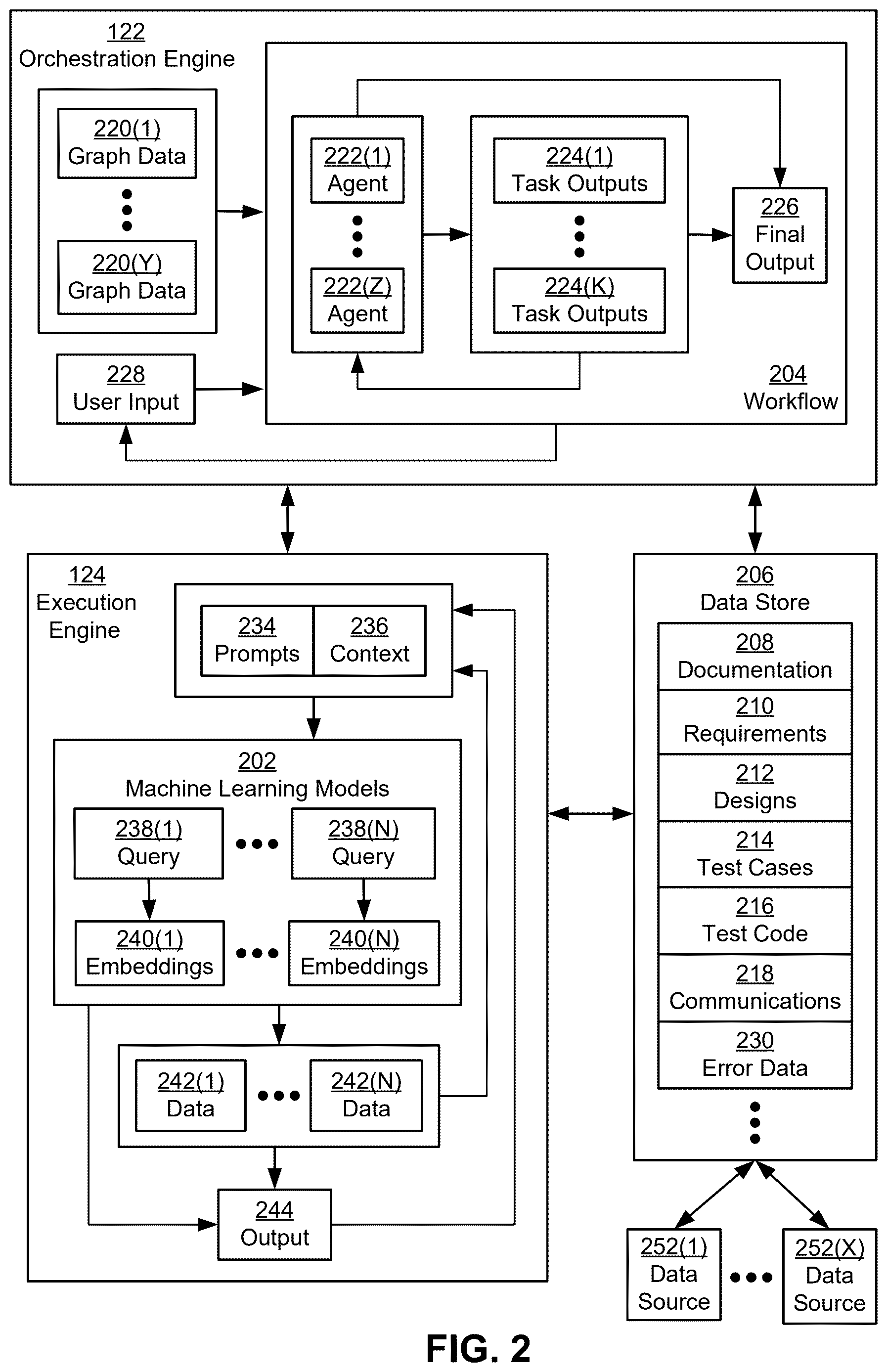

Artificial intelligence orchestration and execution workflow, drawing sheet 2 from US 2026/0236825 A1
Sheet 2 Artificial intelligence orchestration and execution workflow

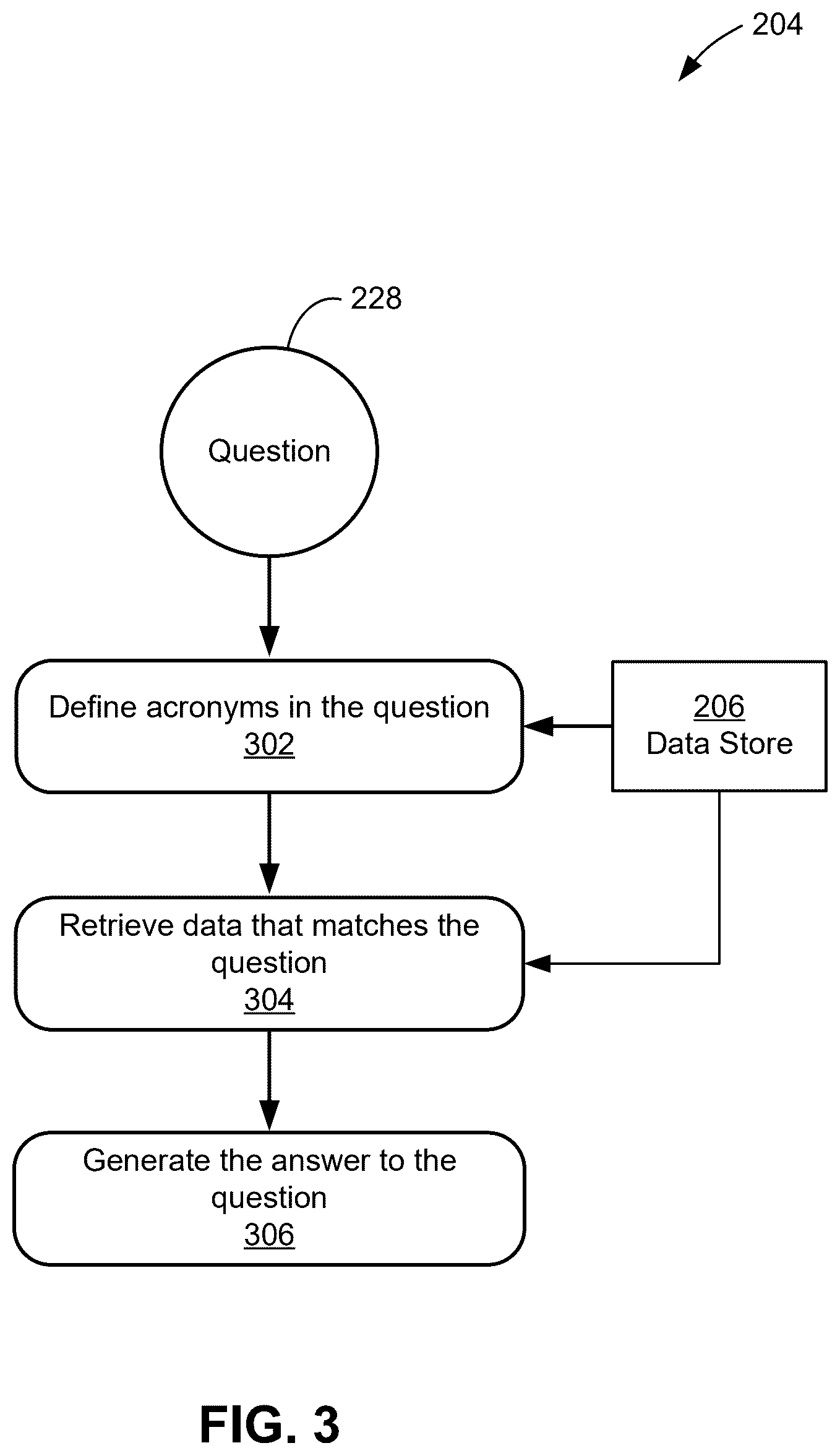

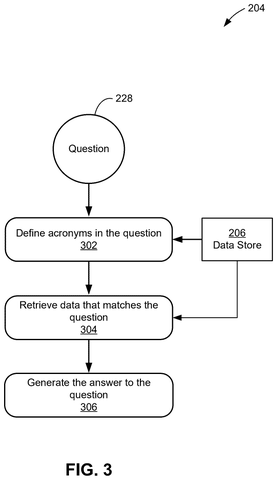

Question-answering processing workflow diagram, drawing sheet 3 from US 2026/0236825 A1
Sheet 3 Question-answering processing workflow diagram

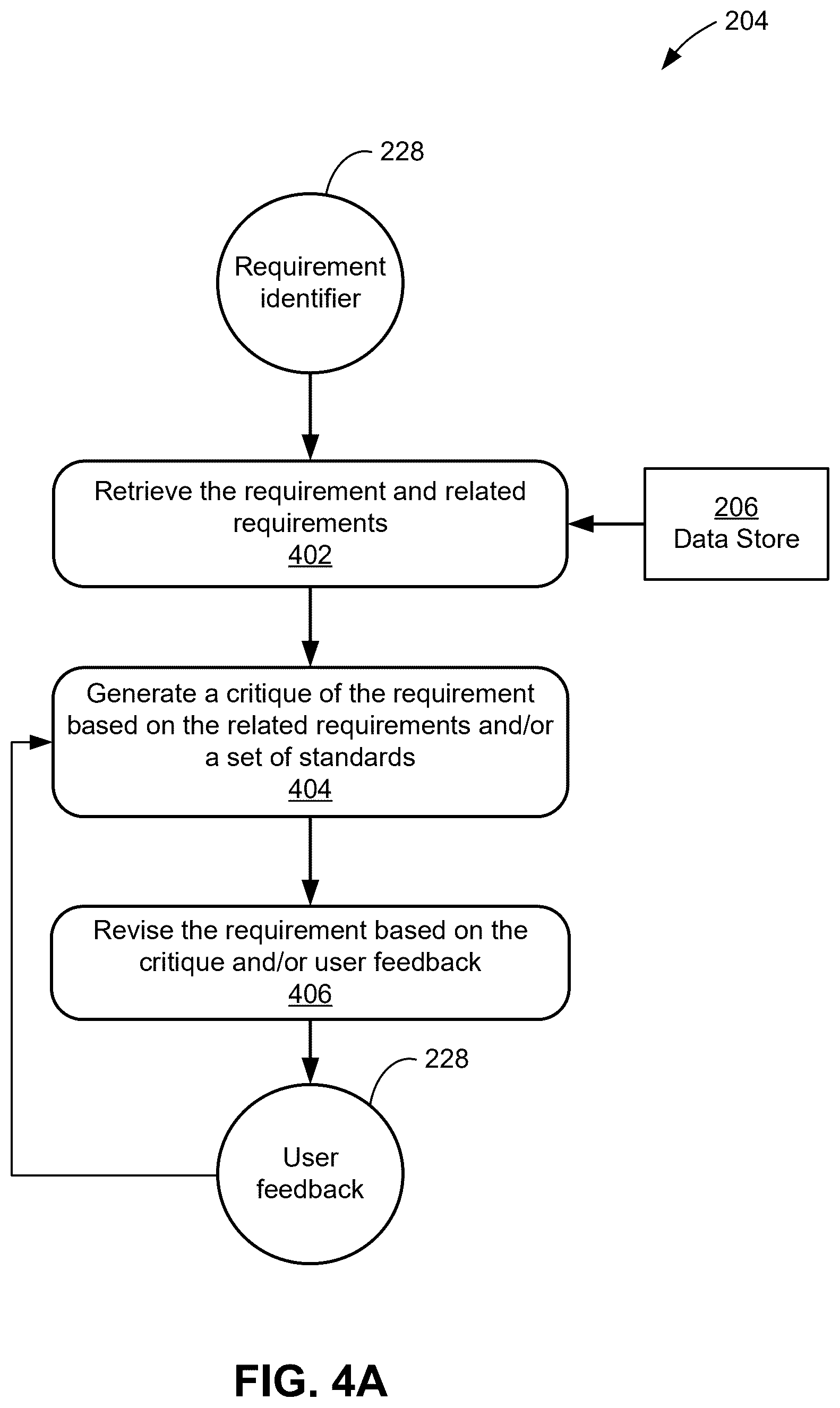

Requirement critique and revision workflow, drawing sheet 4 from US 2026/0236825 A1
Sheet 4 Requirement critique and revision workflow

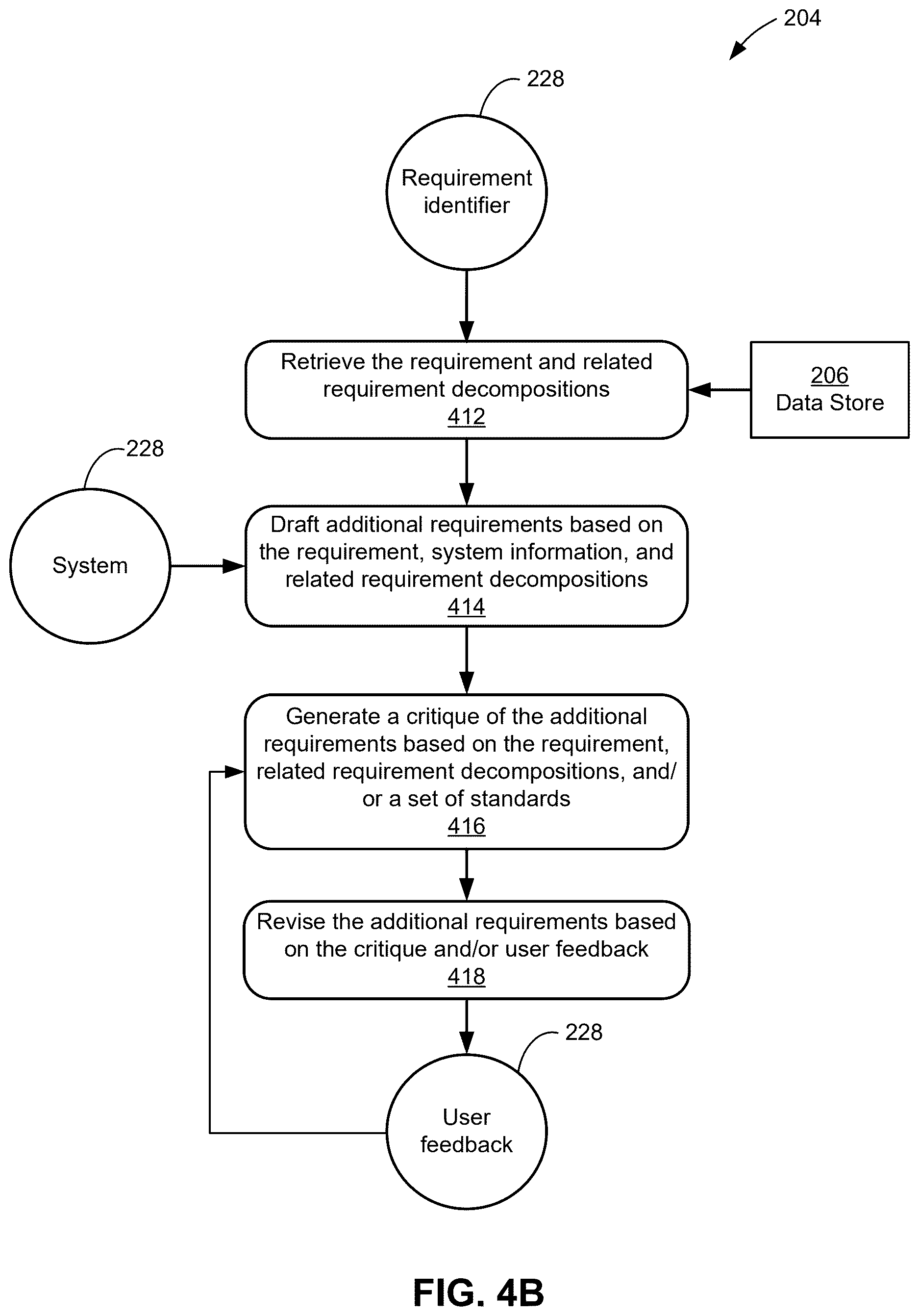

Additional requirement drafting workflow, drawing sheet 5 from US 2026/0236825 A1
Sheet 5 Additional requirement drafting workflow

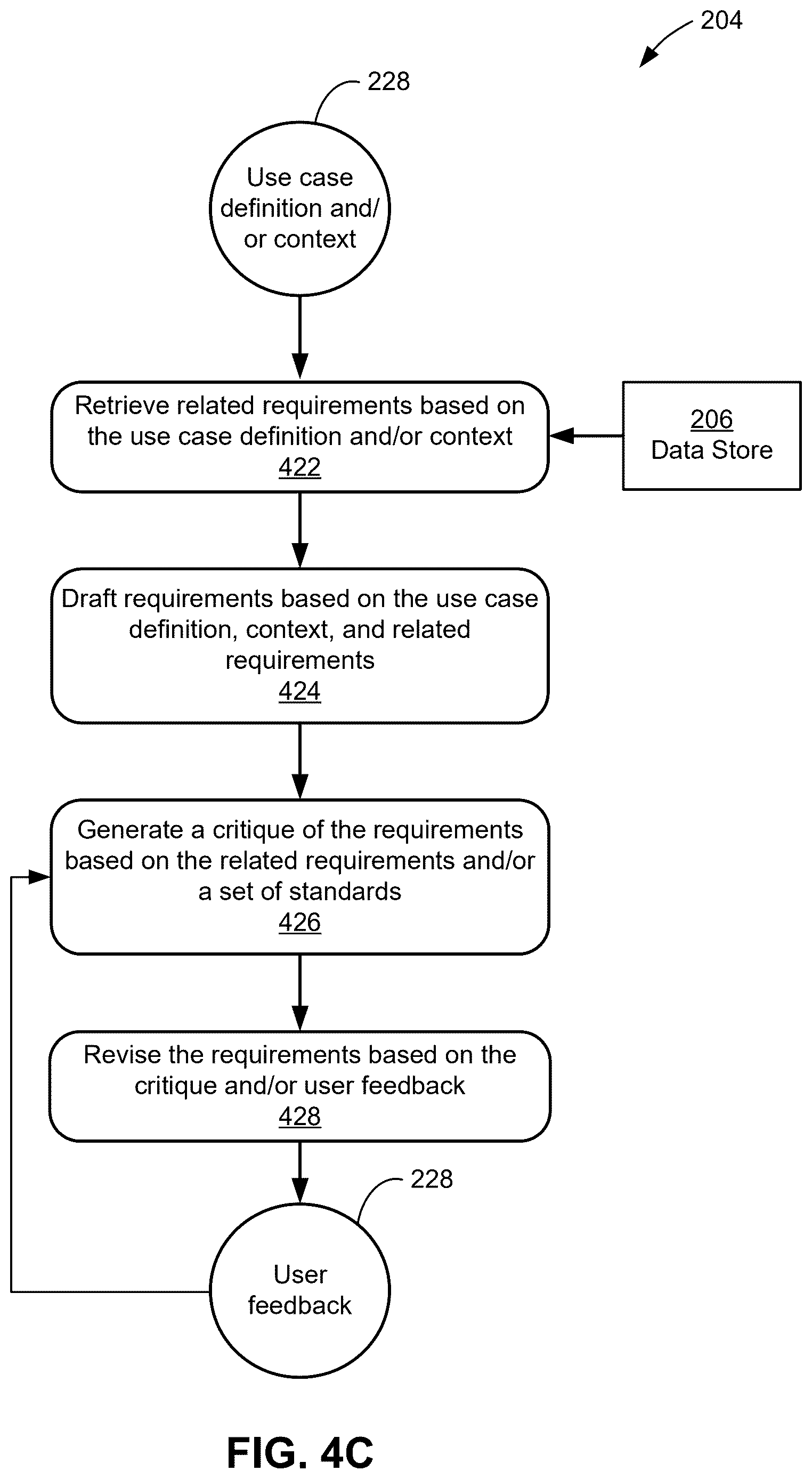

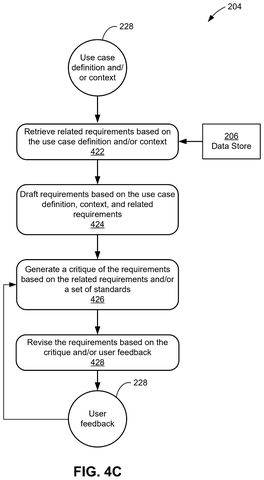

Use-case requirement generation workflow, drawing sheet 6 from US 2026/0236825 A1
Sheet 6 Use-case requirement generation workflow

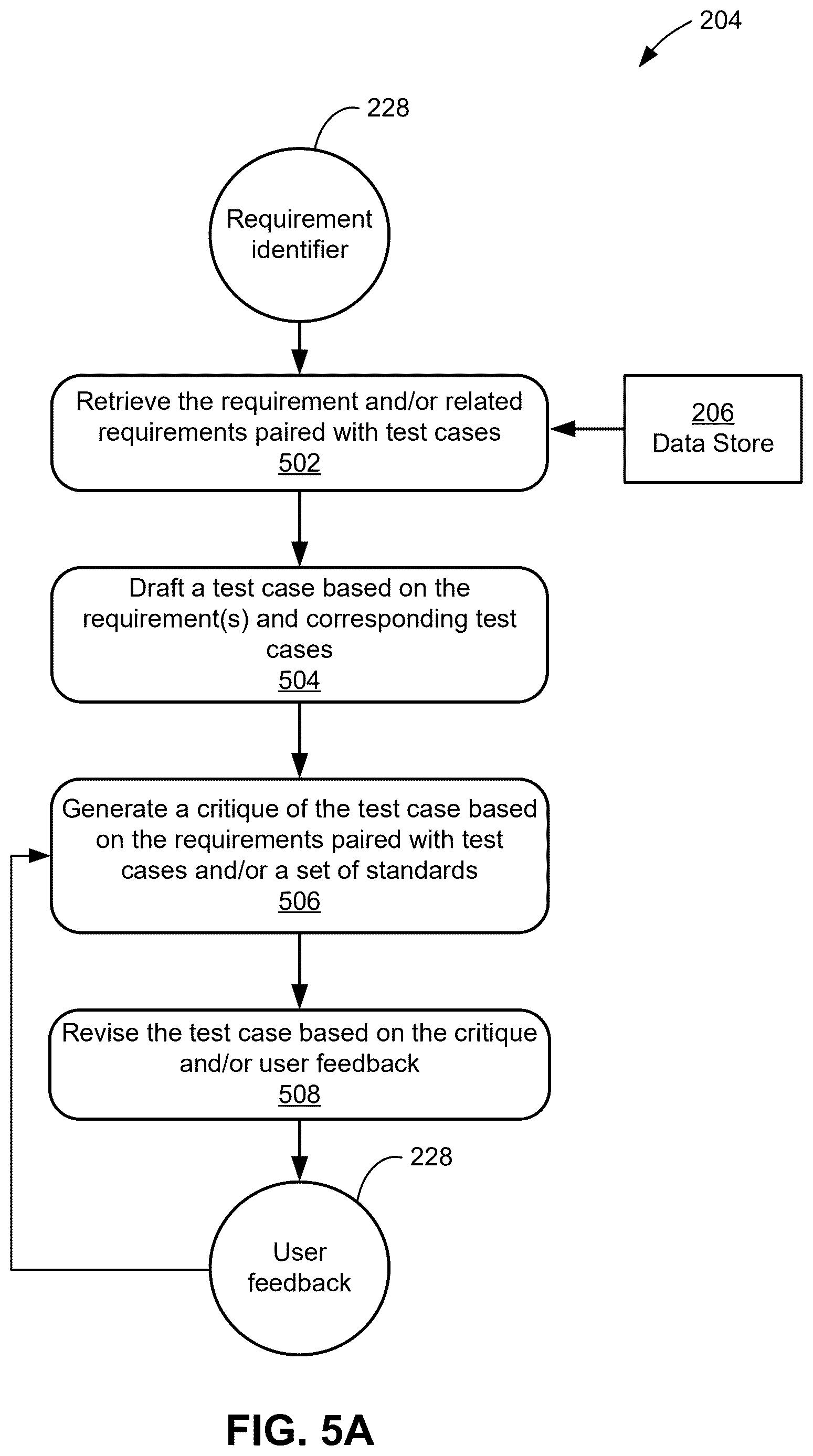

Test case drafting and critique workflow, drawing sheet 7 from US 2026/0236825 A1
Sheet 7 Test case drafting and critique workflow

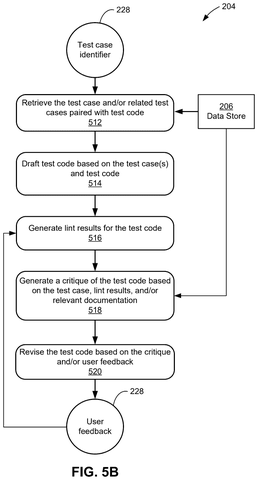

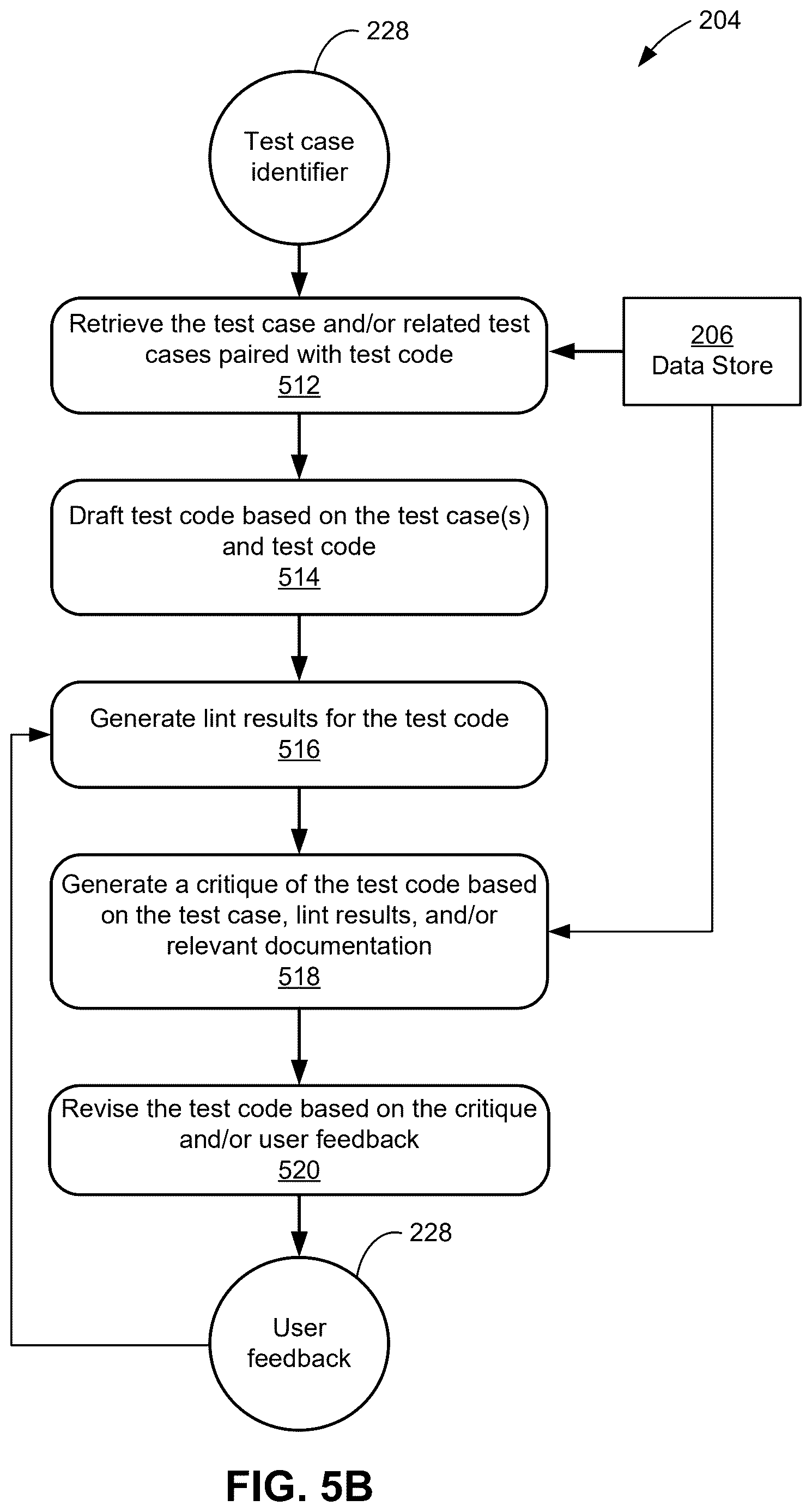

Test code generation and linting workflow, drawing sheet 8 from US 2026/0236825 A1
Sheet 8 Test code generation and linting workflow
Show the other 10 sheets
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 9
Sheet 9
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 10
Sheet 10
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 11
Sheet 11
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 12
Sheet 12
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 13
Sheet 13
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 14
Sheet 14
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 15
Sheet 15
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 16
Sheet 16
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 17
Sheet 17
Nvidia Patents an AI That Writes and Self-Corrects Its Own Engineering Specs patent drawing, sheet 18
Sheet 18
