Qualcomm Patents a Frame-Timing Buffer to Smooth Cloud-Powered AR Headsets

When an AR headset outsources its graphics work to a nearby server, tiny network delays can make frames arrive at the wrong moment, turning smooth video into a stuttering mess. Qualcomm has patented a way to hold each frame in a buffer for exactly the right amount of time before showing it.

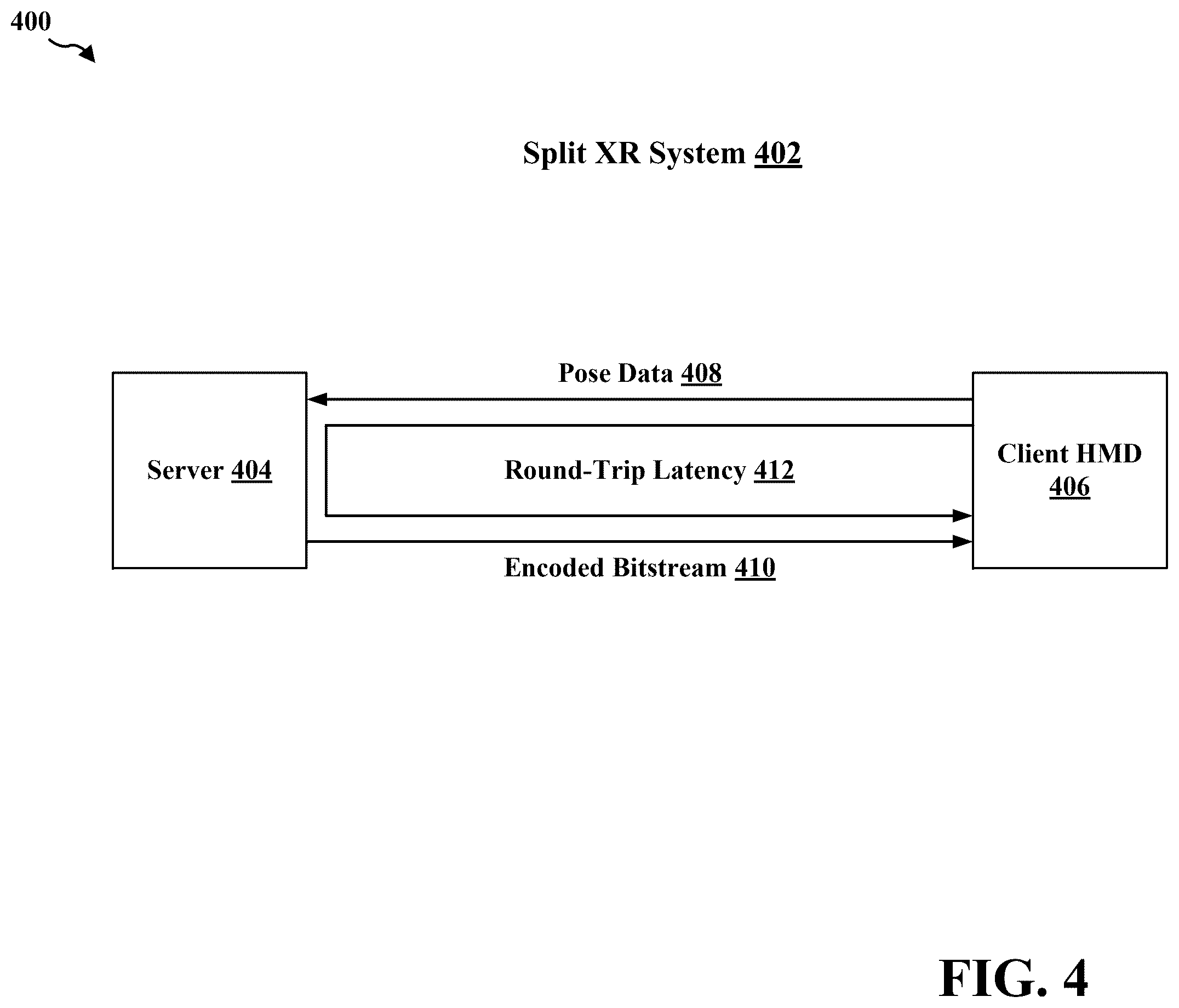

Split reality system architecture communicating pose data and encoded bitstreams between a server and client headset. Drawing from patent filing US 2026/0245166 A1.
Split reality system architecture communicating pose data and encoded bitstreams between a server and client headset.All 12 drawings ↓
Publication number
US 2026/0245166 A1(US20260245166A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Sep 29, 2025 · Aug 20, 2026
Inventors
Sriram AJAYKUMAR, Vinay MELKOTE KRISHNAPRASAD
Status when we published
Waiting for an examiner
Document
23 claims
US classification
345/522
Parent application
National Stage Entry of PCT/US2023/032789 (filed Sep 14, 2023)(PCTUS2023032789)

What Qualcomm's XR frame-timing trick actually fixes

A gamer wearing a wireless AR headset glances across a virtual battlefield, and every frame of that world is being rendered by a server a few milliseconds away. That hand-off is fast, but the network is never perfectly steady.

Qualcomm's patent describes a system that gives each arriving frame a short, calculated pause before it appears on your screen. Instead of showing frames the instant they land, the device waits for a specific window of time tied to how long data normally takes to make a round trip between your headset and the server. The idea is that if you know roughly how long the network takes, you can hold frames until they arrive in a predictable order, rather than letting early frames jump ahead or late ones create gaps.

The result, in theory, is a display that feels steady even when the wireless connection hiccups. For split rendering, where the heavy graphics work lives in the cloud and only the finished image travels to the headset, that steadiness is the whole game.

From the filing · CLAIM 1
… calculate a wait time for the frame based on a target round-trip time (TRTT) of data associated with the frame, wherein the TRTT is a target time the data associated with the frame takes to travel between the client device and the server and back to the client device …

Translation: The headset calculates how long to pause a frame based on the expected time for data to travel to the server and back.

How the TRTT wait-time calculation works

The patent centers on a technique called a de-jitter buffer, a holding area for incoming video frames that smooths out the uneven gaps caused by network variability.

The key ingredient is the Target Round-Trip Time (TRTT): a pre-set estimate of how many milliseconds data takes to leave the client device, reach the server, and come back. Using that target, the processor calculates a wait time for each frame. When a frame arrives, instead of displaying it immediately, the system holds it until that wait time expires.

  • Split rendering context: The graphics pipeline is divided between a remote server (which handles the expensive rendering work) and the local headset (which handles display and user input).
  • Wait-time calculation: The buffer computes a per-frame delay based on the TRTT, so frames that arrive early are held back and frames that arrive on a consistent schedule flow through at the right cadence.
  • Output trigger: The frame is released to the display only when the calculated wait time expires, not before.

The claim is written around a processor-and-memory apparatus, meaning the logic could live on a dedicated chip, a system-on-chip, or inside a software stack on the device.

From the filing · THE ABSTRACT
This disclosure provides systems, devices, apparatus, and methods, including computer programs encoded on storage media, for a target round-trip time-based de-jitter buffer for split extended reality.

Translation: Qualcomm is patenting a way to smooth out video glitches in headsets that rely on cloud computing to render images.

What this means for wireless AR and VR glasses

Split rendering is the architecture that makes lightweight wireless AR and VR headsets possible: the headset stays thin and cool while a server or a connected phone does the hard graphics work. The catch is that every frame has to survive a network round trip, and any jitter in that trip shows up as a visual stutter that can cause nausea or disorientation. A reliable frame-timing buffer is a prerequisite for this kind of setup to feel comfortable to wear for more than a few minutes.

Qualcomm's chips are already at the center of most major XR headsets, so a patent in this area fits squarely into its existing hardware business. The TRTT-based approach is a relatively focused claim: it covers a specific mechanism for calculating the wait time from a target round-trip value, which is narrower than a general de-jitter buffer patent. You can track how this filing sits alongside other AR and networking work in this week's Big Tech patents from Qualcomm and its peers.

Qualcomm's 26th filing we've tracked in our AR glasses race watchlist since July builds on work like the phone offloading patent and the sleep-triggered tracker chip.

Source: US 2026/0245166 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 12 sheets

12 drawing sheets from US 2026/0245166 A1 · click any drawing to enlarge

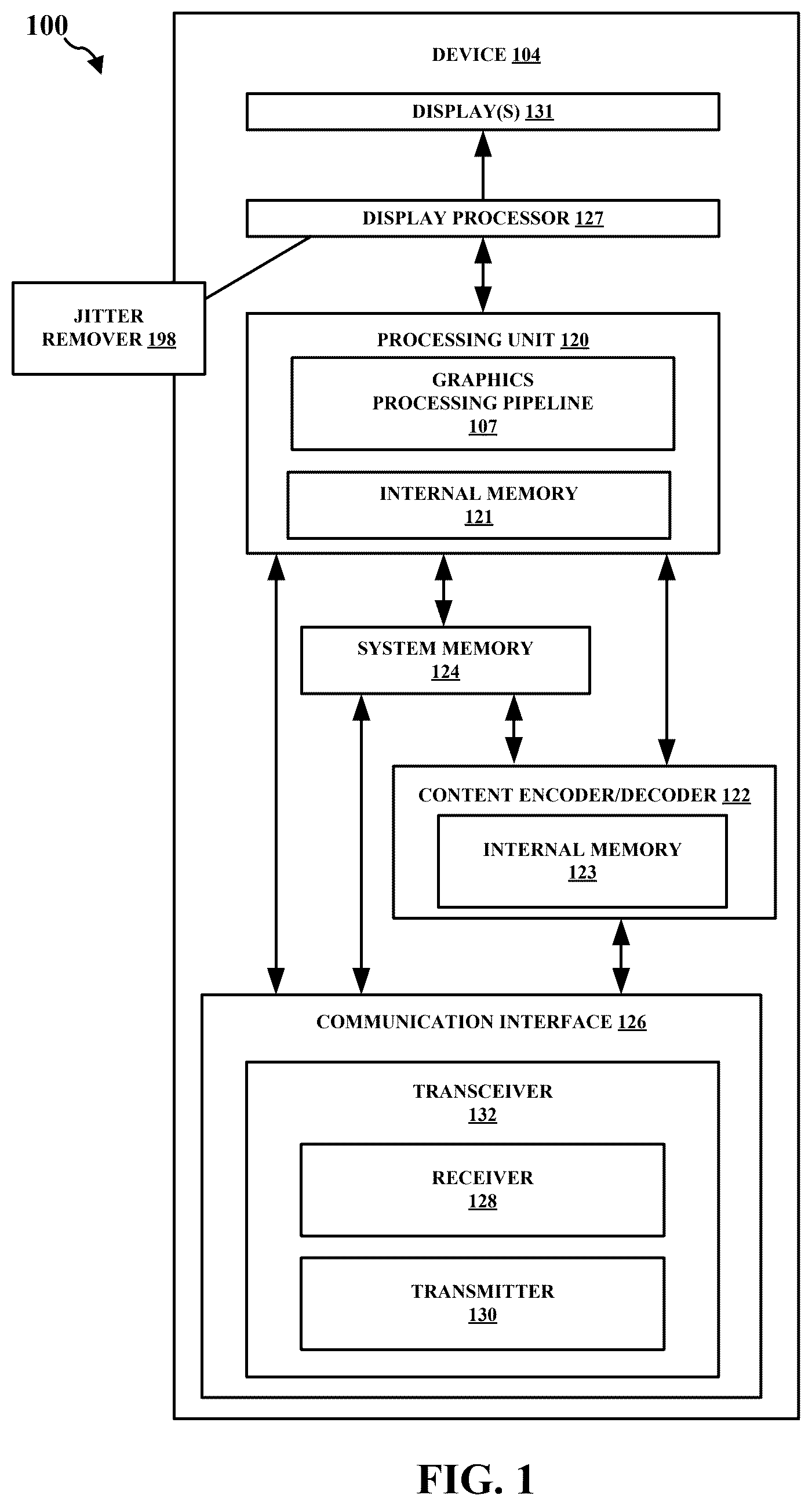

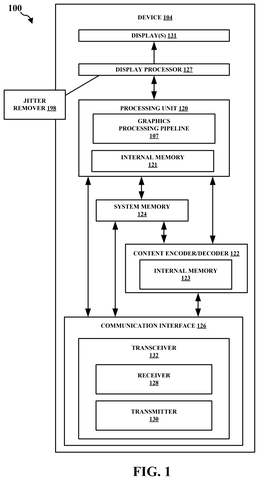

Computing device component architecture, drawing sheet 1 from US 2026/0245166 A1
Sheet 1 Computing device component architecture

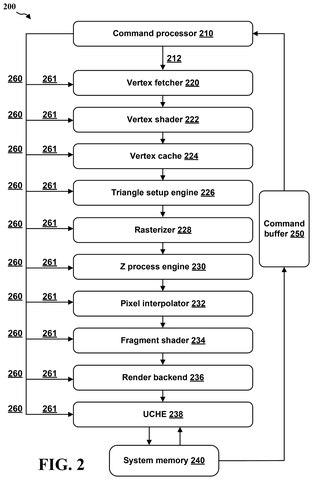

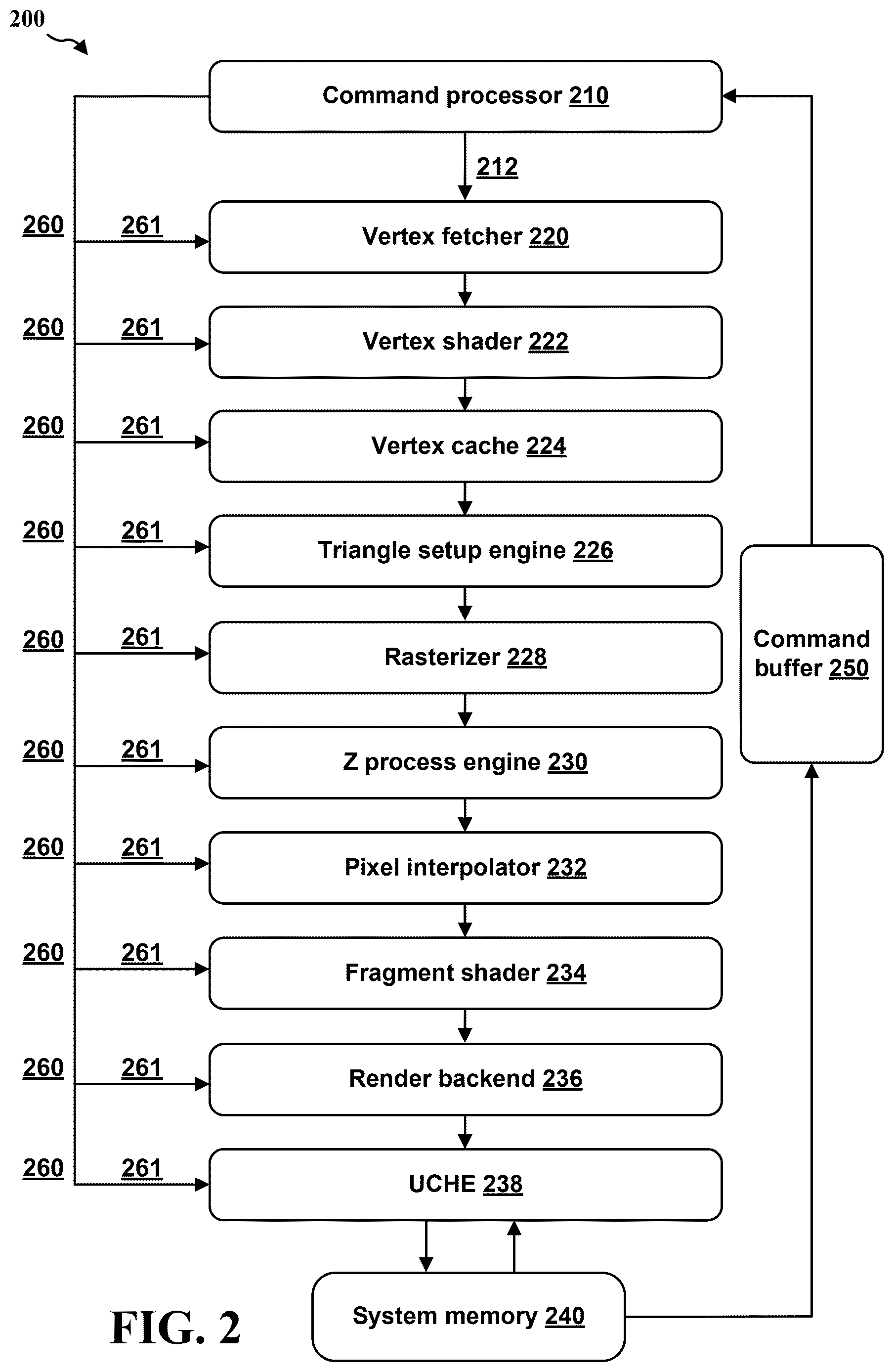

Graphics processing pipeline stages, drawing sheet 2 from US 2026/0245166 A1
Sheet 2 Graphics processing pipeline stages

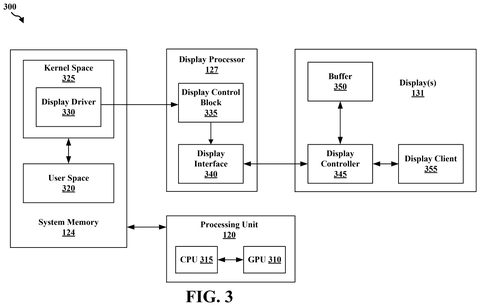

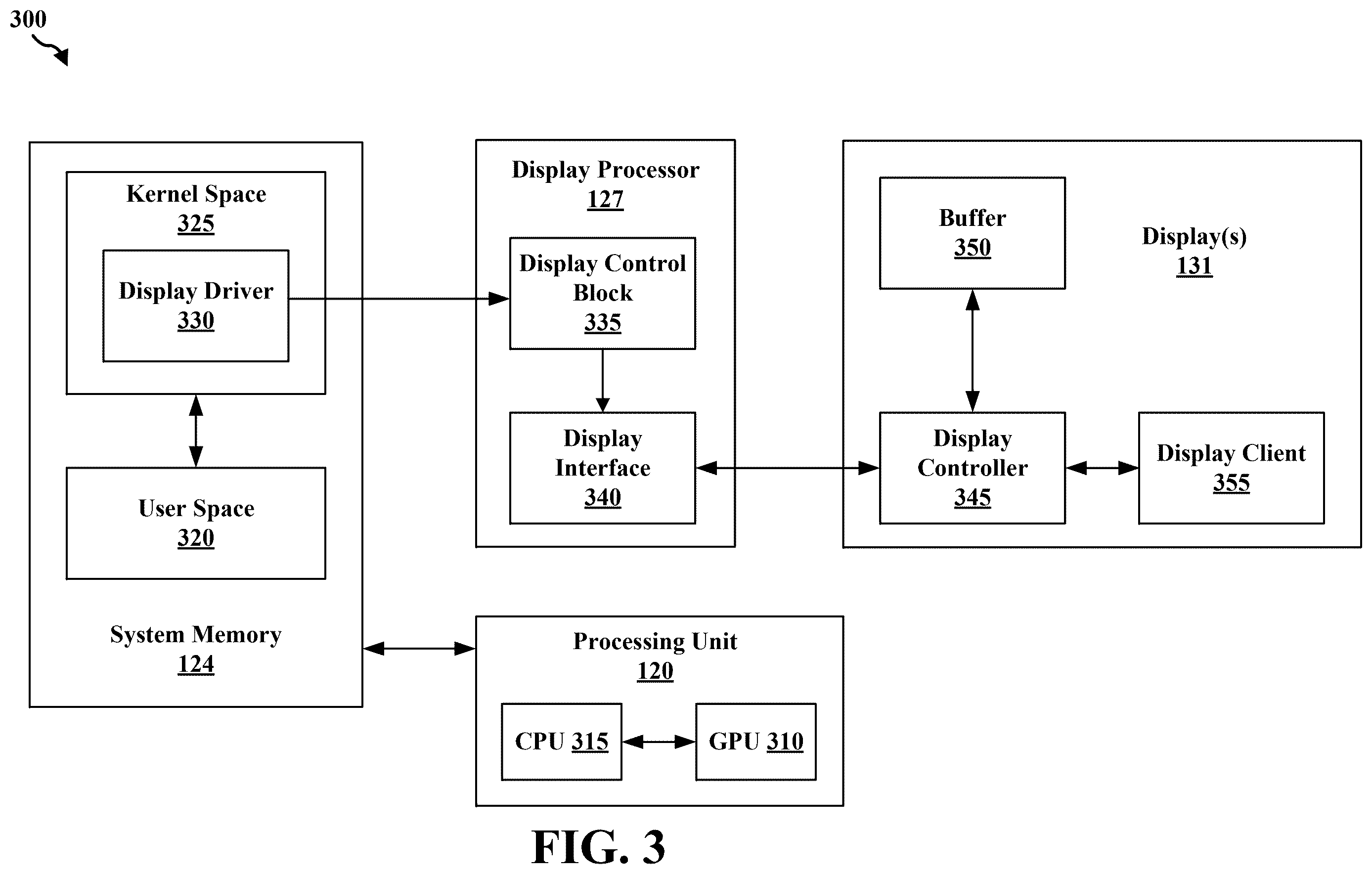

Display processor and system memory, drawing sheet 3 from US 2026/0245166 A1
Sheet 3 Display processor and system memory
Split reality headset server communication, drawing sheet 4 from US 2026/0245166 A1
Sheet 4 Split reality headset server communication

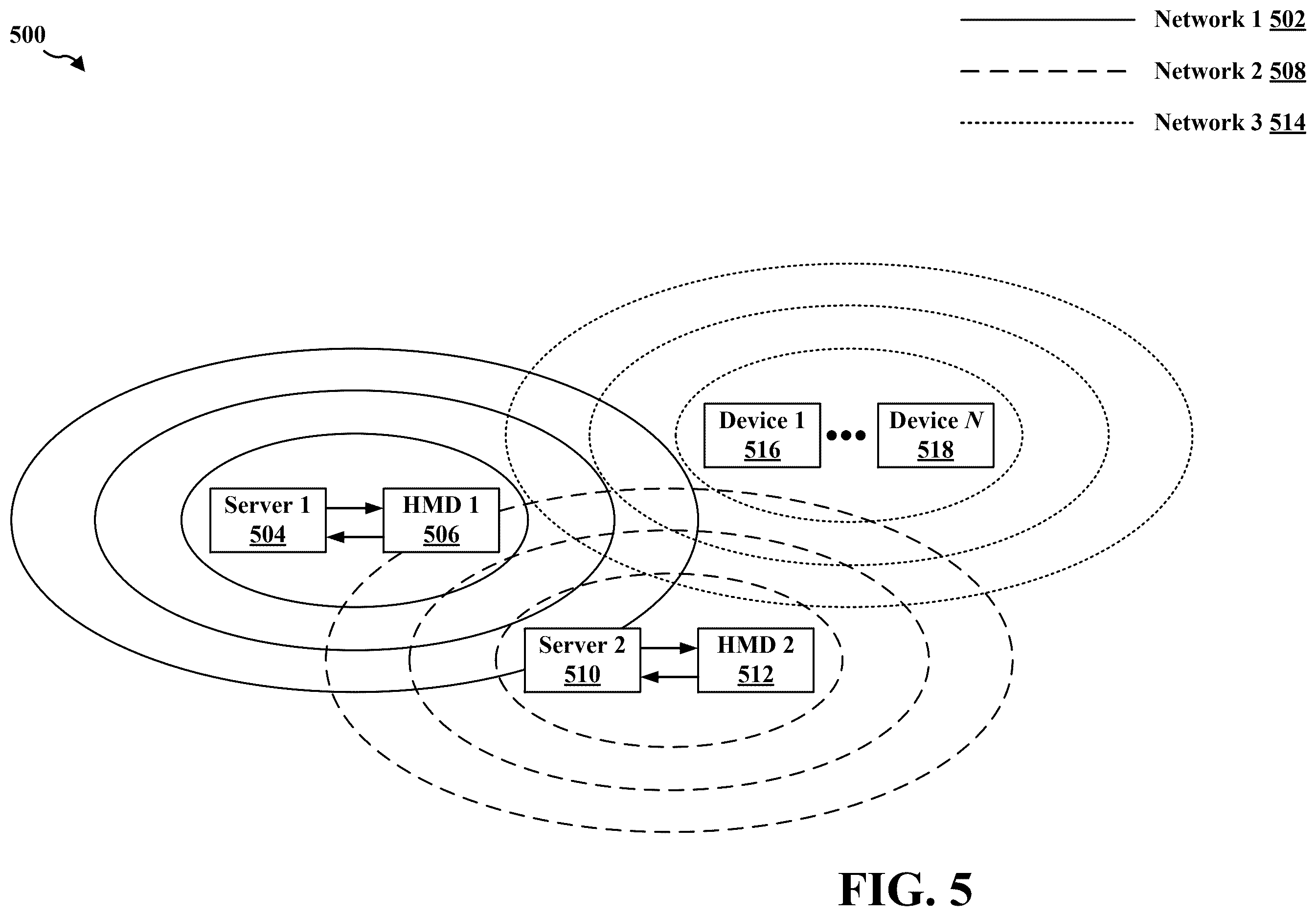

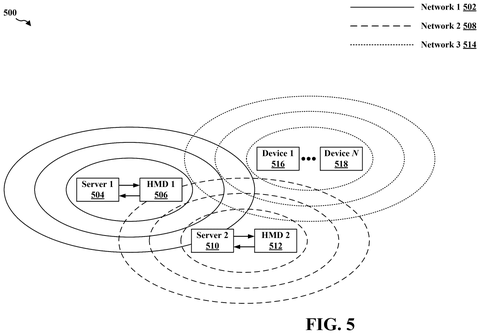

Network coverage zones for servers, drawing sheet 5 from US 2026/0245166 A1
Sheet 5 Network coverage zones for servers

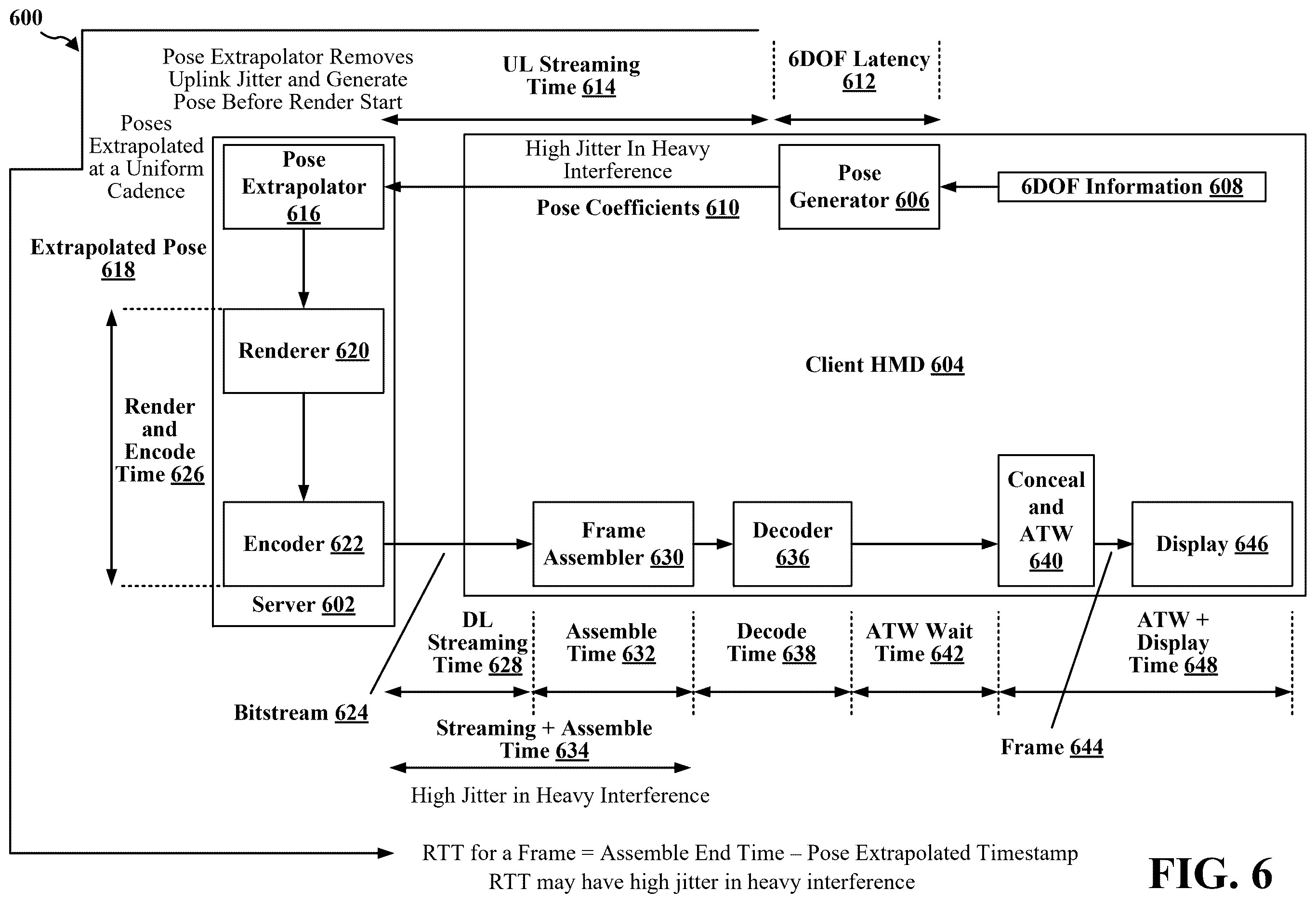

Latency breakdown for video streaming, drawing sheet 6 from US 2026/0245166 A1
Sheet 6 Latency breakdown for video streaming

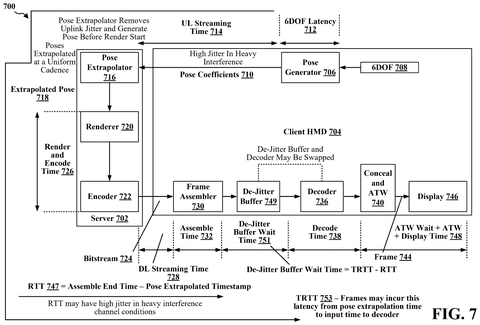

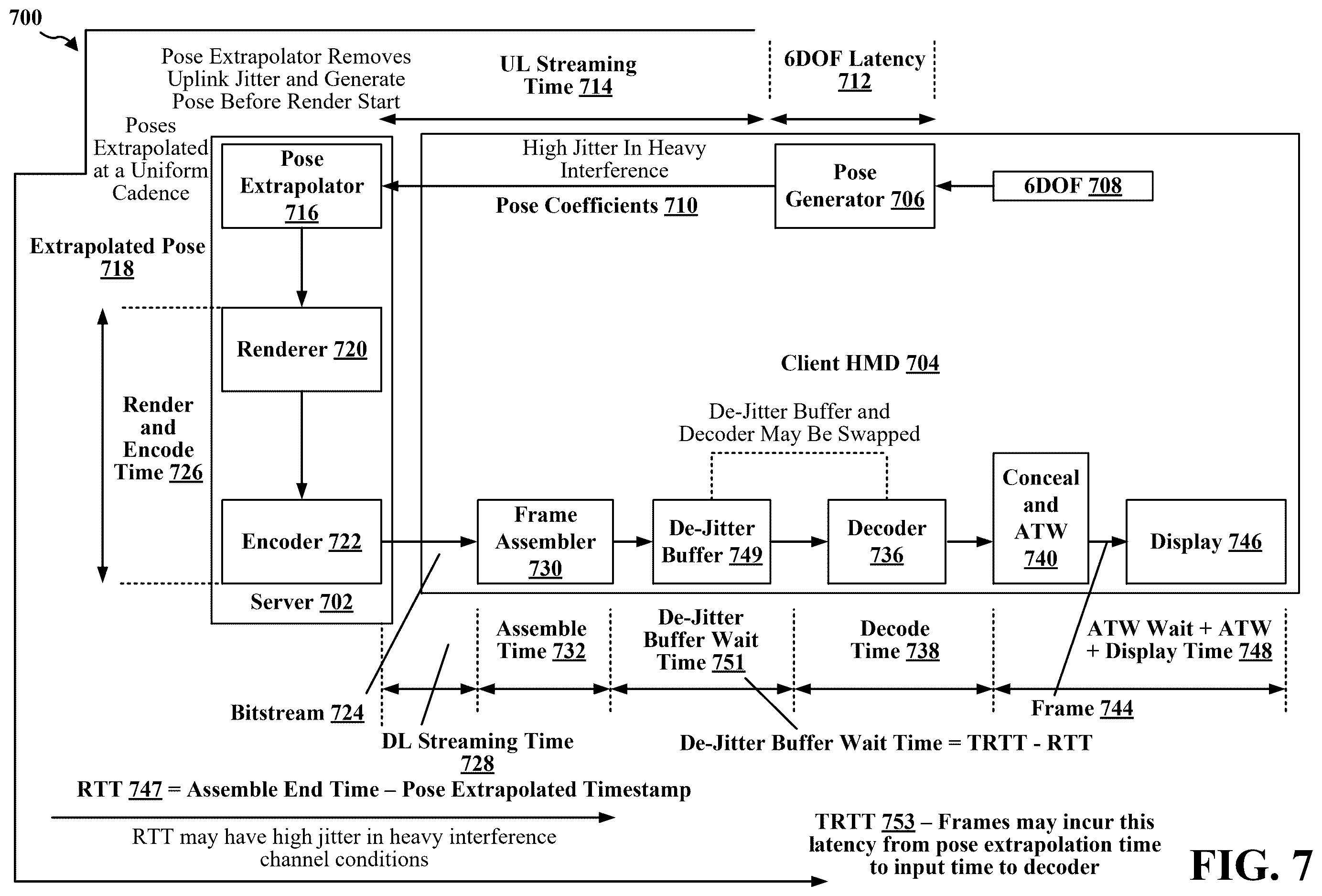

De-jitter buffer integration for streaming, drawing sheet 7 from US 2026/0245166 A1
Sheet 7 De-jitter buffer integration for streaming

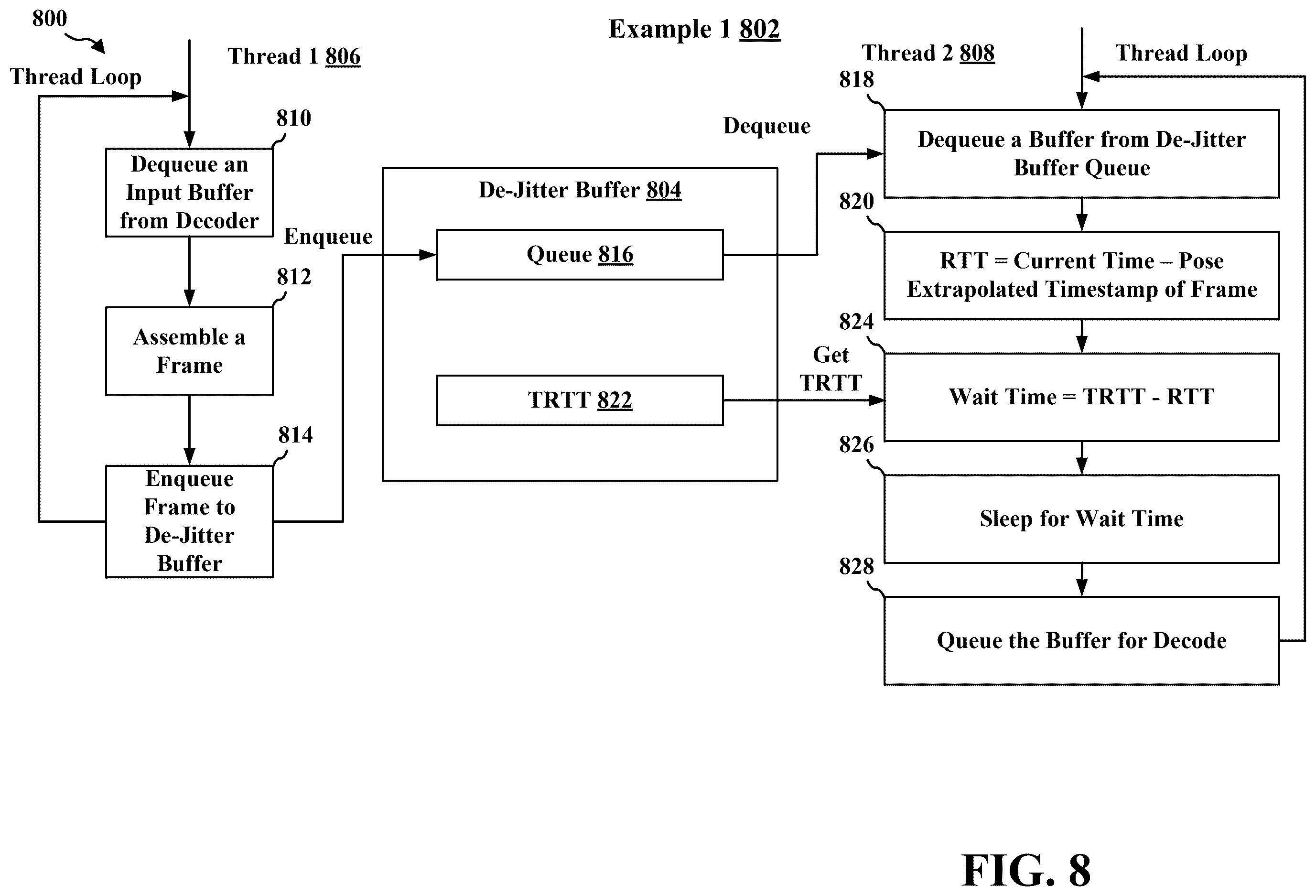

Thread loop workflow for buffering, drawing sheet 8 from US 2026/0245166 A1
