Samsung Patents a Touchscreen That Can Guide External Devices to Their Own Position
Samsung has filed a patent for a touchscreen that does two jobs at once: detecting your finger as usual, and simultaneously broadcasting signals that help a nearby external device figure out exactly where it is relative to the screen.
What Samsung's dual-mode touch sensor actually does
Every time you tap your phone's screen, a grid of tiny electrodes detects the pressure and position of your finger. That process normally runs in one direction only: the screen senses you. Samsung's new patent describes a system that can also run in reverse, sending signals outward so that a separate object nearby can calculate its own position.
The key idea is a two-mode driver. In the first mode, the screen works exactly as you'd expect, picking up touch input from your fingers. In the second mode, it switches to broadcasting a different set of signals that an external object, such as a stylus or a sensor on another device, can use to figure out where it sits relative to the screen.

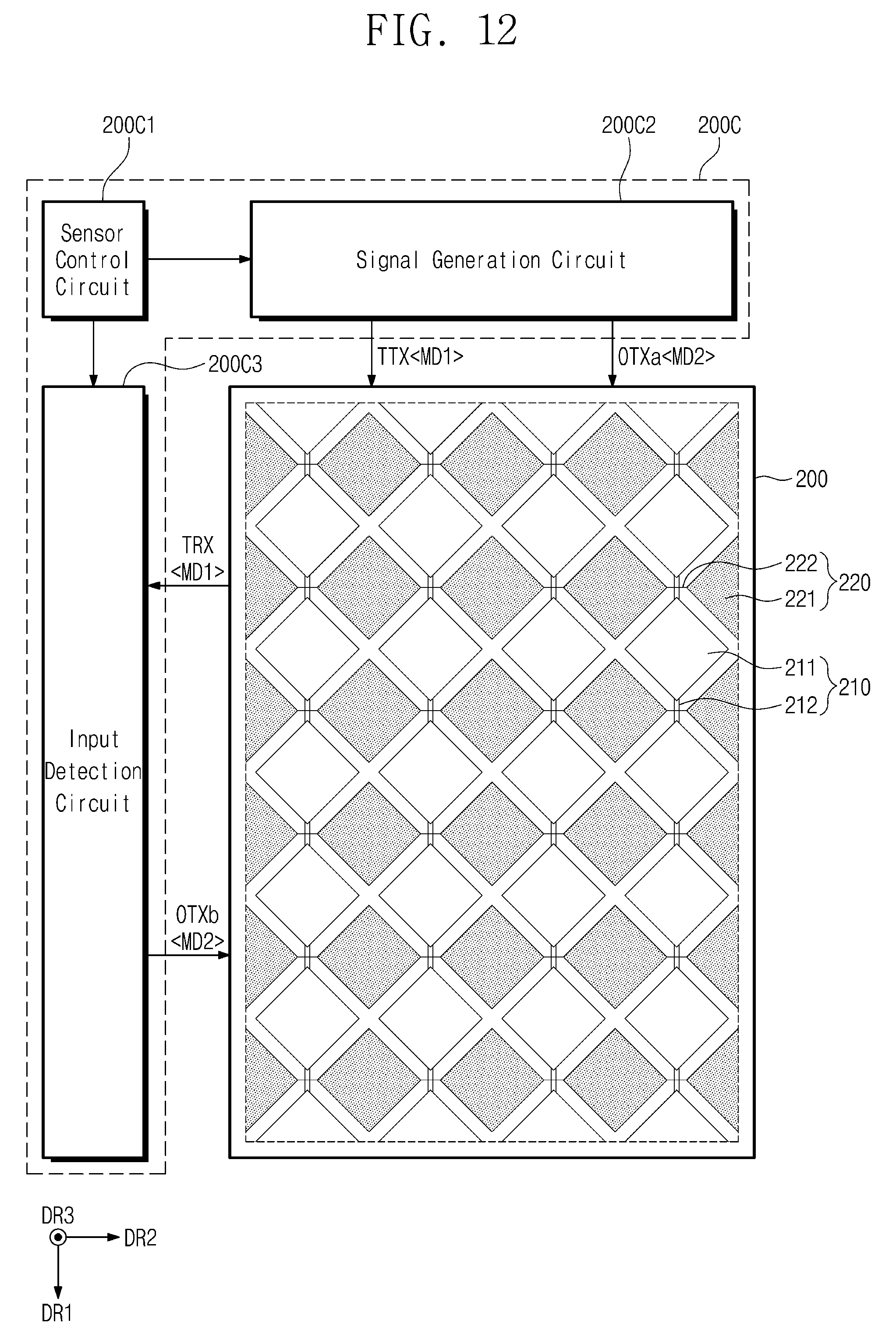

The clever part is that both jobs share the same physical electrode layer. Samsung's patent lays out a signal generation circuit and a separate input detection circuit that together cover both modes, meaning the screen hardware doesn't have to change, only the way signals flow through it.
a signal generation circuit configured to output first transmission signals for detecting an input in the first mode to the sensor layer, and to output second transmission signals to the sensor layer in the second mode, the second transmission signals for use by an external object to determine a position relative to the sensor layer …
Translation: The screen can switch into a special mode that transmits signals to help external devices figure out where they are on the display.
How the two signal paths share the same electrode layer

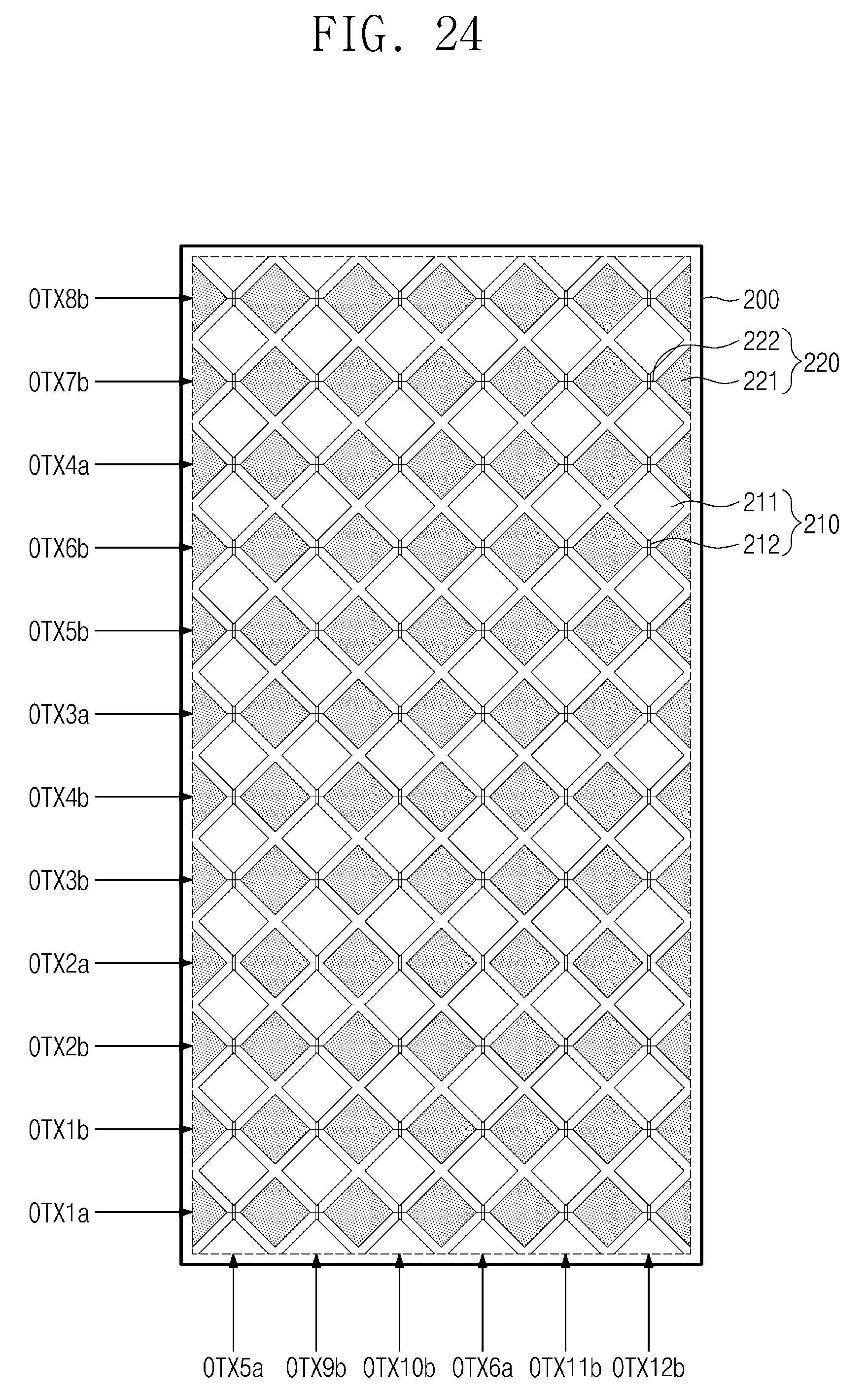

The patent describes a sensor layer made up of a grid of electrodes, the same kind found in standard capacitive touchscreens. On top of that sits a sensor driver, a chip that can switch between two operating modes, and a main driver that tells the sensor driver which mode to use.
In Mode 1 (touch-detection mode), the signal generation circuit sends out "first transmission signals" through the electrode layer. When a finger touches the screen, those signals change, and the input detection circuit reads those changes as touch data. That is standard touchscreen operation.

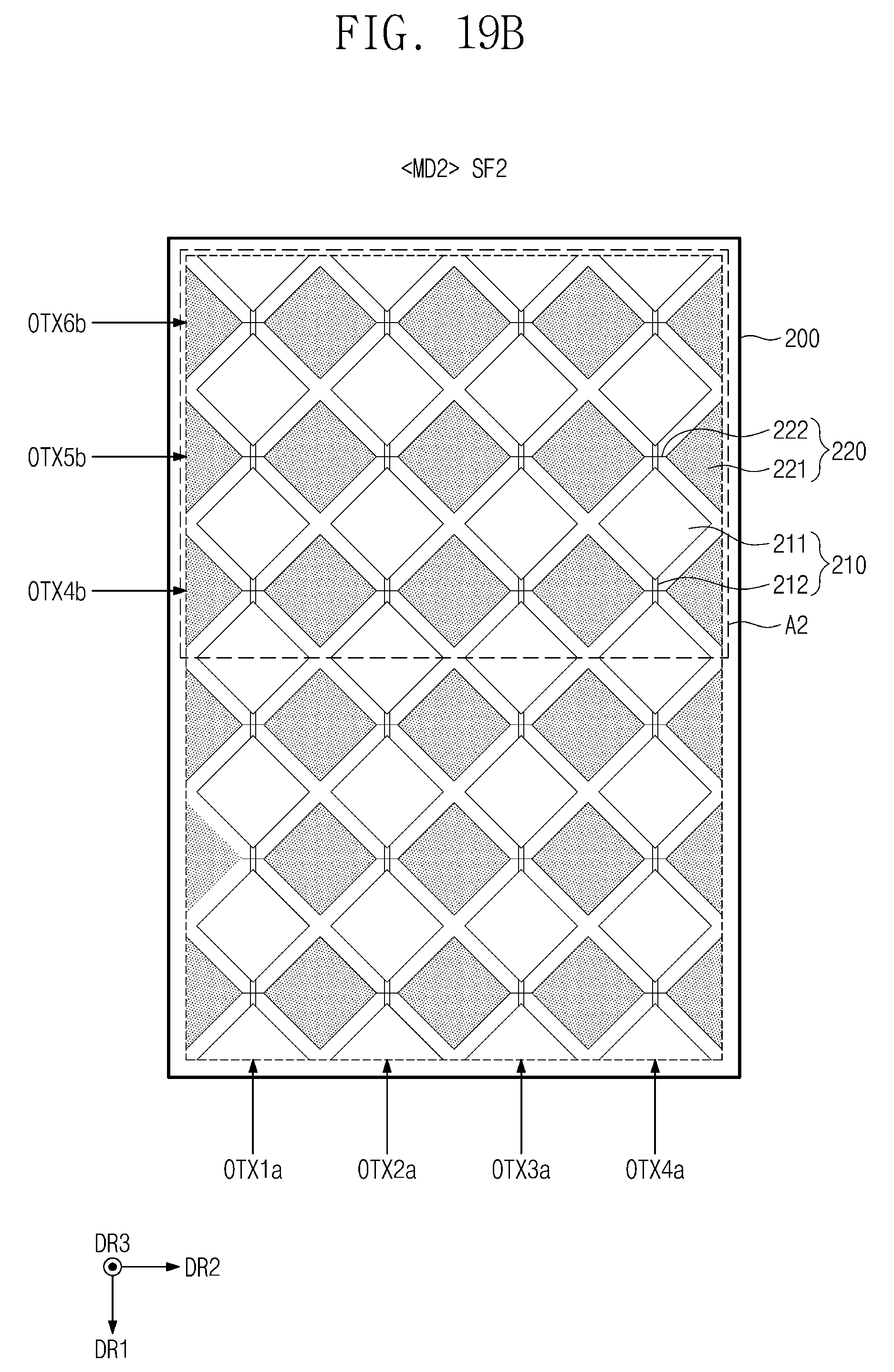

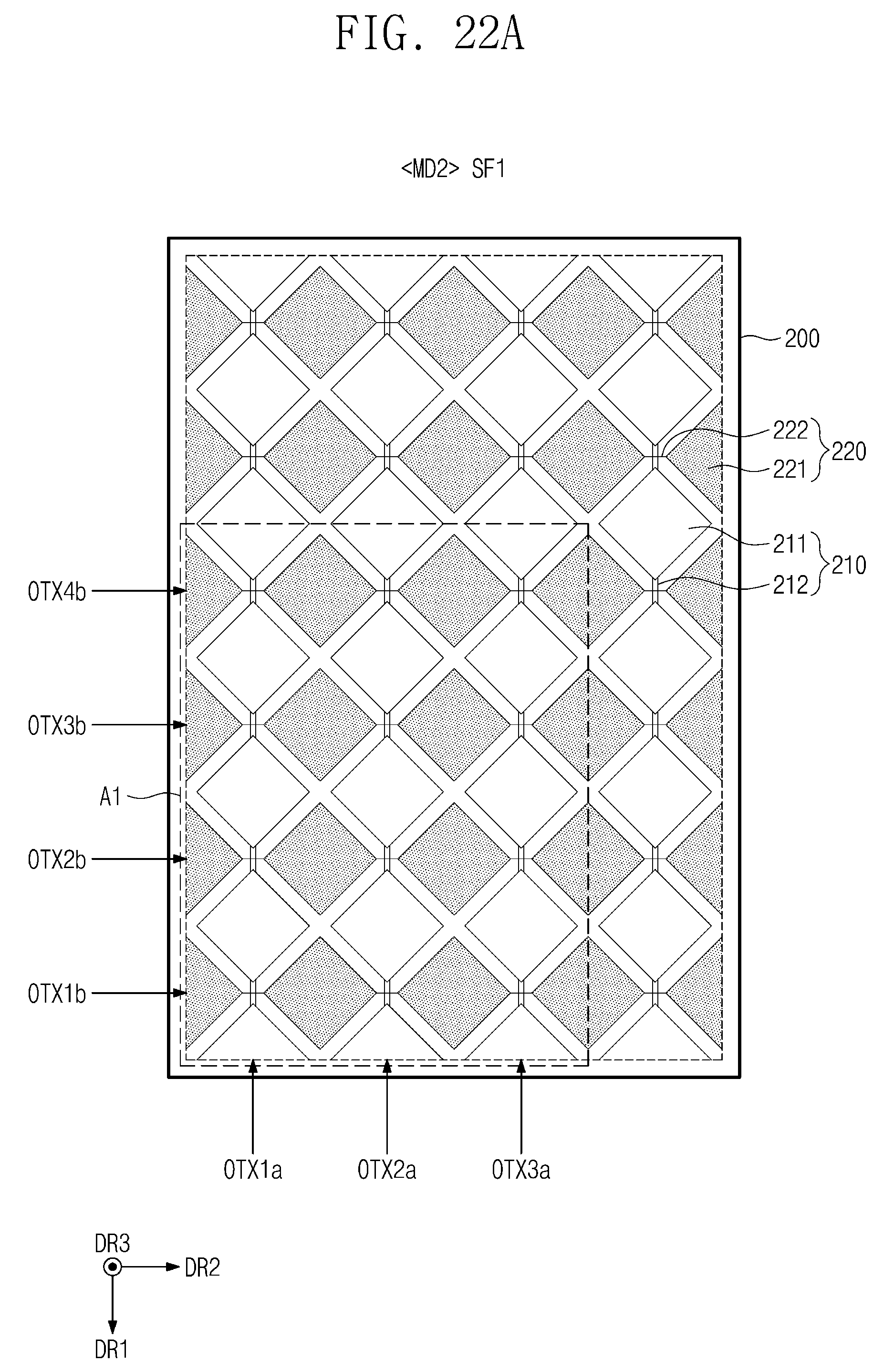

In Mode 2 (external-positioning mode), both circuits change roles:

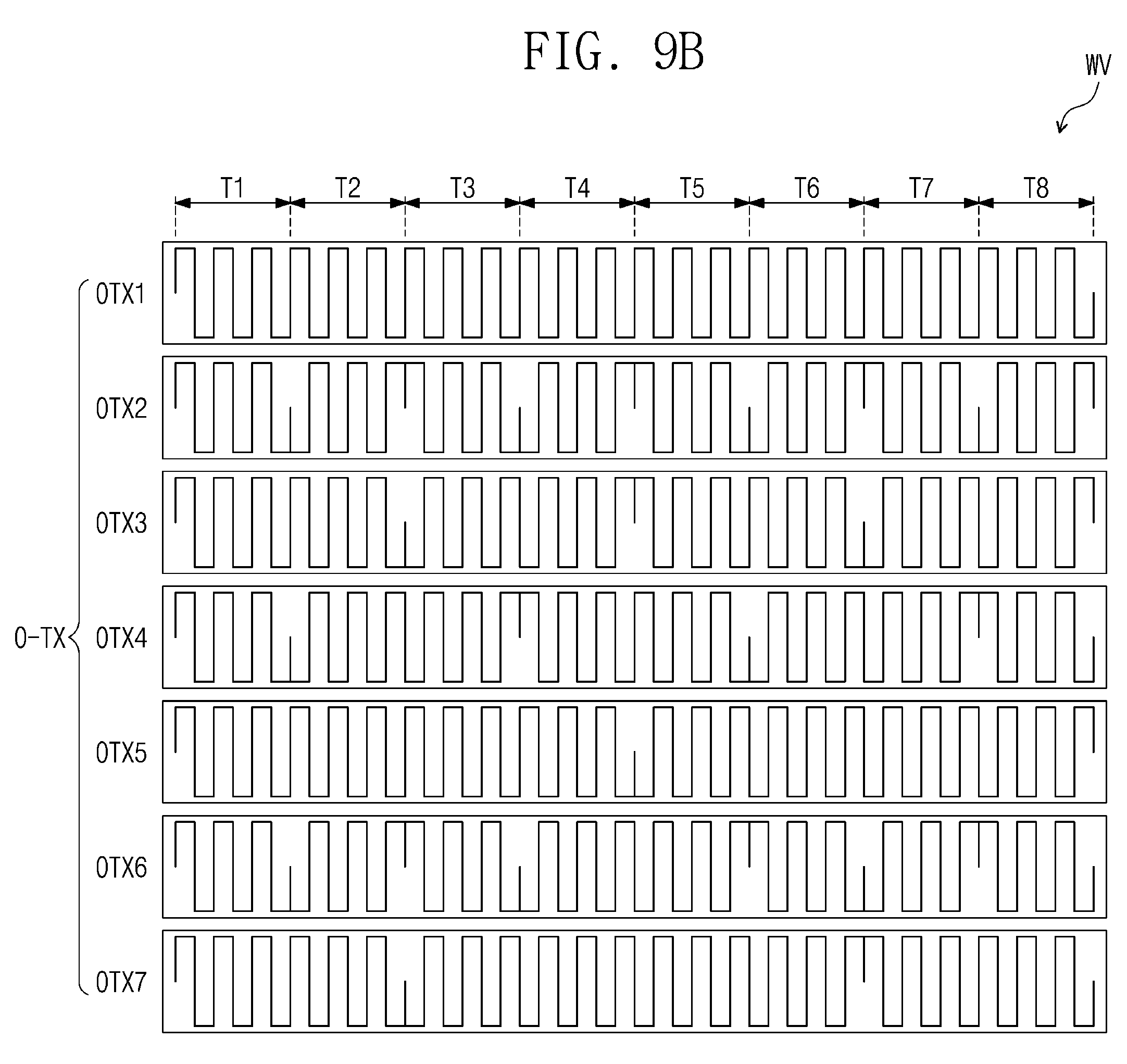

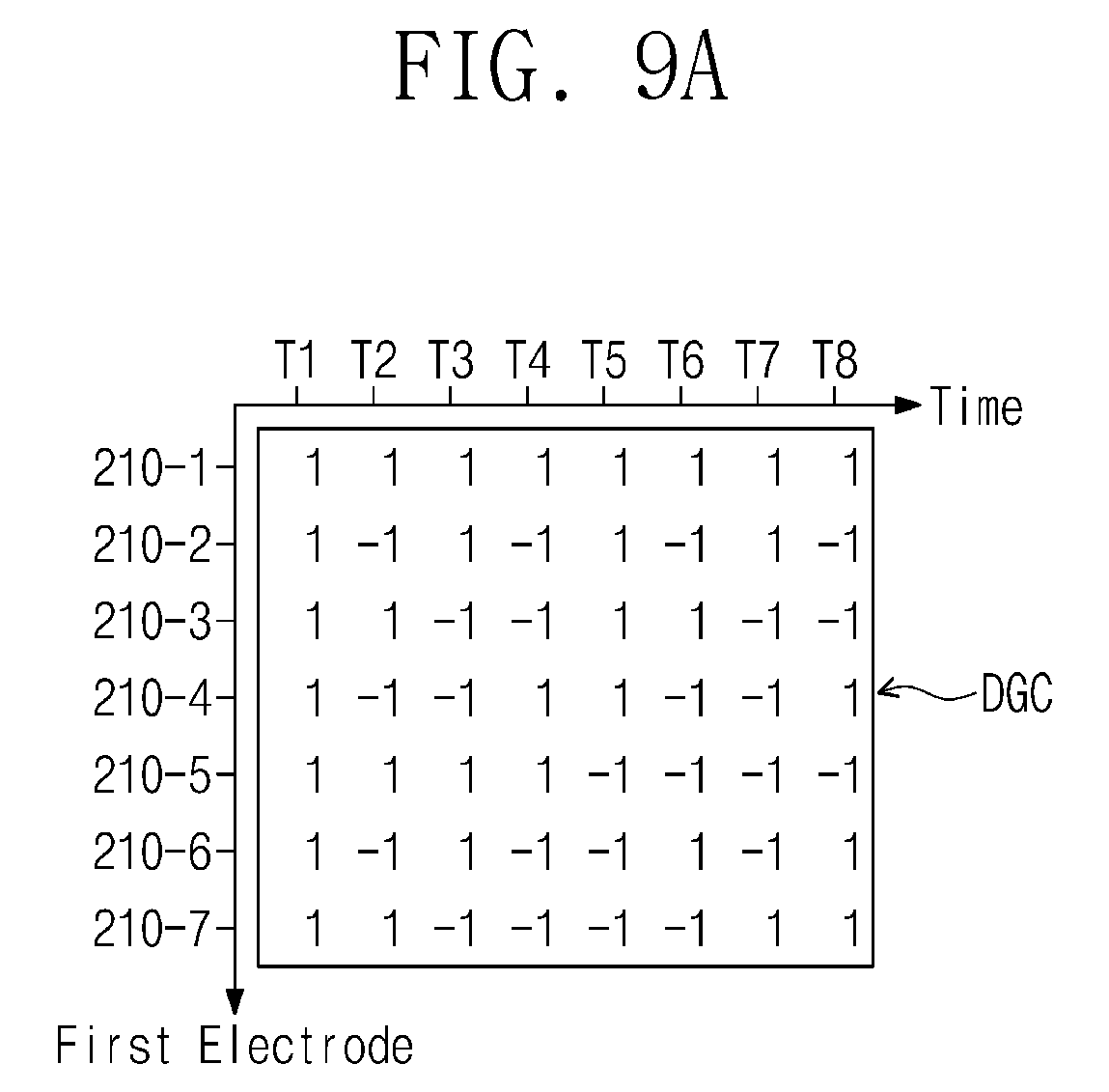

- The signal generation circuit broadcasts "second transmission signals" through the electrodes, signals formatted specifically so that a nearby external object can decode them and calculate its own position.
- At the same time, the input detection circuit outputs "third transmission signals," giving the external object a second stream of reference data to sharpen that position calculation.

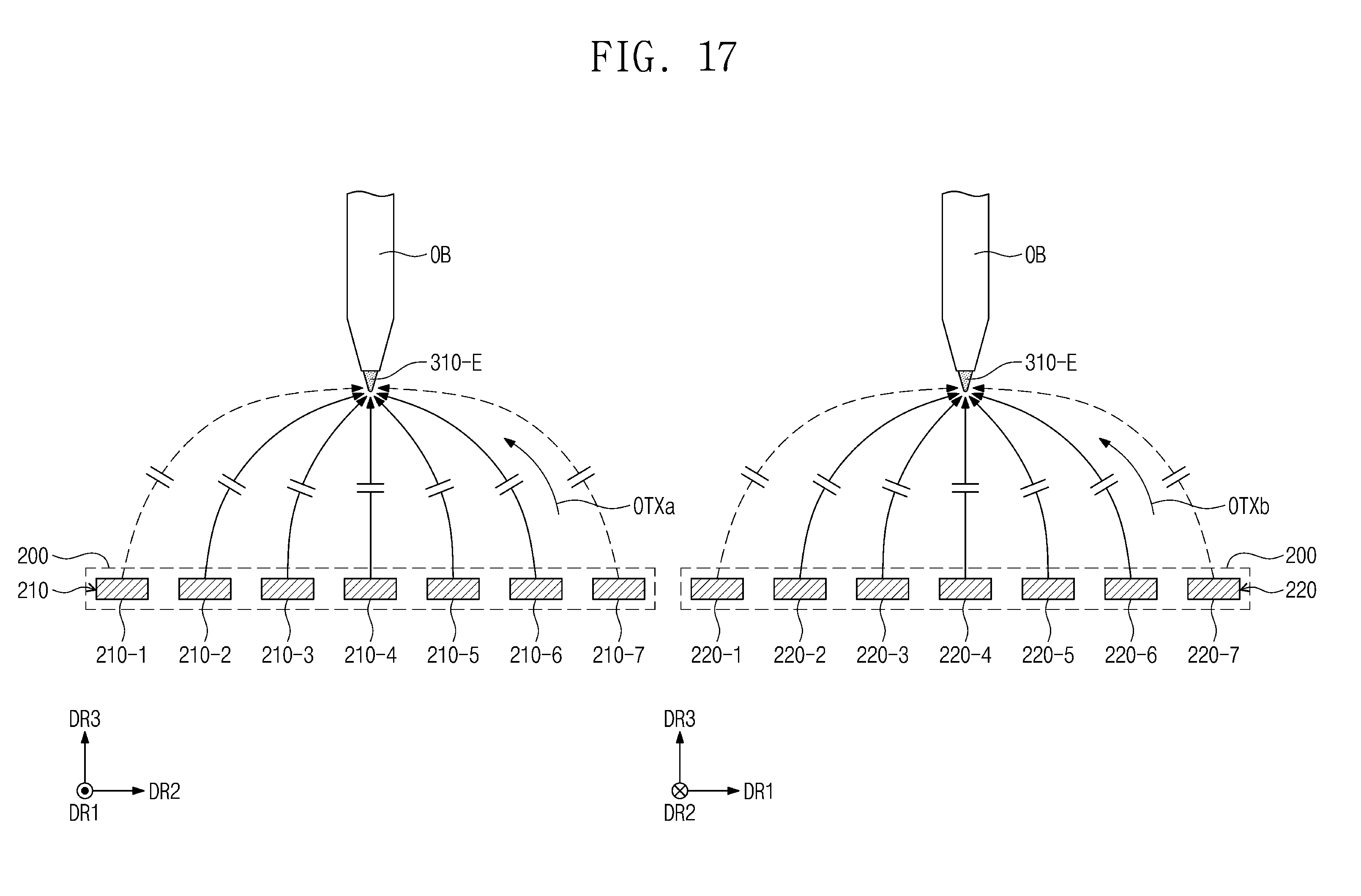

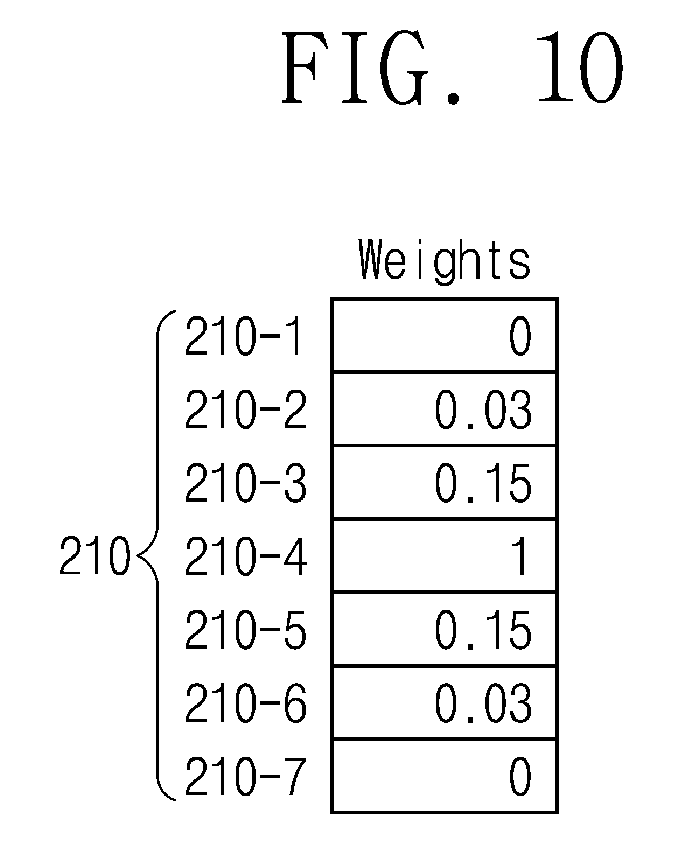

The external object, which the patent does not name specifically, is presumably something like an active stylus or a sensor module on a second device. By receiving two independent signal streams from the same electrode grid, it can triangulate its location relative to the screen with greater precision than a single stream would allow.
… an input detection circuit that receives detection signals corresponding to the first transmission signals from the sensor layer in the first mode and outputs third transmission signals which are for use by the external object to determine the position …
Translation: The touchscreen handles normal touch inputs normally, but also sends out extra positioning signals for external gadgets to read.
What this means for styluses and device-to-device tracking
The most obvious application is an active stylus. Today's high-end styluses (Samsung's own S Pen included) already communicate back and forth with the screen, but the patent's two-channel output approach could make that positioning faster or more accurate, particularly when the pen is hovering just above the surface rather than touching it.
Beyond styluses, the architecture opens a path to any external object that needs to know where it is relative to a display, from AR glasses trying to align digital overlays with a physical screen to a second phone placed face-down on a tablet. Samsung Display's run of interface-layer filings suggests the company is thinking carefully about what roles a screen surface can play beyond simple touch input.
Samsung's 94th filing we've tracked in our display technology watchlist since May adds to a run that includes a display that charges wirelessly and one that reads its own cable.
The patent describes new hardware behavior, not a software update. The screen's driver chip has to handle two different broadcast tasks simultaneously, and no standard touchscreen controller on the market does that today. Something new has to be built before anything ships.
The shortest path to a product runs through a stylus that Samsung already makes and a tablet screen it already controls. That pairing keeps the engineering problem contained, the use case familiar, and both ends of the relationship inside one company's roadmap.
What Samsung is really doing here is planting a foundational claim before the harder work begins. The gap between filing and shipping is real, but the direction is clear.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

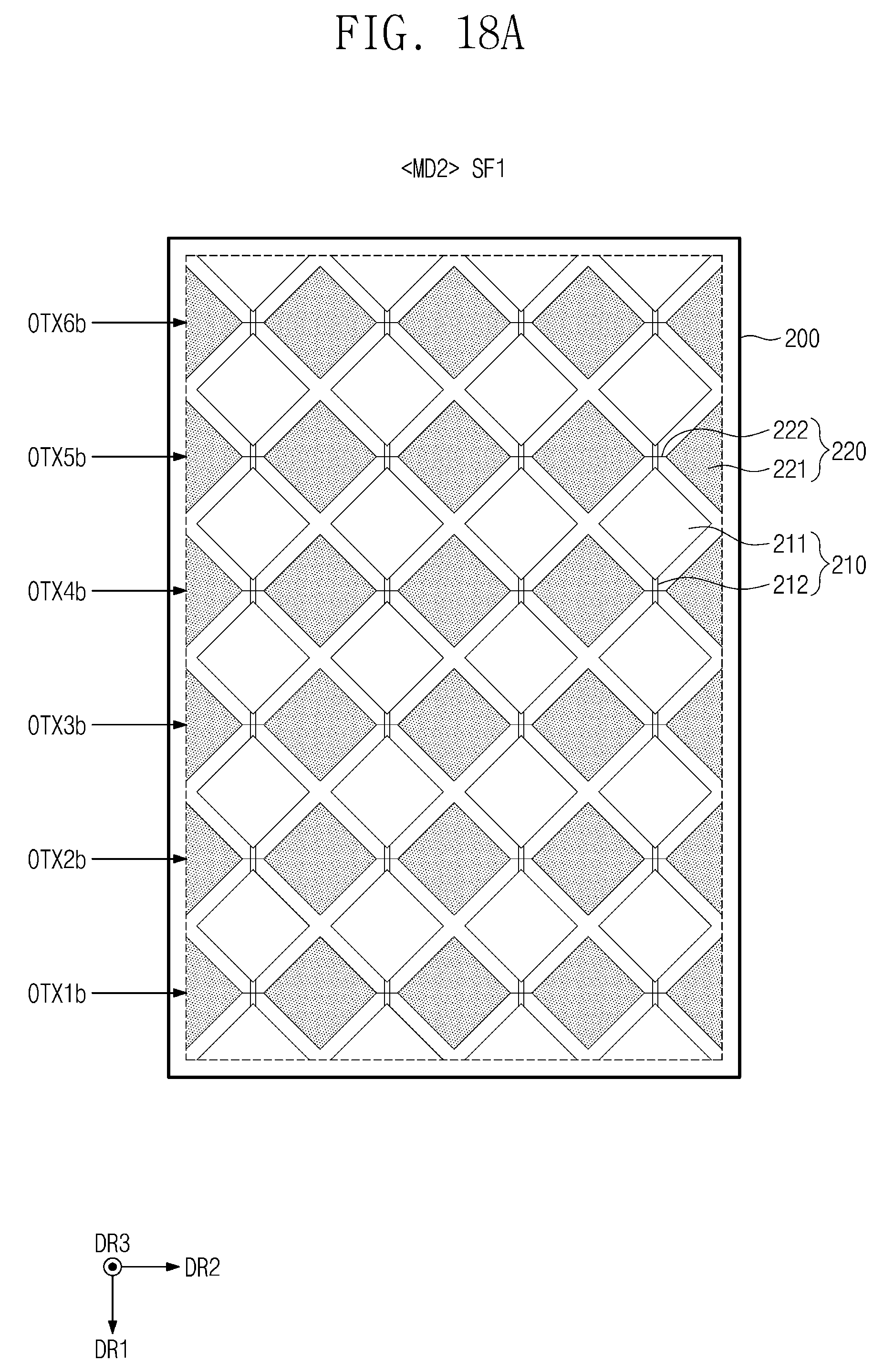

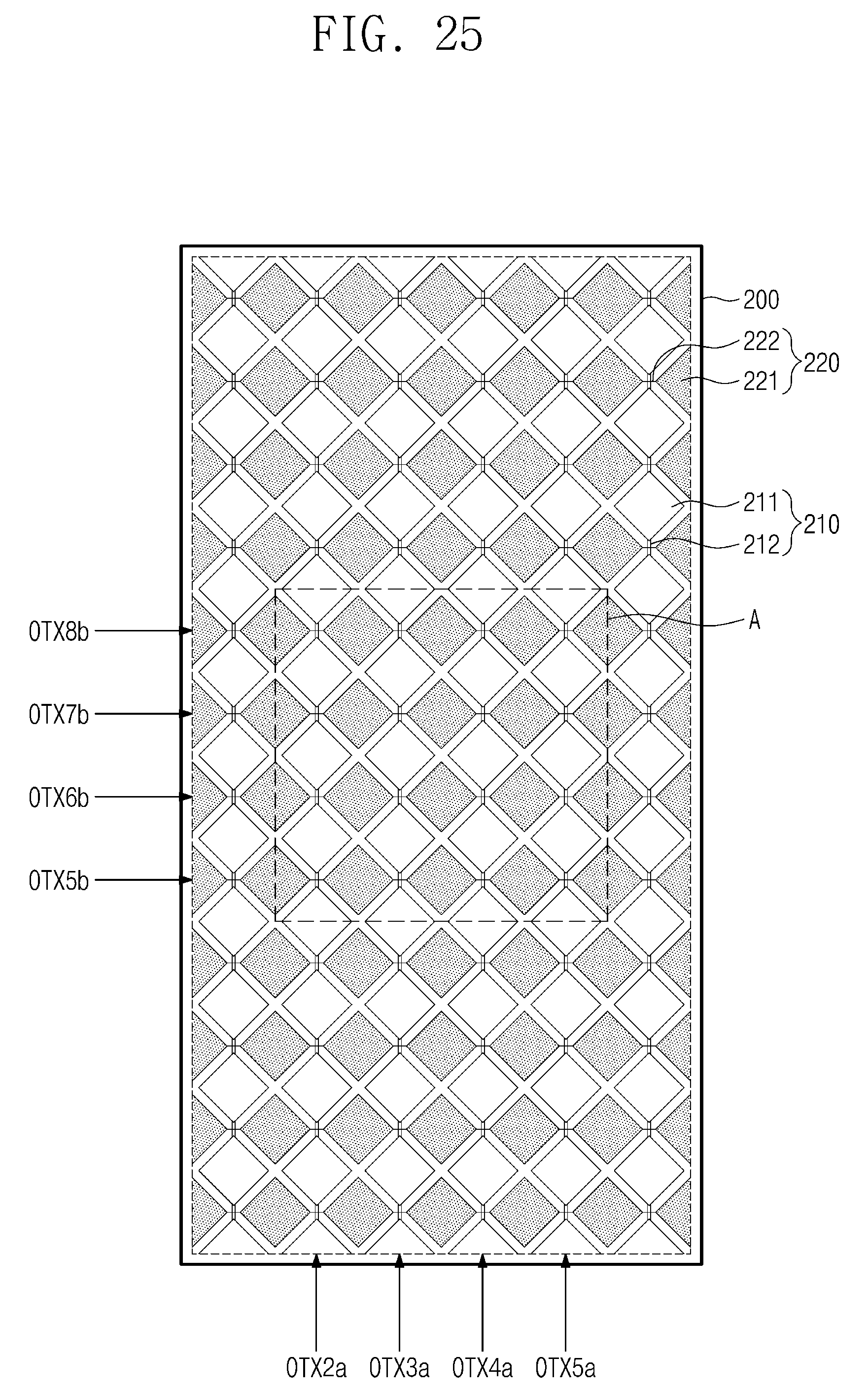

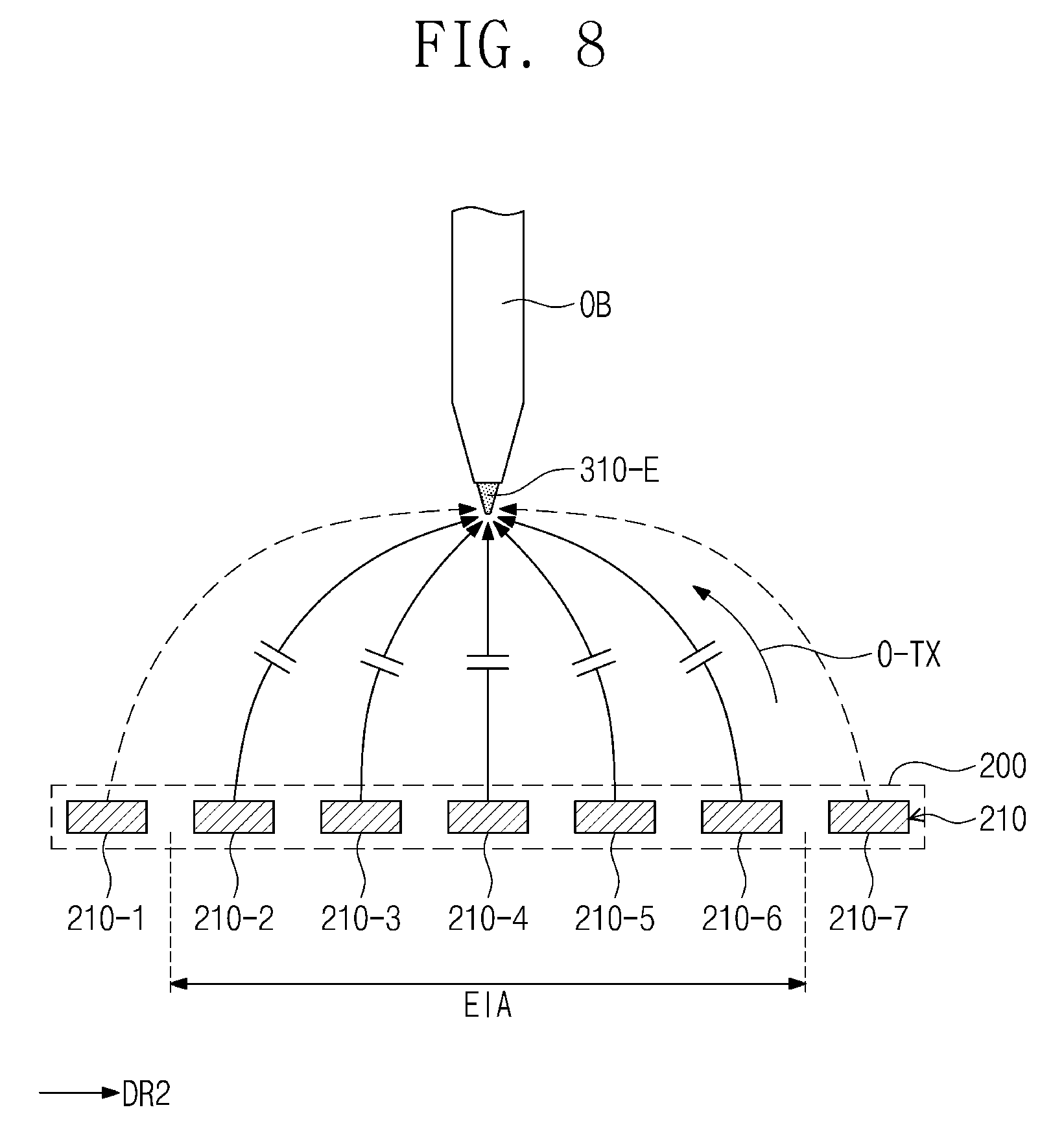

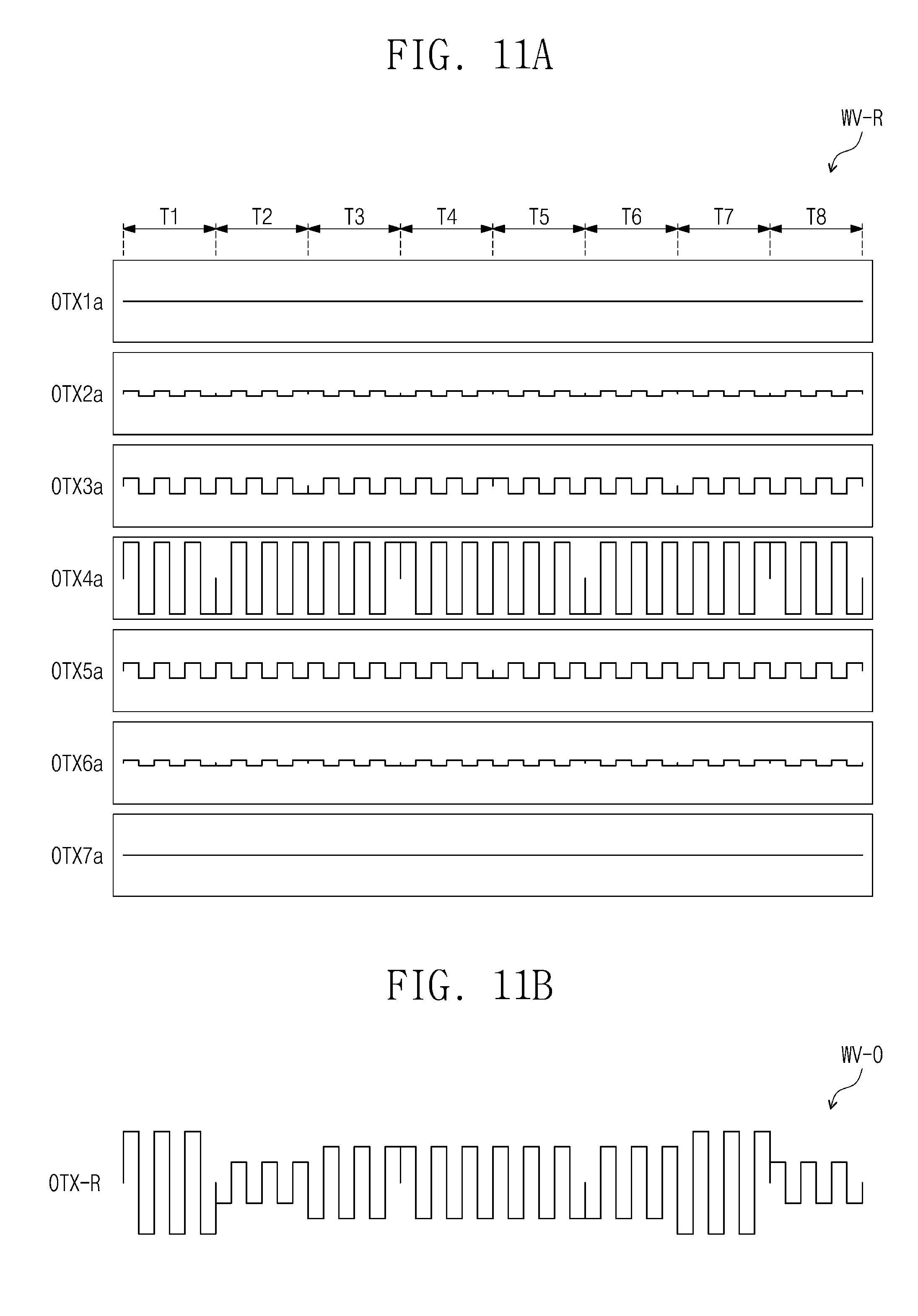

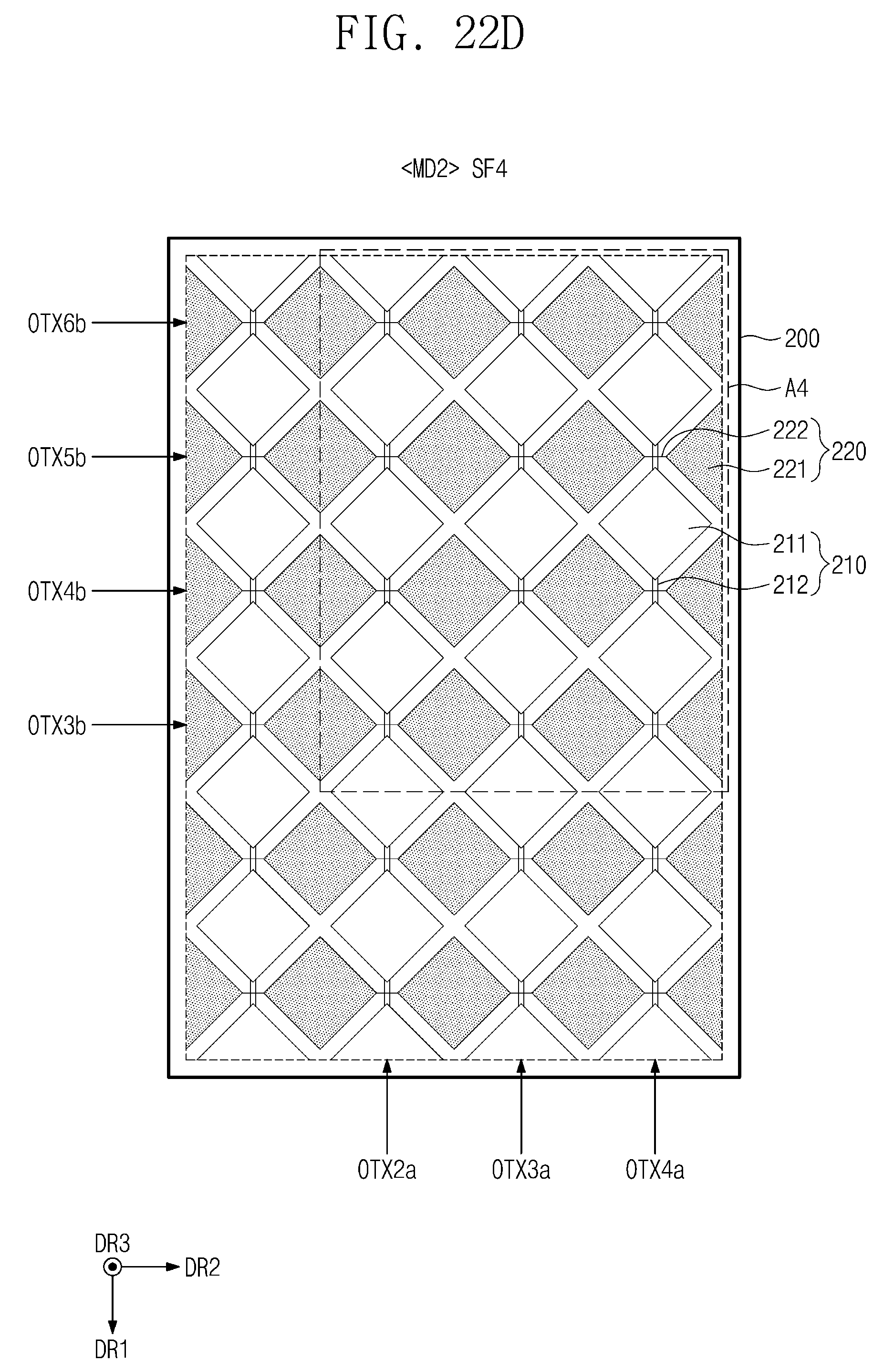

The drawings

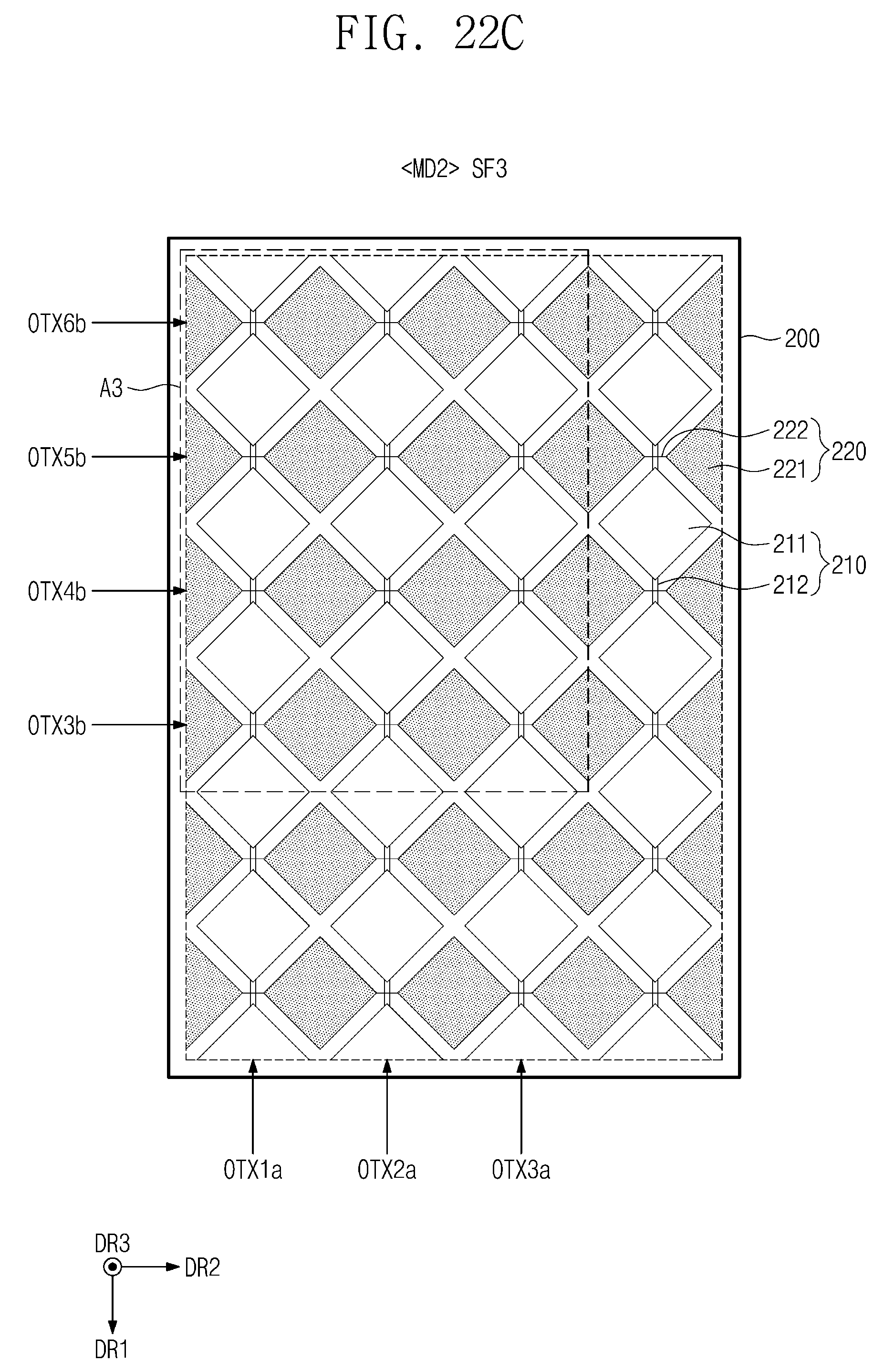

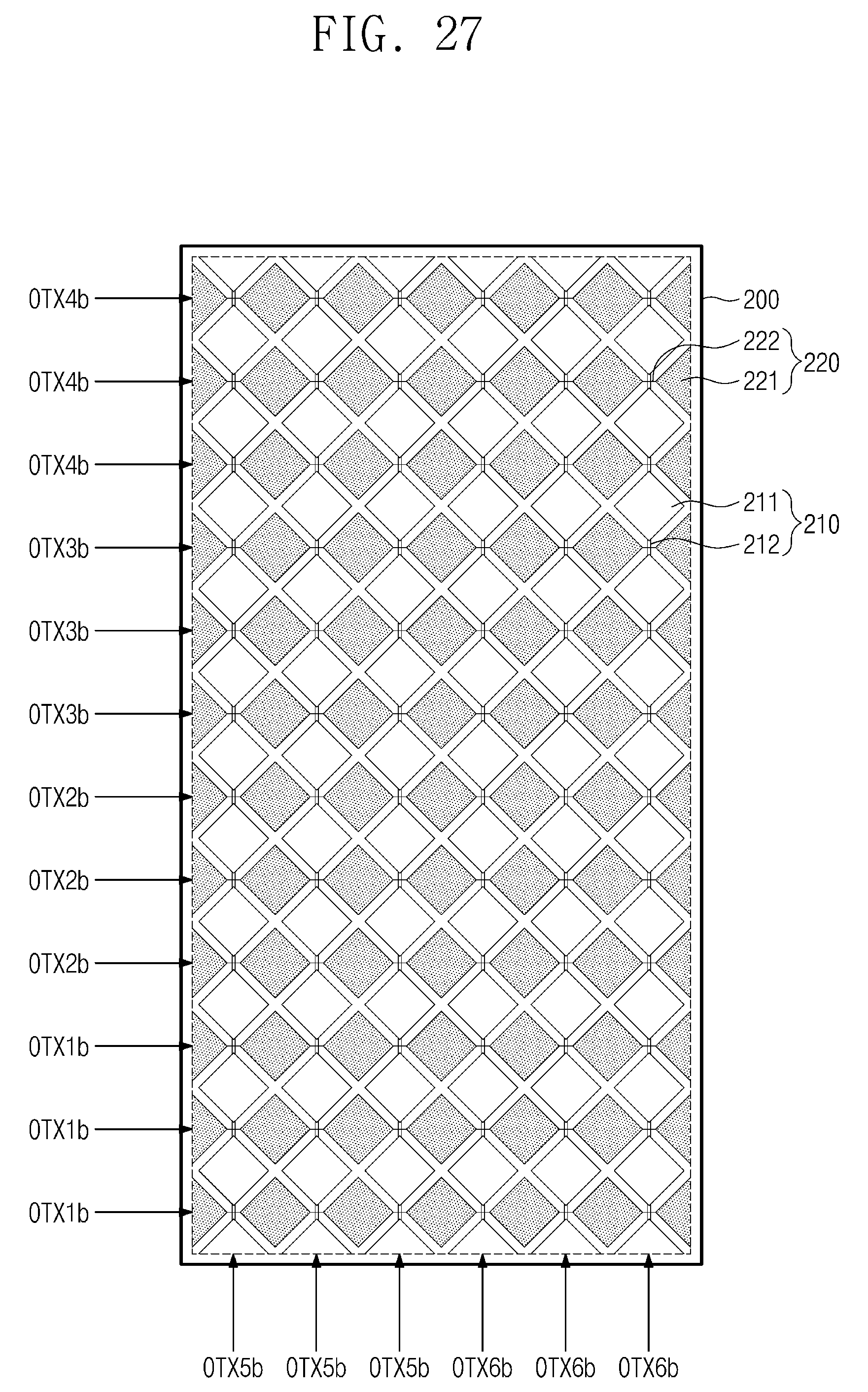

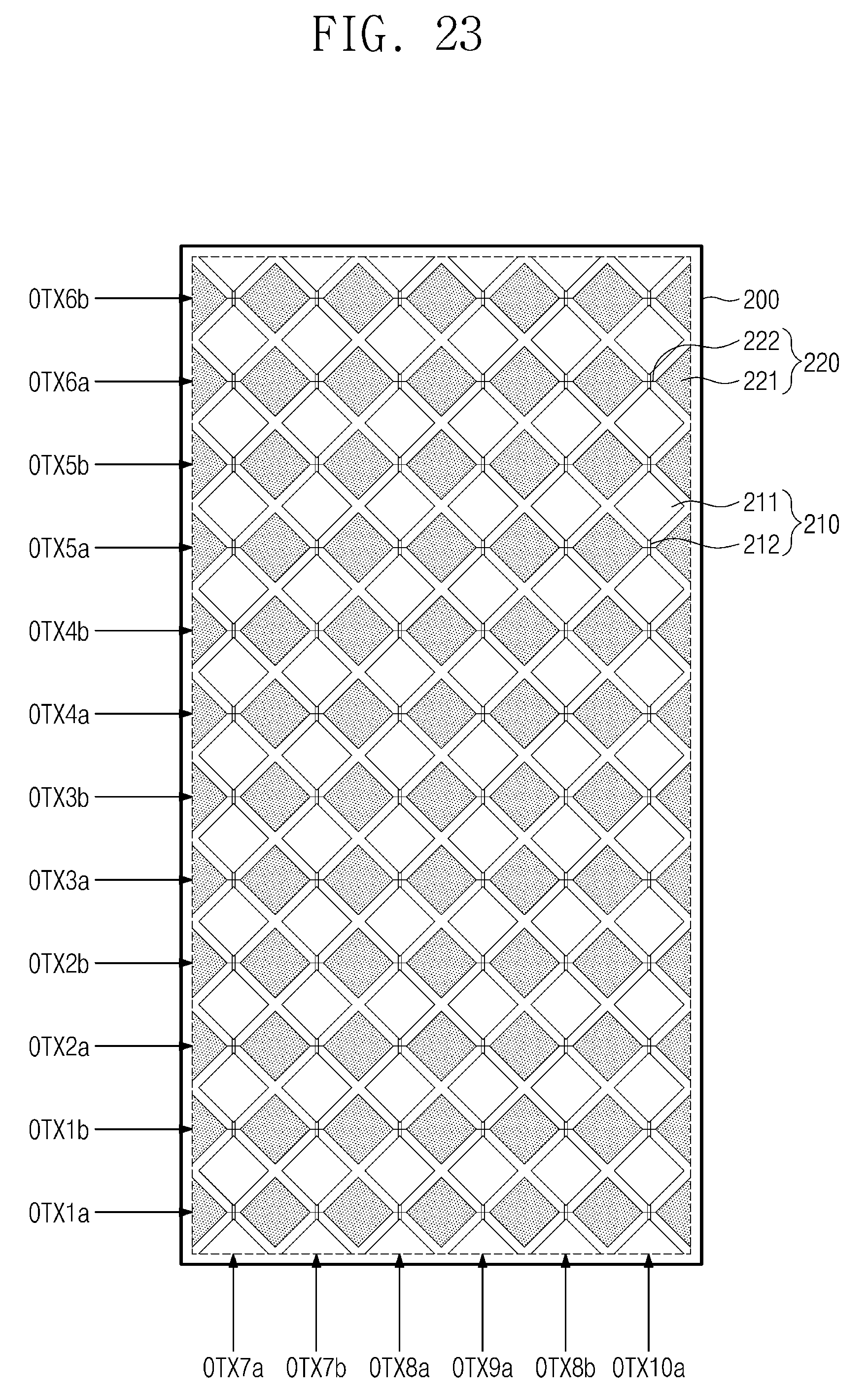

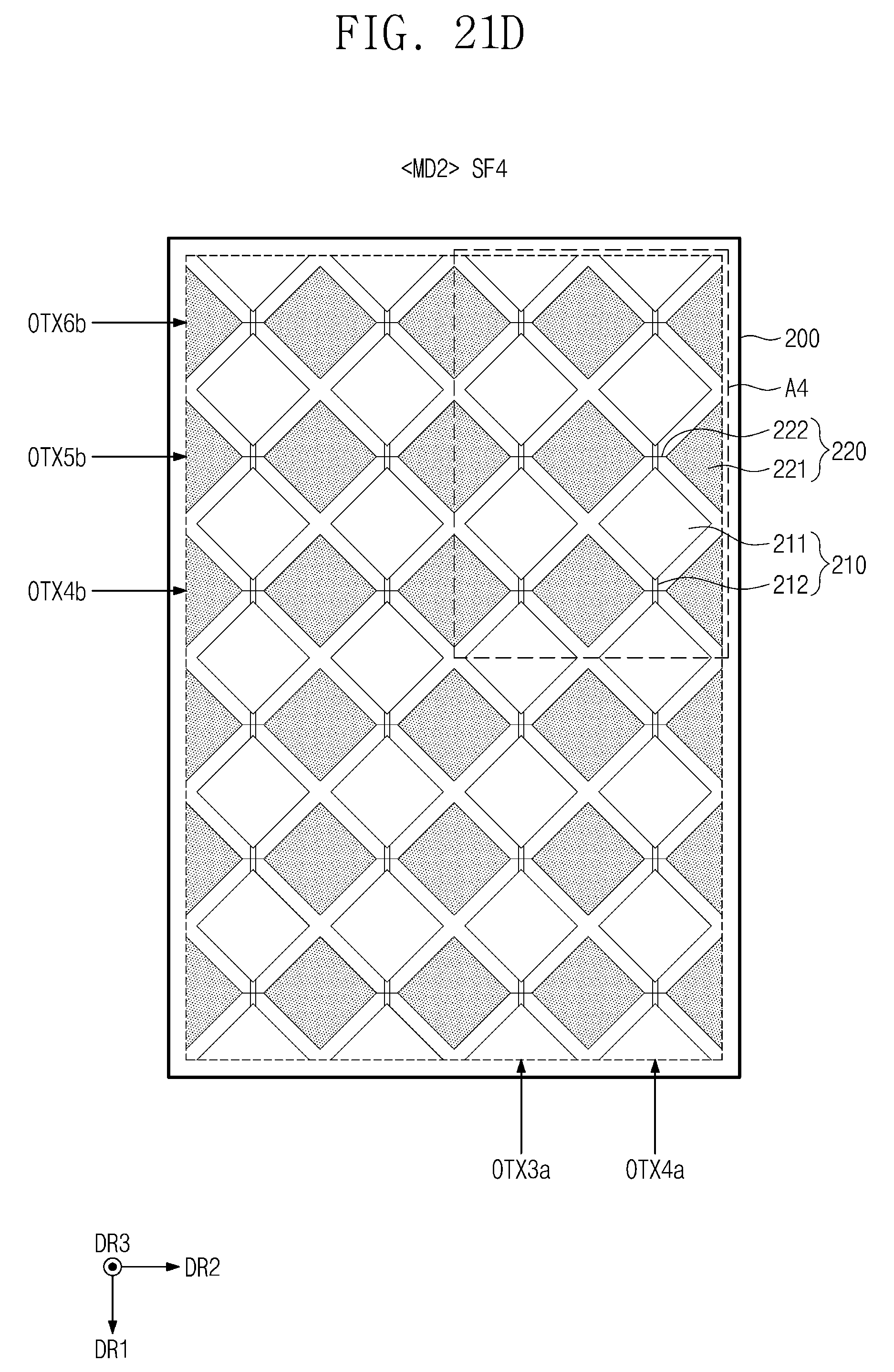

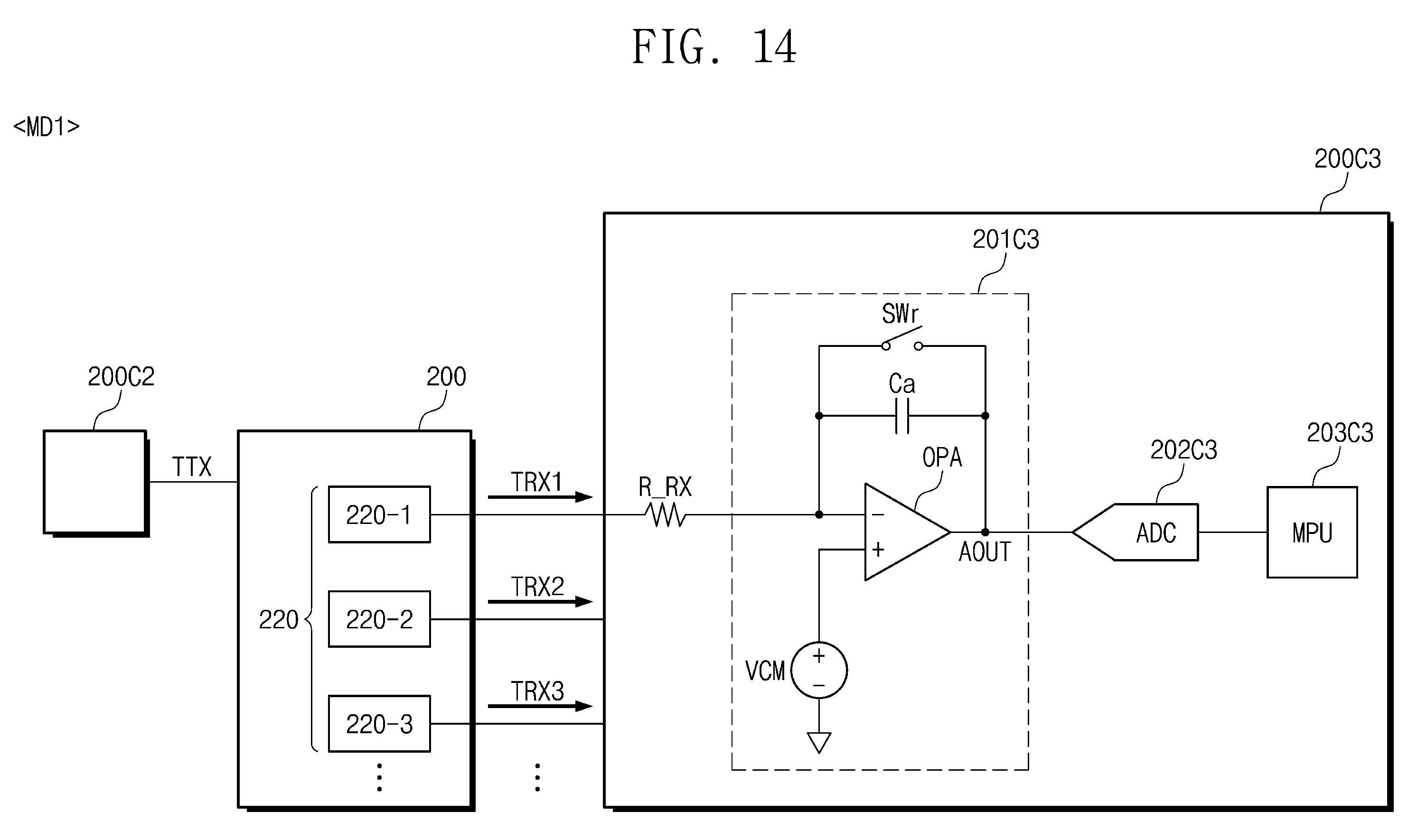

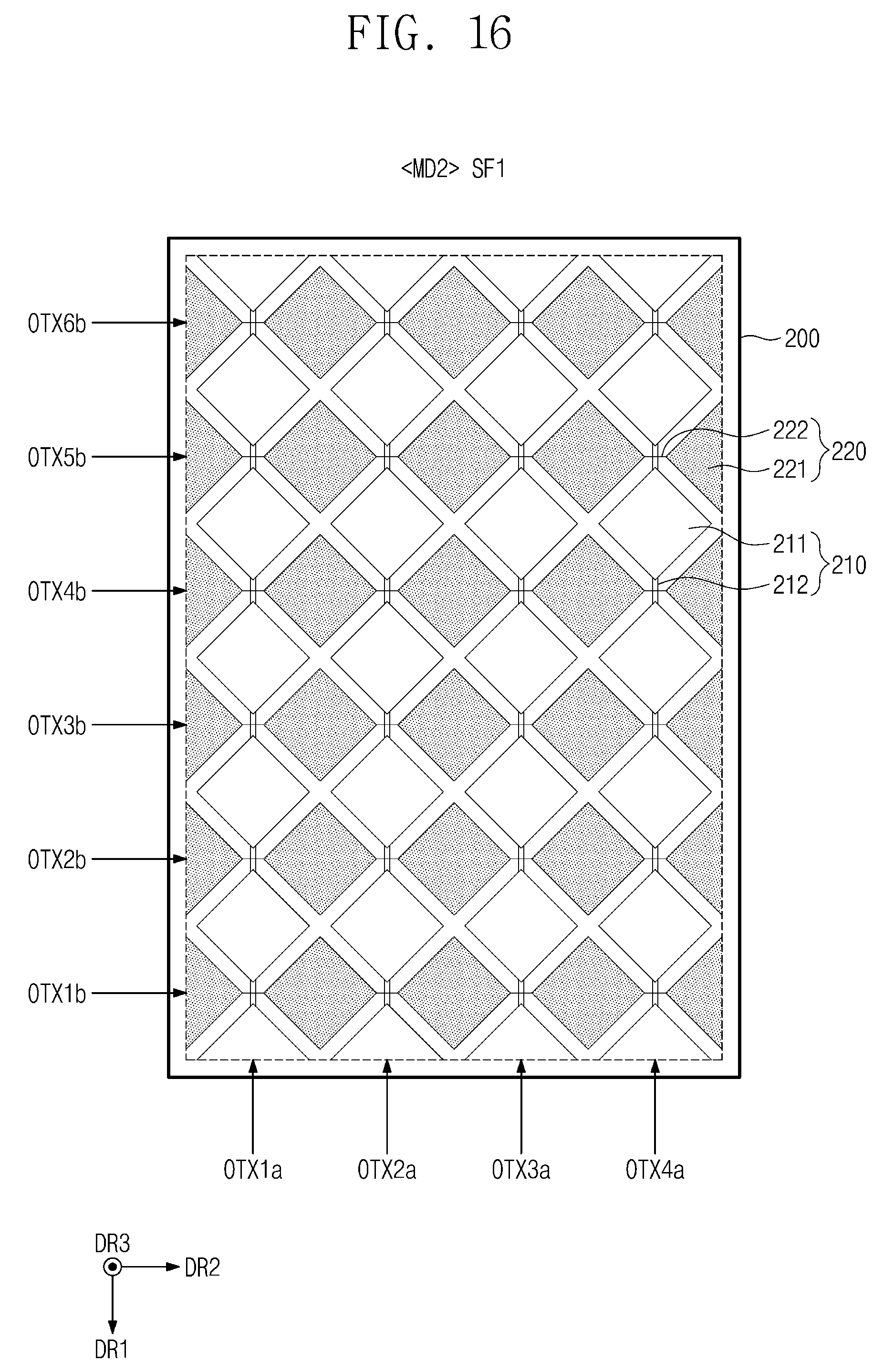

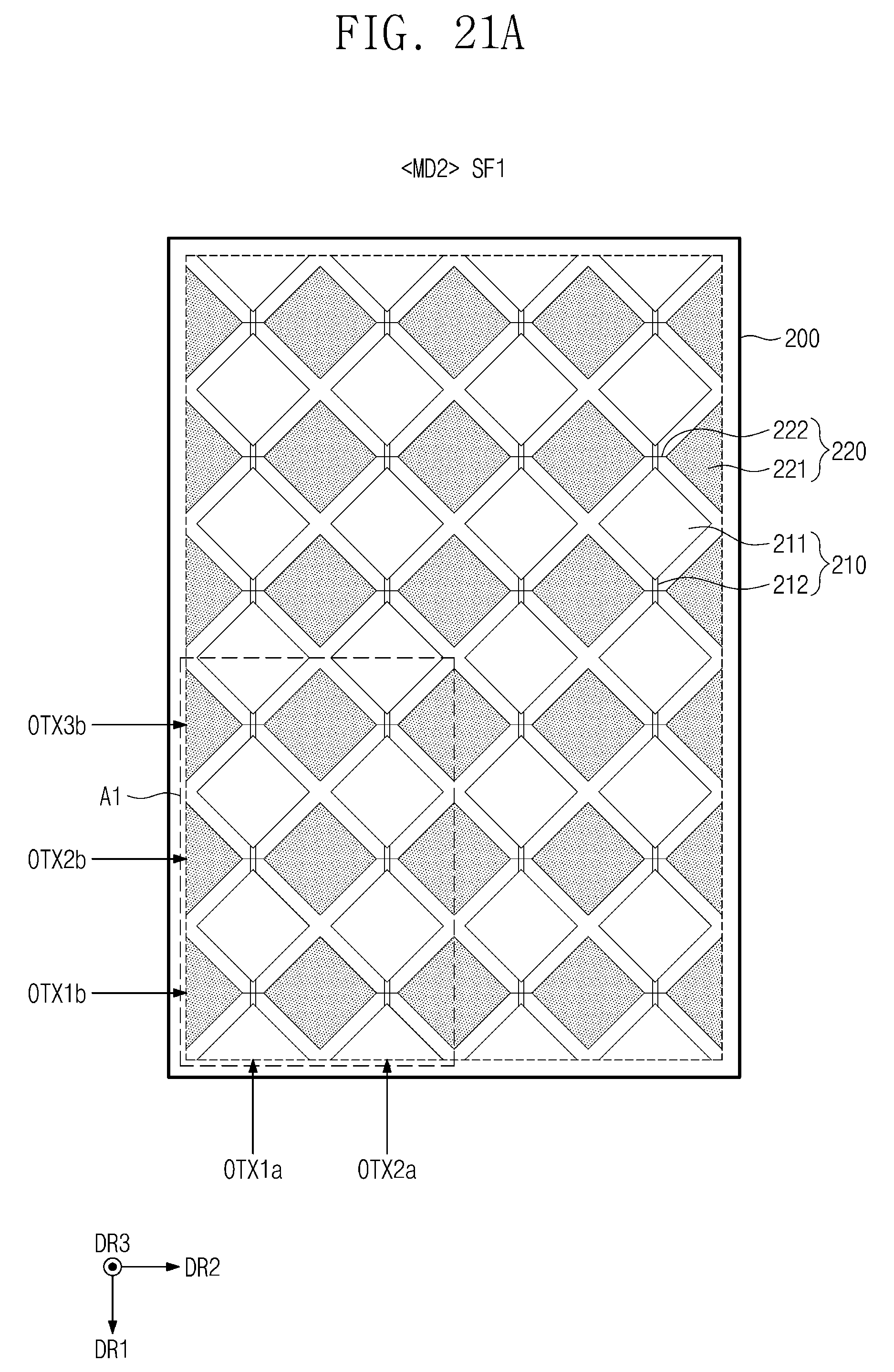

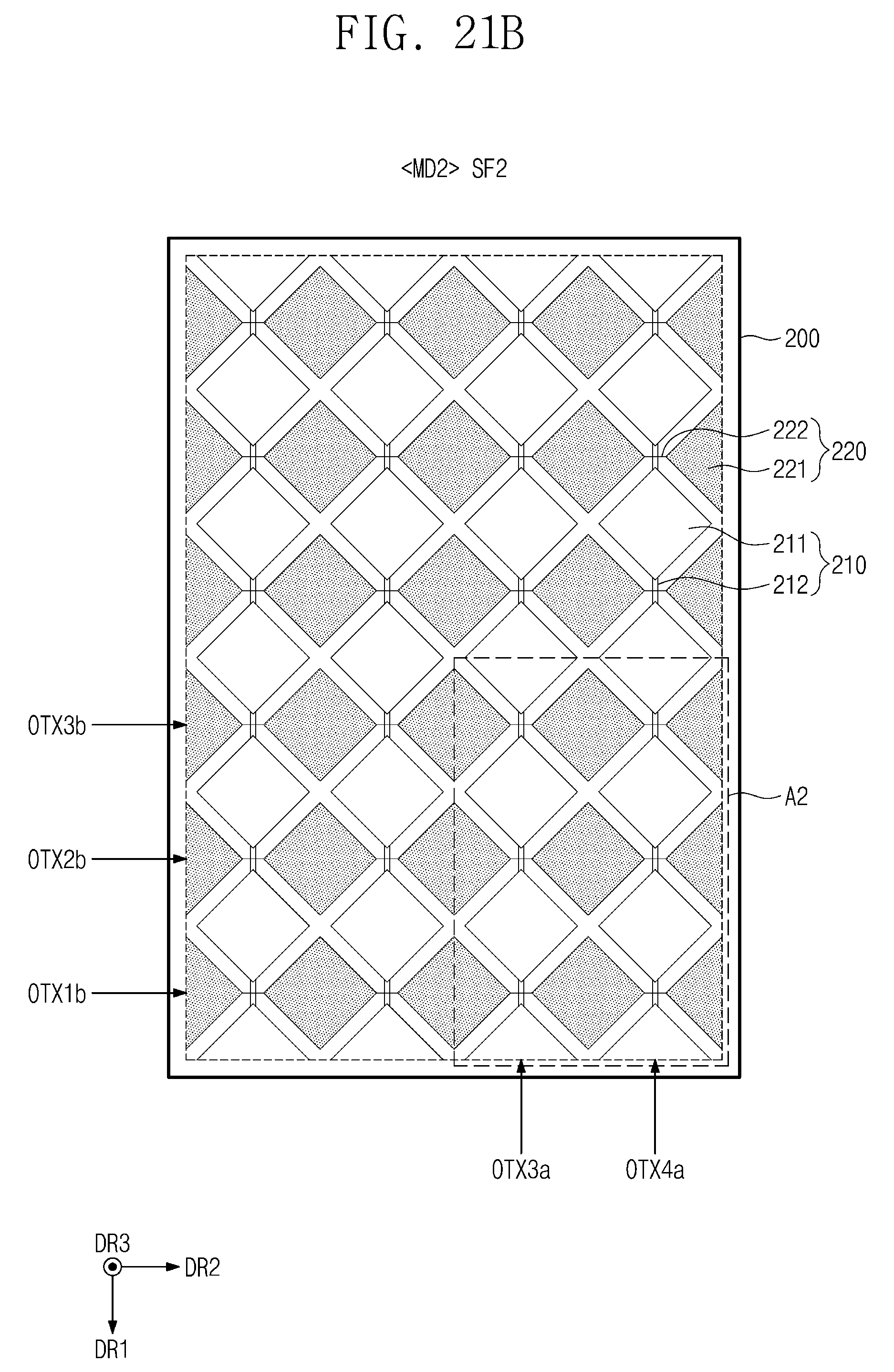

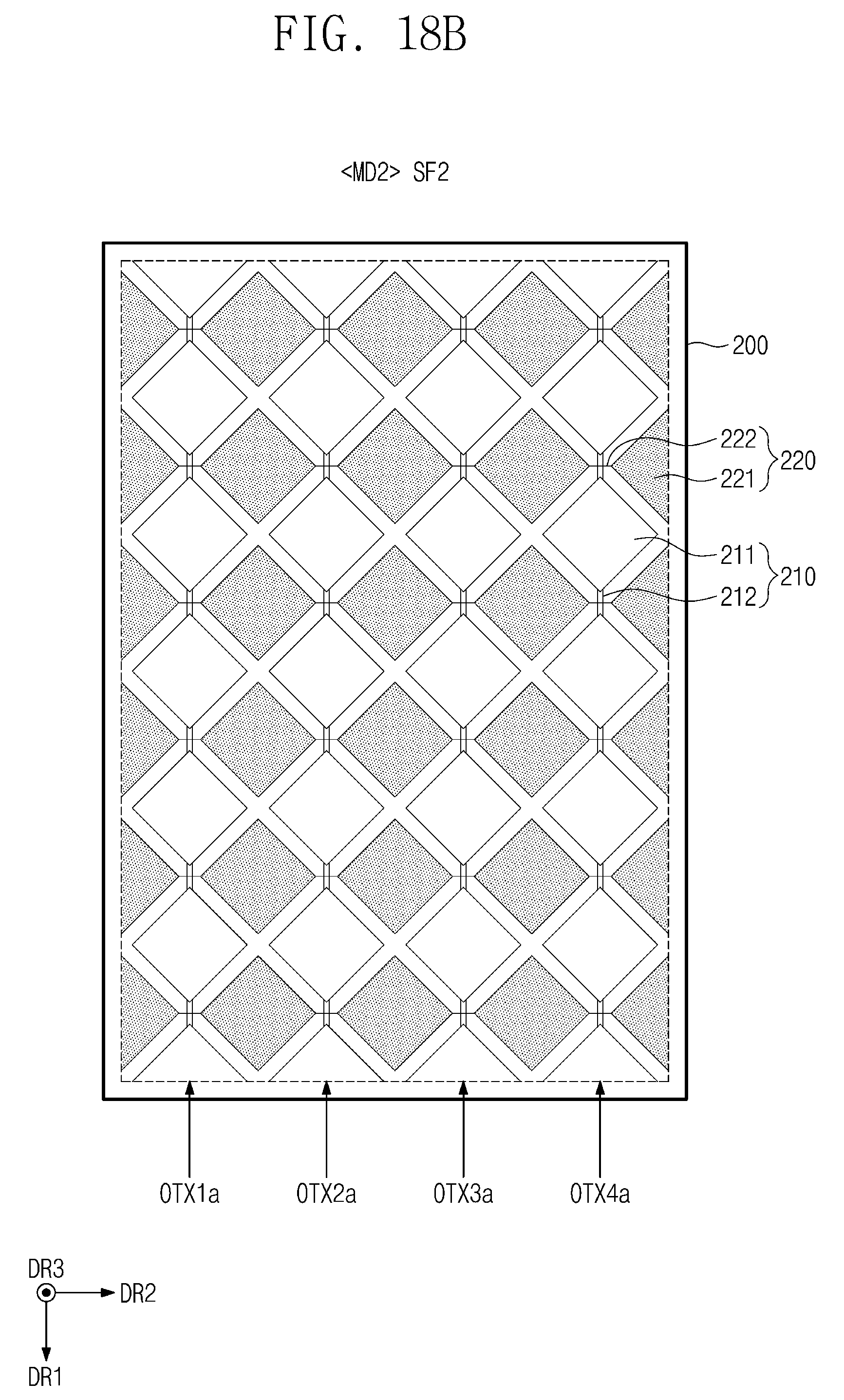

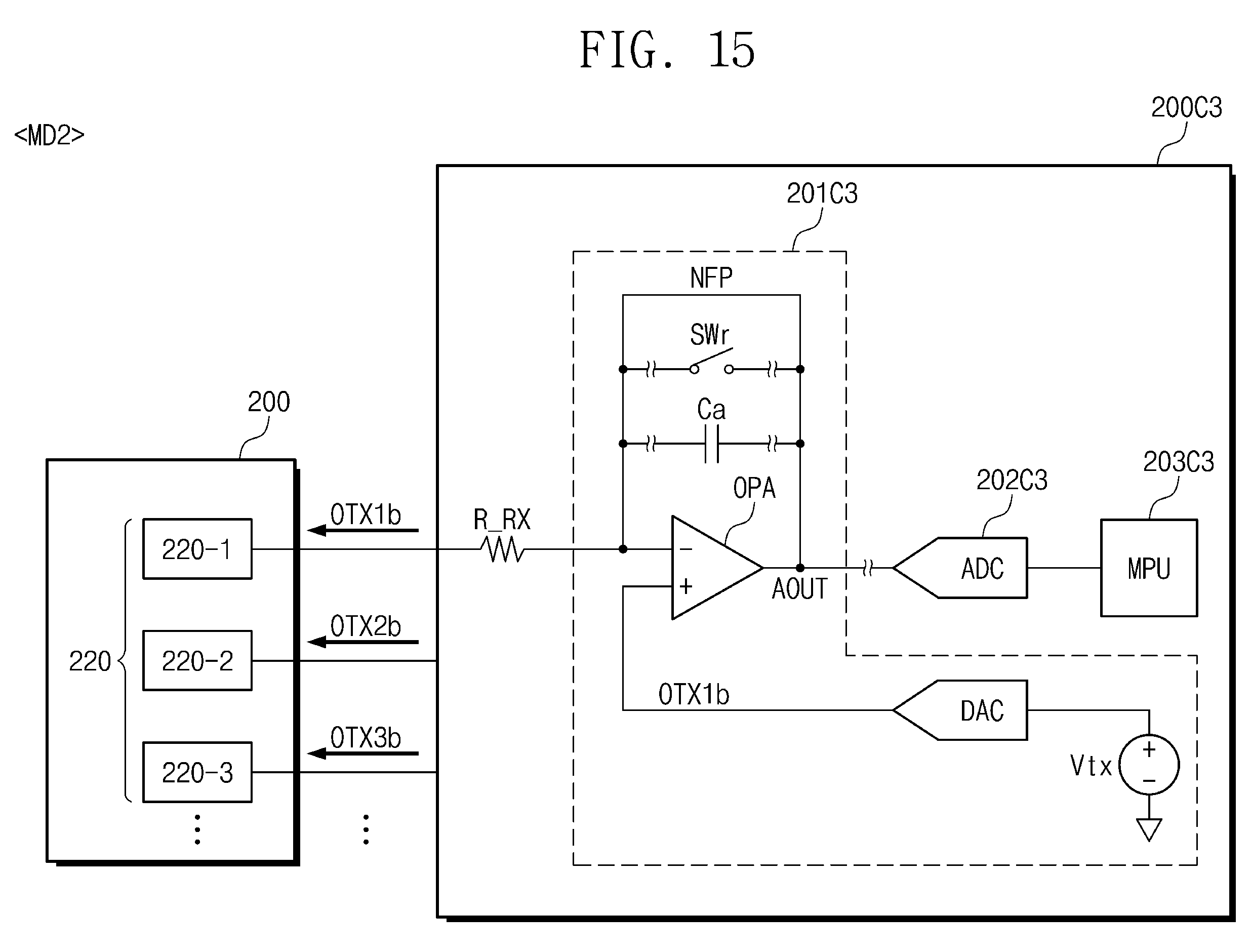

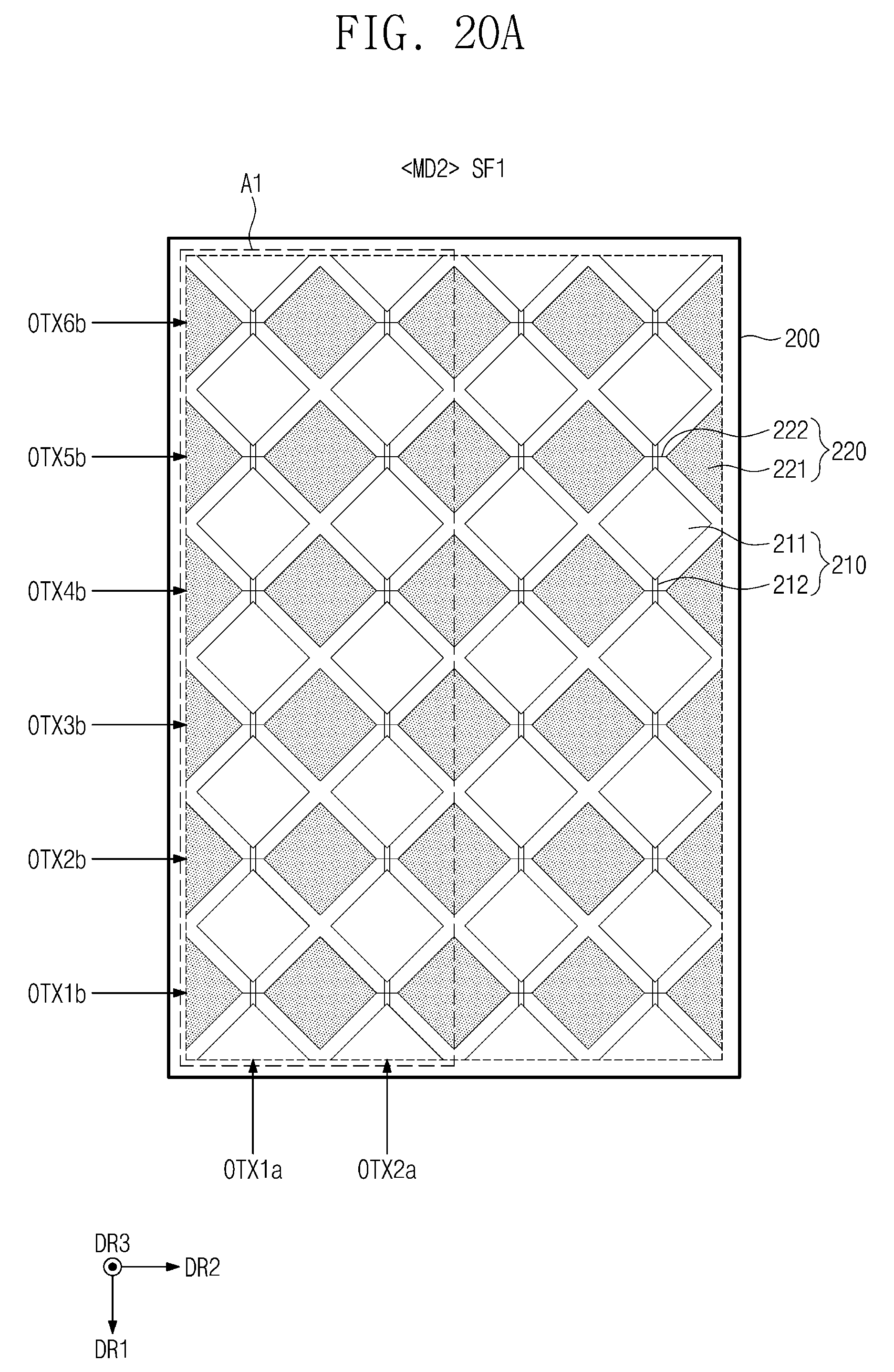

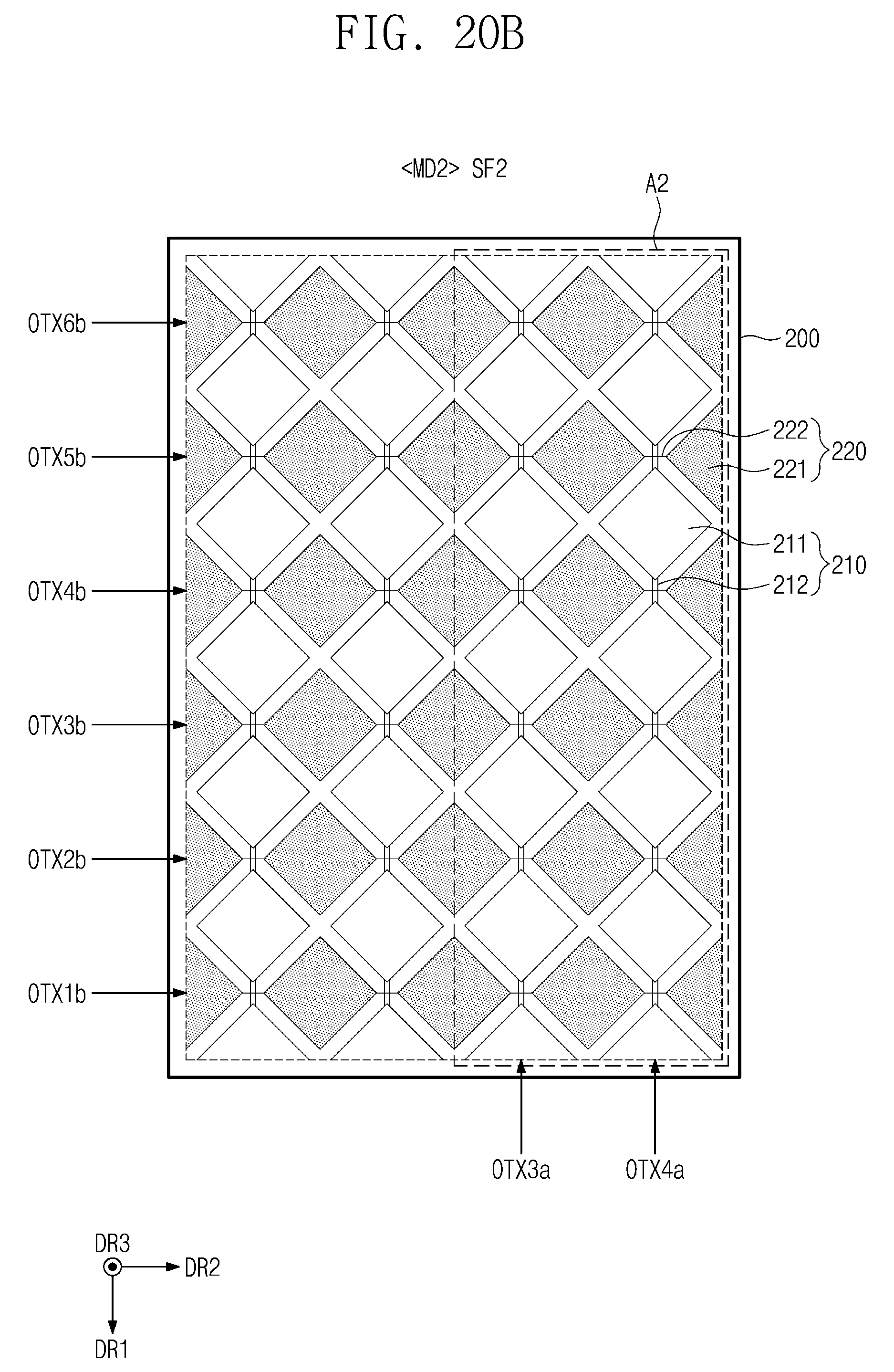

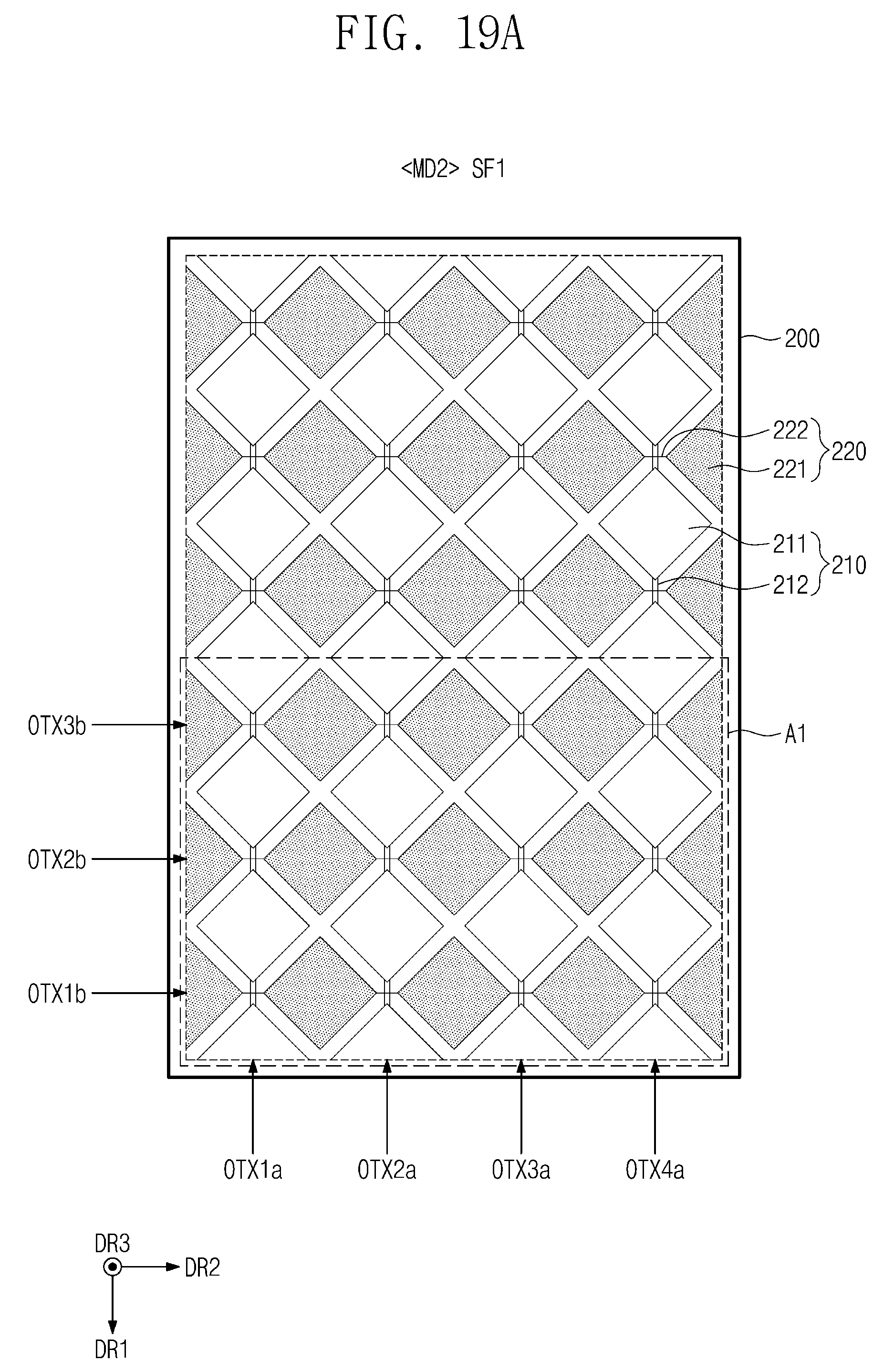

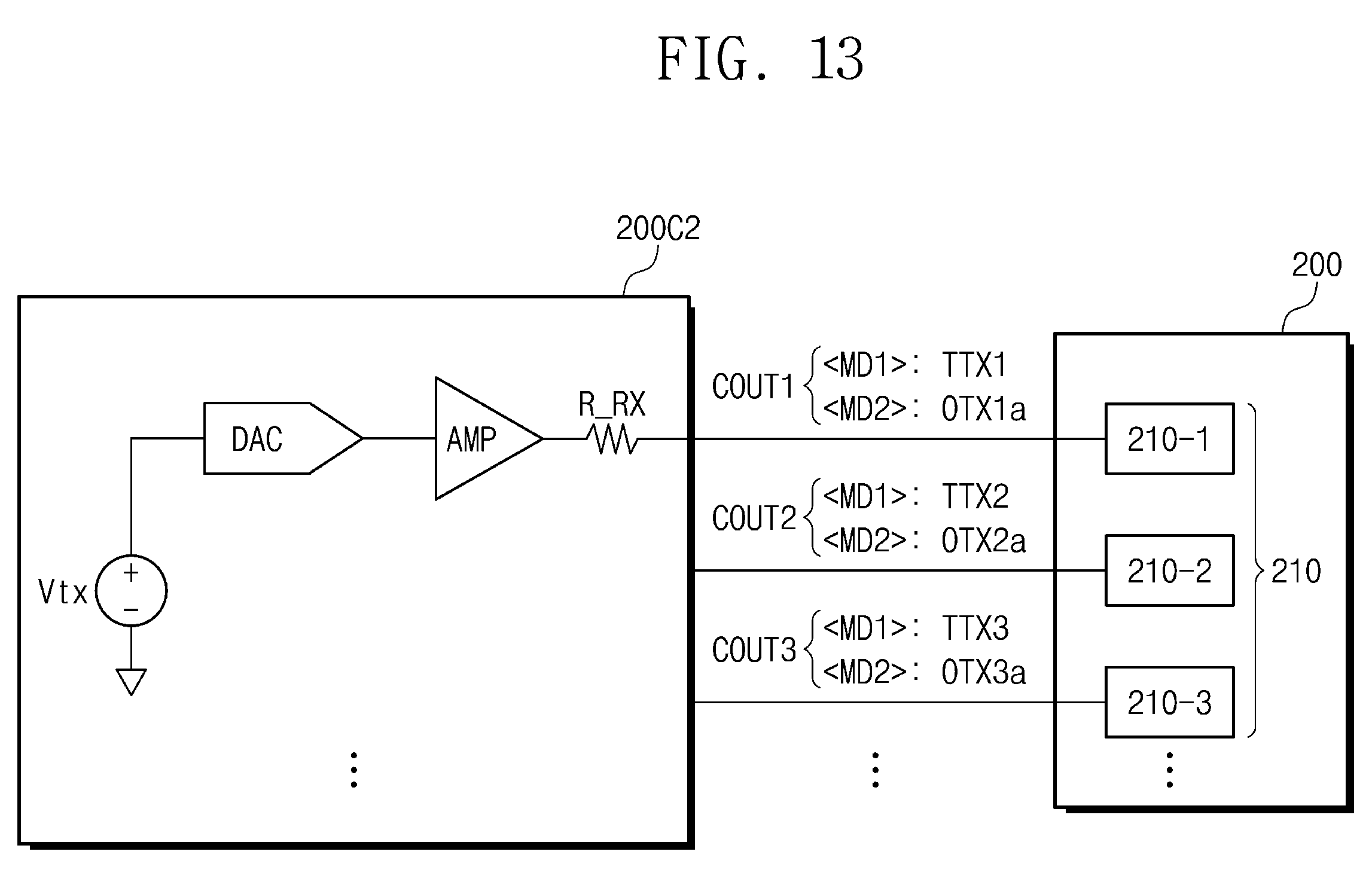

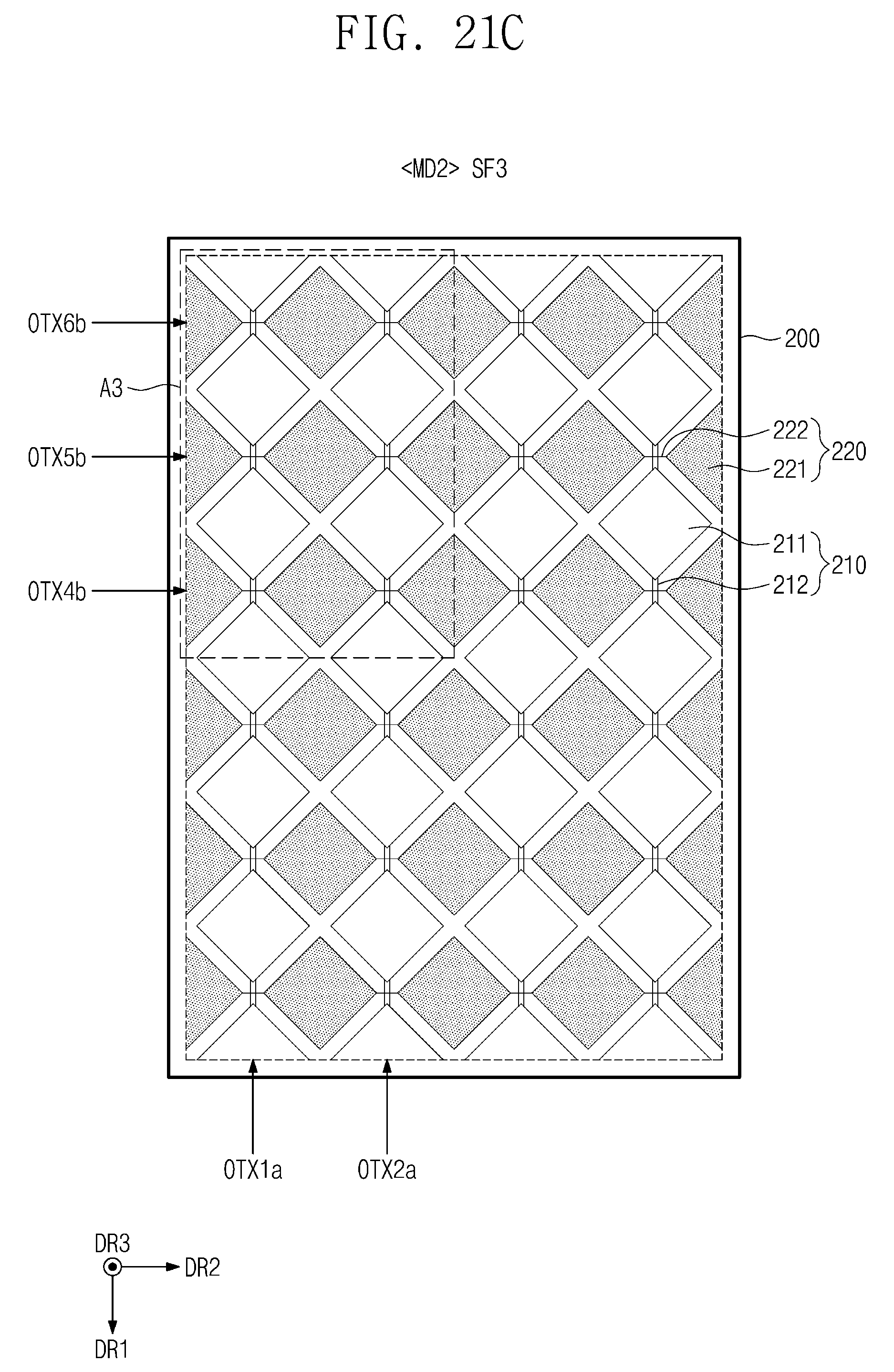

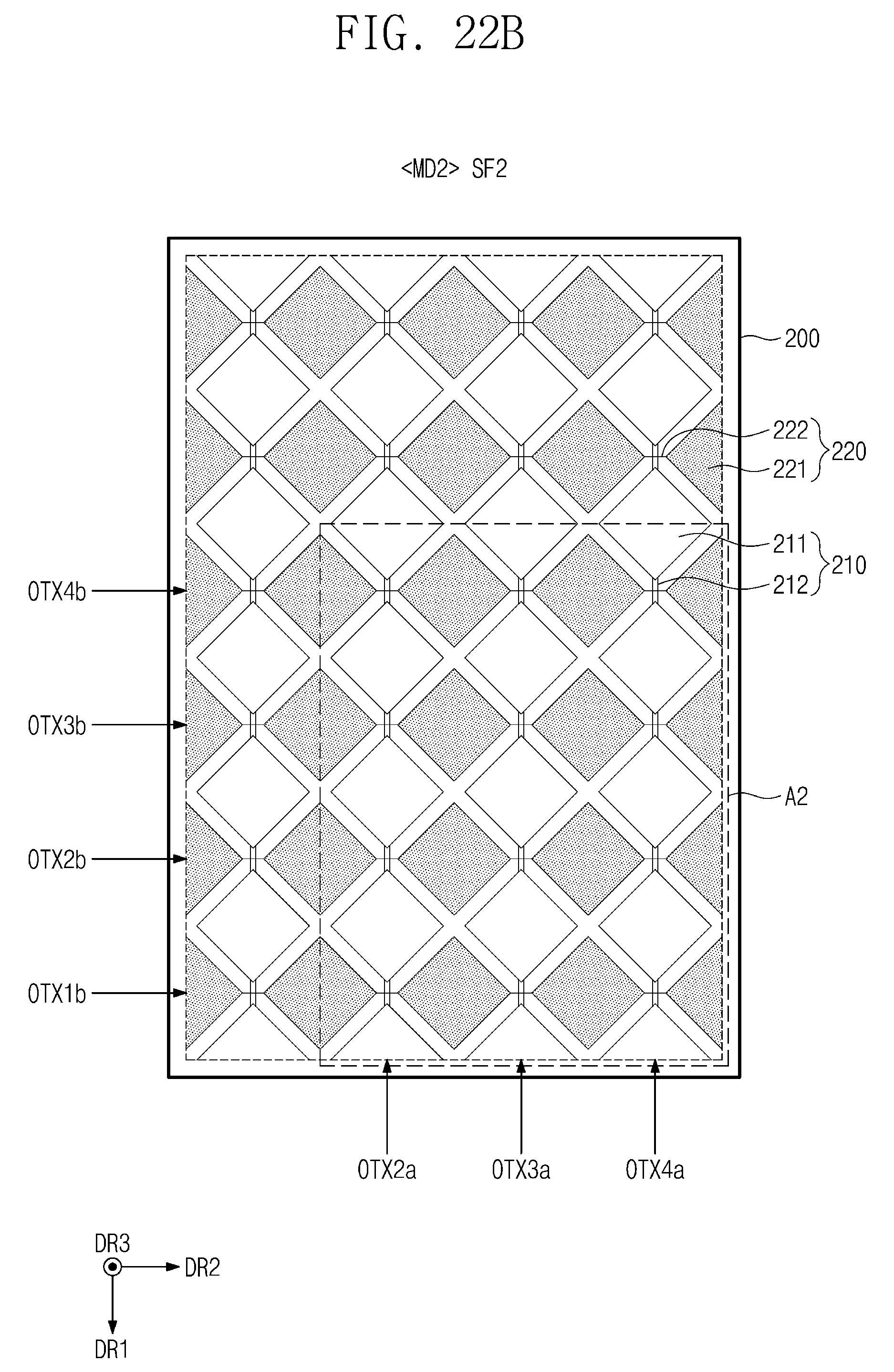

38 drawing sheets from US 2026/0259624 A1 · click any drawing to enlarge
