Samsung Patents a Battery System That Decides When a Cell Is Truly Dead
Declaring a battery cell permanently dead is a one-way door. Samsung's new patent describes a system that checks two conditions before slamming it shut.
How Samsung's battery circuit judges when to give up on a cell
Most devices today rely on battery cells that can fail and unpredictably. Once a cell is marked as permanently dead, the device may shut down or refuse to charge, even if the diagnosis was wrong because of a loose connection rather than a truly failed cell.
Samsung's patent describes a battery management circuit that watches over two cells at once. Before writing off either cell as permanently failed, it checks both the voltage of each cell and whether the cable linking them is actually connected. The idea is that a missing or faulty cable can make a healthy cell look dead.
This two-condition check is meant to stop devices from locking out cells that might still be usable. That matters most in products where replacing a battery is difficult or impossible, because a false permanent-fail call could mean the whole device is thrown away.
… a battery management circuit configured to monitor respective voltages of the first battery cell and the second battery cell and determine whether to switch states of the first battery cell and the second battery cell to a permanent fail state …
Translation: The system tracks battery voltage to decide if a cell is damaged enough to be permanently disabled.
How the management circuit weighs voltage and cable state

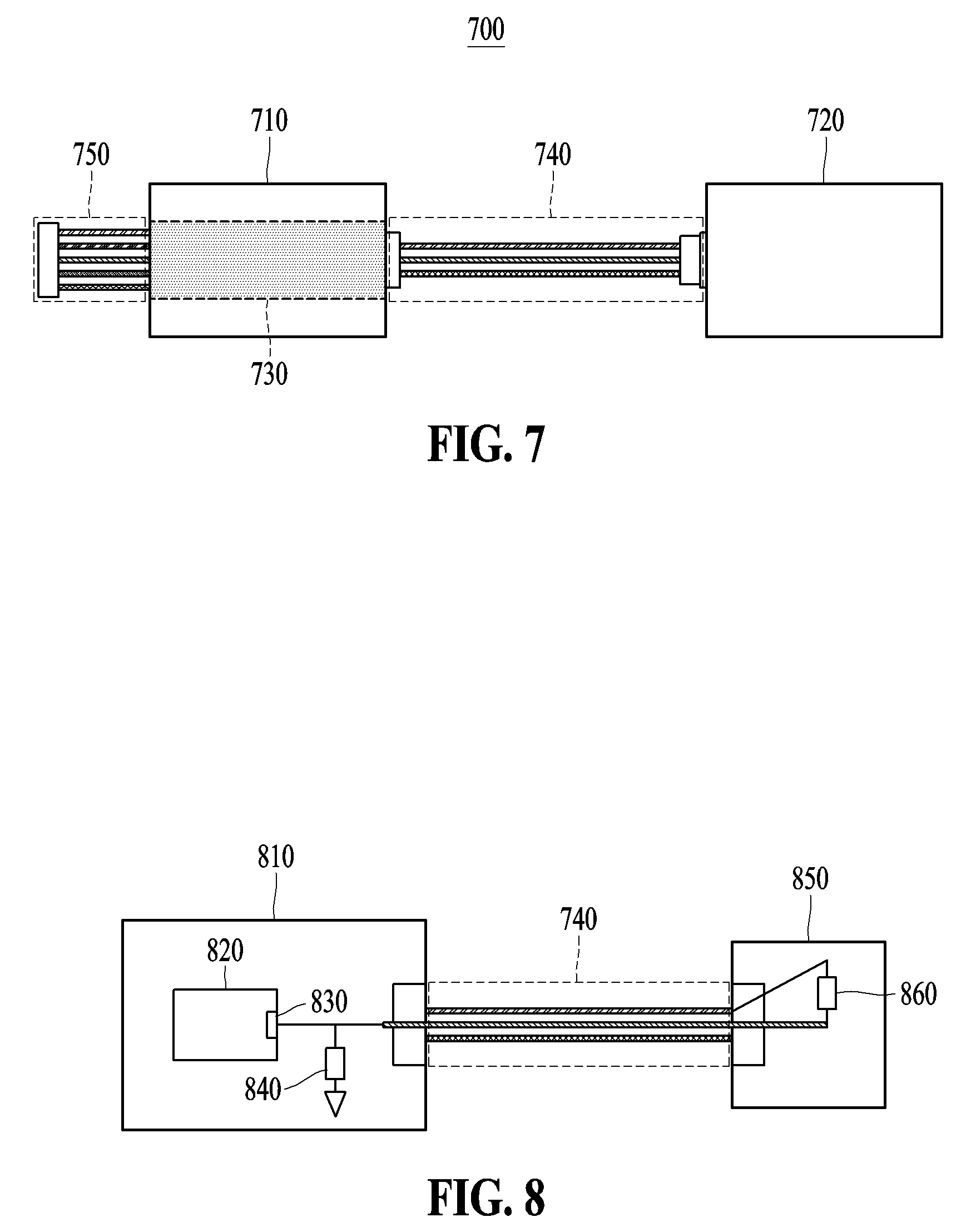

The patent covers a battery management system built around four main components: a first battery cell, a second battery cell, a cable connecting them, and a battery management circuit that watches both.
The circuit's key job is deciding whether to flip a cell into what the patent calls a permanent fail state (an irreversible locked-out condition where the cell is treated as beyond saving). Before it does that, it has to satisfy two requirements at the same time:
- The voltage of each cell must be outside acceptable bounds, suggesting genuine cell damage.
- The cable connection between the two cells must be confirmed as present and intact.
Why does the cable status matter? If the cable is disconnected, a cell's voltage reading can look abnormal even when the cell itself is fine. By requiring both a bad voltage and a confirmed cable connection before declaring permanent failure, the system avoids misdiagnosing a wiring problem as a dead cell. The result is a more cautious, two-factor check before an irreversible decision is made.
… determines whether to switch states of the first battery cell and the second battery cell to a permanent fail state on the basis of the voltage of the first battery cell and the second battery cell and whether the first battery cell and the second battery cell are connected by the cable.
Translation: The device checks both the battery voltage and the physical cable connection to confirm if a cell should be shut down.
What this means for devices with multi-cell batteries
Multi-cell batteries show up in smartphones, tablets, laptops, earbuds, and wearables. In many of those devices, a permanently failed cell means the whole battery pack is finished, and often the whole device goes with it. A system that reduces false permanent-fail calls could extend the working life of devices where battery replacement is not a practical option for most users.
The engineering here is incremental rather than transformative, but the underlying problem (irreversible battery lockout triggered by a loose cable rather than a genuinely dead cell) is a real-world failure mode. Samsung's battery-safety work sits alongside the latest Big Tech patents in power management, where small improvements to cell-level decision-making can have outsized effects on how long consumer electronics actually last.
The gap between this patent filing and a real product is small. No new hardware is needed, just updated software on top of circuits most laptop batteries already have.
The one open question is whether the two-step safety check runs on an existing chip or needs its own dedicated chip. The patent favors the dedicated chip, which adds at least one extra step before anything ships.
Either way, this solves one specific problem rather than overhauling everything. Narrow fixes like this tend to reach consumers faster than sweeping redesigns do.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

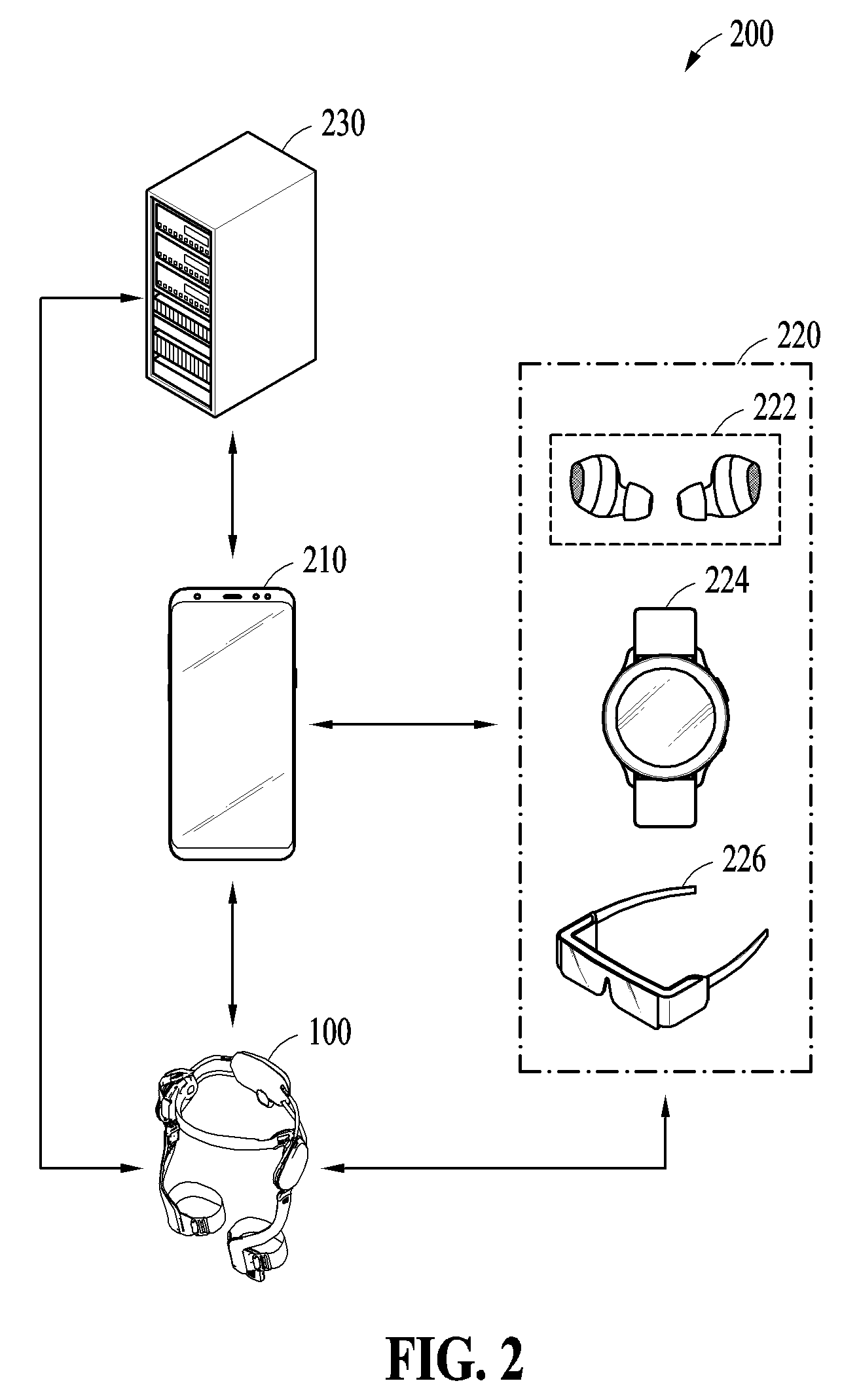

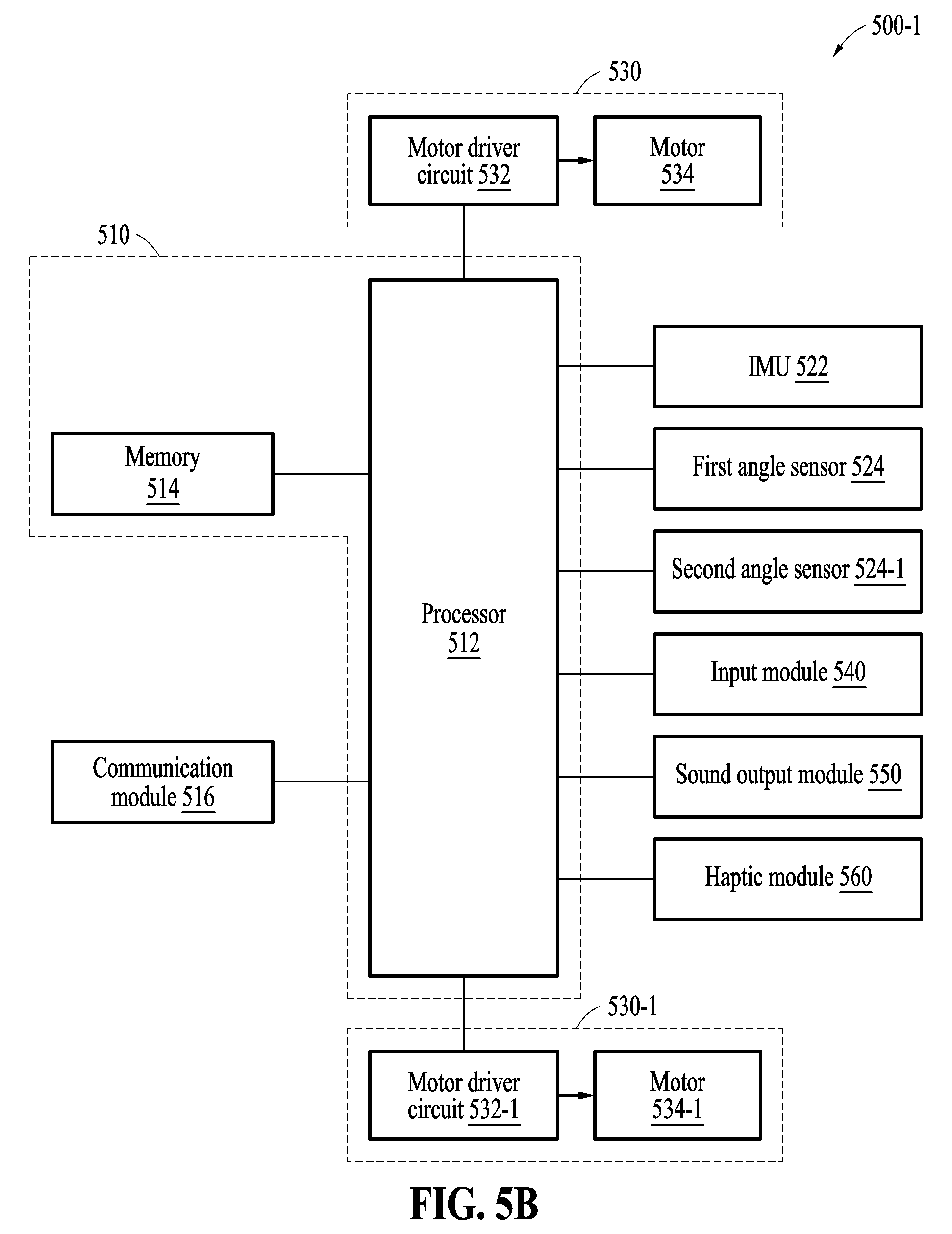

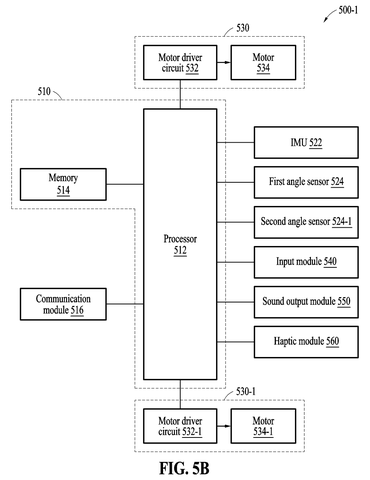

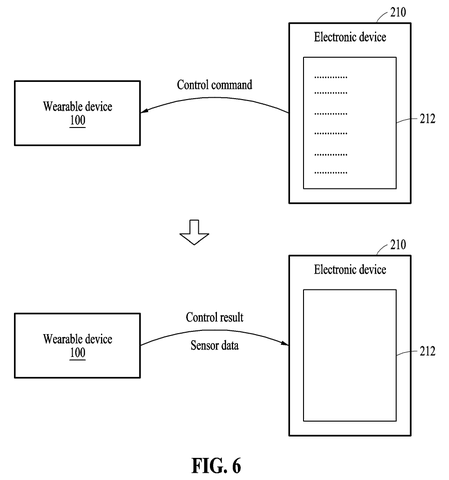

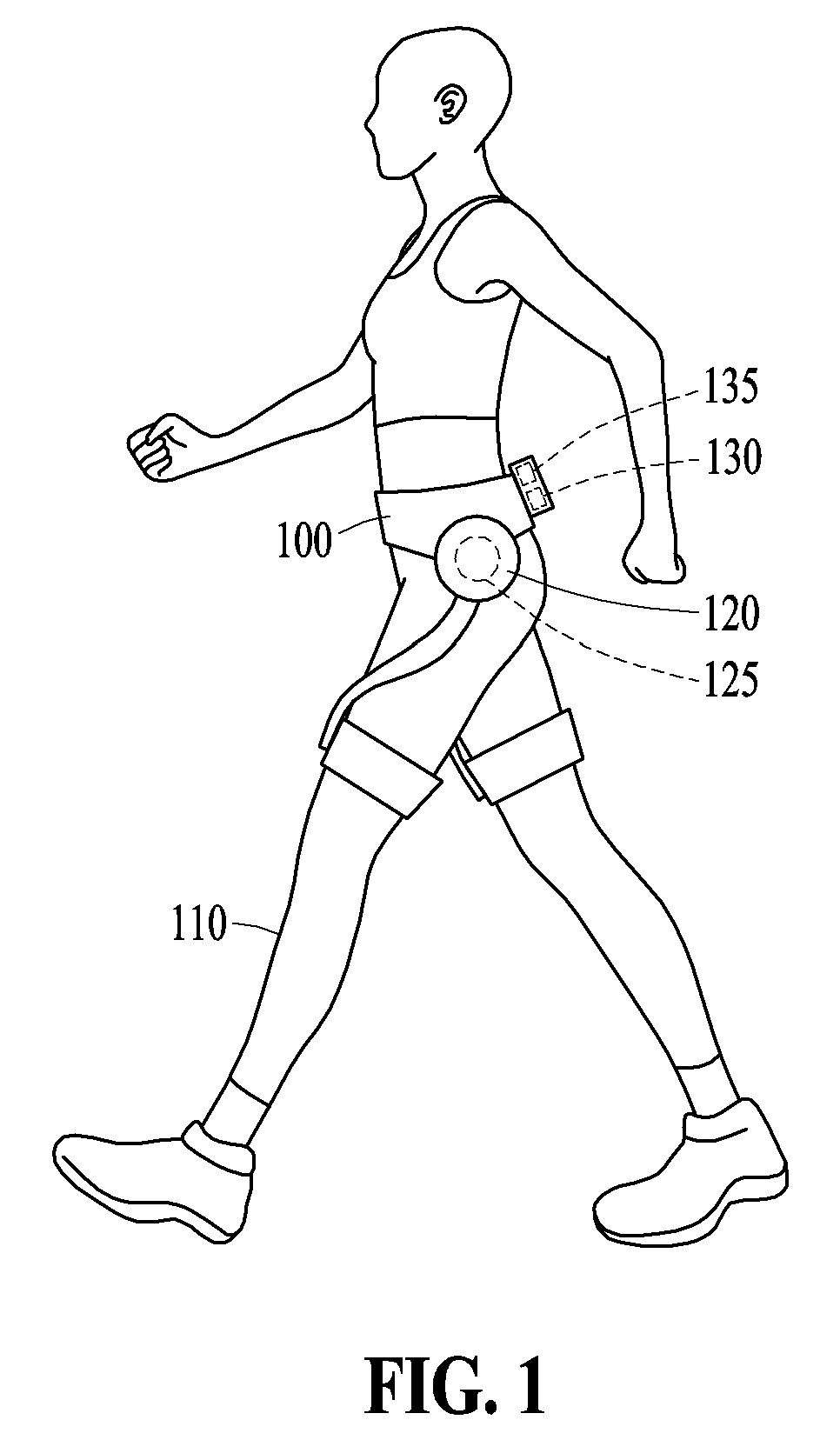

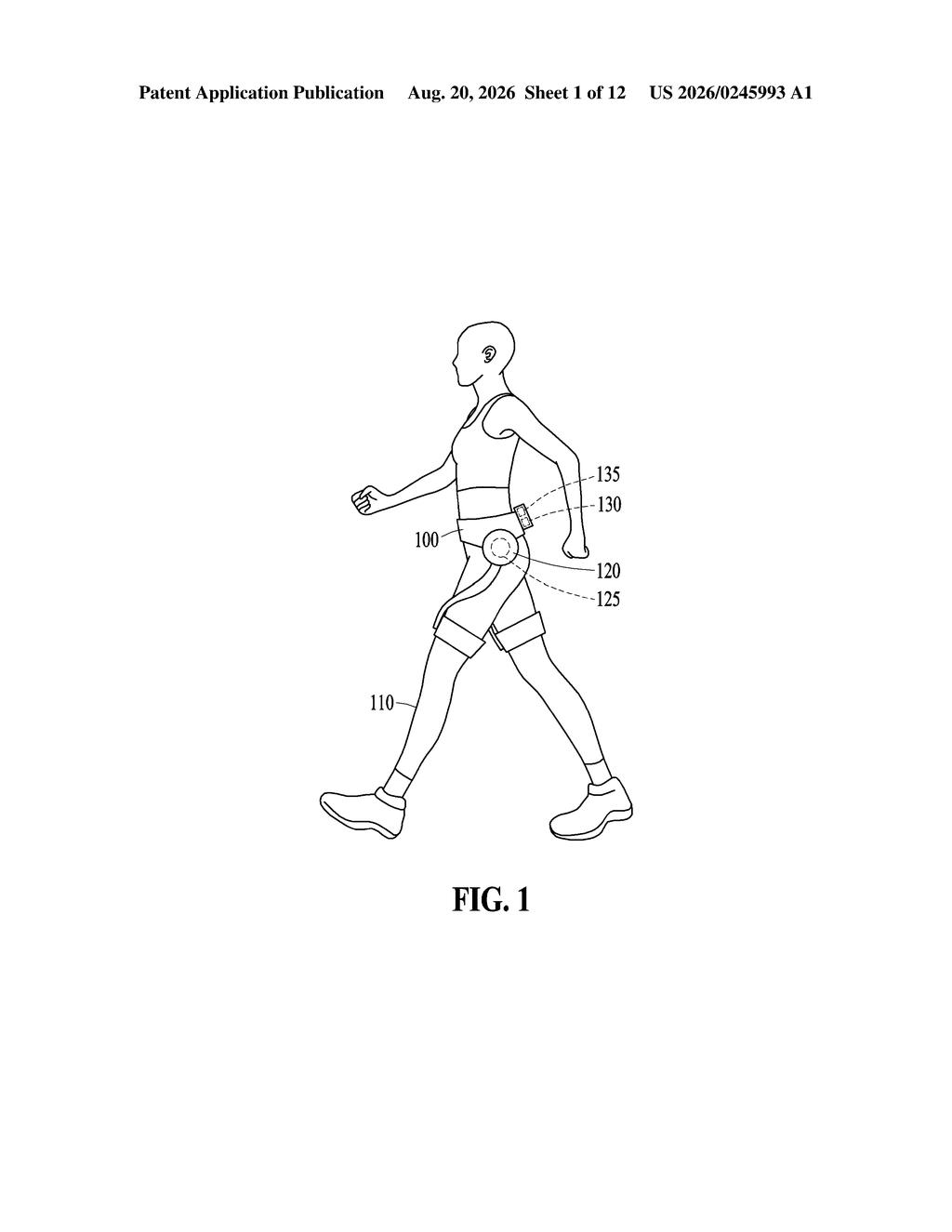

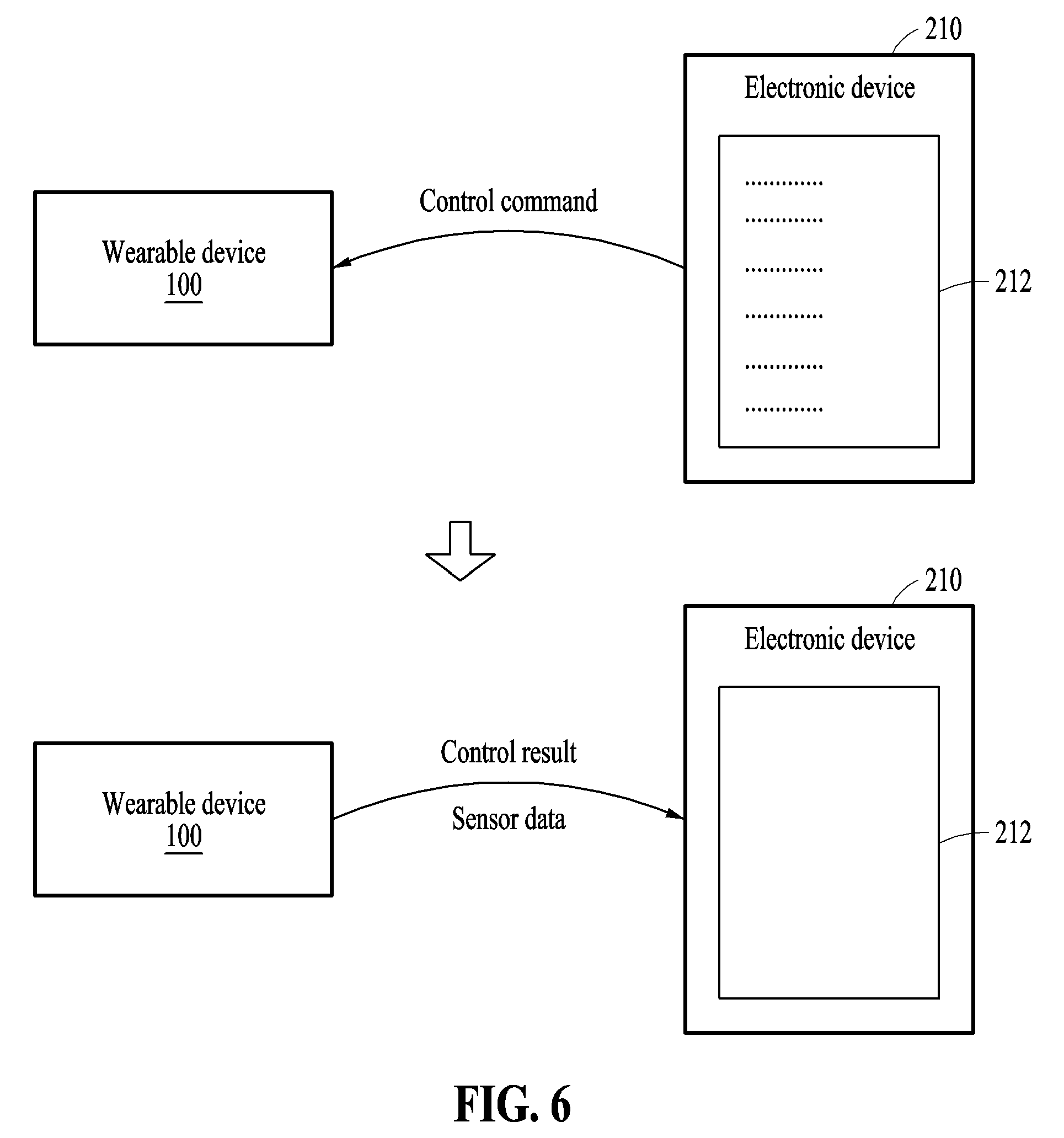

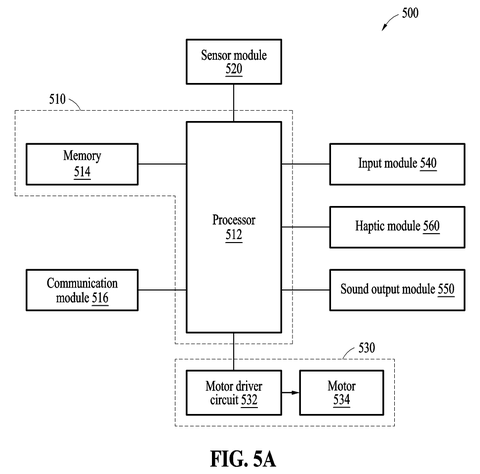

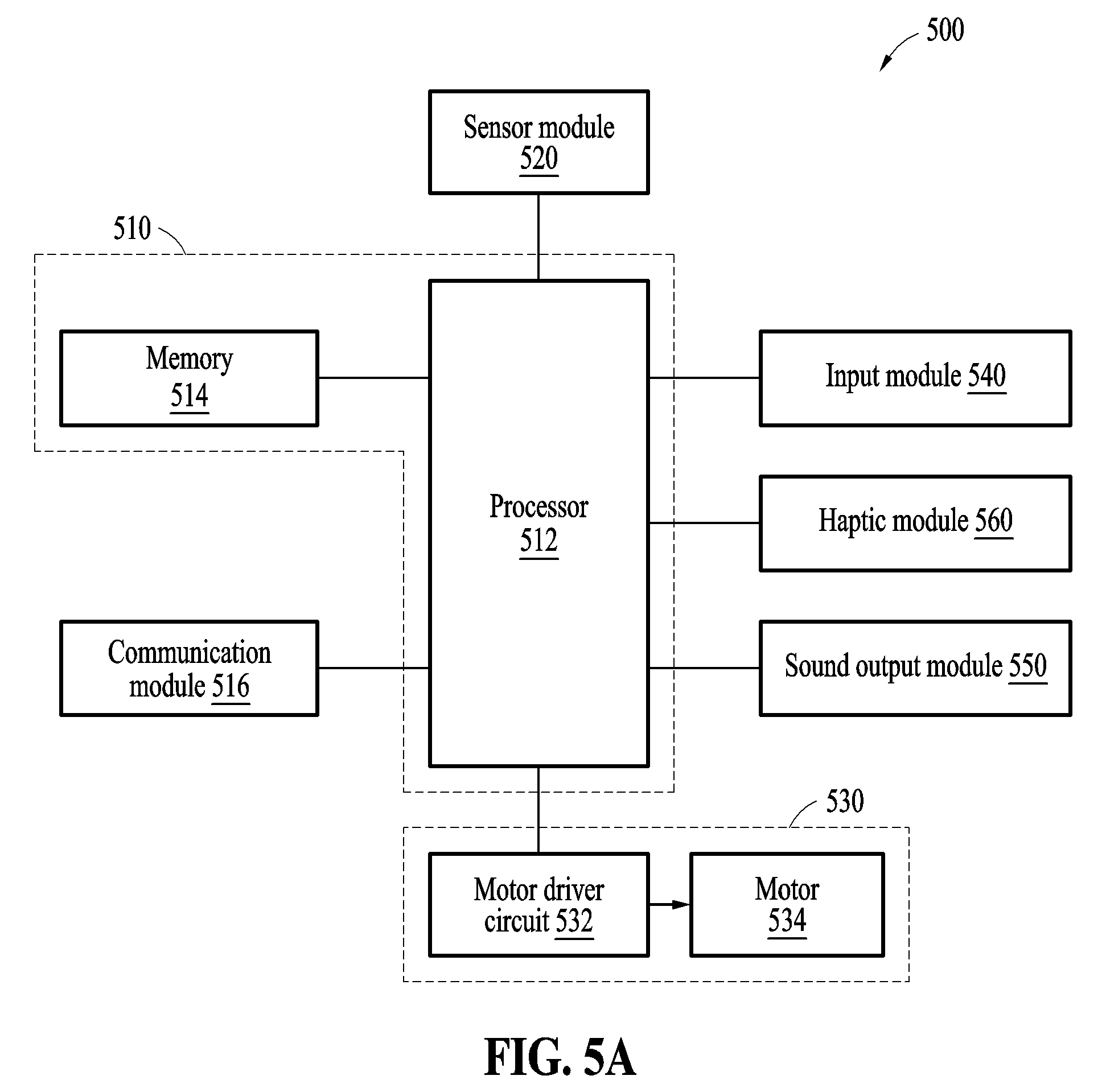

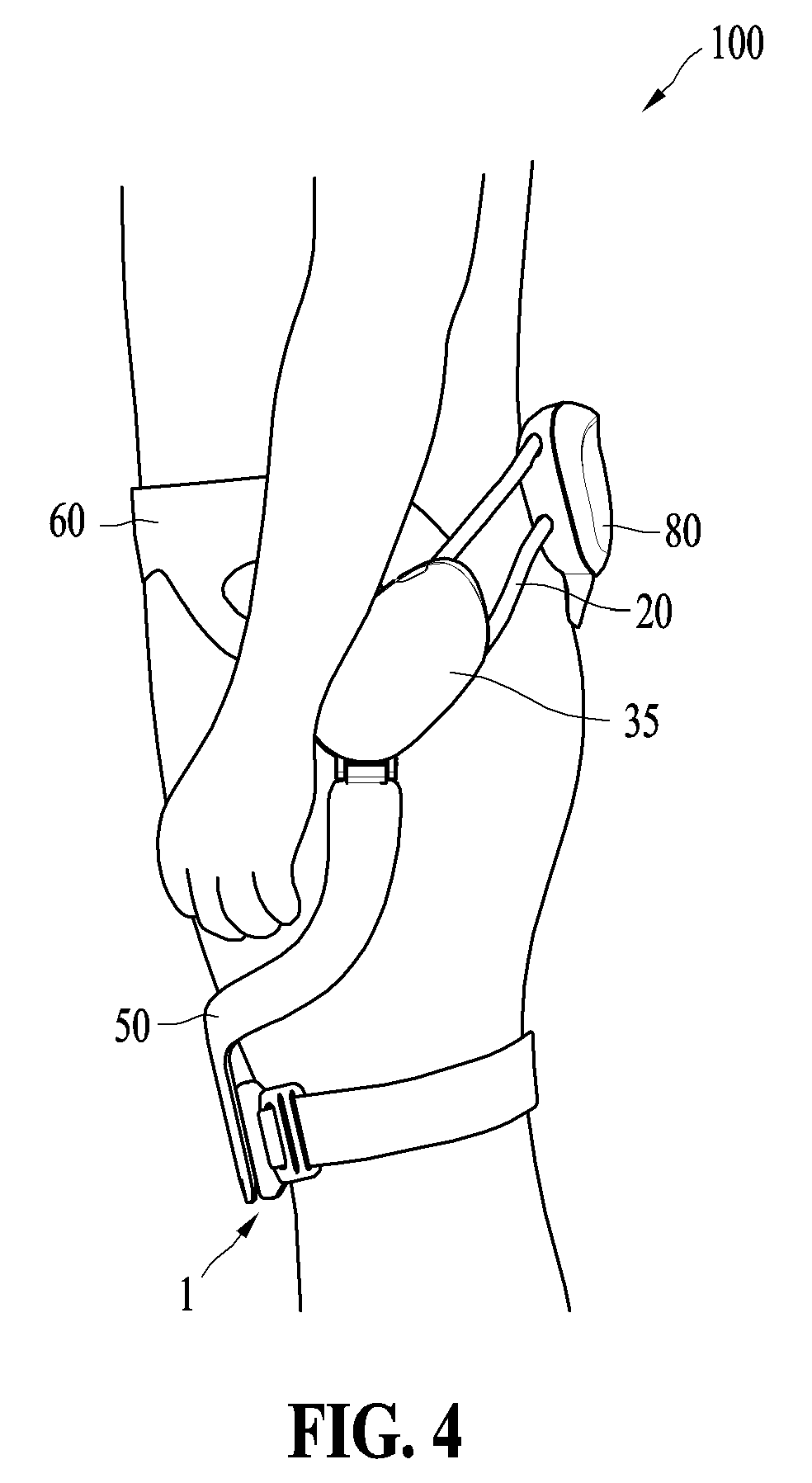

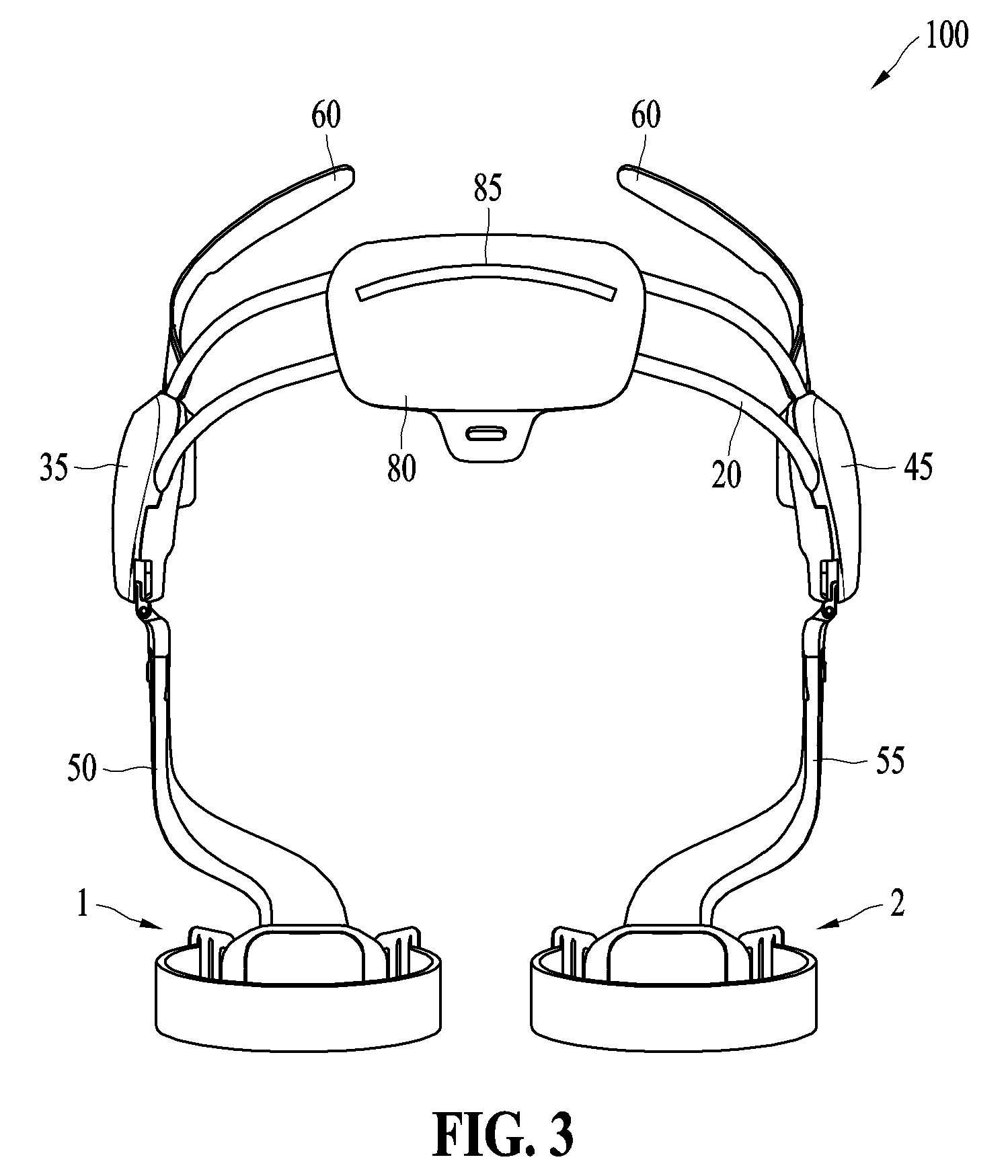

12 drawing sheets from US 2026/0245993 A1 · click any drawing to enlarge
