Samsung Patents a Two-Chip System That Fixes Screen Colors While Your Phone Sleeps

Every time you tap your Samsung phone awake, there's a small window where the screen might look wrong, colors off, brightness mismatched to the room. This patent describes a two-processor system designed to close that window before you even notice it.

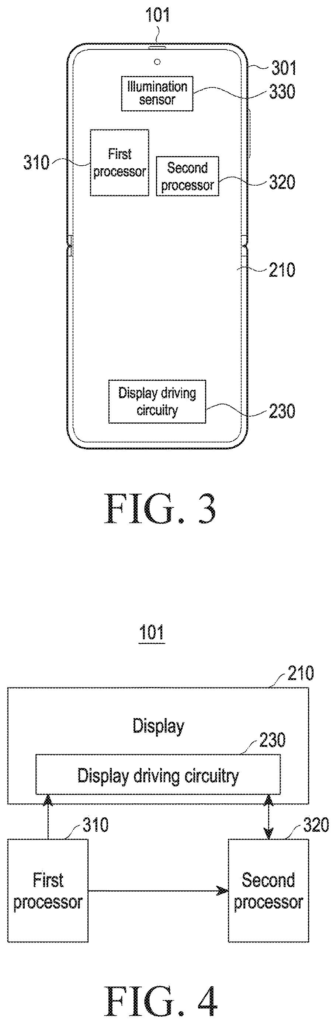

A smartphone's internal layout, showing the display, display driving circuitry, and two processors. Drawing from patent filing US 2026/0301627 A1.
A smartphone's internal layout, showing the display, display driving circuitry, and two processors.All 12 drawings ↓
Publication number
US 2026/0301627 A1(US20260301627A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Jun 2, 2026 · Oct 1, 2026
Inventors
Jongah KIM, Chanhyoung PARK, Heewoong YOON, Kihyuk LEE, Donghan LEE, Gwangho CHOI
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/207
Parent application
Continuation of PCT/KR2024/019711 (filed Dec 4, 2024)(PCTKR2024019711)

What Samsung's background color-fixing actually does

Every time you tap your phone awake, the display has to figure out what the lighting around you looks like and adjust its colors accordingly. That process takes a moment, and during that moment, what you see might not look quite right.

Samsung's new filing describes a way to split that adjustment work between two chips. One chip stays active even when your phone is mostly asleep measuring the color of whatever is on screen. By the time the main chip wakes up, much of the color-correction homework is already done.

The result, in theory, is a display that looks accurate from the first instant you see it, rather than catching up after the fact. It's the kind of thing you'd only notice if it went wrong, which is precisely the point.

From the filing · CLAIM 1
based on a sleep state of the first processor being released, set, on the display, a first region-of-interest set including a plurality of regions of interest, obtain first color information for the first region-of-interest set, and compensate an image displayed on the display based on the obtained first color information …

Translation: When the main chip wakes up, the device checks specific areas of the screen and adjusts the colors.

How two processors divide the color-sampling workload

The patent describes an electronic device with two processors handling display management in shifts, depending on whether the device is awake or asleep.

When the main processor wakes from sleep, it defines a "region-of-interest set" (a collection of specific zones on the display it wants to sample) and reads color data from those zones. That color data is used to adjust, or compensate, the image so it looks correct for current lighting and content conditions.

Here is where the two-processor split becomes important:

  • If the displayed image is paused or static when the main chip wakes up, the device defines a second set of sampling zones before going back to sleep.
  • While the main chip sleeps, a secondary, lower-power processor measures color data from those zones independently.
  • When the main chip wakes again, it combines what it measured at wake-up with what the secondary chip collected during sleep, and uses both data sets to correct the display.

The illumination sensor feeds ambient light data into this pipeline as well, so the system accounts for both what the screen is showing and how bright or warm the room is. The underlying goal is to reduce the gap between "screen off" and "screen looking correct."

From the filing · THE ABSTRACT
… based on entering the sleep state, obtaining second color information about the second region of interest set on the basis of entering the sleep state, and compensating the image on the basis of the first color information and the second color information.

Translation: As the chip goes to sleep, it grabs more color data to fine tune the picture using information from both states.

What this means for Galaxy display quality day to day

For most people, display color accuracy is invisible when it works and deeply annoying when it doesn't. A screen that looks green-tinted, too cool, or washed-out for a second every time you pick up your phone is a small but consistent irritant. This patent targets exactly that moment.

The two-chip approach also has a practical power angle: keeping the main processor asleep as long as possible while a smaller chip handles housekeeping is a standard strategy for extending battery life. If Samsung can make this work in shipping hardware, you'd get faster-looking color accuracy without the main chip burning extra energy to achieve it. That is a real trade-off worth solving, even if the effect would be subtle.

Samsung's 109th filing we've tracked in our Samsung display technology watchlist since May builds on work like the color bleed fix and per-pixel dimming by heat.

Source: US 2026/0301627 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 12 sheets

12 drawing sheets from US 2026/0301627 A1 · click any drawing to enlarge

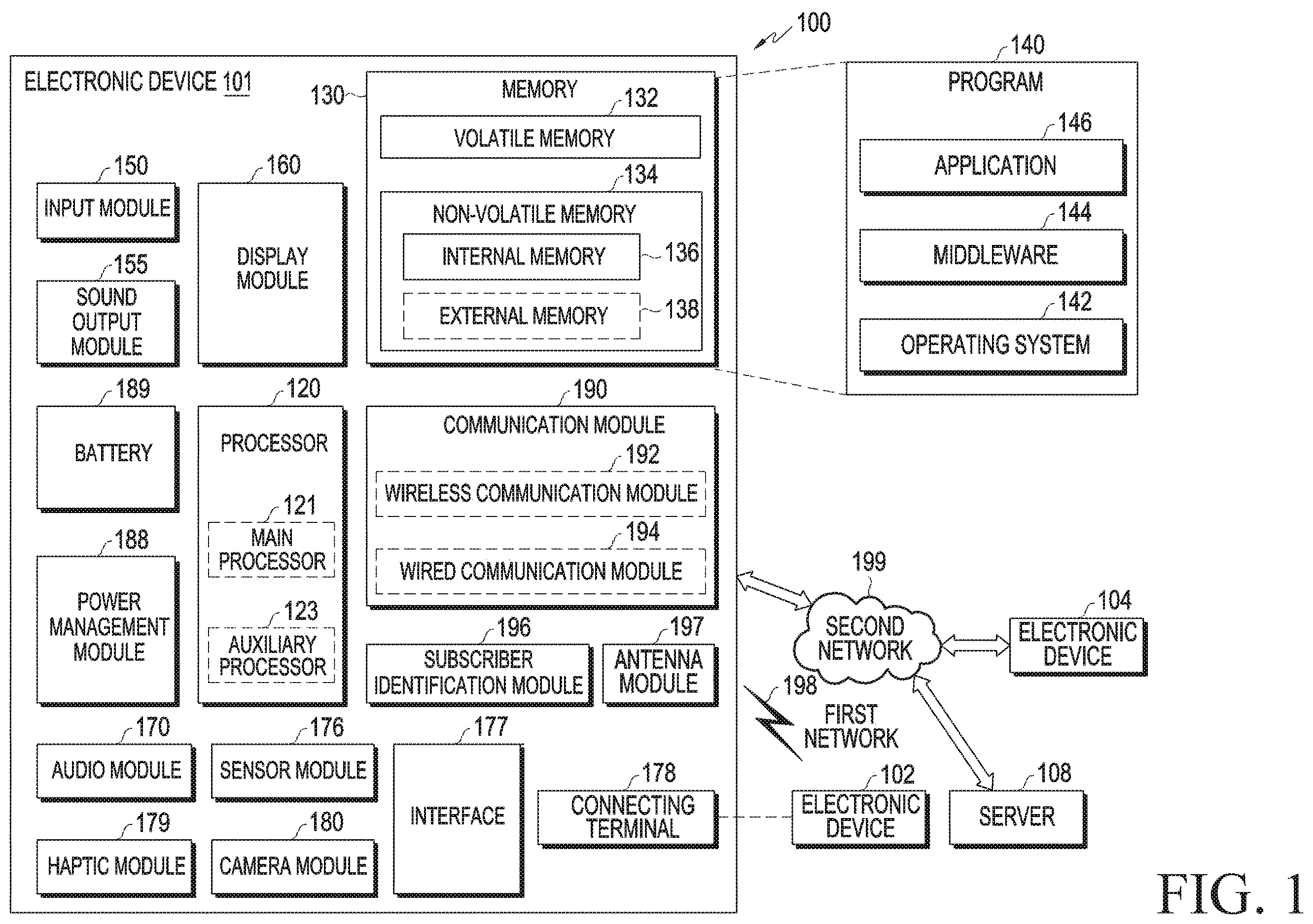

Electronic device system overview., drawing sheet 1 from US 2026/0301627 A1
Sheet 1 Electronic device system overview.

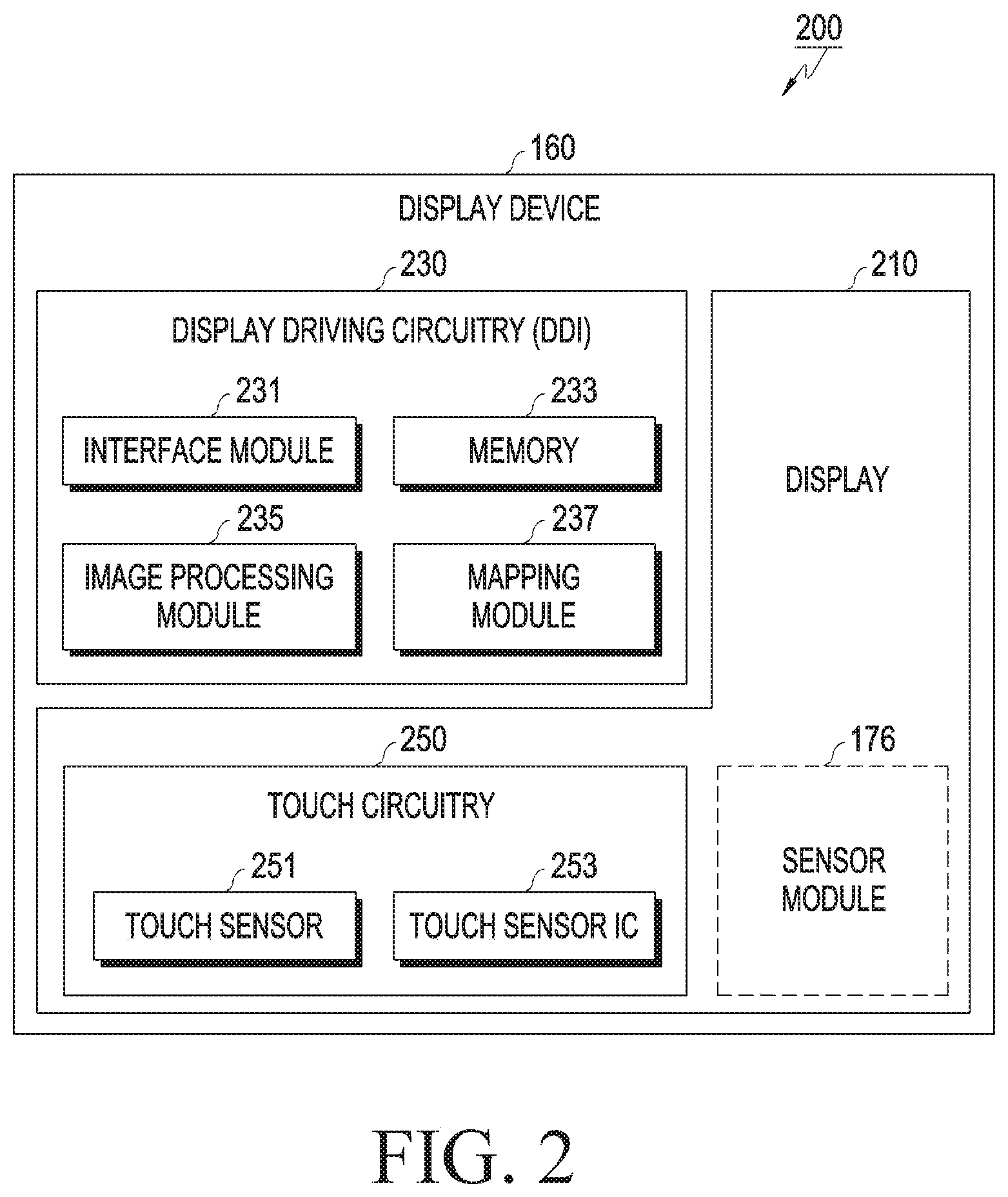

Display device and touch circuitry., drawing sheet 2 from US 2026/0301627 A1
Sheet 2 Display device and touch circuitry.

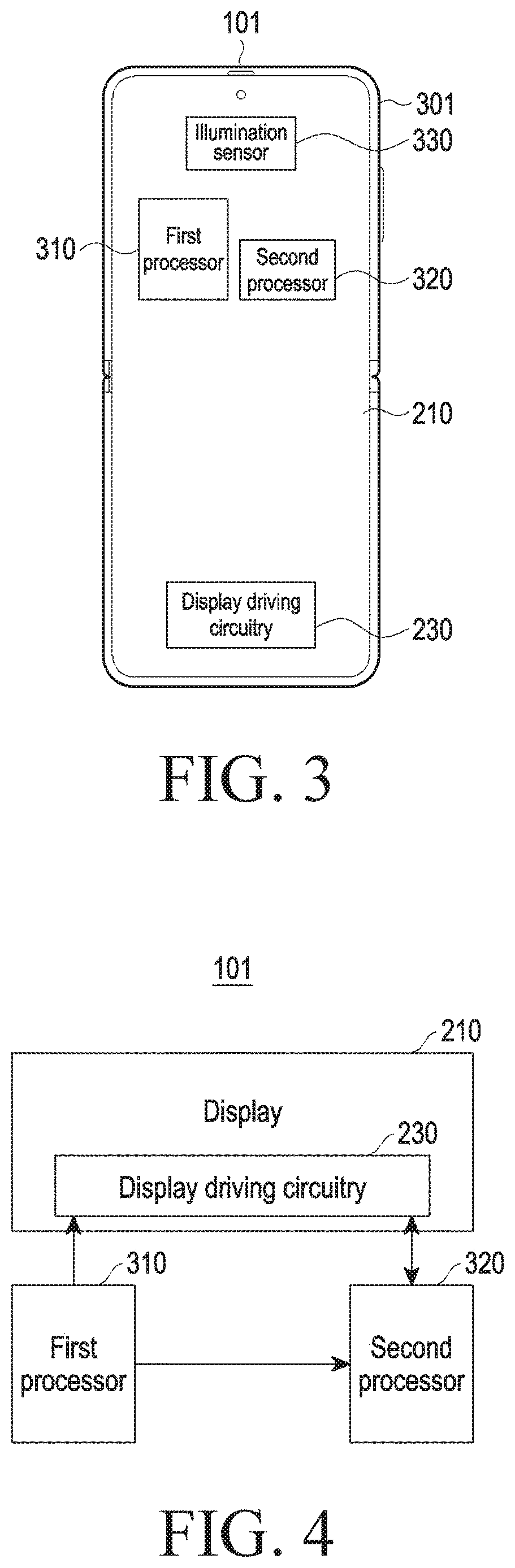

Smartphone internal component layout., drawing sheet 3 from US 2026/0301627 A1
Sheet 3 Smartphone internal component layout.
Display and processor connections., drawing sheet 4 from US 2026/0301627 A1
Sheet 4 Display and processor connections.

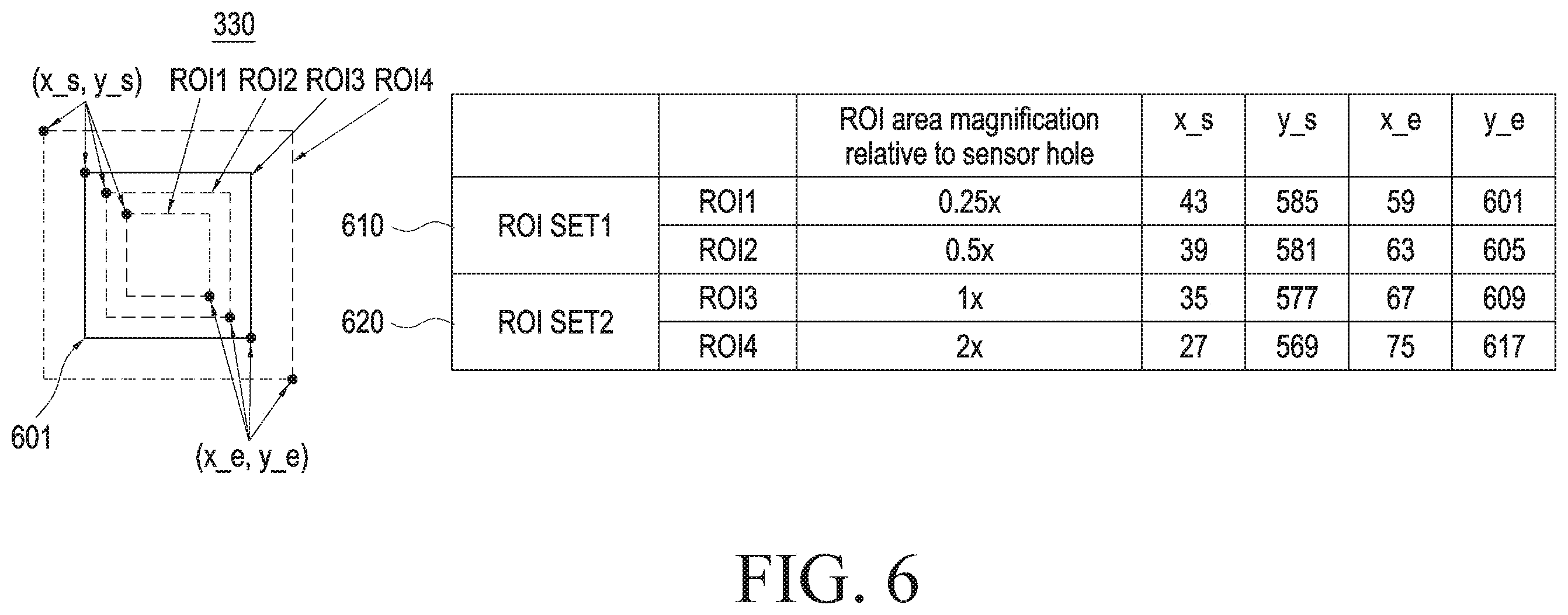

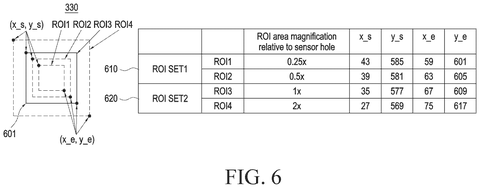

Region of interest settings., drawing sheet 5 from US 2026/0301627 A1
Sheet 5 Region of interest settings.
Image compensation timing diagram., drawing sheet 6 from US 2026/0301627 A1
Sheet 6 Image compensation timing diagram.

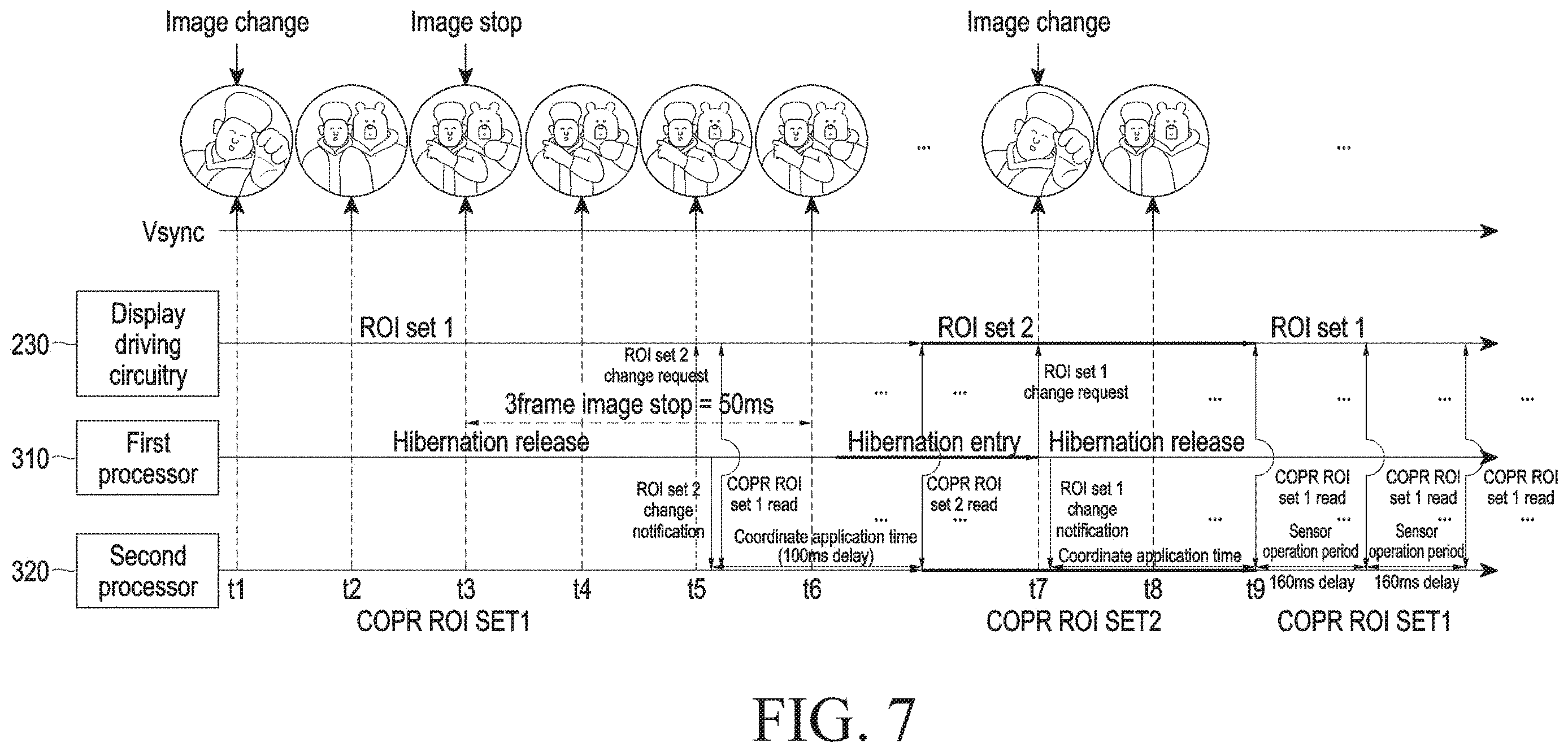

Image compensation timing, second scenario., drawing sheet 7 from US 2026/0301627 A1
Sheet 7 Image compensation timing, second scenario.

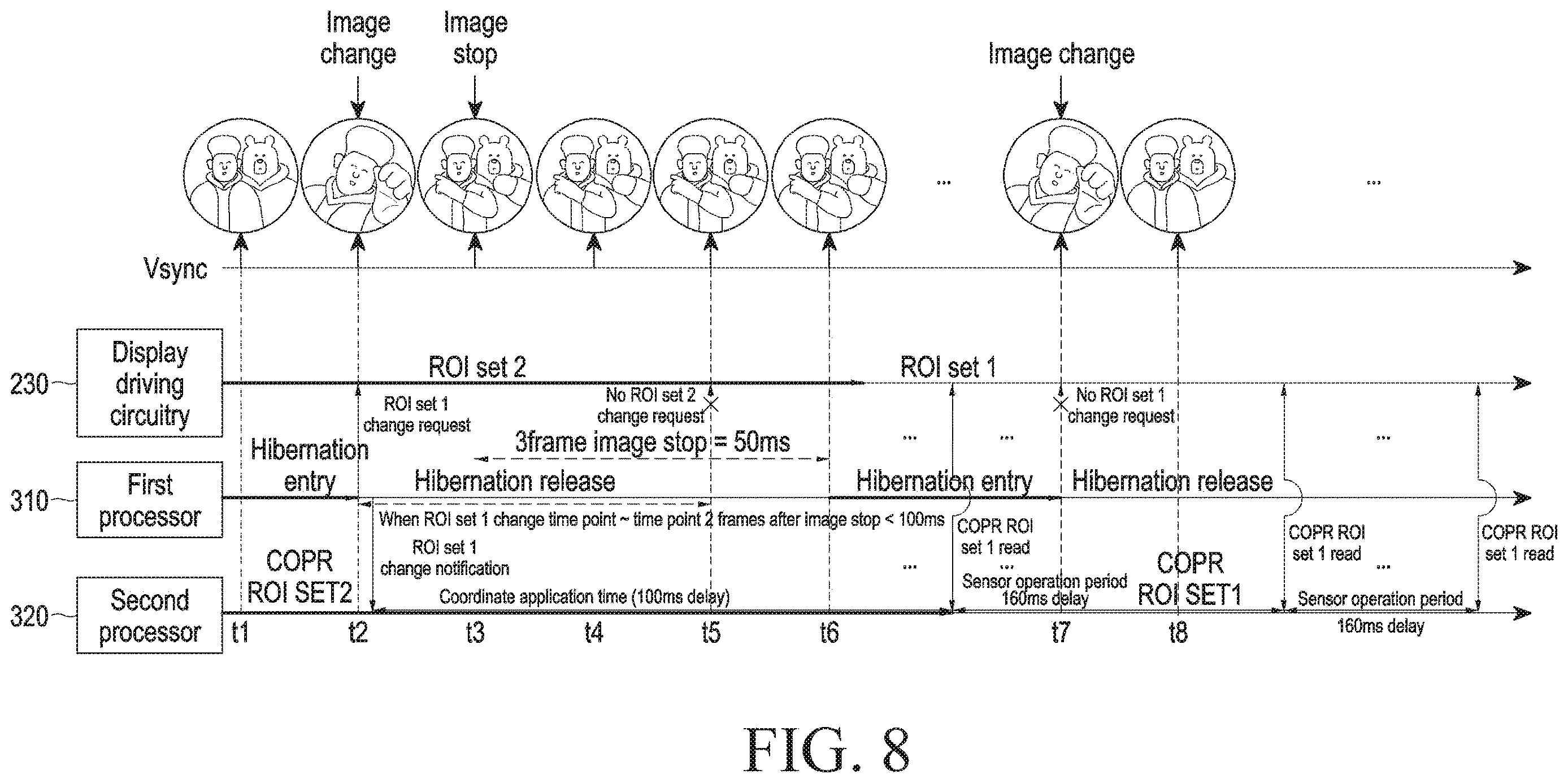

Image compensation timing, third scenario., drawing sheet 8 from US 2026/0301627 A1
Sheet 8 Image compensation timing, third scenario.
Show the other 4 sheets

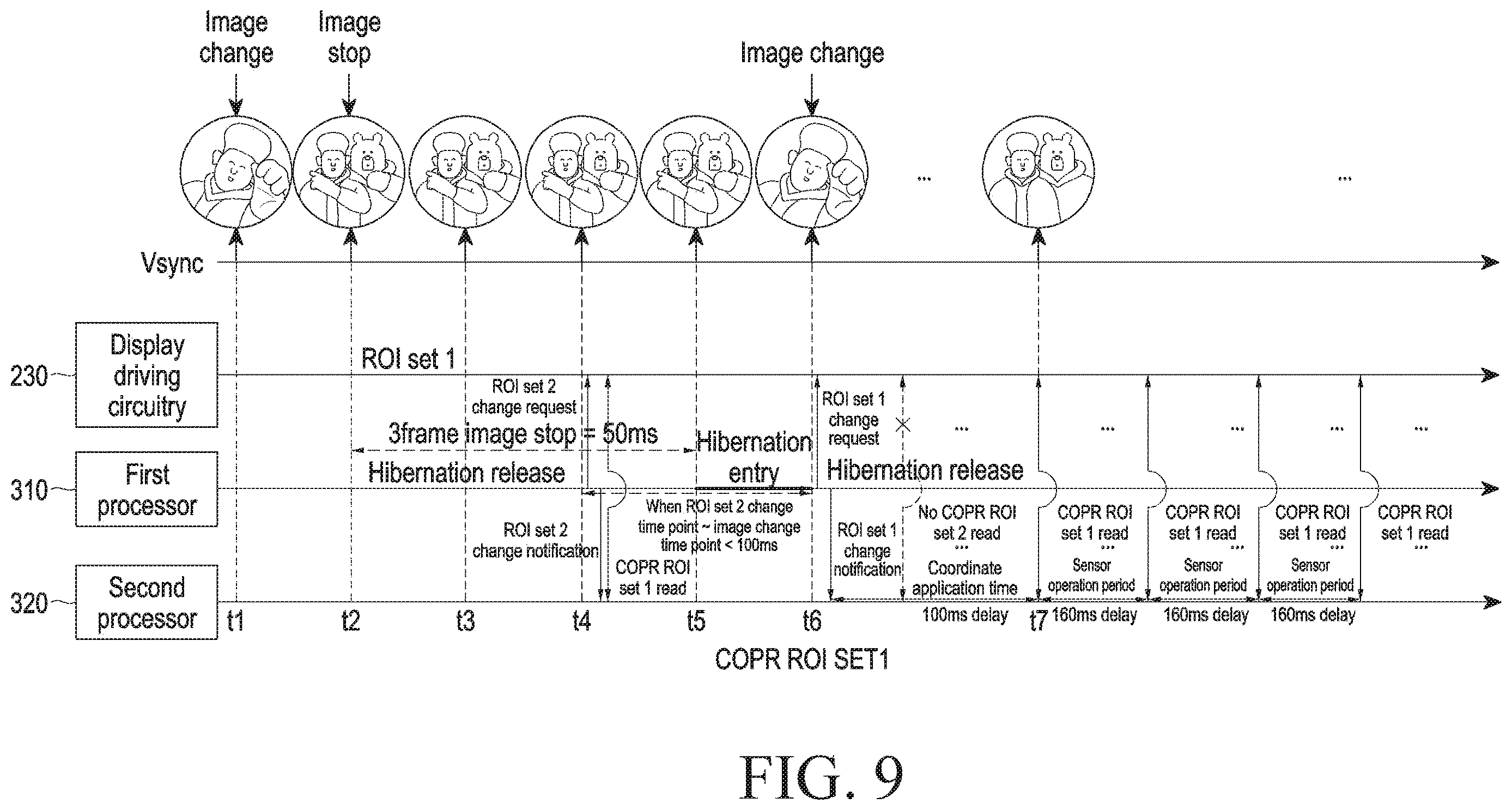

Samsung Patents a Two-Chip System That Fixes Screen Colors While Your Phone Sleeps patent drawing, sheet 9
Sheet 9
Samsung Patents a Two-Chip System That Fixes Screen Colors While Your Phone Sleeps patent drawing, sheet 10
Sheet 10
Samsung Patents a Two-Chip System That Fixes Screen Colors While Your Phone Sleeps patent drawing, sheet 11
Sheet 11
Samsung Patents a Two-Chip System That Fixes Screen Colors While Your Phone Sleeps patent drawing, sheet 12
Sheet 12
