Samsung Patents a Layered Cover Plate That Controls Where a Laser Lands Inside a Device
Getting a laser to weld components inside a phone without scorching everything around it requires precise control over where that laser energy ends up. Samsung's new patent describes a cover plate built from three distinct layers, each doing a different job to guide, absorb, and pass the laser exactly where it's needed.
What Samsung's laser-guiding cover plate actually does
A factory robot fires a laser beam to bond parts inside a phone. If that beam lands wrong, it burns through layers it wasn't supposed to touch. The trick is making sure the laser does its job in exactly the right spot.
Samsung's patent describes a cover plate made of three stacked layers. One layer bends the laser beam to aim it, a middle layer rich in silicon soaks up the laser energy to generate heat at the right depth, and a top layer lets the laser through without reflecting it back. Tiny etched patterns on the layers help focus that energy even further.
The idea is that the stack works together so your device's internal components can be bonded by laser without the heat spreading to areas it would damage. That means tighter, cleaner assembly without needing more physical space inside the phone to act as a buffer.
… a third layer, disposed on the second layer, having a reflexibility equal to or less than a threshold value for a laser with a specified wavelength range, and configured to transmit the laser; …
Translation: The top layer lets the specific laser pass through without bouncing it away.
How the three-layer stack steers and absorbs the laser

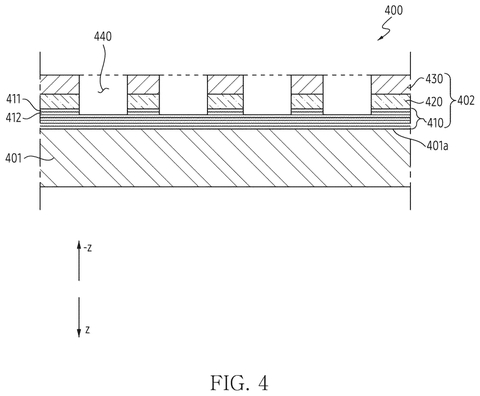

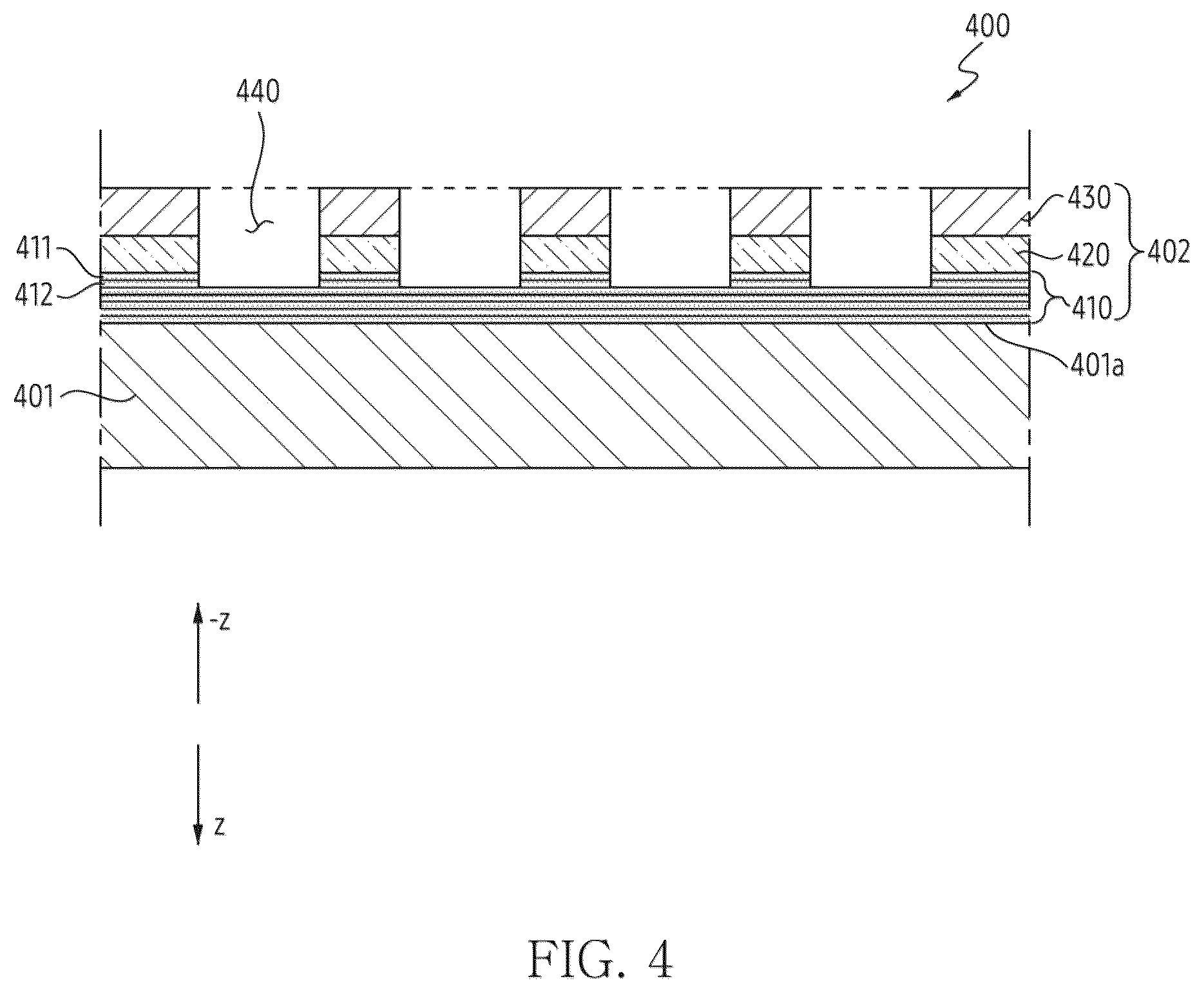

The patent describes a cover plate made of four elements: a base plate, then three layers stacked on top, plus a set of etched patterns distributed across those layers.
- First layer (refractive): Contains at least one sub-layer that bends incoming laser light, redirecting it toward a specific depth in the stack, much like a lens focuses sunlight to a point.
- Second layer (silicon-based): This is the workhorse. Silicon absorbs the laser's energy more readily than the base plate does, so heat builds up here rather than penetrating deeper and potentially damaging the components below.
- Third layer (low-reflectivity): Sits on top and is engineered to reflect very little of the incoming laser back out. Instead, it lets the laser pass through cleanly, so energy isn't wasted or scattered.

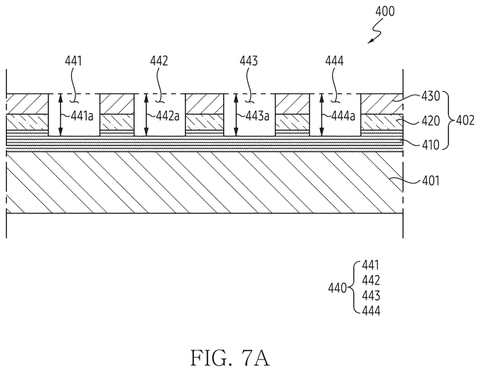

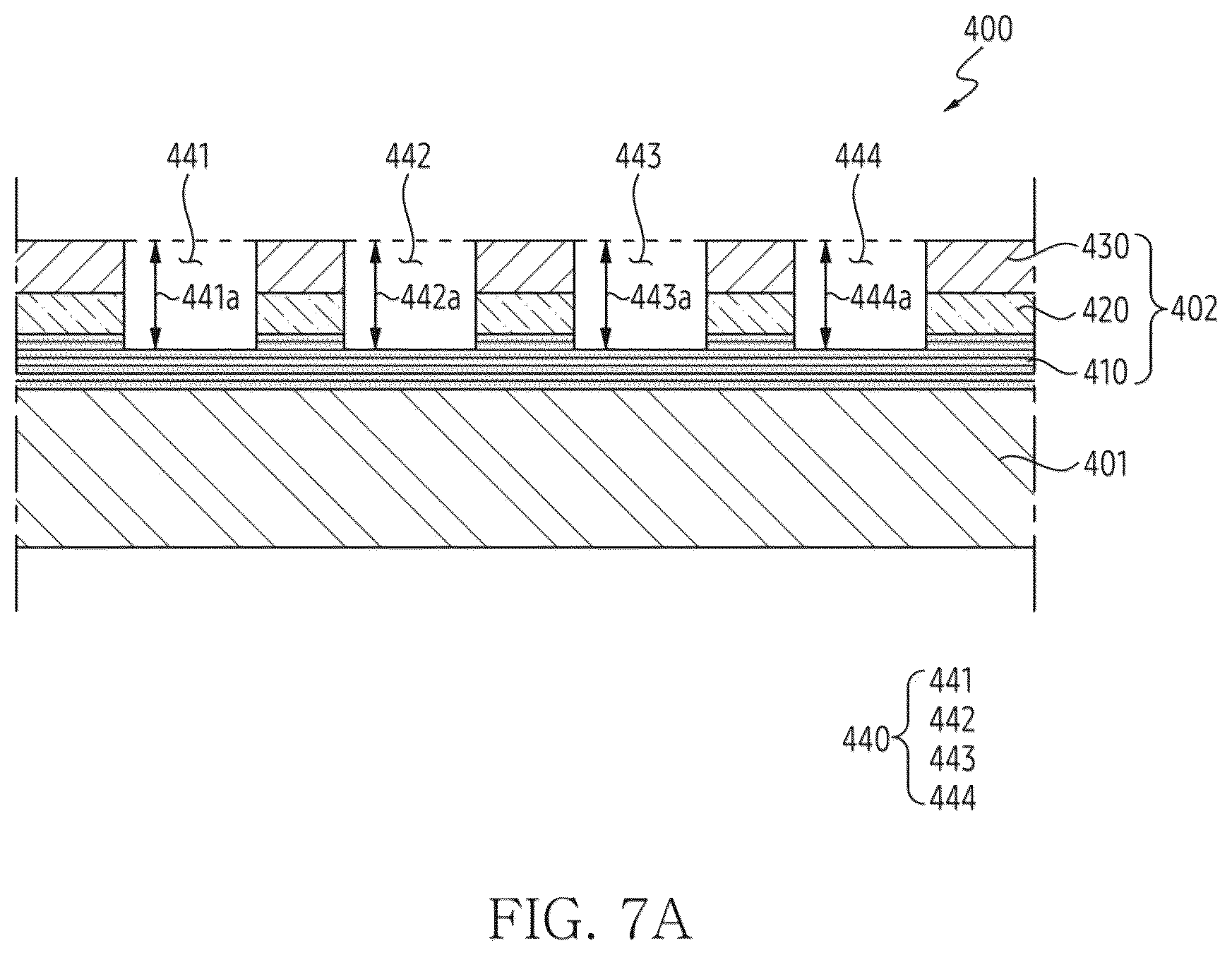

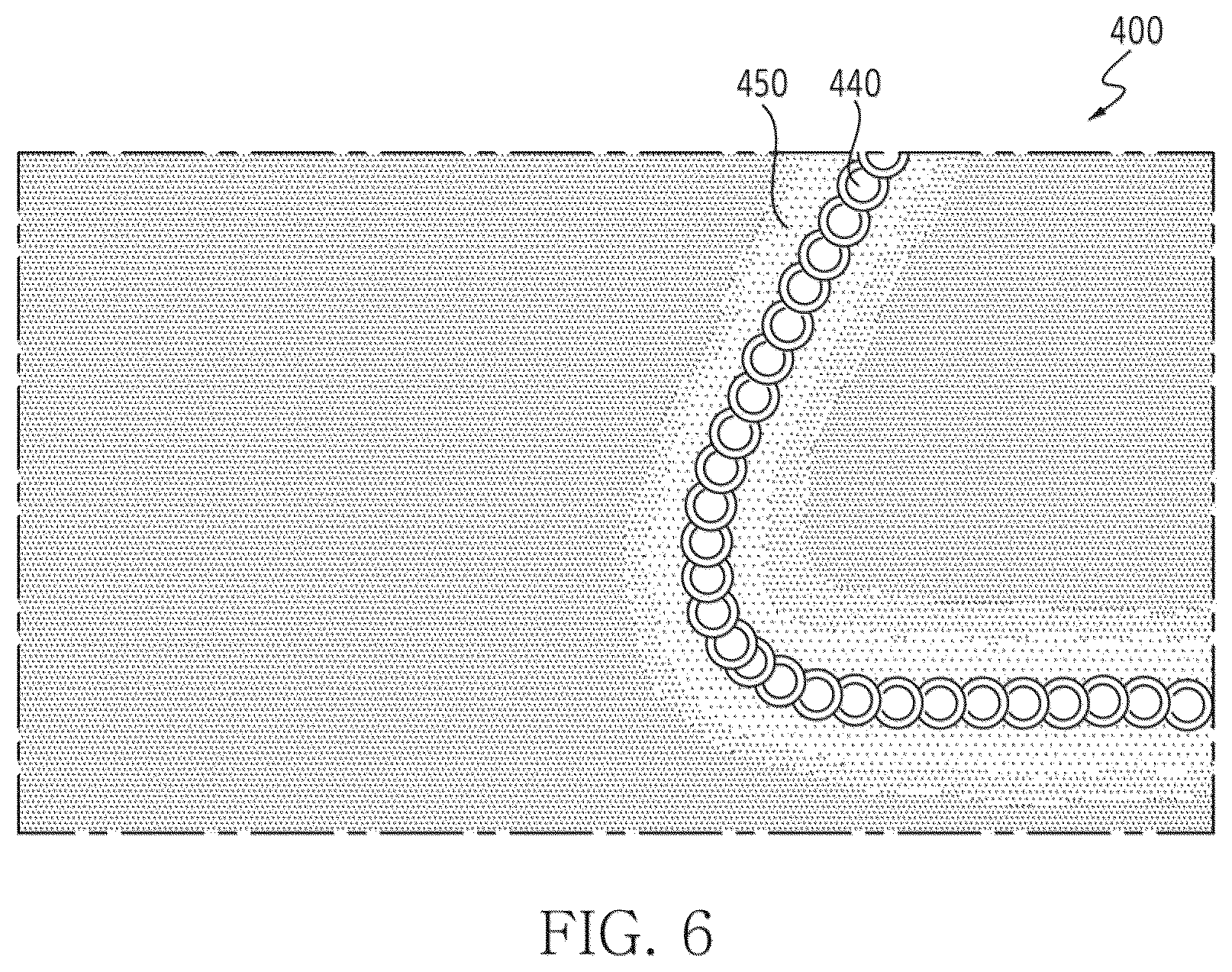

The plurality of patterns etched into one or more of these layers act like micro-scale focusing tools, concentrating the laser energy at precise locations rather than letting it spread across a broad area.
The net effect is a plate that channels laser energy to exactly the depth and position needed for welding, while the base plate, which absorbs laser energy poorly by design, stays relatively cool and intact.

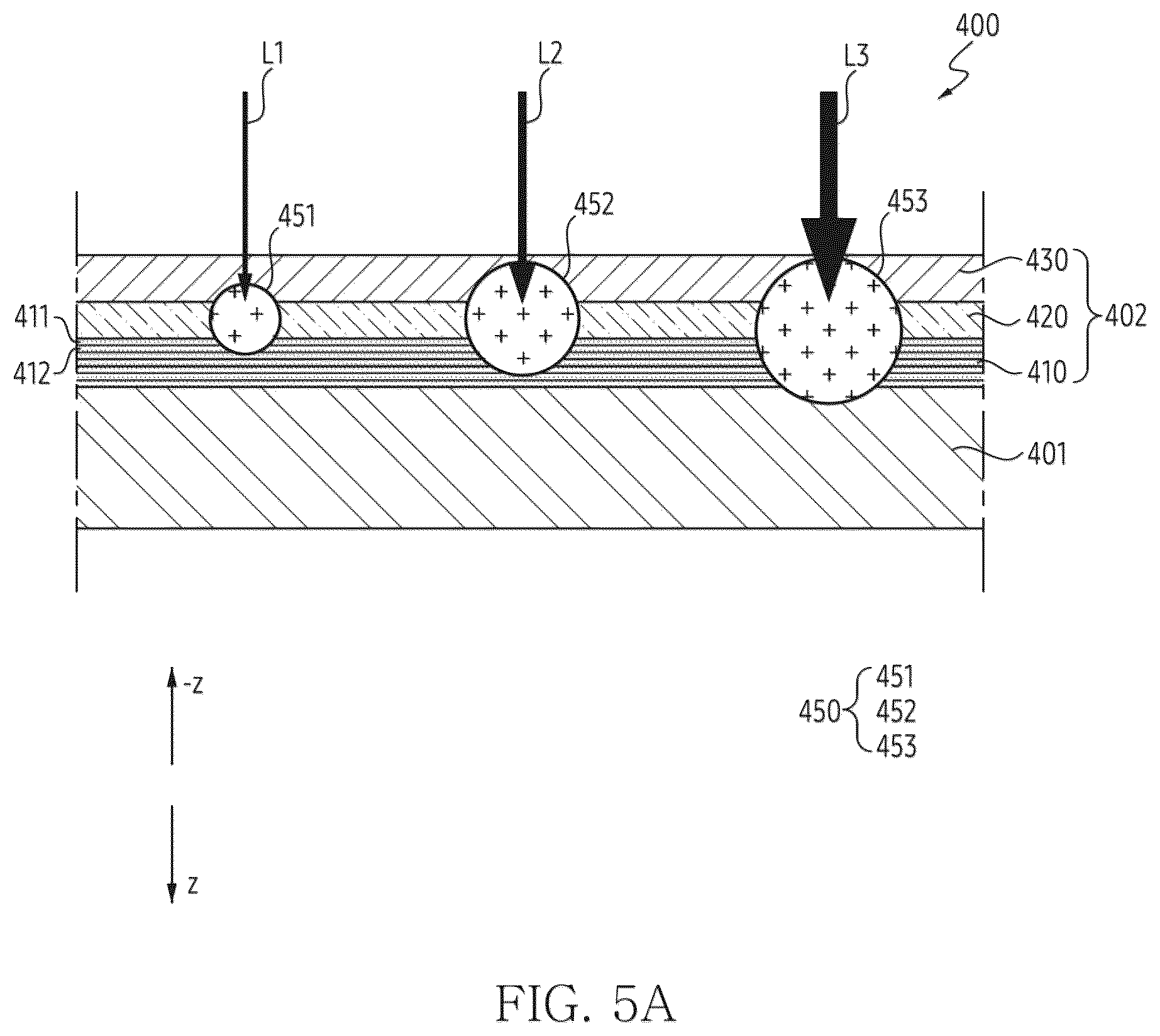

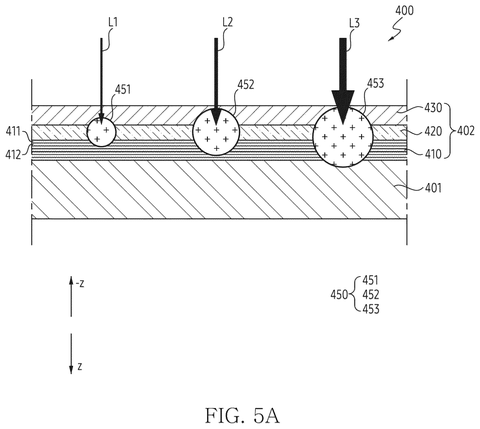

… a first absorption rate of the second layer for the laser is higher than a second absorption rate of the base plate for the laser.
Translation: The middle layer absorbs much more laser energy than the solid foundation underneath.
What this means for thinner, tighter phone assembly
Laser welding inside compact electronics is already common, but controlling it precisely inside the shrinking cavities of modern phones and foldables is a real manufacturing challenge. A cover plate that manages laser energy through its own material stack, rather than relying purely on external optics, could simplify assembly and reduce defect rates.
For consumers, the downstream benefit is devices that are more durably assembled without being any thicker. For Samsung's manufacturing operation, a more reliable internal welding process means fewer failed units and potentially tighter tolerances on things like waterproofing seals and internal component placement.
This is the 216th Samsung filing we've tracked in cell phone coverage since May, a company also exploring a pressable smart ring and a display that charges devices.
Samsung's cover plate design stacks three specialized layers on top of each other, and every additional layer is another step where something can go wrong. That middle layer absorbs laser energy to keep bonding precise, but it also has to be perfectly even across the entire surface, because any thin or thick spot will create a hidden weak point that looks fine from the outside.
The outer layer is there to stop reflected laser energy from muddying the process, which is a real problem worth solving, but solving it requires a third round of precision coating with its own strict tolerances. Three layers of that kind of control is a serious ask at factory scale.
The cleaner result is real, but the cost is a manufacturing process with three separate places to fail instead of one. Whether that trade holds up depends entirely on how consistently these layers can be applied at volume, and a patent cannot answer that question.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

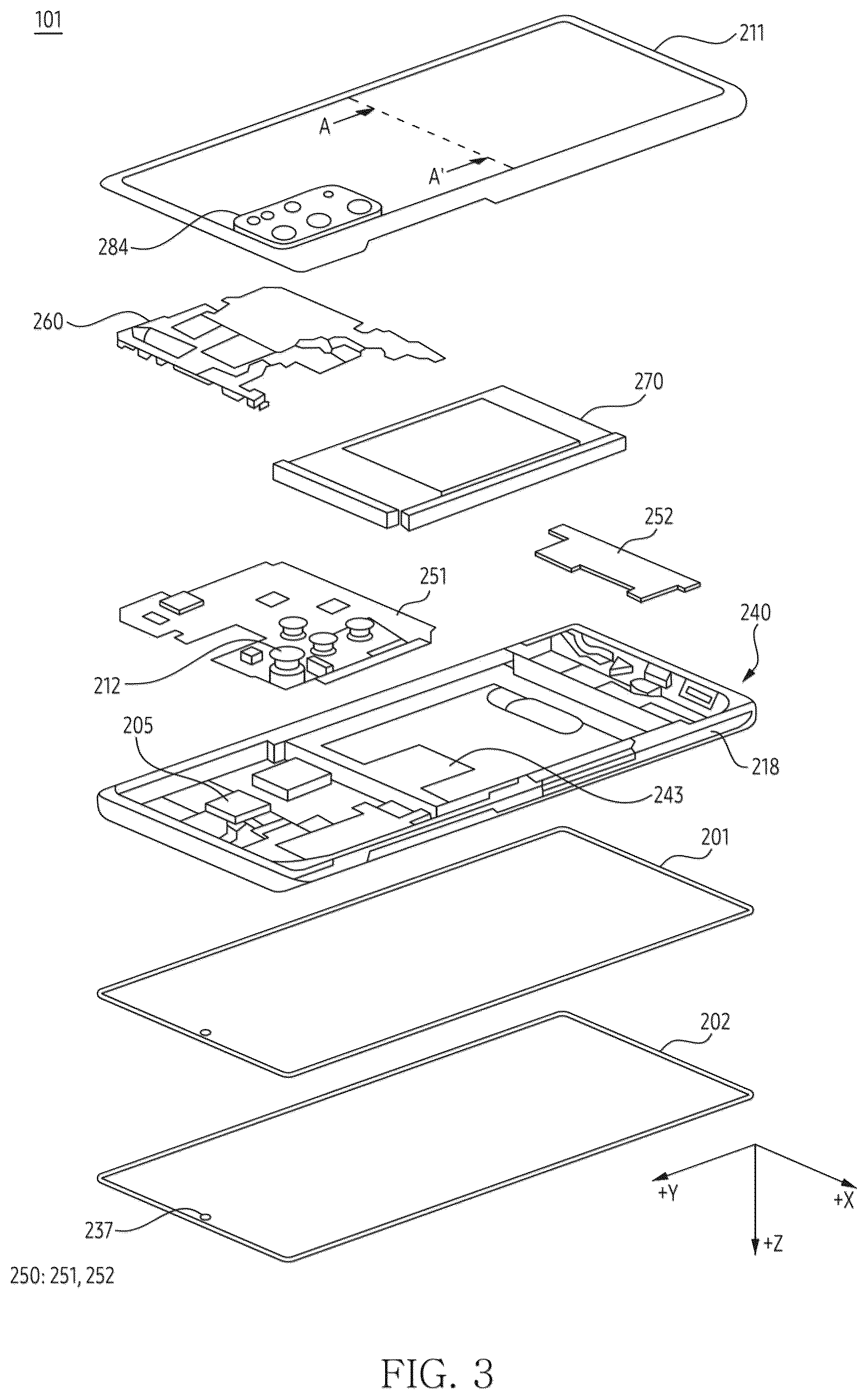

The drawings

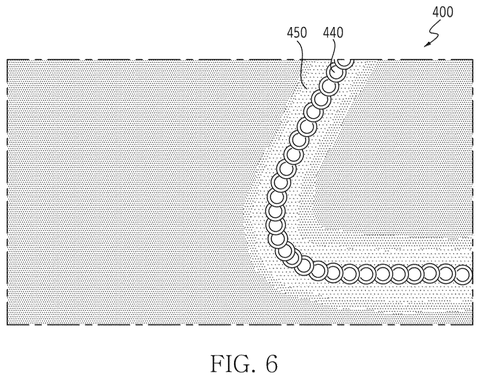

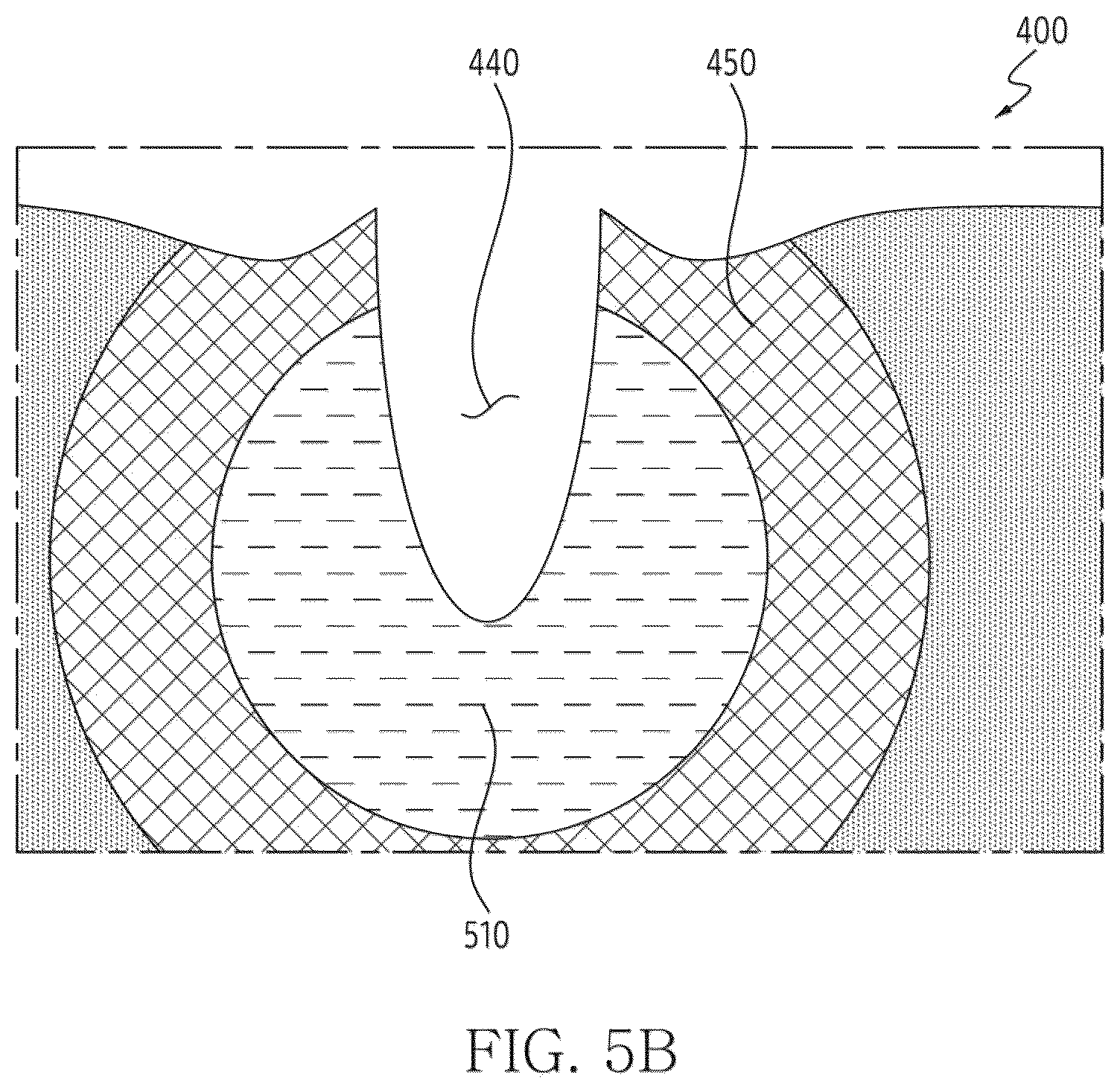

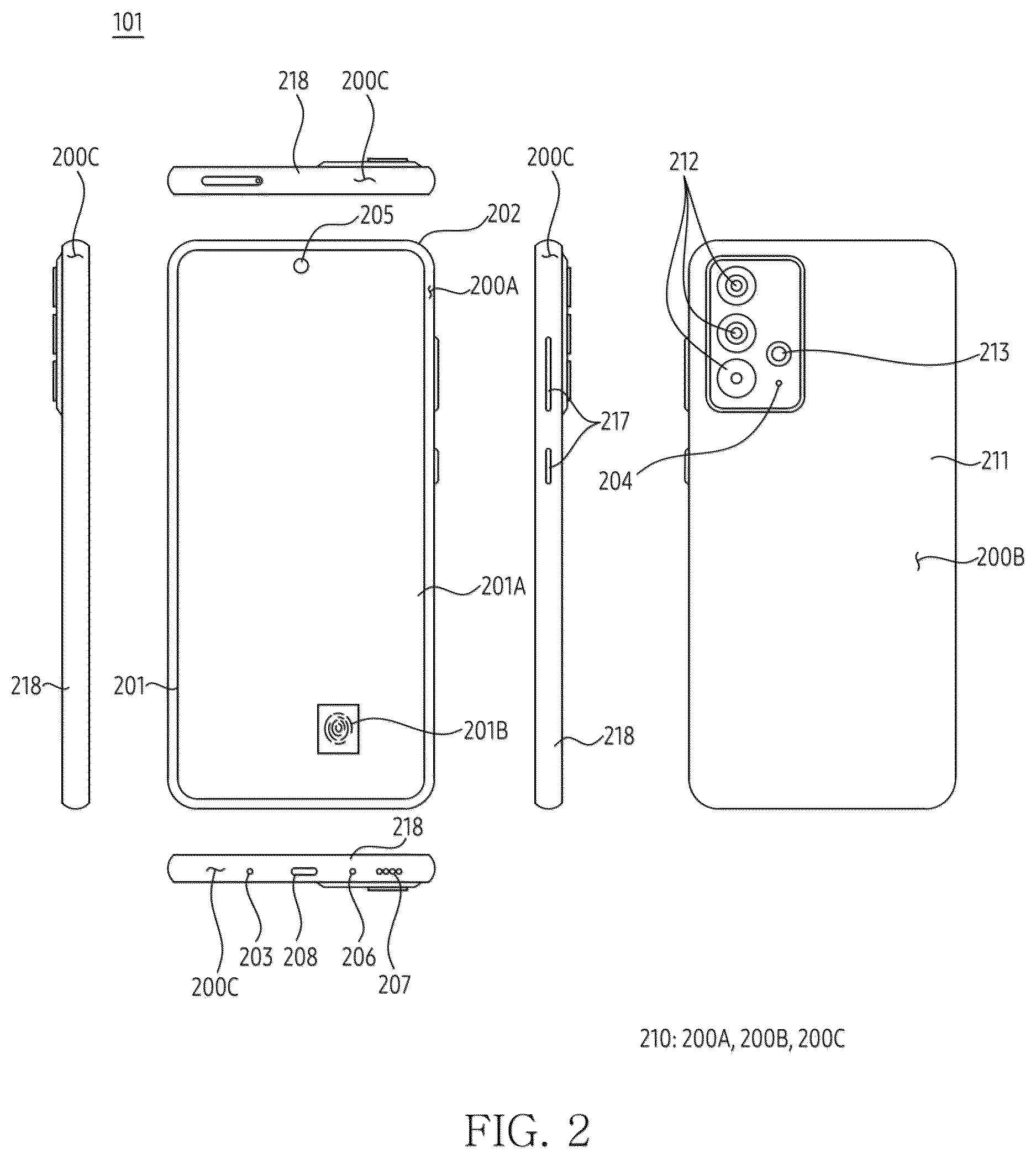

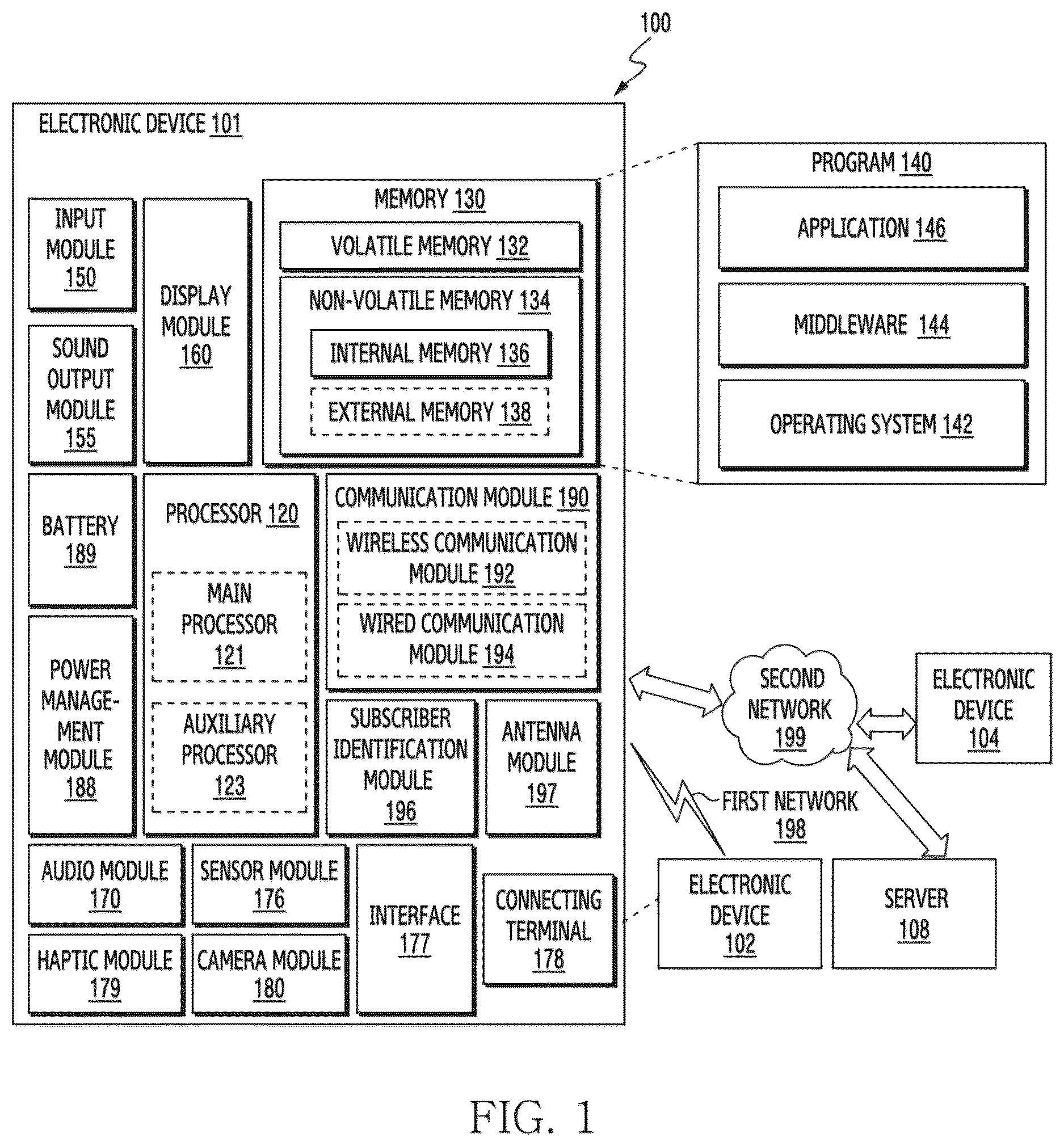

15 drawing sheets from US 2026/0271206 A1 · click any drawing to enlarge
