Samsung Patents a Smart Ring You Can Press Like a Button
Samsung has filed a patent for a smart ring with a hidden mechanical switch inside it, so pressing down on part of the ring triggers actions on your phone or device, the same way you'd click a button.
What Samsung's pressable smart ring actually does
A person glances at their phone screen across the room, hands full, and needs to skip a song or answer a call without unlocking anything. Right now, smart rings mostly sense your body: heart rate, sleep, movement. They don't usually work as something you can press.
Samsung's patent describes a ring built in two parts. The top section slides into the bottom ring-shaped section. When you push down on the top part, a small switch inside the ring clicks on or off. The pattern of those clicks, one press, two presses, a long hold, tells the ring's processor what you want to do.
This turns the ring into something more like a wearable button. You could use different press patterns to trigger different actions, all without pulling out your phone or lifting your wrist to a smartwatch. It's a small physical idea, but one that fills a real gap in how Samsung Galaxy Ring and devices like it can take input from the wearer.
… ring-shaped second housing having an accommodation part provided at an upper end thereof, the accommodation part configured to detachably accommodate the fastening part of the first housing to allow the first housing to move in response to a downward pressing input applied to the first housing …
Translation: The ring has a top section that holds the button part so it can slide down when pushed.
How the two-part housing and switch detect a press

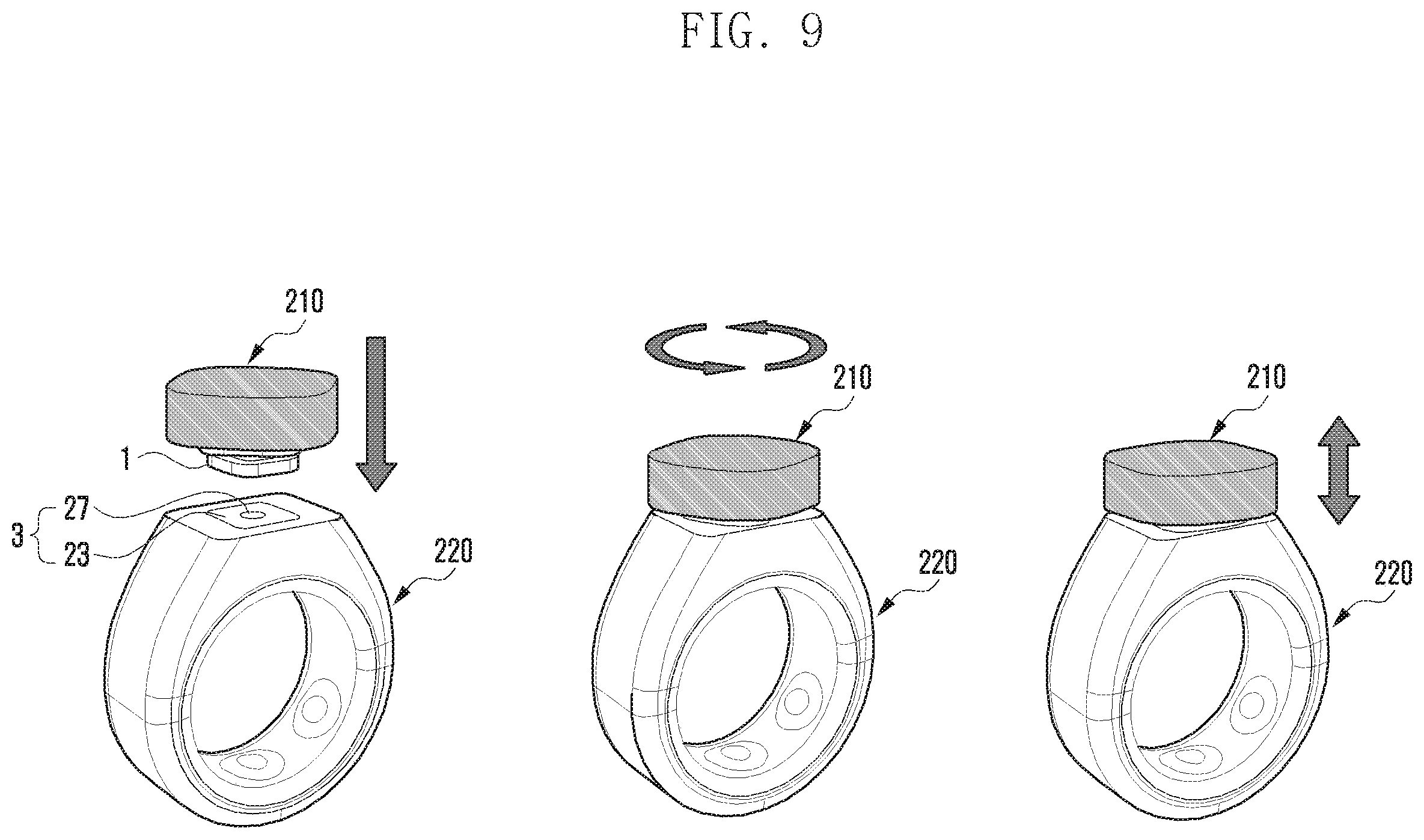

The patent describes an electronic device made of two housings, the outer term for the shell or body of the ring. The first housing is a smaller piece that sits on top. The second housing is the actual ring shape that goes around your finger, with a curved cavity at the top designed to hold the first piece.

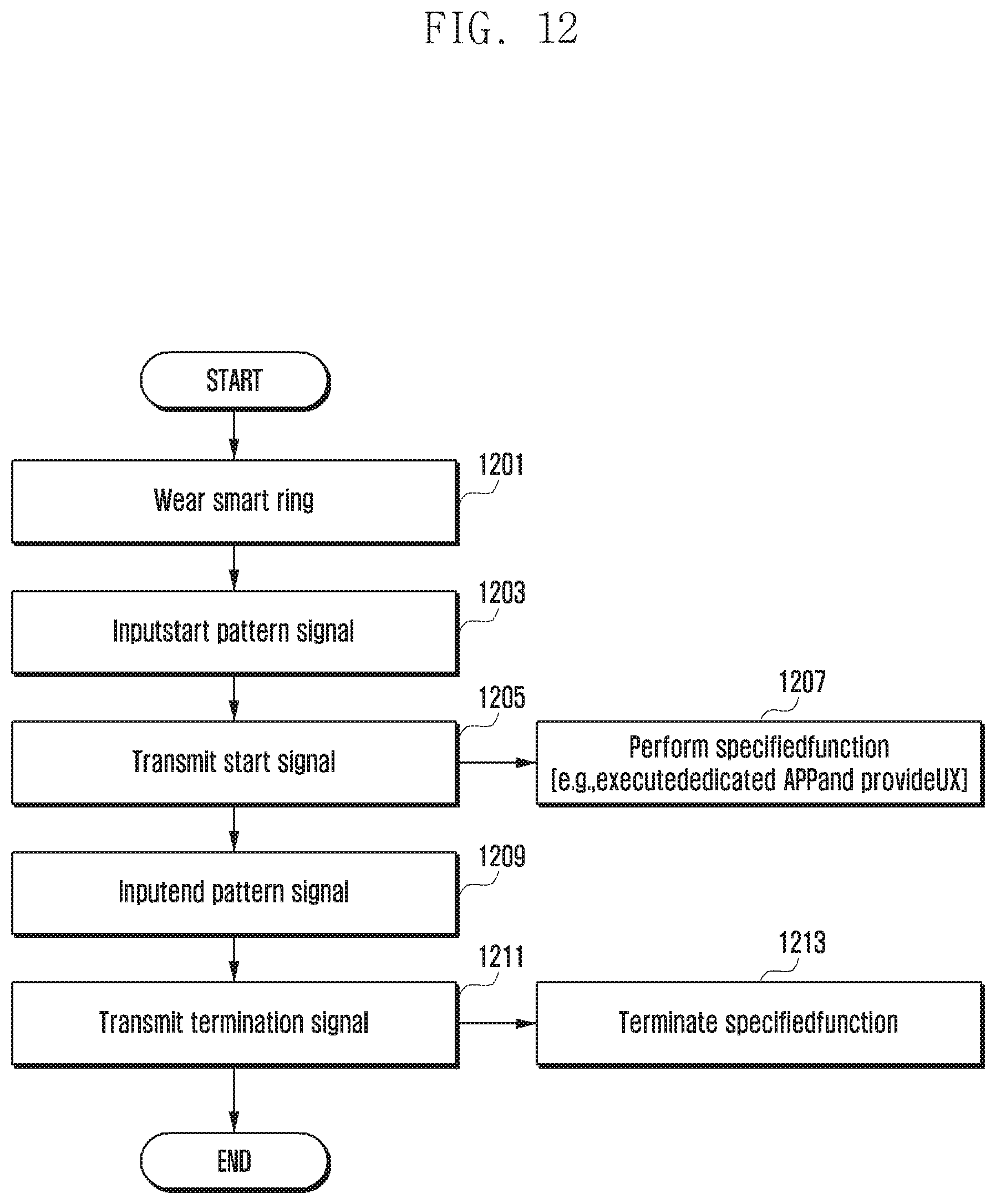

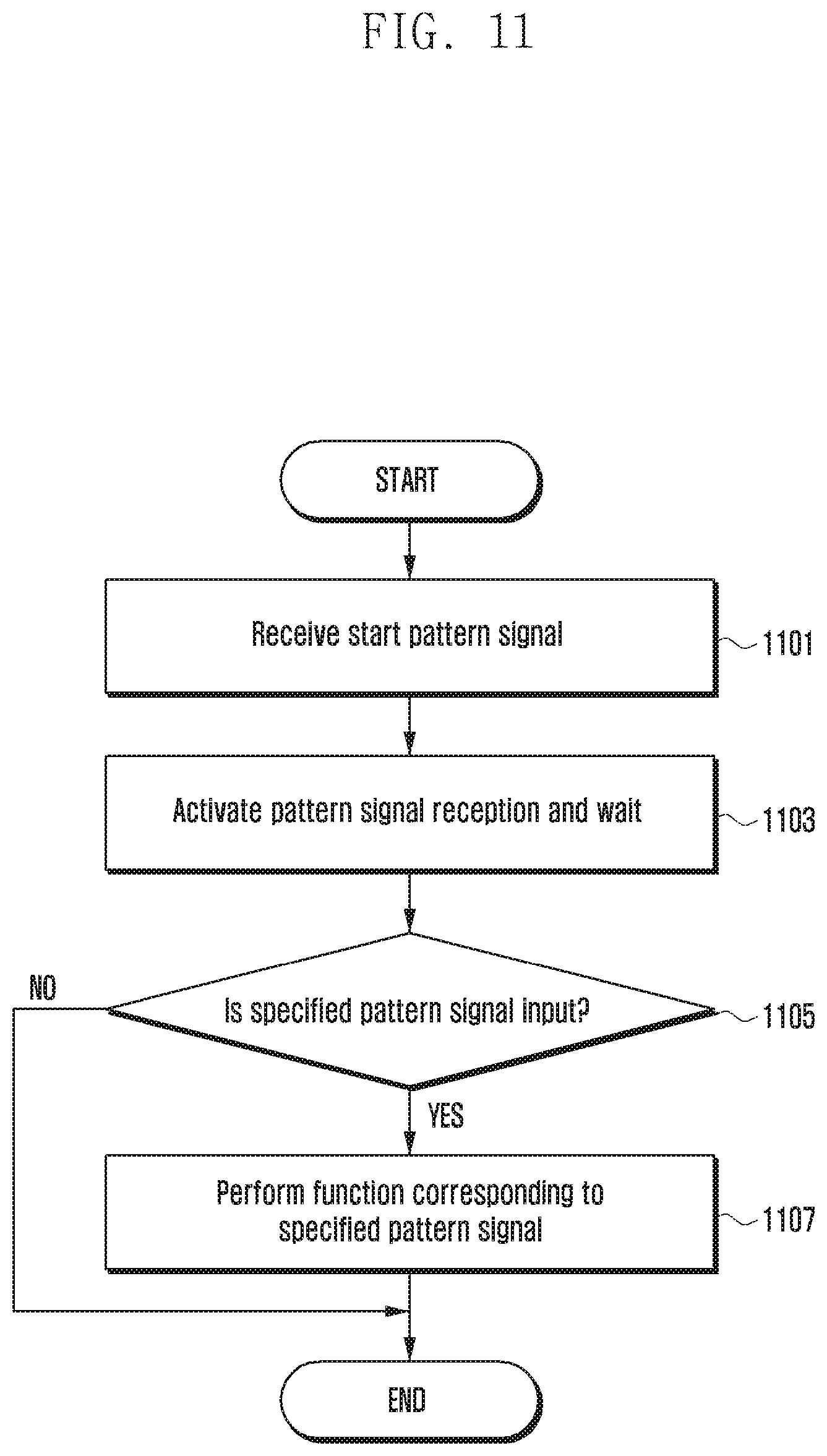

Inside that cavity sits a switch button at the bottom of the slot. When you press down on the top piece, it moves downward inside the ring body and contacts the switch. The switch generates an on/off pattern signal, meaning the processor can read whether you pressed once, twice, held the press, or used some other sequence.
A fixing member holds the top piece in place so it doesn't fall out during normal wear but still allows downward movement when you apply deliberate pressure. The processor, housed in the ring body itself, reads those signals and executes a corresponding function:
- A single press could trigger one action, such as pausing audio.
- A double press could trigger another, such as skipping a track.
- A long press could open an app or send a quick reply.

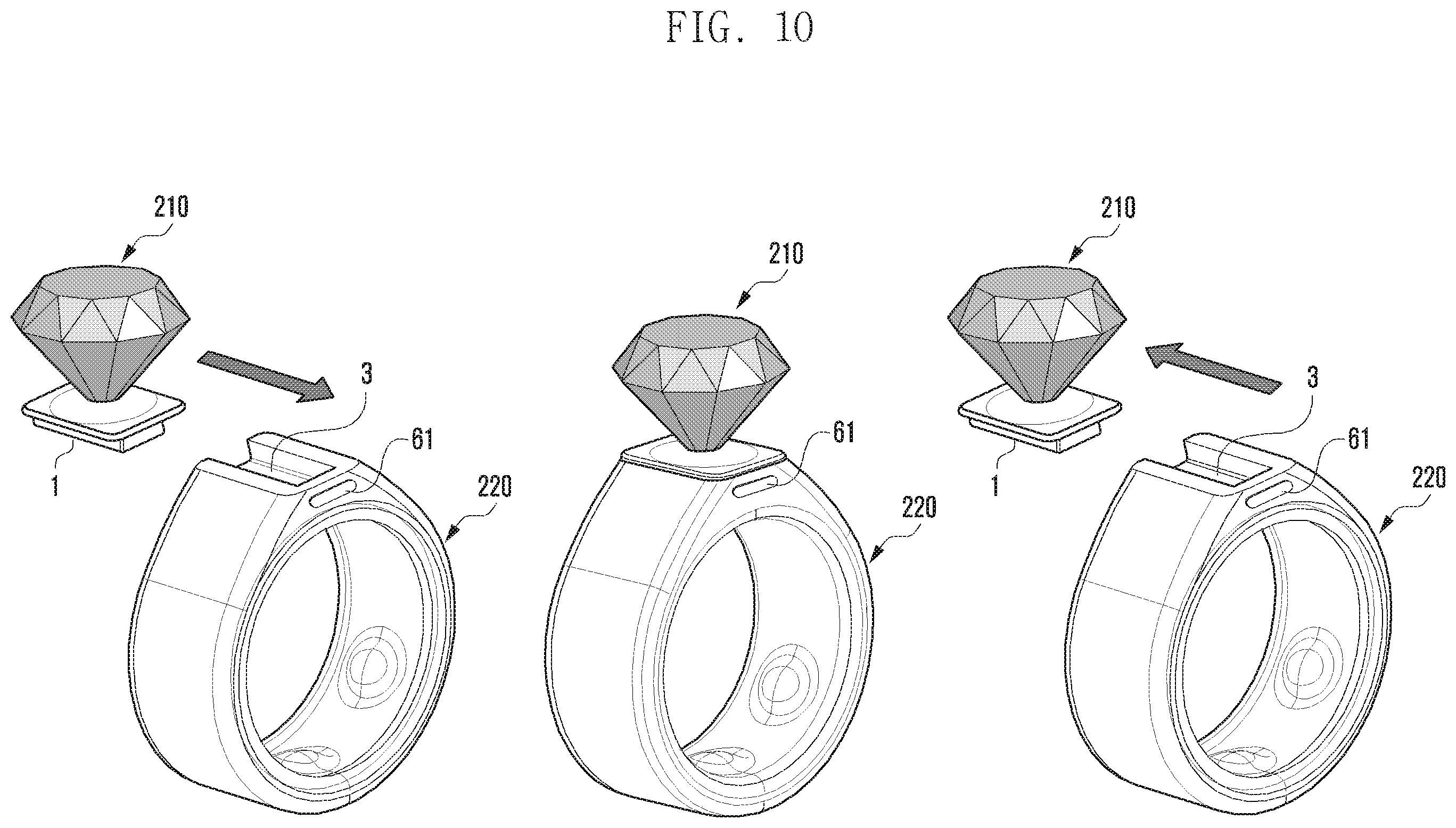

The top piece is also described as detachable, which hints that it could be swapped out or removed.
… perform a specified function, based on an on/off pattern signal of the switch button generated in response to the movement of the first housing due to the pressing input applied to the first housing …
Translation: Pressing the ring triggers a switch that tells the device to do something.
What this means for smart ring control and input
Smart rings like the Samsung Galaxy Ring are currently passive sensors. They read your body and report back, but they don't give you a way to send a command to your device without a tap on a screen somewhere. Adding a physical press input changes that equation, making the ring an output device as well as an input sensor.
For people who wear rings while cooking, exercising, or doing anything where reaching for a phone feels impractical, a pressable ring could reduce the number of times you need to touch another device. Whether Samsung actually ships this design is a separate question, but Samsung's ongoing push into wearable form factors suggests the company is actively looking for ways to make rings more capable without making them bigger.
Samsung's 215th filing in our cell phone patents we've tracked since May follows a charging display and a low-light shot picker.
Wearing a ring while cooking, holding a baby, or gripping a steering wheel means your hands are already committed, and those are exactly the moments when you most want to skip a song or dismiss an alert without stopping what you are doing. That friction is small but it repeats dozens of times a day, and over time it is the reason useful devices get left on the nightstand.
Samsung's approach is to hide a physical button inside the ring's body, one you trigger by pressing down in a deliberate pattern, the same idea that has worked on headphone cords for years. It requires no screen, drains almost no battery, and keeps the ring sealed against water.
The honest question is whether a button you wear on your finger can tell the difference between a purposeful press and the ordinary bumps of daily life, a handshake, a grip, a workout. That is the one problem this design has to solve convincingly, and the patent does not yet answer it.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
12 drawing sheets from US 2026/0259580 A1 · click any drawing to enlarge
