Samsung Patents a Touch-Sensing Fix for the Edges of Its Displays

Touching the edge of a screen has always been messier than touching the middle, Samsung has a patent for exactly that fix.

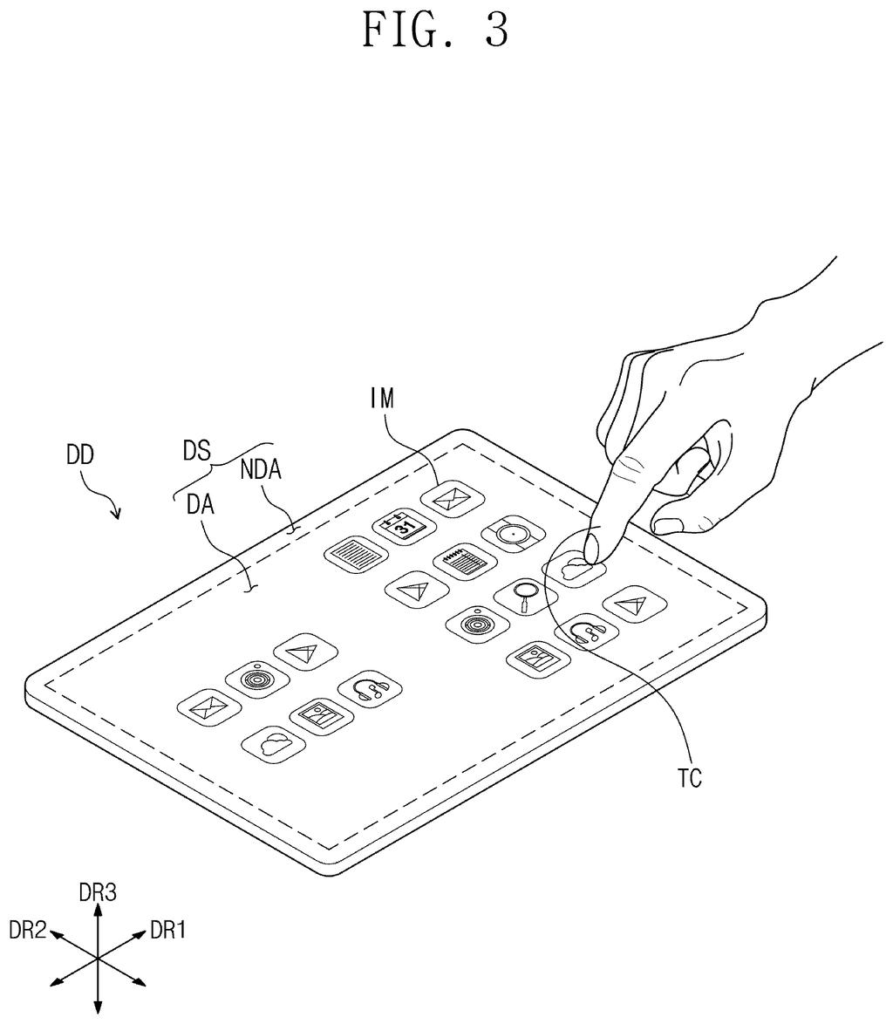

Hand interacting with a touchscreen device displaying app icons. Drawing from patent filing US 2026/0236127 A1.
Hand interacting with a touchscreen device displaying app icons.All 24 drawings ↓
Publication number
US 2026/0236127 A1(US20260236127A1)
Applicant
Samsung Display Co., LTD.
Filed · Published
Nov 11, 2025 · Aug 13, 2026
Inventors
JUNGHA SON, JUNGHAK KIM, YUN A MA, SANGWOOK YOO, JEONGHEON LEE
Status when we published
Examiner raised objections; the company can respond
Document
20 claims
US classification
345/173
Examiner
LU, WILLIAM (Art Unit 2624)

What Samsung's edge touch-sensing patent actually solves

You're trying to tap a button at the very top of your phone screen and it either misses or registers a phantom press. That's not you being clumsy; it's a real engineering problem caused by electrical interference at the borders of a touchscreen.

Samsung's new patent addresses this by adding a special shielding line around the edge of the touch-sensing layer. Think of it like a fence that keeps stray electrical signals from creeping into the area where your fingers are detected. The result is a cleaner read of where you actually touched, especially at the top and bottom of the screen.

The fix doesn't require a thicker phone or a different screen shape. It works within the existing layout by routing a protective connection through the display's inactive border zone, keeping the active touch area clean without adding bulk.

From the filing · CLAIM 1
… a guard line disposed in a non-active area to be adjacent to an upper side of the active area when viewed on a plane; and a connection line disposed in a non-active area to be adjacent to a lower side of the active area when viewed on the plane …

Translation: A protective wire sits outside the main screen area near the top, joined by a connector near the bottom.

How the guard line and connection line work together

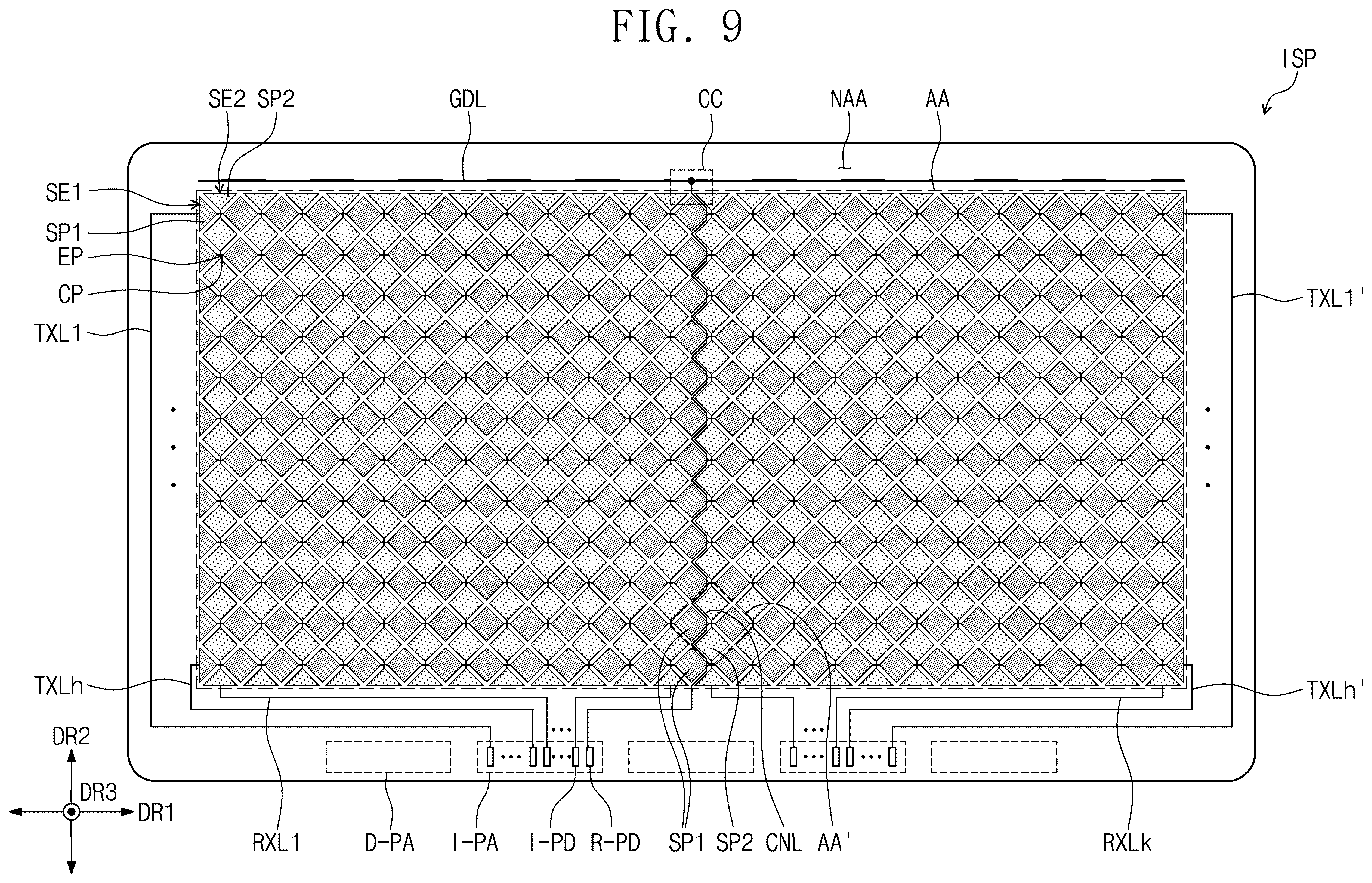

The patent describes the internal structure of a touch-sensing layer (called an "input sensing part") used in display panels. A touchscreen detects your finger by measuring tiny electrical changes across a grid of sensing electrodes: one set runs horizontally, another vertically, and the point where they intersect tells the device exactly where you touched.

The problem is at the edges. The border of the screen (the "non-active area") carries routing wires and other circuitry that can bleed electrical noise into the sensing grid, causing errors near the top and bottom of the display.

Samsung's solution introduces two key components:

  • A guard line placed in the non-active area along the top edge of the display, which acts as an electrical shield against interference.
  • A connection line placed along the bottom edge that runs through the active area (the visible screen surface) and links back up to the guard line at the top, completing the shielding circuit.

By connecting these two elements across the full height of the panel, the patent creates a continuous protective loop. This keeps the sensing electrodes isolated from the noise sources that live in the border region, improving touch accuracy precisely where it has traditionally been weakest.

From the filing · THE ABSTRACT
… a first sensing electrode disposed in an active area, and extending in a first direction, a sensing electrode disposed in the active area, extending in a second direction crossing the first direction …

Translation: A grid of touch sensors runs across the main screen in intersecting directions.

What this means for everyday touchscreen accuracy

Touch accuracy at the screen's edges is one of those small annoyances that accumulates fast if you use your phone heavily for typing, gaming, or one-handed navigation. A misread tap near the top of a keyboard or a missed swipe on a side-rail menu is the kind of friction that users blame on the software but often originates in the hardware. A shielding fix baked into the display layer would address that at the source, without any software workaround required.

This is a fairly targeted engineering improvement rather than a broad platform shift, but display manufacturers file these kinds of incremental fixes constantly because they compound into real product quality over time. The newest Big Tech patents in the display and touch-sensing space show Samsung systematically tightening the gap between its panel performance and user perception, one structural detail at a time.

Source: US 2026/0236127 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 24 sheets

24 drawing sheets from US 2026/0236127 A1 · click any drawing to enlarge

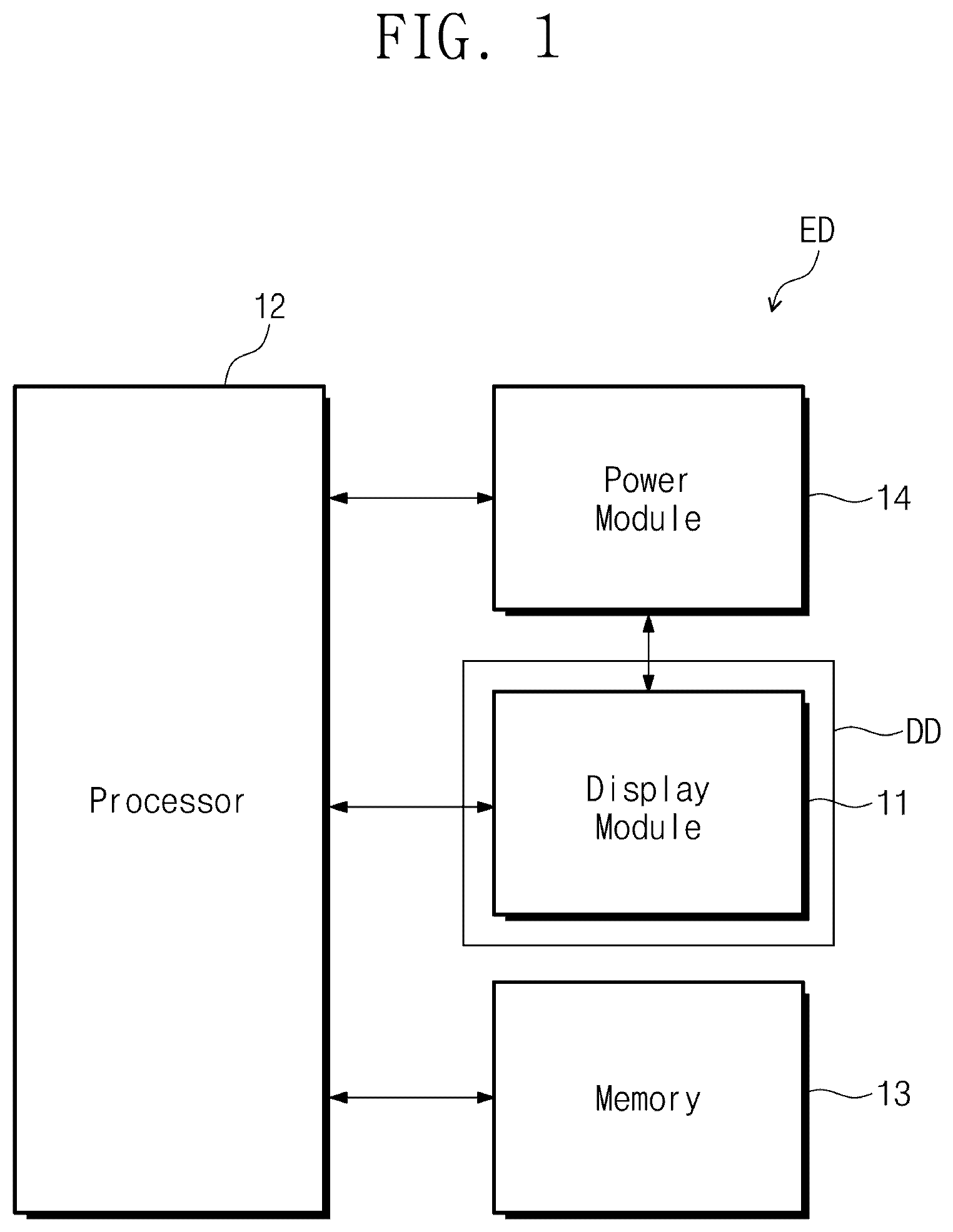

Electronic device block diagram, drawing sheet 1 from US 2026/0236127 A1
Sheet 1 Electronic device block diagram

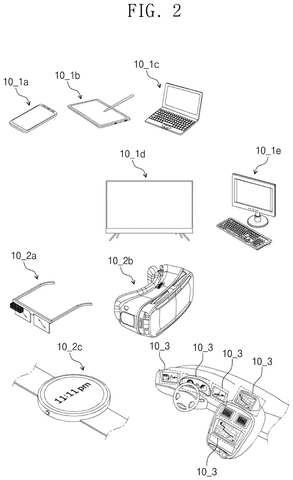

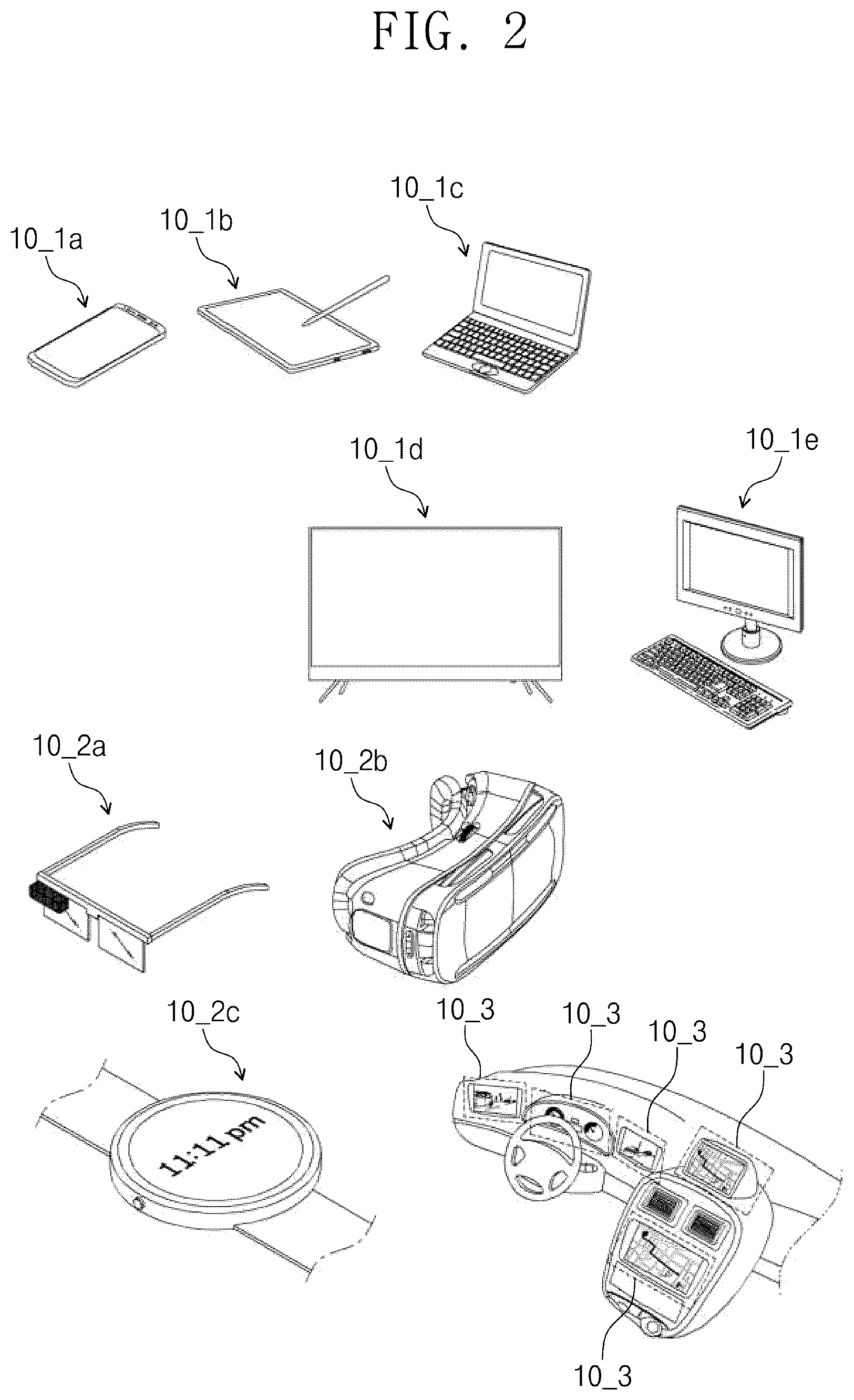

Examples of electronic devices, drawing sheet 2 from US 2026/0236127 A1
Sheet 2 Examples of electronic devices

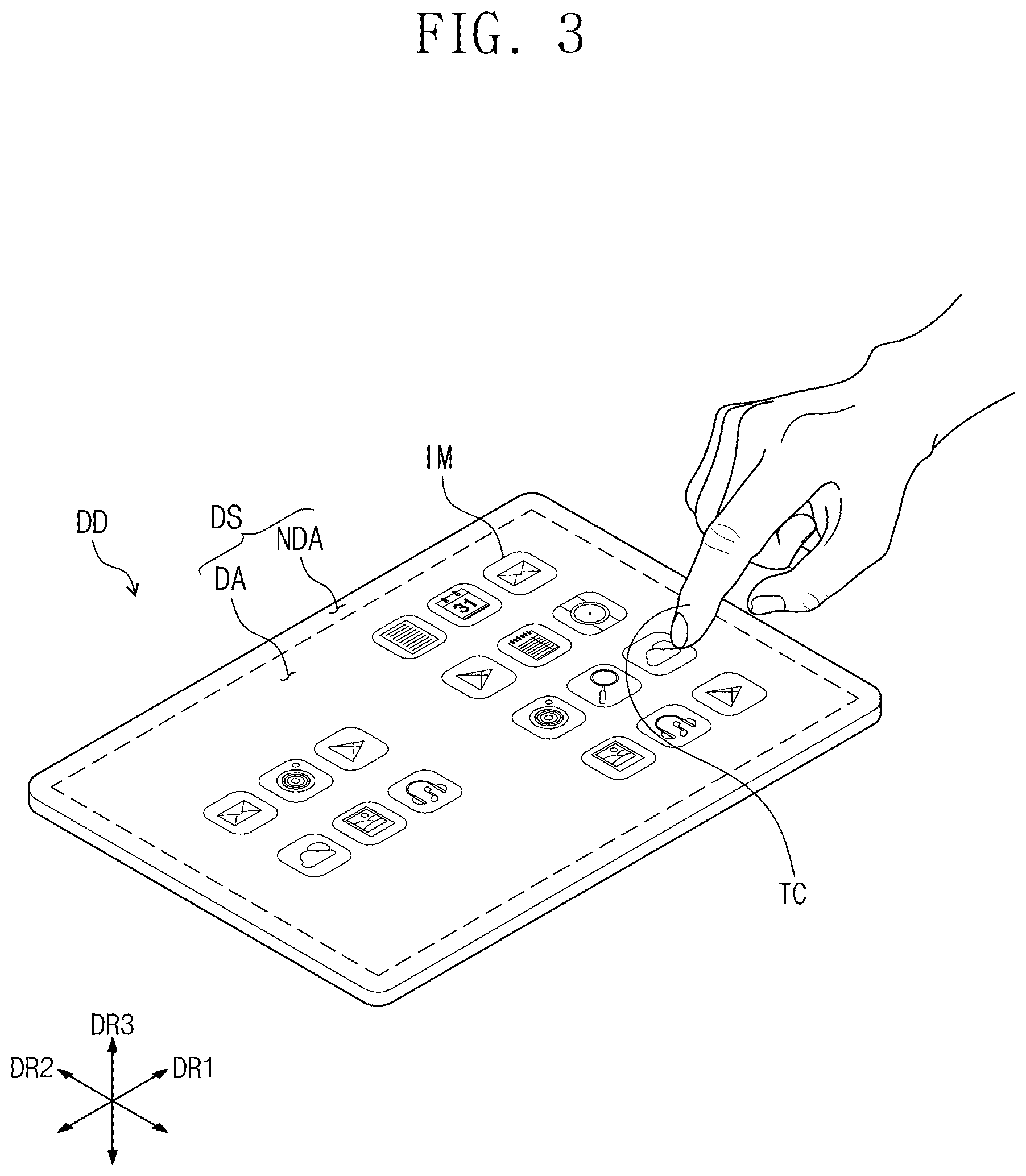

User interacting with touchscreen, drawing sheet 3 from US 2026/0236127 A1
Sheet 3 User interacting with touchscreen

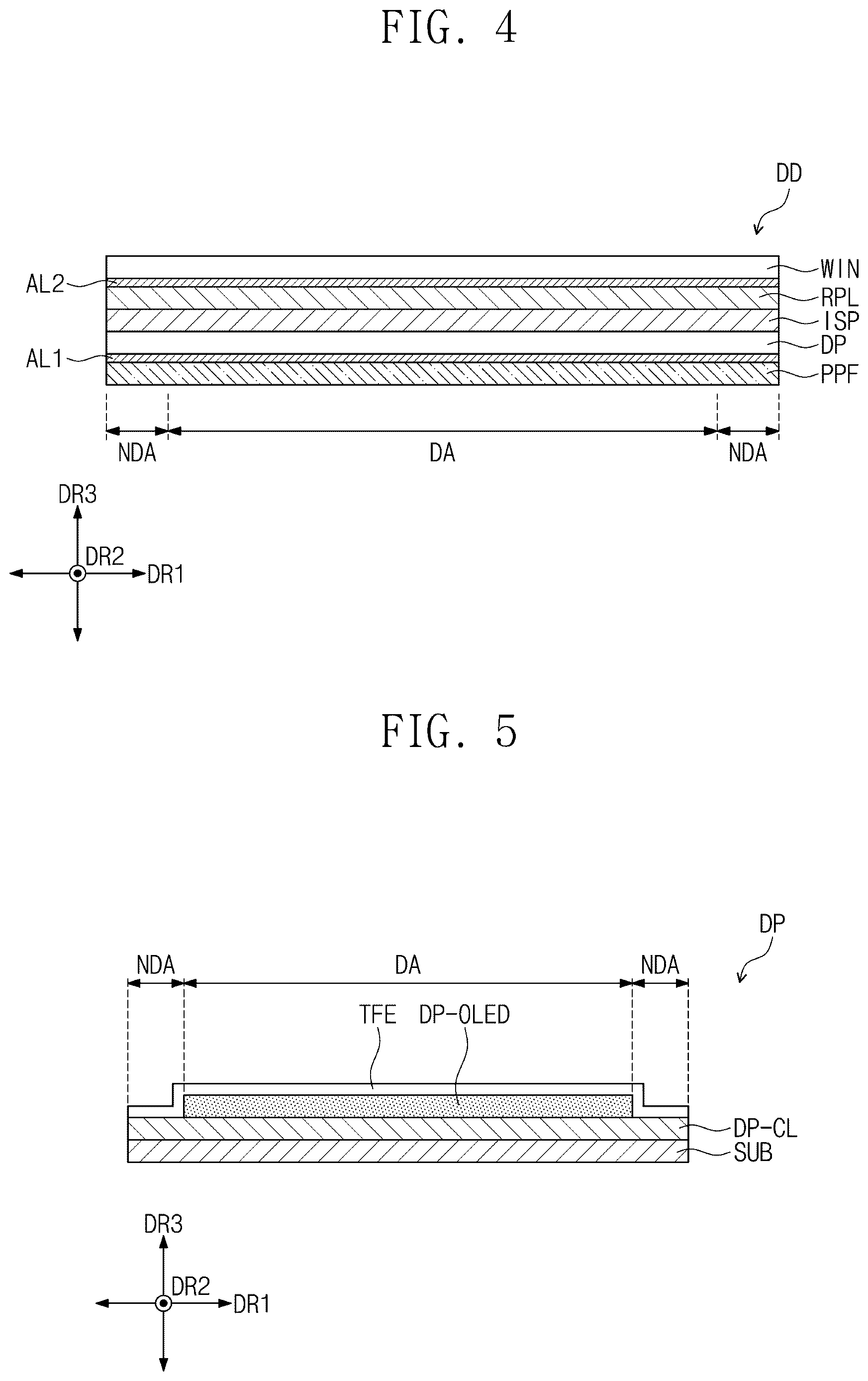

Layered cross-section of display, drawing sheet 4 from US 2026/0236127 A1
Sheet 4 Layered cross-section of display

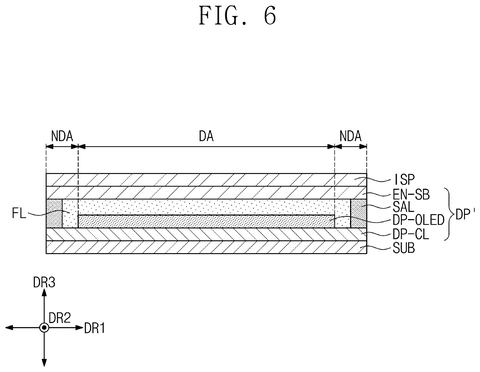

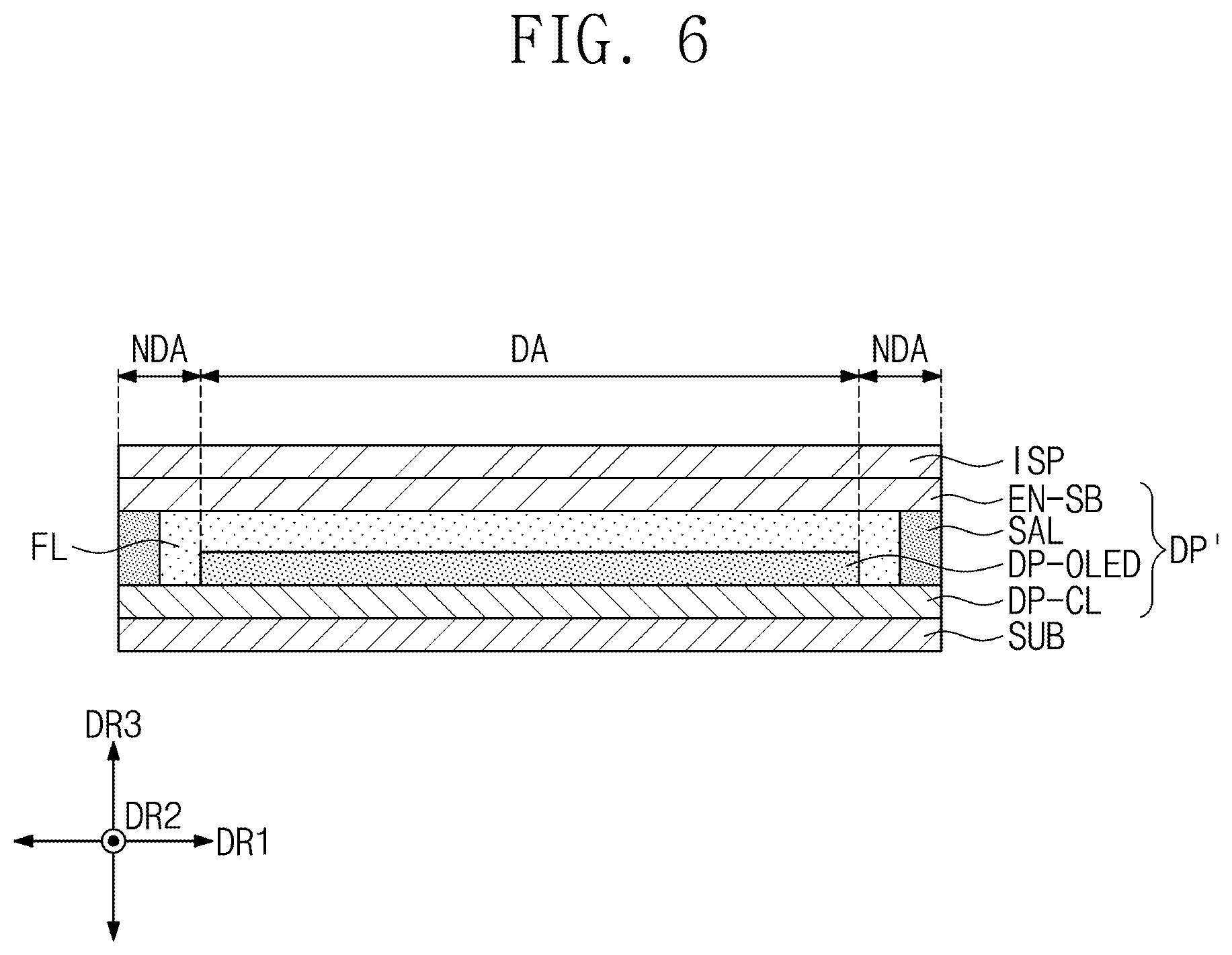

Display panel with encapsulation layer, drawing sheet 5 from US 2026/0236127 A1
Sheet 5 Display panel with encapsulation layer

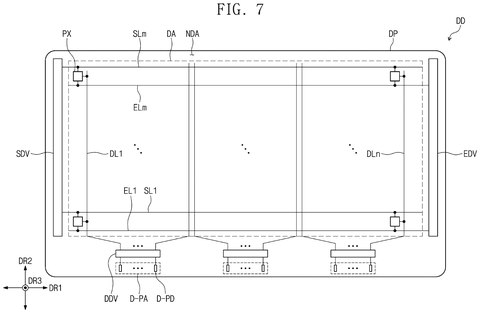

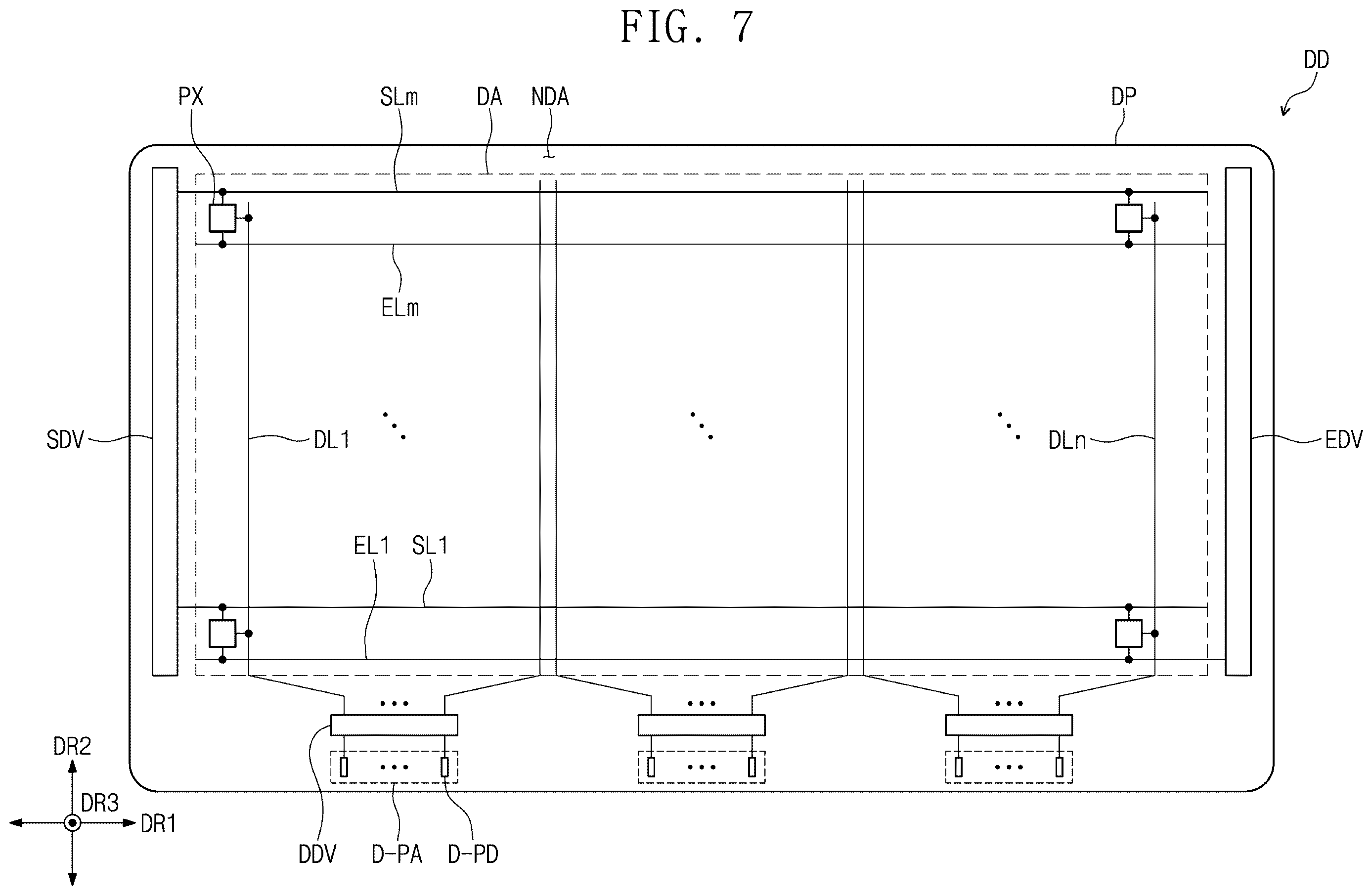

Pixel layout and drive circuits, drawing sheet 6 from US 2026/0236127 A1
Sheet 6 Pixel layout and drive circuits

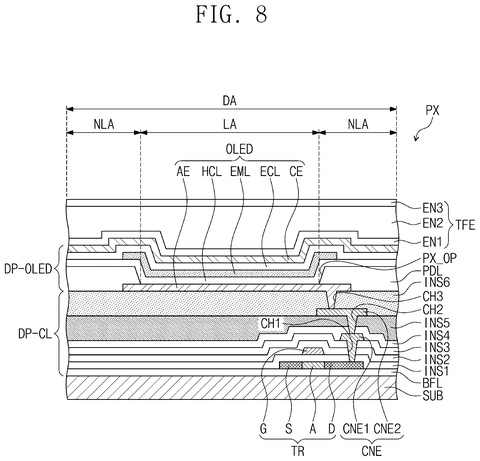

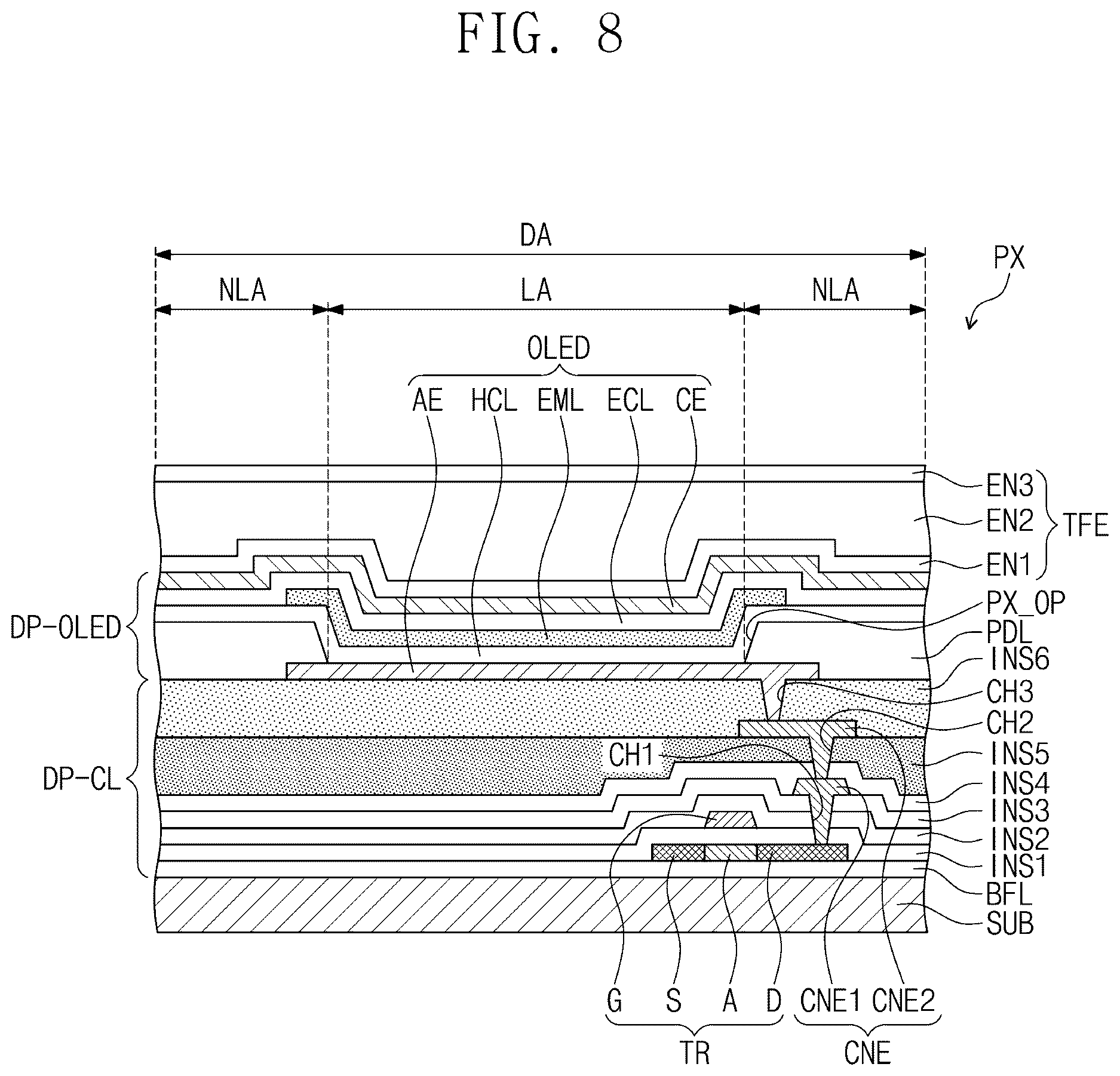

Detailed pixel circuit cross-section, drawing sheet 7 from US 2026/0236127 A1
Sheet 7 Detailed pixel circuit cross-section

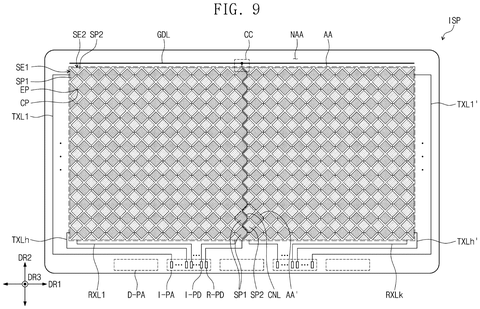

Touch sensing pattern layout, drawing sheet 8 from US 2026/0236127 A1
