Sony · Display · Filed Jan 13, 2025 · USPTO published Aug 20, 2026 · Aug 20 release

Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn't Need to Read

Running two camera sensors simultaneously eats battery fast, but Sony's new patent describes a system where each sensor can simply skip the pixels it already knows haven't changed, using readings from either sensor as the guide.

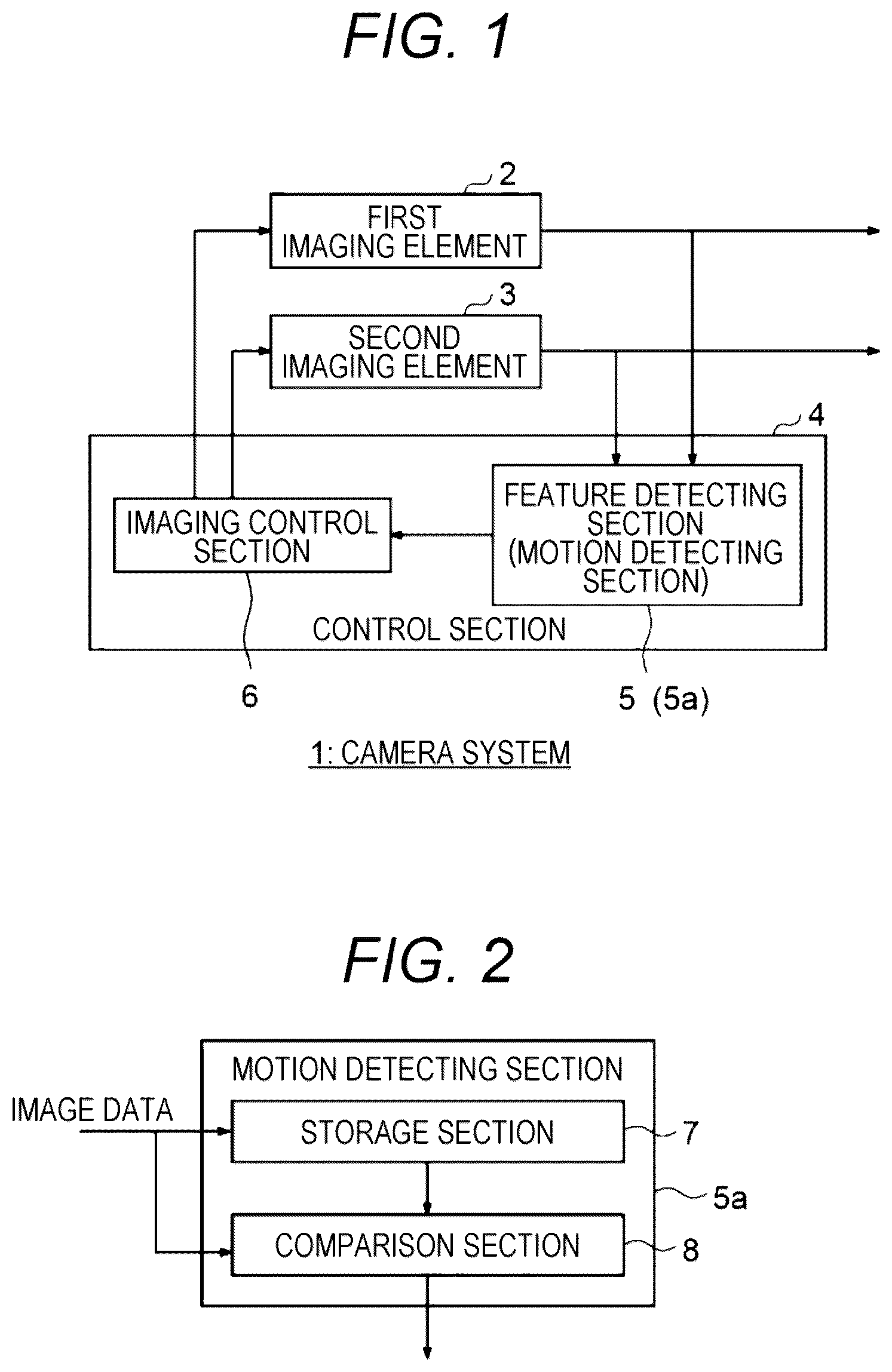

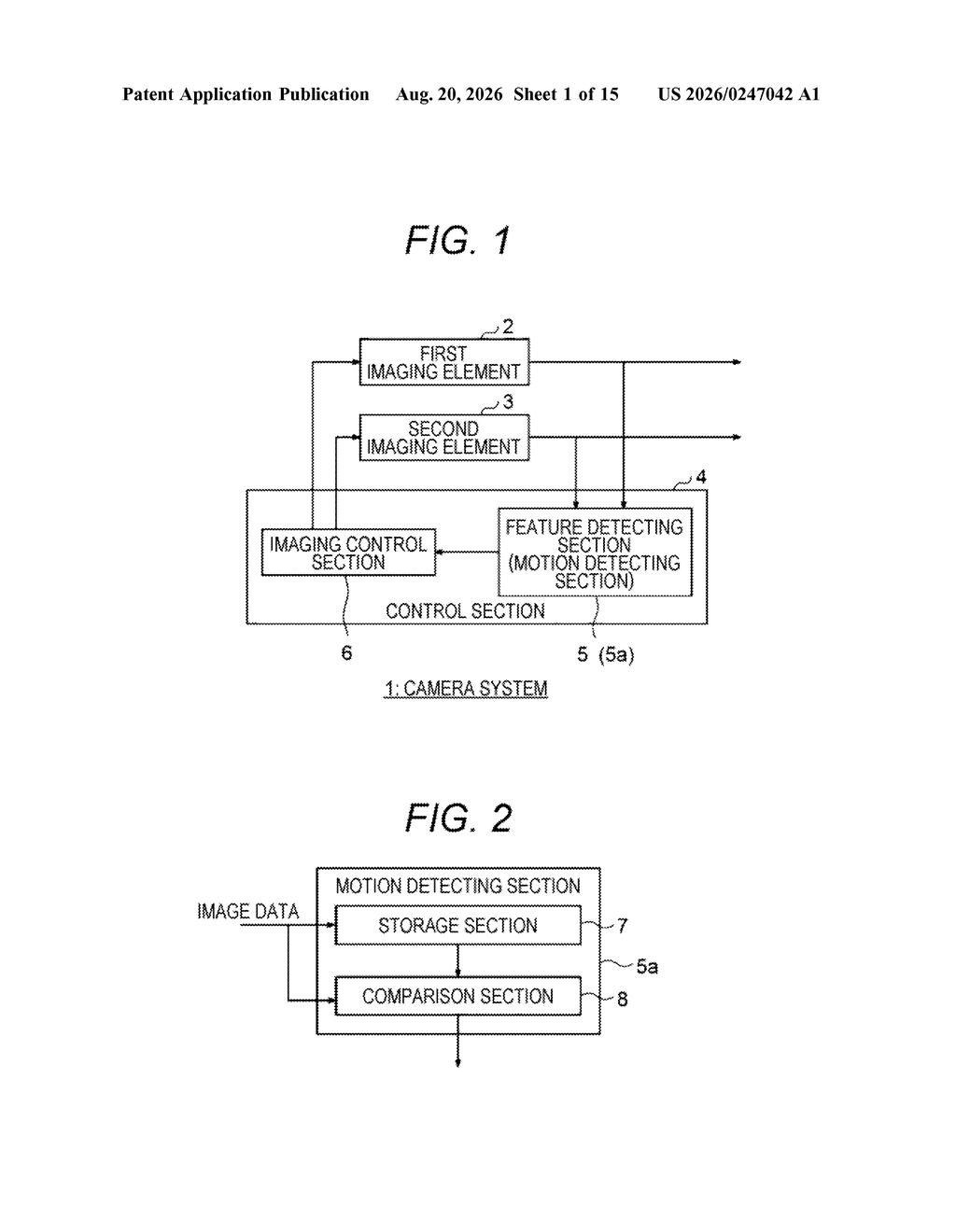

Two camera sensors feed image data into a control system that stores and compares frames to detect motion in a scene. Drawing from patent filing US 2026/0247042 A1.
Two camera sensors feed image data into a control system that stores and compares frames to detect motion in a scene.All 15 drawings ↓
Publication number
US 2026/0247042 A1(US20260247042A1)
Applicant
Sony Semiconductor Solutions Corporation
Filed · Published
Jan 13, 2025 · Aug 20, 2026
Inventors
Luonghung Asakura
Status when we published
Approved; patent expected soon
Document
20 claims
US classification
348/159
Examiner
KALAPODAS, DRAMOS (Art Unit 2487)
Parent application
National Stage Entry of PCT/JP2023/029574 (filed Aug 16, 2023)(PCTJP2023029574)

How Sony's dual-sensor power-saving approach works

Every time your phone's camera is live, every single pixel on the sensor is being read out, frame after frame, whether anything in that part of the image has changed or not. That's a lot of unnecessary work, and it drains the battery.

Sony's patent describes a two-sensor camera system that is smarter about this. Each sensor reads a small sample of its pixels first, then uses those early readings, or readings from the other sensor, to decide which remaining pixels are even worth reading that frame. If a region of the image hasn't changed, the sensor can skip it entirely, saving the power those readouts would have cost.

The two sensors coordinate with each other through a shared control unit. The result is that both sensors do less work per frame, but together they still capture a complete, accurate picture of the scene. The power savings come from skipping the boring parts.

From the filing · CLAIM 1
… the first imaging element switches whether or not to output a pixel signal from at least some first pixel circuits among the plurality of first pixel circuits within a same frame period on a basis of a pixel signal output from some of the first pixel circuits or some of the second pixel circuits for each frame period …

Translation: The camera decides in real time which pixels to ignore based on the data it is currently receiving from its sensors.

How the sensors decide which pixels to skip each frame

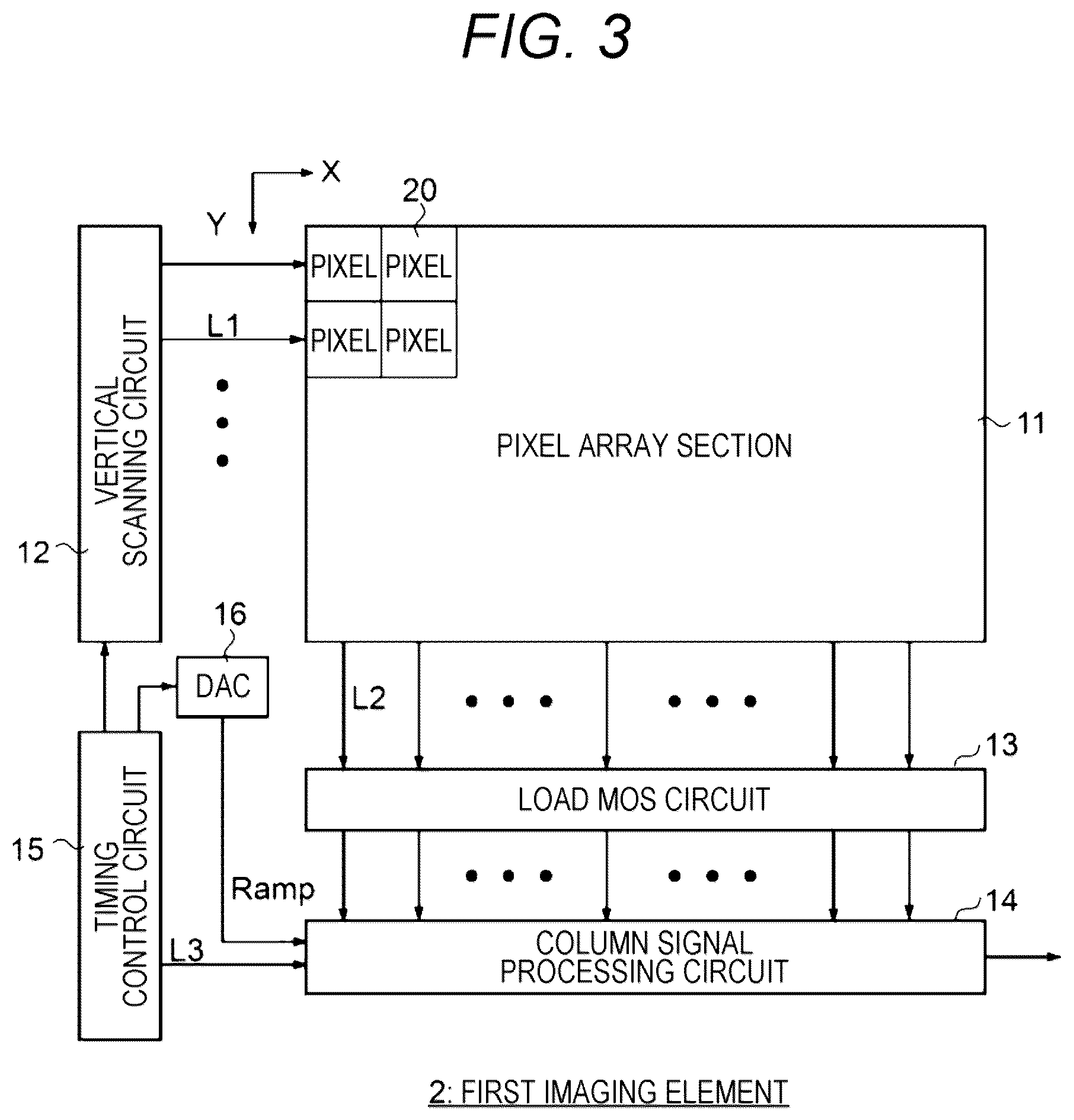

The patent describes a dual imaging element camera system in which two sensors share information to reduce how many pixels each one needs to fully read out per frame.

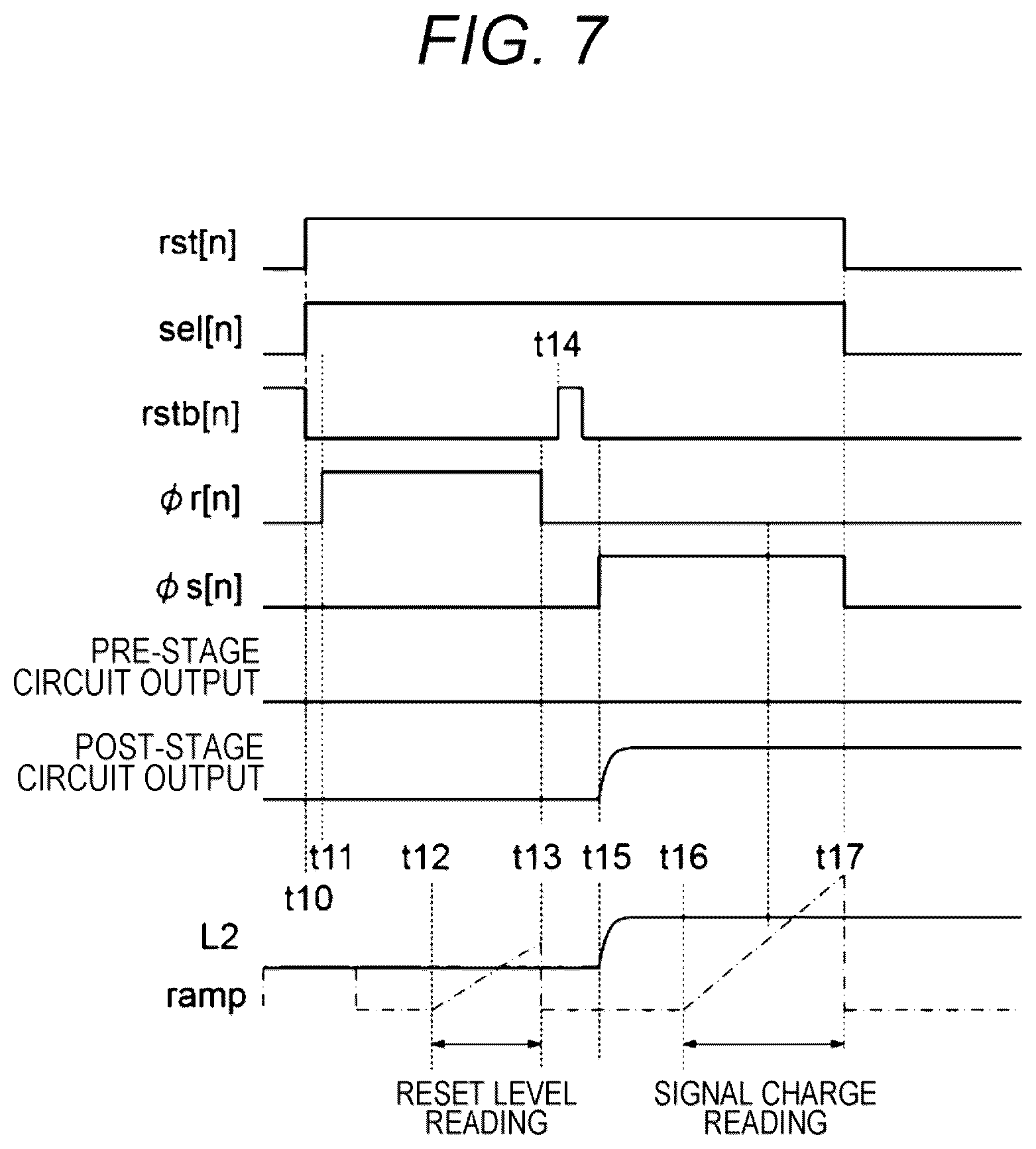

Each sensor uses non-destructive readout (a technique where the charge stored in a pixel can be sampled without erasing it, so the same pixel can be checked multiple times without resetting). Both sensors also use global shutter-style simultaneous sampling, meaning all pixels capture light at the same instant rather than scanning row by row.

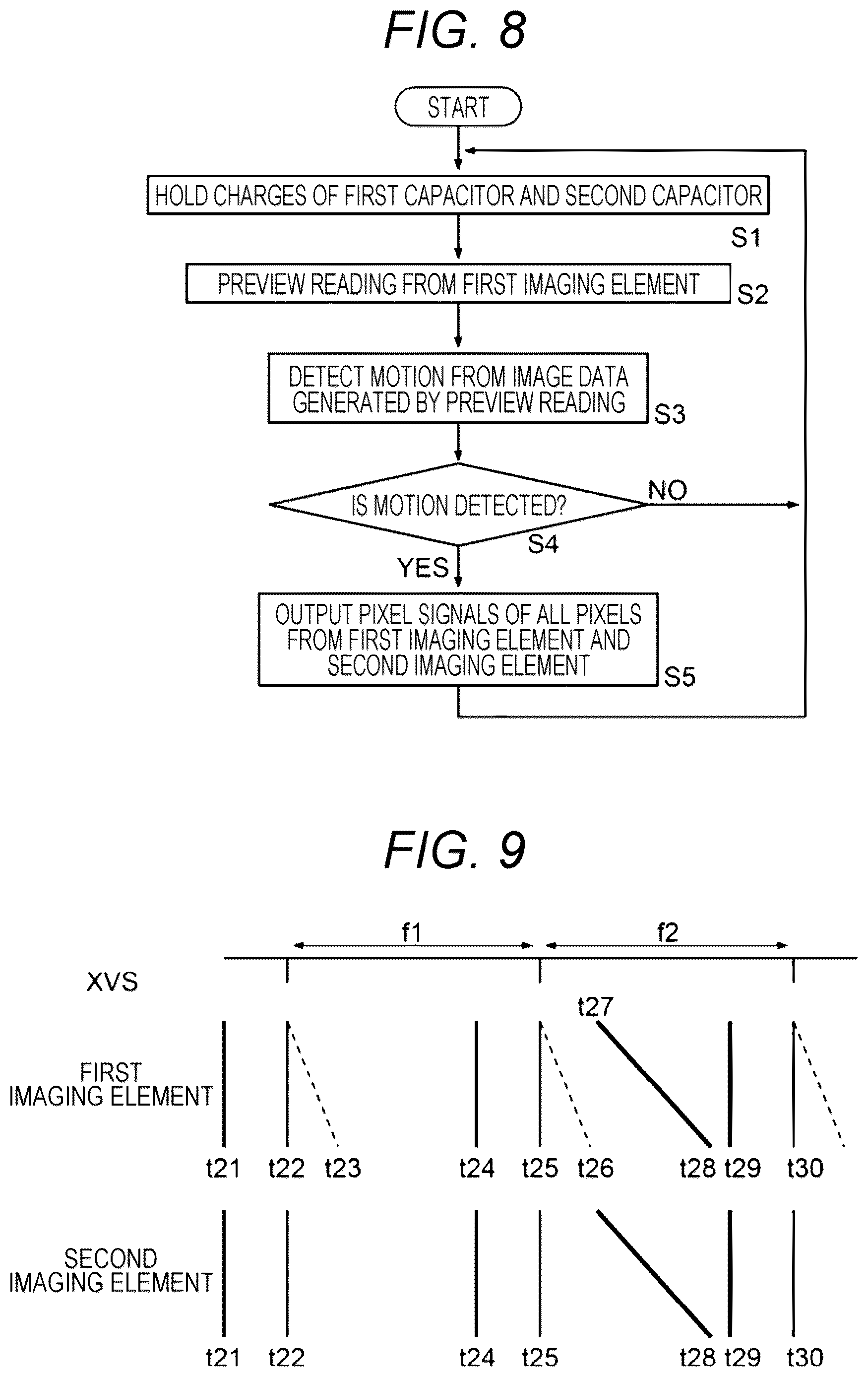

The key mechanism works in two stages per frame:

  • A subset of pixels on either sensor is read first, acting as a low-cost scout sample.
  • Based on those scout readings, the control section decides whether each remaining pixel block is worth a full readout that frame. If the scout data shows no meaningful change, the full readout is skipped.

Critically, each sensor can use the other sensor's scout data to make this decision, not just its own. That cross-sensor coordination is what makes the dual-element design useful rather than redundant: one sensor's early read can spare the other an unnecessary full readout, and vice versa.

From the filing · THE ABSTRACT
Camera imaging elements with reduced power consumption are disclosed. In one example, a first imaging element of a camera system includes first pixel circuits that simultaneously sample and non-destructively read charges according to incident light photoelectrically converted in each pixel.

Translation: This technology saves battery life by reading light data from the sensor without destroying the stored charge.

What this means for low-power cameras and wearables

Power consumption is one of the hardest constraints in camera design for small devices like earbuds, AR glasses, security cameras, and robots. A sensor that only reads the pixels it needs to read is a meaningful step toward cameras that can run continuously without draining a small battery in an hour.

Sony Semiconductor Solutions supplies image sensors to a wide range of device makers, so the beneficiaries of this approach could span many product categories. Camera-chip efficiency is exactly the kind of slow, incremental engineering that compounds into real differences in device endurance over a product generation, and it sits alongside other interesting tech patents in low-power imaging that point toward always-on vision becoming practical in everyday wearables.

Sony's 352nd filing among the applications we track since May joins earlier work on farm soil irrigation and parallel image compression.

Source: US 2026/0247042 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 15 sheets

15 drawing sheets from US 2026/0247042 A1 · click any drawing to enlarge

Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 1
Sheet 1
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 2
Sheet 2
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 3

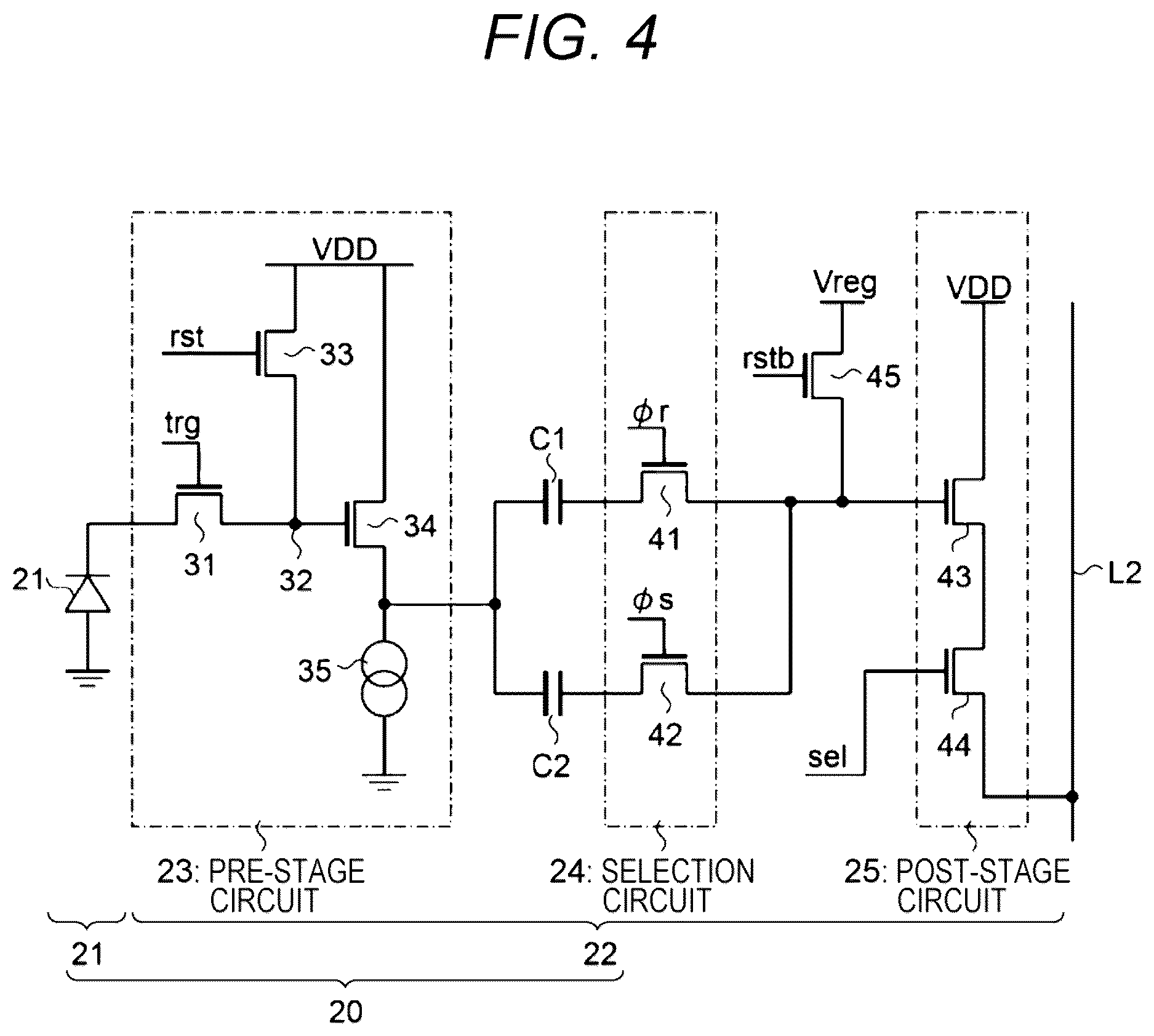

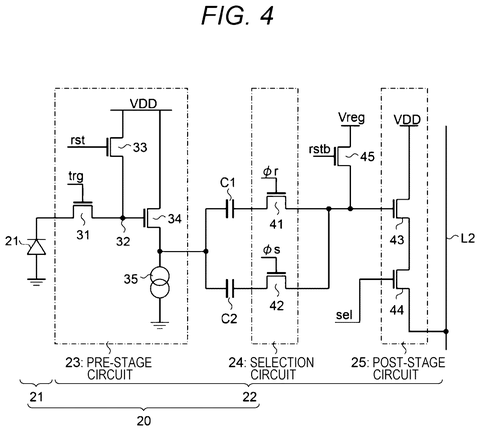

Sheet 3
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 4

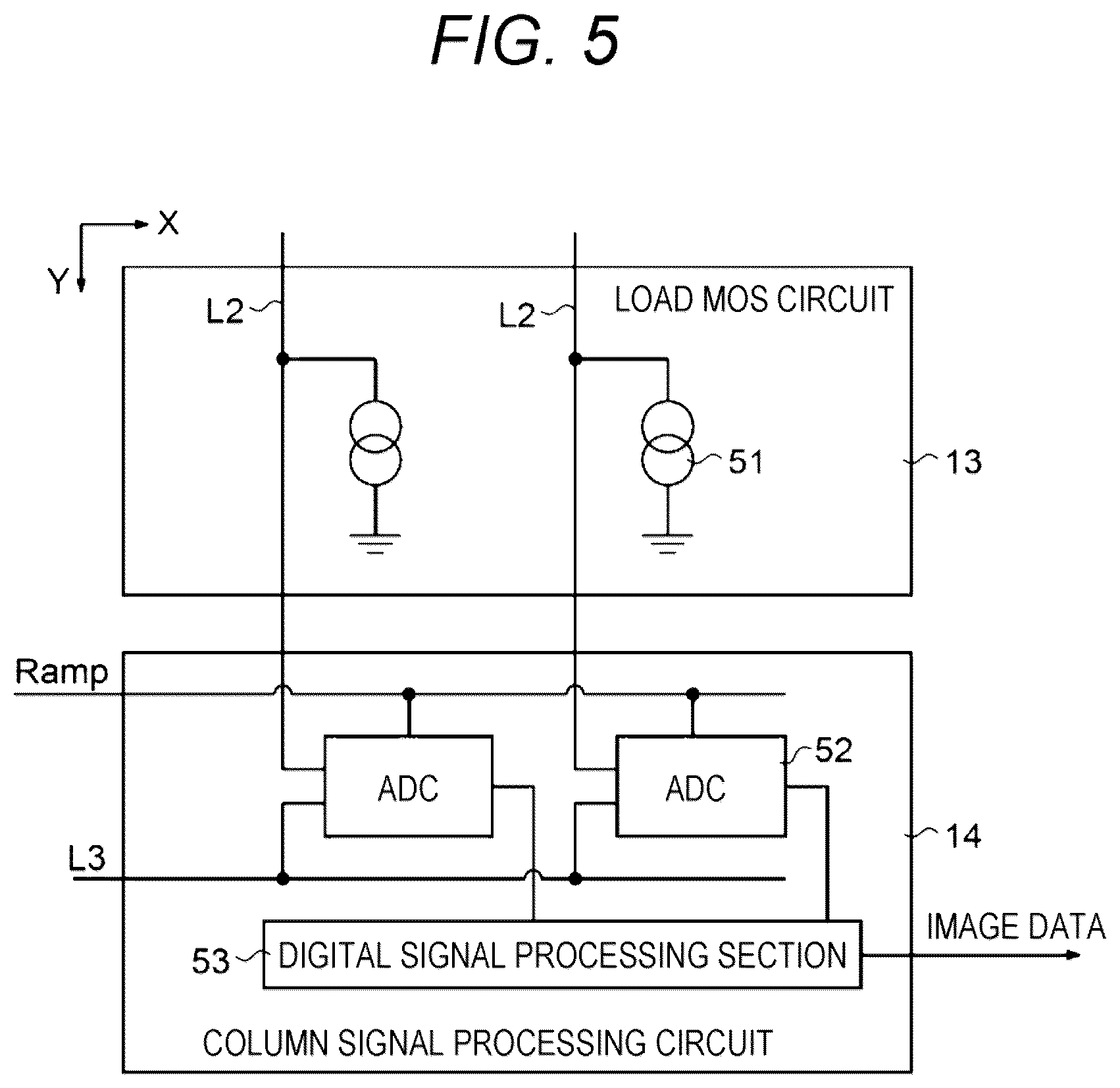

Sheet 4
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 5

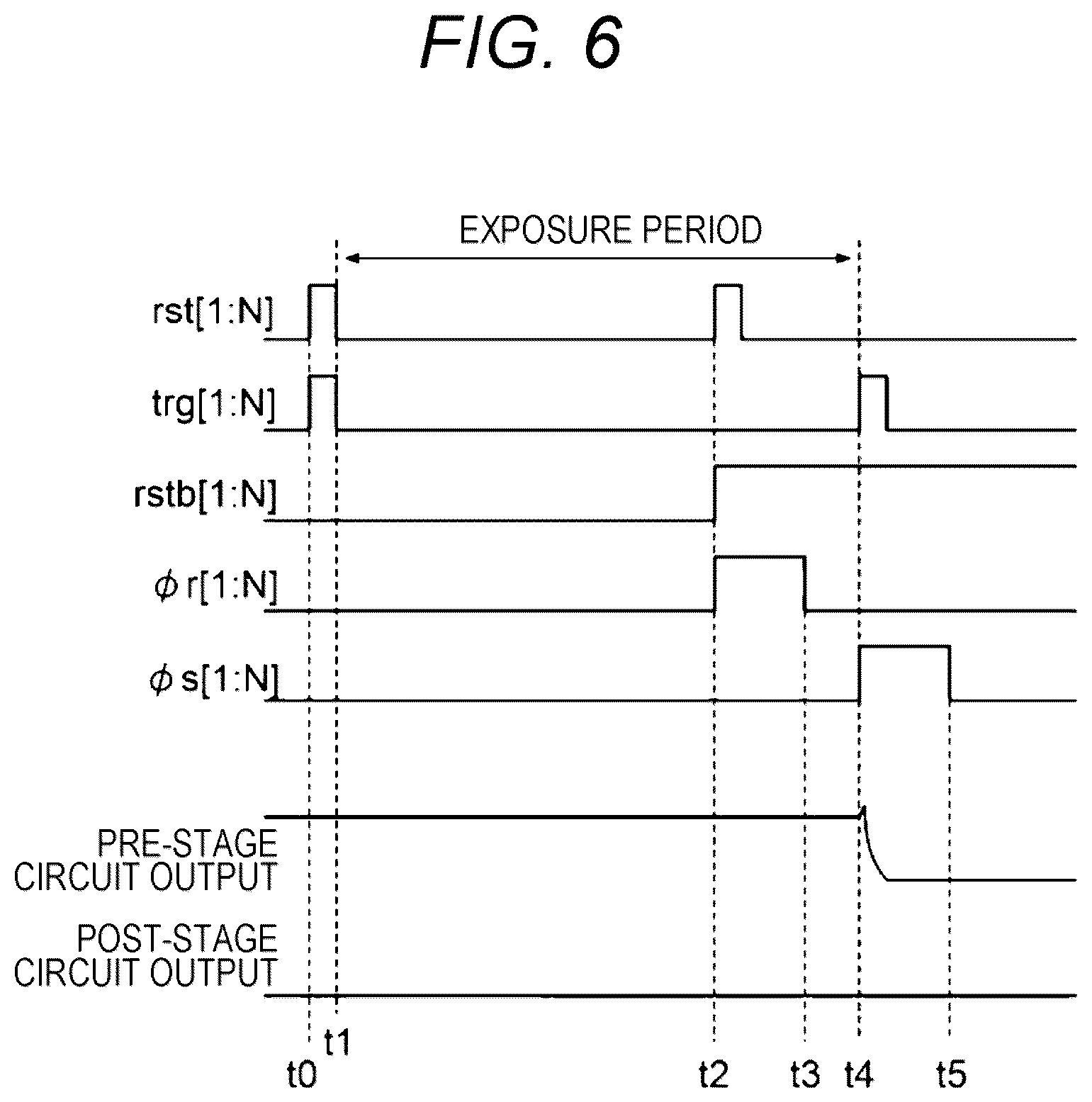

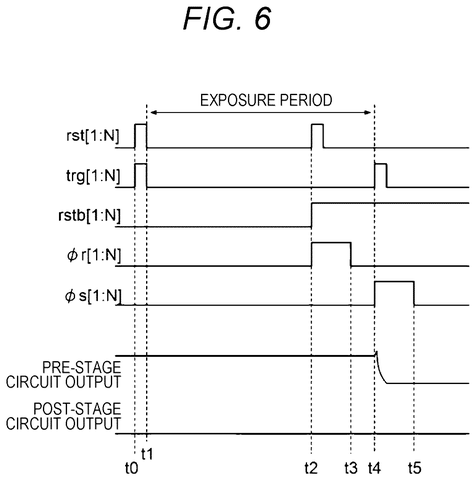

Sheet 5
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 6
Sheet 6
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 7
Sheet 7
Sony Patents a Dual-Camera Sensor That Skips Pixels It Doesn’t Need to Read patent drawing, sheet 8

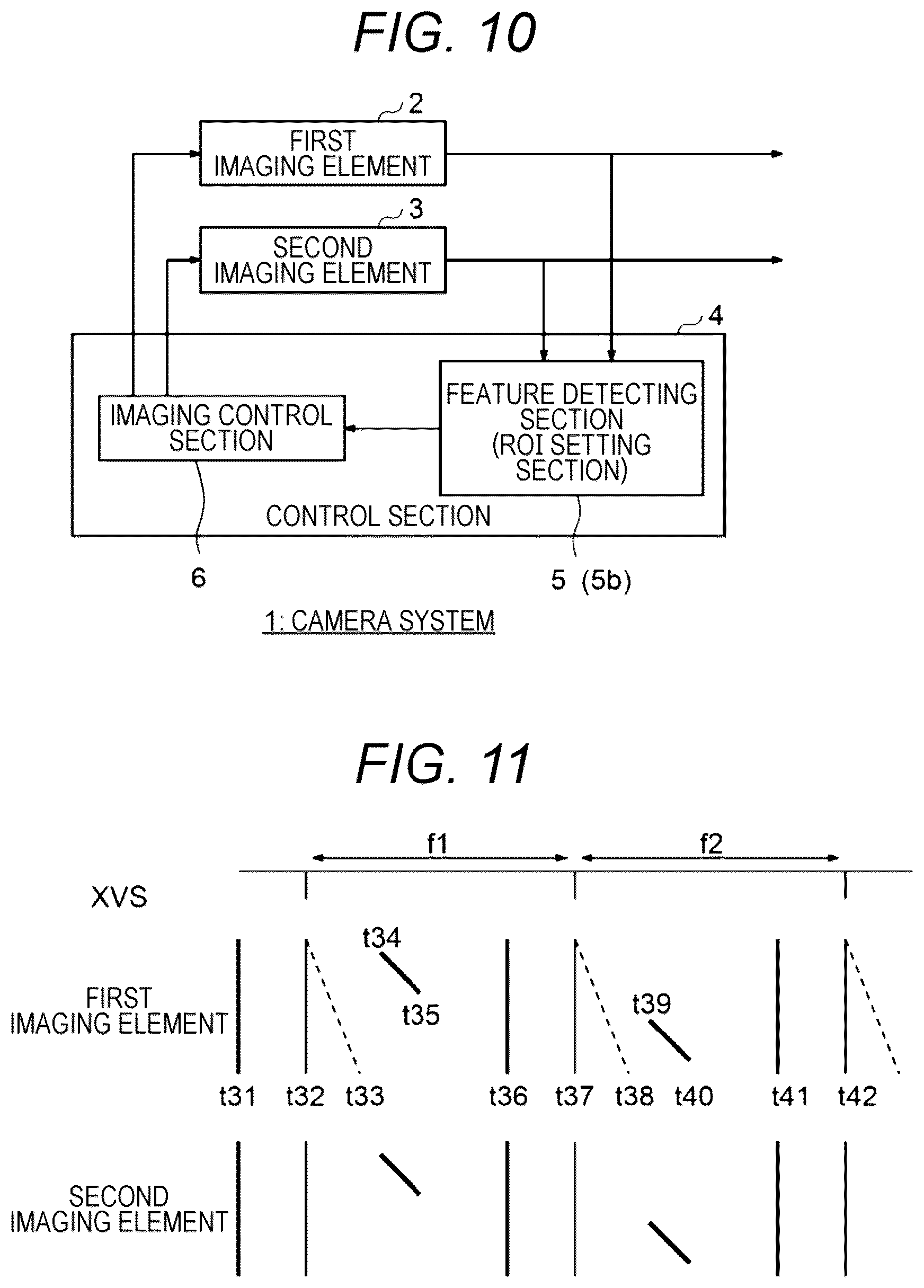

Sheet 8
