Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync

Compressing an image quickly usually means doing several things at once, but doing several things at once usually means they fall out of step with each other. Sony's new patent describes a way to keep parallel encoding threads coordinated through a single shared counter, without making them wait on each other.

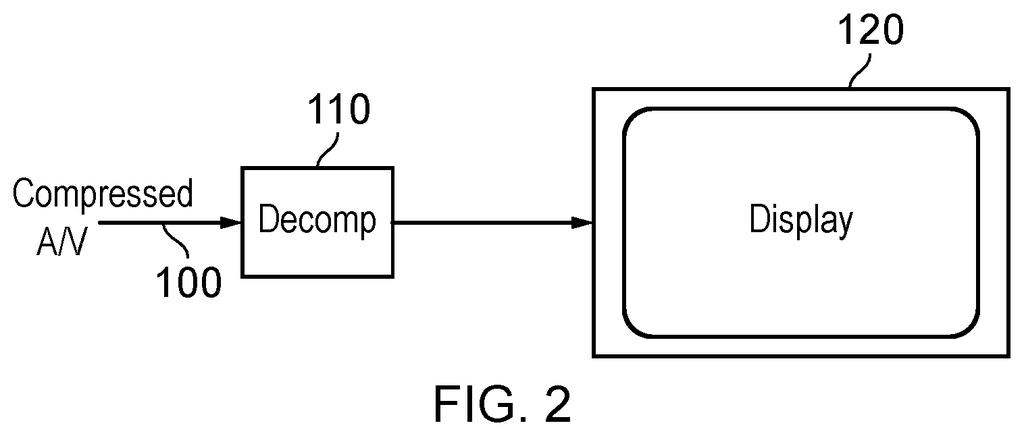

A video display unit receiving a compressed audiovisual stream for real-time playback. Drawing from patent filing US 2026/0246931 A1.
A video display unit receiving a compressed audiovisual stream for real-time playback.All 18 drawings ↓
Publication number
US 2026/0246931 A1(US20260246931A1)
Applicant
Sony Group Corporation
Filed · Published
Sep 15, 2025 · Aug 20, 2026
Inventors
Stephen Mark KEATING, Karl James SHARMAN, Adrian Richard BROWNE
Status when we published
Examiner raised objections; the company can respond
Document
38 claims
US classification
375/240.24
Examiner
NIRJHAR, NASIM NAZRUL (Art Unit 2896)
Parent application
National Stage Entry of PCT/EP2024/057194 (filed Mar 18, 2024)(PCTEP2024057194)

What Sony's parallel image encoding actually does

Imagine your camera is trying to compress a photo as fast as possible. To speed things up, it splits the image into chunks and works on all of them at the same time. The problem is that each chunk needs to know a little about the others to compress efficiently, and that shared knowledge is hard to pass around when everything is running in parallel.

Sony's patent describes a specific fix: every chunk uses the same starting rules when it compresses its data, and as it works, it updates a single shared counter based on what it finds. When all the chunks finish, that counter tells the system how to adjust the rules for the next round. You never see any of this, but the result is that image compression can run faster on hardware with multiple processing units without producing a bloated or error-prone file.

The same method works in reverse for decoding, so the device on the other end can unpack the image using the same coordinated approach.

From the filing · CLAIM 1
… splitting the block of image data into a number of sets, each set having a predetermined length in data items; for each set, in parallel: encoding each data item of the set using a context model …

Translation: The image block is divided so multiple sections can be compressed simultaneously.

How the shared counter keeps parallel encoders aligned

The patent covers a method for encoding image data in parallel across multiple processing units while keeping those units statistically coordinated.

Here is how the pieces fit together:

  • Block splitting: A block of image data (think of it as a tile of pixels described as numbers) is divided into several fixed-length sets.
  • Context model: Each set is encoded using a shared starting configuration called a context model, which is essentially a probability table that tells the encoder how likely each possible value is. More accurate probabilities mean tighter, smaller compressed files.
  • Shared counter: As each set is encoded in parallel, every unit increments a single counter based on the values it encounters. Because the counter is shared, all the parallel threads contribute to the same running tally rather than keeping their own isolated statistics.
  • Model update: Once all sets in a block have been encoded, the context model's configuration is updated based on the counter's final value. That updated model is then used for the next block.

The decoding side mirrors this process: sets are decoded in parallel using the same shared-counter logic, so the decoder can reconstruct the original data without needing a serial step to reconcile statistics.

The core tension the patent solves is that true parallelism normally breaks context-adaptive compression, because each encoder would build its own private statistical picture. The shared counter is the bridge that lets parallel threads contribute to one coherent picture instead.

From the filing · THE ABSTRACT
… incrementing a counter in dependence upon a value being encoded, wherein the counter is shared across the number of sets …

Translation: All parallel threads update a single shared counter to stay coordinated.

What this means for cameras and video chips

For anyone designing chips that handle video or images, whether in cameras, streaming encoders, or broadcast hardware, parallel processing is where speed gains come from. The bottleneck has often been the bookkeeping layer: context-adaptive compression codecs like those used in modern video standards depend on statistics that traditionally have to be computed in order, one piece after another. A method that lets multiple units run simultaneously while sharing a lightweight counter rather than a full state table is a practical chip-design tool.

Sony makes image sensors and professional video equipment, so the commercial context is fairly direct. The new Big Tech patents in image and video compression are piling up as hardware makers race to push more processing onto smaller, lower-power chips, and this filing sits squarely in that area.

Sony's fifth filing we've tracked since July in the AI chip wars watchlist follows earlier work on memory efficiency in video and letting users pick AI models, adding another piece to the company's on-device AI picture.

Source: US 2026/0246931 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 18 sheets

18 drawing sheets from US 2026/0246931 A1 · click any drawing to enlarge

Audiovisual communication system network, drawing sheet 1 from US 2026/0246931 A1
Sheet 1 Audiovisual communication system network
Video display unit, drawing sheet 2 from US 2026/0246931 A1
Sheet 2 Video display unit

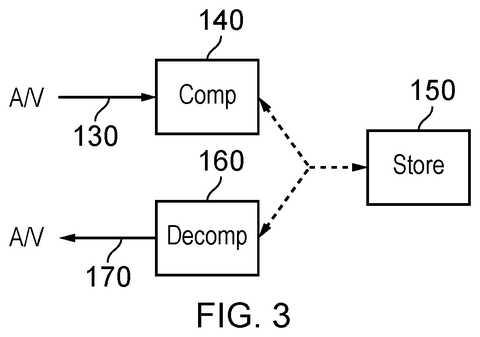

Storage device interface, drawing sheet 3 from US 2026/0246931 A1
Sheet 3 Storage device interface

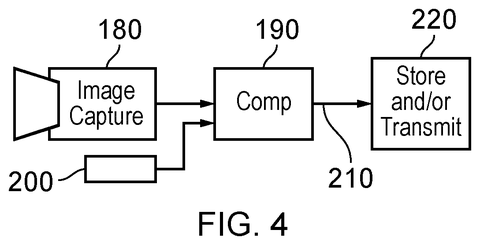

Image capture and transmission system, drawing sheet 4 from US 2026/0246931 A1
Sheet 4 Image capture and transmission system
Optical storage disc medium, drawing sheet 5 from US 2026/0246931 A1
Sheet 5 Optical storage disc medium
Memory card format, drawing sheet 6 from US 2026/0246931 A1
Sheet 6 Memory card format

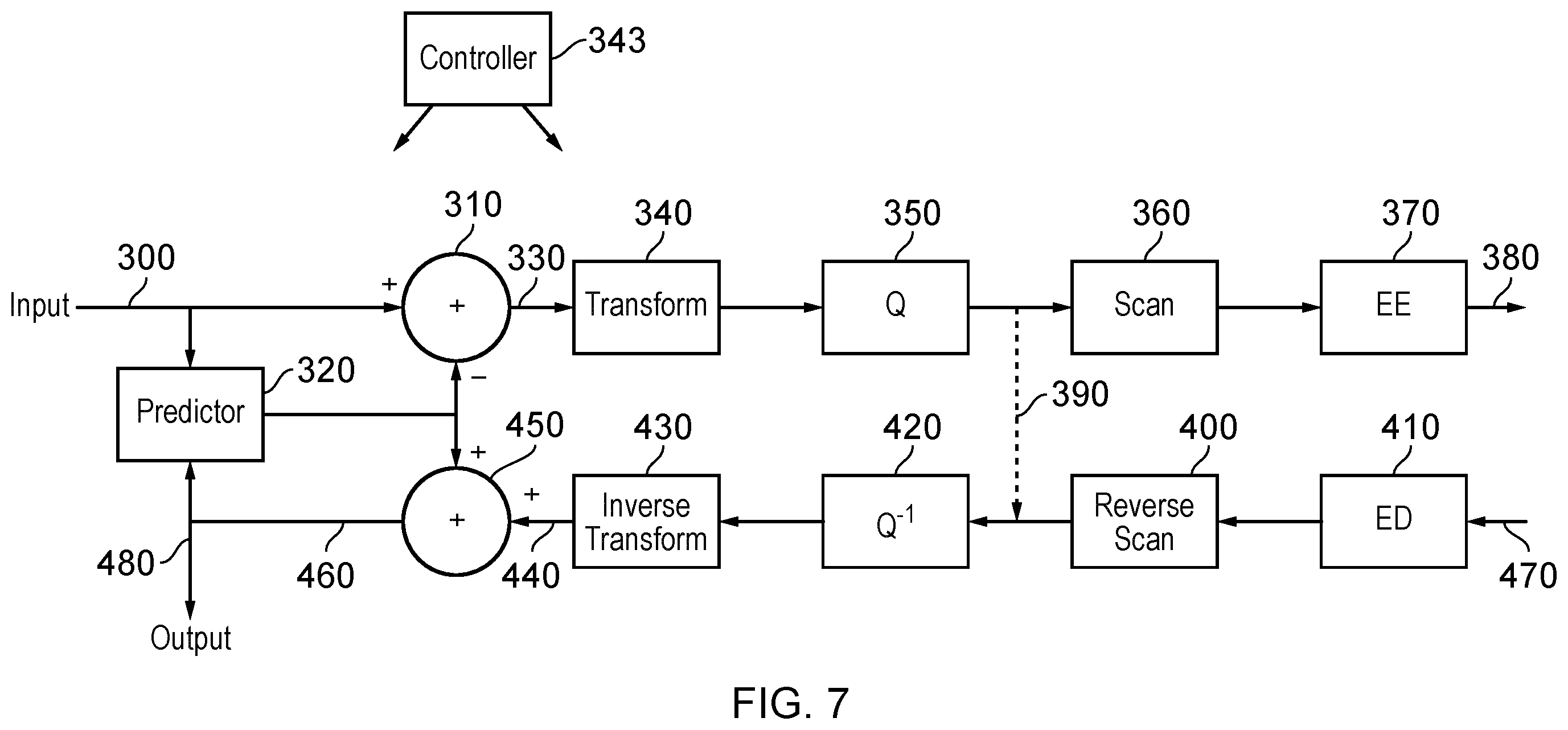

Encoder and decoder architecture, drawing sheet 7 from US 2026/0246931 A1
Sheet 7 Encoder and decoder architecture

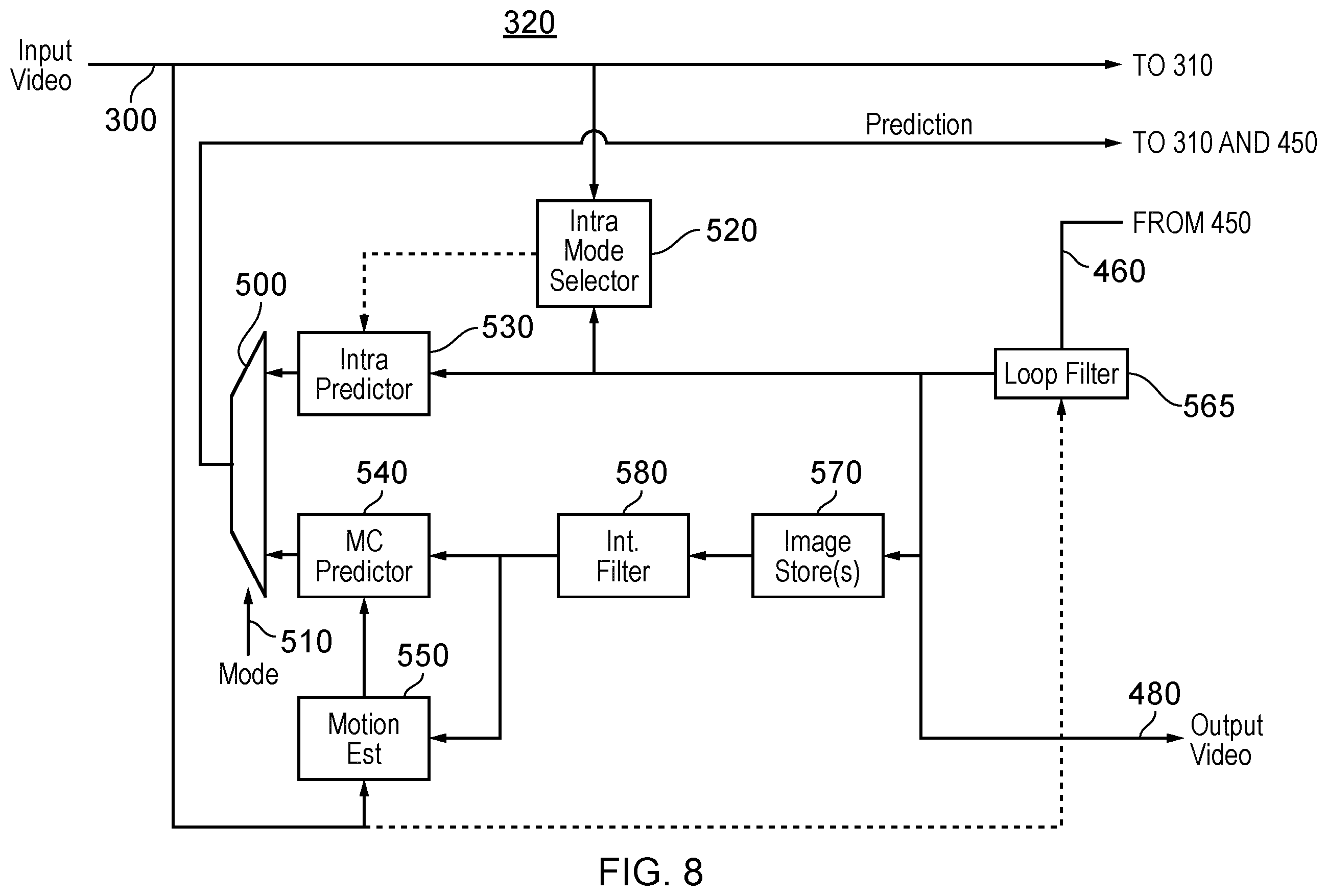

Predictive video processing circuit, drawing sheet 8 from US 2026/0246931 A1
Sheet 8 Predictive video processing circuit
Show the other 10 sheets
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 9
Sheet 9
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 10
Sheet 10
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 11
Sheet 11
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 12
Sheet 12
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 13
Sheet 13
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 14
Sheet 14
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 15
Sheet 15
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 16
Sheet 16
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 17
Sheet 17
Sony Patents a Parallel Image Compression Method That Keeps Encoding Threads in Sync patent drawing, sheet 18
Sheet 18
