Sony Patents Technology That Reads Soil Wetness Across a Farm to Direct Irrigation

Sony is building a system that stitches together aerial moisture maps and in-ground sensors to tell farmers exactly where and when to water, down to a field-by-field level.

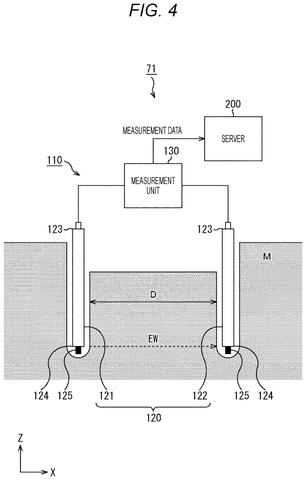

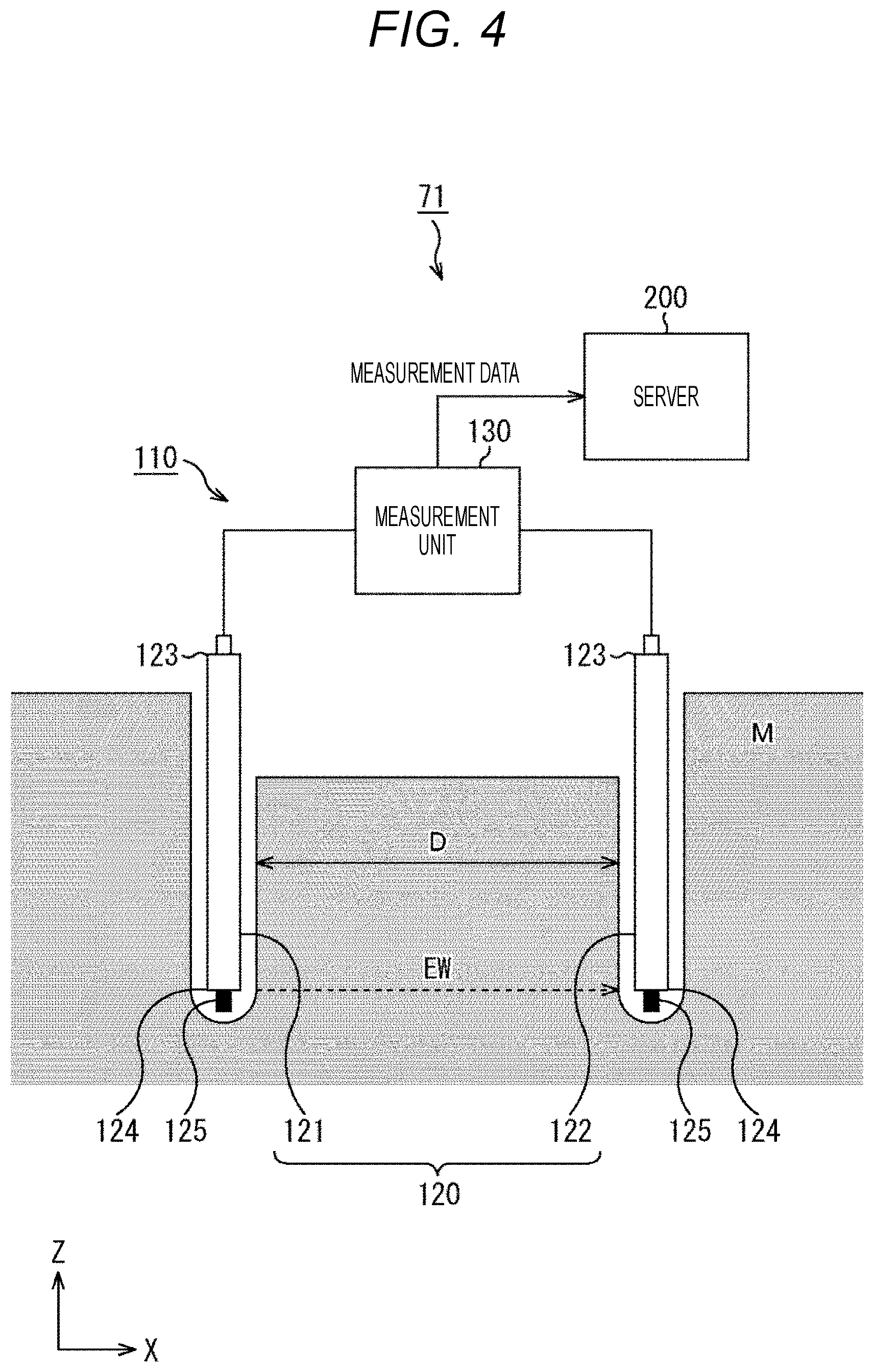

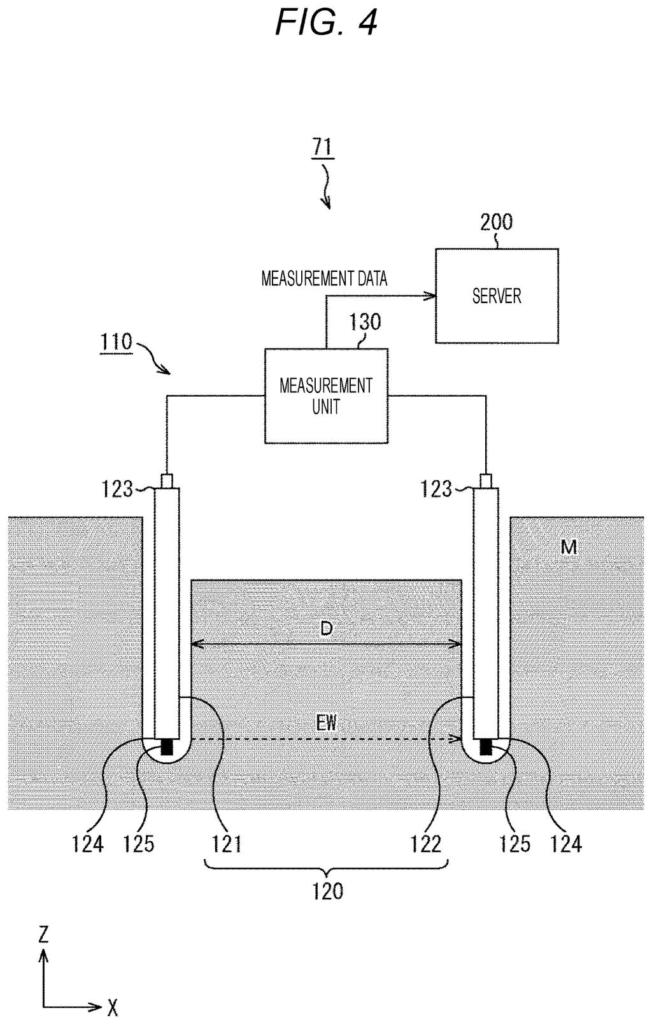

Cross-section of a soil moisture sensor installed in the ground, measuring wetness between two buried probes. Drawing from patent filing US 2026/0243752 A1.
Cross-section of a soil moisture sensor installed in the ground, measuring wetness between two buried probes.All 32 drawings ↓
Publication number
US 2026/0243752 A1(US20260243752A1)
Applicant
SONY GROUP CORPORATION
Filed · Published
Sep 1, 2025 · Aug 20, 2026
Inventors
SHO MURAKOSHI
Status when we published
Waiting for an examiner
Document
20 claims
US classification
702/2
Parent application
National Stage Entry of PCT/JP2024/007493 (filed Feb 29, 2024)(PCTJP2024007493)

How Sony's moisture map turns sensor data into irrigation guidance

Farmers today mostly rely on scattered soil sensors or gut feeling to decide when to irrigate. A single sensor in the corner of a field can miss dry patches twenty yards away, and over-watering or under-watering a crop at the wrong time costs real money.

Sony's patent describes a two-step approach. First, a system builds a relative moisture map of a whole field, showing which areas are drier or wetter compared to each other. This kind of big-picture picture can come from satellite or drone imagery. Then, physical moisture sensors planted in the ground provide actual measured water levels, which the system uses to convert those relative comparisons into real, absolute numbers.

The end result is a map that tells you not just "this corner is drier than that one," but exactly how dry each spot is, giving irrigation systems the data they need to water only what needs watering.

From the filing · CLAIM 1
a first creation unit configured to create a relative moisture amount map regarding a relative moisture amount in a field; an acquisition unit configured to acquire moisture amount data from a moisture amount sensor installed in the field …

Translation: The system uses sensors in the ground to build a map showing how wet different parts of the field are.

How relative maps get anchored to real ground-sensor readings

The patent describes a data processing apparatus with three coordinated parts:

  • First creation unit: Builds a relative moisture amount map across a field. This captures the spatial pattern of moisture variation (which zones are wetter, which are drier) without necessarily knowing the exact water content at any point.
  • Acquisition unit: Pulls readings from physical moisture sensors installed in the field. These sensors measure actual soil water content at specific locations.
  • Second creation unit: Uses those real sensor readings as calibration anchors to convert the relative map into an absolute moisture amount map, meaning every point on the map now carries a real, measurable moisture value rather than just a comparison.

The key engineering insight is that aerial or remote-sensing data (satellites, drones, multispectral cameras) is good at capturing variation across space but often gives relative rather than absolute readings. Ground sensors are accurate but sparse. By combining both, the system gets the coverage of remote sensing with the accuracy of in-field measurement.

The resulting absolute moisture map is intended to feed directly into irrigation control systems, allowing water delivery to be targeted at the right spots rather than applied uniformly across an entire field.

From the filing · THE ABSTRACT
The present technology can be applied to, for example, a data processing apparatus that acquires data for controlling irrigation of a field, appropriately detects a moisture amount in the field, and controls the irrigation.

Translation: This invention uses soil data to automatically manage how much water a farm receives.

What this means for precision agriculture technology

Precision irrigation is one of the bigger practical problems in modern agriculture. Water is expensive, over-irrigation causes runoff and nutrient loss, and under-irrigation cuts yields. A system that produces a reliable, field-wide moisture picture from a handful of sensors could reduce water use and improve crop outcomes without requiring a sensor every few feet.

Sony is not a company most people associate with farming, but the group has been expanding into sensing, imaging, and industrial data systems. This patent sits at the intersection of those areas, agriculture, remote sensing, and data fusion, where Sony's imaging expertise could translate into a real product edge. It joins the broader wave of new Big Tech patents targeting precision agriculture, an area where sensor data and spatial computing are finally maturing enough to deliver field-level accuracy.

Sony's 351st filing among patents we've tracked since May joins earlier work on parallel image compression and a faster-refresh display in our Sony coverage.

Source: US 2026/0243752 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 32 sheets

32 drawing sheets from US 2026/0243752 A1 · click any drawing to enlarge

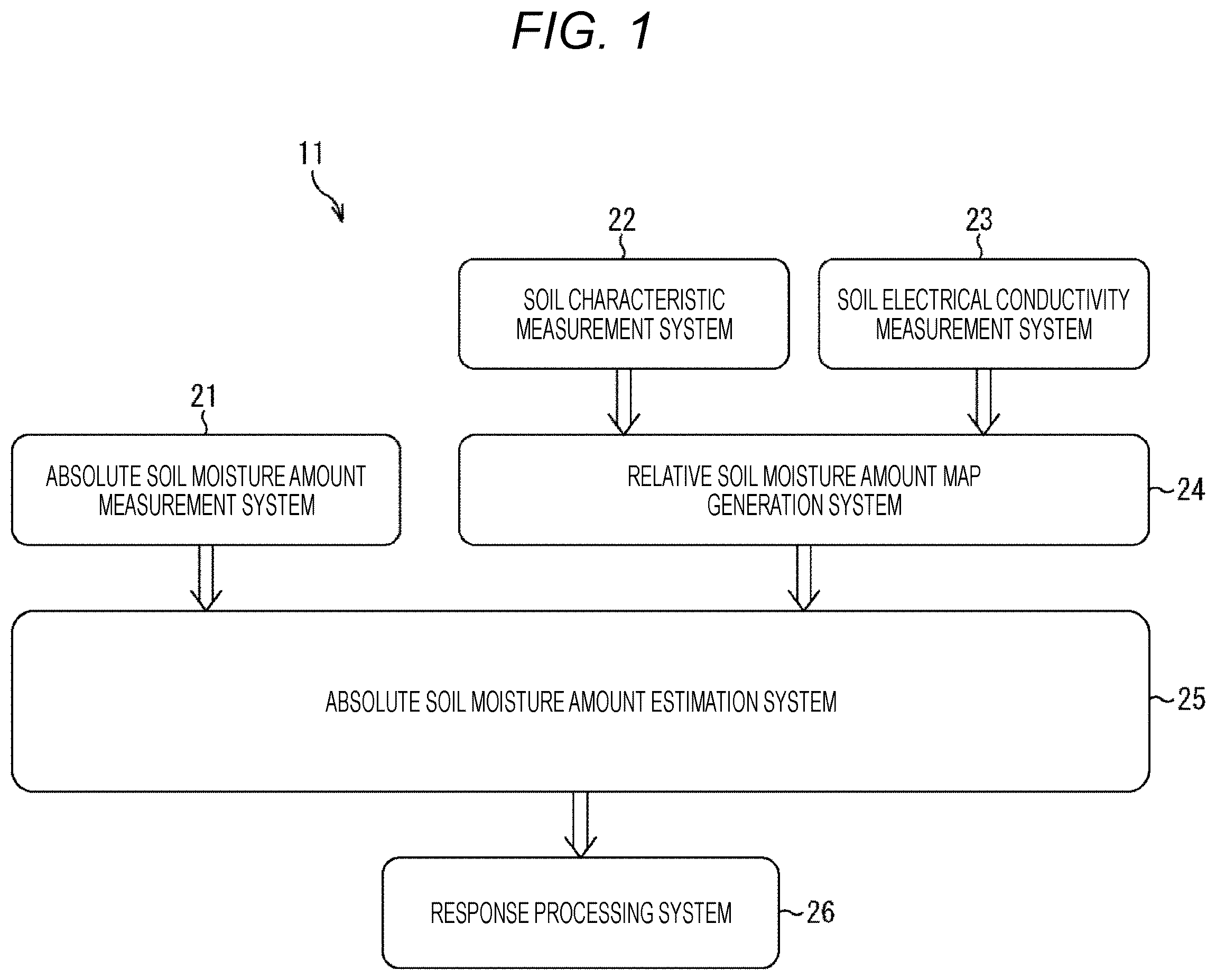

Soil moisture estimation system overview, drawing sheet 1 from US 2026/0243752 A1
Sheet 1 Soil moisture estimation system overview

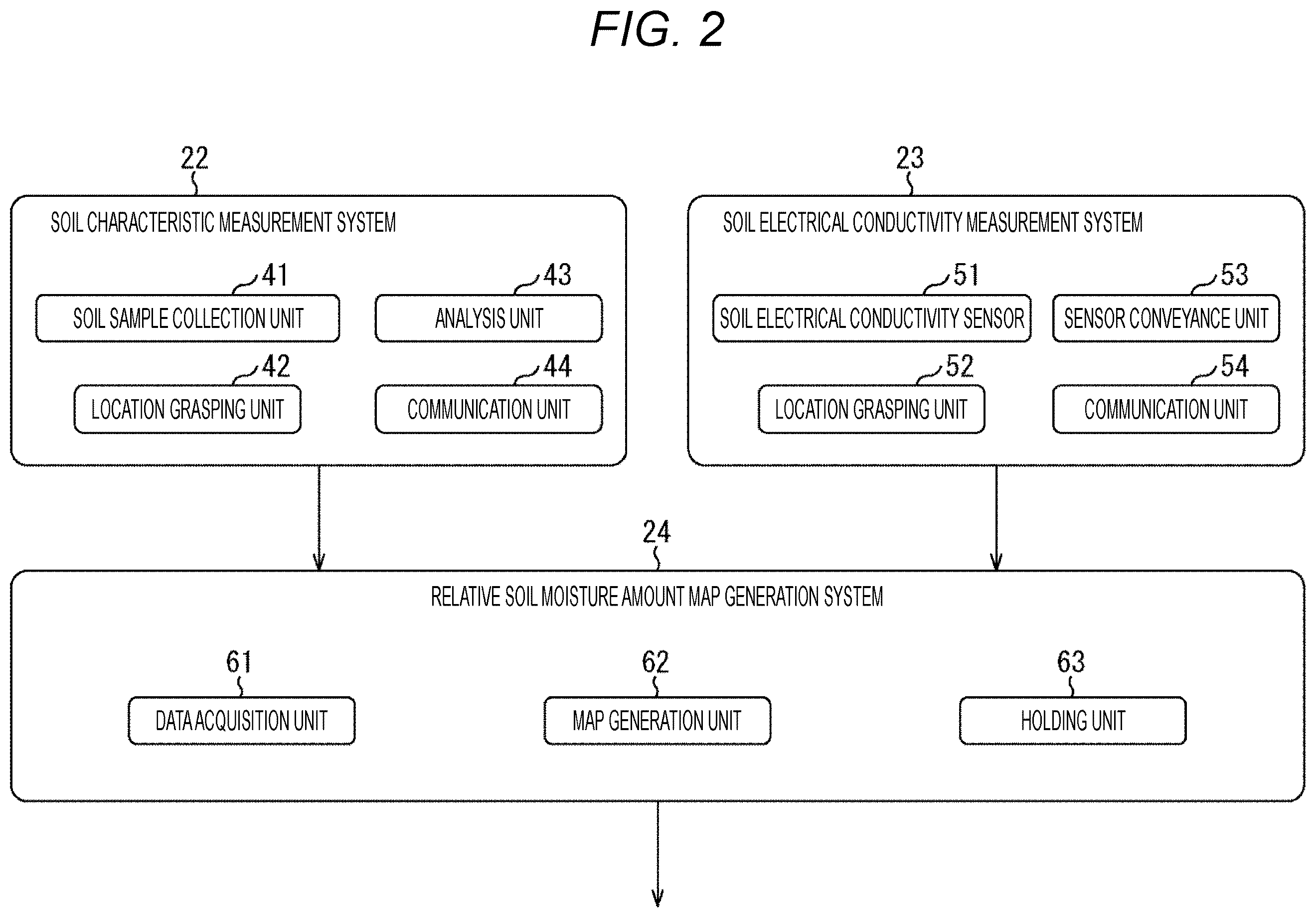

Soil mapping and measurement components, drawing sheet 2 from US 2026/0243752 A1
Sheet 2 Soil mapping and measurement components

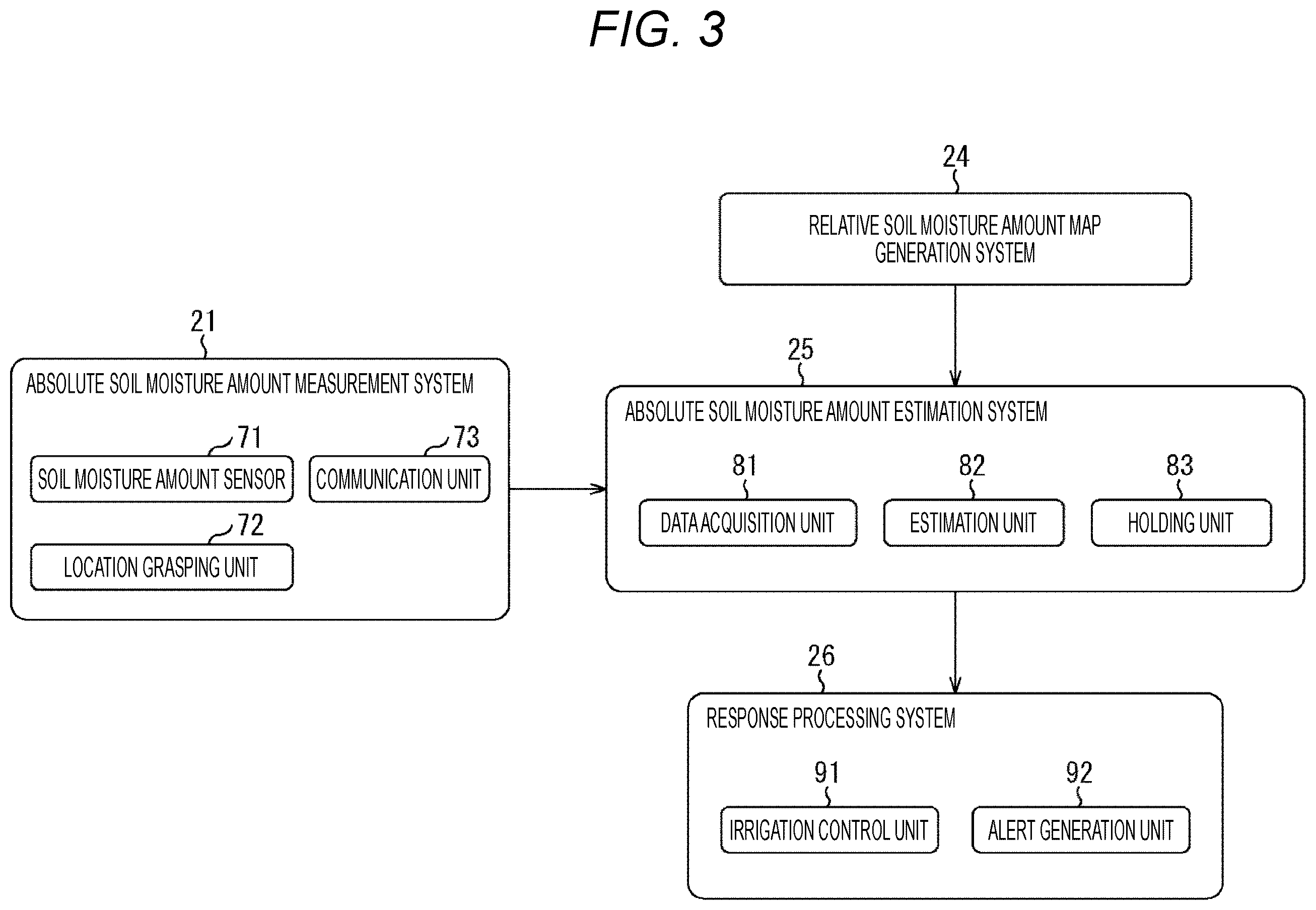

Moisture estimation and irrigation control, drawing sheet 3 from US 2026/0243752 A1
Sheet 3 Moisture estimation and irrigation control
Soil moisture sensor installed underground, drawing sheet 4 from US 2026/0243752 A1
Sheet 4 Soil moisture sensor installed underground

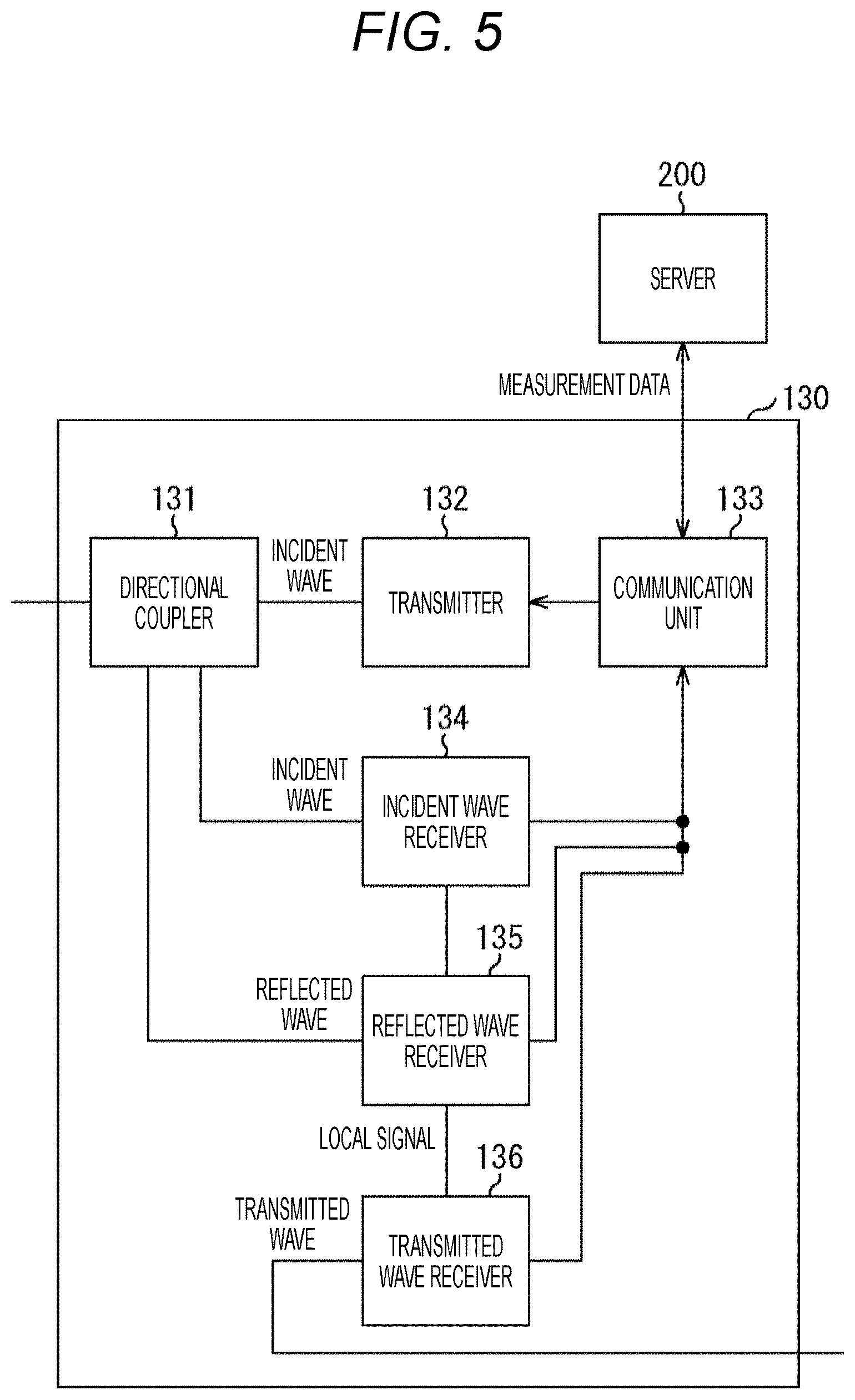

Sensor transmitter and receiver circuitry, drawing sheet 5 from US 2026/0243752 A1
Sheet 5 Sensor transmitter and receiver circuitry

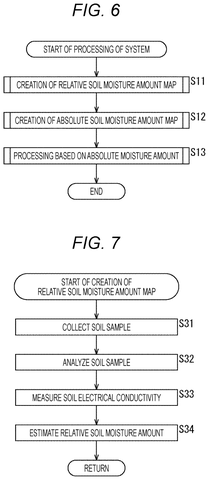

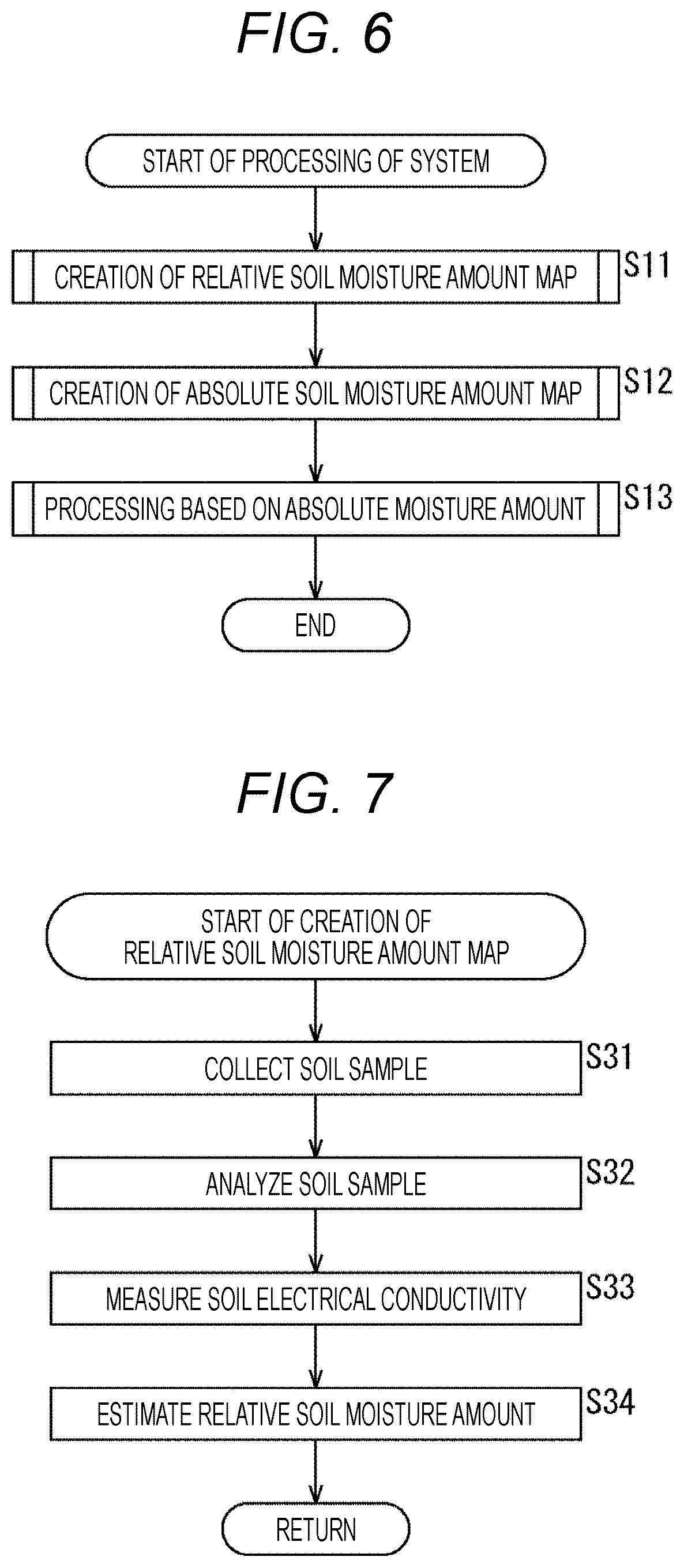

Main system processing steps, drawing sheet 6 from US 2026/0243752 A1
Sheet 6 Main system processing steps
Relative soil moisture mapping steps, drawing sheet 7 from US 2026/0243752 A1
Sheet 7 Relative soil moisture mapping steps

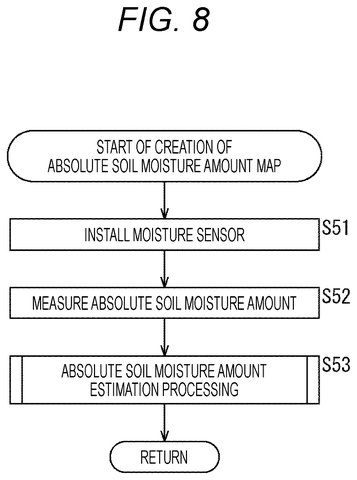

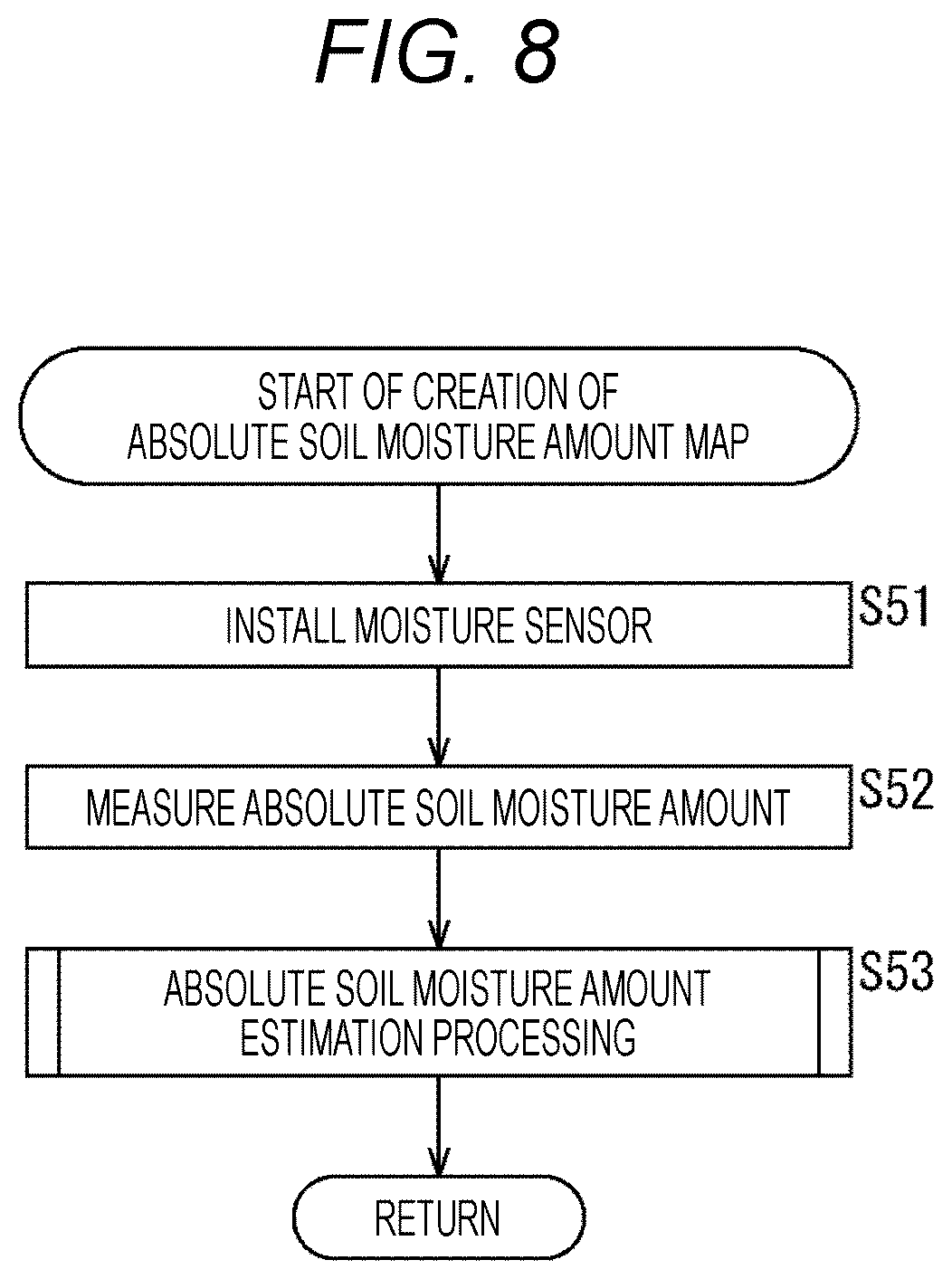

Absolute soil moisture mapping steps, drawing sheet 8 from US 2026/0243752 A1
