Sony Patents a Self-Cleaning Gas Sensor That Identifies Specific Toxic Gases
Most gas sensors tell you that something is wrong with the air. Sony's new patent takes aim at a harder problem: telling you exactly which gas is the culprit, and doing it reliably every time by burning off contamination between readings.
What Sony's auto-resetting gas sensor actually does
Ever caught a whiff of something chemical and had no idea whether to be concerned? Home gas detectors today are blunt instruments. They can sense that something is in the air, but they often can't tell you whether it's a harmless cooking smell or a genuinely dangerous gas.
Sony's patent describes a sensor system that tries to solve that. It uses a small metal-oxide chip, the kind already found in inexpensive air-quality gadgets, but adds a precise temperature-control cycle. Before each measurement, the sensor gets heated to a very high temperature in clean air, burning off any leftover residue from the last reading. Then it measures the same air sample at two different, lower temperatures. Because different gases change the sensor's electrical resistance differently depending on heat level, comparing those two readings helps the system narrow down which gas is actually present.
Sony is essentially giving a simple, cheap sensor a structured routine that makes its output much more trustworthy.
… refresh treatment for cleaning the adsorption layer while heating the semiconductor sensor to the third temperature in an atmosphere of the first gas …
Translation: It uses high heat in clean air to burn away residue and reset the sensor.
How the three-temperature cycle separates and reads gases
The core of the invention is a metal-oxide semiconductor sensor, a tiny chip coated in a material (like tin oxide) that changes its electrical resistance when gas molecules stick to its surface. The more of a particular gas, the bigger the resistance shift. The problem with these sensors is that molecules from previous readings can linger on the surface and corrupt new measurements.

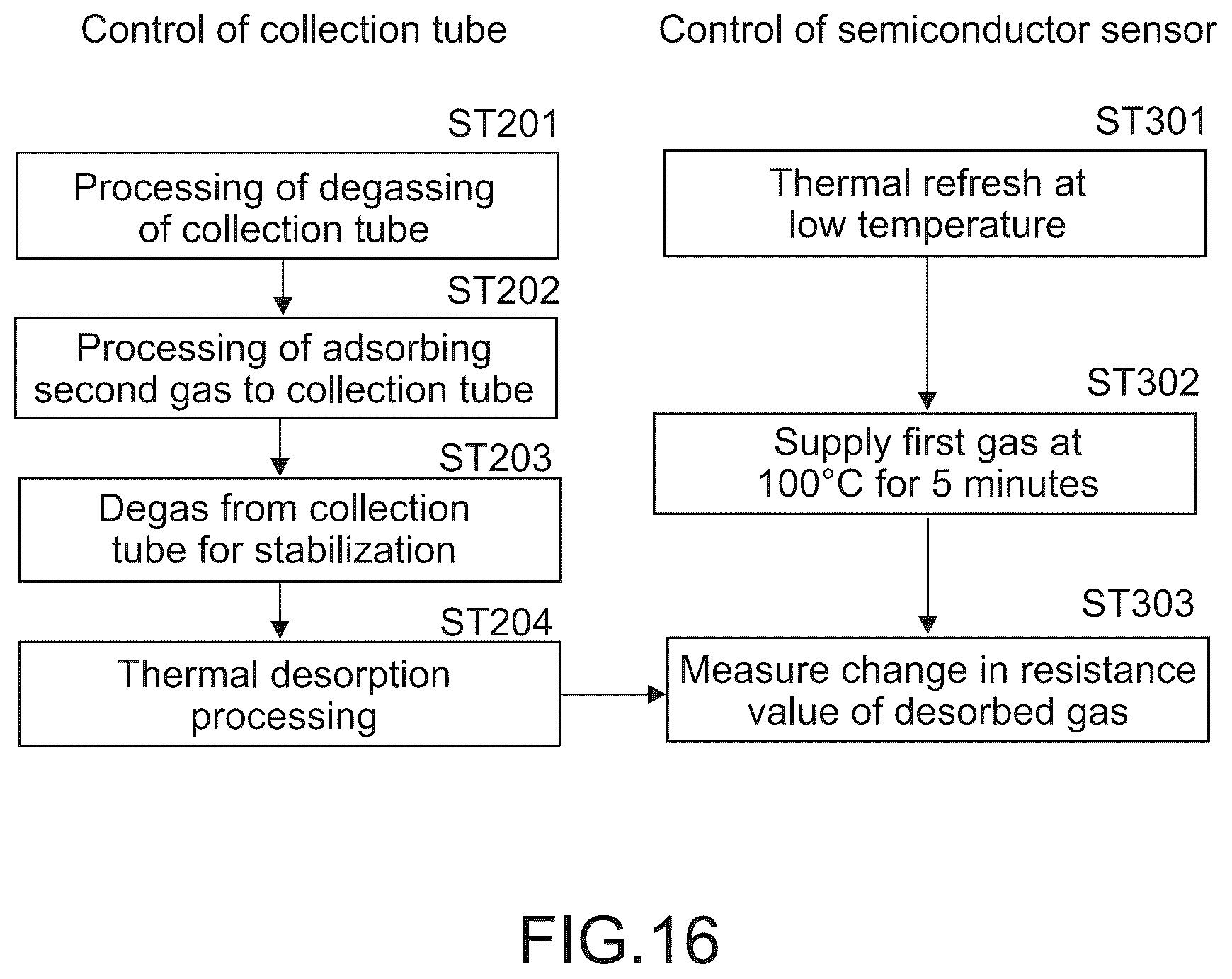

Sony's system attacks that problem with a three-step thermal cycle:
- Refresh treatment: The sensor is heated to the highest temperature ("third temperature") in a stream of clean air that contains no reducing gases (gases that donate electrons, like hydrogen, carbon monoxide, or alcohols). This burns residue off the sensor surface, essentially resetting it.
- Low-temperature measurement: Immediately after the refresh, the sample gas is introduced and the sensor is held at the lowest temperature ("first temperature"). At this cooler setting, certain gas molecules bind to the surface and produce a characteristic resistance reading.
- High-temperature measurement: The same gas sample is then measured at a middle temperature ("second temperature"). Different gases react differently at this heat level, so the ratio between the low- and high-temperature readings acts like a fingerprint for a specific gas species.
Running the low-temperature step directly after the clean-sweep refresh is the key design choice. It prevents leftover contamination from muddying the baseline reading that everything else is compared against.
What this means for air-quality and safety devices
Metal-oxide sensors are already everywhere: cheap air purifiers, industrial safety monitors, and smartphone air-quality accessories all use them. Their weakness has always been selectivity. They can raise an alarm but can't reliably distinguish between, say, ethanol from hand sanitizer and carbon monoxide from a faulty heater. Sony's approach, if it works in practice, could make that class of sensor genuinely diagnostic rather than just alerting.
For consumers, that could mean home safety devices that tell you what to do, not just that something is wrong. For industrial applications, where workers need to know which specific chemical they're dealing with, the difference between a vague alarm and a named gas is a serious safety upgrade.
Sony's ninth filing in the sensor patents we cover since June follows earlier work like a scanner that adjusts its effort and a system that locates transmissions.

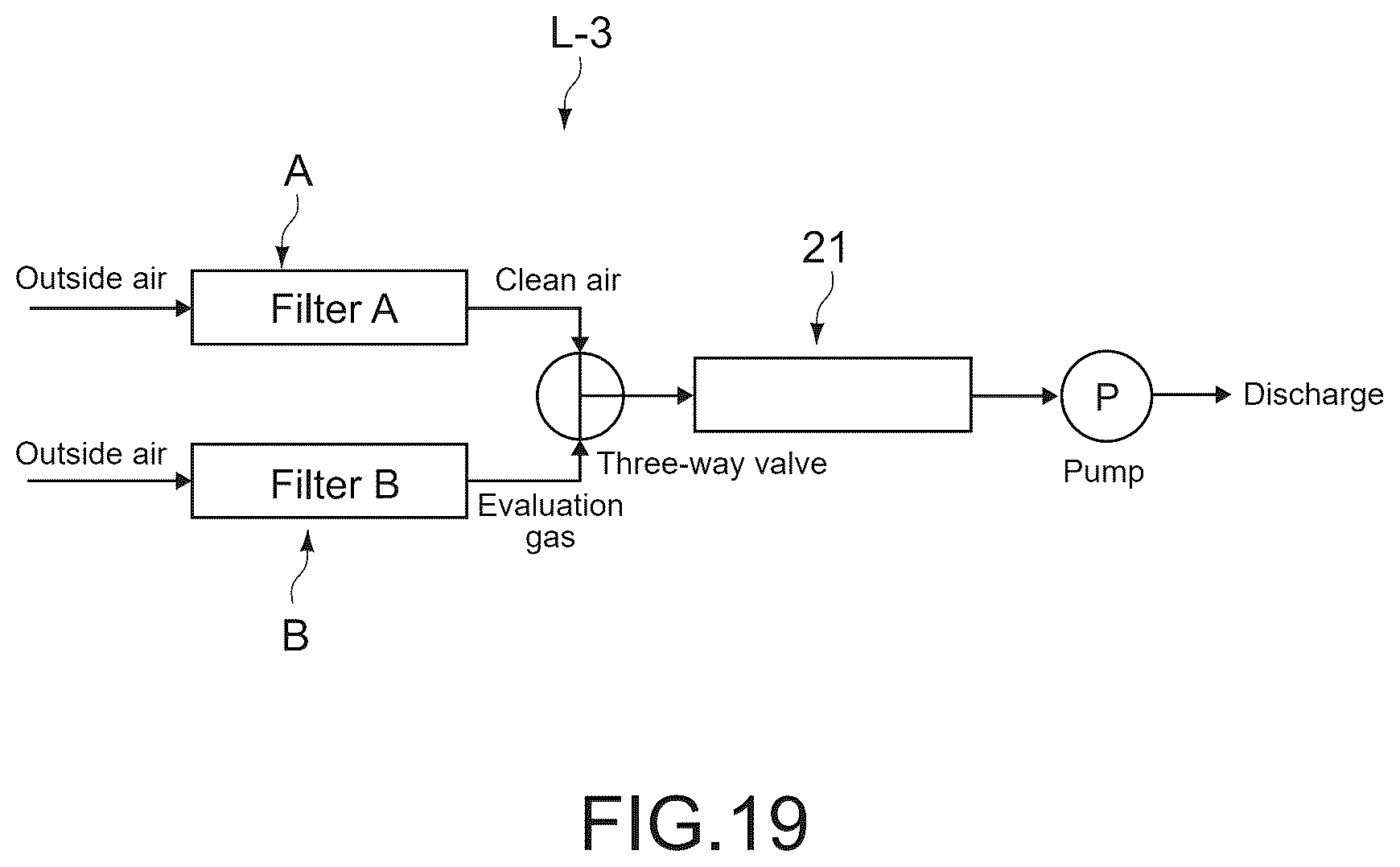

The invention needs real physical parts that don't exist in most devices today: two separate gas lines, a small pump to deliver clean reference air, and a heating element that cycles through precise temperatures on a controlled schedule. That's a purpose-built instrument, not a software update.
The shortest path to a product is a professional air-quality monitor for industrial or safety settings, where size and cost constraints are looser and the need to reliably identify a specific harmful gas justifies the engineering.
Shrinking this into something a homeowner installs on a ceiling is a separate, harder problem that this document doesn't solve.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
15 drawing sheets from US 2026/0259163 A1 · click any drawing to enlarge
Show the other 7 sheets
