Apple Patents Finger Controls Along the Front Glass of Its VR Headset

What if you could control a headset by touching its outer face rather than hunting for a button or waving in the air? Apple has filed a patent that places touch sensors along the rim of a head-mounted device's front glass panel.

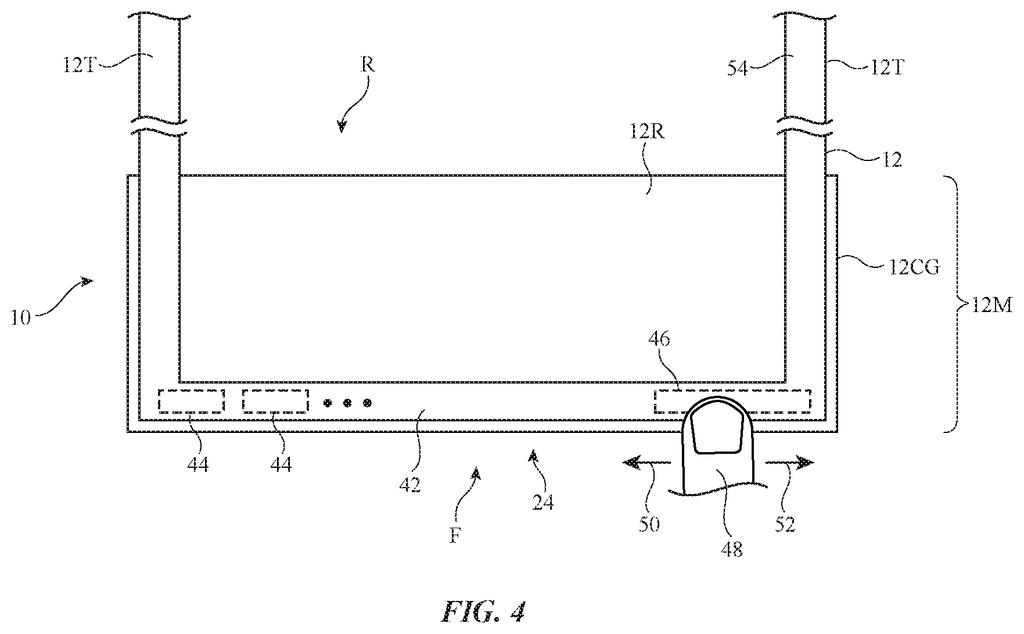

A finger interacts with controls on the front glass of a virtual reality headset. Drawing from patent filing US 2026/0299736 A1.
A finger interacts with controls on the front glass of a virtual reality headset.All 9 drawings ↓
Publication number
US 2026/0299736 A1(US20260299736A1)
Applicant
Apple Inc.
Filed · Published
Jun 3, 2026 · Oct 1, 2026
Inventors
Forrest C. Wang, Ritu Shah
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/174
Parent application
Continuation of 19/054,541 (filed Feb 14, 2025)(19054541)

What Apple's headset edge sensor actually does

Today's head-mounted devices give you a limited number of ways to control what you see: voice commands, hand gestures tracked by cameras, or a small physical button. Apple's patent describes a different approach: thin, elongated touch sensors embedded along the outer edge of the curved glass panel on the front of the headset.

Those sensors can detect a tap, a press, or other finger contact from the outside of the device while you're wearing it. A bystander looking at you would see the external display on the front of the headset, with a slim sensor running along its border.

The idea is that your finger resting on the rim of the headset could serve as a discreet input method, without requiring a separate controller or a dramatic hand gesture that everyone around you notices.

From the filing · CLAIM 1
a curved glass layer that forms at least part of the outer surface; a head-mounted housing that forms a ring-shaped border around the curved glass layer; displays and lenses supported by the head-mounted housing; and a button on the head-mounted housing that is configured to receive user input.

Translation: The headset uses a curved glass front surrounded by a ring-shaped housing that holds internal screens and lenses.

How the finger sensor fits around the front display

The patent describes a head-mounted device with a curved glass layer forming part of its outer surface, a housing that creates a ring-shaped border around that glass, and displays and lenses inside for the wearer.

On the front face, the device includes one or more external displays that are publicly visible, meaning people nearby can see content on the outside of the headset, not just the wearer. Sitting along the perimeter of that external display are finger sensors shaped to follow the edge, like a thin strip running around the border.

Those sensors are designed to detect:

  • Touch input, a finger making contact with the surface
  • Force input, how hard the finger is pressing
  • Other input from external objects

Additional sensors can also appear on other parts of the support structure, not just the front face. The first independent claim anchors the invention around the curved glass, the ring-shaped housing, and a button that receives user input, establishing the physical form factor that the sensor system is built around.

From the filing · THE ABSTRACT
One or more finger sensors that are configured to detect touch input, force input, and/or other input from an external object such as a user's finger may be included in the head-mounted device. A finger sensor may have an elongated shape that runs along a peripheral edge of an external display on the front face.

Translation: Built-in touch sensors along the edges of the front display can detect when your fingers touch or press the device.

What this means for how you control AR headsets

For anyone who has fumbled with a headset's single side button or felt self-conscious performing mid-air gestures in public, an edge sensor offers a quieter option. Running your finger along the front rim of a device is a small, natural motion that does not require lifting your arm or speaking out loud.

The external display element is also worth noting. A headset with a screen on its outer face changes the social dynamic of wearing one, and controls that wrap around that screen extend the front panel into an interactive surface rather than just a window. Whether that trade, more sensors, more glass complexity, more potential failure points along a curved edge, is worth the payoff depends on how reliable the sensors are in everyday wear.

Apple's 47th filing we've tracked in our AR glasses race watchlist since May builds on work like its AI gap-filling patent and its eye-tracking sharpness patent.

Source: US 2026/0299736 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 9 sheets

9 drawing sheets from US 2026/0299736 A1 · click any drawing to enlarge

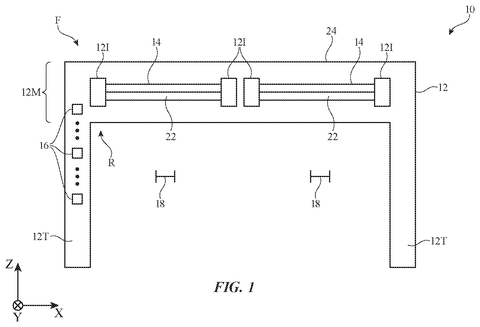

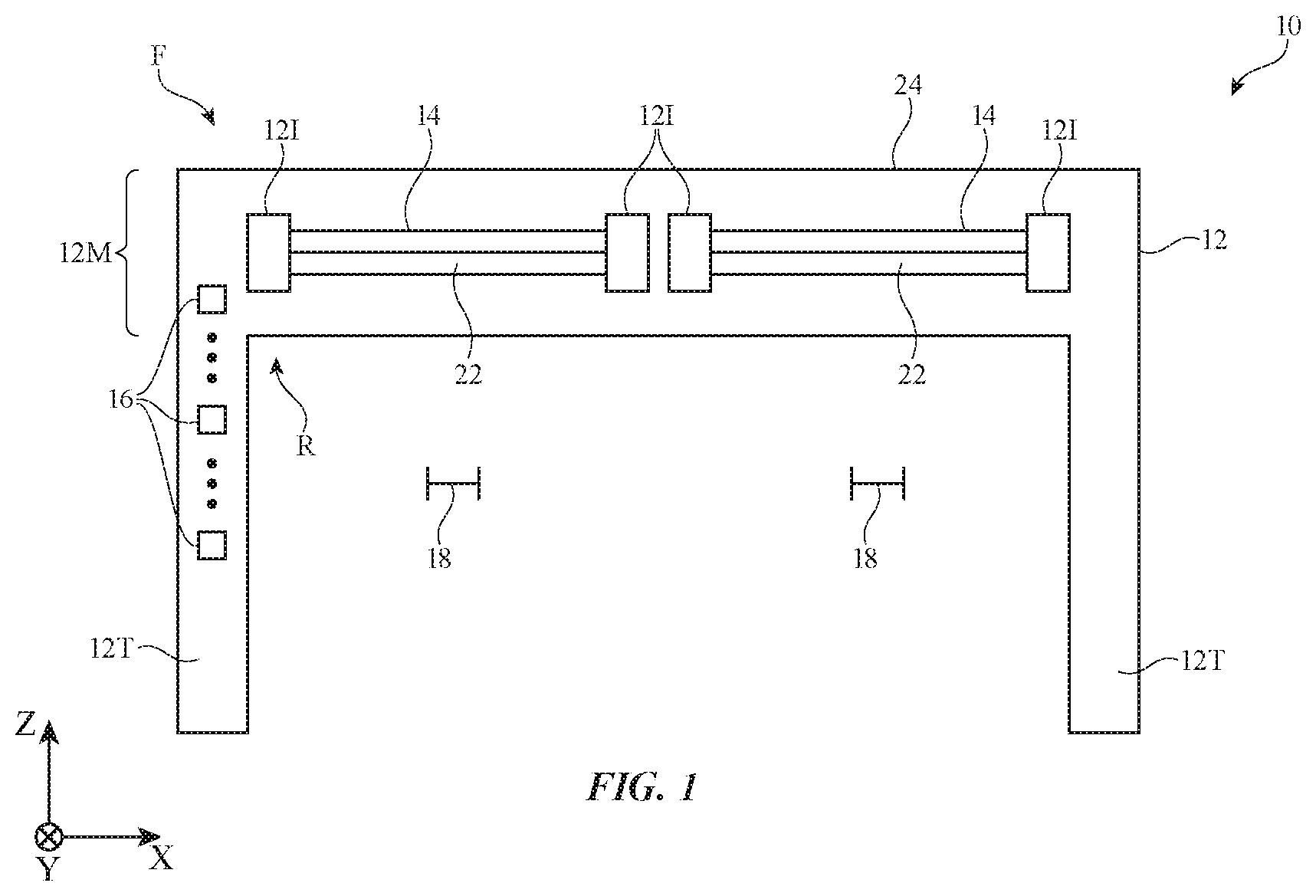

Virtual reality headset components., drawing sheet 1 from US 2026/0299736 A1
Sheet 1 Virtual reality headset components.

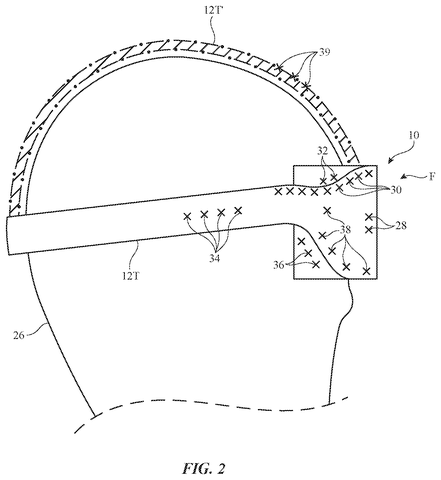

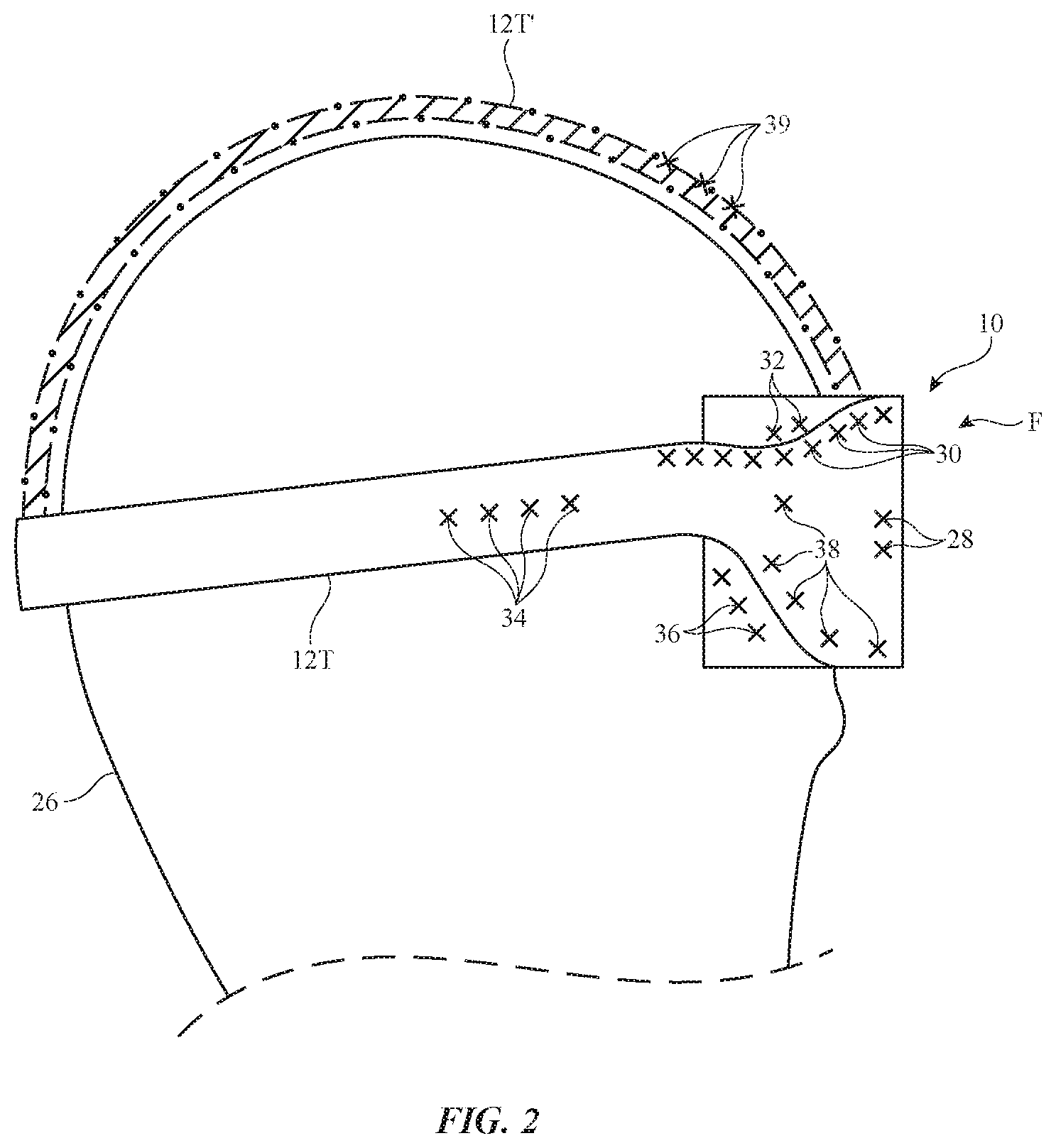

Headset worn on a head., drawing sheet 2 from US 2026/0299736 A1
Sheet 2 Headset worn on a head.

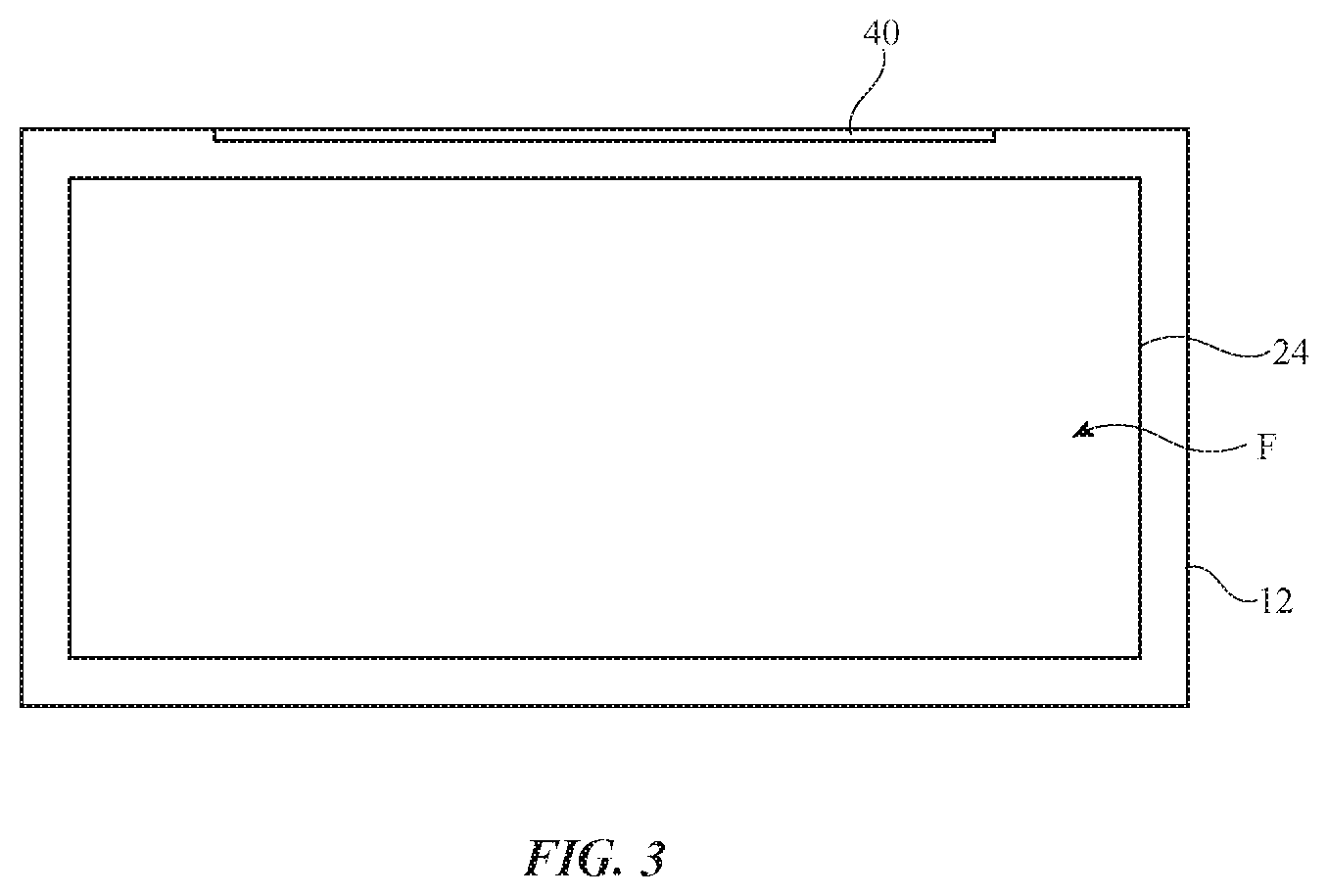

Headset front view., drawing sheet 3 from US 2026/0299736 A1
Sheet 3 Headset front view.

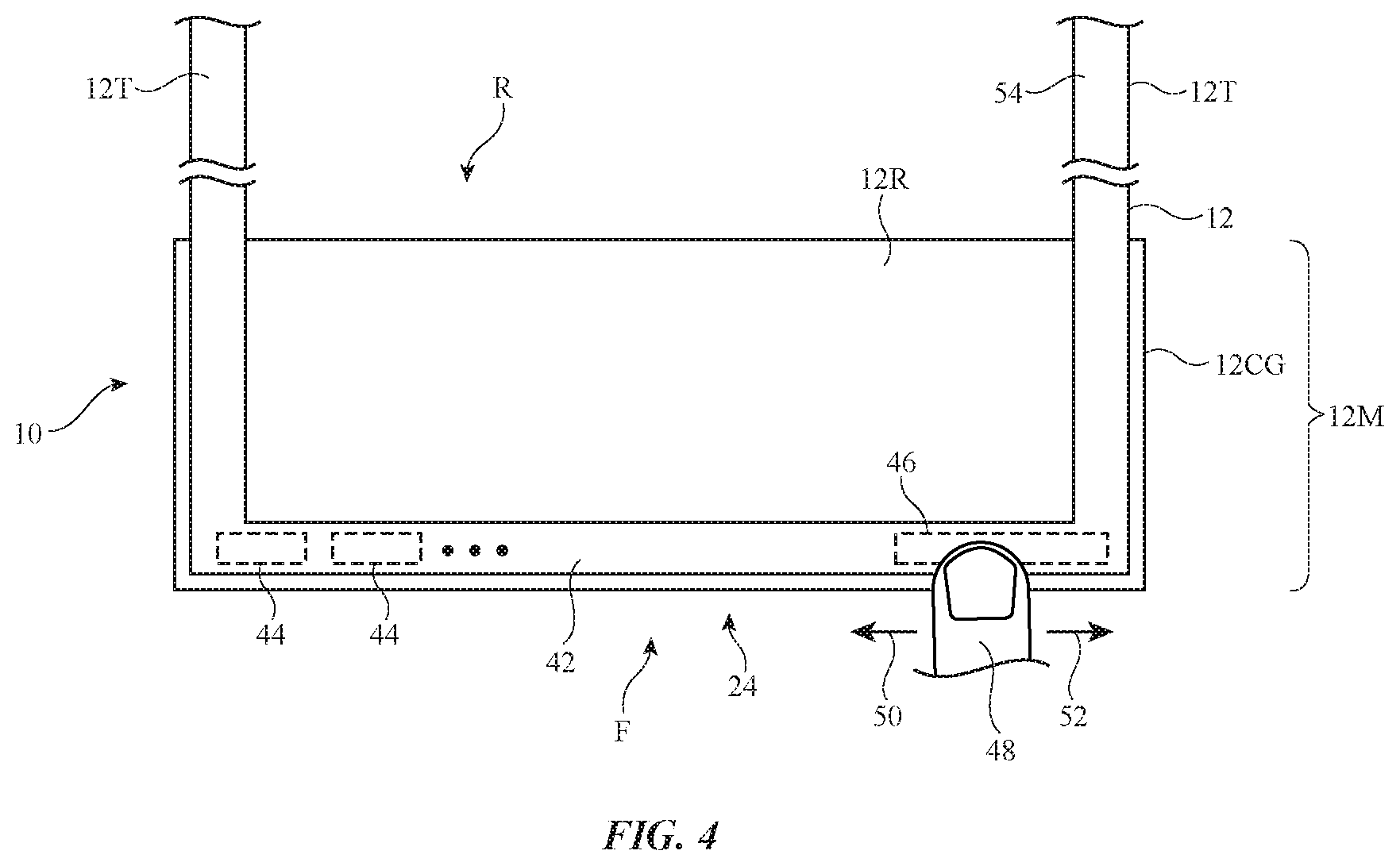

Finger controls on headset front., drawing sheet 4 from US 2026/0299736 A1
Sheet 4 Finger controls on headset front.

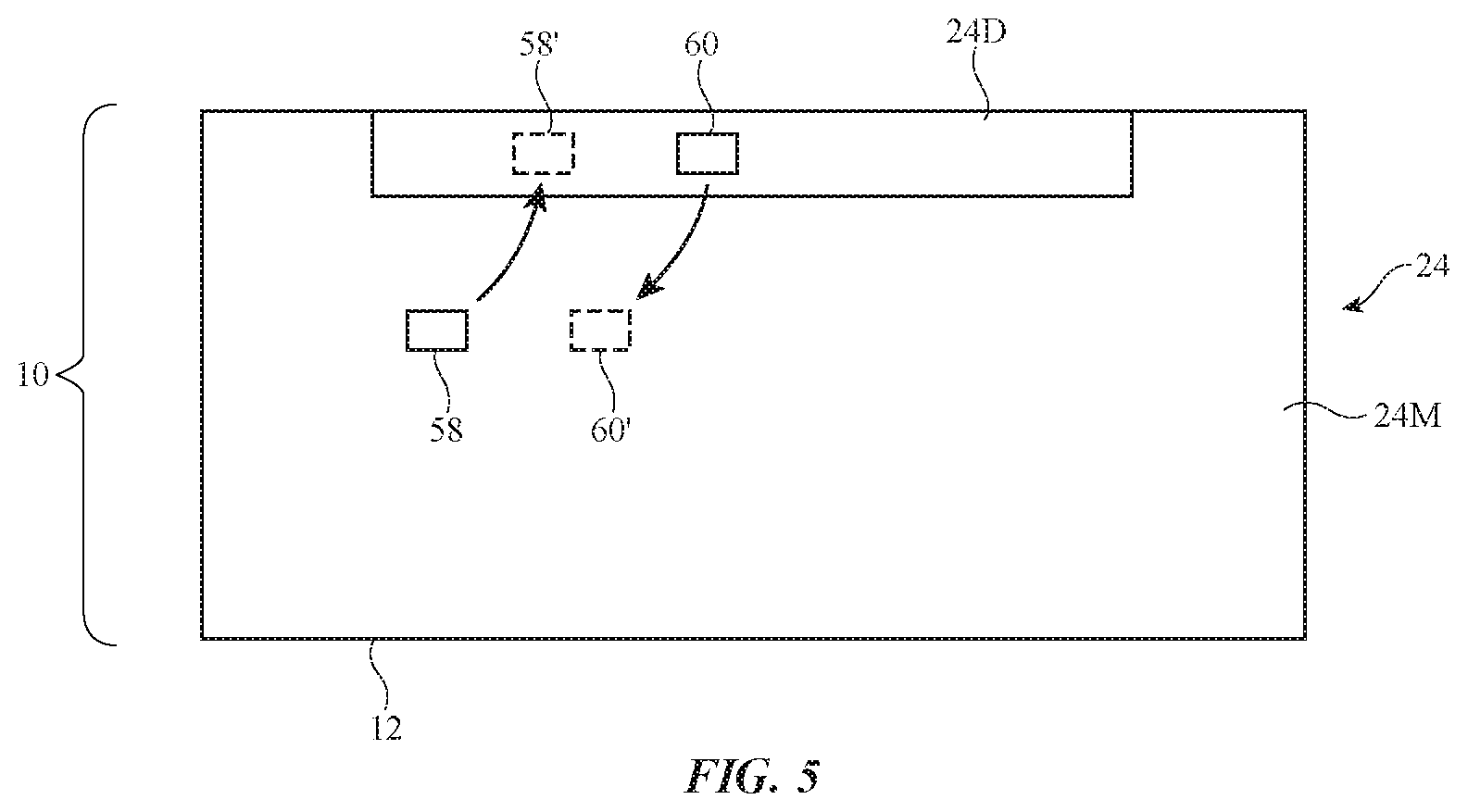

Moving icons on headset display., drawing sheet 5 from US 2026/0299736 A1
Sheet 5 Moving icons on headset display.

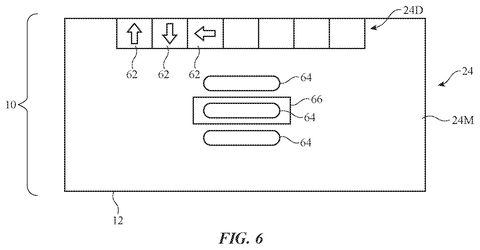

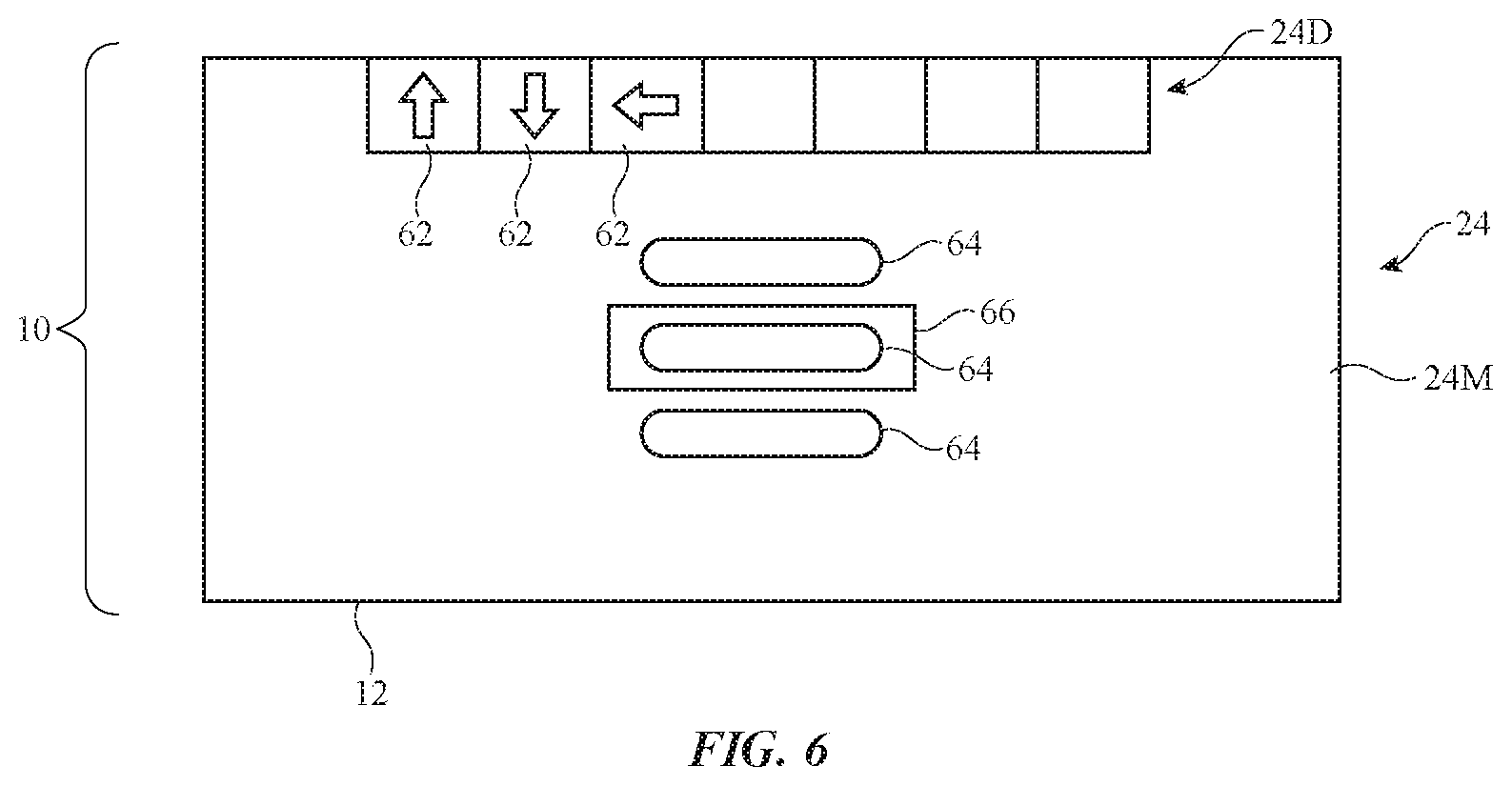

Headset display with menu options., drawing sheet 6 from US 2026/0299736 A1
Sheet 6 Headset display with menu options.

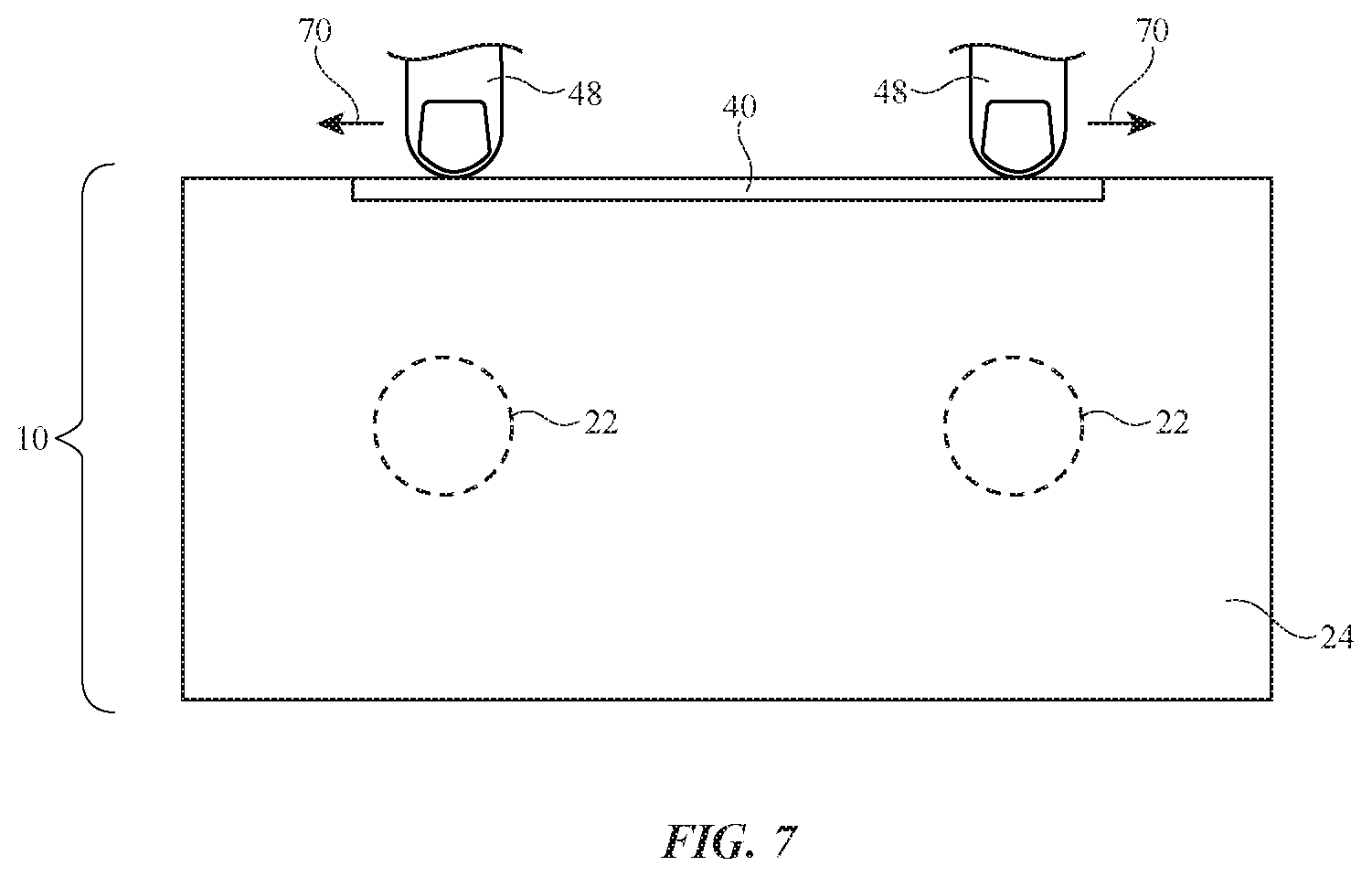

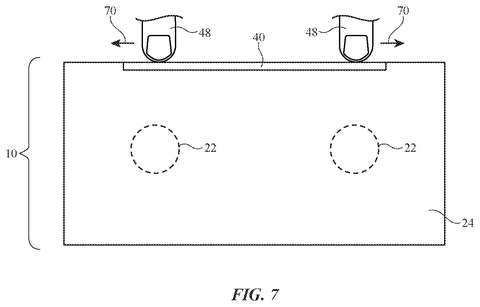

Finger scrolling on headset top., drawing sheet 7 from US 2026/0299736 A1
Sheet 7 Finger scrolling on headset top.

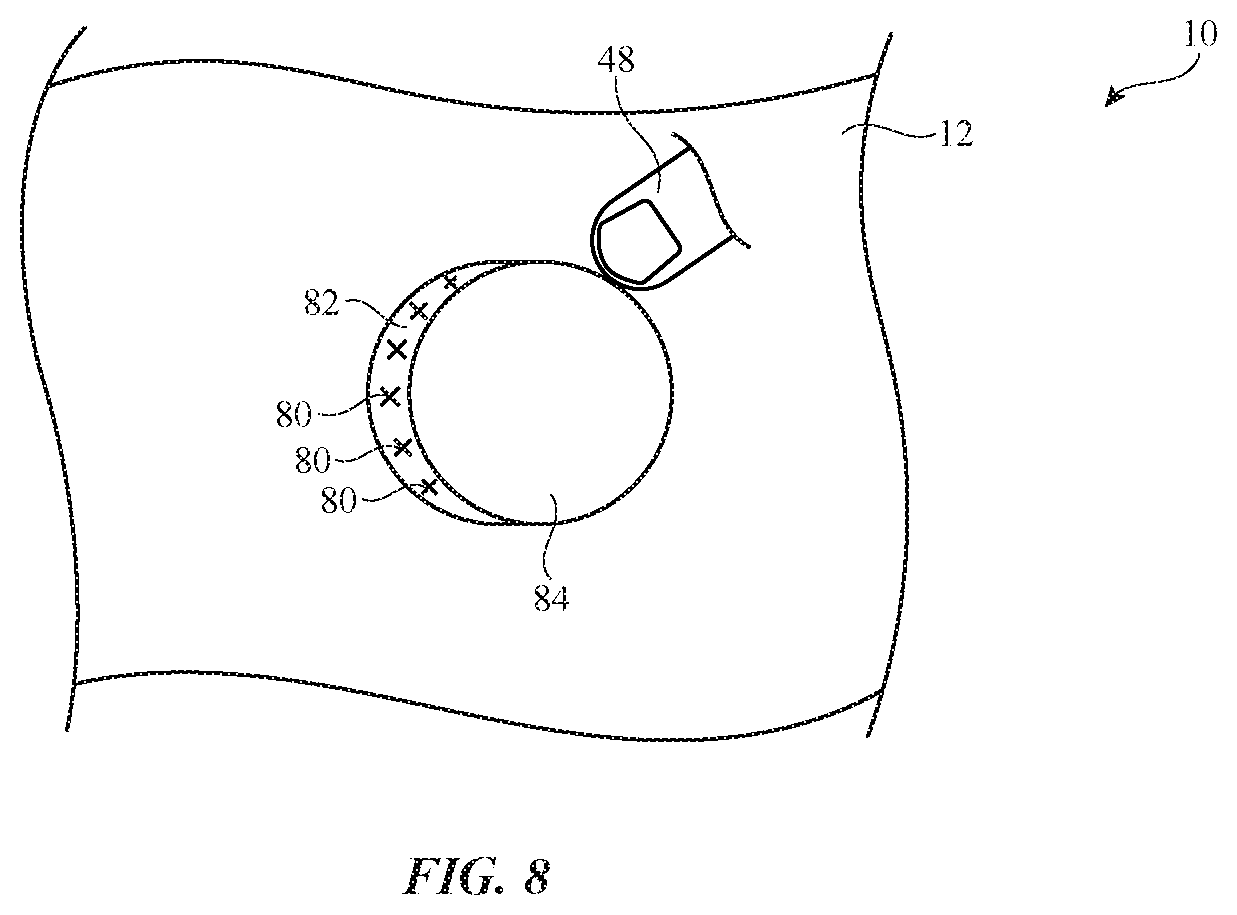

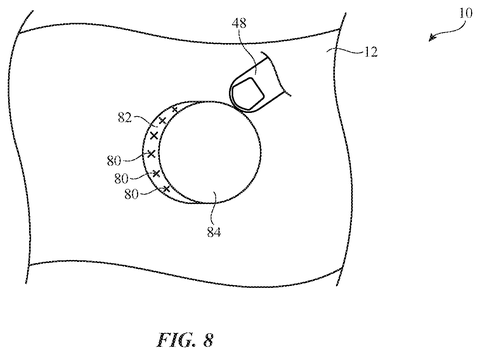

Finger rotating a virtual dial., drawing sheet 8 from US 2026/0299736 A1
