Disney Patents a System That Projects Images Onto Moving, Reflective Surfaces in Real Time

A shiny, rippling costume or a flowing metallic fabric is basically the worst canvas imaginable for a digital projector. Disney just filed a patent for a system that watches the surface move and adjusts what it projects in real time.

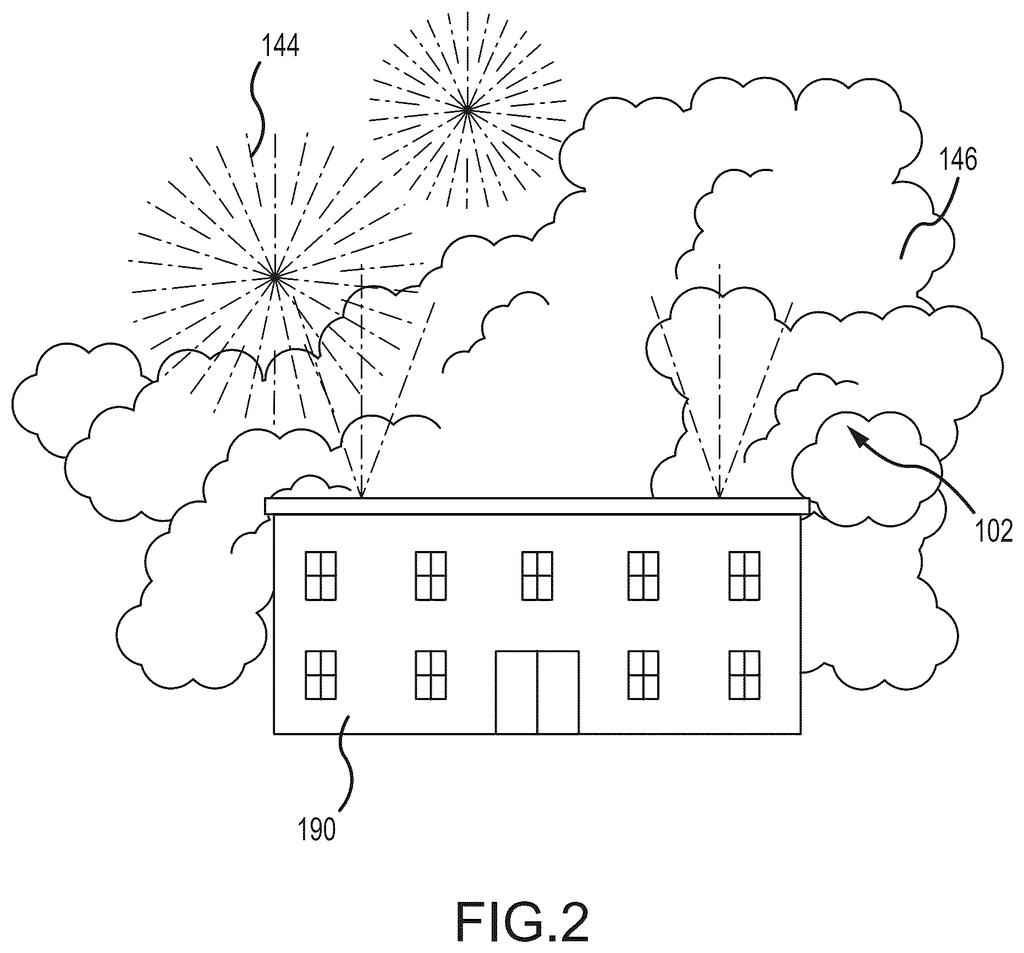

Fireworks bursting above clouds of smoke and vapor rolling off the roof of a building. Drawing from patent filing US 2026/0246909 A1.
Fireworks bursting above clouds of smoke and vapor rolling off the roof of a building.All 10 drawings ↓
Publication number
US 2026/0246909 A1(US20260246909A1)
Applicant
DISNEY ENTERPRISES, INC.
Filed · Published
Feb 20, 2025 · Aug 20, 2026
Inventors
Lanny S. Smoot, Jack Wetherell, Samantha Cheuklum Ho, Richard Erik Sotomayor
Status when we published
Waiting for an examiner
Document
32 claims
US classification
345/619
Examiner
GRAY, RYAN M (Art Unit 2611)

How Disney's projection system tracks moving reflective materials

Every time a performer in a glittery costume walks under a stage projector, the light scatters in a dozen wrong directions and the image falls apart. Disney's new patent describes a system designed to fix exactly that, automatically and on the fly.

The system uses a camera to watch the reflective surface, whether that's a rippling fabric, a metallic prop, or anything else that moves and bounces light. A controller figures out how the surface is behaving at any given moment, then decides what image to project so it actually looks right on that surface in that position. A separate sensor fires invisible light at the surface and reads the reflection to keep tracking it even when conditions change.

The result: instead of a blurry or washed-out mess, your eyes see a projection that fits the surface as it moves. You wouldn't need to know any of this is happening. You'd just see something that looks unexpectedly vivid on a surface that should, by all rights, be a projector's worst nightmare.

From the filing · CLAIM 1
… a controller configured to: detect, based on the captured image, a dynamic characteristic of the light reflective material; and determine, based on the detected dynamic characteristic, content to be projected onto the light reflective material.

Translation: The system watches a moving reflective object and automatically decides what image to display on it based on its movement.

How the camera and infrared sensor guide the projector

The patent describes a closed-loop projection system with four main components working together:

  • A camera that captures images of the reflective surface and feeds them to the controller.
  • A controller that analyzes what the camera sees, detects how the surface is moving or changing (its "dynamic characteristic"), and selects or modifies content accordingly.
  • A nonvisible-light source (think infrared) that illuminates the surface without interfering with what the audience sees.
  • A sensor that reads the reflection of that invisible light to track the surface's shape and position in real time.

The key idea is that the controller doesn't just set a projection and hope for the best. It continuously monitors the surface through both the camera and the infrared sensor, then adjusts the projected content to match whatever the surface is doing at that instant.

Dynamic characteristic is the patent's term for things like how the surface is tilted, how it's rippling, or how its reflectivity is distributed across its area. By detecting those properties frame by frame, the system can warp or shift the image so it lands correctly despite constant movement. It's a feedback loop: surface changes, sensor detects it, controller corrects the projection.

From the filing · THE ABSTRACT
The system may include a light source configured to emit nonvisible light in the area and a projector configured to project content onto a dynamic light reflective material in the area.

Translation: The device uses invisible light to track the object so it can project images onto it without the audience seeing the sensor.

What this means for Disney's theme park experiences

For anyone visiting a Disney park or watching a Disney live show, this kind of system could make the difference between a costume that glows convincingly and one that just looks like someone pointed a projector at it and shrugged. Reflective materials are genuinely difficult for projection systems, and the usual workaround is to avoid them or use materials that don't move. This patent describes a way to use them anyway.

The broader implication is that Disney is working to make digital projection a more reliable part of live, physical entertainment, where performers and props don't hold still on cue. Coverage of interesting tech patents in the entertainment and AR space shows this kind of real-time environment-sensing work appearing more often as projection hardware gets cheaper and more precise.

Disney's 30th filing we've tracked since June includes earlier work like the ride-hate warning system and the broken-equipment detector, all part of our Disney coverage.

Source: US 2026/0246909 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Disney patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0246909 A1 · click any drawing to enlarge

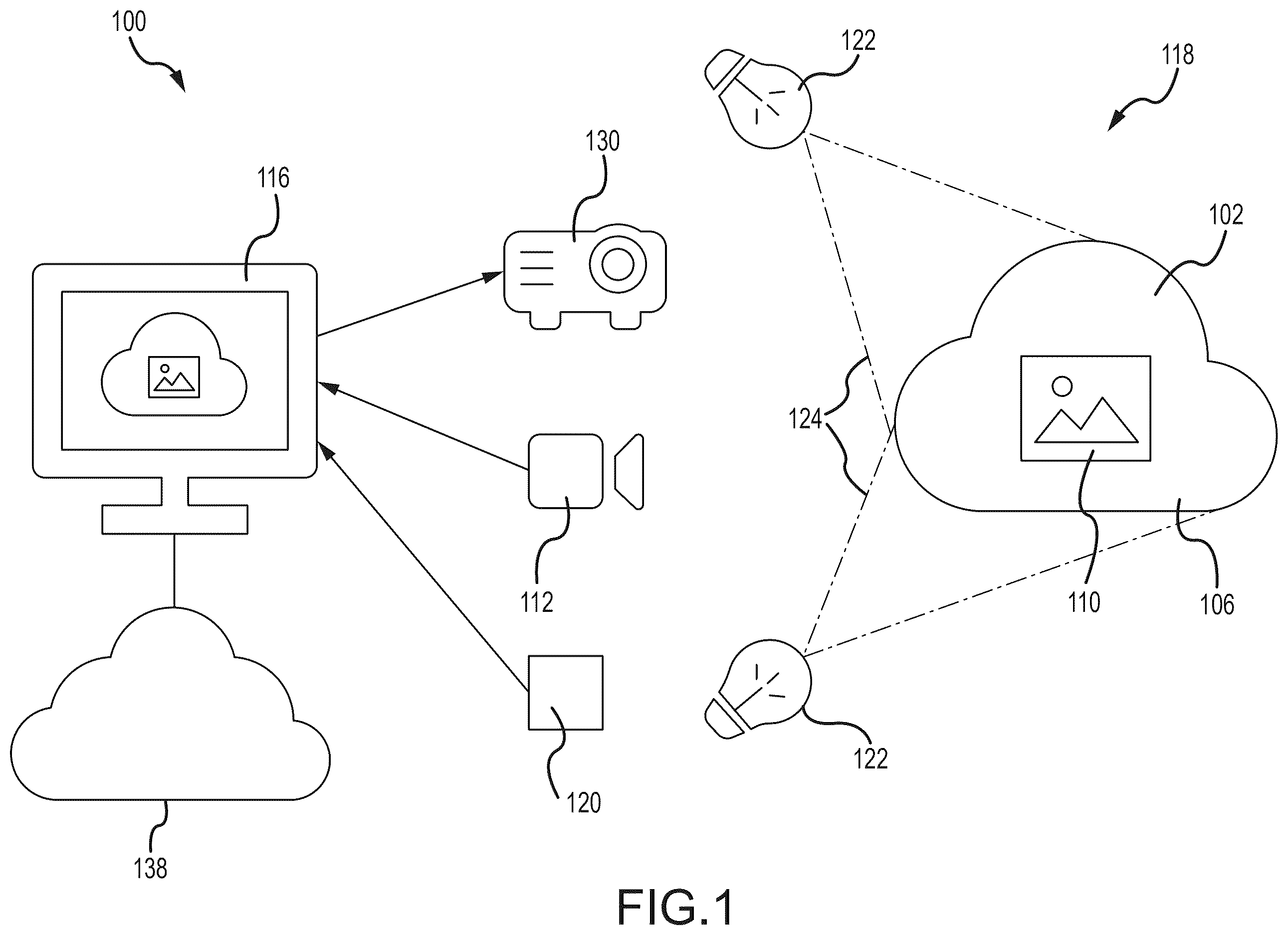

System architecture for projection mapping, drawing sheet 1 from US 2026/0246909 A1
Sheet 1 System architecture for projection mapping

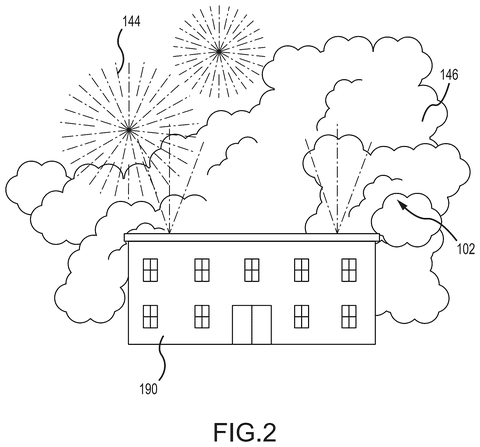

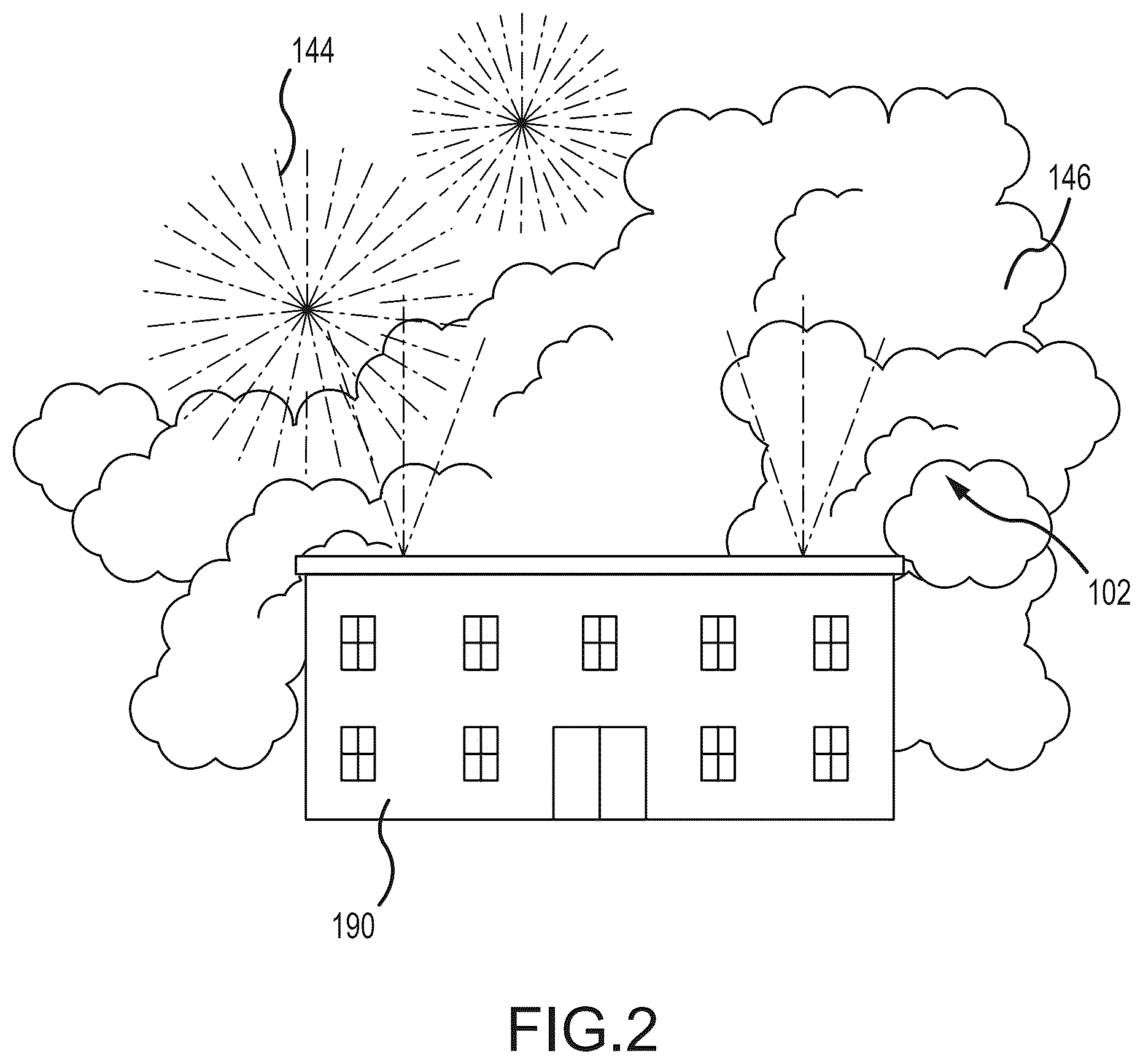

Outdoor projection onto vapor clouds, drawing sheet 2 from US 2026/0246909 A1
Sheet 2 Outdoor projection onto vapor clouds

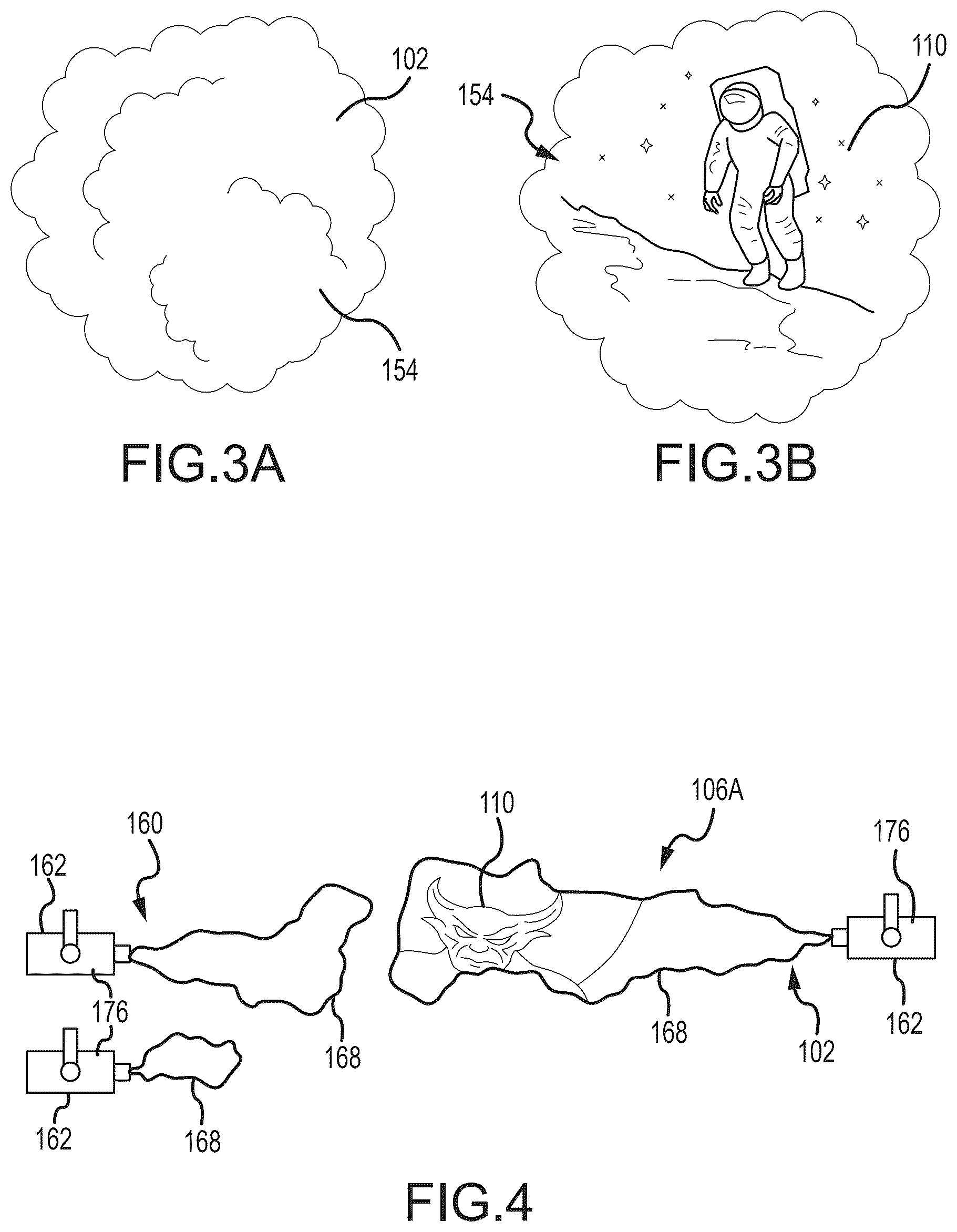

Diffuse light reflective material, drawing sheet 3 from US 2026/0246909 A1
Sheet 3 Diffuse light reflective material
Sequential projection onto moving vapor, drawing sheet 4 from US 2026/0246909 A1
Sheet 4 Sequential projection onto moving vapor

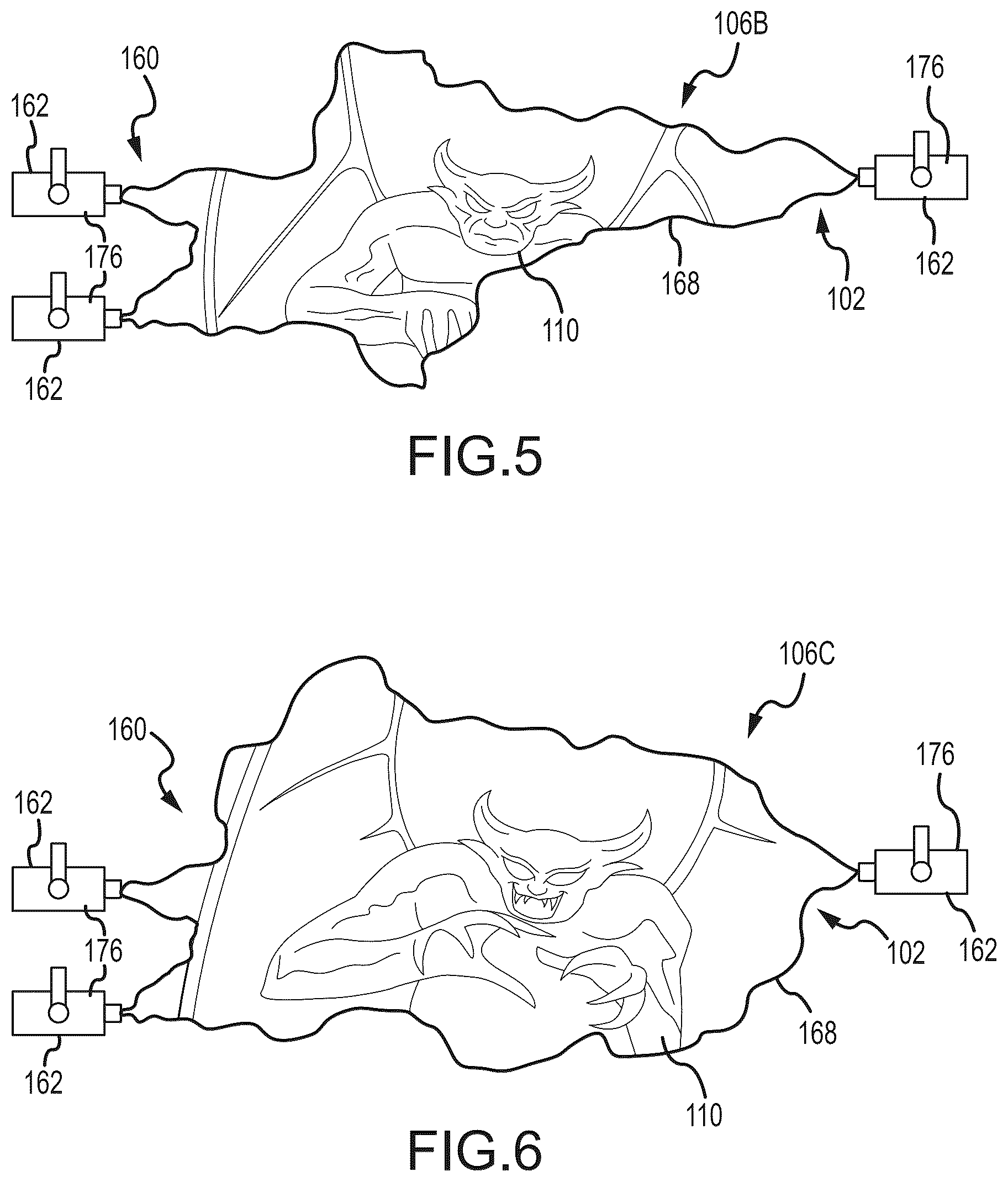

Expanding projection surface with character, drawing sheet 5 from US 2026/0246909 A1
Sheet 5 Expanding projection surface with character

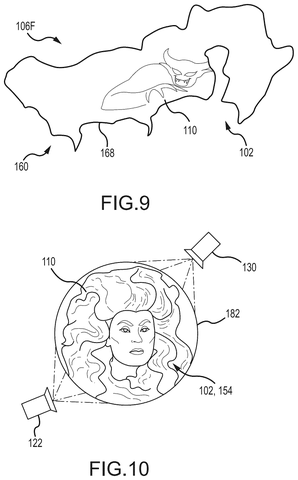

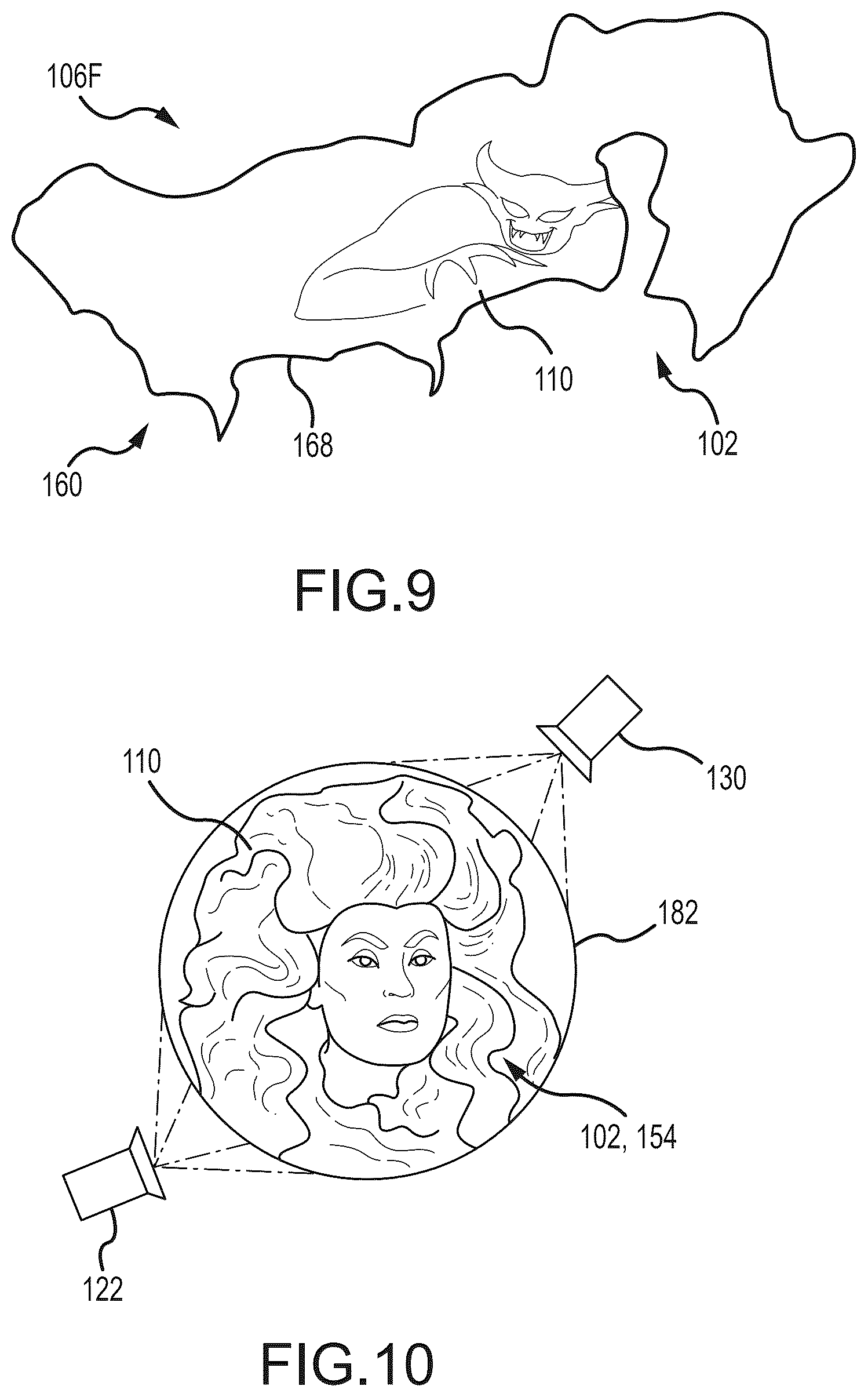

Morphing character image on smoke, drawing sheet 6 from US 2026/0246909 A1
Sheet 6 Morphing character image on smoke

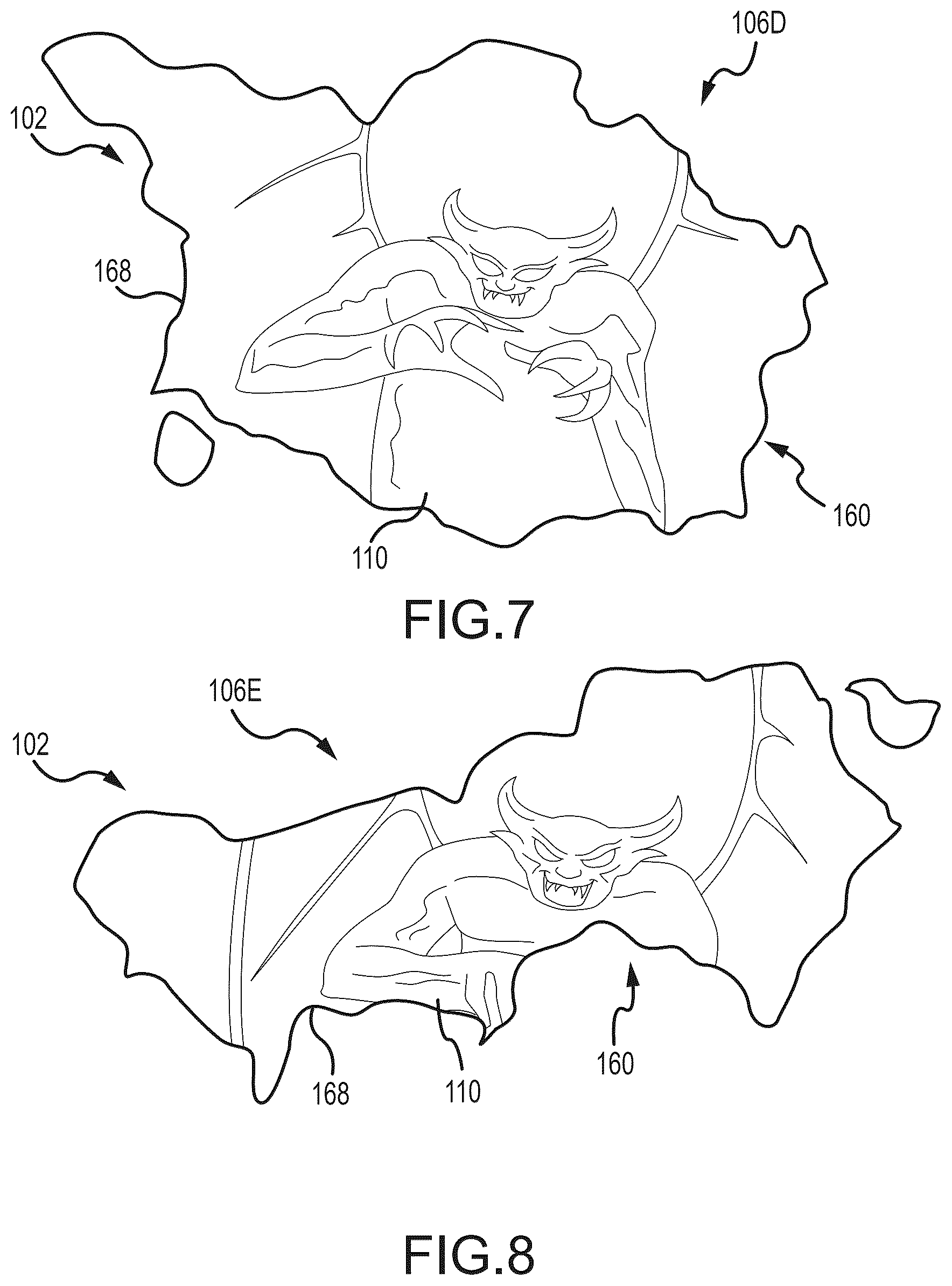

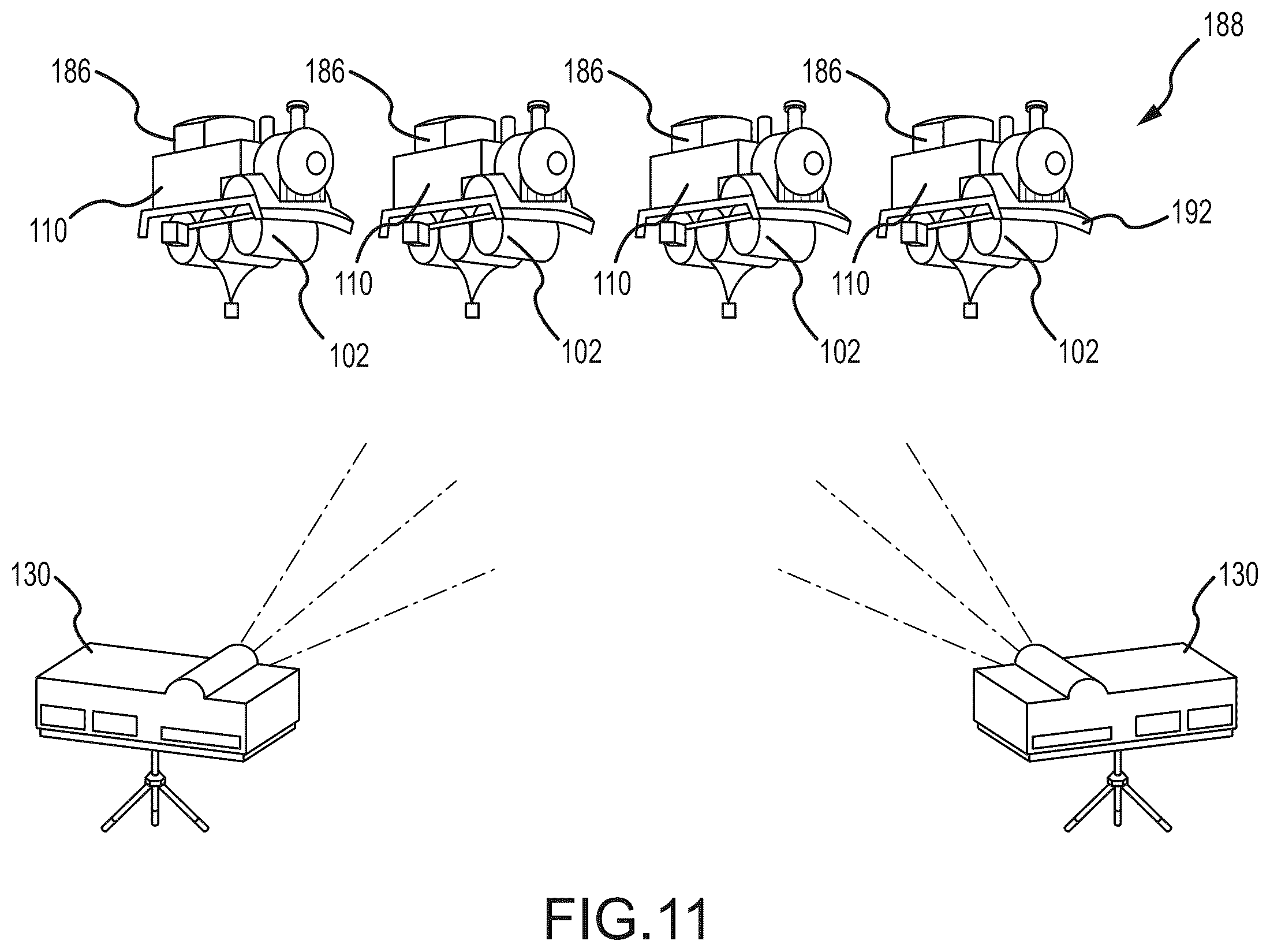

Train-shaped projection on vapor, drawing sheet 7 from US 2026/0246909 A1
Sheet 7 Train-shaped projection on vapor

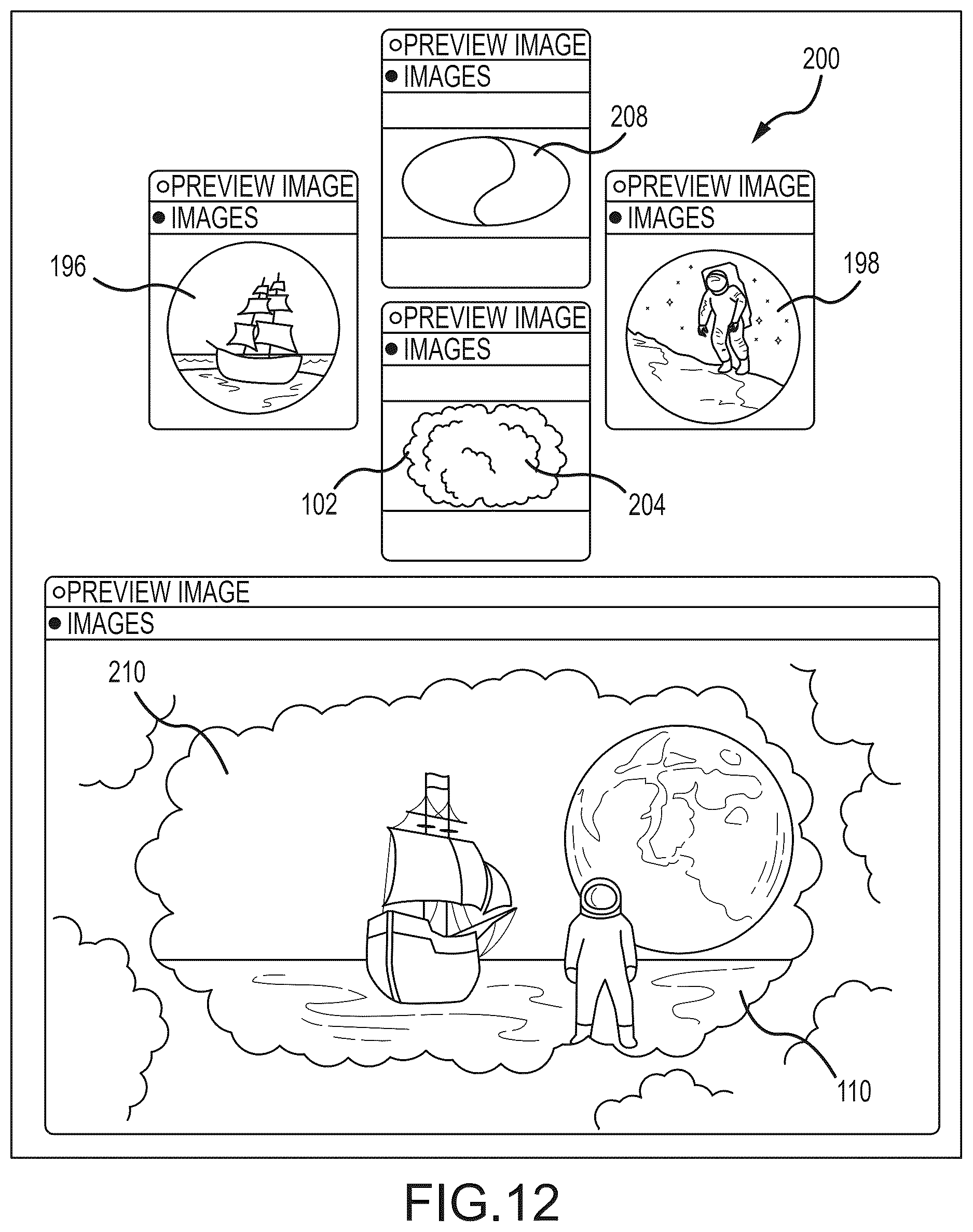

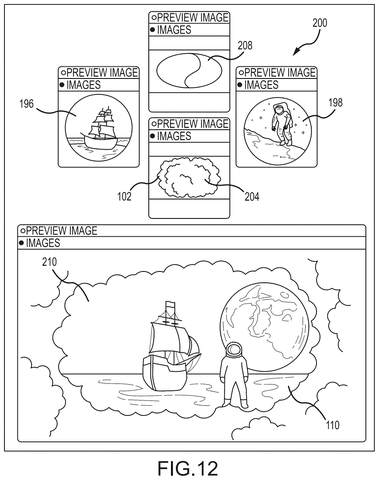

Computer interface for selecting images, drawing sheet 8 from US 2026/0246909 A1
