Intel Patents a System That Switches Your Wi-Fi to a Backup Before You Notice It's Down

Intel has filed a patent for a system that checks whether a backup Wi-Fi access point is working, then switches your traffic over the moment your current connection fails, before apps on your device even realize anything went wrong.

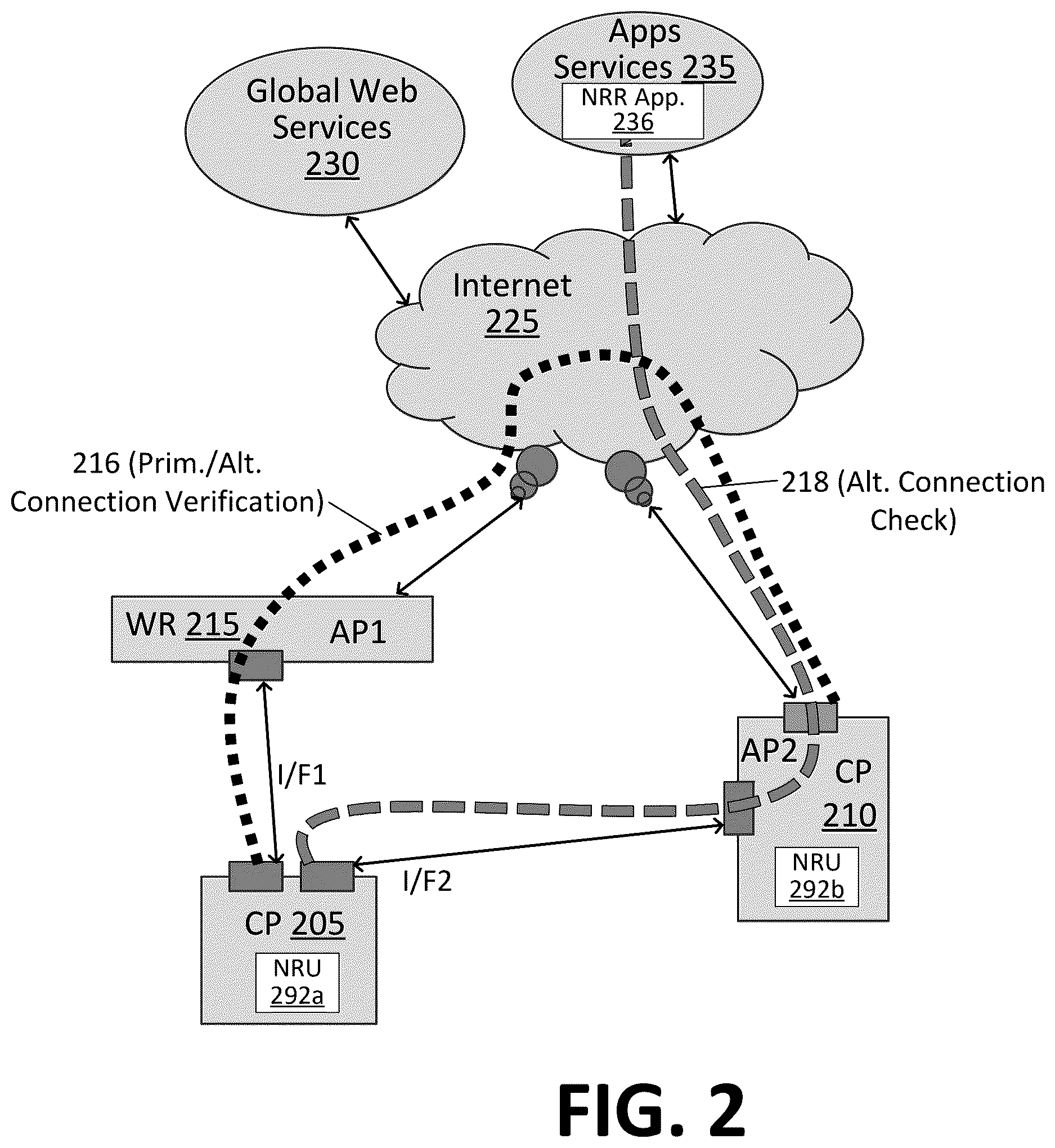

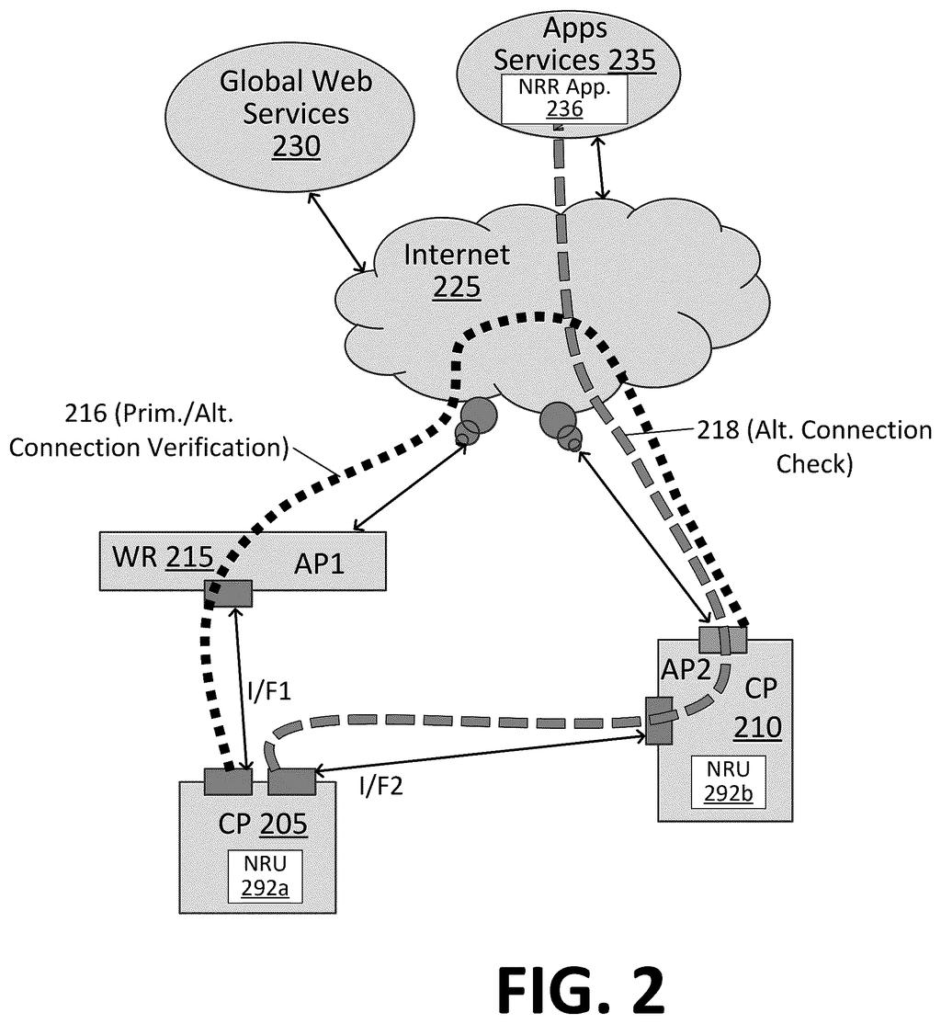

A network diagram shows a wireless router and two connection points communicating with the internet and web services. Drawing from patent filing US 2026/0303519 A1.
A network diagram shows a wireless router and two connection points communicating with the internet and web services.All 5 drawings ↓
Publication number
US 2026/0303519 A1(US20260303519A1)
Applicant
Intel Corporation
Filed · Published
Mar 26, 2025 · Oct 1, 2026
Inventors
Ilan HAMAMI, Kobi GUETTA, Yoni KAHANA, Coral KUTA
Status when we published
On hold at the patent office
Document
20 claims
US classification
709/224
Examiner
CARDONE, JASON D (Art Unit 2458)

What Intel's automatic Wi-Fi failover actually does

Imagine you're on a video call and your router hiccups. For a few painful seconds, the connection drops, the call freezes, and your apps throw up error messages. By the time the router reconnects or you switch networks manually, the damage is done.

Intel's patent describes a system built into a device's computing platform that runs a continuous background test: it sends small probe messages through your current Wi-Fi access point and also through a backup one, checking whether both paths to the internet are actually working. If the main connection fails, it already knows the backup is ready and immediately reroutes your traffic.

The key idea is speed. Instead of waiting for an app to report a timeout, the device itself detects the failure and switches connections in one fast step. If the original connection comes back, the system can revert just as quickly.

From the filing · THE ABSTRACT
Techniques may be provided to facilitate rapid automatic access point (AP) steering and reverting between APs based on efficiently determining AP connection failure.

Translation: This describes a method for quickly and automatically shifting your devices between different Wi-Fi routers when a connection dies.

How the device tests the backup router in the background

The patent covers a method running entirely on the device's compute platform, no router firmware update required. Here's the flow:

  • Normal operation: all internet traffic flows through a primary access point (your usual router or Wi-Fi hotspot).
  • Parallel probing: the device also sends lightweight "response request" messages through the primary access point and out to an alternate access point, essentially asking the backup "are you alive and reachable?"
  • Failure detection: if the primary connection stops returning responses, the system uses the data it already collected from probing the backup to confirm a usable alternate path exists.
  • Automatic failover: traffic is rerouted through the alternate access point immediately, without waiting for an OS-level timeout or user intervention.

The claim is written around a non-transitory computer readable storage medium (meaning the logic lives in firmware or software stored on the device, not in the network hardware). That scope is deliberately broad: it covers any compute platform running these instructions, whether that's a laptop, a gateway device, or an embedded controller.

What this means for always-on laptops and smart devices

For most people, a Wi-Fi drop is a minor annoyance. But for enterprise laptops on video calls, industrial sensors, or any device where a few seconds of downtime costs money or causes errors, faster failover has real value. A system that detects failure and switches connections before the app layer even notices is meaningfully faster than anything that relies on TCP timeouts or OS-level reconnect logic.

For you as a consumer, this could mean laptop Wi-Fi that automatically and silently switches between your home router and a nearby hotspot the moment one falters. The promise is that your apps stay running without a visible hiccup.

Intel's 157th filing in our Intel coverage since May adds to a run that includes offloading work to cell networks and routing signals through metal frames.

Source: US 2026/0303519 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Intel patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 5 sheets

5 drawing sheets from US 2026/0303519 A1 · click any drawing to enlarge

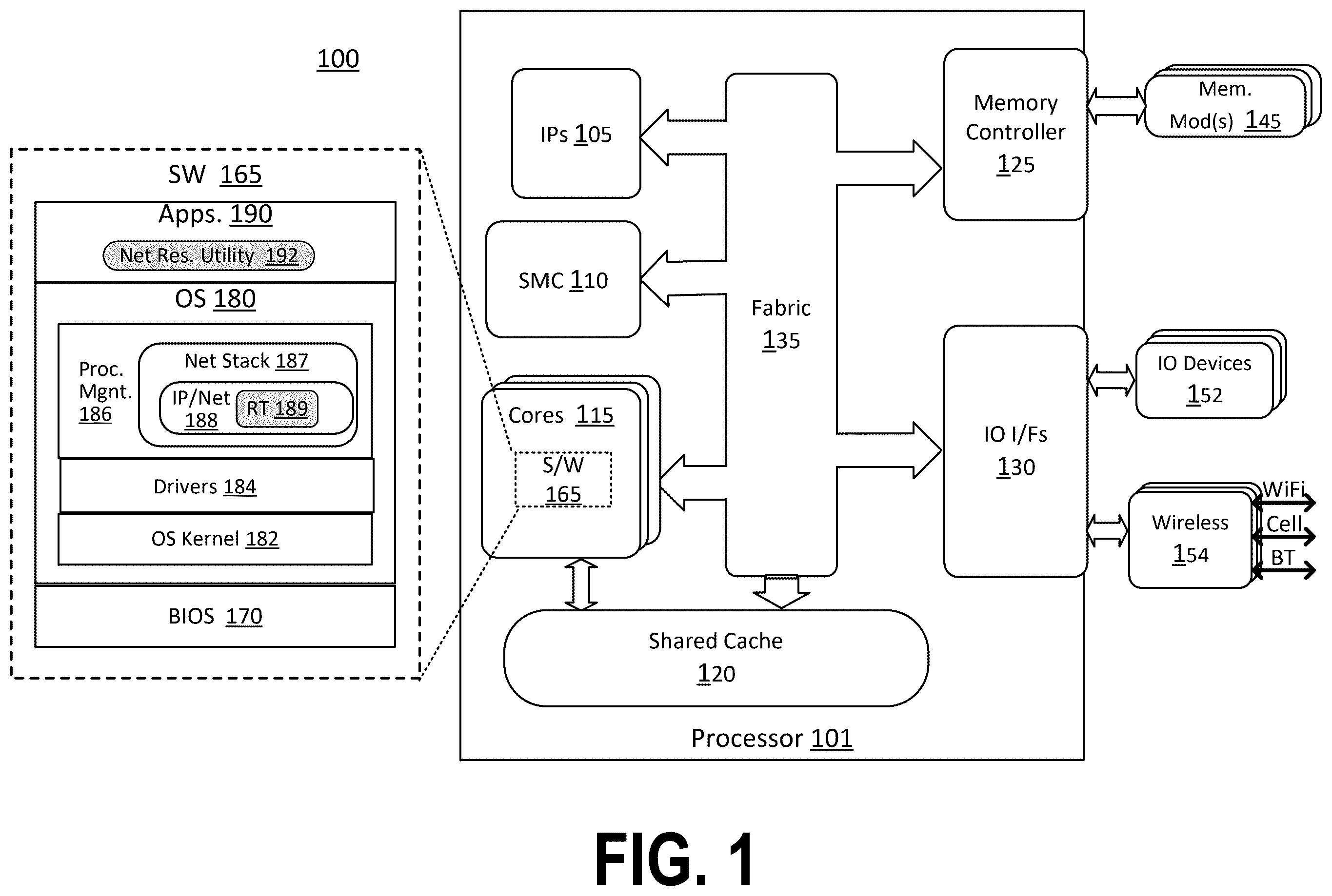

Processor architecture and software stack., drawing sheet 1 from US 2026/0303519 A1
Sheet 1 Processor architecture and software stack.
Wireless router and internet connections., drawing sheet 2 from US 2026/0303519 A1
Sheet 2 Wireless router and internet connections.

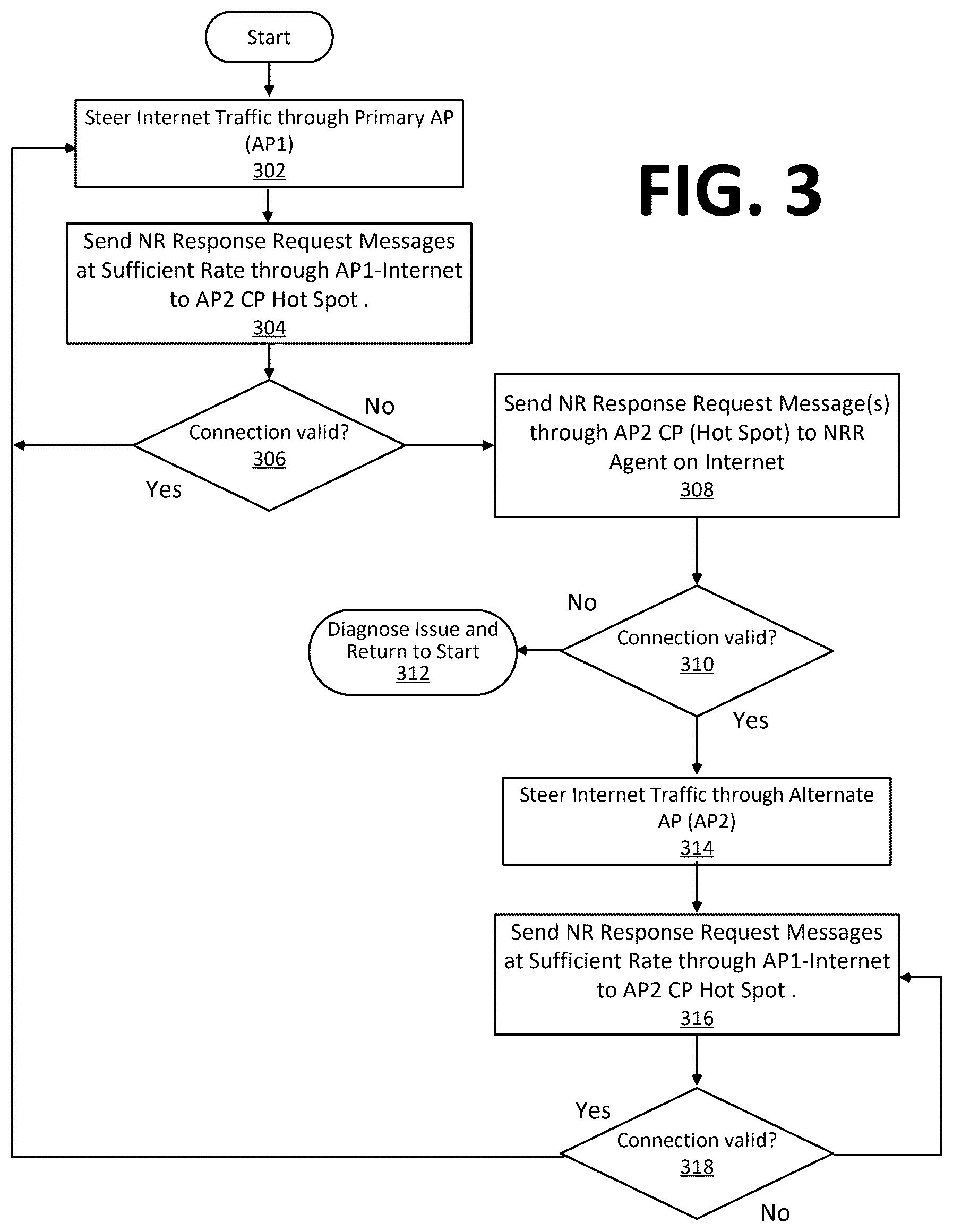

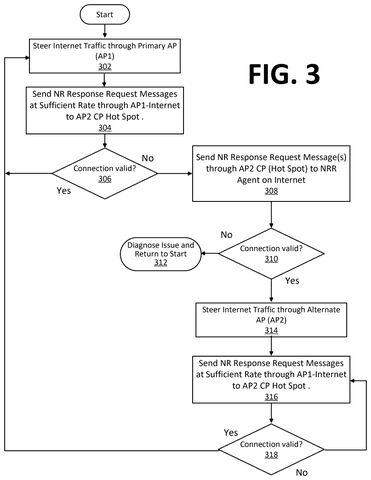

Flowchart for switching internet connections., drawing sheet 3 from US 2026/0303519 A1
Sheet 3 Flowchart for switching internet connections.

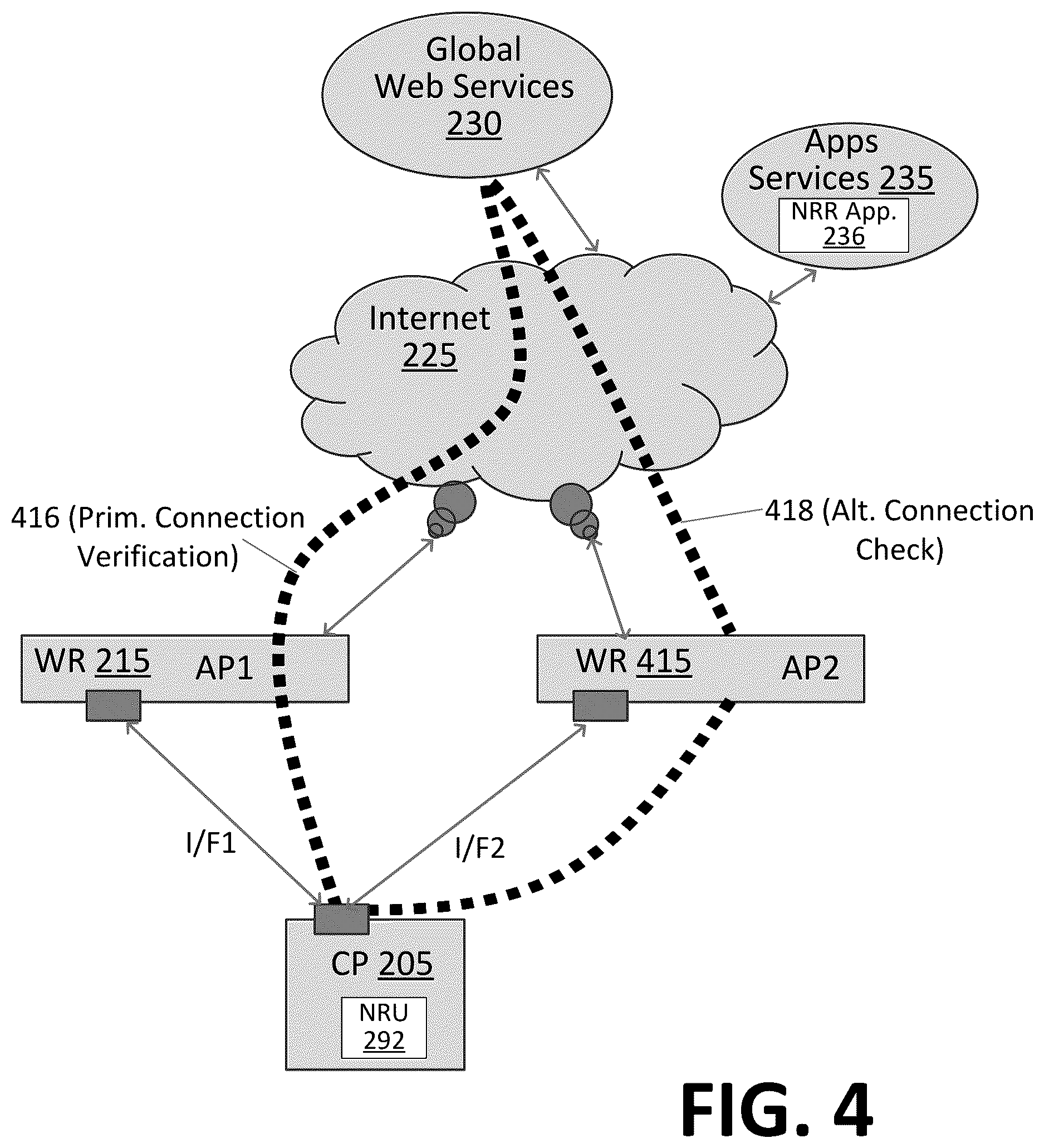

Wireless router and internet connections., drawing sheet 4 from US 2026/0303519 A1
Sheet 4 Wireless router and internet connections.

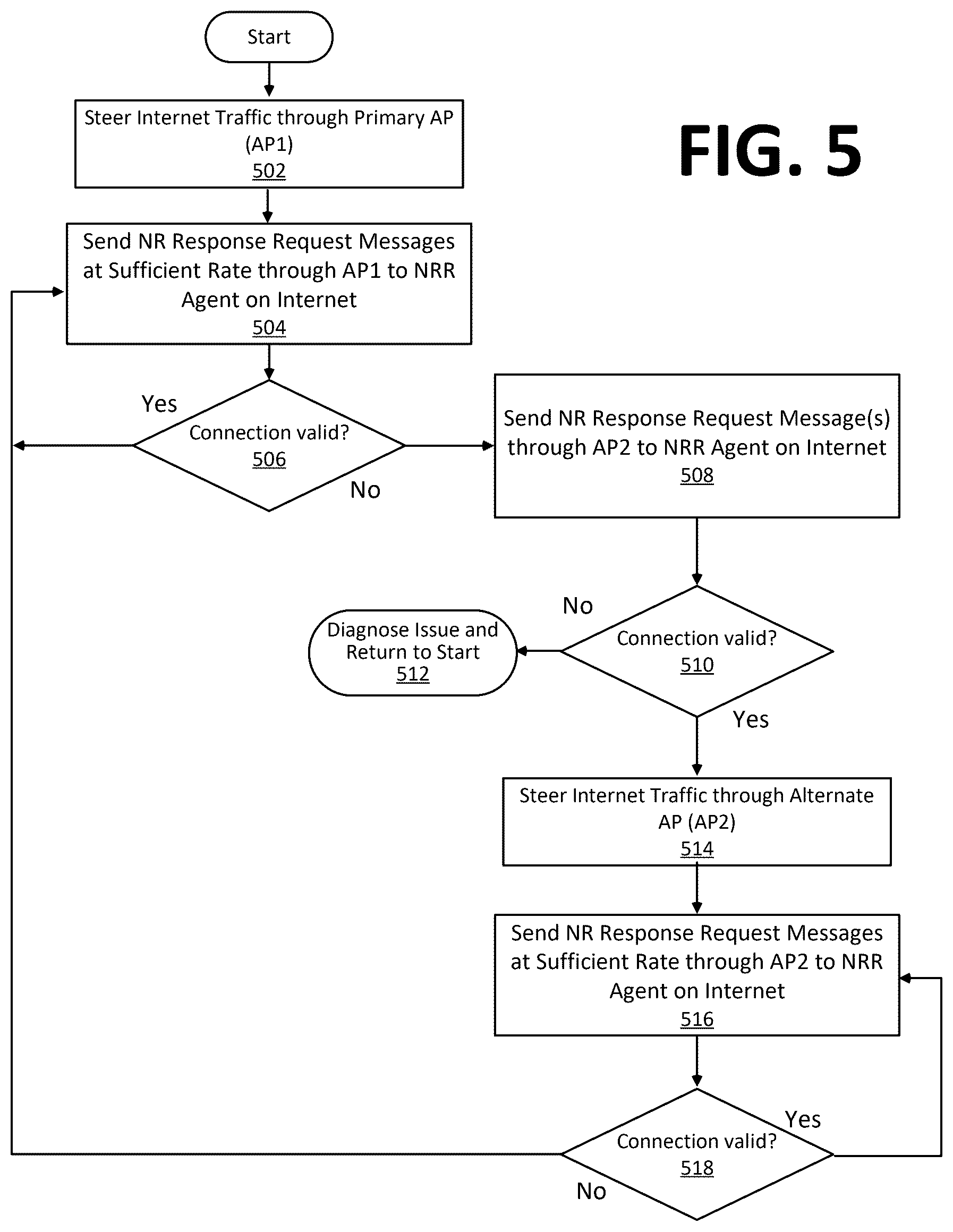

Flowchart for switching internet connections., drawing sheet 5 from US 2026/0303519 A1
Sheet 5 Flowchart for switching internet connections.
