Meta · Antenna & radio · Filed Feb 2, 2026 · USPTO published Aug 20, 2026 · Aug 20 release

Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear

Meta is exploring a way to let your eyewear communicate with other devices by using your own body as the wire. No Bluetooth handshake, no radio signal bouncing through the air, just a tiny electrical signal running along your skin.

Smart eyewear frame featuring integrated skin-contact sensors for data transfer. Drawing from patent filing US 2026/0244025 A1.
Smart eyewear frame featuring integrated skin-contact sensors for data transfer.All 16 drawings ↓
Publication number
US 2026/0244025 A1(US20260244025A1)
Applicant
Meta Platforms Technologies, LLC
Filed · Published
Feb 2, 2026 · Aug 20, 2026
Inventors
Benjamin Cook, Jiang Zhu, Yasuo Morimoto, Djordje Tujkovic
Status when we published
Waiting for an examiner
Document
20 claims
US classification
359/245
Parent application
Claims priority from a provisional application 63760324 (filed Feb 19, 2025)

What Meta's body-as-a-wire glasses actually do

Ever touched a key fob to a car door and felt nothing but a click? That same basic idea, of sending a small signal through contact, is what Meta is applying to glasses.

This patent describes eyewear with two small electrodes built in, one that rests against your skin and one positioned elsewhere on the frame. Together they let the glasses pass data signals through your body to another device you're wearing or holding. Your body acts like a low-power wire connecting your gadgets.

The practical payoff is that two devices you're wearing could share information without needing a wireless radio link between them. That matters because radio signals burn battery life and can interfere with each other. A signal running along your skin uses far less energy and stays completely private, nobody nearby can intercept it.

From the filing · CLAIM 1
… a first electrode electrically coupled to the HBC controller and arranged to contact skin of a user when the user wears the device …

Translation: A sensor touches your skin to send signals through your body.

How the HBC electrodes route signals through skin

The patent describes a Human Body Communication (HBC) system built into a pair of electronic glasses. HBC is a decades-old research concept that treats the human body as a conductor, a weak electrical signal placed on the skin at one point can be detected at another point on the body, much like a wire carries current.

The device at the center of the patent has three core parts:

  • An HBC controller, the chip that generates and reads the signals
  • A first electrode that physically contacts the wearer's skin (likely at the nose bridge or temple)
  • A second electrode that completes the circuit from elsewhere on the frame

By coupling two electrodes to the same controller, the glasses can both send and receive data across the body. A smartwatch on your wrist, a ring on your finger, or a phone in your hand could all theoretically be on the same HBC loop.

The signal frequencies used in HBC (typically in the kilohertz to low megahertz range) pass through the body's tissues rather than radiating outward into the air, which is why the link is considered inherently short-range and physically private.

From the filing · THE ABSTRACT
A device of the subject technology includes a human body communication (HBC) controller and a first electrode electrically coupled to the HBC controller …

Translation: The invention uses body communication hardware connected to a skin sensor.

What this means for AR glasses and wearable pairing

For anyone building or buying AR glasses, the hardest unsolved problem is battery life. Every radio transmitter, Bluetooth, Wi-Fi, UWB, draws power continuously to maintain a connection. HBC offloads some of that burden to a signal path that costs a fraction of the energy, which could mean a few extra hours of use on a single charge. It also simplifies pairing: if your glasses and your phone are touching you simultaneously, they're automatically on the same network.

The privacy angle is underrated here. Because the signal travels through your body rather than through the air, it physically cannot be picked up by a nearby device that isn't touching you. Meta has been filing steadily in the AR and wearables space, and this patent sits alongside a broader wave of new Big Tech patents targeting low-power connectivity for glasses, rings, and other body-worn devices.

Meta's 52nd filing we've tracked since May in our smart glasses watchlist, this follows one on a dedicated security chip and another on circuits inside clear lenses.

Source: US 2026/0244025 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Meta patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 16 sheets

16 drawing sheets from US 2026/0244025 A1 · click any drawing to enlarge

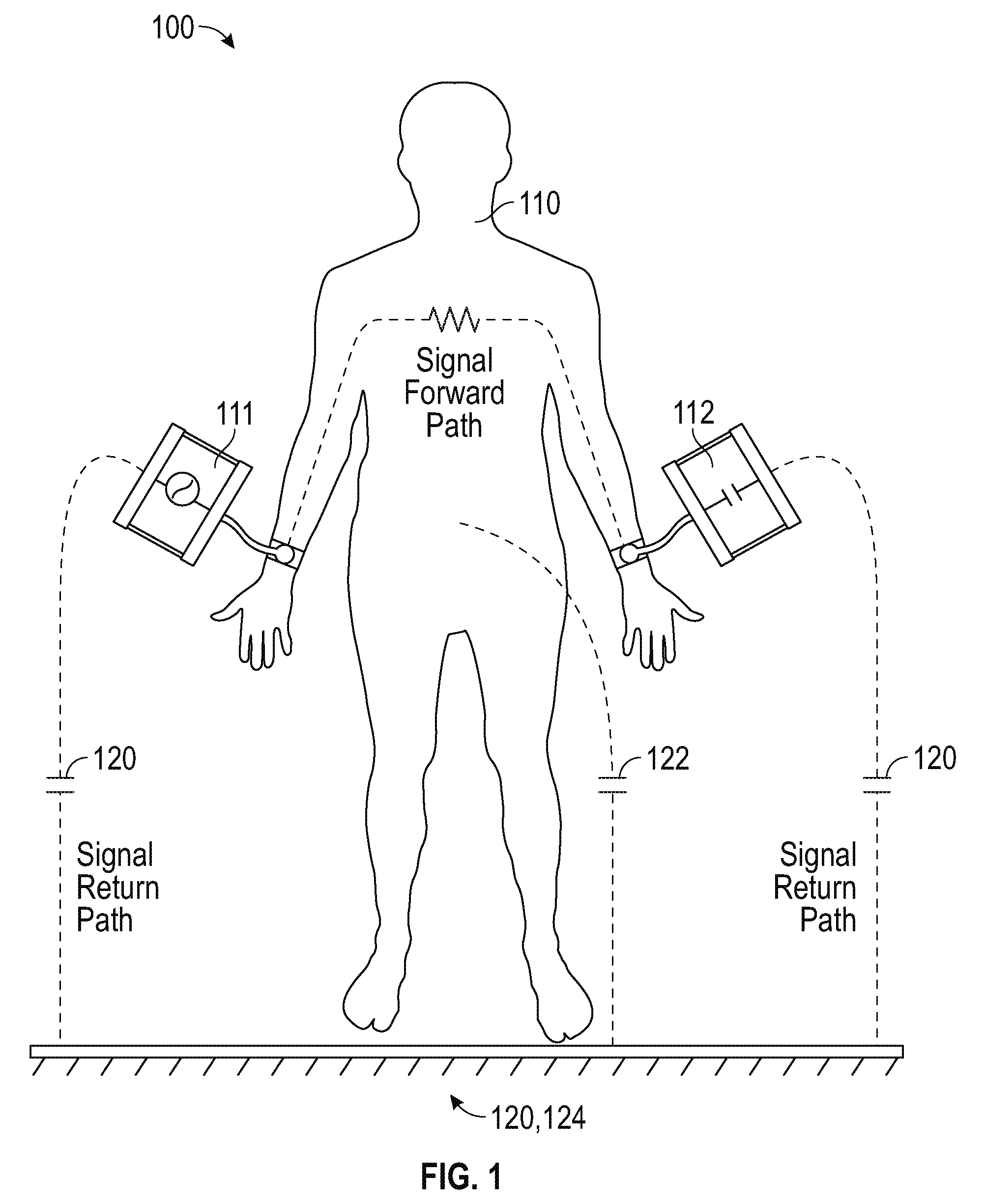

Human body electrical communication paths, drawing sheet 1 from US 2026/0244025 A1
Sheet 1 Human body electrical communication paths

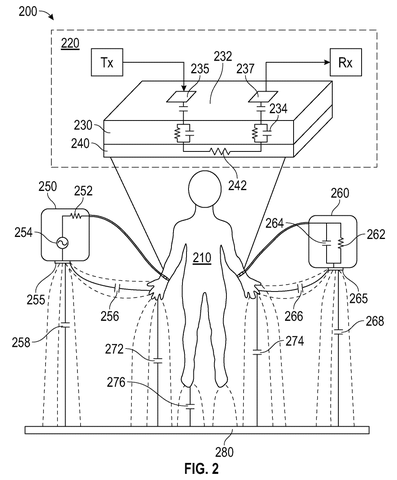

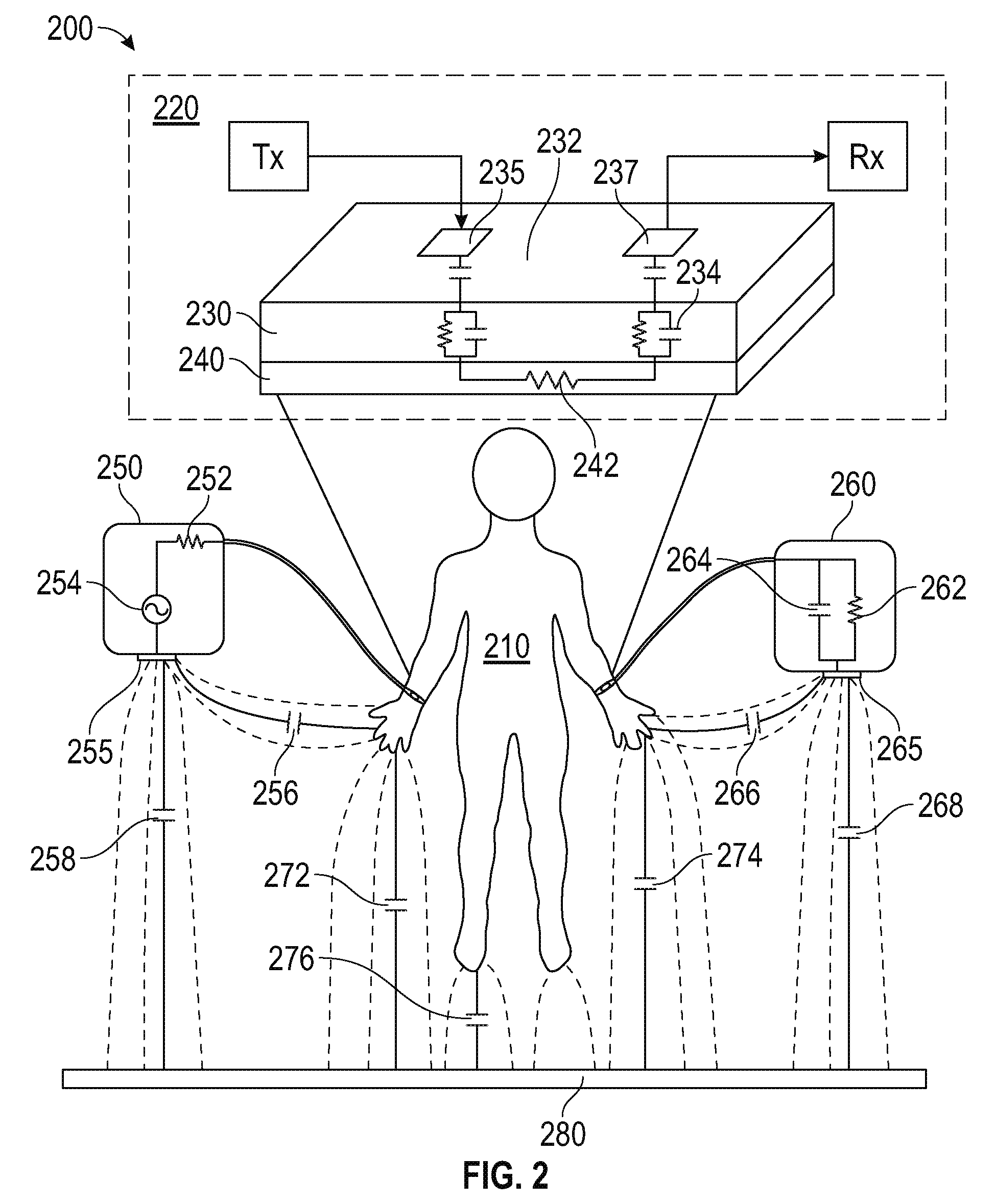

System schematic of body communication, drawing sheet 2 from US 2026/0244025 A1
Sheet 2 System schematic of body communication

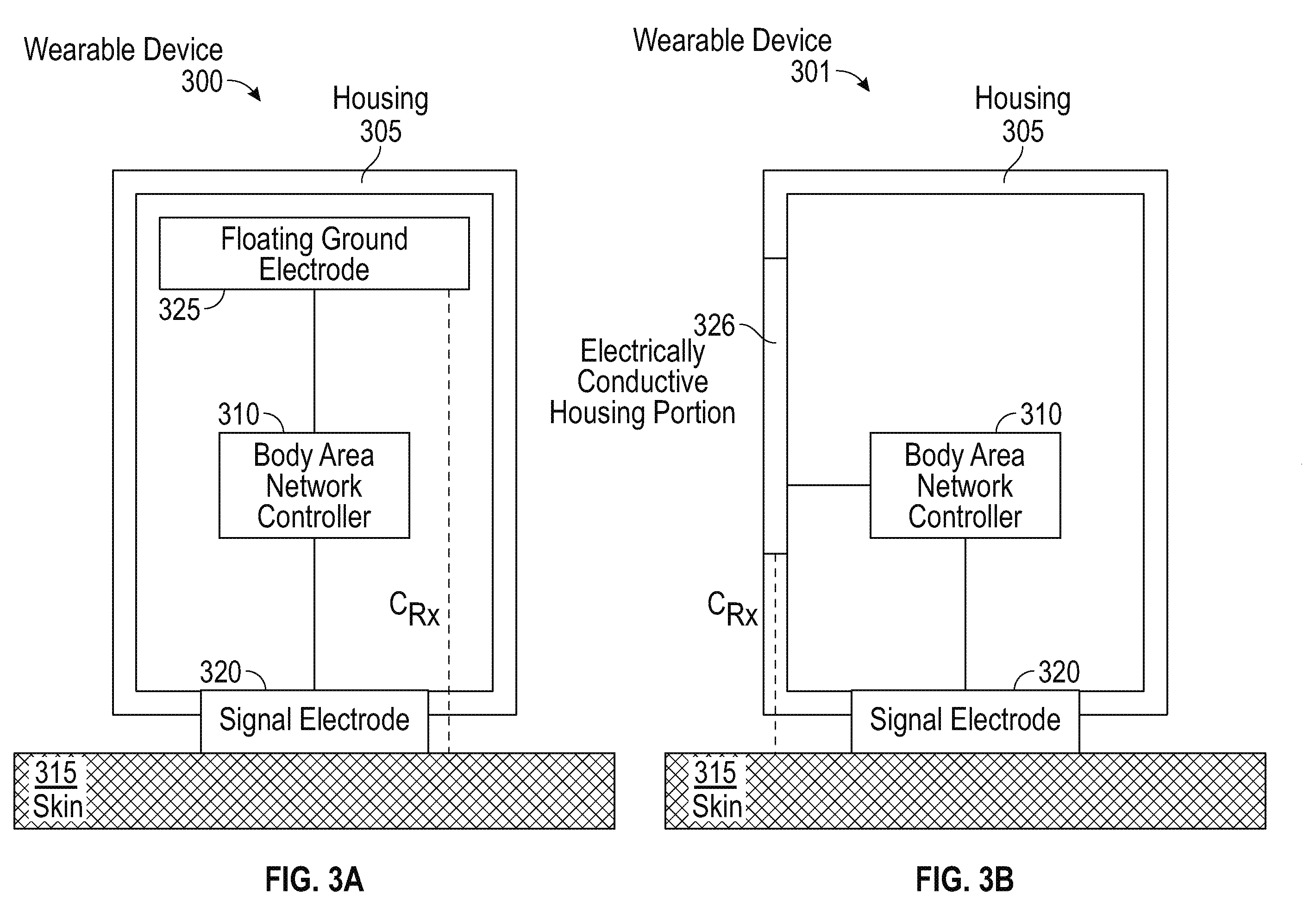

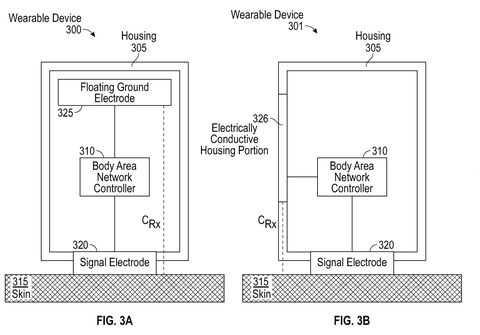

Wearable device housing configurations, drawing sheet 3 from US 2026/0244025 A1
Sheet 3 Wearable device housing configurations

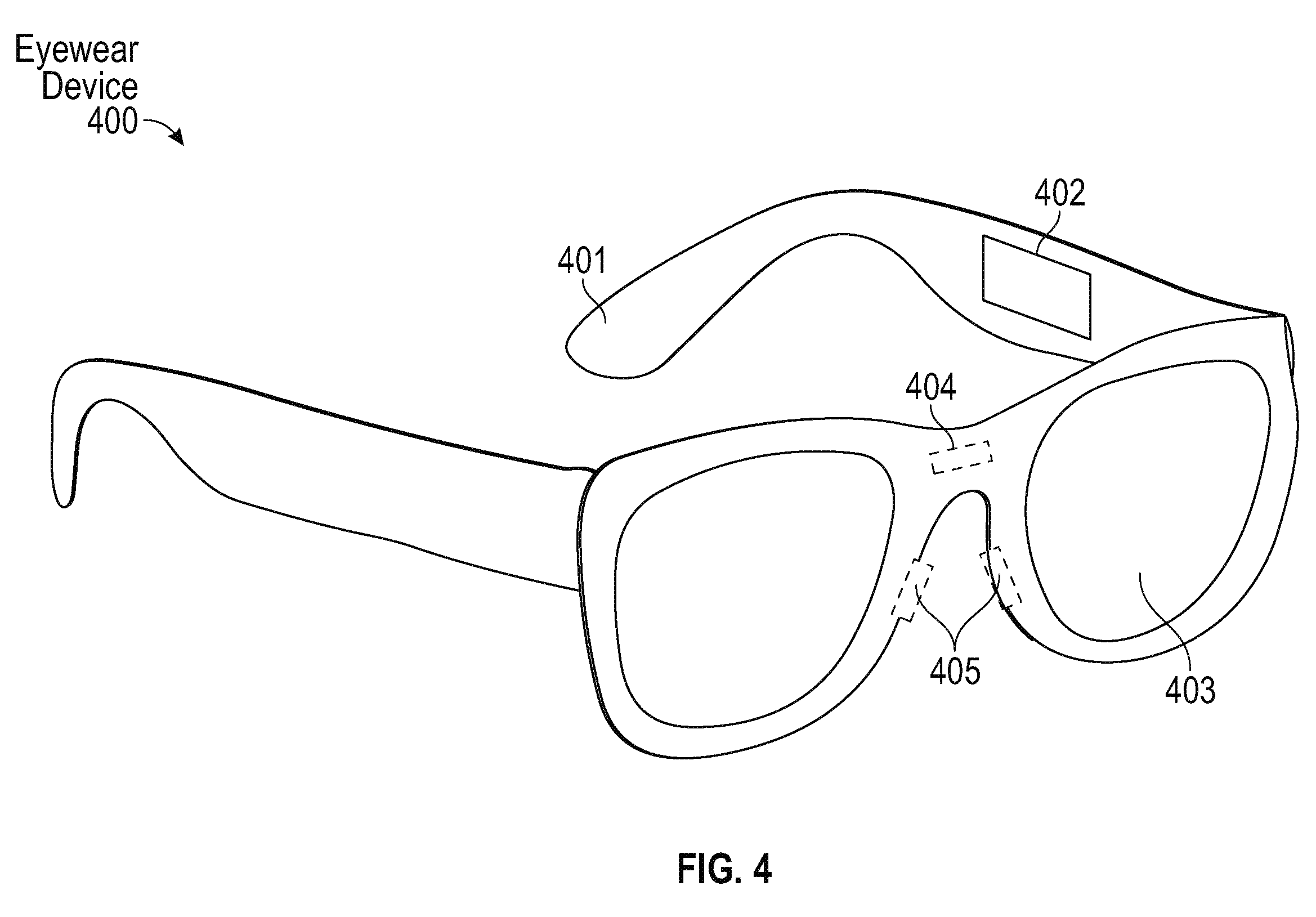

Smart eyewear with contact sensors, drawing sheet 4 from US 2026/0244025 A1
Sheet 4 Smart eyewear with contact sensors

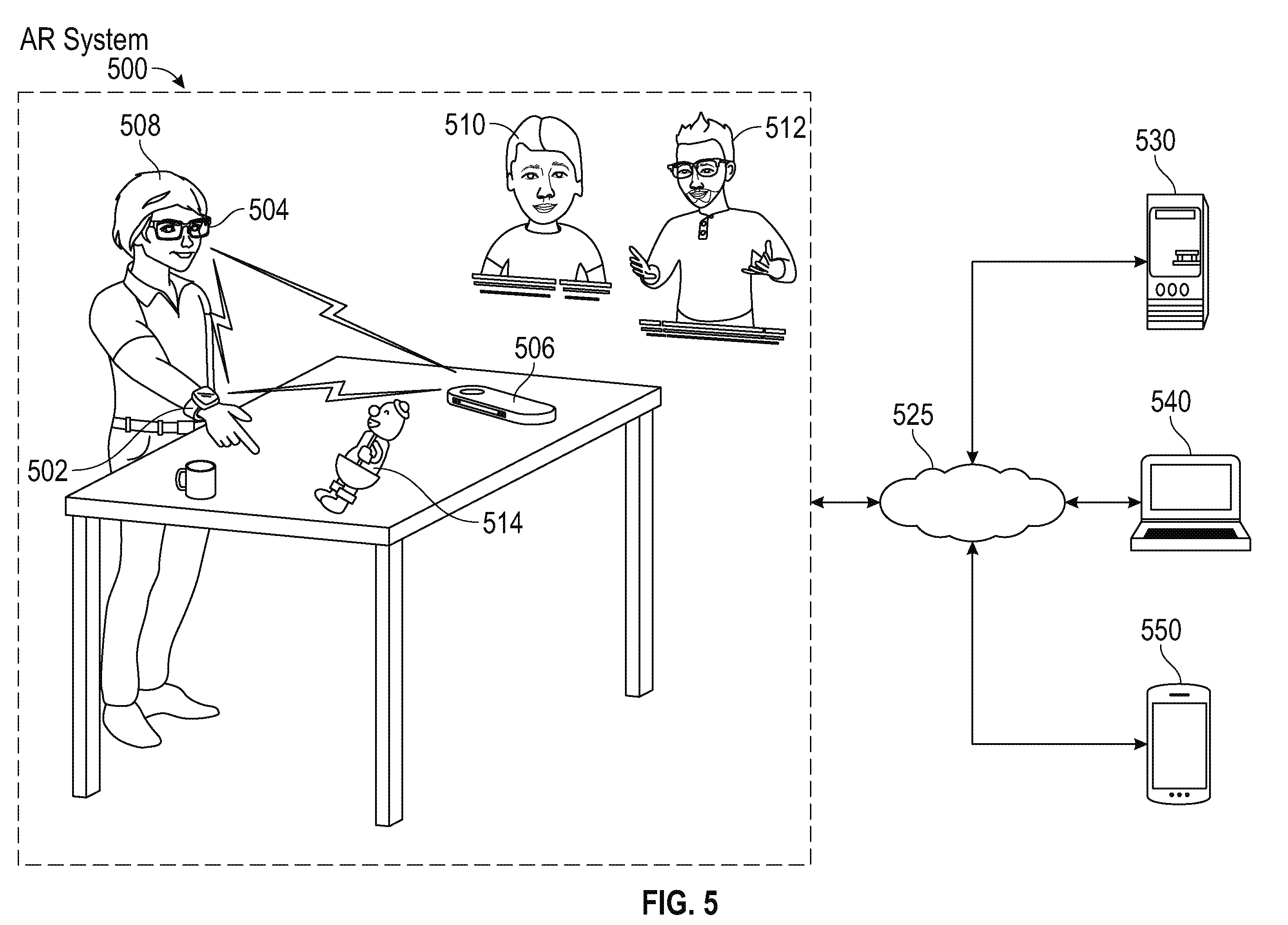

Augmented reality system environment overview, drawing sheet 5 from US 2026/0244025 A1
Sheet 5 Augmented reality system environment overview

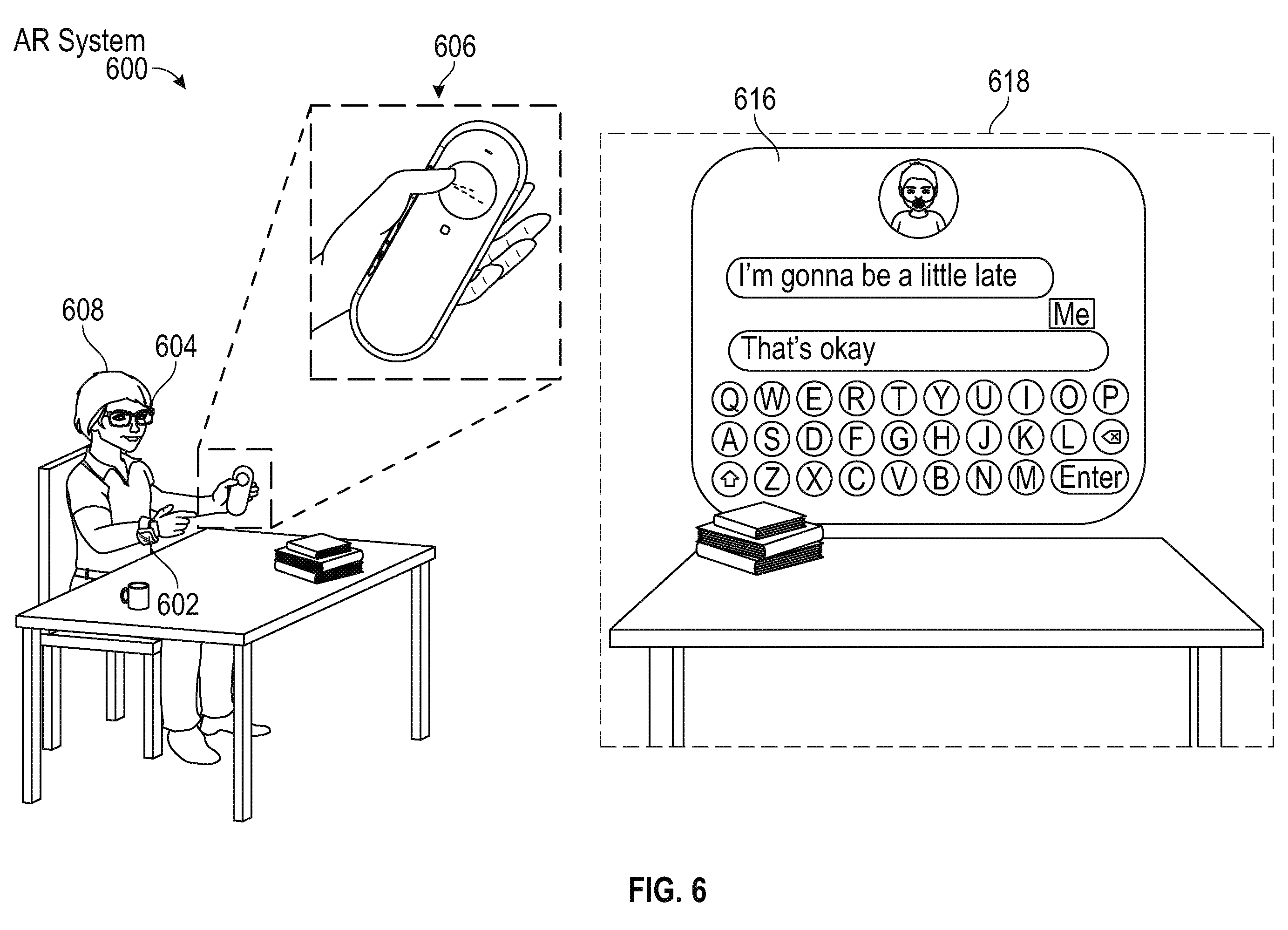

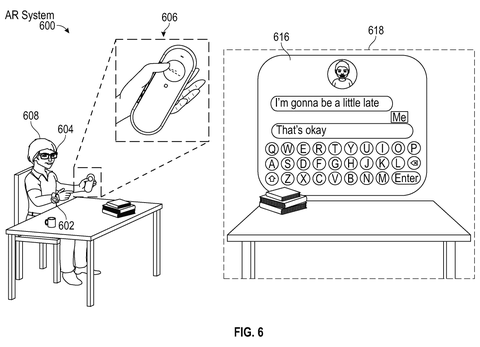

Messaging interface in augmented reality, drawing sheet 6 from US 2026/0244025 A1
Sheet 6 Messaging interface in augmented reality

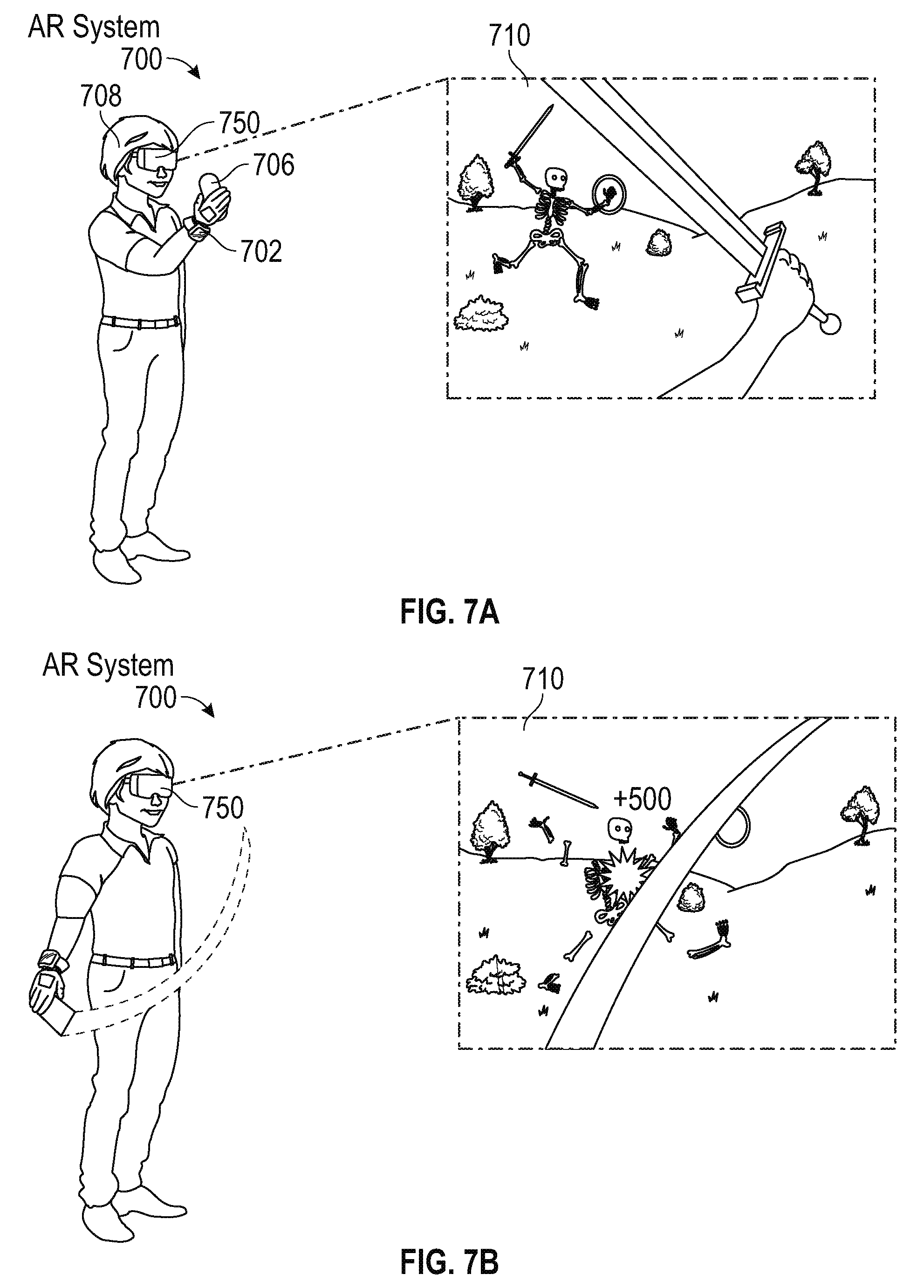

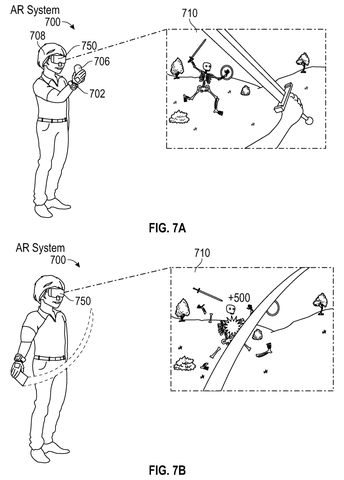

Interactive gaming in augmented reality, drawing sheet 7 from US 2026/0244025 A1
Sheet 7 Interactive gaming in augmented reality

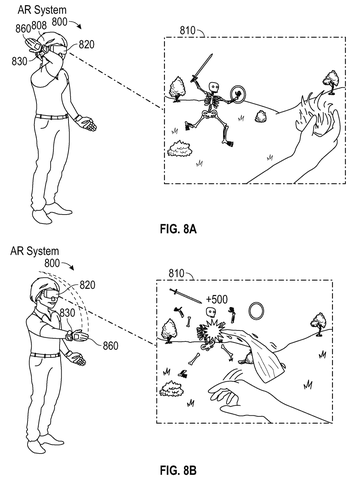

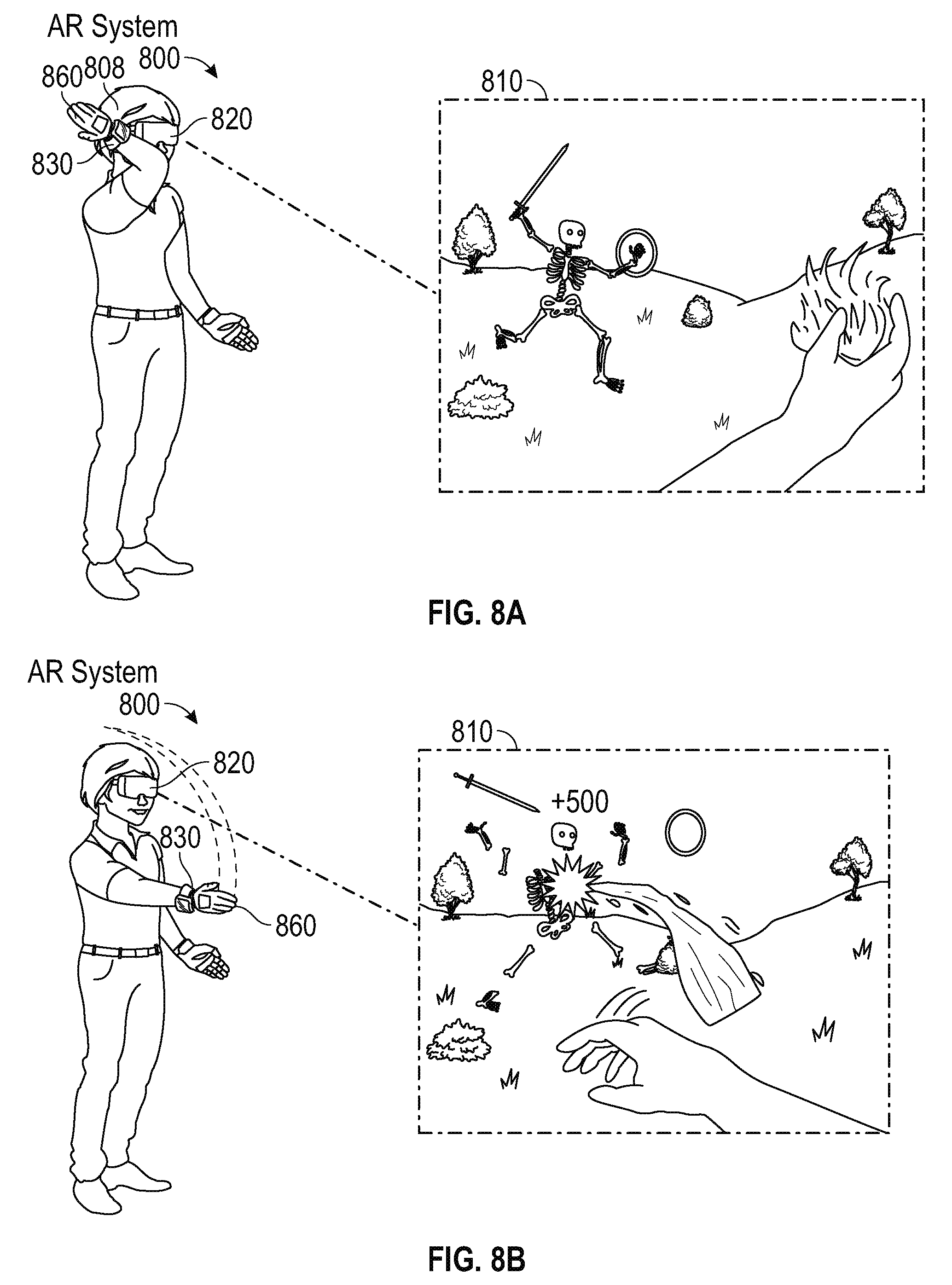

Hand gesture control in gaming, drawing sheet 8 from US 2026/0244025 A1
Sheet 8 Hand gesture control in gaming
Show the other 8 sheets
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 9
Sheet 9
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 10
Sheet 10
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 11
Sheet 11
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 12
Sheet 12
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 13
Sheet 13
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 14
Sheet 14
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 15
Sheet 15
Meta Patent Uses Skin Contact to Enable Data Transfer in Smart Eyewear patent drawing, sheet 16
Sheet 16
