Qualcomm Patents a Compression Fix for 3D Point Cloud Video Streams
Sending a 3D map of the world in real time takes enormous bandwidth. Qualcomm's latest patent targets one specific bottleneck in that process: making sure the reference frame a codec uses for comparison is actually lined up correctly before it tries to compress the next chunk of data.
What Qualcomm's point cloud resampling actually does
Ever tried to compare two photos where one is slightly zoomed in and the other isn't? Matching details becomes a mess. That's roughly the problem Qualcomm is solving here, but for 3D point clouds, the dense collections of dots in space that self-driving cars, AR headsets, and 3D scanners produce constantly.
When a system compresses 3D point cloud data, it looks at a previous frame and asks: how much has changed? It uses that old frame as a reference to predict what the new frame looks like, sending only the difference rather than the whole thing. But if the geometry of the two frames doesn't line up neatly, the comparison is sloppy and the file size balloons.
Qualcomm's approach adds a resampling step before that comparison happens. It adjusts the reference frame so its geometry matches what the current frame expects, making the prediction far more accurate. The result is better compression without throwing away quality.
determining that resampling is to be applied to a first reference frame for a current point of a slice of the point cloud data or a frame of the point cloud data; applying azimuth resampling to the first reference frame to generate a resampled reference frame; …
Translation: The system checks if a reference frame needs adjustment and then applies azimuth resampling to create a new one.
How azimuth resampling aligns frames before prediction
The patent describes a technique called inter prediction for predictive geometry coding, which is a method video codecs use to compress data by predicting new frames from old ones rather than encoding everything fresh.
The specific problem here involves point cloud data, three-dimensional maps made of millions of individual coordinate points, as captured by LiDAR sensors or depth cameras. Unlike flat video, point clouds have irregular geometry that shifts between frames, so naive frame-to-frame comparisons produce poor predictions.

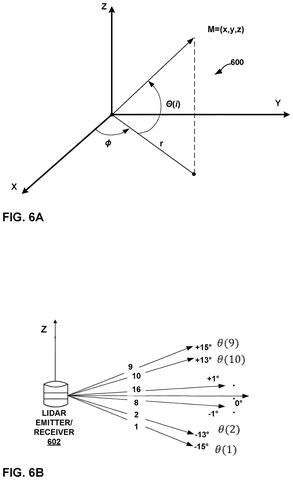

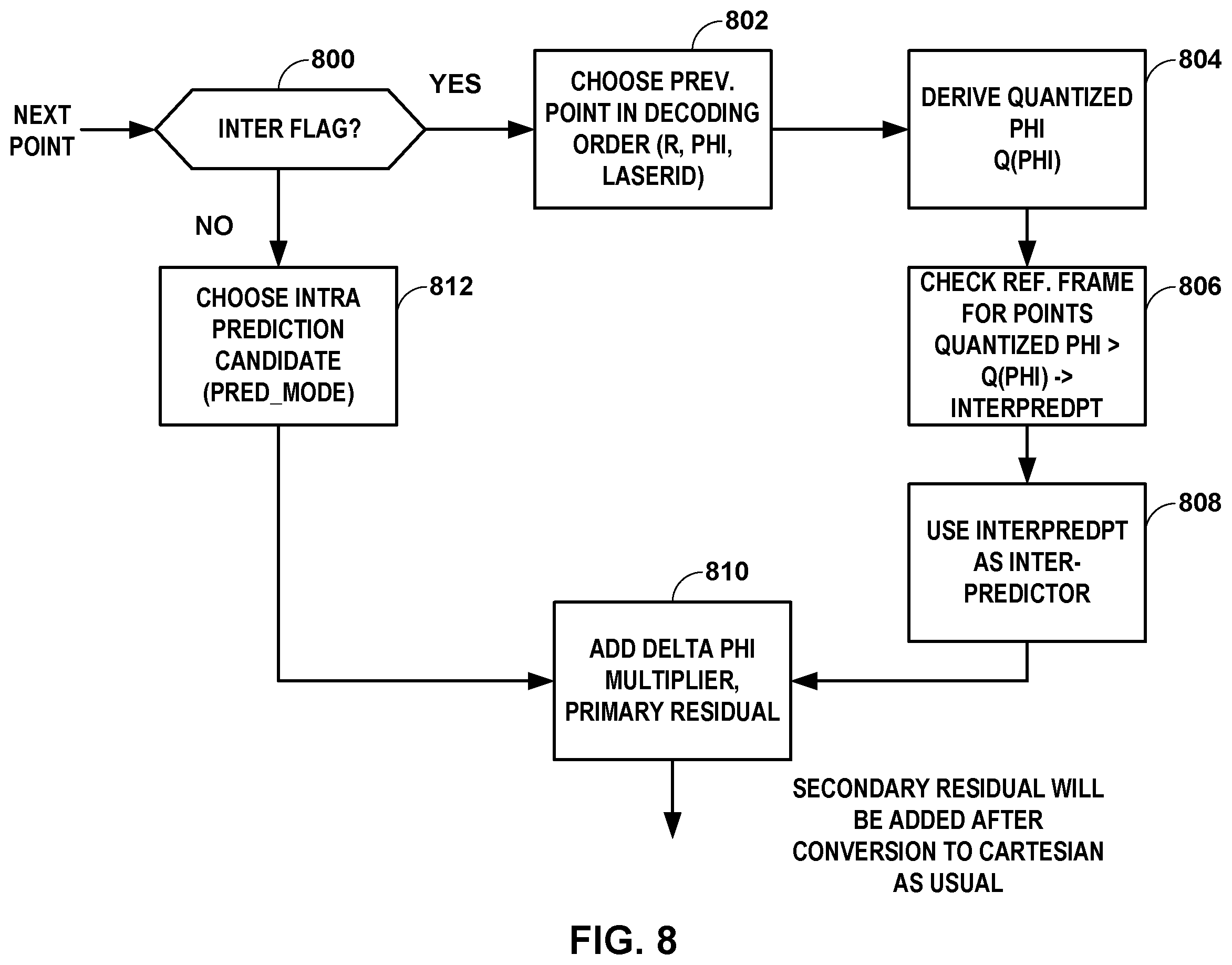

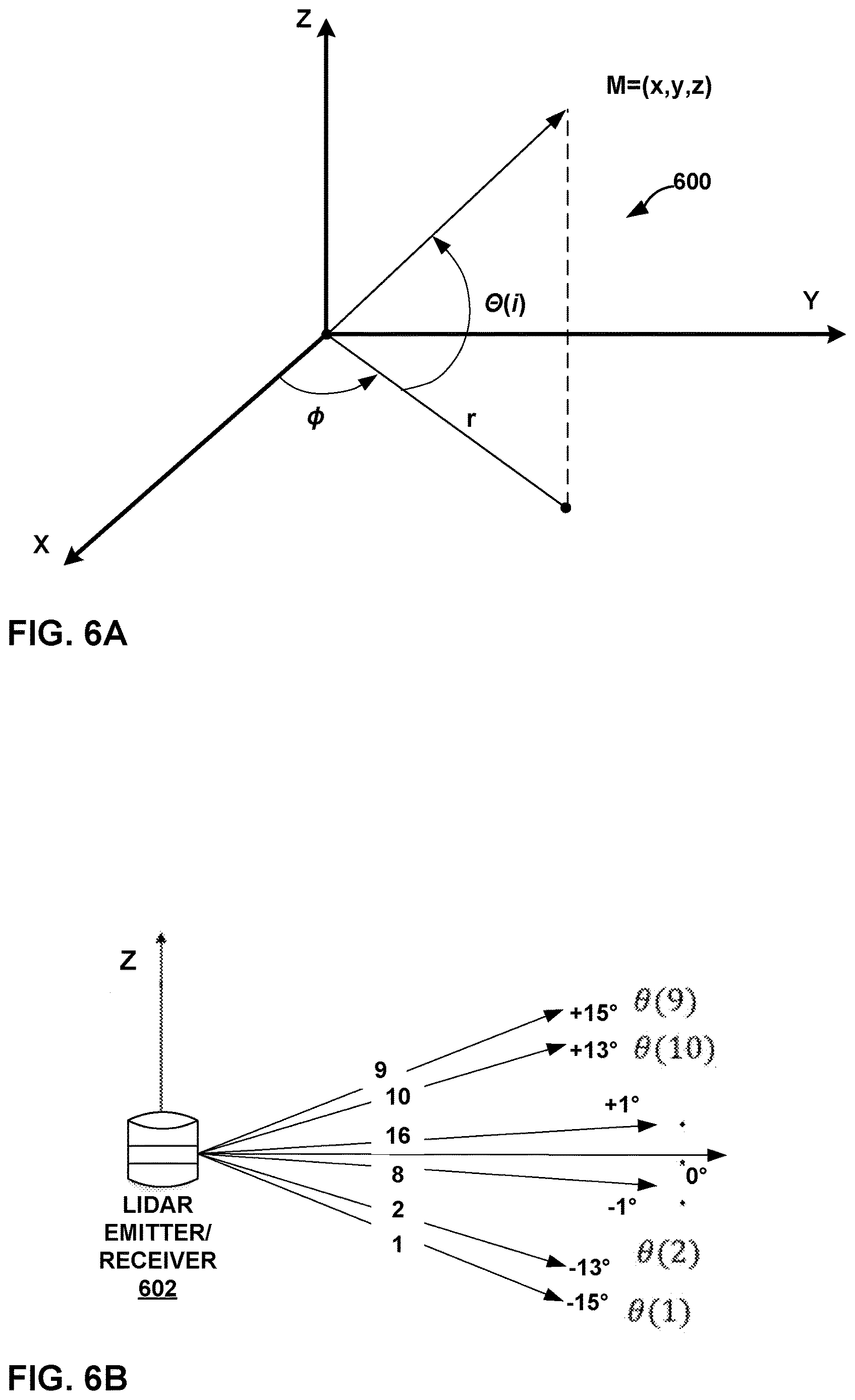

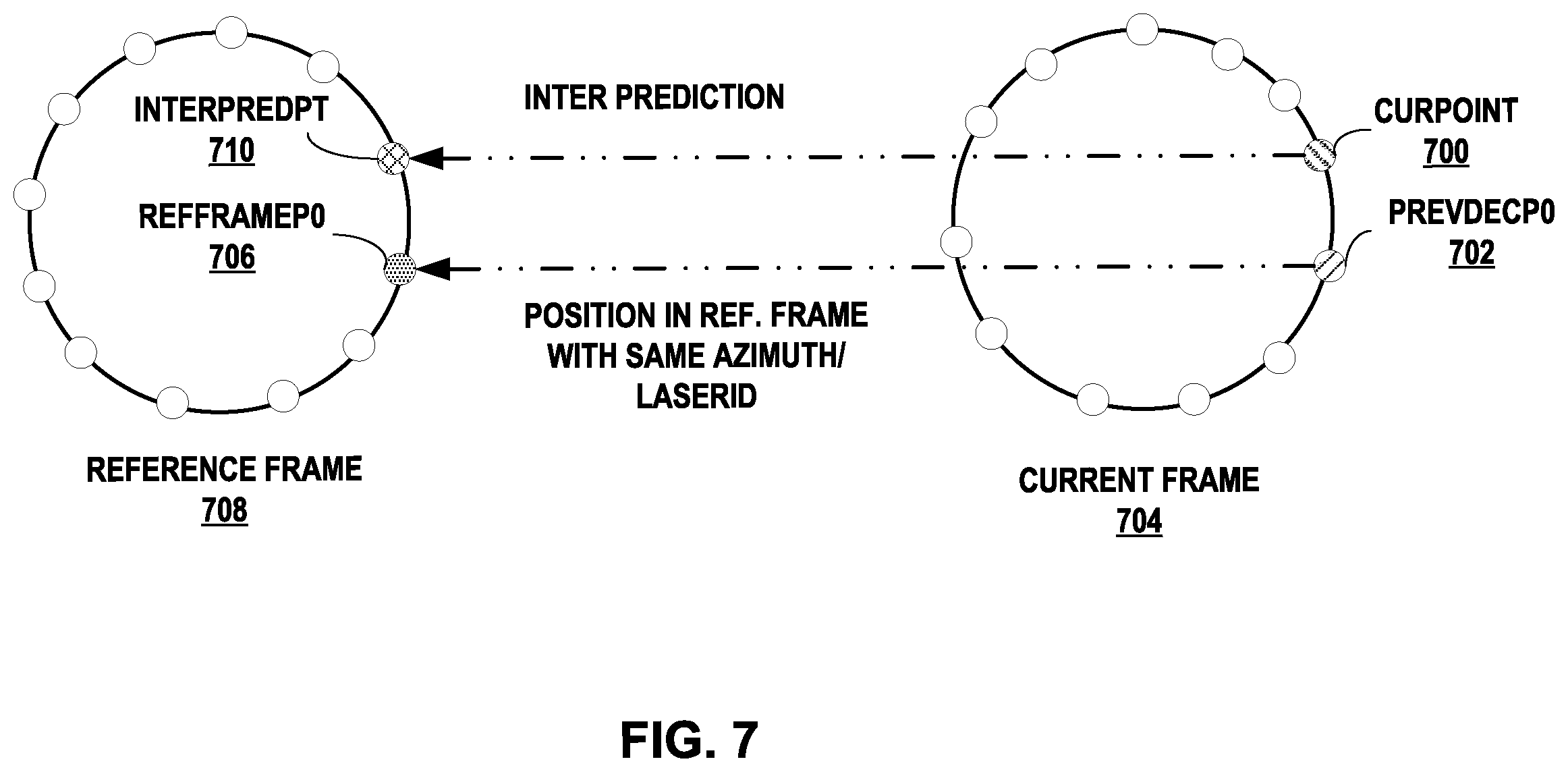

Qualcomm's fix introduces an azimuth resampling step (azimuth means the horizontal angle around a central axis, so this is essentially correcting for rotational or angular misalignment between frames). Before the encoder looks for matching points between the current frame and a reference frame, it first warps that reference frame to align with the angular sampling pattern of the current frame. Then it derives inter prediction candidates (best-guess values for where points in the new frame should be) from that resampled reference.
The method applies per slice or per full frame, giving encoders flexibility to apply it selectively. The net effect is that the encoder's predictions are more accurate, which means the leftover "error" signal it has to transmit is smaller, shrinking the overall file size.
The technique includes determining one or more inter prediction candidates based on the resampled reference frame. The technique includes processing the slice of the point cloud data or the frame of the point cloud data based on the one or more inter prediction candidates.
Translation: It uses the newly adjusted reference frame to predict data points and efficiently process the 3D video stream.
What this means for 3D video and LiDAR data pipelines

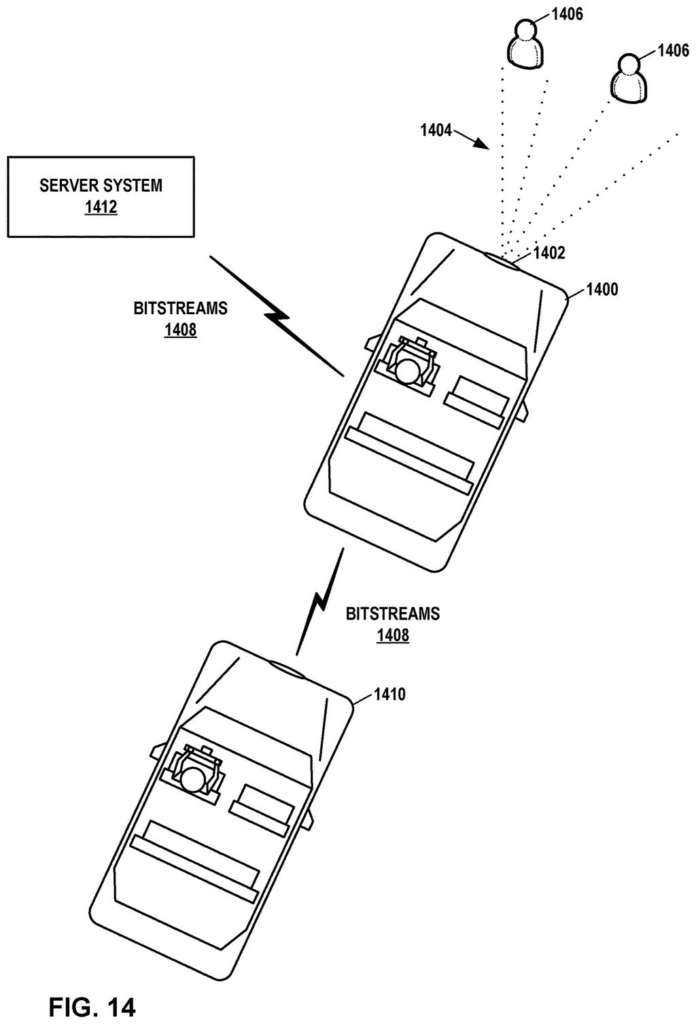

Point cloud compression is a quiet but important problem for any technology that maps the physical world in three dimensions. Self-driving vehicles, augmented reality systems, and industrial scanning tools all generate point cloud data continuously, and transmitting or storing it efficiently is a real cost.
For your daily life the impact is indirect but real: better compression here could mean lower-latency 3D maps in future AR glasses, or cheaper sensor data pipelines in autonomous vehicles. Qualcomm's interest in immersive media compression shows up across several related filings, which suggests the company sees this as infrastructure for products that haven't shipped at scale yet.
Qualcomm's 43rd filing we've tracked since July in our self-driving sensing race watchlist builds on one flagging road threats and one on wheel gripping.
This patent sits at a fairly early stage of the product pipeline. The technique is software-level, so it doesn't require new hardware, but it does require a full point cloud codec ecosystem to exist around it: encoders, decoders, and hardware capable of processing dense 3D sensor data in real time.
The shortest route to a product here runs through Qualcomm's existing chip platforms for automotive and XR (extended reality), where point cloud processing already happens. Adding a resampling pass before inter prediction is a tractable engineering addition, not a moonshot, but it only pays off once the broader codec standard it fits into gains adoption.
That's the honest constraint: codec improvements are only as useful as the infrastructure that implements them. This filing reads like a contribution to an ongoing standards process, the kind of incremental improvement that accumulates into a real efficiency gain over years, not months.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

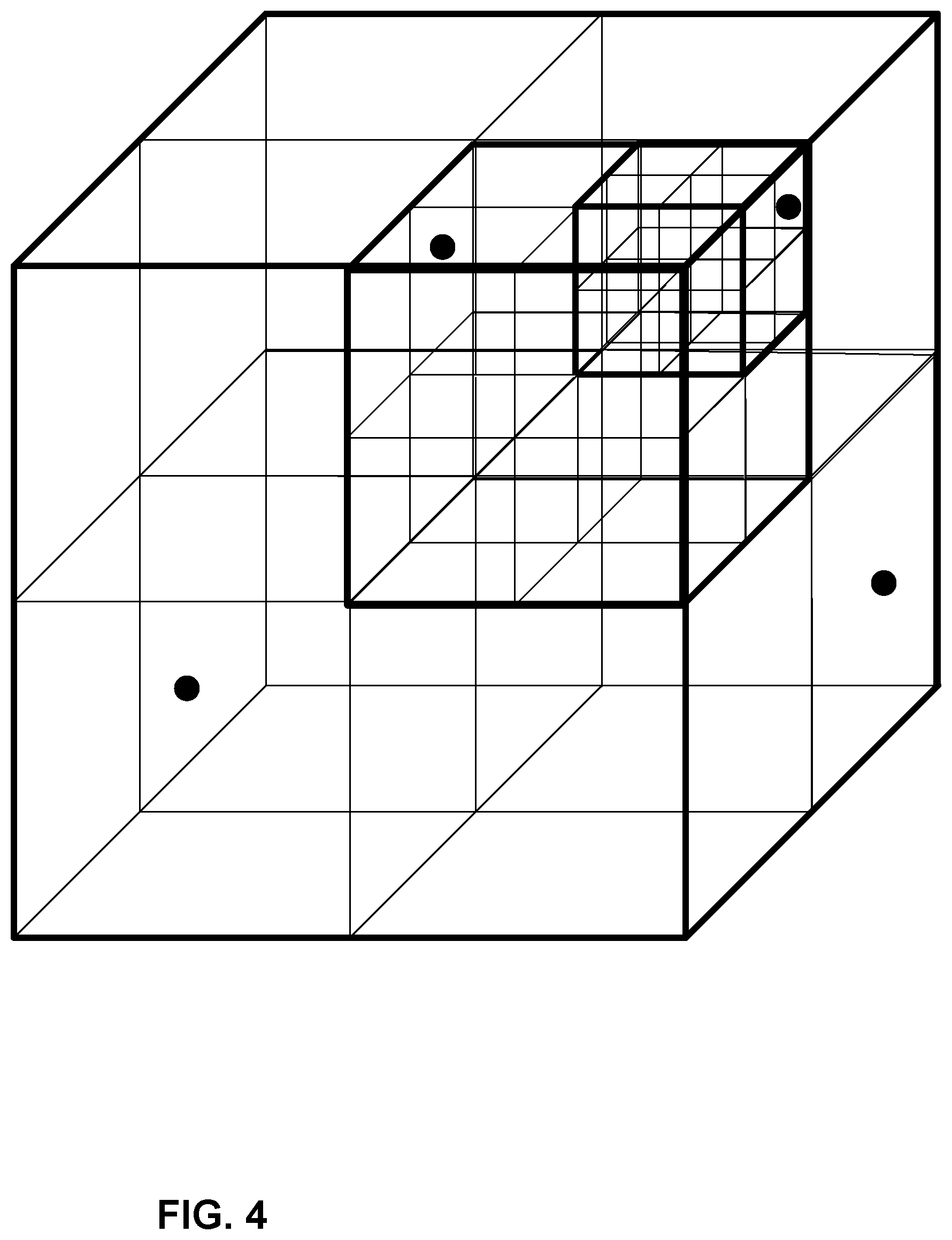

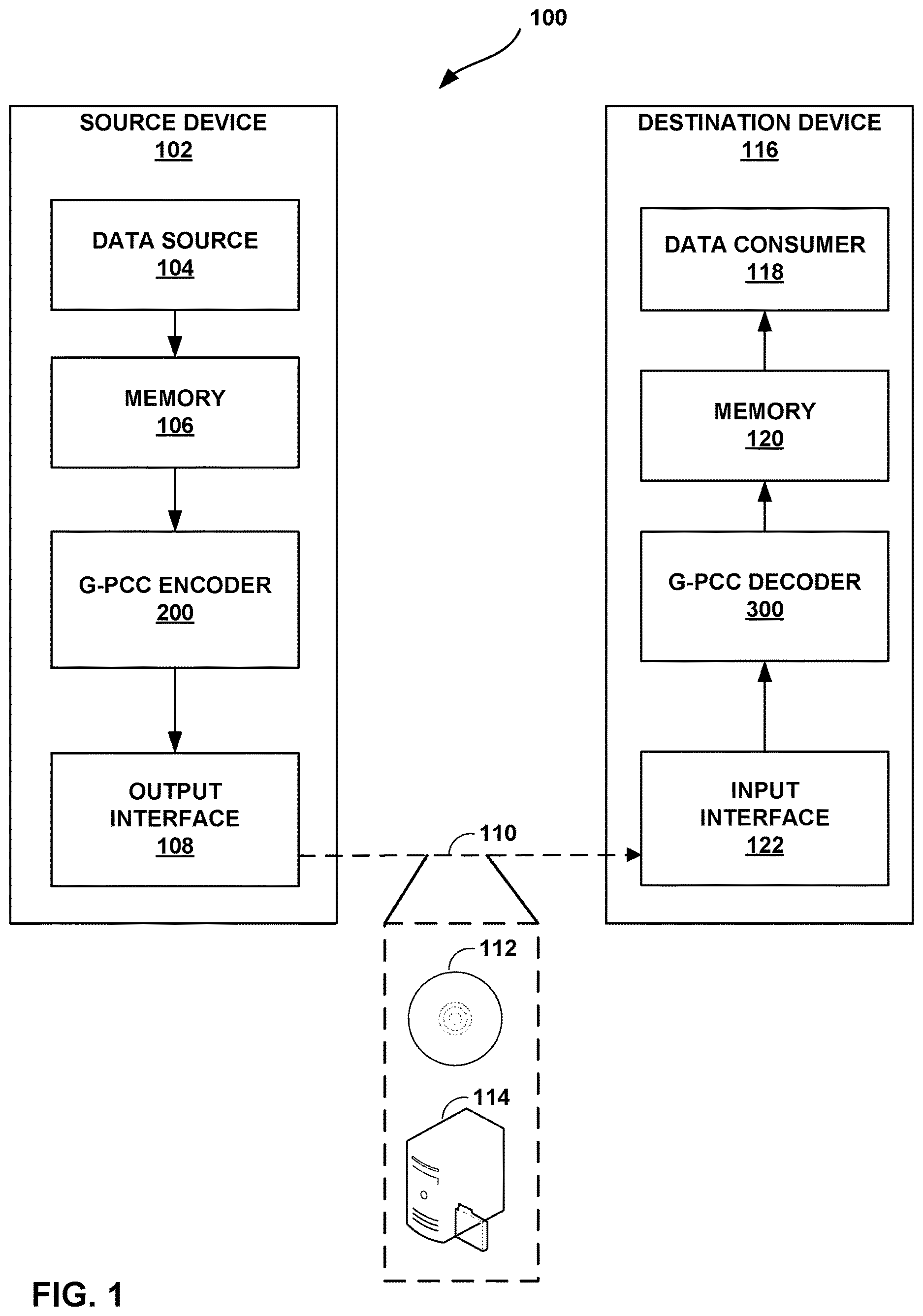

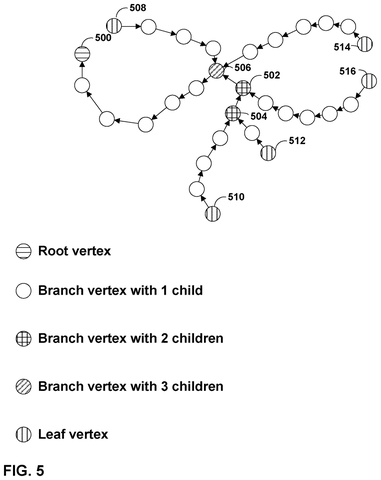

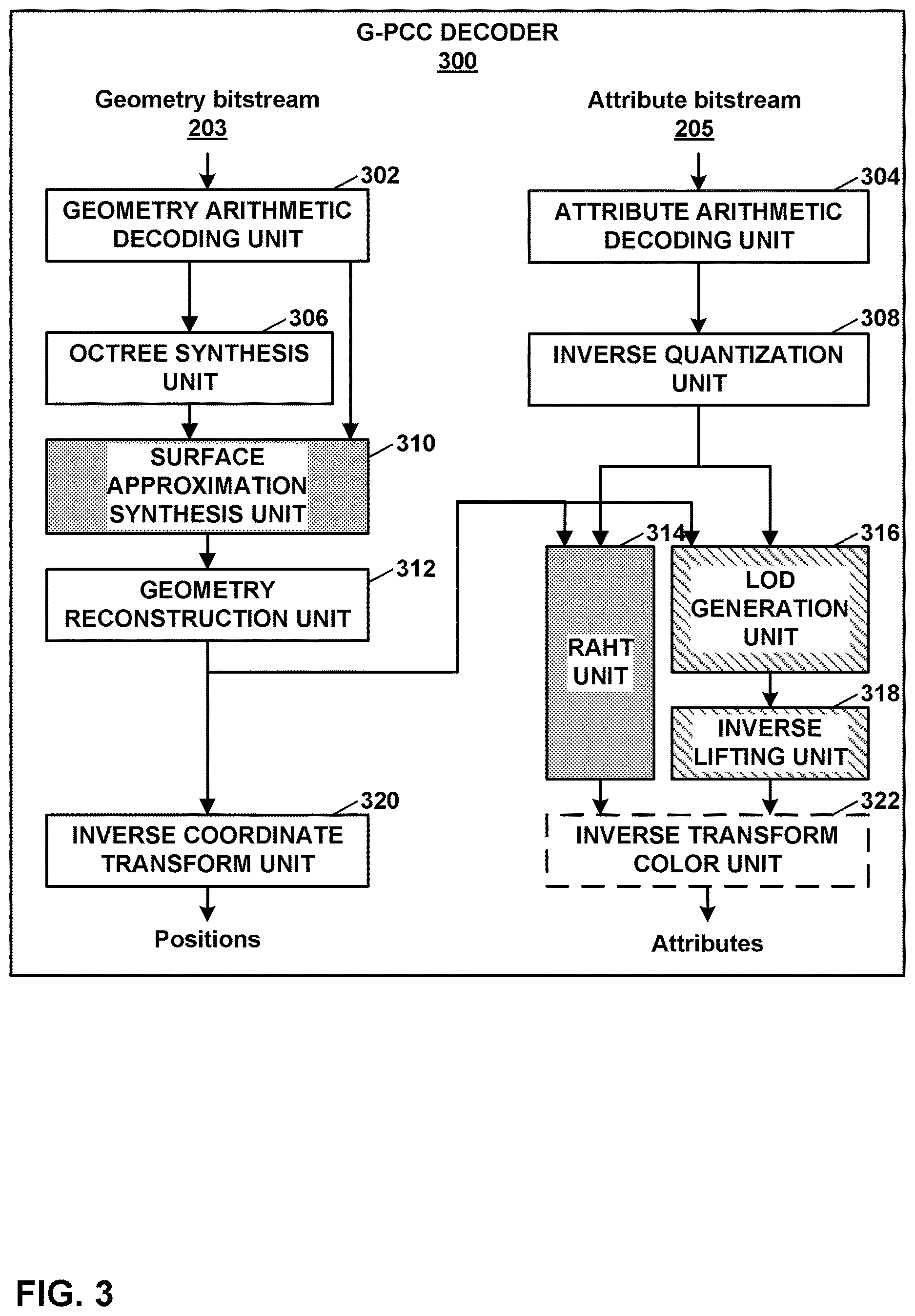

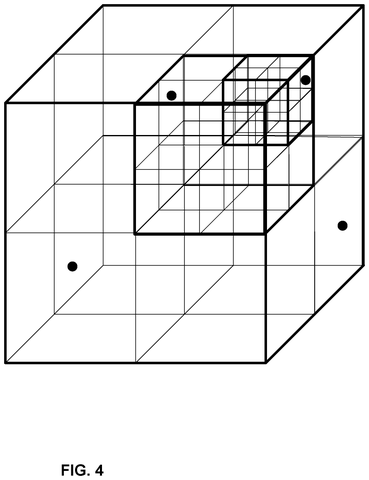

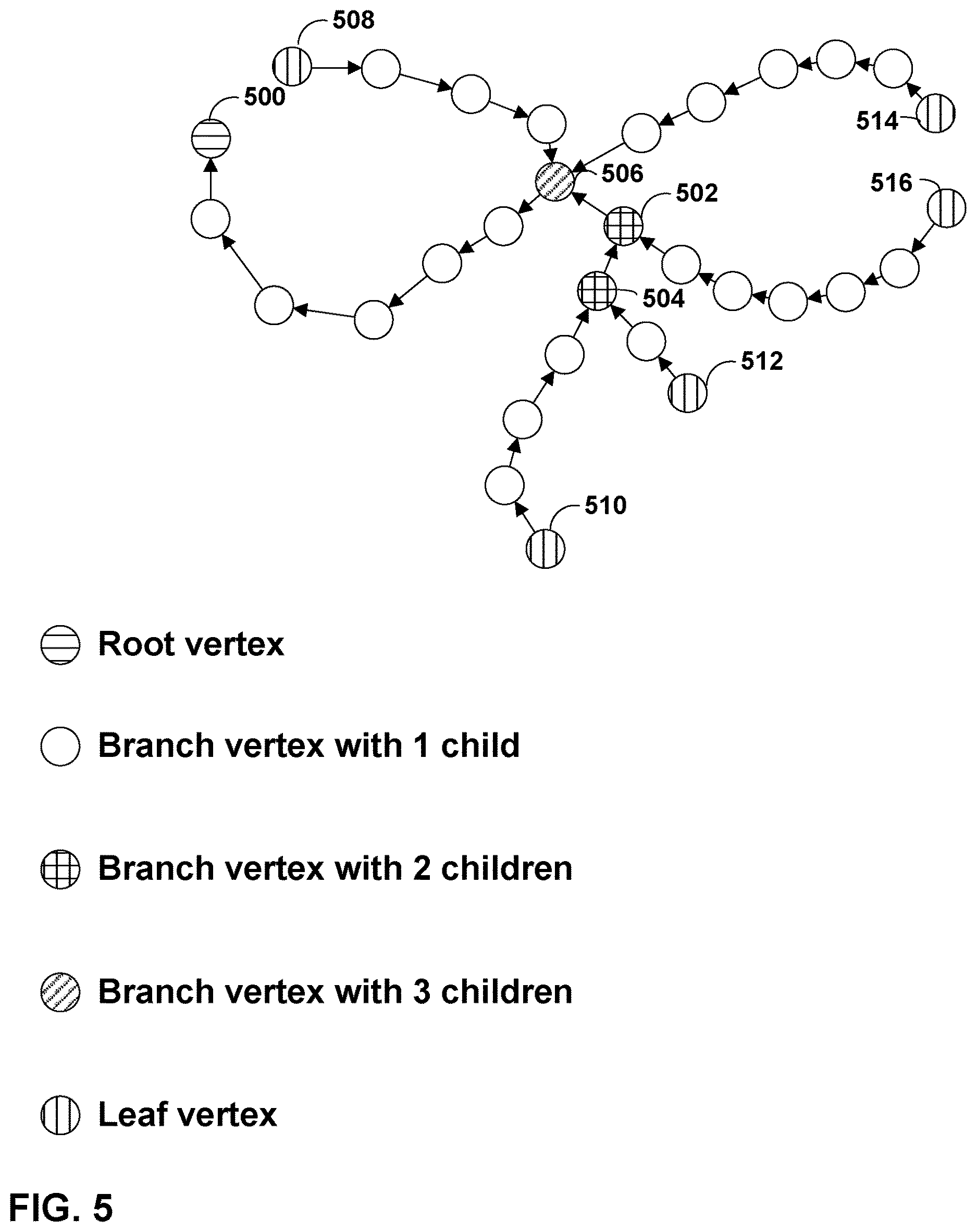

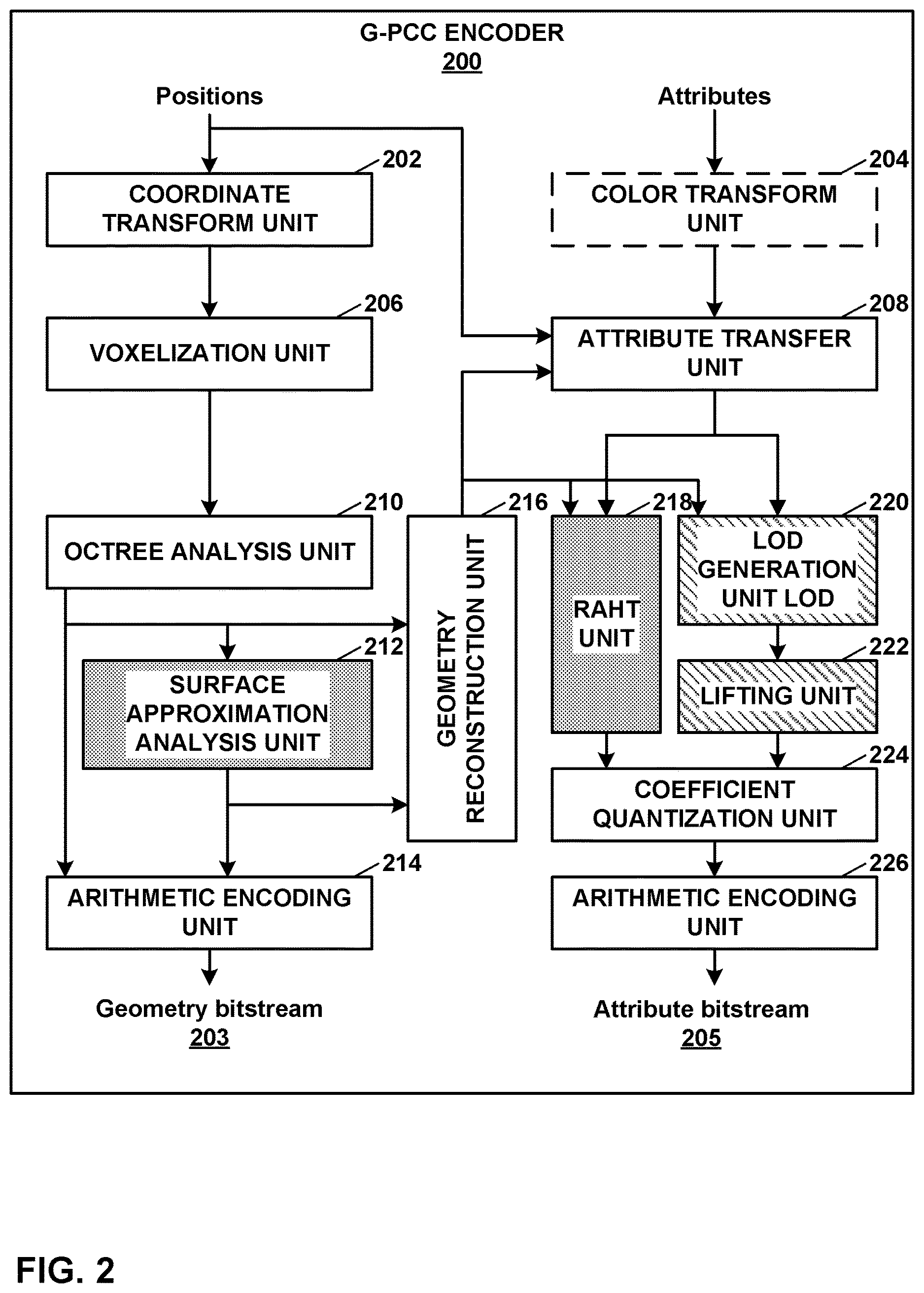

16 drawing sheets from US 2026/0301239 A1 · click any drawing to enlarge
