Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals

Your phone already picks up dozens of radio signals at any given moment. Qualcomm wants to use those signals, not the motion chip inside your phone, to figure out exactly how far you've moved.

A phone receives and transmits radio signals from two cell towers, illustrating how its position and movement can be tracked. Drawing from patent filing US 2026/0304199 A1.
A phone receives and transmits radio signals from two cell towers, illustrating how its position and movement can be tracked.All 14 drawings ↓
Publication number
US 2026/0304199 A1(US20260304199A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Jun 4, 2026 · Oct 1, 2026
Inventors
Mohammed Ali Mohammed HIRZALLAH, Marwen ZORGUI, Xiaoxia ZHANG
Status when we published
Waiting for an examiner
Document
20 claims
US classification
370/329
Parent application
Division of 18/181,400 (filed Mar 9, 2023)(18181400)

How Qualcomm's radio-only movement tracking works

Imagine you walk from the gate to baggage claim at an airport, and your phone tracks every meter of that trip without ever waking up its motion sensors. That's the direction this Qualcomm patent points.

Right now, phones figure out small movements by consulting an inertial measurement unit (IMU), a tiny chip that senses acceleration and rotation. IMUs are useful, but they drift over time, eat battery, and only work in devices that include them in the first place. Qualcomm's approach would instead use the radio signals your phone is already receiving from nearby network towers and access points, treating the pattern of those signals like a fingerprint for each physical location. Move a few meters, and the fingerprint changes in a predictable way.

A machine-learning model, trained to read those radio fingerprints, would estimate how far and in which direction you've moved. The network sets up the system by first asking your device what it can do, then sending instructions about which signals to listen for.

From the filing · CLAIM 1
… receive, from the UE based on the configuration, a set of displacement radio frequency fingerprint positioning (RFFP) measurements or an estimated displacement of the UE.

Translation: The network gets precise movement data back from the phone based on radio signals.

How the network configures and collects displacement data

The patent describes a back-and-forth protocol between a phone (called a UE, or user equipment) and a location server on the network.

  • Capability exchange: The network asks the device to report what ML-based displacement features it supports. The device answers with that list.
  • Configuration delivery: Based on the answer, the network sends a configuration telling the device which reference signals (RSs, essentially known radio beacons) to listen for and measure.
  • Fingerprint measurement: The device collects what the patent calls displacement radio frequency fingerprint positioning (RFFP) measurements, a snapshot of signal characteristics like strength and timing from multiple sources at a given spot.
  • Displacement estimation: Either the device's on-board ML model or the server uses the difference between two fingerprint snapshots to calculate how far the device moved, without relying on accelerometers or gyroscopes.

The core insight is that radio signals form a spatial map. A machine-learning model trained on enough fingerprint pairs can learn to read movement directly from signal changes, much like how a person learns to read a map by noticing landmarks.

The protocol is designed to be flexible: the device can send raw measurements up to the server for processing, or it can compute the displacement locally and send only the result.

From the filing · THE ABSTRACT
… estimate the displacement of the UE based on measuring wireless signals, such that the UE may perform accurate displacement estimation accurately without using sensors (e.g., IMUs).

Translation: Phones can track how they move using only wireless signals instead of built in physical motion sensors.

What this means for indoor navigation and device sensors

Indoor positioning is a long-standing pain point. GPS stops working inside buildings, and current alternatives either require dedicated hardware or expensive infrastructure. A system that derives movement from ordinary network signals could improve navigation in airports, hospitals, warehouses, and shopping centers without any extra sensors on the device.

For lower-cost phones that skip the IMU chip, or for situations where the IMU has drifted and become unreliable, Qualcomm's bet on ML-driven positioning could fill a real gap. The tradeoff is that the approach depends heavily on network cooperation: the server has to support the protocol, the right reference signals have to be configured, and the ML model has to be trained on environments that look like the one you're actually in.

Qualcomm's 472nd filing we have tracked since May in our Qualcomm coverage adds to a pattern around on-device AI, following work on routing data across radio channels and training models across phones.

Source: US 2026/0304199 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 14 sheets

14 drawing sheets from US 2026/0304199 A1 · click any drawing to enlarge

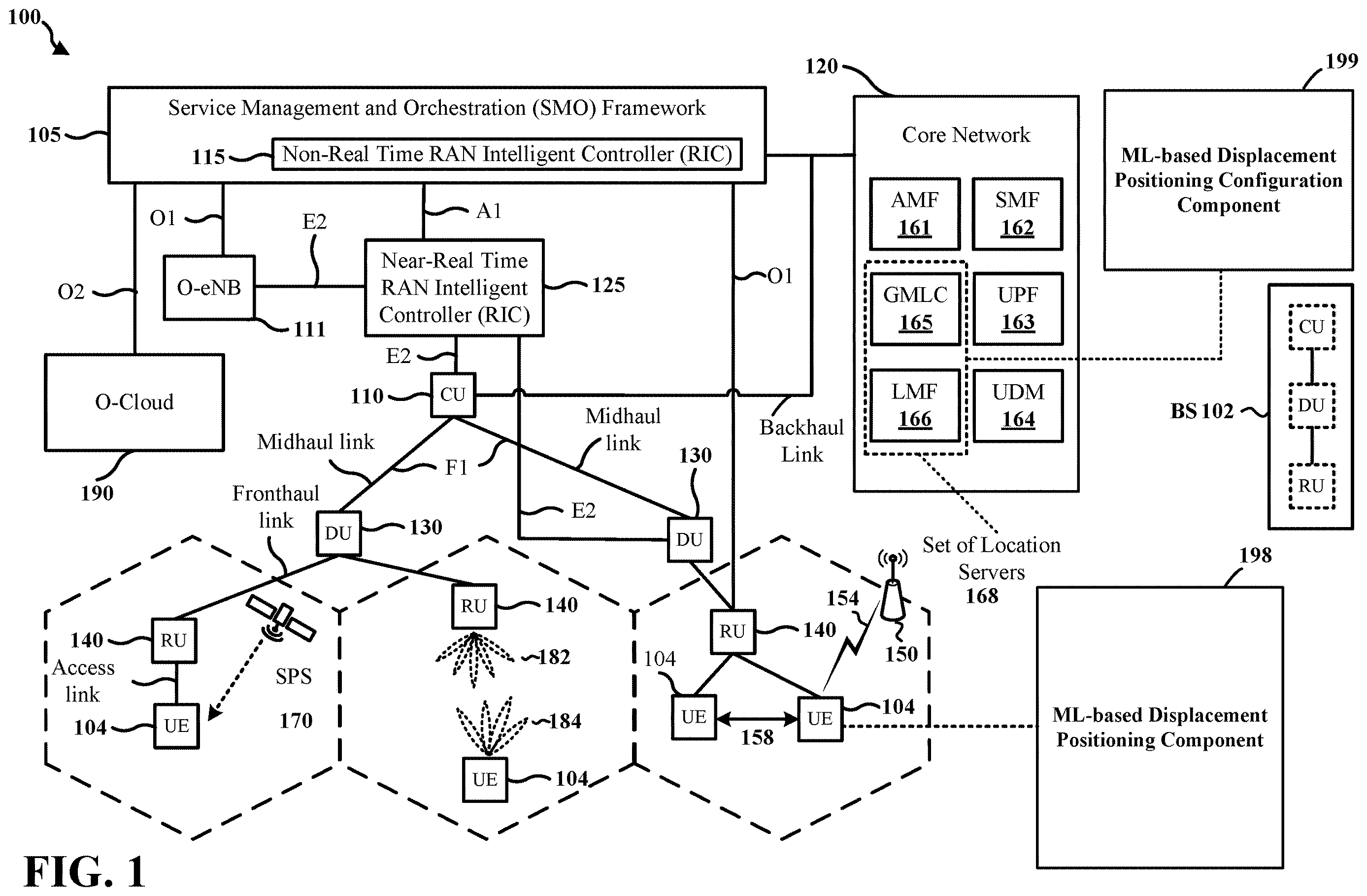

Cell network architecture., drawing sheet 1 from US 2026/0304199 A1
Sheet 1 Cell network architecture.

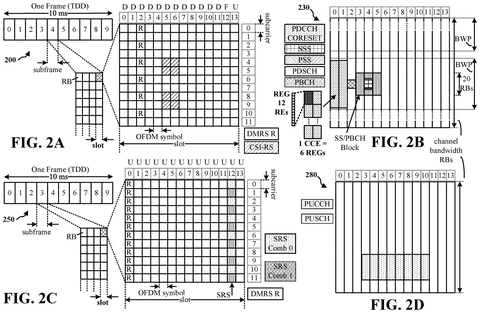

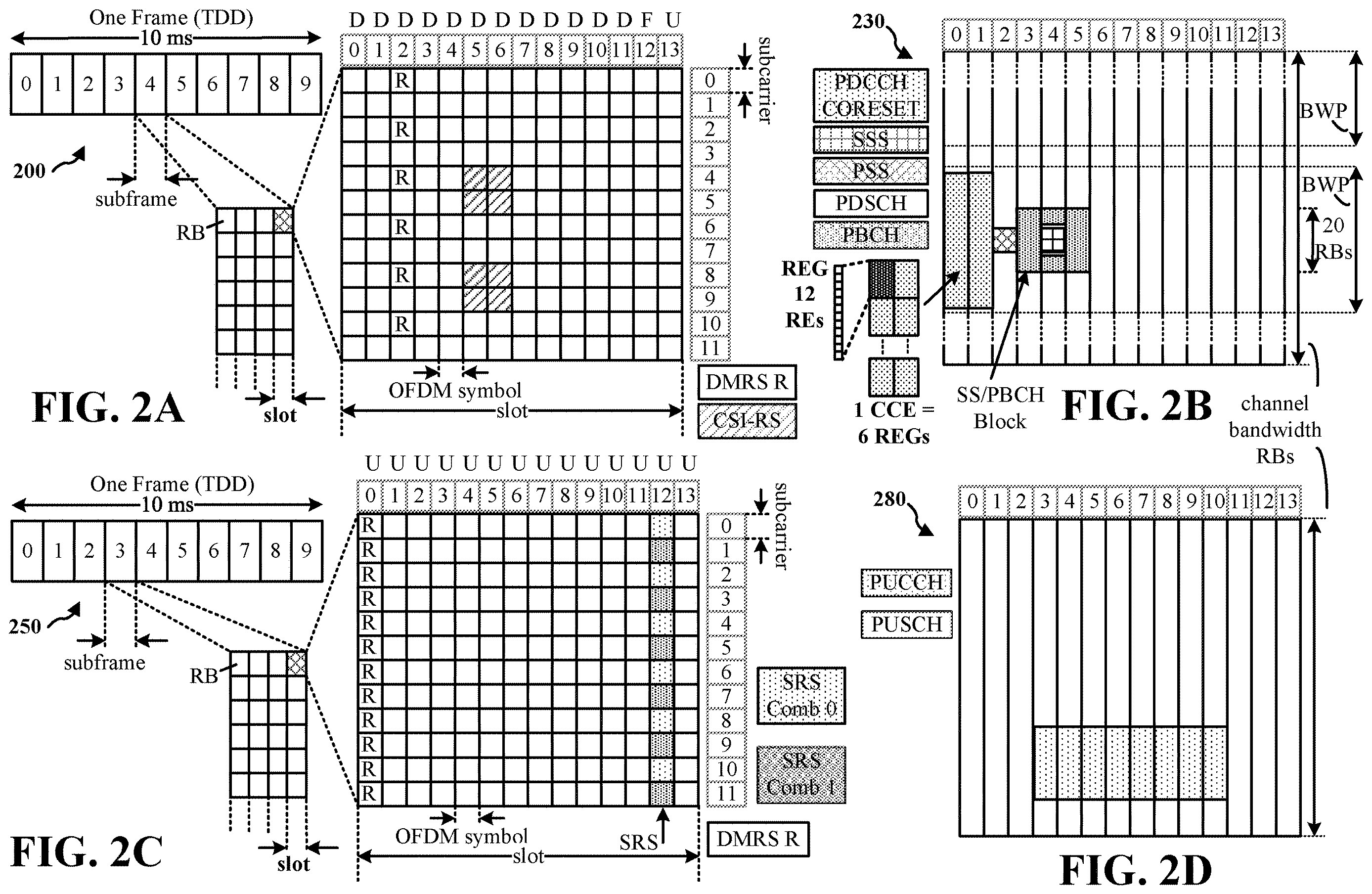

Radio frame structure., drawing sheet 2 from US 2026/0304199 A1
Sheet 2 Radio frame structure.

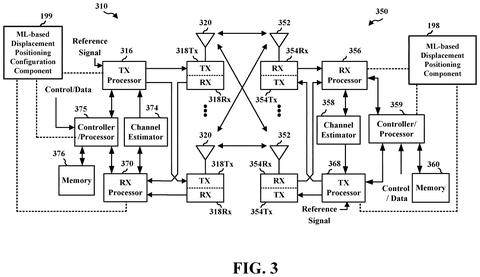

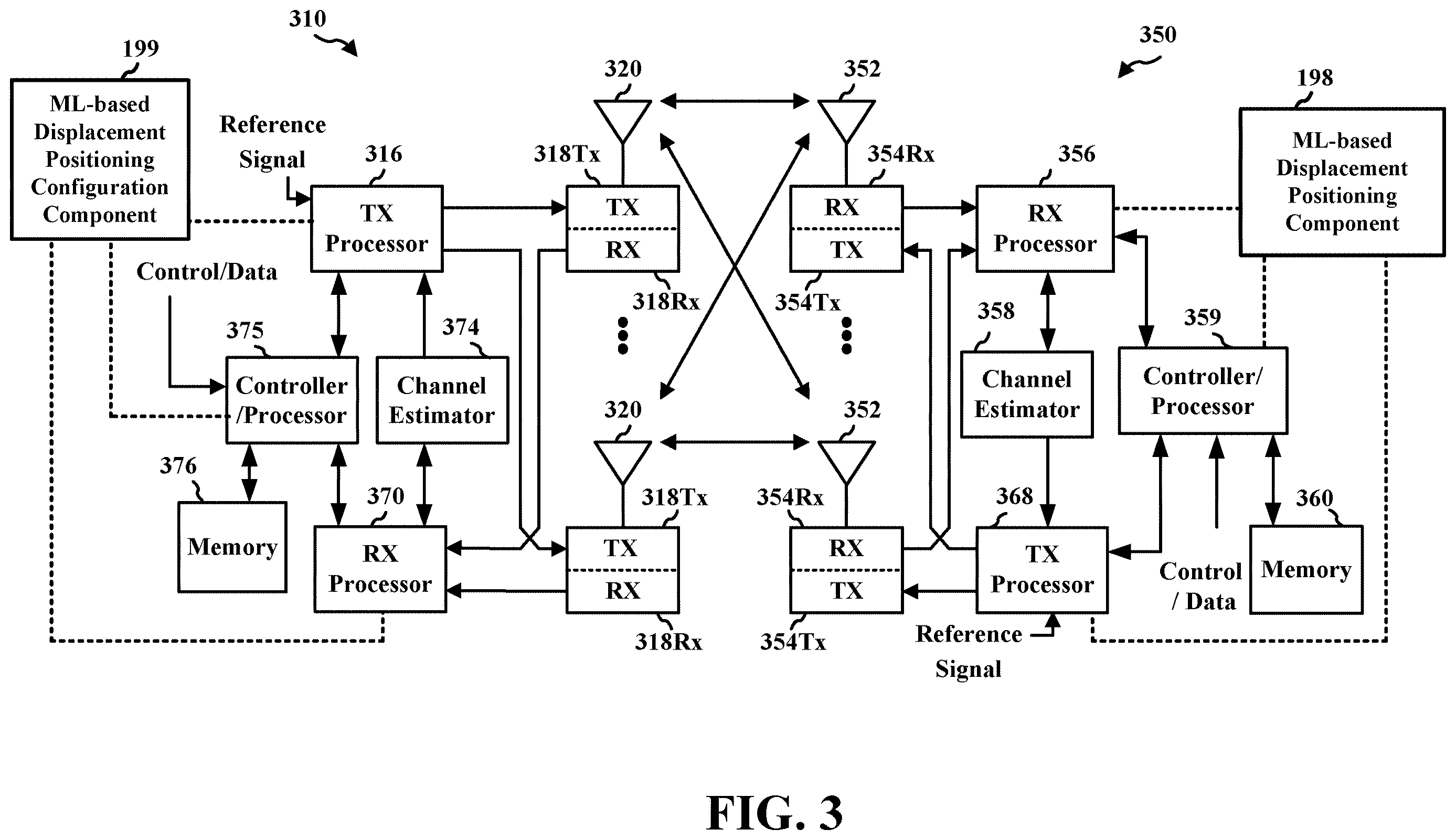

Radio signal processing., drawing sheet 3 from US 2026/0304199 A1
Sheet 3 Radio signal processing.

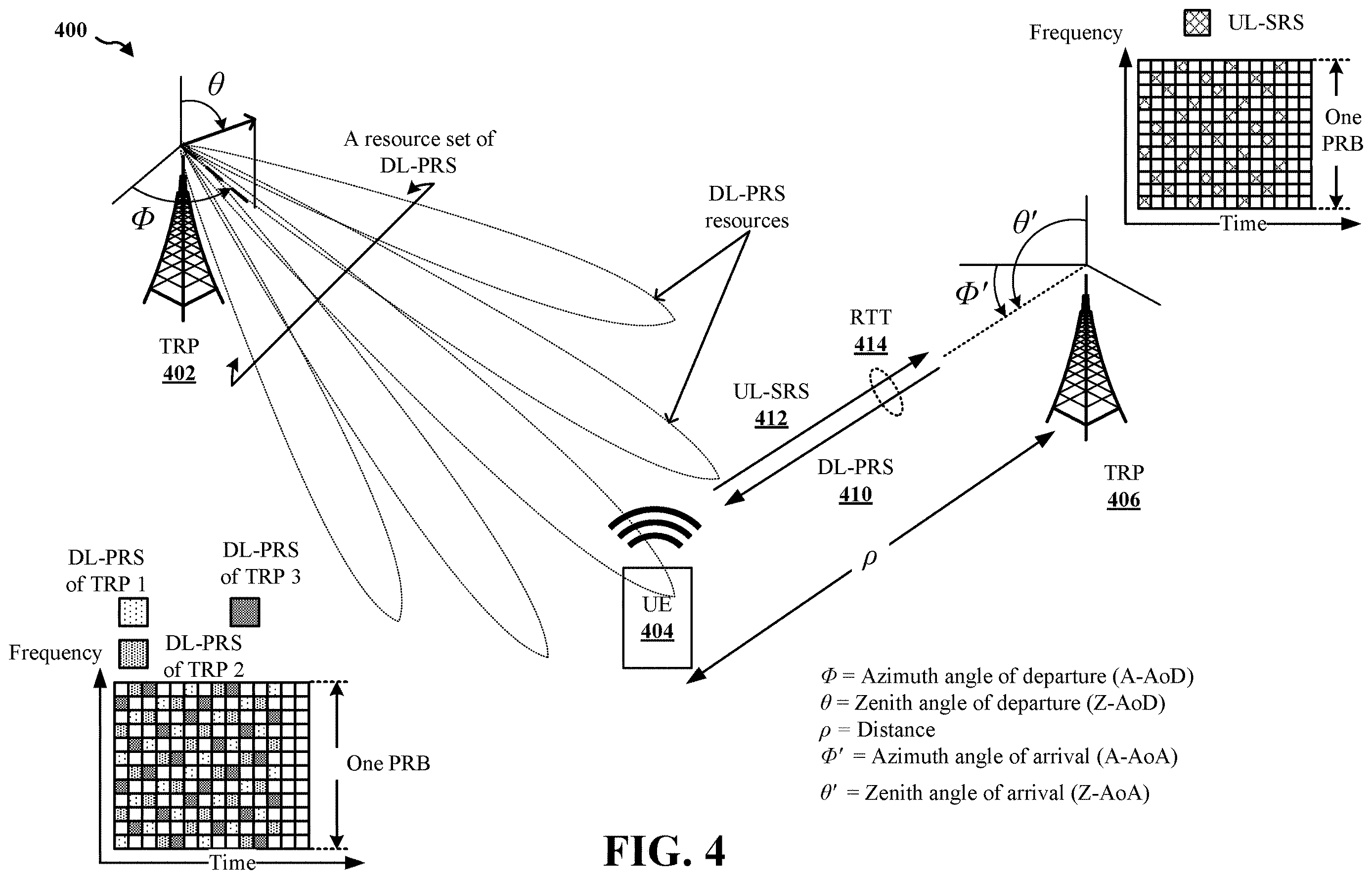

Phone tracking with radio signals., drawing sheet 4 from US 2026/0304199 A1
Sheet 4 Phone tracking with radio signals.

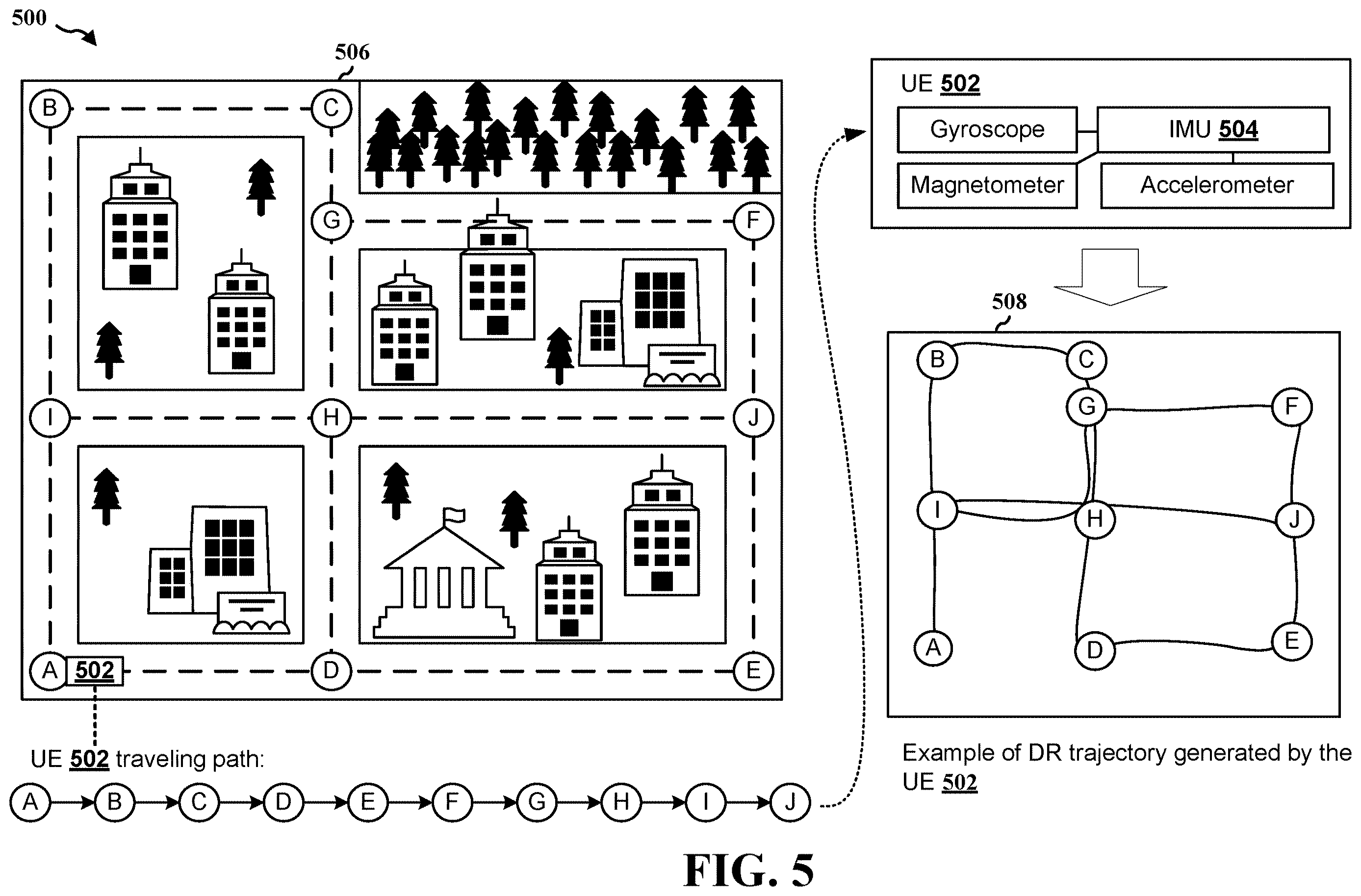

Phone movement path., drawing sheet 5 from US 2026/0304199 A1
Sheet 5 Phone movement path.

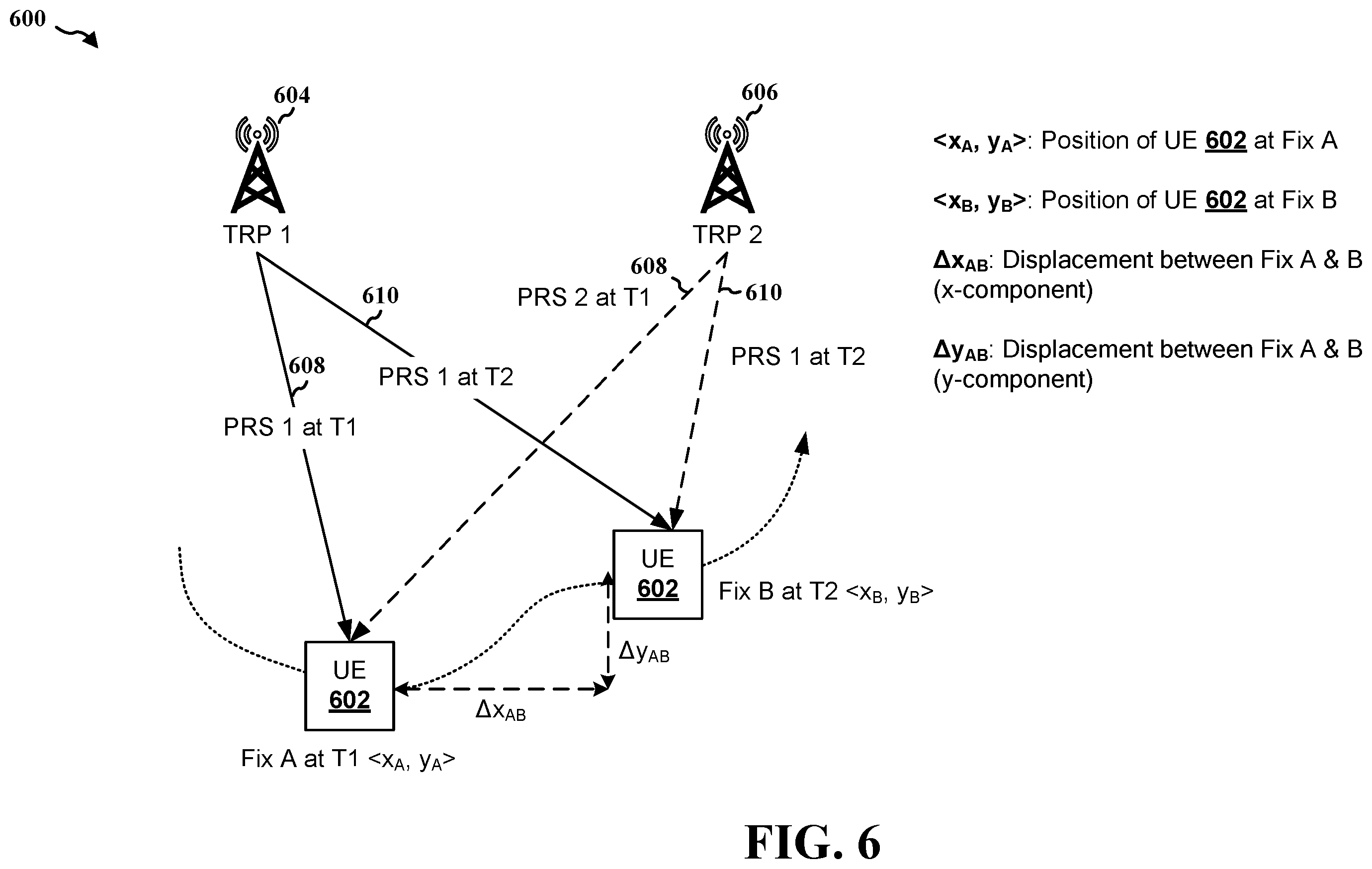

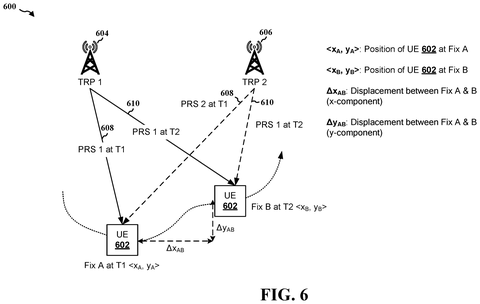

Phone displacement between cell towers., drawing sheet 6 from US 2026/0304199 A1
Sheet 6 Phone displacement between cell towers.

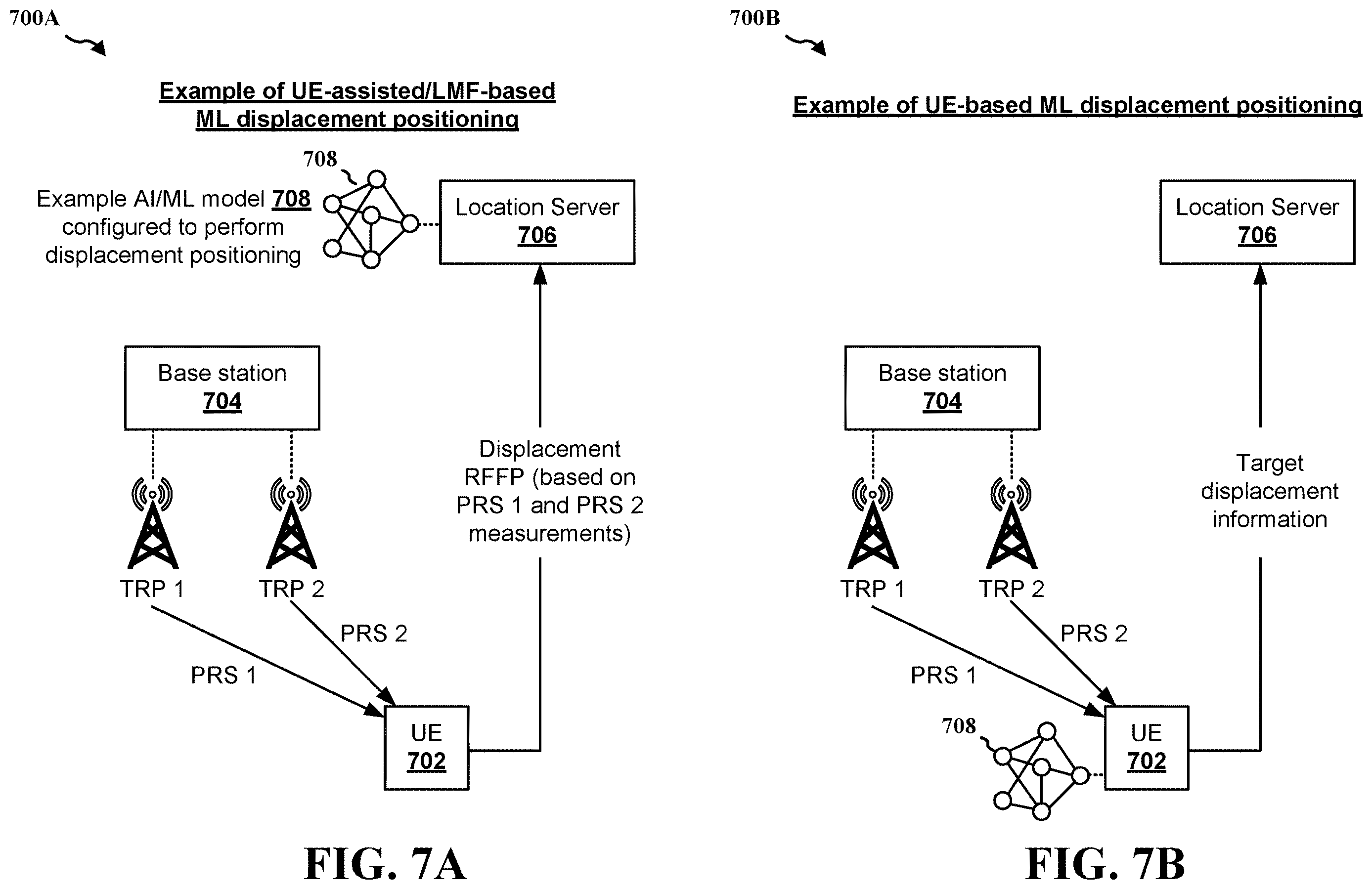

Machine learning displacement positioning., drawing sheet 7 from US 2026/0304199 A1
Sheet 7 Machine learning displacement positioning.

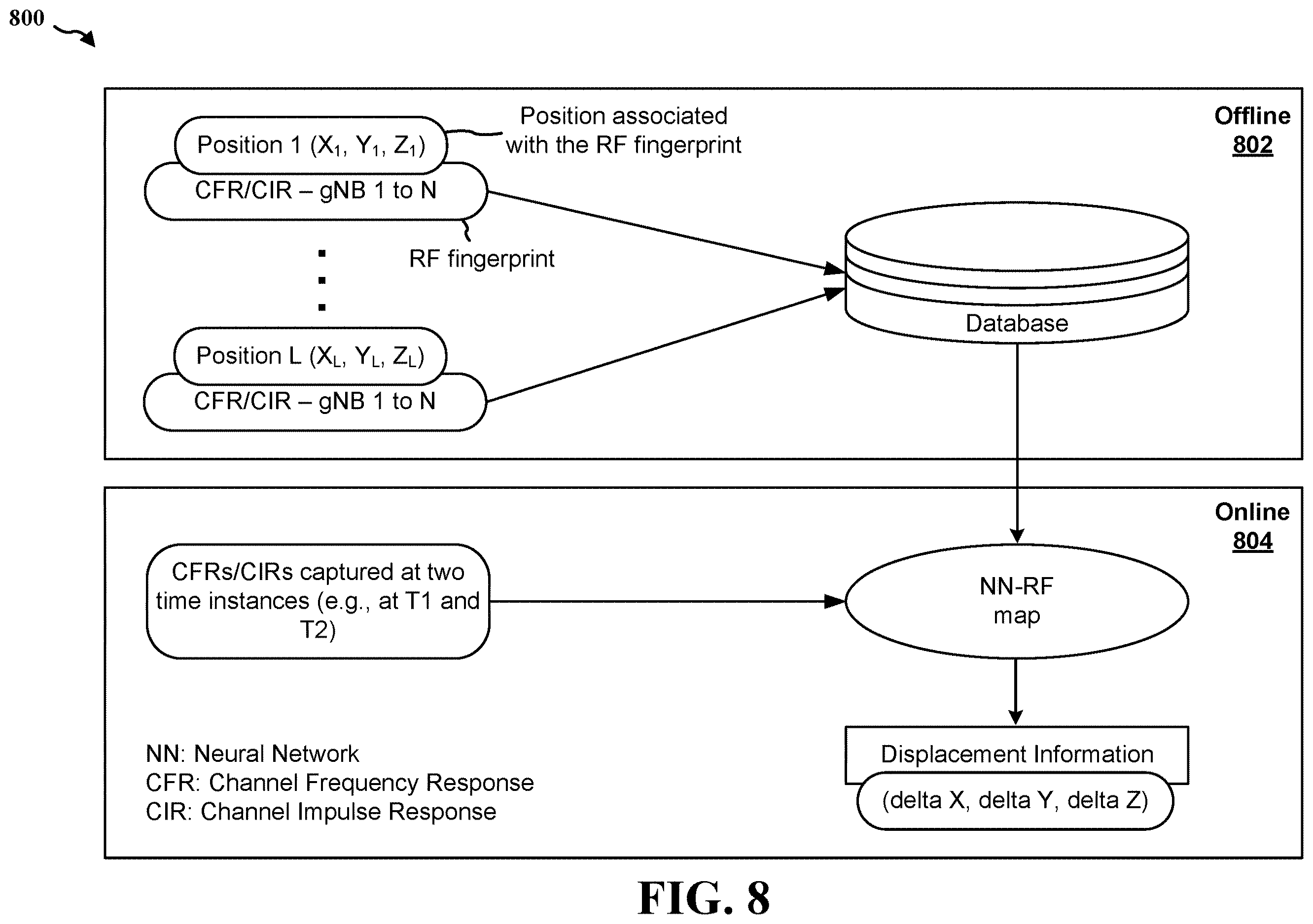

Radio fingerprint database., drawing sheet 8 from US 2026/0304199 A1
Sheet 8 Radio fingerprint database.
Show the other 6 sheets
Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals patent drawing, sheet 9
Sheet 9
Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals patent drawing, sheet 10
Sheet 10
Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals patent drawing, sheet 11
Sheet 11
Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals patent drawing, sheet 12
Sheet 12
Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals patent drawing, sheet 13
Sheet 13
Qualcomm Patents a Way for Phones to Track Movement Using Only Radio Signals patent drawing, sheet 14
Sheet 14
