Samsung Files Patent for Headsets That Brighten Their Camera View in Dim Rooms
Some headsets show you the room around you through built-in cameras, and in a dim room that view turns grainy and murky. Samsung's patent application describes a check on every camera frame that fixes only the ones that look too dark.
What Samsung's dark-room headset fix does
Ever snapped a photo in a dim restaurant and ended up with a muddy, speckled mess? Now put that picture right in front of your eyes. Some headsets show you the room around you through built-in cameras, so a dark room means a dark, grainy view.
Samsung's patent application describes a quick check on every camera frame. If the picture is bright and contrasty enough, it goes straight to your display. If it looks too dim, the headset first cleans up the speckle (known as noise) and lifts the brightness, then shows you the improved version.
The filing also lets the headset pick from three different brightening methods depending on what the scene looks like, and double-checks the result before it reaches your eyes.

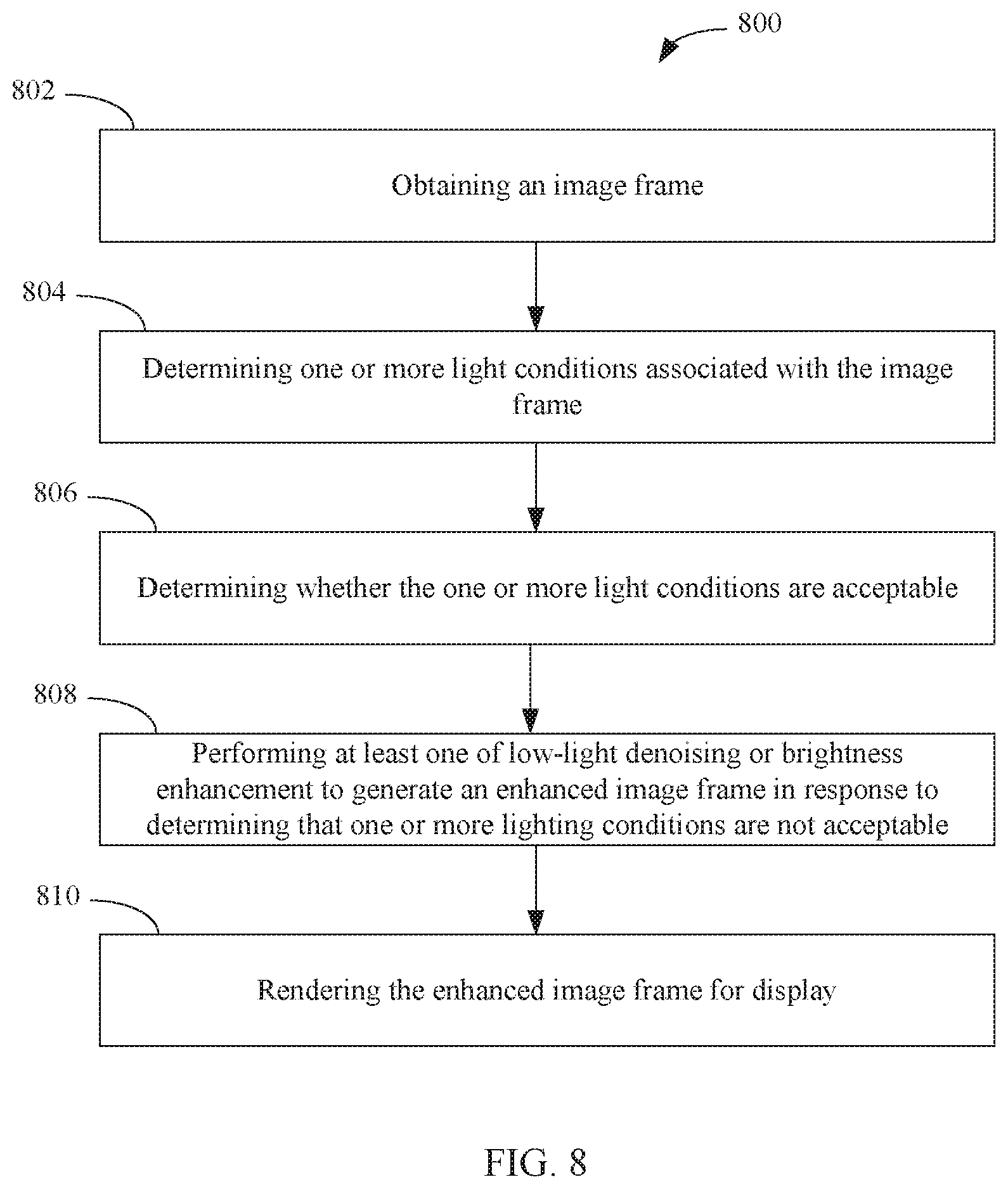

… determining, using the at least one processing device, whether the one or more light conditions are acceptable; performing, using the at least one processing device, at least one of low-light denoising or brightness enhancement to generate an enhanced image frame in response to determining that the one or more light conditions are not acceptable; …
Translation: The headset checks if the room is too dark and automatically brightens or clears up the picture.
How the headset picks a brightening recipe

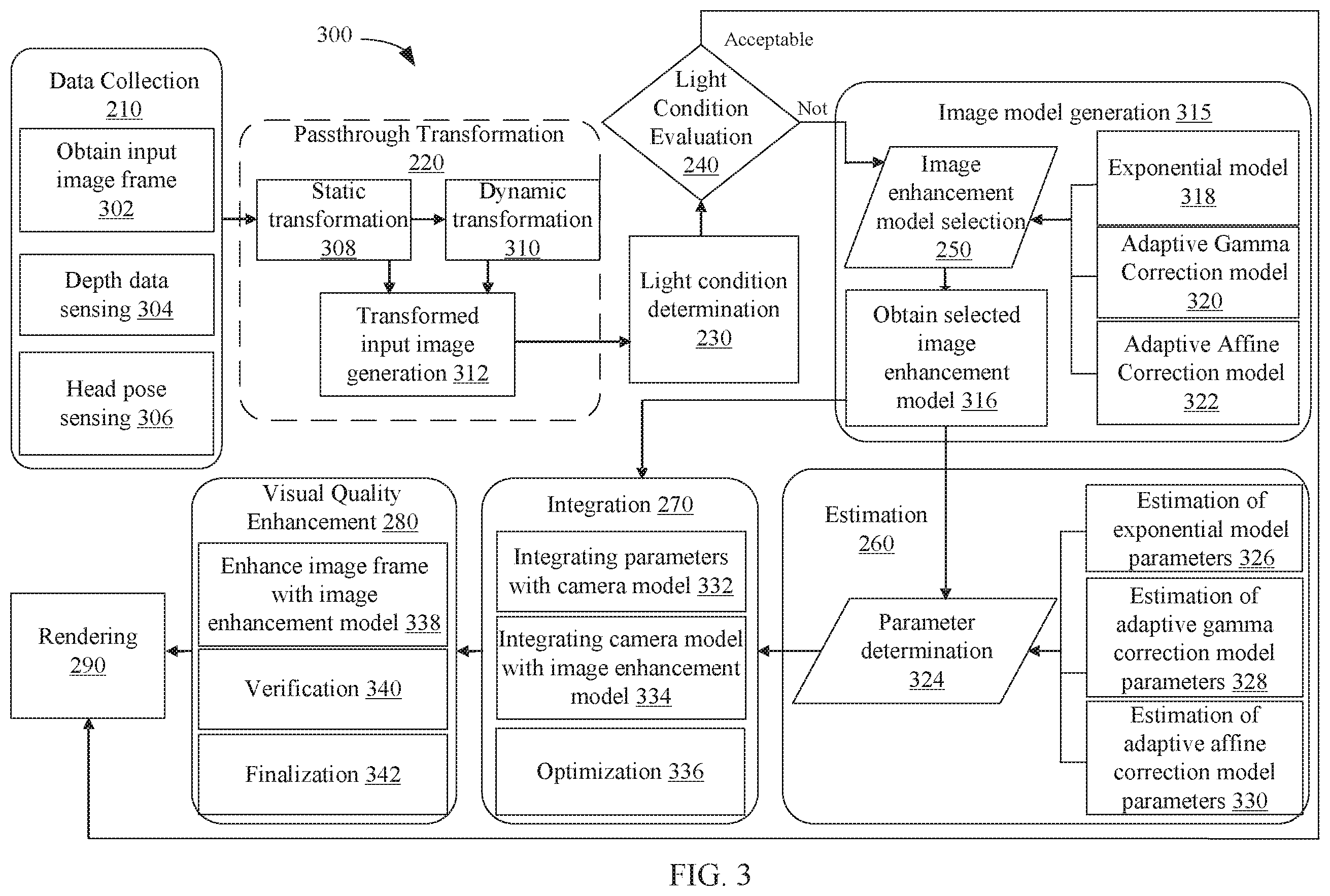

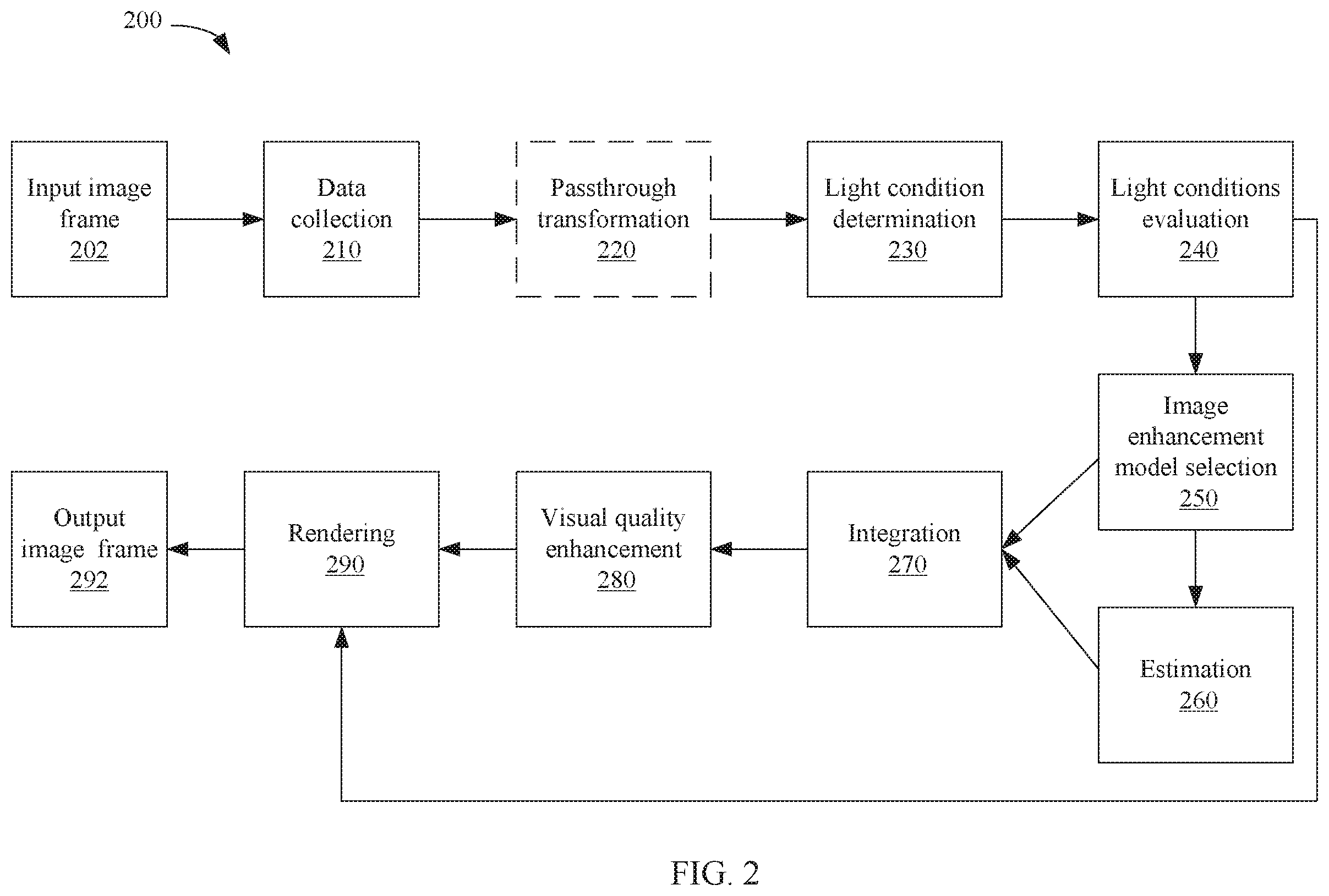

The core idea is a gatekeeper for every camera frame. The device measures the frame's light conditions (brightness and contrast, and in some versions the signal-to-noise ratio, a gauge of how much grainy speckle is mixed in) and compares them against thresholds. Frames that pass go straight to the display. Frames that fail get low-light denoising (speckle cleanup), brightness enhancement, or both first. An optional step beforehand reshapes the camera view to match the viewpoint of your eyes.

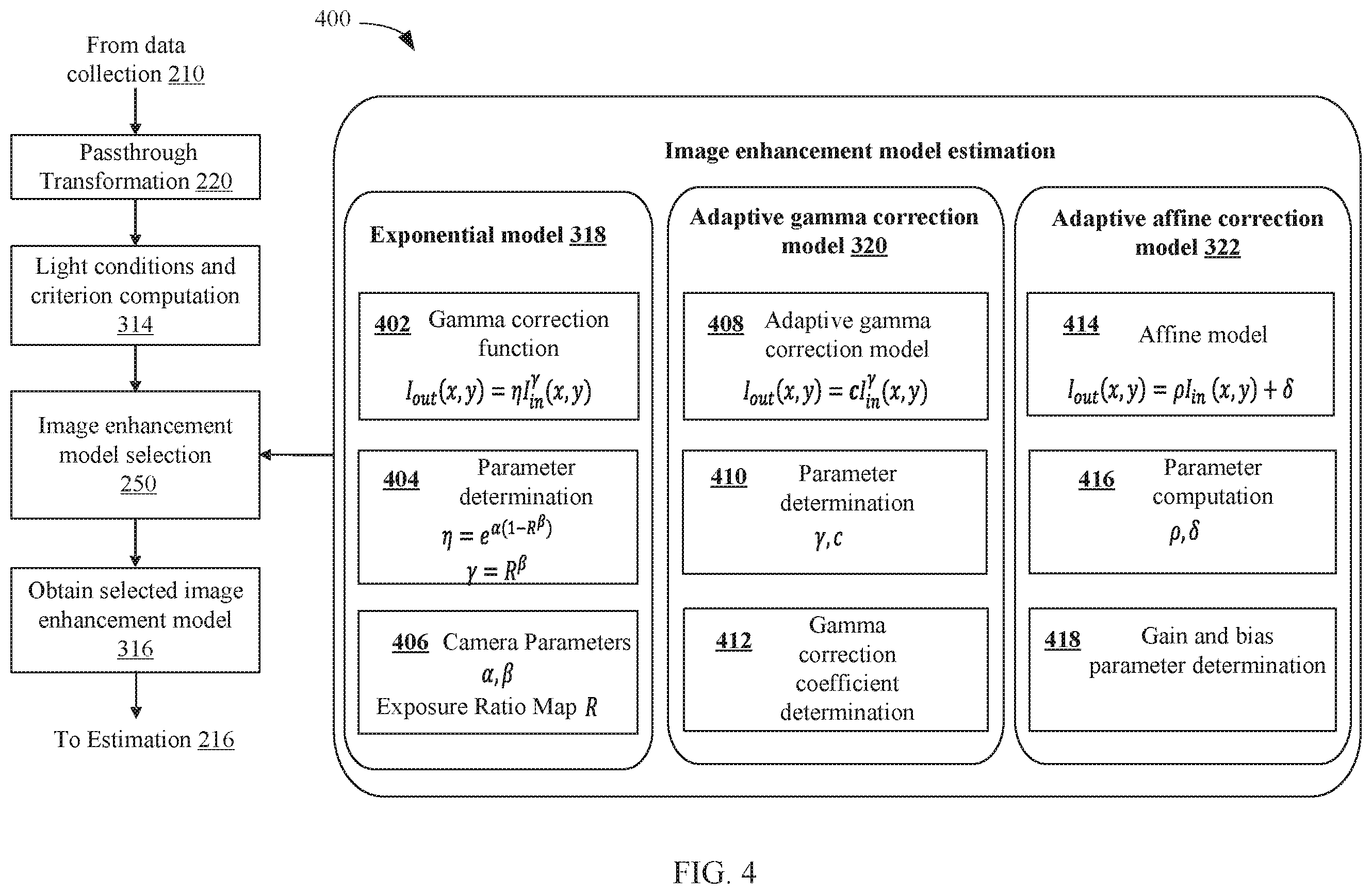

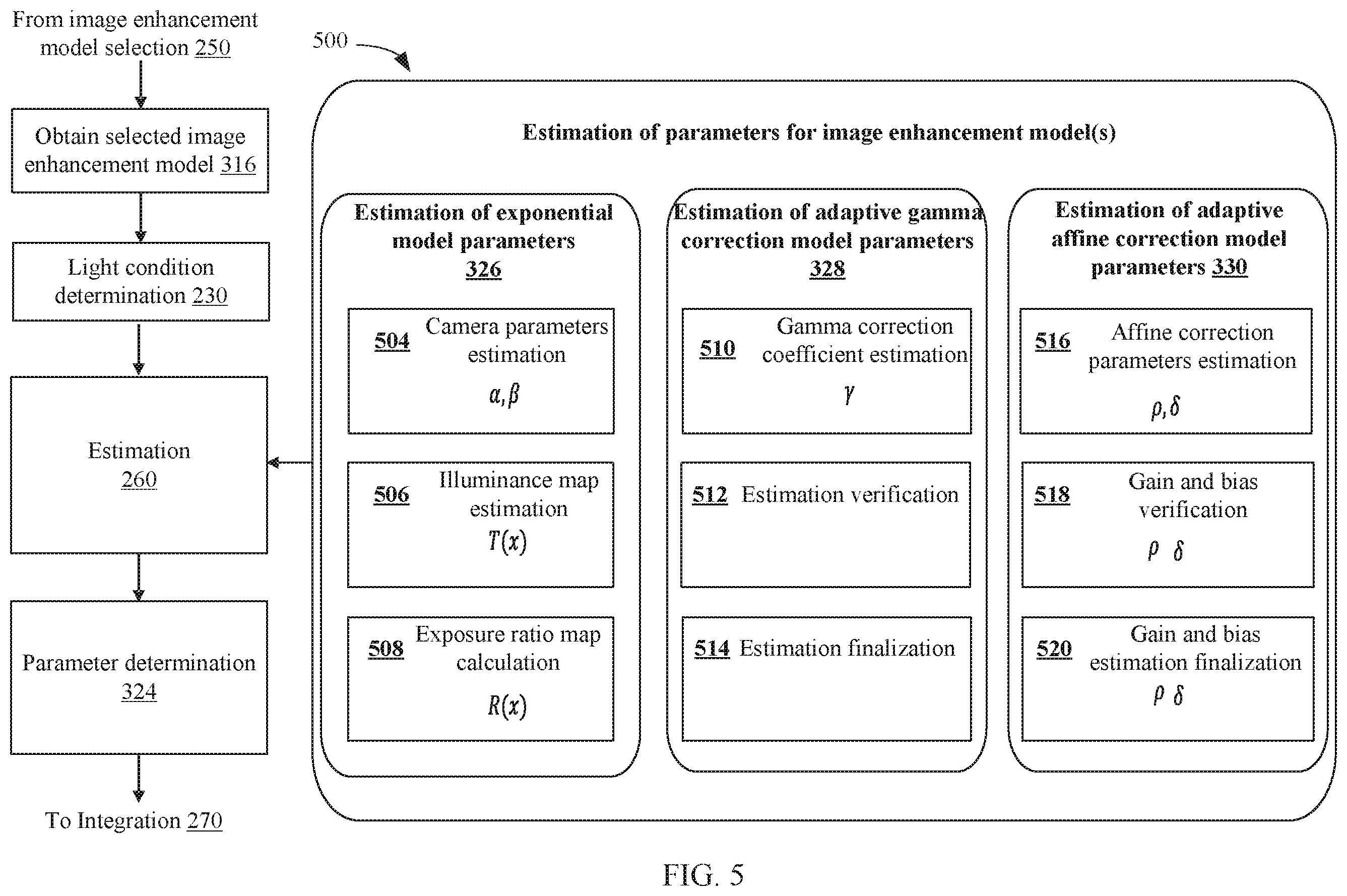

Frames that need help get one or more of three predefined models:
- Exponential model: brightens different regions by different amounts, using an exposure ratio map (a local fix).
- Adaptive gamma correction: applies one contrast-and-brightness curve to the whole frame.
- Adaptive affine correction: uses a gain (multiplier) and a bias (offset) to stretch the frame's brightness range.

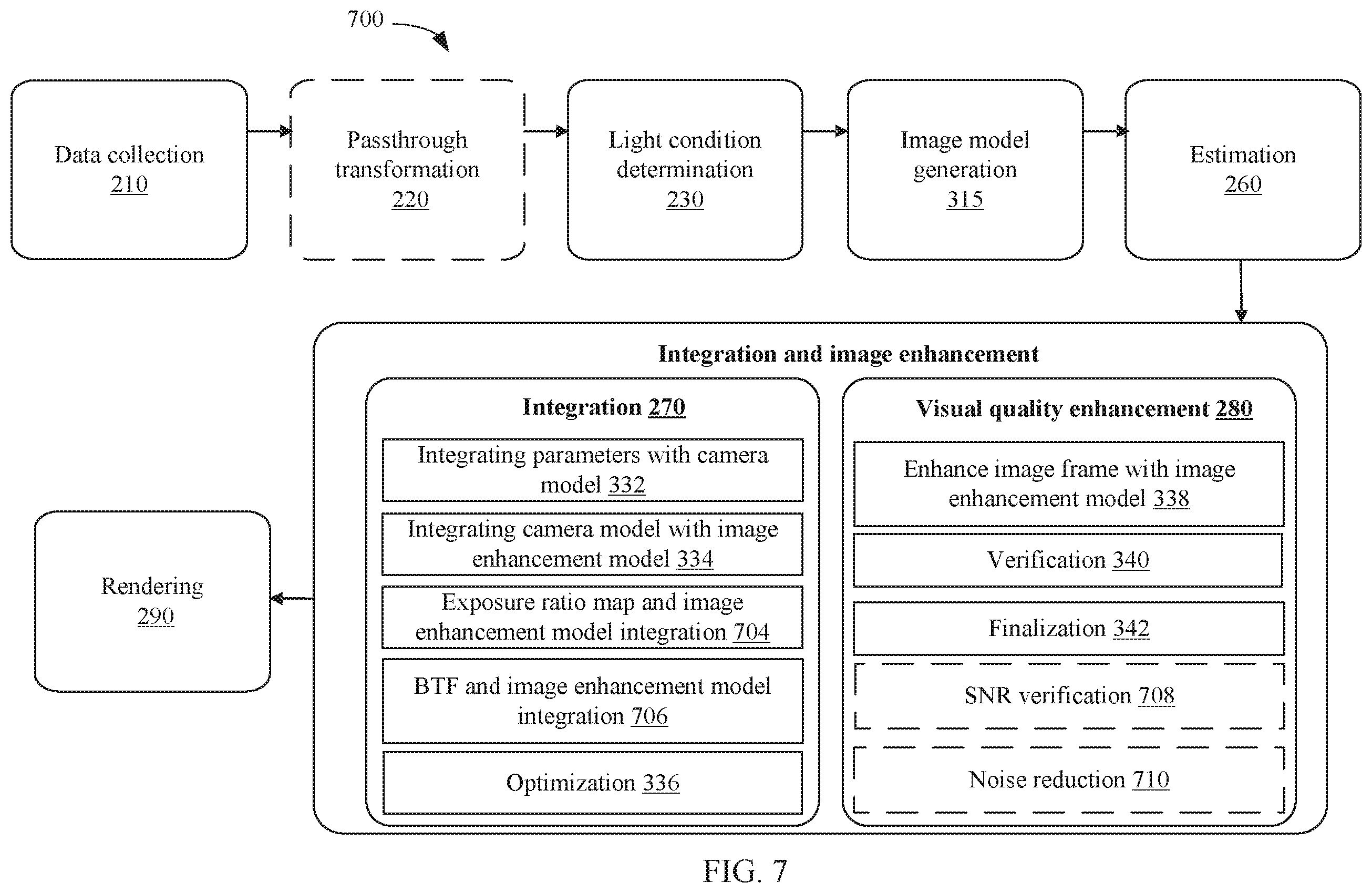

The chosen model is not applied raw. Its parameters are folded into a camera model (a description of how the sensor turns light into pixel values), the result is merged with the enhancement model, and the whole thing is optimized. If two or more models are picked, they can be merged too.
The description adds a final check: the enhanced frame's signal-to-noise ratio is measured, and if it falls short, noise reduction such as frame averaging runs. It also describes a faster way to estimate the lighting map than the usual iterative solvers, which matters at 30 to 120 frames per second.
Why dark rooms matter for passthrough headsets
If you use a passthrough headset in a living room after dark, the room you see is only as good as the camera feed. A cleaner, brighter feed makes for a more comfortable view, and the filing itself says image quality is a big factor in whether people feel comfortable wearing one.
Samsung describes this mainly for video see-through headsets but says it could also work on devices where you look through clear lenses, and on other electronic devices. For a headset, the hard part is doing this fast on every frame, so the quicker lighting estimate in the filing is the detail to watch.
Samsung's 61st filing we've tracked in the AR glasses race since May builds on work like brighter camera feeds for dim rooms and lighting just one lens for alerts.
Dark rooms are the weak spot of any headset that shows you the world through cameras. Cameras gather less light, the picture turns grainy, and you are stuck looking at it from an inch away while trying not to trip over the furniture. That is a real problem for anyone who wears one in the evening.
Samsung's answer fits the size of that problem. Check each frame, leave the good ones alone, and fix the dim ones with a short menu of familiar brightening and noise-cutting methods. The first claim is broad: measure the light, fix it if it is too dim, show the result.
The filing offers no test images or before-and-after results, so you cannot judge the quality of the fix from the paper alone. Where it gets specific is speed: a quicker way to estimate lighting matters when a headset must repeat this up to 120 times a second. Call it sensible, routine-leaning engineering aimed at a problem users will actually notice.
