Samsung Patents a Light-Control Coating That Keeps Wearable Sensors Accurate
Tiny health sensors inside smartwatches and rings need darkness around them to work properly. Samsung's new patent describes a coating layer built directly into the device housing to seal each sensor in its own controlled light environment.
What Samsung's optical coating actually does in a wearable
Ever noticed how a heart-rate sensor on a smartwatch can give weird readings if light gets in from the wrong angle? That stray light is a real problem when you pack multiple optical sensors into a device the size of a ring or a watch face.
Samsung's patent describes a way to handle this at the housing level. Instead of relying only on the sensor itself to block unwanted light, the inner shell of the device includes a special coating that wraps around each sensor. The coating has a specific level of light transmission, meaning it controls exactly how much light can reach the sensor and from which direction.

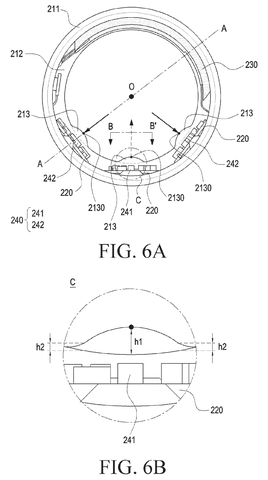

The housing is designed with small inward-pointing bumps, one per sensor, and the coating sits at each of those bumps. So every optical element gets its own dedicated light-managed pocket. It's a manufacturing-level fix to a problem that normally gets patched over in software.
a housing including an outer housing portion and an inner housing portion disposed inside the outer housing portion and including at least one protrusion protruding in an inward direction …
Translation: The device uses a double layer casing with inward bumps.
How the coating layer isolates each optical sensor

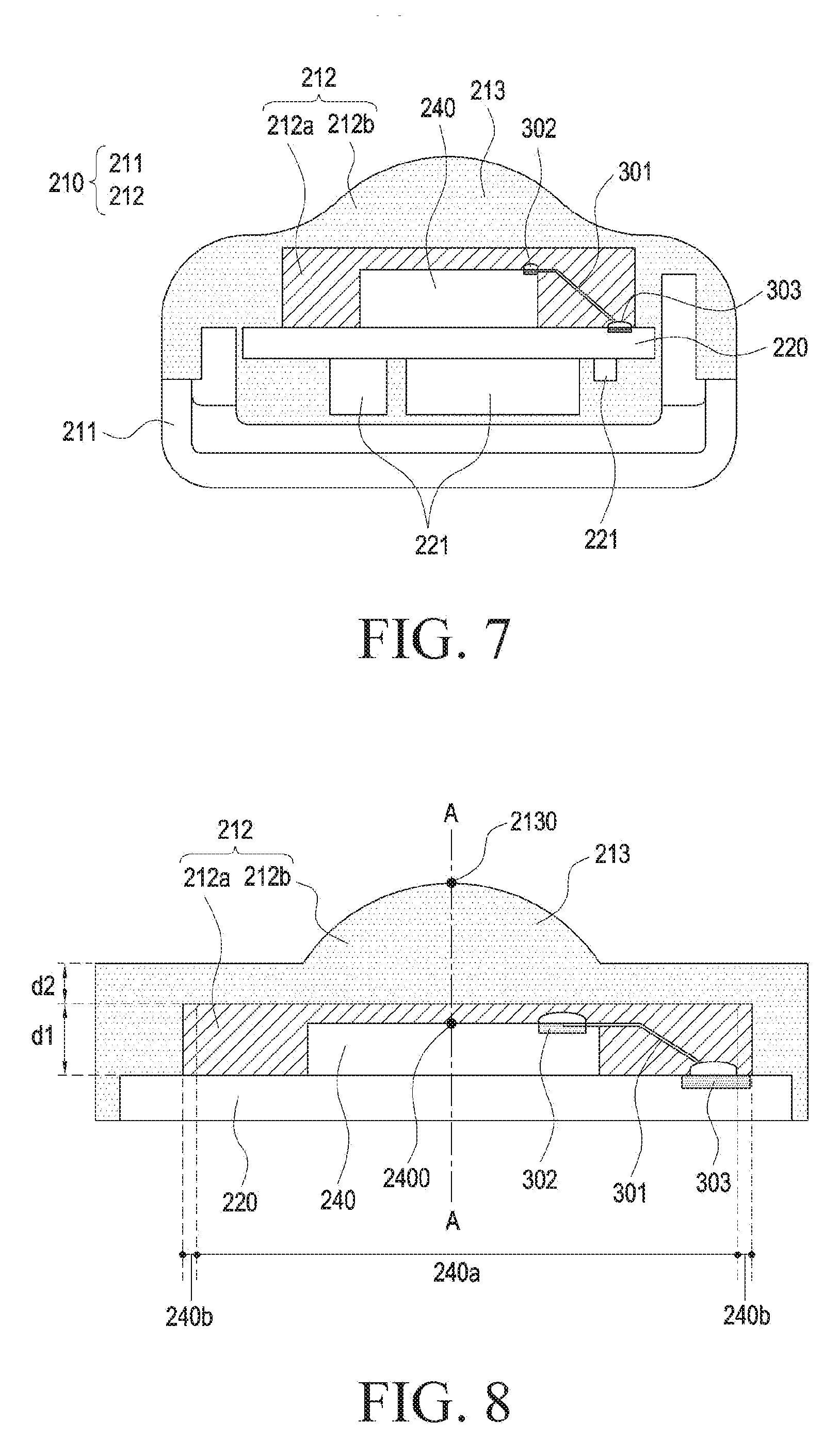

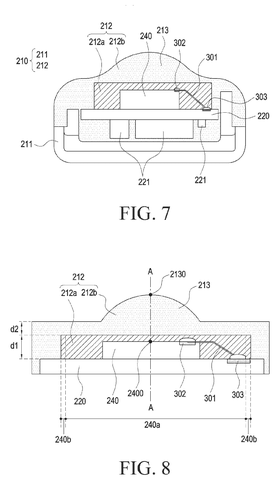

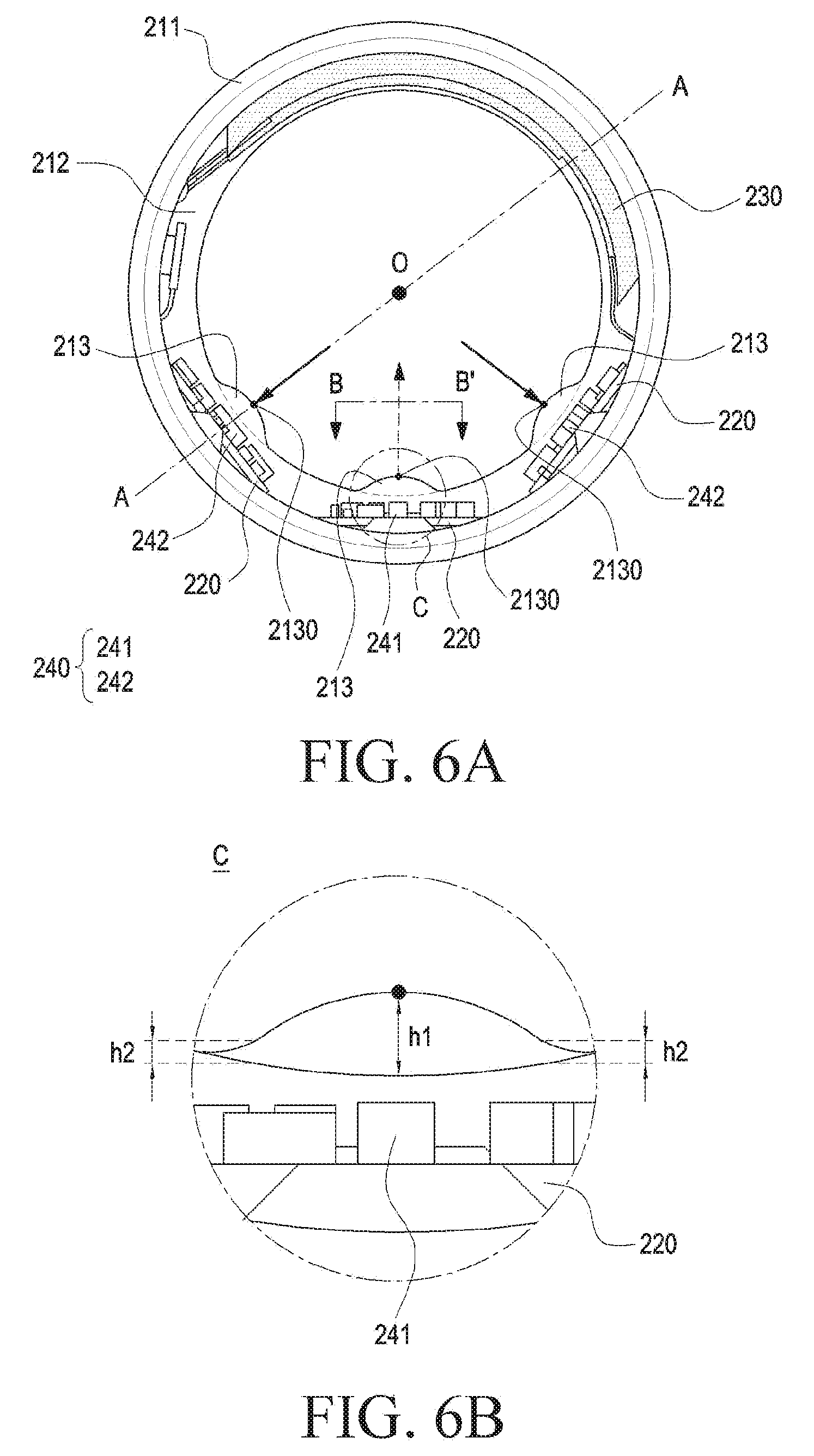

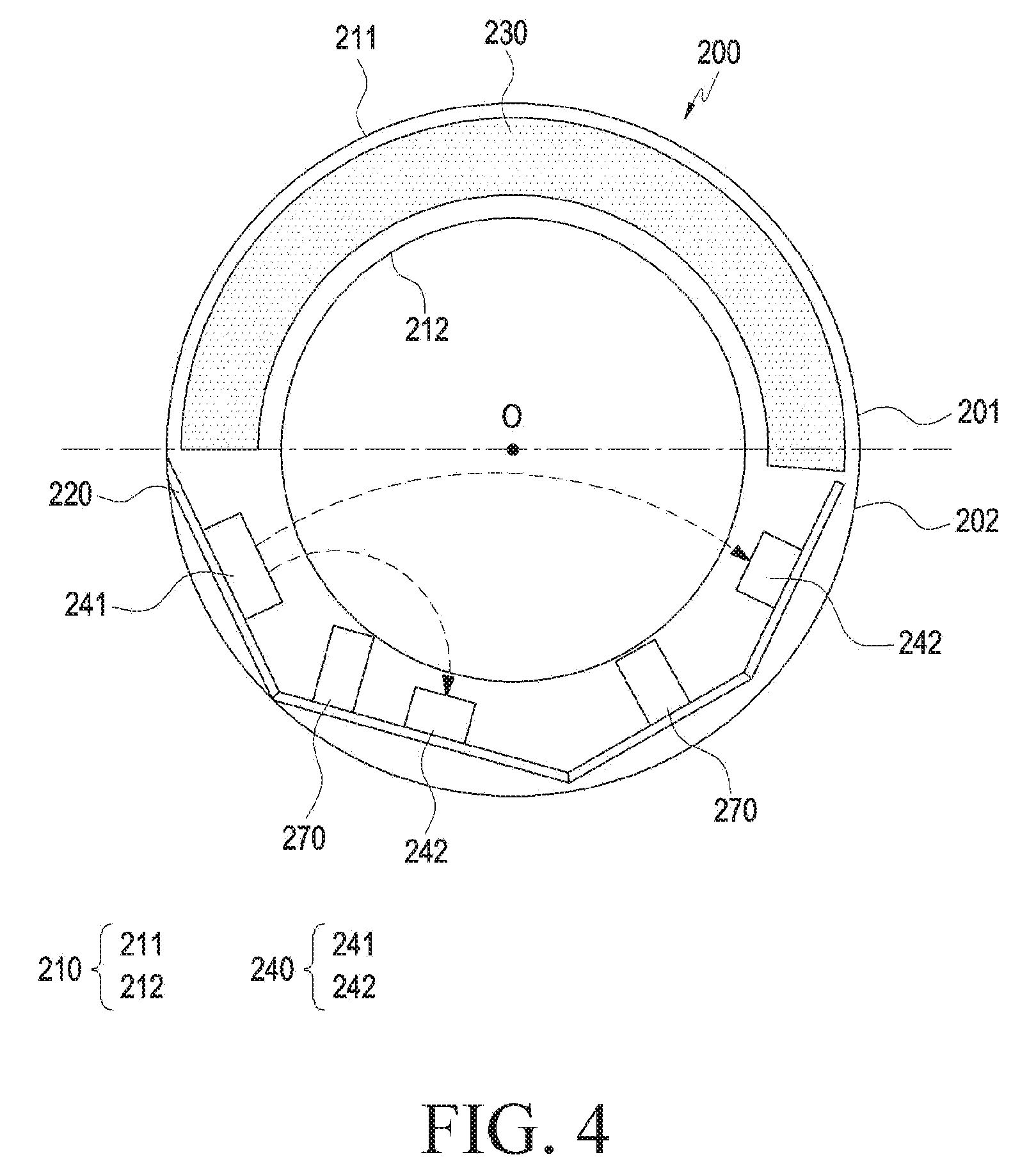

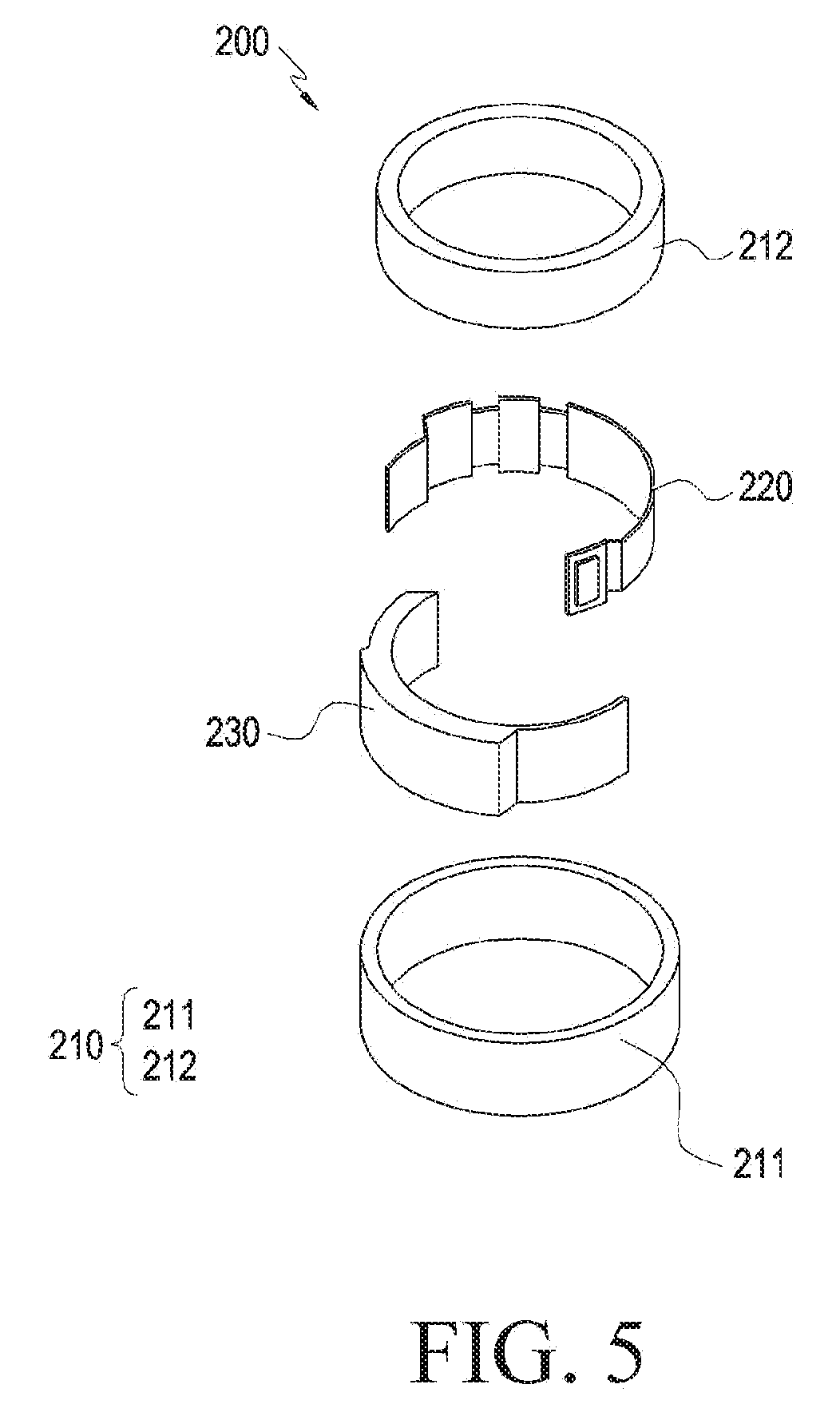

The patent describes an electronic device, almost certainly a wearable, built around a two-part housing: an outer shell and an inner shell. The inner shell has small protrusions, physical bumps that point inward toward the circuit board.

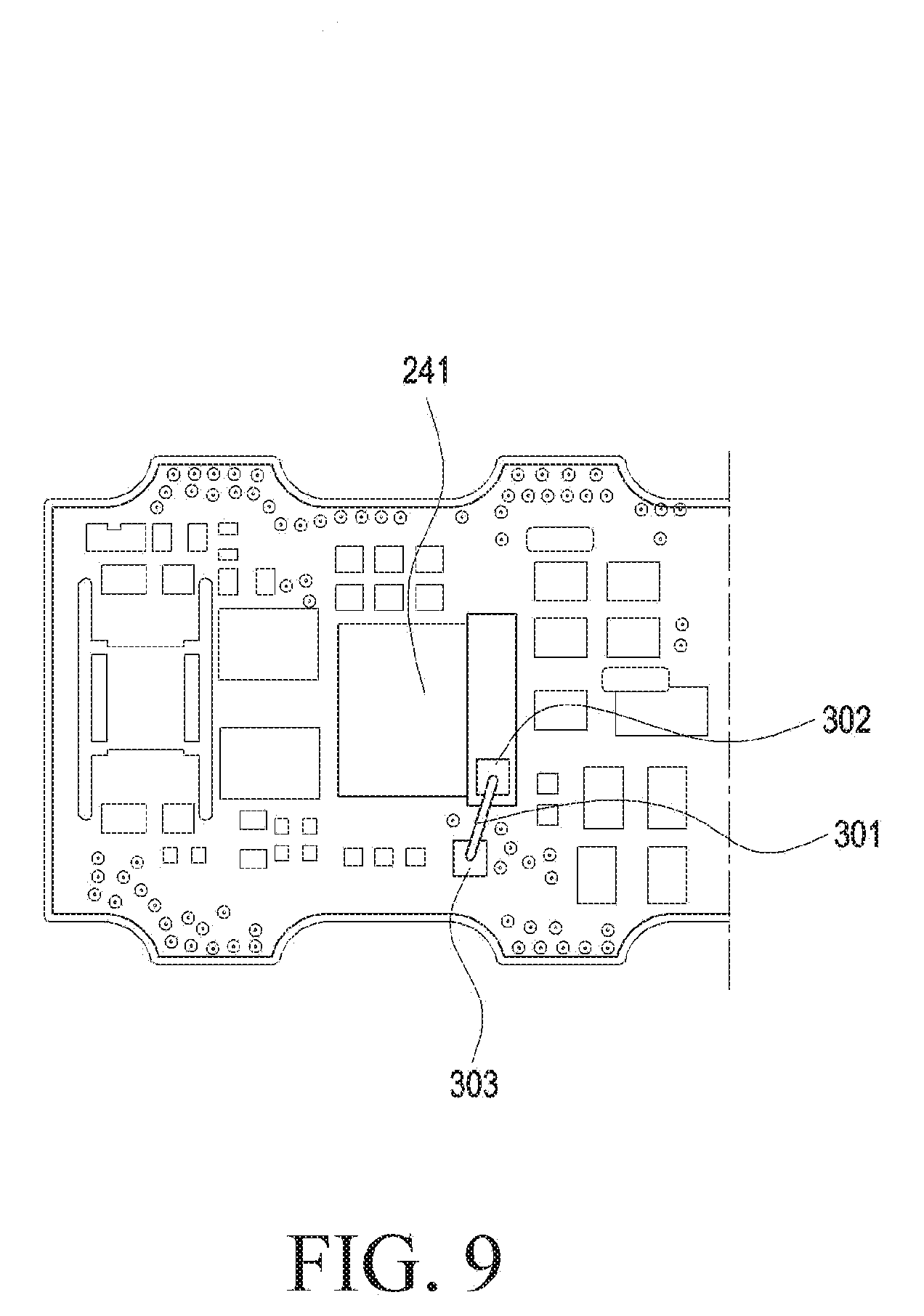

At each of those bumps, an optical element (a sensor that uses light, such as a photoplethysmography sensor used for heart-rate or blood-oxygen measurement) is mounted on the circuit board directly below. The sensor is electrically connected to the board via a conductor, which is standard wiring.
The key addition is a first coating layer applied to the inner housing at the location of each protrusion. This coating surrounds the optical element and has a defined first light transmittance (meaning it allows only a controlled amount of light to pass through). The protrusion geometry plus the coating together create a small enclosed zone for each sensor.
- Outer housing: structural exterior of the wearable
- Inner housing with protrusions: positions each sensor precisely and surrounds it with the coating
- Coating layer: controls how much ambient or scattered light can reach the sensor
- Circuit board and conductor: standard electronics connecting everything
… a first coating layer disposed to surround the at least one optical element, the first coating layer including a first light transmittance …
Translation: A special coating surrounds the sensor to control light levels.
What this means for Samsung's wearable health sensors
For wearable health sensors, accuracy depends heavily on isolating the light you want (the sensor's own emitted light bouncing back from your skin) from light you don't want (ambient light from the room or cross-talk from adjacent sensors). Solving this in hardware, by building a light-control coating into the housing itself, is more reliable than trying to compensate in software after the fact. It also potentially allows sensors to be packed closer together without one interfering with the next.
Samsung makes the Galaxy Watch and Galaxy Ring, both of which rely on optical sensors for health tracking, so the motivation here is direct. This kind of housing-level optical engineering sits alongside other interesting tech patents in the wearable sensor space, where the gap between accurate readings and unreliable ones often comes down to details most users never see.
That makes this Samsung's 17th filing we've tracked since June in our body-sensing wearables watchlist, which already includes one on a display that reads health stats and one on video adjusting to your body.
The physical work here is already done in concept: reshape part of the watch housing into small bumps, coat them with a light-controlling material, and mount the sensors underneath. That is a manufacturing decision, not a software update, which means the shortest path to a product runs through tooling and materials testing rather than years of new research.
Samsung already builds wearables with these kinds of sensors, so the supply chains and production lines exist. The main open question is whether the coating performs consistently across different skin tones and wearing conditions at scale.
A patent this narrow and specific usually signals something close to ready. Broad filings describe wishes; tight ones describe engineering that someone has already worked through. A quiet structural refinement like this tends to show up in the record just before a sensor accuracy improvement appears in a product, with no announcement attached.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

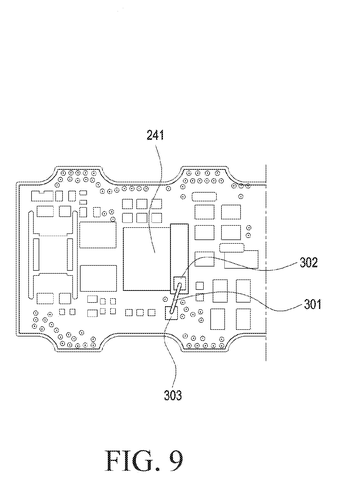

13 drawing sheets from US 2026/0252142 A1 · click any drawing to enlarge
