Samsung Patents a Chip Circuit That Randomly Scrambles Data Before Encrypting It

Samsung is patenting a way to scramble data inside a chip before encryption even begins, using a carefully sized network of switching circuits that guarantees every possible output is equally likely.

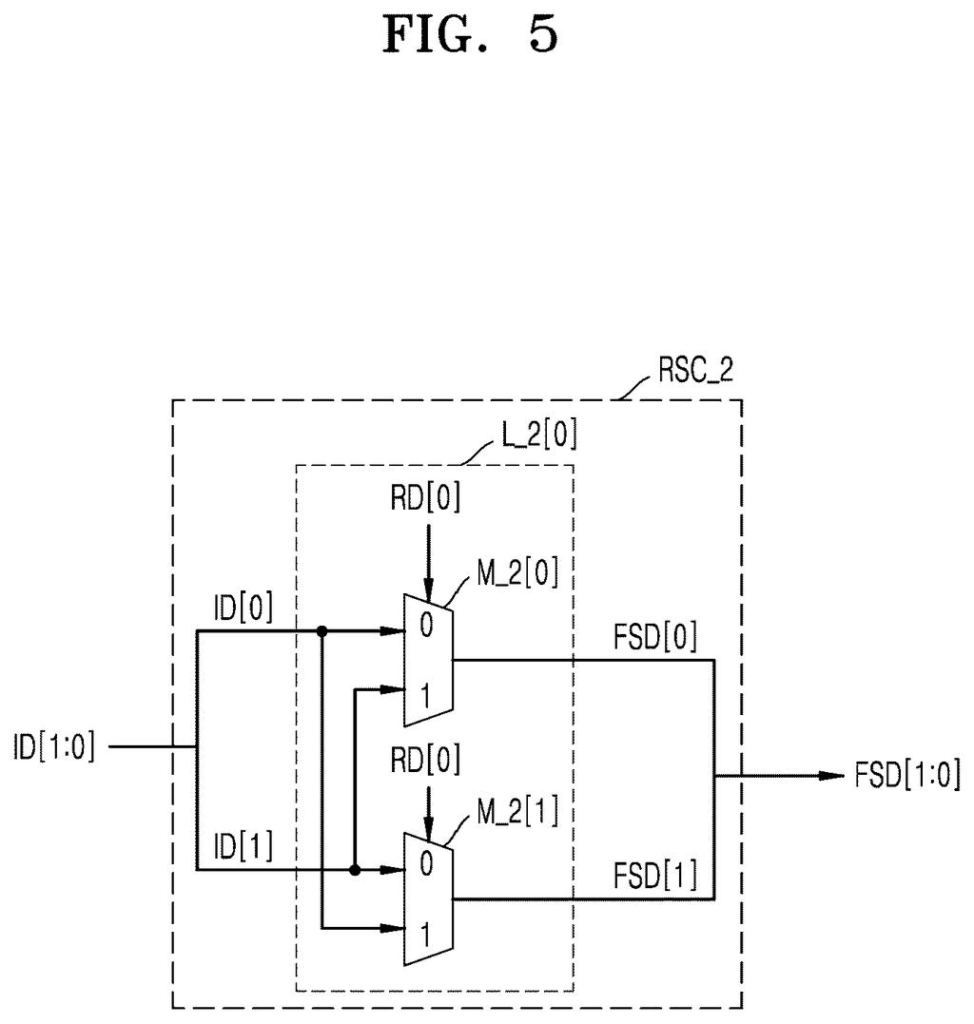

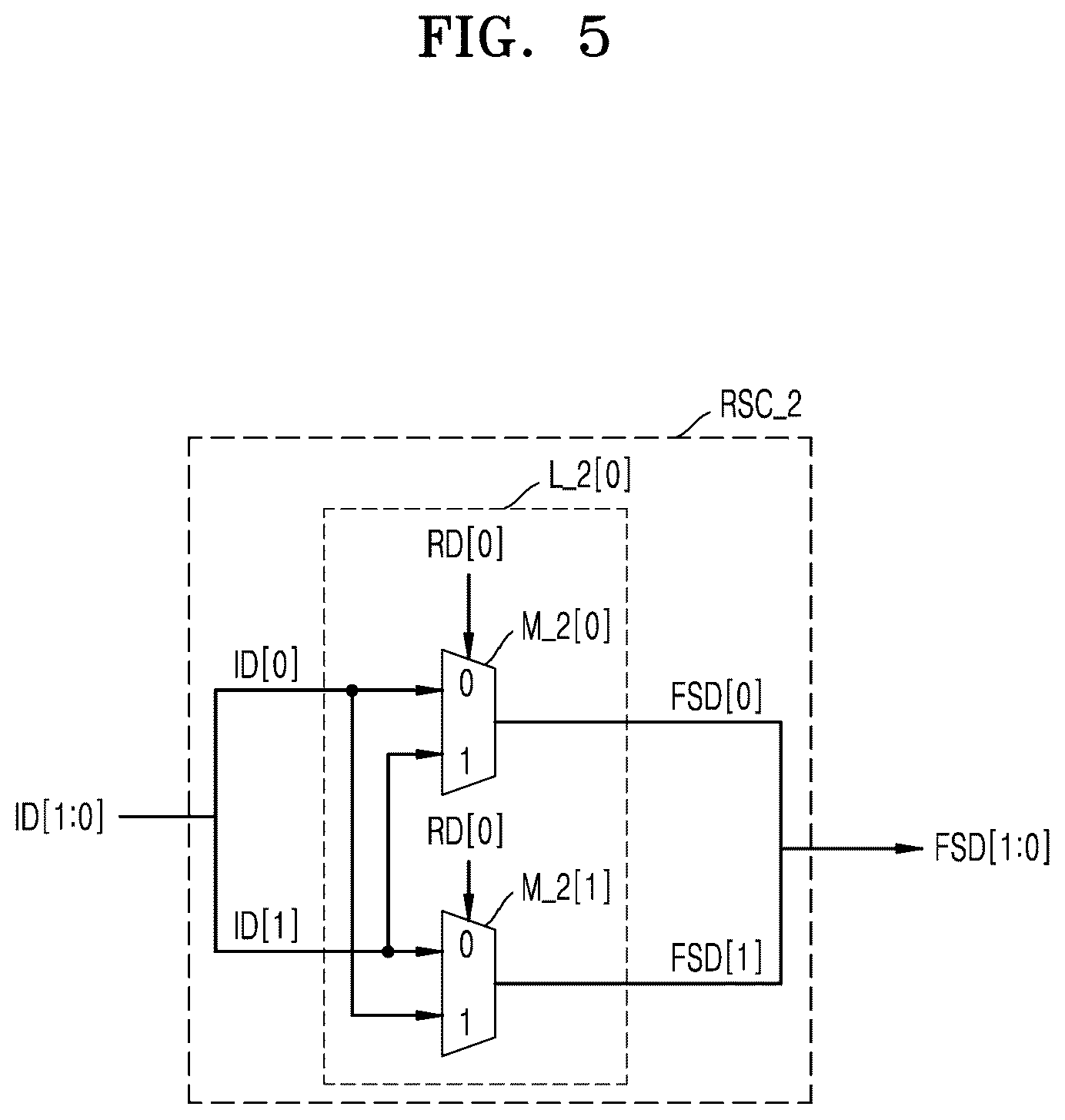

Multiplexer-based scrambling logic circuit routing data bits based on control signals. Drawing from patent filing US 2026/0246605 A1.
Multiplexer-based scrambling logic circuit routing data bits based on control signals.All 21 drawings ↓
Publication number
US 2026/0246605 A1(US20260246605A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Jan 16, 2026 · Aug 20, 2026
Inventors
Jaehyeok Kim
Status when we published
Waiting for an examiner
Document
20 claims
US classification
380/28

What Samsung's random data-shuffling chip actually does

Ever tried to hide something by putting it in a random spot? The problem is that "random" choices made by computers often aren't truly unpredictable, and attackers who study a chip's power usage or timing can sometimes reverse-engineer what the chip is doing. That's a real vulnerability in encryption hardware.

Samsung's patent describes a circuit that shuffles your data before the encryption step, the way a dealer shuffles a deck of cards before a hand is dealt. The key promise is a uniform distribution: every possible shuffled arrangement is equally likely, so an outside observer can't use statistics to guess what the original data looked like.

The shuffling is done by a network of tiny switches called multiplexers, organized in layers. The circuit is sized using a specific formula so it uses the minimum number of switches needed to hit that guarantee, keeping the chip small and power-efficient.

From the filing · CLAIM 1
… a random shuffling circuit configured to receive N input bits and perform a random shuffling operation on the N input bits, based on a plurality of layers each comprising the random data and an even number of multiplexers, to output final shuffling data having a uniform distribution …

Translation: The device uses layers of electronic switches to mix up input data until it is spread out in a completely random pattern.

How the multiplexer layers produce a uniform shuffle

The patent describes an encryption device built around two main pieces: a controller that generates random bits, and a random shuffling circuit that uses those bits to reorder incoming data before it gets encrypted.

The shuffling circuit is organized into layers, and each layer contains an even number of multiplexers (think of a multiplexer as a tiny switch that picks between two inputs based on a control signal). Each random bit from the controller drives exactly two of those switches, so no bit is wasted and no switch is left uncontrolled.

The total number of multiplexers is exactly 2 × K, where K is the number of random bits the controller produces. The number of layers is calculated using a formula that picks the smallest integer that fully covers K, divided by the largest integer that fits within half the input size N. In plain terms, the formula finds the most compact arrangement of layers that still achieves a complete, unbiased shuffle.

The input size N is constrained to the family N = 3 × 2b (so values like 6, 12, 24, 48...). The output is described as having a uniform distribution, meaning that after shuffling, an attacker cannot statistically distinguish one arrangement from another, which is the property that makes the extra step worthwhile for encryption.

From the filing · THE ABSTRACT
… a number of layers is a smallest integer from among integers greater than or equal to K divided by a largest integer from among integers less than or equal to N/2.

Translation: The patent uses a specific mathematical formula to determine how many processing layers are needed to scramble the data.

What this means for hardware-level encryption security

Side-channel attacks (methods where an attacker studies a chip's power draw, heat, or timing rather than the encrypted output itself) are a known, practical threat to hardware security. A shuffling step that truly randomizes which data goes where before encryption makes those statistical attacks much harder, because the attacker can no longer line up measurements with known data patterns.

The claim is tightly scoped to a specific mathematical structure: fixed input sizes, a precise multiplexer count, and a layer formula. That narrowness means this is a focused engineering solution rather than a broad claim over all hardware shuffling. Samsung's work on encryption circuits sits alongside a wider stream of interesting tech patents in the chip-security space that companies are filing as hardware-level attacks become a bigger concern.

Samsung's 16th filing we've tracked since June in our keeping AI private on devices work follows earlier applications like hiding personal info in 3D and scrubbing data before the blockchain.

Source: US 2026/0246605 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 21 sheets

21 drawing sheets from US 2026/0246605 A1 · click any drawing to enlarge

Basic encryption circuit architecture, drawing sheet 1 from US 2026/0246605 A1
Sheet 1 Basic encryption circuit architecture

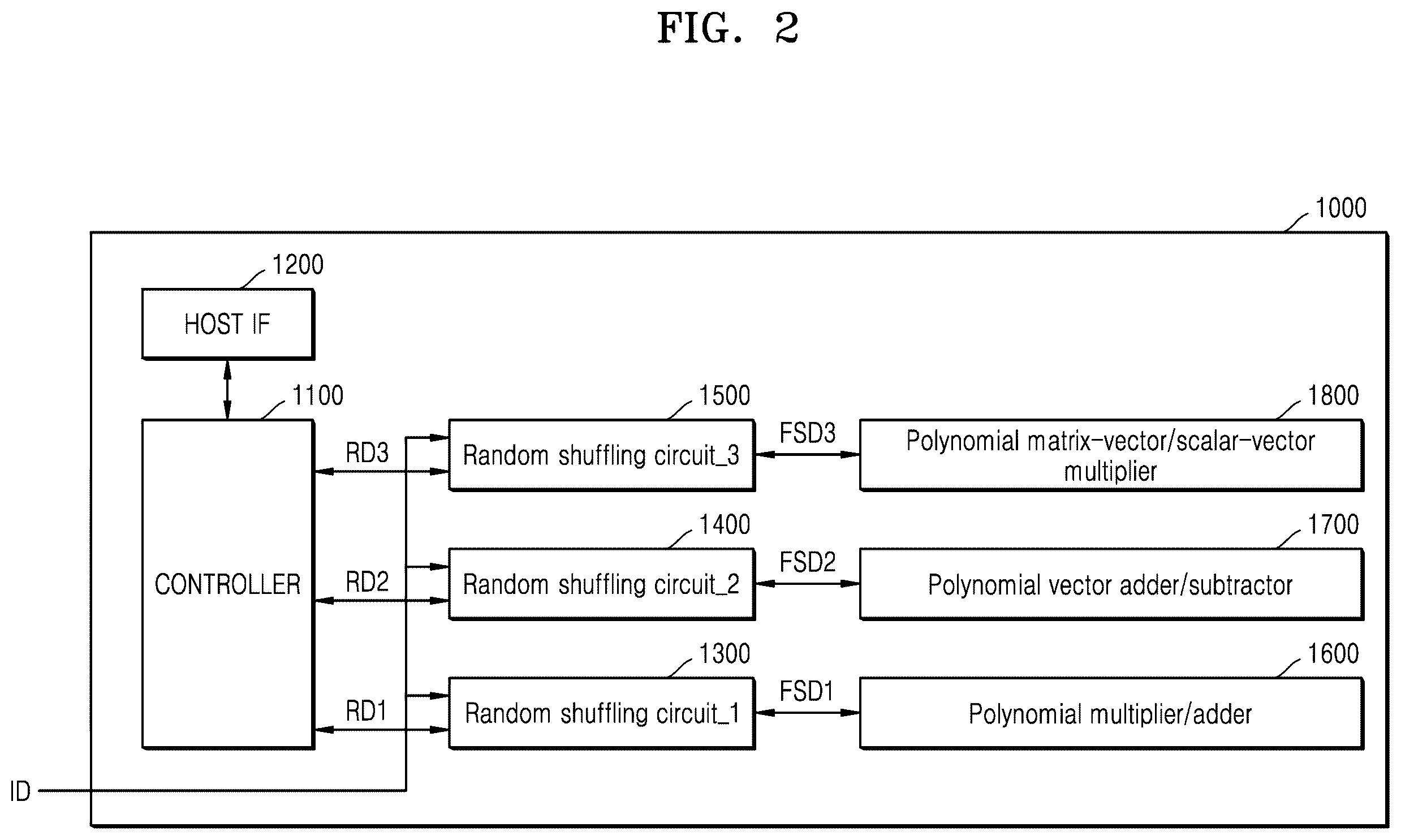

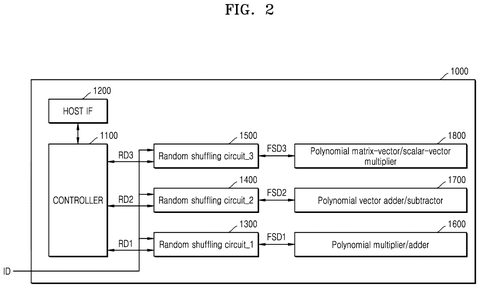

Multi-core cryptographic processor layout, drawing sheet 2 from US 2026/0246605 A1
Sheet 2 Multi-core cryptographic processor layout

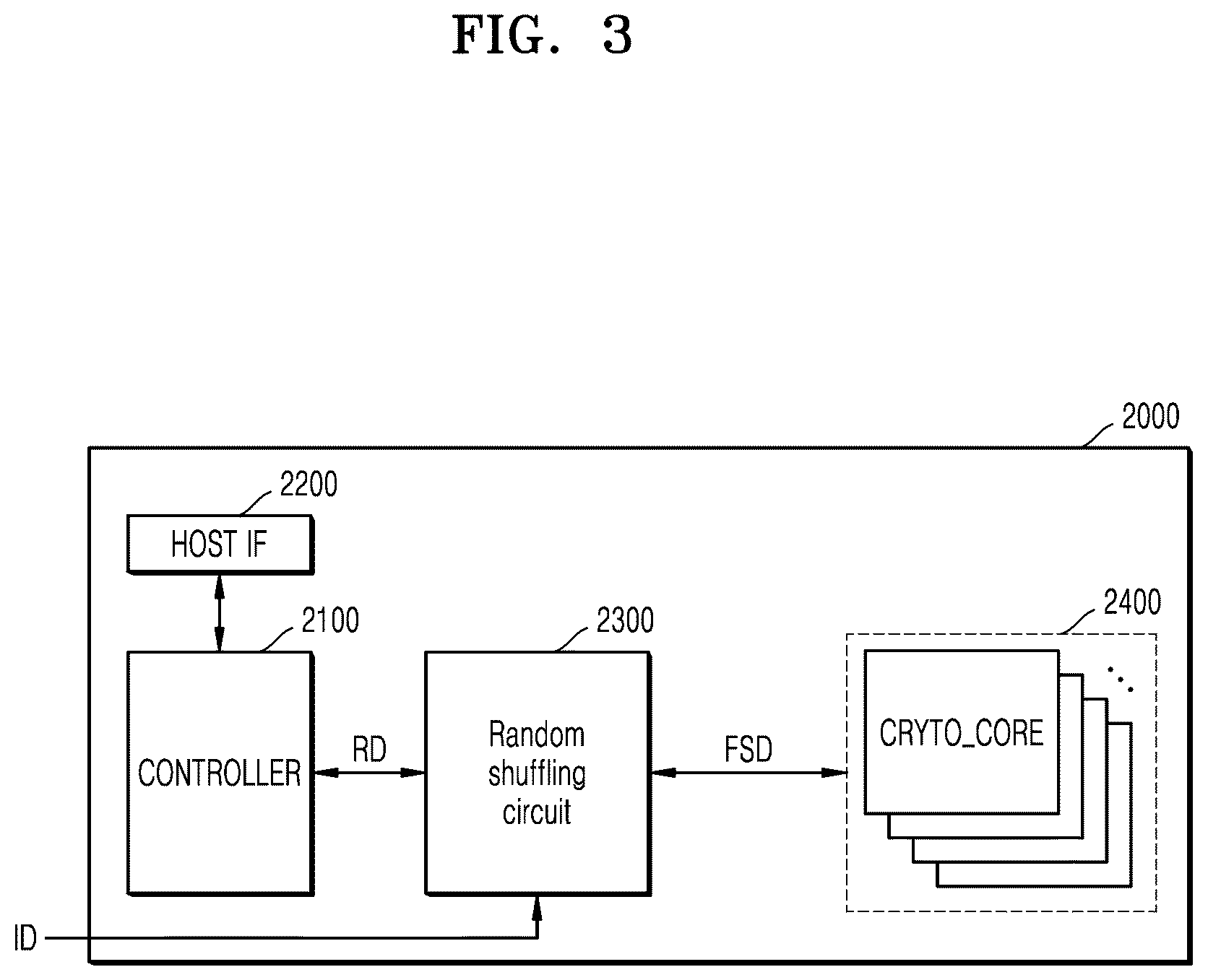

Cryptographic processor with shuffle circuit, drawing sheet 3 from US 2026/0246605 A1
Sheet 3 Cryptographic processor with shuffle circuit

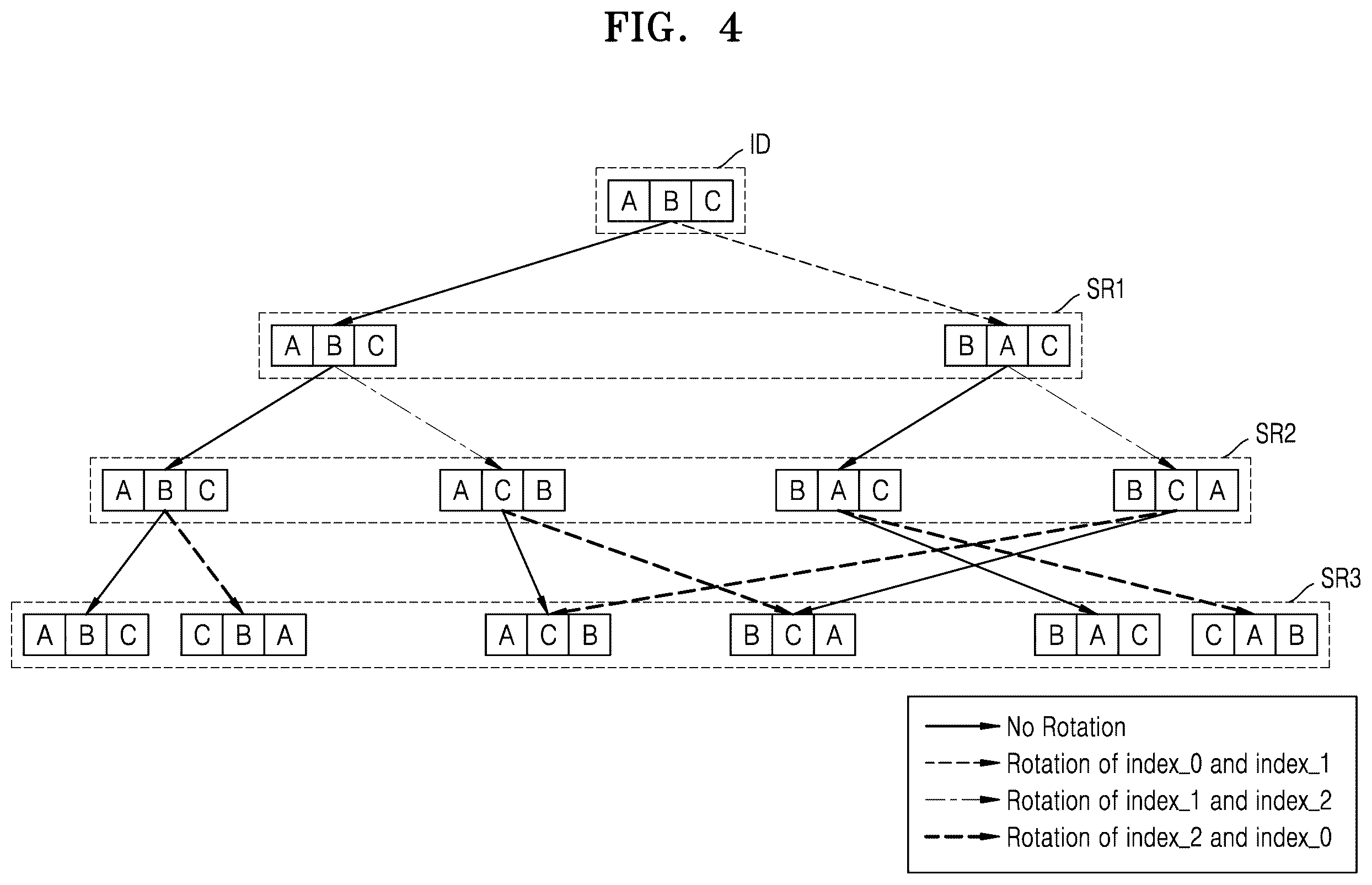

Tree-based data rotation pathways, drawing sheet 4 from US 2026/0246605 A1
Sheet 4 Tree-based data rotation pathways
Two-bit data scrambling circuit, drawing sheet 5 from US 2026/0246605 A1
Sheet 5 Two-bit data scrambling circuit
Two-bit data shuffling table, drawing sheet 6 from US 2026/0246605 A1
Sheet 6 Two-bit data shuffling table

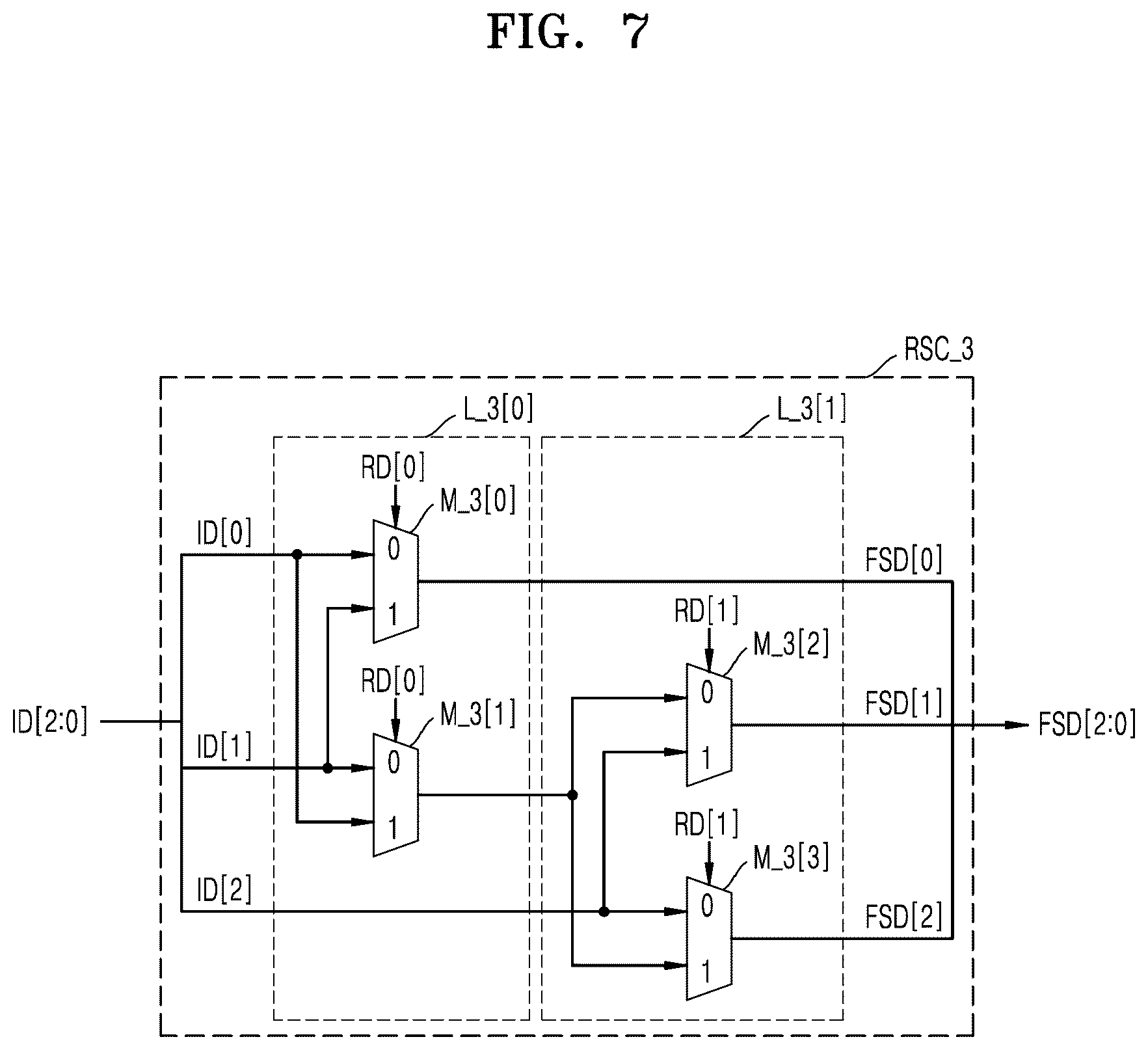

Three-bit data shuffling circuit, drawing sheet 7 from US 2026/0246605 A1
Sheet 7 Three-bit data shuffling circuit

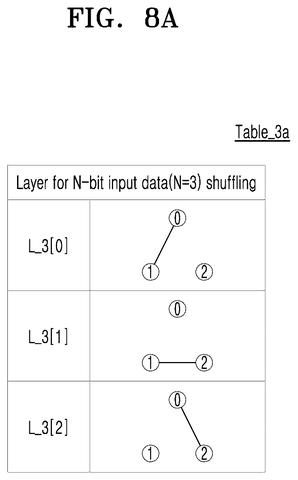

Three-bit data shuffling layers, drawing sheet 8 from US 2026/0246605 A1
