Sony Patent Connects Daisy-Chained Display Chips Through a Single Control Line
Most chip-to-chip wiring needs a separate control wire for every chip in the group. Sony's patent describes a way to string them all together on one shared line, like a series of lights on a single strand.
What Sony's daisy-chain chip setup actually does
Imagine you have a row of smart light bulbs, and you want a single controller to talk to each one individually. Normally you'd run a separate wire to every bulb. The more bulbs you add, the messier and more expensive the wiring gets.
Sony's patent proposes a different setup called a daisy chain: instead of each chip getting its own dedicated line back to the controller, the chips are linked in sequence. The "attention" signal that tells each chip when it's being addressed passes from one to the next along a single shared wire. The data and the timing signal still come from the central controller, but the coordination line is shared.
This is aimed at devices that use many small chips in a row, like the driver chips inside a display panel or an in-car screen. Fewer wires means simpler circuit boards, lower costs, and potentially thinner hardware.
… a plurality of reception devices configured to receive a data signal and a clock signal from the transmission device, wherein the plurality of reception devices are coupled in a daisy chain via a signal line configured to communicate a chip select signal.
Translation: Multiple display chips are linked in a chain and controlled together using one special signal line.
How the chip-select signal travels down the chain
The patent describes a communication apparatus built around a well-known chip interface called SPI (Serial Peripheral Interface, a standard way chips send data to each other in a tight, fast sequence).
In a typical SPI setup, the controller chip needs a separate chip-select line for every chip it talks to. That line works like a tap on the shoulder: it tells one specific chip, "pay attention, this message is for you." Add ten chips and you need ten separate wires just for that one job.
Sony's design chains the chips together so the chip-select signal travels in sequence:
- The controller sends data and a clock signal to all chips at once over shared lines.
- The chip-select signal arrives at the first chip, activates it, and then gets passed along to the next chip in the chain.
- Each chip knows when its turn is based on where in the sequence the activation signal arrives.
The patent specifically calls out use in display driver chips and automotive display systems, where a long strip of chips must be controlled efficiently without packing the circuit board with redundant wiring.
What this means for displays and in-car screens
Inside modern displays, especially large or high-resolution ones, rows of driver chips handle different sections of the screen. Sony Semiconductor Solutions' run of display-interface filings shows how seriously the company is treating the wiring problem at that chip level. The more chips you have, the more coordination wiring you need, and in thin panels or cramped car dashboards, space for that wiring is genuinely limited.
A daisy-chain approach directly attacks that constraint. Fewer dedicated wires means simpler board layouts, lower manufacturing costs, and designs that are easier to scale up. For everyday consumers, the practical payoff could show up as thinner screens or displays that fit into tighter spaces in cars and devices, without the circuit board underneath becoming a tangled mess.
That makes this Sony's sixth filing we've tracked in the AI chip wars since July, adding to work like their parallel image compression application and their AI video upscaling memory work.
Wiring is one of the least visible costs in a flat screen, and one of the most stubborn. A modern television border is packed with dozens of small driver chips, and until now each one has needed its own dedicated control wire, multiplying complexity in a space measured in fractions of a millimeter.
Sony's approach sends a single control signal through each chip in turn, so one wire handles what many wires handled before. That is a proportionate answer to a genuine manufacturing constraint, not a clever solution in search of a problem.
Screens keep getting thinner and cheaper because engineers keep finding ways to do more with less physical space. This patent sits directly inside that pressure.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

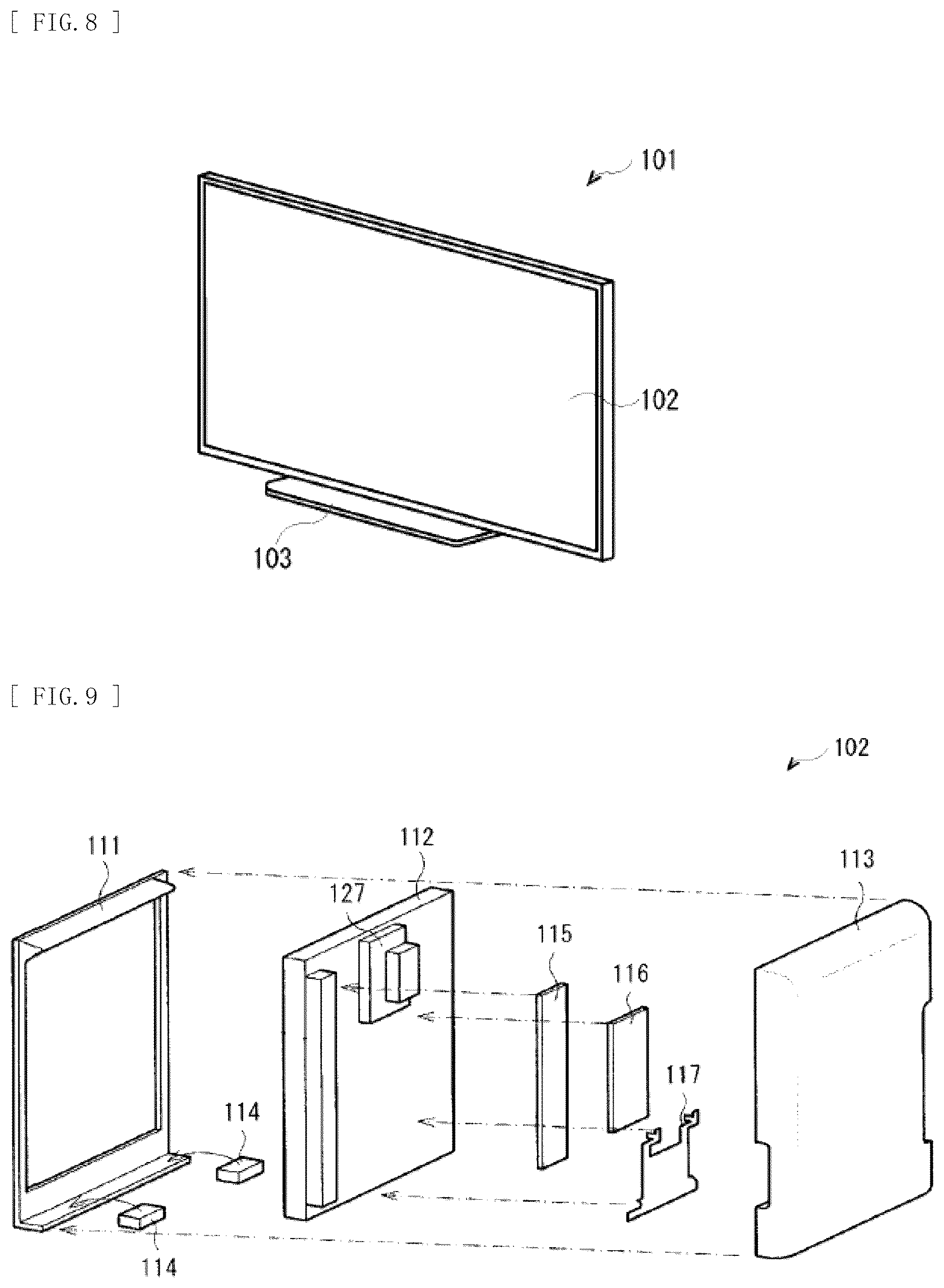

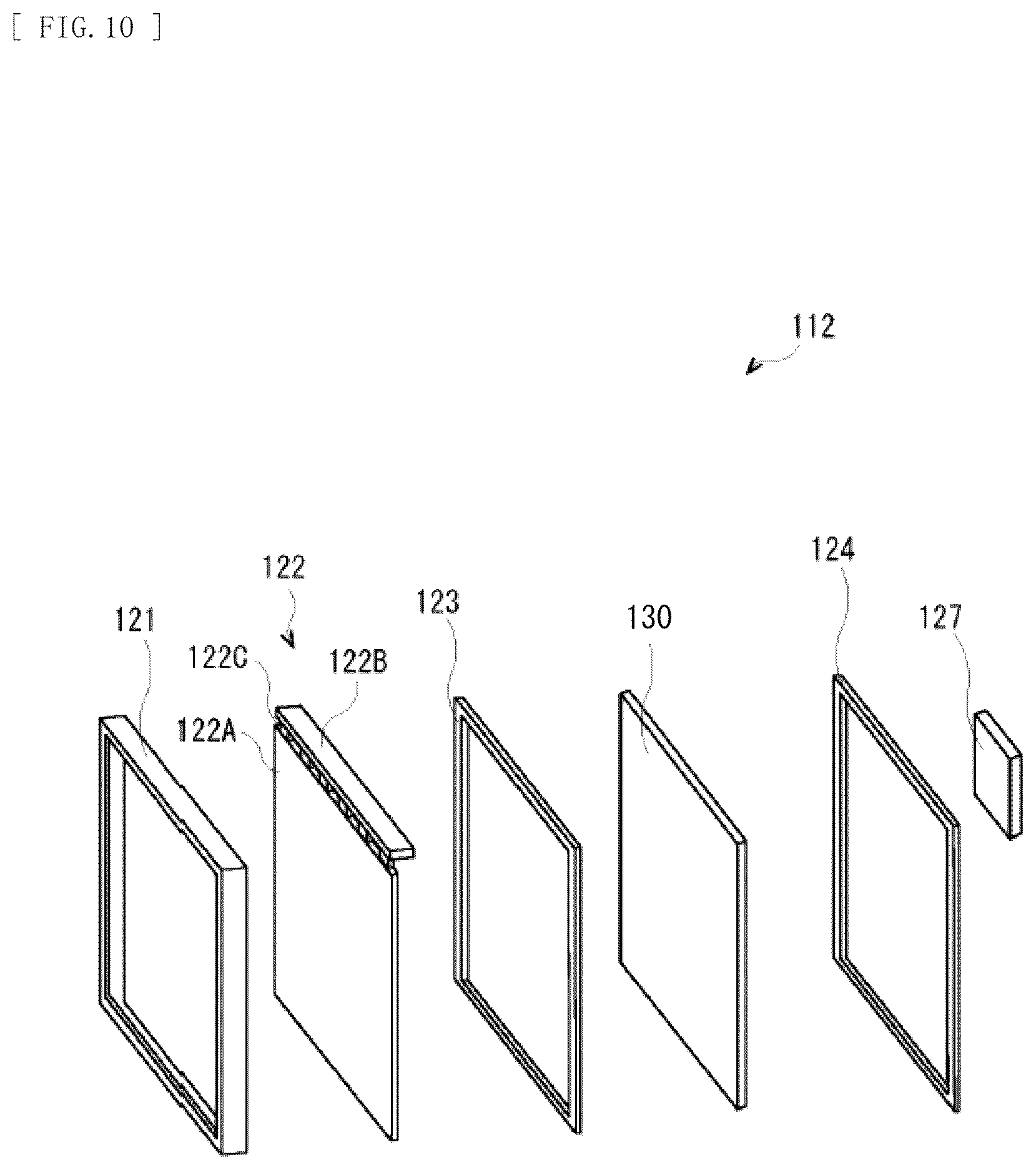

10 drawing sheets from US 2026/0260631 A1 · click any drawing to enlarge
